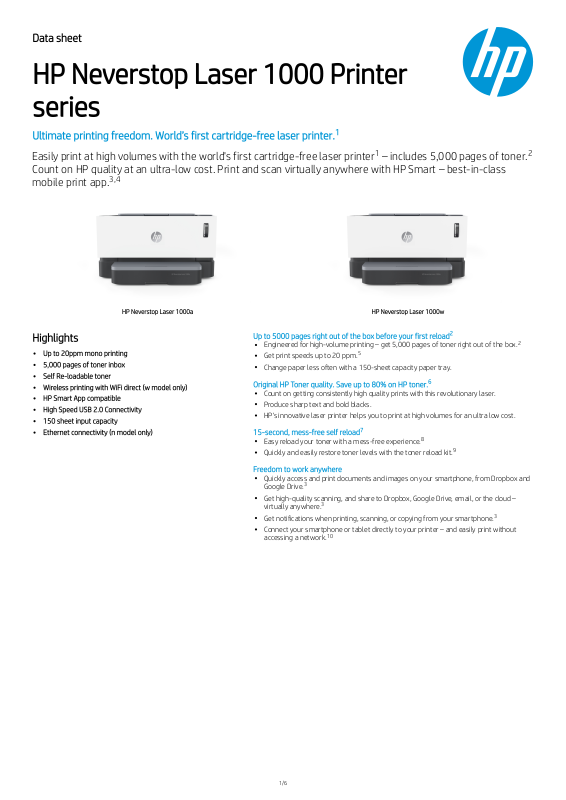

Data sheet

HP Neverstop Laser 1000 Printer
series

Ultimate printing freedom. World’s first cartridge-free laser printer.

Easily print at high volumes with the world's first cartridge-free laser printer – includes 5,000 pages of toner.
Count on HP quality at an ultra-low cost. Print and scan virtually anywhere with HP Smart – best-in-class
mobile print app.

HP Neverstop Laser 1000a HP Neverstop Laser 1000w

Highlights

Up to 20ppm mono printing
5,000 pages of toner inbox
Self Re-loadable toner
Wireless printing with WiFi direct (w model only)
HP Smart App compatible
High Speed USB 2.0 Connectivity
150 sheet input capacity
Ethernet connectivity (n model only)

Up to 5000 pages right out of the box before your first reload

Engineered for high-volume printing – get 5,000 pages of toner right out of the box.
Get print speeds up to 20 ppm.
Change paper less often with a 150-sheet capacity paper tray.

Original HP Toner quality. Save up to 80% on HP toner.

Count on getting consistently high quality prints with this revolutionary laser.
Produce sharp text and bold blacks.
HP's innovative laser printer helps you to print at high volumes for an ultra low cost.

15-second, mess-free self reload

Easy reload your toner with a mess-free experience.
Quickly and easily restore toner levels with the toner reload kit.

Freedom to work anywhere

Quickly access and print documents and images on your smartphone, from Dropbox and
Google Drive.

Get high-quality scanning, and share to Dropbox, Google Drive, email, or the cloud –
virtually anywhere.

Get notifications when printing, scanning, or copying from your smartphone.
Connect your smartphone or tablet directly to your printer – and easily print without

accessing a network.

1/6

1

1 2

3,4

2

2

5

6

7

8

9

3

3

3

10

Data sheet | HP Neverstop Laser 1000 Printer series

Product walkaround

HP Neverstop Laser Printer 1000w shown

1. 3 LED display

2. 100 sheet output bin

3. Hi-Speed USB 2.0 port

4. 20 ppm

5. Built-in wireless networking, Built-in Ethernet (n model only), Wi-Fi Direct printing (w
model only)

6. 150 sheet input tray

7. Pre-installed Original HP Toner delivers up to 5,000 pages

Series at a glance

Model HP Neverstop Laser 1000a HP Neverstop Laser 1000n HP Neverstop Laser 1000w

Product number 4RY22A 5HG74A 4RY23A

Functions Print

Memory/processor 32MB/500MHz

Control panel 3 LED

Mobile printing Not available HP Smart app

Connectivity USB USB, Ethernet USB, Wi-Fi

Recommended monthly page volume 250–2,500 pages 250-2,500 pages 250–2,500 pages

Print speed 20 ppm

2/6

Data sheet | HP Neverstop Laser 1000 Printer series

Accessories, Supplies and Support

Supplies W1103A HP 103A Black Original Neverstop Laser Toner Reload Kit (2,500 pages)

W1103AD HP 103AD Dual Pack Black Original Neverstop Laser Toner Reload Kit (Per kit: 2,500 pages)
W1104A HP 104A Black Original Laser Imaging Drum (20,000 pages)

Service and Support UB4Z7E HP 3 year Standard Exchange Service for Neverstop Laser 1000

UB4Z4E HP 3 year Next Business Day Exchange Service for Neverstop Laser 1000

Technical specifications

Model HP Neverstop Laser 1000a HP Neverstop Laser 1000n HP Neverstop Laser 1000w
Product number 4RY22A 5HG74A 4RY23A
Functions Print
Control panel LED
Print
Print technology Laser
Print speed Black (A4, normal) Up to 20 ppm;

First page out

Black (A4, ready): As fast as 7.6 sec;
Black (A4, sleep): As fast as 14 sec;

Black (A4, ready): As fast as 8.5 sec;
Black (A4, sleep): As fast as 15 sec;

Black (A4, ready): As fast as 7.6 sec;
Black (A4, sleep): As fast as 14 sec;

Print resolution

Black (best): Up to 600 x 600 x 2 dpi;
Technology: 600 x 600 dpi;

Monthly duty cycle Up to 20,000 pages A4; Recommended monthly page volume : 250 - 2,500 pages

Printer smart software features HP Auto-On/Auto-Off, HP Smart App

Apple AirPrint™, Mopria-certified, HP Auto-On/Auto­Off, HP Smart App, HP Smart Task

Apple AirPrint™, Mopria-certified, HP Auto-On/Auto­Off, Wi-Fi Direct, HP Smart App

Standard print languages PCLmS; URF; PWG

Print area

Print margins Top: 2 mm, Bottom: 2 mm, Left: 2 mm,
Right: 2 mm; Maximum print area: 216 x 297 mm

Print margins Top: 2 mm, Bottom: 2 mm, Left: 2 mm,
Right: 2 mm; Maximum print area: 216 x 355.6 mm

Print margins Top: 2 mm, Bottom: 2 mm, Left: 2 mm,
Right: 2 mm; Maximum print area: 216 x 297 mm

Duplex printing Manual (driver support provided)

3/6

1

2

3 4

Data sheet | HP Neverstop Laser 1000 Printer series

Model HP Neverstop Laser 1000a HP Neverstop Laser 1000n HP Neverstop Laser 1000w
Product number 4RY22A 5HG74A 4RY23A
Processor speed 500 MHZ
Connectivity
Standard Hi-Speed USB 2.0 port Hi-Speed USB 2.0 port; Fast Ethernet 10/100 Base Hi-Speed USB 2.0 port; Built-in Wi-fi 802.11b/g/n
Wireless No Yes

Mobile printing capability

Apple AirPrint™; Google Cloud Print™; HP Smart App
and other mobile Apps; Mopria™ Certified; Wi-Fi®
Direct printing

Apple AirPrint™; Google Cloud Print™; HP Smart App;
Mopria™ Certified; Wi-Fi® Direct printing

Network capabilities 10/100/1000 Base-TX Networking
Memory Standard: 32 MB; Maximum: 32 MB
Media handling
Number of paper trays Standard: 1 input tray ; Maximum: 1 input tray
Media types Plain paper; Heavy paper; Bond paper; Label; Light paper; Envelope

Media size

Custom (metric): 105 x 148.5 to 215.9 x 356 mm ;
Supported (metric): A6; A5; A4; No.10 envelope; C5
envelope; DL envelope; B5 (JIS); 105 x 148.5 to

215.9 x 297 mm

Custom (metric): 105 x 148.5 to 216 x 356 mm ;
Supported (metric): A6; A5; A4; No.10 Env; C5 Env;
DL Env; B5(JIS), Oficio 216x340; 105 x 148.5 to 216
x 356 mm

Custom (metric): 105 x 148.5 to 215.9 x 356 mm ;
Supported (metric): A6; A5; A4; No.10 envelope; C5
envelope; DL envelope; B5 (JIS); 105 x 148.5 to

215.9 x 297 mm

Media handling

Standard input: 150 sheet input tray
Standard output: 100 sheet output bin

Media weight 60 to 120 g/m²;

Input capacity

Tray 1: Sheets: 150; Envelopes: 1
Maximum: Up to 150 sheets

4/6

5

Data sheet | HP Neverstop Laser 1000 Printer series

Model HP Neverstop Laser 1000a HP Neverstop Laser 1000n HP Neverstop Laser 1000w
Product number 4RY22A 5HG74A 4RY23A

Output capacity

Standard: Up to 100 sheets
Maximum: Up to 100 sheets

Compatible operating systems

Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer; Apple®OS X EI Capitan
(v10.11) macOS Sierra (v10.12) macOS High Sierra, (v10.13), 1.5 GB available hard disk space, Internet required, USB; Linux: for more information, see
https://www.developers.hp.com/hp-linux-imaging-and-printing

Compatible network operating
systems

Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer; Apple®OS X EI Capitan
(v10.11) macOS Sierra (v10.12) macOS High Sierra, (v10.13), 1.5 GB available hard disk space, Internet required, USB; Linux: for more information, see
https://www.developers.hp.com/hp-linux-imaging-and-printing

Minimum system requirements

Windows: Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer;
Mac: Apple®OS X EI Capitan (v10.11), macOS Sierra (v10.12), macOS High Sierra (v10.13), 1.5 GB available hard disk space, Internet required, USB

Software included

For Windows OS: HP Software Installer, HP Software Uninstaller (exclude Win8+), HP PCLmS Printer Driver, HP Device Experience (DXP), HP Web Services Assist (HP
Connected), Device Setup & Software, online user manuals, HP Printer Assistant, HP Product Improvement Study; For Mac OS: Welcome Screen (directs users to

http://www.hp.com or OS App Source for LaserJet Software)
Printer management HP Printer Assistant (UDC); HP Device Toolbox; HP Utility (Mac)
Dimensions and weight
Printer dimensions (W x D x H) Minimum 380.5 x 293.4 x 211 mm; Maximum: 380.5 x 465 x 445 mm;
Package dimensions (W x D x H) 475 x 290 x 420 mm
Printer weight 6.93 kg 6.95 kg
Package weight 8.7 kg 8.9 kg 8.7 kg
Operating environment Temperature: 15 to 32.5°C; Humidity: 30 to 70% RH
Storage conditions Temperature: -20 to 40°C; Temperature: -20 to 50°C; Temperature: -20 to 40°C;
Acoustics Acoustic power emissions: 6.5 B(A); Acoustic pressure emissions: 51 dB(A)

Power

Requirements: 220V - 240V nominal at +/-10% (min

198V, max 264V), 50 - 60Hz nominal +/- 3Hz (min

47Hz, max 63Hz);

Consumption: 365 watts (active printing), 2.8 watts

(ready), 0.6 watts (sleep), 0.1 watts (manual off);

Typical Electricity Consumption (TEC) : Energy Star:

0.710 kWh/Week;

Power supply type: Internal (built-in) Power Supply;

Requirements: 220V - 240V nominal at +/-10% (min
198V, max 264V), 50 - 60Hz nominal +/- 3Hz (min
47Hz, max 63Hz);
Consumption: 307 watts (active printing), 5.3 watts
(ready), 0.93 watts (sleep), 0.1 watts (manual off);
Typical Electricity Consumption (TEC): Energy Star
version 3.0: 0.297 kWh/Week; Blue Angel: 0.69
KWh/Week;
Power supply type: Internal (built-in) Power Supply;

Requirements: 220V - 240V nominal at +/-10% (min
198V, max 264V), 50 - 60Hz nominal +/- 3Hz (min
47Hz, max 63Hz);
Consumption: 365 watts (active printing), 2.8 watts
(ready), 0.6 watts (sleep), 0.1 watts (manual off);
Typical Electricity Consumption (TEC) : Energy Star:

0.710 kWh/Week;
Power supply type: Internal (built-in) Power Supply;

Energy savings feature
technology

HP Auto-On/Auto-Off Technology

Certifications

EN 61000-3-2:2014, EN 61000-3-3:2013,

EN55024:2010, EN 55032:2012/AC:2013, ICES-003

Issue 5, CISPR22:2008, CISPR32:2012, other EMC

approvals as required by individual countries

EN 61000-3-2:2014, EN 61000-3-3:2013,
EN55024:2010, EN 55032:2012/AC:2013, ICES-003
Issue 5, CISPR22:2008, other EMC approvals as
required by individual countries

EN 61000-3-2:2014, EN 61000-3-3:2013,
EN55024:2010, EN 55032:2012/AC:2013, ICES-003
Issue 5, CISPR22:2008, CISPR32:2012, other EMC

approvals as required by individual countries
Blue Angel compliant Yes, Blue Angel DE-UZ 205—only ensured when using Original HP supplies
Country of origin Made in China

What's in the box

HP Neverstop Laser 1000a Printer; HP Black Original
Imaging Drum (5,000 pages yield, 20,000 pages
useful life); Reference guide; Setup guide; Regulatory
flyer; Support flyer; Warranty guide; Power cord

HP Neverstop Laser M1000w Printer; Preinstalled;
HP Black Original Imaging Drum (~5000 pages yield,
~20000 pages useful life); Reference guide; Setup
guide; Regulatory flyer; Support flyer; EU declaration
flyer (EU only); Warranty guide; Power cord; USB
cable

HP Neverstop Laser 1000w Printer; Preinstalled; HP

Black Original Imaging Drum (5,000 pages yield,

20,000 pages useful life); Reference guide; Setup

guide; Regulatory flyer; Support flyer; EU declaration

flyer; Warranty guide; Power cord; USB cable

Warranty

One-year limited hardware warranty. For more info,
please visit us at https://www.support.hp.com

HP one year hardware limited warranty. For full
terms and conditions visit:
http://www.hp.com/go/orderdocuments.

One-year limited hardware warranty. For more info,

please visit us at https://www.support.hp.com

5/6

11

2

4

6

7

8 8

9

Data sheet | HP Neverstop Laser 1000 Printer series

Footnotes

Constant toner self-reload using imaging-drum-in-place OEM toner supplies compared to majority of worldwide competing OEM monochrome laser printers <€250 and MFPs priced <€350 as of Nov 15, 2018. HP internal
research & Keypoint Intelligence-Buyers Lab 2018 study commissioned by HP. Market share as reported by IDC CYQ4 2018 Hardcopy Peripherals Tracker, 2018 Q4 Release. For details, see
http://www.keypointintelligence.com/HPNeverstop.

Actual yield varies considerably based on content of printed pages and other factors. Average based on ISO/IEC 19752 and continuous printing. For details see http://www.hp.com/go/learnaboutsupplies.

Requires the HP Smart app download. For details on local printing requirements see http://hp.com/go/mobileprinting.

Compared to majority of OEM mobile printing apps for inkjet, laser printers, all-in-ones for home, and home office, priced less than or equal to €429.99. Market share as reported by IDC CYQ2 2018 Hardcopy Peripherals Tracker.
Claim based on lab testing and research of printer manufacturer's mobile print apps and Keypoint Intelligence - Buyers Lab study commissioned by HP. See Sept 2018 report at http://www.keypointintelligence.com/HPSmartApp.

Excludes first set of test documents. For more information, see http://hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.

Based on internal HP comparison of MSRP/(MRSP for EMEA region) and cost-per-page of in-class HP LaserJet Pro M15 and HP LaserJet Pro MFP M28 with standard-fill HP 44A/48A Black Original LaserJet Toner Cartridge, as of
March 2019. For details see http://www.hp.com/go/learnaboutsupplies.

HP internal research and Keypoint Intelligence-Buyers Lab 2018 study commissioned by HP. For details see http://www.keypointintelligence.com/HPNeverstop.

When used in accordance with set up instructions.

Toner reload kit is not included with the printer, please purchase separately.

Mobile device needs to be connected to Wi-Fi Direct® signal of a Wi-Fi Direct-supported AiO or printer prior to printing. Details at http://www.hp.com/go/mobileprinting. Wi-Fi Direct® is a registered trademark of Wi-Fi Alliance®.

Technical specifications disclaimers

Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and
document complexity.

Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.

Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate
deployment of printers and MFPs to satisfy the demands of connected individuals or groups.

HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty
period.

Apple AirPrint - mobile device must have AirPrint®. Wireless operations are compatible with 2.4 GHz operations only. Learn more at http://www.hp.com/go/mobileprinting. Google Cloud Print™ 2.0 - requires Google Cloud Print™
registration and Google account. Wireless operations are compatible with 2.4 GHz operations only. Learn more at http://www.hp.com/go/mobileprinting.

Configuration tested: Wireless model, simplex printing, A4 paper at an average of 20 ppm.

Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on
measurement of 115 V device.

Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of
115 V device.

HP Black Original Laser Imaging Drum (introductory 5,000 page black toner yield provided, with 20,000 page Imaging Drum useful life). Actual yields vary considerably based on images printed and other factors. For details see
http://www.hp.com/go/learnaboutsupplies.

Not supporting Windows® XP (64-bit) and Windows Vista® (64-bit) . Not all "Compatible Operating Systems" are supported with INBOX software; Full solution software available only for Windows 7 and newer; For Windows

Server 2008 R2 64-bit, 2012 64-bit, 2012 R2 64-bit, 2016 64-bit only print driver is installed. Windows RT OS for Tablets (32 & 64-bit) uses a simplified HP print driver built into the RT OS; Linux systems use in-OS HPLIP software.

http://www.hp.com/uk

© Copyright 2020 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

Published in EMEA 4AA7-4831, March 2020

DOC-M

6/6

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

11
