HP 1000C User Manual

H
HP DeskJet 1000C
Professional Series
User’s Guide
This User’s Guide with video help is also
available in electronic copy in the Starter CD.
Acknowledgements
ColorSmart and HP ZoomSmart Scaling Technology are trademarks of Hewlett-Packard Company.
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows is a trademark of Microsoft Corporation.
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.
Print History
Edition 1 – June 1997
©Copyright 1997 by Hewlett-Packard Company 450 Alexandra Road Singapore 119960 Singapore
TABLE OF CONTENTS
1 Getting Started
Packing List.......................................................... 1-1
Printer Parts.........................................................1-1
Setting up the Printer..........................................1-2
STEP 1: Installing the Tray............................ 1-2
STEP 2: Connecting the Power Cable.......... 1-2
STEP 3: Connecting the Parallel Cable........1-2
STEP 4: Installing the Print Cartridges ........1-3
STEP 5: Loading Paper .................................1-4
STEP 6: Installing the Printer Software....... 1-5
STEP 7: Align Cartridge and Printer Test.....1-6
2 Getting the Most Out of Your Printer
Changing Print Settings......................................2-1
Using the DJ1000C Toolbox...............................2-1
Printing on Standard-Size Paper........................2-2
Printing on Custom-Size Paper..........................2-2
Printing on Envelopes.........................................2-3
Printing on Labels............................................... 2-3
Printing on Cards ................................................2-4
Printing on Thick (0.3mm) Cards....................... 2-5
Printing on HP Premium Transparencies
and Slides....................................................... 2-5
Printing on HP Premium Paper..........................2-6
Printing With Special Features...........................2-7
HP ZoomSmart Scaling Technology............ 2-7
Printing Booklet .............................................2-7
Printing Billboard........................................... 2-8
Printing Handouts.......................................... 2-8
2-sided Printing.............................................. 2-9
Printing Banner..............................................2-9
Printing Mirror Image.................................. 2-10
Printing in Normal Mode ............................2-10
Printing in DOS Box..........................................2-11
3 Solving Problems
Problem Solving Guidelines ..............................3-1
When the Printer Does Not Print .......................3-1
When the Lights Blink......................................... 3-2
When Paper is Jammed in the Printer ..............3-4
Media does not Feed Through the Printer
Correctly...............................................................3-5
When the Print Quality Is Not Satisfactory....... 3-6
When the Ink Nozzles are Clogged....................3-8
Testing the Printer...............................................3-8
4 Appendices
Customer Support...............................................4-1
Printer Specifications.......................................... 4-2
Regulatory Notices..............................................4-5
Declaration of Conformity..................................4-7
Hewlett-Packard Limited Warranty Statement. 4-8
1
8
1
Getting Started
PACKING LIST
1
HP DeskJet 1000C Printer
2
Power Cord
ERIES
S
H
ROFESSIONAL
P
2
3
4
5
6
H
DeskJet 1000C
PROFESSIONAL SERIES
User's Guide
7
3
Black Print Cartridge
4
Color Print Cartridge
5
Printer Software Diskettes
6
User’s Guide
7
Output Tray
8
Starter CD
5
4
6
#
9 8
"
!
1
3
2
7
PRINTER PARTS
1
Power Button and Indicator
2
Resume Button and Indicator
3
Cartridge Indicator
4
Paper Width Guide
5
Alternative Top Media Feed
(Holds up to 10 sheets of paper)
6
Main Bottom Media Tray (Holds up to 150 sheets paper)
7
Output Tray (Holds up to 50 sheets of printed paper)
8
Print Cartridge Latches
9
Printer Cover
!
Rear Media Feed (For printing thick paper requiring straight
paper path) Power Socket
"
#
Parallel Port
Getting Started 1-1
SETTING UP THE PRINTER
STEP 1
1
2
STEP 2
Remove the four tapes securing the printer (one is at the back). Open the top cover and remove the fifth tape and white packing material from the inside of the printer.
STEP 1: Installing the Tray
1.
Align the guides on the output tray with the grooves on the printer.
2.
Push the tray in to lock first the left side then the right.
Lower the tray to its horizontal position.
ERIES
S
H
ROFESSIONAL
P
3.
STEP 2: Connecting the Power Cable
1.
Plug the power connector firmly into the printer’s power socket.
2.
Plug the power plug into an electrical outlet .
STEP 3
2
4
1-2 Getting Started
STEP 3: Connecting the Parallel Cable
1.
Make sure the computer and the printer are turned off.
2.
Connect the printer end of the parallel cable firmly to the parallel port on the printer.
3.
Snap both clips onto the notches on the connector.
4.
Connect the computer end of the parallel cable to the parallel port on your computer and tighten the screws on the connector.
5.
To locate the parallel port on your computer, refer to your computer user’s guide.
Note:
For best performance, use an IEEE 1284
compliant parallel cable (HP part number C2950A or C2951A) and connect your printer directly to your computer.
STEP 4
1
2
4
STEP 4: Installing the Print Cartridges
Note:
Use only recommended print cartridges (HP
part no. 51645A for black and HP part no. 51641A for color). Both print cartridges are installed in the same manner.
ERIES
S
H
ROFESSIONAL
P
1.
Press the Power button to turn on the printer.
2.
Open the printer cover. The print cartridge cradle will move to the center of the printer and the cartridge light flashes.
3.
Remove the color print cartridge from its packing box.
4.

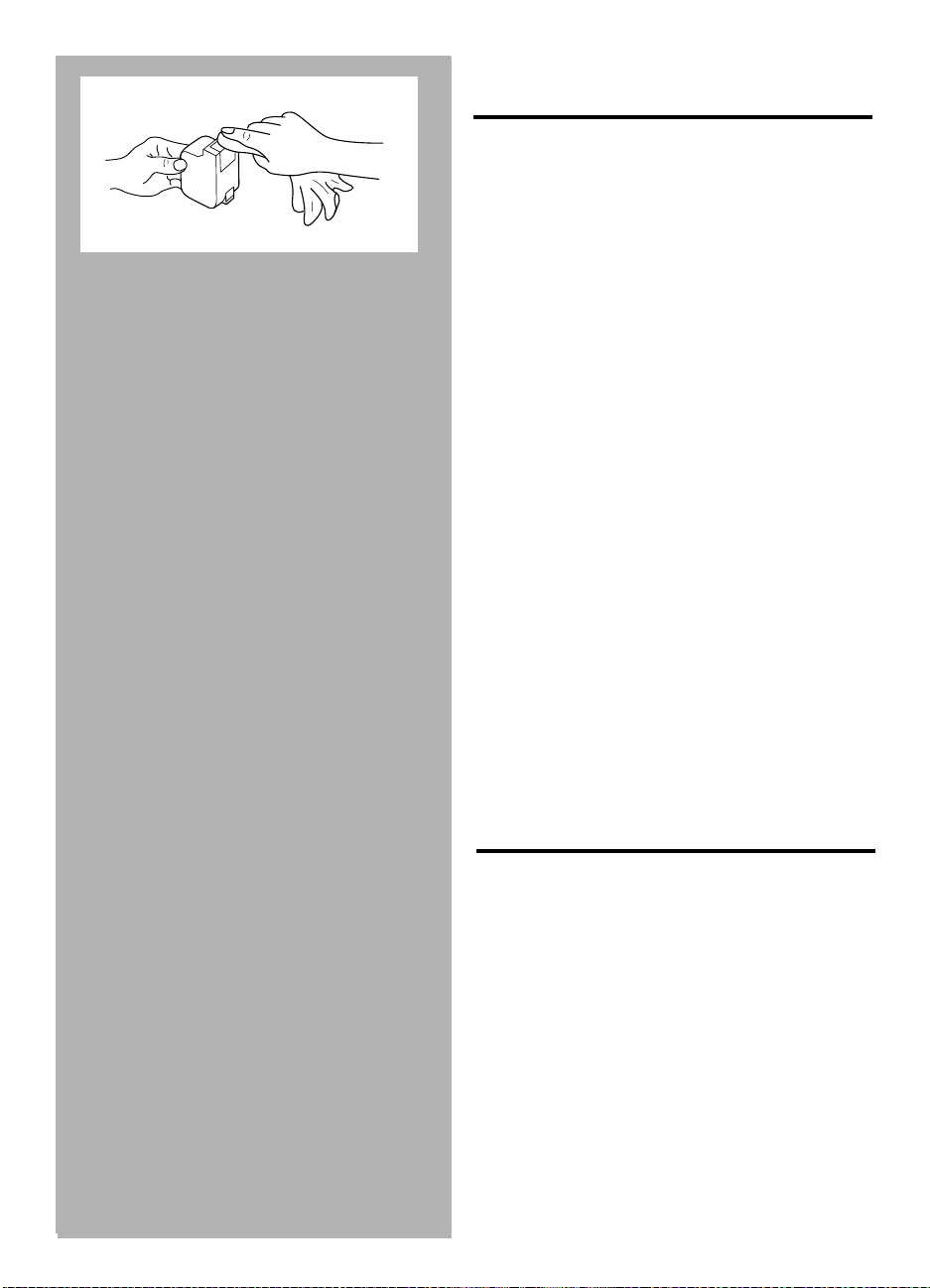

Gently remove the tape covering the ink nozzles. Be careful not to touch the ink nozzles or the copper contacts.
5.
Lift up the print cartridge latch.
6.
Insert the print cartridge into the cradle slot and push down the cartridge firmly.
7.
Push down the latch to secure the print cartridge.
8.
Remove the black print cartridge from its packaging box and repeat steps 4 to 7.
9.
Close the printer cover.
Note:
If you did not install a recommended print
6
7
cartridge, or the print cartridge is not properly installed, the print cartridge holder will move back to the loading position, and the Change Cartridge indicator will continue to blink.
Caution:
carefully formulated by Hewlett-Packard to ensure superior print quality and compatibility with your printer. Damage to the printer or the print cartridge resulting from modifying or refilling the print cartridge is not the responsibility of Hewlett-Packard.
The ink in the print cartridge has been
Getting Started 1-3
STEP 5
1
2
3
STEP 5: Loading Paper
The HP DeskJet 1000C printer prints on plain paper and most other types of paper. Most plain paper used for photocopying yields good results. See page
ERIES
S
H
ROFESSIONAL
P
4-2, “Recommended Printable Weight” for information on other paper types you can use. See also pages 2-2 through 2-4 for information on loading other size paper, envelopes, labels and thick paper.
Main Bottom Media Tray
1.
ERIES
S
H
ROFESSIONAL
P
ERIES
S
H
ROFESSIONAL
P
Raised the output tray and extend the paper width and length adjusters to the maximum.
2.
Insert up to 3/5 inch (15 mm) stack of paper aligning the right edge of the paper stack against the right side of the In-Tray, print side down. Slide the paper in until it stops.
3.
Slide the paper width and length adjusters in until they press lightly against the paper stack.
4.
Lower the output tray to its horizontal position.
1
H
2
H
3
H
1-4 Getting Started
ERIES
S
ROFESSIONAL
P
Alternative Top Media Feed
1.
Extend the paper width and length adjusters to the maximum.
2.
Insert up to a maximum of 10 sheets of paper aligning the right edge of the paper stack against the right side of the tray, print side down. Slide the paper in until it
ERIES
S
ROFESSIONAL
P
stops.
3.
Slide the paper width adjuster in until it presses lightly against the paper stack.
Note:
You do not need to remove paper from the
main bottom tray when you use the alternative feed. The printer will check for paper feeding from the alternative media feed. If paper is detected, the
ERIES
S
ROFESSIONAL
P
printer will pick paper from there without checking the main tray.
STEP 6: Installing the Printer Software
Before you can use the printer, you must install the printer software. To install the printer software, you need at least 8 Mb of RAM and Microsoft Windows
3.1x or 95 installed in your computer. Please refer to page 4-2, “Hardware Compatibility” for hardware requirements.
From Starter CD-ROM in Windows 3.1
1.
Start
Microsoft Windows
no other
Windows
running.
2.
3.
Put the Choose
Starter CD
File
in the
window menu.
4.
5.
Choose At the
or
Run
from the
Command Line
e:\install
depending on which
represents your CD-ROM drive.
6.
Click on the OK button. Follow the instructions that appear on the
7.
screen to complete the installation of the CD.
8.
Click on the Printer Driver to install your printer driver.
9.
After installation, restart windows.
and make sure
applications are
in your CD-ROM drive .
Program Manager
File
menu.
box, type
d:\install
From Starter CD-ROM in Windows 95
1.
Close all running applications and disable any anti-virus programs.
2.
Put the Starter CD in your CD-ROM drive .
3.
Your computer will recognize the CD and run the setup. If it doesn’t, double click on the CD icon in My Computer.
4.
Follow the instructions that appear on the screen to complete the installation of the CD.
5.
Click on the Printer Driver to install your printer driver.
6.
Follow the instructions. Click Have Disk.
7.
Click Browse and select d:\driver\disk1 for the English driver and d:\fdriver\disk1 for the French driver.
Getting Started 1-5
From Floppy Disks in Windows 3.1
1.
Start Microsoft Windows and make sure no other Windows applications are running.
2.
Choose File in the Program Manager window menu.
3.
Choose Run from the File menu.
4.
Insert Disk 1 into the disk drive A or B of your computer.
5.
At the Command Line box, type a:\setup or b:\setup depending on where you insert
Disk 1.
6.
Click on the OK button.
7.
Follow the instructions that appear on the screen to complete the installation of the printer software.
From Floppy Disks in Windows 95
Turn on the printer before turning on the computer. Windows 95 should recognize the attached printer and walk you through the installation instructions. If a screen with instructions does not appear, do the following:
1.
Close all running applications and disable any anti-virus programs.
2.
Click Start, then click Settings.
3.
Select Printers from the Settings menu.
4.
Double click Add Printer.
5.
Click Next until you see a list of manufacturers and printer models.
6.
Click the Have Disk… button, insert Disk 1 , and follow the instructions on the computer screen.
7.
After installation, restart windows.
1-6 Getting Started
STEP 7: Align Cartridges and Printer Test
You should align the print cartridges whenever a cartridge is installed. This ensures that black and color inks will align when printed together on the same text, line, or graphic.
1.
Run the DJ1000C Toolbox software utility by double clicking on the icon on the desktop or in the program group.
2.
Click the Maintenance tab, and select Align Print Cartridges. Follow the
instructions on the computer screen.
You can select Print a Self-Test from the HP DJ1000C Toolbox to test the printer set-up.
2
Getting the Most Out of Your Printer
CHANGING PRINT SETTINGS
HP’s Print Settings provide adjustments for every extended printing capability your printer offers.
To change the print settings for the current document, change the print settings from within your software program. This procedure will vary depending on the software program you are using.
1
. Select either
Setup
2
. Click
3a
3b
3c
4
3d
. Change the settings under the Setup,
4
Printer, Setup, Options
according to the software program you are using and the command you chose in step
1.
. If you click Printer in step 2, you will need
to click
. If you click Setup, you will either see the
HP Print Settings right away, or you will need to click
. If you click Options, you will need to click
Setup
. If you click Properties, you will see the HP
Print Settings right away.
Color, Features or DOS tabs in the HP print settings dialog box.
Print, Print Setup
from the File menu.
Options
.
, then
Options
Setup
.
or
or
Properties
.
Printer
USING THE DJ1000C TOOLBOX
The HP DeskJet 1000C Toolbox is a software program that provides a single point of access to the following:
How Do I?
Tutorials of common printing tasks.
Troubleshooting
Step-by-step printing problem solutions (dignostic tools help you solve your problems).
Maintenance
Provides printer status and easy service steps.
Access HP
Get HP information source.
The Toolbox appears on your Windows desktop every time you restart Windows. You may need to minimize the active window in order to see the icon. Double click on the icon to launch this software.
Getting the Most Out of Your Printer 2-1
PRINTING ON STANDARD-SIZE
1
ERIES
S
H
ROFESSIONAL
P
2
ERIES
S
H
ROFESSIONAL
P
3
ERIES
S
H
ROFESSIONAL
P
4
ERIES
S
H
ROFESSIONAL
P
PAPER
US Legal, Executive, Letter, A3, 11”x17”, 13”x19”, B5 and A5 size papers can be printed on the printer. Use the main bottom media tray for paper that you normally use to print on. Use the alternative top media tray (holds up to 10 sheets of paper only) for occasional printing on different size paper.
1
. Raise the output tray and extend the paper
width and length adjusters to the maximum.
2
. Insert up to a maximum of 150 sheets of
paper aligning the right edge of the paper stack against the right side of the tray, print side down.
3
. Slide the paper width and length adjusters
in until they press lightly against the paper stack.
4
. Lower the output tray to its horizontal
position.
5
. In HP’s print settings dialog box, click the
Setup
tab and select the correct size in the
Paper Size
6
. Proceed to print your document.
box.
PRINTING ON CUSTOM-SIZE PAPER
2-2 Getting the Most Out of Your Printer
Custom or odd size papers can be printed on the printer.
1
. Extend the paper width and length
adjusters to the maximum.
. Insert up to a maximum of 150 sheets of
2
paper aligning the right edge of the paper stack against the right side of the tray, print side down.
3
. Slide the paper width and length adjusters
in until they press lightly against the paper stack.
4
. In HP’s print settings dialog box, click the
Setup
tab and select
Size
box. The Custom Paper Size dialog
Custom
in the
Paper
box appears.
5
. Under Paper Size, type the values in the
Width and Length boxes, and then click
OK
.
6
. Proceed to print your document.
Loading...
+ 28 hidden pages
