Hovertech Q2Roller HTR-200 User Manual
User Manual
Intended Use and Precautions
INDICATIONS FOR USE
Patients who are unable to turn or laterally position themselves
CONTRAINDICATIONS
Patients who are experiencing thoracic, cervical or lumbar fractures that are
deemed unstable
INTENDED CARE SETTINGS
Hospitals, long-term or extended care facilities
PRECAUTIONS
• Ensure the Q2Roller meets the patient’s needs before using.
• Always use a minimum of two caregivers when operating the Q2Roller.
• Ensure valves are not in contact with the patient while on the Q2Roller.
• Product should only be used by trained personnel.
• Only use attachments and/or accessories that are authorized by
HoverTech International.
• Use the Q2Roller according to instructions.

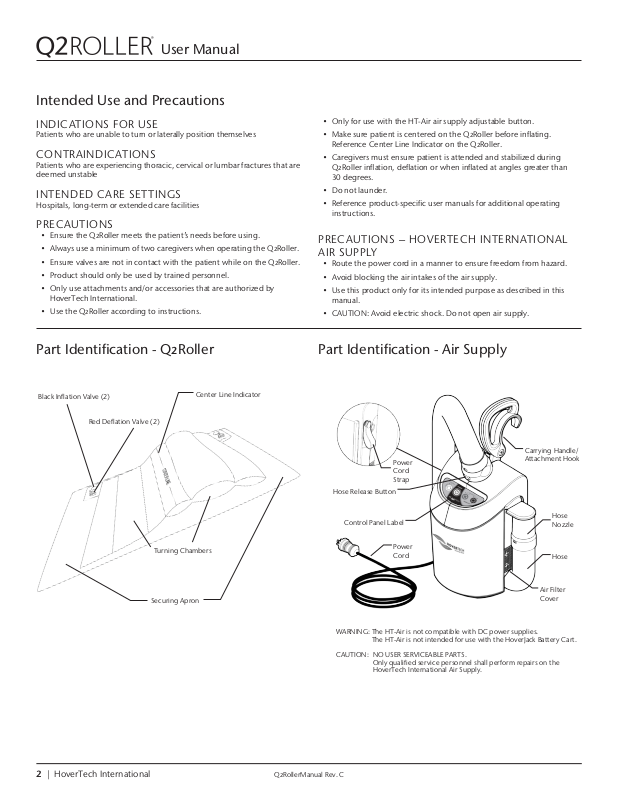

Part Identification - Q2Roller
Black Inflation Valve (2)
Center Line Indicator
• Only for use with the HT-Air air supply adjustable button.
• Make sure patient is centered on the Q2Roller before inflating.
Reference Center Line Indicator on the Q2Roller.
• Caregivers must ensure patient is attended and stabilized during
Q2Roller inflation, deflation or when inflated at angles greater than
30 degrees.
• Do not launder.
• Reference product-specific user manuals for additional operating
instructions.
PRECAUTIONS – HOVERTECH INTERNATIONAL
AIR SUPPLY
• Route the power cord in a manner to ensure freedom from hazard.
• Avoid blocking the air intakes of the air supply.
• Use this product only for its intended purpose as described in this
manual.
• CAUTION: Avoid electric shock. Do not open air supply.
Part Identification - Air Supply
Red Deflation Valve (2)
Securing Apron
Turning Chambers
Carrying Handle/
Power
Cord
Strap
Hose Release Button
Control Panel Label
Power
Cord
WARNING: The HT-Air is not compatible with DC power supplies.
CAUTION: NO USER SERVICEABLE PARTS.
Only qualified service personnel shall perform repairs on the
The HT-Air is not intended for use with the HoverJack Battery Cart.
HoverTech International Air Supply.
Attachment Hook
Air Filter
Cover
Hose
Nozzle
Hose
2 | HoverTech International Q2RollerManual Rev. C
User Manual
Air Supply Keypad Functions
(Green Flashing LED)
Indication
Adjustable/
Pressure
Setting
Standby (Amber LED)
Power IndicationAdjustable Speed
Green LEDs
Transfer
Speed
Low
Instructions for Use
1. Ensure the red deflation valves are capped tightly before beginning
inflation.
2. Place the Q
Line Indictor.
3. Tuck the securing apron of the Q
keep it in place during use.
4. Remove the backing from the adhesive strips on the Q
center it on top of the Q2Roller (if the patient is already on the
mattress, place the device and pad under the patient using a
log-rolling technique).
5. With the patient centered on the device, ensure all bed/stretcher
rails are up.
2Roller on the bed mattress, and center using the Center
2Roller under the bed mattress to
2R Pad, and
Transfer
Speed
High
The ADJUSTABLE keypad function has four dierent settings.
Each press of the button increases the air pressure and rate
of inflation. The Green Flashing LED will indicate the inflation
speed by the number of flashes (i.e. two flashes equals the
second inflation speed).
STANDBY: Used to stop inflation/air flow (Amber LED indicates
STANDBY mode).
6. Locate the inflation valve on the OPPOSITE side of the turn direction,
and place the air supply hose over the valve. Press the ADJUSTABLE
button on the HT-Air keypad to initiate air flow. If necessary, press this
button up to 3 more times to increase air flow and rate of inflation.
7. When the turn is complete, remove the hose from the valve and press
the STANDBY button on the air supply keypad to stop air flow. Chamber may not need to be fully inflated to achieve desired position.
8. To quickly deflate the Q
valve. To slowly deflate or adjust the chamber, depress the center of
the black inflation valve.
2Roller, remove the red cap from the deflation
Product Specifications/Required Accessories
Q2ROLLER® LATERAL TURNING DEVICE
Material: Polyurethane
Construction: RF Welded
Width:
Length:
LATEX FREE
Model #: HTR-200
Patient Weight Limit: 600 lbs. (272 kg)
Single-Patient Use
Chambers: 46.5" (118 cm)
(combined chamber width)
Apron: 72" (183cm)
Chambers: 44.5" (113 cm)
Apron: 44" (112 cm)
: 1300 106 003
T
E: info@hmsmedical.com.au
www.hmsmedical.com.au
Q2R® PAD
Material: Non-Woven, Breathable PE, Wooden Paper
Construction: Thermal Bonding
Width: 39” (99 cm)
Length: 39” (99 cm)
