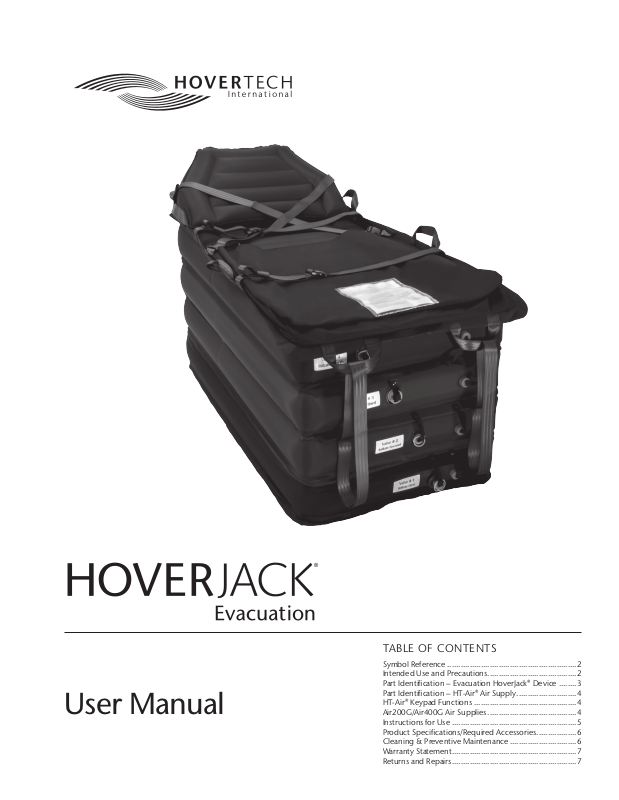

Hovertech HJ32EV User Manual

User Manual

TABLE OF CONTENTS

Symbol Reference ..........................................................2

Intended Use and Precautions ........................................2

Part Identification – Evacuation HoverJack® Device ........3

Part Identification – HT-Air® Air Supply ...........................4

HT-Air® Keypad Functions ..............................................4

Air200G/Air400G Air Supplies ........................................4

Instructions for Use ........................................................5

Product Specifications/Required Accessories ..................6

Cleaning & Preventive Maintenance ..............................6

Warranty Statement........................................................7

Returns and Repairs ........................................................7

User Manual

Symbol Reference

DECLARATION OF CONFORMITY
TO MEDICAL DEVICE DIRECTIVE

Intended Use and Precautions

INTENDED USE

The Evacuation HoverJack® Device is used to transport patients up or
down stairs in the event of an emergency. The Evacuation HoverJack can
also be used to lift a patient in supine position from the floor to bed or
stretcher height, utilizing the HoverTech Air Supply to inflate each of the
four chambers.

INDICATIONS

• Patients unable to assist in their own vertical lift or evacuation, such as
after a fall or in an emergency situation

• Patients whose weight or girth poses a potential health risk for the
caregivers responsible for lifting or moving said patients

CONTRAINDICATIONS

• Patients who are experiencing thoracic, cervical or lumbar fractures
that are deemed unstable, unless using in conjunction with a spinal
board (follow your state’s protocol regarding use of spinal boards)

INTENDED CARE SETTINGS

• Hospitals, long term or extended care facilities

PRECAUTIONS

• Make sure patient safety straps are secured before moving.

• Move the Evacuation HoverJack using the transport straps and/or the
transport handles located along the top perimeter.

• Never use patient safety straps to pull the Evacuation HoverJack, as
they may tear.

• When moving a patient on the inflated Evacuation HoverJack, use
caution and move slowly.

• Additional caregivers are recommended when moving or evacuating a
patient over 250 lbs./113 kg.

• Never attempt to move a patient on an uninflated Evacuation
HoverJack.

• Never leave a patient unattended on an inflated device.

• Use this product only for its intended purpose as described in this
manual.

• Only use attachments and/or accessories that are authorized by
HoverTech International.

WARNING/CAUTION

• For safety, always use a minimum of two caregivers while using the
Evacuation HoverJack.

• Reference product-specific user manuals for additional operating
instructions.

PRECAUTIONS
 HOVERTECH INTERNATIONAL AIR SUPPLY

• Not for use in the presence of flammable anesthetics or in a hyperbaric
chamber or oxygen tent.

• Route the power cord in a manner to ensure freedom from hazard.

• Avoid blocking the air intakes of the HoverTech International Air
Supply.

• CAUTION: Avoid electric shock. Do not open HoverTech International
Air Supply.

2 | HoverTech International EVHJ Manual Rev. B

User Manual

Part Identification – Evacuation HoverJack® Device

Headend Transport Strap Handles (2)

Headend Transport Strap (2) Inflatable Wedge with Inlet Cap and Valve & Red Deflate Cap and Valve

Patient Safety Straps (4)
(DO NOT USE TO TRANSFER)

Accessory Pouch

Label includes: Model#, Serial#
and Instructions for Use

Foot Pouch

Footend Transport Straps (2)

Chamber 4

Chamber 3

Chamber 2

Red Deflate Cap and Valve (4)

Inlet Cap and Valve (4)

Chamber 1

EVHJ Manual Rev. B www.HoverMatt.com | 3
