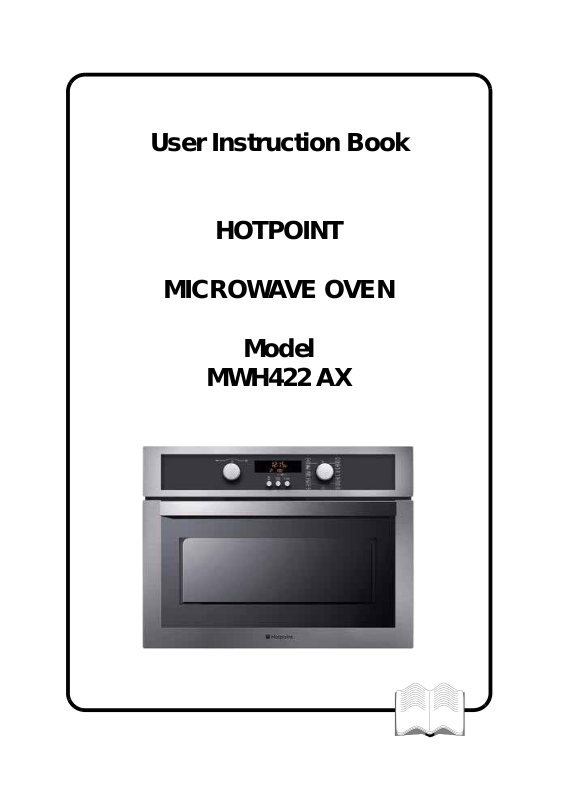

Hotpoint MWK 422 X User Manual

User Instruction Book

HOTPOINT

MICROWAVE OVEN

Model

MWH422 AX

CONTENTS

1

NOTICES TO THE USER

Operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION

Before connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DESCRIPTION

The appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

The control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

The function selector knob / the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

The display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

USE

How to set / change the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Stop turntable option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Using the power levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Microwave function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Express programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Heat & Hold function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Reheating on 2 levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Automatic cook functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Guide to automatic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

The automatic defrost function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Grill functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Guide to cooking using the Grill function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Grill + Microwave function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Guide to cooking using the Grill + Microwave function . . . . . . . . . . . . . . . . . . . . . . . 17

Child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

OPERATING PROFICIENCY TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

EN

NOTICES TO THE USER

2

The microwaves used for cooking are electro­magnetic waves. They are found naturally in our
environment as radio-electric waves, light or
infra-red radiation.
Their frequency is located in the 2450 MHz band.
Their properties:

• They are reflected by metals.

•

They can pass through all other materials.

• They are absorbed by molecules of
water, fat and sugar.

When food is exposed to microwaves, the
molecules are quickly shaken up, which causes
heating.

The microwaves penetrate into the food to a
depth of around 2.5 cm. If the food is thicker, it
will be cooked to its core by heat conduction,
as with traditional cooking.
It is important to know that microwaves cause
a simple thermal reaction inside the food, and
that they are not harmful.

This appliance's packaging material is recy­clable. Help recycle it and protect the environ­ment by dropping it off in the municipal recep­tacles provided for this purpose.

Your appliance also contains a

great

amount of recyclable material.

It is
marked with this label to indicate the
used appliances that should not be
mixed with other waste. This way,
the appliance recycling organised by

your manufacturer will be done under the best
possible conditions, in compliance with
European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment. Contact
your town hall or your retailer for the used appli­ance collection points closest to your home. We
thank you

for

doing your part to protect the envi-

ronment.

Fig.01

ooppeerraattiinngg pprriinncciippllee eennvviirroonnmmeennttaall pprrootteeccttiioonn

You have chosen a HOTPOINT-ARISTON microwave oven. Optimum ease of use and
simple operation were the most important factors in the development of this product.

The combi-microwave oven combines the characteristics of a microwave oven with those
of a traditional oven.
The extensive range of settings available enables you to select the exact method of cooking
that you have in mind. The design ensures easy to use controls.

The functions are arranged conveniently on the control panel. The display provides infor­mation and helps you choose the settings.

EN

NOTICES TO THE USER

3

WWaarrnniinngg::

KKeeeepp tthhiiss uusseerr gguuiiddee wwiitthh yyoouurr aapppplliiaannccee..
IIff tthhee aapppplliiaannccee iiss eevveerr ssoolldd oorr ttrraannssffeerrrreedd ttoo
aannootthheerr ppeer

rssoonn,, eennssuurree tthhaatt tthhee nneeww oowwnneerr

rreecceeiivveess tthhee uusseerr gguuiiddee.. PPlleeaassee bbeeccoommee ffaammii--
lliiaarr wwiitthh tthheessee rreeccoommmmeen

nddaattiioonnss bbeeffoorree

iinnssttaalllliinngg aanndd uussiinngg yyoouurr oovveenn.. TThheeyy wweerree wwrriitt--
tteenn ffoorr yyoouurr ssaaffeettyy aanndd tthhee ssaaffeettyy oof

f ootthheerrss..

This appliance is not intended to be used by pers­ons (including children) with reduced physical,
sensory or mental abilities, or persons lacking
experience or awareness, unless using it with the
help of a person reponsible for their safety, or
under supervision and with prior instruction in its
use. Children should be supervised to ensure
that they do not play with the appliance.
Your appliance is intended exclusively for domes­tic use for cooking, reheating and defrosting
food. The manufacturer declines all responsibility
in the event of improper use.

— The appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person
to ensure that they can use the appliance safely.

Check that utensils are suitable for use in a micro­wave oven. Do not leave any accessories in the
oven when it is not operating.
To avoid damage to your appliance, never ope­rate it when empty or without the turntable.

Do not tamper with the holes of the front lock, as
this could damage your appliance and result in
the need for repair.

The seal and the frame of the door must be
inspected regularly to ensure that they are not
damaged. If these areas become damaged, stop
using the appliance and have it checked by a
specialised technician.

When heating food in plastic or paper con-tai­ners, keep an eye on the oven due to the risk of
fire.
When using the microwave and fan cooking +

microwave function, you should avoid using
metal containers, forks, spoons, knives or metal
fasteners or staples for freezer bags.
The contents of bottles or jars for babies must be
stirred or shaken and the temperature must be
checked before use, in order to avoid burns.
Never heat a bottle with the teat (risk of explo­sion).

Never allow children to use the oven without
supervision, except when appropriate instruc­tions have been given so that the child can use
the oven safely and understand the dangers of
improper use.

Always use oven gloves to remove dishes from
the oven. Certain dishes absorb heat from the
food and can become very hot.

Liquids or other foods must not be heated in clo­sed containers as they may explode.

You should avoid heating eggs in their shell and
whole hard-boiled eggs in a microwave oven as
they may explode, even after cooking has fi-nis­hed.

When drinks are heated by microwave, boiling
liquid may suddenly spurt even after heating, pre­cautions must therefore be taken when handling
the container.
When cooking small quantities (e.g. 1 sausage, 1
croissant, etc.), place a glass of water next to the
food.

Cooking for too long can dry out food and burn it.
To avoid this type of incident, never use the same
cooking time as recommended for a traditional
oven.

If smoke appears, stop or unplug the oven and
keep the door closed to smother any flames.

ssaaffeettyy iinnssttrruuccttiioonnss

EN

INSTALLATION

4

WWaarrnniinngg::

CChheecckk tthhaatt yyoouurr aapppplliiaannccee hhaass nnoott bbeeeenn
ddaammaaggeedd dduurriinngg ttrraannssppoorrtt ((ddaammaaggee ttoo ddoooorr oorr
sseeaall,, eettcc..)).. IIff yyo

ouu nnoottiiccee aannyy ddaammaaggee,, ccoonnttaacctt

yyoouurr rreettaaiilleerr bbeeffoorree uussiinngg tthhee aapppplliiaannccee..

Check that:

-

the electrical installation has sufficient voltage.

- the supply cables are in good condition

- the diameter of the wires complies with the
installation requirements.

- your equipment has a protection of at least 16
amps.

If in doubt, contact your electrician.

The electrical connections should be made
before the appliance is installed in its housing.

Electrical safety must be ensured through pro­per installation in the housing. During installa­tion and maintenance operations, the appliance
must be unplugged from the electrical grid;
fuses must be cut off or removed.

The appliance must be connected using a
(standardised) feeder cable with 3 conductors
of 1.5 mm² (1 live + 1N + ground) which must be
connected to the 220-240 V~monophase net­work using a CEI 60083-standardised 1 live + 1N
+ ground electrical outlet or one which com­plies with installation requirements. The protec­tion cable (green-yellow) is connected to the
appliance's terminal and must be connected
to the appliance's ground.

IInn oorrddeerr ttoo eeaassiillyy llooccaattee tthhee rreeffeerreennccee iinnffoorrmmaa--
ttiioonn ffoorr yyoouurr aapppplliiaannccee,, wwee rreeccoommmmeenndd tthhaat

t yyoouu

nnoottee tthheessee ddaattaa oonn tthhee ""AAfftteerr--SSaalleess SSeerrvviiccee""
ppaaggee..

If the connection is made with a plug, it must
remain accessible after the appliance has been
installed.

The oven's neutral (blue cable) must be con­nected to the network's neutral.

Ensure your electrical installation has a system
accessible to the user which can cut off the appli­ance from the power grid, with a con

tact opening

of at least 3 mm for all the terminals.

If the supply cable is damaged, it must be
replaced by the manufacturer, its after-sales
service or any other similarly qualified person to
avoid any danger.

WWaarrnniinngg::

WWee ccaannnnoott bbee hheelldd rreessppoonnssiibbllee ffoorr aannyy
aacccciiddeenntt rreessuullttiinngg ffrroomm aann iinneexxiisstteenntt,, ddeeffeeccttiivvee
oorr iinnccoorrrreecctt g

grroouunndd lleeaadd..

IIff tthhee oovveenn pprreesseennttss aannyy iirrrreegguullaarriittyy,, uunnpplluugg tthhee
aapppplliiaannccee oorr rreemmoovvee tthhee rreelleevvaanntt ffuussee

aatt tthhee

oovveenn''ss ccoonnnneeccttiioonn lleeaadd--iinn..

bbeeffoorree ccoonnnneeccttiinngg

eelleeccttrriiccaall ccoonnnneeccttiioonn

EN

INSTALLATION

5

Fig.02

The appliance may be installed beneath a work surface or in column housing (open or closed) which
has the required built-in measurements

(Fig.02)

.

Do not use your appliance immediately (wait 1 or 2 hours) after moving it from a cold to a warm place
as condensation may cause a malfunction.

bbuuiillddiinngg--iinn

EN

550 int.

600 ext.

456

23

450 int.

547

592

450 int.

DESCRIPTION

6

tthhee aapppplliiaannccee

Control panel

Cavity

Turntable

Door handle

A

B

D

C

■

TThhee ttuurrnnttaabbllee::

cooks food uniformly with no

need for handling.
It revolves in both directions. If it does not
revolve, check that all elements are correctly
positioned.
Do not attempt to turn it manually, as you may
damage the drive system.
It may also be used as a cooking dish.
To remove, grasp it using the access areas
provided inside the cavity.

■

TThhee ddrriivveerr::

causes the glass turntable to turn

(Fig.04)

.

■

TThhee bbaassee rroolllleerrss::

Rollers must be positioned in

the right direction

(Fig.04)

.
If they are not rotating properly, check for
foreign bodies under the rollers.

Fig.04

Fig.03

A

B

C

D

EN

DESCRIPTION

7

■

TThhee ggrriillll

(Fig.05)

::

may be used to toast, brown
or grill. The grill must under no circumstances
be used with other metal containers in the
microwave, grill + microwave. You may, how­ever, heat food in an aluminium tray by using
a plate to separate it from the grill.

■

TThhee eennaammeell ttrraayy

(Fig.06):
It may be used half filled with water for "bain
marie" cooking or fan cooking. It may also be
used as a cooking dish.

CCoommmmeennttss::

Ensure that the enamel tray is correctly
centred on the side grills so that air
may cir

culate freely.

■

TThhee ggrriillll ++ tthhee eennaammeell ttrraayy::
for roasting and to collect cooking juices,
place the grill on theenamel tray

(Fig.07)

.

aacccceessssoorriieess

■

TThhee ssiiddee ggrriillllss

(Fig.08)

::

2 shelves with hooks

allow you to use the accessories on 3 levels.
The 3 insertion levels are available according to

the type of cooking and type of food

(Fig.08/09)

.

In the

GGrriillll oorr GGrriillll ++ MMiiccrroowwaavvee ffuunnccttiioonnss

you
use the accessories at the 1st level for thick
foods such as roasts, and at the 3rd level for
less thick foods such as chops or sausages.

Fig.05

Fig.08

Fig.09

➀➀

➁➁

➂➂

Fig.06

Fig.07

EN

DESCRIPTION

8

The - / + selector knob allows you to select the time, the programme length,

the power levels, the food portion’s weight.

The CLOCK key allows you to set the time.

The START/STOP key lets you begin a programme, interrupt or cancel a pro-

gramme in progress.

The °C/W key allows you to validate your selections.

The FUNCTION/AUTO PROGRAMME selector knob allows you to choose

the type of programme, as well as the automatic function and food category.

C

A

B

D

tthhee ccoonnttrrooll ppaanneell

E

E

D

C

B

Fig.10

EN

W

/

W

/

DESCRIPTION

9

The display guides you in programming
the various settings:

Clocktime
Programme time
Microwave power level (WWatts)
Food weight (ggrams)

Stop turntable

l
Auto programmes

A

tthhee ddiissppllaayy

CB

A

C

B

tthhee ffuunnccttiioonn // aauuttoo pprrooggrraammmmee sseelleeccttoorr kknnoobb

Fig.12

Fig.11

EN

USE

10

After connecting your appliance or after a prolonged power failure,

0000::0000

flashes in the display.

TToo sseett tthhee cclloocckk DDiissppllaayy

Turn the selector to set the time, ex. 6:30.

Confirm by pressing the CLOCK key or

START

.

A beep confirms that your clock is set.

WWhheenn tthheerree iiss aa ttiimmee cchhaannggee DDiissppllaayy

Press the

CLOCK key

. The time display flashes.

Programme the new time (ex. 7:30) by turning the
selector.

Confirm by pressing the CLOCK key or

START

.

A beep confirms that your clock is set to the new time.

CCoommmmeennttss

::

I

f you do not press the clock key, the time displayed is automatically recorded after one minute.

Your appliance is equipped with a back-up so that during a power failure the time remains displayed
for a day.

If there is insufficient space for the dish to turn freely inside the oven, set the STOP TURNTABLE
function before or during the programme.

NNoottee:: iitt iiss nnoott ppoossssiibbllee ttoo ssttoopp tthhee ttuurrnnttaabbllee dduurriinngg aann aauuttoommaattiicc ddeeffrroosstt pprrooggrraammmmee..

To set:

Press the STOP TURNTABLE key, the symbol
lights up and the turntable stops.

To cancel:

To cancel the function, follow the same procedure.
It is necessary to turn the container or stir the con­tents halfway through the programme when the
STOP TURNTABLE function is set.

hhooww ttoo sseett // cchhaannggee tthhee ttiimmee

ssttoopp ttuurrnnttaabbllee ooppttiioonn

EN

W

/

USE

11

Power level Use

1000 W / 900 W

Rapidly heating drinks, water, dishes containing a lot of liquid.
Cooking foods containing a lot of water (soups, sauces,
tomatoes, etc.).

800 W / 700 W

Cooking fresh or frozen vegetables.

600 W

Melting chocolate.

500 W

Cooking fish and shellfish. Reheating on 2 levels.
Simmering pulses. Heating or cooking delicate egg-based foods.

400 W / 300 W

Simmering dairy products, jams.

200 W

Manual defrosting. Softening butter, ice cream.

100 W

Defrosting pastries containing cream.

MMIICCRROOWWAAVVEE OOUUTTPPUUTT PPOOWWEERR:: 11000000 WW

Your appliance is now connected and displays the correct time.
Open the door using the handle. Place the food in the appliance and close the door.
If the door is not closed properly the appliance will not function.

If the door is opened during operation, the programme is not cancelled but simply inter­rupted.

To start the oven again, close the door and press the START key.

If no action is taken within 1 minute after programming, 3 beeps invite you to start up or
modify the programme. With no further instruction, after another minute and a reminder
beep, the settings are cancelled

and the clocktime is displayed again

.

Press the START/STOP key with the door closed to interrupt a programme.
Press the START/STOP key for 2 seconds to cancel a programme, or turn the selector to

the OFF position.

If you wish to verify your microwave power level, you may press °C/W to check the dis

play.

IInn oorrddeerr ttoo sseett aa sseeccoonndd pprrooggrraammmmee oonnccee tthhee ffiirrsstt hhaass eennddeedd,, ooppeenn tthhee ddoooorr aanndd sshhuutt iitt
aaggaaiinn..

Three beeps signal the end of each programme; the clocktime is displayed again.
If the door is left open, the light shuts off after 3 minutes. You may light up your oven by

turning the selector knob to the position.
In order to evacuate moisture, your appliance is fitted with a delayed ventilation function.

Depending on the applied cooking mode (solo / grill ), the oven ventilation will continue to
operate after the end of the programme. It will switch off automatical

ly.

pprrooggrraammmmiinngg

uussiinngg tthhee ppoowweerr lleevveellss

EN

W

/

USE

12

PPrrooggrraammmmiinngg bbyy ppoowweerr DDiissppllaayy

Turn the selector knob to select the microwave
function. The maximum power level, 1000W, flashes
in the display.

Turn the “- / +” selector if you wish to set a lower
microwave power level, ex. 500W. Confirm the power
level by pressing the °C/W button, the time digits flash
in the display.

Turn the “- / +” selector to set the required pro­gramme time, ex. 10 minutes.

Confirm by pressing START. The light switches on
and the programme starts.

CCoommmmeennttss

::

If the door is opened during cooking, the appliance stops and the remaining time flashes in the
display. To finish the programme, simply close the door and press

START

.

The time can be adjusted at any time simply by turning the “

-- // ++

” selector.

mmiiccrroowwaavvee ffuunnccttiioonn

eexxpprreessss pprrooggrraammmmee

EExxpprreessss PPrrooggrraammmmiinngg DDiissppllaayy

With the selector at the OFF (0) position, press the
START key for one second to set an express pro­gramme of 30 sec

onds. The microwave functions at
maximum power level (1000W). The light switches on
and the programme starts.

You may set an express programme up to 2 min 30 s.
Each time you press START an additional 30 seconds
of programme time is added. Press 5 times for a max­imum of 2 min 30s.
Once the programme has begun, you may modify the
programme time by turning the “- / +” selector knob,
up to 2 min 30s.

hheeaatt && hhoolldd ffuunnccttiioonn

HHeeaatt aanndd hhoolldd DDiissppllaayy

If you leave your dish in the oven without opening the
door at the end of a microwave programme, a heat and
hold function starts up after 2

minutes to maintain the

temperature of your dish. A

triple beep after 15 min

announces the end of the heat and hold programme.

EN

USE

13

With the automatic cooking functions, the time and function are programmed automatically

according to

the type of food and its weight.

aauuttoommaattiicc ccooookk ffuunnccttiioonnss

For best results heating up 2 dishes at the same time, programme the microwave function at the 500
watt setting and place one plate on the turntable and another on the grill at insertion level 3.

RReeccoommmmeennddaattiioonnss

::

Cover the plates with microwave-safe cling film or another plate turned upside down.

The times indicated below are based on heating of refrigerated dishes, or canned goods at room
temperature.

Type of food Quantity Time

Homogeneous foods such as purees,
peas, celery, etc.

2 x 200 g plates 4 - 6 min

Mixed consistency dish such as cas­soulet, stews, ravioli, etc.

2 x 300 g plates 6 - 8 min

rreehheeaattiinngg oonn 22 lleevveellss

Fresh, ready-

made dishes

This function is used for heating refrigerated, ready-made meals (lasagna,
potato

gratin, cottage pie, fish gratin, etc.) weighing 100 g - 1000 g.
The dishes are heated with the microwave function.
Remove the product from its packaging and place it in a microwave

-safe,
heatproof dish of comparable size. For best results, cover with microwave-safe
cling film, the special microwave plate cover or another plate turned upside
down.
Place the dish on the turntable. Let the dish rest a couple of minutes before
serving, to ensure even heat distribution.

EN

14

USE

Defrosting frozen foods in your microwave oven saves you considerable time. To defrost food, use the
AUTOMATIC DEFROST function or the MICROWAVE function, power level 200W.

What you need to know:
Small pieces of meat or fish may be cooked immediately after defrosting. Large pieces such
as meat roasts or whole fish will remain slightly frozen at the end of the defrost programme.
We recommend leaving them to stand for a period at least equal to the defrosting time in order to
obtain a uniform temperature.

Food covered with ice crystals will take longer to defrost. In this case, you will need to increase
the defrosting time.

Recommendations:
Defrosting time varies according to the type of appliance. It also depends on the shape, size, initial
temperature and quality of the food.

Most foods need to be removed from their packaging. Remember to remove metal fasteners from
packaging.

Halfway through defrosting, the pieces must be turned, mixed or broken apart if they are frozen
together.

If you are defrosting large pieces of meat or fish which prevent the turntable from revolving, use the
stop turntable function. In this case, turn the food regularly.

Defrost meat and fish on an upside down saucer on top of another plate so that the juice runs off.
If it remains in contact with the food, it will cause it to overheat.
Never refreeze uncooked food.

Defrost programme times:
The lengths of the defrost programmes are calculated for foods frozen at -18°C. They give you an idea
of the necessary defrost time, however actual time may vary according to the thickness, shape, size
and packaging of the food.

Programming choices:

Auto defrost programmes are available as follows:
d 1 corresponds to 200W, defrost power level

Select d1 if you wish to defrost any food/quantity that is not proposed
in d2, d3, or d4. Programme the defrost time you wish.

You may refer to the chart which follows for suggested defrost times.
d 2 defrosting meat, poultry, fish, vegetables
d 3 defrosting bread
d 4 defrosting ready-made dishes

ddeeffrroossttiinngg

EN

15

USE

AAuuttoommaattiicc ddeeffrroossttiinngg DDiissppllaayy

Turn the selector knob to the auto defrost position
and d1 appears in the display

.

Turn the “ - / + “ selector knob to select d2 / d3 / d4,
ex. d2. Confirm by pressing °C/W.

For defrost program d1, the time digits flash in the
display.
For d2 / d3 / d4 defrost programmes, 100 g (the mini­mum defrosting weight) appears in the display.

Turn the “ - / + “ selector knob to set the time (d1) or
weight (d2 / d3 / d4), ex. 700g. Confirm by pressing
START.

The appropriate time is automatically calculated.
The programme time appears in the display and the
defrost programme begins.

CCoommmmeennttss

::

Defrosting time is automatically calculated according to the weight of the food. It may vary

depending on the initial temperature of the food (times are given for foods frozen at -18°C).
Halfway through an automatic defrost programme of foods weighing over 350g (with the

exception of bread), a beep reminds you to turn the food for better results, and

“

ttuurrnn

” is dis-

played. Close the door after turning the food and press

START

to contin

ue the defrost pro-

gramme.
Defrosting time cannot be changed when using the automatic defrost function.
To ensure even results, the

SSTTOOPP TTUURRNNTTAABBLLEE

function may not be used with the automatic defrost

function.
For foods that do not appear in the suggested food categories, use the

MMIICCRROOWWAAVVEE

function at the

200 W power level or

dd 11

. Refer to the indications below for approximate times.

Select the type and amount of food you wish to defrost and the automatic function will
programme the appropriate defrosting time.

tthhee aauuttoommaattiicc ddeeffrroosstt ffuunnccttiioonn

Food Quantity Time Recommendations

Flaky or shortcrust pastry 400 g 1 - 3 min Place on kitchen paper, turn midway
Scallops 500 g 5 - 7 min Place on a plate, stir midway
Peeled prawns 100 g 1 - 2 min “ “
Whole pink prawns 200 g 2 - 4 min “ “
Langoustines / Gambas (10) 500 g 6 - 8 min “ “

Strawberries
Raspberries/sour cherries

Gooseberries / blueberries /
blackcurrants

250 g 7 - 9 min

6 - 8 min
5 - 7 min

EN

W

/

16

USE

This function is used for cooking and browning foods such as gratin dishes and meats.
It may be used before or after cooking, according to the recipe.

WWaarrnniinngg

::

AAcccceessssiibbllee aarreeaass mmaayy bbeeccoommee hhoott wwhheenn tthhee ggrriillll iiss uusseedd.. CChhiillddrreenn sshhoouulldd bbee kkeepptt aawwaayy..

IIff tthhee aapppplliiaannc

cee iiss ooppeerraattiinngg iinn ccoommbbiinneedd mmooddee,, wwee rreeccoommmmeenndd tthhaatt cchhiillddrreenn bbee ssuuppeerrvviisseedd bbyy aadduullttss

wwhheenn uussiinngg tthhee o

ovveenn dduuee ttoo tthhee hhiigghh tteemmppeerraattuurreess..

WWhheenn uussiinngg tthhee ggrriillll,, yyoouu mmuusstt pprrootteecctt yyoouurr hhaannddss wwhheenn ttaakkiinngg oouutt

ddiisshheess aanndd uussee ccoonnttaaiinneerrss mmaaddee

ffrroomm hheeaattpprrooooff mmaatteerriiaallss ssuucchh aass ffllaammeepprrooooff ggllaassss oorr cchhiinnaa..
There are 3 grill levels: low GRILL POWER (GP 1) / medium (GP 2) / high (GP 3).
As a rule, you should use GRILL POWER 3 to grill meat and fish and GRILL POWER 1 or 2 with the
MICROWAVE + GRILL FUNCTION for gratin dishes and browning more delicate dishes.
Insert the grill according to the height of the container or the food.

PPrrooggrraammmmiinngg tthhee GGRRIILLLL ffuunnccttiioonn DDiissppllaayy

Turn the selector knob to select the grill function. GP3
flashes, requesting you choose the desired grill level.

Turn the “ - / + “ selector knob to set a lower grill level,
ex. GP2. Confirm by pressing °C/W, the time dig

its

flash in the display.

Turn the “ - / + “ selector knob to set the required
grilling time, ex. 20 minutes.

Confirm by pressing START, the light switches on and
the programme starts.

CCoommmmeenntt

::

Grilling time may be changed at any time simply by turning the “ - / + “ selector.

Place the food item on the grill set inside theenamel tray (to recover the juices) and insert at level
3

.

Turn the food halfway through cooking.

Food Quantity Time

Andouillettes, blood sausage, sausages
(pierce with a fork)

4 - 6 units 22 - 30 min

Pork chops 4 units 27 - 32 min
Lamb cutlets 4 units 15 - 17 min
Rib roast 800 g 23 - 25 min
Side bacon 4 - 6 slices 18 - 25 min

ggrriillll ffuunnccttiioonnss

gguuiiddee ttoo ccooookkiinngg uussiinngg tthhee hhiigghh ggrriillll ffuunnccttiioonn

EN

W

/

17

USE

This function lets you use the grill + microwave at the same time, which affords rapid cooking.
You may combine any one of the three grill levels with any of the microwave levels up to 700W.

Food Quantity Programming Time

Shoulder of lamb (boned and tied) 1300 g 200 W + GP3 40 - 45 min
Ribeye steak 800 g 200 W + GP3 18 - 23 min
Chicken, guinea fowl 1200 g 500 W + GP3 25 - 27 min
Turkey roast 800 g 300 W + GP3 27 - 32 min
Pork roast 1000 g 300 W + GP3 35 - 40 min
Veal roast 1200 g 300 W + GP2 50 - 55 min

Use a microwave-safe and heatproof dish, preferably made of earthenware (less splashing than with
glass).
Place the food item in a dish on the grill at level 1, turn halfway through cooking.
Cook preferably non-barded roasts to avoid grease splashes and smoke.
Season when cooked, let the meat sit in aluminium foil for 10 minutes. This helps the meat fibres to
relax and the roast will be more tender.

tthhee ggrriillll && mmiiccrroowwaavvee ffuunnccttiioonn

gguuiiddee ttoo ccooookkiinngg uussiinngg

tthhee ggrriillll && mmiiccrroowwaavvee ffuunnccttiioonn

PPrrooggrraammmmiinngg tthhee GGRRIILLLL ++ MMIICCRROOWWAAVVEE FFUUNNCCTTIIOONN

DDiissppllaayy

Turn the selector knob to the GRILL + MICROWAVE
function. The power level 500W, flashes in the display,
requesting you choose the desired microwave power
level.

Turn the “ - / + “

selector knob to set a lower microwave
power level, ex. 300W. Confirm by pressing °C/W, GP3
flashes, requesting you choose the desired grill level.

Turn the “ - / + “ selector knob to set a lower grill level,
ex. GP2. Confirm by pressing °C/W, the time digits
blink.

Turn the “ - / + “ selector knob to set the required com­bined microwave + grilling time, ex. 20 min.

Confirm by pressing START, the light switches on and
the programme starts.

CCoommmmeenntt

::

The programme time may be changed at any time simply by turning the

“ - / + “ selector knob

.

If you wish to verify your microwave power level, you may press

°C/W

to check the dis

play.

EN

W

/

18

USE

You can programme the "CHILD LOCK" feature to block unauthorised use of your microwave oven.

To set:

Press the START/STOP, key for a few seconds with the door open,
until the key appears in the display. a short beeps confirm that your
microwave is temporarily locked. No programme is available.

To cancel:

Follow the same procedure: press the START/STOP key the clock key and the °C/W
key for a few seconds with the door open. The key symbol switches off and clock­time is displayed.

cchhiilldd lloocckk

EN

W

/

19

CARE & CLEANING

We recommend that you clean the oven regu-

larly and remove any food deposits inside and
outside the appliance. Use a damp, soapy
sponge. If the appliance is not kept clean, its
surface may become damaged and this will
considerably shorten its lifespan and cause a
dangerous situation. If the door or seal are dam­aged, the oven must not be used until repaired
by a qualified person.

Do not clean the appliance with a steam cleaner.

The use of abrasive products, alcohol or sol-

vents is not recommended. They are likely to
damage the appliance.

If the oven smells unpleasant or is encrusted

with dirt, boil a cup of water with lemon juice for
2 minutes and clean the sides with a little wash­ing-up liquid.

In order to clean the roof of the cavity, tip the

grill resistance downwards

(Fig.13)

.

Unhook the grill resistance by pressing on the

rod at top left

(Fig.14)

.

The turntable may be removed for easier clean­ing. To remove it, grasp it by the access areas
provided for this purpose. If you remove the
driver, avoid getting any water in the motor axis
hole.
Remember to put back the driver, the base
rollers and the turntable.

Fig.13

Fig.14

EN

20

TROUBLESHOOTING

If you have a query concerning the operation of your appliance, this does not necessarily mean that
there is a breakdown. In all events, check the following points:

You notice that Solution

The time is counting down but the appliance
is not functioning (the food is not heated)

and “

demo” flashes in the display.

Demonstration

mode has been set. To switch
back into operating mode, press the following

three keys all at the same time:

The appliance does not switch on.

Check that the appliance is properly connected.
Check that the oven door is properly closed.
Check that the child lock feature
is not programmed.

The appliance continues to make a noise

after the programme has finished.

In order to evacuate residual steam, your
appliance is equipped with a delayed ventila­tion feature. According to the cooking mode
chosen (solo/grill), the ventilation may con­tinue to function after the end of the pro­gramme.

The appliance is noisy.
The turntable does not revolve properly.

Clean the rollers and the roller area under the
turntable.
Check that the rollers are correctly posi

tioned.

You notice steam on the glass. Wipe off the condensation with a cloth.

The food is not heated in the microwave
programme.

Check that the utensils are suitable for fuse
with microwave ovens and that the power
level is appropriate.

Smoke comes off the grill at the start
of the programme.

Remove all cooking residues from the heat­ing element before each use.

The appliance produces sparks.

Clean the appliance thoroughly: remove
grease, cooking particles, etc.
Make sure no metal objects are close to the
oven walls.
Never use metal objects with the grill.
Never operate your oven when it is empty.

EN

W

/

21

PROFICIENCY TESTING

Operating proficiency testing according to CEI/EN/NF EN 60705 standards;
The International Electrotechnical Commission, SC.59K, has established a standard relative to
comparative performance tests conducted on various microwaves.
We recommend the following for this appliance:

Test Load

Approx.

time

Power

selector

Containers/

Recommendations

Egg custard

(12.3.1)

1000 g

750 g

16 - 18 min

13 - 15 min

500 W

Pyrex 227

On the turntable

Pyrex 220

On the turntable

Sponge cake

(12.3.2)

475 g 6 - 7 min 700 W

Pyrex 827

On the turntable

Meatloaf

(12.3.3)

900 g 14 min 700 W

Pyrex 838

Cover with cling film

On the turntable

Defrosting

meat

(13.3)

500 g 11 - 12 min 200 W On the turntable

Defrosting

raspberries

(B.2.1)

250 g 6 - 7 min 200 W

On a flat plate

On the turntable

Potato gratin

(12.3.4)

1100 g 23 - 25 min

Low Grill

+ 700 W

Pyrex 827

On the turntable

Chicken

(12.3.6)

1200 g 24 - 26 min

High Grill

+ 500 W

Place on a dish on the grill

inserted at the 1

st

level

from the bottom

Turn halfway through

EN

USE

22

99648062_EN 06/09

EN
