Hotpoint MTM 1902 F, MTM 1902 FT 50-60 User Manual

Operating Instructions

2-DOOR FRIDGE

Contents

GB

							Installation, 2
GB		F			ES
							Positioning and connection
							Description of the appliance, 3
English, 1		Français, 9			Espanol, 17
							Overall view
PT		AR					Start-up and use, 4-5
							Starting the appliance
Portuges, 25		40
							Using the refrigerator to its full potential
							Using the freezer to its full potential
							Maintenance and care, 6
							Switching the appliance off
							Cleaning the appliance
							Avoiding mould and unpleasant odours
							Replacing the light bulb
MTM 1901 F (EX) 0							Precautions and tips, 7
							General safety
MTM 1902 F (EX) 0
							Disposal
MTM 1902 FT 50-60							Respecting and conserving the environment

Troubleshooting, 8

Assistance, 8

Installation

! Before placing your new appliance into operation GB please read these operating instructions carefully. They

contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1.Place the appliance in a well-ventilated humidity-free room.

2.Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.

3.Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.

4.Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

5.In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1.Install the appliance on a level and rigid floor.

2.If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

•The appliance is earthed and the plug is compliant with the law.

•The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).

•The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).

•The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

!Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

!The cable must not be bent or compressed.

!The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

!The manufacturer declines any liability should these safety measures not be observed.

2

Description of the appliance

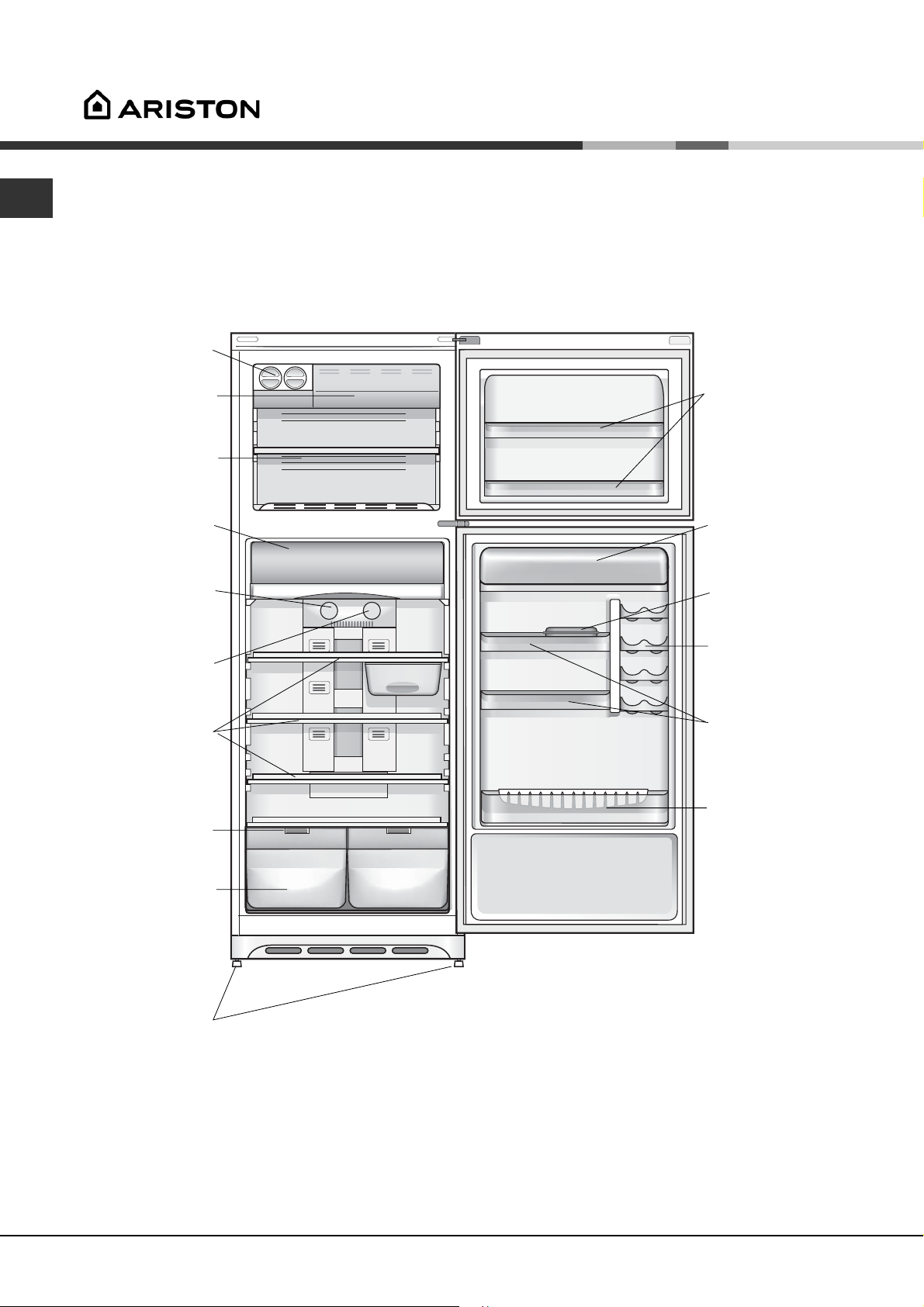

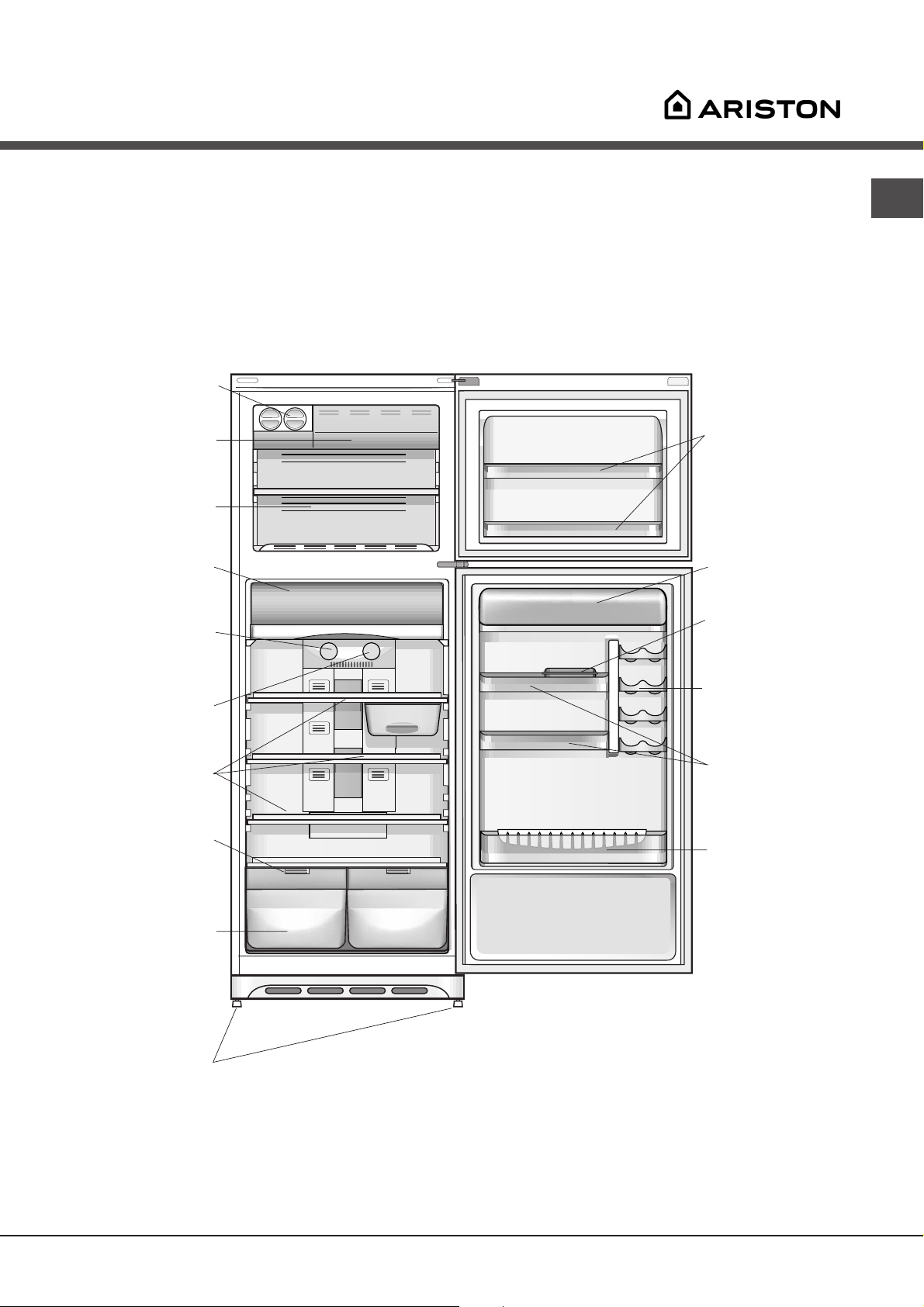

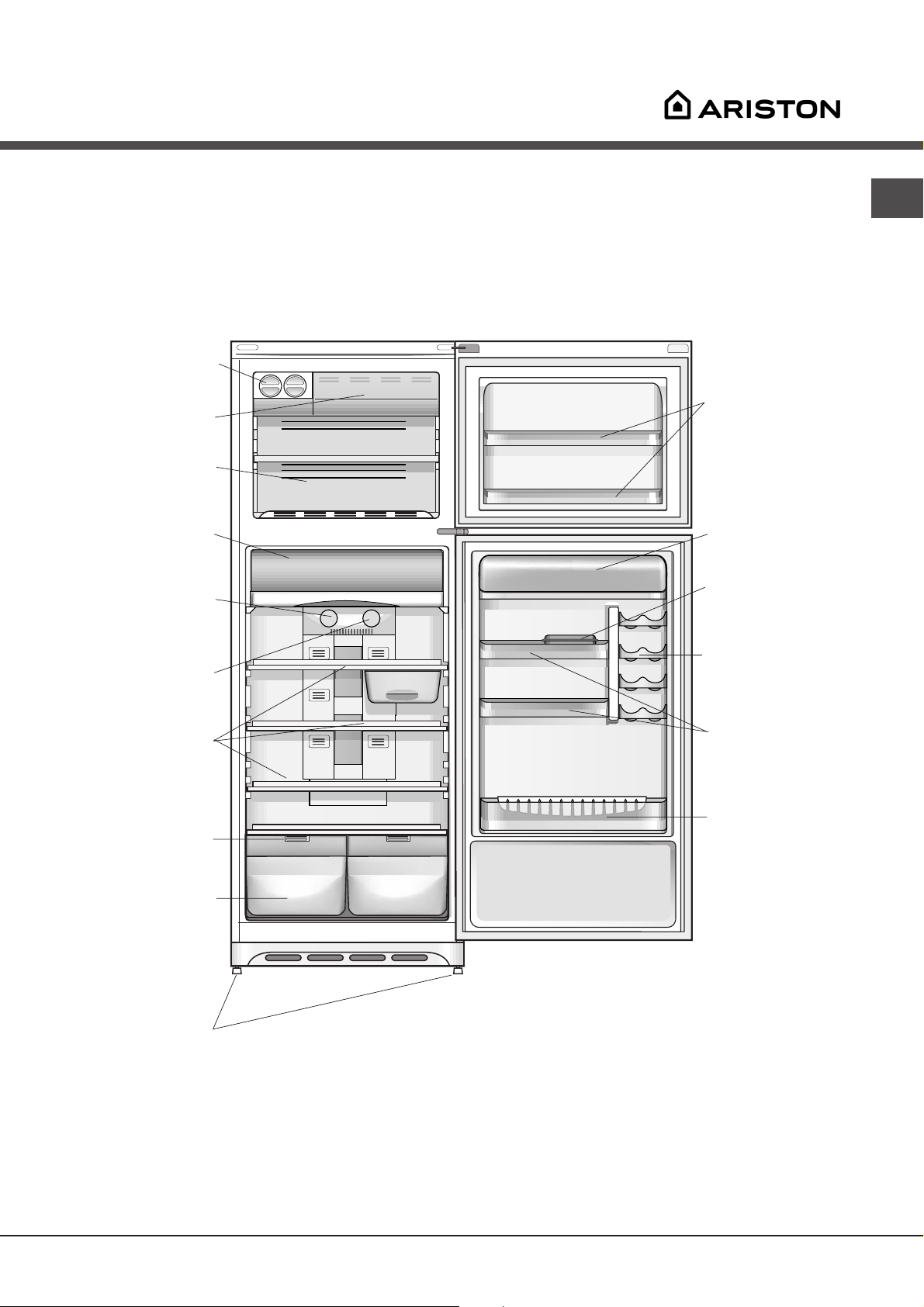

Overall view

GB

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

ICE DEVICE

FAST FREEZER

compartment

STORAGE

compartment

FRESH BOX

Compartment

REFRIGERATOR

OPERATION

Knob

FREEZER

OPERATION

Knob

SHELVES•

MOISTIRE adjusted

FRUIT and

VEGETABLE

bin

Levelling FEET

Removable multipurpose

SHELVES•

Removable lidded shelf with EGG TRAY

BUTTER dish*

BEVERAGE CAN shelves•

Removable multipurpose

SHELVES

BOTTLE shelf

• Varies by number and/or position. * Available only on certain models.

3

Start-up and use

GB Starting the appliance

!Before starting the appliance, follow the installation instructions (see Installation).

!Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1.Insert the plug into the socket and ensure that the internal light illuminates.

2.Turn the TEMPERATURE ADJUSTMENT knob to an average value. After a few hours you will be able to put food in the refrigerator.

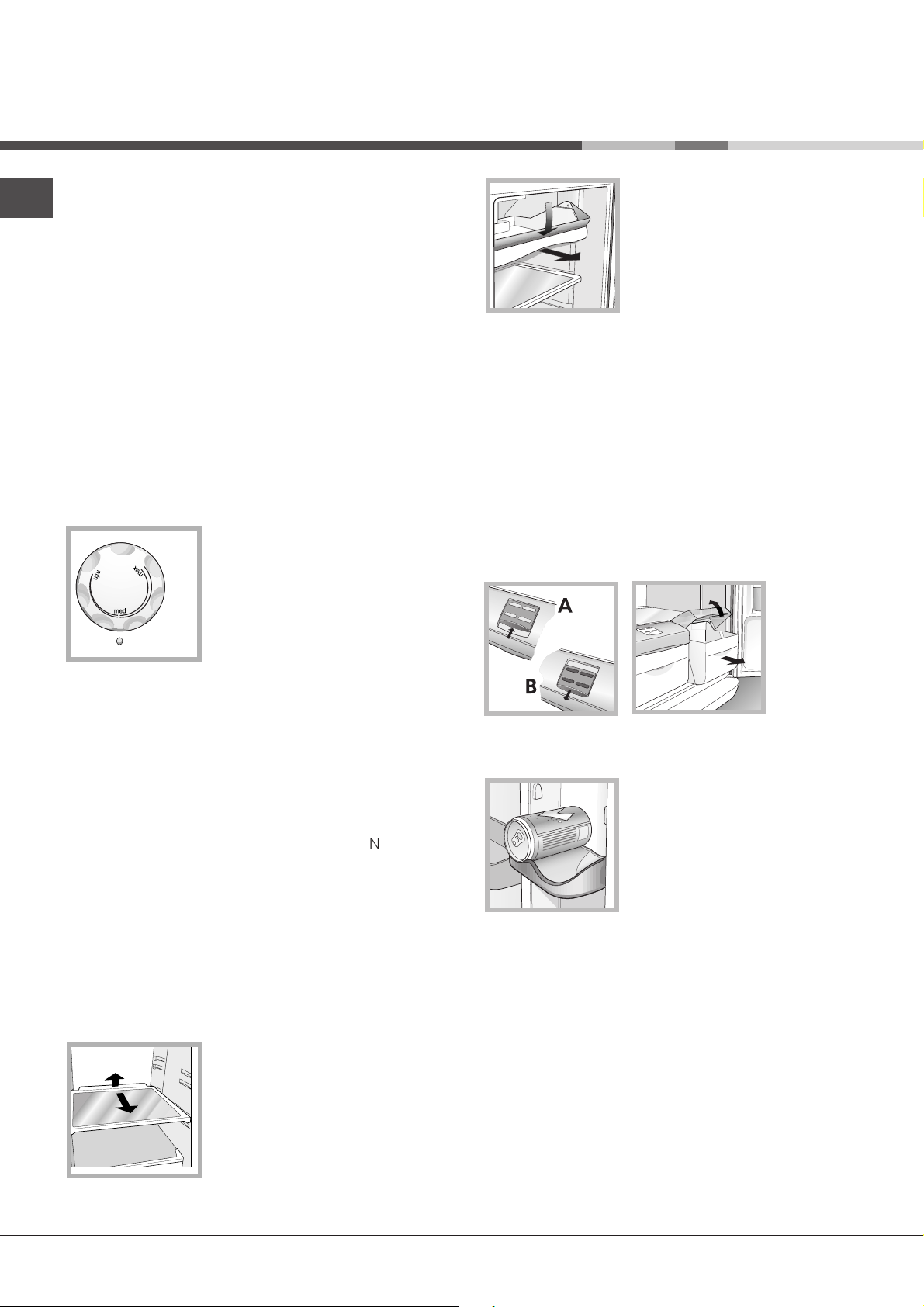

Using the refrigerator to its full potential

The temperature inside the refrigerator compartment

automatically adjusts itself according to the position of the

fridge thermostat knob.

min = warmest

max = coldest

We recommend, however, a medium position.

It is recognisable by aeration cells located on the back walls of the compartments.

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).

Remember that cooked foods do not last longer than raw foods.

1

2

removal of the shelf.

SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete

FRESH BOX: for fresh meat and fish. Due to the compartment’s low temperature (the coldest in the refrigerator) and to the clear door that provides protection against oxidation and blackening, food can be stored for even up to one week. It can also be used for “cold meals.”

FRUIT and VEGETABLE bin

The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment, or close it (position A) to store food in a more humid environment.

The easy-to-open lids (all you have to do is pull the crisper out) make it easy to put food in and take it out.

BEVERAGE CAN shelves.

The can rack on the inner door allows you to store not only cans, but also yoghurt, butter and other containers, according to your requirements.

4

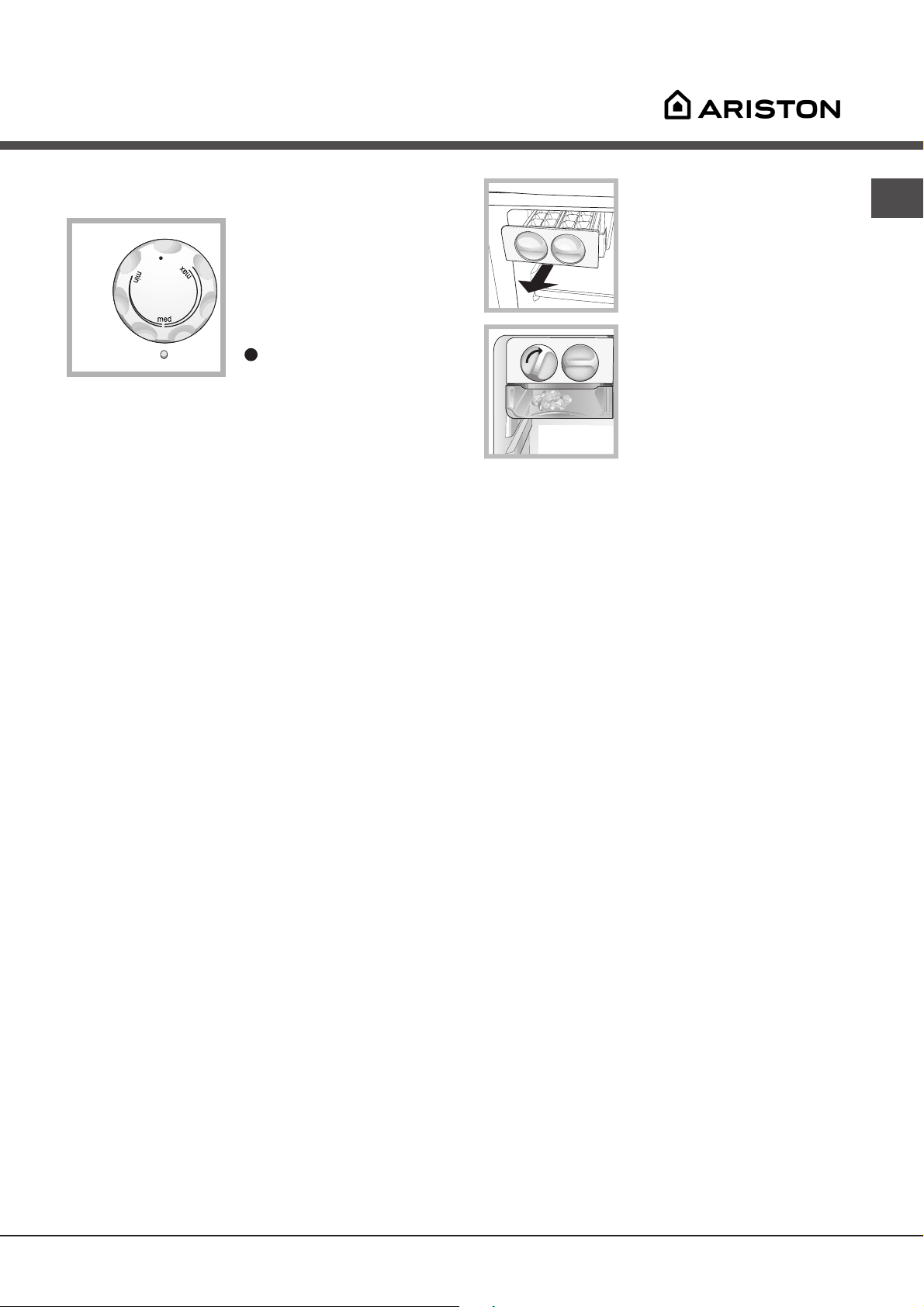

Using the freezer to its full potential

The temperature inside the

freezer compartment

automatically adjusts itself

according to the position of

the thermostat knob.

freezer

min = warmest

max = coldest

We recommend, however, a

medium position.

switches the appliance

off, including the refrigerator.

Set the thermostat to the maximum max in order to freeze foods quickly.

Set the thermostat to the medium med for normal use and to store frozen foods for long periods.

Set the thermostat to the minimum min in order to keep ice cubes frozen.

During hot seasons, when the knob is turned to max position, your fridge will operate for elongated period. The thermostat position should be brought to its initial position when the freezer compartment is cooled sufficiently.

•Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).

•Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be packed in the top FAST FREEZER compartment where the temperature drops below -18°C and guarantees rapid freezing.

•Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.

•The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4)

!Do not open the door during freezing.

!If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

!To avoid blocking the air circulation inside the freezer, it is advisable not to obstruct the ventilation holes with food or containers.

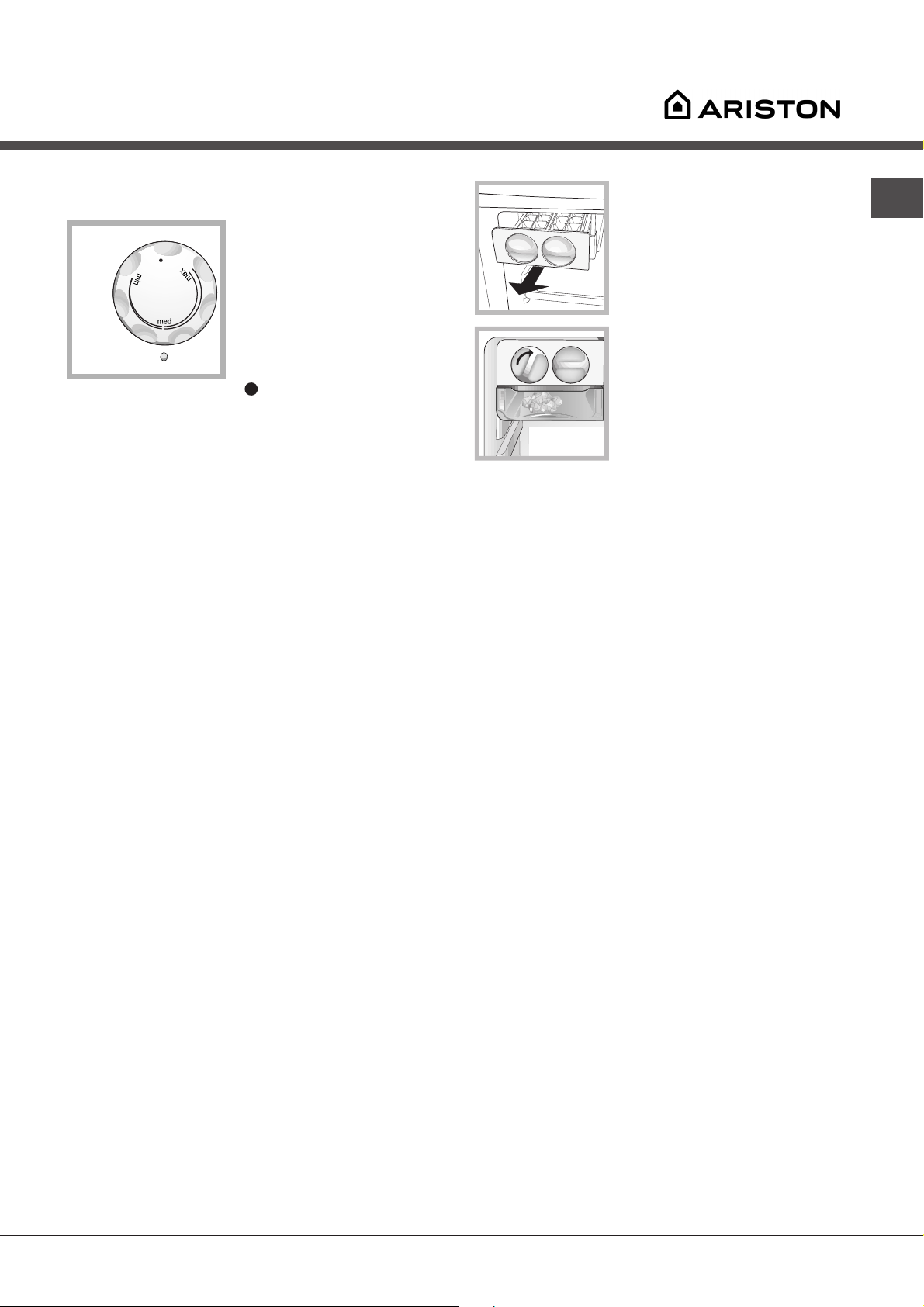

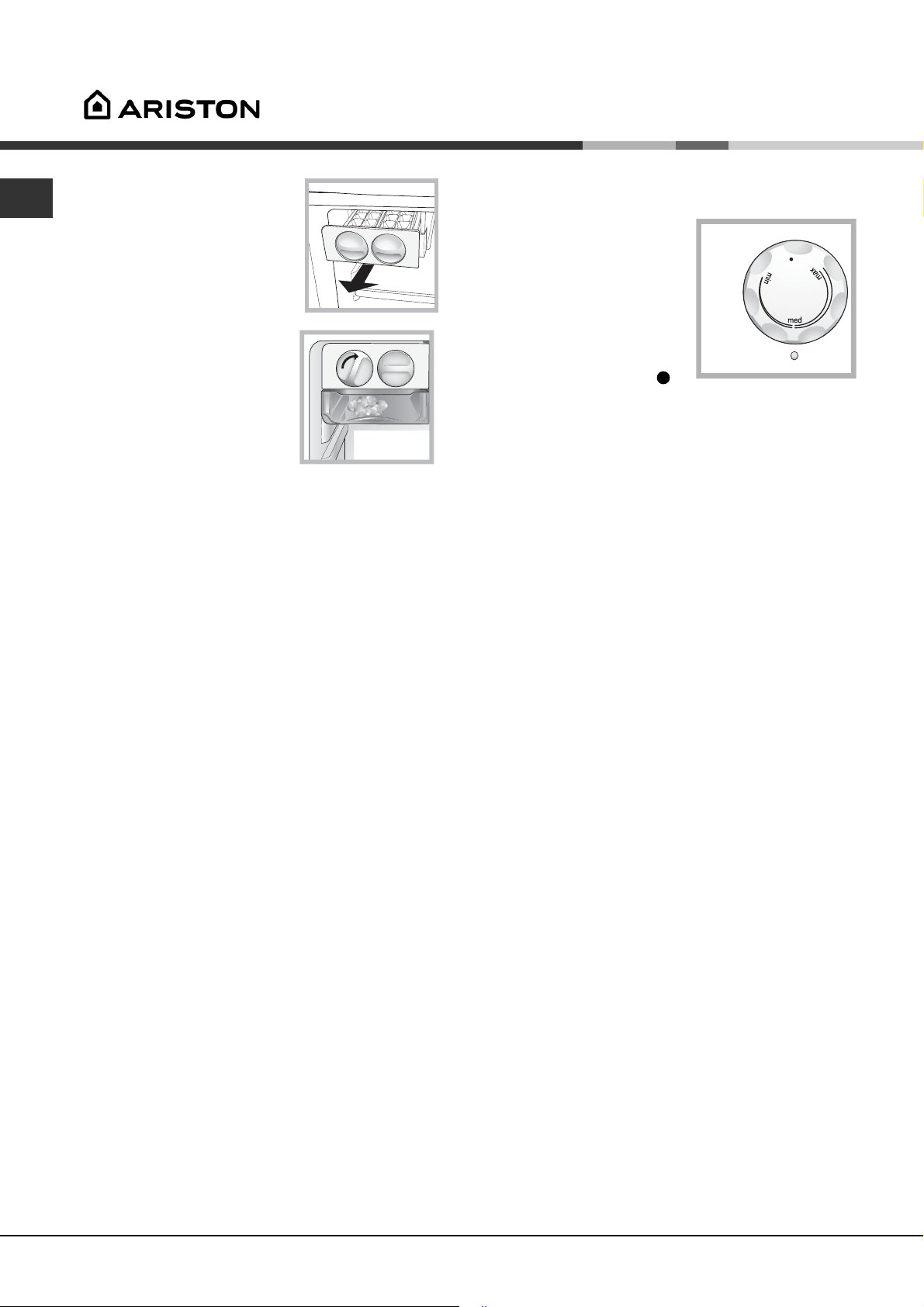

	ICE DEVICE
		GB
	After pouring water in the special
	ice cups, place them in their
	places in the ice device. After
	about 2 hours, the ice cubes will
	be ready. In order to get the ice
	cubes, it will be sufficient to turn
	the two buttons to the right. The ice
	cubes will fall in to the tray below,
	ready to be used.

5

Maintenance and care

GB Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: It is not sufficient to set the temperature adjustment knobs on(appliance off) to eliminate all electrical contact.

Cleaning the appliance

•The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.

•The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.

•The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Replacing the light bulb

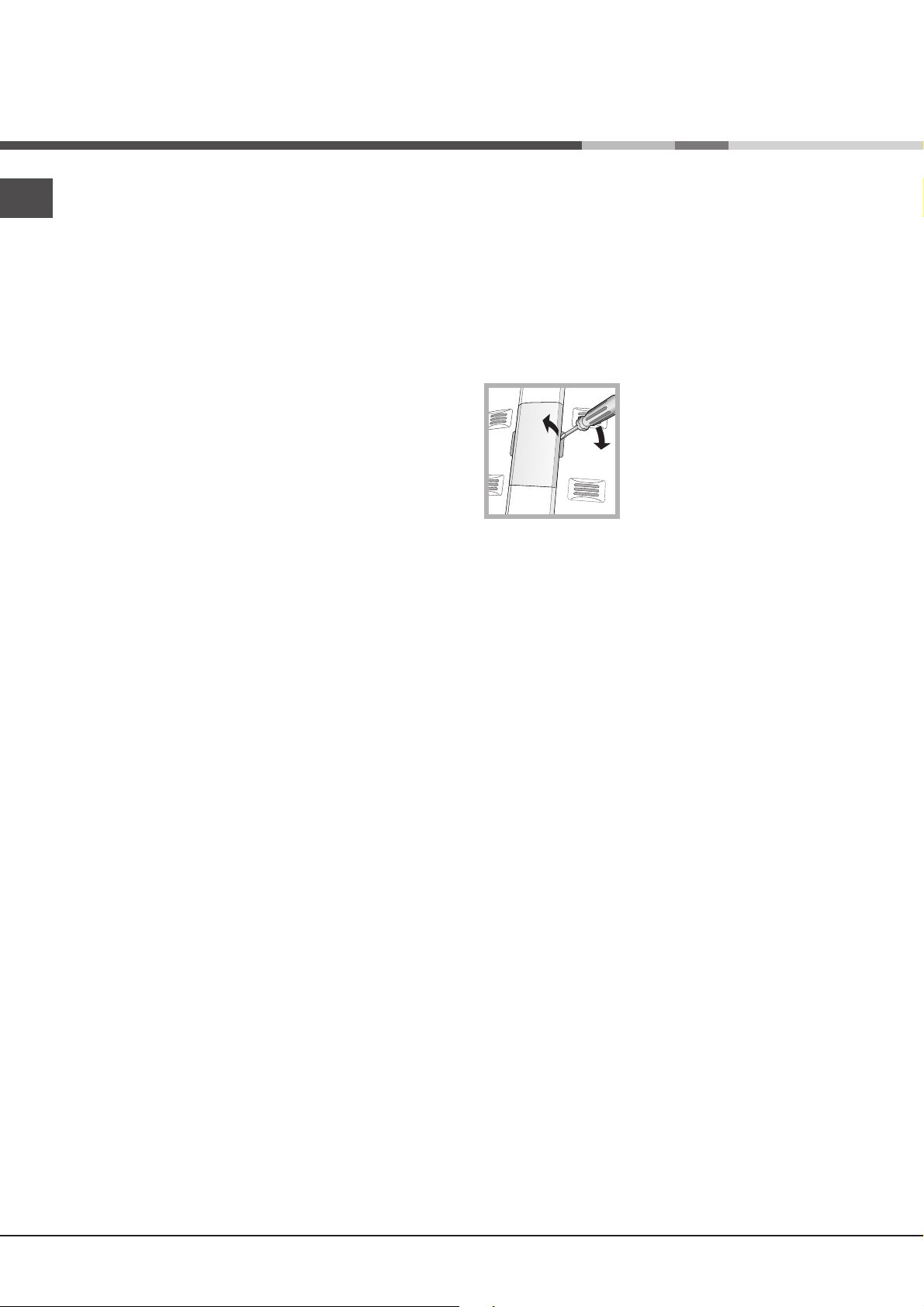

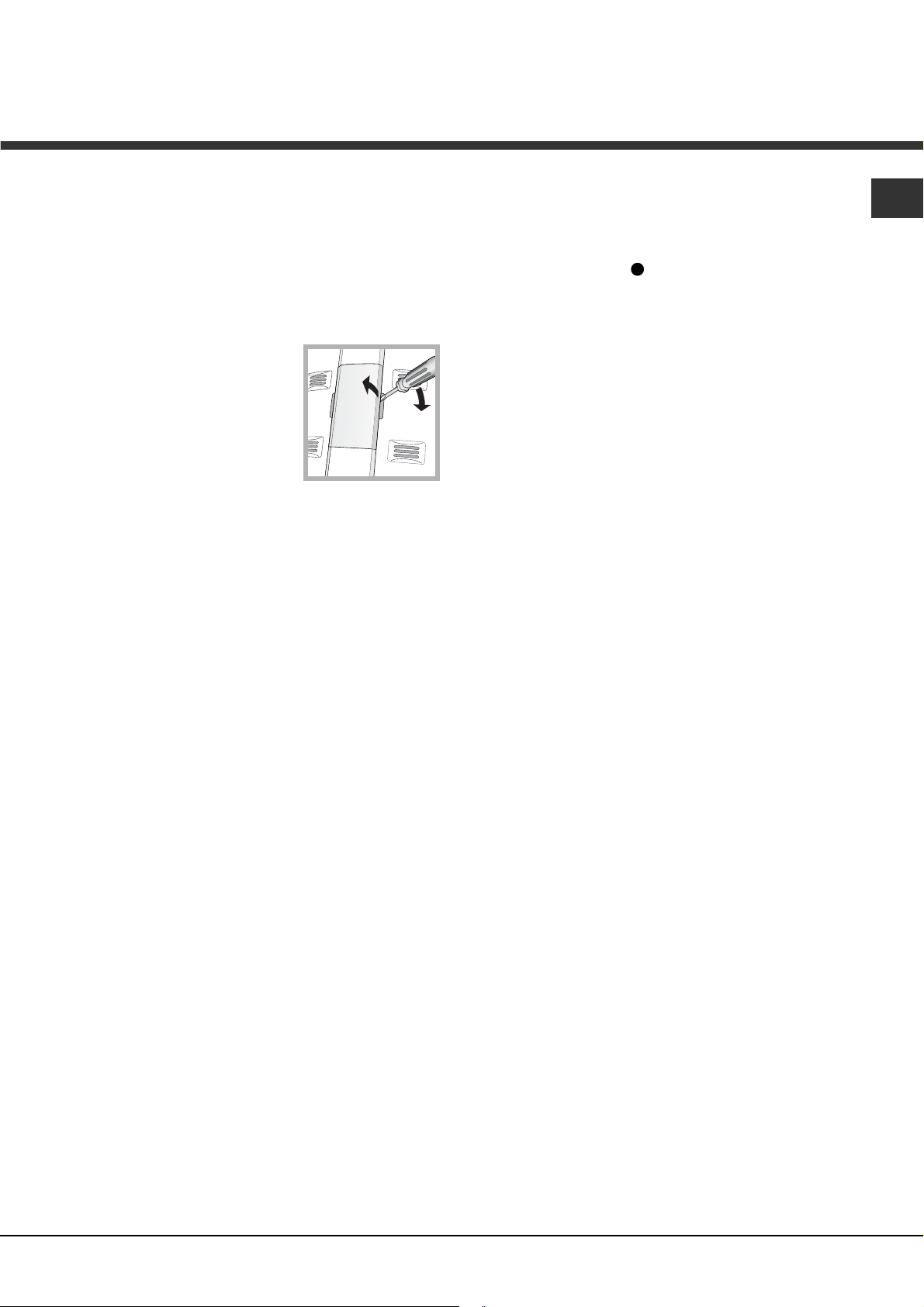

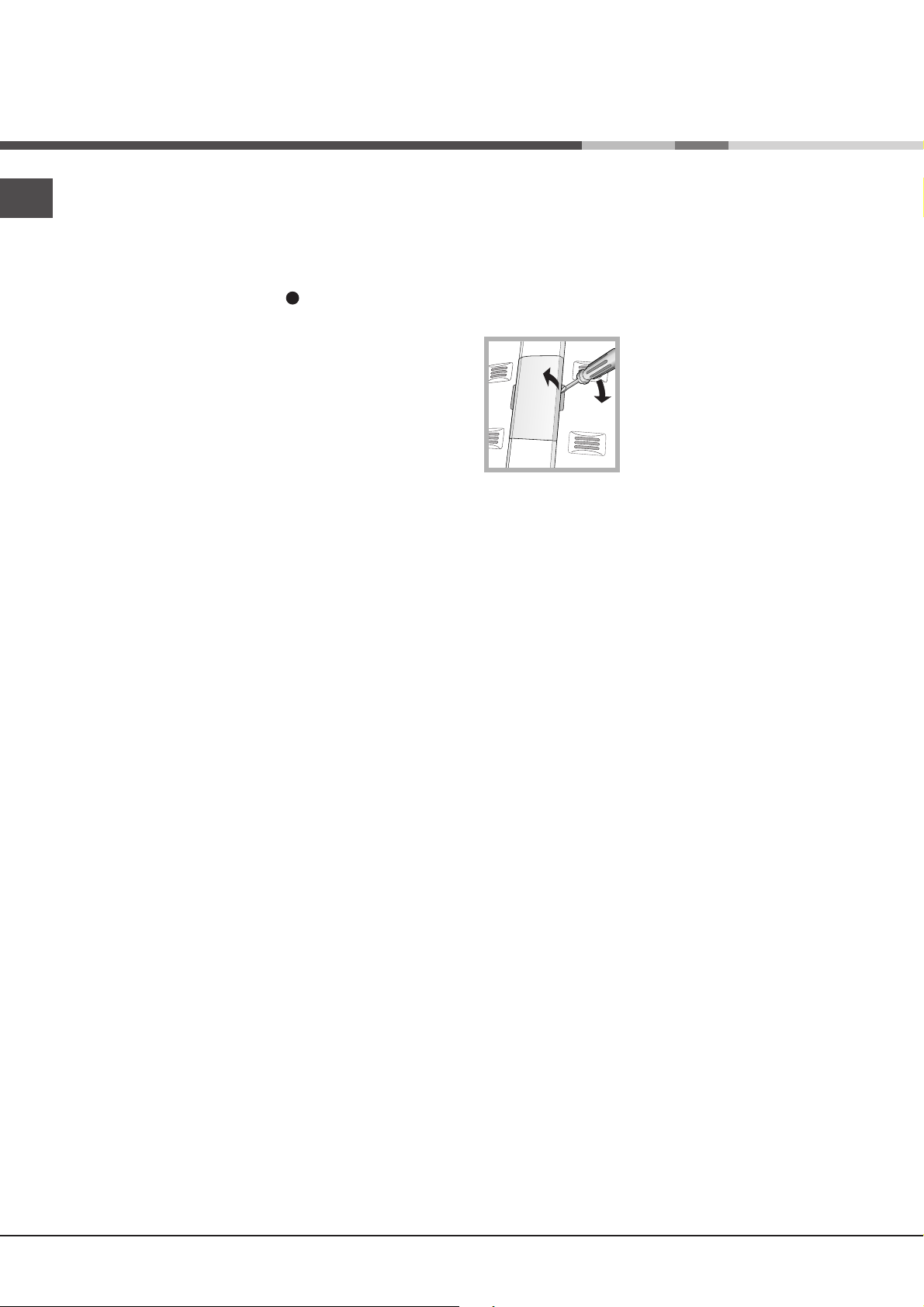

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below which may vary according to the model of the appliance.

Access the light bulb as shown (see diagram) and replace it with a similar light bulb, the power of which should not exceed 10 W.

Avoiding mould and unpleasant odours

•The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.

•If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

6

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE.

General safety

•The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

•The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.

•The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

•Do not touch the appliance with bare feet or with wet or moist hands and feet.

•Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.

•When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

•Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical

supply. It is not sufficient to set the temperature adjustment knobs on(appliance off) to eliminate all electrical contact.

•In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.

•Do not use utensils other than the scraper provided, or electrical equipment which is not of the type specified by the manufacturer, inside the frozen food storage compartments.

•Do not put ice cubes taken directly from the freezer into your mouth.

•Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door.

•Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

GB

•Observe local environmental standards when disposing packaging material for recycling purposes.

•The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

•Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.

•Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.

•Do not fill the appliance with too much food:

cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.

•Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.

•Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

•Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

7

Troubleshooting

Assistance

195056557.01

06/2006

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

GB

Malfunctions:	Possible causes / Solutions:
The internal light does not	•	The plug has not been inserted into the electrical socket, or not far
illuminate.		enough to make contact, or there is no power in the house.
The refrigerator and the freezer do	•	The doors do not close properly or the seals are damaged.
not cool well.	•	The doors are opened too frequently.
	•	The TEMPERATURE ADJUSTMENT knob is not in the correct position
	• The refrigerator or the freezer have been over-filled.
The food inside the refrigerator is	•	The TEMPERATURE ADJUSTMENT knob is not in the correct
beginning to freeze.		position.
The motor runs continuously.	•	The door is not closed properly or is continuously opened.
	•	The outside ambient temperature is very high.

The appliance makes a lot of noise. • The appliance has not been installed on a level surface (see Installation).

•The appliance has been installed between cabinets that vibrate and make noise.

•The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

Assistance

Before calling for Assistance:

•Check if the malfunction can be solved on your own (see Troubleshooting).

•If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

•type of malfunction

•appliance model (Mod.)

•serial number (S/N)

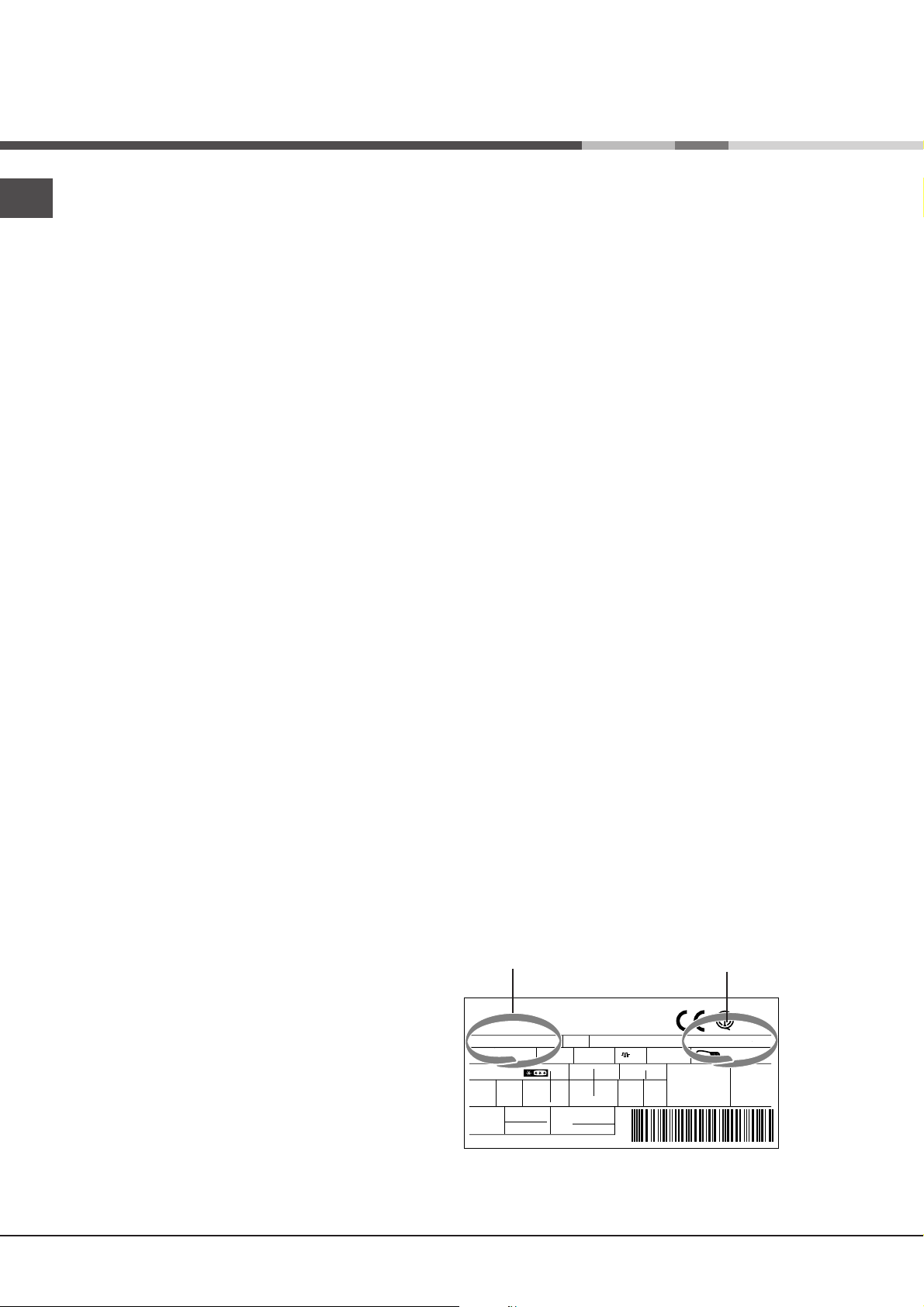

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

model

serial number

TI

Cod. 93139180000

S/N 704211801

Mod. RG 2330

220 - 240 V-

50 Hz

150 W

W

Fuse

A

Max 15 w

Class

Total

340

75

Freez.

Capac

Gross

Gross

Net

Gross

Poder de Cong

Clase N

Bruto

Bruto

Util

Bruto

kg/24 h 4,0

Classe

Brut

Brut

Utile

Brut

Compr.

R 134 a

Test

Pressure

Syst.

HIGH-235

Kompr.

kg 0,090

P.S-I. LOW 140

Made in Italy 13918

Never call on unauthorized technicians and always refuse spare parts which are not originals.

8

Mode d’emploi

	GB			F		ES
	English, 1			Français, 9		Espanol, 25
	PT			AR
	Portuges, 33			40

MTM 1901 F (EX) 0

MTM 1902 F (EX) 0

MTM 1902 FT 50-60

REFRIGERATEUR/

Sommaire

F

Installation, 10

Mise en place et raccordement

Description de l’appareil, 11

Vue d’ensemble

Mise en marche et utilisation, 12-13

Mise en service de l’appareil

Pour profiter à plein de votre réfrigérateur Pour profiter à plein de votre congélateur

Entretien et soins, 14

Mise hors tension Nettoyage de l’appareil

Contre la formation de moisissures et de mauvaises odeurs Remplacement de l’ampoule d’éclairage

Précautions et conseils, 15

Sécurité générale

Mise au rebut

Economies et respect de l’environnement

Anomalies et remèdes, 16

Assistance, 16

Installation

!Conservez ce mode d’emploi pour pouvoir le consulter F à tout moment. En cas de vente, de cession ou de

déménagement, veillez à ce qu’il suive l’appareil pour informer le nouveau propriétaire sur son fonctionnement et lui fournir les conseils correspondants.

!Lisez attentivement les instructions : elles contiennent des conseils importants sur l’installation, l’utilisation et la sécurité de votre appareil.

Mise en place et raccordement

Mise en place

1.Placez l’appareil dans une pièce bien aérée et non humide.

2.Ne bouchez pas les grilles d’aération arrière : le compresseur et le condensateur produisent de la chaleur et exigent une bonne aération pour bien fonctionner et réduire la consommation d’électricité.

3.Prévoir au moins 10 cm entre le haut de l’appareil et les meubles installés au-dessus et au moins 5 cm entre les côtés et les meubles/parois latérales.

4.Installez l’appareil loin de sources de chaleur (rayons directs du soleil, cuisinière électrique).

5.Pour maintenir une distance optimale entre le produit et la paroi arrière, montez les cales d’espacement comprises dans le kit d’installation et suivez les instructions de la notice spécialement prévue.

Mise à niveau

1.Installez l’appareil sur un sol plat et rigide.

2.Si le sol n’est pas parfaitement horizontal, vissez ou dévissez les petits pieds avant pour bien niveler l’appareil.

Raccordement électrique

Après le transport, placez l’appareil à la verticale et attendez au moins 3 heures avant de le raccorder à l’installation électrique. Avant de brancher la fiche dans la prise de courant, assurez-vous que :

•la prise est bien munie d’une terre conforme à la loi;

•la prise est bien apte à supporter la puissance maximale de l’appareil, indiquée sur la plaquette signalétique placée à l’intérieur du compartiment réfrigérateur en bas à gauche (ex. 150 W);

•la tension d’alimentation est bien comprise entre les valeurs indiquées sur la plaquette signalétique, placée en bas à gauche (ex.220-240 V);

•la prise est bien compatible avec la fiche de l’appareil. En cas d’incompatibilité, faites remplacer la fiche par un technicien agréé (voir Assistance); n’utilisez ni rallonges ni prises multiples.

!Après installation de l’appareil, le câble électrique et la prise de courant doivent être facilement accessibles.

!Le câble ne doit être ni plié ni excessivement écrasé.

!Il doit être contrôlé prériodiquement et ne peut être remplacé que par un technicien agréé (voir Assistance).

!Nous déclinons toute responsabilité en cas de non respect des normes énumérées ci-dessus.

10

Description de l’appareil

Vue d’ensemble

F

Ces instructions d’utilisation s’appliquent à plusieurs modèles, il se peut donc que les composants illustrés présentent des différences par rapport à ceux de l’appareil que vous avez acheté. Vous trouverez dans les pages suivantes la description des objets plus complexes.

Bac à GLAÇONS*

Compartiment FAST

FREEZER

Compartiment

CONSERVATION

Compartiment

FRESH BOX

Bouton

FONCTIONNEMENT

REFRIGERATEUR

Bouton

FONCTIONNEMENT

CONGELATEUR

CLAYETTE•

Reglage

D’HUMIDITE

Bac FRUITS

et LEGUMES

PIED

de réglage

Balconnet amovible

PORTE-OBJETS•

Balconnet amovible à abattant

Scatola

BURRO*

Balconnet

PORTECANETTES•

Balconnet amovible

PORTE-OBJETS

Balconnet

BOUTEILLES

• Leur nombre et/ou leur emplacement peut varier. * N’existe que sur certains modèles.

11

Mise en marche et utilisation

Mise en service de l’appareil

F

!Avant de mettre l’appareil en service, suivez bien les instructions sur l’installation (voir Installation).

!Avant de brancher votre appareil, nettoyez bien les compartiments et les accessoires à l’eau tiède additionnée de bicarbonate.

1.Branchez la fiche dans la prise de courant et assurez-vous que l’éclairage intérieur s’allume.

2.Amenez le bouton de REGLAGE DE LA TEMPERATURE sur une valeur intermédiaire. Au bout de quelques heures, vous pourrez commencer à stocker des aliments dans le réfrigérateur.

Pour profiter à plein de votre réfrigérateur

		Le réglage de la température à
		l’intérieur du compartiment
		réfrigérateur est automatique
		en fonction de la position du
	fridge	bouton du thermostat.
		min = moins froid
		max = plus froid
		Nous conseillons toutefois une
		position intermédiaire
		Le No Frost gère un flux continu

d’air froid qui absorbe l’humidité et empêche la formation de glace et de givre: il maintient un niveau d’humidité adéquat à l’intérieur du compartiment réfrigérateur et, grâce à l’absence de givre, il préserve les qualités originaires des aliments; dans le compartiment congélateur il évite la formation de glace, il n’y a par conséquent plus besoin de dégivrer et les aliments ne collent plus entre eux. Ne placez pas d’aliments ou de récipients contre la paroi refroidissante arrière pour ne pas boucher les trous d’aération et éviter une formation rapide d’eau condensée. Fermez bien les bouteilles et emballez les aliments.

N’introduisez que des aliments froids ou à peine tièdes, jamais chauds (voir Précautions et conseils).

Les aliments cuits contrairement à ce que l’on croit ne se conservent pas plus longuement que les aliments crus.

1

2

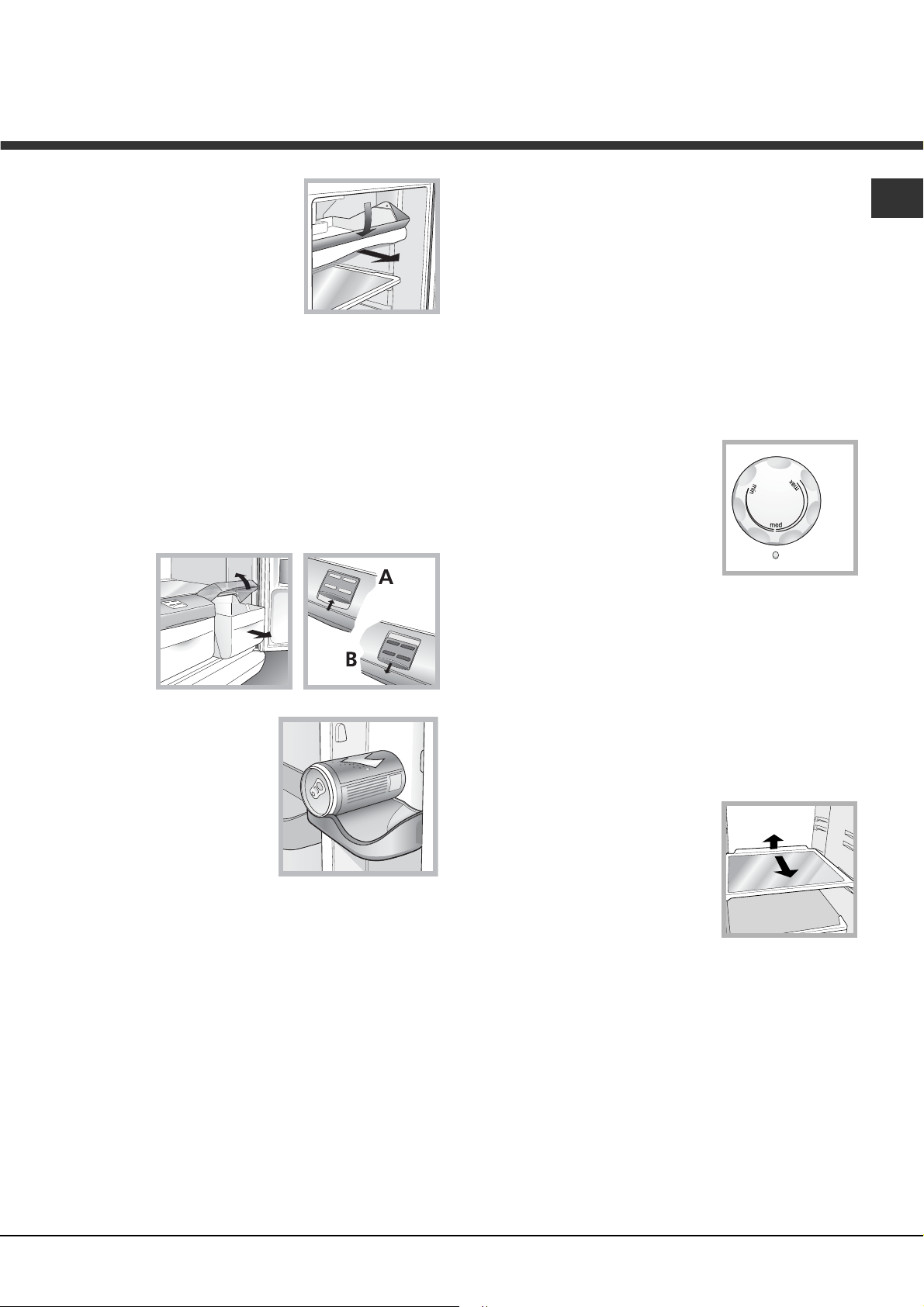

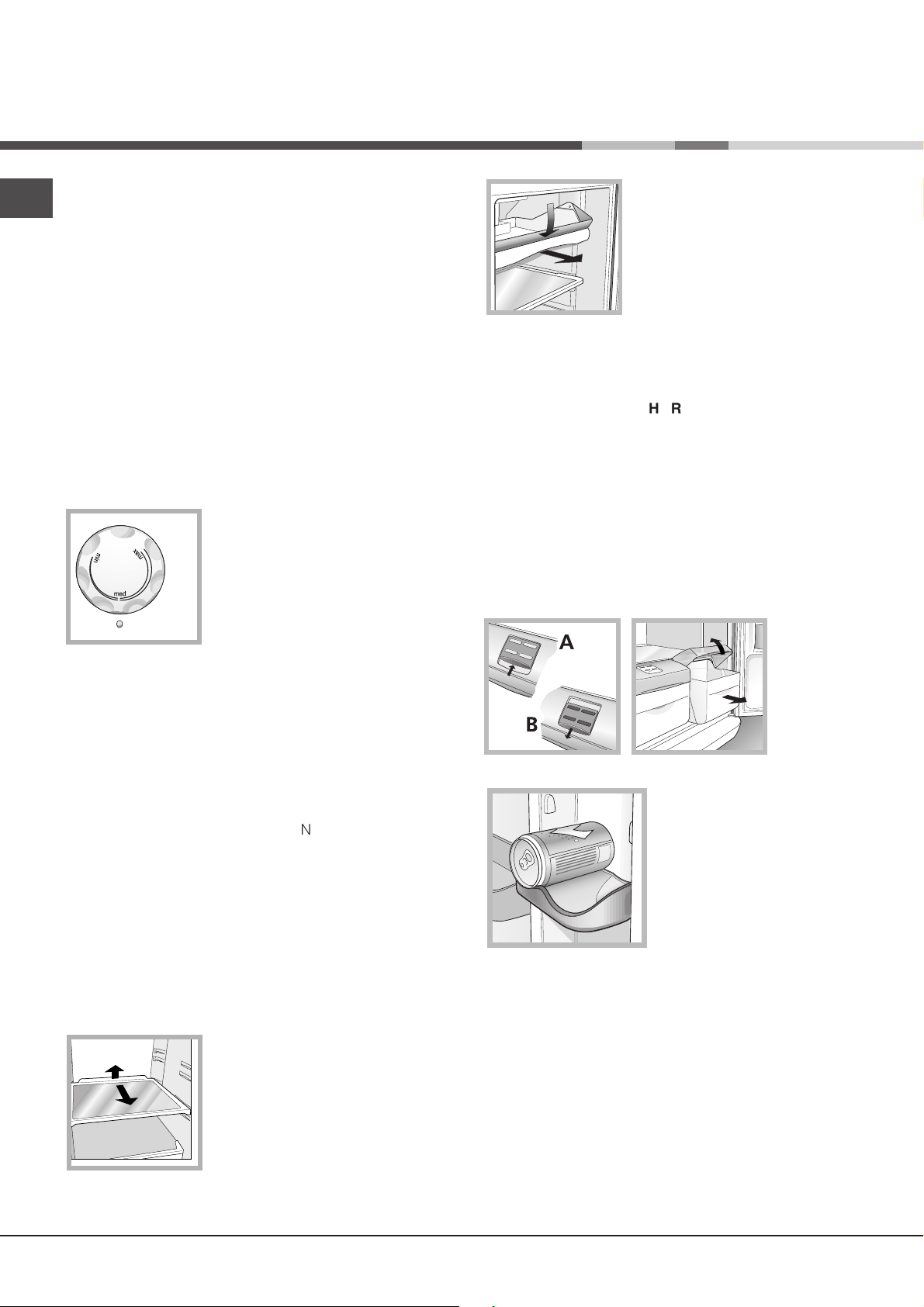

CLAYETTES : pleines ou grillagées. Elles sont amovibles et réglables en hauteur grâce à des glissières spéciales (voir figure), pour le rangement de récipients ou d’aliments de grande dimension. Pour régler la hauteur, pas besoin de sortir la clayette complètement.

FRESH BOX: pour viandes et

poissons frais. Ce compartiment

sert à prolonger la durée de

conservation jusqu’à une

semaine, grâce à sa température très basse – la plus

froide du réfrigérateur – et à son

volet transparent qui protège contre les phénomènes

d’oxydation et de noircissement. Il peut aussi être utilisé pour conserver des “plats froids”.

Bac FRUITS et LEGUMES

Les tiroirs à fruits et légumes qui équipent le réfrigérateur sont spécialement conçus pour garder vos fruits et légumes frais et savoureux. Ouvrez le régulateur d’humidité (position B) si vous désirez conserver vos aliments dans un environnement moins humide ou bien fermez-le (position A) pour les conserver dans un environnement plus humide. Les couvercles, faciles à ouvrir, il suffit pour cela de tirer le tiroir vers vous, permettent d’introduire et de sortir facilement les aliments.

Balconnet PORTE-

CANETTES

Le porte-canettes placé dans la contre-porte vous permet de ranger non seulement vos canettes mais aussi vos yogurts, votre beurre et vos autres récipients selon vos exigences.

12
