Quick guide to your dishwasher

This manual explains pleasantly all your new electric household appliance has to offer. In addition, you will discover a world of useful hints and handy tips to help you get a better wash from your dishwasher and to make it last longer.

1. Installation and moving (p. 8)

Installation, after delivery or your moving house, is the most important procedure for the correct operation of your dishwasher. Always check:

1. That the electricity system is in accordance with norms;

2. That the water inlet and outlet hoses are connected correctly;

3. That the dishwasher is level on the ground. It is worth it: for the longer life span and the correct operation of your dishwasher.

1509)50-4

2. Control panel at your orders (p.2)

Learn to get to know the parts which make up your dishwasher, you will use it better for it. This is where you will find the description of the controls and the internal parts.

3. How to load your dishes (p.3)

This page includes useful tips to help you load your dishwasher correctly and make the most of all the available space.

4. How to start your dishwasher (p. 4)

After loading the dishes, you need to select the right wash cycle and measure out the correct dose of detergent and rinse aid. Reading these pages will help you through all the wash phases.

5. Salt: an important ally (p. 7)

Using the right salt and in the right quantity will help you maintain your dishwasher in top condition, to wash better and to avoid possible damage caused by limescale.

6. Advice and suggestions to help you make savings

as well (p. 7)

This is where you will find small tips on how to wash your dishes better and to help make savings by selecting a wash cycle which best suits the type of load.

7. Troubleshooting (p.9)

8. Safety for you and your family (p.9)

Read this chapter carefully, as it will provide you with useful information on installation, use and maintenance safety. To avoid nasty surprises.

9. Special care and maintenance (p.10)

Once in a while, once a month, spend a little time on the filter assembly and the sprayer arms. This is where you can learn how.

10. Keeping your dishwasher in shape (p.10)

Respect the few rules you will find here, and the result will be an enduring top-shape dishwasher.

11. Technical characteristics (p. 2)

All your appliance's technical data, in accordance with norms and regulations as always.

Before calling the technician, have a look here: a lot of problems can have an immediate solution. If you can't manage to solve it yourself, then call the Ariston helpline and any problem will be solved as quickly as possible.

12. Ariston is still with you after purchase (p.11)

Ariston supports its products by means of after-sales services and assistance, offering you special guarantees, professional assistance as well as quality spare parts and accessories. To find out more, call the Ariston Freefone Number.

ARISTON DISHWASHER - Instructions for installation and use

1509)50-4

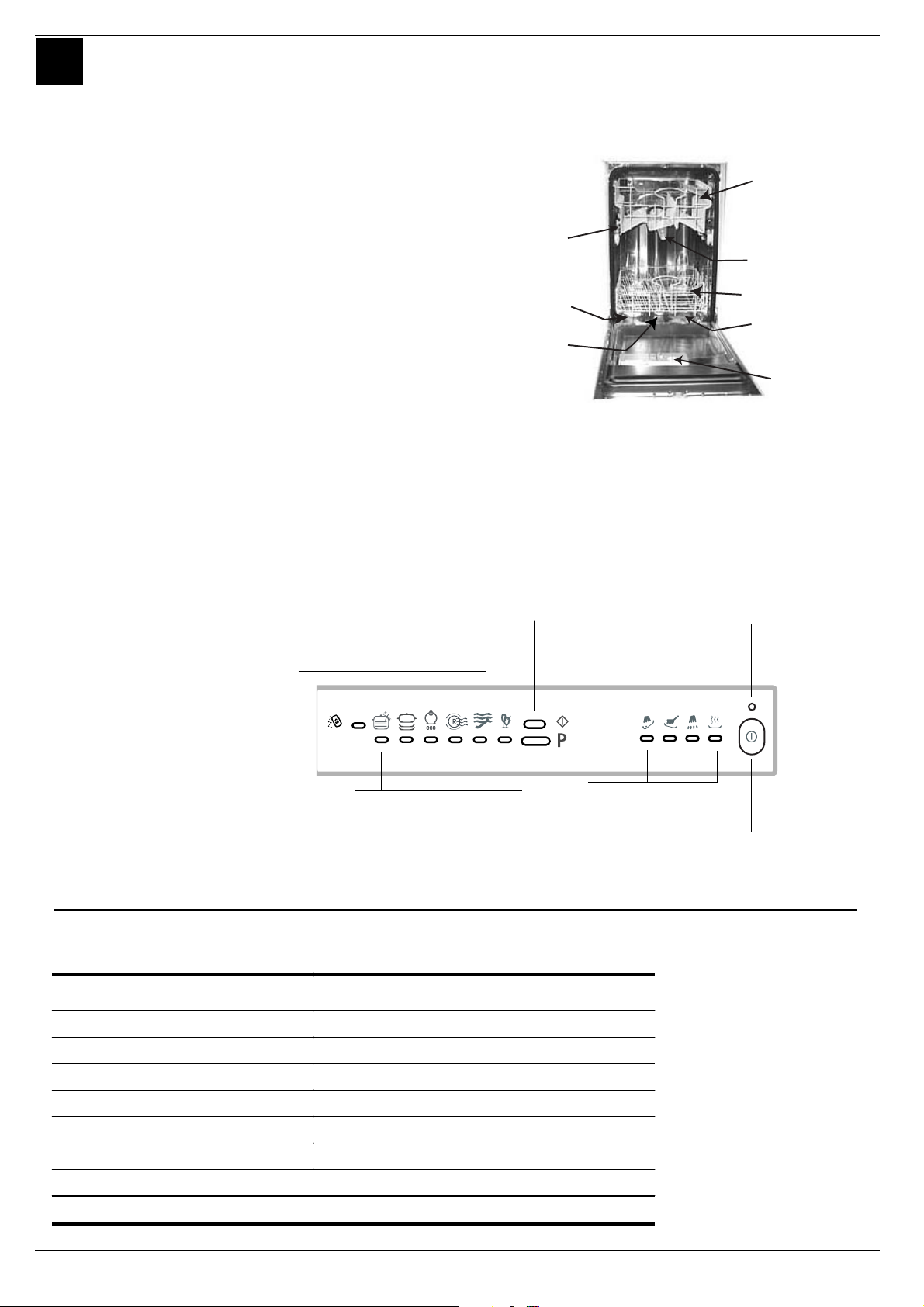

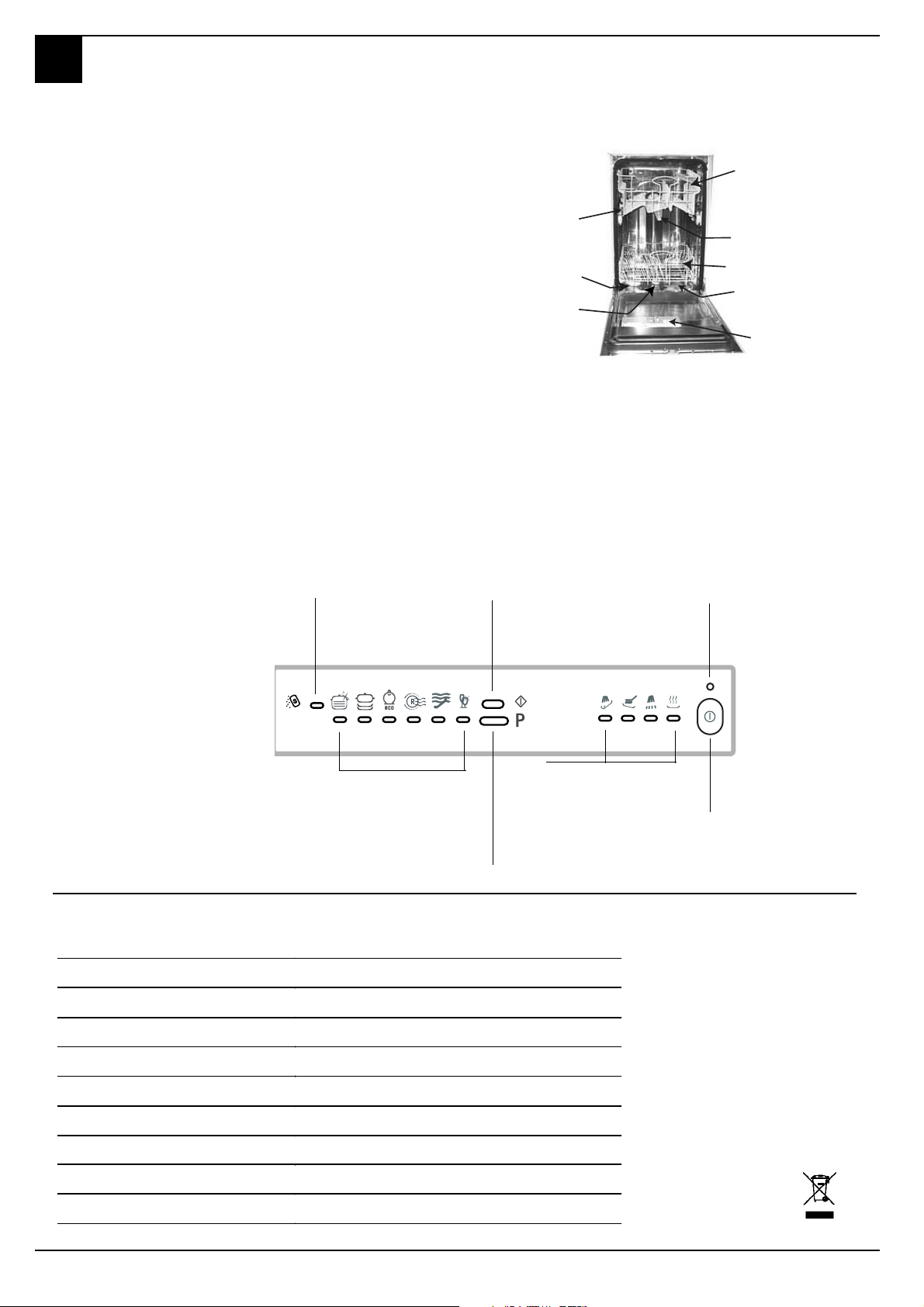

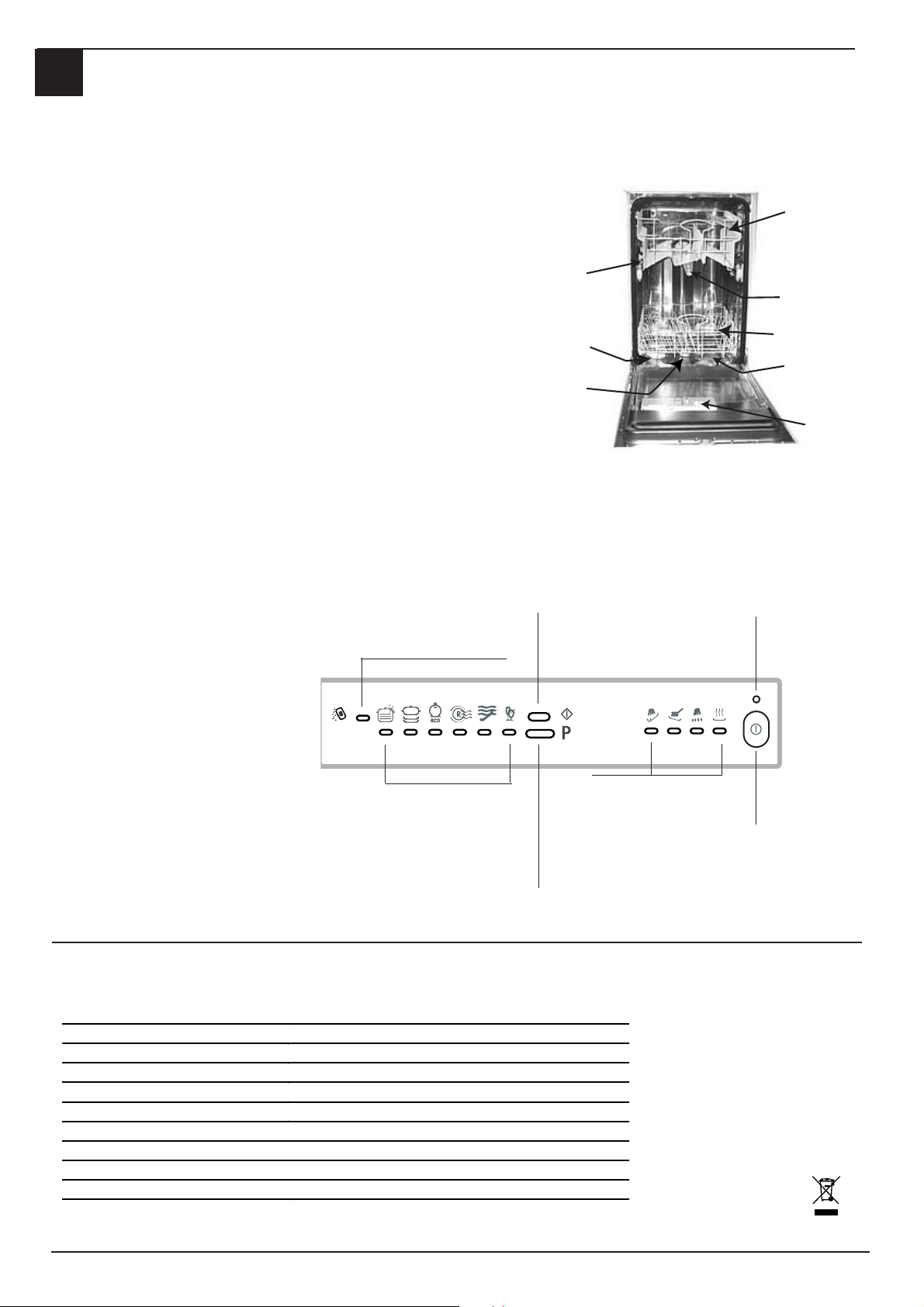

Let's open up your dishwasher together

How is it made?

Learn to get to know the parts which make up your dishwasher, you will use it better for it.

E. Upper rack

F. Top sprayer arm

G. Rack height adjuster

H. Lower rack

I. Bottom sprayer arm

J. Salt container cap

K. Washing filter

L. Detergent and rinse aid

dispenser

Control panel at your orders

A. On-Off button

Press this button to switch the appliance on.

B. ON-OFF Indicator light

This light informs you that the dishwasher is on.

E.Cycle indicator lights

This light informs you which cycle you have selected or the one in

progress.

G. Cycle phase and

indicator lights

These indicator lights inform you which cycle phase is under way (pre-wash, wash, rinses, drying)

P. Cycle select button

Each time this button is pressed, one of the cycle indicator lights E will come on in sequence.

R. Start/Reset Button

With Start, the wash cycle begins, whereas all the settings are cleared with Reset.

S. Low salt indicator

light

To tell you that its time to add more salt.

SLow Salt

indicator light

indicator lights

E Cycle

R Start/Reset button

G Cycle phase indicator lights

P Cycle Select button

B ON-OFF indicator light

A ON-OFF button

Technical Characteristics

Technical characteristics

Width cm. 45

Depth cm. 60

Height cm. 85

Capacity 9 standard place settings

Mains water pressure 4,3 ÷ 145 psi 0,03 ÷ 1MPa (0,3 ÷10 bar)

Power voltage See data plate

Total absorber power See data plate

Fuse See data plate

ARISTON DISHWASHER - Instructions for installation and use

This dishwasher conforms to the following European Community Directives:

 73/23/EC

(Low Voltage Directive) and subsequent amendments;

 89/336/EEC

(Electromagnetic compatibility) and subsequent amendments.

 97/17/CE

(Labelling)

 2002/96/EC

(Waste Electrical and Electronic Equipment)

1509)50-4

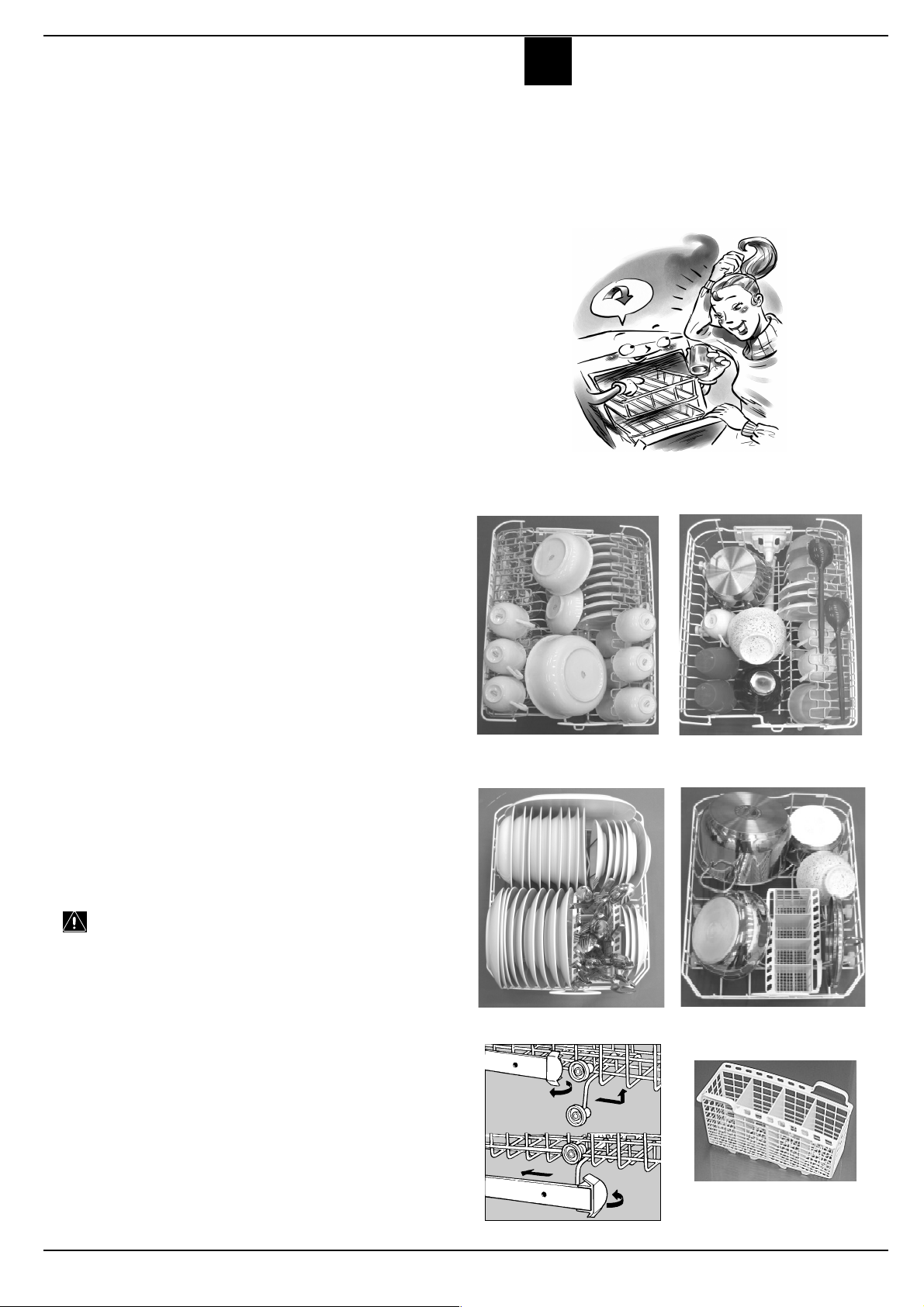

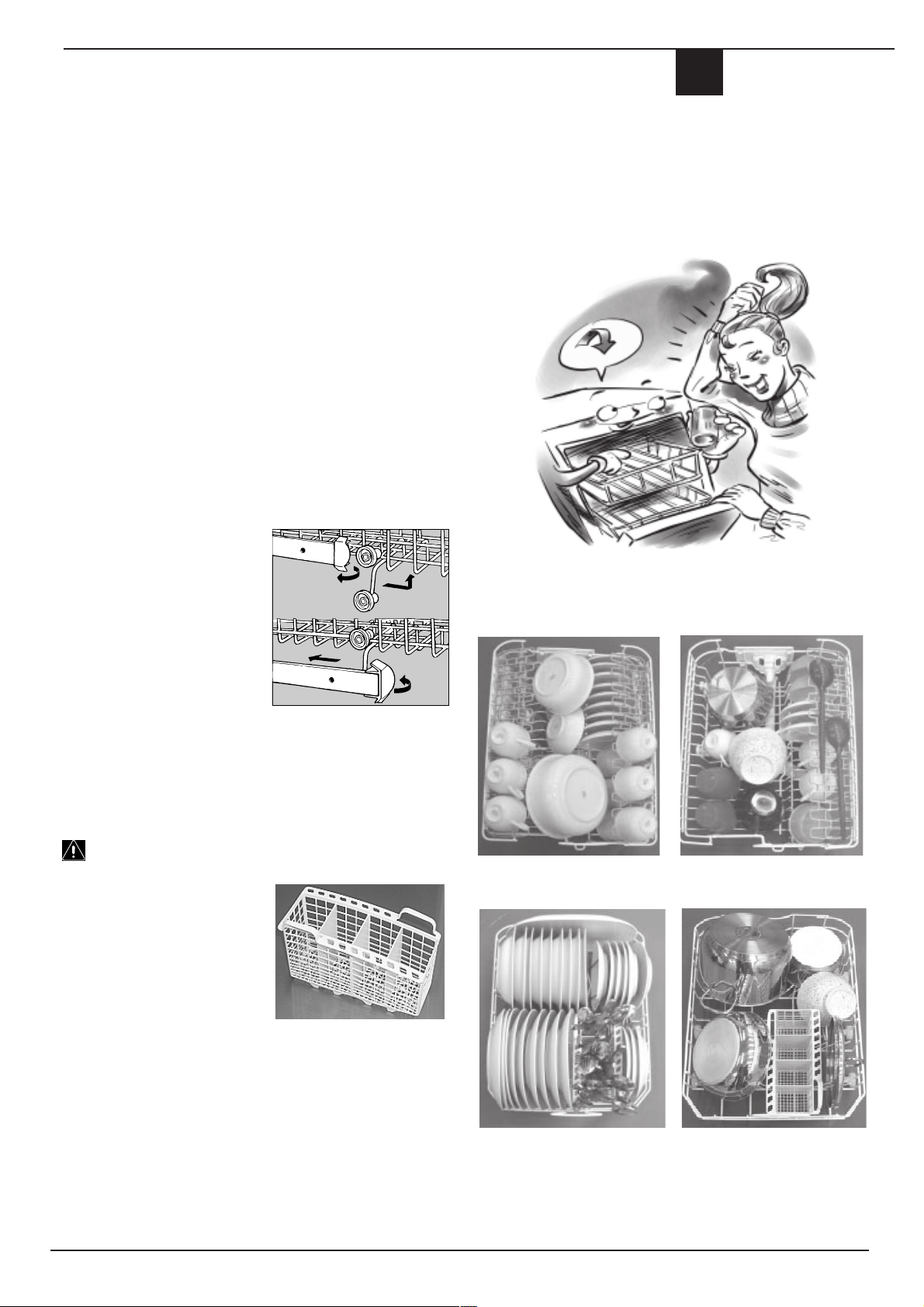

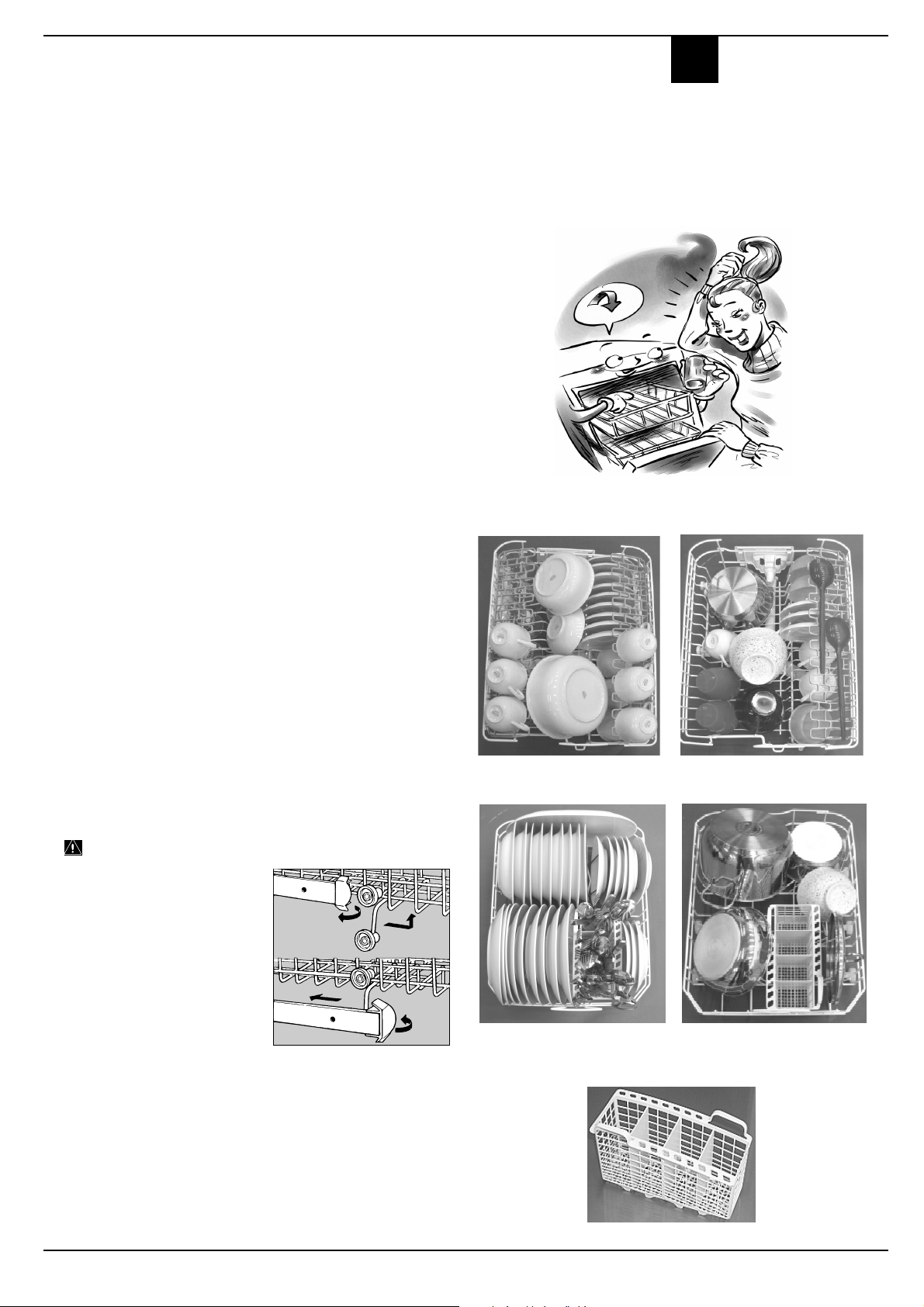

How to load your dishes

Before washing, a few small steps can help you get a better wash and keep your dishwasher for longer. Remove the largest scraps of food left over on your plates, soak saucepans and frying pans with tough incrustations. After loading your dishes, make sure the blades on the sprayer arm turn well

First of all.

Before placing the dishes in the racks, remove the largest scraps of food left over on your plates, you will thus avoid blocking the filter, which would reduce the efficacy of the wash. If the saucepans and frying pans are very dirty, allow them to soak before being washed. To make it easier to load your dishes, pull the racks out.

What goes into the lower rack?

We recommend you place the most difficult dishes to wash into the lower rack: saucepans, lids, soup dishes and plates (a load example is shown in the photo).

 Serving dishes and large

lids: place them on the

sides of the rack.

 Saucepans, salad bowls:

must always be placed upside down

 Very deep dishes: place

them obliquely, thus allowing water to run down them and cleaning them better

 Glasses and cups: posi-

tion them as indicated in the figure.

What goes into the upper rack?

Place delicate and lightweight dishes in the upper rack: glasses, tea cups and coffee cups, saucers - but plates too - shallow salad bowls, slightly dirty frying pans and shallow pans. Position light weight dishes in such a way as to avoid their being moved by the spray of water.

After loading the dishes, remember to check that the blades on the sprayer arms can turn freely without hitting against any dishes.

How to adjust the top rack.

The upper rack can be set in high or low position to enable you to organise your dishes effortlessly.

Fig.F

Loading examples for the upper rack

Loading examples for the lower rack

Place the cutlery with the handles at the bottom; if the basket is the one with side inserts, then insert the tea spoons one by one into the slots (see figure A). Knives and other utensils with sharp point must be loaded in the basket with their point down or placed in a horizontal position in the upper basket equipped with one or two tip up compartments. Position all cutlery items so that they don't touch. It is best if you place longer utensils horizontally at the front of the upper rack. After loading the dishes, remember to check that the blades on the sprayer arms can turn freely without hitting against any dishes

Open the rail stop flaps and pull the rack out completely. Now place it in high or low position, then slide it along the guide rails until the front wheels also go in. Now close the rail stop flaps. Follow the sequence of actions illustrated in figure "F".

Fig. A

ARISTON DISHWASHER - Instructions for installation and use

1509)50-4

Starting the dishwasher

Ready, steady, go!

You have loaded your dishes and you now have to set the wash cycle. It takes just one minute to learn how

First of all.

Turn on the water tap completely and press ON-OFF button "A". you will hear a short beep and indicator light "B" lights up. Now the appliance is on and awaiting instructions.

Selecting the wash cycle.

Select the wash cycle by pressing button "P". Each time you press the button, a beep will sound and indicator lights "E" will light up in sequence: choose the cycle you deem most suited to the type of dishes to be washed (take a look at page 6, where you will find the wash cycle table). If the appliance door is shut, press the Start button "R" and you will hear a beep; the cycle will start up within a few seconds.

The dishwasher informs you.

Your dishwasher is fitted with indicator lights (G) which light up to indicate the cycle phase under way. Here are the symbols corresponding to each cycle phase:

celled. You are now free to re-set the correct wash cycle.

You've left out a dish?

Well, it happens to everyone. Interrupt the wash cycle by pressing the ON-OFF button, insert the dish you had forgotten and press the ON-OFF button again. The cycle will start up from where you interrupted it.

Finished?

The end of the wash cycle is indicated by two short beeps and the flashing of the drying phase indicator light.

Warning:

Turn the appliance off by pressing button “A”, unplug the appliance from the electricity socket to cut off the power supply; the power supply cable should consequently be easily accessible.

• Turn off the water tap.

• Wait a few minutes before unloading the dishes: they are very hot! If you wait a little while, they dry better thanks to the steam.

• Empty the lower rack

first.

There's been a power failure? Have you opened the dishwasher door?

The wash cycle stops and then restarts when the electricity comes back on or when you shut the door. Everything is under control!

pre-wash, wash, rinses, drying. At all times, your dishwasher tells you which cycle phase is under way.

Modifying a wash cycle in progress.

But if you have chosen the wrong cycle, not to worry! You can modify the wash cycle in progress, if it has only just started. Keep the RESET button "R" pressed for about 5 seconds: a prolonged beep will sound, followed by three short beeps. Indicator light "G" will turn off and at this stage, all the settings will have been can-

ARISTON DISHWASHER - Instructions for installation and use

Make sure the

wash cycle has

ended before

removing the

dishes!

Would you like to see which settings you have made?

At any time, when the cycle is under way, if you press button "P", the cycle in progress indicator light will light up for a few seconds.

If opening the

door soon after

the end of the

programme,or

during it, stand

away from the Dishwasher, to

avoid possible

injury from hot

steam.

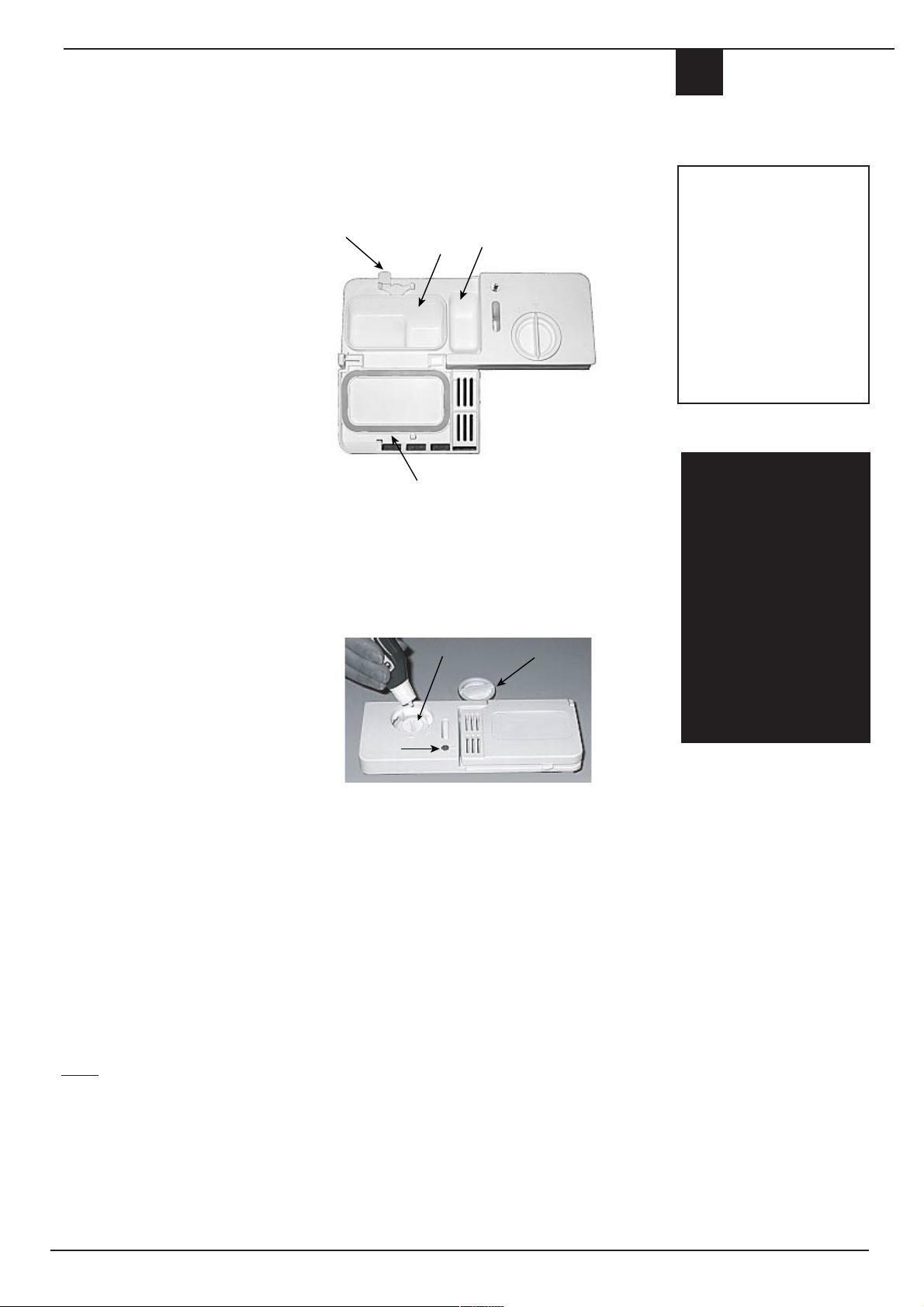

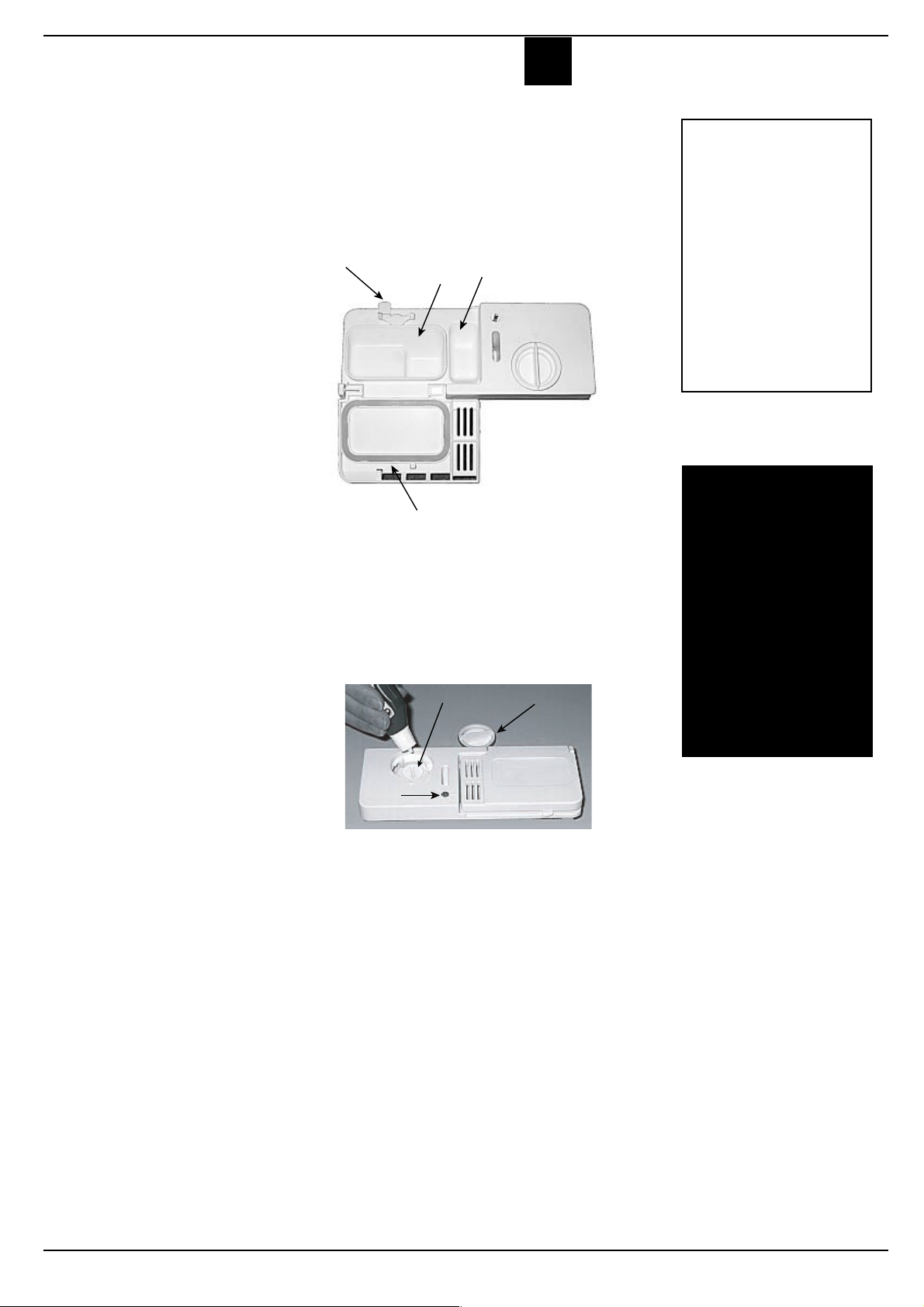

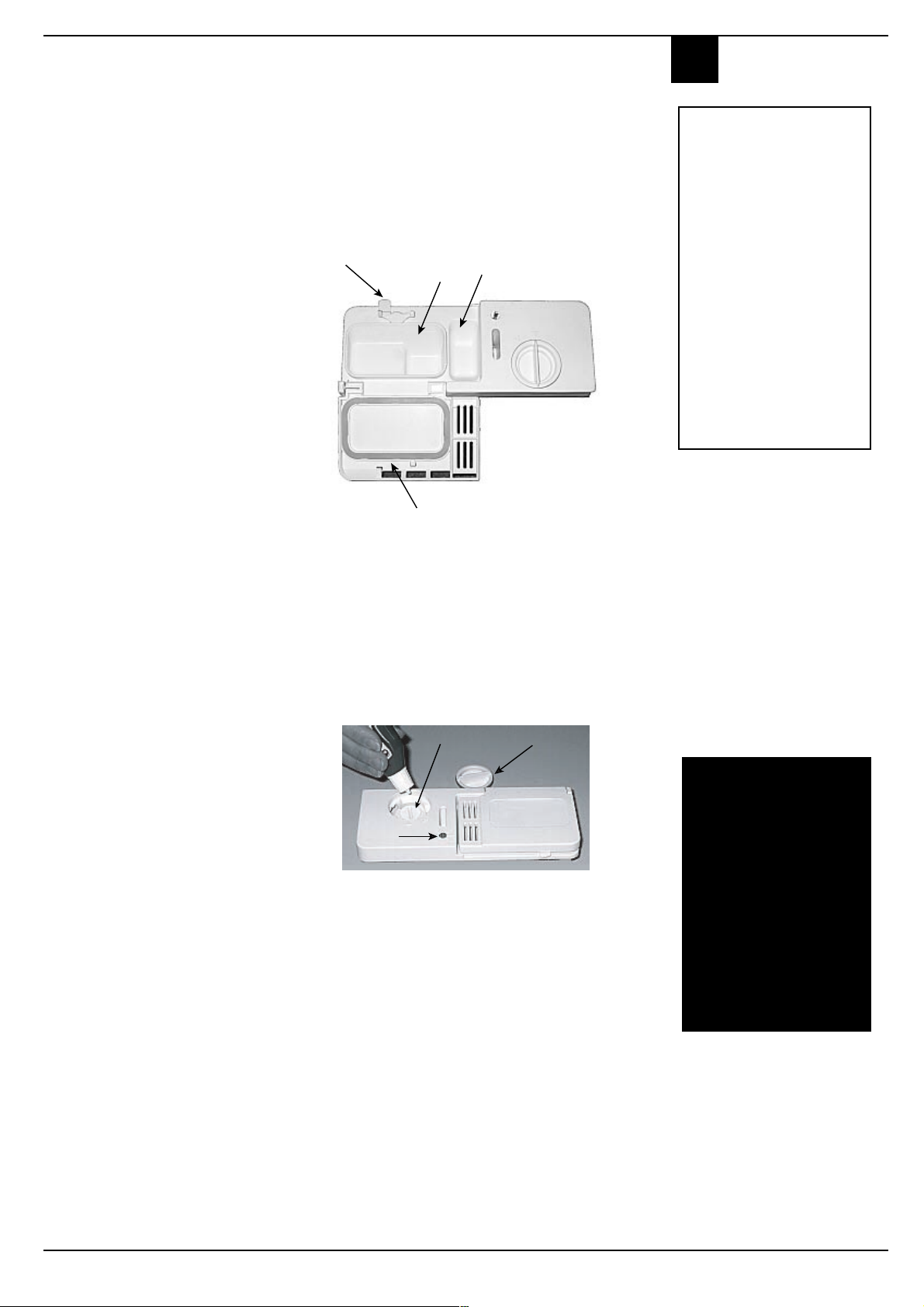

Detergent and rinse aid

1509)50-4

Only use specific dishwasher detergents. Pour the detergent into the dispenser on the inside of the door. Before the wash cycle starts!

The detergent

Loading the detergent

To open lid A, press button B. The detergent should be poured into the two containers C and D up to the rim. Now you can close the lid: press it down until you hear it click. If you prefer to use the detergent in tablet form, then place one inside the container D and close the lid.

It won't close!

Check whether there is any detergent residue on the edges of the dispenser. It is due to this residue that the lid won't close. Get rid of it and you'll see that it closes.

The rinse aid.

This product makes dishes sparkle more as it improves their drying. The rinse aid container is situated on the inside of the appliance door; you should refill it when you see the container is empty by means of indicator light D. (If your dishwasher is fitted with a low rinse aid indicator light, fill the container up when the indicator light flashes or lights up).

Loading the rinse aid.

To open the dispenser, turn cap C anticlockwise. Take care when you pour in the rinse aid to avoid it overflowing. You can adapt the amount of rinse aid used by the dishwasher: regulate the adjuster F which you will find under lid C. You can choose from six different positions.

To obtain the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.

You can choose from six different positions. It is normally set to 4.

Useful tips

 Use the right

amount of detergent: if you use too much, you will not get cleaner dishes, but just more environmental pollution.

 Keep your

dishwasher detergent and rinse aid in a cool, dry place and away from children.

Proper dosage of

the rinse aid improves drying. If drops of water

remain on the

dishes or spotting

occurs, turn the

dosage adjuster to

a higher setting.

If, on the other

hand, the dishes

have white

streaks, then turn

the dosage

adjuster down to

a lower setting.

Warning

Three-in-one dishwasher tablets are now available on the market, and combine detergent, salt and rinse aid all in one. If the water in your area is hard or very hard, we still recommend you pour extra salt into the relevant dispenser to prevent the formation of white streaks on your dishes or on the interior of the appliance. Using a three-in-one product means it is no longer necessary to put rinse aid into the relevant container. If you want to achieve perfectly dry dishes, you may add rinse aid as long as the dosage adjuster is set to no.2. In any case, please read the manufacturer's instructions on the packet. If you use only these products, it is normal for the salt and rinse aid indicator lights to flash permanently after a certain number of cycles.

ARISTON DISHWASHER - Instructions for installation and use

1509)50-4

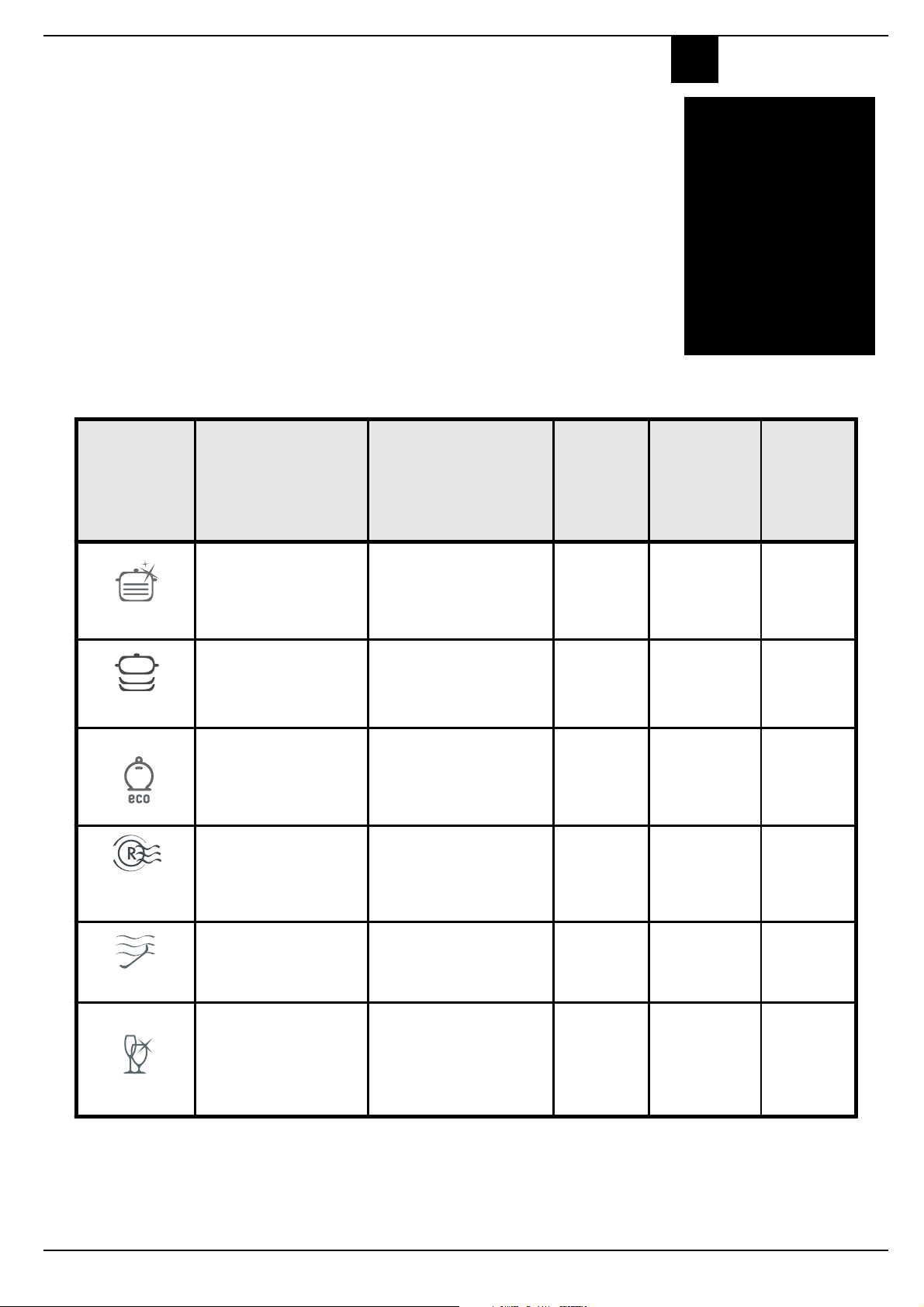

Select the right wash cycle

A wash cycle for every degree of soil

Dishwasher washing guarantees your dishes will be cleaned in a hygienic setting for safer, cleaner results.

Salt, rinse aid, the right amount of detergent and the correct wash cycle: this is the formula to get the best results and to keep your dishwasher in shape.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

Detergent

Cycle

Super Wash

Cycle s e le ction

instructions

Very dirty dishes and pans (not to be used for delicate items)

Cycle de s cription

Pre-wash at 40°C Was h at 6 3°C

2 Cold rinse

Hot rinse at 67°C Drying

for pre-

was h +

wa s h

3+24 g

Select the right

wash cycle for

your dishes. Selecting the most suitable

wash cycle for

the load ensures

clean dishes and

a more

convenient use of

water and

electricity.

Wash cycle

Rinse

Aid

duration

(tolerance

±10%)

Hrs. Min.

2:00'

Time 4 You

Rapid & Dry

Soak

Cristal care

Cycle for normally dirty pans and dishes. Standard daily cycle.

Environmentally-friendly cycle, with low energy consumption levels, suitab le fo r norma lly dirt y pans and dishes.

Economic and fast cycle to be use d for slightly dirty dishes. Run cycle immediately after use.

Preliminary wash cycle fo r dishes while awaiting completion of the load with the dishes from the next meal.

Special cycle to be used for more delicate items which are sensitive to high temperatures. Run cycle immediately after use.

Was h at 6 0°

Cold rinse

Hot rinse at 70°C Drying

Cold pre-wash

Was h at 4 8°C

Cold rinse

Hot rinse at 60°C Drying

Short wash at 48°C

Hot rinse at 67°C Drying

Short cold wash to prevent

food from drying onto the

dishes

Was h at 5 2°C Rinse at 45°C Hot rinse at 65°C Drying

27 g

3+24 g

20 g

1:33'

2:25'

0:44'

0:12 '

1:30'

ARISTON DISHWASHER - Instructions for installation and use

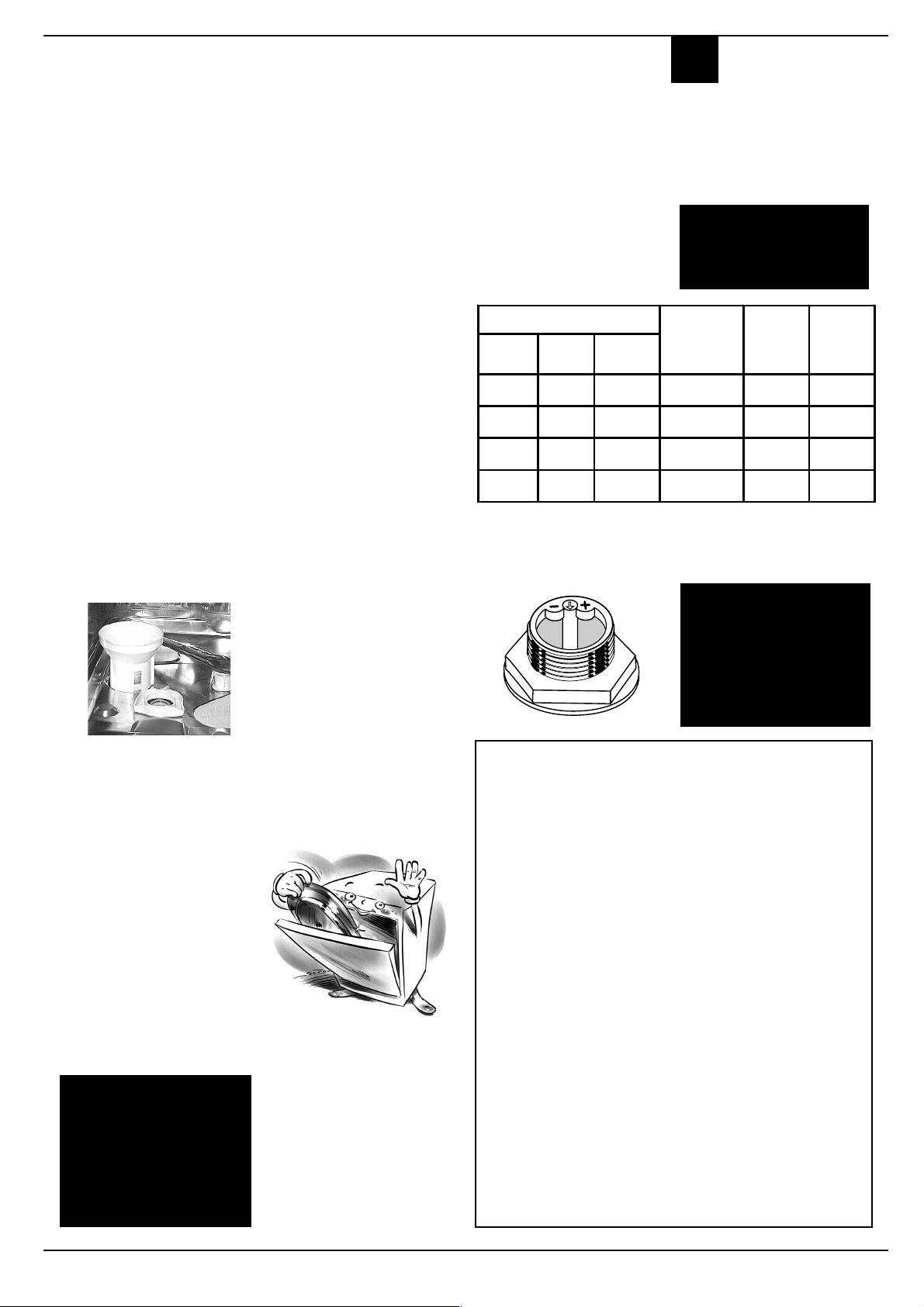

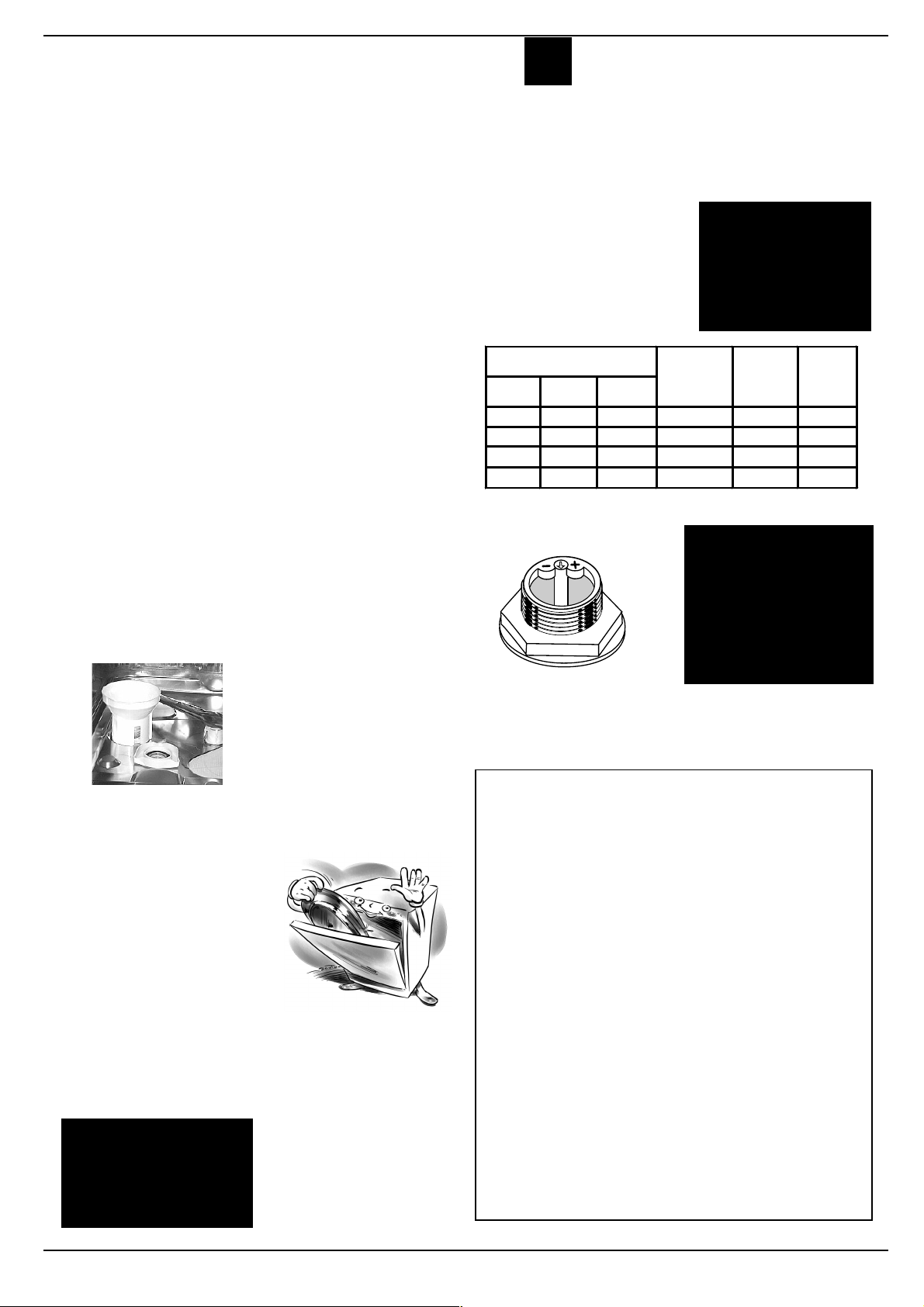

Never without salt

1509)50-4

Water in your home

Water hardness varies according to where you live. If the water in your home is hard, without water softening, incrustations would form on your dishes. Your dishwasher is fitted with a water softener which uses special salt to get rid of limescale in the water.

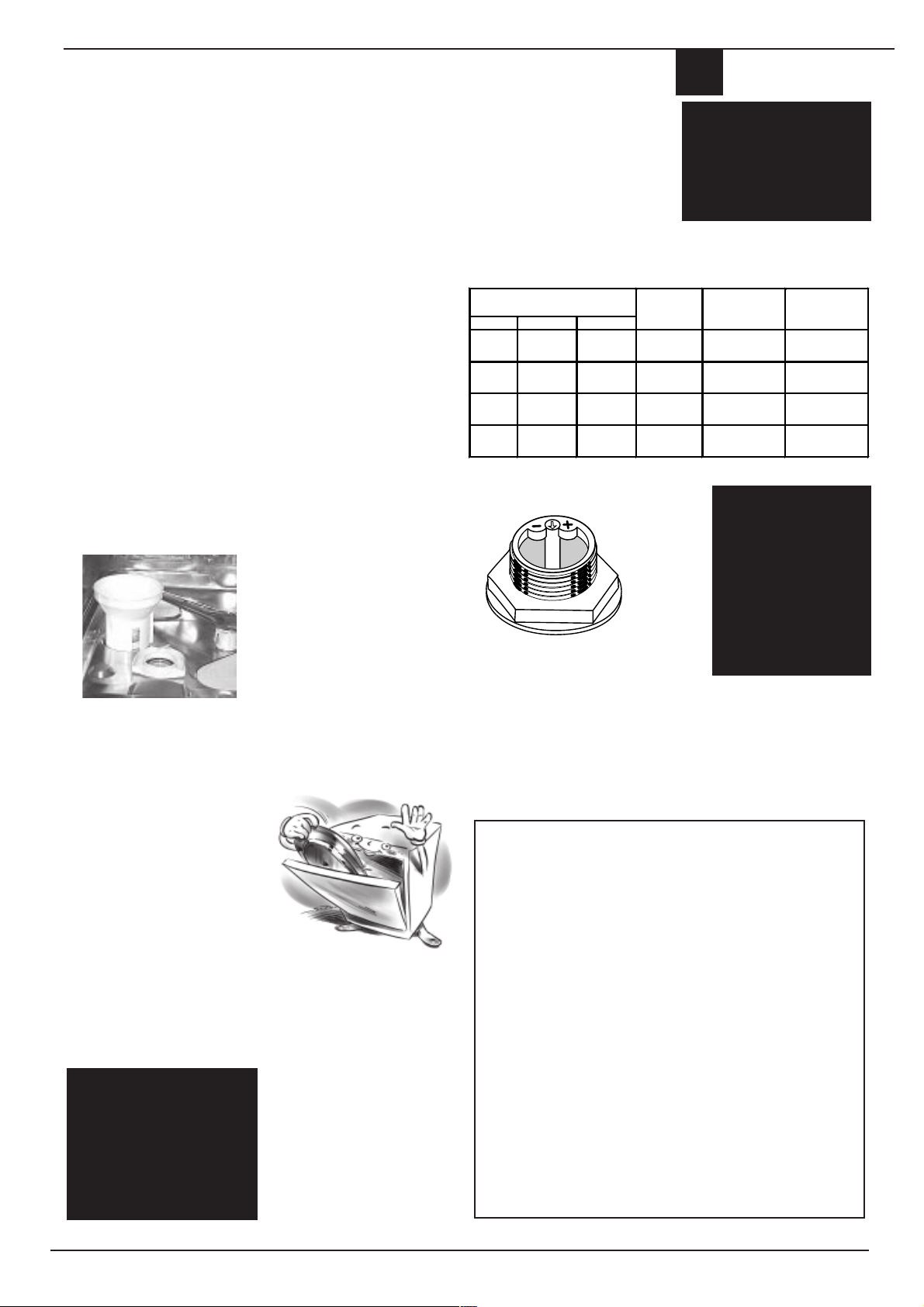

Loading the salt.

Always use salt which is intended for dishwasher use. The salt container is situated underneath the lower rack, fill it up as follows:

1.Pull out the lower rack completely, unscrew and remove the container cap

2. Is it the first time you load the salt? First fill the container up with water (you won't have to do this again next time)

3. Put the dishwasher funnel on the hole and pour in approximately two kilos of salt. It is normal that some water comes out of the container.

4. Screw the cap back in place carefully.

When should I load the salt?

The salt container should be filled up when the low salt indicator light "S" flashes. Once you have loaded the salt for the first time, it is normal that the low salt indicator light stays on or flashes for about 5 consecutive cycles.

Salt adjustment

Your dishwasher can adjust its salt consumption according to the hardness of the water in your home. This way, you can optimise and customise your dishwasher's salt consumption (not too much, nor too little).

To adjust salt consumption, do as follows:

1. Unscrew the salt container cap

2. There is an arrow on the neck of the container (see figure): if necessary, turn the arrow anti-clockwise from the "-" setting to the "+" setting.

Hardness of the water

°dH °fH °mmol/l

0 - 10 0 - 17 0 - 1.7 / 0 /

10 – 25 18 – 44 1.8 – 4.4

25 – 50 45 – 89 4.5 – 8.9 MED 40 40

> 50 > 89 > 8.9 + 60 25

Selector

position

To prevent rust

from forming, load

the salt just before

beginning a wash

cycle.

Select the arrow position depending on the water hardness, referring to the table provided.

knob

- 20 60

Salt consumption (grams/cycle)

You don't know

how hard the

water in your

home is? Ask the

company that

supplies water in

your area.

Autonomy (cycles/2 kg)

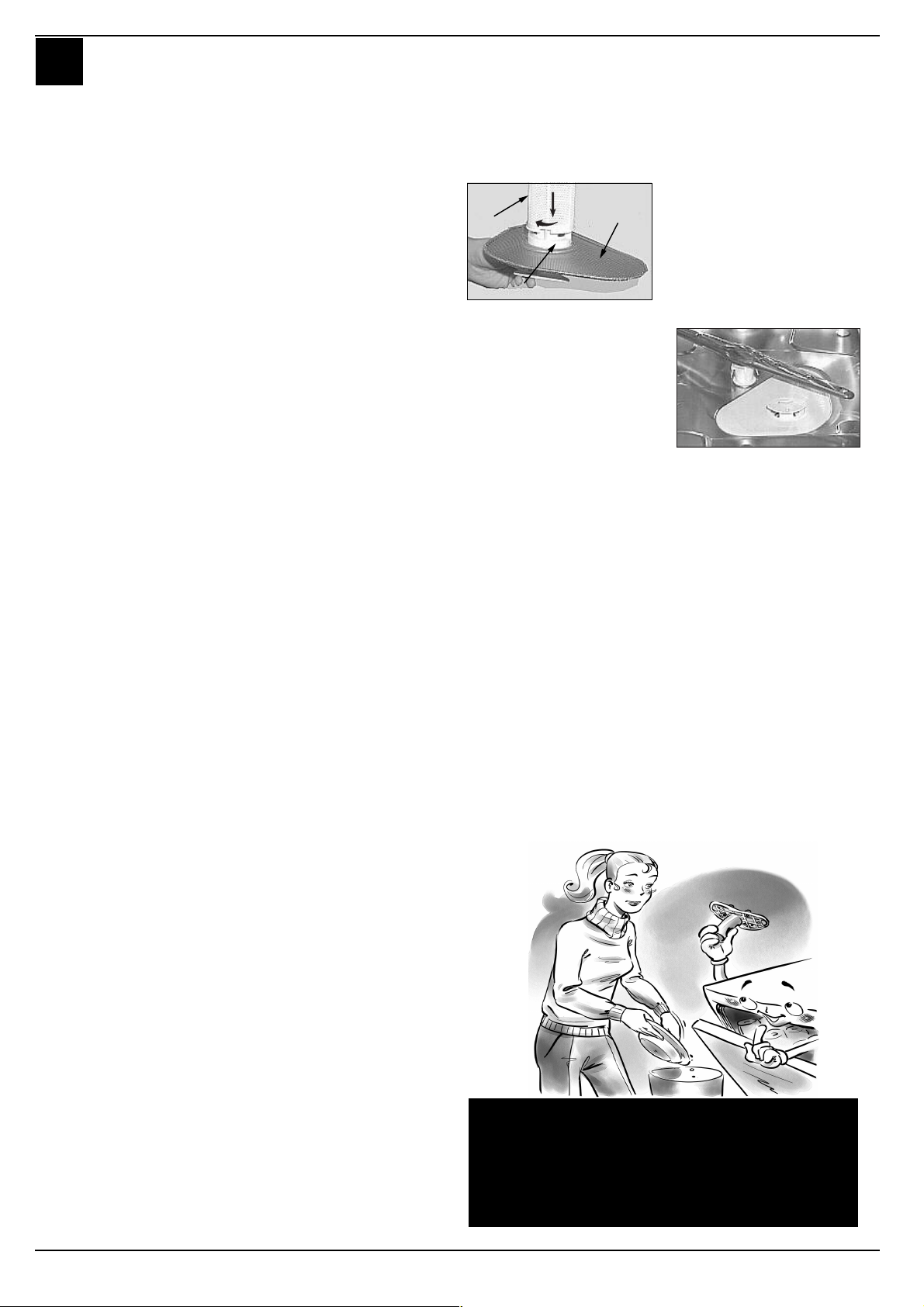

Suggestions and advice for you.

How to look after and protect the dishes you hold dear

■ Almost all silverware can be cleaned in a dishwasher. There are two exceptions: old silverware and silverware decorated with an oxidising agent. Hot water can loosen the handles on old silverware ad wear off the decorations on the other. Never let silverware come into contact with other metals: you will thus avoid stains and blackening

Apart from

making you save

time and energy, your dishwasher

disinfects your

dishes, washing

them at a high

temperature.

■ Silver plates and serving dishes should be washed immediately after use, especially if they have contained salt, eggs, olives, mustard, vinegar, fruit juices and cooked vegetables.

■ For particularly delicate dishes, we recommend you use the specific wash cycle offered by your dishwasher.

Savings are easy

Using your electric household appliances wisely helps you make savings and is good for the environment.

Maximum load.

To optimise consumption levels, try to use the dishwasher with a full load only. If it takes quite some time to fill up your dishwasher, use the soak cycle to avoid the formation of bad odours and caked-on food.

The right wash cycle.

Select the most suitable wash cycle for the type of load you have placed in the dishwasher. The choice of wash cycle depends on the type of dishes to wash and on how dirty they are. To select the right wash cycle, please consult the wash cycle table on page 6.

ARISTON DISHWASHER - Instructions for installation and use

1509)50-4

Installation and moving

Your dishwasher has arrived

After having bought or moved your dishwasher to another home, a correct installation ensures that your dishwasher will operate smoothly and efficiently.

Choose where you want to install your dishwasher, you can even place it so that its sides or back panel are side by side with furniture or up against the wall. The dishwasher is provided with water supply and drain hoses, which can be directed towards the left or right to facilitate appropriate installation.

This dishwasher model can be built under a single worktop (please read the relevant instruction sheet).

Levelling.

Once the appliance is positioned, adjust the feet by screwing them in or out depending on how high you want it and to level it so that it is horizontal. Make sure that it is not inclined more than 2 degrees. If the appliance is level, it will help ensure its correct operation.

Anti-flooding protection

Your dishwasher is provided with a special system which blocks the water supply in the event of leaks inside the appliance.

Cold water connection.

Connect the cold water supply hose to a threaded 3/ 4 (gas) connector, and making sure that it is fastened tightly in place. If the water hoses are new or have been out of use for an extended period of time, let the water run to make sure it

If the power socket to which the appliance is

connected is not compatible with

the plug, replace

it with a suitable

plug rather than

using adapters or

multiple plugs as these could cause

overheating or

burns.

is clear and free of impurities before making the connection. If this precaution is not taken, the water inlet could get blocked, causing damage to your dishwasher.

- It is strongly recommended to use a new hose to connect the dishwasher to the water supply line, and the old hoseset should not be reused. Asking to specilized shop or an authorized service technician (see Service).

Hot water connection.

Your dishwasher can be supplied with hot water from the mains supply (if you have a central heating system with radiators) at a temperature of no more than 60°C. In this case, the wash cycle time will be about 15 minutes shorter and the wash will be slightly less effective. The connection must be made to hot water supply following the same procedures as those indicated for the cold water connection.

Drain hose connection.

Fit the drain pipe into a drain line with a minimum diameter of 4 cm or place it over the sink. Avoid restricting or bending it. Use the special plastic elbow provided (see figure) to position it in the best possible way. The part of the pipe marked with the letter A should be between 40 and 100 cm above the ground. The pipe should not be immersed in water.

Electrical connection.

First of all, check that the mains voltage and frequency values correspond to those stated on the rating plate located on the stainless steel inner door of the appliance and that the electrical system to which the dishwasher is connected is sized for the maximum current indicated on said rating plate.

Earth: indispensable safety.

Only now can you plug the appliance into a socket provided with an efficient earth connection (the system's earthing is a guarantee of safety provided for by law, make sure your system has it).

Attention

- Once the appliance has been installed, the electrical plug and socket should remain accessible.

- If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See Assistance)

- The cable should not be bent or compressed.

- The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

The special

plastic elbow

should be fastened firmly onto the wall to

prevent the drain

hose from

moving and

allowing water to

spill outside the

drain.

ARISTON DISHWASHER - Instructions for installation and use

1509)50-4

Troubleshooting

If you have a problem, read this

Your dishwasher may not work or not function properly. In many cases, these are problems which can be solved without having to call for a technician. Before calling the service centre, always check the points below.

The dishwasher won't start

■ Is the water supply tap turned on?

■ Is the water supply tap connected to the hose properly?

■ Has the water in your home been cut off?

■ Is the pressure of the water supply sufficient?

■ Is the hose bent?

■ Is the filter on the water supply

hose blocked?

■ Is the dishwasher door open?

The dishes are not clean.

■ Have you put the right amount of detergent into the dispenser?

■ Is the wash cycle suitable for the dishes you have placed inside the appliance?

■ Are the filter and microfilter clean?

■ Can the sprayer arms turn freely?

The dishwasher won't drain.

■ Is the drain hose bent?

Limescale deposits or a white film form on the dishes.

■ Is the lid on the salt container closed properly?

■ Is the rinse aid dosage correct?

Error messages.

Your dishwasher is equipped with a safety system which is able to detect any operating anomalies. These anomalies are reported by one or two wash cycle indicator lights "E" flashing rapidly. Take a note of which lights are flashing, turn the appliance off and call for technical assistance.

Tap off alarm

If you have forgotten to turn the water tap on, your appliance will remind you of this by sounding a few short beeps for a few minutes. Turn the tap on and your appliance will start up again after a few minutes. Were you to be absent when these beeps are sounded, the

appliance will be blocked automatically and wash cycle 4 and 5 indicator lights (Rapid and soak) will flash rapidly. Turn the appliance off at the ON-OFF button, turn on the water tap and wait approximately 21 seconds before turning the appliance back on, then repeat the programming operations and start the appliance by pressing the Start button.

Clogged filter alarm

If the appliance is blocked and wash cycle 3 and 5 indicator lights (Eco and Soak) flash rapidly, this means the filter is clogged by large particles of food residue. Turn the appliance off, clean the filter thoroughly and reposition it in its seat as illustrated on page 10. Then turn the appliance back on. Repeat the programming operations and start the dishwasher by pressing the Start button.

Water load solenoid valve malfunction alarm.

If indicator light 4 (Rapid & Dry) flashes rapidly, TURN the dishwasher OFF AND BACK ON AGAIN after one minute. If the alarm persists, first turn off the water tap to avoid any flooding and then cut off the electricity supply and call for technical assistance.

You have checked everything, but the dishwasher still doesn't work and the problem persists?

Call an authorised service centre near you and remember to mention:

 the type of malfunction  the model mark (Mod.) and the

serial number (S/N.) indicated on the rating plate located on the inner door, to one side.

Never call upon the

services of

unauthorised

technicians and always

refuse spare parts that

are not originals.

Safety within your home

Your dishwasher was built in accordance with the strictest international safety regulations. They protect you and your family. Read the instructions and information contained in this manual: they will provide you with useful hints as to installation, use and maintenance safety. To avoid nasty surprises.

1. Dispose of the packaging material carefully (follow the instructions on how to divide your rubbish up provided by your local Council)

2. After removing the packaging, check to make sure your appliance is intact. If in doubt, contact a qualified professional.

3. Your dishwasher must only be used by adults and for washing household dishes, according to the instructions included in this manual. Do not touch the appliance with wet hands or feet or barefoot.

4. We discourage the use of extension leads and multiple plugs. If the electricity supply wire is not long enough, then have it replaced with one of the correct length and

remember that it should be free of bends or dangerous kinks.

5. If the appliance is not operating properly or if maintenance operations are necessary, disconnect the dishwasher from the mains power supply (unplug it!).

6. Keep children away from the dishwasher when it is open and keep detergents out of their reach.

7. Your dishwasher is not to be installed outdoors, not even if the area is covered by a roof: it is extremely dangerous to leave it exposed to rain and thunderstorms.

8. Do not touch the heating element during or straight after a wash cycle.

9. Do not lean or sit on the

door when it is open, as this could overturn the dishwasher.

10. If the appliance malfunctions, turn off the water inlet tap and disconnect the plug from the wall socket. Then try consulting the section entitled "I you have a problem, read this". If you cannot resolve the problem, then call the service centre.

11. Once taken out of use, appliances must be made inoperable: cut the power supply wire and damage the door lock.

12. The door should not be left in the open position since this could present a tripping hazard.

13. Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and

Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

ARISTON DISHWASHER - Instructions for installation and use

1509)50-4

Care and maintenance

Cleaning and special maintenance

The filter assembly

If you want consistent good results from your dishwasher, you need to clean the filter assembly. The food particles are removed from the wash water, allowing it to be recirculated during the cycle, filtered perfectly. For this reason, it is a good idea to remove the larger food particles trapped inside the cup C  and the semicircular filter A after each wash; pull the cup handle upwards to remove them. Just rinse them under running water. The entire filter assembly should be cleaned thoroughly once a month: cup C + semi-circular filter A + cylindrical filter B. Rotate

filter B anticlockwise to remove it. For cleaning, use a non metallic brush. Reassemble the filter parts (as shown in the figure) and reinsert the whole assembly into the dishwasher. Position it into its housing and press downwards. The dishwasher is not to be used without filters. Improper replacement of the filters may reduce the efficiency of the wash and even damage your dishwasher.

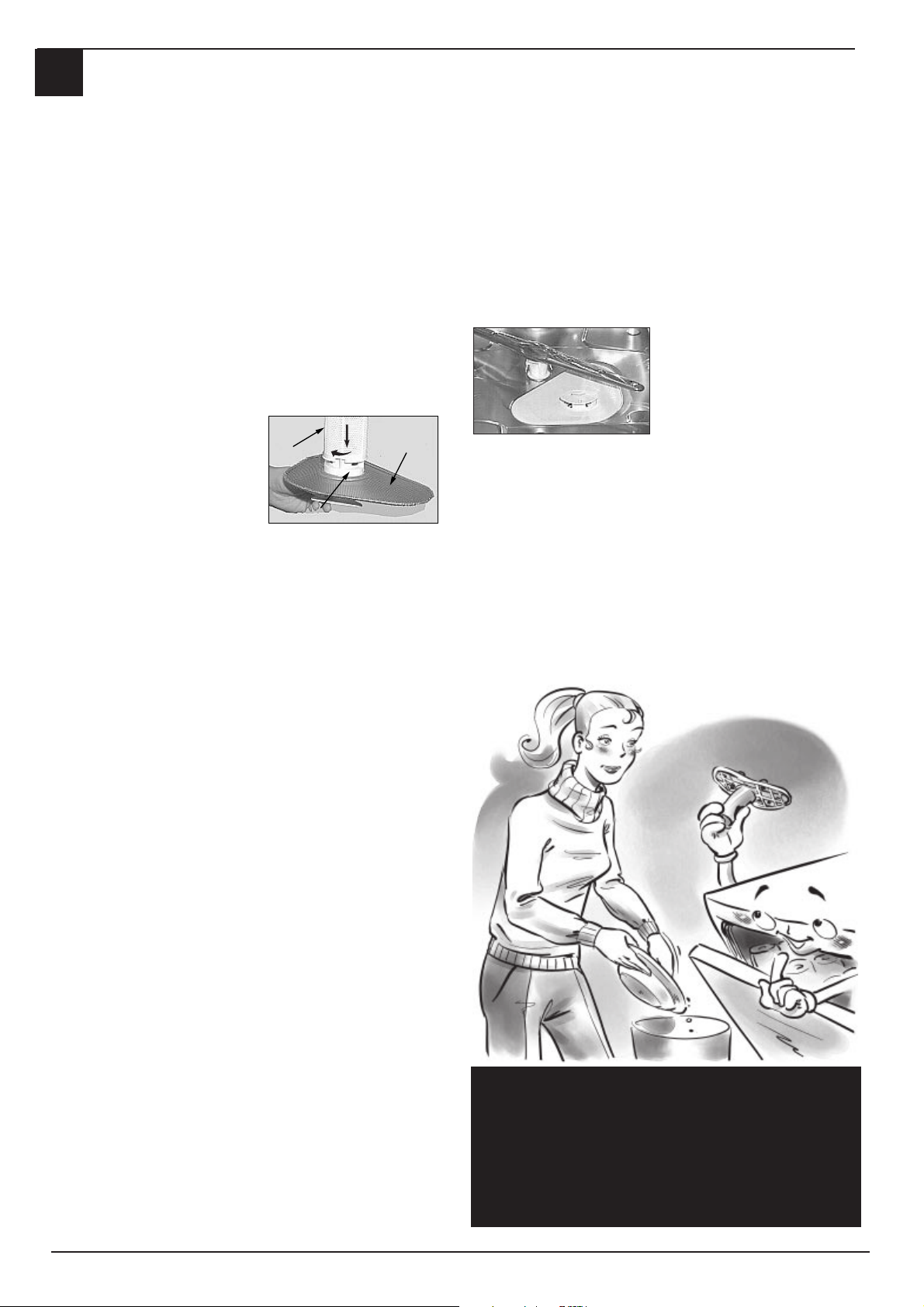

Cleaning the sprayer arms.

Food residue may become encrusted onto the sprayer arms and block the holes where water comes out. Check the sprayer arms regularly and clean them once in a while (letters F and I Close-up view).

Once in a while, once a month, spend a little time on the filter assembly and the sprayer arms.

Keep your dishwasher in shape

Respecting these few rules ensures you will always have a reliable work companion by your side.

After every wash.

When the wash cycle has ended, always remember to turn off the water supply tap and to leave the appliance door ajar. This way, moisture and bad odours will not be trapped inside.

Unplug the appliance.

Before carrying out any cleaning or maintenance on the dishwasher, always remove the plug from the electricity socket. Do not run risks

No solvents! No abrasives!

To clean the exterior and rubber parts of your appliance, do not use solvents or abrasive cleaning products. Use a cloth dampened with lukewarm soapy water only. If there are any stains on the surface of the appliance interior, use a cloth dampened with water and a little white vinegar, or a cleaning product specifically made for dishwashers.

Going on holiday?

When you go away for an extended period of time, we recommend you do the following:  run a cycle with the

dishwasher empty

 turn off the water inlet tap.  leave the appliance door

ajar This will help the seals last longer and prevent unpleasant odours from forming inside the appliance.

Moving the appliance.

Should the appliance have to be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

The seals.

One of the factors that cause unpleasant odours to form inside the dishwasher is food that remains trapped in the seals. Periodic cleaning using a damp sponge will prevent this from occurring.

Your dishwasher is not a waste

disintegrator!

Do not worry about removing every

single bit of food residue from your

dishes, but do get rid of bones, peel and

rind and any other left-overs before

placing them in the racks. Empty out

all glasses and cups.

ARISTON DISHWASHER - Instructions for installation and use

Stay in touch

THANK YOU for choosing an Ariston appliance. We are confident you have made a good choice and that your new appliance will give

many years of excellent service. And we're there when you need us.

This will confirm your entitlement to free spare parts for five years, and you could also be lucky enough to recover the cost of your purchase in our quarterly prize draw. Simply complete and return the Registration Form supplied with the appliance documents, using the FREEPOST envelope supplied. Or call the Registration Hotline on 0870 010 4305.

1509)50-4

Enjoy complete peace of mind. By registering now, you automatically qualify for a full year's guarantee on parts and labour PLUS free functional parts cover for a further 4 years, provided they are genuine Ariston spare parts fitted by an Ariston Service Engineer.

We're as close to you as your telephone

For direct access to Genuine Ariston Spare Parts and Accessories, call 0870 558 5850 and speak to our skilled staff who can help you to identify and purchase the item you require.

For a Rapid Response to a problem with your appliance, call 0870 607 0805. We're open from Monday to Saturday (8am - 5.30pm weekdays, 9am - 5pm Saturday). We have our own department of highly trained Ariston service staff. For most calls, our Service Engineer can fix the problem on the first visit.

Please have the following details to hand when you ring us: The nature of the problem, the Model Number and the Serial Number. These numbers can be found on the appliance and on the portion of the Registration Card which you retain.

ARISTON DISHWASHER - Instructions for installation and use

AVAVAJILLA

Guía rápida para el lavavajilla

Este manual le cuenta, de manera agradable, todo lo que puede ofrecerle su nuevo electrodoméstico. Además, descubrirá curiosidades y pequeños detalles para lavar mejor con su lavavajilla y hacerlo durar más tiempo.

1. Instalación y traslado (p. 19)

La instalación, después de la entrega o de un traslado, es la operación más importante para el buen funcionamiento de su lavavajilla. Verifique siempre:

1. Que la instalación eléctrica esté dentro de las normas;

2. Que los tubos de carga y descarga de agua hayan sido conectados correctamente;

3. Que el lavavajilla esté nivelado. Vale la pena: por la duración y el correcto funcionamiento del lavavajilla.

AVAVAJILLA

2. Cuadro de mandos a tus órdenes (p. 13)

Aprenda a conocer las partes que componen el lavavajilla, lo usará mejor. Aquí encontrará la descripción detallada de los mandos y de las partes internas.

3. Carga de la vajilla (p. 14)

En esta página encontrará consejos útiles para cargar correctamente el lavavajilla y aprovechar al máximo su espacio.

4. Puesta en marcha del lavavajilla (p.15)

Después de haber cargado el lavavajilla, debe seleccionar el programa adecuado y dosificar correctamente el detergente y el abrillantador. Leer estas páginas le ayudará en todas las fases del lavado.

5. La sal: un importante aliado (p. 18)

Usar la sal adecuada y en la cantidad justa le ayudará a conservar en óptimo estado el lavavajilla, para lavar mejor y evitar los daños que pudiera causar la caliza.

8. Seguridad para Ud. y su familia (p. 20)

Lea este capítulo con atención, le brindará información útil sobre la seguridad de instalación, el uso y el mantenimiento. Evite sorpresas desagradables.

9. Mantenimiento y cuidados especiales (p. 21)

Aproximadamente una vez por mes, dedique un poco de atención al grupo filtrante y a los brazos rociadores. Aquí aprenderá cómo hacer.

10. Mantenga en buenas condiciones el lavavajilla

Respete las pocas reglas que leerá aquí, el resultado será un lavavajilla siempre en óptimo estado.

6. Consejos y sugerencias también para ahorrar

(p. 18)

Aquí encontrará pequeños consejos para lavar mejor su vajilla y para ahorrar eligiendo el programa adecuado para el tipo de carga.

11. Características técnicas (p.13)

Todos los datos técnicos de su electrodoméstico, siempre de acuerdo con la ley.

(p. 21)

7. Problemas y soluciones (p. 20)

Antes de llamar al técnico, consulte este párrafo: muchos problemas pueden tener una solución inmediata. Si, aún así, no logra resolver el problema, llame al número de la asistencia Ariston y, en poco tiempo, si es posible, se reparará cualquier avería.

LAVAVAJILLA ARISTON - Instrucciones para la instalación y el uso

12. Ariston está cerca suyo aún después de la

compra (p.22)

Ariston sostiene sus productos con servicios y soporte técnico incluso después de la compra, ofreciéndole garantías especiales, asistencia profesional, repuestos y accesorios de calidad. Para más información, llame al número gratuito de Ariston.

Abramos juntos su lavavajilla

¿Cómo está compuesto?

Aprender a conocer las partes que componen el lavavajilla le ayudará a usarlo mejor

E. Cesto superior

F. Rociador superior

G. Regulación de la

altura del cesto

H . Cesto inferior

Cuadro de mandos a tus órdenes

I. Rociador inferior

J. Tapón recipiente de sal

K . Filtro de lavado

L. Recipiente para

detergente y abrillantador

AVAVAJILLA

A. Botón ON-OFF

Pulse este botón para encender la máquina.

B. Lámpara testigo ON-OFF

Le avisa que el lavavajilla está encendido.

E. Lámparas

indicadoras de programas

Le comunica el programa que ha seleccionado o el que

está en curso.

G. Lámparas testigo de

avance del ciclo

Le informan sobre las fases del programa en curso (prelavado, lavado, aclarados, secado)

P. Botón de selección de

programas

Cada vez que se presione el botón se encenderá una de las luces indicadoras de programas E.

R. Botón Start/Reset

Con Start se pone en marcha el programa, con Reset se anulan todas las selecciones.

“S”“S”

“S” Lámpara

“S”“S”

indicadora de

falta de salfalta de sal

falta de sal

falta de salfalta de sal

E Lámparas

indicadoras de

Programas

S. Lámpara indicadora de

falta de sal

Le avisa que debe agregar la sal.

R Botón Start/Reset

G Lámparas testigo

Avance del ciclo Avance del ciclo

Avance del ciclo

Avance del ciclo Avance del ciclo

P Botón de

selección de

programas

Características técnicas

Largo cm. 45

Profundidad cm. 60

Altura cm. 85

Capacidad 9 cubiertos normales

Presión agua alimentación 4,3 ÷ 145 psi- 0,03÷ 1MPa (0,3 ÷10 bar)

Tensión de alimentación Véase placa de características

Potencia total absorvida Véase placa de características

Fusible Véase placa de características

B Lámpara testigo ON-OFF

A Botón ON-OFF

Este lavavajilla es conforme a las siguientes Directivas de la Comunidad:  73/23/CE

(Bajos Voltajes) y sucesivas modificaciones;

 89/336/EEC

(Compatibilidad Electromagnética) y sucesivas modificaciones.

 97/17/CE

(Etiquetado)

 2002/96/CE

(Residuos de Aparatos Eléctricos y Electrónicos)

LAVAVAJILLA ARISTON - Instrucciones para la instalación y el uso

AVAVAJILLA

¿Cómo se carga la vajilla?

Antes de lavar, estos pequeños detalles pueden ayudarle a lavar mejor y a conservar durante más tiempo su lavavajilla. Quite los residuos más grandes de comida, ponga en remojo las ollas y las sartenes con residuos muy pegados. Después de haber cargado la vajilla controle que giren bien las palas del rociador. No superponga vasos y tazas, controle que los platos no se toquen.

Antes que nada.

Antes de disponer la vajilla en los cestos, elimine los residuos más grandes de comida, de este modo, evitará tapar los filtros reduciendo la eficacia del lavado. Si las ollas y los sartenes tienen residuos muy pegados, colóquelos en remojo a la espera del lavado. Para facilitar la operación de carga de la vajilla, extraiga los cestos.

¿Qué coloco en el cesto inferior?

En el cesto inferior le aconsejamos colocar la vajilla más difícil de lavar: ollas, tapas, platos llanos y hondos, pero también: tazas, tacitas y vasos (en las fotos se puede observar un ejemplo de carga).

 Fuentes y tapas

grandes: colóquelos a los

costados del cesto.

 Ollas, ensaladeras:

deben estar siempre volcadas

 Vajilla muy honda:

colóquela en posición oblicua, así el agua podrá fluir para lavarlas mejor

 Vasos y tazas:

colóquelos como se indica en la figura.

Introduzca los cubiertos en el cesto: los cuchillos y utensilios con puntas cortantes deben colocarse en la cesta para cubiertos con las puntas hacia abajo o dispuestos en los cestos especiales adicionales del cesto superior en posición horizontal. Colóquelos de modo que no se toquen entre sí. Si el cesto es el que tiene los agregados laterales, coloque las cucharitas, una en cada ranura (ver la figura A). Es mejor colocar los cubiertos particularmente largos en posición horizontal en la parte delantera del cesto superior. Después de haber cargado el lavavajilla, recuerde

controlar que las palas del rociador giren libremente, sin chocar con la vajilla.

¿¿Qué coloco en el cesto superior?

En el cesto superior cargue la vajilla delicada y liviana: vasos, tazas de té y café, platitos -también platos ensaladeras bajas, sartenes y cazuelas bajas que no estén muy sucias. Coloque la vajilla liviana de modo tal que no sea desplazada por los chorros de agua.

Regulación del cesto superior.

Puede regular el cesto superior en posición alta o baja para poder colocar su vajilla sin dificultad.

Fig.F

Abra las aletas de bloqueo del carril y extraiga el cesto. Colóquelo ahora en posición alta o baja, luego hágalo deslizar a lo largo de las guías hasta hacer entrar también las ruedas delanteras. Ahora cierre las aletas para el bloqueo. Siga la secuencia de las operaciones ilustradas en la figura "F".

Ejemplos de carga del cesto superior

Ejemplos de carga del cesto inferior

Fig. A

LAVAVAJILLA ARISTON - Instrucciones para la instalación y el uso

Poner en marcha el lavavajilla

¿Listos?, ¡ya!

Ha cargado el lavavajilla y ahora debe seleccionar el programa de lavado. Son suficientes unos pocos minutos para aprender

AVAVAJILLA

Antes que nada.

Abra completamente el grifo de agua y pulse el botón ON-OFF "A": escuchará una breve señal sonora y la luz testigo "B" se encenderá. Ahora la máquina está encendida, y puede programarla.

Elija el programa.

Seleccione el programa pulsando el botón "P". Cada vez que se presione el botón, se escuchará una señal sonora y se encenderán sucesivamente las lámparas testigo "E". elija el programa que considere más indicado para el tipo de vajilla que debe lavar (consulte la pág. 17, allí encontrará la tabla de programas). Si la puerta está cerrada, pulsando el botón Start "R" escuchará una señal sonora y en pocos segundos el programa comenzará.

El lavavajilla le informa.

Su lavavajilla está dotado de lámparas testigo (G) que se iluminan para indicarle el estado de avance del ciclo de lavado. He aquí los símbolos de las fases :

prelavado, lavado, enjuagues, secado. En todo momento su lavavajilla le informa a que punto ha llegado.

Modificación del programa en curso.

¿Qué pasa si se equivoca de programa? ¡No tenga miedo! Puede modificar el programa en curso si recién ha comenzado. Mantenga presionado el botón RESET "R" durante aproximadamente 5 segundos. escuchará una señal sonora prolongada seguida por 3 breves sonidos. Se apagará la luz testigo "G" y, a partir de ese momento, se han anulado todas las selecciones. Ahora puede volver a seleccionar el programa adecuado.

¿Ha dejado afuera una vajilla?

Bueno, le puede suceder a cualquiera. Interrumpa el ciclo de lavado pulsando el botón ON-OFF, introduzca la vajilla olvidada y pulse de nuevo el botón ON-OFF. El ciclo se reanudará desde el punto en el cual lo ha interrumpido.

¿Terminó?

El final del ciclo está indicado por 2 breves señales sonoras y por el centelleo de la luz testigo correspondiente al secado.

Atención:

Apague el lavavajilla pulsando el botón “A”, desenchufe la máquina para interrumpir la alimentación eléctrica; para ello, el cable de alimentación debe ser fácilmente accesible.

¿Desea ver qué programas ha seleccionado?

En cualquier momento, con un programa en curso, si pulsa el botón "P", se encenderán, durante pocos segundos, primero la luz testigo de dicho programa.

¿Se cortó la luz? ¿Abrió la puerta de la máquina?

El programa se interrumpe y luego se reanuda cuando vuelve la luz o cuando se cierra la puerta. ¡Está todo bajo control!

¡Antes de extraer

la vajilla,

verifique que el

programa haya

terminado!

• Cierre el grifo de agua.

• Espere algunos minutos

antes de extraer la vajilla: ¡quema! Si espera un poquito, con el vapor se seca mejor.

• Vacíe primero el cesto inferior.

LAVAVAJILLA ARISTON - Instrucciones para la instalación y el uso

Cuando abra la

puerta del

lavavajilla, si el

ciclo de lavado

recién ha

terminado o aún

no lo ha hecho,

tenga cuidado con

el vapor caliente

que sale, ¡se podría

quemar!

+ 39 hidden pages

Hotpoint LL 40 EU.C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
