Hotpoint DWF61, DWF60 User Manual

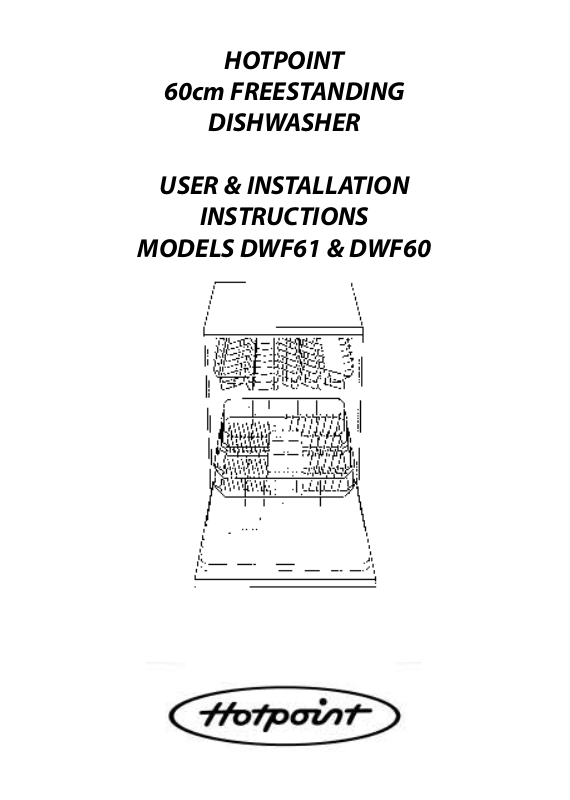

HOTPOINT
60cm FREESTANDING
DISHWASHER
USER & INSTALLATION
INSTRUCTIONS
MODELS DWF61 & DWF60
Contents...
Electricity Supply / Safety Information...............3
Installation:
Choose a Location......................................................4
Adjust the Feet............................................................4
Connect to a Drainage System..............................5
Connect to the Water Supply.................................6
Check List......................................................................6
Getting to Know your Appliance..................7 & 8
Before Using your Appliance:
Adjust the Water Softener.......................................9
Filling the Special Salt Container........................10
Filling the Rinse Aid Container............................11
Detergents........................................................12 & 13
What Can I Wash.......................................................14
Programme Overview..................................15 & 16
Loading your Dishwasher...........................17 & 18
Washing Dishes..............................................19 & 20
Care & Maintenance.....................................21 & 22
Troubleshooting.............................................23 & 24
Important Information...........................................25
Hotpoint After Sales Service................................26
Hotpoint Guarantee................................................27
Key Contacts...............................................Back Page
Retention of this Instruction Book...
This Instruction Book must be kept handy for reference as it contains important details on the safe
and proper use of the appliance.
If you sell or pass the appliance to someone else, or move house and leave it behind,make sure
this Book is also provided so the new owner can become familiar with the appliance and safety
warnings.
Recycling & Disposal Information...
As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the
right to use quality recycled components to keep down customer costs and minimise material
wastage.
Please dispose of packaging and old appliances carefully.
To minimise risk of injury to children,remove the door,plug and cut mains cable
off flush with the appliance, dispose of separately to ensure that the appliance can
no longer be plugged into a mains socket.
CE marking certifies that this appliance
conforms to the following EEC directives:
Low Voltage Equipment 72/23/EEC
Electromagnetic Compatibility 89/336/EEC and
subsequent modifications.
2
Electrical Supply...
WARNING:This appliance must be earthed.
Fuses
Your appliance comes fitted with a plug and a 13A fuse.
If you need to replace the fuse,only those rated at 13A and ASTA
approved to BS1362 should be used.
WARNING:Do not use the plug unless the fuse cover is fitted.
Changing the plug
Cut off and dispose of the supplied plug if it does not fit your socket.
WARNING:To avoid a shock hazard do not insert the discarded plug into a socket anywhere
else.
IMPORTANT:WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE
FOLLOWING CODE:
Green / Yellow - Earth
Blue - Neutral
Brown - Live
If you change the plug, the colour of
the wires in the mains lead may not
correspond with the colour of the
markings identifying terminals in the
plug. You should therefore wire it as
shown.
Green and yellow (Earth) wire to
terminal marked ‘E’, symbol ,
or coloured green and yellow.
Blue (Neutral) wire to terminal
marked ‘N’or coloured black.
13A ASTA approved fuse
to BS1362.
Brown (Live) wire to
terminal marked ‘L’or
Cord
coloured red.
clamp
Changing the Mains Lead
A special lead can be ordered from your Service Department:
UK: 08709 066 066 or
Republic of Ireland: 1850 302 200
If you have damaged the existing lead or require a longer one a charge will be made. It is
strongly advised that this work is carried out by a qualified electrician.
3
Installation...
Follow the Installation Instructions,making
sure the Dishwasher is correctly installed.
When installing the Dishwasher,carry out
tasks in the following order:
- choose a location.
- level the appliance (adjusting the feet).
- connect to a drainage system.
- connect inlet hose to water supply.
CHOOSE A LOCATION...
The choice of location for your appliance
will influence its performance.
●
Position where possible on a solid floor.
Vibration may occur with a wooden
floor.
●
Take care with vinyl floor coverings.The
weight of the appliance may cause
indentations in some vinyl floor coverings.
●
For your safety and to comply with IEE
regulations, you should not install your
appliance in a bath or shower room.
Seek professional advice if you wish to
do so.
●
Ensure sufficient space is allowed for the
appliance.
●
Ensure the electrical socket and water
taps are easily accessible and that the
water supply can be isolated if necessary.Do not use an extension lead or
multiple plug for connection to the electrical socket.
●
If your dishwasher is underneath a
work surface with a hob.You must
add thermal insulation to the top of the
machine.
ADJUST THE FEET...
It is essential that the door is closed and
latched before stabilising the dishwasher.
Ensure that the rear feet are adjusted so
that the product is not sitting on the base
of the machine. Adjust either clockwise or
anti-clockwise as necessary to level.
Then adjust either of the two front feet
clockwise or anti-clockwise as necessary
until all feet are in contact with the floor to
avoid the machine from rocking and is level
to within 2˚
The door must be aligned centrally with the
sides of the cabinet to ensure the door seal
is correctly located.
Note: If the appliance is not stabilised the
door may be off centre and make the
machine unstable.
4
Installation...
CONNECT TO A DRAINAGE SYSTEM...
WARNING
● Connect your dishwasher drain hose to
pipes which connect to the foul drain
system, and not to surface water drains.
IMPORTANT NOTES For the correct
operation of your dishwasher,it is
essential to comply with the following
information.
Standpipe
Fit the hose to the standpipe
hook which can be found in
the machine.
Ensure that the hose is not
pushed too far down the
standpipe.
DO NOT position the standpipe near an electrical outlet.
ENSURE that the drain hose is
routed as shown in the diagram.
The standpipe should be connected to:
a) A discharge stack-pipe
b) An external gulley OR
c) A sink waste.
120
min
Sink Waste System
For under sink drainage:
Before connecting the drain hose,
remove any internal restrictions - This
will prevent a build up of debris which
could cause a blockage.
Remove any restrictions from the waste
spigot and ensure that the sealing
bung is removed.The hose should be
routed, such that it is raised to a
minimum height of 800mm (3
Note: Ensure the sink outlet pipe has a
minimum diameter of 32mm.
1
/2")
The standpipe should have a bore of at
least 38mm (1
shown, have a trap fitted and must
discharge into the same drain system as
your household sink.
It must NOT be connected to a surface
water drain.
1
2"). It should be installed as
/
1. Untie the end of the GREY drainage
hose from the rear of the appliance.
2. Reposition ‘Hooked End Support’ as
required along GREY drainage hose.
3. If fitting an under sink waste disposal
unit, cut out the membrane, bung or
blanking plug.
4. Attach the GREY drainage hose to
the under sink waste disposal unit
securely,using the clip and rubber
tube supplied.
Ensure the drain hose is securely attached,
to prevent it coming away while the
machine is in use and causing a flood.
5
Installation...
CONNECT TO THE WATER SUPPLY...
● For your machine to operate correctly
it requires water pressures in the range
of 6-150 psi (100-1000 KPa).Most
cold water supplies will be in this
range.
● Ensure the fill hose is only connected
to the cold water supply.
WARNING
● Ensure the fill hose is NOT kinked.
Note: Do not over tighten the hose connector.Hand tight is sufficient.
● Tap connections (if applicable) - A
range of adaptors are available to suit
your tap.
WARNING
● Do not connect appliance to a single
outlet instantaneous water heater or
an electric heater.
CHECKLIST...
When you have installed your appliance,
ensure it is ready to use by following this
Check List:
1. Dispose of packaging safely,see
‘Recycling Information’on page 2.
2. Position appliance close to
electrical/water supply see ‘Choose a
Location’on page 4.
3. Connect supplied hose to appliance
water supply,confirm water is flowing
before connecting to the appliance
inlet valve see ‘Connect to a Water
Supply’,page 6.
4. Untie drainage hose at rear of
appliance and connect to either a
standpipe or sink waste drainage
system see ‘Connect to a Drainage
System’page 5.
5. Untie mains lead at rear of appliance
and plug into electrical supply via a
switched socket, see ‘Electrical
Supply’ on page 3.
6. Position appliance, taking care not to
kink or damage hose at rear of
appliance.
Remember you may be charged for a
service call if a problem with your
appliance is caused by incorrect
installation or misuse.
6
7. Stabilise the appliance, see ‘Adjusting
the Feet’ page 4.
8. Turn on the water supply to the
appliance.
9. Switch on at plug socket.
Your appliance is now ready for use,refer to
‘Getting to know your Appliance’on page 7 to
familiarise yourself with the appliance.
Getting to Know your Appliance...
Interior...
7
6
8
2
3
1
9
4
11
10
1. Salt Container,
with level indicator.
2. Filters.
3. Lower Basket.
4. Rinse Aid Container,
with level indicator.
5. Rating Plate.
6. Upper Basket,
with 2-tier cup rack.
7. Upper Spray Arm.
8. Lower Spray Arm.
9. Cutlery Basket.
10. Detergent Compartment
Locking Mechanism.
11. Detergent Compartment.
Model
No.
Serial
No.
5
Rating plate sample
7
Getting to Know your Appliance...
DWF61
10
9
DWF60
1 3 4 65 7 8
2
Fascia.
1. Mains Switch (ON/OFF) 7. Door Handle
2. Time Delay Selector Switch 8. Wash Basket Programme Selector*
3. Numerical Indicator (DWF 61 only)
4. Time to End Indicator 9. Programme Selection Buttons
5. Salt Refill Indicator 10. Programme End Buttons (Reset)
6. Rinse Aid Indicator 11. Selection Indicators
11
8
Before Using your Appliance...
Before using your Dishwasher you must carry
out the following steps to ensure you obtain
the best possible wash performance from
your appliance.
Follow these 4 steps:
- Adjust the Water Softener.
- Fill the Salt Container.
- Fill the Rinse Aid Container.
- Add detergent.
ADJUSTING THE WATER SOFTENER...
● In order to rinse dishes and glasses
satisfactorily,the dishwasher requires
soft water i.e containing little or no
lime, otherwise water stains are left
behind on crockery and glasses etc. If
the tap water exceeds a certain level of
hardness, it must be softened,ie.
decalcified, so that it can be used in
the dishwasher.
● The water Softener should be properly
adjusted to optimise salt consumption
and for best washing results.
● In order to ensure that the correct
amount of salt is being used to
regenerate the water softener, the
water hardness adjuster needs to be
set accordingly.To set this correctly
the hardness of your water needs to
be ascertained. Find on the table the
level corresponding to the hardness
of your water and the required
adjustments or contact your local
Water company to find the exact water
hardness level for your area.
● Press and hold the ECONOMY 50˚
programme button 9 , and set the
mains switch 1 to on, before releasing
the programme button again.
The indicator lamp for the ECONOMY
50˚ button flashes, as does the figure
in the numerical display 3 . The latter
represents the value that was pre-set in
the factory.
To change the setting:
Press the ECONOMY 50˚ programme
button 9 .
Every time the button is pressed,the
figure increases by one. After reaching
7
, the display starts at 0again.
● Set the mains switch 1 to OFF. The
new setting is stored in the appliance’s
memory.
Approximately 4 litres of water are required
for regenerating the water softening
system. The overall water consumption per
load can therefore be increased by between
0 and a maximum of 4 litres according to
the water hardness setting.
4
Water hardness table
˚dH ˚fH ˚Clarke mmol/l
0 - 3 0 - 6 0 - 4 0 - 0.6
4 - 6 7 - 11 5 - 8 0.7 - 1.1
7 - 9 12-16 9 - 11 1.2 - 1.6
10-12 17-21 12-15 1.7 - 2.1
13-16 22-29 16-20 2.2 - 2.9
17-21 30-37 21-26 3.0 - 3.7
22-30 38-54 27-38 3.8 - 5.4
31-50 55-89 39-62 5.5 - 8.9
Display readout example
0
1
2
3
4
5
6
7
9
Loading...
