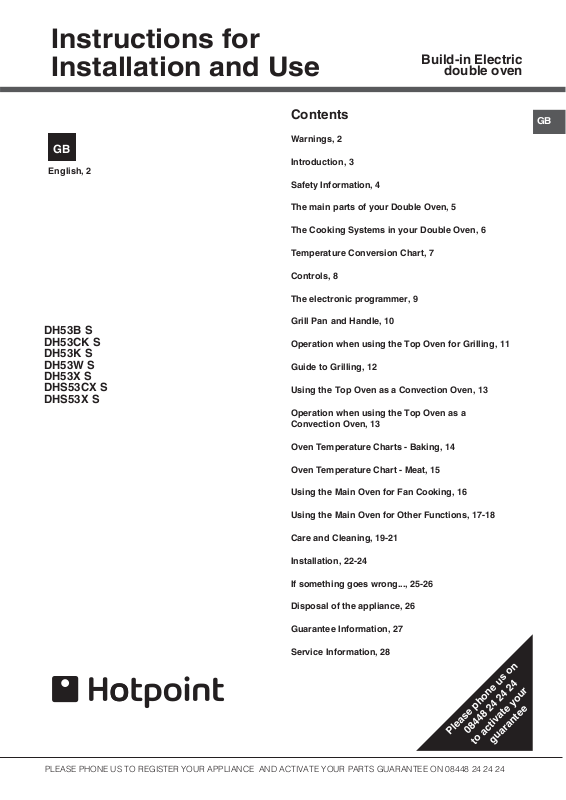

Hotpoint DH53B S, DH53CK S, DH53K S, DHS53CX S, DHS53X S Instruction booklet

Instructions for

Please phone us on

08448 24 24 24

to activate your

guarantee

Installation and Use

Build-in Electric

double oven

GB

English, 2

DH53B S
DH53CK S
DH53K S
DH53W S
DH53X S
DHS53CX S
DHS53X S

Contents

Warnings, 2

Introduction, 3

Safety Information, 4

The main parts of your Double Oven, 5

The Cooking Systems in your Double Oven, 6

Temperature Conversion Chart, 7

Controls, 8

The electronic programmer, 9

Grill Pan and Handle, 10

Operation when using the Top Oven for Grilling, 11

Guide to Grilling, 12

Using the Top Oven as a Convection Oven, 13

Operation when using the Top Oven as a
Convection Oven, 13

GB

Oven Temperature Charts - Baking, 14

Oven Temperature Chart - Meat, 15

Using the Main Oven for Fan Cooking, 16

Using the Main Oven for Other Functions, 17-18

Care and Cleaning, 19-21

Installation, 22-24

If something goes wrong..., 25-26

Disposal of the appliance, 26

Guarantee Information, 27

Service Information, 28

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Warnings

GB

•WARNING: The appliance and its
accessible parts become hot during
use.

•Care should be taken to avoid
touching heating elements.

•Children less than 8 years of
age shall be kept away unless
continuously supervised.

•This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe
way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.

•Do not use harsh abrasive cleaners
or sharp metal scrapers to clean
the oven door glass since they can
scratch the surface, which may result
in shattering of the glass.

•Never use steam cleaners or
pressure cleaners on the appliance.

•WARNING: Ensure that the
appliance is switched off before
replacing the lamp to avoid the
possibility of electric shock.

! VERY HOT SURFACES! VERY HOT SURFACES

! VERY HOT SURFACES

FOOD OR GREASE ON THESE
SURFACES COULD CAUSE
SMOKE AND POSSIBLY EVEN BURN

YOU MUST KEEP THE OVEN
AND GRILL CAVITIES CLEAN

! ATTENTION

! ATTENTION! ATTENTION

WHEN USING THE MAIN OVEN
YOU MUST ENSURE THAT THE

BASE OF THE CAVITY IS NOT
COVERED WITH ALUMINUM
FOIL, UTENSIL OR ANY OTHER
FORM OF COVERING. FAILURE
TO DO THIS MAY RESULT IN
THE CAVITY BEING DAMAGED.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

2

Introduction

To the Installer:

Before installation, fill in the product details on the back
cover of this book.
The information can be found on the rating plate.

To the User:

You must read the instructions prior to installing and
using the appliance and then retain them for future
reference.

! Before operating your new appliance please read
this instruction booklet carefully. It contains important
information concerning the safe operation, installation
and maintenance of the appliance.

! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.

Retention of this Instruction Book

This Instruction Book must be kept handy for reference
as it contains important details on the safe and proper
use of the appliance.

If you sell or pass the appliance to someone else, or
move house and leave it behind, make sure this Book
is also provided so the new owner can become familiar
with the appliance and safety warnings.

* The guarantee is subject to the provisions that the
appliance:

(a) Has been used solely in accordance with the

Users Instruction Book.

(b) Has been properly connected to a suitable

supply voltage as stated on the rating plate
attached to this equipment.

(c) Has not been subjected to misuse or accident

or been modified or repaired by any person
other than the authorised employee or agent.

(d) Has been correctly installed.

This appliance conforms with the following European
Economic Community directives:

- 2006/95/EC of 12/12/06 (Low Voltage) and subse­quent modifications;

- 2004/108/EC of 15/12/04 (Electromagnetic Compati­bility) and subsequent modifications;

- 90/396/EEC of 29/06/90 (Gas) and subsequent mo­difications (only for models which use gas);

- 93/68/EEC of 22/07/93 and subsequent modifications.

- 2002/96/EC

GB

Your new appliance is guaranteed* and will give
lasting service. This guarantee is only applicable if the
appliance has been installed in accordance with the
installation instructions detailed in this booklet.
To help make best use of your cooking equipment,
please read this booklet carefully.
The appliance is designed specifically for domestic
use and responsibility will not be accepted for use in
any other installation.

When the cooker is first used an odour may be
emitted, this will cease after a period of use

To help remove the ‚new’ smell, heat up the empty
ovens to maximum temperature for a minimum of two
or three hours, keeping the oven doors closed. Ensure
that the room is well ventilated (e.g. open a window
or use an extractor fan) and that persons who may be
sensitive to the odour avoid any fumes.
It is suggested that any pets be removed from the
room until the smell has ceased.

This odour is due to temporary finish on oven liners
and elements and also any moisture absorbed by the
insulation.

Technical Characteristics

Top Oven

ENERGY LABEL - Top Oven

Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for
Natural convection Class

Main Oven

ENERGY LABEL - Main Oven

Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for
Natural convection Class

Voltage and Frequency

Usable Volume: 42 Litres

heating mode: Conventional

Usable Volume: 74 Litres

heating mode: Fan Oven

230-240V~ 50Hz

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

3

Safety Information

GB

When used properly your appliance is completely
safe but as with any electrical product there are
certain precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW
BEFORE USING YOUR APPLIANCE.

Always



Always make sure you remove all packaging

and literature from inside the oven and grill
compartments before switching on for the first time.

 Always make sure you understand the controls

prior to using the appliance.

 Always keep children away from the appliance

when in use as the surfaces will get extremely hot
during and after cooking.

 Always make sure all controls are turned off when

you have finished cooking and when not in use.

 Always stand back when opening an oven door to

allow any build up of steam or heat to disperse.

 Always use dry, good quality oven gloves when

removing items from the oven/grill.

 Always take care to avoid heat/steam burns when

operating the controls.

 Always turn off the electricity supply at the wall

switch before cleaning and allow the appliance to
cool.

 Always make sure the shelves are in the correct

position before switching on the oven.

 Always keep the oven and grill doors closed when

the appliance is not in use.

 Always take care when removing utensils from

the top oven when the main oven is in use as the
contents may be hot.

 Always keep the appliance clean as a build up of

grease or fat from cooking can cause a fire.

 Always follow the basic principles of food handling

and hygiene to prevent the possibility of bacterial
growth.

 Always keep ventilation slots clear of obstructions.
 Always refer servicing to a qualified appliance

service engineer.

 During use the oven becomes hot. Care should be

taken to avoid touching heating elements inside
the oven.

SAFETY ADVICE

IN THE EVENT OF A CHIP PAN OR ANY OTHER
PAN FIRE:

1. TURN OFF THE COOKER APPLIANCE AT THE
WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR
DAMP CLOTH, this will smother the flames and
extinguish the fire.

3. LEAVE THE PAN TO COOL FOR AT LEAST 60
MINUTES BEFORE MOVING IT. Injuries are often
caused by picking up a hot pan and rushing
outside with it. NEVER USE A FIRE EXTINGUISHER
TO PUT OUT A PAN FIRE as the force of the
extinguisher is likely to tip the pan over. Never use
water to extinguish oil or fat fires.

Never

 Never leave children unsupervised where a

cooking appliance is installed as all cooking
surfaces will be hot during and after use.

 Never allow anyone to sit or stand on any part of

the appliance.

 Never store items above the appliance that

children may attempt to reach.

 Never remove the oven shelves whilst the oven is

hot.

 Never heat up unopened food containers as

pressure can build up causing the container to
burst.

 Never store chemicals, food stuffs or pressurised

containers in or on the appliance, or in cabinets
immediately above or next to the appliance.

 Never operate the grill with the door closed as this

will cause the appliance to overheat.

 Never use the appliance as a room heater.
 Never use the grill to warm plates.
 Never dry any items on the oven doors.
 Never install the appliance next to curtains or other

soft furnishings.

 Never allow children to play with the appliance

controls.

 Never use 'steam cleaners'.

Children should be supervised to ensure that they do
not play with the appliance.

! The appliance should not be operated by people
(including children) with reduced physical, sensory
or mental capacities, by inexperienced individuals or
by anyone who is not familiar with the product. These
individuals should, at the very least, be supervised by
someone who assumes responsibility for their safety or
receive preliminary instructions relating to the operation
of the appliance.

! The appliance must be used by adults only for
the preparation of food, in accordance with the
instructions outlined in this booklet. Any other
use of the appliance (e.g. for heating the room)
constitutes improper use and is dangerous.
The manufacturer may not be held liable for any
damage resulting from improper, incorrect and
unreasonable use of the appliance.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

4

The main parts of your
Double Oven

WARNING: DO NOT TOUCH THE GLASS DOORS WHEN THE OVEN IS IN USE AS
THESE AREAS CAN BECOME HOT

GRILL

PILOT
LIGHT

Grill Control

Stay Clean Side Liner*

Grill Pan &

Food Support*

TOP OVEN

PILOT LIGHT

Top Oven

Temperature Control

Timer

Main Oven

Temperature Selector

MAIN OVEN PILOT LIGHT

Grill/Top Oven Element

Model & Serial Number

Oven Light

Oven Shelf

GB

Inner Door Glass

Stay Clean Back Panel*

Stay Clean Side Liner*

Oven Fan

Meat Pan*

Inner Door Glass

Top Oven Door

Oven Light

Oven Shelves

Main Oven Door

Door Handle

NEVER line the shelves, floor or sides of the oven or grill with aluminium foil as
overheating and damage may result.

*Available only on certain models

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

5

The Cooking Systems
in your Double Oven

GB

1

2

Your new oven is equipped with three different cooking
systems:

1. Conventional Heating (Top Oven) - with upper
and lower heat. This system is particularly suitable for
roasting and baking on one shelf only.

2. Grilling (Top Oven) - Has a full width, fully con-
trollable grill. The grill also has an economy setting
which enables you to use just the left section. NOTE:
The oven door should be open when grilling. (See
page „Operation when using the Top Oven for Gril­ling”.)

3. Fan Cooking (Lower Oven) - the fan oven
operates by constantly blowing heated air from an

3

It should be noted that at the end of a cooking period there may be a momentary puff of steam when the oven door is
opened. This will disperse in a few seconds and is a perfectly normal characteristic of an oven with a good door seal.

element wrapped around the fan into the oven. This
gives improved efficiency and, in general, enables the
use of lower temperatures for cooking. It also means
that there is less need to be particular about shelf po­sitions and that you can bake at more than one level
simultaneously (Batch Baking).

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

6

Temperature
Conversion Chart

The chart below gives details of comparisons of oven settings for gas conventional ovens and fan oven in degrees °F
and °C

Conventional Oven Fan Oven

Gas Mark

°F °C °C

½ 250 120 100

1 275 140 120

2 300 150 130

3 325 160 140

4 350 180 160

5 375 190 170

6 400 200 180

GB

7 425 220 200

8 450 230 210

9 475 240 220

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

7

Controls

GB

GRILL

PILOT
LIGHT

A B C

Grill
Setting
Control

Control

Knob

A Grill Setting Control

Description Function

TOP OVEN

PILOT LIGHT

Top Oven

Temperature

Control

MAIN OVEN PILOT LIGHT

Timer Main Oven Temperature

And Function Control

Selects the heat at which the grill will cook the food.

Grill Control Settings:
1 = Low, 4 = High (BD32/42)
MIN - MAX (DY46, DH53, DHS 53)

B Top Oven Temperature Control

C

Cooling Fan

A gentle flow of air will be blown below the control
panel when the grill control is used and after a short
period of time when the ovens are used.
Note: Whenever the appliance has been used, the
cooling fan may run on or restart itself after all the
controls have been turned off. This indicates that the
appliance is still warm.

Oven Interior Lights

The oven lights are operated when their respective
oven control is used.
(N.B. Not all models have a top oven interior light).
The main oven has a light only position.

Main Oven Temperature &

Function Control

Selects the cooking temperature (Degrees
Centigrade) when using the top oven as a
conventional oven.

Fan Only Setting

- This is used to decrease the amount of time
required to defrost food items.

Oven Light Only

- Switches on the Main Oven Interior Light Only

Main Oven Temperature Scale
(In Degrees Centigrade).

- When cooking select the required
cooking temperature.

Slow Cooking

The main oven has a „Slow Cook Setting” this can
be used for slow cooking, keeping food warm and
warming plates for a short period.

Note: It is advisable to check that all oven controls
have been switched off when you have finished
using the appliance.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

8

The electronic
programmer

DISPLAY

END OF

COOKING icon

DURATION

icon

DECREASE TIME

! The Top Oven and Main Oven can be controlled by
the automatic timer. When the timer control has been
set for one oven, it is possible to use the other oven
only during the same automatic cooking programme.

! NEVER operate the grill when the ovens are set
to cook automatically because the oven cavity can
become warm and this may cause bacterial growth
in food.

button

•• ••

SET TIME

button

CLOCK icon

TIMER icon

INCREASE TIME

button

Setting the clock

! The clock may be set when the oven is switched off
or when it is switched on, provided that the end time of
a cooking cycle has not been programmed previously.
After the appliance has been connected to the mains,

or after a blackout, the
digits on the DISPLAY will begin to flash.

1. Press the
and the four digits on the display begin to flash.

2. Use the “+” and “-” buttons to adjust the time; if you
press and hold either button, the display will scroll
through the values more quickly, making it quicker and
easier to set the desired value.

3. Wait for 10 seconds or press the
finalise the setting.

button several times until the icon

icon and the four numerical

button again to

Setting the minute minder

! This function does not interrupt cooking and does not
affect the oven; it is simply used to activate the buzzer
when the set amount of time has elapsed.

1. Press the
and the three digits on the display begin to flash.

2. Use the “+” and “-” buttons to set the desired time; if
you press and hold either button, the display will scroll
through the values more quickly, making it quicker and
easier to set the value.

3. Wait for 10 seconds or press the
finalise the setting.
The display will then show the time as it counts down.
When this period of time has elapsed the buzzer will be
activated.

button several times until the icon

button again to

Programming cooking

! A cooking mode must be selected before
programming can take place.

Programming the cooking duration

1. Press the
and the three digits on the DISPLAY begin to flash.

2. Use the “+” and “-” buttons to set the desired
duration; if you press and hold either button, the
display will scroll through the values more quickly,
making it quicker and easier to set the value.

3. Wait for 10 seconds or press the
finalise the setting.

4. When the set time has elapsed, the text END
appears on the DISPLAY, the oven will stop cooking
and a buzzer sounds. Press any button to stop the
buzzer and turn all control knobs to 0 position.

• For example: it is 9:00 a.m. and a time of 1 hour
and 15 minutes is programmed. The programme
will stop automatically at 10:15 a.m.

Setting the end time for a cooking mode

! A cooking duration must be set before the cooking
end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed

above.

2. Next, press the

four digits on the DISPLAY begin to flash.

3. use the “+” and “-” buttons to adjust the cooking end

time; if you press and hold either button, the display
will scroll through the values more quickly, making it
quicker and easier to set the desired value.

4. Wait for 10 seconds or press the

finalise the setting.

5. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking
and a buzzer sounds.

buzer and turn all control knobs to 0 position.

Programming has been set when the and
buttons are illuminated. The DISPLAY shows the
cooking end time and the cooking duration alternately.

• For example: It is 9:00 a.m. and a duration of 1
hour has been programmed. 12:30 is scheduled
as the end time. The programme will start
automatically at 11:30 a.m.

Cancelling a programme

To cancel a programme:

• press the
the setting you wish to cancel and the digits on the
display are no longer flashing. Press the “-” button
until the digits 00:00 appear on the display.

• Press and hold the “+” and “-” buttons; this

button several times until the icon

button again to

button until the icon and the

button again to

Press any button to stop ithe

button until the icon corresponding to

GB

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

9

Grill Pan and Handle

GB

will cancel all the settings selected previously,
including timer settings.

Using the grill pan kit

The grill pan handle is detachable from the pan to
facilitate cleaning and storage. Fix the pan handle
securely before use:

1. Fit the handle to the grill pan so that the external
‘hooks’ embrace the edge of the pan (fig. 1)

2. Make sure that the middle part of the handle fits
exactly the protruding support of the pan (fig .2)
and holds the pan from the bottom.

The food must be placed on the rack in the grill pan.
Position the grill pan on top of the oven rack. The best
results are achieved by placing the oven rack on the
uppermost shelves. Pouring a little water into the grill
pan will make the collection of grease particles more
efficient and prevent the formation of smoke.

1

2

Top Oven Shelf Positioning for Grilling

3

2

1

NOTE:

ENSURE SHELVES ARE

FITTED CORRECT WAY UP.

3
2
1

DO NOT PLACE FOOD/UTENSILS

DIRECTLY ON THE OVEN FLOOR

- Preheat the grill if indicated on grill chart.

- The grill pan must be placed on the correct shelf
and positioned centrally under the grill element.

- Leave the control at 4 or MAX (depending on Mo­del) for toast, and for fast cooking of foods.

- For thicker foods requiring longer cooking, turn
the switch to a lower setting after the initial sealing
on both sides at 4 or MAX (depending on Model).
The thicker the food, the lower the control should
be set.

- DO NOT line the grill pan with aluminium foil, as
this increases the amount of fat spitting which can
cause a fire.

- After use always return the grill control to the OFF
(0) position.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

10

Operation when using
the Top Oven for Grilling

GRILL

PILOT

LIGHT

TOP OVEN

PILOT LIGHT

A B C

Grill
Setting
Control

Step 1 Ensure oven timer is set to manual. Place

the shelf in the correct position (see Gril­ling Guide). Place the food/grill pan on
the shelf, positioned centrally under the
grill element. Leave the top oven door fully
open.

Step 2 Turn knob (A), clockwise for FULL grill or

anti-clockwise for HALF grill, to select the
grill setting MIN (1) MAX (4). NOTE: MIN
(1) = Low, MAX (4) = High.

Top Oven

Temperature

Control

GB

Timer

Grill Controls Example:

or = High Grill Setting (depending on model)

NOTE: Do not grill with

the grill/top oven
door closed.

Step 3 After use, turn the

grill control (A) to
the off position (0).

! The Grill Pilot Light is lit when grill is used.

! Ensure knob (B) is in „0 position”. The grill and
the top oven cannot work simultaneously

DO NOT allow young children near to the appliance
when the grill is in use as the surfaces get
extremely hot.

DOOR POSITION

FOR GRILLING

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

11

Guide to Grilling

GB

FOOD

Toasting of Bread

Products

Small cuts of

meat, Sausage,

Bacon

Chops etc.

Gammon steaks

Fish: Whole

Fillets
Fingers

PREHEAT

FOR 5

MINUTES

(depending

on Model)

Setting MAX

Setting MAX

Setting MAX

Setting MAX

SHELF

POSITION FROM

THE BASE OF

THE OVEN

3 or 2

3 or 2

2

2
3
3

SETTING

(depending on

Model)

Setting

Setting

Setting

Setting

4 or

4 or

for

4

minutes

then reduce to

LOWER

setting

4 or

for

6-8

minutes

then reduce to

LOWER

setting

4 or

MAX

MAX

MAX

MAX

APPROXIMATE

COOKING TIME

5 - 10 minutes

10 - 25 minutes

20 - 35 minutes

8 - 12 minutes
10 - 15 minutes
10 - 20 minutes

PAN TO BE

USED

Grill pan and food

support

Grill pan and food

support

Grill pan and food

support

Grill pan and food

support

Pre-cooked

potato products

Pizzas Setting MAX

Browning of food

eg. Cauliflower

Cheese

Setting MAX

Setting MAX

3 or 2

3 or 2

3 or 2

Setting

lower

Setting

lower

Setting

3 or

setting

3 or

setting

4 or

MAX

15 - 20 minutes

10 - 20 minutes

10 - 20 minutes

Grill pan and food

support

Grill pan and food

support

Dish placed

directly on the

shelf

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

12

Using the Top Oven as
a Convection Oven

The top oven should be used to cook small quantities of food. The oven is designed so that the grill element operates
at a reduced heat output, this is combined with a heating element situated underneath the floor of the oven. To ensure
even cooking of the food it is important that cooking utensils are positioned correctly on the oven shelf so that the
element is directly above. As a guide, the front of the utensil should be approx.100mm (4”) from the front of the shelf.

Note: Charts are a guide only, to suit personal taste and requirements, it may be necessary to increase or
decrease temperatures by 10°C. It may also be necessary to increase or decrease cooking times.

SHELF POSITIONING

There should always be at least 25mm (1 inch) between the top of the food and the grill element.

WARNING: Items stored in the top oven will get hot when the main oven is in use.

DO NOT allow young children near to the appliance when the top oven is in use as the surfaces get extremely
hot.

ENSURE SHELVES ARE

FITTED CORRECT WAY UP.

3

2

1

DO NOT PLACE FOOD/UTENSILS

DIRECTLY ON THE OVEN FLOOR

3
2
1

GB

Operation when using the Top
Oven as a Convection Oven

A B C

Top Oven Temperature Control

Step 1 Check that the timer is in manual.
Step 2 Place the shelf in the correct position (see

Oven Temperature Charts).

Step 3 Select the required cooking temperature

(100-220°C or MAX depending on Model)
using control (B) (see Top Oven Tempe­rature Charts). The pilot light () will imme­diately come on, and remain on until the
oven reaches the required temperature.
The light will then automatically go off and
on during cooking as the oven thermostat
maintains the correct temperature.

Step 4 Place the food on the shelf directly below

the element ensuring the oven door is
closed.

Timer

control (B) to the OFF (O) position.

PLATE WARMING

Place the plates/dishes on shelf position 1 from the
base of the top oven, and turn top oven temperature
control (B) to 100°C for 10-15 minutes.

Never use the grill setting control (A) when warming
plates.

TOP OVEN UTENSILS

Do Not use: Meat Pans and Baking Trays larger than
225mm x 300mm (9”x12”)

DO NOT use the grill pan or main oven meat pan as
a meat pan in the top oven, as the air circulation will
be seriously restricted.

NOTE: At the end of your cooking, always return

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

13

Oven Temperature
Charts - Baking

GB

Top Oven Cooking

Baking Pre-heat Temperature °C Time in mins. Position in Oven

Scones Yes 210/220 10-15 Runner 2 from bottom of oven

Small Cakes Yes 180/190 20-25 Runner 2 from bottom of oven

Victoria Sandwich Yes 170/180 20-30 Runner 2 from bottom of oven

Sponge Sandwich (fatless) Yes 180/190 20-25 Runner 2 from bottom of oven

Swiss Roll Yes 200/210 10-15 Runner 2 from bottom of oven

Semi-rich Fruit cakes Yes 150/160 60-75 7 inch Runner 2 from bottom of oven

Rich Fruit Cakes Yes 140/150

Shortcrust Pastry Yes 190/200

Puff Pastry Yes 200/210

Yorkshire Pudding Yes 190/200 30-40 Runner 1 or 2 from bottom of oven

Individual Yorkshire Pudding Yes 200/210 20-30 Runner 1 from bottom of oven

Milk Pudding Yes 140/150 90-120 Runner 1 from bottom of oven

Baked Custard Yes 150/160 40-50 Runner 1 from bottom of oven

Bread Yes 200/210 30-45 Runner 1 from bottom of oven

Meringues Yes 100 150-180 Runner 2 from bottom of oven

Time Dependent on

size

Time Dependent on

recipe

Time Dependent on

recipe

Runner 1 or 2 from bottom of oven

Runner 1 from bottom of oven

Runner 1 from bottom of oven

Fan Oven Cooking

Baking Pre-heat Temperature °C Time in mins.

Scones Yes 210/220 9-12

Small Cakes No 170/180 15-20

Victoria Sandwich No 160/170 20-25

Sponge Sandwich (fatless) Yes 190/200 15-20

Swiss Roll Yes 190/200 10-15

Semi-rich Fruit cakes No 140/150 1¼ - 1½ hrs

Rich Fruit Cakes No 130/140 Depending on size

Shortcrust Pastry No 190/200 Depending on size

Puff Pastry No 190/200 Depending on size

Yorkshire Pudding Yes 180/190 40-45

Individual Yorkshire Pudding Yes 190/200 20-25

Milk Pudding No 130/140 1½ - 2 hrs

Baked Custard No 140/150 35-45

Bread Yes 200/210 30-35

Meringues No 80-90 3 - 4 hrs

Note: If soft margarine is used for cake making, temperatures recommended by the manufacturers should be
followed. Temperatures recommended in this chart refer to cakes made with block margarine only.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

14

Oven Temperature
Charts - Meat

Top Oven Cooking

Meat Pre-heat Temperature °C Time (approx.) Position in Oven

Beef/ Lamb
(slow roasting)

Beef/ Lamb
(foil covered)

Pork
(slow roasting)

Pork
(foil covered)

Veal
(slow roasting)

Veal
(foil covered)

Poultry/Game
(slow roasting)

Poultry/Game
(foil covered)

Casserole
Cooking

Yes 170/180 35 mins per 450g (1lb) + 35 mins over.

Yes 190/200 35-40 mins per 450g (1lb)

Yes 170/180 40 mins per 450g (1lb) + 40 mins over

Yes 190/200 40 mins per 450g (1lb)

Yes 170/180 40-45 mins per 450g (1lb) + 40 mins over

Yes 190/200 40-45 mins per 450g (1lb)

Yes 170/180 25-30 mins per 450g (1lb) + 25 mins over

Yes 190/200 25-30 mins per 450g (1lb)

Yes 150 2-2½ hrs

If using aluminium foil, never:

1.Allow foil to touch sides of oven. 2.Cover oven interior with foil. 3.Cover shelves with foil.

Runner 1 from

bottom of oven.

GB

Fan Oven Cooking (all models)

Meat Pre-heat Temperature °C Time (approx.) Position in Oven

Beef No 160/180 20-25 mins per 450g (1lb) +25 mins extra

Lamb No 160/180 25 mins per 450g (1lb) +25 mins extra

Pork No 160/180 25 mins per 450g (1lb) +25 mins extra

Veal No 160/170 25-30 mins per 450g (1lb) +25 mins extra

Chicken /
Turkey up to
4kg (8lb)

Turkey
up to 5.5kg
(12lb)

Turkey
over 5.5kg
(12lb)

Casserole
Stews

No 160/180 18-20 mins per 450g (1lb) +20 mins over

No 150/160

No 150

No 140-150 1½ - 2 hrs

If using aluminium foil, never:

1.Allow foil to touch sides of oven. 2.Cover oven interior with foil. 3.Cover shelves with foil.

13-15 mins per 450g (1lb)

e.g. 5kg (11lb) = 143-165 mins

12 mins per 450g (1lb)

e.g. 10kg (22lb) = 264 mins

Runner 1 from

bottom of oven.

The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer
into the thickest part of a joint, or the thickest part of poultry thighs, during the cooking period.The meat thermometer
will indicate when the required internal temp has been reached.
Beef - Rare: 60°C Lamb: 80°C Poultry: 90°C
Medium: 70°C Pork: 90°C
Well Done: 75°C Veal: 75°C

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

15

Using the Main Oven
for Fan Cooking

GB

Since a circulaire fan oven heats up more quickly and
generally cooks food at a lower temperature than a
conventional oven, pre-heating is often unnecessary.
For guides on „pre-heating”, „cooking temperatures”
and „cooking times” see „Oven Temperature Charts”
later in book.

Note: Charts are a guide only, to suit personal taste
and requirements, it may be necessary to increase
or decrease temperatures by 10°C. It may also be
necessary to increase or decrease cooking times.

MAIN OVEN SHELF POSITIONING FOR FAN OVEN

Most foods will cook satisfactorily on any shelf position,
due to even distribution of heat in the main oven, but
the shelves must be evenly spaced.

The top oven rod shelf can be used in the main oven
when cooking large quantities of food. (N.B. Maximum
3 shelves in the main oven).

Food or utensils should never be placed directly on
the floor of the oven for cooking.

DO NOT allow young children near to the appliance
when the main oven is in use as the surfaces get
extremely hot.

MAIN OVEN UTENSILS

DO NOT Use:
Meat Pans larger than 375mm x 300mm (15”x12”)
Baking Trays larger than 325mm x 250mm (13”x10”)

TEMPERATURE & TIME

When two shelves are in use to cook large quantities
of food, it may be necessary to increase the cooking
times given in the temperature charts by a few minutes,
to allow for the loss of heat due to extra time taken to
load the oven, and the larger mass of food. Baking
trays should have an even gap around the oven.

MAIN FAN OVEN OPERATION

Step 1 Check that the timer is in manual.
Step 2 Place the shelf/shelves in the correct posi-

tion (see Main Oven Temperature Charts.

Step 3 Place the food centrally on the shelf ensu-

ring the oven door is fully closed.

Step 4 Select the required cooking temperatu-

re (80°C - MAX) by turning control (C)
clockwise. The pilot light () will imme­diately come on, and remain on until the
oven reaches the required temperature.
The light will then automatically go off and
on during cooking as the oven thermostat
maintains the correct temperature.

C

Timer Main Oven Temperature

And Function Control

Note: When you have finished using your cooker,
always return the controls to their OFF position
(O). At the end of the cooking period there may
be a momentary puff of steam when the door is
opened. This will disperse in a few seconds and is
a perfectly normal characteristic of an oven with a
good door seal.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

16

Using the Main Oven for
Other Functions

FAN ONLY SETTING

DEFROSTING FROZEN MEAT & POULTRY

Joints of meat and whole birds should be defrosted
slowly, preferably in a refrigerator (allowing 5-6 hours
per lb.) or at room temperature (allowing 2-3 hours
per lb.). Frozen meat or poultry must be completely
defrosted before cooking in the oven. However, to
decrease the amount of time required to defrost food
items, a nonheating fan only setting may be selected
for the main oven only.

OPERATION: TO ASSIST IN DEFROSTING:

Place food in the oven and close the oven door.
Turn the Main Oven Temperature and Function Control

(C) clockwise to the
This defrosts by circulating the air around the food,
time to defrost will depend on type and size of the
food.

NOTES: DO NOT defrost meat and poultry by
warming the food through.

Foods ideally suited to defrosting using the fan only
setting are cream/cream cakes, butter cream filled
cakes, gateaux, cheese cakes, iced cakes, quiches,
pastries, biscuits, bread, croissants, fruit and many
delicate frozen foods. If fish, meat and poultry are to
be defrosted using the fan only setting, where possible
it is recommended that the food should be small and
thin.
The items should be placed so that the maximum
amount of surface area is exposed to the circulating
air, and that they are turned regularly to ensure even
defrosting.
Larger cuts of meat and poultry may be defrosted by
using the fan only setting up to a maximum weight of 2
kg (4lb 8oz).
It is important to wash both meat and poultry and
cooking utensils immediately after defrosting and
before cooking. Food should be cooked immediately
after defrosting.

setting.

LIGHT ONLY SETTING

When the Main Oven Temperature & Function Control

(C) is turned clockwise to the
oven light only will illuminate.

! Do not use the oven lamp as/for ambient lighting

setting, the main

GB

It is very important to strictly adhere to the basic
principles of food handling and hygiene to prevent
the possibility of bacterial growth.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

17

Using the Main Oven
for Other Functions

GB

‚S’ SLOW COOK SETTING

This is used for slow cooking, keeping food warm and
warming plates for short periods.
Extra care should be taken when warming bone china,
as it may be damaged in a hot oven.

DO NOT place food or plates directly on the oven
floor as this could damage both the oven lining and
the plates which are being warmed.

ADVANTAGES OF SLOW COOKING ARE:

The oven stays cleaner because there is less
splashing. Timing of food is not as critical, so there is
less fear of overcooking. Inexpensive joints of meat are
tenderised. Fully loading the oven can be economical.
Cooking times can be extended in some cases by up
to 2 hours.

OPERATION:

1. Place the prepared food in the main oven and
ensure the door is fully closed.

2. Select Slow Cooking Temperature ‚S’ by turning
the Main Oven Temperature & Function Control (C)
clockwise.

STORAGE & RE-HEATING OF FOOD:

1. If food is to be frozen or not used immediately,
place it in a clean container and cool as soon as
possible.

2. Always thaw frozen food completely in the refrige­rator before re-heating.

3. Always reheat food thoroughly and ensure it is
piping hot before serving.

4. Only re-heat food once.

POINTS TO CONSIDER WHEN PREPARING FOOD
FOR SLOW COOKING

1. Make sure that the dishes to be used will fit into the
oven ensuring enough room for air to circulate.

2. All dishes cooked on the slow setting will require a
minimum of 6 hours, however, if they are cooked
for 1-2 hours longer then deterioration in their ap­pearance may be noticed.

3. Never cook joints of meat over 2.7kg (6 lb) or poultry
over 2.0kg (4lb 8oz). We do not recommend that
joints of meat or poultry are stuffed before cooking
on the slow setting.

4. To seal in the meat juices, always cook meat or
poultry at 170°C for 30 minutes before wrapping in
foil and placing on a rack over a tin (to allow good
air circulation) before turning the control to the slow
setting and cooking immediately.

5. Always ensure that joints of pork and poultry are
thoroughly cooked by checking with a meat ther­mometer before serving.

6. Always thaw frozen foods completely before coo­king. We do not recommend placing frozen food
in the oven to cook.

7. Always bring soups, liquids and casseroles to the
boil before placing in the oven.

8. Ensure that casserole dishes have a good seal (not
airtight) and cover to the top with foil to prevent loss
of moisture.

9. Ensure that fruit and vegetables are cut into even
sized small pieces to cook properly.

10. Always adjust seasoning before serving.

11. If using dried red kidney beans it is important
that the beans are soaked and then boiled for a
minimum of 10 minutes before using in any dish to
destroy any toxins.

12. When cooking fish or egg dishes it may be neces­sary to check during cooking to avoid overcooking.

! When inserting the shelf
make sure the backstop is
at the rear of the cavity (see
image).

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

18

Care and Cleaning

L

&

S

Warning: Before cleaning, please ensure that the
electricity supply to the appliance is switched off
and the appliance is fully cold.

! Never use steam cleaners or pressure cleaners on
the appliance.

Clean the glass part of the oven door using a sponge

!

and a non-abrasive cleaning product, then dry
thoroughly with a soft cloth. Do not use rough abrasive
material or sharp metal scrapers as these could
scratch the surface and cause the glass to crack.

! The accessories can be washed like everyday

crockery (even in your dishwasher).

1. „STAYCLEAN” OVEN LINERS*
(Top Oven Sides, Main Oven Sides and
Rear Panel)

TOP OVEN SIDES

DO NOT use biological washing powder, harsh
abrasives or chemical oven cleaners of any kind as
this could damage the „Stayclean” oven liners.

2. CLEANING GRILL, TOP OVEN AND
MAIN OVEN

GRILL
PAN

OVEN
SHELVES

MAIN
OVEN
BASE

(a) Base & Rear of Top Oven and Base of Main
Oven.

Wipe out the oven with a damp soapy cloth. For more
stubborn stains on the base of the oven use a well
soaped fine steel wool soap pad.

(b) Grill Pan, Meat Pan* & Oven Shelves.

To prevent stains from being burnt on to the grill pan,
food support and rod shelf, always wash immediately
after use in warm soapy water.
Use a well soaped fine steel wool soap pad to remove
stubborn stains from the rod shelves, grill pan, meat
pan and the base of the oven.

BASE
REAR

MEAT
PAN

GB

MAIN OVEN SIDES AND REAR PANE

(a) How „Stayclean” works.

The surfaces of the „Stayclean” oven liners (Main
Oven rear panel) are treated with a special vitreous
enamel which absorbs cooking soils. At temperatures
of 220°C (425°F) or above, the special surface enables
these soils to be slowly destroyed. The higher the
temperature the more effective it is.

(b) Cleaning.

In most cases normal cooking operations at 220°C
(425°F) will permit this cleaning operation to
proceed during cooking. However if higher cooking
temperatures are not used regularly, it may be
necessary, in order to prevent heavy soiling, to run
the ovens without shelves or meat pan, at a maximum
setting for a couple of hours (Fan Oven mode only).
It should not normally be necessary to clean the
„Stayclean” panels with water. If the user feels it is
desirable to do so, wipe them over with a clean, soapy
cloth, followed by a wipe with a clean damp cloth.

DO NOT use aerosol cleaners on this oven as
they could adversely affect the fan motor unit, and
cannot be wiped off the fan blade.

3. OVEN DOORS

CONTROL PANEL

OVEN
DOOR

(a) Control Panel

Regularly wipe with a clean, damp cloth and polish
with a clean, dry cloth.

*Available only on certain models

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

19

Care and Cleaning

GB

(b) Inner Door Panels & Glass

Open the door fully. The glass panel may now be
washed. Stubborn stains can be removed by using a
well soaped, fine steel wool soap pad.

(c) Stainless trims

Regularly wipe with a clean, damp cloth and polish
with a clean dry cloth.

DO NOT use scouring pads, or abrasive powder,
which will scratch the glass.

4. REPLACEMENT OF THE OVEN LAMP

TOP OVEN LAMP

MAIN OVEN LAMP

Warning: To avoid electric shocks - please ensure
that the electricity supply to the appliance is
switched off and the appliance is fully cold, before
removing the lamp lens.

Open the oven door and remove the oven shelves.
Using a thick cloth, grip the lamp lens, unscrew
anticlockwise and remove the lens.
Carefully unscrew the bulb anti-clockwise.
Fit replacement bulb (25W 300°C SES) and refit lens.

5. HOW TO CLEAN THE LAMP LENS

TOP OVEN LAMP

MAIN OVEN LAMP

Warning: To avoid electric shocks - please ensure
that the electricity supply to the appliance is
switched off and the appliance is fully cold, before
cleaning lamp lens.

Open the oven door and remove the oven shelves.
Using a thick cloth, grip the lamp lens, unscrew
anticlockwise and remove.
Clean with a non-abrasive cleansing cream and refit
lamp lens.

DO NOT use scouring pads, or abrasive powder,
which will scratch the glass lens

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

20

Care and Cleaning

CLEANING THE DOORS
Take particular care not to damage the inner
surface of the door inner glass that is coated with
a heat reflective layer. Do not use scouring pads,
or abrasive powder, which will scratch the glass.
Ensure that the glass panel is not subjected to any
sharp mechanical blows.

Stubborn stains can be removed by using a fine steel
wool soap pad. For slight soiling the inner glass panel
may be cleaned, while still warm, without removing it
from the door. After cleaning, rinse and dry with a soft
cloth.

DROP DOWN DOORS
Remove the door inner glass as follows.

NEVER OPERATE THE COOKER WITHOUT THE
INNER DOOR GLASS IN POSITION.

Refit the door inner glass as follows.

1. Open the door fully.

2. Locate the inner door glass into its slots.

3. Carefully slide the glass into its slots as far as it
will go and replace the top filler cap as well as the
tapping plates

4. Ensure the tapping plates are correctly fitted, as
theycan easily fall out and get mislaid.

GB

Remove screws from both side of door

Gently ease the top trim away from door

Gently ease glass upwards and remove from door

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

21

Installation

GB

Electrical Requirements

For your own safety, we recommend that your cooker
is installed by a competent person such as one who is
registered with NICEIC (National Inspection Council for
Electrical Installation Contracting). The cooker should
be installed in accordance with the latest edition of the
IEE Regulations.

Warning: This appliance must be earthed.

Electrical Connections

The installer must check that the voltage shown on
the rating plate corresponds with the house electricity
supply. The cooker must be supplied via a suitable
double pole isolating switch, having a contact
separation of at least 3mm in all poles placed in a
readily accessible position adjacent to the cooker. If
the cooker is to be wired into a connector unit, this
may be positioned behind the cooker providing the
following requirements are met:

i) The connector unit must not project from the wall

more than 25mm.

ii) The top of the connector must not be more than

130mm above floor level.

Remove the terminal cover at the rear base of the
cooker. Pass the cable through the cable clamp and
connect to the appropriate terminals provided.
Allow sufficient cable for any future servicing.
Tighten the screws on the cable clamp and replace the
cover. Make main connections in the connector unit or
cooker control unit. This appliance conforms to B.S. EN
55014 regarding suppression of Radio and Television
reception interference.
A double Pole control switch having a minimum rating
of 32 amps should be used to feed the cooker using
a suitably rated cable. Where a hob is fitted adjacent
to or over the cooker, a 45 amp Double Pole control
switch should be used to feed both units via separate
suitably rated cables.
We recommend a minimum of 4mm2 PVC insulated
twin and earth cable conforming to B.S. 6004 for
connection of each appliance.

In all cases adhere to routing details (see fig. 4).

This appliance must not be installed over any other
appliance that generates heat such as a plinth heater.

Note: Due to many different types of installation, a
mains cable is not supplied with this product. The
installer will fit the correct type and length of cable.

Important

It is essential that the lower cupboard is constructed
in the manner illustrated i.e. having side, back, and
roof panels so joined as to provide no apertures which
could permit access to the oven unit when installed.

1. General

The appliance is designed for mounting at a safe level
into an oven housing which must be secured to the
backing wall.

2. Ventilation

a. The oven housing unit cabinet dimensions must

comply with fig. 4.

b. An air gap of 50mm minimum must be provided at

the rear of any top or bottom cupboards or shelves
(see fig. 1).

c. It is necessary that the cabinets are provided with

unobstructed ventilation, i.e. from adjacent cabine­try. This can be done by either raising the base of
the cabinets using the adjusting feet (or spacers)
or alternatively by providing a slot in the cabinet
plinth to the dimensions in fig. 1.

d. The air gap at rear allows the warmed air to pass out

of the inner cabinet space. Where it is intended to fit
cupboards above the oven unit to ceiling height, it is
essential that the warmed air is exhausted through
the front of the cabinet (see fig. 1).

e. If an oven unit is installed adjacent to a tall cabinet,

steam escaping from the oven when the door is
opened could condense on and maybe stain the
adjacent surface. To prevent permanent staining,
the adjacent surface should be made of a material
that is heat resisting and easy to clean. Adjacent
tall cabinets should not be deeper than the oven
housing cabinet.

3. Final Installation

a. Using a spirit level, check that the housing cabinet

is level from side to side and from front to back in
its installed position.

b. Correct any unevenness by placing spacers under

the bottom of the cabinet. Make sure that the cabi­net rests firmly on the floor without rocking.

c. Before the oven is fitted, the cabinet must be firmly

secured to the backing wall for stability.

d. The oven unit should now be lifted (this is a two

person lift) into the cabinet and pushed fully home.

e. Finally, the oven is secured to the cabinet by means

of the four Phillips C/SK Head screws - two through
each side trim.

f. Remove all packaging material from the grill and

oven interior.

List of loose items:

4 x Phillips C/SK Head No. 6 x 25mm screws.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

22

Tall Cabinet Ventilation

Ventilation Slot required

here if cabinet does not

fit to ceiling - 51mm x 457mm min. area

Ventilation Slot

required

here if the cabinet does not

fit to the ceiling

- 51mm x 457mm min.
area

Ventilation Slot

required here

- 51mm x 457mm
min. area

50 mm

Air Gap

50 mm

Air Gap

Fig. 1

GB

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

23

GB

562mm

570mm

exc. handle

knobs

882mm

Fig. 2

595mm

561mm

550mm

882mm,

870mm if

cooker trim

is to overlap

top edge

of shelf

Fig. 4

870mm

550mm

min *

Cabinet

562mm

Viewed down through cabinet

No. 6x25mm screw
(4 supplied)

Fig. 3

Oven Door

Connector

Box

2

4mm
Cable
To Oven

if hob fitted

4mm

to Hob if

if fitted

6mm
Cable

2

Cable

2

* excluding pipe work
and other projections

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

24

If something
goes wrong...

Before calling a Service Engineer, please check through the following lists.
THERE MAY BE NOTHING WRONG.

Problem Check

Slight odour or
small amount of
smoke when grill /
oven used for first
time

Nothing works

Timer Display
shows ‚0.00’ with
„Auto” Flashing

This is normal and should cease after a short period.

If you find that the timer display is blank, then it is likely that there is no electricity supply to
your oven. Check:
(i) That the main cooker wall is switched on
(ii) Other appliances, to see if you have had a power cut
(iii) The main circuit breaker for the property

The power supply to your oven has possibly been interrupted, but has now come back
on again. Reset the timer to the correct day and „Manual” operation using the instructions
given in the timer section of the book.

GB

Main oven and
Top ovens do not
work, but the grill
works

Top oven and grill
do not work, but
Main oven works.

Grill keeps tur­ning on and off

Timer buzzer /
audible tone ope­rates continually

Oven tempera­tures too high or
low

Your timer may be set for an Auto Cooking programme: Check the timer to see whether
‚Auto’ is lit or flashing. If it is then please follow the instructions given in the Timer section of
this book to return the timer to Manual operation.

Operating the cooker under the following conditions may cause a safety device to operate:
(a) Grilling with the door closed - Always grill with the door fully open
(b) Grilling for an excessively long period at maximum setting - see Grilling guide.
Switch off appliance and allow to cool for approx 30 mins.
Switch the cooker back on and check that the Grill / Top oven is now operating.

When the Grill control is operating at less than its maximum setting, the Grill will cycle on
and off, this is normal and not a fault.

To cancel the audible tone, press the minute minder button.

Check temperature and shelf positions are as recommended in the Oven Temperature
Charts.
It may be necessary to increase or decrease the recommended temperature slightly to suit
your taste.

Check:

Oven does not
cook evenly

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

(a) Temperature and shelf positions are as recommended in the Oven Temperature
Charts.
(b) Oven utensils being used allow sufficient air flow around them.

25

If something
goes wrong...

GB

Problem Check

Grilling is uneven. Ensure that Grill pan has been positioned as stated in the Grilling section of this book.

Oven lamp does
not work.

Condensation on

the wall at the rear
of the cooker.

Steam /
Condensation in

the oven after use.

If you have been through the above list and there is still a problem, contact Service (see back page).

The oven lamp is not covered by the guarantee. The part is easily changed (see the section
on oven lamp replacement) A new lamp may be obtained from our Genuine Parts &
Accessories Hotline (see back page).

Steam and / or condensation may appear from the vent at the rear of the appliance when
using an oven particularly for foods with a high water content e.g. frozen chips, roast
chicken etc. This is normal, and any excess should be wiped off.

Steam is a by - product of cooking any food with a high water contact. To help minimise
always:
a) Try to avoid leaving food in the oven to cool after being cooked.
b) Use a covered container, wherever possible.

Disposal of your product

To minimise the risk of injury to children please dispose
of your product carefully and safely. Remove all doors
and lids. Remove the mains cable (where fitted) by
cutting off flush with the appliance and always ensure
that no plug is left in a condition where it could be
connected to the electricity supply.
To help the environment, Local Authority instructions
should be followed for the disposal of your product.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), requires
that old household electrical appliances must not be
disposed of in the normal unsorted municipal waste
stream. Old appliances must be collected separately
in order to optimise the recovery and recycling of
the materials they contain and reduce the impact on
human health and the environment.
The crossed out „wheeled bin” symbol on the product
reminds you of your obligation, that when you dispose
of the appliance it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct disposal
of their old appliance.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

26

Guarantee

12 months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturer’s guarantee, which covers the cost of

breakdown repairs for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be

defective because of either workmanship or materials, we will, at our discretion, either repair

or replace the appliance at no cost to you.

The guarantee is subject to the following conditions:

- The appliance has been installed and operated correctly and in accordance with our ope­rating and maintenance instructions.

- The appliance is only used on the electricity or gas supply printed on the rating plate.

- The appliance has been used for normal domestic purposes only.

- The appliance has not been altered, serviced, maintained, dismantled or otherwise interfered
with by any person not authorised by us.

- Any repair work must be undertaken by us or our appointed agent.

- Any parts removed during repair work or any appliance that is replaced become our property.

- The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

- Damage resulting from transportation, improper use, neglect or interference or as a result
of improper installation.

- Replacement of any consumable item or accessory. These include but are not limited to:
plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

- Replacement of any removable parts made of glass or plastic.

GB

THE GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN

COMMERCIAL OR NON-DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a FREE 5 year parts guarantee. This additional guarantee is

conditional on you registering your appliance with us and the parts being fitted by one of our

authorised engineers. There will be a charge for our engineer’s time. To activate the extra

parts warranty on your appliance, simply call our registration line on 08448 24 24 24 (ROI 01

230 0800)

Extended Guarantees

We offer a selection of protection plans that enable you to fully cover yourself against the

expense of repair bills for the life of your policy. To find the ideal plan for you please call our

advice line on 08448 226 226 (ROI 01 230 0233)

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance

if you experience any technical difficulties within the first 90 days of ownership.

Simply call our Hotpoint Service Hotline on 08448 224 224 (ROI 0818 313 413) for telephone

assistance, or, where necessary, to arrange for an engineer to call.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

27

04/2012 - 195102598.00

XEROX FABRIANO

GB

After Sales Service

No one is better placed to care for your Hotpoint appliance during the course of its working

life than us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in the country offering you access to 400 skilled telephone

advisors and 1100 fully qualified engineers on call to ensure you receive fast, reliable, local

service.

UK: 08448 224 224

Republic of Ireland: 0818 313 413

www.hotpoint.co.uk

Please note: Our advisors will require the following information:

Model number

Serial number

Parts & Accessories

We supply a full range of genuine replacement parts as well as accessory products that

protect and hygienically clean your appliance to keep it looking good and functioning

efficiently throughout its life.

UK: 08448 225 225

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint ownership. To activate your FREE 5 year

parts guarantee you must register your appliance with us.

UK 08448 24 24 24

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves

the right to use quality, recycled components to keep down customer costs and minimise

material wastage.

Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB

Indesit Company, Unit 49 Airways Industrial Estate, Dublin 17

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

28
