HOSHIZAKI
STACKABLE CRESCENT CUBER
MODEL
KM-1200SAE
KM-1200SWE
KM-1200SRE
(FINAL) PARTS LIST
Page 2
HA
KM-1200SAE
B-1 Feb., 1992
C-0 Dec., 1992
C-1 July, 1993
D-0 Dec., 1993
E-0 Dec., 1994
E-1 May, 1995
F-0 Dec., 1995
F-1 Sept., 1996
G-0 Dec., 1996
G-1 June, 1997
H-0 Dec., 1997
KM-1200SWE
B-1 Feb., 1992
C-0 Jan., 1993
C-1 July, 1993
D-0 Jan., 1994
E-0 Jan., 1995
E-1 April, 1995
F-0 Jan., 1996
F-1 Oct., 1996
G-0 Dec., 1996
G-1 June, 1997
H-0 Jan., 1998
H-1 June, 1998
KM-1200SRE
B-1 Feb., 1992
C-0 Dec., 1992
C-1 July, 1993
D-0 Dec., 1993
E-0 Dec., 1994
E-1 April, 1995
F-0 Dec., 1995
F-1 Sept., 1996
G-0 Dec., 1996
G-1 June, 1997
H-0 Dec., 1997
2
Page 3
HA
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Alumi num
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "1990" or "2000".
o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "1991".
Ex.3 A-2
Each time a part is changed non-interchangeably
in a year, this number advances.
3
Page 4
HA
FASTENER ABBREVIATION LIST
ST Phillips Truss Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
T1 Phillips Truss Head Tapping Screw (Correspond to Type A)
T2 Phillips Truss Head Tapping Screw (Correspond to Type B)
T3 Phillips Truss Head Tapping Screw (Correspond to Type C)
FT Phillips Truss Head Tapping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
WT External Tooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. ST0308S (Phillips Truss Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.
4
Page 5
HA
KM-1200SAE A. ICE CUBER ASSEMBLY B-1
5
Page 6
HA
KM-1200SAE A. ICE CUBER ASSEMBLY C-0
6
Page 7
HA
KM-1200SAE A. ICE CUBER ASSEMBLY C-1, D-0, E-0, E-1, F-0, F-1,
G-0, G-1, H-0
7
Page 8
HA
KM-1200SAE
OR MODEL
TITLE:
NUMBER
INDEX
NO.
MODEL:
DESCRIPTION MATERIAL
NUMBER
B REFRIGERATION CIRCUIT - 105942A01 1 1 -
- 105942A02 1 1 -
- 105942A03 11111
C WATER CIRCUIT - 105109A01 1 1 -
- 105109A02 1 1 -
- 105109A03 1111x1
- 105109A04 o1
D CONTROL BOX ASSEMBLY - 217130A04 1 x1
- 219071A07 o1 1111111
E LABEL LOCATION - 217944A01 1 11111111
1 EVAP. CASE - 105860G01 1 1 1 1 -
- 105860G09 1111-
A. ICE CUBER ASSEMBLY
PART
B-1 C-0 C-1 D-0
REQUIRED NUMBER
E-1 F-0 F-1
E-0
G-0
G-1 H-0
- 105860G17 1
2 CONTR O L BO X CO VER GS 322616G01 1 x1
GS 3A0174-01 o1 1111111
3 SQUARE WASHER BRASS 433537-02 1 11111111
4 SCREW - GROUNDING BRASS 433304-02 1 11111111
5 BUSHING SR-34-2 420472-05 1 11111111
6 JUNCTION BOX COVER GS 433410-01 1 11111111
7a BULB HOLDER (A) 433707-01 1 x1
7b BULB HOLDER (B) 436549-01 1 x1
7 BULB HOLDER ABS 328919-01 o1 1111111
8 SPACER PE 443545-01 21111111
9 BULB HOLDER (C) ABS 216340G01 1 11111111
10 BUSHING EP RUBBER 425307-01 1 11111111
11 SPACER ABS 440907-01 1 11111111
- 439727-01
12 BULB HOLDER (D) GS 328742-01 1 11111111
13 FRONT PANEL - BRACKET SS 323903-01 1 11111111
8
Page 9
HA
KM-1200SAE
:
OR MODEL
NUMBER
INDEX
NO.
MODEL
DESCRIPTION MATERIAL
NUMBER
14 SPACER ABS 324321-01 1 1 1 1 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1 1 1 1
19 TOP PANEL (A) (324217A01) 213669-01 1 x1
SS 213669-01 o1 1 1 x1
SS 213669-02 o1 1 1 x1
SS 213669-01 o1 1
20 GASKET (324217A01) 427014-03 2 21 LOUVER (B) ABS 103121-0 1 2 2 2 2 2 x2
PP 103121-05 o2 2 2 2
A. ICE CUBER ASSEMBLY
:
TITLE
PART
B-1 C-0 C-1 D-0
REQUIRED NUMBER
E-1 F-0 F-1
E-0
G-0
G-1 H-0
22 LOUVER (C) ABS 103122-01 2 2 2 2 2 x2
PP 103122-03 o2 2 2 2
23 TAPPING SCREW - BLACK STEEL,4x8 433954-01 4 4 4 4 4 4 4 4 4
24 AIR FILTER (B) ABS 208283G 01 2 2 2 x2
ABS 208283G03 o2 2 2 2 2 2
25 AIR FILTER (C) ABS 208284G01 2 2 2 2 2 2 2 2 2
26 FRONT PANEL SS 213708-01 1 1 1 1 1 1 1 1 1
27 BARRIER GS 325920-01 1 1 -
9
Page 10
HA
KM-1200SWE A. ICE CUBER ASSEMBLY B-1
10
Page 11
HA
KM-1200SWE A. ICE CUBER ASSEMBLY C-0
11
Page 12
HA
KM-1200SWE A. ICE CUBER ASSEMBLY C-1, D-0, E-0, E-1, F-0
12
Page 13
HA
KM-1200SWE A. ICE CUBER ASSEMBLY F-1, G-0, G-1, H-0
13
Page 14
HA
KM-1200SWE
:
OR MODEL
NUMBER
INDEX
NO.
MODEL
DESCRIPTION MATERIAL
NUMBER
B REFRIGERATION CIRCUIT - 105941A01 1 1 -
- 105941A02 1 1 1 -
- 105941A03 11111
C WATER CIRCUIT - 105109A01 1 1 -
- 105109A02 1 1 1 -
- 105109A03 1 1 1 x1
- 105109A04 o1 1
D CONTROL BOX ASSEMBLY - 217130A02 1 x1
- 219071A08 o111111111
ELABEL LOCATION - 217945A011111111111
1 EVAP. CASE - 105860G02 11111-
- 105860G10 1 1 1 -
A. ICE CUBER ASSEMBLY
:
TITLE
PART
B-1 C-0 C-1 D-0 E-0 E-1 F-0
REQUIRED NUMBER
F-1
G-0
G-1
H-0 H-1
- 105860G18 1 1
2 CONTROL BOX COVER GS 322616G01 1 x1
GS 3A0174-01 o111111111
3SQUARE WASHER BRASS 433537-021111111111
4SCREW - GROUNDING BRASS 433304-021111111111
5BUSHING SR-34-2 420472-051111111111
6JUNCTION BOX COVER GS 433410-011111111111
7a BULB HOLDER (A) ABS 433707-01 1 x1
7b BULB HOLDER (B) ABS 436549-01 1 x1
7BULB HOLDER ABS 328919-01 o111111111
8 SPACER PE 443545-01 211111111
9BULB HOLDER (C) ABS 216340G011111111111
10 CAPILLARY RING EP RUBBER 425307-01 1111111111
11 SPACER ABS 440907-01 11111111x1
- 439727-01 o1 1
12BULB HOLDER (D) GS 328742-011111111111
13FRONT PANEL - BRACKETSS 323903-011111111111
14
Page 15
HA
: KM-1200SWE
OR MODEL
NUMBER
INDEX
NO.
MODEL
DESCRIPTION MATERIAL
NUMBER
14 SPACER ABS 324321-01 1 1 1 1 1 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1 1 1 1 1 1
19 TOP PANEL (A) (324217A01) 213669-01 1 x1
SS 213669-01 o1 1 x1
SS 213669-02 o1 1 1 1 x1
SS 213669-01 o1 1 1
20 GASKET (324217A01) 427014-03 2 21 LOUVER (B) ABS 103121-01 1 1 1 1 x1
PP 103121-05 o1 1 22 LOUVER (C) ABS 103122-01 1 1 1 1 x1
: A. ICE CUBER ASSEMBLY
TITLE
PART
B-1 C-0 C-1
D-0
REQUIRED NUMBER
E-0 E-1 F-0 F-1 G-0
G-1
H-0 H-1
PP 103122-03 o1 1 23 TAPPING SCREW - BLACK STEEL,4x8 433954-01 2 2 2 2 2 2 24 FRONT PANEL SS 214010-01 1 1 1 1 1 1 x1
SS 215104-01 o1 1 1 1
25 BARRIER GS 325920-01 1 1 -
15
Page 16
HA
KM-1200SRE A. ICE CUBER ASSEMBLY B-1
16
Page 17
HA
KM-1200SRE A. ICE CUBER ASSEMBLY C-0
17
Page 18
HA
KM-1200SRE A. ICE CUBER ASSEMBLY C-1, D-0, E-0, E-1, F-0
18
Page 19
HA
KM-1200SRE A. ICE CUBER ASSEMBLY F-1, G-0, G-1, H-0
19
Page 20
HA
INDEX
NO.
KM-1200SRE
MODEL
:
DESCRIPTION MATERIAL
OR MODEL
NUMBER
A. ICE CUBER ASSEMBLY
:
TITLE
PART
B-1 C-0 C-1 D-0 E-0 E-1 F-0 F-1 G-0
REQUIRED NUMBER
H-0
G-1
B REFRIGERATION CIRCUIT - 105943A01 1 1 -
- 105943A02 1 1 1 -
- 105943A03 11111
C WATER CIRCUIT - 105109A01 1 1 -
- 105109A02 1 1 1 -
- 105109A03 1111x1
- 105109A04 o1
D CONTROL BOX ASSEMBLY - 217130A04 1 x1
- 219071A09 o111111111
ELABEL LOCATION - 217946A011111111111
1 EVAP. CASE - 105860G03 11111-
- 105860G11 1111-
- 105860G19 1
2 CONTROL BOX COVER GS 322616G01 1 x1
GS 3A0174-01 o111111111
3SQUARE WASHER BRASS 433537-021111111111
4SCREW - GROUNDING BRASS 433304-021111111111
5BUSHING SR-30-1 420472-031111111111
6JUNCTION BOX COVER GS 433410-012222222222
7a BULB HOLDER (A) ABS 433707-01 1 x1
7b BULB HOLDER (B) ABS 436549-01 1 x1
7BULB HOLDER ABS 328919-01 o111111111
8 SPACER PE 4 43545-01 211111111
9BULB HOLDER (C) ABS 216340G011111111111
10 BUSHING EP RUBBER 425307-01 1111111111
11 SPACER ABS 440907-01 111111111x1
- 439727-01 o1
12BULB HOLDER (D) GS 328742-011111111111
13FRONT PANEL - BRACKETSS 323903-011111111111
20
Page 21
HA
INDEX
NO.
MODEL:
KM-1200SRE
DESCRIPTION MATERIAL
OR MODEL
NUMBER
A. ICE CUBER ASSEMBLY
TITLE:
PART
B-1 C-0 C-1 D-0 E-0 E-1 F-0 F-1 G-0
REQUIRED NUMBER
H-0
G-1
14 SPACER ABS 324321-01 1 1 1 1 1 1 1111
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1111
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1 1 1111
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1111
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1 1 1111
19 TOP PANEL (A) (324217A01) 213669-01 1 x1
SS 213669-01 o1 1 1 x1
SS 213669-02 o1 1 1 1 x1
SS 213669-01 o1 1
20 GASKET (324217A01) 427014-03 2 21 LOUVER (B) ABS 103121-01 1 1 1 1 1 x1
PP 103121-05 o1 1 22 LOUVER (C) ABS 103122-01 1 1 1 1 1 x1
PP 103122-03 o1 1 23 TAPPING SCREW - BLACK STEEL, 4x8 433954-01 2 2 2 2 2 2 2 24 FRONT PANEL SS 214010-01 1 1 1 1 1 1 1 x1
SS 215104-01 o1 1 1
25 BARRIER GS 325920-01 1 1 26 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1111
21
Page 22
HA
KM-1200SAE B. REFRIGERATION CIRCUIT (1/2) B-1, C-0, C-1, D-0, E-0, F-0
22
Page 23
HA
KM-1200SAE B. REFRIGERATION CIRCUIT (1/2) F-1, G-0, G-1, H-0
23
Page 24
HA
KM-1200SAE B. REFRIGERATION CIRCUIT (2/2) B-1
24
Page 25
HA
KM-1200SAE B. REFRIGERATION CIRCUIT (2/2) C-0
25
Page 26
HA
KM-1200SAE B. REFRIGERATION CIRCUIT (2/2) C-1, D-0, E-0, E-1, F-0,
F-1, G-0, G-1, H-0
26
Page 27
HA
KM-1200SAE
MODEL
INDEX
NO.
F EVAPORATOR - 104696A01 1 1 1 1 1 1 1 1 1
1 REAR FRAME GS 439285G02 1 1 -
2 SIDE FRAME (A) GS 213688G01 1 1 1 1 1 x1
3 SIDE FRAME (B) GS 323901G01 1 1 1 1 1 1 1 1 1
4 FRONT FRAME GS 325857G01 1 x1
5CONDENSER - 213621-01111111111
6SHROUD GS 213696-01111111111
7 COMPRESSOR CR30K6-PFV 443304-01 1 1 1 1 1 1 1 1 1
DESCRIPTION MATERIAL
FRONT FRAME (A) GS 325857-01 o11111111
:
OR MODEL
GS 439285G03 1 1 -
GS 439285G04 1 1 1 1 1
GS 219472G01 o1 1 1 1
B. REFRIGERATION CIRCUIT
:
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
E-1 F-0 F-1 G-0
E-0
H-0
G-1
8
INSULATION - COMPRESSOR
9GROMMET - 434922-01444444444
10 SPACER - 434921-01 4 4 4 4 4 4 4 4 4
11 BOLT 8x45 437889-01 4 4 4 4 4 4 4 4 4
12 FAN MOTOR BRACKET GS 327180-01 1 1 1 1 1 1 1 1 1
13 FAN MOTOR U90B1, 7190-
14 CAPACITOR 5MFD, 250V 443192-02 1 1 1 1 1 1 1 1 1
15 FAN BLADE 20569-17 437864-01 1 1 -
16 DRIER KC-7071 427061-02 1 1 1 1 1 1 x1
17 EXPANSION VALVE
18 FRAME SEAL EPDM 323925-01 4 4 4 4 4 4 4 4 4
19 HOT GAS VALVE BRACKET GS 442162-01 1 1 1 1 1 1 1 1 1
PE 443303-01 1 1 1 1 1 1 1 x1
NP 443303-01 o1 1
440911-01111111111
1031
AD12CW25 4A0197-01 1 1 1 1 1 1 1
C-0325-S 445007-01 o1 1 1
HFE-10HHD-1
443305-01222222222
27
Page 28
HA
KM-1200SAE
MODEL
INDEX
NO.
20 LINE VALVE BRACKET GS 438213-02 1 x1
21 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1 1 1 1 1 1 1
22 PRESSURE SWITCH BRCKT. GS 434938-01 1 1 1 1 1 1 1 1 1
23 COPPER TUBE - ACCESS
24 ACCESS VALVE TCJ-2F15-HD 417366-01 2 x2
25
26 STRAINER - 441569-02 1 1 1 1 1 1 1 1 1
27 CHECK VALVE YCV5-2 425342-01 2 2 2 2 2 2 2 2 2
DESCRIPTION MATERIAL
VALVE
COPPER TUBE (A) - HIGH SIDE
:
OR MODEL
GS 438213-01 o1 1 1 1 1 1 1 1
COPPER 443484-01 1 x1
COPPER 443484-02 o1 1 1 1 1 1 1 1
- 4A0204-01 o2 2 2 2 2 2 2 2
COPPER 217929G01 1 1 1 1 1 1 1 1 1
B. REFRIGERATION CIRCUIT
:
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
E-1 F-0 F-1 G-0
E-0
G-1
H-0
28 COPPER TUBE - LINE VALVE COPPER 329186G01 1 1 1 1 1 1 1 1 1
29 HEAT EXCHANGER - 105939G01 1 1 1 1 1 1 1 1 1
30
COPPER TUBE (R) - LOW SIDE
31
COPPER TUBE (L) - LOW SIDE
32 COPPER TUBE - HOT GAS COPPER 324207G01 1 x1
33 COPPER TUBE - CAPILLAR Y COPP ER 443330G 01 1 1 1 1 1 1 1 1 1
34 EXP. VALVE COVER (A) PE FOAM 324214-01 2 2 2 2 2 2 2 2 2
35 EXP. VALVE COVER (B) PE FOAM 324214-02 2 2 2 2 2 2 2 2 2
36 THERMISTOR - 429006-03 1 1 1 1 1 1 1 1 1
37 HOLDER - THERMISTOR COPPER 427430-01 1 1 1 1 1 1 1 1 1
38 INSULATION - THERMISTOR PE FOAM 427441-01 1 1 1 1 1 1 1 1 1
39 HOLDER / EXP. VALVE - 3/8 SS 3A0107-01 1 1 1 1 1 1 1 1 1
40 INSULATED RUBBER TUBE EPDM 323975G01 1 1 1 1 1 1 1 1 1
41 INSULATION PE FOAM 436671-01 1 1 1 1 1 1 1 1 1
42 CLAMP NO.4253 427902-05 3 3 x3
WIRE SADDLE VWS4238-C 4A0338-02 o3 3 3 3 3 3 3
COPPER 329184G01 1 1 1 1 1 1 1 1 1
COPPER 329185G01 1 1 1 1 1 1 1 1 1
COPPER 3A0212G01 o1 1 1 1 1 1 1 1
28
Page 29
HA
KM-1200SAE
MODEL
INDEX
NO.
43CABLE TIE CV-200 7920-0010 9 10101010101010
44 "C" CLAMP CCO-12 7910C1200 1 1 1 1 1 1 -
45 VALVE BODY 70 440352-01 3 3 3 3 3 3 3 3 3
46 COIL - VALVE ABS-25-1-
47 BOLT 4x6 440353F01 3 3 3 3 3 3 3 3 3
48CLAMP SS 443461-02222222222
49 SELF-LOCKING NUT No. 8-32
50 DRIER BRACKET GS 4A0807-01 1 1 1 1
51
52 INSULATION TUBE L=40 7762-1020 2 3 3 3 3 3 3 3 3
53 EVACUATION TUBE COPPER 4A1212-01 1 1 1
DESCRIPTION MATERIAL
COPPER TUBE (D) - HIGH SIDE
:
OR MODEL
HD-2
COPPER 4A0921-01 1 1 1 1
B. REFRIGERATION CIRCUIT
:
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
440353-01333333333
7N21I0832
4444444
E-1 F-0 F-1 G-0
E-0
H-0
G-1
54 TEE COPPER 436000-13 1 1 1
29
Page 30
HA
KM-1200SWE B. REFRIGERATION CIRCUIT (1/2) B-1, C-0
30
Page 31
HA
KM-1200SWE B. REFRIGERATION CIRCUIT (1/2) C-1
31
Page 32
HA
KM-1200SWE B. REFRIGERATION CIRCUIT (1/2) D-0, E-0, E-1, F-0
32
Page 33
HA
KM-1200SWE B. REFRIGERATION CIRCUIT (1/2) F-1, G-0, G-1, H-0, H-1
33
Page 34
HA

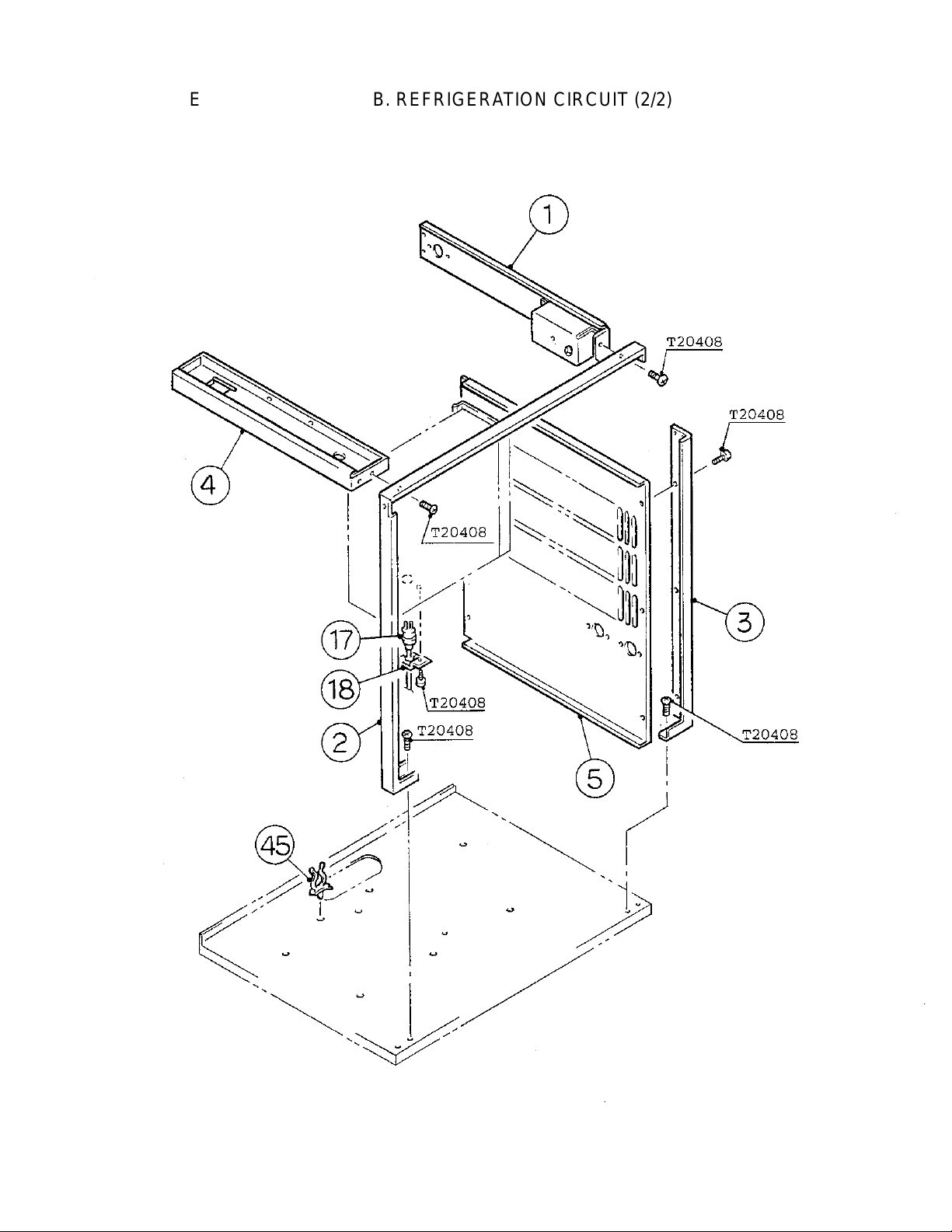

KM-1200SWE B. REFRIGERATION CIRCUIT (2/2) B-1, C-0
34
Page 35
HA
KM-1200SWE B. REFRIGERATION CIRCUIT (2/2) C-1, D-0, E-0, E-1,
F-0, F-1, G-0, G-1,
H-0, H-1
35
Page 36
HA
KM-1200SWE
MODEL
INDEX
NO.
F EVAPORATOR - 104696A01 1 1 1 1111111
1 REAR FRAME GS 439285G02 1 1 -
2 SIDE FRAME (A) GS 213688G01 1 1 1 1 1 x1
3SIDE FRAME (B) GS 323901G011111111 111
4 FRONT FRAME GS 325857G01 1 1 x1
5 REAR PANEL (A) GS 213778-01 1 1 -
DESCRIPTION MATERIAL
FRONT FRAME (A) GS 325857-01 o11111111
:
OR MODEL
GS 439285G03 1 1 -
GS 439285G04 1 1 1 1 1 1
GS 219472G01 o1 1 1 1 1
GS 2A0158-01 1 1 GS 2A0158-02 1 1 1 1 1 1
B. REFRIGERATION CIRCUIT
:
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
E-1 F-0 F-1 G-0
E-0
H-0 H-1
G-1
6 CONDENSER - WATER-
COOLED
7COMPRESSOR CR30K6-PFV443304-011111111111
8
INSULATION - COMPRESSOR
9GROMMET - 434922-014444444444
10 SPACER - 434921-01 4 4 4 4444444
11BOLT 8x45 437889-014444444444
12 DRIER KC-7071 427061-02 1 1 1 1 1 1 x1
13 EXPANSION VALVE
14 FRAME SEAL EPDM 323925-01 4 4 4 4444444
15HOT GAS VALVE BRACKETGS 442162-011111111111
16 LINE VALVE BRACKET GS 438213-02 1 x1
(S-0725) 215545G011111111111
PE 443303-011111111x1
NP 443303-01 o1 1 1
C-0325-S 445007-01 o1 1 1 1
HFE-10HHD-1
GS 438213-01 o111111111
443305-012222222222
36
Page 37
HA
KM-1200SWE
MODEL
INDEX
NO.
17 PRESSURE SWITCH ACB-2UB02 433441-01 1 1 1 1 1 1 1 1 1 1
18
19 COPPER TUBE - ACCESS
20 ACCESS VALVE TCJ-2F15-HD 417366-01 2 x1
21
22 WATER REGULATOR WV-4RHD-1 433996-01 1 1 1 1 1 1 1 1 1 1
23 FITTING BRONZE 319972-01 2 2 24
25 STRAINER - 441569-02 1 1 1 1 1 1 1 1 1 1
DESCRIPTION MATERIAL
PRESSURE SWITCH BRACKET
VALVE
WATER REGULATOR BRCKT.
COPPER TUBE (A) - HIGH SIDE
:
TITLE
OR MODEL
GS 434938-01 1 1 1 1 1 1 1 1 1 1
COPPER 443484-01 1 x1
COPPER 443484-02 o1 1 1 1 1 1 1 1 1
- 4A0204-01 o1 1 1 1 1 1 1 1 1
GS 434953-01 1 1 1 1 1 1 1 1 1 1
COPPER 217926G01 1 1 1 1 1 1 1 1 1 1
B. REFRIGERAT ION CIRCUIT
:
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
E-0
E-1 F-0 F-1 G-0
G-1
H-0 H-1
26 CHECK VALVE YCV5-2 425342-01 2 2 2 2 2 2 2 2 2 2
27
COPPER TUBE (B) - HIGH SIDE
28 COPPER TUBE LINE - HIGH
SIDE
29 HEAT EXCHANGER - 105939G01 1 1 1 1 1 1 1 1 1 1
30
COPPER TUBE (R) - LOW SIDE
31
COPPER TUBE (L) - LOW SIDE
32 COPPER TUBE - HOT GAS COPPER 324207G01 1 x1
33 COPPER TUBE (A) COPPER 324211G01 1 1 -
34 COPPER TUBE (B) COPPER 324210G01 1 1 1 x1
35 COPPER TUBE (C) COPPER 434973G01 1 1 -
COPPER 324209G01 1 1 1 1 1 1 1 1 1 1
COPPER 443327-01 1 1 1 1 1 1 1 1 1 1
COPPER 329184G02 1 1 1 1 1 1 1 1 1 1
COPPER 329185G01 1 COPPER 329185G02 1 1 1 1 1 1 1 1 1
COPPER 3A0212G01 o1 1 1 1 1 1 1 1 1
COPPER 4A0210G01 1 1 COPPER 4A0766G01 1 1 1 1 1 1
COPPER 324210-01 o1 1 1 1 1 1 1
COPPER 4A0211G01 1 1 COPPER 4A0765G01 1 1 1 1 1 1
37
Page 38
HA
KM-1200SWE
MODEL
INDEX
NO.
36CLAMP SS 443461-022222222222
37 EXP. VALVE COVER (A) PE FOAM 324 214-01 2222222222
38 EXP. VALVE COVER (B) PE FOAM 324 214-02 2222222222
39THERMISTOR - 429006-031111111111
40 HOLDER - THERMISTOR COPPER 427430-01 1111111111
41INSULATION - THERMISTORPE FOAM 427441-011111111111
42 HOLDER / EXP. VALVE - 3/8 SS 3A0107-01 2222222222
43 INSULATED RUBBER TUBE EPDM 323975G01 1111111111
44INSULATION PE FOAM 436671-011111111111
45 CLAMP NO.4253 427902-05 3 3 x3
46 CABLE TIE CV-200 7920-0010 10 11 11 11 11 11 11 11 11 11
DESCRIPTION MATERIAL
WIRE SADDLE VWS4238-C4A0338-02 o33333333
:
OR MODEL
B. REFRIGERATION CIRCUIT
:
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
E-1 F-0 F-1
E-0
G-1 H-0 H-1
G-0
47"C" CLAMP CCO-12 7910C1200222222-
48VALVE BODY 70 440352-012222222222
49 COIL - VALVE
50BOLT 4x6 440353F012222222222
51DRIER BRACKET GS 4A0807-01 1111
52INSULATION TUBE L=40 7762-10203444444444
53INSULATION TUBE L=630 7762-20301111111111
54 TEE COPPER 435000-13 1 1 1
55 EVACUATION TUBE COPPER 4A1212-01 1 1 1
ABS-25-1-HD-2
440353-012222222222
38
Page 39
HA
KM-1200SRE B. REFRIGERATION CIRCUIT (1/2) B-1, C-0, C-1, D-0
E-0, E-1, F-0
39
Page 40
HA
KM-1200SRE B. REFRIGERATION CIRCUIT (1/2) F-1, G-0, G-1, H-0
40
Page 41
HA
KM-1200SRE B. REFRIGERATION CIRCUIT (2/2) B-1, C-0
41
Page 42
HA
KM-1200SRE B. REFRIGERATION CIRCUIT (2/2) C-1, D-0, E-0, E-1,
F-0, F-1, G-0, G-1,
H-0
42

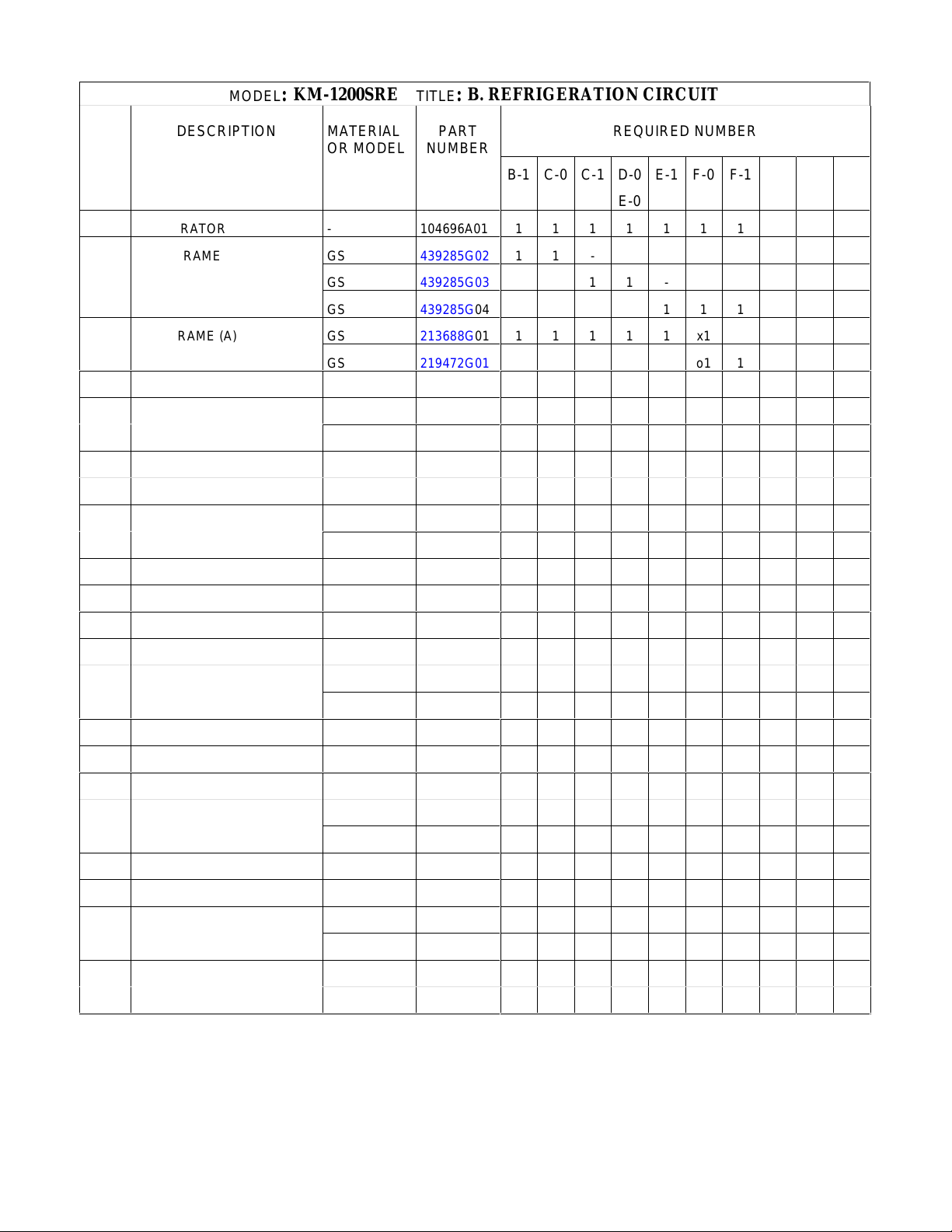

Page 43
HA
MODEL:
INDEX
NO.
FEVAPORATOR - 104696A01111111111
1 REAR FRAME GS 439285G02 1 1 -
2SIDE FRAME (A) GS 213688G0111111x1
3SIDE FRAME (B) GS 323901G01111111111
4 FRONT FRAME GS 325857G01 1 x1
5REAR PANEL GS 213777G02111111111
6 COMPRESSOR CR30K6-RFV 443304-02 111111111
7
DESCRIPTION MATERIAL
INSULATION - COMPRESSOR
KM-1200SRE
OR MODEL
GS 439285G03 1 1 -
GS 439285G04 11111
GS 219472G01 o1 1 1 1
GS 325857-01 o11111111
PE 443303-011111111x1
NP 443303-01 o1 1
B. REFRIGERATION CIRCUIT
TITLE:
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0
E-1 F-0 F-1 G-0
E-0
H-0
G-1
8GROMMET - 434922-01444444444
9SPACER - 434921-01444444444
10BOLT 8x45 437889-01444444444
11RECEIVER TANK PR. MN 437652-01111111111
12DRIER KC-7071 427061-02111111x1
C-0325-S 445007-01 o1 1 1
13 EXPANSION VALVE
14FRAME SEAL EPDM 323925-01444444444
15HOT GAS VALVE BRACKETGS 442162-011111 11111
16 LINE VALVE BRACKET GS 438213-02 1 x1
17PRESSURE SWITCH ACB-2UB04433441-05111111111
18
PRESSURE SWITCH BRACKET
19
COPPER TUBE-ACCESS VALVE
20 ACCESS VALVE TCJ-2F15-HD 417366-01 1 x1
HFE-10HHD-1
GS 438213-01 o11111111
GS 434938-01111111111
COPPER 443484-01 1 x1
COPPER 443484-02 11111111
- 4A0204-01 o11111111
443305-01222222222
43
Page 44
HA
KM-1200SRE
MODEL
INDEX
NO.
21STRAINER - 441569-02111111111
22CHECK VALVE YCV5-2 425342-01222222222
23 COUPLING COPPER 434136G01 111111111
24TUBE HOLDER (L) GS 438245-01111111111
25 COUPLING COPPER 433751G01 111111111
26TUBE HOLDER (S) GS 438246-01111111111
27
28
29
30CLAMP SS 443461-02222222222
31HEAT EXCHANGER - 105939G03111111111
32
33
34 COPPER TUBE - HOT GAS COPPER 324207G01 1 x1
DESCRIPTION MATERIAL
COPPER TUBE (A) - HIGH SIDE
COPPER TUBE (B) - HIGH SIDE
COPPER TUBE (C) - HIGH SIDE
COPPER TUBE (R) - LOW SIDE
COPPER TUBE (L) - LOW SIDE
:
OR MODEL
COPPER 217928G01 111111111
COPPER 324213G01 111111111
COPPER 324212-01 111111111
COPPER 329184G01 111111111
COPPER 329185G01 111111111
B. REFRIGERAT ION CIRCUIT
:
TITLE
PART
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
REQUIRED NUMBER
F-1
G-0
G-1
H-0
COPPER 3A0212G01 o1 1 1 1 1111
35 COPPER TUBE CAPILLARY COPPER 443330G02 111111111
36 EXP. VALVE COVER (A) PE FOAM 324 214-01 222222222
37 EXP. VALVE COVER (B) PE FOAM 324 214-02 222222222
38THERMISTOR - 429006-03111111111
39 HOLDER - THERMISTOR COPPER 427430-01 111111111
40INSULATION - THERMISTORPE FOAM 427441-01111111111
41 COPPER TUBE - LINE VALVE COPPER 329186G01 111111111
42CRANKCASE HEATER CH101-2 443328-01111111111
43 INSULATED RUBBER TUBE EPDM 323975G01 111111111
44INSULATION PE FOAM 436671-01111111111
45 CLAMP NO.4253 427902-05 3 3 x3
WIRE SADDLE VWS4238-C4A0338-02 o3333333
46CABLE TIE CV-200 7920-0010555555555
47"C" CLAMP CCO-12 7910C1200222222-
44
Page 45
HA
KM-1200SRE
MODEL
INDEX
NO.
48 VALVE BODY 70 440352-01 3 3 3 3 3 3 3 3 3
49 COIL - VALVE
50 BOLT 4x6 440353F01 3 3 3 3 3 3 3 3 3
51 HOLDER / EXP. VALVE - 3/8 SS 3A0107-01 2 2 2 2 2 2 2 2 2
52 DRIER BRACKET GS 4A0807-01 1 1 1
53 INSULATION TUBE L=40 7762-1020 2 2 2 2 2 2 2 2 2
54 TEE COPPER 436000-13 1 1
55 EVACUATION TUBE COPPER 4A1212-01 1 1
DESCRIPTION MATERIAL
:
OR MODEL
ABS-25-1-HD-2
B. REFRIGERATION CIRCUIT
:
TITLE
PART
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1
440353-01 3 3 3 3 3 3 3 3 3
REQUIRED NUMBER
F-1
F-0
G-0
G-1 H-0
45
Page 46
HA
KM-1200SAE, SWE, SRE C. WA TER CIRCUIT B-1
46
Page 47
HA
KM-1200SAE, SWE, SRE C. WA TER CIRCUIT C-0
47
Page 48
HA
KM-1200SAE, SWE, SRE C. WA TER CIRCUIT C-1, D-0, E-0
48
Page 49
HA
KM-1200SAE, SWE, SRE C. W ATER CIRCUIT E-1, F-0, F-1, G-0, G-1, H-0, H-1
49
Page 50
HA
:
MODEL
INDEX
NO.
G PUMP MOT O R ASSEM B LY (S- 0 730) 2156 92A01 1111111111
1 FITTING - INLET BRASS 436552-01 1 1 -
2 FITTING HOLDER - INLET G S 436550-01 1 1 -
3 WATER SUPPLY PIPE COPPER 436670G01 1 x1
4 RUBBER GASKET NR 4 13 854 - 0 1 2211-
5WATER VALVE BRACKETGS 321443-011111111111
6WATER VALVE J248-030 3U0111-011111111111
7DISTRIBUTOR HOSE (A) EPDM 325738-011111111x1
DESCRIPTION MATERIAL
KM-1200SAE, SWE, SRE
PART
OR MODEL
COPPER 4A0156G01 o1 -
COPPER 4A0207G01 1 1 -
COPPER 4A0768G01 111111
SI.R 413854-03 111111
NUMBER
:
TITLE
C. WATER CIRCUIT
REQUIRED NUMBER
B-1 C-0 C-1 D-0
E-0
E-1 F-0 F-1
G-0
G-1 H-0 H-1
SANTOPRENE
8JOINT PIPE ABS 439297-011111111111
9DISTRIBUTOR HOSE (B) EPDM 325738-021111111x1
SANTOPRENE
10CABLE TIE CV-200 7920-0010 333333333
11HOSE CLAMP SS, 13.5 mm427443-076666666666
12SPRAY TUBE ABS 437049G016666666666
13 SPRAY GUIDE (A) PE 208586-01 18 18 18 18 18 18 18 18 18 18
14 SEPARATOR (A) ABS 213622-01 2222222222
15 SEPARATOR (B) ABS 213623G01 2 x2
ABS 2A0100-01 o222222222
16CUBE GUIDE ABS 214243-012222222222
17HOSE (A) EPDM 435091-011111111111
18DISTRIBUTOR ABS 438276G011111111111
19HOSE CLAMP SS, 32 mm427443-094122222222
20DISTRIBUTOR HOSE (C) EPDM 323985-012222222222
21 HOSE CLAMP SS, 25 mm 427443-03 11 11 11 11 11 11 11 11 11 11
325738-01 o1 1 1
325738-02 o1 1 1
50
Page 51
HA
MODEL
INDEX
NO.
22 HOSE (B) EPDM 436599-01 1 111111111
23 VALVE HOUSING - DRAIN ABS 323613-0 1 1 111111111
24 SPRING SS 322685-01 1 1111x1
25 VALVE SHEET EPDM 433 705-01 1 111111111
26 OVERFLO W CAP PE 323978-01 1 111111111
27 JOI NT - OVERFLOW ABS 323923- 02 1 111111111
28 BUSHING SB-1093-15 420470-03 2 2222222x2
29 CONDUIT COPPER 323905G01 1 x1
30 BUSHING SB-625-8 420470-01 1 -
DESCRIPTION MATERIAL
:
KM-1200SAE, SWE, SRE TITLE: C. WATER CIRCUIT
OR MODEL
PART
NUMBER
B-1 C-0 C-1 D-0
REQUIRED NUMBER
E-1 F-0 F-1
E-0
SS 322110-01 o1 1111
SB-1500-21 420470-06 o2 2
COPPER 3A0216-01 o1 -
G-1 H-0 H-1
G-0
31 BUSHING OCB-500 428394-02 1 x1
OCB-437 428394-06 o1 -
32 FLOAT SWI TCH BRACKET SS 323 906- 01 1 1 1 1 -
SS 3A0449-01 111111
33
CONNECTOR - FLOAT SWITCH
34 FLOAT SWI TCH FS- 0893B- 1 433 535-0 2 1 1111x1
35 CLAMP No. 248 427902-04 5 5 36 CLAMP No.4253 427902-05 1 111111111
37 BARRIER SS 436913-01 1 1 38"O" RING 1AP18 7611-P01811111 11111
39"O" RING 1AG35 7611-G0351111111111
40 DRAIN HOSE EPDM 324757-01 1 111111111
41 DRAIN AC 309246-01 1 111111111
42"O" RING 1AP15 7611-P0151111111111
43 "C" CLAMP CCO- 12 7910C1200 1 1 44 DISTRIBUTOR (C) ABS 439238-01 1 111111111
EPDM 426799-04 1 111111111
163795 4A0886-01 o1 1111
51
Page 52
HA
MODEL
INDEX
NO.

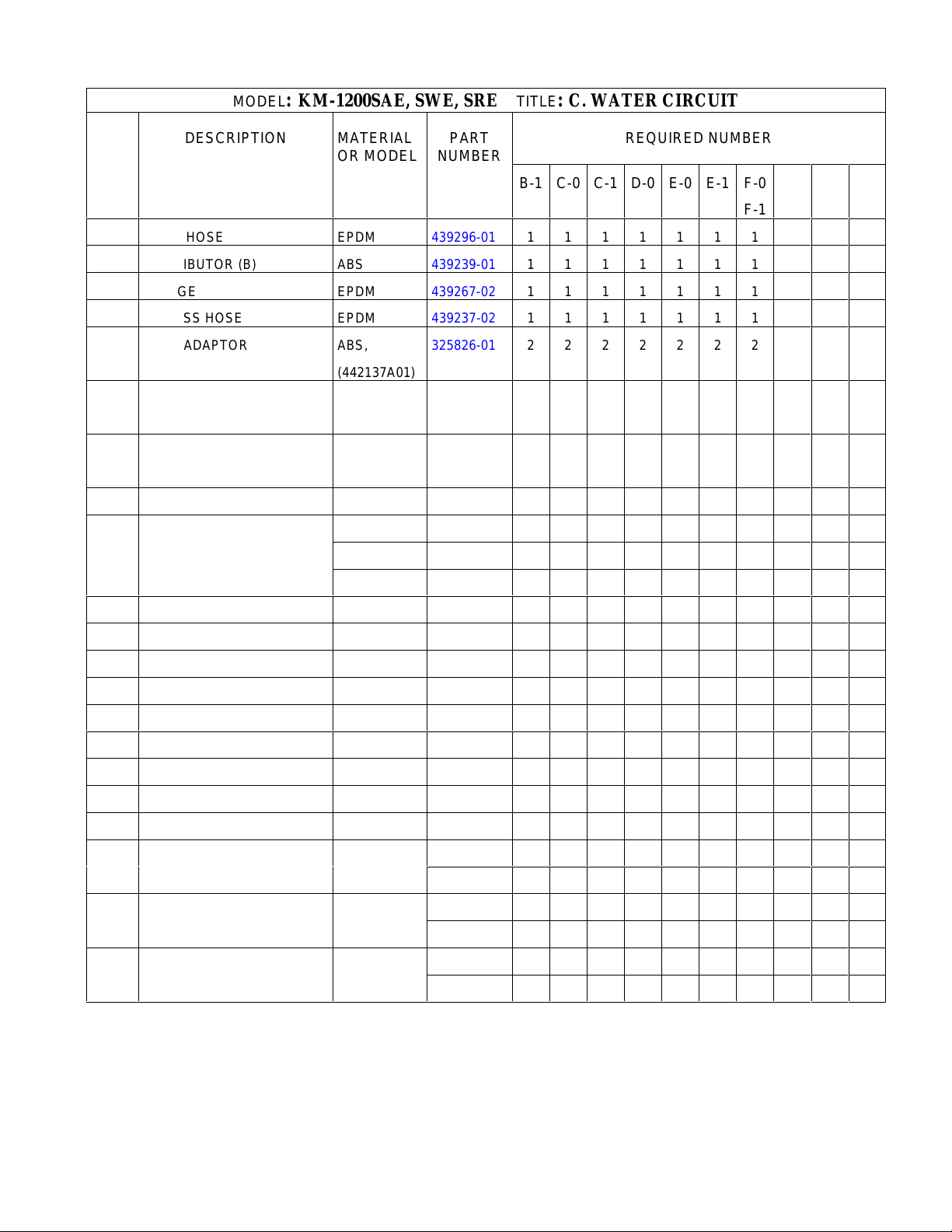

45 JOINT HOSE EPDM 439296-01 1 1 1 1 1 1 1 1 1 1
46 DISTRIBUTOR (B) ABS 439239-01 1 1 1 1 1 1 1 1 1 1
47 FLANGE EPDM 439267-02 1 1 1 1 1 1 1 1 1 1
48 BY-PASS HOSE EPDM 439237-02 1 1 1 1 1 1 1 1
49 MALE ADAPTOR ABS,
50 "O" RING 1AP18,
51 BALL VALVE PVC,
52 VALVE HOLDER GS 325825-01 1 1 1 1 1 1 1 1 1 1
53 MICRO SWI TCH AH-8064 436386-01 1 x1
DESCRIPTION MATERIAL
: KM-1200SAE, S W E, S RE
PART
OR MODEL
(442137A01)
(442137A01)
(442137A01)
NUMBER
325826-01 2 2 2 2 2 2 2 2 2 2
7611-P018 2 2 2 2 2 2 2 2 2 2
439293-01 1 1 1 1 1 1 1 1 1 1
: C. WATER CIRCUIT
TITLE
REQUIRED NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
F-1
G-0
G-1
H-0 H-1
ABV1636614F01
V3L-111-D8 4A0365-01 o1 1 1 1 1 1 1 1
54 TAPPING SCREW 3x14 431415- 02 2 2 2 2 2 2 2 2 2 2
55 JOINT HOSE EPDM 439309-02 1 1 1 1 1 1 1 1 1 1
56 HANDLE JH1352 215383-01 1 1 1 1 1 1 1 1 1 1
57 CORNER INSULATION (A) PE 439376-01 1 1 1 1 1 1 1 1 1 1
58 CORNER INSULATION (B) PE 439392-01 1 1 1 1 1 1 1 1 1 1
59 HANDLE BRACKET GS 439929-01 1 60 FLOAT SWITCH STOP SS 4A0137-01 1 1 1 1 1 1 1 1 1 1
61 VINYL HOSE L=170 7716- 2732 1 1 1 1 1 1 1 1 1 1
62 VINYL HOSE L=230 7716- 2732 1 1 1 1 1 1 1 1 1 1
63 INSULATION HOSE L=80 7761-3252 1 1 1 x1
64 INSULATION HOSE L=120 7762-2943 1 1 1 x1
65 INSULATION HOSE L=150 7762-2943 1 1 1 x1
444193-01 o1 x1
7762-3555 o1 1 1 1 1 1 1
7762-3555 o1 1 1 1 1 1 1
7762-3555 o1 1 1 1 1 1 1
52
Page 53
HA
MODEL: K M-1200SAE, SWE, SRE TITLE: C. WATER CIRC UIT
INDEX
NO.
66VINYL HOSE L=140 7716-091311111111x1
67VINYL HOSE L=390 7716-091311111111x1
68 WI RE SADDLE VWS4218-C 4A0338-0 1 x8
DESCRIPTION MATERIAL
OR MODEL
SILICO NE HOSE L=140 7730I3812 o1 1
SILICO NE HOSE L=390 7730I3812 o1 x1
L=390 7730I3896 o1
VWS4238-C4A0338-02 o888888888
PART
NUMBER
REQUIRED NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
F-1
G-0
G-1
H-0 H-1
53
Page 54
HA
KM-1200SAE D. CONTROL BOX ASSEMBLY B-1
54
Page 55
HA
KM-1200SAE D. CONTROL BOX ASSEMBLY C-0
55
Page 56
HA
KM-1200SAE D. CONTROL BOX ASSEMBLY C-1, D-0, E-0, E-1, F-0,
F-1, G-0, G-1, H-0
56
Page 57
HA
MODEL
INDEX
NO.
1 CONTROL BOX GS 212608G05 1 x1
2 CAPACITOR - STARTING 3535B8A0145
3 CAPACITOR RS37B0035U
4 STRAP GS 434580-04 1 1 1 1 1 1 1 1 1
5 STARTER - 434923-01 1 1 1 1 1 1 1 1 1
6 MAGNETIC CO NTACTOR VC20 428393-01 1 1 1 1 1 1 1 1 1
7 BRACKET - 428393F01 1 1 1 1 1 1 1 1 1
8 CAPACITOR
9 BUSHING SB-1093-15 420470-03 1 1 1 1 1 1 1 1 1
DESCRIPTION MATERIAL
: KM-1200SAE
OR MODEL
GS 2A0121G02 o1 1 1 1 1 1 1 1
A250A5
NHG03
250VAC, 10MFD
: D. CONTROL B O X A S S EMBLY
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
3A0076-01 1 1 1 1 1 1 1 1 1
439943-01 1 1 1 1 1 1 1 1 1
443192-01 1 1 1 1 1 1 1 1 1
F-1
G-0
G-1
H-0
10 BUSHING SB-1093-13 420470-12 1 1 1 1 1 1 1 1 1
11 TRANSFORMER BW48-005 3U1035-01 1 1 x1
26D285H 3A0172-01 o1 1 1 1 1 1 1
12 CLAMP NO. 248 427902-04 1 1 13 CONTROLLER BOARD MY9KM910 2U0127-01 1 1 1 1 1 1 1 1 1
14 BOARD SUPPORT KGLS-6S 414929-01 6 6 x6
CBLS18-M 4A0336-03 o6 6 6 6 6 6 6
15 CONTROL LABEL PES FILM 434934-01 1 1 1 1 1 1 1 1 1
16 THERMOSTAT YTB-3U106 433536-02 1 x1
A30-3815-00 439678-02 o1 1 1 x1
A30-3842-00 4A0738-02 o1 1 x1
A30-3842-00 4A0824-02 o1 1 1
17 TOGG LE SWI TCH 8966K84 443119-01 1 1 1 1 1 1 1 1 1
18 3P PLUG HOUSING 3191-03P 412832-06 1 1 1 1 1 1 1 1 1
19 2P PLUG HOUSING 3191-02P 412832-07 2 1 1 1 1 1 1 1 1
20 3P RECEPTACLE HOUSING 3191- 03R1 412831-06 1 1 1 1 1 1 1 1 1
57
Page 58
HA
MODEL
INDEX
NO.
21 2P RECEPTACLE HOUSING 3191- 02R1 412831-07 2 1 1 1 1 1 1 1 1
22 BUSHING OCB-500 428394-02 2 2 2 2 2 2 2 2 2
23 2P PLUG HOUSING 3190-02P
24 2P RECEPTACLE HOUSING 3191- 02RI
25 RELAY LY1F 418271-03 1 x1
26 TAPPING SCREW 3x8 431415-01 2 2 2 2 2 2 2 2 2
27 BUSHING OCB-750 428394-01 1 x1
DESCRIPTION MATERIAL
: KM-1200SAE
OR MODEL
(RED)
(RED)
LY2F 406132-07 o1 1 1 1 1 1 1 1
OCB-875 428394-04 o1 1 1 1 1 1 1
: D. CONTROL B O X A S S E M BLY
TITLE
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
412832-09 1 1 1 1 1 1 1 1
412831-09 1 1 1 1 1 1 1 1
F-1
G-0
G-1
H-0
58
Page 59
HA
KM-1200SWE D. CONTROL BOX ASSEMBLY B-1
59
Page 60
HA
KM-1200SWE D. CONTROL BOX ASSEMBLY C-0
60
Page 61
HA
KM-1200SWE D. CONTROL BOX ASSEMBLY C-1, D-0, E-0, E-1, F-0,
F-1, G-0, G-1, H-0, H-1
61
Page 62
HA
MODEL
INDEX
NO.
1 CONTROL BOX GS 212608G03 1 x1
2 CAPACITOR - STARTING 3535B8A0145
3 CAPACITOR RS37B0035U
4 STRAP GS 434580-04 1 1 1 1 1 1 1 1 1 1
5 STARTER - 434923-01 1 1 1 1 1 1 1 1 1 1
6 MAGNETIC CONTACTOR VC20 428393-01 1 1 1 1 1 1 1 1 1 1
7 BRACKET - 428393F01 1 1 1 1 1 1 1 1 1 1
8 CAPACITOR
9 BUSHING SB-1093-15 420470-03 1 1 1 1 1 1 1 1 1 1
DESCRIPTION MATERIAL
:
KM-1200S WE
OR MODEL
GS 2A0121G01 o111111111
A250A5
NHG03
250VAC, 10MFD
:
TITLE
D. CONTROL BOX ASSEMBLY
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
3A0076-011111111111
439943-01 1 1 1 1 1 1 1 1 1 1
443192-01 1 1 1 1 1 1 1 1 1 1
F-1
G-0
G-1
H-0 H-1
10 BUSHING SB-1093-13 420470-12 1 1 1 1 1 1 1 1 1 1
11 TRANSFORMER BW48-005 3U0135-01 1 1 x1
CBLS18-M 3A0172-01 o1 1 1 1 1 1 1 1
12 CLAMP NO. 248 427902-04 1 1 13 CONTROLLER BOARD MY9KM910 2U0127-01 1 1 1 1 1 1 1 1 1 1
14 BOARD SUPPORT KGLS-6S 414929-01 6 6 x6
CBLS18-M 4A0336-03 o6 6 6 6 6 6 6 6
15 CONTROL LABEL PES FILM 434934-01 1
16 THERMOSTAT YTB-3U106 433536-02 1 x1
A30-3815-00 439678-02 o1 1 1 x1
A30-3842-00 4A0738-02 o1 1 x1
A30-3842-00 4A0824-02 o1 1 1 1
17 TOGGLE SWITCH 8966K84 443119-01 1 1 1 1 1 1 1 1 1 1
18 3P PLUG HOUSING 3191-03P 412832-06 1 1 1 1 1 1 1 1 1 1
19 2P PLUG HOUSING 3191-02P 412832-07 1 1 1 1 1 1 1 1 1 1
20 3P RECEPTACLE HOUSING 3191-03R1 412831-06 1 1 1 1 1 1 1 1 1 1
62
Page 63
HA
:
MODEL
INDEX
NO.
212P RECEPTACLE HOUSING3191-02R1412831-071111111111
22BUSHING OCB-500 428394-022222222222
23 BUSHING OCB-750 428394-01 1 x1
DESCRIPTION MATERIAL
KM-1200SW E
OR MODEL
OCB-875 428394-04 o11111111
:
TITLE
PART
NUMBER
D. CONTRO L BOX ASSEMBLY
REQUIRED NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
F-1
G-0
G-1
H-0 H-1
63
Page 64
HA
KM-1200SRE D. CONTROL BOX ASSEMBLY B-1
64
Page 65
HA
KM-1200SRE D. CONTROL BOX ASSEMBLY C-0
65
Page 66
HA
KM-1200SRE D. CONTROL BOX ASSEMBLY C-1, D-0, E-0, E-1, F-0,
F-1, G-0, G-1, H-0
66
Page 67
HA
MODEL
INDEX
NO.
1 CONTROL BOX GS 212608G05 1 x1
2 CAPACITOR - STARTING 3535B8A0145
3 CAPACITOR RS37B0035U
4 STRAP GS 434580-04 1 1 1 1 1 1 1 1 1
5 STARTER - 434923-01 1 1 1 1 1 1 1 1 1
6 MAGNETIC CONTACTOR VC20 428393-01 1 1 1 1 1 1 1 1 1
7 BRACKET - 428393F01 1 1 1 1 1 1 1 1 1
8 CAPACITOR
9 BUSHING SB-1093-15 420470-03 1 1 1 1 1 1 1 1 1
DESCRIPTION MATERIAL
:
KM- 1200S RE
OR MODEL
GS 2A0121G02 o1 1 1 1 1 1 1 1
A250A5
NHG03
250VAC, 10MFD
:
TITLE
D. CONTROL BOX ASSEMB LY
PART
REQUIRED NUMBER
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
3A0076-01111111111
439943-01 1 1 1 1 1 1 1 1 1
443192-01 1 1 1 1 1 1 1 1 1
F-1
G-0
G-1
H-0
10 BUSHING SB-1093-13 420470-12 1 1 1 1 1 1 1 1 1
11 TRANSFORMER BW48-005 3U1035-01 1 1 x1
26D285H 3A0172-01 o1 1 1 1 1 1 1
12 CLAMP NO. 248 427902-04 1 1 13 CONTROLLER BOARD MY9KM910 2U0127-01 1 1 1 1 1 1 1 1 1
14 BOARD SUPPORT KGLS-6S 414929-01 6 6 x6
CBLS18-M 4A0336-03 o6 6 6 6 6 6 6
15 CONTROL LABEL PES FILM 434934-01 1
16 THERMOSTAT YTB-3U106 433536-02 1 x1
A30-3815-00 439678-02 o1 1 1 x1
A30-3842-00 4A0738-02 o1 1 x1
A30-3842-00 4A0824-02 o1 1 1
17 TOGGLE SWITCH 8966K84 443119-01 1 1 1 1 1 1 1 1 1
18 3P PLUG HOUSING 3191-03P 412832-06 1 1 1 1 1 1 1 1 1
19 2P PLUG HOUSING 3191-02P 412832-07 2 1 1 1 1 1 1 1 1
20 3P RECEPTACLE HOUSING 3191-03R1 412831-06 1 1 1 1 1 1 1 1 1
67
Page 68
HA
:
MODEL
INDEX
NO.
212P RECEPTACLE HOUSING3191-02R1412831-07211111111
22BUSHING OCB-500 428394-02222222222
23 2P PLUG HOUSING 3190-02P
24 2P RECEPTACLE HOUSING 3191-02RI
25 BUSHING OCB-750 428394-01 1 x1
DESCRIPTION MATERIAL
KM-1200SRE
OR MODEL
(RED)
(RED)
OCB-875 428394-04 o1111111
:
D. CONTROL BOX ASSEMB LY
TITLE
PART
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
412832-09 11111111
412831-09 11111111
REQUIRED NUMBER
F-1
G-0
G-1
H-0
68
Page 69
HA
KM-1200SAE E. LABEL LOCATION B-1, C-0, C-1, D-0, E-0, E-1,
F-0, F-1, G-0, G-1
69
Page 70
HA
KM-1200SAE E. LABEL LOCATION H-0
70
Page 71
HA
:
MODEL
INDEX
NO.
1EMBLEM (L) - HOSHIZAKIABS 418634G01111111x1
2 MODEL NUMBER LABEL PETP FILM 443341-01 111111111
3 LABEL - PENGUIN (R) PET P FIL M 410994-0 1 111111x1
4 LABEL - AI R FI LTER PETP FILM 4 26 1 77 - 01 111111111
5 MAINTENANCE LABEL PVC FILM 326275 -01 111111111
6WARNING LABEL PVC FILM431092-0111111111x1
7 LABEL - R22 PES FILM 440362-0 1 111111111
8 NAMEPLATE PES FILM 443324-0 1 2 2 2 -
DESCRIPTION MATERIAL
EMBLEM PETP FILM 4A0560-01 o1 1 1
CAUTION LABEL (K) - 439150-01 o1
KM-1200SAE
PART
OR MODEL
PETP FILM 4A0526-01 o1 1 1
PES FILM 4A0698-01 2 22221
NUMBER
TITLE
:
E. LABEL LOCA TION
REQUIRED NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
F-1
G-0
G-1
H-0
9WIRING LABEL PVC FILM329206-01111111111
10 MANUAL LABEL PVC FILM 3 24 4 76 -0 1 111111111
11 MANUAL LABEL - BI N
CONTROL
12 OPERATION LABEL - VALVE PVC FILM 439541-01 111111111
13 TAG - WARNING:
ELECTRICAL CO NNECTION
14 INSTRUCTION SHEET PAPER 218058-01 111111111
15 INSTRUCTION LABEL PVC FILM 444575-01 1 1 1 11111
16 CAUTION L ABEL (F) - 439146-01 1
17 RATING LABEL - 4A1627-01 1
PVC FILM324477-01111111111
PAPER 428430-01 111111111
71
Page 72
HA
KM-1200SWE E. LABEL LOCA TION B-1, C-0, C-1, D-0, E-0, E-1,
F-0, F-1
72
Page 73
HA
KM-1200SWE E. LABEL LOCA TION F-1, G-0, G-1, H-0
73
Page 74
HA
KM-1200SWE E. LABEL LOCATION H-1
74
Page 75
HA
MODEL
INDEX
NO.
1 EMBLEM (L) - HOSHIZAKI ABS 418634G01 111111x1
2 MODEL NUMBER LABEL PETP FILM 443341-02 1111111111
3 LABEL - PENGUIN (R) PETP FILM 410994-01 111111x1
4 MAINTENANCE LABEL PVC FILM 326275-01 1111111111
5 WARNING LABEL - DANGER PVC FILM 425322-01 111111111x1
6 LABEL - R22 PES FILM 440362-01 11111111
7 NAMEPLATE PES FILM 443325-01 2 2 2 -
8 WIRING LABEL PVC FILM 328081-01 1111111111
DESCRIPTION MATERIAL
EMBLEM PETP FILM 4A0560-01 o1 1 1 1
CAUTION LABEL (K) - 439150-01 o1
:
KM-1200SWE
PART
OR MODEL
PETP FILM 4A0526-01 o1 1 1 1
PES FILM 4A0699-01 2222221
NUMBER
TITLE
:
E. LABEL LOCATION
REQUIRED NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
F-1
G-0
G-1
H-0 H-1
9 MANUAL LABEL PVC FILM 324476-01 1111111111
10 MANUAL L ABE L - BIN
CONTROL
11 OPERATION LABEL - VALVE PVC FILM 439541-01 1111111111
12 TAG - WARNING:
ELECTRICAL CONNECTION
13 INSTRUCTION SHEET PAPER 218058-01 1111111111
14 INSTRUCTION LABEL PVC FILM 444575-01 111111111
15 RATING LABEL - 4A1630-01 1
PVC FILM 324477-01 1111111111
PAPER 428430-01 1111111111
75
Page 76
HA
KM-1200SRE E. LABEL LOCATION B-1, C-0, C-1
76
Page 77
HA
KM-1200SRE E. LABEL LOCATION D-0, E-0, E-1, F-0
77
Page 78
HA
KM-1200SRE E. LABEL LOCATION F-1, G-0, G-1
78
Page 79
HA
KM-1200SRE E. LABEL LOCATION H-0
79
Page 80
HA
:
MODEL
INDEX
NO.
1EMBLEM (L) - HOSHIZAKI ABS 418634G01111111x1
2 MODEL NUMBE R LABEL PETP FI L M 443341-03 1 11111111
3 LABEL - PENGUIN (R) PETP FILM 410994-01 1 11111x1
4 MAINTENANCE LABEL PVC FILM 32627 5- 01 1 11111111
5WARNING LABEL - DANGERPVC FILM425322-0111111111x1
6 LABEL - R22 PES FILM 440362-01 1 11111111
7 LABEL - CHARGE PES FILM 443221-01 1 11111111
8 NAMEPLATE PES FILM 443326-01 2 2 2 -
DESCRIPTION MATERIAL
EMBLEM PETP FILM 4A05 60 -0 1 o1 1 1
CAUTION LABEL (K) - 439150-01 o1
KM-1200 SRE
PART
OR MODEL
PETP FILM 4A05 26 -0 1 o1 1 1
PES FILM 4A0700- 0 1 2 2 2 2 2 1
NUMBER
TITLE
:
E. LABEL LOCATION
REQUIRED NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
F-1
G-0
G-1
H-0
9 WIRING LABEL PVC FILM 3A0151-01 1 11111111
10MANUAL LABEL PVC FILM324476-01111111111
11 MANUAL LABEL - BIN
CONTROL
12 CAUTION LABEL PVC FILM 4 41890-01 1 1111111x1
CAUTION REMOTE LABEL - 4A1491-0 1 o1
13 TAG - WARNING:
ELECTRICAL CONNECTI O N
14 TAG - FAN MOTOR LEADS PAPER 420742- 01 1 1 1 x1
15 INSTRUCTIO N SHEET PAPER 218058- 01 1 11111111
16 LABEL - CONNECTION PVC FILM 438234-01 1 1 1 17 OPERATION LABEL - VALVE PVC FILM 439541-01 1 11111111
18 INSTRUCTIO N LABEL PVC FI LM 444575-01 11111111
19 RATING LABEL - 4A1629-01 1
PVC FILM324477-01111111111
PAPER 428430-01 1 1111111
PAPER 4A0647-01 o1 1 1 1 1 x1
PAPER 4A1494-01 o1
80
Page 81
HA
KM-1200SAE, SWE, SRE F. EVAPORATOR B-1
81
Page 82
HA
KM-1200SAE, SWE, SRE F . EVAPORAT OR C-0, C-1, D-0, E-0, E-1, F-0,
F-1, G-0, G-1, H-0, H-1
82
Page 83
HA
MODEL
INDEX
NO.
1 EVAPORATOR (S-0533) 103444G02 6 6 6 6 6 6 6 6 6 6
2 EVAP. BRACKET (A) SS 3236 90- 01 2 2 2 2 2 2 2 2 2 2
3 EVAP. BRACKET (B) SS 3236 91- 01 2 2 2 2 2 2 2 2 2 2
4 END PLATE (A) ABS 323692-01 2 2 2 2 2 2 2 2 2 2
5 END PLATE (B) ABS 323693-01 2 2 2 2 2 2 2 2 2 2
6 HOOK PE 324152-01 8 8 8 8 x8
7 EVAP. BRACKET GS 436582-01 2 2 2 2 2 2 2 2 2 2
8 COPPER TUBE COPPER 434137-01 4 4 4 4 4 4 4 4 4 4
DESCRIPTION MATERIAL
:
KM-1200SAE, SWE, SRE TITLE: F. EVAPORATOR
PART
OR MODEL
PP 324152-01 o8 8 8 8 8 8
NUMBER
B-1 C-0 C-1 D-0 E-0 E-1 F-0
REQUIRED NUMBER
F-1
G-0
G-1
H-0 H-1
83
Page 84
HA
KM-1200SAE, SWE, SRE G. PUMP MOTOR ASSEMBLY B-1, C-0, C-1, D-0, E-0, E-1,
F-0, F-1, G-0, G-1, H-0, H-1,
84
Page 85
HA

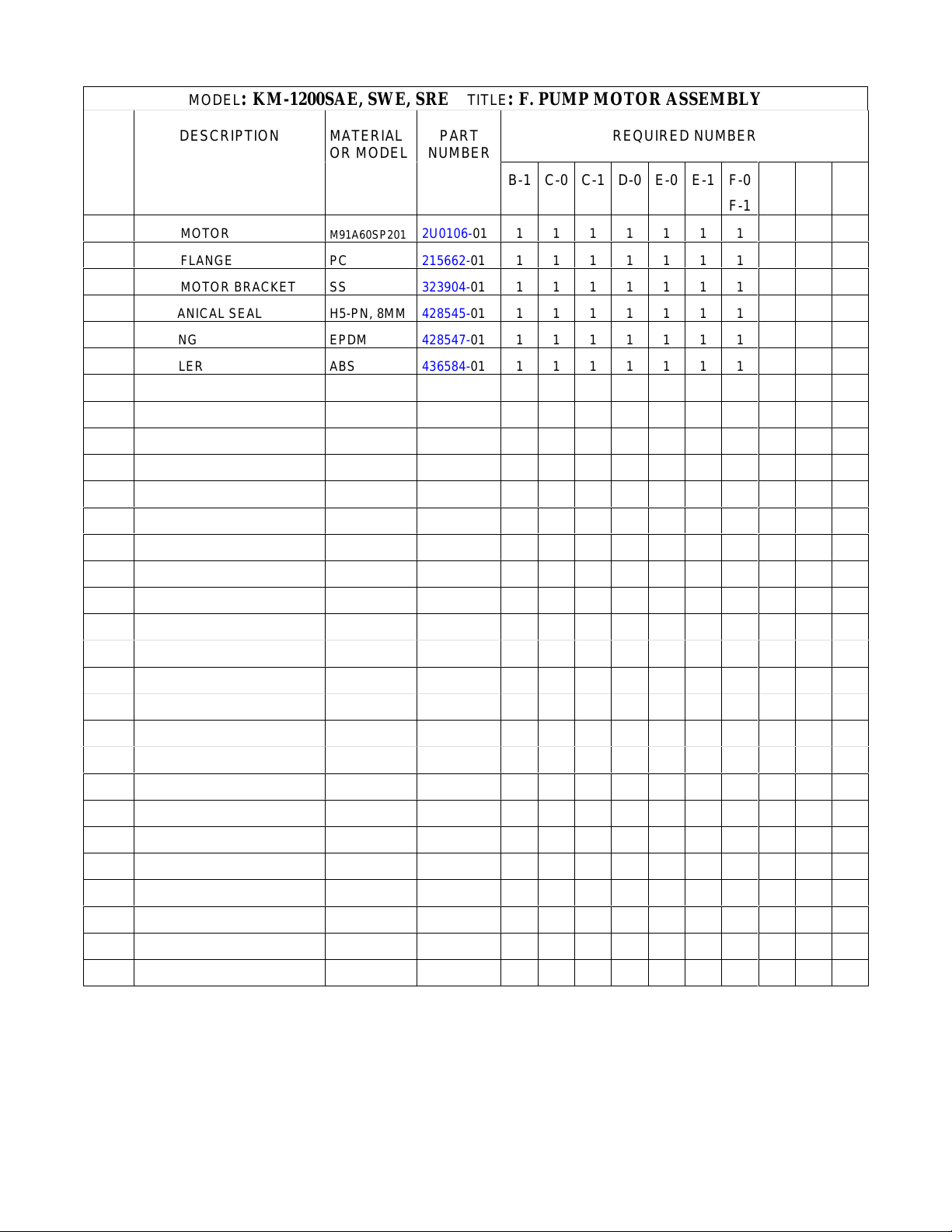

MODEL
INDEX
NO.
1PUMP MOTOR
2PUMP FLANGE PC 215662-011111111111
3PUMP MOTOR BRACKET SS 323904-011111111111
4MECHANICAL SEAL H5-PN, 8MM428545-011111111111
5PACKING EPDM 428547-011111111111
6IMPELLER ABS 436584-011111111111
7PIN SS 414102-011111111111
8PUMP HOUSING ABS 213687-011111111111
DESCRIPTION MATERIAL
:
KM-1200SAE, SWE, SRE TITLE: F. PUMP MOTOR ASSEMBLY
OR MODEL
PART
NUMBER
REQUIRED NUMBE R
B-1 C-0 C-1 D-0 E-0 E-1 F-0
M91A60SP201
2U0106-011111111111
F-1
G-0
G-1
H-0 H-1
85
Page 86
HA
KM-1200SAE, SWE, SRE H. ACCESSORIES B-1
86
Page 87
HA
KM-1200SAE, SWE, SRE H. ACCESSORIES C-0
87
Page 88
HA

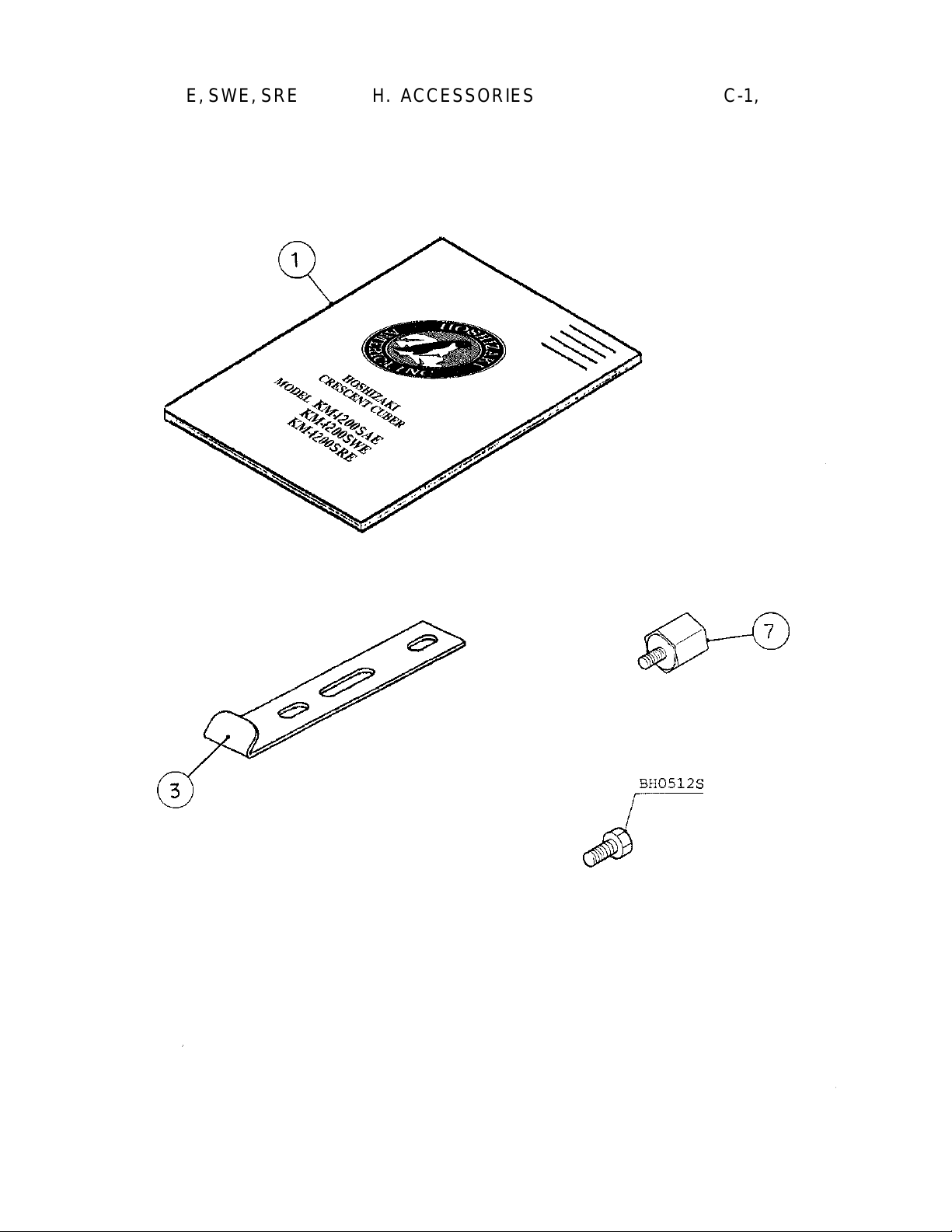

KM-1200SAE, SWE, SRE H. ACCESSORIES C-1, D-0, E-0, E-1
88
Page 89
HA

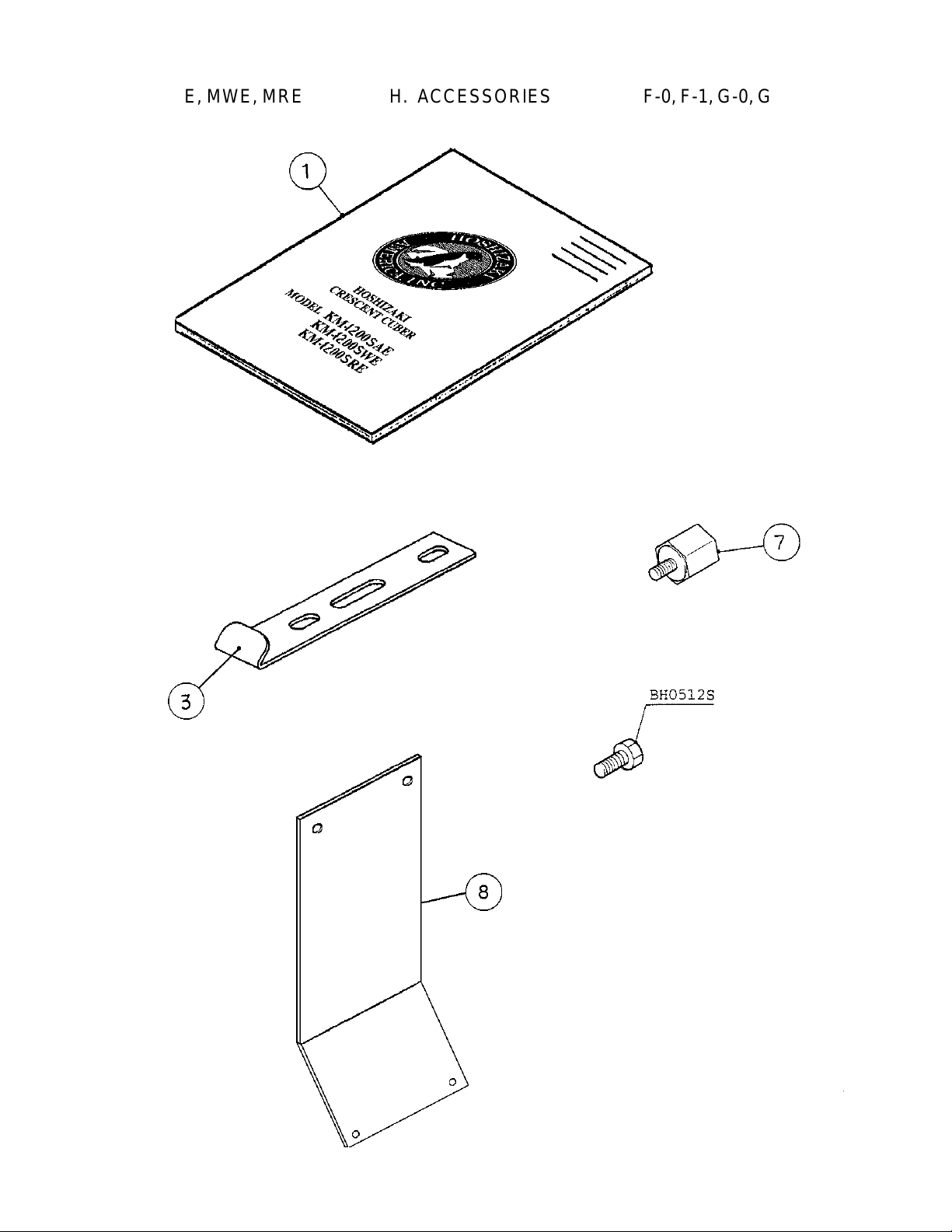

KM-1200SAE, MWE, MRE H. ACCESSORIES F-0, F-1, G-0, G-1, H-0, H-1
89
Page 90
HA
:
KM-1200SAE, SWE, SRE
PART
OR MODEL
NUMBER
TITLE
INDEX
NO.
MODEL
DESCRIPTION MATERIAL
B-1 C-0 C-1 D-0 E-0
1 INSTRUCTIO N M ANUAL PAPER 9 1U1J N10A 1 -
PAPER 91U1JN10B 1111x1
PAPER 91U1JN10C o1 1 1 1 1
2 REDUCER BUSHING - 4A0169-01 1 -
3 BRACE GS 4A0138-01 2 2 x2
UNIVERSAL BRACE GS 4A0363-01 o22222222
4 CHECK VALVE PVC 4 39 660-01 1 x1
PVC 4A0168-0 1 o1
PVC 4A0168-01 5 ELBOW PVC 439661-01 1 -
6 NIPPLE SS 439662-01 1 x1
SS 4A0165-01 o1
:
G. ACCESSORIES
REQUIRED NUMBER
E-1
F-0 F-1
G-0
G-1 H-0 H-1
7 THUMBSCREW ABS, SS 415949G01 1 111111111
8 THERMOSTAT EXTENSION
BRACKET
SS 3A0408-01 11111
90
Loading...
