Hoshizaki KM-101BAH User Manual

Self-Contained Crescent Cuber

Models
KM-61BAH
KM-101BAH
KM-151BAH
KM-151BWH

INSTRUCTION MANUAL

Issued: 6-14-2013

IMPORTANT

Only qualifi ed service technicians should install and service the appliance. To obtain
the name and phone number of your local Hoshizaki Certifi ed Service Representative,
visit www.hoshizaki.com. No installation or service should be undertaken until the
technician has thoroughly read this Instruction Manual. Likewise, the owner/manager
should not proceed to operate the appliance until the installer has instructed them
on its proper operation. Failure to install, operate, and maintain the appliance in
accordance with this manual will adversely affect safety, performance, component life,
and warranty coverage and may result in costly water damage. Proper installation is
the responsibility of the installer. Product failure or property damage due to improper
installation is not covered under warranty.

Hoshizaki provides this manual primarily to assist qualified service technicians in the
installation, maintenance, and service of the product.

Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, write, or send an e-mail message to the Hoshizaki Technical
Support Department for assistance.

HOSHIZAKI AMERICA, INC.
618 Highway 74 South
Peachtree City, GA 30269

Attn: Hoshizaki Technical Support Department
Phone: [phone] Technical Support

[phone]
Fax: [phone]
[phone]
E-mail: [e-mail]

Web Site: www.hoshizaki.com
NOTE: To expedite assistance, all correspondence/communication MUST include the

following information:

• Model Number

• Serial Number

• Complete and detailed explanation of the problem.

1

IMPORTANT

This manual should be read carefully before the appliance is installed and operated.
Read the warnings and guidelines contained in this manual carefully as they provide
essential information for the continued safe use and maintenance of the appliance.
Retain this manual for any further reference that may be necessary.

Important Safety Information ---------------------------------------------------------------------------3
I. Specifi cations -------------------------------------------------------------------------------------------5

A. Electrical and Refrigerant Data -----------------------------------------------------------------5
B. Dimensions/Connections -------------------------------------------------------------------------6

1. KM-61BAH ----------------------------------------------------------------------------------------6

2. KM-101BAH --------------------------------------------------------------------------------------7

3. KM-151BAH --------------------------------------------------------------------------------------8

4. KM-151BWH -------------------------------------------------------------------------------------9

II. Installation and Operating Instructions --------------------------------------------------------- 10

A. Checks Before Installation --------------------------------------------------------------------- 10
B. How to Remove Panels ------------------------------------------------------------------------- 11
C. Location -------------------------------------------------------------------------------------------- 12
D. Setup ------------------------------------------------------------------------------------------------12
E. Electrical Connection ----------------------------------------------------------------------------13

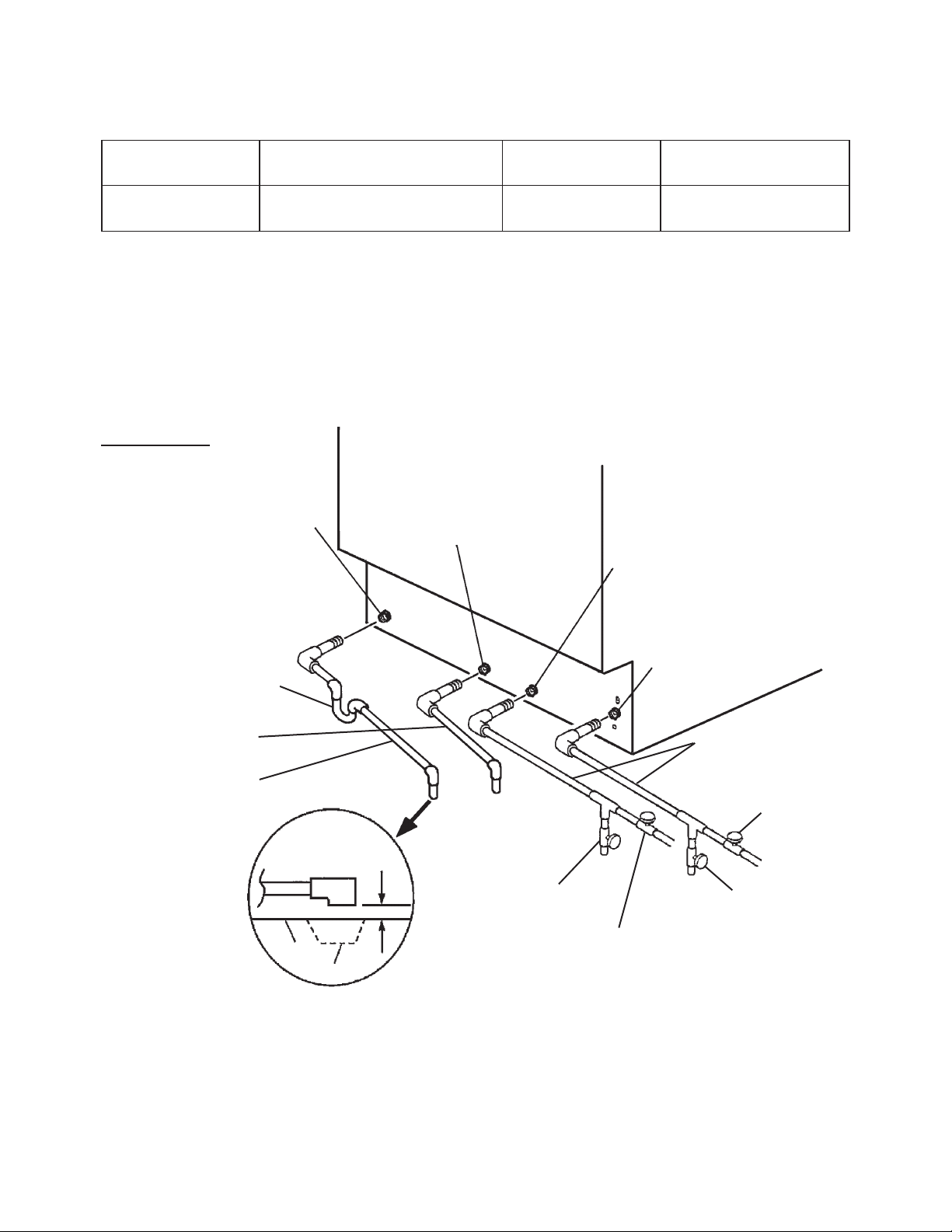

F. Water Supply and Drain Connections -------------------------------------------------------14

1. Icemaker ---------------------------------------------------------------------------------------- 14

2. Water-Cooled Condenser ------------------------------------------------------------------- 16
G. Final Checklist ------------------------------------------------------------------------------------ 18
H. Startup ---------------------------------------------------------------------------------------------- 19

CONTENTS

PAGE

III. Cleaning and Maintenance Instructions ------------------------------------------------------ 20

A. Cleaning -------------------------------------------------------------------------------------------- 20

1. Cleaning Procedure --------------------------------------------------------------------------21

2. Sanitizing Procedure - Following Cleaning Procedure ------------------------------23
B. Maintenance ---------------------------------------------------------------------------------------24

1. Exterior Panels -------------------------------------------------------------------------------- 24

2. Storage Bin and Scoop ---------------------------------------------------------------------- 24

3. Air Filter ------------------------------------------------------------------------------------------24

4. Condenser -------------------------------------------------------------------------------------- 24
C. Preparing the Icemaker for Periods of Non-Use -----------------------------------------25

IV. Disposal -----------------------------------------------------------------------------------------------26

2

Important Safety Information

Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the appliance, or damage to property.

WARNING

NOTICE

Indicates a situation which could result in damage to the

IMPORTANT

Indicates a hazardous situation which could result in death or

serious injury.

appliance or property.

Indicates important information about the installation, use, and

care of the appliance.

WARNING

The appliance should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for injury or damage resulting from
improper, incorrect, and unreasonable use. Failure to install, operate, and maintain
the appliance in accordance with this manual will adversely affect safety, performance,
component life, and warranty coverage and may result in costly water damage.

To reduce the risk of death, electric shock, serious injury, or fi re, follow basic
precautions including the following:

• Only qualifi ed service technicians should install and service the appliance.

• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.

• The appliance requires an independent power supply of proper capacity. See the
nameplate for electrical specifi cations. Failure to use an independent power supply of
proper capacity can result in a tripped breaker, blown fuse, damage to existing wiring,
or component failure. This could lead to heat generation or fi re.

• THE APPLIANCE MUST BE GROUNDED: The appliance is equipped with a NEMA
5-15 three-prong grounding plug to reduce the risk of potential shock hazards. It must
be plugged into a properly grounded, independent 3-prong wall outlet. If the outlet
is a 2-prong outlet, it is your personal responsibility to have a qualifi ed electrician
replace it with a properly grounded, independent 3-prong wall outlet. Do not remove
the ground prong from the power cord and do not use an adapter plug. Failure to
properly ground the appliance could result in death or serious injury.

• Do not use an extension cord.

• To reduce the risk of electric shock, do not touch the control switch or plug with damp
hands. Make sure the control switch is in the “OFF” position before plugging in or
unplugging the appliance.

• Do not use an appliance with a damaged power cord. The power cord should not
be altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could
result in electric shock or fi re. To unplug the appliance, be sure to pull the plug, not
the cord, and do not jerk the cord.

• Do not make any alterations to the appliance. Alterations could result in electric
shock, injury, fi re, or damage to the appliance.

3

WARNING, continued

• The appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.

• Young children should be properly supervised around the appliance.

• Do not climb, stand, or hang on the appliance or appliance door or allow children or
animals to do so. Serious injury could occur or the appliance could be damaged.

• Be careful not to pinch fi ngers when opening and closing the door. Be careful when
opening and closing the door when children are in the area.

• Do not use combustible spray or place volatile or fl ammable substances near the
appliance. They might catch fi re.

• Keep the area around the appliance clean. Dirt, dust, or insects in the appliance
could cause harm to individuals or damage to the appliance.

NOTICE

• Protect the fl oor when moving the appliance to prevent damage to the fl oor.

• Follow the water supply, drain connection, and maintenance instructions carefully to
reduce the risk of costly water damage.

• In areas where water damage is a concern, install in a contained area with a fl oor
drain.

• Install the appliance in a location that stays above freezing. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C).

• If using the optional drain pump, test its operation every time the appliance is cleaned
and sanitized. See the instructions included with the pump for details. If the optional
drain pump is not operating properly, water could back up and overfl ow, leading to
costly water damage.

• If water collects in the bin and will not drain, turn off the appliance and close the water
supply line shut-off valve. Call for service

• Do not leave the appliance on during extended periods of non-use, extended
absences, or in sub-freezing temperatures. To properly prepare the appliance for
these occasions, follow the instructions in “V. Preparing the Appliance for Periods of
Non-Use.”

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.

• Do not place objects on top of the appliance.

• The storage bin is for ice use only. Do not store anything else in the storage bin.

4

I. Specifi cations
A. Electrical and Refrigerant Data

The nameplate provides electrical and refrigerant data. The nameplate is located on the
upper part of the left side panel. For certifi cation marks, see the nameplate.
We reserve the right to make changes in specifi cations and design without prior notice.

Model Number KM-61BAH KM-101BAH KM-151BAH KM-151BWH

AC Supply Voltage 115/60/1 115/60/1 115/60/1 115/60/1

Amperes 3.4 AMPS 5.2 AMPS 7.0 AMPS 6.8 AMPS

Design Pressure

Refrigerant R134a 7.1 oz. R134a 7.8 oz. R134a 8.5 oz. R134a 7.9 oz.

HI-250PSI
LO-150PSI

HI-250PSI
LO-150PSI

HI-250PSI
LO-150PSI

HI-250PSI
LO-150PSI

5

B. Dimensions/Connections

1. KM-61BAH

Unit: mm [inches]

6

2. KM-101BAH

Unit: mm [inches]

7

3. KM-151BAH

Unit: mm [inches]

8

4. KM-151BWH

Unit: mm [inches]

9

II. Installation and Operating Instructions

WARNING

• Install in accordance with all applicable national, state, and local codes and
regulations.

• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after installation. Make sure that none have fallen into the storage
bin.

A. Checks Before Installation

NOTICE

• Remove all shipping cartons, tape, and packing material. If any are left in the
icemaker, it will not work properly.

• Remove the shipping tapes holding the door and separator. See Fig. 1.

• Visually inspect the exterior of the shipping container and immediately report any
damage to the carrier. Upon opening the container, any concealed damage should also
be immediately reported to the carrier.

• Remove the panels to prevent damage when installing the icemaker. (See “B. How to
Remove Panels.”)

• Remove the package containing the accessories.

• Remove the protective plastic fi lm from the panels. If the icemaker is exposed to the sun
or to heat, remove the fi lm after the icemaker cools.

• Check that refrigerant lines do not rub or touch lines or other surfaces, and that the fan
blade turns freely.

• Check that the compressor is snug on all mounting pads.

• See the nameplate on the upper part of the left side panel, and check that your voltage
supplied corresponds with the voltage specifi ed on the nameplate.

10

B. How to Remove Panels

- See Fig. 1

• Louver: Remove the air fi lter. Lift it up and towards you.

Push down snap tabs at the top on both sides by a fl at head screwdriver,

pull towards you slightly, and lift off.

• Top Panel: Remove the screws. Slide rearward, and lift off.

• Rear Cover: Remove the screws. Pull towards you.

Top Panel

Separator

Storage Bin

Door

Control Switch

Air Filter

Condenser
Louver

Top Panel Tab
(both ends)

Louver Tab
(both ends)

Rear Cover

Fig. 1

11

Rear View

C. Location

NOTICE

• This icemaker is not intended for outdoor use. Normal operating ambient temperature
should be within 45°F to 100°F (7°C to 38°C); Normal operating water temperature
should be within 45°F to 90°F (7°C to 32°C). Operation of the icemaker, for
extended periods, outside of these normal temperature ranges may affect icemaker
performance.

• This icemaker will not work at sub-freezing temperatures. To prevent damage to the
water supply line, drain the icemaker when the air temperature is below 32°F (0°C).
See “III. C. Preparing the Icemaker for Periods of Non-Use.”

For best operating results:

• Icemaker should not be located next to ovens, grills, or other high heat producing
equipment.

• In areas where water damage is a concern, install in a contained area with a fl oor drain.

• The icemaker requires no clearance at either side. But allow enough space at rear for
water supply and drain connections, at least 12” (30 cm) clearance at front, and at least 0.6”
(15 mm) clearance at top for maintenance.

• Level the icemaker from side to side and front to rear by adjusting the legs. Location
should provide a fi rm and level foundation for the equipment.

D. Setup

NOTICE

Do not place heavy objects exceeding 33 lbs (15 kg) on the
top panel.

1) Unpack the icemaker, and remove all shipping cartons, tape,

and packing material BEFORE operating the unit.

2) Position the icemaker in a selected site.

3) Level the icemaker in both the left-to-right and the front-to-

rear directions (when installed with or without legs). See Fig.

2.

4) When installing the unit without legs, the perimeter where the

machine touches the counter should be sealed with silicone
to prevent water from leaking under the icemaker.

12

Fig. 2

5) When installing the unit with legs on the bottom, use the

four accessory legs adjustable from 6” (15.2 cm) to 7”
(17.8 cm). Screw the legs tightly into the tapped holes in
the base (see Fig. 3). Handle the icemaker carefully not to
damage the exterior.

Tapped Hole
(Leg Mounting)

Base
Adjustable Leg

E. Electrical Connection

Fig. 3

WARNING

• Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death, electric
shock, serious injury, fi re, or damage.

• The appliance requires an independent power supply of proper capacity. See the
nameplate for electrical specifi cations. Failure to use an independent power supply of
proper capacity can result in a tripped breaker, blown fuse, damage to existing wiring,
or component failure. This could lead to heat generation or fi re.

• THE APPLIANCE MUST BE GROUNDED: The appliance is equipped with a NEMA
5-15 three-prong grounding plug to reduce the risk of potential shock hazards. It must
be plugged into a properly grounded, independent 3-prong wall outlet. If the outlet
is a 2-prong outlet, it is your personal responsibility to have a qualifi ed electrician
replace it with a properly grounded, independent 3-prong wall outlet. Do not remove
the ground prong from the power cord and do not use an adapter plug. Failure to
properly ground the appliance could result in death or serious injury.

• Do not use an extension cord.

• To reduce the risk of electric shock, do not touch the control switch or plug with damp
hands. Make sure the control switch is in the “OFF” position before plugging in or
unplugging the appliance.

• Do not use an appliance with a damaged power cord. The power cord should not
be altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could
result in electric shock or fi re. To unplug the appliance, be sure to pull the plug, not
the cord, and do not jerk the cord.

• The GREEN ground wire in the factory-installed power cord is connected to the
appliance. If it becomes necessary to remove or replace the power cord, be sure to
connect the power cord’s ground wire to this screw upon reattachment.

• Usually an electrical permit and services of a licensed electrician are required.

• The maximum allowable voltage variation is ±10 percent of the nameplate rating.

13

F. Water Supply and Drain Connections

- See Fig. 4, 5 or 6

WARNING

Water supply and drain connections must be installed in accordance with applicable
national, state, and local regulations.

NOTICE

• Normal operating water temperature should be within 45°F to 90°F (7°C to 32°C).
Operation of the appliance, for extended periods, outside of this normal temperature
range may affect appliance performance.

• Water supply pressure must be a minimum of 10 PSIG and a maximum of 113 PSIG.
If the pressure exceeds 113 PSIG, the use of a pressure reducing valve is required.

• To prevent damage to the appliance, do not operate the appliance when the water
supply is off, or if the pressure is below 10 PSIG. Do not run the appliance until the
proper water pressure is reached.

• External fi lters, strainers, or softeners may be required depending on water quality.
Contact your local Hoshizaki Certified Service Representative or local Hoshizaki
distributor for recommendations.

• A plumbing permit and services of a licensed plumber may be required in some areas.

• The icemaker drain line and water-cooled condenser drain line (if applicable) must be run
separately.

• For gravity drain installation, drain lines must have 1/4” fall per foot (2 cm per 1 m) on
horizontal runs to get good fl ow. A vented tee connection is also required for proper fl ow.

• For optional drain pump installation, refer to the instructions included with the pump.

• Drain lines should not be piped directly to the sewer system. An air gap of a minimum of
2 vertical inches (5 cm) should be between the end of the drain pipes from the icemaker
and condensation drain, dispenser unit/ice storage bin, and water-cooled condenser (if
applicable) and the fl oor drain.

1. Icemaker

Icemaker Water
Supply Inlet

1/2" Female Pipe
Thread (FPT)

Minimum Icemaker
Water Supply Line Size

1/4" Nominal ID Copper
Water Tubing or Equivalent

Icemaker Drain
Outlet

3/4" Female Pipe
Thread (FPT)

Minimum Icemaker
Drain Line Size

3/4" Nominal ID Hard
Pipe or Equivalent

14

• An icemaker water supply line shut-off valve and drain valve must be installed.

• Be sure there is suffi cient extra water supply line and drain line for the appliance to be
pulled out for service.

KM-61BAH, KM-101BAH, KM-151BAH

Icemaker Drain Outlet
3/4” FPT

Trap

Minimum 3/4” Nominal
ID Hard Pipe

1/4” fall
per foot

To approved fl oor drain

Fig. 4

Icemaker Water Supply
Inlet 1/2” FPT

Minimum 1/4” Nominal ID
Copper Water Tubing

Icemaker Water Supply
Line Shut-off Valve

Icemaker Water Supply
Line Drain Valve

2-inch (5-cm) air
gap

Floor

Drain

Be sure there is suffi cient
extra water supply line and
drain line for the appliance
to be pulled out for service.

Separate piping to approved
drain. Leave a 2-inch (5-cm)
vertical air gap between the
end of each pipe and the
drain.

15

2. Water-Cooled Condenser

a) Connection to an Open Drain System

Condenser Water
Supply Inlet

1/2" Female Pipe
Thread (FPT)

Minimum Condenser
Water Supply Line Size

1/4" Nominal ID Copper
Water Tubing or Equivalent

Condenser Drain
Outlet

1/2" Female Pipe
Thread (FPT)

Minimum Condenser
Drain Line Size

1/4" Nominal ID Hard
Pipe or Equivalent

• A condenser water supply line shut-off valve and drain valve must be installed.

• In some areas, a back fl ow preventer may be required in the cooling water circuit.

• In order to maintain the proper high side pressure, the condenser water supply inlet
temperature must be in the 45°F to 90°F (7°C to 32°C) range.

KM-151BWH

Icemaker Drain
Outlet 3/4” FPT

Condenser Drain
Outlet 1/2” FPT

Condenser Water
Supply Inlet 1/2” FPT

Minimum 1/4” Nominal
ID Hard Pipe

Minimum 3/4” Nominal
ID Hard Pipe

Be sure there is suffi cient
extra water supply line and
drain line for the appliance
to be pulled out for service.

Separate piping to approved
drain. Leave a 2-inch (5-cm)
vertical air gap between the
end of each pipe and the
drain.

Trap

2-inch (5-cm) air
gap

Floor

Drain

1/4” fall
per foot

To approved
fl oor drain

Condenser Water Supply
Line Drain Valve

Condenser Water Supply
Line Shut-off Valve

Fig. 5

Icemaker Water Supply
Inlet 1/2” FPT

Minimum 1/4” Nominal ID
Copper Water Tubing

Icemaker Water Supply
Line Shut-off Valve

Icemaker Water Supply
Line Drain Valve

16

b) Connection to a Closed Loop System

Condenser Water
Supply Inlet

1/2" Female Pipe
Thread (FPT)

Minimum Condenser
Water Supply Line Size

1/4" Nominal ID Copper
Water Tubing or Equivalent

Condenser
Return Outlet

1/2" Female Pipe
Thread (FPT)

Minimum Condenser
Return Line Size

1/4" Nominal ID Copper
Water Tubing or Equivalent

• Shut-off valves and drain valves must be installed at both the condenser water supply
inlet and condenser return outlet.

• Minimum water fl ow to the condenser is 4 GPM.

• The pressure differential between the condenser water supply inlet and condenser return
outlet must be no less than 10 PSIG.

• When using a glycol blend, the solution mixture should be less than 30% glycol.

• In order to maintain the proper high side pressure, the condenser water supply inlet
temperature must be in the 45°F to 90°F (7°C to 32°C) range.

KM-151BWH

Icemaker Drain
Outlet 3/4” FPT

Minimum 3/4” Nominal
ID Hard Pipe

Be sure there is suffi cient
extra water supply line and
drain line for the appliance
to be pulled out for service.

Separate piping to approved
drain. Leave a 2-inch (5-cm)
vertical air gap between the
end of each pipe and the
drain.

Trap

1/4” fall per foot

To approved fl oor drain

2-inch (5-cm) air
gap

Floor

Drain

Condenser Return
Outlet 1/2” FPT

Condenser Return
Line Drain Valve

Condenser Return Line
Shut-Off Valve

Condenser Water Supply
Line Drain Valve

Condenser Water
Supply Inlet 1/2” FPT

Icemaker Water Supply
Inlet 1/2” FPT

Minimum 1/4” Nominal ID
Copper Water Tubing

Icemaker Water Supply
Line Shut-off Valve

Icemaker Water Supply
Line Drain Valve

Condenser Water Supply
Line Shut-off Valve

Fig. 6

17

G. Final Checklist

WARNING

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are

securely in place after installation. Make sure that none have fallen into the storage
bin.

1) Is the icemaker level?

2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to
38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around?

3) Is there at least 2” (5 cm) clearance at the right side for proper air circulation and at
least 0.6” (15 mm) clearance at top for ease of maintenance and/or service?

4) Have all shipping cartons, tape, and packing material been removed from the
icemaker? Are the cube guides in their correct positions?

5) Have all electrical and water connections been made? Do electrical and water
connections meet all national, state, and local code and regulation requirements?

6) Has the power supply voltage been checked or tested against the nameplate rating? Is
the power supply a properly grounded, independent 3-prong wall outlet?

7) Are the water supply and drain lines sized as specified? Are the water supply line
shut-off valve(s) and drain valve(s) installed? Has the water supply pressure been
checked to ensure a minimum of 10 PSIG and a maximum of 113 PSIG?

8) Is the compressor snug on all mounting pads? Have the refrigerant lines been checked
to make sure they do not rub or touch other lines or surfaces? Has the fan blade (if
applicable) been checked to make sure it turns freely?

9) Are all components, fasteners, and thumbscrews securely in place?

10) Has the end user been given the instruction manual, and instructed on how to operate
the icemaker and the importance of the recommended periodic maintenance?

11) Has the end user been given the name and telephone number of an authorized service
agent?

12) Has the warranty card been filled out and forwarded to the factory for warranty
registration?

18

H. Startup

WARNING

All parts are factory-adjusted. Improper adjustments may adversely affect safety,
performance, component life, and warranty coverage.

NOTICE

• If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to
prevent damage to the compressor.

• To prevent damage to the water pump, do not leave the control switch in the “WASH”
position for extended periods of time when the water tank is empty.

• At startup, confi rm that all internal and external connections are free of leaks.

1) Open the water supply line shut-off valve.

2) Remove the air fi lter.

3) Make sure the control switch is in the “OFF” position. Plug the appliance into the
electrical outlet. WARNING! To reduce the risk of electric shock, do not touch the

control switch or plug with damp hands.

4) Move the control switch to the “ICE” position.

5) Allow the icemaker to operate for 10 minutes to fi ll up the water tank.

6) Move the control switch to the “WASH” position.

7) Allow the icemaker to run for 5
minutes.

Cube Guide

8) Move the control switch to the
“OFF” position, then unplug the

Water Tank

appliance from the electrical outlet.

Silicone Hose

9) Open the door.

(Connect/disconnect
arrowed part)

10) Disconnect the silicone hose to
drain the water. See Fig. 7.

11) Reconnect the silicone hose back
in its correct position after all of the
water has drained.

Overfl ow Pipe
(Disconnect from tank
bottom)

Storage Bin

Fig. 7

12) Clean the storage bin using a neutral cleaner. Rinse thoroughly after cleaning.

19

13) Make sure the control switch is in the “OFF” position. Plug the appliance into the
electrical outlet.

14) Move the control switch to the “ICE” position.

15) Replace the air fi lter in its correct position.

16) T o confi rm bin control operation, press the bin control’s actuator paddle during the fi rst
5 minutes of the freeze cycle. The compressor, fan motor (if applicable), and pump
motor should de-energize within 15 seconds, then the drain valve should energize
until the water tank empties. After the water tank empties, the drain valve should de­energize.

17) Close the door.

III. Cleaning and Maintenance Instructions

WARNING

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are

securely in place after any cleaning or maintenance is done to the unit. Make sure that
none have fallen into the storage bin.

A. Cleaning

HOSHIZAKI recommends cleaning this unit at least once a year. More frequent cleaning,
however, may be required in some existing water conditions.

WARNING

• To prevent injury to individuals and damage to the icemaker, do not use ammonia
type cleaners.

• Carefully follow any instructions provided with the bottles of cleaning and sanitizing
solution.

• Always wear liquid-proof gloves to prevent the cleaning and sanitizing solutions from
coming into contact with skin.

NOTICE

To prevent damage to the water pump, do not leave the control switch in the “WASH”
position for extended periods of time when the water tank is empty.

20

1. Cleaning Procedure

1) Dilute 5 fl . oz. (148 ml) of recommended cleaner Hoshizaki “Scale Away” with 1 gallon
(3.8 lit.) of water.

2) Remove the air fi lter. Remove all ice from the evaporator and the storage bin.
Note: To remove cubes on the evaporator, move the control switch on the control box

to the “OFF” position and move it back to the “ICE” position after 3 minutes. The
defrost cycle starts and the cubes will be removed from the evaporator.

3) Move the control switch to the “OFF” position. Open the door.

4) Disconnect the silicone hose to drain the water. See Fig. 7. Reconnect the silicone
hose back in its correct position after all of the water has drained.

5) Pour the cleaning solution into the water tank. Move the control switch to the “WASH”
position. Close the door.

6) After 30 minutes, move the control switch to the “OFF” position.

7) Disconnect the silicone hose to drain the water. See Fig. 7. Reconnect the silicone
hose back in its correct position after all of the water has drained.

8) Move the control switch to the “ICE” position to fi ll the water tank with water.

9) After 3 minutes, move the control switch to the “WASH” position.

10) After 5 minutes, move the control switch to the “OFF” position.

11) Disconnect the silicone hose to drain the water. See Fig. 7. Reconnect the silicone
hose back in its correct position after all of the water has drained.

12) Repeat steps 8 through 11 three more times to rinse thoroughly.

13) Disconnect the silicone hose and overflow pipe. Next, remove the water tank by
pressing down on the snaps on the bracket (L) (R) and pulling the tank towards you
slightly and pushing it down. Be careful to avoid breakage when handling the parts.
See Fig. 8.

14) Pull the cube guides (quantity varies depending on model) upward to remove them
from the water tank. They are snapped in place. See Fig. 9.

15) Dilute 5 fl . oz. (148 ml) of recommended cleaner Hoshizaki “Scale Away” with 1 gallon
(3.8 lit.) of water.

21

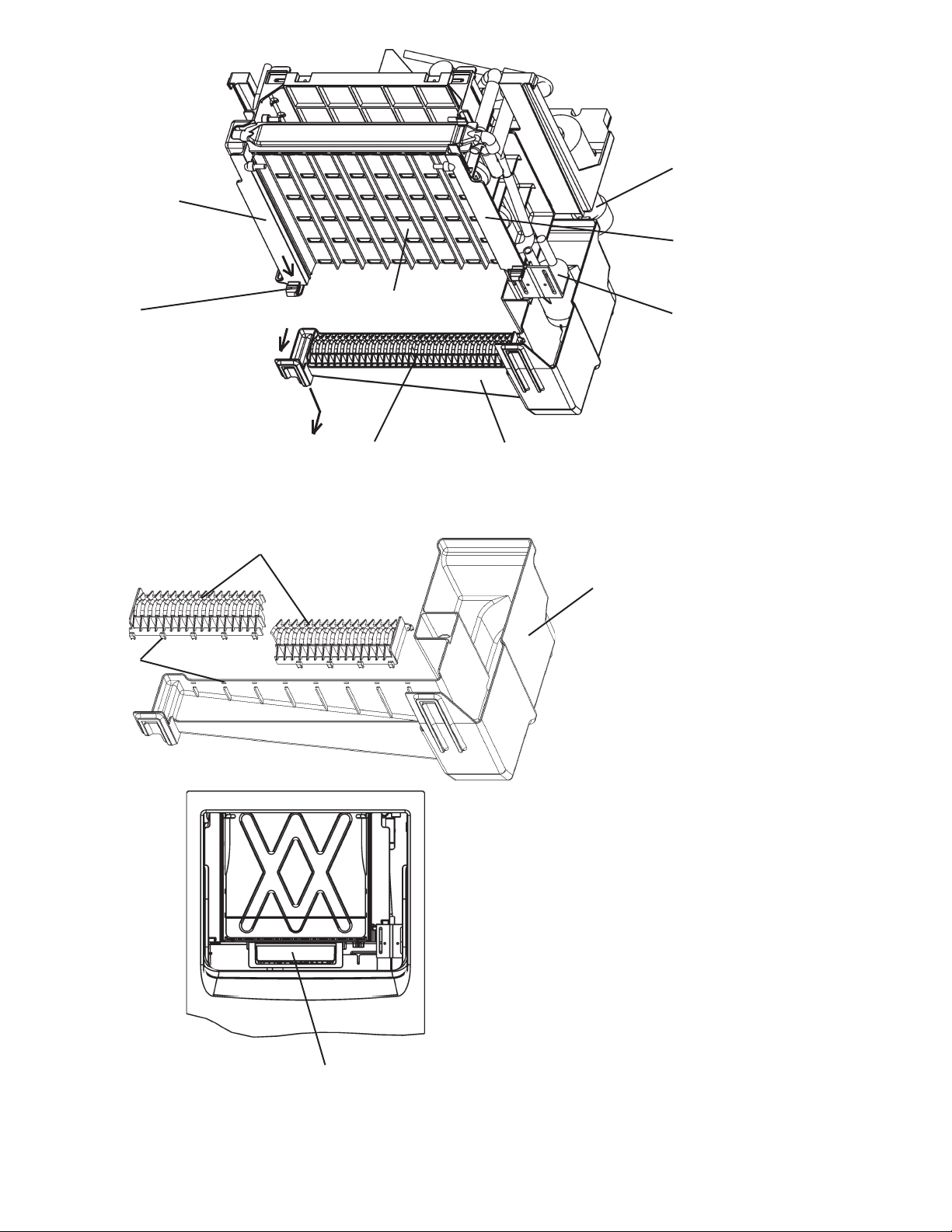

Bracket (L)

Pump Motor

Bracket (R)

Push

Snap
(both ends)

Snap

Cube Guide

Evaporator

Cube Guide Water Tank

Fig. 8

* This illustration shows KM-61BAH.

Float Switch

* This illustration shows KM-

61BAH. The float switch
location is different for KM­151BAH/BWH (behind the
pump motor).

Water Tank

The following number of cube
guides are provided:

Bin Control Switch

KM-61BAH 2 pcs
KM-101BAH 3 pcs
KM-151BAH 3 pcs
KM-151BWH 3 pcs

* The bin control switch is accessible by

removing the water tank. Pull the switch
towards you for easy maintenance.

* This is the front view with the door opened

and the water tank removed.

Fig. 9

22

16) Wash the bin control switch, water tank, fl oat switch, cube guide, silicone hose and
overflow pipe by using a nylon scouring pad, brushes and the cleaning solution. In
addition to the removed parts, also wash the bin liner and bracket (L) (R) with the
solution.

17) Discard the cleaning solution and rinse the parts thoroughly with water.

2. Sanitizing Procedure - Following Cleaning Procedure

1) Dilute approximately 0.5 fl . oz. (15 ml or 1 tbs) of a 5.25% sodium hypochlorite solution
(chlorine bleach) with 1 gallon (3.8 lit.) of warm water. Using a chlorine test strip or
other method, confi rm that you have a concentration of about 200 ppm.

2) Soak the removed parts from step 16 above in a clean container containing the
sanitizing solution. After allowing the parts to soak for 10 minutes, wash them with the
solution. Also wash the bin liner, bracket (L) (R) with the solution.

3) Discard the sanitizing solution and rinse the parts thoroughly with water.

4) Replace the removed parts in their correct positions in the reverse order of which they
were removed.

5) Dilute approximately 0.5 fl . oz. (15 ml or 1 tbs) of a 5.25% sodium hypochlorite solution
(chlorine bleach) with 1 gallon (3.8 lit.) of warm water. Using a chlorine test strip or
other method, confi rm that you have a concentration of about 200 ppm.

6) Pour the sanitizing solution into the water tank, and allow the sanitizer to sit for 10
minutes.

7) Move the control switch to the “WASH” position. Close the door.

8) After 15 minutes, move the control switch to the “OFF” position. Open the door.

9) Disconnect the silicone hose to drain the water. Reconnect the silicone hose back in its
correct position after all of the water has drained.

10) Repeat steps 5 through 9 one time. Repeat steps 8 through 11 in the Cleaning
Procedure three times to rinse thoroughly.

11) Flush the storage bin with water.

12) Move the control switch to the “ICE” position, and start the automatic icemaking
process.

13) Close the door. Replace the air fi lter in its correct position.

23

B. Maintenance

This icemaker must be maintained individually, referring to the instruction manual and
labels provided with the icemaker.

WARNING

• Only qualifi ed service technicians should service this icemaker.

• Move the control switch to the “OFF” position, then unplug the appliance from the
electrical outlet before servicing.

1. Stainless Steel Exterior

To prevent corrosion, wipe the exterior occasionally with a clean, soft cloth. Use a damp
cloth containing a neutral cleaner to wipe off oil or dirt build up.

2. Storage Bin and Scoop

• Wash your hands before removing ice. Use the plastic scoop provided (accessory).

• The storage bin is for ice use only. Do not store anything else in the storage bin.

• Clean the scoop and the storage bin liner using a neutral cleaner. Rinse thoroughly after
cleaning.

3. Air Filters (air-cooled model only)

Plastic mesh air fi lters remove dirt and dust from the air, and keep the condenser from
getting clogged. As the fi lters get clogged, the icemaker’s performance will be reduced.
Check the fi lters at least twice a month. When clogged, use warm water and a neutral
cleaner to wash the fi lters.

4. Condenser (air-cooled model only)

Check the condenser once a year, and clean if required by using a brush or vacuum
cleaner. More frequent cleaning may be required depending on the location.

24

C. Preparing the Icemaker for Periods of Non-Use

NOTICE

• During extended periods of non-use, extended absences, or in sub-freezing
temperatures, follow the instructions below to reduce the risk of costly water damage.

• To prevent damage to the water pump, do not leave the control switch in the “WASH”
position for extended periods of time when the water tank is empty.

During extended periods of non-use, extended absences, or in sub-freezing temperatures,
follow the instructions below. When the appliance is not used for two or three days under
normal conditions, it is suffi cient to move the control switch to the “OFF” position.

1. Remove the water from the icemaker water supply line:

1) Remove the air fi lter if it has not already been removed.

2) Move the control switch on the control box to the “OFF” position.

3) Wait 3 minutes.

4) Close the icemaker water supply line shut-off valve and open the icemaker water
supply line drain valve. See Fig. 4, 5 or 6.

5) Allow the line to drain by gravity.

6) Attach compressed air or carbon dioxide supply to the icemaker water supply line drain
valve.

7) Move the control switch to the “ICE” position.

8) Quickly blow the icemaker water supply line out using compressed air or carbon
dioxide.

2. Drain the water tank:

1) Move the control switch on the control box to the “OFF” position.

2) Unplug the appliance from the electrical outlet.

3) Open the door. Disconnect the silicone hose to drain the water. See Fig. 7.

4) Reconnect the silicone hose back in its correct position after all of the water has
drained.

5) Remove all ice from the storage bin and clean the storage bin.

25

HOSHIZAKI AMERICA, INC.

618 Hwy. 74 S., Peachtree City, GA 30269 USA TEL [phone] FAX [phone] www.hoshizaki.com L1M006104

6) Close the door.

7) Place the air fi lter in its correct position.

8) Close the icemaker water supply line drain valve.

3. On water-cooled model only, remove the water from the water-cooled condenser:

1) Make sure the control switch is in the “OFF” position and the appliance is unplugged
from the electrical outlet.

2) Remove the rear cover.

2) Close the condenser water supply line shut-off valve. If connected to a closed loop

system, also close the condenser return line shut-off valve. See Fig. 5 or 6.

3) Open the condenser water supply line drain valve. If connected to a closed loop

system, also open the condenser return line drain valve.

4) Attach a compressed air or carbon dioxide supply to the condenser water supply line

drain valve.

5) Open the water regulating valve by using a screwdriver to pry up on the spring retainer

underneath the spring. While holding the valve open, blow out the condenser using the
compressed air or carbon dioxide supply until water stops coming out.

Note: Be sure to close the water regulating valve as before.

6) Close the condenser water supply line drain valve. If connected to a closed loop

system, also close the condenser return line drain valve.

7) Replace the rear cover in its correct position.

IV. Disposal

The appliance contains refrigerant and must be disposed of in accordance with applicable
national, state, and local codes and regulations. Refrigerant must be recovered by properly
certifi ed service personnel.

IMPORTANT

The insulation foaming agent used for the unit body contains fl ammable gas
cyclopentane. With this in mind, dispose of the product properly.

26
