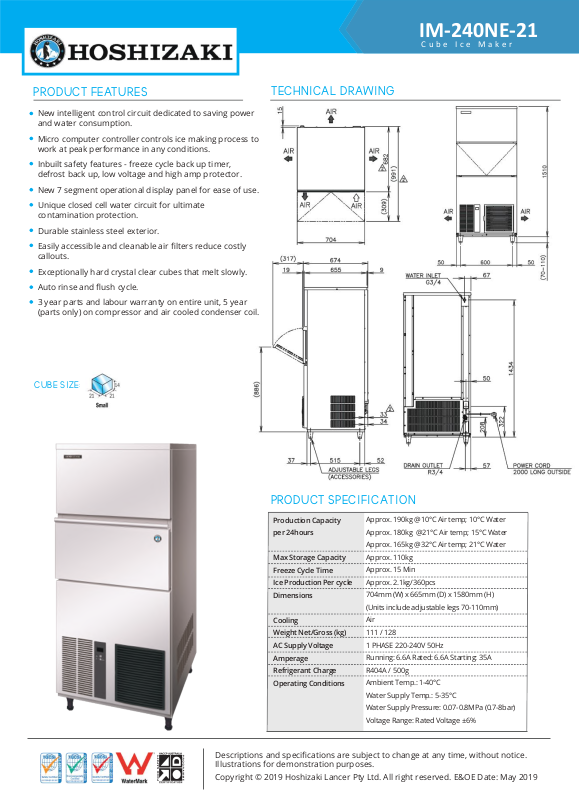

Hoshizaki IM-240NE-21 Specifications Sheet

IM-240NE-21

Cube Ice Maker

PRODUCT FEATURES

New intelligent control circuit dedicated to saving power
and water consumption.

Micro computer controller controls ice making process to
work at peak performance in any conditions.

Inbuilt safety features - freeze cycle back up timer,
defrost back up, low voltage and high amp protector.

New 7 segment operational display panel for ease of use.

Unique closed cell water circuit for ultimate
contamination protection.

Durable stainless steel exterior.

Easily accessible and cleanable air filters reduce costly

callouts.

Exceptionally hard crystal clear cubes that melt slowly.

Auto rinse and flush cycle.

3 year parts and labour warranty on entire unit, 5 year
(parts only) on compressor and air cooled condenser coil.

TECHNICAL DRAWING

CUBE SIZE:

PRODUCT SPECIFICATION

Production Capacity

per 24hours

Max Storage Capacity

Freeze Cycle Time

Ice Production Per cycle

Dimensions

Cooling

Weight Net/Gross (kg)

AC Supply Voltage

Amperage

Refrigerant Charge

Operating Conditions

Approx. 190kg @10°C Air temp; 10°C Water

Approx. 180kg @21°C Air temp; 15°C Water

Approx. 165kg @32°C Air temp; 21°C Water

Approx. 110kg

Approx. 15 Min

Approx. 2.1kg/360pcs

704mm (W) x 665mm (D) x 1580mm (H)

(Units include adjustable legs 70-110mm)

Air

111 / 128

1 PHASE 220-240V 50Hz

Running: 6.6A Rated: 6.6A Starting: 35A

R404A / 500g

Ambient Temp.: 1-40°C

Water Supply Temp.: 5-35°C

Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)

Voltage Range: Rated Voltage ±6%

Descriptions and specifications are subject to change at any time, without notice.

Illustrations for demonstration purposes.
