Hoover VHD9123 User Manual

Washing machine Instructions for use

Contents Page

Introduction 2 General delivery notes 4 Safety notes 4 Quick start 5 Description of controls 6 Programme Table 12 Programme selector 14 Detergent drawer 17 Detergents, washing aids and amounts to use 18 Useful advice for the user 20 The main wash 21 Cleaning and routine maintenance 23 Investigating malfunctions 25 Technical data 27 Setting up + installation 28

BEFORE SWITCHING ON THE APPLIANCE MAKE SURE IT IS CORRECTLY INSTALLED AND THAT THE TRANSIT BRACES ARE REMOVED AS SHOWN IN PAGE 28.

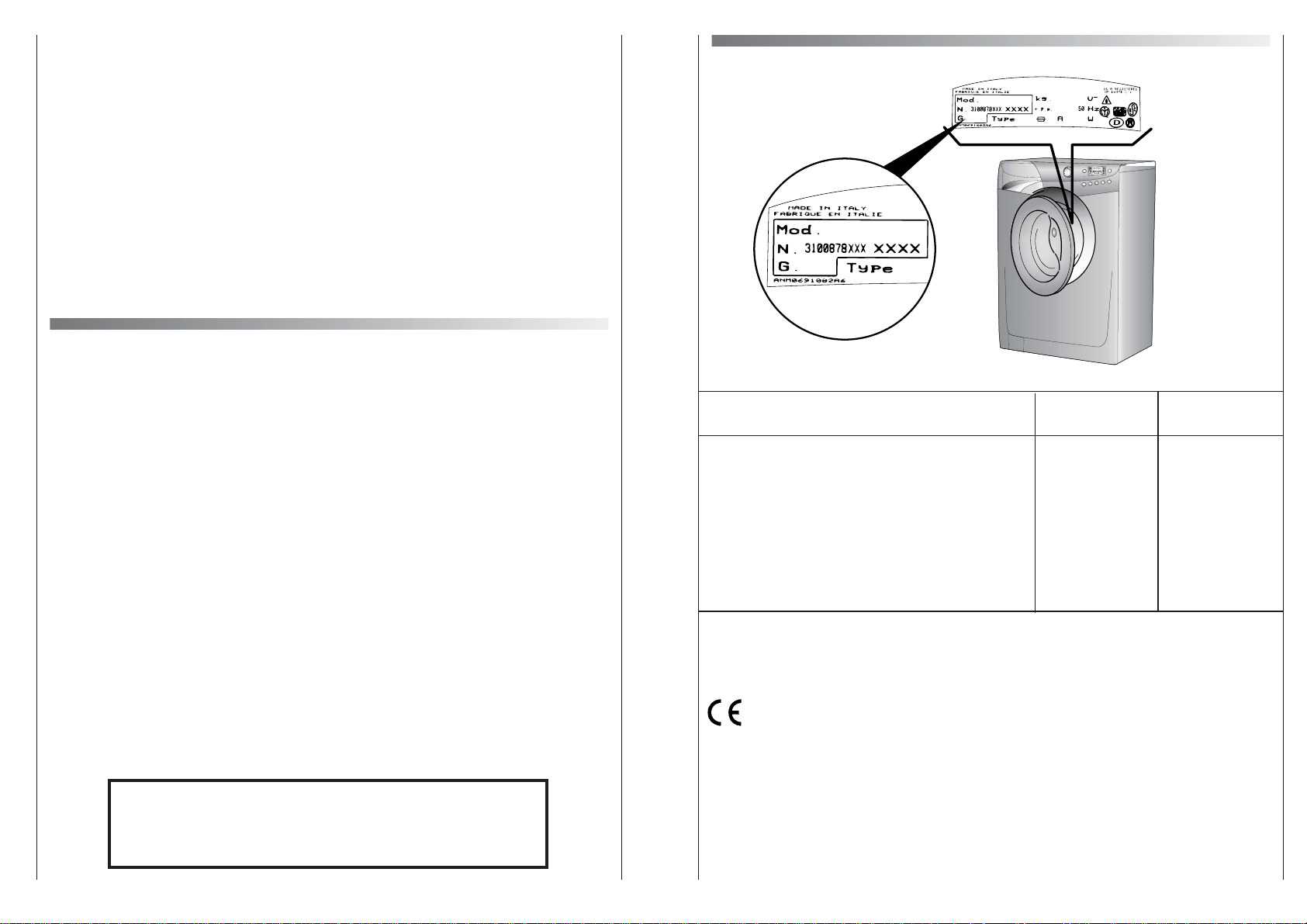

Introduction

Please read these instructions for use carefully and all other information enclosed with the washing machine. Keep all documentation in a safe place for future reference or for any future owners.

Note: this machine is solely for domestic use.

Notes on disposal

All packaging material used is environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means.

Your supplier or local council will be able to give you details of current means of disposal.

Valuable materials can be salvaged from an old appliance via scrap reprocessing.

Note: pull out the mains plug from any old appliance. Cut the power cable and dispose of it, together with the plug.

When disposing of an old washing machine, please ensure that the door lock is rendered inoperable to prevent children shutting themselves in the appliance.

2 3

General delivery notes

Please check that the following items are delivered with the appliance:

- Instruction manual

- Certificate of guarantee

- Inlet hose Check that no damage has occurred during transit, and if so, call your nearest Authorised Technical Support Service agent.

Safety notes.

Note: for cleaning or maintenance of the washing machine.

A) Pull out the plug B) Turn off the tap C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed,

and if it is not, seek assistance from a qualified person.

D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance

with bare feet.

E) The use of adapters, multiple connectors and/or extensions is not recommended.

Note: water temperature can reach 90°C during the wash cycle.

F) Check there is no water left in the drum before opening the door. G) Do not allow children or unauthorised persons to use the appliance without supervision. H) Do not pull the power cable or the appliance itself to remove the plug from the socket. I) The appliance must not be exposed to weather conditions (rain, direct sun, etc...) L) When moving the appliance never lift it by the controls or by the detergent drawer.

When in transit never rest the door against the trolley or transport the appliance without

the polystyrene base.

M) N.B!

If the appliance is installed on a carpeted floor ensure that the ventilation holes on the base of the appliance are not obstructed.

N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do

not tamper with the appliance. Consult only the Authorised Technical Support Service for possible repair and ask them to use original spare parts. Failure to comply with the above can compromise the safety of the appliance.

O) If the appliance’s power cable should ever need replacing, consult the Authorised

Technical Support Service

Quick start

Washing

- Open the door by using the handle “A” (Fig. 1, page 6)

- Select laundry and put it in the machine

- Close the door

- Put detergent in the compartments as indicated in the programme guide in this instruction manual

- Select programme

- The display will show the settings for the programme selected.

- Adjust the wash temperature if necessary.

Press additional function buttons (if required)

- Press the “Start/Pause” button (page 7)

- The programme starts.

After washing

- The word “End” will appear on the display.

- Wait for the door lock to be r eleased (about 2 minutes after the programme has finished). The “Door Security” indicator light will go out.

- Switch off the washing machine by turning the selector to “OFF” position.

- Open the door and remove the laundry.

Ensure that the machine is correctly installed in line with the instructions found on page 28.

Description of controls

Door handle A "Door Security" indicator light B "Start/Pause" button C "Stain Blaster" button D "Sensitive Care" button E "Delay Start" button F Wash temperatur e button G "Fast Iron" button H "Spin Speed" button I Digital display L Wash time button M Programme selector with “OFF” position N Buttons indicator light O Detergent drawer R

Door handle

Press the finger-bar inside the door handle to open the door.

“DOOR SECURITY” indicator light

The “Door Security” indicator light is illuminated when the door is fully closed and the machine is ON. When "Start/Pause" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.

If the door is not closed the indicator will continue to flash.

Aspecial safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the “Door Security” light has gone out before opening the door. At the end of the cycle turn the programme selector to "OFF" .

NOTE: When the "Start/Pause" button has been pressed, the appliance can take few seconds before it starts working.

“START/PAUSE” button

Press to start the selected cycle .

Changing the settings after the programmes has started (PAUSE)

Press and hold the “START/PAUSE” button for about 2 seconds, the flashing lights on the options buttons and time remaining indicator will show that the machine has been paused, adjust as required and press the “START/PAUSE” button again to cancel the flashing lights. If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door. When you have carried out the manoeuvre, close the door, press "Start/Pause" button and the appliance will continue working where it left off.

CANCELLING THE PROGRAMME

To cancel the programme, set the selector to the OFF position. Select a different programme. Re-set the programme selector to the OFF position.

Fig. 1

C I MN

Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

“STAIN BLASTER” Button

By pressing this button, which can only be activated in the Cotton cycles, the sensors in the new system come into operation. They affect both the selected temperature, keeping it at a constant level throughout the wash cycle, and the mechanical function of the drum. The drum is made to turn at two different speeds at crucial moments. When the detergent enters the garments, the drum rotates in such a way that the detergent is distributed in a uniform manner; during the wash and rinse procedures, however, the speed increases in order to maximise the cleaning action. Thanks to this special system, the efficiency of the wash procedure is improved WITHOUT ANY INCREASE IN THE LENGTH OF THE PROGRAM.

The option buttons should be selected before pressing the "Start/Pause" button.

“SENSITIVE CARE” button

By pressing this button you can activate a special new wash cycle in the Cotton and Mixed Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of

garments and the delicate skin of those who wear them. The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that the detergent dissolves perfectly , ensuring an efficient cleaning action. The amount of water is also increased during the rinse procedure so as to remove all traces of detergent from the fibres. This function has been specifically designed for people with delicate and sensitive skin, for whom even a very small amount of detergent can cause irritation or allergy . You are advised to also use this function for children’s clothing and for delicate fabrics in general, or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of detergent. To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens/Silk programs.

It is possible to cancel the delay start by taking the following action: Press and hold the button for 5 seconds until the display will show the settings for the programme selected. At this stage it is possible to start the programme previously selected by pressing the “START/PAUSE” button or to cancel the process by setting the selector to the OFF position and then selecting another programme.

“TEMPERATURE” button

The Wash Temperature button allows a reduction in the wash temperature in each programme. Each time the button is pressed the temperature decreases until a minimum of 15°C (cold wash ).

Note: The temperature must be adjusted before selecting WASH TIME.

“DELAY START” button

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours. To delay the start use the following procedure: Set the required programme. Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

Confirm by pressing the “START/PAUSE” button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.

“F AST IRON” button

The Fast Iron function (Not available on COTTON programmes) minimizes creases as much as possible with a uniquely designed anti-crease system that is tailored to specific fabrics.

MIXED FABRICS - the water is gradually cooled throughout the final two rinses with no spinning and then a delicate spin assures the maximum relaxation of the fabrics.

DELICATE FABRICS – final two rinses with no spinning and then the fabrics are left in water until it is time to unload. When you are ready to unload, press the "Fast Iron" button – this will drain.

WOLLENS/SILK – after the final rinse the fabrics are left in water until it is time to unload and the button indicator blinking.

When you are ready to unload, press the "Fast Iron" button, this will drain and spin ready for emptying.

If you do not want to spin the clothes and activate drain only:

- Turn the programme selector to the "OFF" position;

- Select programme drain only ;

- Switch on the appliance again by pressing the "Start/Pause" button.

5) PROGRAMME START LIGHT This lights up when the START button has been pressed.

6) WASH TIME When a programme is selected the relevant indicator will light up to show the minimum possible wash time. Selecting a greater time using the special button will cause the corresponding indicator to light up. Note: The wash time can vary automatically, depending on the temperature selected.

“SPIN SPEED” button

The spin cycle is very important to remove as much water as possible from the laundry without damaging the fabrics. You can adjust the spin speed of the machine to suit your needs. By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled. To reactivate the spin cycle press the button until you reach the spin speed you would like to set. To prevent damage to the fabrics, it is not possible to increase the speed over that which is automatically suitable during the selection of the program.

It is possible to modify the spin speed without to pausing the machine.

Note: The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

“DIGITAL” Display

The display’s indicator system allows you to be constantly informed about the status of the machine:

1) WASH TEMPERATURE When a programme is selected the relevant indicator will light up to show the maximum possible wash temperature. Selecting a lower temperature using the special button will cause the corresponding indicator to light up. Note: The temperature must be adjusted before selecting WASH TIME.

2) SPIN SPEED Once the programme has been selected, the maximum spin speed allowed for that programme appears on the display. Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is possible to omit the spin by pressing the spin button repeatedly.

3) DELAY START LIGHT This flashes when delay start has been set.

4) CYCLE DURATION When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected. Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash.

3 5

{

PROGRAMME selector with "OFF" position

When the programme selector is turned the display lights up to show the settings for the programme selected. N.B. To switch the machine off, turn the programme selector to the “OFF” position.

Press the "Start/Pause" button to start the selected cycle. Once a programme is selected the programme selector remains stationary on the selected

programme till cycle ends. Switch off the washing machine by turning the selector to "OFF".

Note: The programme selector must be returned to the "OFF" position at the end of each cycle or when starting a subsequent wash cycle prior to the next programme being selected and started.

Buttons indicator light

These light up when the relevant buttons are pressed.

If an option is selected that is not compatible with the selected programme then the light on

the button first flashes and then goes off.

“WASH TIME” button

By selecting this button (active only on COTTON and MIXED FIBRES programmes) there is a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled. Once the programme and wash temperature have been selected the wash time indicator is automatically set to the minimum allowed; pressing the button increases the level and the settings for the cycle duration are also adjusted accordingly.
