HOOVER UH70400 User Manual
OWNER’S MANUAL
Operating and Servicing Instructions
Español - página E1
www.hoover.com
IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.
Questions or concerns? For assistance, please call Customer Service at 1-800-944-9200
Mon-Fri 8am-7pm EST. PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.
IF USED COMMERCIALLY WARRANTY IS VOID.
©2010 Techtronic Floor Care Technology Limited. All rights reserved. #961101001-01 ID 100148-R0
Thank you for choosing a HOOVER® product.
1-800-944-9200
Made in China
Please enter the complete model and manufacturing code
in the spaces provided.
MODEL
MFG. CODE
Hint: Attach your sales receipt to this owner’s manual.
Verification of date of purchase may be required for
warranty service of your HOOVER
Be sure to register your product online at Hoover.com or
call 1-800-944-9200 to register by phone.
®
product.
CONTENTS
Important Safety Instructions...........................................................................3
Vacuum Assembly .............................................................................................5
Carton Contents ..............................................................................................5
Attach Handle..................................................................................................5
Attach Dirt Cup................................................................................................5
Position Tools ..................................................................................................5
How To Use.........................................................................................................6
Vacuum Description ........................................................................................6
On-Off Switch ..................................................................................................6
Carry Handle ...................................................................................................6
Cord Storage...................................................................................................6
Telescopic D-Grip Handle ...............................................................................7
Handle Positions .............................................................................................7
Tools ..................................................................................................................7
Select Proper Tool ..........................................................................................7
Removing Hose ..............................................................................................7
Attach Wand And Tools ...................................................................................8
Stair Cleaning .................................................................................................8
Maintenance .......................................................................................................9
Dirt Cup ...........................................................................................................9
Filters ..............................................................................................................10
Brushroll ..........................................................................................................11
Belt..................................................................................................................12
Troubleshooting ................................................................................................13
Service ................................................................................................................14
Warranty..............................................................................................................15
MANUFACTURING CODE
(Label located on bottom of vacuum)
If you need assistance:
Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover® authorized
dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover® authorized dealer
locations (U.S. only) or to speak with a customer service representative; Mon- Fri 8am- 7pm EST.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY:
• Fully assemble before operating.
• Operate vacuum only at voltage specified on data label on bottom of cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and
before cleaning or servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under.
Close supervision is necessary when used near children. To avoid injury or damage,
keep children away from product, and do not allow children to place fingers or other
objects into any openings.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments and products.
• Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, take it to a service
center prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not place product on cord. Do not run appliance
over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free
of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to
prevent the cleaner from falling, always place cleaner at bottom of stairs on floor.
Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine
wood sandings, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without Dirt Cup and/or Filters in place.
• WARNING: This product contains chemicals known to the State of California to
cause cancer, birth defects or reproductive harm.
3
CAUTION: TO REDUCE THE RISK OF DAMAGE:
• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Do not use sharp objects to clean out hose as they can cause damage.
WARNING:
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade
is wider than the other). This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a
qualified electrican to install the proper outlet. Do not change the plug in any way.
! !
A Thermal Protector has been designed into your cleaner to protect it from overheating. When the
thermal protector activates the cleaner will stop running.
If this happens proceed as follows:
1. Turn cleaner OFF and unplug it from the electrical outlet.
2. Empty dirt cup.
3. Inspect and remove blockage along the dirt path. This blockage may occur at the: nozzle inlet,
hose connector, hose, dirt cup inlet, cyclonic filter, washable filter, and HEPA filter.
4. When cleaner is unplugged and motor cools for 30 minutes, the thermal protector will deactivate
and cleaning may continue.
If the thermal protector continues to activate after following the above steps, your cleaner
needs servicing.
NOTICE
4
1. VACUUM ASSEMBLY
CARTON CONTENTS
A. Handle
B. Vacuum Base and Dirt Cup
C. 3-in-1 Combination Tool
D. Stair Hose*
*Available on select models only.
Remove all parts from carton and
identify each item shown.
Make sure all parts are located before
disposing of packing materials.
1.1
A
ATTACH HANDLE
1.2 Press lever (A) and Insert handle section into
vacuum base.
1.3 To remove handle, press lever (A) again and
pull handle out of vacuum base.
1.2
b
C
D
1.3
A
A
ATTACH DIRT CUP
1.4 Place bottom of dirt cup into vacuum body first.
Pivot cup into vacuum. Press down on the dirt cup
release button to secure into place.
POSITION TOOLS
1.5 For storage mode, push dusting brush all the
way up onto crevice tool.
1.6 Snap combination tool into tool storage area
(B) on back side of vacuum.
1.4
1.5
5
1.6
b
2. HOW TO USE
VACUUM DESCRIPTION
1. D-Grip Handle
2. Wand
3. Handle Adjuster
4. ON/OFF Power Switch
5. ON/OFF Brushroll Switch
6. Dirt Cup Release Button
7. Carry Handle
8. Dirt Cup
9. Filter made with HEPA media
10. Rinsable Filter Access
11. 3-in-1 Combination Tool
12. Hose
13. Hose Connection to Handle
14. Hose Release Button
15. Furniture Guard
16. Cord
17. Cord Release
18. Brushroll Window
19. Brushroll Reset Button
20. Stair Hose*
Operate cleaner only at voltage specified on data plate on bottom of cleaner.
This cleaner is intended for household use.
*Available on select models only
2.1
6
7
8
9
14
15
18
1
2
3
10
20
19
16
17
13
5
4
11
12
ON-OFF SWITCH
2.2
A
b
CORD STORAGE
2.4 Wrap cord on cord
hooks for convenient
storage.
Attach the plug end to
the cord.
2.5 Twist upper cord
hook (D) to allow cord
to be released.
Plug cord into electrical
outlet.
To turn vacuum ON,
push ON/OFF switch
(A) once. To turn vacuum OFF, push switch
again.
To turn brushroll ON,
push ON/OFF switch
(B) once. To turn brushroll OFF, push switch
again.
2.4
CARRY HANDLE
2.3
C
2.5
6
The cleaner can be
moved by using the
carry handle (C).
D
TELESCOPIC D-GRIP HANDLE
2.6
2.6 Slide the telescopic
handle release down to
easily adjust height of
ergonomic handle
HANDLE POSITIONS
2.7 The handle of your
cleaner has two
positions: upright for
storage and when
using cleaning tools;
operating position for
general operation on
carpet and floors; hold
nozzle with foot (E)
and pull handle back.
3. TOOLS
Tools allow for cleaning surfaces above the floor and for reaching hard to clean areas.
The vacuum is ready for tool use when handle is in upright position.
SELECT PROPER TOOL
3-in-1 Combination Tool
3.1
A
b
C
A. Crevice Tool may be used in tight spaces,
corners and along edges in such places as dresser
drawers, upholstered furniture, stairs and baseboards.
B. Use Upholstery Tool to clean upholstered
furniture, draperies, mattresses, clothing, and
carpeted stairs.
C. Dusting Brush may be used for carved
furniture, table tops, books, lamps, lighting
fixtures, venetian blinds, baseboards, shutters,
and registers.
2.7
E
REMOVING HOSE
3.2
3.2 To remove hose for
tool use, press the hose
release button and pull
hose end out.
To lock back into place,
push hose into hose
tube until you hear a
click.
7

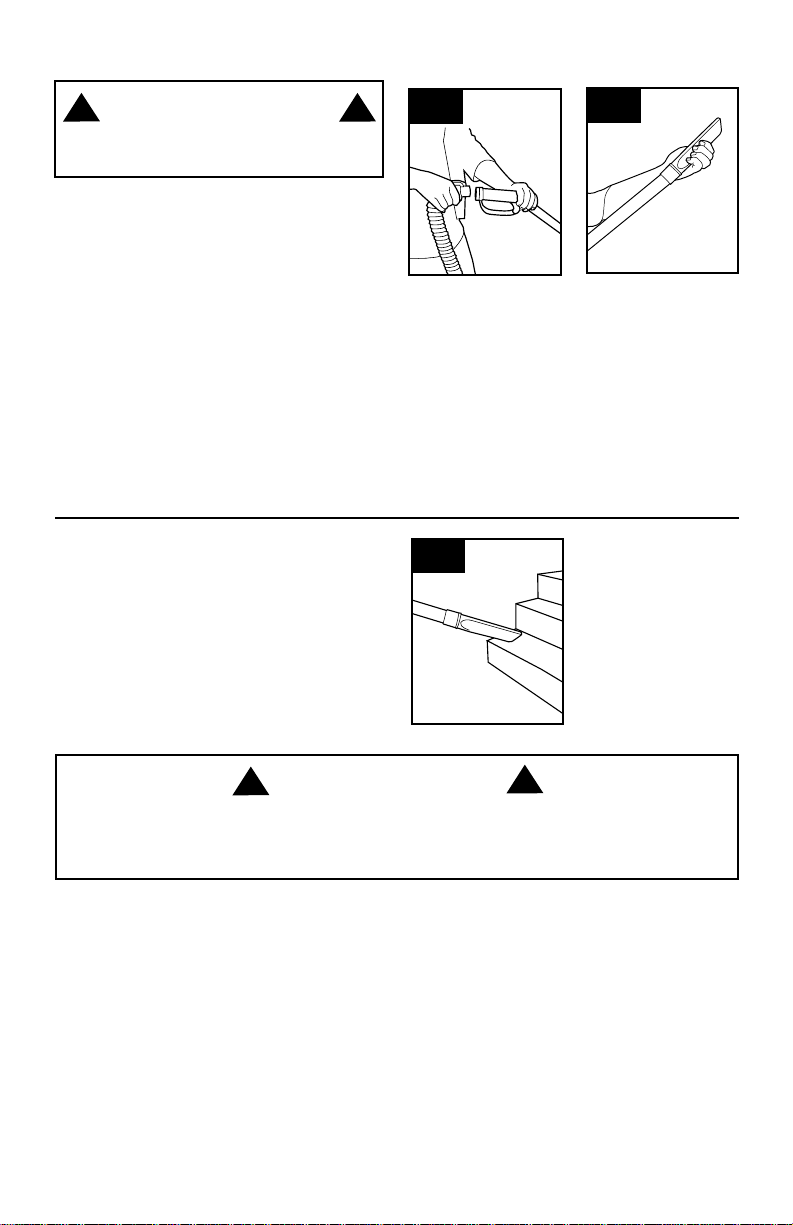

ATTACH WAND AND TOOLS
!
Unplug vacuum before connecting wand or
tools.
Cleaner must be in the upright position.
Press handle wand release button and pull handle
up to remove.
Press the hose release button on the nozzle and
remove the hose from the nozzle.
3.3 Attach the hose to the handle/extension wand.
For extended cleaning reach, you may attach the
hose to the stair hose*. Choose the 3-in-1
combination tool or use the extension wand alone.
3.4 Simply push the attachment firmly on the end of
the extension wand or hose. To remove tool, twist
and pull apart gently.
*Available on select models only
WARNING
!
STAIR CLEANING
3.5 The hose and tools can be used for stair
cleaning.
3.3
3.5
3.4
! !
CAUTION
Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the
cleaner from falling, always place cleaner at bottom of stairs on floor. Do not place cleaner on stairs or
furniture, as it may result in injury or damage.
8
4. MAINTENANCE
Familiarize yourself with these home maintenance tasks as proper use and care of your vacuum will ensure
continued cleaning effectiveness.
Any other servicing should be done by an authorized service representative.
DIRT CUP: When to Empty
4.2 Empty the dirt cup before the dirt cup reaches
the max line (A). Place the vacuum in the upright
position before removing the dirt cup.
! !
To reduce the risk of injury from moving
parts, unplug vacuum before servicing. Do not
use vacuum without dirt cup or filters in place.
Very fine materials, such as face powder or
cornstarch, may seal the filter and cause a
reduction in performance. When using the
vacuum for this type of dust, empty the cup
and clean the filters often.
CAUTION
DIRT CUP: How to Empty
4.2 Press dirt cup release button and pivot cup out.
4.3 Hold dirt cup over trash receptacle, push dirt
cup door release lever (A) to open dirt cup door
(B).
Close dirt cup door (B). Press firmly to secure.
4.4 Place bottom of dirt cup into vacuum body
first. Pivot dirt cup into vacuum. Press down on the
dirt cup release button to secure into place.
4.1
4.3
b
4.2
A
4.4
A
9
FILTERS: When to Clean
To maintain optimal performance, filters should be
cleaned every two months under normal use.
! !
CAUTION
To reduce the risk of injury from moving parts,
unplug vacuum before servicing. Do not use
vacuum without dirt cup or filters in place.
4.5
4.6
Rinsable Filter: How to Clean
Remove dirt cup as described in Fig. 4.2.
4.5 Twist the dirt cup lid to open.
4.6 Pull tab to remove rinsable filter.
Rinse with water for two minutes or until water runs
clear. Then squeeze out excess water. Allow 24
hours for filter to dry completely.
Replace filter, tab side out.
Close lid securely by twisting dirt cup lid until it clicks
as shown in Fig. 4.5.
Replace dirt cup as described in Fig 4.4.
Filter Made With HEPA Media: How to Clean
! !
CAUTION
To reduce the risk of injury from moving parts,
unplug vacuum before servicing. Do not use
vacuum without dirt cup or filters in place.
4.7 Remove dirt cup.
4.8 Unlock filter Door (A).
4.9 Remove the filter and hold over a trash
receptacle and tap out dirt and debris.
Return filter and replace dirt cup on vacuum.
Rinsable Filter: What to Buy
When used and maintained properly, your Rinsable
Filter should not need replacement within the
warranty period. If desired, additional filter is
available. Ask for Hoover
®
Part No. 303903001.
IMPORTANT
Allow filter to dry completely before replacing.
Dry filter on edge so air circulates on both sides
of filter. This may take up to 24 hours.
4.7
4.8
A
4.9
IMPORTANT
DO NOT RINSE OR WASH THE FILTER CARTRIDGE.
Filter Made With HEPA Media: What to Buy
When used and maintained properly, your Filter should not need replacement
within the warranty period. If desired, additional filter is available. Ask for
®
Part No. 303902001.
Hoover
10
HOSE: How to Clean
! !
CAUTION
To reduce the risk of injury from moving parts, unplug vacuum before servicing.
4.10 To remove hose for tool use, press the hose release button (A) and pull
hose end out.
Clear away debris or obstructions from hose. Do not use sharp objects to clean
out hose as they can cause damage. To lock back into place, push hose into
hose tube until you hear a click.
CYCLONIC FILTER ASSEMBLY: How to Clean
4.10
A
! !
CAUTION
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
Do not use vacuum without dirt cup or filters
in place.
Remove dirt cup as described in Fig. 4.2.
4.11 Lift the filter assembly (A) up out of the dirt cup.
4.12 Dirt and debris can be cleaned from the filter
assembly with the dusting/ upholstery tool.
4.13 Place the filter assembly (A) on the dirt cup,
aligning the D-shaped tab on the top of the dirt cup.
Press down firmly to place the filter assembly back
in place.
Replace dirt cup as described in Fig. 4.4.
BRUSHROLL: How to Clean
! !
CAUTION
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
4.14 Turn vacuum over so bottom side is facing up.
Remove any debris and/or hair from brushroll.
For additional maintenance required for belt or
brushroll please contact a HOOVER
provider at 1-800-944-9200.
4.15 Vacuum is equipped with an automatic
brushroll shut off. A red flashing light (A) will indicate
a jammed brushroll. To reset the brushroll, press
the reset button (B) located on the side of your
vacuum. If the light continues to flash red after
resetting, the brushroll may still be blocked. Check
for obstructions in the brushroll area and remove
any obstructions. Press the brushroll reset button to
ensure the blockage is fully cleared.
®
service
4.11
A
4.14
4.12
4.13
A
4.15
A
b
11

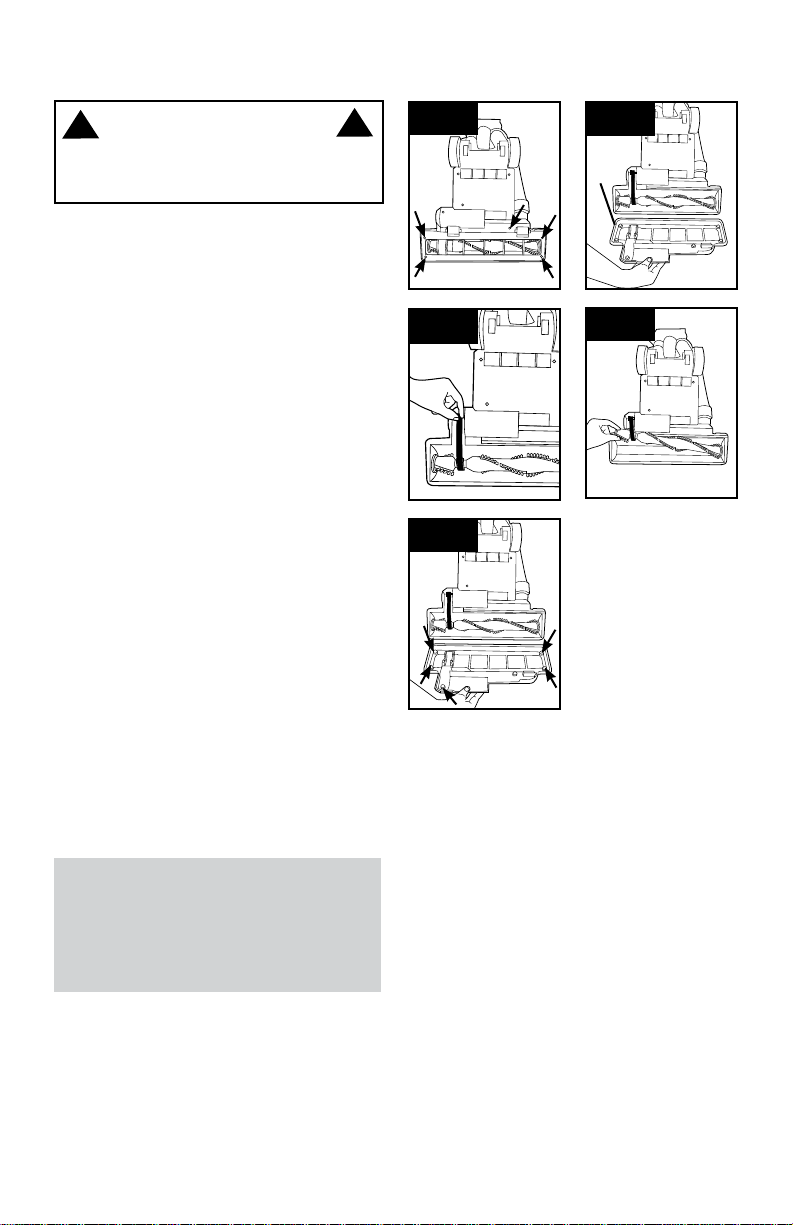

BELT
! !
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
The belt is located under the bottom plate of the
vacuum and should be checked from time to time
to be sure it is in good condition.
When To Replace
Replace belt if it is damaged, cut or broken.
To check the damaged belt, refer to Fig. 4.16 - 4.18.
How To Replace
Place handle in the low position and turn the
cleaner over so the bottom side is up.
4.16 Remove the 6 screws as shown with a Phillips
screwdriver.
4.17 Lift off bottom plate (A).
4.18 Remove agitator brushroll and used belt.
Discard used belt.
4.19 With the lettering on the outside of the belt and
positioned as shown place belt in belt guide on the
agitator. Should the agitator become dislodged
while replacing the belt, reposition it as shown.
Grasp agitator firmly and fit it into position by first
sliding end opposite of belt into the rectangular slot
on side of cleaner. Pull other side of agitator into
place. Turn the agitator making sure the belt is not
pinched between agitator and agitator shield.
CAUTION
4.16
4.18
4.20
4.17
A
4.19
4.20 Place the bottom plate aligning the screw
holes and install the 6 screws as shown.
Belt: What to Buy
Use only genuine HOOVER® belts with your
vacuum. When purchasing a new belt, ask for
Belt - HOOVER
®
part No. 562535001.
12
5. TROUBLESHOOTING
If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the
checklist below.
Any other servicing should be done by an authorized service representative.
! !
WARNING
To reduce risk of personal injury - unplug vacuum before servicing.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Vacuum won’t
run
Vacuum won’t
pick up
or
Low suction
Dust escaping
from vacuum
brushroll will
not turn
Smoky/burning
smell detected
1. Power cord not firmly plugged
into outlet.
2. Blown fuse or tripped breaker. 2. Check fuse or breaker in home. Replace
3. Thermal Protector activated. 3. Unplug and allow vacuum to cool for 30min.
4. Automatic brushroll shut-off
engaged.
1.Rinsable filter and/ or filter
made with HEPA media is dirty.
2. Dirt Cup full and/ or clogged. 2. Empty dirt cup - Pg.9.
3. Broken or worn belt. 3. Replace belt - Pg.12.
4. Brushroll and/ or hose
clogged.
5. Automatic brushroll shut-off
engaged.
1. Dirt cup full. 1. Empty dirt cup - Pg. 9.
2. Dirt cup not installed correctly. 2. Review dirt cup removal & replacement -
3. Hose not installed correctly. 3. Review hose installation - Pg. 7.
4. Rinsable and/ or filter made
with HEPA media not installed
completely.
1. Brushroll switch is off 1.Press the brushroll on/off switch - pg 6
2. Brushroll is clogged. 2. Clear/ remove debris from brushroll - pg 11
1. Belt broken or stretched. 1. Replace brushroll belt - Pg. 12.
2. Brushroll is clogged. 2. Clear/ remove debris from brushroll - Pg. 11.
1. Plug unit in firmly.
fuse/reset breaker in home.
(This willl reset the thermal protector)
4. Press brushroll reset button.
1. Clean rinsable filter and or filter made
with HEPA media - Pg.10
4. Check hose. Check brushroll - Pg.11.
5. Press brushroll reset button.
Pg. 9.
4. Review filter removal and cleaning - Pg. 10.
13
6. SERVICE
To obtain approved Hoover® service and genuine Hoover® parts, locate the nearest Authorized Hoover
Warranty Service Dealer (Depot) by:
•CheckingtheYellowPagesunder“VacuumCleaners”or“Household”.
•Visitourwebsiteathoover.com(U.S.Customers)orhoover.ca(Canadiancustomers).
Follow the service center link to find the service outlet nearest you.
•Foranautomatedreferralofauthorizedserviceoutletlocationscall1-800-944-9200.
®
Do not send your vacuum to Hoover
If you need further assistance:
To speak with a customer service representative call 1-800-944-9200; Mon-Fri 8am-7pm EST. In Canada,
contact Hoover
®
Canada, Toronto: 755 Progress Ave., Scarborough, ON M1H 2W7 OR Hoover® Canada,
Edmonton: 18129-111 Ave., Edmonton, AB T5W 2P2, Phone: 1-800-944-9200, Mon-Fri 8am-7pm EST.
Always identify your vacuum by the complete model number when requesting information or ordering parts.
(The model number appears on the bottom of the vacuum.)
Please do not return this product to the store.
, Inc., Company in Glenwillow for service. This will only result in delay.
®
14
Loading...
