WEB-600
MODELS: WEB-600, WEB-600-O, WEB-600-US,
WEB-600-O-US
SPECIFICATION DATA
FEATURES
• Supports open and legacy protocols.
• Web User Interface (standard) serves rich presentation
and live data to a browser.
• Run stand-alone control, energy management, and
multi-protocol integration.
• Standard and optional communications boards.
• Can be expanded with optional 16 and 34 point I/O
Modules.
• Small compact design is easy to install and supports
multiple power options.
®
•Embedded IBM
Power PC Platform.
GENERAL
The WEB-600 is a compact, embedded controller/server
platform. It combines integrated control, supervision, data
logging, alarming, scheduling and network management
functions with Internet connectivity and web serving
capabilities in a small, compact platform. The WEB-600
makes it possible to control and manage external devices
over the Internet and present real time information to users in
web-based graphical views.
The WEB-600 is a member of the WEBs-AX™ suite of
®
Java
-based controller/server products, software applications
and tools, which are designed to integrate a variety of devices
and protocols into unified, distributed systems. WEBs-AX™
products are powered by the revolutionary Niagara
Framework
to integrate diverse systems and devices into a seamless
system. NiagaraAX supports a wide range of protocols
including L
standards. The Niagara
integrated network management tools to support the design,
configuration, installation and maintenance of interoperable
networks.
®
, the industry's first software technology designed
ONWORKS
®
, BACnet®, Modbus®, and Internet
AX
Framework® also includes
AX
APPLICATION
The WEB-600 is ideal for smaller facilities, remote sites, and
for distributing control and monitoring throughout large
facilities. Optional I/O modules can be plugged in for
applications where local control is required. The WEB-600
controller also supports a wide range of field busses for
connection to remote I/O and stand-alone controllers. In small
facility applications, the WEB-600 controller is all you need for
a complete system.
The WEB-600 controller serves data and rich graphical
displays to a standard web browser via an Ethernet LAN or
remotely over the Internet, or dial-up modem. In larger
facilities, multi-building applications and large-scale control
system integrations, WEBStation-AX™ software can be used
to aggregate information (real-time data, history, alarms, etc.)
from large numbers of WEBs-AX™ controllers into a single
unified application. The WEBStation-AX™ Supervisor can
manage global control functions, support data passing over
multiple networks, connect to enterprise level softwa
74-4067-02
WEB-600
applications, and host multiple, simultaneous client
workstations connected over the local network, the Internet, or
dial-up modem.
Table 1.
Part Number Description
WEB-600 Based unit including two Ethernet ports, one
RS-232 port, one RS-485 port, one USB
AX
port, Web User Interface, Niagara
Connectivity, and oBix™ driver included.
WEB-600-O WEB-600 with open license (NiCS has
accept.wb.in=”*”)
WEB-600-US WEB-600 controller manufactured in the
USA.
WEB-600-O-US WEB-600 controller with open license
manufactured in the USA.
SPECIFICATIONS
Model: WEB-600 Controller: Base Unit including two Ethernet
ports, one RS-232 port, one RS-485 port, one USB port,
Web User Interface, NiagaraAX Connectivity, and oBix
driver.
Platform: IBM
128 MB DDR RAM & 128 MB Serial Flash. Optional 256 MB
DDR RAM.
Battery Backup - 5 minutes typical - shutdown begins within
10 seconds.
Real-time clock - 3 month backup maximum via battery.
Communications: 2 Ethernet Ports - 10/100 Mbps
(RJ-45 Connectors).
1 RS-232 Port (9 pin D-shell connector).
1 RS-485 non isolated port (3 Screw Connector on base
board).
®
PowerPC® 440 524 MHz processor.
Optional Communications Cards: Manufactured in the US
Table 2.
Part Number Description
DR-LONFT10-AX Optional 78 Kbps FTT10 A
LON® Adapter and
LonWorks communication
driver. (card and driver
bundle).
NBP-LON Optional 78 kbps FTT10
LON adapter (card only).
NPB-RS232 Optional RS-232 port
adapter with 9 pin D-shell
connector.
NPB-2X-RS485 Optional dual port RS-485
adapter, electrically
isolated.
NPB-MDM
Optional Auto-dial / Autoanswer 56 KBPS modem;
consumes one option card
slot; cannot be used if NPBGPRS-H modem is
selected.
NPB-GPRS-H
Optional GPRS Modem
communications card with
SIM card for connection via
Wyless network; Wyless is
the only approved service
provider for the continental
US, consumes one option
card slot.
256 MB Memory Upgrade Option: Memory upgrade option
(NPM-256) increases memory to 256 MB DDR.
®
Operating System: QNX
tual Machine, Niagara
RTOS, IBM J9™ JVM® Java Vir-
AX
3.1 or later.
Chassis: Construction: Plastic, din rail or screw mount
chassis, plastic cover.
Cooling: Internal air convection.
Dimensions: 6.3 in. (160 mm) W x 4.8 in. (122 mm) H
(including connectors) x 2.4 in. (61 mm) D.
Temperature Ratings: Operating temperature range:
32° to 122° F (0° to 50° C).
Storage Temperature range: 32° to 158° F (0° to 70° C).
Humidity Rating: 5% to 95% RH, non-condensing.
Approvals: RoHS, BTL (with optional BACnet driver), UL
916, C-UL listed to Canadian Standards Association (CSA)
C22.2 No. 205-M1983 “Signal Equipment”, CE, FCC part
15 Class A, C-tick (Australia).
Power Supply Options:
Table 3.
Part Number Description
NPB-PWR-H Optional: 24 Vac/dc power
supply module, Din Rail
mounted. Manufactured in
the US.
NPB-PWR-UN-H Optional universal voltage
input power supply module,
Din Rail mounted. Input
voltage is 90 - 263 Volts
AC, 50/60 Hz, auto
adjusting.
NPB-WPM-US Optional Wall Power
Module. Input 120 Vac, 5060 Hz. US wall plug power
supply.
74-4067—02 2
WEB-600

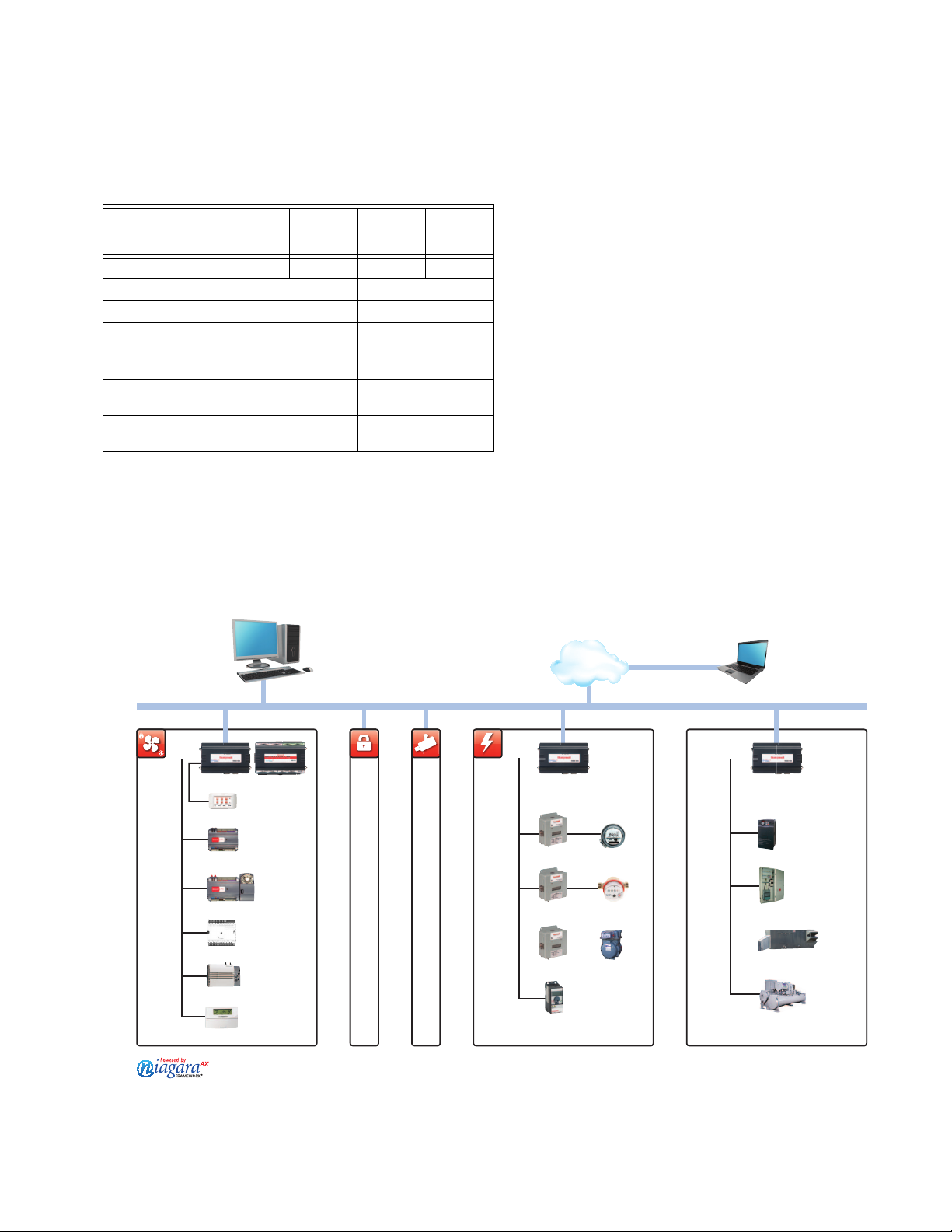

VIDEO
Ethernet/LAN
Software Platform
• WEBs–AX Supervisor
• WEBs–AX Enterprise Security
• WEBs–AX Energy Analytics
HTTP, BACnet, oBIX, SNMP, XML, Fox Ethernet/LAN
Web Browser
Internet/Intranet
SECURITY
FIELD INTEGRATION
WEB-600 Controller
Plant Control
HVAC
Lighting
Drives
HVAC
WEB-600 Controller
AHU
VAV
34 Pt. I/O
Communicating
Thermostat
Smart VAV
CVAHU
Reveal
ENERGY
WEB-600 Controller
Water
Electricity
Gas
Submeter
Compact VFD
Submeter
Submeter
WEBs–AX
™
System Integration
WEB-600ARCH PR
November 2010
Optional I/O Modules: Table 4 lists the I/O models that can
be connected to the WEB-600. Optionally, IO-16-REM-H
can be connected; details can be found in the data sheet
74-5082.
Table 4.
Feature
IO-16
WEB-IO-
16 IO-16-US
IO-34
WEB-IO-
34 IO-34-US
Manufactured in China USA China USA
Universal Inputs 8 16
Relay Outputs 4 10
Analog Outputs 4 8
Dimensions (in
3.2W x 4.8H x 2.4D 6.3W x 4.8H x 2.4D
inches)
Dimensions (in
82W x 122H x 61D 160W x 122H x 61D
mm)
Max per WEB-
4 / 2* 1
600 controller
*4 or 2 in combination with IO-34/IO-34-US.
I/O Specifications - All Modules: Connection to WEB-600
Controller is via a single multi-pin plug.
Removable screw terminals (0.2 in. [5.08 mm] centers) for all
inputs and outputs.
Universal Input types supported:
Type 3 (10K) Thermistors; Thermistor Sensor Range
-10° to +240° F (23° to +116° C). Input accuracy is in the
range of +/-1% of span. Others may be supported by
entering custom non-linear curve interpolation points for
each unique non-linear input.
0 to 10 volt; accuracy is +/- 2% of span, without user
calibration; uses an external resistor for current input
(four provided, mounted by installer on terminal
connections) 4/20 mA current loop; accuracy is +/- 2%
of span, without user calibration; self-powered or board-
powered sensors accepted.
Dry contact; V open circuit, 300-uA short-circuit current.
Pulsing dry contact at a rate of up to 20 Hz; 50% duty
cycle.
Digital Outputs (4 ea.) Pilot Duty.
Form A relay contacts suitable for on/off control only;
floating control not supported.
Maximum voltage - 30V DC or AC.
1/2
Amp maximum current rating.
Analog Outputs:
0 -10 Volt DC.
Minimum load supported per output is 2500 ohms
minimum or 4 mA drain maximum.
3 74-4067—02
WEB-600
BACnet® is a registered trademark of the American Society of Heating, Refrigerating, and Air-Conditioning Engineers, Inc.
(ASHRAE).
®
and PowerPC® are registered trademarks and J9™ is a trademark of International Business Machines Corporation.
IBM
®
and JAVA® are registered trademark of Sun Microsystems, Inc.
JVM
®
LON
and LONWORKS® are registered trademarks of Echelon Corporation.
®
Modbus
Niagara
oBix
is a registered trademark of Schneider Automation, Inc.
AX™
and the Niagara logo are trademarks and Niagara Framework® is a registered trademark of Tridium, Inc.
™
is a trademark of Clinical Computer Systems, Inc.
QNX® is a registered trademark of QNX Software Systems, Ltd.
Tradeline™, WEBs-AX™ and WEBStation-AX™ are trademarks of Honeywell International, Inc.
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Toronto, Ontario M1V 4Z9
customer.honeywell.com
® U.S. Registered Trademark
© 2010 Honeywell International Inc.
74-4067—02 T.D. Rev. 11-10
Printed in U.S.A.
