Honeywell Voyager 1200g, Voyager 1202g User Manual

Voyager™ 1200g/1202g

Single-Line Laser Bar Code Scanner

User’s Guide

™

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in speci­fications and other information contained in this document without prior notice,
and the reader should in all cases consult HII to determine whether any such
changes have been made. The information in this publication does not repre­sent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnish­ing, performance, or use of this material.

This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied, repro­duced, or translated into another language without the prior written consent of
HII.

© 2010-2011 Honeywell International Inc. All rights reserved.
Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their
respective owners.

Web Address:
Microsoft® Windows® and the Windows logo are trademarks or registered

trademarks of Microsoft Corporation.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc.
Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their
respective owners.

www.honeywellaidc.com

Product Agency Compliance - Voyager 1200g

USA

FCC Part 15 Subpart B Class B

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radi­ate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communica­tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for

help.

If necessary, the user should consult the dealer or an experienced radio/
television technician for additional suggestions. The user may find the fol­lowing booklet helpful: “Something About Interference.” This is available at
FCC local regional offices. Honeywell is not responsible for any radio or
television interference caused by unauthorized modifications of this equip­ment or the substitution or attachment of connecting cables and equipment
other than those specified by Honeywell. The correction is the responsibil­ity of the user.

Use only shielded data cables with this system. This unit has been tested
with cables less than 3 meters. Cables greater than 3 meters may not meet
class B performance.

Caution: Any changes or modifications made to this equipment not
expressly approved by Honeywell may void the FCC authorization to oper­ate this equipment.

UL Statement

UL listed: UL60950-1, 2nd Edition.

Canada

Industry Canada ICES-003

This Class B digital apparatus complies with Canadian ICES-003. Opera­tion is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe B est conforme à la norme NMB-003
du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le
brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07, Second Edition.

Europe

The CE marking indicates compliance to 2004/108/EC EMC Directive
with Standards EN55022 CLASS B, EN55024, EN61000-3-2,
EN61000-3-3. In addition, complies to 2006/95/EC Low Voltage Direc­tive, when shipped with recommended power supply.

For further information please contact:

Honeywell International Inc. shall not be liable for use of our product with
equipment (i.e., power supplies, personal computers, etc.) that is not CE
marked and does not comply with the Low Voltage Directive.

Honeywell Imaging & Mobility Europe BV
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands

Waste Electrical and Electronic Equipment
Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR­LIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical
and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health
and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you to
use the appropriate take-back systems for product disposal. Those sys­tems will reuse or recycle most of the materials of the product you are dis­posing in a sound way.

The crossed out wheeled bin symbol informs you that the product
should not be disposed of along with municipal waste and invites you to
use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling sys­tems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environ­mental performances of this product.

Germany

GS Statement

GS marked to EN60950-1, Second Edition.
This device is not intended for use in direct field of view at visual display

workplaces. To avoid distracting reflections at visual display workplaces,
this device should not be placed in direct field of view.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirement

Mexico

Conforms to NOM-019.

Russia

Gost-R certificate

South Korea

This product meets Korean agency approval.

Taiwan

If the following label is attached to your product, the product meets Taiwan
agency approval:

BSMI Standard: CNS13438, CNS 14336
依據標準 : CNS13438, CNS14336

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the
standard: IEC 62471:2006.

CB Scheme

Certified to CB Scheme IEC60950-1, Second Edition.

Laser Safety Statement

LASER LIGHT: DO NOT STARE INTO

BEAM. CLASS 2 LASER PRODUCT.

LASERSTRAHLUNG: NICHT IN DEN
STRAHL BLICKEN. LASER KLASSE 2.
LUMIERE LASER: NE PAS REGARDER

DANS LE FAISCEAU. APPAREIL A LASER.

DE CLASSE 2 630-650nm, 1mW.

This device has been tested in accordance with and complies with
IEC60825-1 ed2.0 and 21 CFR 1040.10 and 1040.11, except for deviations
pursuant to Laser Notice No. 50, dated June 24, 2007.

LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PROD­UCT, 1.0 mW MAX OUTPUT: 630-650nM.

Scanner Laser Beam

Wavelength 645 - 660 nm
Divergence < 1.5 mrad. per IEC 60825-1 worst case
Max power output < 1mw
The laser diode is considered an embedded laser. Intrabeam viewing

of the laser shall be prevented.

Embedded Laser

Wavelength 645- 660 nm
Divergence < 1.5 mrad, per IEC 60825-1 worst case
Max power output < 10 mw

Caution - use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation expo­sure.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Solids and Water Protection

The Voyager 1200g has a rating of IP42, immunity of foreign particles and drip­ping water.

Product Agency Compliance - Voyager 1202g and
CCB00-010BT

USA

FCC Part 15 Subpart C

This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Caution: Any changes or modifications made to this equipment not

expressly approved by Honeywell may void the FCC
authorization to operate this equipment.

Use only shielded data cables with this system. This unit has been tested
with cables less than 3 meters. Cables greater than 3 meters may not meet
class B performance.

UL Statement

UL listed: UL60950-1, Second Edition.

Canada

Industry Canada

This device complies with Canadian RSS-210. Operation is subject to the
following conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that
may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil ISM est conforme à la norme CNR-210 du Canada. Son fonc­tionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le
brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07, 2nd Edition for I.T.E. product
safety.

Europe

The CE marking on the product indicates that this device is in confor­mity with all essential requirements of the 1999/5/EC R&TTE Directive.
In addition, complies to 2006/95/EC Low Voltage Directive, when
shipped with recommended power supply. For further information, con­tact:

Honeywell Imaging & Mobility Europe BV
International Inc.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands

Honeywell shall not be liable for use of our product with equipment (i.e.,
power supplies, personal computers, etc.) that is not CE marked and does
not comply with the Low Voltage Directive. This equipment is intended for
use throughout the European Community and has been assessed to the
following standards:

EN 300 328
EN 301 489-1
EN 301 489-17
EN60950-1

Waste Electrical and Electronic Equipment
Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR­LIAMENT AND OF THE COUNCIL on waste electrical and electronic
equipment (WEEE).

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health
and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you to
use the appropriate take-back systems for product disposal. Those sys­tems will reuse or recycle most of the materials of the product you are dis­posing in a sound way.

The crossed out wheeled bin symbol informs you that the product
should not be disposed of along with municipal waste and invites you to
use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling sys­tems, contact your local or regional waste administration.

You may also contact your supplier for more information on the environ­mental performances of this product.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirements.

China

SRRC Radio Certificate.

CCC safety (CCB00-010BT base only)

Japan

Complies with Technical Regulations Conformity Certification of
Specified Radio equipment.

Korea

This product meets Korean agency approval.

Russia

Gost-R certificate

Taiwan

If the following label is attached to your product, the product meets Taiwan
agency approval:

BSMI Standard: CNS13438, CNS14336 (Voyager 1202 only)
依據標準 : CNS13438, CNS14336

NCC standard: Low power frequency electric machineries technical
standard: LP0002

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the
standard: IEC 62471:2006.

Radio Technology

Class II

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

LASER LIGHT: DO NOT STARE INTO

BEAM. CLASS 2 LASER PRODUCT.

LASERSTRAHLUNG: NICHT IN DEN
STRAHL BLICKEN. LASER KLASSE 2.
LUMIERE LASER: NE PAS REGARDER

DANS LE FAISCEAU. APPAREIL A LASER.

DE CLASSE 2 630-650nm, 1mW.

This device has been tested in accordance with and complies with
IEC60825-1 ed2.0 and 21 CFR 1040.10 and 1040.11, except for deviations
pursuant to Laser Notice No. 50, dated June 24, 2007.

LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PROD­UCT, 1.0 mW MAX OUTPUT: 630-650nM.

Scanner Laser Beam

Wavelength 645 - 660 nm
Divergence < 1.5 mrad. per IEC 60825-1 worst case
Max power output < 1mw
The laser diode is considered an embedded laser. Intrabeam viewing

of the laser shall be prevented.

Embedded Laser

Wavelength 645- 660 nm
Divergence < 1.5 mrad, per IEC 60825-1 worst case
Max power output < 10 mw

Caution - use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation expo­sure.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Solids and Water Protection

The Voyager 1202g has a rating of IP42, immunity of foreign particles and drip­ping water.

Voyager 1200g Safety Label Locations

Laser Output

Compliance Markings
information, Part Number,
and Serial Number
information

Compliance Markings
information

Internal Laser Cautions

Voyager 1202g Safety Label Locations

Laser Output

Compliance Markings
information, Part Number,
and Serial Number
information

Compliance Markings
information

Internal Laser Cautions

Laser Safety Information

CCB00-010BT Safety Label Locations

Item Number,
Serial
Number, and
Compliance
Markings
information

Compliance

Markings

information

Table of Contents

Chapter 1 - Getting Started

About This Manual ......................................................1-1

Unpacking Your Device............................................... 1-1

Connecting the Device ................................................ 1-2

Connecting with USB ............................................ 1-2

Connecting with Keyboard Wedge........................ 1-3

Connecting with RS232 Serial Port....................... 1-5

Connecting with RS485......................................... 1-6

Reading Techniques ................................................... 1-7

Menu Bar Code Security Settings ............................... 1-7

Setting Custom Defaults ............................................. 1-8

Resetting the Custom Defaults ................................... 1-9

Resetting the Factory Defaults.................................... 1-9

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge................................................... 2-1

IBM PS2 Keyboard................................................ 2-1

RS232 Serial Port.................................................. 2-1

RS485 ................................................................... 2-2

OPOS Mode.......................................................... 2-3

USB IBM SurePos................................................. 2-4

IBM Secondary Interface....................................... 2-4

USB PC or Macintosh Keyboard........................... 2-5

USB HID................................................................ 2-5

HID Fallback Mode................................................ 2-5

USB Serial Commands ............................................... 2-6

USB Serial Emulation............................................ 2-6

CTS/RTS Emulation.............................................. 2-6

ACK/NAK Mode..................................................... 2-7

Communication Timeout ....................................... 2-7

NAK Retries........................................................... 2-8

Support BEL/CAN in ACK/NAK............................. 2-8

i

Verifone® Ruby Terminal Default Settings ..................2-9

Gilbarco

®

Terminal Default Settings............................2-9

Honeywell Bioptic Aux Port Configuration .................2-10

©

Datalogic™ Magellan

Bioptic

Aux Port Configuration ............................................2-10

NCR Bioptic Aux Port Configuration..........................2-10

Wincor Nixdorf Terminal Default Settings..................2-11

Wincor Nixdorf Beetle™ Terminal Default Settings...2-12

Keyboard Country Layout..........................................2-13

Keyboard Wedge Modifiers .......................................2-14

ALT Mode ............................................................2-14

Keyboard Style ....................................................2-15

Keyboard Conversion ..........................................2-16

Keyboard Modifiers.............................................. 2-16

Inter-Scan Code Delay ........................................2-17

<F0> Break Character .........................................2-18

Keyboard Wedge Defaults................................... 2-18

RS232 Modifiers ........................................................2-19

RS232 Baud Rate................................................ 2-19

RS232 Word Length: Data Bits,

Stop Bits, and Parity.......................................2-20

RS232 Handshaking............................................ 2-21

RS232 Timeout.................................................... 2-22

XON/XOFF ..........................................................2-23

ACK/NAK .............................................................2-23

Communication Timeout...................................... 2-23

NAK Retries .........................................................2-24

Support BEL/CAN in ACK/NAK ...........................2-25

RS232 Defaults.................................................... 2-25

NCR Modifiers ...........................................................2-25

NCR ACK/NAK ....................................................2-25

Block Check Character ........................................2-26

NCR Prefix........................................................... 2-26

NCR Suffix ...........................................................2-26

NCR Prefix/Suffix................................................. 2-27

NCR NOF (Not-on-File) Error ..............................2-27

Scanner to Bioptic Communication............................2-27

ii

Scanner-Bioptic Packet Mode............................. 2-28

ACK/NAK............................................................. 2-28

Communication Timeout ..................................... 2-28

Chapter 3 - Cordless System Operation

How the Charge and Communications Base Works ... 3-1

Linking the Scanner to a Base .................................... 3-1

Communication Between the Cordless System

and the Host.............................................................. 3-2

RF (Radio Frequency) Module Operation ................... 3-2

System Conditions ......................................................3-3

Linking Process..................................................... 3-3

Scanner Is Out of Range....................................... 3-3

Scanner Is Moved Back Into Range...................... 3-3

Out of Range and Back into Range

with Batch Mode On......................................... 3-3

Page Button ................................................................ 3-3

About the Battery ........................................................ 3-4

Voyager 1202g Battery Removal ................................ 3-4

Charging Information............................................. 3-4

Battery Recommendations.................................... 3-5

Proper Disposal of the Battery .............................. 3-6

Flash Updates ............................................................. 3-6

Beeper and LED Sequences and Meaning................. 3-6

Scanner LED Sequences and Meaning ................ 3-6

Base LED Sequences and Meaning ..................... 3-7

Base Power Communication Indicator .................. 3-7

Reset Scanner ............................................................ 3-8

Scanning While in Base Cradle................................... 3-8

Paging ......................................................................... 3-8

Paging Mode ......................................................... 3-8

Paging Pitch ......................................................... 3-9

Error Indicators............................................................ 3-9

Scanner Address......................................................... 3-9

Base Address............................................................ 3-10

Scanner Modes ......................................................... 3-10

iii

Charge Only Mode............................................... 3-10

Linked Modes ......................................................3-11

Unlinking the Scanner................................................3-11

Override Locked Scanner..........................................3-12

Out-of-Range Alarm...................................................3-12

Alarm Sound Type ...............................................3-12

Alarm Duration..................................................... 3-12

Scanner Power Time-Out Timer................................3-13

Batch Mode................................................................3-13

Batch Mode Beep ................................................3-14

Batch Mode Quantity ...........................................3-14

Delete Last Code .................................................3-17

Record Counter ...................................................3-17

Total Records ......................................................3-17

Batch Mode Output Order.................................... 3-18

Clear All Codes After Transmission..................... 3-18

Clear All Codes.................................................... 3-18

Transmit Records Automatically ..........................3-19

Transmit Records to Host ....................................3-19

Batch Mode Transmit Delay ................................3-20

Scanner Name...........................................................3-20

Using the Scanner with Bluetooth Devices................3-22

Changing the Scanner’s Bluetooth PIN Code...... 3-22

Minimizing Bluetooth/ISM Band Network Activity ......3-22

Auto Reconnect Mode .........................................3-23

Maximum Link Attempts ......................................3-24

Relink Time-Out................................................... 3-24

Bluetooth/ISM Network Activity Examples........... 3-24

Reset Scanner and Base...........................................3-25

Chapter 4 - Input/Output Settings

Power Up Beeper ........................................................4-1

Beep on BEL Character...............................................4-1

Good Read and Error Indicators..................................4-2

Beeper – Good Read............................................. 4-2

Beeper Volume – Good Read................................ 4-2

iv

Beeper Pitch – Good Read ................................... 4-3

Beeper - Transmit Order ....................................... 4-3

Beeper Pitch – Error.............................................. 4-3

Beeper Duration – Good Read.............................. 4-4

Number of Beeps – Good Read............................ 4-4

Number of Beeps – Error ...................................... 4-4

LED Indicators............................................................. 4-6

LED Settings ......................................................... 4-6

LED Brightness ..................................................... 4-8

In-Stand and Out-Of-Stand Settings ...........................4-8

In-Stand and Out-of-Stand Defaults...................... 4-9

Presentation Modes .............................................. 4-9

Manual Activation Mode...................................... 4-10

End Manual Activation After Good Read............. 4-10

Manual Activation Laser Timeout

- Button Settings ............................................ 4-11

®

CodeGate

.......................................................... 4-12

Object Detection Mode........................................ 4-12

End Object Detection After Good Read .............. 4-13

Object Detection Laser Timeout.......................... 4-13

Object Detection Distance................................... 4-14

Character Activation Mode........................................ 4-14

Activation Character............................................ 4-14

End Character Activation After Good Read......... 4-15

Character Activation Laser Timeout.................... 4-15

Character Deactivation Mode.................................... 4-16

Deactivation Character........................................ 4-16

Reread Delay ............................................................ 4-17

User-Specified Reread Delay.................................... 4-17

Output Sequence Overview ...................................... 4-17

Require Output Sequence................................... 4-17

Output Sequence Editor...................................... 4-18

To Add an Output Sequence............................... 4-18

Other Programming Selections ........................... 4-18

Output Sequence Editor...................................... 4-20

Sequence Timeout .............................................. 4-20

Sequence Match Beeper..................................... 4-21

v

Partial Sequence .................................................4-21

Require Output Sequence ...................................4-21

No Read.....................................................................4-22

Chapter 5 - Data Editing

Prefix/Suffix Overview..................................................5-1

To Add a Prefix or Suffix:....................................... 5-1

To Clear One or All Prefixes or Suffixes ................ 5-2

ToAddaCarriageReturn Suffix

to All Symbologies............................................5-3

Prefix Selections..........................................................5-3

Suffix Selections ..........................................................5-4

Transmit Alternate Extended ASCII Characters ..........5-4

Function Code Transmit ..............................................5-6

Communication Check Character................................5-6

Intercharacter, Interfunction,

and Intermessage Delays..........................................5-7

Intercharacter Delay ..............................................5-7

User Specified Intercharacter Delay ......................5-7

Interfunction Delay.................................................5-8

Intermessage Delay............................................... 5-9

Chapter 6 - Data Formatting

Data Format Editor Introduction...................................6-1

To Add a Data Format .................................................6-1

Other Programming Selections.............................. 6-3

Terminal ID Table ........................................................6-4

Data Format Editor Commands...................................6-4

Move Commands................................................... 6-5

Search Commands ................................................6-6

Miscellaneous Commands..................................... 6-7

Data Formatter.............................................................6-8

Data Format Non-Match Error Tone ......................6-9

Primary/Alternate Data Formats ................................6-10

Single Scan Data Format Change .......................6-10

vi

Chapter 7 - Symbologies

All Symbologies........................................................... 7-1

Message Length Description....................................... 7-2

Codabar ...................................................................... 7-3

Codabar Concatenation ........................................ 7-4

Code 39....................................................................... 7-7

Code 32 Pharmaceutical (PARAF)........................ 7-9

Full ASCII .............................................................. 7-9

Interleaved 2 of 5 ...................................................... 7-11

NEC 2 of 5................................................................. 7-13

Code 93..................................................................... 7-15

Straight 2 of 5 Industrial (three-bar start/stop) .......... 7-16

Straight 2 of 5 IATA (two-bar start/stop).................... 7-18

Matrix 2 of 5 .............................................................. 7-19

Code 11..................................................................... 7-21

Code 128................................................................... 7-24

ISBT 128 ................................................................... 7-25

GS1-128.................................................................... 7-31

Telepen ..................................................................... 7-33

UPC-A ....................................................................... 7-35

UPC-A/EAN-13 with Extended Coupon Code........... 7-38

UPC-A Number System 4 Addenda Required .... 7-38

UPC-A Number System 5 Addenda Required .... 7-39

UPC-E0 ..................................................................... 7-41

EAN/JAN-13.............................................................. 7-45

EAN-13 Beginning with 2 Addenda Required ..... 7-46

EAN-13 Beginning with 290

Addenda Required......................................... 7-47

EAN-13 Beginning with 378/379

Addenda Required......................................... 7-47

EAN-13 Beginning with 414/419

Addenda Required......................................... 7-48

EAN-13 Beginning with 434/439

Addenda Required......................................... 7-49

EAN-13 Beginning with 977

Addenda Required......................................... 7-50

vii

EAN-13 Beginning with 978

Addenda Required .........................................7-50

EAN-13 Beginning with 979

Addenda Required .........................................7-51

ISBN Translate ....................................................7-53

ISSN Translate ....................................................7-54

EAN/JAN-8 ................................................................7-55

MSI ............................................................................7-58

Plessey Code.............................................................7-60

GS1 DataBar Omnidirectional ...................................7-62

GS1 DataBar Limited.................................................7-63

GS1 DataBar Expanded ............................................7-64

Trioptic Code .............................................................7-65

GS1 Emulation...........................................................7-65

Postal Codes .............................................................7-66

China Post (Hong Kong 2 of 5)............................ 7-66

Chapter 8 - Interface Keys

Keyboard Function Relationships................................8-1

Supported Interface Keys ............................................8-2

Chapter 9 - Utilities

To Add a Test Code I.D. Prefix to All Symbologies .....9-1

Show Software Revision..............................................9-1

Show Data Format.......................................................9-1

Test Menu....................................................................9-2

EZConfig-Scanning Introduction..................................9-2

Installing EZConfig-Scanning from the Web.......... 9-3

Chapter 10 - Serial Programming Commands

Conventions...............................................................10-1

Menu Command Syntax ............................................10-1

Query Commands......................................................10-2

Responses........................................................... 10-3

Serial Trigger Commands..........................................10-4

viii

Read Time-Out.................................................... 10-4

Resetting the Standard Product Defaults.................. 10-4

Menu Commands...................................................... 10-6

Chapter 11 - Product Specifications

Voyager 1200g Product Specifications ..................... 11-1

Voyager 1202g Product Specifications ..................... 11-3

CCB00-010BT Product Specifications ...................... 11-4

CCB00-010BT Mounting ........................................... 11-6

Standard Cable Pinouts ............................................ 11-7

Keyboard Wedge................................................. 11-7

Serial Output ...................................................... 11-8

RS485 Output ..................................................... 11-9

USB................................................................... 11-10

Chapter 12 - Maintenance

Repairs...................................................................... 12-1

Maintenance.............................................................. 12-1

Cleaning the Device ............................................ 12-1

Inspecting Cords and Connectors....................... 12-1

Replacing Cables in Corded Scanners ..................... 12-1

Replacing an Interface Cable

in a Corded Scanner...................................... 12-2

Replacing Cables in Cordless Systems .................... 12-2

Replacing an Interface Cable in a Base.............. 12-2

Troubleshooting a Voyager Scanner......................... 12-3

Troubleshooting a Cordless System ......................... 12-4

Troubleshooting a Base ...................................... 12-4

Troubleshooting a Cordless Scanner.................. 12-5

Chapter 13 - Customer Support

Technical Assistance ................................................ 13-1

Appendix A - Reference Charts

Symbology Chart.........................................................A-1

ix

ASCII Conversion Chart (Code Page 1252)............... A-4

Code Page Mapping of Printed Barcodes .................. A-6

x

1

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the
Voyager 1200g/1202g linear scanner. Product specifications, dimensions, war­ranty, and customer support information are also included.

Honeywell bar code scanners are factory programmed for the most common
terminal and communications settings. If you need to change these settings,
programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking Your Device

After you open the shipping carton containing the product, take the following
steps:

• Check for damage during shipment. Report damage immediately to the
carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

1 - 1

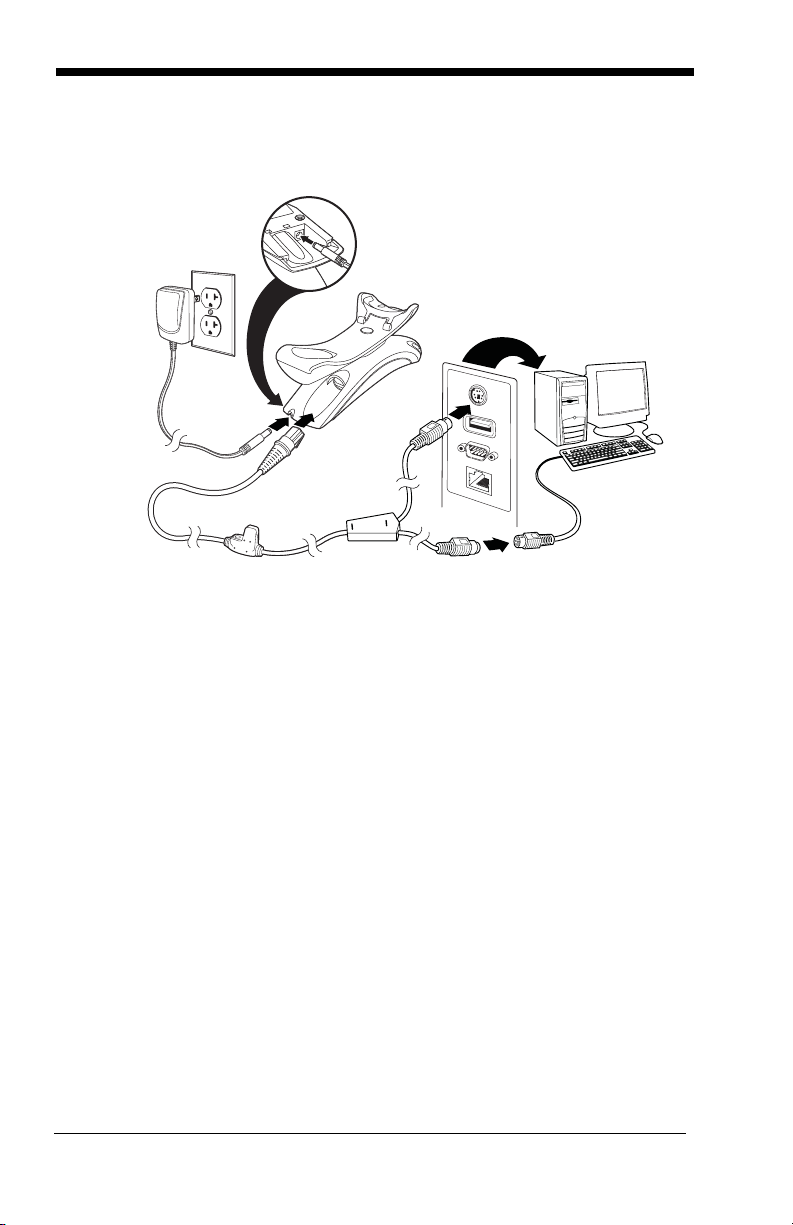

Connecting the Device

Charge and
Communications
Base USB
Connection:

Connecting with USB

A scanner or a base can be connected to the USB port of a computer.

1. Connect the appropriate interface cable to the scanner first, then to
the computer.

2. Make sure the cables are secured in the wireways in the bottom of the
base and that the base sits flat on a horizontal surface.

3. The scanner beeps.

1 - 2

4. Verify the scanner or base operation by scanning a bar code from the

only if
power
supply is
included

Sample Symbols in the back of this manual.

The unit defaults to a USB PC Keyboard. Refer to page 2-5 for other USB
terminal settings.

For additional USB programming and technical information, refer to “USB
Application Note,” available at www.honeywellaidc.com.

Connecting with Keyboard Wedge

A scanner or base can be connected between the keyboard and PC as a
“keyboard wedge,” where the scanner provides data output that is similar to
keyboard entries. The following is an example of a keyboard wedge con­nection:

1. Turn off power and disconnect the keyboard cable from the back of the
terminal/computer.

Connect the appropriate interface cable to the scanner and to the terminal/computer.

1 - 3

2. Make sure the cables are secured in the wireways in the bottom of the

Charge and
Communications Base
Keyboard Wedge
Connection:

base and that the base sits flat on a horizontal surface.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner or base operation by scanning a bar code from the

Sample Symbols in the back of this manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge inter­face with a USA keyboard. A carriage return (CR) suffix is added to bar
code data.

1 - 4

Connecting with RS232 Serial Port

only if
power
supply is
included

Charge and
Communications
Base RS232
Serial Port
Connection:

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the scanner.

Note: For the scanner or base to work properly, you must have the correct

cable for your type of terminal/computer.

1 - 5

3. Make sure the cables are secured in the wireways in the bottom of the

Charge and
Communications
Base RS485
Connection:

base and that the base sits flat on a horizontal surface.

4. Plug the serial connector into the serial port on your computer.
Tighten the two screws to secure the connector to the port.

5. Once the scanner or base has been fully connected, power up the
computer.

This interface programs 9600 baud, 8 data bits, no parity, and 1 stop bit.

Connecting with RS485

A scanner or base can be connected for an IBM POS terminal interface.

1. Connect the appropriate interface cable to the device, then to the com­puter.

1 - 6

2. Make sure the cables are secured in the wireways in the bottom of the

Good Read Bad Read

base and that the base sits flat on a horizontal surface.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner or base operation by scanning a bar code from the

Sample Symbols in the back of this manual. The scanner beeps once.

For further RS485 settings, refer to RS485, page 2-2.

Reading Techniques

The scanner has a view finder that projects a bright red aiming beam that corre­sponds to the scanner’s horizontal field of view. The aiming beam should be
centered horizontally over the bar code and must highlight all the vertical bars of
the bar code. It will not read if the aiming beam is in any other direction.

The aiming beam is smaller when the scanner is closer to the code and larger
when it is farther from the code. Symbologies with smaller bars or elements (mil
size) should be read closer to the unit. Symbologies with larger bars or ele­ments (mil size) should be read farther from the unit. To read single or multiple
symbols (on a page or on an object), hold the scanner at an appropriate dis­tance from the target, press the button, and center the aiming beam on the sym­bol. If the code being scanned is highly reflective (e.g., laminated), it may be
necessary to tilt the code up 15° to 18° to prevent unwanted reflection.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by send­ing serial commands to the scanner. If you want to restrict the ability to scan
menu codes, you can use the Menu Bar Code Security settings. Please contact
the nearest technical support office (see Limited Warranty on page 13-2) for fur­ther information.

1 - 7

Setting Custom Defaults

Save Custom Defaults

Set Custom Defaults

You have the ability to create a set of menu commands as your own, custom
defaults. To do so, scan the Set Custom Defaults bar code below before each
menu command or sequence you want saved. If your command requires scan­ning numeric codes from the back cover, then a Save code, that entire
sequence will be saved to your custom defaults. Scan the Set Custom
Defaults code again before the next command you want saved to your custom
defaults.

When you have entered all the commands you want to save for your custom
defaults, scan the Save Custom Defaults bar code.

Note: If using a cordless system, scanning the Save Defaults bar code also

causes both the scanner and the base
unlinked. The scanner must be placed in its base to re-establish the link
before any setup codes are entered. See Cordless System

Operation beginning on page 3-1 for additional information.

You may have a series of custom settings and want to correct a single setting.
To do so, just scan the new setting to overwrite the old one. For example, if you
had previously saved the setting for Beeper Volume at Low to your custom
defaults, and decide you want the beeper volume set to High, just scan the Set
Custom Defaults bar code, then scan the Beeper Volume High menu code,
and then Save Custom Defaults. The rest of the custom defaults will remain,
but the beeper volume setting will be updated.

to perform a reset and become

1 - 8

Resetting the Custom Defaults

Activate Custom Defaults

!

Remove Custom Defaults

Activate Defaults

If you want the custom default settings restored to your scanner, scan the Acti­vate Custom Defaults bar code below. This resets the scanner to the custom

default settings. If there are no custom defaults, it will reset the scanner to the
factory default settings. Any settings that have not been specified through the
custom defaults will be defaulted to the factory default settings.

Note: If using a cordless system, scanning this bar code also causes both the

scanner and the base
scanner must be placed in its base to re-establish the link before any
setup codes are entered. See Cordless System Operation beginning on
page 3-1 for additional information.

to perform a reset and become unlinked. The

Resetting the Factory Defaults

This selection erases all your settings and resets the scanner to the
original factory defaults.

If you aren’t sure what programming options are in your scanner, or you’ve
changed some options and want to restore the scanner to factory default set­tings, first scan the Remove Custom Defaults bar code, then scan Activate
Defaults. This resets the scanner to the factory default settings.

Note: If using a cordless system, scanning the Activate Defaults bar code also

causes both the scanner and the base
unlinked. The scanner must be placed in its base to re-establish the link
before any setup codes are entered. See Cordless System

Operation beginning on page 3-1 for additional information.

The Serial Programming Commands, beginning on page 10-1 list the factory
default settings for each of the commands (indicated by an asterisk (*) on the
programming pages).

to perform a reset and become

1 - 9

1 - 10

2

IBM PC AT and Compatibles with CR Suffix

IBM PS2 with CR Suffix

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used
interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles
keyboard wedge interface with a USA keyboard, scan the bar code below.
Keyboard wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

IBM PS2 Keyboard

The following bar code programs you scanner for an IBM PS2 keyboard
wedge interface with a USA keyboard.

Note: The following bar code also programs a carriage return (CR) suffix.

RS232 Serial Port

The RS232 Interface bar code is used when connecting to the serial port
of a PC or terminal. The following RS232 Interface bar code also pro­grams a carriage return (CR) and a line feed (LF) suffix, baud rate, and

data format as indicated below.

Option Setting

Baud Rate 115,200 bps
Data Format 8 data bits, no parity bit, 1 stop bit

2 - 1

RS485

RS232 Interface

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

Scan one of the following “Plug and Play” codes to program the scanner for
an IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash

register.

Each bar code above also programs the following suffixes for each symbol­ogy:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 * 00 0A 0B
UPC E 0A Code 128 ** 00 18 0B

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B

HHBCR-1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

2 - 2

OPOS Mode

OPOS Mode

The following bar code configures your scanner for OPOS (OLE for Retail
Point of Sale) by modifying the following OPOS-related settings:

Option Setting

Interface RS232
Baud Rate 38400
RS232
Handshaking

Data Bits, Stop
Bits, and Parity

Prefix/Suffix

Intercharacter
Delay

Symbologies Enable UPC-A with check digit and number system

Flow Control, No Timeout
XON/XOFF Off
ACK/NAK Off
8 Data, 1 Stop, Parity None

Clear All Prefixes and Suffixes
Add Code ID and AIM ID Prefix
Add CR Suffix
Off

Enable UPC-E0 with check digit
Enable EAN/JAN-8 with check digit
Enable EAN/JAN-13 with check digit
Enable Code 128
Enable Code 39
Enable OPOS with automatic disable off

2 - 3

USB IBM SurePos

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

*Enable Secondary Interface

Disable Secondary Interface

Scan one of the following “Plug and Play” codes to program the scanner for
an IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop
scanner) interface.

Note: After scanning one of these codes, you must power cycle the cash

register.

Each bar code above also programs the following suffixes for each symbol­ogy:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 00 18 0B
UPC E 0A Code 39 00 0A 0B

IBM Secondary Interface

On some older IBM cash registers, it may be necessary to disable the sec­ondary or management interface. In particular, it has been found neces­sary on IBM registers using the 4690 V2R4 operating system. The
following bar codes are used for this purpose.

Interface.

Default = Enable Secondary

2 - 4

USB PC or Macintosh Keyboard

U

S

B

K

e

y

b

o

a

r

d

(

P

C

)

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

USB HID Bar Code Scanner

Scan one of the following codes to program the scanner for USB PC Key­board or USB Macintosh Keyboard. Scanning these codes also adds a CR
and LF.

USB HID

Scan the following code to program the scanner for USB HID bar code
scanners.

HID Fallback Mode

If you attempt to set a USB interface for your scanner, but the setup fails on
the host system, you can program the scanner to fall back to a HID key­board interface after a set length of time. For example, if the scanner is
configured for Serial Emulation Mode, but the host system does not have
the correct driver, the scanner would fail. If you set the HID Fallback Mode
for a set length of time, for example, 5 minutes, the scanner would change
to a HID keyboard interface after 5 minutes of trying to configure as serial
emulation.

A unique beep sequence indicates that this mode has been entered. While
in HID Fallback Mode, the scanner will not scan normal bar codes and
sounds a unique beep sequence that indicates the scanner is in Fallback
Mode. Menu codes can still be scanned while in HID Fallback Mode, allow­ing you to change the scanner’s programming.

2 - 5

Scan the bar code below, then set the length for the HID Fallback (from 0-

HID Fallback Mode

USB Serial Emulation for

Windows XP, Windows Server

2003, and later

USB Serial Emulation for Windows 2000

CTS/RTS Emulation On

* CTS/RTS Emulation Off

60 minutes) by scanning digits from the Programming Chart, then scanning

Save.

Default = 5 minutes.

USB Serial Commands

USB Serial Emulation

Scan one of the following codes to program the scanner to emulate a regu­lar RS232-based COM Port. If you are using a Microsoft® Windows® PC,
you will need to download a driver from the Honeywell website

(www.honeywellaidc.com). The driver will use the next available COM Port

number. Apple® Macintosh computers recognize the scanner as a USB
CDC class device and automatically uses a class driver.

Scanning either of these codes also adds a CR and LF.

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

2 - 6

ACK/NAK Mode

ACK/NAK Mode On

* ACK/NAK Mode Off

Communication Timeout

Timeout Retries

Communication Timeout

This allows you to set the length (in milliseconds) for a timeout for the host
ACK/NAK response. Scan the bar code below, then set the timeout (from
0-65535 milliseconds) by scanning digits from the Programming Chart,
then scanning Save.

Timeout Retries

This setting limits the number of Communication Timeout retries. If the
Timeout Retries is set to 0, the transmission is terminated after the ini­tial Communication Timeout. Scan the bar code below, then set the
number of retries (from 0-255) by scanning digits from the

Programming Chart, then scanning Save. (5 is the recommended set-

Default = 0.

ting.)

Default = 2000 ms.

2 - 7

Communication Timeout Beeper

O

f

f

* On

NAK Retries

BEL/CAN On

* BEL/CAN Off

This selection programs the scanner to issue an error beep when a
communication timeout has occurred. The error beep sound is pro­grammed using Number of Beeps – Error (page 4-4).

Default = On.

NAK Retries

This selection limits the number of NAK retries that can occur in ACK/NAK
mode. Scan the bar code below, then set the number of retries (from 0-

255) by scanning digits from the Programming Chart, then scanning Save.
(5 is the recommended setting.)

Default = 0, or disabled.

Support BEL/CAN in ACK/NAK

This protocol responds to <BEL> and <CAN> commands when in ACK/
NAK mode. The scanner sounds an error tone when a <BEL> command is
sent from the host. <CAN> terminates the transmission.

CAN Off

.

Default = BEL/

2 - 8

Verifone® Ruby Terminal Default Settings

Verifone Ruby Settings

Gilbarco Settings

Scan the following Plug and Play code to program the scanner for a Verifone
Ruby terminal. This bar code sets the baud rate to 1200 bps and the data for­mat to 8 data bits, Mark parity, 1 stop bit and RTS/CTS no timeout. It also adds
a line feed (LF) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A
UPC-E A
EAN-8 FF
EAN-13 F

Note: If you are having unexpected results with this programming code, scan

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

Gilbarco® Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Gilbarco
terminal. This bar code sets the baud rate to 2400 bps and the data format to 7
data bits, even parity, 2 stop bits. It also adds a carriage return (CR) suffix and
programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A
UPC-E E0
EAN-8 FF
EAN-13 F

Note: If you are having unexpected results with this programming code, scan

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

2 - 9

Honeywell Bioptic Aux Port Configuration

Honeywell Bioptic Settings

Datalogic Magellan Bioptic Settings

Scan the following Plug and Play code to program the scanner for a Honeywell
bioptic scanner auxiliary port configuration. This bar code sets the baud rate to
38400 bps and the data format to 8 data bits, no parity, 1 stop bit. Character
RTS/CTS with timeout and 232 ACK/NAK are also enabled.

Note: If you are having unexpected results with this programming code, scan

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

Datalogic™ Magellan©Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Datalogic
Magellan bioptic scanner auxiliary port configuration. This bar code sets the
baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

Note: If you are having unexpected results with this programming code, scan

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

NCR Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for an NCR biop­tic scanner auxiliary port configuration. This bar code sets the baud rate to
9600 bps and the data format to 7 data bits, Even parity, 1 stop bit and Message
RTS/CTS with timeout. The following prefixes are programmed for each sym­bology:

Symbology Prefix Symbology Prefix

UPC-A A Code 39 B1
UPC-E E0 Interleaved 2 of 5 B2
EAN-8 FF All other bar

codes

EAN-13 F

2 - 10

B3

Note: If you are having unexpected results with this programming code, scan

NCR Bioptic Settings

Wincor Nixdorf Terminal Settings

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

Wincor Nixdorf Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nix­dorf terminal. This bar code sets the baud rate to 9600 bps and the data format
to 8 data bits, no parity, 1 stop bit.

Note: If you are having unexpected results with this programming code, scan

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

2 - 11

Wincor Nixdorf Beetle™

Wincor Nixdorf Beetle Settings

Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nix­dorf Beetle terminal. The following prefixes are programmed for each symbol­ogy:

Symbology Prefix Symbology Prefix

Code 128 K EAN-13 A
Code 93 L GS1-128 P
Codabar N Interleaved 2 of 5 I
UPC-A A0 Plessey O
UPC-E C Straight 2 of 5 IATA H
EAN-8 B All other bar codes M

Note: If you are having unexpected results with this programming code, scan

the Activate Defaults bar code on page 1-9 first, then scan the
programming code above.

2 - 12

Keyboard Country Layout

* United States

Belgium

Finland

Germany

France

IBM Financial

Hungary

Arabic

Chinese

Italy

Japan ASCII

Korea

Scan the appropriate country code below to program the keyboard layout for
your country or language. As a general rule, the following characters are sup­ported, but need special care for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~

2 - 13

Keyboard Country (continued)

United Kingdom

Turkey Q

Switzerland (German)

Russia

Slovenia

Spain

Thailand

Vietnam

Keyboard Wedge Modifiers

ALT Mode

If your bar code contains special characters from the extended ASCII chart
for example, an e with an accent grave (è), you will use ALT Mode. (See

Extended ASCII Characters on page A-5.)

Note: Scan the ALT mode bar code after scanning the appropriate

Keyboard Country code.

2 - 14

If your keystrokes require using the ALT key and 3 characters, scan the 3

* Off

3 Characters

4 Characters

* Regular

Caps Lock

Shift Lock

Characters bar code. If your keystrokes require the ALT key and 4 charac-

ters, scan the 4 Characters bar code. The data is then output with the spe­cial character(s).

Default = Off.

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you
have used Keyboard Conversion settings, they will override any of the fol­lowing Keyboard Style settings.

Regular is used when you normally have the Caps Lock key off.

Default = Regular.

Caps Lock

Shift Lock

mon to U.S. keyboards).

is used when you normally have the Caps Lock key on.

is used when you normally have the Shift Lock key on (not com-

2 - 15

Autocaps via NumLock bar code should be scanned in countries (e.g.,

Autocaps via NumLock

Emulate External Keyboard

* Keyboard Conversion Off

Convert All Characters to Upper

Case

Convert All Characters to Lower

Case

Germany, France) where the Caps Lock key cannot be used to toggle Caps
Lock. The NumLock option works similarly to the regular Autocaps, but
uses the NumLock key to retrieve the current state of the Caps Lock.

Emulate External Keyboard should be scanned if you do not have an
external keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must

power cycle your computer.

Keyboard Conversion

Alphabetic keyboard characters can be forced to be all upper case or all
lowercase. So if you have the following bar code: “abc569GK,” you can
make the output “ABC569GK” by scanning Convert All Characters to

Upper Case, or to “abc569gk” by scanning Convert All Characters to
Lower Case. These settings override Keyboard Style selections.

Default = Keyboard Conversion Off

.

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes and
Turbo Mode.

2 - 16

Control + ASCII Mode On: The scanner sends key combinations for ASCII

Windows Mode Control + ASCII

Mode On

* Control + ASCII Mode Off

DOS Mode Control + ASCII Mode

On

Windows Mode Prefix/Suffix Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

control characters for values 00-1F (refer to the ASCII chart for Non-

Printable Characters, page A-4). Windows is the preferred mode. All key-

board country codes are supported. DOS mode is a legacy mode, and it
does not support all keyboard country codes. New users should use the
Windows mode.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations
for ASCII control characters for values 00-1F (refer to the ASCII chart for

Non-Printable Characters, page A-4), but it does not transmit any prefix or

suffix information.

Default = Control + ASCII Mode Off.

Numeric Keypad Mode: Sends numeric characters as if entered from a
numeric keypad.

Inter-Scan Code Delay

When your keyboard detects that any key is being pressed, released, or
held down, the keyboard sends a packet of information known as a “scan
code” to your computer. This selection allows you to adjust the delay

Default = Off.

2 - 17

between scan codes. Set the length (in milliseconds) for a delay by scan-

Inter-Scan Code Delay

Suppress

* Transmit

Keyboard Wedge Defaults

ning the bar code below, then setting the delay (from 1-30) by scanning dig­its from the Programming Chart, then scanning Save.

Default = 0 (800 µs)

<F0> Break Character

When your keyboard detects that any key is being pressed, released, or
held down, the keyboard sends a packet of information known as a “scan
code” to your computer. There are two different types of scan codes:
“make codes” and “break codes.” A make code is sent when a key is
pressed or held down. A break code is sent when a key is released. The
following selections allow you to suppress or transmit the character
sequence of the break code.

Default = Transmit.

Keyboard Wedge Defaults

If you want the custom keyboard wedge default settings restored to your
scanner, scan the Keyboard Wedge Defaults bar code below. This resets
the scanner to the custom default settings (see Setting Custom Defaults on
page 1-8). If there are no custom defaults, it will reset the scanner to the
factory default settings. Any settings that have not been specified through
the custom defaults will be defaulted to the factory default settings.

.

2 - 18

RS232 Modifiers

300

2400

600

1200

4800

38400

* 9600

19200

115,200

57,600

RS232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified
rate. The host terminal must be set for the same baud rate as the scanner.

Default = 9600.

2 - 19

RS232 Word Length: Data Bits, Stop Bits, and Parity

7 Data, 1 Stop, Parity Even

7 Data, 1 Stop, Parity None

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop Parity None

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Even

7 Data, 2 Stop, Parity Odd

8 Data, 1 Stop, Parity Odd

7 Data, 1 Stop, Parity Space

Data Bits sets the word length at 7 or 8 bits of data per character. If an

application requires only ASCII Hex characters 0 through 7F decimal (text,
digits, and punctuation), select 7 data bits. For applications that require
use of the full ASCII set, select 8 data bits per character.

Stop Bits sets the stop bits at 1 or 2.

Default = 1.

Parity provides a means of checking character bit patterns for validity.

Default = None.

Default = 8.

2 - 20

RS232 Handshaking

7 Data, 2 Stop, Parity Space

8 Data, 1 Stop, Parity Space

7 Data, 1 Stop, Parity Mark

7 Data, 2 Stop, Parity Mark

8 Data, 1 Stop Parity Mark

RS232 Handshaking allows control of data transmission from the scanner
using software commands from the host device.

RTS/CTS Off: RTS/CTS is turned off so no data flow control is used, but
RTS is still active.

RTS/CTS Off, RTS Inactive: RTS/CTS is turned off so no data flow con­trol is used and RTS is inactive.

Flow Control, No Timeout: The scanner asserts RTS when it has data to
send, and will wait indefinitely for CTS to be asserted by the host.

Character-Based Flow Control, No Timeout: The scanner asserts RTS
when it has a character to send, and will wait indefinitely for CTS to be
asserted by the host

Two-Direction Flow Control: The scanner asserts RTS when it is OK for
the host to transmit. The host asserts CTS when it is OK for the device to
transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data
to send and waits for a delay (see RS232 Timeout on page 2-22) for CTS to
be asserted by the host. If the delay time expires and CTS is not asserted,
the device transmit buffer is cleared and scanning may resume.

2 - 21

Character-Based Flow Control with Timeout: The scanner asserts RTS

Flow Control, No Timeout

* RTS/CTS Off

Two-Direction Flow Control

Flow Control with Timeout

Character-Based Flow Control

with Timeout

Character-Based Flow Control,

No Timeout

* RTS/CTS Off, RTS Inactive

RS232 Timeout

when it has a character to send and waits for a delay (see RS232 Timeout
on page 2-22) for CTS to be asserted by the host. If the delay time expires
and CTS is not asserted, the device transmit buffer is cleared and scanning
may resume.

Default =RTS/CTS Off (Voyager 1200)
RTS/CTS Off, RTS Inactive (Voyager 1202).

RS232 Timeout

When using Flow Control with Timeout, you must program the length of the
delay you want to wait for CTS from the host. Set the length (in millisec­onds) for a timeout by scanning the bar code below, then setting the time­out (from 1-5100 milliseconds) by scanning digits from the Programming

Chart, then scanning Save.

Default = 1000 ms (1 second).

2 - 22

XON/XOFF

* XON/XOFF Off

XON/XOFF On

ACK/NAK On

* ACK/NAK Off

Communication Timeout

Standard ASCII control characters can be used to tell the scanner to start
sending data (XON/XOFF On) or to stop sending data (XON/XOFF Off).
When the host sends the XOFF character (DC3, hex 13) to the scanner,
data transmission stops. To resume transmission, the host sends the XON
character (DC1, hex 11). Data transmission continues where it left off
when XOFF was sent.

Default = XON/XOFF Off

.

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or
a NAK character (hex 15) response from the host. If ACK is received, the
communications cycle is completed and the scanner looks for more bar
codes. If NAK is received, the last set of bar code data is retransmitted and
the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by
scanning the ACK/NAK On bar code below. To turn off the protocol, scan
ACK/NAK Off.

Default = ACK/NAK Off

.

Communication Timeout

This allows you to set the length (in milliseconds) for a timeout for the host
ACK/NAK response. Scan the bar code below, then set the timeout (from
1-65535 milliseconds) by scanning digits from the Programming Chart,
then scanning Save.

Default = 2000 ms.

2 - 23

Timeout Retries

Timeout Retries

O

f

f

* On

NAK Retries

This setting limits the number of Communication Timeout retries. If
the Timeout Retries is set to 0, the transmission is terminated after the
initial Communication Timeout. Scan the bar code below, then set the
number of retries (from 0-255) by scanning digits from the

Programming Chart, then scanning Save. (5 is the recommended set-

Default = 0.

ting.)

Communication Timeout Beeper

This selection programs the scanner to issue an error beep when a
communication timeout has occurred. The error beep sound is pro­grammed using Number of Beeps – Error (page 4-4).

Default = On.

NAK Retries

This selection limits the number of NAK retries that can occur in ACK/NAK
mode. Scan the bar code below, then set the number of retries (from 0-

255) by scanning digits from the Programming Chart, then scanning Save.
(5 is the recommended setting.)

Default = 0, or disabled.

2 - 24

Support BEL/CAN in ACK/NAK

BEL/CAN On

* BEL/CAN Off

RS232 Defaults

* NCR ACK/NAK Off

NCR ACK/NAK On

This protocol responds to <BEL> and <CAN> commands when in ACK/
NAK mode. The scanner sounds an error tone when a <BEL> command is
sent from the host. <CAN> terminates the transmission.

CAN Off

.

Default = BEL/

RS232 Defaults

If you want the custom RS232 default settings restored to your scanner,
scan the RS232 Defaults bar code below. This resets the scanner to the
custom default settings (see Setting Custom Defaults on page 1-8). If
there are no custom defaults, it will reset the scanner to the factory default
settings. Any settings that have not been specified through the custom
defaults will be restored to the factory default settings.

NCR Modifiers

NCR ACK/NAK

This is an NCR communication protocol for ACK/NAK processing.

= NCR ACK/NAK Off

.

Default

2 - 25

Block Check Character

* Transmit

Don’t Transmit

NCR Prefix

NCR Suffix

When this selection is set to Transmit, the NCR Block Check Character
(BCC) is expected with incoming messages and transmitted with outgoing
messages.

Default = Transmit.

NCR Prefix

This selection allows you to program an NCR-specific prefix. Refer to the

ASCII Conversion Chart (Code Page 1252) on page A-4 to find the hex

equivalent for the characters you want for the NCR prefix (typically, 02 for
STX). Scan the bar code below, then set the hex number (from 0-FF) by
scanning digits from the Programming Chart, then scanning Save.

= 0.

Default

NCR Suffix

This selection allows you to program an NCR-specific suffix. Refer to the

ASCII Conversion Chart (Code Page 1252) on page A-4 to find the hex

equivalent for the characters you want for the NCR suffix (typically, 03 for
ETX). Scan the bar code below, then set the hex number (from 0-FF) by
scanning digits from the Programming Chart, then scanning Save.

= 0.

Default

2 - 26

NCR Prefix/Suffix

Transmit

* Don’t Transmit

On

* Off

When set to Transmit, both the NCR prefix and suffix are transmitted with
bar codes. Usually, prefixes and suffixes are programmed using the Data
Editing selections (see Data Editing beginning on page 5-1), however, the
following commands override any other prefix/suffix settings.

Don’t Transmit.

Default =

NCR NOF (Not-on-File) Error

A scanner receives an NOF (Not on File) command from the POS when­ever it cannot cross-reference the bar code to a price parameter. When set
to On, the error tone sounds (set via Number of Beeps – Error, page 4-4)
for an NOF, and disables the scanner while the cashier looks up the price
manually. When set to Off, no sound is emitted for an NOF.

Default = Off.

Scanner to Bioptic Communication

The following settings are used to set up communication between Honeywell
scanners and bioptic scanners.

Note: The scanner’s baud rate must be set to 38400 and the RS232 Timeout

must be set to 3000 in order to communicate with a bioptic scanner. See

RS232 Modifiers on page 2-19, and RS232 Timeout on page 2-22 for

further information.

2 - 27

Scanner-Bioptic Packet Mode

* Packet Mode Off

Packet Mode On

ACK/NAK On

* ACK/NAK Off

Communication Timeout

Packet Mode On must be scanned to set the scanner’s format so it is com-

patible with a bioptic scanner.

Default = Packet Mode Off.

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or
a NAK character (hex 15) response from the host. If ACK is received, the
communications cycle is completed and the scanner looks for more bar
codes. If NAK is received, the last set of bar code data is retransmitted and
the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by
scanning the ACK/NAK On bar code below. To turn off the protocol, scan
ACK/NAK Off.

Default = ACK/NAK Off

.

Communication Timeout

This allows you to set the length (in milliseconds) for a timeout for the host
ACK/NAK response. Scan the bar code below, then set the timeout (from
1-65535 milliseconds) by scanning digits from the Programming Chart,
then scanning Save.

2 - 28

Default = 2000 ms.

3

Scanner

Charge Base

Base LEDs

Page Button

Cordless System Operation

Note: This chapter applies only to cordless scanning systems. It does not apply

to corded scanners.

How the Charge and Communications Base Works

A cordless charge and communications base provides the link between the
cordless scanner and the host system. The base contains an interface assem­bly and an RF communication module. The RF communication module per­forms the data exchange between the cordless scanner and the interface
assembly. The control assembly coordinates the central interface activities
including: transmitting/receiving commands and data to/from the host system,
performing software activities (parameter menuing, visual indicator support,
power-on diagnostics), and data translation required for the host system.

The cordless charge base is also a scanner’s battery charger. Refer to

Charging Information, page 3-4, for additional information.

Linking the Scanner to a Base

Turn off power before connecting a base, then power up the computer once the
base is fully connected. When the base is connected and powered up, put the
scanner in the base to establish a link. The red LED on the base lights to indi­cate power, and the green LED flashes to indicate the scanner’s battery is
charging.

If the scanner and base have previously been linked, you do not receive any
feedback. If this is the first time that the scanner and base are linked, both
devices emit a short chirp when their radios link. That indicates that the scan­ner is linked to the base.

3 - 1

To determine if your cordless system is set up correctly, scan one of the sample

1

)

G

o

o

d

R

e

a

d

2

)

A

C

K

f

r

o

m

b

a

s

e

3

)

B

a

s

e

s

e

n

d

s

d

a

t

a

t

o

h

o

s

t

bar codes in the back of this manual. If the scanner provides a single good read
beep and the green LED lights, the scanner has successfully linked to the base.
If you receive an error tone and the red LED lights, the scanner has not linked to
the base. Refer to page 12-5 for troubleshooting information.

Communication Between the Cordless System and the Host

The cordless scanner provides immediate feedback in the form of a “good read”
indication (a green LED on the scanner and an audible beep) after a bar code is
scanned correctly and the base has acknowledged receiving the data. This is
possible since the cordless system provides two-way communication between
the scanner and the base.

When data is scanned, the data is sent to the host system via the base. The
cordless scanner recognizes data acknowledgement (ACK) from the base. If it
cannot be determined that the data has been properly sent to the base, the
scanner issues an error indication. You must then check to see if the scanned
data was received by the host system.

RF (Radio Frequency) Module Operation

The cordless system uses a two-way Bluetooth® radio to transmit and receive
data between the scanner and the base. Designed for point-to-point and multi­point-to-single point applications, the radio operates using a license free ISM
band. This band sends relatively small data packets at a fast data rate over a
radio signal with randomly changing frequencies. This makes the cordless sys­tem highly responsive to a wide variety of data collection applications and resis-

3 - 2

tant to noisy RF environments. The Bluetooth Class 2 power level provides a
communication range of 33 feet (10m) between the scanner and base, depend­ing on the environment.

System Conditions

The components of the cordless system interact in specific ways as you associ­ate the scanner with its base, as you move a scanner out of range, or bring a
scanner back in range. The following information explains the cordless system
operating conditions.

Linking Process

Once a scanner is placed into a cordless charge base, the scanner’s bat­tery charge status is checked, and software automatically detects the scan­ner and links it to the base depending on the selected link mode.

Scanner Is Out of Range

The cordless scanner is in communication with its base, even when it is not
transmitting bar code data. Whenever the scanner can’t communicate with
the base for a few seconds, it is out of range. If the scanner is out of range
and you scan a bar code, the scanner issues an error tone indicating no
communication with the base. A cordless charge base can also sound an
alarm. Refer to Out-of-Range Alarm, page 3-12.

Scanner Is Moved Back Into Range

The scanner relinks if the scanner or the base have been reset, or the
scanner comes back into range. If the scanner relinks, you will hear a sin­gle chirp when the relinking process is complete. Refer to Out-of-Range

Alarm on page 3-12 for further information.

OutofRangeandBackintoRange with Batch Mode On

The scanner may store a number of symbols (approximately 500 U.P.C.
symbols; others may vary) when it is out of range and then send them to
the base when back in range (see Batch Mode on page 3-13).

You will not hear a communication error tone in this mode, but you will hear
a short buzz when you press the button if the radio communication is not
working. Once the radio connection is made, the scanner produces a
series of beeps while the data is being transferred to the base.

Page Button

When you press the Page button on the base, the scanner associated with
that base will begin beeping (3 short and 1 long beep). If you press the but­ton on a scanner that is beeping in response, or press the Page button on
the base a second time, the scanner will stop beeping. See Paging on
page 3-8 for further information about Page Button settings.

3 - 3

About the Battery

!

There is a danger of explosion if the batteries are incorrectly replaced.
Replace the batteries with only the same or equivalent type recom­mended by the manufacturer. Dispose of used batteries according to
the recycle program for batteries as directed by the governing agency
for the country where the batteries are to be discarded.

Power is supplied to the cordless scanner by a rechargeable battery that is inte­grated in the scanner handle. Batteries are shipped approximately 30% to 60%
charged. The battery should be charged for a minimum of 4 hours before initial
use to ensure optimal performance.

Voyager 1202g Battery Removal

Charging Information

The battery is designed to charge while the scanner is positioned in the
base unit. Refer to Base LED Sequences and Meaning, page 3-7, for an
interpretation of the Charge Status indicators. Refer to Charge Only Mode
(page 3-10) if you need to charge a scanner without linking it to the base.

3 - 4

The model Voyager 1202g is designed for use with Honeywell battery pack

!

model 100000495 (Li-ion 3.7Vdc, 7.4 watt hour).
Place the scanner in the base that is connected to an appropriate power

supply. Use only a Listed Limited Power Source (LPS) or Class 2 type
power supply with output rated 5 to 5.2Vdc, 1A.

Note: If you are powering the base through the interface cable (for

example, a USB cable) and not using an external power supply
plugged into the aux port, the current available for charging is
reduced and the charge time is increased.

Battery Recommendations

• The battery is a lithium ion cell and can be used without a full charge, and

can also be charged without fully discharging, without impacting the
battery life. There is no need to perform any charge/discharge
conditioning on this type of battery.

• Keep the base connected to power when the host is not in use.

• Replace a defective battery immediately since it could damage the

scanner.

• Although your battery can be recharged many times, it will eventually be

depleted. Replace it after the battery is unable to hold an adequate
charge.

• If you are not sure if the battery or charger is working properly, send it to

Honeywell International Inc. or an authorized service center for
inspection. Refer to Customer Support on page 13-1 for additional
information.

Caution:

The model CCB00-010BT base is designed for use with the
Honeywell model Voyager 1202g scanner. Use of any non­Honeywell battery may result in damage not covered by the
warranty.

Safety Precautions for Lithium Batteries

• Do not place batteries in fire or heat the batteries.

• Do not store batteries near fire or other high temperature locations.

• Do not store or carry batteries together with metal objects.

• Do not expose batteries to water or allow the batteries to get wet.

• Do not connect (short) the positive and negative terminals, of the
batteries, to each other with any metal object.

• Do not pierce, strike or step on batteries or subject batteries to strong
impacts or shocks.

• Do not disassemble or modify batteries.

3 - 5

Caution:

!

Danger of explosion if batteries are incorrectly replaced.
Dispose of used batteries according to the recycle program for
batteries as directed by the governing agency for the country
where the batteries are to be discarded.

Proper Disposal of the Battery

When the battery has reached the end of its useful life,
the battery should be disposed of by a qualified recycler
or hazardous materials handler. Do not incinerate the
battery or dispose of the battery with general waste
materials. You may send the scanner’s battery to us.
(postage paid). The shipper is responsible for complying
with all federal, state, and local laws and regulations

ping of spent batteries. Contact the Product Service Department (page 13-

1) for recycling or disposal information. Since you may find that your cost

of returning the batteries significant, it may be more cost effective to locate
a local recycle/disposal company.

related to the packing, labeling, manifesting, and ship-

Flash Updates

The scanner can be flashed either in the base or out of the base, however, it is
recommended that you flash the scanner while it is in the base. Flash updates
cannot be completed when the scanner is out of the base and the battery is low,
or when the scanner is out of range.

Beeper and LED Sequences and Meaning

The scanner contains LEDs on the top that indicate linking status, decoding
state, and battery condition. The base has LEDs on the front that indicate its
power up, communication, and battery charge condition. The unit’s audible indi­cators have meaning as well. The following table lists the indication and cause
of the LED illumination and beeps for the scanner and charge base.

Scanner LED Sequences and Meaning

Note: Pressing the button on the scanner causes the LED to glow red until

it communicates successfully with the base.

LED Indication Beeper Indication Cause

Normal Operation

Red Flash None Battery low
Green Flash 1 beep Successful

communication or linking

Red, blinking Razz or error tone Failed communication

Menu Operation

3 - 6

LED Indication Beeper Indication Cause

* Base Power Communication

Indicator On

Base Power Communication

Indicator Off

Green Flash 2 beeps Successful menu change
Red, blinking Razz or error tone Unsuccessful menu

change

Base LED Sequences and Meaning

The base contains a red LED that indicate the status of the unit and verifies
its communication with the host system. The base also has a green LED
that indicates the scanner battery charge condition.

Red LED - Host Communication

Red LED Communication Condition

Off Power off, USB suspend
On continuously Power on, system idle
Short blinks. Occurs while transferring

data to/from the RF module or the host
port.

Green LED - Scanner Battery

Green LED Charge Condition

Off Battery not detected or charge

Slow flash, 1 second on, 1 second off Pre-charge and charging
On continuously Charge complete
Fast flash, 300 mSec on, 300 mSec off Charge Error

Receiving data

suspended

Base Power Communication Indicator

To display the power indicator on the base, scan the Base Power Commu­nication Indicator On bar code. To turn off the power indicator, scan the
Off bar code.

Default = On

.

3 - 7

Reset Scanner

Reset Scanner

Scanning in Cradle Off

* Scanning in Cradle On

Scanning this bar code reboots the scanner and causes it to relink with the
base.

Scanning While in Base Cradle

If you want to be able to scan bar codes while the scanner is in the base, scan
the following Scanning in Cradle On bar code. If you want to only allow scan­ning when the scanner is out of the base, scan Scanning in Cradle Off.

Default = Scanning in Cradle On

Note: When Scanning in Cradle Off is selected, the scanner will not scan any

bar codes while it is in the base. It will only scan when removed from the
base.

.

Paging

Paging Mode

By default, the paging button on the base pages the scanner associated
with that base. If you want the paging button on your base to be disabled,
scan the following Paging Mode Off bar code. When Paging Mode is off,
the base will no longer page the scanner when the button is pressed. The

3 - 8

red LED on the base will remain lit to indicate that Paging Mode is off. (This

* Paging Mode On

Paging Mode Off

* Low (1000 Hz)

Medium (3250 Hz)

High (4200 Hz)

Scanner Address

light will go out when the button is pressed, then back on when it’s
released.)

Default = Paging Mode On.

Paging

When you press the Page button on the base, the scanner associated with
that base will begin beeping (see Page Button on page 3-3). You can set
the pitch of the paging beep for the scanner by scanning one of the follow­ing bar codes.

Pitch

Default = Low.

Error Indicators

Scanner Address

Scan the following bar code to determine the address of the scanner you are
using.

3 - 9

Base Address

Base Address

Charge Only Mode

* Charge and Link Mode

Scan the following bar code to determine the address of the base you are using.

Scanner Modes

The Voyager is capable of working with Bluetooth devices other than the
CCB00-010BT charge base.

Charge Only Mode

There may be times when you want to charge your scanner, but not link to
the base. For example, if a scanner is linked to a Bluetooth device and you
need to charge the scanner, but want to retain your existing link.

In order to program the base for Charge Only Mode, you must link a scan­ner to it. Once the scanner is linked to the base, scan the Charge Only
Mode bar code. Any subsequent scanners placed in that base will charge
without linking to it. The scanner used to program the base remains linked
to the base. To unlink this scanner, scan Unlink Scanner on page 3-11.

Note: When in Charge Only Mode, the scanner periodically wakes up and

beeps. See "Power Up Beeper" on page 4-1 to change this setting.

If you want to charge a scanner and link to the base, use Charge and Link
Mode. If the base is programmed for Charge Only Mode, you must link a
scanner to it first in order to program it for Charge and Link Mode. Scan
the linking bar code on the base to link the scanner, then scan Charge and
Link Mode.

Default = Charge and Link Mode.

3 - 10

Linked Modes

Locked Link Mode

(Single Scanner)

* Open Link Mode

(Single Scanner)

Unlink Scanner

Locked Link Mode and Open Link Mode are the link modes that accommo­date different applications. Scan the appropriate bar codes included in the
Open Link and Locked Link Mode explanations that follow to switch from
one mode to another.

Locked Link Mode - Single Scanner

If you link a scanner to a base using the Locked Link Mode, other
scanners are blocked from being linked if they are inadvertently placed
into the base. If you do place a different scanner into a base, it will
charge the scanner, but the scanner will not be linked.

To use a different scanner, you need to unlink the original scanner by
scanning the Unlink Scanner bar code. (See Scanner Modes, page 3-

10.)

Open Link Mode - Single Scanner

When newly shipped or defaulted to factory settings, a scanner is not
linked to a base. A link is established when the scanner is placed into
a base. When in Open Link Mode, a new link is established when a
new scanner is placed in the base. Each time a scanner is placed into
a base, the scanner becomes the linked to the base and the old scan­ner is unlinked.

Default = Open Link Mode

.

Unlinking the Scanner

If a base has a scanner linked to it, that scanner must be unlinked before a new
scanner can be linked. Once the previous scanner is unlinked, it will no longer
communicate with the base. To unlink the scanner from a base, scan the follow­ing Unlink Scanner bar code.

3 - 11

Override Locked Scanner

Override Locked Scanner

(Single Scanner)

Alarm Off

* Alarm On

Scanner Alarm Duration

If you need to replace a broken or lost scanner that is linked to a base, scan the
following Override Locked Scanner bar code with a new scanner and place
that scanner in the base. The locked link will be overridden, the broken or lost
scanner’s link with the base will be removed, and the new scanner will be linked.

Out-of-Range Alarm

If your scanner is out range of the base, an alarm sounds from the scanner.
The alarm stops when the scanner is moved closer to the base, when the base
connects to another scanner, or when the alarm duration expires.

Note: If you are out of range when you scan a bar code, you will receive an error

tone even if you do not have the alarm set. You receive the error tone
since the data could not be communicated to the base or the host.

Alarm Sound Type

Set the alarm type for the scanner by scanning the following appropriate
bar code. If the alarm is on, the scanner will emit 3 long, high pitched
beeps.

Default = Alarm On.

Alarm Duration

To set the the length of time you want the Out-of-Range alarm to sound,
scan the following bar code and then set the time-out duration (from 0-3000
seconds) by scanning digits on the Programming Chart inside the back
cover, then scanning Save.

3 - 12

Default = 1 sec.

Scanner Power Time-Out Timer

Timer Off

200 seconds

400 seconds

900 seconds

* 3600 seconds

7200 seconds

Note: Scanner Power Time-out Timer only applies to cordless systems. It does

not apply to corded scanners.

When there is no activity within a specified time period, the scanner enters low
power mode. Scan the appropriate scanner power time-out bar code to change
the time-out duration (in seconds).

If the scanner is not activated during the timer interval, the scanner goes into
power down mode. Whenever the scanner is activated, the timer is reset. If

Scanning While in Base Cradle (page 3-8) is disabled, the scanner will still go

into power down mode.

Default = 3600 seconds.

Note: When the scanner is in power down mode, press the scanner’s button to

power the unit back up. There will be a set of power up beeps and a delay
of up to a few seconds for the radio to join. The scanner will then be ready
to use.

Batch Mode

Batch mode is used to store bar code data when a scanner is out of range of its
base, or when performing inventory. The data is transmitted to the base once
the scanner is back in range or when the records are manually transmitted.

3 - 13

Automatic Batch Mode stores bar code data when the scanner is out of range

Automatic Batch Mode

* Batch Mode Off

Inventory Batch Mode

Batch Mode Beep On

* Batch Mode Beep Off

of the base. The data is automatically transmitted to the base once the scanner
is back in range. When the scanner’s buffer space is full, any bar codes
scanned generate an error tone. In order to scan bar codes again, the scanner
must be moved back into range of the base so data can be transmitted.

Inventory Batch Mode stores bar code data, whether or not you are in range of
the base. To transmit the stored data to the base, either place the scanner in
the base, or scan Transmit Inventory Records (page 3-19). When the scanner’s
buffer space is full, any bar codes scanned generate an error tone. In order to
scan bar codes again, the data must be transmitted to the base.

Default = Batch Mode Off.

Batch Mode Beep

When scanning in Batch Mode, the scanner beeps every time a bar code is
scanned. When Batch Mode Beep is On, you will also hear a click when
each bar code is sent to the host. If you do not want to hear these clicks,
scan Batch Mode Beep Off.

Default = Batch Mode Beep Off.

Batch Mode Quantity

When in Inventory Batch Mode (page 3-14), you may wish to transmit the
number of multiple bar codes scanned, rather than a single bar code multi­ple times. For example, if you scan three bar codes called XYZ with Batch
Mode Quantity Off, when you transmit your data it will appear as XYZ

3 - 14

three times. Using Batch Mode Quantity On and the Quantity Codes

Batch Mode Quantity On

* Batch Mode Quantity Off

(page 3-16), you could output your data as “00003, XYZ” instead.

Default =

Batch Mode Quantity Off.

Entering Quantities

Quantity Codes (page 3-16) allow you to enter a quantity for the last item
scanned, up to 9999 (default = 1). Quantity digits are shifted from right to
left, so if a 5th digit is scanned, the 1st digit scanned is discarded and the
2nd, 3rd and 4th digits are moved to the left to accommodate the new digit.

For example, if the Quantity 5 bar code is scanned after the quantity has
been set to 1234, then the 1 is dropped, the quantity will be 2345.

Example: Add a quantity of 5 for the last item scanned.

1. Scan the item's bar code.

2. Scan the quantity 5 bar code.

Example: Add a quantity of 1,500 for the last item scanned.

1. Scan the item's bar code.

2. Scan the quantity 1 bar code.

3. Scan the quantity 5 bar code.

4. Scan the quantity 0 bar code.

5. Scan the quantity 0 bar code.
Example: Change a quantity of 103 to 10.
To correct an incorrect quantity, scan the quantity 0 bar code to replace the

incorrect digits, then scan the correct quantity bar codes.

1. Scan the quantity 0 bar code to change the quantity to 1030.

2. Scan the quantity 0 bar code to change the quantity to 0300.

3. Scan the quantity 1 bar code to change the quantity to 3001.

4. Scan the quantity 0 bar code to change the quantity to 0010.

3 - 15

Quantity Codes

1

0

3

2

4

6

5

7

8

9

3 - 16

Delete Last Code

Delete Last Code

Record Counter On

* Record Counter Off

Total Records

If you want to delete the last bar code scanned when in Batch Mode, scan

Delete Last Code.

Record Counter

If you wish to add a record counter to each bar code scanned in Batch
Mode, scan Record Counter On. Your batch output would add a sequen-
tial number before each bar code, for example:

00001,bar code 1

00002,bar code 2

Default = Record Counter Off.

Total Records

If you wish to output the total number of bar codes scanned when in Batch
Mode, scan Total Records.

3 - 17

Batch Mode Output Order

Batch Mode LIFO

* Batch Mode FIFO

* Don’t Clear All Codes After

Transmission

Clear All Codes After

Transmission

Clear All Codes

When batch data is transmitted, select whether you want that data sent as
FIFO (first-in first-out), or LIFO (last-in first-out).

FIFO.

Default = Batch Mode

Clear All Codes After Transmission

If you want to clear the scanner’s buffer of all data accumulated in Batch
Mode

after

All Codes After Transmission. If you do not want the buffer cleared after
transmission, scan Don’t Clear All Codes After Transmission.

Don’t Clear All Codes After Transmission.

the data has been transmitted to the host system, scan Clear

Default =

Clear All Codes

If you want to clear the scanner’s buffer of all data accumulated in Batch
Mode, scan Clear All Codes.

3 - 18

Transmit Records Automatically

* Don’t Transmit Records

Automatically

Transmit Records Automatically

Transmit Inventory Records

If you are operating in Inventory Batch Mode (see Inventory Batch Mode on
page 3-14), you can transmit all stored data to the host system when the
scanner is placed in the base. If you don’t want the records transmitted
when the scanner is placed in the base, scan the Don’t Transmit Records
Automatically bar code.

Default = Don’t Transmit Records Automatically.

Transmit Records to Host

If you are operating in Inventory Batch Mode (see Inventory Batch Mode on
page 3-14), and your scanner is set to Don’t Transmit Records Automat-
ically, you must scan the following bar code to transmit all stored records to
the host system.

3 - 19

Batch Mode Transmit Delay

* Batch Mode Transmit Delay Off

(No Delay)

Batch Mode Transmit Delay Short

(250 ms)

Batch Mode Transmit Delay Medium

(500 ms)

Batch Mode Transmit Delay Long

(1000 ms)

Sometimes when accumulated scans are sent to the host system, the
transmission of those scans is too fast for the application to process. To
program a transmit delay between accumulated scans, scan one of the fol­lowing delays.

Note: In most cases, a short (250 ms (milliseconds)) delay is ideal,

however, longer delays may be programmed. Contact Technical
Support (page 13-2) for additional information.

Default = Off.

Scanner Name

You may assign a name to each scanner you are using for identification pur­poses. The default name is “Voyager.”

Perform the rename operation using either the bar codes on page 3-21, or by
sending the serial command :Voyager:BT_NAM
name for the scanner. If you wish to change the names of additional scanners,
link them to the base one at a time and repeat the :Voyager:BT_NAM
command for each scanner.

3 - 20

name

. where

name

is the new

name.

To rename scanners with sequential, numeric names, scan the following bar

0001

0002

0003

0005

0007

0004

Reset

0006

Scanner Name

codes.

Scan the Reset code after each name change and wait for the scanner

to relink to the base.

You may also scan the following Scanner Name bar code and scan up to 30
numbers and/or letters for the scanner name. For example, if you wanted to
name the linked scanner “312,” you would scan the following bar code, scan the
3, 1, and 2 bar codes on the Programming Chart inside the back cover of this
manual, then scan Save. Scan the Reset bar code and wait for the scanner to
relink to the base.

To output the name of the scanner, scan the following bar code. The name will
be output showing the product name, model number, and the scanner’s 10-digit
serial number.

3 - 21

Using the Scanner with Bluetooth Devices

Non-Base BT Connection

Base BT Connection

Bluetooth PIN

The scanner can be used either with the CCB00-010BT charge base or with
other Bluetooth devices. Those devices include personal computers and lap­tops.

Scanning the following Non-Base BT Connection bar code allows the scanner
to be used with other Bluetooth devices (e.g., PC/laptop). After you scan the
Non-Base BT Connection bar code, follow the instructions supplied with your
Bluetooth device to locate the scanner and connect to it.

Note: If you go out of range with your scanner, the scanner will not reconnect to

the Bluetooth device when it is back in range.

To relink to the charge base, scan the Base BT Connection bar code.

Changing the Scanner’s Bluetooth PIN Code

Some devices require a PIN code as part of the Bluetooth security fea­tures. Your scanner’s default PIN is 0000, which you may need to enter the
first time you connect to your non-base Bluetooth device. To change the
PIN, scan the following bar code and then scan the appropriate numeric
bar codes from the Programming Chart inside the back cover of this man­ual. (The PIN code must be between 1 and 16 characters.) Scan Save to
save your selection.

Default = 0000.

Minimizing Bluetooth/ISM Band Network Activity

The following settings can help you customize the relinking behavior of the
cordless system to obtain the best compromise between convenience and low
interference.

Note: ISM band refers to the 2.4 to 2.48 GHz frequency band used by wireless

networks, cordless phones, and Bluetooth.

3 - 22

Auto Reconnect Mode

* Auto Reconnect On

Auto Reconnect Off

Auto Reconnect controls whether or not the scanner automatically begins
the relink process when a loss of connection is detected. When the Auto
Reconnect On bar code is scanned, the scanner begins the relink process
immediately, without user intervention.

The following table shows the results of the Auto Reconnect On and Off
settings:

Event Auto Reconnect On Auto Reconnect Off

Default = Auto Reconnect On.

Scanner out of
range

Base reset
(firmware upgrade
or power cycle)

Scanner reset due
to firmware
upgrade

Scanner reset due
to battery change

Scanner placed in
different base unit

Relink occurs
automatically. If
maximum number of link
attempts is
unsuccessful, then the
scanner must be
relinked by either
pressing the scanner’s
button or placing the
scanner in the base.
(See Maximum Link

Attempts on page 3-24.)

Scanner behaves as if
out of range.

Relink occurs automatically.

Relink occurs automatically.

Relink to new base occurs automatically.

The scanner is
relinked by pressing
the button.

No attempt to relink
made while base is
powered off. Button
must be pressed to
initiate relinking.

3 - 23

Maximum Link Attempts

Maximum Link Attempts

Relink Time-Out

The Maximum Link Attempts setting controls the number of times the scan­ner tries to form a connection with a base. During the connection setup
process, the scanner transmits in order to search for and connect to a
base. In order to prevent continuous transmissions that could interfere with
other users of the ISM band, the number of attempts to connect is limited
by this setting. After the maximum number of attempts is reached, the
scanner will not attempt to reconnect to a base. Pressing the scanner’s
button or placing the scanner in the base resets the attempt count and the
scanner will again try to link.

Scan the Maximum Link Attempts bar code, then scan the number of
attempts for the setting (from 0-255) from the inside back cover. Scan
Save to save the setting.

Note: When Auto Reconnect Mode is On, setting Maximum Link Attempts

to zero will cause the scanner to try to link until the Power Time-Out
Timer setting (see page 3-13) expires. When Auto Reconnect Mode
is Off, setting Maximum Link Attempts to zero will cause the scanner
to only attempt linking one time after a button press.

Default = 0.

Relink Time-Out

Relink Time-Out controls the idle time between relink attempts. An attempt
to link a scanner to a base typically lasts up to 5 seconds. This is the time
when the scanner is actually attempting a contact . Relink Time-Out con­trols the amount of time, in seconds, that elapses between the end of one
connection attempt and the start of the next.

Scan the Relink Time-Out bar code, then scan the number of seconds for
the setting (from 1-100) from the inside back cover. Scan Save to save the
setting.

Default = 3 seconds.

Bluetooth/ISM Network Activity Examples

Default values

When the scanner goes out of range, the scanner repeatedly attempts to
connect to the base unit. Each attempt consists of approximately 5 sec­onds of active time followed by 3 seconds of idle time. After one hour, the
scanner powers off and batch mode data is lost.

3 - 24

Maximum Link Attempts set to 15

:*:RESET_.³

Reset Scanner

Reset Base

Other values at default settings

When the scanner goes out of range, 15 attempts are made to link to the
base unit. Each attempt consists of approximately 5 seconds of active time
followed by 3 seconds of idle time. After 15 cycles (8*15 =120), or about 2
minutes, the scanner stops trying to connect to the base, but retains any
bar codes that may have been saved in batch mode. After one hour, the
scanner powers off and batch mode data is lost.

Auto Reconnect Mode set to 0
Maximum Link Attempts set to 15
Other values at default settings

When the scanner goes out of range, no action is taken to relink. When
the scanner’s button is pressed, 15 attempts are made to link to the base.
Each attempt consists of approximately 5 seconds of active time followed
by 3 seconds of idle time. After 15 cycles (8*15 =120), or about 2 minutes,
the scanner stops trying to connect to the base, but retains any bar codes
that may have been saved in batch mode. After one hour, the scanner
powers off and batch mode data is lost. Refer to Auto Reconnect

Mode, page 3-23, to review other events that can start the relink process.

Reset Scanner and Base

After changing settings, you may need to reset your scanner and base. Scan
the Reset Base bar code and wait for the scanner to unlink and relink to a base.
Once that is done, scan the Reset Scanner bar code and wait for the base to
unlink and relink to the scanner.

3 - 25

3 - 26

4

Power Up Beeper Off -

Scanner

* Power Up Beeper On -

Scanner

*Beep on BEL Off

Beep on BEL On

Input/Output Settings

Power Up Beeper

The scanner can be programmed to beep when it’s powered up. Scan the Off
bar code(s) if you don’t want a power up beep.

- Scanner.

Beep on BEL Character

You may wish to force the scanner to beep upon a command sent from the host.
If you scan the following Beep on BEL On bar code, the scanner will beep
every time a BEL character is received from the host.

Off.

Default = Power Up Beeper On

Default = Beep on BEL

4 - 1

Good Read and Error Indicators

* Beeper - Good Read On

Beeper - Good Read Off

* High

Medium

Off

Low

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read.
Turning this option off, only turns off the beeper response to a good read
indication. All error and menu beeps are still audible.

Good Read On.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner
emits on a good read.

Default = High.

Default = Beeper -

4 - 2

Beeper Pitch – Good Read

Low (1600 Hz)

* Medium (2350 Hz)

High (4200 Hz)

* Before Transmission

After Transmission

* Razz (100 Hz)

Medium (2000 Hz)

High (4200 Hz)

The beeper pitch codes modify the pitch (frequency) of the beep the scan­ner emits on a good read.

Default = Medium.

Beeper - Transmit Order

The beeper transmit order determines when the good read beep occurs.
The scanner can be set to emit the good read beep either before or after
data transmission.

Default = Before Transmission.

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scan­ner emits when there is a bad read or error.

Default = Razz.

4 - 3

Beeper Duration – Good Read

* Normal Beep

Short BeepShort Beep

Number of Good Read Beeps/LED Flashes

The beeper duration codes modify the length of the beep the scanner emits
on a good read.

Default = Normal.

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The
same number of beeps will be applied to the beeper and LED in response
to a good read. For example, if you program this option to have five beeps,
there will be five beeps and five LED flashes in response to a good read.
The beeps and LED flashes are in sync with one another.

Note: The LEDs can also be programmed separately. See LED

Settings on page 4-6.

To change the number of beeps, scan the following bar code and then scan
a digit (1-9) bar code and the Save bar code on the Programming Chart
inside the back cover of this manual.

Default = 1.

Number of Beeps – Error

The number of beeps and LED flashes emitted by the scanner for a bad
read or error can be programmed from 1 - 9. For example, if you program
this option to have five error beeps, there will be five error beeps and five
LED flashes in response to an error.

Note: The LEDs can also be programmed separately. See LED

Settings on page 4-6.

4 - 4

To change the number of error beeps, scan the following bar code and then

Number of Error Beeps/LED Flashes

scan a digit (1-9) bar code and the Save bar code on the Programming

Chart inside the back cover of this manual.

Default = 1.

4 - 5

LED Indicators

Green LED Off

Red LED Off

* Green LED On with Good Scan

Red LED On with Good Scan

Green LED On with Laser

* Red LED On with Laser

Red LED On when CodeGate

Disabled

Green LED On when CodeGate

Disabled

Green LED On when In-Stand

Red LED On when In-Stand

The green and red LEDs can be programmed to be On or Off and at different
brightness levels to indicate various scanner states. Use the following bar
codes to program the LED indicators.

LED Settings

Default = Red LED On with Laser, Green LED On with Good Scan.

4 - 6

Red LED On with CTS

Green LED On with CTS

Red LED On when Battery is Low

Green LED On when Battery is Low

4 - 7

LED Brightness

Green Off

Red Off

Green Low

Red Low

Green Medium

Red Medium

* Red High

* Green High

Default = Red High, Green High.

In-Stand and Out-Of-Stand Settings

The following settings program the scanner’s behavior when it is either in the
stand, or out of the stand (hand-held).

Caution: When working with In-Stand and Out-of-Stand settings, enable

the settings you want before disabling those you do not want to
use. If you disable settings first, you may program the scanner
so it is unable to read bar codes. if this happens, power cycle
the scanner and scan the defaults bar code on page 1-9.

4 - 8

In-Stand and Out-of-Stand Defaults

Out-of-Stand Defaults

In-Stand Defaults

Presentation Mode with
CodeGate Out-of-Stand

Presentation Mode

Out-of-Stand

If you want the In-Stand or Out-of-Stand default settings restored to your
scanner, scan the appropriate Defaults bar code below. They reset the
scanner to the custom default settings (see Setting Custom Defaults on
page 1-8). If there are no custom defaults, it will reset the scanner to the
factory default settings. Any settings that have not been specified through
the custom defaults will be defaulted to the factory default settings.

Presentation Modes

When the scanner is in the stand, by default, bar codes are automatically
read when they are detected in the scanner’s field of view. When the scan­ner is out of the stand, by default you must push the button on top of the
scanner to read a bar code. Use the following commands to adjust how the
scanner behaves when it is out of the stand.

Note: If you are using a cordless charge base in Presentation Mode, the

battery will not charge unless the power supply is plugged into the
base’s auxiliary power port.

Presentation Mode Out-of-Stand: When the scanner is not in the stand,
it automatically detects bar codes, then scans and transmits the data. The
laser turns off afterward. (If you are accustomed to a Voyager 9520, this
setting is the same as the 9520’s default.)

Presentation Mode with CodeGate® Out-of-Stand: When the scanner
is not in the stand, it automatically detects bar codes and decodes them.
However, the data is not transmitted until you press the button. The laser
remains on briefly after the transmission. (If you are accustomed to a Voy­ager 9540, this setting is the same as the 9540’s default.)

4 - 9

Manual Activation Mode

* Manual Activation Mode On

In-Stand

Manual Activation Mode Off

In-Stand

* Manual Activation Mode On

Out-of-Stand

Manual Activation Mode Off

Out-of-Stand

* End Manual Activation After

Good Read Out-of-Stand

Do Not End Manual Activation

After Good Read Out-of-Stand

* End Manual Activation After

Good Read In-Stand

Do Not End Manual Activation

After Good Read In-Stand

In Manual Activation Mode, you must press the button to scan a bar code.
The scanner scans until a bar code is read, or until the button is released.

Default = Manual Activation Mode On In-Stand, Manual Activation On Out­of-Stand.

End Manual Activation After Good Read

After a bar code is successfully read, the laser can be programmed either
to remain on and scanning, or to turn off. When End Manual Activation
After Good Read is enabled, the laser turns off and stops scanning after a
good read. If you scan Do Not End Manual Activation After Good Read,
the laser remains on after a good read, but the button must be pressed to
scan the next bar code.

Default = End Manual Activation After Good Read.

4 - 10
