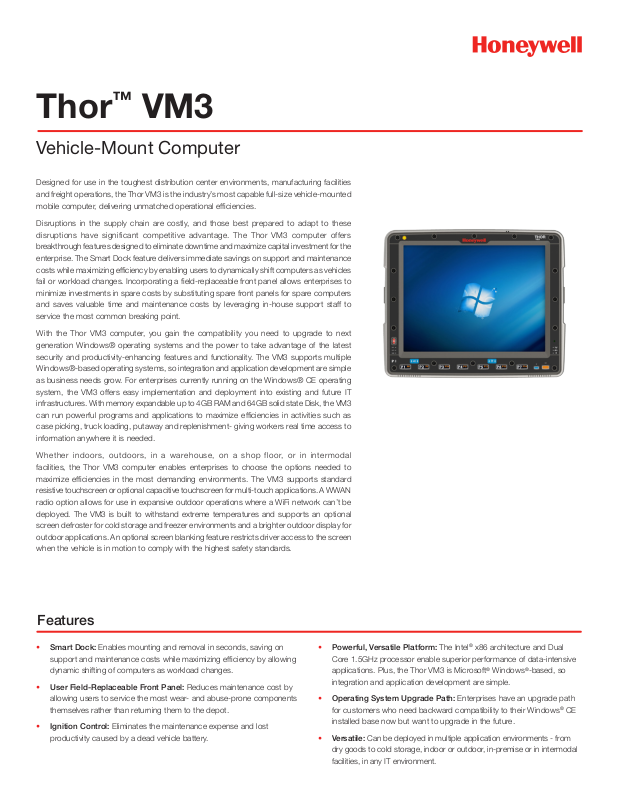

Honeywell VM3C1B3A1BET05A Product Data Sheet

Thor™ VM3

Vehicle-Mount Computer

Designed for use in the toughest distribution center environments, manufacturing facilities
and freight operations, the Thor VM3 is the industry’s most capable full-size vehicle-mounted
mobile computer, delivering unmatched operational efficiencies.

Disruptions in the supply chain are costly, and those best prepared to adapt to these
disruptions have significant competitive advantage. The Thor VM3 computer offers
breakthrough features designed to eliminate downtime and maximize capital investment for the
enterprise. The Smart Dock feature delivers immediate savings on support and maintenance
costs while maximizing efficiency by enabling users to dynamically shift computers as vehicles
fail or workload changes. Incorporating a field-replaceable front panel allows enterprises to
minimize investments in spare costs by substituting spare front panels for spare computers
and saves valuable time and maintenance costs by leveraging in-house support staff to
service the most common breaking point.

With the Thor VM3 computer, you gain the compatibility you need to upgrade to next
generation Windows® operating systems and the power to take advantage of the latest
security and productivity-enhancing features and functionality. The VM3 supports multiple
Windows®-based operating systems, so integration and application development are simple
as business needs grow. For enterprises currently running on the Windows® CE operating
system, the VM3 offers easy implementation and deployment into existing and future IT
infrastructures. With memory expandable up to 4GB RAM and 64GB solid state Disk, the VM3
can run powerful programs and applications to maximize efficiencies in activities such as
case picking, truck loading, putaway and replenishment- giving workers real time access to
information anywhere it is needed.

Whether indoors, outdoors, in a warehouse, on a shop floor, or in intermodal
facilities, the Thor VM3 computer enables enterprises to choose the options needed to
maximize efficiencies in the most demanding environments. The VM3 supports standard
resistive touchscreen or optional capacitive touchscreen for multi-touch applications. A WWAN
radio option allows for use in expansive outdoor operations where a WiFi network can’t be
deployed. The VM3 is built to withstand extreme temperatures and supports an optional
screen defroster for cold storage and freezer environments and a brighter outdoor display for
outdoor applications. An optional screen blanking feature restricts driver access to the screen
when the vehicle is in motion to comply with the highest safety standards.

Features

• Smart Dock: Enables mounting and removal in seconds, saving on

support and maintenance costs while maximizing efficiency by allowing
dynamic shifting of computers as workload changes.

• User Field-Replaceable Front Panel: Reduces maintenance cost by

allowing users to service the most wear- and abuse-prone components
themselves rather than returning them to the depot.

• Ignition Control: Eliminates the maintenance expense and lost

productivity caused by a dead vehicle battery.

• Powerful, Versatile Platform: The Intel® x86 architecture and Dual

Core 1.5GHz processor enable superior performance of data-intensive
applications. Plus, the Thor VM3 is Microsoft® Windows®-based, so
integration and application development are simple.

• Operating System Upgrade Path: Enterprises have an upgrade path

for customers who need backward compatibility to their Windows® CE
installed base now but want to upgrade in the future.

• Versatile: Can be deployed in multiple application environments - from

dry goods to cold storage, indoor or outdoor, in-premise or in intermodal
facilities, in any IT environment.

Thor VM3 Technical Specifications

TM

Mechanical

Dimensions

Weight

Operating Temperature

Storage Temperature

Humidity

Environmental Sealing

ESD

Vibration

Shock

System Architecture

Processor

Operating System

Memory

System Software

Optional Software

Mass Storage

Graphics Processor

Power Supply & UPS

Display

Touch Panel

Integrated Keypad

Audio

I/O Ports

Storage Expansion

Development Environment

Warranty

Service Plans

Wireless Connectivity

WWAN

WLAN

WLAN Security

WLAN Antennas

WPAN

GPS

Computer: 12.5˝ x 10.3˝ x 2.4˝ (318 x 260 x 62); Dock: 7.1˝ x 6.1˝ x 2.1˝ (180 x 155 x 54mm); Assembled depth: 4.1˝ (104mm)

Computer: 6.65 lb (3.0 kg); Std Dock: 3.2 lb (1.5 kg); Enhanced Dock: 2.4 lbs (1.1kg); Dock weights include mounting ball

-22° to +122°F (-30° to +50°C)

-22° to +122°F (-30° to +50°C)

5% to 95% non-condensing

Independently certified to meet IP66 standards for moisture and particle resistance

EN 55024:2010 (enhanced ESD to 8kV direct & 15kV air)

MIL-STD-810F, composite wheeled vehicles

SAE-J1455 (MIL-STD-810g-4.6.6 Procedure V-Crash Hazard Shock Test)

Dual Core Intel® Atom E3826 @ 1.5 GHz

Microsoft® Windows® Embedded Compact 7 (WEC 7), Microsoft® Windows® Embedded Standard 7 (WES 7), Microsoft® Windows® 7 (Win 7),
Microsoft® Windows® Embedded 8.1 Industry Pro(Win 8)

4GB DDR3

Data Collection Engine for support of external scanners, Bluetooth wireless technology configuration utilities, Microsoft® Internet Explorer, Microsoft®
on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher

RFTerm & ETE Terminal Emulators, Enterprise Browser, Remote Mastermind (ReM) device management

WEC 7: 2GB
WES 7: 64GB, optional 4GB industrial mSATA secondary SSD
Win 7: 64GB, optional 4GB industrial mSATA secondary SSD
Win 8 Industry: 64GB, optional 4GB industrial mSATA secondary SSD

Intel® HD Graphics Base Freq 533 MHz, Burst Freq 667 MHz, supports two displays

10 to 60 VDC isolated, Optional external converters for AC (90-240VAC) & extended range DC (60-150 VDC);
Integrated Li-ION maintenance UPS with 30-min life at -30°C standard

Indoor: 12.1˝ (307 mm) XGA (1024x768) LED backlit display, 400 NIT, Optional screen blanking
Outdoor: 12´1˝ (307mm) XGA (1024x768) LED backlit display, 900 NIT, Optional screen blanking Mini HDMI port support additional remote display

Standard: Industrial touch panel with resistive touch and support for finger touch and standard stylus
Multitouch: Optional Industrial touch panel with Projected Capacitance touch for finger and conductive stylus; hardened glass overlay
Cold Storage: Optional industrial resistive touch screen with integrated defroster

Seven programmable multi-function keys

Audio for headset, integrated stereo speakers w/ adjustable volume control, integrated microphone

1x USB 2.0 powered host port, 2x powered RS-232 COM ports, 1x CAN-bus port, 1x Headset port, DC power input & ignition control input, RF
Antenna ports for WiFi (2), Optional RF Ports for WWAN (2) & GPS (1); Enhanced Dock adds 3 USB powered host ports and Ethernet

User installable expansion slot supports 4GB mSATA card

Honeywell SDK available for Windows® Embedded Compact 7

1 year factory warranty

Optional three- and five-year service programs offer worry-free mobile computing

Optional software definable (data only) 4G radio: LTE/UMTS/HSPA+/ GSM/GPRS/EDGE/EV-DO Rev A/1xRTT with data speeds up to 100Mbps
downlink and 50 Mbps uplink

802.11 a/b/g/n
Wi-Fi™ - certified, CCX certified for data

Authentication: Support for a full range of 802.1X (EAP) types, including EAP-TLS, PEAP-MSCHAPv2, PEAP-GTC, LEAP,
and EAP Fast Encryption Support: Support for Static, pre-shared, and dynamic encryption keys, 40-bit and 128-bit keys, WEP, WPA (TKIP),
and WPA2
(AES) Encryption Methods

Dual internal antennas, dual external remote and direct connect antenna accessories

WEC 7, WES 7, Win 7: Bluetooth® 2.0+EDR standard, internal antenna
Win 8: Bluetooth® 4.0 standard, internal antenna

Integrated Assisted GPS (A-GPS) with fast position acquisition and low power consumption. Included with WWAN radio

Microsoft, Windows, and the Windows Logo are registered trademarks or trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc. U.S.A. and licensed
to Honeywell International Inc.

Refer to the Honeywell Scanning & Mobility compliance center at www.honeywellaidc.com/compliance to review and download any publicly available documentation pertaining to the certification of this product in a given country.

For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies

For more information:

Technology

www.honeywellaidc.com

Honeywell Scanning & Mobility

9680 Old Bailes Road

Fort Mill, SC 29707

800.582.4263

www.honeywell.com

Thor VM3 DS Rev C 05/15
© 2015 Honeywell International Inc.
