3DUWLWLRQHG6HFXULW\6\VWHP

                                      

2

9,,

677

$

3URJUDPPLQJ*XLGH

 

N7001PRV5 5/04 Rev A

Table of Contents

Recommended Programming Procedure................. 3

Program Field Index .................................................4

VISTA-40 Programming Form.................................. 5

Partition-Specific Fields ............................................ 9

Programming With #93 Menu Mode....................... 10

Zone Programming................................................. 11

5800 Series Transmitters Loop Designations ........13

Expert Mode Zone Programming ...........................14

Alpha Descriptors Programming ............................ 17

Alpha Descriptor Vocabulary.................................. 20

The purpose of this document is to provide a quick and easy way to program your entire system. A recommended programming procedure is included, followed by a list of program fields with the corresponding program group they belong to (system-wide, partition-specific, scheduling, etc.). Two program forms are included. One contains all the programming fields, and the other contains the partition-specific fields. If you are setting up a single-partition system, the partition-specific fields become system-wide fields.

Following the program forms are system layout worksheets. We recommend that you use these sheets to plan your system before programming is performed. If you need further information about specific programming options, see the ADEMCO VISTA-40 Installation and Setup Guide.

Make sure that one two-line alpha keypad is connected to the control and is set to device address "00."

Single-Partition System

The system default is for a single-partition system. Use the VISTA-40 SINGLE PARTITION PROGRAMMING FORM when programming for single-partition usage. Follow the steps outlined in RECOMMENDED PROGRAMMING PROCEDURE of this document for proper programming procedure.

Multiple-Partition System

You must enter the number of partitions you are using in data field 2*00 to set the system for multiple partitions. Use the VISTA-40 SINGLE PARTITION and the PARTITION-SPECIFIC PROGRAM FORMS when programming the system for multiple partitions. Follow the steps outlined in RECOMMENDED PROGRAMMING PROCEDURE of this document for proper programming procedure.

SUMMARY OF PROGRAMMING COMMANDS

• To enter program mode, enter installer code + [8] + [0] + [0]

• To set standard defaults, press ✱97

• To change to next page of program fields, press ✱94

• To return to previous set of fields, press ✱99

• To erase account and phone number field entries, press [✱] + field number + [✱]

• To assign zone descriptors, press #93 + follow menu prompts

• To add custom words, press #93 + follow menu prompts

• To enter Installer's Message, press #93 + follow menu prompts

• To exit program mode, enter ✱99 OR ✱98: ✱99 allows re-access to programming mode by installer code.

✱98 prevents re-access to programming mode by installer code.

Standard default (✱97) values are shown in brackets [ ], otherwise default = 0.

Device Programming ..............................................21

Relay Programming ................................................22

Relay Voice Descriptors .........................................25

Relay Voice Descriptors and Custom Word

Substitutes Vocabulary........................................ 26

Custom Word Substitutes for VIP Module

Annunciation........................................................ 26

System Layout Worksheets.................................... 27

Relay Outputs Worksheets..................................... 33

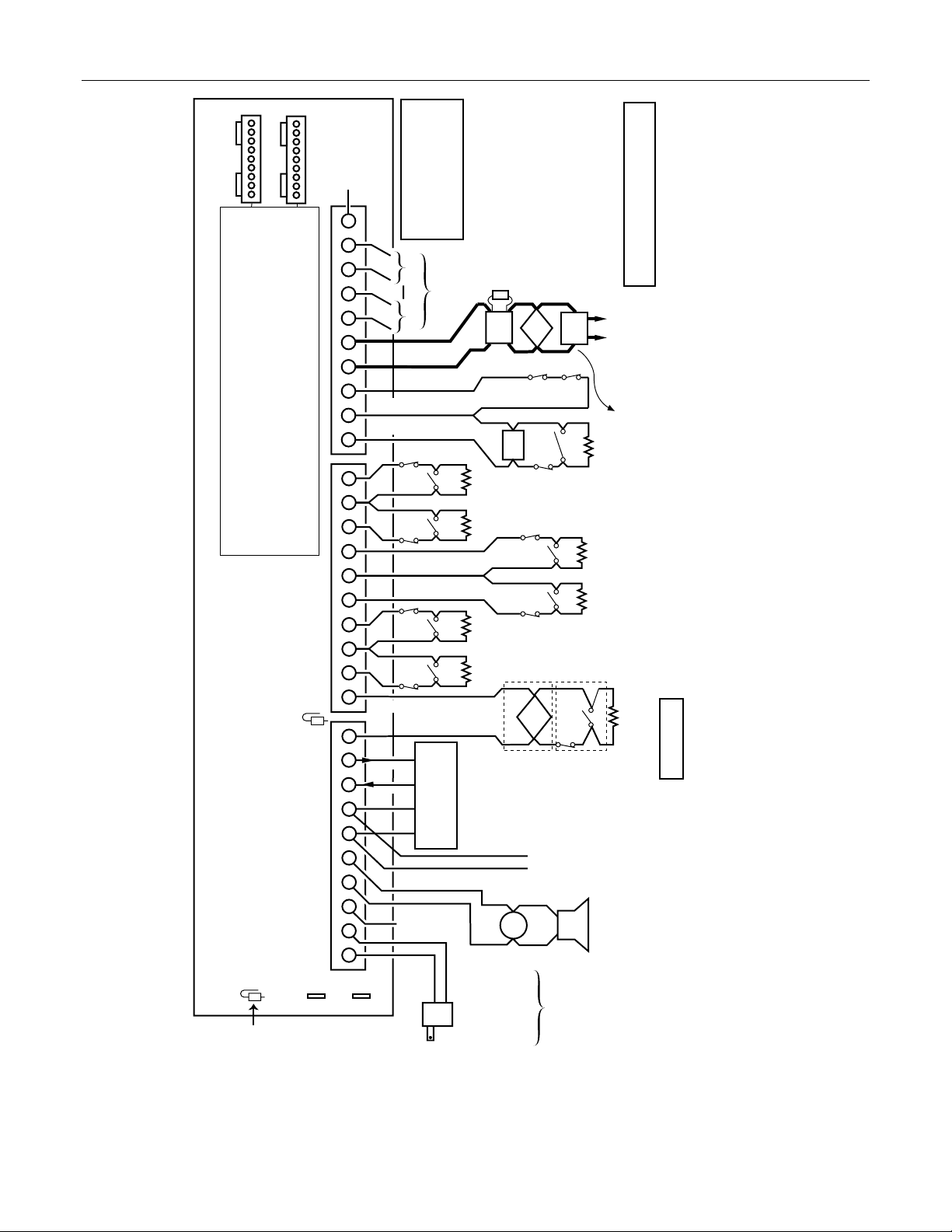

VISTA-40 Summary of Connections Diagram........ 35

– 2 –

Recommended Programming Procedure

The following is a step-by-step procedure recommended for programming your VISTA-40 system.

1. Set the keypads (and other peripheral devices) to the appropriate addresses.

2. Set factory defaults by pressing

This will automatically enable keypad addresses 00-01, so be sure at least one keypad is set to one of these addresses.

3. Program system-wide (global) data fields.

Using the programming form as a guide, enter program mode and program all system-wide programming fields. These options affect the entire system, regardless of partitions. They include control options, downloader and dialer options, RF options, event logging options, etc. Refer to the Program Field Index for a listing of the program fields and their function.

Note that field 2

✱00 (number of partitions) must be programmed before continuing.

4. Program partition-specific fields.

When the system-wide fields have been programmed, program all partition-specific programming fields by first pressing specific field number

✱91 to select a partition (while still in data field program mode). Then enter the first partition-

✱09. When you are finished, the next partition-specific field is automatically displayed.

Partition-specific fields can have different values for each partition. To program the fields for the next partition, press

✱91, enter the desired partition number, then enter field ✱09. Refer to the MECHANICS OF

PROGRAMMING section in the ADEMCO VISTA-40 Installation and Setup Guide for detailed instructions.

5. Use #93 Menu Mode for device programming.

Refer to Device Programming in this guide to assign keypad ID numbers and default partitions for each keypad, and to selectively suppress certain keypad sounding options. Also use this mode to assign RF receivers, relay modules, and the VIP module.

6. Use #93 Menu Mode for zone programming.

Refer to Zone Programming in this guide to program zone response types, assign right loop zones and wireless zones, assign zones to partitions, and to program alarm report codes.

7. Use #93 Menu Mode for programming relays.

Refer to Relay Programming in this guide to program desired relay operation.

8. Program Communication options.

Refer to System Communication section in the ADEMCO VISTA-40 Installation and Setup Guide for detailed instructions. Then use #93 menu mode to program report codes.

9. Use #93 Menu Mode for programming alpha descriptors.

Refer to Alpha Programming in this guide to enter zone and partition descriptors and a custom installer’s message.

10. Use #93 Menu Mode for relay voice descriptors and custom word substitutes. Refer to Relay Voice Descriptors in this guide for further instructions for programming relay descriptors to be annunciated by the VIP module, as well as the Custom Index section for custom word substitutes.

11. Define user access codes.

Refer to User Access Codes in the ADEMCO VISTA-40 Installation and Setup Guide to program authority level, O/C reporting option, partition assignments, and RF key assignments for each user.

12. Exit Programming Mode.

Exit programming mode by pressing either being done from fields 1

✱00 and above.

To prevent re-access to programming mode using the Installer’s code, use programming mode is by depressing both the [ up.

Exiting by using

✱99 always allows reentry into programming mode using the Installer code. Either way of

exiting allows access via downloading. Note that if local programming lockout is set via downloading, programming mode cannot be entered at the keypad.

✱97.

✱98 or ✱99. Additional entries of ✱99 are required if the exit is

✱98. The only way to re-access

✱] and [#] keys at the same time within 30 seconds of power-

– 3 –

Program Field Index

On the following pages, the programming fields have been arranged in numerical order. Use this index to cross-reference the fields on the programming form.

Field Group

*00 System-Wide *02 # 93 Menu Mode *03 # 93 Menu Mode *04 # 93 Menu Mode *05 # 93 Menu Mode *09 Partition-Specific *10 Partition-Specific *11 Partition-Specific *12 Partition-Specific *13 Partition-Specific *14 System-Wide *15 System-Wide *16 Partition-Specific *17 System-Wide *19 System-Wide *20 System-Wide *21 System-Wide *22 Partition-Specific *23 Partition-Specific *24 System-Wide *25 System-Wide *26 Communications *27 Communications *28 System-Wide *29 Partition-Specific *30 Communications *31 Communications *32 Partition-Specific *33 Communications *34 Communications *35 System-Wide *36 System-Wide *37 System-Wide *38 Partition-Specific *39 Partition-Specific *40 Communications *41 System-Wide *42 Communications *43 Communications *44 Communications *45 Communications *46 Communications *47 Communications *48 Communications

Field Group Field Group

*49 Communications *50 Communications *51 Communications *52 Communications *53 Communications *54 Communications *55 Communications *56 Communications *57 Communications *58 Communications *59 Communications *60 Communications *61 Communications *62 Communications *63 Communications *64 Communications *65 Communications *66 Communications *67 Communications *68 Communications *69 Communications *70 Communications *71 Communications *72 Communications *73 Communications *74 Communications *75 Communications *76 Communications *77 Communications *78 Communications *79 Communications *80 Communications *81 Communications *82 Communications *83 Communications *84 Partition-Specific *85 Partition-Specific *86 System-Wide *87 Partition-Specific *88 Partition-Specific *89 Communications *90 Partition-Specific

1*03 # 93 Menu Mode 1*04 # 93 Menu Mode 1*05 # 93 Menu Mode 1*06 # 93 Menu Mode 1*07 # 93 Menu Mode 1*08 # 93 Menu Mode 1*09 # 93 Menu Mode 1*28 System-Wide 1*29 System-Wide 1*30 System-Wide 1*31 System-Wide 1*32 System-Wide 1*33 Communications 1*34 Communications 1*40 Communications 1*41 Communications 1*43 Partition-Specific 1*44 System-Wide 1*45 Partition-Specific 1*46 System-Wide 1*47 Partition-Specific 1*48 System-Wide 1*49 System-Wide 1*52 Partition-Specific 1*53 System-Wide 1*57 System-Wide 1*58 System-Wide 1*60 System-Wide 1*66 System-Wide 1*70 System-Wide 1*71 System-Wide 1*74 System-Wide 1*75 System-Wide 1*76 Partition-Specific 2*00 System-Wide 2*01 System-Wide 2*02 System-Wide 2*17 System-Wide 2*18 Partition-Specific 2*19 System-Wide 2*20 Partition-Specific

2*21 System-Wide 1*01 # 93 Menu Mode 1*02 # 93 Menu Mode

– 4 –

VISTA-40 Programming Form

Some fields are programmed for each partition (shown as shaded fields). If you are programming a multiple-partition system, see the Partition-Specific Fields section for programming these fields. Standard default (*97) values are shown in brackets.

*00 INSTALLER CODE | | |

Enter 4 digits, 0-9 [4140]

*02 *05 RESPONSE TYPES FOR ZONES

Skip these fields. Use #93 Menu Mode, Zone

Programming to program the response types.

*09 ENTRY DELAY #1 [02] |

00, 02-15 times 15 seconds Maximum "03" for UL.

*10 EXIT DELAY #1 [03] |

00, 03-15 times 15 seconds Maximum "04" for UL installations.

*11 ENTRY DELAY #2 [06] |

00, 02-15 times 15 seconds (must be longer than Entry Delay

#1). Maximum "03" for UL installations.

*12 EXIT DELAY #2 [08] |

00, 03-15 times 15 seconds (must be longer than Exit Delay

#1). Maximum "04" for UL installations.

*13 ALARM SOUNDER DURATION [04] |

01-15 times 2 minutes. Must be minimum 16 minutes for UL

installations.

*14 ZONE 9 RESPONSE TIME [0]

Enter 1 for fast response time 10ms Enter 0 for normal response time 350ms. Must be 0 for UL installations.

*15 KEYSWITCH ASSIGNMENT [0]

Enter partition in which keyswitch used, 1-2; 0=disable

*16 CONFIRMATION OF ARMING DING [0]

1=enable; 0=disable. Must be "1" for UL Installations.

*17 AC LOSS KEYPAD SOUNDING [0]

1=yes; 0=no

*19 RANDOMIZE AC LOSS REPORT [0]

1=10-40 min; 0=normal report (about 2 min. after AC loss).

*25 BURG.TRIGGER FOR RESPONSE TYPE 8 [1]

1=enable; 0=disable

*26 INTELLIGENT TEST REPORTING [0]

1=yes (no report sent if any other report was recently sent);

0=no (send report at programmed interval, field *27)

Must be 0 for UL installations.

*27 TEST REPORT INTERVAL [024] | |

Enter interval in hours, 001-199; 000=no report; Max. 024 for UL installations.

*28 POWER UP IN PREVIOUS STATE [1]

1=yes; 0=no; "1" for UL installations.

*29 QUICK ARM [1]

1=yes; 0=no

*30 TOUCHTONE OR ROTARY DIAL [0]

1=TouchTone; 0=rotary

*31 PABX ACCESS CODE | | | |

00-09; B-F (11-15)

*32 PRIM. SUBS. ACCT # | | | |

Enter 00-09; B-F (11-15) [15 15 15 15]

*33 PRIMARY PHONE NUMBER

Enter 0-9 for each digit. Enter #11 for *, #12 for #, #13 for 2 second pause

*34 SECONDARY PHONE NUMBER

Enter 0-9 for each digit. Enter #11 for *, #12 for #, #13 for 2 second pause

*35 DOWNLOAD PHONE NO.

*20 VIP MODULE PHONE CODE | |

Enter 01 - 09 for the first digit; enter [00], [11] 11 for “*” or 12 for “#” for the second digit.

Must be set to "0" for UL installations.

*21 PREVENT FIRE TIMEOUT [0]

1=No timeout; 0=Timeout.

*22 KEYPAD PANIC ENABLES [001]

1=enable; 0=disable 995 996 999

*23 MULTIPLE ALARMS [1]

1=yes; 0=no

*24 IGNORE EXPANSION ZONE TAMPER [0]

1=Ignore; 0=Enable tamper for RF and RPMs.

Must be "0" for UL installations if using these devices.

Enter 0-9 for each digit. Enter #11 for *, #12 for #, #13 for 2 second pause

*36 DOWNLOAD ID NO.

Enter 00-09; A-F (10-15) [15 15 15 15 15 15 15 15]

| | | | | | |

*37 DOWNLOAD COMMAND ENABLES

Dlr Shtdwn

See field 1*53 for Callback disable option; [1=enable];

Sys Shtdwn

0=disable. For UL installations, all entries must be "0."

Not Used

Rmt Byp

Rmt Disarm

Rmt Arm

Upld Pgm

*38 PREVENT ZONE XX BYPASS [00] |

01-64; 00 if all zones can be bypassed

– 5 –

Dwnld Pgm

*39 ENABLE OPEN/CLOSE REPORT FOR [0]

INSTALLER CODE 1=enable; 0=disable

*40 OPEN/CLOSE REPORT FOR KEYSWITCH [0]

1=enable; 0=disable

*41 NORMALLY CLOSED or EOLR (Zones 2-8) [0]

1=N.C.loops; 0=EOLR supervision. Must be "0" for UL installations.

*42 DIAL TONE PAUSE [0]

0=5 seconds; 1=11 seconds; 2=30 seconds. Must be "0" UL Installations.

*43 DIAL TONE DETECTION [1]

1=wait for true dial tone; 0=pause, then dial

*44 RING DETECTION COUNT [00] |

01-14; 15=answering machine; 00=no detection. Must be "00" for UL Burglary.

*45 PRIMARY FORMAT [1]

0=Low Speed; 1=Contact ID; 2=ADEMCO High Speed; 3= ADEMCO Express

*46 LOW SPEED FORMAT (Primary) [0]

0= ADEMCO Low Speed; 1=Sescoa/Radionics

*47 SECONDARY FORMAT [1]

0=Low Speed; 1=Contact ID; 2= ADEMCO High Speed; 3= ADEMCO Express

*48 LOW SPEED FORMAT (Sec.) [0]

0= ADEMCO Low Speed; 1=Sescoa/Radionics

*49 CHECKSUM VERIFICATION [0] [0]

1=yes; 0=no Prim Sec

*50 SESCOA/RADIONICS SELECT [0]

1=Sescoa; 0=Radionics

*51 DUAL REPORTING [0]

1=yes; 0=no If used with Spilt Reporting "1" option (1*34), alarms and alarm restores go to both primary & secondary numbers, while all other reports go to secondary only. If used with Split Reporting "2" option, alarms and alarm restores go to both, open/close and test messages go to secondary only, while all other reports go to primary.

*52 STANDARD/EXPANDED REPORT FOR PRIMARY

[0 0 0 0 0 0]

0=standard; 1=expanded; Note: Expanded overrides 4+2 format.

Alarm

Rstr

Byp

Trbl

O/C

LoBat

*53 STANDARD/EXPANDED REPORT FOR SECONDARY

[0 0 0 0 0 0]

0=standard; 1=expanded; Note: Expanded overrides 4+2 format.

Alarm

Rstr

Byp

Trbl

O/C

LoBat

*54 *57 ALARM REPORT CODES & ID DIGITS FOR

Skip these fields. Use #93 Menu Mode, Zone

ZONES 01-16.

Programming to program the report codes.

SUPERVISORY AND RESTORE CODES FOR ZONES

*58

01-16. Enter 00-09; B-F (11-15). Default = [00 00 00 00 00]

Alarm Rst

Trbl

Trbl Rst

Byp

Byp Rst

*59 *62 ALARM REPORT CODES & ID DIGITS FOR

Skip these fields. Use #93 Menu Mode, Zone

ZONES 17-32.

Programming to program the report codes.

*63 SUPERVISORY AND RESTORE CODES FOR ZONES

17-32. Enter 00-09; B-F (11-15). Default = [00 00 00 00 00]

Alarm Rst

Trbl

Trbl Rst

Byp

Byp Rst

*64 *67 ALARM REPORT CODES & ID DIGITS FOR

Skip these fields. Use #93 Menu Mode, Zone

ZONES 33-48.

Programming to program the report codes.

*68 SUPERVISORY AND RESTORE CODES FOR ZONES

33-48. Enter 00-09; B-F (11-15). Default = [00 00 00 00 00]

Alarm Rst

Trbl

Trbl Rst

Byp

Byp Rst

*69 *72 ALARM REPORT CODES & ID DIGITS FOR

Skip these fields. Use #93 Menu Mode, Zone

ZONES 49-64.

Programming to program the report codes.

*73 SUPERVISORY AND RESTORE CODES FOR ZONES

49-64. Enter 00-09; B-F (11-15). Default = [00 00 00 00 00]

Alarm Rst

Trbl

Trbl Rst

Byp

Byp Rst

*74 *77 ALARM REPORT CODES & ID DIGITS FOR

Skip these fields. Use #93 Menu Mode, Zone

ZONES 87-99.

Programming to program the report codes.

*78 SUPERVISORY AND RESTORE CODES FOR ZONES

87-99. Enter 00-09; B-F (11-15). Default = [00 00 00 00 00]

ZONE TYPE RESTORE ENABLES

Alarm Rst

Trbl

Trbl Rst

Byp

Byp Rst

*79 FOR ZONE TYPES 1-8

1 2 3 4 5 6 7

1=enable; [0=disable]

*80 FOR TYPES 9, 10

9 10

1=enable; [0=disable]

– 6 –

*80 *81 SYSTEM NON-ALARM CODES

Default = 00 for all reports *80 1st Digit *81 2nd Digit

Open

Low Battery

Low Battery Restore

AC Loss

AC Restore

Test

Power Up

Cancel

Program Tamper

Enter 00-09; B-F (11-15).

*83 FIRST TEST REPORT TIME | | |

[Day 00; hour 12; min 00] Days 01-07 Hours 00-23 Min 00-

59; 00 in all boxes = instant (Day 01= Monday)

*84 SWINGER SUPPRESSION [03] |

01-15 alarms Must be "00" (disabled) for UL.

*85 ENABLE DIALER REPORTS FOR PANICS & DURESS

1=enable; [0=disable]

995

996

999

Duress

*87 ENTRY WARNING [1]

1=continuous; 0=3 beeps

*86 4208 MODULE ZONE ASSIGMENT [0] 1 = allows 8 zones on one module (10-17), but prevents any

other polling loop expansion. 0 = all other setups.

*88 BURG. ALARM COMM. DELAY [0]

1=16 seconds; 0=no delay Must be "0" for UL installations.

*89 RESTORE REPORT TIMING [0]

0=Instant; 1=At bell timeout if zone is restored; 2=when system is disarmed. Must be "0" for UL installations.

*90 SEC. SUBS. ACCT # | | | |

Enter 00-09; B-F (11-15) [15 15 15 15]

2nd Page Programming Fields (press *94) 1*01 1*09 ASSIGN RESPONSE TYPE FOR ZONES.

Skip these fields. Use #93 Menu Mode, Zone

MISCELLANEOUS WIRELESS OPTIONS

Fields 1*28 - 1*31 are not applicable for UL installations.

Programming to program the response types.

1*28 RF TX LOW BATTERY SOUND [0]

1=immediate; 0=when disarmed

1*29 RF TX LOW BATTERY REPORTING [0]

1=enable; 0=disable

1*30 RF RCVR CHECK-IN INTERVAL [06] |

02-15 times 2 hours; 00 disables supervision

1*31 RF XMITTER CHECK-IN INTERVAL [12] |

02-15 times 2 hours; 00 disables transmitter supervision

1*33 TOUCHTONE W/ROTARY BACKUP [0]

1=enable; 0=disable

1*34 COMM. SPLIT REPORTING [0]

0=no; 1=alarms and alarm restores primary, others secondary; 2=open/close, test secondary, others primary. See comments if using with dual reporting.

1*40 1*41 NON-ALARM DIALER CODES

Enter 00-09; B-F (11-15).

Default = 00 for all reports 1*40 1st Digit 1*41 2nd Digit

Armed STAY

Time/Date Set or Event Log Reset

1*43 PERM. KEYPAD BACKLIGHT [0]

1=enable; 0=disable When disabled, display lights when any

key is pressed, and turns off after period of keypad inactivity.

1*44 WIRELESS KEYPAD TAMPER [0]

DETECTION

1=enable; 0=disable.

Must be "0" for UL installations.

1*45 EXIT DELAY SOUNDING [0]

1=enable; 0=disable. Produces quick beeping during exit

delay if enabled.

NOTE: See page 32, “SOUND OPTION”, prompt for

disabling the entry/exit beeps on individual keypads.

1*46 AUXILIARY OUTPUT MODE [0]

Enter 0 for ground start output. Enter 1 for open/close trigger. Enter 2 for keypad-like sounding. Enter 3 if AAV module is being used. NOTE: Only one of the above options may be active within the system.

1*47 CHIME ON EXTERNAL SIREN [0]

1=enable; 0=disable

1*48 WIRELESS KEYPAD ASSIGNMENT [0]

0=disable; enter partition in which RF keypad used, 1-2.

Must be "0" for UL installations.

1*49 SUPPRESS TX SUPERVISION SOUND [1]

1=disable; 0=enable.

Must be "0" for UL installations.

1*52 SEND CANCEL IF ALARM + OFF [0]

1=no restriction; 0=within bell timeout period only

1*53 DOWNLOAD CALLBACK [0]

1=callback not required; 0=callback required.

1*57 5800 RF BUTTON GLOBAL ARM [0]

1=enable; 0=disable

51 for

– 7 –

1*58 5800 RF BUTTON FORCE ARM [0]

Enter "1" to enable. If a zone is faulted after pressing button,

keypad will beep once. Pressing the button again within 4 sec. bypasses the zone. Enter "0" to disable.

Must be "0" for UL installations.

1*60 ZONE 5 AUDIO ALARM VERIFICATION [0]

Enter 1 If 2-way audio (AAV) is being used; Enter 0 if it is not.

Must be "0" for UL installations.

1*66 SILENCE BELLS DURING AAV [0]

Enter 1 to alarm sounders during AAV session.

Enter 0 to have alarm sounders continue to sound during

AAV session. Must be 0 for UL installations.

1*70 EVENT LOG TYPES

[1 0 0 0 1]

1=enable; 0=disable

Alarm

Chk

Byp

O/C

Syst

1*71 12/24 HOUR TIME STAMP FORMAT [0]

0=12 hour; 1=24 hour

1*74 RELAY TIMEOUT XXX MINUTES [000] | |

Enter the relay timeout, 000-127 in multiples of 2 minutes,

desired for #93 Menu Mode Relay Programming output command "56."

1*75 RELAY TIMEOUT YYY SECONDS [000] | |

Enter the relay timeout, 000-127 seconds for #93 Menu

Mode Relay Programming command "57."

1*76 ACCESS CONTROL RELAY [00] |

Relay will be pulsed for 2 seconds whenever code + [0] is

pressed. Enter 00-08; 00=none.

Must be "00" for UL.

3rd Page Programming Fields (press *94)

NUMBER OF PARTITIONS [1]

2*00

Enter 1-2

2*01 DAYLIGHT SAVING TIME [04, 10] | |

START/END MONTH Start End

00-12; if no daylight saving time, enter 00,00

2*02 DAYLIGHT SAVING TIME [1, 5] |

START/END WEEKEND Start | End

Enter 1-7. 1=first; 2=second; 3=third; 4=fourth; 5=last;

6=next to last; 7=3rd from last [1,5]

2*17 NUMBER OF CODES PER PARTITION [0] | |

Enter 01-69 for each partition. The total must not exceed 70.

2*18 ENABLE GOTO FOR THIS PARTITION [0]

1=Allow log-on from other partition; 0=disable

2*19 USE PARTITION DESCRIPTORS [0]

0=disable; 1=enable

2*20 ENABLE J7 TRIGGERS FOR PARTITION [1]

0=disable for displayed partition; 1=enable for displayed

partition

2*21 ENABLE SUPERVISION PULSES FOR LRR

TRIGGER OUTPUTS [000]

Used for supervised connection to 7920SE. F B P

Enter 0 to disable or 1 to enable the listed outputs. F= Fire; B= Burglary; P= Silent Panic/Duress.

Must be 1 for UL. Installations.

SUMMARY OF PROGRAMMING COMMANDS

• To enter program mode, enter installer code + [8] + [0] + [0]

• To set standard defaults, press *97

• To change to next page of program fields, press *94

• To return to previous set of fields, press *99

• To erase account and phone number field entries,

press [*] + field number + [*]

• To assign zone descriptors, press #93 + follow menu prompts

• To add custom words, press #93 + follow menu prompts

• To enter Installer's Message, press #93 + follow menu

prompts

• To exit program mode, enter *99 OR *98: *99 allows re- access to programming mode by installer code. *98 prevents re-access to programming mode by installer code.

| |

– 8 –

Partition-Specific Fields

(Duplicate this page for each partition in the installation.) To program these fields,

1. Press *91 to select a partition.

2. Enter a partition-specific field number (ex. *09).

3. Make the required entry.

4. Repeat steps 1-3 for the other partition in the system.

PARTITION #____ PROGRAM FIELDS

1st Page Fields

*09 ENTRY DELAY #1 [02] |

00, 02-15 times 15 seconds. Maximum 03 for UL Listed installations.

*10 EXIT DELAY #1 [04] |

00, 03-15 times 15 seconds. Maximum 04 for UL Listed installations.

*11 ENTRY DELAY #2 [06] |

00, 02-15 times 15 seconds. Maximum 03 for UL installations.

*12 EXIT DELAY #2 [08] |

00, 03-15 times 15 seconds. Maximum 04 for UL installations.

*13 ALARM SOUNDER DURATION [04] |

01-15 times 2 minutes. Must be minimum 16 minutes for UL installations.

*16 CONFIRMATION OF ARMING DING [0]

1=enable; 0=disable. Must be "1" for UL installations.

*22 KEYPAD PANIC ENABLES [001]

1=enable; 0=disable 995 996 999

*23 MULTIPLE ALARMS [1]

1=yes; 0=no. Must be 1 for UL installations.

*29 QUICK ARM [1]

1=yes; 0=no

*32 PRIM. SUBS. ACCT # | | | |

Enter 00-09; B-F (11-15) [15 15 15 15]

*38 PREVENT ZONE XX BYPASS [00] |

001-64; 000 if all zones can be bypassed

*39 ENABLE OPEN/CLOSE REPORT [1]

FOR INSTALLER CODE

1=enable; 0=disable

*84 SWINGER SUPPRESSION [03] |

01-15 alarms; Must be "00" (disabled) for UL installations.

*85 ENABLE DIALER REPORTS FOR PANICS & DURESS

1=enable; [0=disable]

995

996

999

Duress

*87 ENTRY WARNING [1]

1=continuous; 0=3 beeps

*88 BURG. ALARM COMM. DELAY [0]

1=16 seconds; 0=no delay. Must be "0" for UL installations.

*90 SEC. SUBS. ACCT # | | | |

Enter 00-09; B-F (11-15) [15 15 15 15]

2nd Page Fields

1*43 PERM. KEYPAD BACKLIGHT [0]

1=enable; 0=disable When disabled, display lights when

1*45 EXIT DELAY SOUNDING [0]

1=enable; 0=disable. Produces quick beeping during exit

1*47 CHIME ON BELL 1 [0]

1=enable; 0=disable

1*52 SEND CANCEL IF ALARM + OFF [0]

1=no restriction; 0=within Bell Timeout period only

1*76 ACCESS CONTROL RELAY FOR PART.[00] |

Relay will be pulsed for 2 seconds whenever code + [0] is

3rd Page Fields

2*18 ENABLE GOTO FOR THIS PARTITION [0]

2*20 ENABLE J7 TRIGGERS BY PARTITION [1]

0=disable; 1=enable for

• To enter program mode, enter installer code + [8] + [0] +

• To set standard defaults, press *97

• To change to next page of program fields, press *94

• To return to previous set of fields, press *99

• To erase account and phone number field entries,

• To assign zone descriptors, press #93 + follow menu

• To add custom words, press #93 + follow menu prompts

• To enter Installer's Message, press #93 + follow menu

• To exit program mode, enter *99 OR *98: *99 allows re-

any key is pressed, and turns off after period of keypad inactivity.

delay if enabled.

pressed. Enter 00-08; 00=none. Must be "00" for UL installs.

1=Allow log-on from other partitions; 0=disable

SUMMARY OF PROGRAMMING COMMANDS

[0]

press [*] + field number + [*]

prompts

access to programming mode by installer code. *98 prevents re-access to programming mode by installer code.

– 9 –

Programming With #93 Menu Mode

NOTE: The following field should be preset before beginning: 2*00 Number of Partitions. In addition, receivers should be programmed via Device programming.

After programming all system related programming fields in the usual way, press #93 while still in programming mode to display the first choice of the menu driven programming functions. Press 0 (NO) or 1 (YES) in response to the displayed menu selection. Pressing 0 will display the next choice in sequence.

For UL installations, verify that the audio alarm verification feature is disabled.

#93 MENU MODE KEY COMMANDS

The following is a list of commands used while in the menu mode.

#93 Enters Menu mode

[4] Serves as ENTER key. Press to have keypad accept entry.

[#] Backs up to previous screen.

0 Press to answer NO 1 Press to answer YES

01-09 All data entries are either 1-digit or 2-digit entries.

00 Exits menu mode, back into field programming mode, when entered at the first question for each category.

Menu selections are as follows:

PROMPT

ZONE PROG? 1 = YES 0 = NO 0

EXPERT MODE? 1 = YES 0 = NO 0

ALPHA PROG? 1 = YES 0 = NO 0

DEVICE PROG? 1 = YES 0 = NO 0

RELAY PROG? 1 = YES 0 = NO 0

RLY VOICE DESCR? 1 = YES 0 = NO 0

CUSTOM INDEX ? 1 = YES 0 = NO 0

EXPLANATION

For programming the following:

• Zone Number

• Zone Response Type

• Partition Number for Zone

• Dialer report code for zone

• Input Device Type for zone (whether RF, polling loop, etc.)

• Enrolling serial numbers of 5800 Series transmitters & serial polling loop devices into the system.

Same as Zone Programming except:

• Done with a minimum number of keystrokes.

• Can program wireless keys using pre-defined templates.

For entering alpha descriptors for the following:

• Zone Descriptors

• Installer's Message

• Custom Words

• Partition Descriptors

• Relay Descriptors

For defining the following device characteristics for addressable devices, including keypads, RF receivers (5881), output relay modules (4204), and 4285/4286 VIP Module:

• Device Address

• Device Type

• Keypad Options (incl. partition assignment)

• RF House ID

For defining relay functions.

For entering voice descriptors for relays to be used with the 4285/4286 VIP Module.

For creating custom word substitutes for VIP Module annunciation.

– 10 –

Zone Programming

If using 5800 Series transmitters, do not the install batteries until you are ready to enroll them. After enrolling the transmitter, the battery need not be removed. This is to prevent enrolling the wrong serial number.

PROMPT

ZONE PROG? 1 = YES 0 = NO 0

SET TO CONFIRM? 1 = YES 0 = NO 0

ENTER ZONE NO. 00 = QUIT 10

Zone 10 entered ↑

10 ZT P RC In L 00 1 10 00 1

10 ZONE TYPE PERIMETER 03

Zone number 10 and Zone Type 03 entry shown

† These are special zone types used with 5800 Series Wireless Pushbutton Units that result in arming the system in the STAY or AWAY mode, or disarming the system, depending on the selection made.

10 Partition 1

10 REPORT CODE 1st 03 2nd 12 3C

EXPLANATION

Press 1 to enter ZONE PROGRAMMING mode. The following screens appear. Press [✱] to display the next screen. Press # to display a previous screen.

This prompt appears once upon entering Zone Programming Mode. If “Yes,” Confirmation prompts will be displayed after the device’s Serial and Loop numbers have been

entered later.

Enter the 2-digit zone number to be programmed, as follows: Protection Zones = 01–64



System Supervisory Zones = 88, 89, 90, 91, 92 (duress), 97 Keypad Panic Zones = 95, 96, 99 Press [✱] to continue.

This display appears, showing a summary of the zone's current programming. ZT = Zone Type, P = Partition, RC = Report Code, In = the input type of device, and L = the device's loop number to which the sensor is connected.

Some devices can support more than one zone by means of individual loops (for example, 5801, 5804, 5816, 5817, etc.). If the zone is not programmed, the display appears as shown here. If you are checking a zone's programming, and it is programmed satisfactorily, press [#] to back up one step and enter another zone number, if desired.

Press [✱] to continue.

Each zone must be assigned a zone type, which defines the way in which the system responds to faults in that zone. Refer to the Zone Type Definitions section in the ADEMCO VISTA-40 Installation and Setup Guide for detailed definitions of each zone type. Enter the zone type desired (or change it, if necessary). Available zone types are listed below.

00 = Assign for Unused Zones 08 = 24 Hr. Auxiliary 01 = Entry/Exit #1, Burglary 09 = Fire Without Verification 02 = Entry/Exit #2, Burglary 10 = Interior Delay, Burglary 03 = Perimeter, Burglary 20 = Arm–STAY† 04 = Interior Follower, Burglary 21 = Arm AWAY† 05 = Trouble Day/Alarm Night 22 = Disarm† 06 = 24 Hr. Silent Alarm 23 = No Alarm Response 07 = 24 Hr. Audible Alarm (e.g., relay activation) Press [✱] to continue.

Enter the partition number (1–2) you are assigning this zone to. Press [✱] to continue.

Enter the report code. The report code consists of 2 hexadecimal digits, each in turn consisting of 2 numerical digits. For example, for a report code of "3C," enter 03 for "3" and 12 for "C."

(Refer to the System Communication section in the Installation and Setup Guide for more information about report codes and reporting formats.)

Press [✱] to continue.

– 11 –

PROMPT

10 INPUT TYPE RF Xmitter 3

Input types 4 & 5 are valid for certain 5800 Series transmitters only (e.g., 5801, 5802, 5802CP & 5803).

10 INPUT S/N: L AXXX-XXXX 1

10 INPUT S/N: L A022-4064 1

EXPLANATION

Enter the input device type as follows:

00 = not used 01 = hardwired 03 = supervised RF transmitter (RF type) 04 = unsupervised RF transmitter (UR type) 05 = RF button-type transmitter (BR type) 06 = serial number polling loop device (SL type) 07 = DIP switch-type polling loop device 08 = right loop of DIP switch type device

Right loops refer to the use of the right loop on a 4190WH Zone Expander Module and/or 4278 PIR, which allow hardwired devices to be monitored by the polling loop.

If you are programming hardwired or DIP switch polling loop devices, the summary display appears after completing this entry.

Press [✱] to continue.

For Serial Number entry and Loop Number entry, do one of the following:

a. Transmit two open and close (or close and open) sequences. For a button-type transmitter, press and

release the button, wait approximately 4 seconds, then press and release the button a second time.

b. Manually enter the 7-digit serial number printed on a label on the transmitter, using the Alpha keypad.

Then press the [✱] key, the cursor moves to the “L” position. You can edit the loop number, if necessary. When the loop number is acceptable, press [✱].

c. Press key [C] to copy the last serial number enrolled (used when programming a transmitter with several

input loops).

Press [✱] to accept.

The cursor will then move to the Loop column (L) with the previously entered/transmitted serial number displayed. Enter the loop number (refer to 5800 Series Transmitters Loop Designations below).

To Delete an Existing Serial Number, enter 0 in the loop number field. The serial number will change to “0”s.

If 0 was entered in error, simply re-enter the loop number or press [#], and the serial number will return to the display. Press [✱] to accept.

The system will then check for a duplicate serial/loop number combination. If a duplicate serial/loop number combination is found, the keypad will emit a single long beep, and display

the serial number along with a “?” for the loop number, allowing you to re-enter the correct loop number. If the serial/loop number combination is not a duplicate in the system, a display appears showing the serial number and loop number entry. Press [✱] to continue.

– 12 –

5800 Series Transmitters Loop Designations

LOOP 3

LOOP 2

LOOP 1

LOOP 4

YOU MUST ENROLL THIS BUTTON

5801

ENROLL AS "UR" OR "RF"

5802MN

ENROLL AS "UR" OR "RF"

LOOP

ALTERNATE

POSITION

FOR LOOP 2

LOOP 2 (REED)

LOOP 1 (TERMINALS)

5816MN

ENROLL AS "RF"

LOOP 1 (PRIMARY)

LOOP 2 (AUX. CENTER)

LOOP 3 (AUX. RIGHT)

5817

ENROLL AS "RF"

YOU MUST ENROLL THIS BUTTON

LOOP 4

ENROLL AS "RF"

5809

5808

5804

ENROLL

AS "BR"

LOOP

LOOP 3

LOOP 2

LOOP 1

LOOP 3

•

•••

•

5804BD

ENROLL AS "BR"

5816

ENROLL AS "RF"

LOOP 2

YOU MUST

ENROLL THIS

BUTTON

LOOP 4

LOOP 1

SET

HOUSE

CODE

LOOP 2 (REED)

LOOP 1 (TERMINALS)

LOOP

(REED)

LOOP 3

(TERMINALS)

ENROLL AS "RF"

SET HOUSE CODE

ENROLL AS "RF"

5819

5827

5850 (GBD)

(TERMINALS)

(Green) (Red) (Yellow)

LOOP 1

(TERMINALS)

LOOP 2

(REED)

LOOP 3

5819S (WHS & BRS)

ENROLL AS "RF"

5827BD

SET HOUSE CODE

5890

ENROLL AS "RF"

LOOP 1 (INTERNAL SHOCK SENSOR)

LOOP 1 (MOTION)

5800_trans_loop-V0

Note: For information on any transmitter not shown above, refer to the instructions accompanying that transmitter for details regarding loop numbers, etc.

PROMPT

The 5802MN, 5802MN2, 5804, 5804BD, 5814, 5816TEMP, 5819, 5819WHS & BRS, 5827BD, and 5850 transmitters are not intended for use in UL installations.

XMIT TO CONFIRM PRESS ✱TO SKIP

Entd A022-4063 1 Rcvd A022-4064

10 ZT P RC In L 03 1 3C RF 1s

EXPLANATION

Confirmation Option: This prompt only appears if you answered “Yes” at the first prompt. The system

enters a confirmation mode so that the operation of the actual programmed input can be confirmed. Activate the loop input or button that corresponds to this zone. At any time during this step, you may press the [✱] key on the keypad to save the serial and loop number combination without confirming.

If the serial number transmitted does not match the serial number entered, a display similar to the one at the left appears. If the loop number does not match, it is also displayed.

If so, activate the loop input or button on the transmitter once again. If a match is not obtained (i.e., summary display does not appear), press the [#] key twice and then enter or transmit the correct serial number.

If the serial number transmitted does match the serial number entered, the system beeps 3 times and a summary display appears, showing that zone’s programming. Note that an “s” indicates that a transmitter’s serial number has been enrolled.

Press [✱] to accept the zone information.

– 13 –

PROMPT

ENTER ZONE NO. 00 = QUIT 11

EXPLANATION

The system now returns to the “ENTER ZONE NO.” prompt for the next zone.

When all zones have been programmed, enter 00 to quit.

After you have enrolled each wireless device, remove ONE of the serial number labels from that device and affix it in the appropriate column on the worksheets provided later in this Programming Guide; then enter the other information (zone number, zone type, etc.) relevant to that device.

When you have finished programming all zones, test each using the system’s Test Mode. Do not use the Transmitter ID Sniffer Mode. The system checks only for transmission of one zone on a particular transmitter, NOT the zones assigned to each additional loop, and also does not verify polling loop type zones.

Expert Mode Zone Programming

Expert mode allows you to program zones using the minimum number of screens and keystrokes. Enter the Programming mode with [Installer Code] + [8] [0] [0] Before programming your zones, do the following:

1. Program field 2✱00: Number of Partitions.

2. Enable your RF Receiver in Device Programming menu mode. To program your zones, press ✱93 to display the "ZONE PROG?" prompt. Enter 0 (NO) to each prompt until the “EXPERT

MODE?” prompt appears.

PROMPT

EXPERT MODE? 1 = YES 0 = NO 0

SET TO CONFIRM? 0 = NO 1 = YES 0

Zn ZT P RC In L 01 03 1 10 HW -

Zn ZT P RC In L 10 03 1 10 RF 1s

Zn ZT P RC In L 10 03 1 10 RF -

EXPLANATION

Press 1 to enter Expert mode.

This prompt appears once upon entering Expert Mode. If you select “Yes,” Confirmation prompts will be displayed after the device’s Serial and Loop numbers have

been entered later.

A summary display appears, showing zone 1’s current programming or default values.

Enter the desired 2-digit zone number and press [✱]. Note: If you want to exit the Expert mode, enter 00 + [✱]. If an “s” appears after the loop number, it indicates that the transmitter’s serial number has been enrolled. Use the [D] key to enter and duplicate wireless keys (see “Entering Wireless Keys” later)

Enter all zone information except for Loop number, or press [C] to copy the zone information on this screen from the last saved zone (including Loop).

ZT = Zone Type P = Partition RC = Report Code In = Input Device Type L = Loop number to which the sensor is connected.

NOTE: Pressing the [C] copies the zone information from the last saved zone, which includes the input type. Verify this information is correct for this zone. On this screen:

• Use the [A] key to move to the right.

• Use the [B] key to move to left and to back up to “ZT” field.

Press [✱] to accept the existing or newly entered zone information.

– 14 –

PROMPT

10 INPUT S/N: L A XXX-XXXX



a. Transmit two open and close (or close and open) sequences. For a button-type transmitter, press and

b. Manually enter the 7-digit serial number printed on a label on the transmitter, using the alpha keypad.

c. Press key [C] to copy the last serial number enrolled (used when programming a transmitter with several

10 INPUT S/N: L A022-4064 1

10 INPUT S/N: L A000-0000 1

XMIT TO CONFIRM PRESS ✱TO SKIP

Entd A022-4063 1 Rcvd A022-4064

Zn ZT P RC In L 11 00 1 10 00 1

EXPLANATION

If you entered RF, BR, UR or SL for the Input Type, this screen displays. Otherwise the summary screen for the next zone displays. Enter the 7-digit serial number, using one of the following methods:

release the button, wait approximately 4 seconds, then press and release the button a second time.

Then press the [✱] key, the cursor will move to the “L” position. You can edit the loop number, if necessary. When the loop number is acceptable, press [✱].

input loops). Remember, you can use the [A] key to move to the right or the [B] key to move to the left. You can also use the [#] key to back up without saving.

Press [✱] to accept the serial number and advance to the “L” position (if method “a” or “c” was used), then enter the loop number. If necessary, press the [#] key to back up without saving, and re-enter or edit the serial number before pressing [✱] to save

The system checks for a duplicate. If a duplicate serial/loop number combination is found, the keypad will emit a single long beep, and display the serial number along with a “?” for the loop number, allowing you to re-enter the correct loop number.

To Delete an Existing Serial Number, enter 0 in the loop number field. The serial number will change to “0”s. If 0 was entered in error, simply re-enter the loop number or press [#], and the serial number will return to the display.

The prompt to confirm appears. This prompt only appears if you answered “Yes” at the “SET TO CONFIRM?” prompt.

The system enters a confirmation mode so that the operation of the actual programmed input can be confirmed. Activate the loop input or button that corresponds to this zone. At any time during this step, you may press the [✱] key on the keypad to save the serial and loop number combination without confirming.

If the serial number transmitted does not match the serial number entered, a display similar to the one at the left appears. If the loop number does not match, it also is displayed.

If so, activate the loop input or button on the transmitter once again. If a match is not obtained (i.e., summary display for the next zone does not appear), press the [#] key twice and then enter or transmit the correct serial number.

Activate the button on the wireless key again after re-entering the serial number.

If the serial number transmitted matches the serial number entered, the system beeps 3 times and advances to the summary display for the next zone's programming.

After all the zones have been programmed, enter 00 for the zone number to quit.

Entering Wireless Keys

If you pressed the D key previously to enter defaults for 5804 and/or 5804BD wireless keys, the following screens appear:

PROMPT

FROM TEMPLATE 1–6 1

L 01 02 03 04 ZT 23 22 21 23 1

EXPLANATION

Enter template number (1–6). 1–3 = 5804 templates; 4–6 = 5804BD templates. See the defaults provided for each template in the chart

that follows these procedures.

Select from templates. Press [✱] to display template (template 1 shown selected). Note: If necessary, press [#] to back up and re-enter template number. Press [#] if you want to return to zone attributes screen.

When you press [✱], the selected template is displayed. Top line of display represents loop numbers; bottom line represents zone type.

Press [✱] to accept template.

– 15 –

PROMPT

PARTITION 1

ENTER ZONE NO 00 = QUIT 24

▲ Example of zone number

suggested by the system. This indicates that zones 24, 25, 26, and 27 are available.

24 INPUT S/N L AXXX-XXXX 1

EXPLANATION

Enter partition number for wireless key. Press [✱] to continue.

The system searches for the highest available, consecutive 4-zone group (the four zones required for the 5804 and 5804BD), and displays the lowest zone number of the group.

If you want to start at a different zone number, enter the zone desired and press [✱]. If that zone number is displayed, the system has the required number of consecutive zones available,

beginning with the zone you entered. If not, the system again displays a suggested zone that can be used. If the required number of consecutive zones is not available at all, the system will display “00.” Press [✱] to accept.

To enter the serial number:

Press and release a button on the wireless key.

OR Manually enter the 7-digit serial number printed on the device’s label. Press [✱] to accept serial number. The system checks for a duplicate.

If a duplicate exists, a long error beep will sound and the serial number reverts back to all “X”s allowing you to re-enter the serial number.

Use the [A] key to move forward within the screen, and the [B] key to back up.

XMIT TO CONFIRM PRESS ✱TO SKIP

Entd A022-4063 Rcvd A022-4064

If you entered YES previously at the SET TO CONFIRM prompt (see first prompt following entry into the Expert Programming Mode), the display on the left appears.

To confirm, activate the button on the wireless key that corresponds to this zone.

If the serial number transmitted does not match the serial number entered, a display similar to the one at the left appears.

If so, activate the loop input or button on the transmitter once again. If a match is not obtained (i.e., summary display does not appear), press the [#] key and then enter the correct serial number.

Activate the button on the wireless key again after re-entering the serial number.

ENTER ZONE NO 00 = QUIT 28

If the serial number transmitted matches the serial number entered, the system will beep 3 times and revert to the "Start Zone No." prompt and will show the lowest numbered zone of the next available 4-zone group (4 consecutive zones) that is available for programming.

After all the wireless keys have been entered, enter 00 for the zone number to quit.

Wireless Key Default Templates

5804 5804BD

Template 1 Loop Function Zone Type Template 4 Loop Function Zone Type

1 No Response 23 1 No Response 23 2 Disarming 22 2 No Response 23 3 Arm AWAY 21 3 Arm AWAY 21 4 No Response 23 4 Disarming 22

Template 2 Loop Function Zone Type Template 5 Loop Function Zone Type

1 No Response 23 1 No Response 23 2 Disarming 22 2 Arm STAY 20 3 Arm AWAY 21 3 Arm AWAY 21 4 Arm STAY 20 4 Disarming 22

Template 3 Loop Function Zone Type Template 6 Loop Function Zone Type

1 24-Hour Panic 07 1 24-Hour Panic 07 2 Disarming 22 2 Arm STAY 20 3 Arm AWAY 21 3 Arm AWAY 21 4 Arm STAY 20 4 Disarming 22

– 16 –

Alpha Descriptors Programming

You can program a user-friendly English language description/location for all protection zones, relays, keypad panics, polling loop short, and RF receiver supervision troubles.

Each description can be composed of a combination of words (up to 3) that are selected from a vocabulary of 244 words stored in memory, and any word can have an "s" or " ’s " added to it. In addition, up to 20 installer-defined words can be added to those already in memory. Thus, when an alarm or trouble occurs in a zone, an appropriate description for the location of that zone will be displayed at the keypad.

NOTE: Due to the use of 2-digit zone numbers, the first word of the descriptor is limited to 7 characters if you want it to fit on the top line of the display.

A custom installer’s message can be programmed for each partition, which is displayed when the system is "Ready" (e.g., THE PETERSONS’).

1. To program alpha descriptors, enter Programming mode, then press [#]93 to display "ZONE PROG?"

2. Press 0 (NO) twice to display "ALPHA PROG?".

3. Press 1 to enter Alpha Programming. There are 5 submenu selections that will be displayed one at a time. Press 1 to select the mode desired. Press 0 to display the next mode available. The alpha menu selections are:

ZONE DESCRIP?

For entering zone descriptors.

DEFAULT SCREEN?

CUSTOM WORD?

PART DESCRIP?

EXIT EDIT MODE?

For creating custom message; displayed when system is ready.

For creating custom words for use in descriptors.

For creating 4-character partition names.

Press 1 to exit back to #93 Menu Mode.

4. Refer to the sections that follow for procedures for adding alpha descriptors.

Zone Descriptors

1. Select ZONE DESCRIPTOR mode. The keypad keys perform the following functions: [3] Scrolls both alphabet and actual words in ascending alphabetical order. [1] Scrolls both alphabet and actual words in descending alphabetical order. [2] Adds or removes an "s" or " 's " to a vocabulary word. [6] Switches between alphabet and actual word list; used to accept entries. [8] Saves the zone description in the system's memory. [#] [#] plus zone number displays the description for that zone.

2. Enter the zone number to which you want to assign a descriptor. For example, key [✱] 01 to begin entering the description for Zone 1, (key [✱] 02 for Zone 2, [✱] 03 for Zone 3, etc.). The

following is displayed: ✱ ZN 01 A. Note that the first letter of the alphabet appears after the zone number, and that the zone number is automatically

included with the description.

3. Enter the descriptor for that zone. Use one of two methods as follows: (Assume, for example, that the desired description for Zone 1 is BACK DOOR.) a) Press [#] followed by the 3-digit number of the first word from the fixed dictionary shown later in this section (e.g.,

[0][1][3] for BACK). Press 6 in order to accept the word and proceed, or press 8 to store the complete descriptor and exit;

b) Select the first letter of the desired description (note that "A" is already displayed). Use the 3 key to advance through

the alphabet and the 1 key to go backward. Press 3 key repeatedly until "B" appears (press 1 to go backwards if you happen to pass it), then press 6 to display

the first available word beginning with “B”. Press 3 repeatedly to advance through the available words until the word “BACK” is displayed.

To add an "s" or " 's" if you need to, press 2. The first depression adds an "s," the second depression adds an " 's, " the third depression displays no character (erases the " 's"), the fourth depression adds an "s," etc.

– 17 –

4. Accept the word. To accept the word, press 6, which switches back to the alphabet list for the next word, or press 8 to store the complete

descriptor and then exit.

5. Select the next word. For selection of the next word (DOOR), repeat step 3a (word #057) or 3b, but selecting the word "DOOR.” To accept the word, press 6, which again switches back to alphabet list.

6. Store the descriptor. When all desired words have been entered, press 8 to store the description in memory. To review the zone descriptors, key [#] plus zone number (e.g., #01). To edit zone descriptors, key [✱] plus zone number (e.g., ✱01)

7. Exit Zone Description Mode: enter 00.

Default Screen (Custom Message Display)

Normally, when the system is in the disarmed state, the following display is present on the keypad.

****DISARMED**** READY TO ARM

Part or all of the above message can be modified to create a custom installer message for each partition. For example, “****DISARMED****” on the first line or “READY TO ARM” on the second line could be replaced by the installation company name or phone number for service.

Note: There are only 16 character spaces on each of the two lines. To create a custom display message, proceed as follows:

1. Select Default Screen mode.

The keypad asks for the partition number for this message. Enter the partition number. Press [✱] to accept entry. The following display appears:

****DISARMED****

READY TO ARM

A cursor is present at the extreme left of the first line (over the first "star"). Press 6 to move the cursor to the right and 4 to move the cursor to the left. Press 7 to insert spaces or erase existing characters.

2. Create the message.

For example, to replace “READY TO ARM” with the message “SERVICE 424-0177,” proceed as follows: Press 6 to move the cursor to the right, and continue until the cursor is positioned over the first location on the second

line.

Press 3 to advance through the alphabet to the first desired character (in this case, "S"). Press 1 to go backward, when

necessary. When the desired character is reached, press 6.

The cursor then moves to the next position, ready for entry of the next character (in this example, "E"). When the cursor

reaches a position over an existing character, press 3 or 1 to advance or back up from that character in the alphabet.

Proceed in this manner until all characters in the message have been entered.

3. Save the message. Store the new display message in memory by pressing 8.

4. The system asks for a new partition number. Enter 0 to quit or 1-2 for a new partition number.

Custom Words

Up to 20 installer-defined words can be added to the built-in vocabulary. Each of the 20 "words" can actually consist of several words, but bear in mind that a maximum of 10 characters can be used for each word string.

1. Select CUSTOM WORD Mode.

The keys perform the following functions: [3] Advances through alphabet in ascending order. [1] Advances through alphabet in descending order. [6] Selects desired letter; moves the cursor 1 space to the right. [4] Moves the cursor one space to the left. [7] Inserts a space at the cursor location, erasing any character at that location. [8] Saves the new word in the system's memory. [✱] Returns to Description Entry Mode.

– 18 –

2. Enter the custom word number (01-20) you want to create.

For example, if you are creating the first word (or word string), enter 01; when creating the second word, enter 02, and so on. A cursor now appears at the beginning of the second line.

3. Type the word using one of two methods as follows:

a) Press [#], followed by the 2-digit entry for the first letter you would like to display (e.g., 65 for "A").

When the desired character appears, press 6 to select it. The cursor will then move to the right, in position for the next character. Press [#] plus the 2-digit entry for the next letter of the word.

b) Press 3 to advance through the list of symbols, numbers, and letters.

Press 1 to move back through the list. When you have reached the desired character, press 6 to select it. The cursor then moves to the right, in position for

the next character.

4. Repeat step 3 to create the desired custom word (or words).

Press 4 to move the cursor to the left if necessary. Press 7 to enter a blank (or to erase an existing character). Each word or word string cannot exceed 10 characters.

5. Save the word by pressing 8.

This returns you to the “CUSTOM WORD?” display. The custom word (or string of words) is automatically added to the built-in vocabulary at the end of the group of words beginning with the same letter.

Custom words are retrieved as word numbers 250 to 269 for words 1 to 20, respectively, when using method 3a to enter alpha descriptors.

When using method 3b to enter alpha descriptors, each word appears at the end of the group of words that begin with the same letter as it does.

6. Repeat steps 2 through 6 to create up to a maximum of 20 custom words (or word strings).

7. Exit Custom Word Mode by entering 00 at the “CUSTOM WORD” prompt.

Partition Descriptors

1. Select "Part DESCRIPT." Mode. The system asks for the partition number desired. Enter the number as a single-key entry 1-2.

2. Follow the same procedure as for custom words. Note: The partition descriptors are limited to 4 characters (e.g., WHSE for warehouse).

– 19 –

Alpha Descriptor Vocabulary

(For entering alpha descriptors. To select a word, press [#] followed by the word’s 3-digit number.) NOTE: This vocabulary is not to be used for relay voice descriptors. See the Relay Voice Descriptors section when

programming relay voice descriptors.

000 (Word Space)

• 001 AIR

• 002 ALARM

003 ALCOVE 004 ALLEY 005 AMBUSH

• 006 AREA

• 007 APARTMENT

008 ART

• 009 ATTIC

010 AUDIO 011 AUXILIARY

• 012 BABY

• 013 BACK

• 014 BAR

015 BARN

• 016 BASEMENT

• 017 BATHROOM

• 018 BED

• 019 BEDROOM

020 BELL

• 021 BLOWER

• 022 BOILER

023 BOTTOM 024 BOX 025 BREAK

• 026 BUILDING

027 BURNER

028 CABINET

• 029 CALL

030 CAMERA 031 CAR 032 CASE 033 CASH 034 CCTV 035 CEILING 036 CELLAR

• 037 CENTRAL

038 CIRCUIT 039 CLIP

• 040 CLOSED

041 COIN 042 COLD 043 COATROOM 044 COLLECTION 045 COMBUSTION

• 046 COMPUTER

047 CONTACT

• 048 DAUGHTERS

049 DELAYED

• 050 DEN

051 DESK

• 052 DETECTOR

• 053 DINING

054 DISCRIMINATOR 055 DISPLAY 056 DOCK

• 057 DOOR

058 DORMER

• 059 DOWN

• 060 DOWNSTAIRS

061 DRAWER

• 062 DRIVEWAY

063 DRUG

• 064 DUCT

• 065 EAST

066 ELECTRIC 067 EMERGENCY 068 ENTRY

• 069 EQUIPMENT

070 EXECUTIVE

• 071 EXIT

072 EXTERIOR

• 073 FACTORY

074 FAILURE 075 FAMILY

• 076 FATHERS

• 077 FENCE

078 FILE

• 079 FIRE

• 080 FLOOR

081 FLOW 082 FOIL

• 083 FOYER

084 FREEZER

• 085 FRONT

086 FUR 087 FURNACE

088 GALLERY

• 089 GARAGE

• 090 GAS

091 GATE

• 092 GLASS

093 GUEST 094 GUN

• 095 HALL

• 096 HEAT

097 HIGH 098 HOLDUP 099 HOUSE

100 INFRARED

• 101 INSIDE

102 INTERIOR 103 INTRUSION

104 JEWELRY

• 105 KITCHEN

• 106 LAUNDRY

• 107 LEFT

108 LEVEL

• 109 LIBRARY

• 110 LIGHT

111 LINE 112 LIQUOR

• 113 LIVING

• 114 LOADING

115 LOCK 116 LOOP 117 LOW

• 118 LOWER

• 119 MACHINE

120 MAGNETIC 121 MAIDS 122 MAIN

• 123 MASTER

124 MAT

• 125 MEDICAL

126 MEDICINE 127 MICROWAVE 128 MONEY 129 MONITOR

• 130 MOTHERS

• 131 MOTION

132 MOTOR 133 MUD

• 134 NORTH

135 NURSERY

• 136 OFFICE

137 OIL

• 138 OPEN

139 OPENING

• 140 OUTSIDE

141 OVERFLOW 142 OVERHEAD

143 PAINTING

• 144 PANIC

145 PASSIVE

• 146 PATIO

147 PERIMETER

• 148 PHONE

149 PHOTO 150 POINT

151 POLICE 152 POOL

• 153 POWER

154 QUAD

155 RADIO

• 156 REAR

157 RECREATION 158 REFRIG 159 REFRIGERATION 160 R F

• 161 RIGHT

• 162 ROOM

163 ROOF

164 SAFE 165 SCREEN 166 SENSOR

• 167 SERVICE

• 168 SHED

169 SHOCK

• 170 SHOP

171 SHORT 172 SHOW

• 173 SIDE

174 SKYLIGHT 175 SLIDING

• 176 SMOKE

177 SONIC

• 178 SONS

• 179 SOUTH

180 SPRINKLER 181 STAMP

• 182 STATION

183 STEREO 184 STORE

• 185 STORAGE

186 STORY 187 STRESS 188 STRIKE 189 SUMP 190 SUPERVISED 191 SUPERVISION 192 SWIMMING 193 SWITCH

194 TAMPER 195 TAPE 196 TELCO 197 TELEPHONE 198 TELLER

• 199 TEMPERATURE

200 THERMOSTAT

• 201 TOOL

202 TRANSMITTER 203 TRAP

204 ULTRA

• 205 UP

• 206 UPPER

• 207 UPSTAIRS

• 208 UTILITY

209 VALVE 210 VAULT 211 VIBRATION 212 VOLTAGE

213 WALL 214 WAREHOUSE 215 WASH

• 216 WEST

• 217 WINDOW

218 WINE

• 219 WING

220 WIRELESS 221 WORK

222 XMITTER

223 YARD

224 ZONE (No.)

• 225 ZONE

• 226 0

• 227 1

• 228 1ST

• 229 2

• 230 2ND

• 231 3

• 232 3RD

• 233 4

• 234 4TH

• 235 5

• 236 5TH

• 237 6

• 238 6TH

• 239 7

• 240 7TH

• 241 8

• 242 8TH

• 243 9

• 244 9TH

250 Custom Word 1 to 269 Custom Word 20

CHARACTER (ASCII) CHART

32 (space) 33 ! 34 " 35 # 36 $ 37 % 38 & 39 ’ 40 ( 41 )

42 * 43 + 44 , 45 46 . 47 / 48 0 49 1 50 2 51 3

Notes: This factory-provided vocabulary of words is subject to change. Bulleted words in bold face type are those that are also available for use by the 4285/4286 VIP Module. If you are

using a VIP Module, and words other than these are selected for alpha descriptors, the Voice Module will not provide annunciation of those words.

(For Adding Custom Words) 52 4 53 5 54 6 55 7 56 8 57 9 58 : 59 ; 60 < 61 =

– 20 –

62 > 63 ? 64 @ 65 A 66 B 67 C 68 D 69 E 70 F 71 G

72 H 73 I 74 J 75 K 76 L 77 M 78 N 79 O 80 P 81 Q

82 R 83 S 84 T 85 U 86 V 87 W 88 X 89 Y 90 Z

Device Programming

This menu is used to program keypads, receivers, and relay modules, etc.

Device Address 00 is always set as an alpha keypad assigned to Partition 1 with no sounder suppression options, and these settings cannot be changed.

From Data Field Programming mode, press [#]93 to display "ZONE PROG?" Press 0 repeatedly to display "DEVICE PROG?"

PROMPT

DEVICE PROG? 1=YES 0=NO 0

DEVICE ADDRESS 01-15, 00=QUIT 01

DEVICE TYPE 0

EXPLANATION

Press 1 to enter Device Programming.

The device address identifies the device to the control. Enter the 2-digit device address number to match the device’s physical address setting (01-15).

NOTE: If using the 4285/4286 Voice Module, it must be used at Device Address 04.

Select the type of addressable device as follows:

0 = device not used 3 = RF receiver (5881) 1 = alpha keypad (6139/6160) 4 = output relay module (4204) 2 = fixed keypad (6137/6150) 5 = voice (VIP) Module (4285/4286)

Press [✱] to accept entry.

Alpha Keypad

PROMPT

01 CONSOLE PART. 1

01 SOUND OPTION 00

EXPLANATION

If you selected device type 1 (alpha keypad) or 2 (fixed keypad), this prompt appears. Enter the addressable device’s default partition number (1 to maximum number of partitions programmed for system in field 2*00). This is the primary partition for the device.

Press [✱] to accept entry.

Keypads can be individually programmed to suppress arm/disarm beeps, entry/exit beeps and chime mode beeps. This helps prevent unwanted sounds from disturbing users in other areas of the premises.

Enter a number 00-03 for the keypad sounding suppression options desired for the keypad as follows:

00 = no suppression 01 = suppress arm/disarm & entry/exit beeps 02 = suppress chime mode beeps only 03 = suppress arm/disarm, entry/exit and chime mode beeps

Press [✱] to accept entry.

RF Expander

PROMPT

01 RF EXPANDER HOUSE ID 00

EXPLANATION

If you selected device type 3 (RF receiver), this prompt appears. Enter the 2-digit House ID (00-31). This is required if you are using a wireless keypad (5827/5827BD).

Press [✱] to accept entry.

VIP Module

PROMPT

01 MODULE PART. 1

EXPLANATION

If you selected device type 5 (VIP Module), this prompt appears. Enter the partition number 1-2 in which the module is located.

Press [✱] to accept entry. Press 00 + [✱] to exit Menu mode. Press ✱99 to exit Program mode.

– 21 –

Relay Programming

The system supports up to 8 relay outputs. Relays can be used to perform many different functions and actions. Each relay must be programmed to begin one of three types of ACTIONS at a designated START event, and end that ACTION at a designated STOP event. The options and prompts used to start and stop these devices are described below

The letter(s) in parentheses after each function described below, such as (A) after ACTION, are those that appear in the various summary displays of programmed data during programming.

ACTION (A) The "ACTION" of the device is how the device will respond when it is activated by the "START"

programming. You may want the device to activate momentarily, to pulse on and off continuously, or to remain activated until some other event occurs to stop it. There are five different action choices:

• ACTIVATE for 2 SECONDS and then reset.

• ACTIVATE and REMAIN ACTIVATED until stopped by some other event.

• PULSE ON and OFF until stopped by some other event.

• NO RESPONSE when the device is not used.

START (STT) The "START" programming determines when and under what conditions the device is activated. The

following START options are available:

1) EVENT (EV) is the condition (alarm, fault, trouble) that must occur to a zone or group of zones (zone list) in order to activate the device. These conditions apply only when a zone list is used. The different choices for "EVENT" are listed below and in “Programming Relays” later in this section.

• ALARM Action begins upon any alarm in an assigned zone in the zone list.

• FAULT Action begins upon any opening of an assigned zone in the zone list.

• TROUBLE Action begins upon any trouble condition in an assigned zone in the zone list.

• NOT USED Action is not dependent upon one of the above events.

ZONE LIST (ZL) is a group of zones to which the “EVENT” applies in order to activate a particular device. Note that there are a total of 4 zone lists that can be programmed; when the selected EVENT (alarm, fault or trouble) occurs in any zone in the selected “Start” ZONE LIST (1-4), activation of the selected device will START.

3) ZONE TYPE/SYSTEM OPERATION (ZT). If all zones to be used to start the device have the same response type, and there are no other zones of this type that are not to activate this device, then “ZONE TYPE” may be used instead of a "ZONE LIST" and "EVENT” to activate the device.

If a system operation, such as “DISARMING” or “ANY FIRE ALARM,” is to activate the device, enter the appropriate choice under the “ZONE TYPE” option.

The “ZONE TYPE/SYSTEM OPERATION” option functions independently of the “EVENT/ZONE LIST” combination.

If a specific "ZONE TYPE" is chosen, any zone of that response type going into alarm, trouble, or fault will cause the device to activate as selected in "ACTION.” If the same “ZONE TYPE” is also chosen for the STOP programming, any zone of that type that restores will de-activate the device.

If a "SYSTEM OPERATION" is chosen, that operation will cause the device to activate as selected in "ACTION.” The different choices for "ZONE TYPE" and "SYSTEM OPERATION" are listed in “Programming Relays” later in this section, and on the Programming Form.

4) PARTITION NO. (P). The device's "Start" ZONE TYPE/SYSTEM OPERATION may be limited to an occurrence on one partition (1-2), or any partition (0).

STOP (STP): The "STOP" programming determines when and under what conditions the device is de-activated. The

following options are available:

1). RESTORE ZONE LIST (ZL). If a "ZONE LIST" is used as the “Stop” event, the device de-activates when all the zones in that list restore from a previous fault, trouble, or alarm condition. This occurs regardless of what is programmed to "START" the device; therefore, a "RESTORE ZONE LIST" is normally only used when a "ZONE LIST" is used to start the device.

2). ZONE TYPE/SYSTEM OPERATION (ZT). Instead of using a "RESTORE ZONE LIST," you can select a specific zone (response) type or system operation action to de-activate the device.

If you choose a specific "ZONE TYPE," any zone of that response type that restores from a previous alarm, trouble, or fault condition will cause the device to de-activate.

If you choose a "SYSTEM OPERATION," that operation causes the device to de-activate. The different choices for "ZONE TYPE" and "SYSTEM OPERATION" are listed in “Programming Relays” later in this section, and in the Programming Form.

3) PARTITION NO. (P). The device's "Stop" Zone Type/System Operation may be limited to an occurrence on one partition (1-2), or on any partition (0).

The “ZONE TYPE/SYSTEM OPERATION” option functions independently of the “RESTORE/ZONE LIST” combination.

– 22 –

Relay Output Devices Programming

From Data Field Programming Mode, press #93 to display the "ZONE PROG?" prompt. Press [0] (NO) to each menu option until the "RELAY PROG?" prompt appears. Press [1] (YES).

While in this mode, press [✱] to advance to next screen. Press [#] to back up to the previous screen.

PROMPT

ENTER RELAY # (00=QUIT) 01

02 A EV ZL P STT 0 0 00 0

02 A ZL ZT P STOP 0 00 00 0

02 RELAY ACTION NO RESPONSE 0

02 START EVENT NOT USED 0

02 START: ZN LIST 0

02 START: ZN TYPE NO RESPONSE 00

EXPLANATION

Enter the relay (output device) identification number 01-08. This is a reference number only, used for identification purposes. The actual module address and relay number on the module are programmed in the last two prompts.

Press [✱] to continue.

The keypad displays a summary STOP screen. Press [✱] to continue.

The Relay Action is the way in which the relay will respond when activated by the "start" event. Enter the desired action for this relay as follows:

0=not used; 1=close for 2 secs.; 2=stay closed; 3=pulse on/off

A relay may be activated by an Event/Zone List combination, and/or by a Zone Type/System Operation. For an Event/Zone List combination, enter the event code as follows:

0=not used; 1=alarm; 2=fault; 3=trouble If you are not using a Zone List to activate the relay, enter 0. Press [✱] to continue.

A zone list is a set of zones that can be used to initiate the start or stop relay action. If a zone list is being used to start this relay action, enter the zone list number, 1-4. If a zone list is not being used, enter 0.

Press [✱] to continue.

A Zone Type/System Operation can be used instead of or in addition to an Event/Zone List combination or a specific zone to start the relay action. If a Zone Type/System Operation is being used, enter the 2-digit code as listed in the table that follows.

Press [✱] to continue.

Choices for Start/Stop Zone Types and System Operations:

00 = No Response (Not Used) 23 = No Alarm Response 43 = Communication failure 01 = Entry/Exit #1 31 = End of Exit Time 44 = RF Low Battery 02 = Entry/exit #2 32 = Start of Entry Time 45 = Polling Loop Failure 03 = Perimeter 33 = Any Burglary Alarm 51 = RF Receiver Failure 04 = Interior Follower 34 = Code + [#] + 71 Key Entry 52 = Kissoff 05 = Trouble Day/Alarm Night 35 = Code + [#] + 72 Key Entry 54 = Fire Zone Reset 06 = 24-Hr. Silent 36 = At Bell Timeout ** 55 = Disarm + 1 Minute 07 = 24-Hr. Audible 37 = 2 Times Bell Timeout ** 56 = XX Minutes (enter XX in field 1*74) * 08 = 24-Hr. Auxiliary 38 = Chime 57 = YY Seconds (enter YY in field 1*75) * 09 = Fire Alarm or Trouble 39 = Fire Alarm 58 = Duress 10 = Interior w/Delay 40 = Bypassing 20 = Arming-STAY 31 = End of Exit Time 21 = Arming-AWAY 41 = AC Power Fail

60 = Audio Alarm Verification (must be

selected for both START and STOP operation)

22 = Disarming (Code + Off) 42 = System Battery Low * Stop condition only ** Or at disarming, whichever occurs earlier

If you are using options 56 and/or 57 (usually as the STOP Zone Type), you must program data fields 1*74 and 1*75 for the respective relay timeouts for minutes and seconds.

– 23 –

PROMPT

02 START: PARTN ANY PARTITION 0

EXPLANATION

If the starting event will be limited to occurring on a specific partition, enter the partition number (1-2) in which the start event will occur. Enter 0 for any partition. Press [✱] to continue.

Do not use a zone programmed with an RF Button (Input Type BR) to STOP a relay. The system will not deactivate the relay.

PROMPT

02 STOP: ZN LIST 00

02 STOP: ZN TYPE NO RESPONSE 00

02 STOP: PARTN ANY PARTITION 0

02 RESTRICTION 1=YES 0=NO 0

02 RELAY TYPE V-PLEX 0

02 ECP ADDRESS 00

02 MODULE RELAY# 0

02 HOUSE CODE A 00

02 UNIT CODE 00

EXPLANATION

If a zone list is being used to stop this relay action, enter the zone list number, 1-4. The restore of a zone on the zone list stops the relay. If a zone list is not being used, enter 0. Press [✱] to continue.

If a Zone Type/System Operation is being used to stop the relay action, enter the 2-digit code listed in the Choices for Start/Stop System Operation chart. Press [✱] to continue.

This is the partition to which the stop condition will be limited. Enter 0 for any partition. Enter 1-2 for specific partition number.

Press [✱] to continue.

The system may have some devices that are not intended to be under end user control, such as relays activating fire doors or machinery. Enter 1 if the end user will be restricted from accessing this relay.

Press [✱] to continue.

Enter 1 for (ECP) relay modules (4204). Enter 2 for X-10 devices. Press [✱] to continue.

If you selected 1 (4204), enter the actual module’s address (01-15) as set by its DIP switches. Up to 2 modules can be installed in a system. Press [✱] to continue.

For 4204 Relay Outputs, enter the specific relay number on that module (1-4). Press [✱] to continue. The keypad will display the Start and Stop summary screens again. Press [✱] to continue.

If you selected 2 for X-10 devices, enter the numerical equivalent of the House Code of the device, as follows:

A=00 D=03 G=06 J=09 M=12 P=15 B=01 E=04 H=07 K=10 N=13 C=02 F=05 I=08 L=11 O=14

Enter the numerical unit code of the X-10 device (00-15). Press [✱] to continue. The keypad displays the Start and Stop summary screens again. Press [✱] to continue.

When all relays have been programmed, enter 00 at the "ENTER RELAY NO." prompt. If you are defining a zone list, continue to the next section. If not, enter 00 + [✱] at the next two prompts. You will then be asked "Quit Menu Mode?" Enter 1 for "Yes," 0 for "No." Then enter [✱]99 to exit programming completely.

Zone List Programming

After all relays have been programmed, upon entering 00 at the "ENTER RELAY NO." prompt, you are asked to enter a zone list. If a zone list number was used to start or stop a relay, you must define the zones belonging to that list as follows:

PROMPT

ENTER Zn LIST ? 00=QUIT 00

EXPLANATION

Enter the zone list number 01-04. Enter 00 to quit.

– 24 –

PROMPT

01 ADD ZONE # 00=QUIT 00

01 Del Zn LIST ?

EXPLANATION

Using 2-digit entries, enter each zone to be included in this zone list. Press [✱] after you enter each zone number.

When you have entered all zones, enter 00. Press [✱] to continue.

Enter 0 to save this zone list. Enter 1 to delete it.

1=YES 0=NO 0

01 DEL ZONES ? 1=YES 0=NO 0

01 Zn to DELETE ?

Enter 1 to delete one or more zones in that zone list. Enter 0 if no changes are necessary. If you enter 1, the following screen appears; otherwise, the "Enter Zone LIST" prompt reappears.

Enter each zone number to be deleted from the zone list, pressing [✱] after each number.

00=QUIT 00

VIEW Zn LIST ? 00=QUIT 00

01 ASSIGNED ZONE 00=QUIT 00

This display appears if you pressed 00 at the “Enter Zone LIST” prompt. Enter the zone list number that you wish to view.

Press [✱] to continue.

Press [✱] to scroll through all zones in that list. Enter 00 +[✱] to quit. Press 1 to exit Menu Mode. Press [✱]99 to exit Program Mode.

Relay Voice Descriptors

If you are using the 4285/4286 VIP Module, you can program voice descriptors for each relay output. The descriptors are announced by the voice module when you access the relays via the # 70 Relay Access Mode over the telephone.

Each voice descriptor can consist of up to 3 words selected from the Relay Voice Descriptors and Custom Word Substitutes Vocabulary list (later in this section).

The index numbers from this vocabulary list are to be used for relay voice descriptors only. For normal system voice annunciation (e.g., alarms, troubles, status), use the highlighted words in the alpha vocabulary list in the Alpha Programming part of this guide.

To enter relay voice descriptors, do the following:

1. From Data Field Programming mode, press #93 to display the "ZONE PROG?" prompt.

2. Press 0 (NO) to each menu option until the "RLY VOICE DESCR?" prompt is displayed. Follow the instructions below.

While in this mode, press [✱] to advance to next screen. Press [#] to back up to previous screen.

PROMPT

RLY VOICE DESCR? 1=YES 0=NO 0

ENTER RELAY NO. 00=QUIT 01

01 ENTER DESC d1

01 ENTER DESC d2

01 ENTER DESC d3

EXPLANATION

Press 1 to program voice descriptors for relays.

Enter the 2-digit relay number (01-08) for the relay desired, or enter 00 to quit Relay Voice Descriptor Programming Mode. Press [✱]

From the Relay Voice Descriptors and Custom Word Substitutes Vocabulary list, enter the 3-digit index number for the first word of the relay descriptor phrase.

Press [✱] to accept entry.

From the Relay Voice Descriptors and Custom Word Substitutes Vocabulary list, enter the 3-digit index number for the second word of the relay descriptor phrase. If second word is not desired, press 000.

Press [✱] to accept entry.

From the Relay Voice Descriptors and Custom Word Substitutes Vocabulary list, enter the 3-digit index number for the third word of the relay descriptor phrase. If third word is not desired, press 000.

Press [✱] to accept entry. The “ENTER RELAY NO.” prompt appears. Enter the next relay number to be programmed. When you have programmed all relay devices, enter 00 to quit.

Enter [✱]99 to exit Program Mode.

– 25 –

Relay Voice Descriptors and Custom Word Substitutes Vocabulary

Word Index

Air ............................116

Alarm .......................255

And ..........................067

Apartment ................117

Appliances ...............161

Area .........................118

Attic.......................... 119

Baby......................... 120

Back......................... 121

Bar ...........................122

Basement................. 021

Bathroom .................051

Battery......................053

Bed ..........................092

Bedroom ..................015

Blower...................... 123

Boiler........................ 124

Bright .......................162

Building .................... 125

Burglary.................... 039

Call........................... 009

Central ..................... 089

Chime ......................054

Closed...................... 126

Computer .................127

Console.................... 066

Word Index

Daughter’s................208

Den ..........................052

Detector....................128

Device...................... 060

Dim...........................163

Dining....................... 031

Door .........................016

Down........................ 008

Downstairs ...............184

Driveway ..................130

Duct..........................131

East.......................... 132

Eight......................... 077

Eighth....................... 221

Equipment................ 133

Exit...........................004

Factory ..................... 134

Father’s .................... 211

Fence ....................... 135

Fifth..........................218

Fire........................... 040

First .........................136

Five .......................... 074

Floor......................... 029

Four..........................073

Fourth.......................217

Foyer........................ 137

Word Index

Front.........................087

Garage .....................023

Gas...........................138

Glass ........................139

Hall...........................050

Heat..........................010

Inside........................209

Kitchen .....................022

Laundry ....................140

Left ........................... 027

Library ......................141

Light .........................019

Living........................030

Loading.....................142

Lower .......................094

Machine....................143

Master ......................144

Medical.....................014

Mother’s....................212

Motion ......................145

Nine..........................078

Ninth.........................222

Word Index

No.............................165

North.........................146

Not............................012

Off ............................011

Office........................147

On ............................058

One...........................070

Open.........................148

Outside .....................210

Panic ........................013

Partition ....................090

Patio .........................149

Phone .......................061

Power .......................063

Pump........................166

Rear .........................088

Right.........................028

Room........................018

’s...............................007

Second .....................056

Service .....................150

Seven .......................076

Seventh ....................220

Shed.........................151

Shop.........................152

Word Index

Side .........................153

Six ...........................075

Sixth.........................219

Smoke .....................024

Son’s........................223

South ....................... 155

Stairs .......................006

Station .....................156

Storage.................... 157

Sun .......................... 154

System.....................062

Temperature ............158

Third ........................159

Three ....................... 072

Tool .........................213

Two.......................... 071

Up............................ 025

Upper....................... 187

Upstairs ...................183

Utility........................ 185

West ........................215

Window.................... 017

Wing ........................216

Zero ......................... 069

Zone ........................002

Custom Word Substitutes for VIP Module Annunciation

A substitute word can be programmed for each of the 20 custom words used in your alpha zone descriptions. The VIP Module announces this substitute word in place of the custom word that is displayed on the alpha keypad. For example, a zone display of "John’s Bedroom" could be announced as "Son’s Bedroom," as there is no annunciation for the custom word "John." Note that if a substitute word is not assigned, the VIP Module will not annunciate the zone descriptor at all, but will only annunciate the zone number.

To enter custom word substitutes, do the following:

1. From Data Field Programming Mode, press #93 to display the "ZONE PROG?" prompt.

2. Press [0] (NO) to each menu option until the "CUSTOM INDEX ?" prompt is displayed.

PROMPT

CUSTOM INDEX ? 1=YES 0=NO 0

CUSTOM WORD NO. 00=QUIT

01 ENTER INDEX #

EXPLANATION

Enter 1 at this prompt.

Enter the custom word number (01-20) for which a voice substitute is desired. Enter 00 to quit this Programming Mode.

Press [✱] to accept entry.

Enter the 3-digit substitute word index number from the Relay Voice Descriptors and Custom Word Substitutes Vocabulary list in the Relay Voice Descriptors part of this section.

Press [✱] to accept entry. The "CUSTOM WORD NO." prompt is displayed. Enter the next custom word number to be substituted, or

enter 00 to quit.

– 26 –

System Layout Worksheets

Before programming any security system, you should first define the installation. To help you lay out a partitioned system, use the following worksheets. This will further simplify the programming process.

PARTITIONS

Partition #

Partition 1 Partition 2 Keyswitch Arming Partition Assignment (1-2):

Wireless Keypad Partition Assignment (1-2):

Voice Module Partition Assignment (1-2):

Use Partition Descriptor (yes/no)?

Option Part. 1 Part. 2

Swinger Suppression Count 00-15; 00=no suppression Cancel Report After Disarm Dialer Reports for Panic (* + 1) Dialer Reports for Panic (# + 3) Dialer Reports for Panic (* + #) Dialer Reports for Duress Burglary Alarm Communications Delay (16 sec.)

SYSTEM DEFINITIONS BY PARTITION (enter values or yes/no)

Option Part. 1 Part. 2

Entry Delay #1 (00, 30-225 seconds): Exit Delay #1 (00, 45-225 seconds): Entry Delay #2 (00, 30-225 seconds): Exit Delay #2 (00, 45-225 seconds): Quick Arming Multiple Alarms per Arming Console Panic for Zone 95 (* + 1) Console Panic for Zone 96 (# + 3) Console Panic for Zone 99 (* + #) Allow Sign-on (GOTO function) Non-Bypassable Zone* Sounder Timeout Duration for Bell (2 min. increments) Console Annunciation During Entry** Console Annunciation During Exit Confirmation of Arming Ding for Bell Chime on Bell Access Control Relay (field 1*76) *Can be any zone 01-64.

**no = 3 beeps; yes = continuous

12- or 24-hour Time format

Option No Yes Alarm Trouble Bypass Open/Close System

Descriptor (4-char max)

Prim. Sub. #

Sec. Sub. #

COMMUNICATION OPTIONS BY PARTITION

PRINTER OPTIONS

EVENT LOG TYPES

Alpha Default Message

(32-character maximum)

– 27 –

DEVICES (keypads, 4204, rf receivers, vip module, lrr)

Addr Type Part

00.

01.

02.

03.

04.

05.

06.

07.

08.

09.

10.

11.

12.

13.

14.

15.

Sound

Opt

House

Device Types:

00 = Device Not Used 01 = Alpha Console 02 = Fixed-Word Console 03 = RF Receiver 04 = Relay Module 05 = Voice Module

NOTES: Address 04 must be used for the Voice Module, if used.

Console Sounder Options:

0 = No Suppression 1 = Suppress Arm/Disarm and Entry/Exit Beeps 2 = Suppress Chime Mode Beeps Only 3 = Suppress Arm/Disarm, Entry/Exit and Chime

Mode Beeps

Defaults:

Addresses 00 = Alpha Keypad; No Suppression Addresses 01 = Alpha Keypad; No Suppression Addresses 02 = Alpha Keypad; No Suppression Addresses 03 = Alpha Keypad; No Suppression

ACCESS CODES & USER DEFINITIONS FOR PARTITIONS 1 & 2

Security

Code

2-Digit User #

Authority Levels: 1=Master (arm, disarm, bypass, and/or modify lower level users) 2=Manager (arm, disarm, bypass, and/or modify lower level users) 3=Operator A (arm, disarm, bypass) 4=Operator B (arm, disarm) 5=Operator C (arm, disarm only if system was armed with this code) 6=Duress code (arm, disarm, triggers silent panic alarm)

Partition 1 Partition 2 4-digit

Auth. Level

Open/ Close

RF Key 2-Digit

User #

Auth. Level

Open/ Close

RF Key

– 28 –

words max.)

Zone Information (part numbers) & Alpha Descriptor (3

Rpt. Code

ZONE DEFINITION FOR ZONES 01-25

Serial # / Loop

Input Type

Part 1-2

Zone Type

Zone No.

– 29 –

words max.)

Zone Information (part numbers) & Alpha Descriptor (3

ZONE DEFINITION FOR ZONES 26-50

Rpt. Code

Serial # / Loop

Input Type

Part 1-2

Zone Type

Zone No.

– 30 –

words max.)

Zone Information (part numbers) & Alpha Descriptor (3

ZONE DEFINITION FOR ZONES 51-64

Rpt. Code

Serial # / Loop

Input Type

Part 1-2

Zone Type

Zone No.

– 31 –

ZONE DEFINITIONS FOR KEYPAD PANIC ZONES 95, 96, & 99

Enter yes/no for each

partition (field *22)

Zone

No.

Zone Type

Report

Code

Zone Information (part numbers) &

Alpha Descriptor (3 words max.)

ZONE DEFINITIONS FOR SYSTEM ZONES; 70, 88; 89, 90, 91 & 97

Zone

No.

Zone Type

Report

Code

Zone Information (part numbers)

Alpha Descriptor (3 words max.)

Zone Types:

00=zone not used 05=day/night burglary 10=interior (w/delay) 01=entry/exit 1 06=24-hour silent 20=arm stay 02=entry/exit 2 07=24-hour audible 21=arm away 03=perimeter 08=24-hour auxiliary 22=disarm 04=interior (follower) 09=supervised fire 23=no alarm response

Input Types:

00=not used 05=RF button transmitter 01=hardwired 06=serial number polling loop 03=supervised RF transmitter 07=Dip switch-type polling loop 04=unsupervised RF transmitter 08=right loop dip switch polling loop

– 32 –

Relay Outputs Worksheets

Applicable only if relays (4204) or X-10 devices are used.



Programmed in the #93 Menu Mode in the Relay Programming Section. Fill in the worksheet below and follow the procedure in the installation instructions as you enter the data during the displays and prompts that appear in sequence.

Notes: 1. For 4204 the Device Programming section must be programmed for the device address. Set the DIP

switches on the device for that address.

2. For X-10 devices, use the 1361X10 transformer in place of the transformer that comes in the box with the control panel.

RELAY DEV #

START

EV/ZL ZT / P ZL ZT / P

STOP

Restrict

1=4204 2=X-10

Dev Add 4204

or House Code

for X-10

Relay # for 4204

Unit Code for X-10

A = DEVICE ACTION 0 = No Response; 1 = Close for 2 sec; 2 = Close and stay closed; 3 = Pulse on and off EV = EVENT 0 = Not used; 1 = Alarm; 2 = Fault; 3 = Trouble; 4 = Restore ZL = ZONE LIST 1-4, 0 = Not Used NOTES: "START" ZONE LIST: Upon alarm, fault, trouble or restore of ANY zone in this list, device action starts.

"STOP" ZONE LIST: Upon restore of ALL zones in this list, device action stops. It need not be same list as used for START.

ZT = ZONE TYPE/SYSTEM OPERATION Choices for Zone Types are:

00=zone not used 05=day/night burglary 10=interior (delay) 01=entry/exit 1 06=24-hour silent 20=arm stay 02=entry/exit 2 07=24-hour audible 21=arm away 03=perimeter 08=24-hour auxiliary 22=disarm 04=interior (follower) 09=supervised fire 23=no alarm response

NOTE: Any zone in "ZT" for Start, going into alarm, fault, or trouble will activate the relay. Any zone in "ZT" for Stop, that restores will stop the relay action.

Choices for System Operation are:

00 = No Response (Not Used) 23 = No Alarm Response 43 = Communication failure 01 = Entry/Exit #1 31 = End of Exit Time 44 = RF Low Battery 02 = Entry/exit #2 32 = Start of Entry Time 45 = Polling Loop Failure 03 = Perimeter 33 = Any Burglary Alarm 51 = RF Receiver Failure 04 = Interior Follower 34 = Code + [#] + 71 Key Entry 52 = Kissoff 05 = Trouble Day/Alarm Night 35 = Code + [#] + 72 Key Entry 54 = Fire Zone Reset 06 = 24-Hr. Silent 36 = At Bell Timeout ** 55 = Disarm + 1 Minute 07 = 24-Hr. Audible 37 = 2 Times Bell Timeout ** 56 = XX Minutes (enter XX in field 1*74) * 08 = 24-Hr. Auxiliary 38 = Chime 57 = YY Seconds (enter YY in field 1*75) * 09 = Fire Alarm or Trouble 39 = Fire Alarm 58 = Duress 10 = Interior W/Delay 40 = Bypassing 20 = Arming-STAY 31 = End of Exit Time 21 = Arming-AWAY 41 = AC Power Fail 22 = Disarming (Code + Off) 42 = System Battery Low

* Stop condition only ** Or at disarming, whichever occurs earlier

P = PARTITION No. 1-2, 0 = Any

60 = Audio Alarm Verification (must be

selected for both START and STOP operation)

– 33 –

ZONE LISTS FOR RELAY DEVICES – Programmed in the #93 Menu Mode in the Relay Programming Section. Fill in the

required data on the worksheet below and follow the procedure shown earlier in this Programming Guide as you enter the data during the displays and prompts that appear in sequence. Up to 4 zone lists may be created

Note: Record desired zone numbers below. More or fewer boxes than shown may be needed, as any list may include any or

all of system's zone numbers.

Zone List 1: Started or stopped by zone numbers (enter 00 to end entries).

Zone List 2: Started or stopped by zone numbers (enter 000 to end entries).

Zone List 3: Started or stopped by zone numbers (enter 000 to end entries).

Zone List 4: Started or stopped by zone numbers (enter 000 to end entries).

– 34 –

VISTA-40 Summary of Connections Diagram

VISTA-40-SOC-V1

EARTH GROUND

No. 4142TR CABLE

1 2 3 4 5 6 7 8 9

MAKE CONNECTIONS USING

Ratings for Out 1-4:

Active: 10VDC-13.8VDC through 5k OHMS

Optional programming:

Not Active: 100 OHMS to ground.

Out 1: Open/close or keypad-like sounding

Out 2: Armed LED

Out 4: Ready LED

1. In 2 (Printer DTR)

2. Ground

3. In 3 (1361X10 sync)

4. In 4 (1361X10 sync)

5. Ground

6. Out 5 (1361X10 data)

7. Out 6 (Printer RXD)

8. Ground

9. Ground

Connect to good earth

1 2 3 4 5 6 7 8 9

(Refer to Installation Instructions for information concerning Direct Wire

Downloading and printer connections using the 4100SM Serial Module.)

WEEKLY TESTING IS REQUIRED TO ENSURE PROPER OPERATION OF THIS SYSTEM.

1. Not Used

2. Ground-

3. Out 1 (Ground Start)

4. Ground-

5. Out 2 (fire)

6. Ground-

7. Out 3 (burg/aud. panic)

8. Ground

9. Out 4 (silent panic/

J7 Header J8 Header

4. Zone 8 supports 2-wire latching type glass break detectors.

See Installation and Setup Guide for recommended type

and maximum number of detectors supported.

5. Cut blue jumper to disable supervision of alarm sounder output.

duress)

Installation and

ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8 ZONE 9

Red Jumper (note 1)

for Programming and Wiring Instructions).

Leave jumper intact to supervise output. (See

Setup Guide

DOC LOAD NO.: 5

ground to maintain im-

munity to transients.

See Instructions for

proper grounding.

WARNING: TO PREVENT

(RED)

RING

(GREEN)

TIP

Incoming

(GRAY)

RING

(BROWN)

TIP

Handset

23 24 25 26

13 14

11 12

N.C.

ZONE 1

Data out

Data in

RISK OF ELECTRICAL

SHOCK, DISCONNECT

TELCO JACK BEFORE

SERVICING THIS PANEL.

Phone Line

THIS EQUIPMENT SHOULD BE INSTALLED

IN ACCORDANCE WITH THE NATIONAL

FIRE PROTECTION ASSOCIATION'S

cord.

RJ31X direct connect

using Ademco No. 620

Telephone connections

POLLING LOOP

N.O.

4208U

(Fast/Normal) Loop Programmable Response

BREAK DETECTOR LOOP

LATCHING TYPE GLASS

GLASS

2k EOLR

(note 1,3)

(note 1)

2k EOLR

N.O. N.O.

(note 1)

2k EOLR

N.O.

Fire

(note 1)

2k EOLR

DETECTOR LOOP 2-WIRE SMOKE

See Installation Instructions

(Addressable keypads only)

Red Blk Grn Yel

REMOTE KEYPAD/DEVICES

for maximum number of keypads

and for maximum wire run length.

STANDARD 72 (NATIONAL FIRE

PROTECTION ASSOC., BATTERYMARCH

PARK. QUINCY, MA. 02269). PRINTED

INFORMATION DESCRIBING PROPER

INSTALLATION, OPERATION, TESTING,

MAINTENANCE, EVACUATION PLANNING

AND REPAIR SERVICE IS TO BE

PROVIDED WITH THIS EQUIPMENT.

4190

SMOKE

4192SD

USE UL LISTED ENERGY CABLE FOR ALL CONNECTIONS

N.C.

BREAK

Usage

N.C.

SMOKE

N.O.

2k EOLR

Polling loop rating: 64mA max. See

(note 1,4)

(note 1)

2k EOLR

N.O. N.O.

(note 1)

2k EOLR

Zone resistance (Excluding EOLR):

ZONE 1,8: 100 OHMS MAXIMUM

Burg.

Usage

(Also supports NO/NC Burg contacts)

N.O.

N.C.

COMPLIES WITH FCC RULES, PART 68

FCC REGISTRATION NO. AC398U-68192-AL-E

RINGER EQUIVALENCE: 0.7B

THIS DEVICE COMPLIES WITH PART 15 OF

FCC RULES. OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS: (1) THIS DEVICE

MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE

RECEIVED, INCLUDING INTERFERENCE

THAT MAY CAUSE UNDESIRED OPERATION.

CONNECTION OF THE FIRE ALARM SIGNAL

TO A FIRE ALARM HEADQUARTERS OR A

CENTRAL STATION SHALL BE PERMITED

ONLY WITH THE APPROVAL OF THE LOCAL

AUTHORITY HAVING JURISDICTION. THE

BURGLAR ALARM SIGNAL SHALL NOT BE

CONNECTED TO A POLICE EMERGENCY

Installation Instructions for maximum

number of devices supported and

maximum wire run length

Fast: 10mSec-15mSec

NUMBER.

Normal: 350mSec-500mSec

ADEMCO VISTA-40

Zone response time:

ZONES 1-8: 350mSec-500mSec

ZONE 9: Programmable for

ALL OTHER ZONES: 300 OHMS MAXIMUM

(default response)

SUMMARY OF CONNECTIONS

2k EOLR

(note 1,2)

POWER LIMITED.

ALL CIRCUITS ARE

345

Zone 1 supports 2-wire smoke detectors.

See Installation and Setup Guide for recommended

1. Zone 1 may be selected for EOLR supervised

or normally closed (no EOLR) operation via

cut jumper. (Cut red jumper for normally closed

operation. Do not cut for Fire Usage). Zones 2-8

WARNING: OWNER'S INSTRUCTION NOTICE NOT TO BE REMOVED

NOTES:

type and maximum number of detectors supported.

may be selected for either operation via program

field *41.

TABS

BATTERY

Blue

Jumper

(note 5)

Zone 7 may be used for remote keyswitch

arming/disarming. See Installation and Setup Guide

for wiring instructions.

RED (+)BLK (-)

Connect to

60 Hz Outlet

24hr. 120VAC,

See

required

13.7VDC

BATTERY

VOLTAGE

Connect to

12VDC, 4AH

or 12VDC, 7AH

GEL CELL

CHARGING

Installation

Instructions for

capacity

Replace

NO CONNECTION

16.5VAC, 40VA

TRANSFORMER

ADEMCO No.1361

every

3 years

BELL

No. 1361CN)

OR 1361X10

IF X-10 DEVICES

(IN CANADA USE

– 35 –

AUXILARY POWER OUTPUT

9.6VDC - 13.8VDC,

750mA maximum

Note: Include current drawn

by keypads and polling loop

devices when making

auxiliary power calculations.

SIREN

ALARM SOUNDER OUTPUT 10VDC - 13.8VDC

Notes For UL Household Fire Installations

1. Use 12VDC, 14AH battery

NOTE:

WILL BE USED

WHEN POWERING UP

THE PANEL, PLUG THE

TRANSFORMER IN BEFORE

CONNECTING THE BATTERY.

2. Maximum auxiliary current,

including polling loop 300mA

3. Combined alarm and auxilary power output

and polling loop current must be limited to 750mA

for UL985 Household Fire Installations.

165 Eileen Way, Syosset, New York 11791

¬1359l

N7001PRV5 5/04 Rev A
