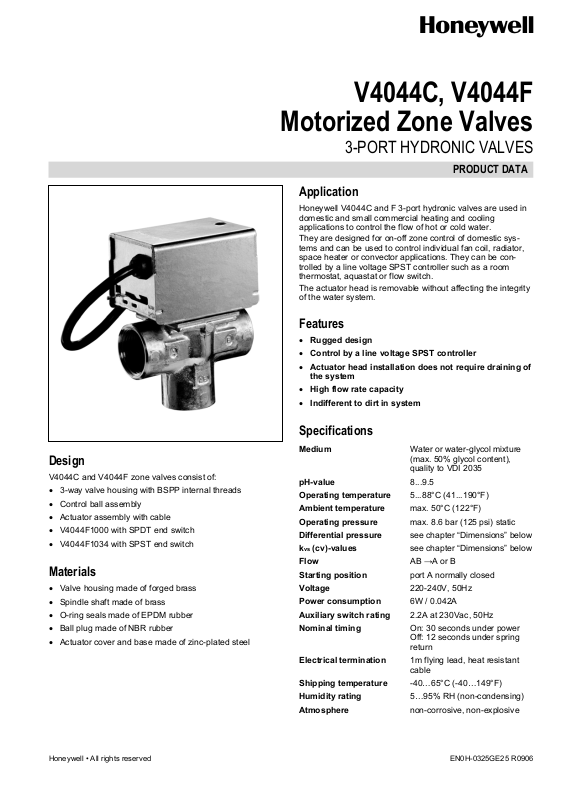

Honeywell V4044C, V4044F DATASHEET

Design
V4044C and V4044F zone valves consist of:
Control ball assembly
Actuator assembly with cable
V4044F1000 with SPDT end switch
V4044F1034 with SPST end switch
Materials
Valve housing made of forged brass
Spindle shaft made of brass
O-ring seals made of EPDM rubber
Ball plug made of NBR rubber
Actuator cover and base made of zinc-plated steel
V4044C, V4044F
Motorized Zone Valves
3-PORT HYDRONIC VALVES
PRODUCT DATA
Application
Honeywell V4044C and F 3-port hydronic valves are used in domestic and small commercial heating and cooling applications to control the flow of hot or cold water.
They are designed for on-off zone control of domestic sys­tems and can be used to control individual fan coil, radiator, space heater or convector applications. They can be con­trolled by a line voltage SPST controller such as a room thermostat, aquastat or flow switch.
The actuator head is removable without affecting the integrity of the water system.
Features
Rugged design
Control by a line voltage SPST controller
Actuator head installation does not require draining of
the system
High flow rate capacity
Indifferent to dirt in system
Specifications
Medium Water or water-glycol mixture
pH-value 8...9.5
Operating temperature 5...88°C (41...190°F)
Ambient temperature max. 50°C (122°F)
Operating pressure max. 8.6 bar (125 psi) static
Differential pressure see chapter “Dimensions” below
k
vs (cv)-values see chapter “Dimensions” below
Flow AB A or B
Starting position port A normally closed
Voltage 220-240V, 50Hz
Power consumption 6W / 0.042A
Auxiliary switch rating 2.2A at 230Vac, 50Hz
Nominal timing On: 30 seconds under power
Electrical termination 1m flying lead, heat resistant
Shipping temperature -40…65°C (-40…149°F)
Humidity rating 5…95% RH (non-condensing)
Atmosphere non-corrosive, non-explosive
(max. 50% glycol content), quality to VDI 2035
Off: 12 seconds under spring return
cable
Honeywell • All rights reserved EN0H-0325GE25 R0906
V4044C, V4044F
Function
V4044C and V4044F 2-position hydronic valves are used in domestic and small commercial applications to control the flow of hot or cold water. They consist of an actuator and a valve.
With the manual opener set to AUTO and the actuator energized, port A of the valve is opened and port B is closed. When the actuator is de-energized, a spring-return mechanism drives the ball to close port A, opening port B. Port A can also be opened with no electrical power by moving the manual opening lever over the stop and pushing slowly and firmly to the MAN. OPEN position. The stop permits the valve to be locked with port A in the open position. The valve returns to the automatic position when the valve is energized. A power failure will leave the valve at the spring-returned position. When power is restored, the valve will respond to controller demand.
Wiring
Fig. 1. V4044C/F in
energized position (AB-A)
NOTE: Port AB is always open
Fig. 2. V4044C/F in de-
energized position (AB-B)
Fig. 3. Wiring diagram for V4044C Fig. 4. Wiring diagram for
V4044F1034
Table 1. Cable colour coding
a b c d e h
brown blue green/yellow orange grey white
NOTE: The V4044C has no end switch. It is equipped with a 3 wire cable (line, neutral, earth) The V4044F1034 has an SPST end switch. It is equipped with a 5-wire cable (line, neutral, earth, end switch). The end
switch closes when the valve is in position AB – B
The V4044F1000 has an SPDT end switch. It is equipped with a 6-wire cable (line, neutral, earth, end switch NO, end
switch NC)
The length of all cables is 1m
Fig. 5. Wiring diagram for
V4044F1000
