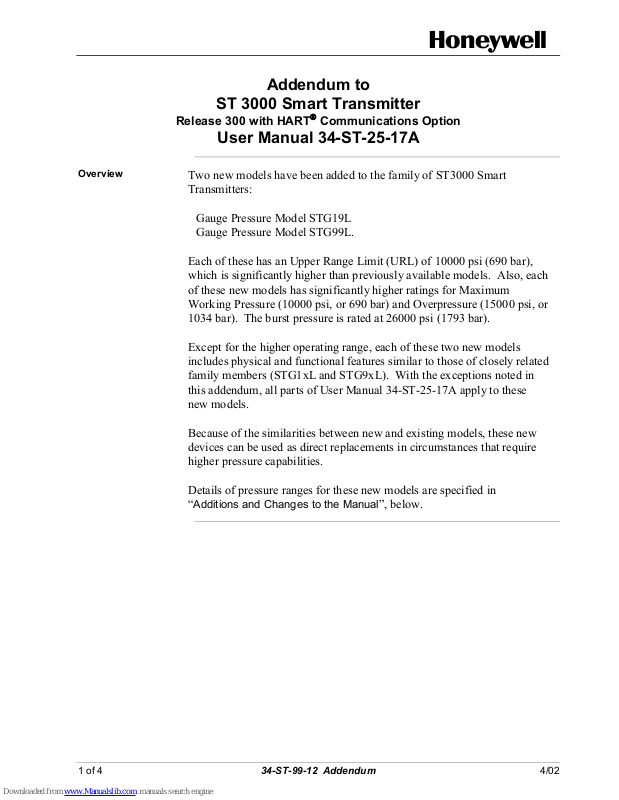

Addendum to
ST 3000 Smart Transmitter
Release 300 with HARTÒ Communications Option
User Manual 34-ST-25-17A
Overview
Two new models have been added to the family of ST3000 Smart
Transmitters:
Gauge Pressure Model STG19L
Gauge Pressure Model STG99L.
Each of these has an Upper Range Limit (URL) of 10000 psi (690 bar),
which is significantly higher than previously available models. Also, each
of these new models has significantly higher ratings for Maximum
Working Pressure (10000 psi, or 690 bar) and Overpressure (15000 psi, or
1034 bar). The burst pressure is rated at 26000 psi (1793 bar).
Except for the higher operating range, each of these two new models
includes physical and functional features similar to those of closely related
family members (STG1xL and STG9xL). With the exceptions noted in
this addendum, all parts of User Manual 34-ST-25-17A apply to these
new models.
Because of the similarities between new and existing models, these new
devices can be used as direct replacements in circumstances that require
higher pressure capabilities.
Details of pressure ranges for these new models are specified in
Additions and Changes to the Manual”, below.
“
1 of 4 34-ST-99-12 Addendum 4/02
Page 2
Additions to the
User Manual
The additions to User Manual 34-ST-25-17A that relate to the new Gauge
Pressure transmitter models are given in Table 1 of this addendum. Use
the information in Table 1 to reference and annotate your User Manual.
Table 1 – Additions to the User Manual
Page # in User
Manual
15 3- Preinstallation
Considerations –
Considerations for ST 3000
Transmitter
Table 4 Operating
Temperature Limits
(Transmitters with Silicone
Fluid Fill DC200)
16 3- Preinstallation
Considerations –
Considerations for ST 3000
Transmitter
Pressure Ratings
Table 5 Transmitter
Overpressure Ratings
120 12.1 Replacement Parts
Figure 40 Major ST3000
Smart Transmiter Parts
Reference
Sub-Section Description of Change
In the left column of Table 4, under the heading
Gauge Pressure, add the information as
indicated by the highlights in Exhibit A, below.
(Note: Ranges for Ambient Temperature and
Process Interface Temperature are the same as
for other models in each series.)
In the row of Table 5 titled Gauge Pressure, add
the information as highlighted in Exhibit B, below.
At the right of Figure 40, under LGP Models,
references to Figure 48 have been added for
ST 3000 Transmitters STG19L and STG99L.
NOTE:
The use of Figure 48 (and corresponding Table
60) is the same for all LGP meter bodies,
including Models STG19L and STG99L.
That is, the model number of the meter body is
specified on its nameplate.
In Figure 40, add the information highlighted in
Exhibit C in this addendum
.
4/02 34-ST-99-12 Addendum 2 of 4
Page 3
Exhibit A –Additions to Table 4
Transmitter Type and Model Ambient Temperature Process Interface Temperature
°C °F °C °F
Draft Range STD110
Differential Pressure
STD125
STD120, STD130, STD170
STD904, STD924, STD930,
STD974
Gauge Pressure
STG140, STG170, STG180
STG14L, STG17L, STG18L,
STG19L
STG14T
STG93P
STG944, STG974
STG90L, STG94L, STG97L,
STG98L,
~
STG99L
-40 to 70 -40 to 158 -40 to 70 -40 to 158
-40 to 85
-40 to 85
-40 to 85
-40 to 85
-40 to 85
-40 to 85
-15 to 65
-40 to 85
-40 to 85
~~~~
-40 to 185
-40 to 185
-40 to 185
-40 to 185
-40 to 185
-40 to 185
5 to 149
-40 to 185
-40 to 185
-40 to 85
-40 to 125
-40 to 125
-40 to 125
-40 to 110
-40 to 150 †
-15 to 95 ††
-40 to 125
-40 to 110
-40 to 185
-40 to 257
-40 to 257
-40 to 257
-40 to 230
-40 to 302 †
5 to 203 ††
-40 to 257
-40 to 230
Exhibit B –Additions to Table 5
Transmitter Type Upper Range Limit (URL) Maximum Working
Pressure Rating
Draft Range
Differential Pressure
Gauge Pressure
Absolute Pressure
10 inches H2O (25 mbar) 50 psi (3.5 bar) 50 psi (3.5 bar)
400 inches H
100 psi (7 bar) 3000 psi (210 bar) 3000 psi (210 bar)
3000 psi (210 bar) 3000 psi (210 bar) 3000 psi (210 bar)
100 psi (7 bar) 100 psi (7 bar) 150 psi (10.3 bar)
300 psi (21 bar) 300 psi (215 bar) 450 psi (31 bar)
500 psi (35 bar) 500 psi (35 bar) 750 psi (52 bar)
3000 psi (210 bar) 3000 psi (210 bar) 4500 psi (310 bar)
6000 psi (415 bar) 6000 psi (415 bar) 9000 psi (620 bar)
O (1 bar) 3000 psi (210 bar) 3000 psi (210 bar)
2
10000 psi (690 bar) 10000 psi (690 bar) 15000 psi (1034 bar)
780 mmHg Absolute
(1 bar)
780 mmHg Absolute
(1 bar)
Overpressure Rating
(No overpressure
protection is provided)
Full vacuum to 1550
mmHg Absolute (2 bar)
500 psia (35 bar) 500 psia (35 bar) 750 psia (52 bar)
3 of 4 34-ST-99-12 Addendum 4/02
Page 4
Exhibit B –Additions to Table 5
ST 30 00 Rel ease 300
Elect ronic Hou sing Assembly: Se e Figures 42 and 4 3
Meter Bodi es
DP See
Mo d e ls Fig ure
STD110 44
STD120 44
STD125 44
STD130 44
STD170 44
STD904 44,45
STD924 44,45
STD930 44,45
STD974 44,45
Flange
Mounted See
Models Figure
STF128 50
STF132 50
STF12F 50
STF13F 50
STF14F 50
STF924 50
STF932 50
STF92F 50
STF93F 50
Single Head See
GP Models Figure
STG140 46
STG170 46
STG180 46
Single Head See
AP Models Figure
STA122 46
STA140 46
STA922 46
STA940 46
Attention: No replacement meter body is
available for Remote Diaphragm Seal Models.
Dual Head See
GP Models Figure
STG944 47
STG974 47
Rem ote Diaphragm Seal
Models
STR12D LGP Models
STR13D STR14G
STR14A STR17G
STR93D STR94G
LGP See
Models Figure
STG14L 48
STG17L 48
STG18L 48
STG19 L 48
STG90L 48
STG94L 48
STG97L 48
STG98L 48
STG99 L 48
Flush Mount See
GP Models Figure
STG93P 49

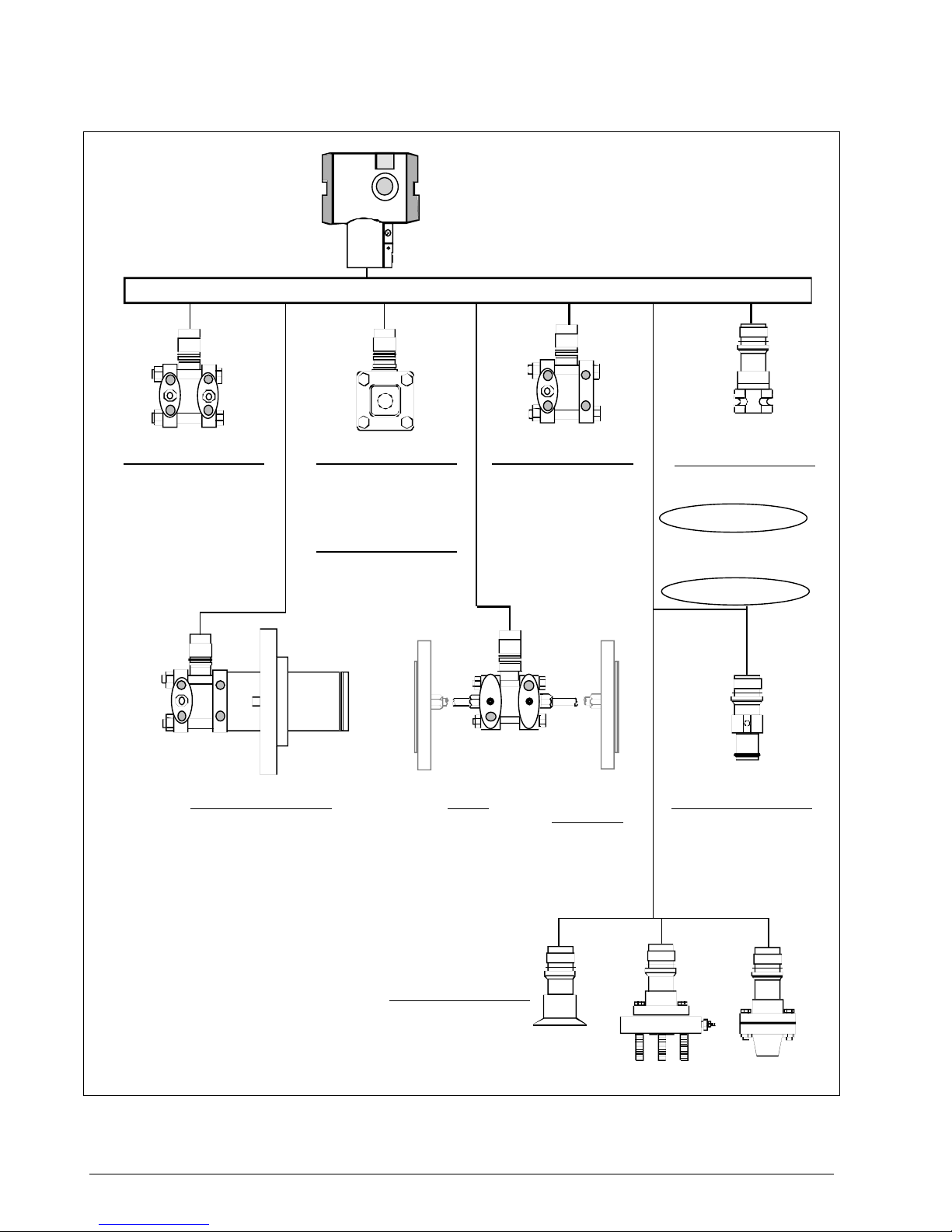

Figure 40 major ST 3000 Smart Transmitter Parts Reference
4/02 34-ST-99-12 Addendum 4 of 4
High
Temperature See
Models Figure
STG14T 51
STF14T 51
