Honeywell ML6185 User Manual

Direct Coupled Actuator
The ML6185 Spring Return Direct Coupled Rotary Actuator is a floating control motor that can be used with controls that provide switched or floating single pole double throw (spdt) control output to operate dampers in heating, ventilation, and air conditioning (HVAC) applications.
ML6185
Spring Return
Mounts directly on horizontal 3/8 in., 1/2 in., and
5/8 in. round and square damper shafts by using the
appropriate insert. Most models are shipped with 1/
2 in. insert.
Provides 50 lb-in. running and spring return torque.
Magnetic coupling eliminates the need for mechani-
cal stops or limit switch adjustments by limiting
stall torque to 130 lb-in. maximum.
95° stroke provides necessary compression of rub-
ber/neoprene gaskets commonly used on 90° low
leakage dampers.
88 second synchronous timing can eliminate need
for feedback position indication in closed-loop tem-
perature control applications.
Removable splined output hub permits premounting
of the hub on the damper shaft, providing installation
flexibility.
Reversible mounting allows actuator to be used for
either clockwise (cw) or counterclockwise (ccw)
spring rotation.
Designed for both single-point and three-point mount-
ing, providing installation flexibility.
Available with or without a time-out feature. Models
without the time-out feature are designed to be used with intelligent building management system and/or controller.
Standard models have two 8 mm x 12 mm long set
screws for securing the damper shaft. Actuator models are available for various shaft sizes that will allow the damper shaft to operate centered inside the output hub.
Standard one-meter cable with color-coded lead-
wires allows external wire connections with 1/2 in. conduit connectors.
Can mount two or more actuators on one damper
shaft to increase output torque for use on dampers larger than 16 square feet.
CONTENTS
Specifications .................................................2
Ordering Information..................................... 2
Installation .....................................................4
Operation .......................................................9
Checkout.......................................................11
1 63-2483—2G.R. • Rev. 4-95 • ©Honeywell Inc. 1995
63-2483-2
ML6185 SPECIFICATIONS • ORDERING INFORMATION
Specifications
MODELS: ML6185 Spring Return Direct Coupled Rotary
Actuators.
ML6185A: Medium Torque (50 lb-in.) Direct Coupled
Rotary Actuator without auxiliary switches and without time-out function.
ML6185C: Medium Torque (50 lb-in.) Direct Coupled
Rotary Actuator with two line voltage rated aux­iliary switches, without time-out function.
ML6185D: Medium Torque (50 lb-in.) Direct Coupled
Rotary Actuator without auxiliary switches and with time-out function.
ML6185F: Medium Torque (50 lb-in.) Direct Coupled
Rotary Actuator with two line voltage auxiliary switches and time-out function.
ELECTRICAL RATINGS:
Power Input: 24 Vac ± 20%, 50/60 Hz.
Power Consumption:
ML6185A-C: 12 VA maximum at 24 Vac. ML6185D,F: 12 VA maximum at 24 Vac.
Auxiliary Switch Ratings: 120, 240 Vac: 3 AFL, 18 ALR,
1A pilot duty. Control: Standard models include nonplenum UL/
CSA rated, 30V, 60°C, 20 gauge cable.
Auxiliary Switch: UL/CSA rated 300V 90°C, 18
gauge.
TORQUE RATINGS (at Rated Voltages):
Lift and Hold: 50 lb-in. (6 N•m).
Breakaway Minimum: 50 lb-in. (6 N•m).
Stall Minimum: 50 lb-in. (6 N•m) spring return.
Stall Driving Maximum: 130 lb-in. (15 N•m).
ACTUATOR STROKE: 95° Nominal ± 2°, mechanically
limited.
ACTUATOR TIMING at 90° Stroke:
88 +/- 2 seconds synchronous at 60 Hz from 0°F to
140°F;
106 +/- 2 seconds at 50 Hz; 100 seconds at -30°F. Spring Wind Timing (Upon Power Restoration Only):
100 seconds nominal at 60 Hz, 120 seconds at 50 Hz.
Spring Return Timing:
10 seconds minimum per 90° at 72°F no load; 30 seconds maximum per 90° at 72°F at rated load; 5 minutes maximum at -30°F at rated load.
AMBIENT TEMPERATURE RANGE: -30°F to +140°F
(-35°C to +60°C).
STORAGE TEMPERATURE: -30°F to 150°F (-35°C to
65°C).
HUMIDITY: 5 to 95 percent relative humidity, noncondensing. MOUNTING: Mounts directly on horizontal 3/8 in. to
5/8 in. (12 to 16 mm) round or square damper shaft. Minimum shaft length required: 3.5 in. (76 mm) when the shaft attachment is made on the side of the actuator opposite the duct; 0.65 in. (16 mm) when the hub is mounted on the shaft before the actuator is installed. Most actuators are shipped with specifically sized hubs. Some models contain an assembly with assorted hub inserts. Mounting bracket is included with most models.
DIMENSIONS: See Fig. 1.
Ordering Information
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the TRADELINE Catalog or price sheets for complete ordering number, or specify:
1. Model number.
2. Application.
If you have additional questions, need further information, or would like to comment on our products or services, please write or phone:
1. Your local Honeywell Home and Building Control Sales Office (check white pages of your phone directory).
2. Home and Building Control Customer Logistics Honeywell Inc., 1885 Douglas Drive North, Minneapolis, Minnesota 55422-4386 (612) 951-1000
In Canada—Honeywell Limited/Limitée, 740 Ellesmere Road, Scarborough, Ontario M1P 2V9. International Sales and Service offices in all principal cities of the world.
63-2483—2 2
®
Fig. 1—Approximate dimensions of ML6185 Spring Return Direct Coupled Actuator and mounting bracket in in. (mm).
1-5/32 (29)
1-17/32 (39)
3-1/16
(79)
3-29/32
(99)
6-25/32 (173)
8-9/32 (210)
23/32
(18)
3-15/16 (100)
ML6185
SPECIFICATIONS
3-29/32
(99)
3/4 (19)
1-21/32
(42)
1-5/8
(41)
3/8
(10)
13/64 (5)
1-13/32 (36)
4-13/32 (112)
135o
o
± 15
1-5/8 (41)
10-13/32 (264)
CLEARANCE REQUIRED FOR SPLINED HUB MOUNTING
3-1/2
(89)
1-9/32
(32)
1-13/32
(36)
1/2 (13)
1-3/32
(28)
13/32
5/16
(8)
(10)
MOUNTING BRACKET
3 63-2483—2
M8257
ML6185 SPECIFICATIONS • INSTALLATION
DEVICE WEIGHT: 4.0 lb (1.82 kg). NOISE RATING : (Driving only) 45 dBA maximum at
0.9m.
SPRING ROTATION: Clockwise (cw); counterclockwise
(ccw) by reverse mounting. POSITION INDICATOR: Mounted on actuator hub. ACTUATOR DESIGN LIFE:
Full Stroke Cycles: 60,000.
Repositions: 1,500,000.
Spring Return Cycles: 7,500. APPROVALS:
UL94-5V: (Enclosure) Plenum rating.
WHEN INSTALLING THIS PRODUCT…
1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings and description given in this specifi­cation to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. After installation is complete, check out product op­eration as provided in these instructions.
CA UTION
1. Disconnect power before installation to prevent electrical shock or equipment damage.
2. Never turn motor output hub by hand or with a wrench.
3. Do not install actuator in areas with acid fumes or other deteriorating vapors that might attack the metal parts of the actuator.
4. Do not install actuator in areas with escaping gas or other explosive vapors that could be ignited by a spark from the actuator or attached accessories.
LOCATION
Install the actuator in any location free from acid fumes or other deteriorating vapors that might attack the metal parts of the actuator. Make sure the location is not subject to escaping gas or other explosive vapors that could accidentally be ignited by a spark from the actuator or its attached parts.
Install the actuator in a location that allows enough clear­ance for mounting accessories and for servicing.
MOUNTING
The ML6185 Direct Coupled Actuator is designed to operate a damper by driving the damper shaft either cw or ccw depending on damper design. All actuators are shipped in the fully closed position.
The ML6185 Direct Coupled Actuator is designed for single-point mounting when using an adapter bracket. Single­point mounting is typically used when the actuator is mounted on the damper frame.
UL873: (Line voltage auxiliary switches). CSA: FILE NUMBER E4436, Guide Number XAPX.
ENVIRONMENTAL PROTECTION RATINGS: NEMA1
standard with damper shaft in horizontal position. MOUNTING TAB: For use with Universal mounting bracket. ACCESSORIES:
205820A 3-Point Mounting Kit.
205830A Crank-Arm Accessory.
205753 Hub Sleeve, 3/8 in.
205758 Hub Sleeve, 5/8 in.
Installation
A mounting bracket (see Fig. 1) is provided with some models to aid in installing the actuator. The bracket can be bent to any shape to support the actuator at the correct height.
The ML6185 Direct Coupled Actuator can also be three­point mounted using the two front gear housing slots and the adapter bracket. Secure two screws through the two front gear housing slots and position the adapter bracket to secure the rear of the actuator. Three point mounting is used for foot mounting the actuator or internally mounting the actuator in the duct, when direct shaft coupling is not possible.
CAUTION
Do not use the actuator as a shaft bearing. The actuator must be used only to supply rotational torque. To prevent damage to the actuator, avoid any side loads to the actuator output coupling bearings.
PREPARATION
Before installing the ML6185 on the damper shaft, determine the opening direction of the damper shaft to determine the correct spring return rotation and correctly connect the wiring. The ML6185 can be mounted to pro­vide clockwise or counterclockwise spring return. Reverse the actuator, if necessary, to provide the desired spring action.
INSTALLATION Installing the Actuator and Mounting Bracket (Single Point Mounting)
When the direction of the damper shaft rotation is deter­mined (either cw or ccw ), proceed as follows:
1. Place the ML6185 Direct Coupled Actuator over the
damper shaft.
2. Position the actuator for best access to the actuator
damper shaft locking screw.
3. Install the mounting bracket (see Fig. 2) and adjust it to support the actuator at the correct height. Mark the screw holes for installing the mounting bracket on the damper housing.
63-2483—2 4
ML6185
INSTALLATION
4. Remove the mounting bracket and actuator.
5. Drill or center punch the starting holes for the mount­ing bracket screws (or use no. 10 self-tapping sheet metal screws).
Fig. 2—Installing mounting bracket on ML6185 Direct Coupled Actuator.
90
60
30
M9386
6. Place the actuator and mounting bracket back into position over the damper shaft and install the mounting bracket screws.
7. Tighten the two 8 mm x 12 mm long set screws firmly against the damper shaft (maximum tightening torque is 100 lb-in.).
Installing the Actuator for Three-Point Mounting
The ML6185 Direct Coupled Actuator is designed with removable hub sleeves to accommodate specific damper shaft sizes. Proper sleeve selection is necessary when three­point mounting is used to avoid excessive strain on the output gear. Most ML6185 Actuators are shipped with a 1/2 in. hub sleeve. For field use, several hub sleeve sizes are available. See the Accessories listing in the Specifications section. Shaft sizes are stamped on the sleeves.
The ML6185 Direct Coupled Actuator can be mounted directly on the motor shaft with the actuator in any position when the actuator housing is parallel with the damper housing or frame. (See Fig. 7.)
The ML6185 Direct Coupled Actuator has a reversible output hub. The hub is factory mounted on the top of the actuator gear housing. When attaching to damper shafts less than 3.5 in. (76 mm) long, or for ease of mounting, the output hub can be mounted to the inside of the actuator gear housing. See Fig. 3. Be careful when removing the retain­ing ring that secures the output hub to the actuator housing. Use a flatheaded screwdriver to pry the ring loose.
Fig. 3—Mounting hub to inside of actuator.
2
3
6
1
60
30
90
60
30
0
DETENT INSERT
4
5
INDICATOR DETENTS
.500
.500
M7228
5 63-2483—2
ML6185 INSTALLATION
Other possible mounting configurations and standard
connections are shown in Fig. 4 through 7.

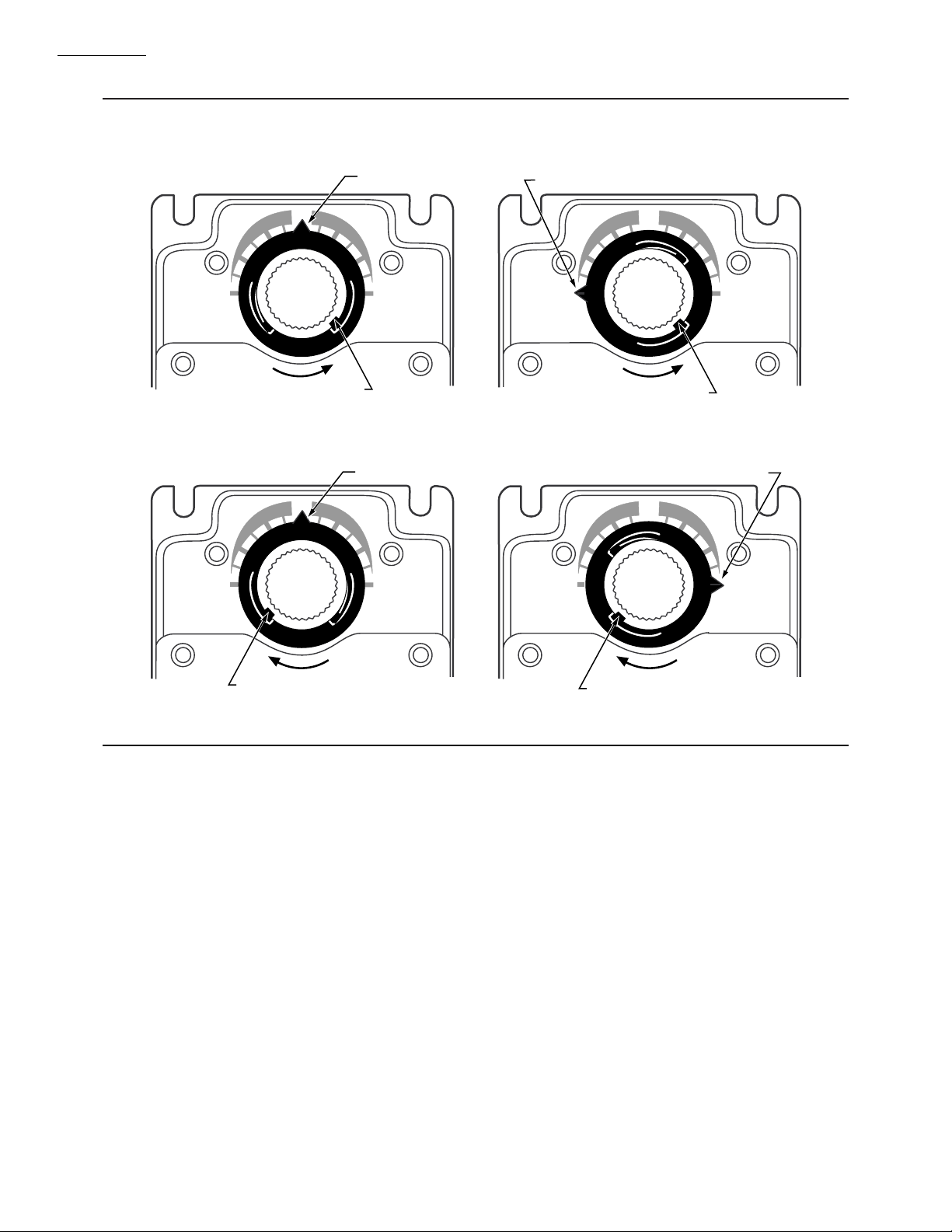

Fig. 4—ML6185 Actuator mounted for counterclockwise spring rotation with the output hub inside the actuator. (NOTE: NEMA rating applies only with damper shaft in the horizontal position.)
60
90
60
30
0
1
COUNTER CLOCKWISE SPRING ROTATION ARROW
30
1
INDICATOR DETENTS
M7230A
63-2483—2 6
INSTALLATION

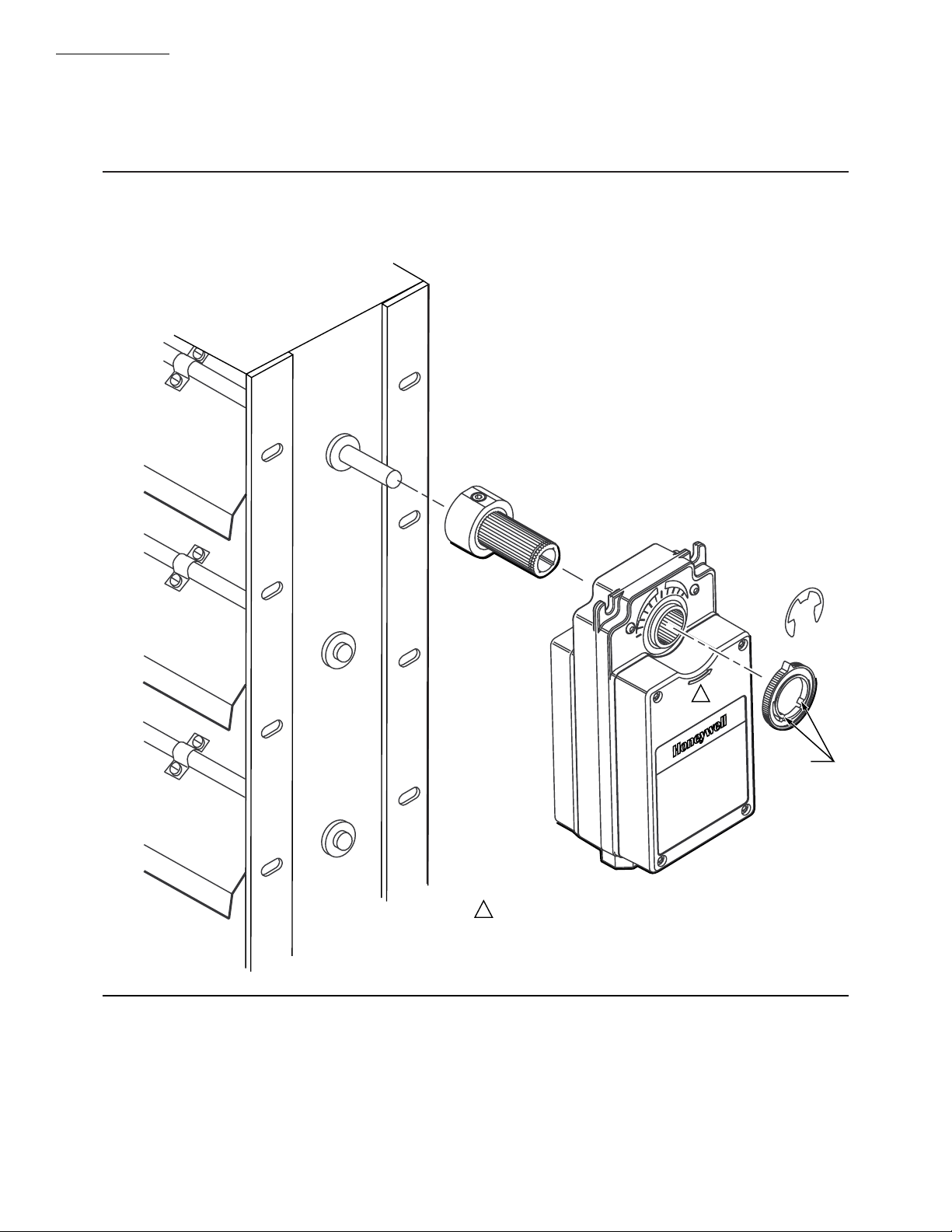

Fig. 5—Standard direct coupled mounting of ML6185 to a damper with counterclockwise spring rotation.
60
30
90
60
30
.500
.500
ML6185
M7229
7 63-2483—2
ML6185 INSTALLATION
Fig. 6—ML6185 Actuator standard electrical connection.
WIRING
CA UTION
Disconnect power supply before wiring to prevent electrical shock or equipment damage.
All wiring must comply with local electrical codes, ordinances and regulations. The ML6185 is designed for use with a Class 2 power supply. Voltage and frequency of the transformer used must correspond with the characteris­tics of the motor and those of the power supply. See Fig. 8
60
30
90
60
30
.500
.500
for a typical wiring connection.
The ML6185 has an aluminum die cast housing with two integral cast bosses on the end of the device, tapped for 1/2 in. conduit fittings. Some models are shipped with a water seal in the conduit opening. When conduit is needed, remove the seal before routing the cable.
ML6185 models with Factory-mounted Auxiliary Switches (See Fig. 9)
ML6185C,F models have two nonadjustable line volt­age rated spdt auxiliary switches with switches factory set to make common to normally open at 12° and 82° rotation from the counterclockwise stop. See Fig. 9.
TO JUNCTION
MOUNTING BRACKET
BOX (UP TO 3 FT. AWAY)
M7231
Fig. 7—ML6185 Actuator can be mounted in any position. (NOTE: NEMA rating applies only with damper shaft in the horizontal position.)
60
30
90
60
30
500
0
500
M9384
IMPORTANT: Actuators driving in parallel may not be
synchronized with each other. In normal operation, if all actuators are driven to the fully open or fully closed position, the actuators will again be synchronized.
Fig. 8—ML6185 typical wiring diagram.
ML6185
OPEN BLUE
CLOSE YELLOW
24 HOT
RED
1
L1 (HOT)
L2
1
2
24 VAC
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
TIME OUT FUNCTION AVAILABLE WITH ML6185D,F MODELS.
24 GND
BLACK
Fig. 9—ML6185C,F wiring for auxiliary
switches.
AUX. SWITCHES 3A 120 VAC
WHITE/RED WHITE/BLUE WHITE/YELLOW BLACK/RED BLACK/BLUE BLACK/YELLOW
MOTOR
OPTIONAL TIME OUT
POWER SUPPLY
2
SPRING CONTROL
M7224
12°
82°
M7227A
63-2483—2 8
ML6185
INSTALLATION • OPERATION
Connecting ML6185 Actuators in Parallel
ML6185 Actuators can be stacked on one damper shaft to increase the output torque required to drive dampers larger than 16 square feet.
To make sure proper phasing occurs, connect all four
Fig. 10—Common transformer with two
controller outputs and two actuators.
ML6185
CONTROLLER
RB
1
L1 (HOT)
L2
CONTROLLER
RB
1
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
W
W
BLUE
YELLOW
RED BLACK
ML6185
BLUE
YELLOW
RED BLACK
M7225A
leadwires (red, black, yellow and blue) in parallel. The number of actuators that may be wired in parallel is depen­dent on the transformer VA rating. Make certain that the connected load does not exceed the current capacity of the controller/thermostat. See Fig. 10 and 11.
Fig. 11—Common transformer with one controller output and two actuators.
ML6185
CONTROLLER
R
1
L1 (HOT)
L2
1
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
W
B
BLUE
YELLOW
RED BLACK
ML6185
BLUE
YELLOW
RED BLACK
M7226A
The ML6185 Direct Coupled Actuator is designed to be used in ventilating and air conditioning installations to operate dampers, ventilation flaps and louvers requiring up to 50 lb-in. torque. If the power fails, the actuator will spring return to the starting position. The actuator is de­signed for reversible mounting. Arrows are molded into the covers to show the spring return direction. The larger cover shows a counterclockwise (ccw) spring rotation; the smaller cover shows a clockwise (cw) spring rotation.
The ML6185 Direct Coupled Actuator is operated by an spdt floating controller. When using an spdt floating con­troller, the actuator will be driven toward its fully open position when the controller makes R to B and toward the fully closed position when the controller makes R to W. It stops when neither contact is made.
IMPORTANT: The ML6185 is designed to respond to
instantaneous contact closures from a DDC Con­troller. Be careful not to short cycle the actuator. Unstable damper control may cause premature actua­tor failure.
The actuator has a position indicator to depict shaft position. As the indicator moves with the shaft, it gives an angular representation of the damper position. There are
Operation
four distinct positions where the indicator can be placed. The indicator can be removed (by first removing the output hub) to provide proper damper orientation. The indicator can be indexed to show cw or ccw open or closed, using the detents that are 90° apart. See Fig. 12. If the spring return position is the open position, rotate the indicator until it points to 90 on the scale. If the spring return position is the closed position, rotate the indicator until it points to zero on the scale. A detent can be felt at both stops; the detents maintain the indicator position.
The ML6185D and ML6185F models provide a time­out function that removes power from the actuator sub­motor if the actuator remains in one position (closed, open or any intermediate position) for longer than a nominal 100 seconds. This time-out function helps to extend actuator life.
IMPORTANT: The ML6185 was designed to provide 7500
spring returns; therefore, the actuator can be unpowered daily for night shutdown control. However, rapidly cycling the actuator by removing control voltage will lead to premature spring failure.
9 63-2483—2
ML6185 OPERATION
Fig. 12—ML6185 indicator start positions.
FULLY COUNTERCLOCKWISE SPRING RETURN INDICATOR START POSITIONS
60
30
DETENT IN INSERT
DRIVE CLOCKWISE TO CLOSE (REVERSE ACTING)
90
POINTER AT 90°
60
30
00
POINTER AT 0°
60
30
DETENT IN INSERT
DRIVE CLOCKWISE TO OPEN (DIRECT ACTING)
90
60
30
00
FULLY CLOCKWISE SPRING RETURN INDICATOR START POSITIONS
30
60
90
POINTER AT 90°
60
30
00
M7235
30
60
90
POINTER AT 0°
60
30
00
DRIVE COUNTERCLOCKWISE TO CLOSE (REVERSE ACTING)
DETENT IN INSERT
DRIVE COUNTERCLOCKWISE TO OPEN (DIRECT ACTING)
DETENT IN INSERT
M7235B
63-2483—2 10
CHECKOUT
Checkout
ML6185
The ML6185 Direct Coupled Actuator can be checked
out either directly or by using a controller.
IMPORTANT: When power is interrupted, the actuator
returns to the normal starting position using the spring mechanism. When power is restored, the controller input will not operate the actuator until the spring is fully wound and locked. The spring winding process takes approximately 100 seconds, depending on the number of degrees of spring return remaining at power interrupt (i.e., 10° of spring return remaining takes 10 seconds). (If the actuator is not in the closed position, it will run to the closed position as the spring is winding.) Once the spring is locked in its fully wound position, the actuator responds to inputs to the red-to­blue or red-to-yellow leadwires.
DIRECT CHECKOUT
1. Mount the actuator for the required application (either
cw or ccw rotation to open the damper).
2. Check the damper position and make sure that 24 Vac is
present on the red and black leadwires.
3. Make sure the actuator spring is fully wound and
locked by applying power for at least 100 seconds.
4. Connect 24 Vac to the appropriate leadwires (red to blue or red to yellow) to move the damper to the opposite position. The ML6185 should drive the damper.
5. If the actuator does not run, verify that the actuator is properly installed for either cw or ccw rotation.
6. If the actuator operates in the opposite direction than desired, reverse the blue and yellow leadwires.
7. If the actuator is correctly installed and still does not run, replace the actuator.
CONTROLLER CHECKOUT
1. Adjust the setpoint of the controller to call for cooling. Observe the actuator.
2. If the damper is closed, it should begin to open.
3. If the damper remains closed, move the setpoint of the controller farther below the room temperature.
4. If the damper still does not move, check for the presence of 24 Vac in the input.
5. Make sure the actuator spring is fully wound by applying power for at least 100 seconds.
6. If 24 Vac is present and the actuator does not operate, reverse the controller leadwires to determine if the device was miswired.
7. If the wiring is correct and 24 Vac is present on the input terminals but the actuator does not run, replace the actuator.
11 63-2483—2
Home and Building Control Home and Building Control Helping You Control Your World
Honeywell Inc. Honeywell Limited—Honeywell Limitée 1985 Douglas Drive North 740 Ellesmere Road Golden Valley, MN 55422 Scarborough, Ontario
M1P 2V9
63-2483—2 12
Printed in U.S.A.
QUALITY IS KEY
Loading...
