Honeywell HSVR-04, HSVR-16 User Manual

Download

Honeywell

HSVR-04 HSVR-16

Digital Video Recorder

http://www.security.honeywell.com

Rev. A

User Manual

Contents

1 Features and Specifications....................................................................................................... 1

Overview............................................................................................................................. 1

Features ............................................................................................................................. 1

Specification ....................................................................................................................... 3

2 Overview and Controls............................................................................................................... 7

Front Panel ......................................................................................................................... 7

Rear Panel.......................................................................................................................... 9

Connection Diagram ......................................................................................................... 10

Remote Controller............................................................................................................. 11

Mouse Control .................................................................................................................. 13

3 Installation and Connections....................................................................................................16

Honeywell

Check Unpacked DVR...................................................................................................... 16

About Front Panel and Rear Panel................................................................................... 16

HDD Installation................................................................................................................16

Connecting Power Supply ................................................................................................ 18

Connecting Video Input and Output Devices .................................................................... 18

Connecting Video Input ..............................................................................................18

Connecting Video Output ...........................................................................................19

Connecting Audio Input & Output ..................................................................................... 19

Audio Input .................................................................................................................19

Audio Output...............................................................................................................19

Alarm Input and Output Connection.................................................................................. 20

Alarm Input and Output Details...................................................................................20

Alarm Input Port..........................................................................................................21

Alarm Output Port.......................................................................................................22

RS232............................................................................................................................... 23

Honeywell

4 Overview of Navigation and Controls....................................................................................... 25

RS485............................................................................................................................... 23

USB .................................................................................................................................. 24

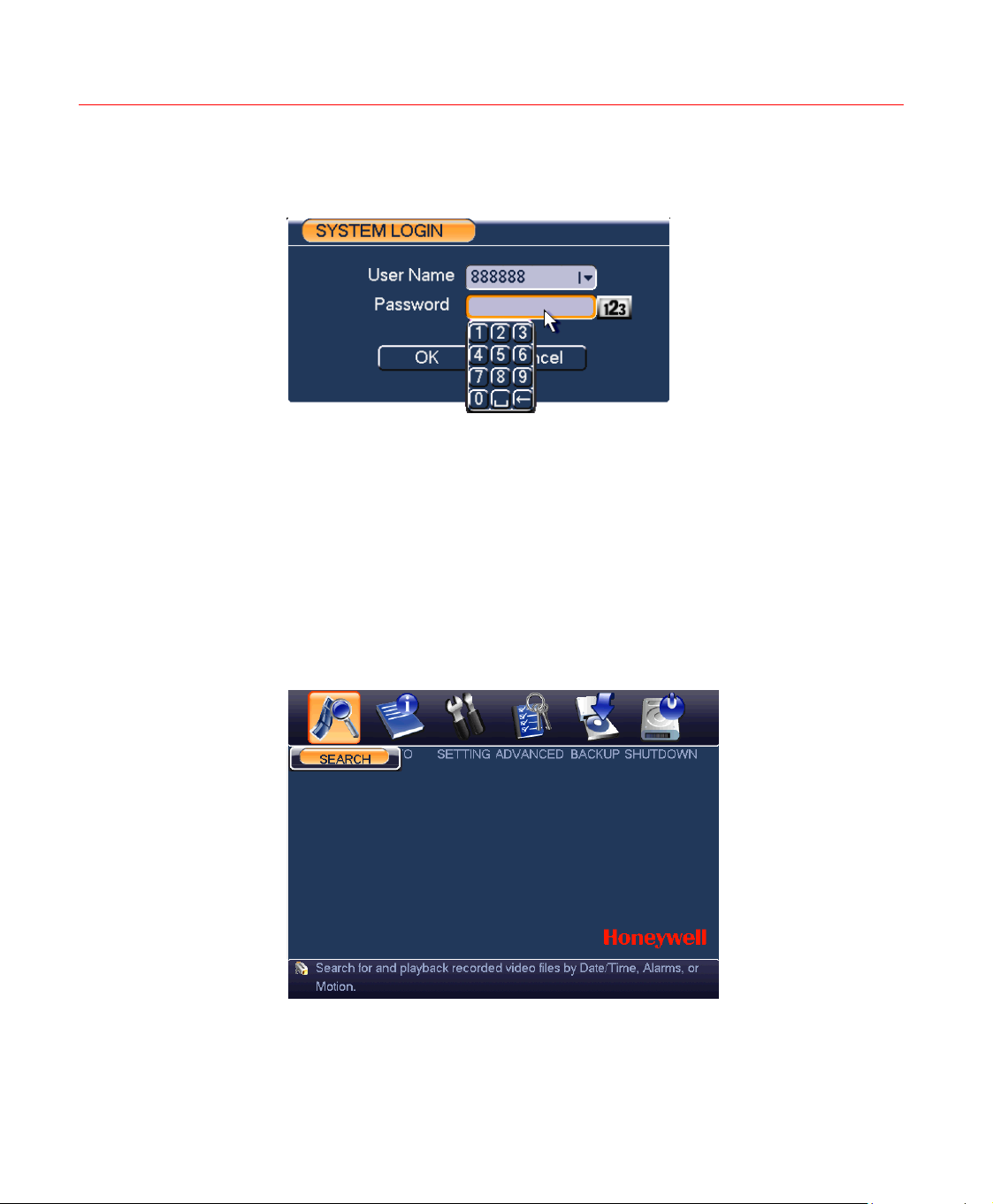

Login, Logout & Main Menu.............................................................................................. 25

Login...........................................................................................................................25

Main Menu..................................................................................................................26

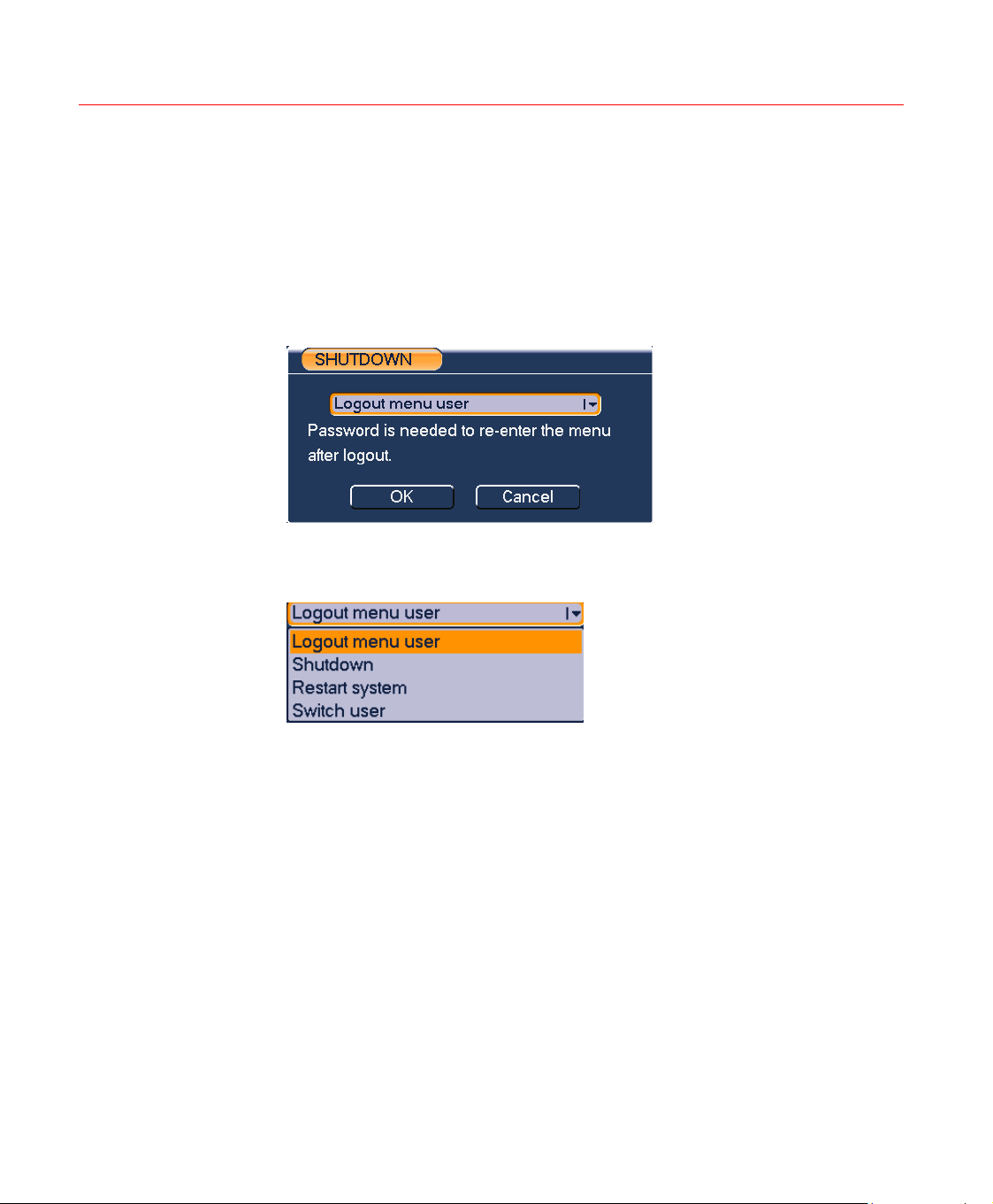

Logout ........................................................................................................................27

Auto Resume after Power Failure...............................................................................27

Replace Button Battery...............................................................................................27

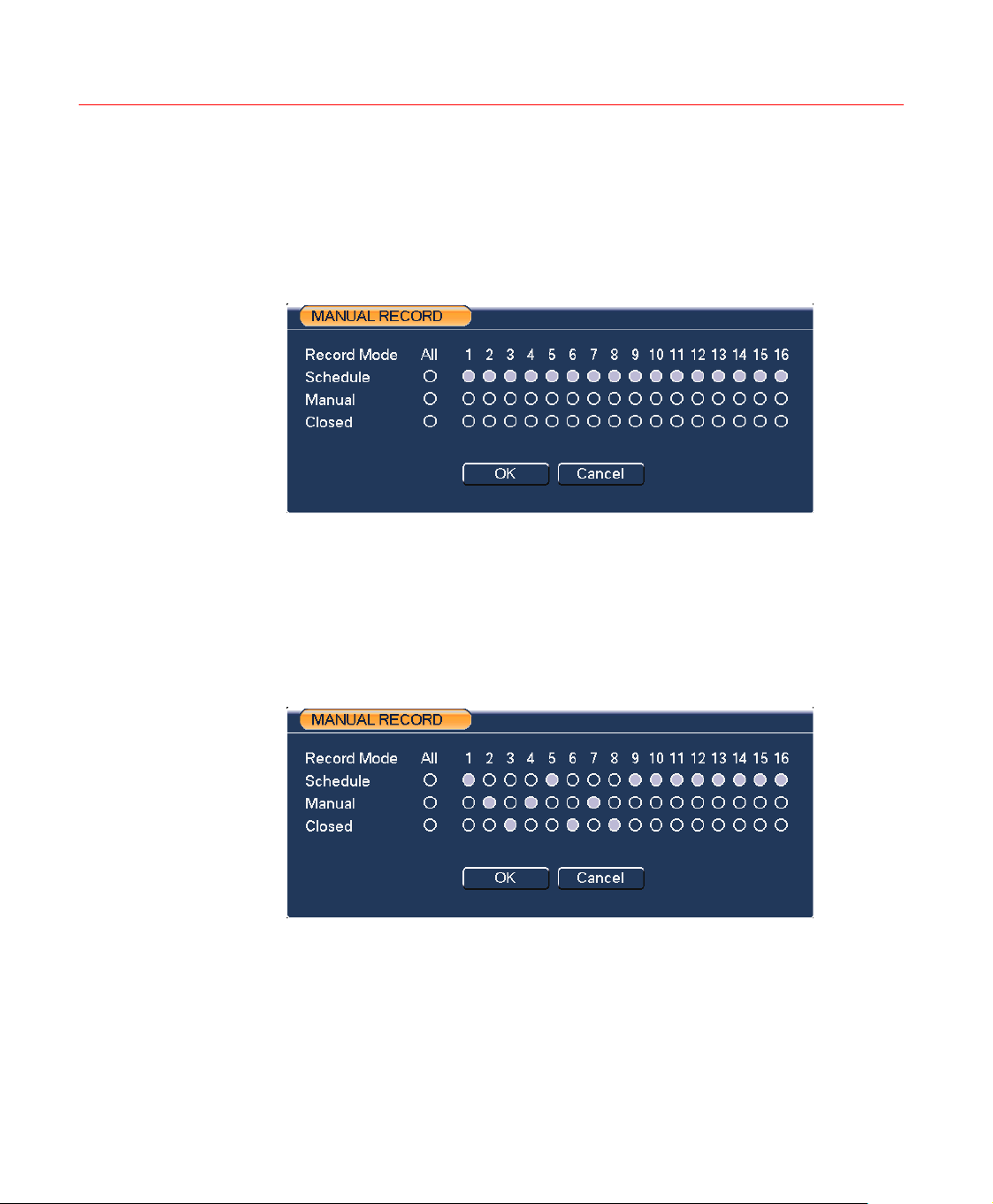

Manual Record ................................................................................................................. 28

Live Viewing ...............................................................................................................28

Manual Record ...........................................................................................................28

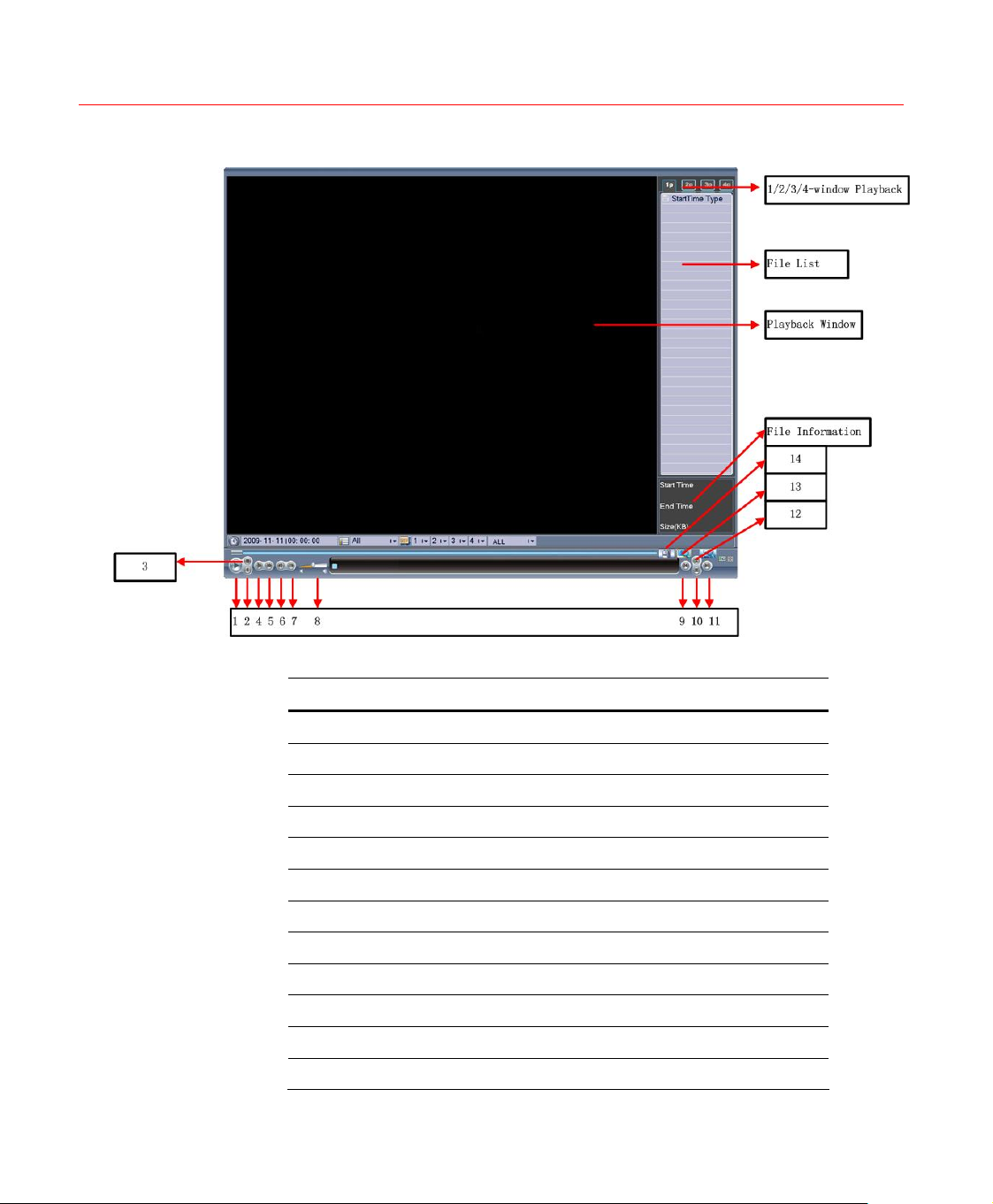

Search & Playback ........................................................................................................... 31

Search Menu ..............................................................................................................31

Basic Operation ..........................................................................................................33

Calendar.....................................................................................................................34

Schedule........................................................................................................................... 35

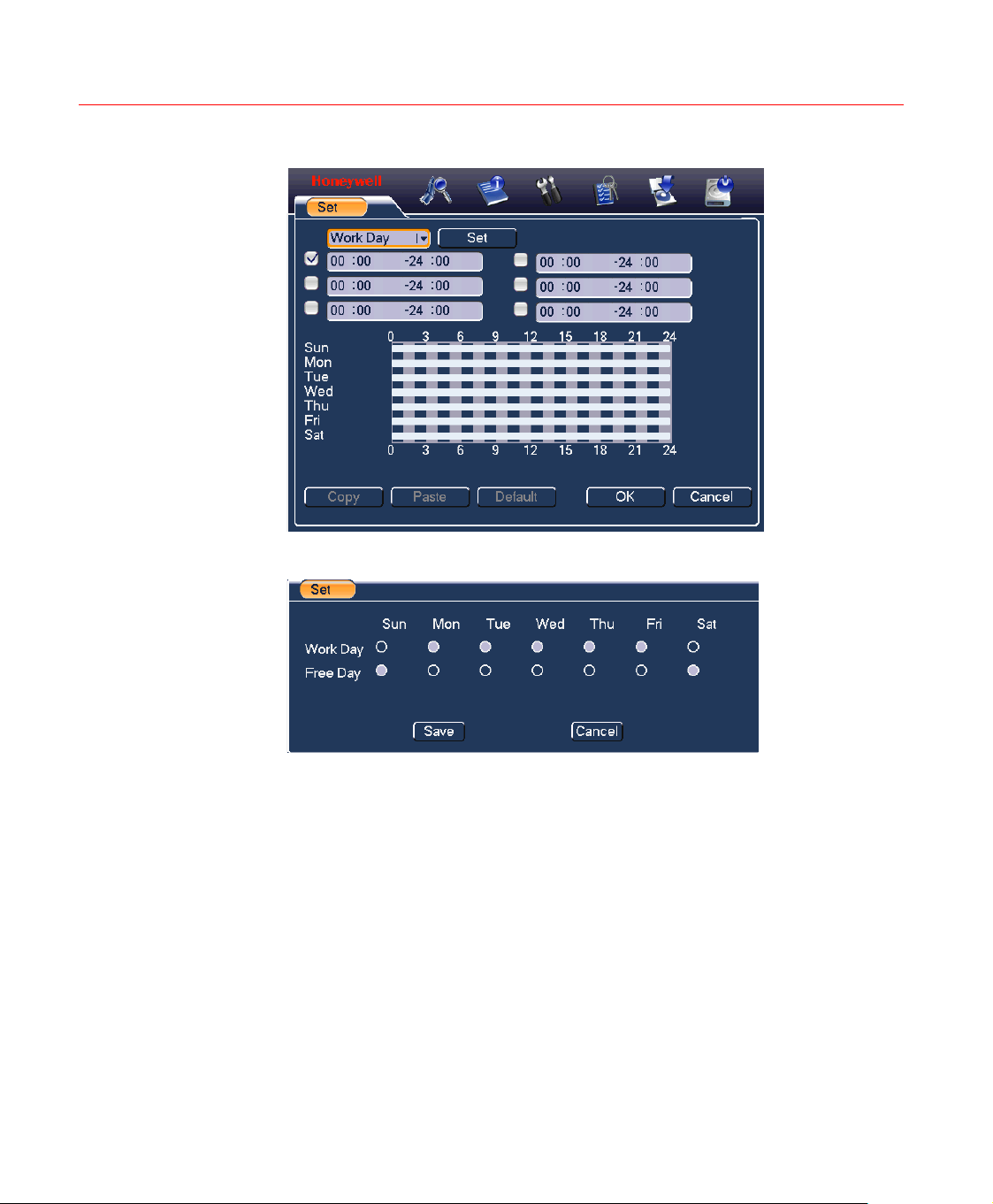

Schedule Menu...........................................................................................................35

Detect ............................................................................................................................... 36

Go to Detect Menu .....................................................................................................36

Motion Detection.........................................................................................................37

Video Loss..................................................................................................................40

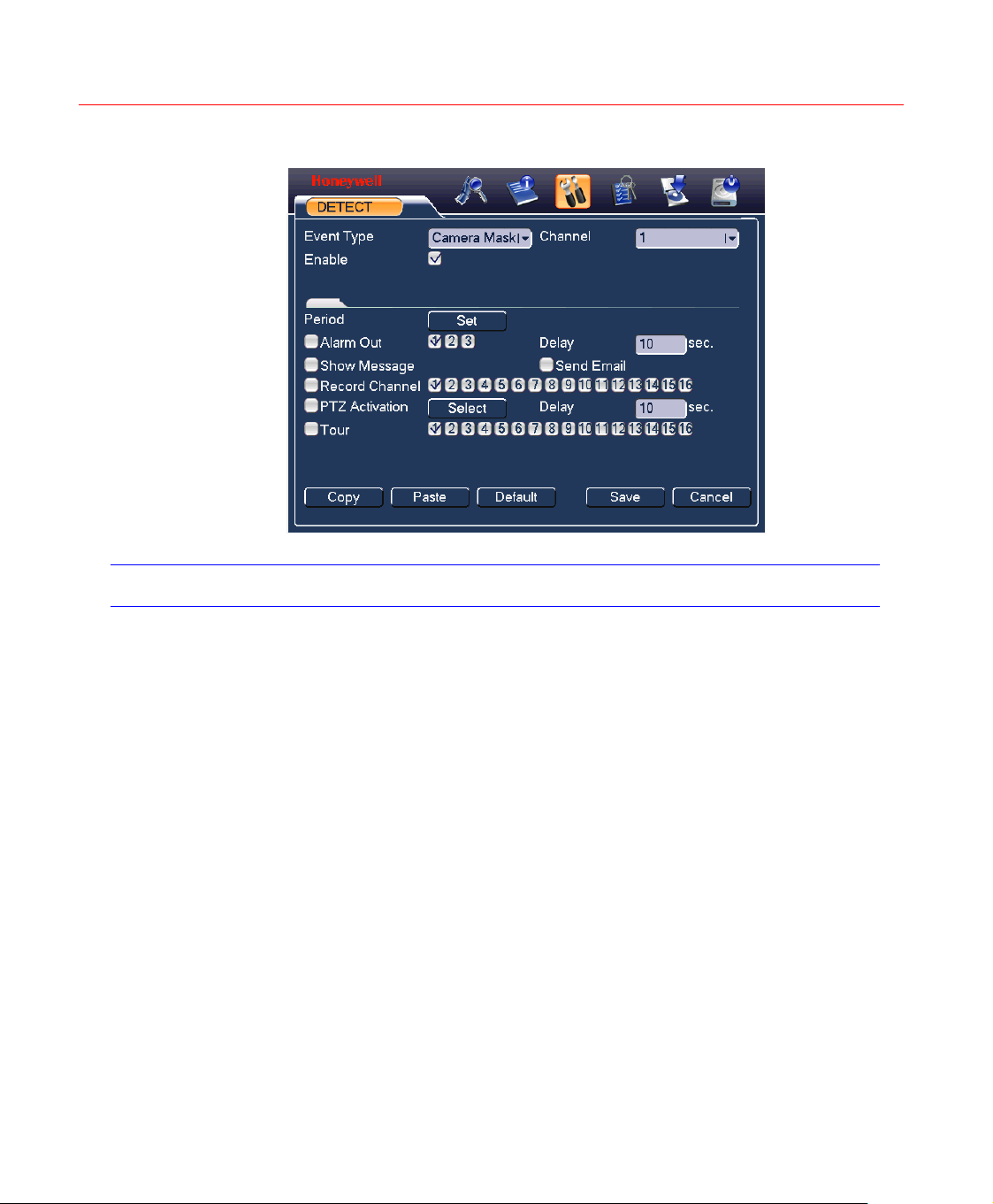

Camera Masking ........................................................................................................41

Alarm Setup and Alarm Activation .................................................................................... 42

Go to alarm setup interface ........................................................................................42

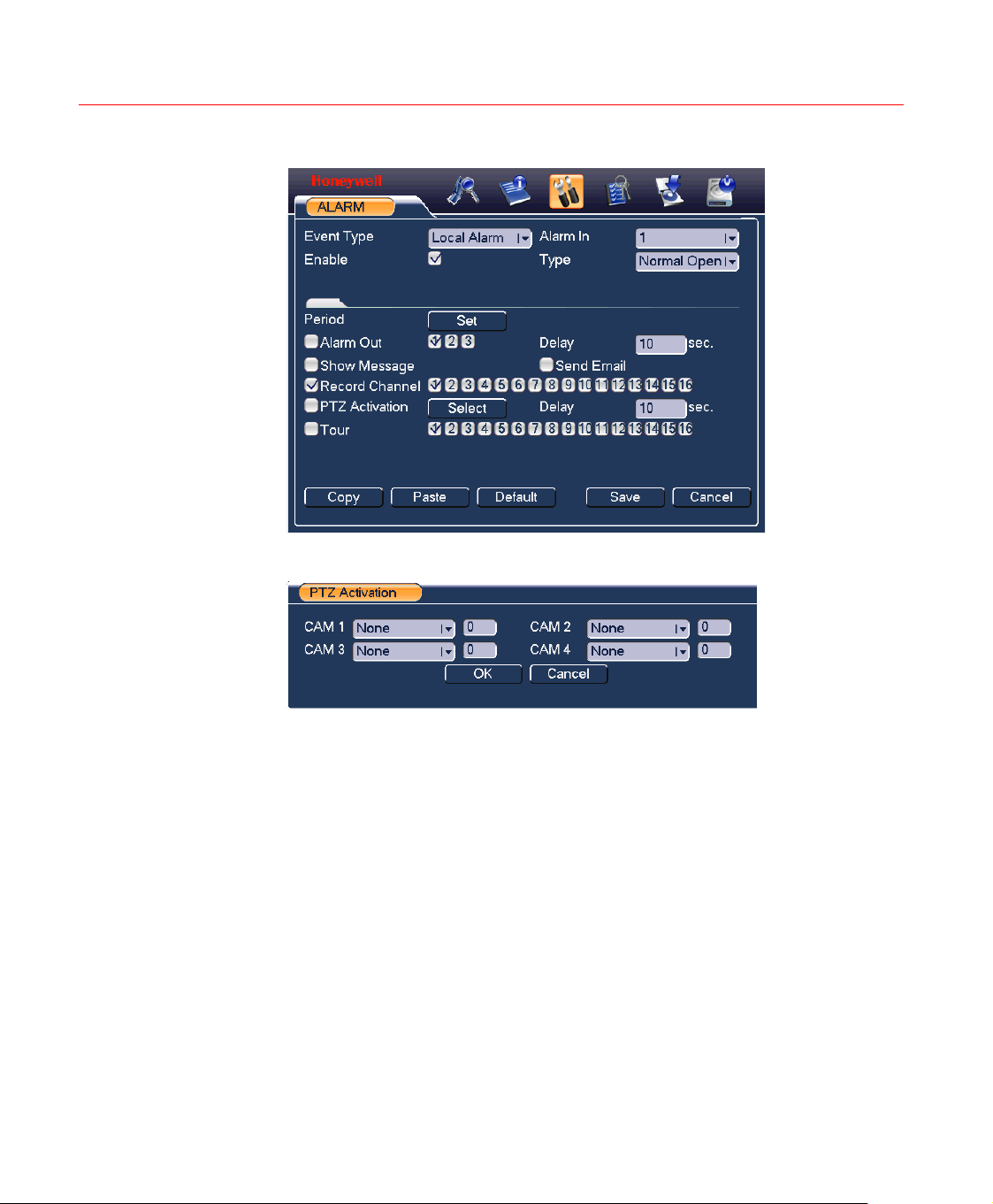

Alarm setup ................................................................................................................42

Backup.............................................................................................................................. 45

Detect Device .............................................................................................................45

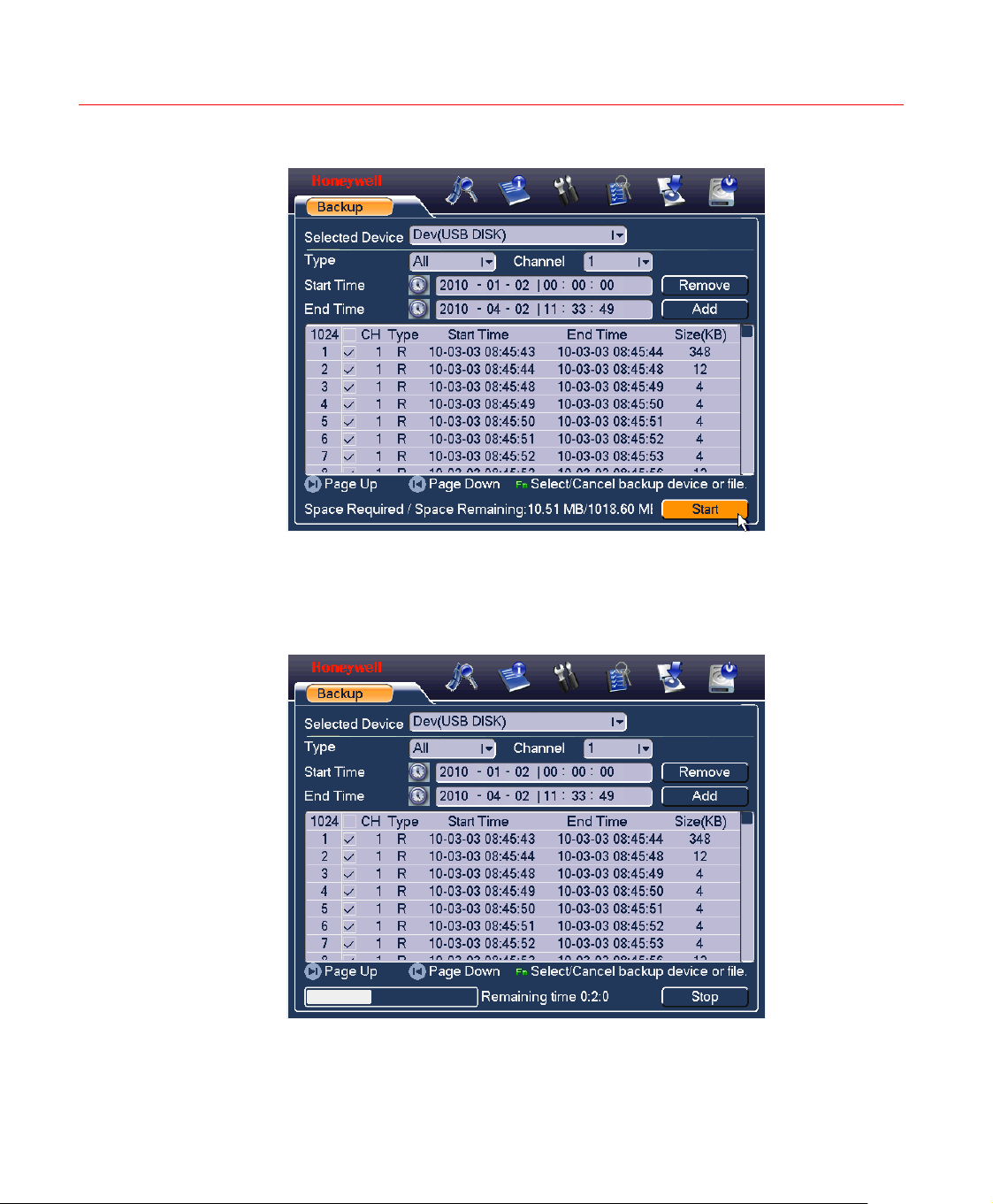

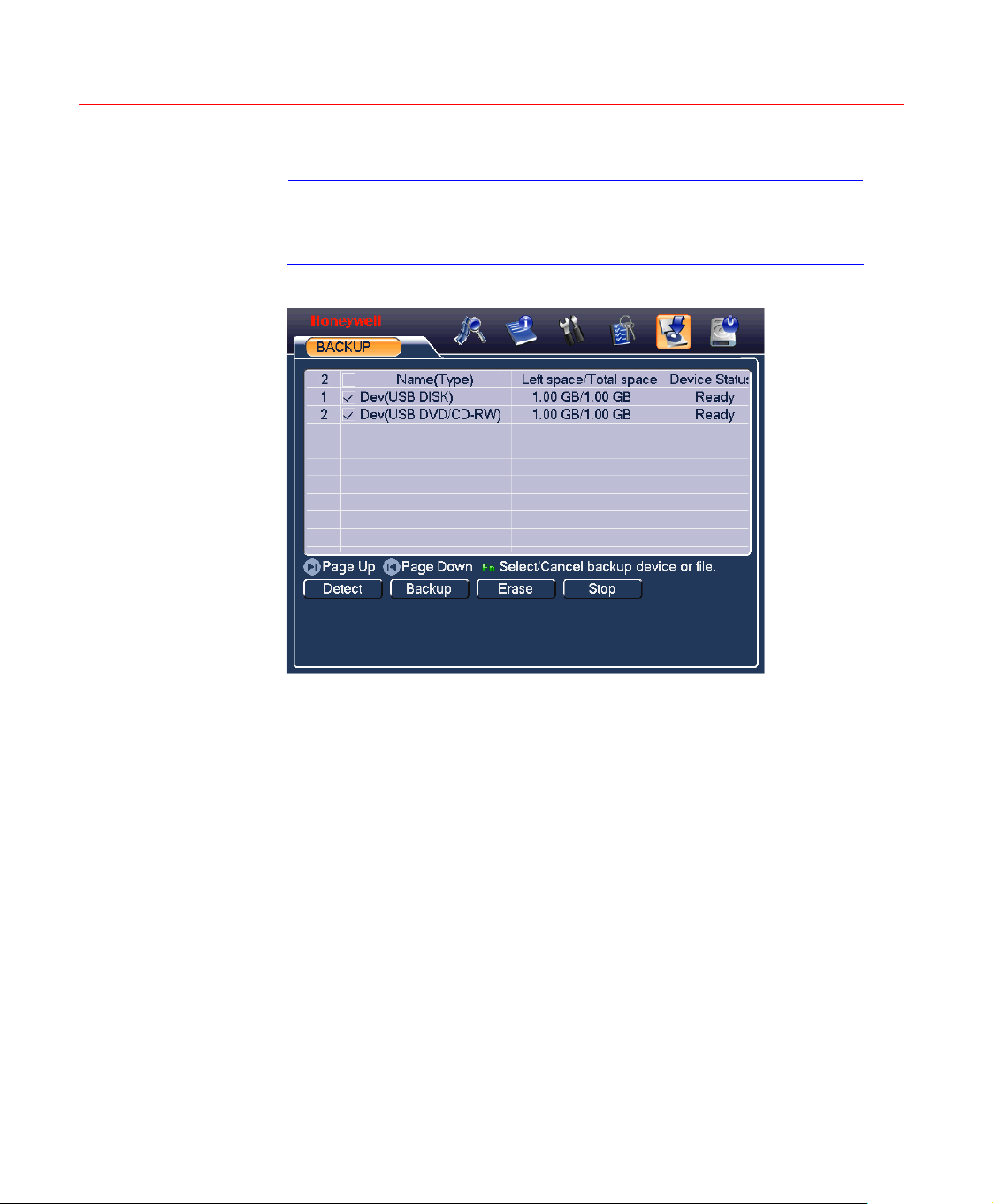

Backup .......................................................................................................................46

PTZ Control and Color Setup ........................................................................................... 48

Cable Connection .......................................................................................................48

Honeywell

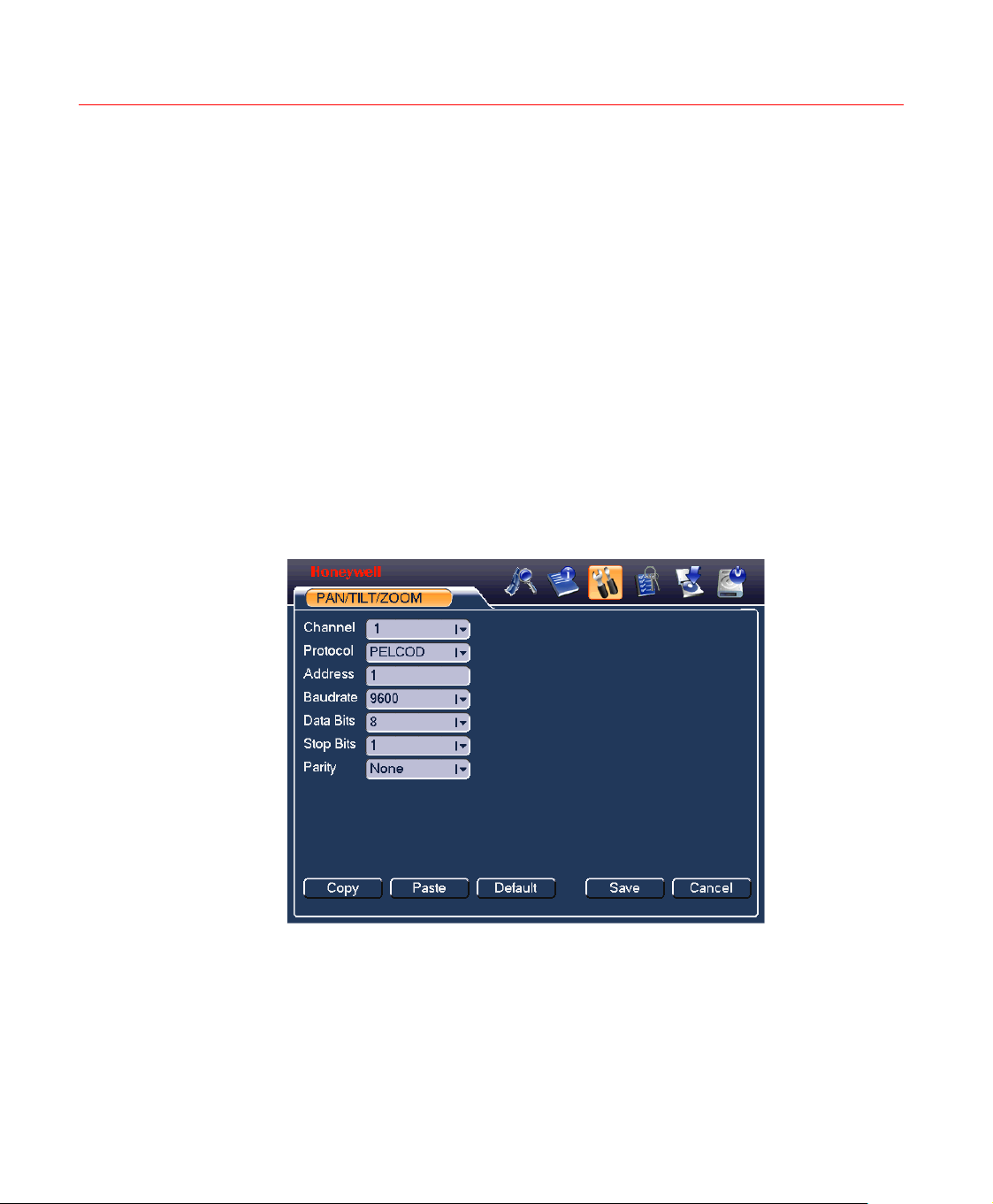

PTZ Setup ..................................................................................................................48

PTZ Trace...................................................................................................................51

Preset/Tour/Pattern/Scan Operations............................................................................... 51

Preset Setup...............................................................................................................53

Activate Preset ...........................................................................................................53

Patrol setup (Tour Setup) ...........................................................................................54

Activate Patrol (tour)...................................................................................................54

Pattern Setup..............................................................................................................54

Activate Pattern Function ...........................................................................................55

Auto Scan Setup.........................................................................................................55

Activate Auto Scan .....................................................................................................56

5 Understanding of Menu Operations and Controls.................................................................... 57

Menu Tree ........................................................................................................................ 57

Main Menu........................................................................................................................ 59

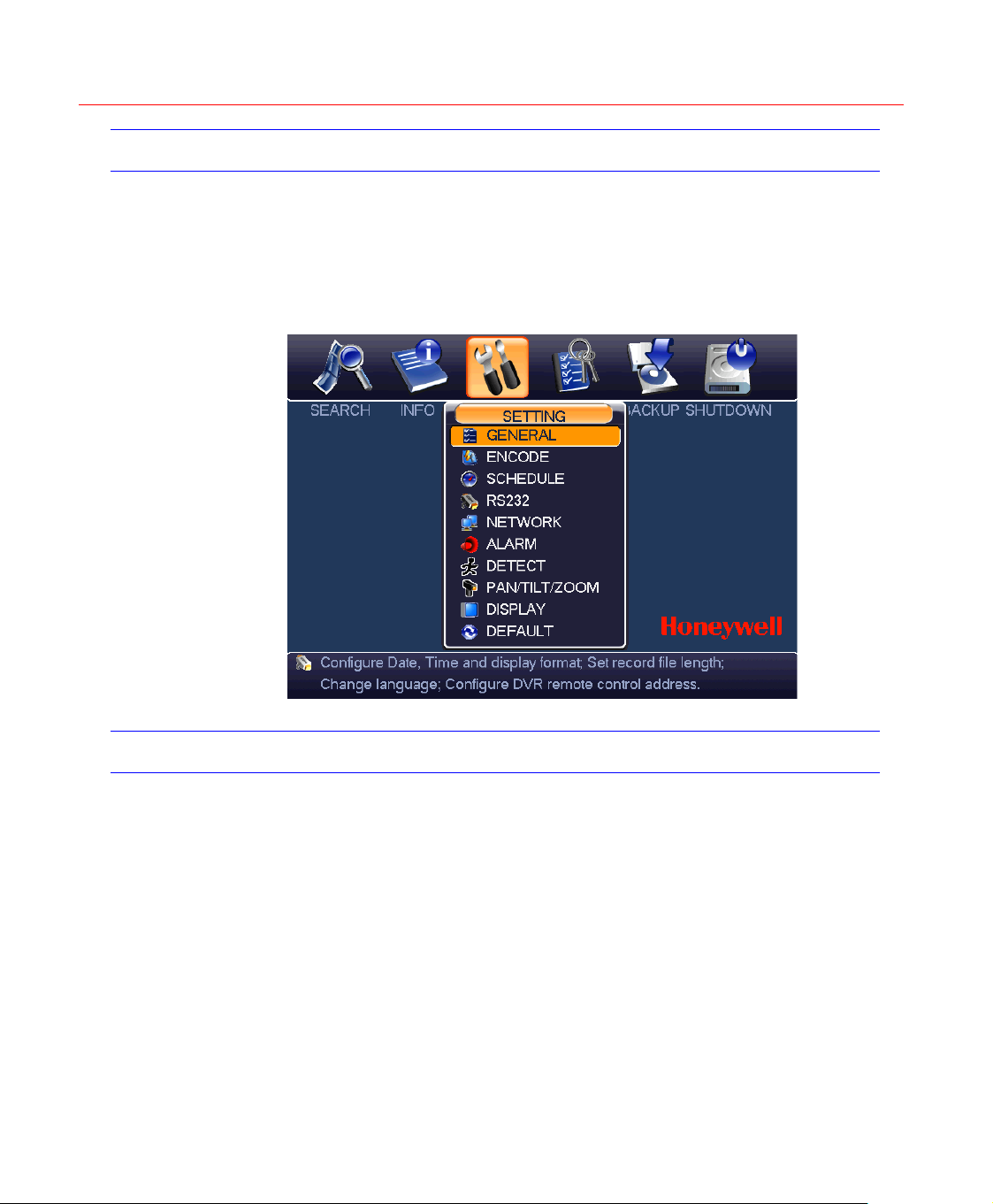

Setting .............................................................................................................................. 59

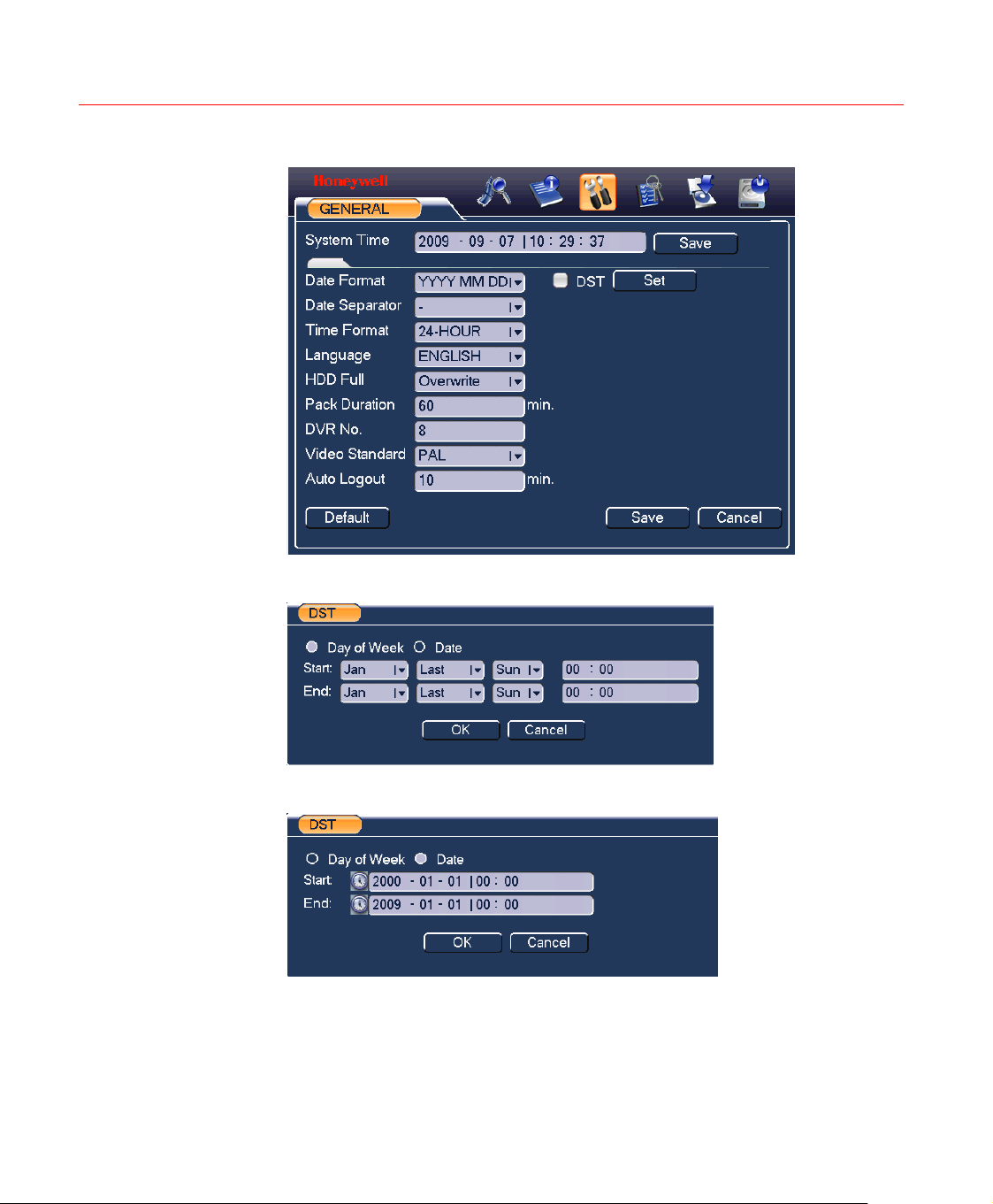

General.......................................................................................................................59

Encode .......................................................................................................................61

Schedule ....................................................................................................................63

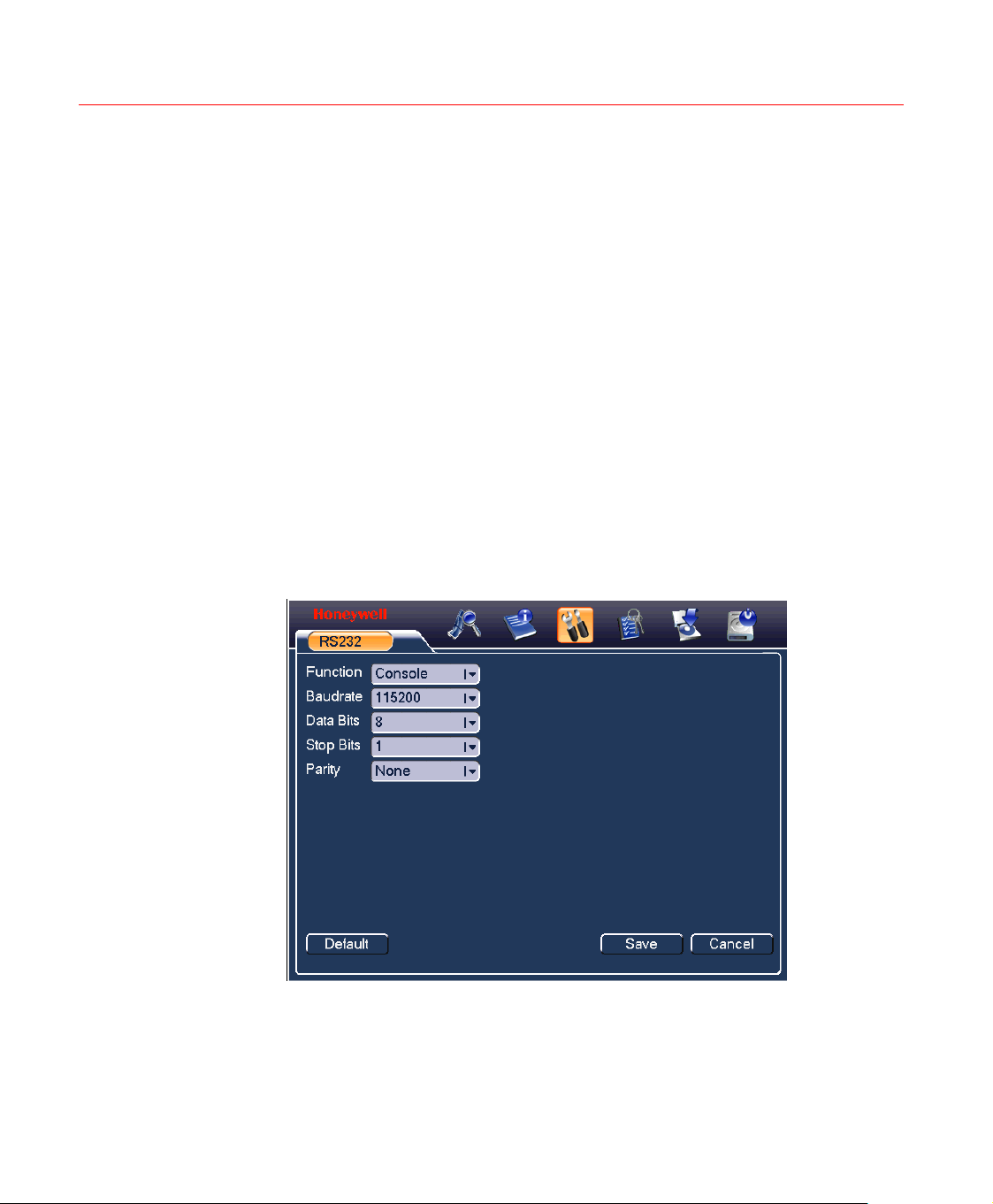

RS232 ........................................................................................................................63

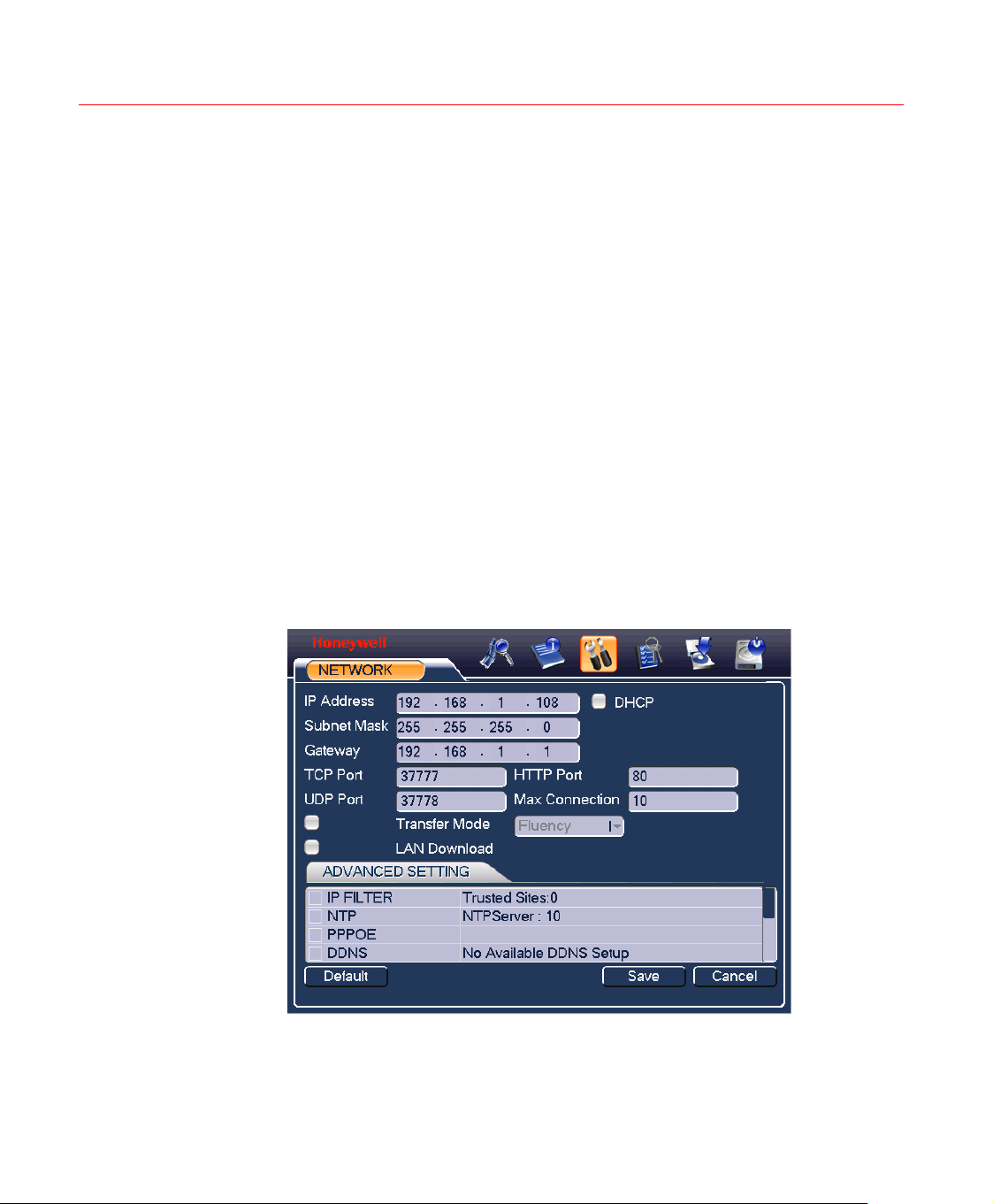

Network ......................................................................................................................64

Alarm ..........................................................................................................................73

Detect .........................................................................................................................73

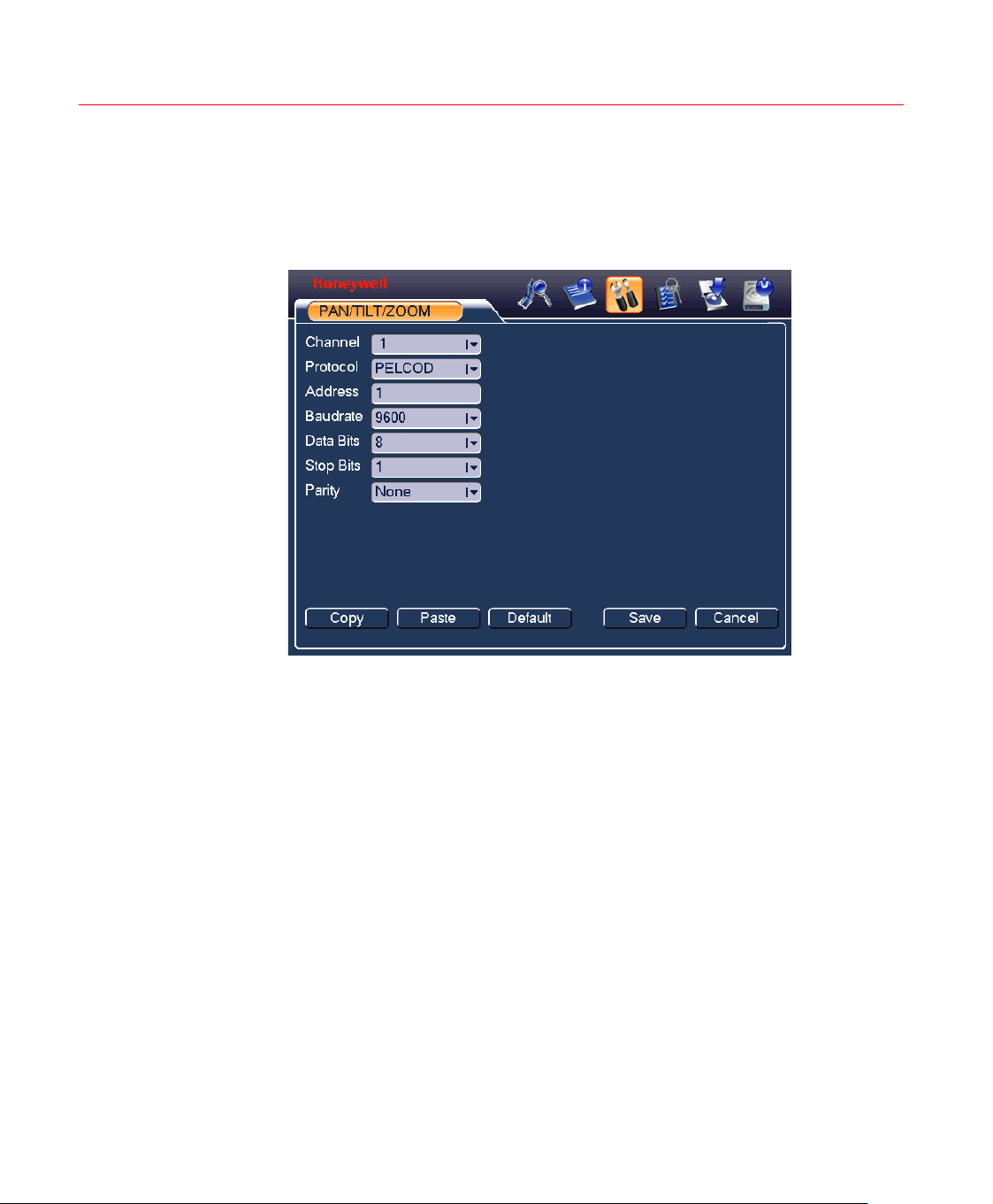

Pan/Tilt/Zoom .............................................................................................................73

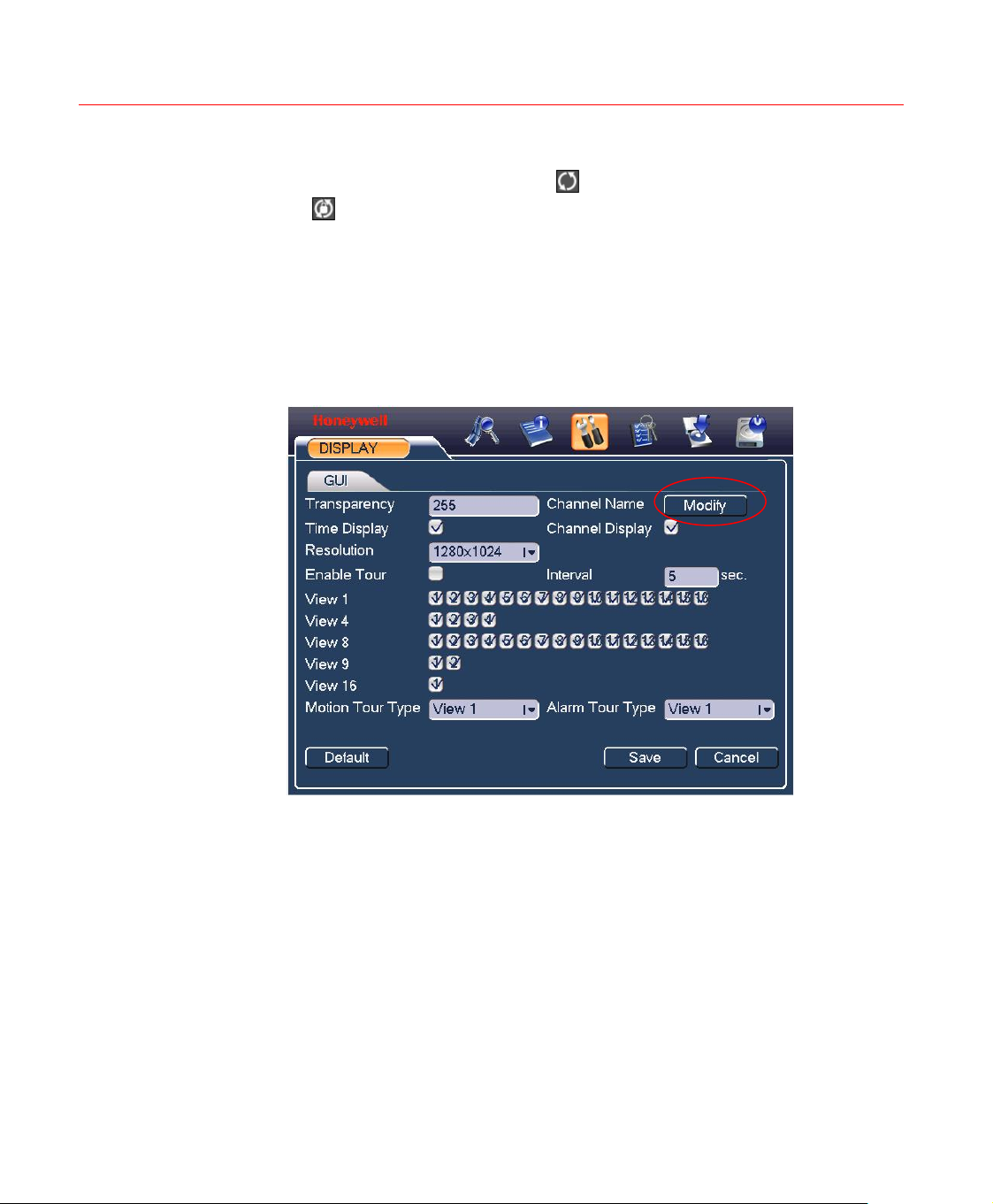

Display........................................................................................................................74

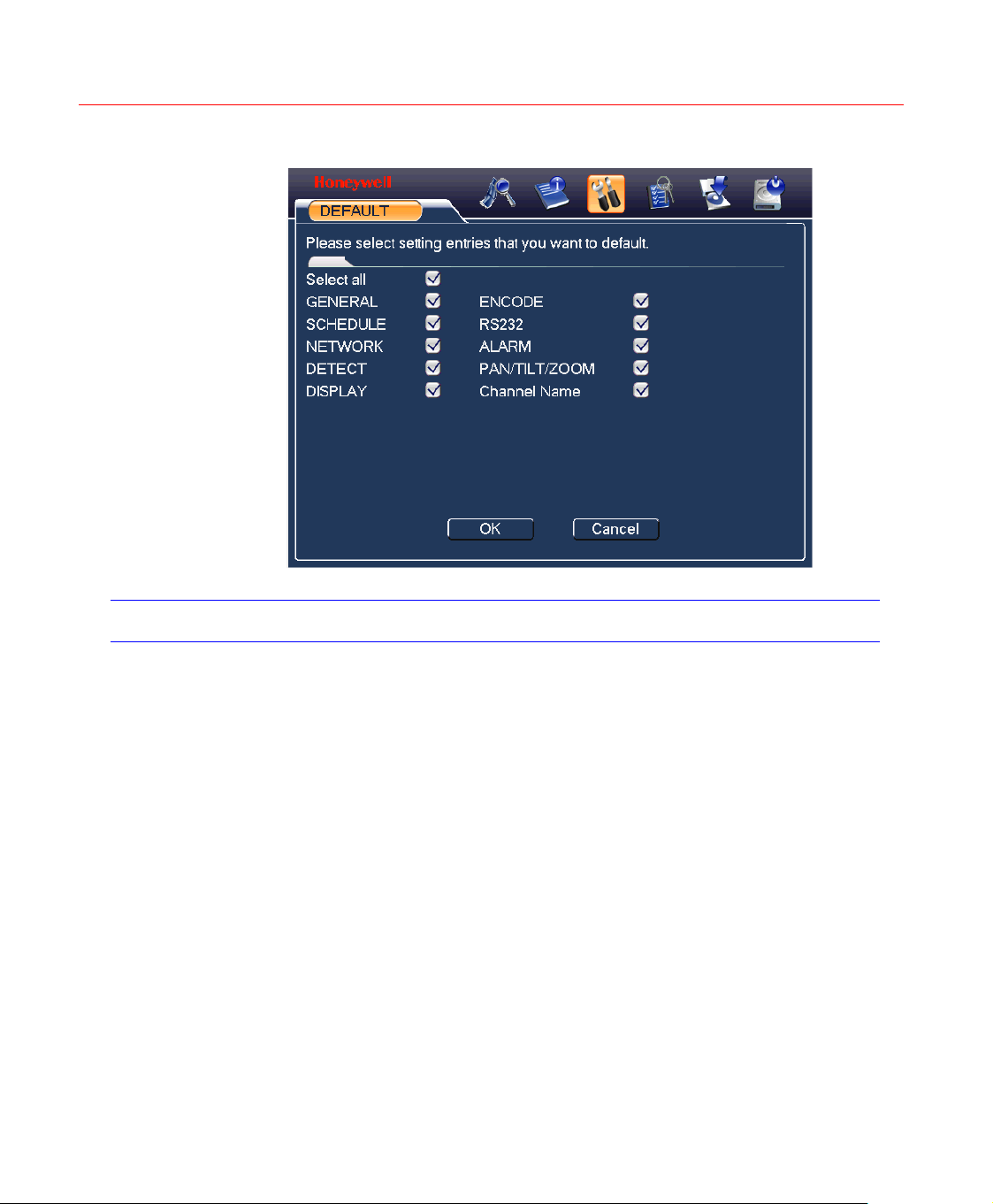

Default ........................................................................................................................77

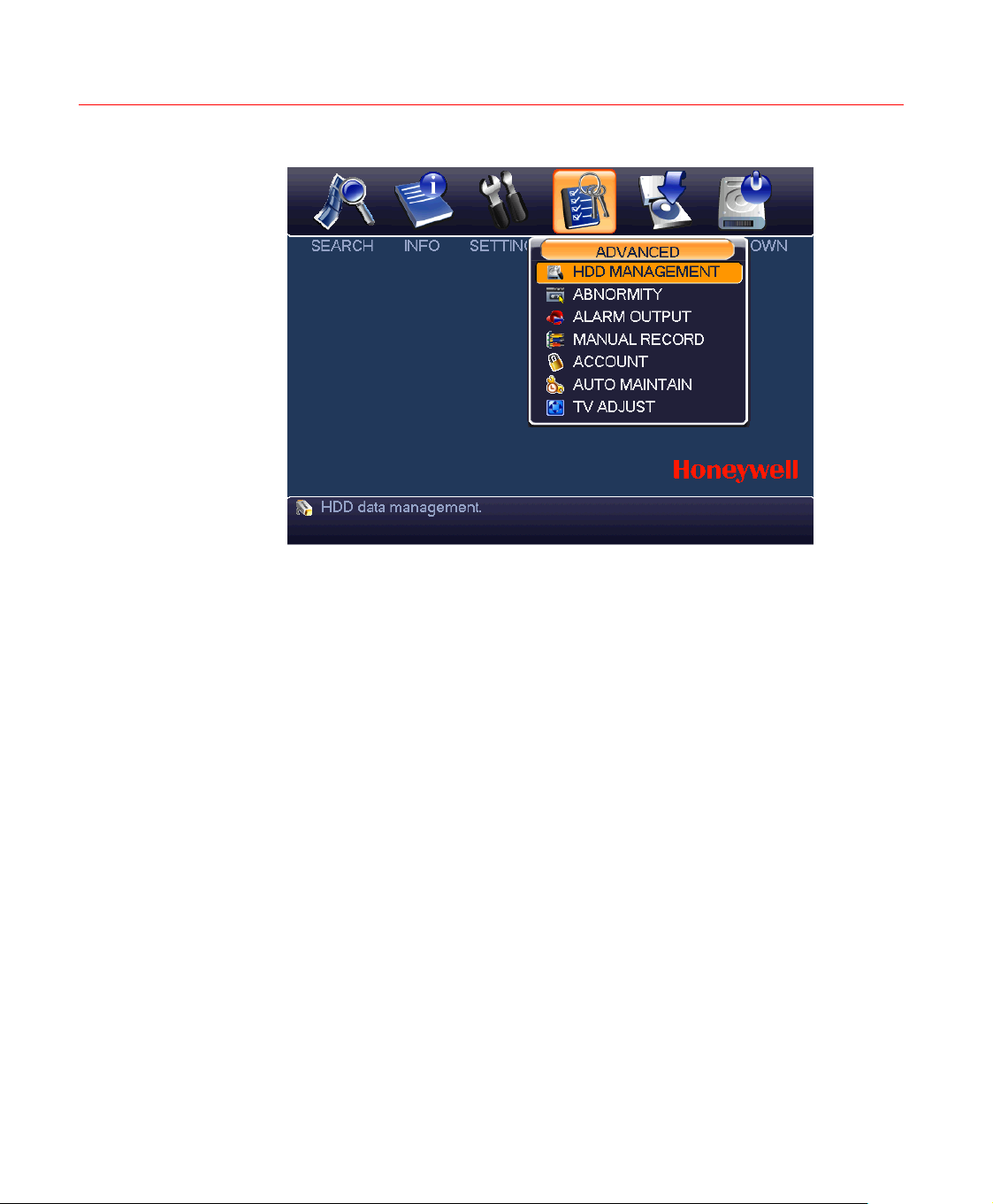

Advanced.......................................................................................................................... 78

HDD Management......................................................................................................79

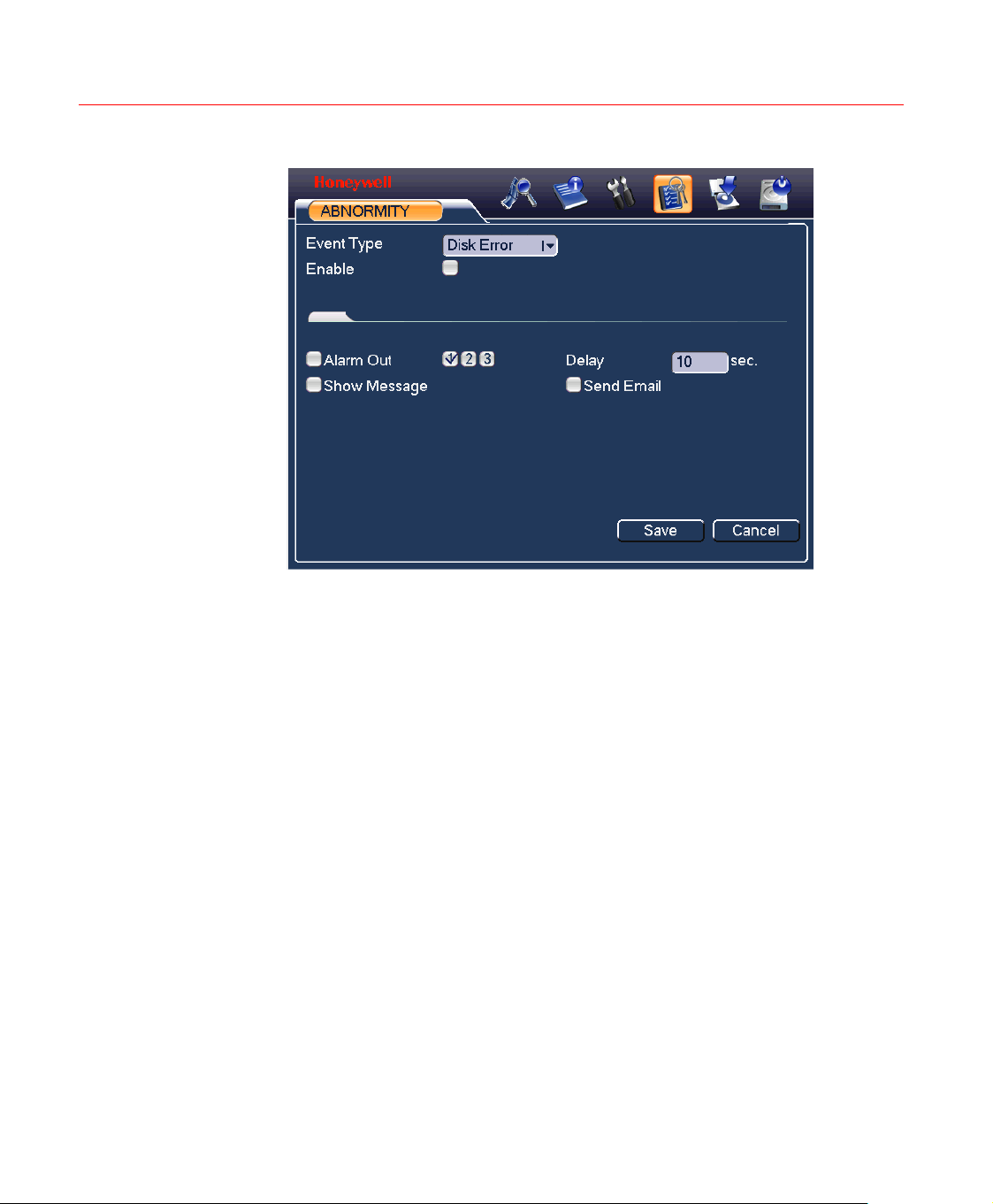

Abnormity ...................................................................................................................81

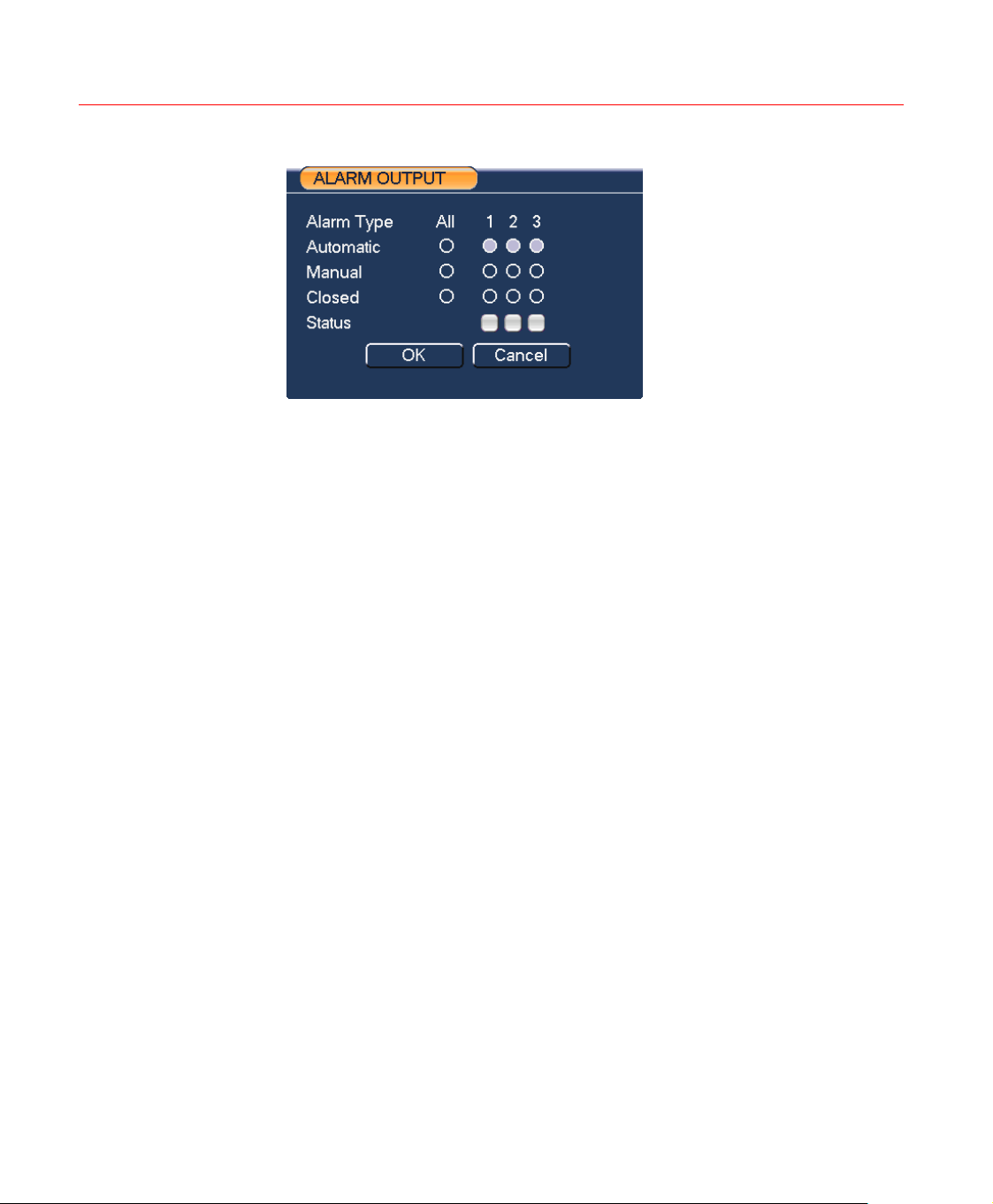

Alarm Output ..............................................................................................................82

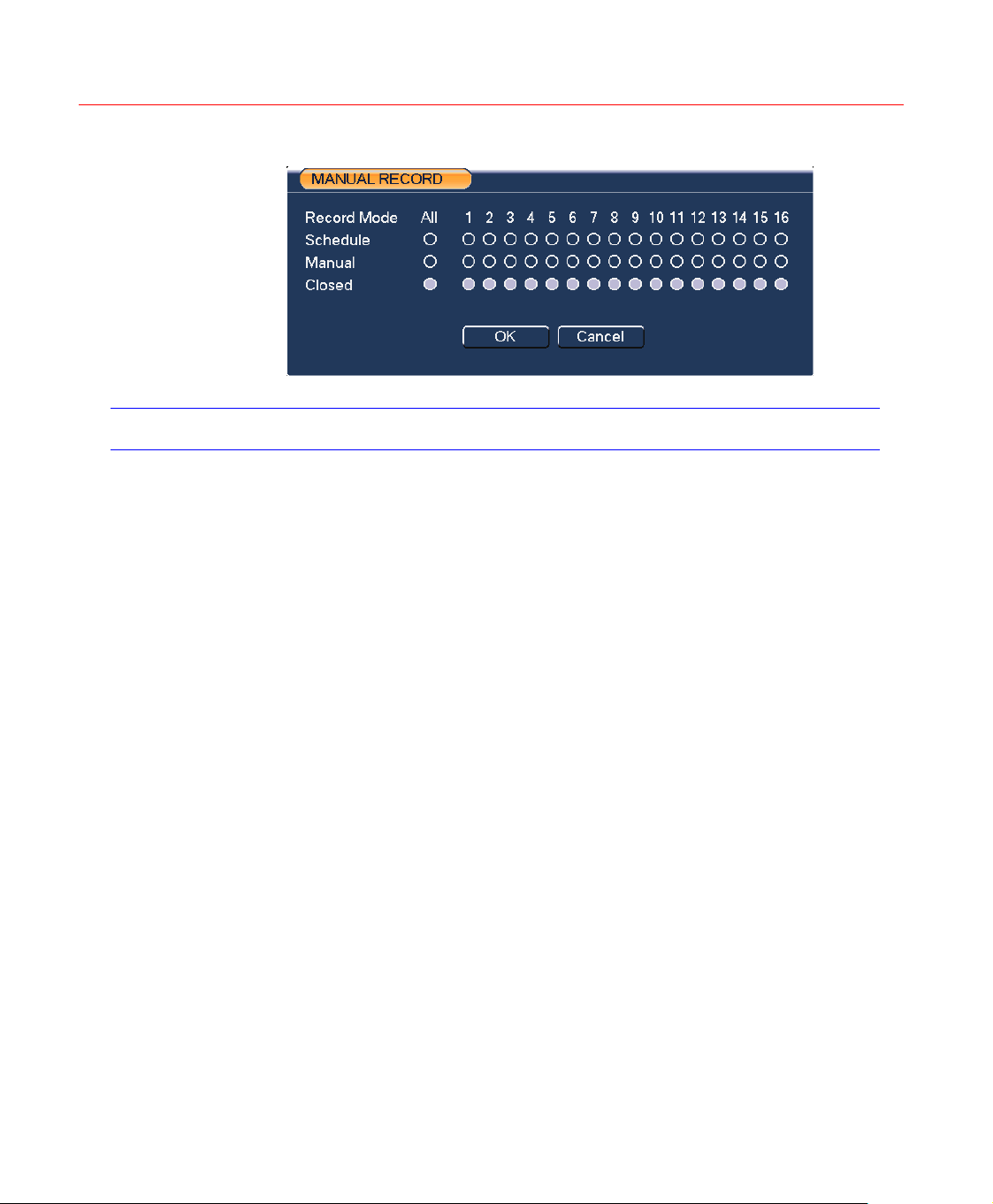

Manual Record ...........................................................................................................83

Account ......................................................................................................................83

Auto Maintain..............................................................................................................84

TV Adjust....................................................................................................................85

iii

Honeywell

6 Web Client Operation............................................................................................................... 93

Information........................................................................................................................ 86

HDD Information.........................................................................................................86

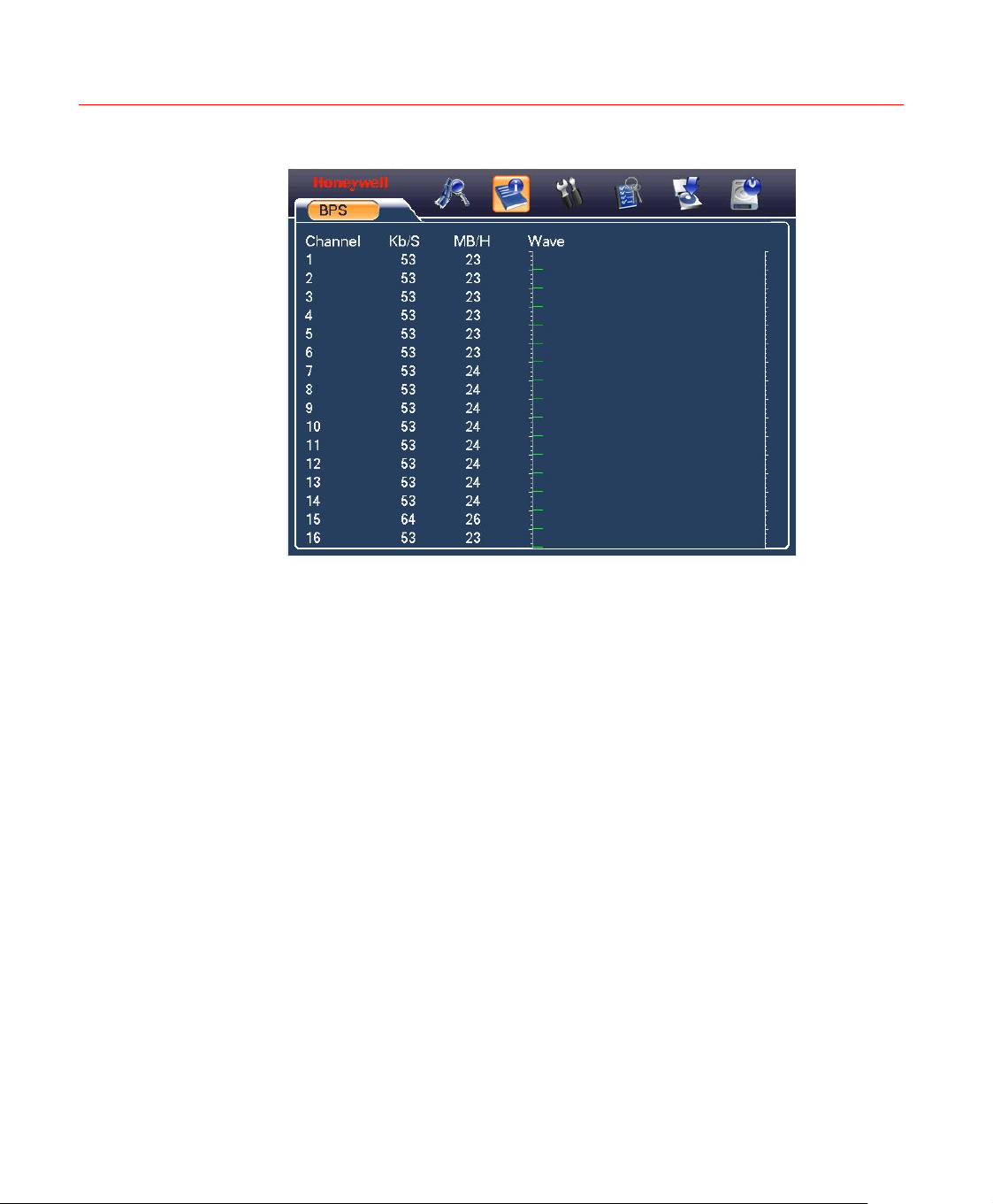

BPS ............................................................................................................................87

Log .............................................................................................................................88

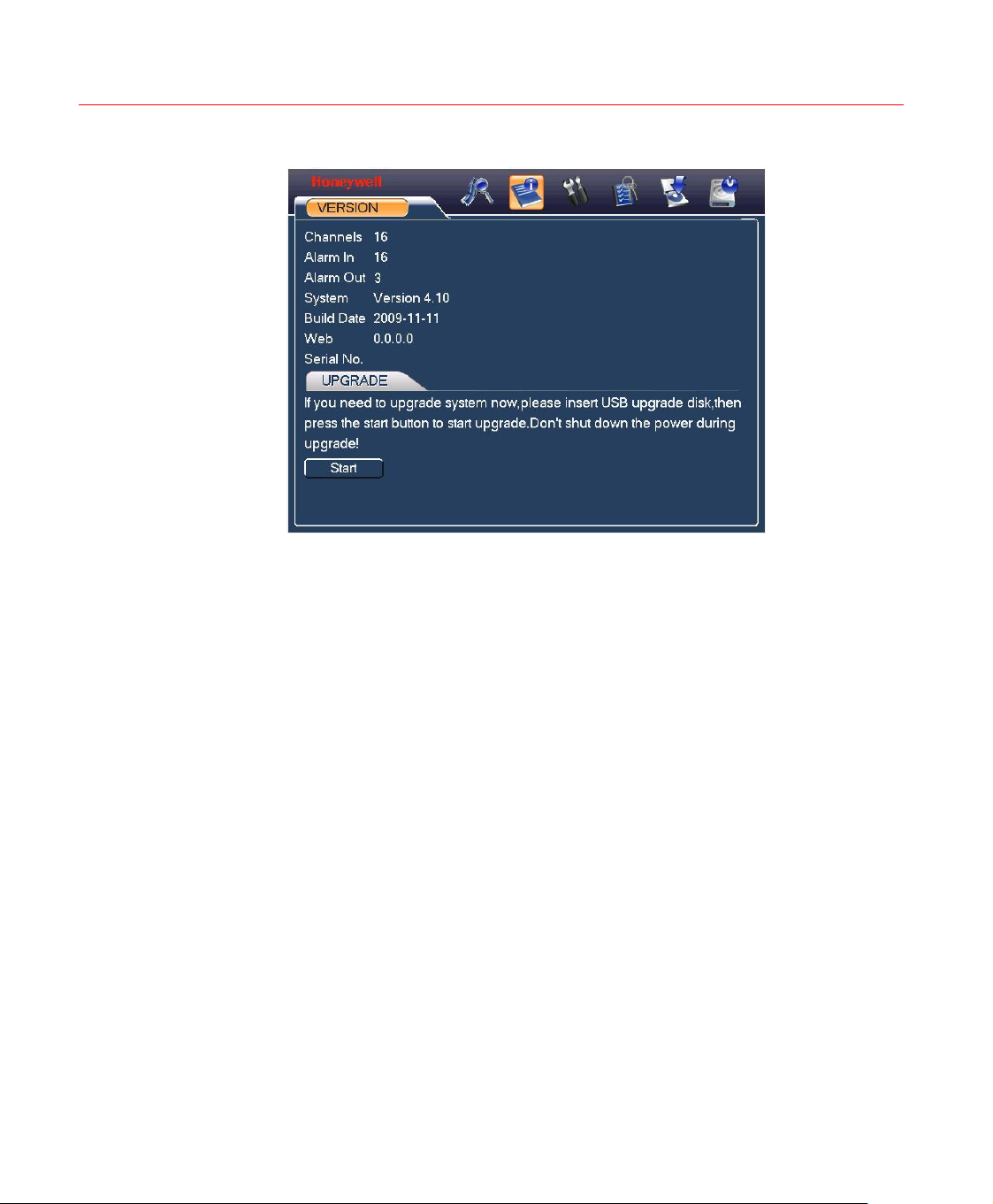

Version .......................................................................................................................89

Online Users...............................................................................................................90

Shutdown.......................................................................................................................... 91

Network Connection ......................................................................................................... 93

Login................................................................................................................................. 93

Real-Time Monitor ......................................................................................................98

PTZ...........................................................................................................................100

Color.........................................................................................................................103

Picture Path and Record Path ..................................................................................104

Configuration .................................................................................................................. 105

System Information...................................................................................................105

System Configuration ...............................................................................................109

Advanced .................................................................................................................129

Search ............................................................................................................................ 136

Alarm .............................................................................................................................. 140

About .............................................................................................................................. 142

Log out............................................................................................................................ 142

Un-install Web Control.................................................................................................... 143

7 FAQ ....................................................................................................................................... 144

8 Appendix................................................................................................................................ 151

HDD Capacity Calculation .............................................................................................. 151

Compatible USB Drive List ............................................................................................. 152

Welcome

Thank you for purchasing our DVR!

Please refer to this user’s manual for the installation and operation of HSVR-04 and HSVR-16.

Here you can find information about this series DVR features and functions, as well as a detailed menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

1. Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.

2. Transportation security

Heavy stress, violent vibration or exposure to water is not allowed during transportation, storage and installation.

Honeywell

3. Installation

Keep upwards. Handle with care.

Do not apply power to the DVR before completing installation.

Do not place objects on the DVR.

4. Qualified engineers needed

All the examination and repair work should be done by qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5. Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances, etc.

6. Accessories

Be sure to use all the accessories recommended by the manufacturer.

Before installation, please open the package and check that all the components are included.

Honeywell

 Software CD

 USB mouse

 Network cable

 12VDC power adapter

 Power cord

 SATA data cable and screws for HDD installation

 User manual

 Remote controller

 4 BNC connectors (only in HSVR-04 package)

 HDMI cable

Contact your local retailer ASAP if something is broken in your package.

1 Features and Specifications

Overview

HSVR-04 and HSVR-16 are excellent digital video surveillance products. They adopt embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame-by-frame play function is suitable for detail analysis. It has various functions such as simultaneous recording, playback, and monitoring as well as guaranteed audio video synchronization. This series product has advanced technology and a strong network data transmission function.

This series device adopts embedded design to achieve high security and reliability. It can work standalone with local Graphic User Interface, and can also be accessed by an IE web client through Ethernet for remote surveillance.

Honeywell

Features

This series product can be widely used in a variety of areas such as intelligent resident zones, banking, telecommunication, electric power, interrogation, transportation, factory, warehouse, resources, and water conservation.

This series product has the following features:

 Real-time monitoring

It has an analog (CVBS), VGA and HDMI output port for real-time surveillance by a monitor or TV set.

The system supports the three outputs at the same time.

 Storage function

Special data format guarantees data security and avoids vicious data modification.

 A/V compression

Features and Specifications

Supports multi-channel audio and video. Independent hardware codecs encodes and decodes the audio and video signal from each channel to maintain video and audio synchronization.

 Backup function

Provides local backup via USB port for flash disks and portable HDDs

IE web client can download the file to local HDD to backup via network.

 Recording and playback function

Supports simultaneous real-time recording, record search, forward/backward playback, network monitoring, and record download in all channels.

Supports various playback modes: slow, fast, backward and frame-byframe playback.

Supports time title overlay for accurate event occurrence time display

Supports zoom of specified zone in the picture.

 Network operation

Supports remote real-time monitoring, remote record search and remote PTZ control via network.

 Alarm interlock function

Three relay alarm outputs to realize alarm interlock and on-site light control.

 Communication port

RS485 port for PTZ control.

RS232 port for system upgrade and maintenance with PC COM connection, and matrix control.

Standard Ethernet port for network access function.

 PTZ control

Supports PTZ decoder via RS-485 communication.

Supports various protocols (KD-6, Scandome, Pelco-D, Pelco-P, etc.) to control the PTZ speed dome.

 Intelligent operation

Supports USB Mouse operation function.

In the menu, supports copy and paste for settings.

Honeywell

Specification

Parameter HSVR-04 HSVR-16

Main Processor High-performance industrial embedded micro controller

OS Embedded LINUX

System

Compressio n Standard

Video

System Resources

Interface User-friendly graphical user interface

Input Devices Front panel, USB mouse, remote control

Input Method Numbers, letters, symbols and extensible Chinese Shortcut

Function

Video Compression

Audio Compression

Video Input

Video Output

Video Standard PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Multiplex operations: simultaneous multi-channel recording, multichannel playback and network operation

Copy/paste operation, USB mouse right-key shortcut menu, double-click USB mouse to switch screen.

H.264

G.711A

16-ch composite 4-ch composite video (CVBS) input: (NTSC/PAL) BNC (1.0V

1-ch PAL/NTSC BNC (1.0VP- P, 75Ω) composite video (CVBS) output; 1-ch VGA output and 1-ch HDMI output of resolution 800x600, 1024×768, 1280×720 (720p), 1280×1024 selectable. Supports CVBS/VGA/HDMI video output at the same time.

P- P,

75Ω)

video(CVBS) input:

(NTSC/PAL) BNC (1.0V

75Ω)

P- P,

Record Speed PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

Video Partition 1/4 windows 1/4/8/9/16 windows

Monitor Touring

Supports monitor touring modes: alarm triggered, motion detection triggered, and manual control.

Features and Specifications

Resolution (PAL/NTSC)

Motion Detection

Image Quality 6-level image quality adjustable

Privacy mask

OSD in record Channels information, time information and privacy mask zone. TV Adjust Adjusts TV (CVBS) output zone for monitors of display distortion.

Channel Lock

Live Channel Status OSD

Color Configuration

Audio Input Audio Output 1-ch audio output 200-3000mv 5KΩ(BNC)

Hard Disk 1 built-in SATA port; support 1 HDD.

Hard disk

Record and playback

Hard Disk Space Consumption

Recording Mode

Recording Length

Cyclic mode When hard disk is full, system can overwrite previous video file.

Record Search Various search engines such as time, type and channel.

Playback Mode

PAL/NTSC

PAL/NTSC Real-time monitoring: D1 704×576/704×480 Playback: D1 704×576/704×480 (6/7 f/s, ch1 up to 25/30 f/s when other channels are of CIF), CIF 352×288/ 352×240, QCIF 176×144/176×120

Support dual streams: extra stream resolution QCIF 176×144/176×120

Zone setup: support max 396 (PAL, 22×18) or 330 (NTSC, 22×15) zones. Supports various sensitivity levels.

Supports max 4 user defined zones of privacy mask in each display window.

Covers secret channel with blue screen though system is encoding normally. Screen -lock function to prevent unauthorized user seeing private video Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel 4-ch 200-2000mv10KΩ(BNC) synchronized with video input channel 1-4 Audio

Audio: 28.8MByte/h per channel Video: 56-900MByte/h per channel Manual recording, motion detection recording, schedule recording and alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording

1 to 120 minutes single record duration (Default 60 minutes)

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode.

Real-time monitoring:

D1 704×576/704×480

Playback:

D1 704×576/704×480 (6/7

f/s, ch1 & ch9 up to 25/30

f/s when other channels are

of CIF), CIF 352×288/

352×240, QCIF

176×144/176×120

Support dual streams: extra

stream resolution QCIF

176×144/176×120

Backup function

Network Function

Motion Detection and Alarm

Interface

System Information

Honeywell

Can switch to previous or next file or any file in current play list.

Various File Switch Ways

Multi-channel Playback

Display Modes Switch between adaptive window/full screen during playback

Zoom

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt.

External Alarm

Manual Alarm Control

Alarm Input

Alarm Output 3-channel relay output Alarm Relay 30VDC 2A，125VAC 1A（activation alarm ） USB Interface 2 USB 2.0 ports Network

connection

RS485

RS232

Hard Disk Information

Can switch to file on other channel of the same time (if existing). Supports continuous file playback; when a file is ended, system automatically plays the next file in the current channel

Support maximum 4-channel simultaneous playback.

When in one-window full-screen playback mode, you can select any zone to zoom in.

HDD backup Support peripheral USB backup device. (Flash disk, portable HDD and etc.) Supports USB burner (extension function). Supports network download and backup Remote live view of all channels.

DVR configuration through web browser client

Upgrade or maintenance via web browser client View alarm information such as external alarm, motion detection

and video loss Supports network PTZ control File download backup and playback Duplex transparent COM Intercom Zone setup: 396 (PAL, 22×18) or 330 (NTSC, 22×15) detection

zones. Various sensitivity levels Can activate recording, external alarm or screen message prompt in specified period.

Can activate recording, external alarm or screen message prompt in specified period. Enables or disables alarm input channel. Supports manual alarm output.

4-ch alarm input（Normal open or normal close）

RJ45 10M/100M self-adaptive Ethernet port

PTZ control port Supports various control protocols: KD-6, Scandome, Pelco-D, Pelco-P, etc. Ordinary serial port (for upgrade and maintenance) and transparent serial port (COM input and output via network )

Displays HDD current status

Support maximum 16-

channel simultaneous

playback.

16-ch alarm input（Normal

open or normal close）

Features and Specifications

Data Stream Statistics

Log statistics

Version

On-line user Display current on-line user

User

User Managemen t

Upgrade Web browser, client-end and specific update tool.

General Parameter

Management

Password Authentication

Power DC +12V/3.3A Power

Consumption Working Temperature Working Humidity

Air Pressure 86kpa－106kpa

Dimension 375x285x45mm

Weight 3.25KG(Exclude HDD)

Installation Mode Desktop installation

Data stream statistics for each channel (in wave mode)

Display maximum1024 logs. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and published date.

Multi-level user management; various management modes Integrated management for local user and network user Configurable user power Support user /group and its corresponding rights modification. No limit to the user or group amount Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: logout /shutdown/ restart. Authentication when shut down to make sure only authorized users can turn off DVR

12W (Exclude HDD)

0℃－＋55℃

10%－90%

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first.

Front Panel

The front panel is shown in Figure 2-1.

Figure 2-1 The Front Panel of HSVR-04/HSVR-16

Honeywell

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Shift

Up/1 Down/4

Left/2 Right/3

Shift

 

 

Power button, press this button for three seconds to boot up or shut down DVR.

In textbox, click this button to switch between numeral, English (Small/Capitalized), donation and etc.

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4.

Shift current activated control,

During playback, click these buttons to control playback bar.

In text mode, input number 2/3.

Overview and Controls

ESC

Go to previous menu, or cancel current operation.

During playback, click it to restore real-time monitor mode.

Confirm current operation

Enter

Record

Slow play/8

Assistant

Fast play/7

Play previous/0

Reverse/Pause/6

Play Next/9

Play/Pause /5

ENTER

REC



│



│



Go to default button

Go to menu

Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Multiple slow play speeds or normal playback.

In text mode, input number 8.

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

In PTZ menu, shift PTZ control menu.

Backspace function: in numeral control or text control, it can delete the previous character before the cursor.

In motion detection setup, work with Fn and direction keys to realize setup.

In preview mode, click it for three seconds to switch between TV.VGA. For HD1 series DVR, there are three modes: TV, VGA, VGA_LCD (60Hz LED output).

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Various fast speeds and normal playback.

In text mode, input number 7.

In playback mode, playback the previous video

In text mode, input number 0.

In normal playback or pause mode, click this button to reverse playback

In reverse playback, click this button to pause playback.

In text mode, input number 6.

In playback mode, playback the next video

In menu setup, go to the bottom of the dropdown list.

In text mode, input number 9.

In normal playback click this button to pause playback

In reverse playback or pause mode, click this button to resume normal playback.

In live view, press this key to enter Search interface.

Honeywell

In text mode, input number 5.

USB port

Network abnormal indicator

HDD abnormal indicator

Record indicator

IR Receiver

Rear Panel

To connect USB storage device, USB mouse.

Net

HDD

Alarm

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Indicates whether the system is recording or not. It turns on when the system is recording.

Receives the signal from the remote control.

HSVR-04 and HSVR-16 rear panels are shown as below. See Figure 2-2 and Figure 2-3.

Figure 2-2 The Rea

r Panel of HSVR-04

Figure 2-3 The Rear Panel of HSVR-16

Please refer to the following table for detailed information.

No. Description

1 Video input

Overview and Controls

2 Audio input

3 Video CVBS output

4 Audio output

5 Network port

6 USB port

7 HDMI port

8 RS232 port

9 Video VGA output

10 Alarm input/alarm output/RS485 port

11 12VDC Power input port

12 Power button

When connecting the Ethernet port, please use a straight cable to connect the PC and use the crossover cable to connect to the switcher or router.

Connection Diagram

Please refer to Figure 2-4 for connection diagram of HSVR-16. HSVR-04’s is similar.

Honeywell

Figure 2-4 Device Connection

Remote Controller

The remote controller interface is shown as in Figure 2-5.

Overview and Controls

Figure 2-5 Remote Controller

No. Function

1 Record search

2 Multiple-window switch

3 0-9 number keys

4 ESC, Cancel

5 Reserved, not effective for HSVR-04 and HSVR-16

6 Confirm /menu key

7 Direction keys

8 Auxiliary function key

9 Remote address switch

10 Previous

11 Backward playback

12 Slow play

13 Play/Pause

14 Fast play

15 Next

16 Record

Mouse Control

Honeywell

Left click mouse

The password input dialogue box will pop up if you have not logged in.

In real-time monitor mode, you can go to the main menu.

When you have selected one menu item, left click the mouse to view menu content.

Implement the control operation.

Modify checkbox or motion detection status.

Click combo box to bring up the drop down list

Overview and Controls

In input box, you can select input methods. Left click the corresponding button on the panel where you can input numeral/English character (small/capitalized). Here ← stands for the backspace button. ＿ stands for the space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.

Double left click mouse

When inputting special symbols, you can click the corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.

Implement special control operation such as double click one item in the file list to playback the video.

In multiple-window mode, double left click one channel to view in full-window.

Double left click current video again to go back to previous multiple-window mode.

Honeywell

In real-time monitor mode, the shortcut menu will appear: onewindow, four-windows, eight-window, nine-windows and sixteen-windows, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, and main menu.

Right click mouse

Press middle button

Move mouse Selects current control or move control

Among which, Pan/Tilt/Zoom and color setting applies for the current selected channel. If you are in multiple-window mode, the system automatically switches to the corresponding channel.

Exit current menu without saving the modification.

In numeral input box: Increase or decrease numerical value.

Switch the items in the check box.

Page up or page down

Drag mouse

Selects motion detection zone

Selects privacy mask zone.

Installation and Connections

3 Installation and Connections

Note

All the installation and operations here should conform to your local electrical safety rules

Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect during most transportation caused accidentsal. Then proceed to open the box to check the accessories.

Please check the items in accordance with the list on the warranty card. Finally you can remove the protective film of the DVR.

About Front Panel and Rear Panel

For detailed information of the function keys in the front panel and the ports in the rear panel, please refer to the User’s Manual included in the resource CD.

The model in the front panel is very important; please check according to your purchase order.

The label in the rear panel is very important too. Usually we need you to present the serial number when we provide service after sales.

HDD Installation

This series DVR has only one SATA HDD. Please use HDD of 7200rpm or higher.

You can refer to the user guide for a recommended HDD brand.

Honeywell

Please follow the instructions below to install the hard disk.

1. Loosen the screws of the upper cover.

3. Rotate four screws three times to secure HDD bracket..

5. Turn the device upside down and then turn the screw in firmly.

2. Remove upper cover

4. Place the HDD in accordance with the four holes in the chassis.

6. Fix the HDD firmly.

7. Connect the HDD cable and power cable.

8. Connect the HDD cable and power cable.

Installation and Connections

After completing HDD installation, please check the connection of the data ribbon and power cord.

Connecting Power Supply

Please check whether the input voltage and device power button match.

We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral equipments’ operation such as cameras.

Connecting Video Input and Output Devices

Connecting Video Input

The video input interface is BNC. The input video format includes: PAL/NTSC BNC(1.0V

The video signal should comply with your national standards.

P- P ，

75Ω).

The input video signal should have high SNR, low distortion, low interference, natural color and suitable lightness.

Guarantee the stability and reliability of the camera signal:

The camera should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances, etc.

The camera and the DVR should have the same grounding to ensure normal operation of the camera.

Guarantee the stability and reliability of the transmission line

Please use high quality, sound shielded BNC. Please select suitable BNC model according to the transmission distance.

If the distance is too long, you should use twisted pair cable, and you can add video compensation devices or use optical fiber to ensure video quality.

You should keep the video signal away from the strong electromagnetic interference, especially the high tension current.

Keep connection lugs in well contact

The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint, lap welding and oxidation.

Connecting Video Output

Video output includes BNC (CVBS PAL/NTSC, 1.0VP-P, 75Ω), VGA and

HDMI

The system supports the three kinds of outputs at the same time.

When you are using PC monitor to replace standard CCTV monitor, please pay attention to the following points:

 To extend the product’s life, do not run the pc monitor for a long time.

 Regular demagnetization will keep device maintaining proper status.

Keep it away from strong electromagnetic interference devices.



Using TV as video output device is not a reliable substitution method. You also need to reduce the working hour and control the interference from power supply and other devices. The low quality TV may result in device damage.

Connecting Audio Input & Output

Honeywell

Audio Input

Audio Output

The four audio input channels are bound to video input channel 1-4.

Use the BNC connector to connect the audio channel.

Due to high impedance of audio input, please use active sound pick-up.

Audio transmission is similar to video transmission. Try to avoid interference, dry joint, and it shall be away from high tension current

The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to low impedance earphones, active sound box or amplifier-drive audio output device.

If the sound box and the pick-up cannot be separated spatially, it is easy to cause a squeaking noise. In this case you can adopt the following measures:

 Use better sound pick-up with better directing property.

Installation and Connections

 Reduce the volume of the sound box.



Use more sound-absorbing materials in decoration to reduce voice echo and improve acoustics environment.

 Adjust the layout to reduce the occurrence of the squeaking.

Alarm Input and Output Connection

Please refer to the following sheet for alarm input and output connection.

There are two alarm input types for you to select: normal open (NO) and normal close (NC).

1. Alarm input

a Please make sure alarm input mode is grounding alarm input.

b Grounding signal is needed for alarm input.

c When you are connecting two DVRs or connecting one DVR and

one other device, please use a relay to separate them

2. Alarm output

The alarm output port should not be connected to a high power load directly (It shall be less than 1A) to avoid high current which may result in relay damage. Please use the co contactor to realize the connection between the alarm output port and the load.

3. Please make sure the front-end devices have been well earthed.

Improper grounding may result in chip damage.

Alarm Input and Output Details

You can refer to the following sheet and Figure 3-1 for alarm input and output information.

Honeywell

Figure 3-1 Alarm Input and Output of HSVR-04 (Left) and HSVR-16

(Right)

Parameter Grounding Alarm

Alarm Input

Relay Output NO C 1-NO C, 2-NO C, 3-NO C Three Normal Open activation outputs.

RS-485 A/B

Alarm Input Port

4-ch (HSVR-04) / 16-ch (HSVR-16)grounding alarm inputs. (Normal open or Normal close type)

Please parallel connect COM end and GND end of the alarm detector (Provide external power to the alarm detector).

Please parallel connect the ground of the DVR and the ground of the alarm detector.

Ground line

HSVR-04: 1, 2, 3, 4 become valid in low voltage; 5, 6, 7, 8 are not effective.

HSVR-16: 1-16 become valid in low voltage.

RS-485 communication port. They are used to control devices such as PTZ. Please parallel connect 120Ω between A/B cables if there are too many PTZ decoders.

Installation and Connections

Please connect the NC port of the alarm sensor to the DVR alarm input (ALARM)

Use the same ground with that of DVR if you use external power for the alarm device.

Note

Figure 3-2 Sample of Alarm Input (Normal Close Type)

Alarm Output Port

 Three ways to relay alarm output (NO contact). External power supply

is needed for external alarm device.

Only indoor devices are recommended for being connected to HSVR-04 / HSVR-16 alarm inputs.

 To avoid overloading, please read the following relay parameters sheet

carefully.

Relay Specification:

Model JRC-27F

Material of the touch Silver

Rated switch capacity 30VDC 2A, 125VAC 1A

Rating (Resistance Load)

Maximum switch power 125VA 160W

Maximum switch voltage 250VAC, 220VDC

Maximum switch currency 1A

Honeywell

Between touches with same polarity 1000VAC 1minute

Insulation

Surge voltage Between touches with same polarity 1500V (10×160us)

Length of open time 3ms max

Length of closed time 3ms max

Longevity

Temperature -40 ~℃ +70 ℃

Between touches with different polarity 1000VAC 1minute

Between touch and winding 1000VAC 1minute

Mechanical 50×106 times (3Hz)

Electrical 200×103 times (0.5Hz)

RS232

RS232 port is reserved for technical support diagnosis and upgrade.

RS485

When the DVR receives a camera control command, it transmits that command up the coaxial cable to the PTZ device. RS485 is a singledirection protocol; the PTZ device cannot return any data to the unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR. See Figure 3-3.

Since RS PTZ settings first. This series DVRs support multiple protocols such as Pelco-D, Pelco-P.

To connect PTZ devices to the DVR:

1. Connect RS485 A,B on the DVR rear panel.

485 is disabled by default for each camera, you must enable the

a. Ensure the decoder has the same grounding with the DVR, otherwise you will not be able to control the PTZ. Shielded twisted wire is recommended, and the shielded layer should be used to connect the ground.

b. Avoid high voltage. Ensure proper wiring and some thunder protection measures.

Installation and Connections

c. For signal wires that are too long, 120Ω should be connected parallel between A, B lines on the far end to reduce reflection and guarantee signal quality.

d “485 A, B” of DVR cannot connect parallel with “485 port” of other device.

e. The voltage between of A,B lines of the decoder should be less than 5v.

2. Connect the other end of the cable to the proper pins in the connector on the camera.

3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.

Figure 3-3 PTZ Connection Port

USB

HSVR-04

RS-485 port

The USB port is for the USB storage device and USB mouse. For USB Backup, please refer to Backup for detailed operation.

HSVR-16

RS-485 port

4 Overview of Navigation and Controls

Before operation, please make sure you have properly installed HDD and all the cable connections.

Honeywell

Note

From this chapter, most descriptions and figures are based on HSVR-16 operation.

Login, Logout & Main Menu

Login

After the system has booted up, default video display will be in multiplewindow mode.

Press Enter on the from panel, or Menu on the remote controller, or left click the mouse. You will be able to see the login interface. See Figure 4-1.

stem consists of four accounts:

The sy

 Username: admin. Password: admin. (administrator, local and

network)

 Username: 888888. Password: 888888. (administrator, local only)

 Username: 666666. Password: 666666(Lower authority user who can

only monitor, playback, backup and etc.)

 Username: default. Password: default(hidden user)

You can use the USB mouse, front panel, remote controller or keyboard to

input. About input method: Click switch between numbers, English character (small/capitalized) and denotation.

Note

For security reasons, please modify the password after your first login.

or press Shift on the front panel to

Overview of Navigation and Controls

Within 30 minutes, login failure three times will result in a system alarm buzz and login failure five times will result in account lock.

Figure 4-1 Menu Login

Main Menu

After you have logged in, the system main menu will appear as shown below. See Figure 4-2.

There are a t advanced and shut down.

You can move the cursor to highlight the icon, and then double-click the mouse to enter the sub-menu.

Figure 4-2 Main Menu

otal of six icons: search, information, setting, backup,

Logout

Honeywell

There are two ways for you to log out.

One is from menu option:

In the main menu, click the shut down button, and you can see an interface as shown below. See Figure 4-3.

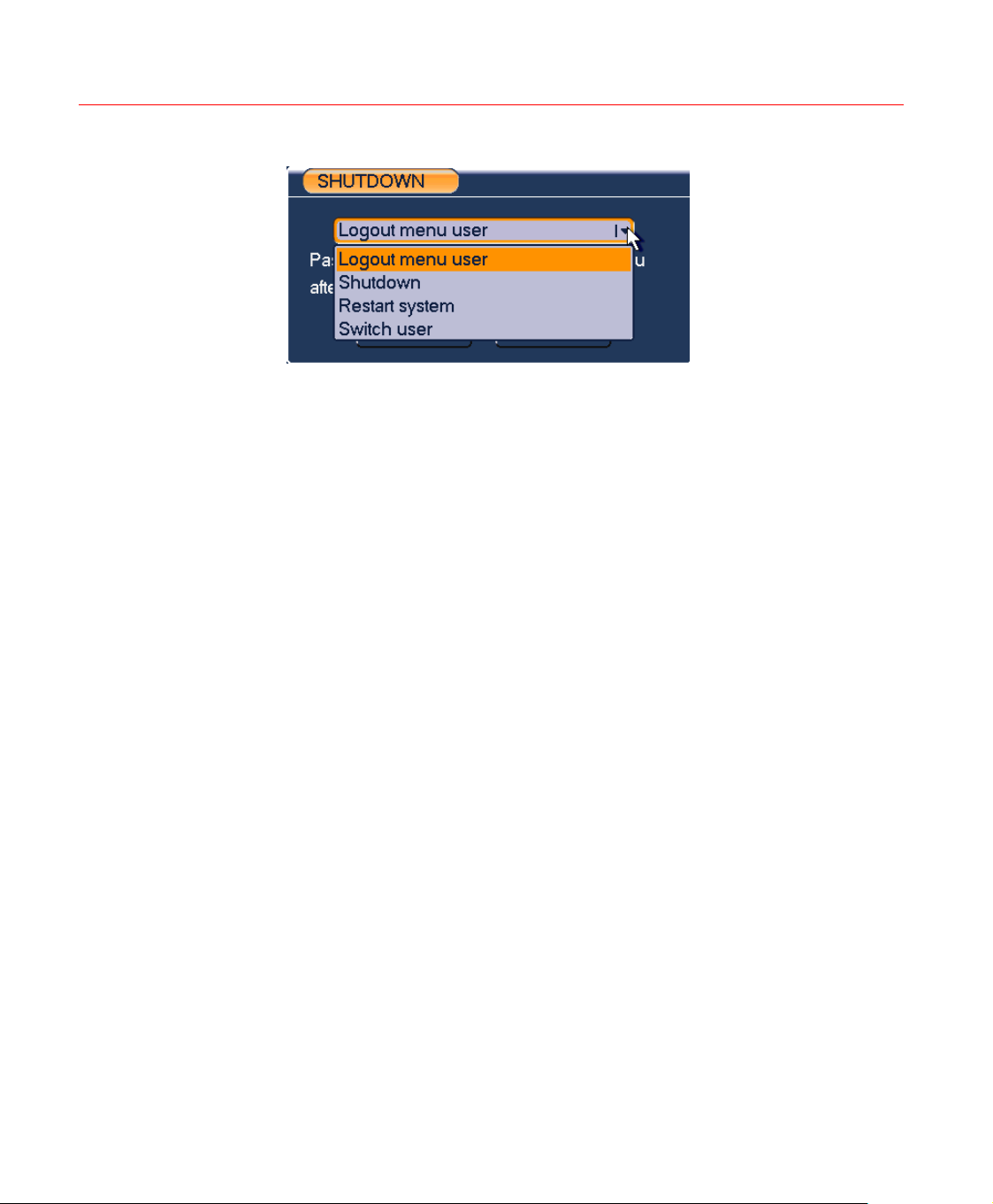

Figure 4-3 Logout Me

You have several options. See Figure 4-4.

Figure 4-4 O

The other way is to press the power button on the front panel for at least 3 seconds, causing the system to stop all operations. Then you can click the power button in the rear panel to turn off the DVR.

ptions for Logout

Auto Resume after Power Failure

The system can automatically backup video and resume its previous working status after power failure.

Replace Button Battery

Please make sure to use the same battery model if possible.

We recommend regular battery replacement (such as one-year) to guarantee system time accuracy.

Overview of Navigation and Controls

Manual Record

Live Viewing

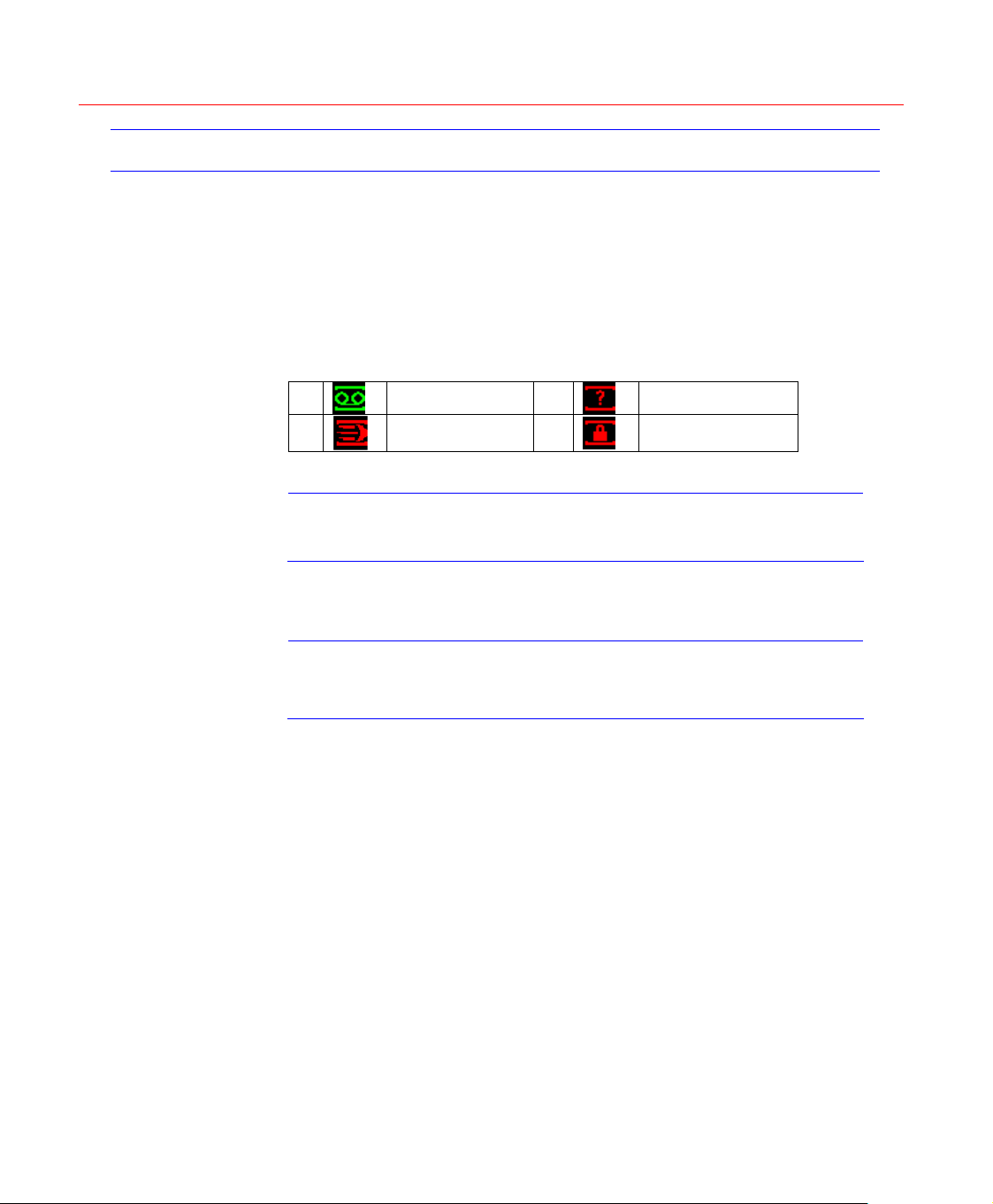

After you have logged in, the system is in live viewing mode. You can see the system date, time and channel name. If you want to change the system date and time, you can refer to general settings (Main MenuSettingGeneral). If you want to modify the channel name, refer to the display settings (Main MenuSettingDisplay).

Manual Record

Note

Recording status

Motion detection

Live audio will only be played under the single channel video display mode.

You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed.

Video loss

Camera lock

Manual Record Menu

There are two ways for you to go to the manual record menu.

 Right-click the mouse to select Record, or in the main menu proceed

to AdvancedManual Record.

 In live viewing mode, click the record button in the front panel or the

record button in the remote control.

Manual record menu is shown in Figure 4-5.

Basic Operations

There are three modes: schedule/manual/stop. Please highlight icon”○” to select the corresponding channel.

Honeywell

 Manual: The highest priority. After being set to manual mode, all

selected channels will start regular (continuous) recording.

 Automatic: Channel recording follows recording schedule setting (Main

MenuSettingSchedule)

 Closed: the channel stops recording.

Figure 4-5 Recording Control Menu

Enable/disable recording in specified channels

Please check the current channel status: “○” means it is not in recording status, “●” means it is in recording status.

You can use the mouse or direction key to highlight the channel number. See Figure 4-6.

Figure 4-6 Di

fferent Status of Manual Record

Enable/disable recording in all channels

Highlight ○ below All, you can enable all channel recording.

 Automatic recording in all channels

Highlight “ALL” after “Automatic”. See Figure 4-7.

Overview of Navigation and Controls

When system is in automatic recording, all channels will be recorded as you set up in Main menuSettingSchedule.

The corresponding indication light on the front panel will turn on.

Figure 4-7 Automatic Recording in All Channels

 Manual recording in all channels

Highlight “ALL” after “Manual.” See Figure 4-8.

When the system is in manual recording, continuous recording, neglecting the recording schedule (Main menuSetting Schedule).

You will see an indication light on the front panel turn on, indicating that the system has begun to manually record.

Figure 4-8 Start Manual Record in All Channels

all channels will start

Stop all channel recording

Please highlight “ALL” after “Closed”. See Figure 4-9.

The system stops all channel recording no matter what mode you have set in the menu (Main menu->Setting->Schedule).

Figure 4-9 Stop Recording in All Channels

Search & Playback

Search Menu

Click the search button in the main menu, search interface is shown below. See Figure 4-10.

Honeywell

Usually there

 R: Regular recording file.

 A: External alarm recording file.

 M: Motion detection recording file

There are several playback windows. Usually the system supports 1/2/3/4-ch playback, and HSVR-16 also supports 16-ch playback.

are three file types:

Overview of Navigation and Controls

Figure 4-10 Record Search Menu

Please refer to the following chart for more information.

Serial Number Function

1 Play

2 Backward

3 Stop

4 Slow play

5 Fast play

6 Previous frame

7 Next frame

8 Volume

9 Previous file

10 Next channel

11 Next file

12 Previous channel

13 Search

14 Backup

Basic Operation

Playback

There are various search modes: video type, channel number or time. The system can display a max of128 files in one screen. You can use the page up/down button to view if there are more than one page.

By selecting the file name and double click the mouse (or click the enter button), you can view the file content.

There’re two playback mode, FOUR and ALL in HSVR-16. In FOURchannel mode, video records of any 1-4 channels can be played simultaneously; in ALL-channel mode, video records of all the 16 channels can be played simultaneously.

Accurate playback

Input time (h/m/s) in the time column and then click playback button. This will enable the system to operate accurate playback.

Honeywell

Synchronized playback function when playback

During playback process, by clicking a numeral key, system can switch to the corresponding channel video of the same time.

Digital zoom

When the system is in full-screen playback mode, drag your mouse over the screen to select a section and then left click the mouse to realize digital zoom. You can right click the mouse to exit.

File backup

System supports backup operation during search. You can draw a √ before the file name(s). Then click the backup button (Button 14 in Figure 4-10).

Slow playback and fast playback

Please refer to the following sheet for the slow play and fast playback function.

Button Illustration Remarks

Frame rate may

Fast play button  In playback mode, click this button to

switch between various fast play

vary due to

Overview of Navigation and Controls

modes such as fast play 1, fast play 2 and more.

Slow play button ► In playback mode, click this button to

switch between various slow play modes such as slow play 1 or slow play 2.

In normal/fast/slow playback mode,

Play/Pause ►/

Previous/next

Backward playback and frame by frame playback

Button Illustration Remarks

Backward play:  in playback

interface.

Manual playback frame by frame.

click this button to switch between play/pause modes.

In playback mode, you can click │ and │ to view previous or next video in current channel.

In normal playback mode, left click the backward play button , system begins backward playback.

Left click the backward play button again. The system will go to pause mode.

Click pause button in normal playback mode, you can use │ and │ to view frame by frame.

different versions.

When the system is in backward play or frame-by-frame playback mode, you can click the play button►/ to go to normal playback.

Calendar

All the operations here (such as playback speed, channel,

Note

time and progress) have a relationship with the hardware version. Some series DVRs do not support some functions or playback speeds.

Click the calendar icon in Figure 4-10. A calendar will appear for your reference.

The highlighted date means there are record files for that day. You can click the blue date to view the file list.

In Figure 4-11, there are video files in March 13th an

d 14th. Select the date

to view file list of that date.

Schedule

Honeywell

Figure 4-11 Sample of the Calendar

After the system has booted up it will enter a default 24-hour regular mode. You can set the record type and time in schedule interface.

Schedule Menu

In the main menu, from Setting to Schedule, you can go to the schedule menu. See Figure 4-12.

Channel: Please select the channel number first. You can select “all” if



you want to set for all of the channels.

 Week day: There are eight options ranging from Saturday to Sunday

and the entire week.

 Pre-record: System can pre-record the video before the event triggers

recording. The value ranges from 1 to 30 seconds. But the actual prerecord length depends on total channel number with pre-record enabled and the bit rate of video stream. When pre-record is enabled in all channels, actual pre-record length of each channel can be no less than 4 seconds.

 Redundancy: Please note the redundancy function does not apply to

HSVR-04 and HSVR-16 since there is only one HDD,

 Record types: There are three types: regular, motion detection (MD)

and alarm.

Overview of Navigation and Controls

Please check a box to select the corresponding function. After completing all the setups please click the Save button; the system will return to the previous menu.

At the bottom of the menu, there are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording.

Figure 4-12 Schedule Menu

Quick Setup

This function allows you to copy one channel setup to another. After setting one channel, you can click the Copy button and switch to another channel and then click the Paste button. You can finish setting one channel and click the Save button to keep the setting of that channel, or you can finish the entire setup and then click the Save button to keep all of the modified settings.

Detect

Go to Detect Menu

In the main menu, from Setting to Detect, you can see motion detect interface. There are three detection types: motion detection, video loss, camera masking.

Motion Detection

The detection menu is shown as below. See Figure 4-13.

 Event type: From the drop-down list you can select the “Motion

 Channel: Select the video channel for the motion detection setting.

 Record Channel: Select the channel to activate the recording function

 Delay: When detected motion is completed, the system will continue

 Region: Click Select, the interface is shown as in Figure 4-14. Here

 Sensitivity: The system supports 6 levels. The sixth level has the

Honeywell

Detection” type.

once the alarm has sounded. Please make sure you have set the MD recording in the schedule interface (Main MenuSettingSchedule) and automatic recording in manual record interface (Main Menu>Advanced->Manual Record)

alarm output and recording for a specified time respectively. The value ranges from 10-300(Unit: second).

you can small zones.

highest sensitivity. The fifth or lower levels are recommended to avoid setting a false alarm.

set the motion detection zone. There are 396(PAL)/330(NTSC)

 Show message: The system will send message to the local host screen

to alarm you if you have enabled this function.

 Send email: The system can send out an email to alert you when the

alarm occurs.

 PTZ activation: Here you can set PTZ movement (of any video

channels) such as going to a preset when motion is detected in the current video channel. Click Select, and you can see an interface is shown as in Figure 4-15.

 Period:

for motion detection. See the interface shown as in Figure 4-16. Here you can click Set, and you will see you can

 Alarm output: After the motion detection has occurred, the system

enables the peripheral alarm devices.

 Tour: Here you can enable the tour function when the alarm occurs. It

is a one-window tour. Please go to Display on page 74 for tour interval setup.

Click Set to determine the period for the channel to be armed

set for business days and non-business days. In Figure 4-16,

an interface as shown in Figure 4-17. Here

set your own business day and non-business day.

Overview of Navigation and Controls

Note

Check boxes to select the corresponding function. After all the settings, click Save, and the system will return to the previous menu.

Note

Figure 4-13 Motion Detection Menu

If there are record channels selected, only the record channels will be displayed in the tour.

In Figure 4-14, you can left click the mouse and drag it to set a re between arm/withdraw motion detection. After setting the region, click the enter button to exit.

gion for motion detection. Click Fn to switch

Honeywell

Figure 4-14 Motion Detection Zone Setting

Figure 4-15 PTZ Activation Setting

Overview of Navigation and Controls

Figure 4-16 Armed Period Setting

Figure 4-17 Business Day and Non-Business Day Setting

Video Loss

In Figure 4-13, select “Video Loss” from the type list. You can see the interface is shown in Figure 4-18. This function allows you to be informed

n video loss has occurred. You can enable the alarm output channel

whe and enable the show message function.

Tips:

You can enable preset activation operation when video loss occurs.

See Motion Detection on page 37 for detailed information.

Figure 4-18 Menu of Video Loss

Camera Masking

Honeywell

When someone viciously masks the camera lens, the system can alert you to guarantee video continuity. Camera masking interface is shown as in

Figure 4-19.

Tips:

You c

an enable preset/tour/pattern activation operation when video loss

occurs.

See Motion Detection on page 37 for detailed information.

In “Detect” interface, the copy/paste function is only valid for

Not

the same type, which means you cannot copy a channel setup in video loss mode to camera masking mode.

Overview of Navigation and Controls

Figure 4-19 Menu of Camera Masking

Alarm Setup and Alarm Activation

Before operation, make sure you have properly connected alarm devices such as the buzzer.

Go to alarm setup interface

On the main menu, from Setting to Alarm, you can see the alarm setup interface. See Figure 4-20.

Alarm setup

Alarm interface is shown below. See Figure 4-20.

 Alarm in: Allows you to select alarm input channel number.

 Event type: Select local input. Network input is not effective in HSVR-

04 and HSVR-16.

 Type: Normally open or normally closed.

 PTZ activation: Here you can set PTZ movement when the alarm

occurs. For example, go to preset, tour& pattern when there is an

Honeywell

alarm. Click Select, and you can see an interface as shown in Figure

4-24.

 Period:

4-22. Here you can set for business days and non-business days. In Figure 4-25, click Set, an 4-26. Here you can set your own setup for business days and non-

busi

 Show message: The system alert you on the local host screen if you

enabled this function.

 Send email: The system can send out an email to alert you when an

alarm occurs.

 Record channel: You can select the proper channel to record an alarm

video (Multiple choices). At the same time you need to set alarm recording in the schedule interface (Main MenuSettingSchedule) and select the automatic record in manual record interface (Main MenuAdvanceManual Record).

 Alarm output: When the alarm sounds, the system enables the

peripheral alarm devices.

 Delay: When the input alarm is completed, the system continues the

alarm output and/or recording for a specified time respectively. The value ranges from 10-300(Unit: second)

 Tour: Here you can enable the tour function when the alarm occurs. It

is a one-window tour; go to Display on page 74 for the tour interval setup.

Click Set, and you can see an interface as shown in Figure

d you can see an interface shown in Figure

ness days.

Not

Check boxes to select the corresponding function. After completing all the settings, click Save, and the system goes back to the previous menu.

If there are record channels selected, only the record channels will be displayed in the tour.

Overview of Navigation and Controls

Figure 4-20 Menu of the Alarm

Figure 4-21 The settings of PTZ Activation

Honeywell

Figure 4-22 Period Setup

Figure 4-23 The Settings of Business Days and Non-Business Days

Backup

Detect Device

DVR supports various backup devices such as CD-RW, DVD driver, USB backup and network download. The records can be played with PC by the Record Player contained in the CD. Here we introduce USB backup first. You can refer to Web Client Operation on page 93 for network download

p operation.

backu

Note that the flash disk or portable HDD shall be FAT or FAT 32 file system.

Click Backup, and you can see an interface shown in Figure 4-24. Here you can view device information.

Overview of Navigation and Controls

You can view the backup device name and its total space and free space. The device includes a USB burner, flash disk, SD card and portable HDD.

The USB Flash Disk models listed in Appendix B are

Note

Figure 4-24 Device Detection Menu of Backup

strongly recommended, models from other brands may not be fully compatible.

Backup

Select backup device and then set the channel, file start time and end time.

Click Add. The system will begin searching. All matched files are listed below. The system automatically calculates the remaining capacity and capacity needed. See Figure 4-25.

stem only backs up the files with a √ before the channel name. You

The sy can click Fn or Cancel to delete √ after file serial number.

Click Start, and you can back up the selected files. There is a process bar for your reference.

When the system completes backup, you can see a dialogue box prompting successful backup.

Honeywell

Figure 4-25 Backup Menu with Search Results

Click Start, and the system will begin the burning process. At the same time, the Start button will change to the Stop button. You can view the remaining time and process bar at the bottom left. See Figure 4-26

Figure 4-26 Backup in Progress

The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file name, the YDM format is the same as what you set in general interface (Main MenuSettingGeneral). The file

Overview of Navigation and Controls

extension name is “.dav”. You can visit our website to view listed CD-ROM brands.

Tips:

During the backup process, you can click ESC to exit the current interface for other operations. The system will not terminate the backup process.

When you click Stop during the burning process, backup

Note

will be stopped immediately, and some selected files may not be saved correctly in the device.

PTZ Control and Color Setup

The operations described here are mainly based on

Note

PELCO-D protocol for Honeywell HSPT-120 speed dome. For other protocols, there might be a little difference.

Cable Connection

Please follow the procedures below to go on cable connection

 Connect the dome RS485 port to DVR 485 port.

 Connect the dome video output cable to DVR video input port.

 Connect the power adapter to the dome.

PTZ Setup

Note

The camera video should be in the current screen. Before setup, check whether the following connections are right:

 PTZ and decoder connection

 Decoder address setup

 Decoder A (RS485 +) / B (RS485 -) line connects with

DVR A/B line

Honeywell

Boot up the DVR, and input the user name and password.

In the main menu, select SettingPan/Tilt/Zoom. The interface is shown as in Figure 4-27. Here you can set the following items:

 Channel: Select the channel connected with the speed dome video

port.

 Protocol: Select the corresponding PTZ protocol (such as PELCOD).

 Address: Identical to the device address set in the speed dome.

Default address is 1.

 Baud rate: Select corresponding baud rate. 2400 for Pelco-D

protocol.

 Data bits: Select corresponding data bits. Default value is 8.

 Stop bits: Select corresponding stop bits. Default value is 1.

 Parity: There are three options: Odd/Even/None. The default value

is None.

Figure 4-27 PTZ Setup Menu

After completing all the settings click Save.

In the single window display (View 1) mode, right-click to open the interface shown in Figure 4-28 (by clicking Fn in the front pan

el or in the remote controller will cause a menu to appear with only Pan/Tilt/Zoom and Color Setting options). .

Overview of Navigation and Controls

Figure 4-28 The Context Menu

Click Pan/Tilt/Zoom, and the interface is shown as below. See Figure 4-29.

Here you ca

 Step: value ranges from 1 to 8.

 8 direction arrows for PTZ position adjustment

 Zoom

 Focus

 Iris

Click the buttons

n set the following items:

and to adjust zoom, focus and iris.

Some functions are not supported by some PTZ speed

Note

dome. For example, Zoom, Focus, Iris and Pattern are not supported by HSPT-120.

Figure 4-29 PTZ Control Menu

PTZ Trace

Honeywell

Please make sure your protocol supports this function. You will need to use a mouse..

Click PTZ Trace in Figure 4-29, and the system will go back to the single wind

ow display. Drag the mouse in the screen to automatically activate Pan

and Tilt function, and control the scroll wheel on the mouse to zoom in/out.

Here is a table of front panel key functions in PTZ operation for your reference.

Name

Zoom

Focus

Iris

Function key

function

Near

Near │

Close 

Shortcut key

Preset/Tour/Pattern/Scan Operations

In Figure 4-29, click Set. The interface is shown as below. See Figure 4-30.

Here you can set the following items:

 Preset

 Tour

 Pattern

 Border

Function key

function

Far

Far ►│

Open ►

Shortcut Key



Overview of Navigation and Controls

Figure 4-30 PTZ Setup Menu

In Figure 4-29, click P

Here you can activate the following functions:

 Preset

 Tour

 Pattern

age Switch. The interface is shown in Figure 4-31.

 Auto scan

 Auto pan

Figure 4-31 Function Menu

Preset Setup

Honeywell

 Preset, tour and pattern all need the value to be the

control parameter. You can define it as you require.

 You need to refer to your speed dome user’s manual for

Note

In Figure 4-29, use eight direction arrows to adjust the camera to the proper position.

the auxiliary function definition. In some cases, it can be used for special processes.

 The following setups are usually performed in the

interfaces shown in Figure 4-29, Figure 4-30 and Figure

4-31.

In Figure 4-30, click Prese save the preset.

Now you can add this preset to one tour.

Figure 4-32 Preset Setup

Activate Preset

In Figure 4-31, input the preset number in the “No.” field, and click Preset.

t and input the preset number. Clicking Set will

Overview of Navigation and Controls

Patrol setup (Tour Setup)

In Figure 4-30, click Patrol. The interface is shown in Figure 4-33. Input the preset number and add this preset to a patrol (tour). For each patrol (tour), you can input 80 presets at most.

Figure 4-33 Tour Setup

Activate Patrol (tour)

Pattern Setup

In Figure 4-30, input the patrol (tour) number in the No. blank and click the patrol button.

In Figure 4-30, click Pattern and then click “begin. The interface is shown as in Figure 4-34. Then you can go to Figure 4-29 to modify zoom, focus,

and iri

Go back to Figure 4-34 and click End. You can m operations as pattern 1.

emorize all these

Figure 4-34 Pattern Setup

Activate Pattern Function

In Figure 4-31, input a mode value in the “No.” field, and click Pattern.

Auto Scan Setup

Honeywell

In Figure 4-30, click Border. The interface is shown in Figure 4-27.

Please go to Figure 4-29, use direction arrows to select camera left limit.

Then ple

Rep

Figure 4-35 Auto Scan Setup

ase go to Figure 4-35 and click left limit button

eat the above procedures to set right limit.

Overview of Navigation and Controls

Activate Auto Scan

In Figure 4-31, click Auto Scan, and the system will begin to auto scan. Correspondingly, the Auto Scan button will change to the Stop button. Click Stop to terminate the scan operation.

Click Page Switch again, and the system will go back to Figure 4-29.

5 Understanding of Menu Operations and

Controls

Menu Tree

This series DVR menu tree is shown as below.

Honeywell

Understanding of Menu Operations and Controls

Search (page 31)

Information

Setting

Network

HDD Info

BPS

Log

Version

Online Users

General

Encode

Schedule

RS232

Alarm

Detect

Backup (page45)

Advanced

Shutdown

Pan/ Tilt/Zoom

Display

Default

HDD Man

Alarm Output

Abnormity

Manual Record

Account

Auto Maintain

TV Adjust

agement

Main Menu

Honeywell

After you have logged in, the system main menu will appear as shown below. See Figure 5-1. There are a total of six buttons: Search, Info, Setting, Backup, Adv the icon, then double-click to enter the sub-menu.

Figure 5-1 The Main Menu – Setting

anced, and Shutdown. Move the cursor to highlight

Setting

General

In the main menu, highlight the setting icon and double-click the mouse. The system setting interface is shown below.

General setting includes the following items. See Figure 5-2.

 System time: Here is for you to set system time

 Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or

DD-MM-YYYY.

 Date separator: There are three denotations to separate the date: dot,

beeline and solidus.

Understanding of Menu Operations and Controls

 DST: Here you can set DST time and date. Please enable DST function

and then click set button. You can see an interface is shown as in Figure

5-3. Here you can set start time and end time by setting corresponding

setup. In Figure 5-3, enable date button, you can see an interface

week

own as in Figure 5-4. Here you can set start time and end time by

is sh setting corre

 Time format: There are two types: 24-hour mode or 12-hour mode.

 Language: System supports various languages: Chinese (simplified),

Chinese (Traditional), English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight difference maybe found in various series.)

 HDD full: Here you can select the working mode when the hard disk is

full. There are two options: Stop recording or overwrite.

 Pack duration: Here is for you to specify the maximum length of each

record file from 1 to 120 minutes. Default value is 60 minutes. The change will take effect in the new record file.

 DVR No: When you are using one remote control to control several

DVRs, you can give a name to each DVR for your management.

 Video standard: There are two formats: NTSC and PAL.

 Auto logout: Here is for you to set auto logout interval once login user

remains inactive for a specified time. Value ranges from 0 to 60 minutes.

sponding date setup.

 Since system time is very important, do not modify time

casually unless there is a must!

Note

 Before your time modification, please stop record

operation first!

After completing all the setups click Save. The system will return to the previous menu.

Honeywell

Figure 5-2 General Setup Menu

Figure 5-3 DST Setup Menu (Weel)

Encode

Figure 5-4 DST setup menu (Date)

Encode setting includes the following items. See Figure 5-5.

Understanding of Menu Operations and Controls

Note that some series do not support extra stream.

 Channel: Select the channel you want.

 Compression: System supports H.264.

 Resolution: System supports various resolutions, D1(4CIF)/CIF/QCIF.

You can select from the dropdown list. The extra stream of each channel supports only QCIF resolution.

 Bit rate: System supports two types: CBR and VBR. Video quality is

better under higher bit rate. In CBR mode, bit rate is limited by the setting value. In VBR mode, video quality level can be set.

 Quality: There are six levels ranging from 1 to 6. The sixth level has the

highest image quality.

 Frame rate: PAL 1-25f/s and NTSC 1-30f/s for any channels in CIF and

QCIF resolution. C

resolution can be set up to 25/30 f/s when all the other channels are of CIF. All the other channels in D1 resolution can only be set up to 6/7 f/s.

 Video/audio: You can enable or disable the audio of main stream or

video/audio of the extra stream by checking corresponding boxes.

 Overlay: Click Overlay, and you can see an interface shown in Figure

5-6.

h1 (HSVR-04 and HSVR-16) & ch9 (HSVR-16 only) in D1

 Cover area (Privacy mask): Here you can set the privacy mask

section. You can drag you mouse to set proper section size. In one channel video, the system supports a maximum 4 zones.

 Preview/monitor: There are two types of privacy masks. Preview

and Monitor. Preview means the privacy mask zone cannot be viewed by the user when the system is in preview (live view) mode. Monitor means the privacy mask zone cannot be viewed by the user in record playback or network remote monitoring.

 Time display: You can select whether the system displays time or

not when you playback. Please click the set button and then drag the title to the corresponding position in the screen.

 Channel display: You can select whether the system displays the

channel number or not when you playback. Click Set and then drag the title to the corresponding position on the screen.

Honeywell

Figure 5-5 Encode Menu

Figure 5-6 Overlay Menu

Schedule

RS232

Refer to Schedule on page 35.

RS232 interface is shown as follows. There are five items. See Figure 5-7.

Understanding of Menu Operations and Controls

 Function: There are two modes for you to select. Console is for serial

port or min-end platform to upgrade program. Adaptor is reserved for system integration or function enhancement.

 Baud rate: You can select proper baud rate.

 Data bit: You can select proper data bit.

 Stop bit: There are two values: 1/2.

 Parity: there are several choices: none, odd, even, etc.

System default setup is:

 Function: Console

 Baud rate:115200

 Data bit:8

 Stop bit:1

 Parity: None

After completing all the settings, click Save, and the system will go back to the previous menu.

Figure 5-7 The RS232 Setup Menu

Network

Here you can input network information. See Figure 5-8.

Honeywell

 IP address: Here you can input the IP address.

 DHCP: It is to activate auto search IP. When you enable the DHCP

function, you cannot modify the IP/Subnet mask /Gateway. These values are from the DHCP function. If you have not enabled the DHCP function, IP/Subnet mask/Gateway will display as zero. You need to disable the DHCP function to view current IP information. When PPPoE is operating, you cannot modify IP/Subnet mask /Gateway.

 TCP port: Default value is 37777.

 UDP port: Default value is 37778.

 HTTP port: Default value is 80.

 Max connection: system support maximal 10 users. 0 means there is no

connection limit.

 Transfer mode: Here you can select the priority between fluency/video

quality.

 Network download: System can process the downloaded data first if you

enable this function.

After completing all the settings, click Save, and the system will return to the previous menu.

Figure 5-8 Network Setup Menu

Advanced Setup

Understanding of Menu Operations and Controls

Advanced setup interface is shown in Figure 5-9. Draw a circle to enable the corre the setup interface.

Figure 5-9 Advanced Settings

IP Filter

IP filter interface is shown in Figure 5-10. You can add IP in the following list. The list supports a max of 64 IP addresses.

Note that after you enable this function, only the IP listed below can access current DVR.

If you disable this function, all IP addresses can access the current DVR.

Figure 5-10 IP Filter Menu

sponding function and then double-click the current item to go to

PPPoE

PPPoE interface is shown in Figure 5-11.

Honeywell

Input “PPPoE name” and “PPPoE password” you receive from your ISP (Internet service provider).

Click Save, you need to restart to activate your configuration.

After rebooting, DVR will connect to the internet automatically. The IP in the PPPoE is the DVR dynamic value. You can access this IP to visit the unit.

Figure 5-11 The PPPoE Setup Menu

NTP Setup

You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP OS, you can use the command “net start w32time” to boot up NTP service.

NTP setup interface is shown in Figure 5-12.

 Host IP: Input your PC address.

 Port: This series DVR supports TCP transmission only. Port default

value is 123.

 Update interval: Minimum value is 1. Max value is 65535. (Unit: minute)

 Time zone: Select your corresponding time zone here.

Here is a chart for your time zone setup.

City/Region Name Time Zone

London GMT+0

Berlin GMT+1

Cairo GMT+2

Moscow GMT+3

New Deli GMT+5

Understanding of Menu Operations and Controls

Bangkok GMT+7

Beijing (Hong Kong) GMT+8

Tokyo GMT+9

Sydney GMT+10

Hawaii GMT-10

Alaska GMT-9

Pacific Time(P.T) GMT-8

American Mountain Time(M.T) GMT-7

American Central Time(C.T) GMT-6

American Eastern Time(E.T) GMT-5

Atlantic Time GMT-4

Brazil GMT-3

Middle Atlantic Time GMT-2

Figure 5-12 The NTP Setup Menu

DDNS Setup

DDNS setup interface is shown in Figure 5-13.

You need a PC with fixed IP in the internet and DDNS software running in this PC. In other words, this PC is a DNS (domain name server).

In network DDNS, please select the DDNS type and check the Enable item. Then please input your domain name, user name and the password you get from you ISP and server IP (PC with DDNS ) . Click the Save button and then reboot the system.

Honeywell

After rebooting, open IE and input as below:

http://(Domain Name)

e.g.: http://site.3322.org)

Now you can open the DDNSServer web search page.

Figure 5-13 The DDNS Setup Menu

Note that the NNDS type includes: CN99 DDNS、NO-IP DDNS、Private DDNS、Dyndns DDNS and sysdns DDNS.

The private DDNS function is reserved for integration, and currently is not effective on HD-16DVR-C.

FTP

You need to download or buy a FTP service tool (such as Ser-U FTP SERVER) to establish FTP service.

Install Ser-U FTP SERVER first from StartProgramServ-U FTP Server Serv-U Administator. Now you can set the user password and FTP folder. Please note that you need to grant the right to write to FTP upload user. See Figure 5-14.

Understanding of Menu Operations and Controls

Figure 5-14 The FTP Server Setup Menu

You can use a PC or FTP login tool to test setup.

For example, you can login user ZHY to whether it can modify or delete the folder or not. See Figure 5-15.

Figure 5-15

The system also has the capability to upload multiple DVRs to one FTP server. You can create multiple folders under this FTP.

In Figure 5-8, select FTP and then double-click the m following interface. See Figure 5-16.

The FTP Login Window

FTP://10.10.7.7 and then test

ouse. You can see the

Honeywell

Figure 5-16 The FTP Setup Menu

Please check the box left to Enable to activate the FTP function.

Here you can input the FTP server address, port and remote directory. When the remote directory is null, the system automatically creates folders according to the IP, time and channel.

User name and password is the account information for you to login the FTP.

File length is upload file length. When setup is larger than the actual file length, the system will upload the whole file. When setup here is smaller than the actual file length, the system only uploads the set length and automatically ignores the left section. When the interval value is 0, the system uploads all corresponding files.

After channel and weekday setup, you can set two periods for each channel.

Email

The following figure shows the email interface.

Understanding of Menu Operations and Controls

Figure 5-17 The Email Setup Menu

Refer to the following table for detailed information.

Parameter Function

SMTP Server Input server address and then enable this function.

Port Default value is 25. You can modify it if necessary.

User Name The sender email account user name.

Password The sender email account password.

Sender Sender email address.

Subject Input email subject here.

Address

Input receiver email address here. Max input three addresses.

The SMTP server IP address can be acquired by Ping command under Windows Command Prompt.

Take Google Mail for example: the Gmail SMTP server URL is known as smtp.google.com.

 On a PC with Windows OS in the same LAN of the DVR, open the

Windows Command Prompt by entering “cmd” in StartRun and click

OK.

Alarm

Honeywell

 Under Windows Command Prompt, input ping smtp.google.com then

press return.

 The displayed IP address 74.125.45.25 is the SMTP server IP address.

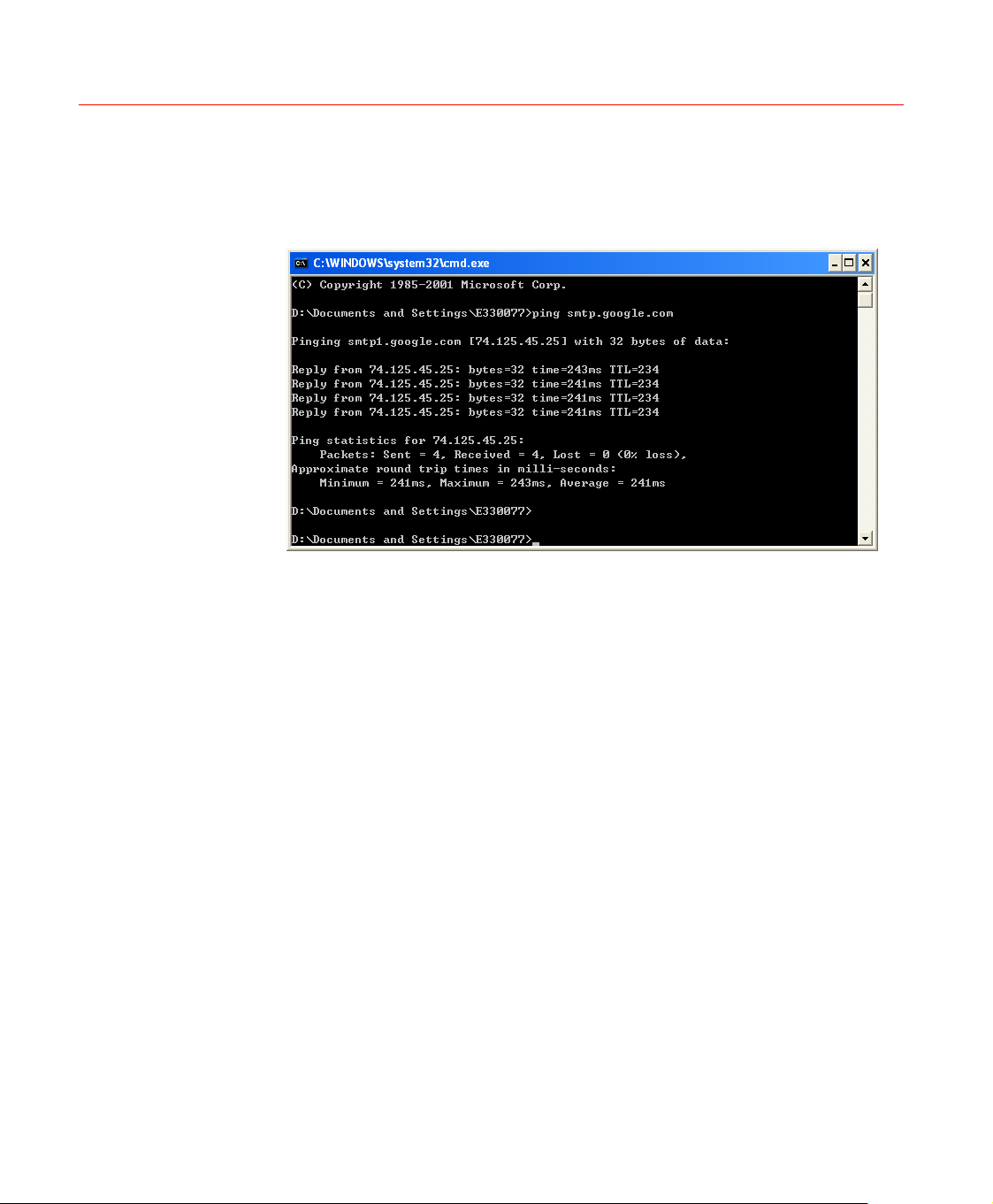

Figure 5-18 The Command Window

Detect

Pan/Tilt/Zoom

Refer to Alarm Setup and Alarm Activation on page 42.

Refer to Detect on page 36.

The pan/tilt/zoom setup includes the following items. Please select channel first. See Figure 5-19.

 Protocol: Select corresponding PTZ protocol such as PELCOD.

 Address: input corresponding PTZ address.

 Baud rate: Select baud rate.

 Data bit: Select data bit.

 Stop bit: Select stop bit.

 Parity: There are three choices: none/odd/even.

Understanding of Menu Operations and Controls

After completing all the setups click Save, and the system will go back to the previous menu.

For a detailed setup, refer to Preset/Tour/Pattern/Scan Operations on page

51.

Display

Figure 5-19

The PTZ Setup Menu

Display setup interface is shown as below. See Figure 5-20.

 Transparency: Here you can adjust transparency. The value ranges

from 128 to 255.

 Channel name: Here you can modify the channel name. System max

support 25-digit (The value may vary due to different series). Please note all your modification here only applies to DVR local end. You need to open web or client end to refresh the channel name.

 Time display: You can select to display time or not when system is in

playback.

 Channel display: You can select to channel the name or not when

system is in playback.

 Resolution: Set VGA and HDMI output resolution, 1280x720 (720p) is

recommended for HDMI output.

 Enable tour: Activate tour function.

Honeywell

 Interval: Input proper interval value here. The value ranges from 5-120

seconds. In tour process, you can use the mouse or click Shift to turn

on the window switch function.

stands for the closing switch function.

 Motion tour and alarm tour type: HSVR-04 supports 1-window tour;

HSVR-16 supports 1/8 window tour.

Please check boxes to select the corresponding function.

After completing all the setups click Save, and the system will go back to the previous menu.

Figure 5-20 The Display Setup Menu

Stands for opening switch function,

In Figure 5-20, click Modify in Figure 5-21. Note that all your modifications here only apply to local end. You need to refresh we System max support 25-digital characters.

after channel. You can see an interface shown

b or client-end to get the latest channel name.

Understanding of Menu Operations and Controls

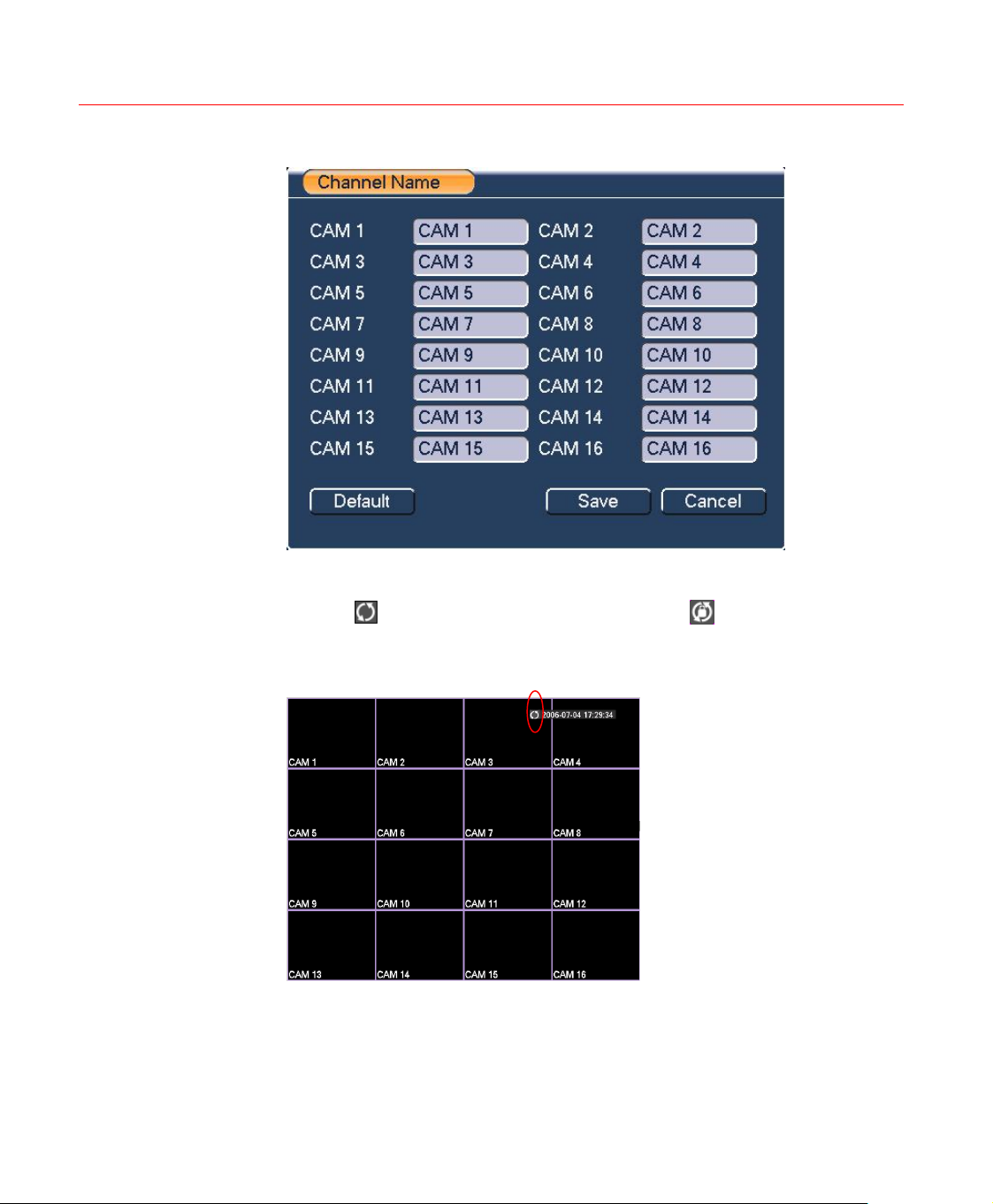

Figure 5-21 The Channel Name Setup Menu

In tour mode, you can see the following interface. On the right corner, rightclick the mouse or click Shift, and you can control the tour. There are two

buttons: window function. See Figure 5-22.

stands for enabling window switch and stands for enabling

Figure 5-22

The Sample of Tour Mode

Default

Honeywell

Click Default, a dialogue box will pop up. You restore default factory setup of the following functions by checking the boxes next to the items. See

Figure 5-23.

 Select all

 General

 Encode

 Schedule

 RS232

 Network

 Alarm

 Detect

 Pan/tilt/zoom

 Display

 Channel name

After all the setups please click the save button, the system will go back to the previous menu.

Note

System language, video format and user accounts cannot be restored to default setup.

Understanding of Menu Operations and Controls

Figure 5-23 The Default Setup Menu

Advanced

Select Advanced on the main window, and the interface is shown as follows. See Figure 5-24. There are seven function keys in total: HDD

ement, alarm output, abnormity, manual record, account, auto

manag maintenance, and TV adjust.

Figure 5-24 The Advanced Menu

HDD Management

Honeywell

Here you can view and implement hard disk management. See Figure 5-25.

You can see current HDD type, status, capacity and record time.

By selecting items in the dropdown list and click Execute, you can switch HDD mode between read/write and read-only, erase all data in the HDD, or recover errors.

Please note that the system needs to reboot to get all the modification activated.

Understanding of Menu Operations and Controls

Figure 5-25 The HDD Management Setup Menu

Click Alarm Set, and the interface is shown as follows. See Figure 5-26 (this inte

81 for detailed information.

rface is just like the abnormity setup). Refer to Abnormity on page

Please

check boxes to select the corresponding function.

Honeywell

Figure 5-26 The Abnormity Setup Menu

Abnormity

Abnormity interface is shown in Figure 5-27.

 Event type: There are several options for you such as disk error, no disk

and etc.

 Alarm output: alarm activation output port (multiple choices). The 3-ch is

controllable 12V output.

 Delay: you can set corresponding delaying time. The value ranges from

10s-300s. The system automatically delays specified seconds in turning off the alarm output after the system event is stopped.

 Show message: the system will send message to local screen to alert

you when alarm occurs.

 Send email: the system can send out an email to alert you when the

alarm occurs.

Understanding of Menu Operations and Controls

Figure 5-27 The Sample of No Disk Abnormity

Alarm Output

Here you can set proper alarm output.

Automatic: start the alarm output automatically according to the settings of Detection/Alarm/Abnormity.

Manual: manually start the alarm output

Closed: manually stop the alarm output

Please select the mode of corresponding alarm output, then click OK, and the system will return to the previous menu. See Figure 5-28.

Figure 5-28 The Alarm Output Setup Menu

Manual Record

Refer to Manual Record on page 28.

Account

Here you cam implement account management. See Figure 5-29. to see how to:

Honeywell

 Add new user

 Modify user

 Add group

 Modify group

 Modify password.

For account management please note:

 The system account adopts two-level management: group and user.

There is no limit to group or user amount.

 For group or user management, there are two levels: admin and user.

 The user name and group name can consist of eight characters of

letters, numbers and/or 3 symbols (“_”, “-” “.”). SPACE is not recommended, and SPACE at the start or end of user name will be ignored. One name can be used only once.

 There are four default users: admin/888888/666666 and hidden user

“default”. User 888888 and admin have administrator’s right.

 Hidden user “default” is for system interior use only and cannot be

deleted. When there is no login user, hidden user “default” automatically

Understanding of Menu Operations and Controls

login. You can set some rights such as monitor capability for this user so that you can view some channels without login.

 One user should belong to one group. Users’ rights can not exceed

group’s right.

 About reusable function: this function allows multiple users use the

same account to login.

After all the setups please click Save, and the system will return to the previous menu.

Figure 5-29 The Account Management Menu

Auto Maintain

Here you can set auto-reboot time and auto-delete old files setup. See

Figure 5-30.

You can

After all the setups please Save, and the system will return to the previous menu.

select proper setup from the dropdown list.

TV Adjust

Honeywell

Figure 5-30 The Auto Maintain Setup Menu

Here you can adjust the TV output setup. See Figure 5-31.

Please drag slide bar to adjust each item.

After all the setups please click OK, the system will return to the previous menu.

Figure 5-31 The TV Adjust Menu

Understanding of Menu Operations and Controls

Information

Here you can view system information. There is a total of five items: HDD (hard disk information), BPS (data stream statistics), Log and version, and online user. See Figure 5-32.

Figure 5-32

HDD Information

Here is a list of hard disk type, total space, free space, video start time and status. See Figure 5-33.

The Info Menu

○ mean is no HDD.

If the disk is damaged, system will show a “?”. Please remove the broken hard disk before you add a new one.

Once there is a hard disk confliction, please check if the hard disk time and system time is the same or not. Please go to setting and then general to modify system time. Lastly, reboot the system to solve this problem.

After system has booted up, if there is any confliction, the system will go to HDD information interface directly.

s current HDD is normal. X means there is an error. - means there

Honeywell

When HDD confliction occurs, you can check whether system time and HDD time are identical or not. If they are not identical, please go to

SettingGeneral to adjust system time or go to AdvancedHDD Management to format the problematic HDD and then reboot the DVR.

Figure 5-33The HDD Info Menu

BPS

Tips:

Click Fn or left click the mouse button to view the HDD record time and HDD type and time.

Here you can view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 5-34.

Understanding of Menu Operations and Controls

Figure 5-34 The BPS Display Menu

Log

Here you can view the system log file. The system lists the following information. See Figure 5-35.

Log types in management, alarm event, record operation, log clear and etc.

Select the start time and end time, and then click Search. You can view the log files. Click Page Up or Page Down to view if there are more than ten files.

If a USB storage device is connected to the DVR, you can click Backup to save the displayed logs as a text file FileLog.txt in the USB device.

clude system operation, configuration operation, data

Honeywell

Figure 5-35 The Log Search Menu

Version

Here you can view some information related to this version. See Figure

5-36.

 Channel

 Alarm in

 Alarm out

 System version:

 Build Date

Understanding of Menu Operations and Controls

Figure 5-36 The Version Menu

Online Users

Here you can manage online users. See Figure 5-37.
