OWNER'S MANUAL

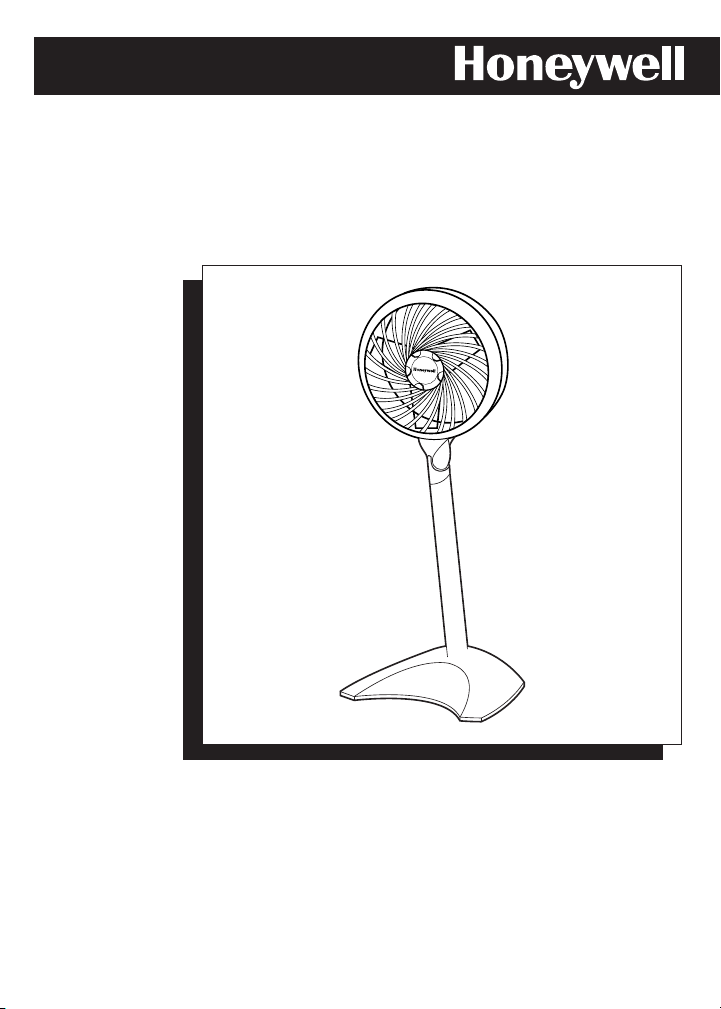

HS-830 line art

POWER TURBO™ / POWER TECH

HIGH PERFORMANCE AIR CIRCULATOR

Model HS-830 Series

READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE USING THIS FAN.

When using electrical appliances, basic safety precautions should always be followed, including the following:

Use this fan only as described in this manual. Other use that is not recommended may cause fire, electric shock or injury.

2. This product is intended for household use ONLY and not for commercial, industrial or outside use.

3. To protect against electrical shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.

4. This fan is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. NEVER connect the fan to any power source

other than a 120 volt alternating current polarized outlet. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact an electrician to replace the obsolete outlet.

Do not defeat the safety purpose of the polarized plug.

Close supervision is necessary when any appliance is used by or near children.

6. Unplug the fan from the outlet when not in use, when moving fan from one location to another and before cleaning.

7. Do not operate the fan in the presence of explosive and/or flammable fumes.

8. Do not place the fan or any parts near an open flame, cooking or other heating appliance.

9. Do not operate the fan with a damaged cord or plug, after a malfunction or if dropped or damaged in any manner. (See warranty.)

SAFETY INSTRUCTIONS

10. Avoid contact with moving fan parts.

11. To disconnect, grip the plug and pull it from the wall outlet. Never yank the cord.

12. The use of attachments not recommended by the manufacturer may be hazardous.

13. Always use on a dry, level surface.

14. Do not hang or mount fan on a wall or ceiling.

15. Do not operate if the fan housing is removed or damaged.

16. A loose fit between the AC outlet and plug may cause over heating of the plug. Have a qualified electrician replace outlet.

WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control device.

ASSEMBLY INSTRUCTIONS

• Place Base (A) on floor. Align end of Pole (B) into groove on topside of base. Place Handscrew (C) into slot on bottom of Base and turn it clockwise until tightened (Fig.1)

• Slide base of Head Assembly (D) into groove on top of pole until fully mounted (Fig.2).

• Push Head Clip (E) up into slot on back of Head Assembly to lock it into place.

Fig. 1

Fig. 2

Fig. 3

OPERATION

• Place your fan on a level and dry surface.

• Plug the power cord into a polarized 120 Volt AC wall outlet.

• Adjust the tilt head to desired angle. For maximum room air circulation, tilt head 90° backwards to use as air circulator (Fig.4).

• Adjust the speed control to the desired setting: High (III), Medium (II), Low (I) (Fig. 5).

• To move, unplug fan. Tilt head into upright position. Use hidden carrying handle on back of head.

Fig.4

Fig. 5

CLEANING AND STORAGE

• Unplug the fan before cleaning.

• Use only a soft, damp cloth to gently wipe the fan clean.

• DO NOT immerse the fan in water and never allow water to drip into the motor housing.

• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

• For storage, disassemble and clean the fan carefully as instructed.

• Store the fan in its original box. You may also leave the fan fully assembled and covered with plastic to protect it from dust. Store your fan in a cool, dry place.

REPLACEMENT PARTS AVAILABLE

To speak with a technical representative, or place an order, please call our Consumer Relations Center, toll-free, at : 1-800-332-1110. Our technical representatives are available to assist you weekdays from 8:00 am to 10 pm and weekends from 8:30 am to 5:00 pm EST. Orders may be placed 24 hours a day, seven days a week with Master Card, Visa or Discover.

Item HS-830 Part No. Price

Base HS-830-1 $ 10.00 Pole HS-830-2 $ 10.00 Hand Screw HS-830-3 $ 4.00 Head Assembly HS-830-4 $ 18.00

To order by mail, please include $4.50 for shipping and handling and make check or money order payable to Honeywell Consumer Products Business. Massachusetts residents add 5% sales tax. Mail to:

Consumer Relations Honeywell Consumer Products Business 250 Turnpike Road Southborough, MA 01772

Note: Honeywell Consumer Products Business can not ship to

P.O. Box numbers

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

The enclosed Customer Response card should be filled out and returned within 7 days of purchase.

This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship during the warranty period. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. You should first read the instruction manual before attempting to use this product.THE MANUFACTURER IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. Any implied warranty of merchantability or fitness for a particular purpose on this product is limited in duration to the duration of this warranty. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product.

B. At its option, the manufacturer will repair or replace this product if it is found to be defective in material or workmanship within the warranty period. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period, any defective product should be returned to the manufacturer.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with this manual.

D. Return defective product to manufacturer, freight paid with proof of purchase and $10 for handling, return packing and shipping charges: Attention: Repair Department South Point Distribution Center 4755 South Point Drive Memphis TN 38118 USA
