Honeywell HD31H User manual

Performance Series

CAUTION

THIS SYMBOL INDICATESTHAT
DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESEN T
WITHIN THE UNIT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER.
NO USER-SERVICEABLE PARTSINSID E.

REFER SERVICING TOQUALIFIED SERVICE

PERSONNEL.

THIS SYMBOL INDICATESTHAT
IMPORTANTOP ERATING AND•
MAINTENANCE INST RUCTIONS
ACCOMPANYTHIS UNIT.

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

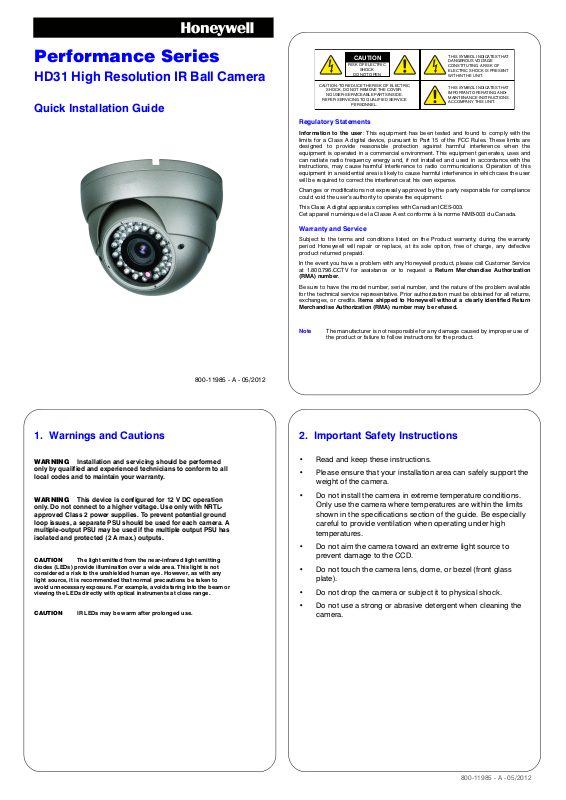

HD31 High Resolution IR Ball Camera

Quick Installation Guide

Regulatory Statements

Information to the user: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.

Warranty and Service

Subject to the terms and conditions listed on the Product warranty, during the warranty
period Honeywell will repair or replace, at its sole option, free of charge, any defective
product returned prepaid.

In the event you have a problem with any Honeywell product, please call Customer Service
at 1.800.796.CCTV for assistance or to request a Return Merchandise Authorization
(RMA) number.

Be sure to have the model number, serial number, and the nature of the problem available
for the technical service representative. Prior authorization must be obtained for all returns,
exchanges, or credits. Items shipped to Honeywell without a clearly identified Return

Merchandise Authorization (RMA) number may be refused.

Note The manufacturer is not responsible for any damage caused by improper use of

the product or failure to follow instructions for the product.

800-11985 - A - 05/2012

1. Warnings and Cautions

WARNIN G

only by qualified and experienced technicians to conform to all
local codes and to maintain your warranty.

WARNIN G

only. Do not connect to a higher voltage. Use only with NRTL­approved Class 2 power supplies. To prevent potential ground
loop issues, a separate PSU should be used for each camera. A
multiple-output PSU may be used if the multiple output PSU has
isolated and protected (2 A max.) outputs.

CAUTION The light emitted from the near-infrared light emitting
diodes (LEDs) provide illumination over a wide area. This light is not
considered a risk to the unshielded human eye. However, as with any
light source, it is recommended that normal precautions be taken to
avoid unnecessary exposure. For example, avoid staring into the beam or
viewing the LEDs directly with optical instruments at close range.

CAUTION IR LEDs may be warm after prolonged use.

Installation and servicing should be performed

This device is configured for 12 V DC operation

2. Important Safety Instructions

• Read and keep these instructions.

• Please ensure that your installation area can safely support the
weight of the camera.

• Do not install the camera in extreme temperature conditions.
Only use the camera where temperatures are within the limits
shown in the specifications section of the guide. Be especially
careful to provide ventilation when operating under high
temperatures.

• Do not aim the camera toward an extreme light source to
prevent damage to the CCD.

• Do not touch the camera lens, dome, or bezel (front glass
plate).

• Do not drop the camera or subject it to physical shock.

• Do not use a strong or abrasive detergent when cleaning the
camera.

800-11985 - A - 05/2012

2 | HD31 High Resolution Color IR Ball Camera

Video (Yellow)
BNC

Power (Red)
12 V DC

Power (+)

Power (–)

POWER

Video Signal

Video GND

VIDEO

Focus Zoom

Plate

Collar

Cradle

Camera Ball

4.72″ (120 mm)

3.82″ (97 mm)

3. Package Includes

•Camera (1)

• Quick Install Guide (1)

•Hex key (1)

• Key for adjusting zoom and focus (1)

•Screws (4)

• Anchors (4)

• 2-conductor pigtail

4. Key Features

•1/3″ interline transfer CCD

• 620 TV lines resolution

• 2.8–12 mm (F1.4) VFAI lens

• 0 lux minimum illumination (IR LEDs on)

• Up to 65 ft (20 m) of IR illumination

• Digital noise reduction (DNR)

• Backlight compensation (BLC)

• External zoom and focus adjustment

• Weatherproof, tamper-resistant housing

5. Cable Connection

6. Camera Setup

1. Loosen the security screw using the supplied hex key, and then unscrew the collar and remove the mounting plate.

2. Attach the mounting plate to the mounting surface using the supplied screws and anchors.

3. Pull the cables through the mounting plate and connect to the camera.

4. Loosely screw the collar, including the cradle and camera ball, to the mounting plate.

5. Rotate the camera ball to the desired position.

6. Holding the camera ball firmly in place, tighten the collar against the mounting plate, and then tighten the security screw.

7. Adjust the zoom and focus using the supplied tool.

7. Specifications

Video Standard NTSC

Scanning System 2:1 Interlace

Image Sensor 1/3” interline transfer CCD

Number of Pixels (H × V) 768 × 494

Minimum Illumination 0 lux (IR LEDs on)

Horizontal Resolution 620 TVL

Video Output 1.0 Vp-p, 75 ohms

Sync System Internal

S/N Ratio 50 dB or more (AGC off)

Lens Type 2.8–12 mm VFAI, F1.4

IR LEDs 850 nm, 35 LEDs

IR Illumination Distance Up to 65 ft (20 m)

DNR Auto

BLC Auto

Day/Night Auto

Gain Auto

White Balance Auto

Sens-Up Auto

Input Voltage 12 V DC ±10%

Power Consumption 5 W (max)

Temperature

Rating IP66

Dimensions (L × W × D) 4.72” × 4.72” × 3.82” (120 mm × 120 mm × 97 mm)

Weight 1.76 lb (800 g)

www.honeywellvideo.com

Operating: 14°F to 122°F (–10°C to 50°C), RH 95% max
Storage: –4°F to 140°F (–20°C to 60°C), RH 95% max

8. Dimensions

www.honeywellvideo.com

+1.800.796.CCTV (North America only)

[e-mail]

© 2012 Honeywell Internat ional Inc. All rights reserved. No part of this pu blication may be reproduced by any
means without written permission from Honeywell. The information in this publication is bel ieved to be accurate
in all respects. However, Honeywell cann ot assume responsibility for any consequences resulting from the use
thereof. The information conta ined herein is subject to change without notice. Revision s or new editions to this
publication may be issued to incorporate such changes.

Document 800-11985 – Rev A – 05/2012
