Honeywell Dolphin 70e Black User Manual powered by Android 4.0
Dolphin™ 70e Black
powered by Android™ 4.0
User’s Guide
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other
information contained in this document without prior notice, and the reader should in all cases consult HII
to determine whether any such changes have been made. The information in this publication does not
represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights are reserved. No
part of this document may be photocopied, reproduced, or translated into another language without the
prior written consent of HII.
Web Address: www.honeywellaidc.com
Trademarks
Dolphin is a trademark or registered trademark of Hand Held Products, Inc. in the United States and/or
other countries.
Android, Google, Google Play and other marks are trademarks of Google Inc.
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell.
Other product names mentioned in this manual may be trademarks or registered trademarks of their
respective companies and are the property of their respective owners.
Patents
For patent information, please refer to www.hsmpats.com.
2013-2014 Honeywell International Inc. All rights reserved.
Table of Contents
Chapter 1 - Dolphin 70e Black Terminal Agency Information
Label Locations....................................................................................................................1-1
Model Number, Serial Number and IMEI Labels............................................................1-1
LED Safety...........................................................................................................................1-1
LED Safety Statement....................................................................................................1-1
UL and C-UL Statement.......................................................................................................1-2
Approvals by Country...........................................................................................................1-2
R&TTE Compliance Statement—802.11a/b/g/n, Bluetooth, and/or GSM............................1-2
FCC Requirements ..............................................................................................................1-2
Dolphin RF Terminal—802.11a/b/g/n, Bluetooth, and/or GSM......................................1-2
Canadian Compliance..........................................................................................................1-3
Conformité à la règlementation canadienne ..................................................................1-3
RF Exposure Information (SAR) ..........................................................................................1-4
Honeywell Scanning & Mobility Product Environmental Information....................................1-4
China RoHS .........................................................................................................................1-5
Pacemakers, Hearing Aids and Other Electrically Powered Devices ..................................1-5
Hearing Aid Compatibility (HAC)..........................................................................................1-5
Microwaves ..........................................................................................................................1-6
Informações ANATEL (Modelos: 70eLG0, e 70eL00) .........................................................1-6
Chapter 2 - Getting Started
Out of the Box ......................................................................................................................2-1
Memory Card Specifications ..........................................................................................2-1
Initial Setup for Dolphin 70e Black Terminal ........................................................................2-1
Identifying Your Model Type ..........................................................................................2-1

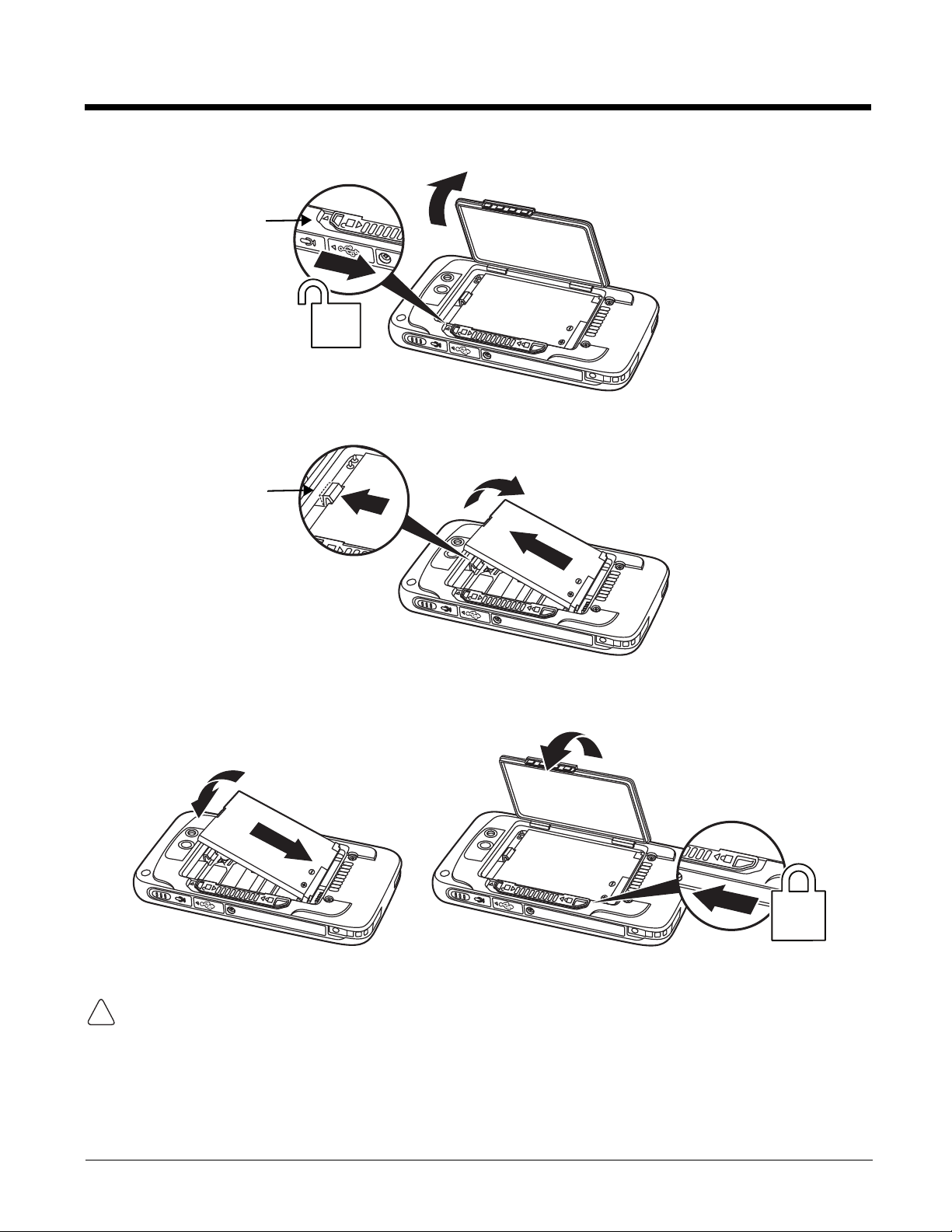

Installing the Battery in Terminals Equipped with a Battery Door Lock..........................2-2
Installing the Battery in Terminals without a Battery Door Lock.....................................2-3

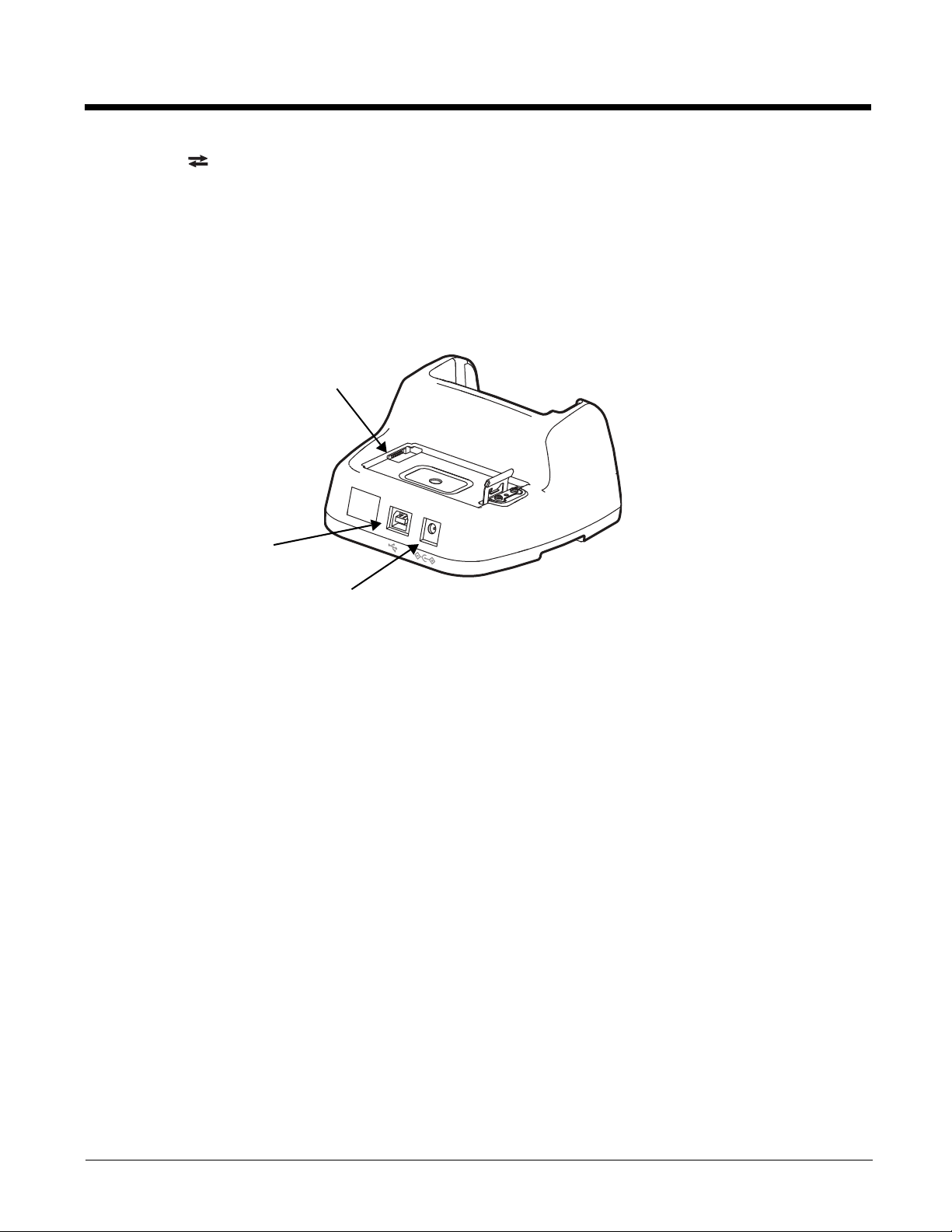

Using the USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT) ..........2-4
The Welcome Screen.....................................................................................................2-6
The Locked Screen ........................................................................................................2-6
The Home Screen................................................................................................................2-7
Status and Notification Indicators...................................................................................2-7
Common Status and Notification Icons ..........................................................................2-8
Search Bar ...................................................................................................................2-10
Personalize the Home Screen Panels and Favorites Tray ..........................................2-11
Apps and Widgets .......................................................................................................2-11
Navigation/Function Buttons ..............................................................................................2-11
Hotkeys ........................................................................................................................2-12
Virtual Keyboard ................................................................................................................2-12
The Enhanced Honeywell Virtual Keyboard.................................................................2-12
Honeywell Virtual Keypad Creator ..............................................................................2-13
Turning Power On/Off ........................................................................................................2-14
Suspend Mode...................................................................................................................2-14
Airplane Mode....................................................................................................................2-14
iii
Replacing the Battery ........................................................................................................ 2-15
Identifying Your Model Type........................................................................................ 2-15
Replacing the Battery in Terminals Equipped with a Battery Door Lock ..................... 2-15
Replacing the Battery in Terminals Not Equipped with a Battery Door Lock............... 2-17
Resetting the Terminal ...................................................................................................... 2-18
Hard Reset (Cold Boot) ...............................................................................................2-18
Connecting the Terminal to a Computer via a USB Connection ....................................... 2-19
\Honeywell ...................................................................................................................2-20
AutoInstall....................................................................................................................2-21
Information Resources ...................................................................................................... 2-21
Chapter 3 - Hardware Overview
Standard Configurations for the Dolphin 70e Black............................................................. 3-1
Peripherals for the Dolphin 70e Black ................................................................................. 3-2
Accessories for the Dolphin 70e Black ................................................................................3-3
Features of the Dolphin 70e Black ...................................................................................... 3-4
Front, Bottom, and Right Panels....................................................................................3-4
Feature Descriptions: Front, Bottom, and Right Panels ................................................ 3-5
Back, Top, and Left Panels............................................................................................3-7
Feature Descriptions: Back, Top, and Left Panels ........................................................ 3-9
The I/O Connector ............................................................................................................. 3-11
Battery ............................................................................................................................... 3-12
Replacement Battery Specifications ............................................................................ 3-12
Charging Options......................................................................................................... 3-13
Charging Time ............................................................................................................. 3-13
Important Charging Guidelines.................................................................................... 3-13
Managing Battery Power .............................................................................................3-15
Storing Batteries ..........................................................................................................3-15
Guidelines for Battery Pack Use and Disposal ............................................................ 3-16
System Resets .................................................................................................................. 3-16
Hardware Maintenance ..................................................................................................... 3-16
Installing a SIM Card and/or Replacing the Memory Card ................................................ 3-17
Installation and/or Replacement .................................................................................. 3-17
Chapter 4 - Using the Scan Image Engine
Overview.............................................................................................................................. 4-1
LED Safety .......................................................................................................................... 4-1
Image Engine Specifications ............................................................................................... 4-1
Field of View .................................................................................................................. 4-1
Depth of Field ................................................................................................................4-1
Supported Bar Code Symbologies ..................................................................................... 4-2
Decoding .............................................................................................................................4-2
Using the Scan Demo to Decode a Bar Code ............................................................... 4-3
Configuring the Scan Demo Application........................................................................ 4-4
Using the Power Tools ScanTool ..................................................................................4-6
Aiming Beam .................................................................................................................4-6
iv
Capturing Images ................................................................................................................4-7
Taking an Image with the Imaging Demo ...................................................................... 4-7
Using the IQImage Demo to decode intelligent bar codes and capture images............ 4-8
Configuring the IQImage Demo Application .................................................................. 4-8
Using the Signature Demo.............................................................................................4-9
Uploading Images.......................................................................................................... 4-9
Chapter 5 - Using the Color Camera
Overview.............................................................................................................................. 5-1
Taking a Picture................................................................................................................... 5-1
Recording Video ..................................................................................................................5-1
Adjusting the Camera Settings ............................................................................................5-2
Uploading Pictures and Videos ........................................................................................... 5-2
Chapter 6 - Settings
Overview.............................................................................................................................. 6-1
Wireless & Network Settings ............................................................................................... 6-1
Device Settings.................................................................................................................... 6-1
Sound Settings ..............................................................................................................6-1
Display Settings............................................................................................................. 6-2
Honeywell Smart Sensors Settings ............................................................................... 6-2
Storage Settings ............................................................................................................6-2
Battery Settings .............................................................................................................6-2
Apps Settings and Management....................................................................................6-2
Managing Apps.............................................................................................................. 6-3
Personal Settings ................................................................................................................ 6-4
Accounts & sync ............................................................................................................6-4
Location Services ..........................................................................................................6-4
Security.......................................................................................................................... 6-5
Language & input ................................................................................................................6-6
Backup & reset .................................................................................................................... 6-8
System.................................................................................................................................6-9
Date & Time................................................................................................................... 6-9
Accessibility ...................................................................................................................6-9
Developer options.......................................................................................................... 6-9
About Phone........................................................................................................................6-9
Chapter 7 - Communication
Wireless & Networks Settings ............................................................................................. 7-1
Connecting the Terminal to a Wireless Network .................................................................7-1
Wi-Fi Network Connections ................................................................................................. 7-2
Turning Wi-Fi Networking On or Off .............................................................................. 7-2
Connecting to a Wi-Fi Network...................................................................................... 7-2
Receiving Network Notifications .................................................................................... 7-2
Adding a Wi-Fi Network ................................................................................................. 7-2
v
Advanced Wi-Fi Settings and Network Utilities ................................................................... 7-3
Menu.............................................................................................................................. 7-3
Wi-Fi Radio Settings Power Tool................................................................................... 7-3
Wireless Manager Power Tool.......................................................................................7-3
Airplane Mode ..................................................................................................................... 7-4
Virtual Private Networks (VPN) ........................................................................................... 7-4
Adding a VPN ................................................................................................................7-4
Connecting to a VPN ..................................................................................................... 7-4
Disconnecting from a VPN.............................................................................................7-5
Ethernet Communication .....................................................................................................7-5
Chapter 8 - Working with the Bluetooth Radio
Turning the Bluetooth Radio On or Off ................................................................................ 8-1
Pairing and Trusted Devices ............................................................................................... 8-1
Connecting to Other Bluetooth Devices......................................................................... 8-1
Configuring or Unpairing Bluetooth Devices.................................................................. 8-1
Making the Terminal Discoverable ...................................................................................... 8-2
Bluetooth Menu Options ......................................................................................................8-2
Sharing Pictures and Video .................................................................................................8-2
Chapter 9 - Dolphin 70e Black HomeBase (Model 70e-HB)
Overview.............................................................................................................................. 9-1
Unpacking the HomeBase............................................................................................. 9-1
Charging Overview ........................................................................................................ 9-1
Communications............................................................................................................ 9-2
Convenient Storage....................................................................................................... 9-2
Capacity......................................................................................................................... 9-2
Dimensions .................................................................................................................... 9-2
Weight............................................................................................................................ 9-2
Parts and Functions.............................................................................................................9-3
Front Panel ...................................................................................................................9-3
Back Panel ....................................................................................................................9-4
Bottom Panel .................................................................................................................9-5
Power ..................................................................................................................................9-5
Connecting Power to the HomeBase.............................................................................9-5
Charging the Main Battery...................................................................................................9-6
To Power a Terminal and Charge its Main Battery........................................................ 9-6
Charging a Spare Battery in the Auxiliary Battery Well ................................................. 9-6
Communication....................................................................................................................9-7
Requirements ................................................................................................................9-7
Setting Up and Connecting the Dolphin Terminal to the HomeBase............................. 9-7
Mounting the HomeBase ..................................................................................................... 9-7
Optional DIN Rail Mount................................................................................................ 9-7
vi
Chapter 10 - Dolphin 70e Black eBase (Model 70e-EHB)
Overview............................................................................................................................ 10-1
Unpacking the eBase...................................................................................................10-1
Dimensions .................................................................................................................. 10-2
Weight.......................................................................................................................... 10-2
Parts and Functions........................................................................................................... 10-3
Front Panel ..................................................................................................................10-3
Back Panel ..................................................................................................................10-4
Bottom Panel ...............................................................................................................10-5
Power ................................................................................................................................ 10-5
Connecting Power to the eBase .................................................................................. 10-5
Charging the Main Battery.................................................................................................10-6
To Power a Terminal and Charge its Main Battery...................................................... 10-6
Charging a Spare Battery in the Auxiliary Battery Well ............................................... 10-6
Communication..................................................................................................................10-7
Establishing Ethernet Communication......................................................................... 10-7
Establishing USB Communication............................................................................... 10-8
Mounting the eBase........................................................................................................... 10-8
Optional DIN Rail Mount.............................................................................................. 10-9
Chapter 11 - Dolphin 70e Black Mobile Base (Model 70e-MB)
Overview............................................................................................................................ 11-1
Charging Overview ...................................................................................................... 11-1
Convenient Storage..................................................................................................... 11-1
Dimensions .................................................................................................................. 11-2
Weight.......................................................................................................................... 11-2
Mobile Base Components ................................................................................................ 11-2
Mounting the Mobile Base ................................................................................................. 11-3
Safety Precautions.......................................................................................................11-3
Installation.................................................................................................................... 11-4
Charging the Main Battery.................................................................................................11-5
To Power a Terminal and Charge its Main Battery...................................................... 11-5
Removing the Cable .................................................................................................... 11-6
Chapter 12 - Dolphin 70e Black ChargeBase (Model 70e-CB)
Overview............................................................................................................................ 12-1
Unpacking the ChargeBase......................................................................................... 12-1
Charging Overview ...................................................................................................... 12-1
Convenient Storage..................................................................................................... 12-1
Capacity....................................................................................................................... 12-2
Dimensions .................................................................................................................. 12-2
Weight.......................................................................................................................... 12-2
Parts and Functions........................................................................................................... 12-3
Front Panel ..................................................................................................................12-3
Back Panel...................................................................................................................12-3
Bottom Panel ...............................................................................................................12-4
vii
Power ................................................................................................................................ 12-4
Connecting Power to the ChargeBase ....................................................................... 12-4
Charging the Main Battery.................................................................................................12-5
To Power a Terminal and Charge its Main Battery...................................................... 12-5
Mounting the ChargeBase.................................................................................................12-5
Chapter 13 - Dolphin 70e Black Net Base (Model 70e-NB)
Overview............................................................................................................................ 13-1
Dimensions .................................................................................................................. 13-2
Weight.......................................................................................................................... 13-2
Parts and Functions........................................................................................................... 13-3
Front Panel ..................................................................................................................13-3
Back Panel ..................................................................................................................13-4
Bottom Panel ...............................................................................................................13-5
Power ................................................................................................................................ 13-5
Connecting Power to the Net Base..............................................................................13-5
Charging the Main Battery.................................................................................................13-5
To Power a Terminal and Charge the Main Battery .................................................... 13-6
Communication..................................................................................................................13-6
Establishing Ethernet Communication......................................................................... 13-6
Mounting the Net Base ...................................................................................................... 13-7
Chapter 14 - Customer Support
Product Service and Repair............................................................................................... 14-1
Technical Assistance.........................................................................................................14-1
Warranty Disclaimer: Proper Use of a Touch Screen Mobile Device ................................ 14-1
Limited Warranty ............................................................................................................... 14-1
How to Extend Your Warranty ..................................................................................... 14-3
viii
1
!
Back Panel of the
terminal with the
battery door and
battery removed.
Compliance Labels and Marks
Compliance Labels and Marks
Model Type: IP67, Locking Battery Door Model Type: IP54, Non-Locking Battery Door
!
Dolphin 70e Black Terminal Agency Information
Dolphin 70e Black mobile computers meet or exceed the requirements of all applicable standards
organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe
operation is to operate them according to the agency guidelines that follow. Read these guidelines
carefully before using your Dolphin terminal.
This documentation is relevant for the following Dolphin models: 70eL00, 70eLGN, 70eLG0, and
70eL0N.
CAUTION - Read the Guidelines for Battery Pack Use and Disposal on page 3-16 and all cautionary
markings on the battery, charging peripheral, or device using the battery before attempting to install, use, or
charge the battery. Risk of fire and burns if improperly handled. Do not open, crush, heat above 60°C
(140°F), or incinerate.
Label Locations
Model Number, Serial Number and IMEI Labels
The model (item) number, serial number, and international mobile equipment identity (IMEI) number for
the terminal are located on labels affixed to the bottom of the battery well.
Warning! To prevent possible hearing damage, do not listen at high volume levels for long periods.
LED Safety
LED Safety Statement
LEDs have been tested and classified as “EXEMPT RISK GROUP” to the Standard: IEC 62471:2006.
Caution! Do not view directly with optical instruments.
1 - 1
UL and C-UL Statement
UL and C-UL listed: UL60950-1 2nd Edition, and CSA C22.2 No. 60950-1-07 2nd Edition.
Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the global positioning
system (GPS) hardware, GPS operating software or other GPS-related aspects of this product. UL has
only tested for the explosion, fire, shock, and casualty hazards required by the applicable hazardous
locations standards. UL certification does not cover the performance or reliability of the GPS hardware,
GPS operating software, or other GPS-related aspects of this product. UL makes no representations,
warranties, or certifications whatsoever regarding the performance or reliability of any GPS-related
functions of this product.
Approvals by Country
For a complete listing of all compliance approvals and certifications, please visit
www.honeywellaidc.com/compliance.
R&TTE Compliance Statement—802.11a/b/g/n, Bluetooth, and/or GSM
The CE marking indicates compliance with the following directives:
• 1995/5/EC R&TTE
• 2011/65/EU RoHS (Recast)
In addition, this product complies to 2006/95/EC Low Voltage Directive when supplied with the recommended power supply. Honeywell shall not be liable for use of our product with equipment (i.e., power
supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage
Directive.
The equipment is intended for use throughout the European Community; PAN European Frequency
Range: 2.400–2.4835 GHz.
5Ghz band: UNII (Unlicensed National Information Infrastructure) or band1 (5.150 to 5.350 GHz) is
restricted to indoor use only. Any other use will make the operation of the device illegal.
High power radars are the primary users of 5250-5350 MHz and 5650-6850 MHZ bands. This may
cause interference to Wireless Local Area Network devices.
European Contact:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
FCC Requirements
Dolphin RF Terminal—802.11a/b/g/n, Bluetooth, and/or GSM
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
1 - 2
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If necessary, the user should consult the dealer or an experienced radio/television technician for
additional suggestions. The user may find the following booklet helpful: “Something About Interference.”
This is available at FCC local regional offices. Our company is not responsible for any radio or television
interference caused by unauthorized modifications of this equipment or the substitution or attachment of
connecting cables and equipment other than those specified by our company. The correction is the
responsibility of the user. Use only shielded data cables with this system.
5Ghz band: UNII (Unlicensed National Information Infrastructure) or band1 (5.150 to 5.250 GHz) is
restricted to indoor use only. Any other use will make the operation of the device illegal.
Caution! - Any changes or modifications not expressly approved by the grantee of this device could void the user’s
authority to operate the equipment.
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired
operation.
5Ghz band: UNII (Unlicensed National Information Infrastructure) or band1 (5.150 to 5.250 GHz) is
restricted to indoor use only. Any other use will make the operation of the device illegal.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for
use with the following body worn accessory: Holster-1. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
Caution! - Any changes or modifications not expressly approved by the grantee of this device could void the user’s
authority to operate the equipment.
Conformité à la règlementation canadienne
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Son
fonctionnement est assujetti aux conditions suivantes:
1. Cet appareil ne doit pas causer de brouillage préjudiciable.
2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un
fonctionnement indésirable.
1 - 3
Bande 5 Ghz: UNII (Infrastructure Nationale d'Information Sans Permis) ou Bande1 (5.150 à 5.250 GHz)
est limitée à l'usage intérieur seulement. Toute autre utilisation rendra l'opération de l'appareil illégal.
For body worn operation, ce téléphone a été testé et respecte les directives d'exposition RF de la FCC
pour une utilisation avec l'accessoire body worn: Holster-1. L'utilisation de d'autres accessoires risque
de ne pas assurer la conformité avec les directives d'exposition RF de la FCC.
Mise en garde! - Tout changement ou modification non expressément approuvées par le bénéficiaire de cet
appareil peut annuler l'autorisation d'utiliser l'équipement.
RF Exposure Information (SAR)
This mobile phone meets the government's requirements for exposure to radio waves. This phone is
designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/Kg and for Europe 2W/Kg.
Although the SAR is determined at the highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the poser required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
The highest reported SAR values for head, body-worn accessory and simultaneous transmission use
conditions are: 0.45 W/kg (1g), 0.96 W/kg (1g) and 1.33 W/kg (1g).
The highest reported CE SAR values for head, body-worn accessory and simultaneous transmission
use conditions are: 0.59 W/kg (10g), 1.0 W/kg (10g), 1.15 W/kg (10g).
While there may be differences between the SAR levels of various phones and at various positions, they
all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone
is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid
after searching on FCC ID: HD570eLGN, HD570eLG0 and HD570eL00.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for
use with the following body worn accessory: Holster-1. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
Honeywell Scanning & Mobility Product Environmental Information
Refer to www.honeywellaidc.com/environmental for the RoHS / REACH / WEEE information.
1 - 4
China RoHS
有毒有害物质名称及含量 (Names and Content of Hazardous Substances or Elements)
部件名称 (Parts Name) 有毒有害物质或元素 (Toxic and Hazardous Substances or Elements)
铅 (Pb) 汞 (Hg) 镉 (Cd)
成像式条码阅读器 (Imager)
印刷电路板 (PCB)
主机及基座外壳 (Housing)
连线 (Cables)
液晶显示器 (LCD)
液晶显示器框架 (LCD Frame)
相机模组 (Camera)
按键 (Key)
电池 (Battery)
电源供应器 (Power Adapter)
o: 表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006标准规定的限量要求以下 (Indicates that this toxic or hazardous substance contained in all of the homogeneous
materials for this part is below the limit requirement in China’s SJ/T11363-2006.)
x: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求 (Indicates that this toxic or hazardous substance contained in at least one of the
homogeneous materials for this part is above the limit requirement in China’s SJ/T11363-2006. )
oooooo
oooooo
oooooo
oooooo
oooooo
oooooo
oooooo
oooooo
oooooo
oooooo
六价铬 (Cr6+)
多溴联苯 (PBB) 多溴二苯醚 (PBDE)
Pacemakers, Hearing Aids and Other Electrically Powered Devices
Most manufacturers of medical devices adhere to the IEC 601-1-2 standard. This standard requires
devices to operate properly in an EM Field with a strength of 3V/m over a frequency range of 26 to
1000MHz. The maximum allowable field strength emitted by the Dolphin terminal is 0.3V/m according to
Subpart B of Part 1 of the FCC rules. Therefore, the RF from the Dolphin terminal has no effect on
medical devices that meet the IEC specification.
Hearing Aid Compatibility (HAC)
Dolphin 70e Black models 70eLGN and 70eLG0 have been tested for hearing aid compatibility. These
devices have an M4 and T4 rating. For additional HAC information, including the HAC rating for this
product, please refer to www.honeywellaidc.com.
When some wireless devices are used near some hearing devices such as hearing aids and implants,
users may detect a buzzing or humming noise. Some hearing devices are more immune than others to
this interference noise. Wireless devices may also vary in the amount of interference they generate.
The ratings for compatibility of digital wireless devices with hearing aids are described in the American
National Standards Institute (ANSI) C63.19 standard:
M-Rating: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference
with hearing devices than phones that are not labeled. M4 is the superior/higher of the two ratings.
T-Rating: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with hearing
devices' telecoil than unrated phones. T4 is the superior/higher of the two ratings.
The more immune the hearing aid device is, the less likely one is to experience interference noise from
the wireless phone. Hearing aid devices may also be rated. Adding the ratings of the hearing aid and the
phone would determine probable usability:
• Any combined rating equal to or greater than six offers the best use.
• Any combined rating equal to five is considered normal use.
1 - 5
The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing
2941-13-6583
Modelo: 70eLG0 (Dolphin 70e Black)
(01)07898927490270
2935-13-6583
Modelo: 70eL00 (Dolphin 70e Black)
(01)07898927490263
loss. If your hearing device happens to be vulnerable to interference, you may not be able to use this
device successfully. Trying out this device with your hearing device is the best way to evaluate it for your
personal needs.
This device has been tested and rated for use with hearing aids for some of the wireless technologies
that it utilizes. However, there may be some newer wireless technologies used in this phone that have
not been tested yet for use with hearing aids. It is important to try the different features of this phone
thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear
any interfering noise. Consult your service provider or the manufacturer of this phone for information on
hearing aid compatibility.
Microwaves
The radio in the Dolphin RF terminal operates on the same frequency band as a microwave oven.
Therefore, if you use a microwave within range of the Dolphin RF terminal you may notice performance
degradation in your wireless network. However, both your microwave and your wireless network will
continue to function.
Informações ANATEL (Modelos: 70eLG0, e 70eL00)
Medida de SAR (distância mínima com relação ao corpo do usuário):
quando com os acessórios: 0 cm, quando sem os acessórios: 1,5 cm.
Este produto está homologado pela Anatel, de acordo com os procedimentos regulamentados pela
Resolução No. 242/2000 e atende aos requisitos técnicos aplicados incluindo os limites de exposição
da Taxa de Absorção Específica referente a campos elétricos, magnéticos e eletromagnéticos de radiofreqüência, de acordo com a Resolução No. 303/2002 e nº 533/2009.
" Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário."
Para maiores informações, consulte o site da ANATEL - www.anatel.gov.br.
Compatibilidade entre carregadores, baterias e acessórios:
Os modelos 70eLG0 e 70eL00 (Dolphin 70e Black) serão fornecidos com baterias modelo 70e-BTEC,
n° de homologação 3936-13-0003 e modelo 70e-BTSC n° de homologação 3935-13-0003.
1 - 6
Os modelos 70eLG0 e 70eL00 (Dolphin 70e Black) serão fornecidos com os seguintes carregadores /
fontes de alimentação:
Carregador modelo FRA036-S12-4: número de homologação ANATEL 1615-12-8020.
Este carregador será comercializado com as seguintes bases/docas/periféricos: 70E-HB e
70E-EHB.
Carregador modelo DSA-5CU-05 050100: número de homologação ANATEL 2939-13-8022.
Os modelos 70eLG0 e 70eL00 (Dolphin 70e Black) serão comercializados com os seguintes modelos
de acessório: 70e-EHB, 70e-COVER.
1 - 7
1 - 8
2
Battery Door Lock
Back panel of the terminal
with standard battery door
shown.
Getting Started
Out of the Box
Verify that the carton contains the following items:
• Dolphin 70e Black mobile computer (terminal)
• 1 GB, 2 GB or 4 GB microSD™ Memory Card (pre-installed)
• 3.7V Li-ion rechargeable battery
• USB charge/communication cable
• Power adapter with regional plug adapters
• Quick start guide
• Compliance Regulatory Sheet
If you ordered accessories for your terminals, verify that they are also included with the order. Be sure to
keep the original packaging in the event that the Dolphin terminal should need to be returned for service.
Memory Card Specifications
Applications on your Dolphin 70e Black terminal utilize the memory card to store files and application
data. A microSD memory card is included and pre-installed in the device. Memory card use is
recommended to avoid potential application errors or possible data loss.
Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC™
memory cards with Dolphin terminals for maximum performance and durability. Contact a Honeywell
sales representative for additional information on qualified memory card options.
Initial Setup for Dolphin 70e Black Terminal
Step 1. Install the Battery
Note: Before installing the main battery, read the Guidelines for Battery Pack Use and Disposal on page 3-16.
The terminal is shipped with the battery packaged separate from the unit. To install the battery, first
identify your model type, then follow the installation steps on the pages indicated below.
Identifying Your Model Type
Dolphin 70e Black model terminals equipped with a battery door lock are designed for use with
battery part numbers BAT-STANDARD-02 (Li-ion 3.7V, 6.179 watt hour) and BAT-EXTENDED-02
(Li-ion 3.7V, 12.358 watt hour) manufactured for Honeywell International Inc. See page 2-2 for battery
installation instructions.
2 - 1
Dolphin 70e Black model terminals not equipped with a battery door lock are designed for use with
Back panel of the terminal
with standard battery door
shown.
!
2
1
3
4
5
6
Battery Door Lock
Note: Standard battery and standard battery door shown.
battery part numbers BAT-STANDARD-01 (Li-ion 3.7V, 6.179 watt hour) and BAT-EXTENDED-01
(Li-ion 3.7V, 12.358 watt hour) manufactured for Honeywell International Inc. See page 2-3 for battery
installation instructions.
Installing the Battery in Terminals Equipped with a Battery Door Lock
The terminal is shipped with the battery packaged separate from the unit. Perform the steps illustrated
below to install the battery.
Note: If your Dolphin 70e Black model type does not have a battery door lock, refer to the battery installation
instructions on page 2-3.
Ensure all components are dry prior to placing the battery in the terminal. Mating wet components may cause
damage not covered by the warranty.
For information on how to remove the battery, see Replacing the Battery on page 2-15.
2 - 2
Installing the Battery in Terminals without a Battery Door Lock
!
2
1
3
4
5
6
7
8
9
Note: Standard battery and standard battery door shown.
Battery
Retention
Strap
The terminal is shipped with the battery packaged separate from the unit. Perform the steps illustrated
below to install the battery.
Note: If your Dolphin 70e Black model does not have a battery retention strap, refer to the battery installation
instructions on page 2-2.
Ensure all components are dry prior to placing the battery in the terminal. Mating wet components may cause
damage not covered by the warranty.
For information on how to remove the battery, see Replacing the Battery on page 2-15.
2 - 3
Step 2. Charge the Battery
!
!
!
The power source for the Dolphin terminal is the 3.7V Li-ion rechargeable battery located under the
battery door on the back panel of the device. See Battery on page 3-12 for additional information on
battery storage, use, and disposal.
Important: Removing the battery from the terminal erases all non-persistent memory. Always place the terminal in
Suspend mode before removing the battery. For information on how to remove the battery from the terminal, see
Replacing the Battery on page 2-15.
Before Initial Use
Dolphin terminals ship with the battery significantly discharged of power. After installing the battery in the
terminal, charge the battery with a Dolphin 70e Black charging peripheral for a minimum of 4 hours for
the standard battery pack or 6 hours for the extended battery pack. When using the 70e-USB Charge/
Communication cable to charge from a 500mA USB port on a host device, charge the battery for a
minimum of 6 hours for the standard battery and 8 hours for the extended battery.
Note: Inadequate source current may interfere with effective battery charging; see Important Charging
Guidelines on page 3-13 for additional information.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell
peripherals, cables, or power adapters may cause damage not covered by the warranty.
Dolphin 70e Black model terminals are designed for use with the following charging devices and cables:
70e-HB, 70e-CB, 70e-EHB, 70e-NB, 70e-MB, 70e-MC, and 70e-USB ADAPTERKIT. See pages 3-2 and
3-3 for additional information on Dolphin 70e Black peripherals and accessories.
Ensure all components are dry prior to mating terminals/batteries with peripheral devices. Mating wet
components may cause damage not covered by the warranty.
Using the USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT)
Dolphin 70e Black terminals ship with a USB Charge/Communication Cable and a power adapter with
regional plug adapters. The USB Charge/Communication cable provides two options for charging the
terminal. Use the cable in conjunction with the provided power supply adapter and plug adapter to
charge the terminal from a power outlet (Option 1 on page 2-5) or connect the cable to a high-power
USB port to charge from a host device (Option 2 on page 2-5).
Warning - The terminal shall only be connected to CTIA certified adapters, products that bear the USB-IF logo
or products that have completed the USB-IF compliance program when using the micro USB port as a
charging source.
2 - 4
Option 1: Charging from a power outlet
USB Door
Plug Adapter
1
3
4
2
Micro USB Port
Power Adapter
5
Right Side Panel of
Dolphin 70e Black
USB Charge/Communication
Cable
USB Door
USB Port on Host Device
1
3
2
Micro
USB
Por t
USB Charge/
Communication Cable
Right Side Panel of Dolphin 70e Black
Use only a UL Listed power supply, which has been qualified by Honeywell with an output rated at 5VDC
and 1A with the device.
Option 2: Charging from a high power USB port on a host device (PC)
Charging the battery through a USB port takes more time than direct charging using the provided power
supply. Inadequate source current may lengthen the charge time or prevent the battery from charging if
the terminal is drawing more current than supplied by the USB port. The maximum current supplied by a
USB Host can vary from 100mA to 500mA. Do not attempt to charge the terminal from a 100mA
source. An active Dolphin terminal uses more current than supplied by a 100mA source causing the
terminal to continue to draw power from the battery. See Important Charging Guidelines on page 3-13 for
additional information.
Note: Placing the terminal in Suspend mode while charging reduces the current draw of the terminal and shortens
the charging time of the battery.
Touch > Settings > Battery to verify the battery is charging.
2 - 5
Step 3. Boot the Terminal and Access the Home Screen
The terminal begins the boot process as soon as power is applied. Do not press any buttons or attempt
to remove the battery during the initial boot process.
The Welcome Screen
The first time you power up the Dolphin terminal, a Welcome screen appears after the boot process is
finished. From the Welcome screen follow the prompts as the Setup Wizard guides you through:
• setting the default language for the terminal,
• setting up Wi-Fi network connections,
• connecting to an existing Gmail™ account or creating a new Gmail account
• setting the time, date, and time zone,
• turning the Google Location Service™ on or off
• personalizing (naming) the terminal, and
• selecting your preference for automatic updates from Google and reviewing the Google privacy
policy.
After the initial Setup Wizard is complete the Locked Screen (see page 2-6) displays.
Note: Once you complete the initial Setup Wizard, the Welcome screen no longer appears when you reboot the
device. The Locked screen displays after the terminal completes the boot process.
The Locked Screen
Drag the to the right or press the Menu button to unlock
the display and access the Home screen.
See Screen Security on page 6-5 for information on customizing
the screen lock/unlock security feature.
Note: During the initial charging stage, the terminal may have entered
Suspend Mode to conserve battery power. In Suspend mode
the touch screen dims then darkens automatically after a period
of no activity.
Press the Power button to wake the terminal. See Display
Settings on page 6-2 to adjust the screen sleep (timeout) settings.
2 - 6
The Home Screen
Tap the Apps icon to view the apps and
widgets loaded on your device.
Notification/Status Bar
Search Bar
Touch
to initiate a voice
search or command.
Home Screen Panel
Swipe left or right with your
finger to scroll between five
Home screen panels.
Personalize the panels with
your choice of app shortcuts,
folders, and widgets.
Clock Widget
Camera App Shortcut
Favorites Tray
Google Mobile App Folder
Google Play™ Store Shortcut
Notifications
Status Indicators
and Time Display
The Android™ operating system provides space for user customization and control with five Home
Screen panels.
Note: Some of the features listed below are specific to Dolphin 70e Black models equipped with Google™ Mobile
Services and may require an active Google account be setup on your terminal.
Note: You can return to the Home screen at any time, in any application by pressing the button.
Status and Notification Indicators
The status bar located at the top of the touch screen displays notifications (on the left), the status of
various system functions (on the right), and the current time (on the far right).
2 - 7
The Notification Panel
Touch and hold the status
bar, then drag down to
view notifications.
Touch and hold the circle at the
bottom of the screen, then drag
up to close the screen.
Tap a notification to open
the related application.
A plus sign icon appears on the status bar when the quantity of notifications exceed the available
space on the bar. To view all the notifications, touch and hold the status bar, then drag down to open the
notification panel.
Common Status and Notification Icons
Icon Meaning
Note: Status and notification icons are hardware and software dependent. Some of the icons listed below may
not be relevant for your Dolphin model.
Open notification panel to see additional
notifications
Sound is turned off
Pending calender event Vibrate mode is turned on
Pending alarm and Alarm is set Battery charge is at 100%.
New Hangouts™ message Terminal is connected to external power and the
battery is charging.
New Gmail™ message SD card or USB storage is full
2 - 8
Icon Meaning
New text message or multimedia message Bluetooth technology is turned on
New E-mail Terminal connected to a device with Bluetooth
technology
Error with text or multimedia message
delivery
Terminal is connected to a computer using a
USB cable
ABD active Network connection data transfer
Uploading data The carrier data use threshold has been reached
Downloading data Wi-Fi network connected and signal strength
Download finished Ethernet status - disconnected
Synchronizing data Ethernet status - connected
Error with sync or sign-in Music player active
The terminal could not synchronize data with
the computer
Bluetooth incoming file notification
Network signal strength
or exceeded
2 - 9
Search Bar
Touch inside the box to
access the virtual keyboard
for text entry.
Touch to initiate Google Voice
Search or a Voice Action.
You can search for an item on the terminal or the Internet using Google™ Search at the top of any
Home screen panel.
To modify the search settings:
1. Touch inside the box then press the Menu button .
2. Touch Settings then select Searchable items or Google Search.
Voice Search and Voice Actions
To initiate a Google Voice Search™ or Voice Action select the microphone on the search bar. Speak
the terms to search for or the Voice Action to perform. For example, say “What time is it in France” or
“send email”.
Touch Help to access Tutorials (e.g., video and sample Voice Action commands) or connect to the
Google Help Center.
Touch the wrench to configure Voice Search settings (see page 6-8).
2 - 10
Personalize the Home Screen Panels and Favorites Tray
Streamline your work flow by customizing the Home screen panels and Favorites tray with your choice
of app shortcuts, folders, and widgets.
To add an app shortcut:
1. Touch .
2. Select and hold the app icon you want to add. The terminal vibrates, then switches to the home
screen.
3. Drag and drop the icon into position on the Home screen or in an open spot on the Favorites tray.
Hints:
• To create a folder, drag and drop an app icon on top of another icon.
• To move a shortcut from the Favorites tray to the Home screen panel, touch and hold the item,
then drag and drop the icon onto the Home screen.
To add a widget:
1. Touch .
2. Select the Widget tab.
3. Touch and hold the widget you want to add. The terminal vibrates and switches to the Home screen.
4. Drag and drop the widget into the desired position.
To remove/delete an item:
1. Touch and hold the item.
2. Drag the item to the top of the screen where the word Remove is displayed.
To move an item:
1. Tap and hold the item.
2. When the unit vibrates, drag and drop the item in the new location.
Note: The next panel automatically opens if you drag the item to the edge of the touchscreen.
Apps and Widgets
Touch the Apps icon located at the bottom of any Home screen to see the all apps and widgets
loaded on your terminal.
Navigation/Function Buttons
The Dolphin terminal has seven navigation/function buttons.
Button Function
Home A quick press returns you to the Home screen.
Press and hold the button to view and switch between recently used apps.
2 - 11
Button Function
Menu Opens additional menu options.
Scan Wakes the terminal from Suspend Mode.
Triggers the scanner/imager in the following apps: IQImage Demo, Imaging Demo
and Scan Demo.
Back Back to the previous screen.
Search Initiate a search of the terminal or the Internet.
Right and
Left Side
Volume Raises or lowers the volume of the active speaker.
Triggers the scanner/imager in the following apps: IQImage Demo, Imaging Demo
and Scan Demo.
Hotkeys
You can configure the Scan button and the Left and Right side buttons of to launch specific
applications.
Touch > Power Tools > Configure Hotkeys . Select the app you want the assigned to the
key from the associated pull-down menu.
Refer to Features of the Dolphin 70e Black on page 3-4 for button locations on the terminal.
Virtual Keyboard
The enhanced Honeywell virtual keyboard appears when you open an application or select a field that
requires text or numerical input. The content of the keyboard may vary depending on the application in
use and the input field requirements. The enhanced Honeywell virtual keyboard is fully customizable
using the Honeywell Virtual Keypad Creator (see below) and is the selected as the default method for
entering text.
See Language & input on page 6-6 for additional information on configuring keyboard & input methods.
The Enhanced Honeywell Virtual Keyboard
During text input, you may need to switch between keyboard modes to access additional character sets
(e.g., function keys, symbols, and numbers). Each keyboard mode, includes navigation keys, which allow
you to quickly switch between modes. Touch the ABC key to switch to the Qwerty Mode, the 123 key to
switch to the Numeric Mode, and the #@& key to switch to the Function & Symbols Mode.
Note: The content of the keyboard and the mode initially displayed may vary depending on the application in use
and the input field requirements.
2 - 12
Alternate Keys
Some keys include a second symbol in red. In order to use the alternate symbol, touch and hold the key
until the alternate symbol appears, then release the key to type the symbol.
Honeywell Virtual Keypad Creator
The default enhanced Honeywell virtual keyboard is fully customizable using the Honeywell Virtual
Keypad Creator software available for download at www.honeywellaidc.com. The user-friendly utility
allows you to personalize multiple keyboard features including key position, size, quantity, color, and the
keyboard skin. In addition, you can make language changes, create alternate or function keys for special
character sets, and add application launch keys to streamline common business tasks.
There are two software components required for customizing the enhanced Honeywell Virtual keyboard.
• The first is the Honeywell Virtual Keypad Creator, which resides on your PC and is used to design,
save, and download custom keyboard layouts to your Dolphin terminal.
• The second is the enhanced Honeywell virtual keyboard file HoneywellVK.xml, which is located in the
\mnt\SDcard\HoneywellVK folder on your Dolphin terminal. This keyboard file is what displays on
the terminal screen when the enhanced Honeywell virtual keyboard is selected as the default virtual
keyboard; see Language & input on page 6-6.
The customization process is easy.
1. Download and install the Honeywell Virtual Keypad Creator software onto your PC.
2. Connect your Dolphin terminal your PC using the USB charge/communication cable provided.
3. Configure the terminal for USB debugging and the installation of Unknown sources (non-Market
apps).
a. Touch Settings > Developer Options. Check USB debugging.
b. Touch Settings > Security. Check Unknown sources.
4. Open the Virtual Keypad Creator software on your PC. Select Android from the Device menu then
Yes to confirm changing the device platform.
5. Open and modify the standard layout or create a new layout.
Note: Select Help > Contents or click the Help icon for detailed information on how to open, modify and
create new keypad layouts.
6. Select File > Save As.
Note: The Save button overwrites the default keypad template provided with the software with any changes
you have made to the layout. Make a backup copy of the template or use the Save As option if you want
to keep the provided default template for later use.
7. Select Device > Update Configuration. Follow the prompts to install the custom enhanced virtual
keyboard on your terminal.
2 - 13
Turning Power On/Off
To turn the terminal On, press and release the Power button .
To turn the terminal Off:
1. Press and hold the Power button until the Phone Options menu displays.
2. Touch Power Off.
Suspend Mode
Suspend mode differs from Power off mode. Power off mode is the equivalent to having no battery or
external power source connected to the device. The terminal does not receive incoming calls when
power is off since the device completely shuts down. In Suspend mode, the device enters a low power
state to conserve battery power. The radio associated with the phone maintains enough power to wake
the terminal for incoming phone calls.
Suspend mode automatically turns the touch screen off and locks the terminal to save battery power
when the terminal is inactive for a programmed period of time.
1. Press and release the Power button to toggle the terminal in or out of Suspend mode.
2. Drag the to the right or press the Menu button to unlock the terminal.
Note: You should always place the terminal in Suspend mode before removing the battery. For information on
removing the battery, see Replacing the Battery.
To adjust the timeout limit, touch > > Display > Sleep.
Airplane Mode
Turn On Airplane mode to disable all the terminal radios that transmit voice or data.
1. Press and hold the Power button for until the Phone Options menu displays.
2. Touch Airplane Mode to toggle the mode on or off.
Note: When Airplane Mode is turned on, shows on the status bar.
2 - 14
