Portable Evaporative Air Cooler
Safety & Maintenance Guide
User tips and safety instructions
www.jmatek.com
E-mail: usinfo@jmatek.com
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. The Safety &
Maintenance Guide and the separate User Manual are intended to provide you with important
information needed to set up, operate, maintain and troubleshoot this product.
USER TIPS
What is Evaporative Cooling?
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep energy costs low.
Warm air is drawn into the cooler and enters the Honeycomb Cooling Media. Water pumped from the
water tank pours over the Honeycomb Cooling Media. As the warm air passes through the Honeycomb
Cooling Media, the water absorbs the heat, naturally cooling and humidifying the air. A fan propels the
cooled air out into the room. This no-compressor system cools naturally, efficiently and inexpensively.
Honeycomb Cooling Media
Cool and
Warm and
Water
Evaporative Air Cooling Mechanism
The recommended maximum relative humidity level is 60% or less, which allows a noticeable
temperature decrease. The temperature will be lower in drier climates because higher evaporation
occurs when the humidity is low.
Pump
dry air
humid air
NOTE
When the product is used for the first time the Honeycomb Cooling Media will have an odor which will
dissipate in a few hours or so of initial use.
COOLER LOCATION
To maximize efficiency, position the Air Cooler according to the following guidelines:
Indoors
Place the cooler in front of an open door or window. Ensure that there is adequate cross-ventilation in
the room by leaving a door or window open opposite the cooler.
The Evaporative Air Cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. Doors and windows should be opened to allow free
air flow. The Evaporative Air Cooler works best when placed near
an open window, so that outside air is drawn into the
Evaporative Air Cooler, circulates in the room, then exits via the
door. The maximum cooling effect is felt when a person is near
the flow of air coming out of the Evaporative Air Cooler. The
Evaporative Air Cooler produces moisture and can be used to
humidify dry air. To be used for humidification the windows and
doors should be closed.
EN 1
COOLER LOCATION (CONTINUED)
IMPORTANT: The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.
Outdoors (for outdoor models only)
Use only on GFCI Protected outlets/ sockets (for USA only).
•
Power cords must be secured to avoid tripping.
•
The wiring and connections must be protected from water. The electrical plug and Air Cooler
•
connections must be dry at all times. When used outdoors, insert the air cooler electrical plug into an
IP44 compliant outdoor electrical outlet.
•
Set the unit on a solid flat surface.
IMPORTANT: Honeywell Outdoor Air Cooler models are designed to IPX4 product standards and not
recommended to be placed outdoors during heavy rain or snow.
SAFETY RULES
WARNING—READ AND SAVE THE AIR COOLER GUIDE AND USER MANUAL
The Air Cooler Guide and User Manual are intended to provide important information needed to set up,
operate, maintain and troubleshoot your Air Cooler. Failure to follow these instructions may damage
and/or impair its operation, create hazards, and void the warranty.
READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
•
Check the household voltage to ensure it matches the appliance’s rating specifications.
•
Before operating the product, remove the packaging and check that product is in good condition.
•
DO NOT operate with a damaged cord or plug. If the supply cord is damaged, it must be replaced
with a supply cord which is as per manufacturers specifications, by the authorized service centre or
its service agent or a similarly qualified person in order to avoid a hazard.
•
DO NOT use an extension cord with this unit.
•
DO NOT run power cord under carpeting, or cover it with rugs or runners. Keep the cord away from
areas where it may be tripped over.
•
Always ensure the water tank is filled with water above the "min." level mark, when operating the air
cooler in evaporative COOLING mode.
•
Always unplug the Air Cooler before refilling the water tank, cleaning, servicing or relocating the unit.
•
Never pull the cord. Remove it from the electrical outlet/ socket by grasping and pulling on the
plug-end of the cord.
•
This appliance has been manufactured for use in domestic environments and must not be used for
other purposes.
•
DO NOT use in areas where gasoline, paint or other flammable goods and objects are stored.
•
When using the COOL setting, make sure the water tank is at Max Indicator Level. Operating the unit
on the COOL setting with an empty tank may result in damage to the water pump.
•
DO NOT attempt to repair or adjust any electrical or mechanical functions of the Air Cooler, as this
may void the warranty.
•
DO NOT cover the cooler’s air inlet or outlet, as this may damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or exhaust opening, as this may damage the
unit and may cause electrical shock or fire.
•
DO NOT operate with the Honeycomb Cooling Media removed, as this will overload and damage the
motor.
EN 2
SAFETY RULES (CONTINUED)
DO NOT leave the operating appliance unattended for an extended period of time.
•
DO NOT allow children to play with this appliance, packaging or plastic bags.
•
DO NOT continue to operate the unit if it is damaged or if it malfunctions. Refer to the
•
TROUBLESHOOTING section and contact the CUSTOMER SUPPORT CENTER.
Always place the unit on a dry level floor.
•
DO NOT use in bathrooms or near water. DO NOT keep the product where it may fall into a water
•
container.
Store in a dry area when not in use.
•
This appliance is not intended for use by persons (including children or elderly) with reduced
•
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning the use of the appliance by a person responsible for
their safety.
•
Always grip the side handles to move the Air Cooler.
•
WARNING: To reduce the risk of fire or electric shock, do not use this appliance with any solid state
speed control device.
STORAGE AND MAINTENANCE GUIDELINES
Read the detailed CLEANING & DRAINING THE WATER TANK instructions for your Air Cooler, located
in the separate User Manual. Below is a general guideline for maintenance and storage of your Air
Cooler.
WARNING: Always switch OFF the Air Cooler and unplug it from the electrical source before
cleaning or maintenance.
Cleaning
At least once a week, drain the water tank completely and refill with fresh water. Doing this will greatly
reduce mineral deposits and help to extend the life of the Honeycomb Cooling Media.
End of Season Storage
If the Air Cooler will not be used for a long time:
•
Make sure all parts are dry by running the Fan Only mode for about 30 minutes before storing (time
depends on ambient humidity conditions).
•
Switch OFF the Air Cooler and unplug from the power supply.
•
Empty/drain all the water from the tank. Note: If the unit is connected to a continuous water supply,
you must switch off the water supply and remove the drain tube before draining the water tank. This
function is only available on some Honeywell Air Cooler models. Check the User Manual to see if
your unit has the Continuous Water Supply Function.
•
Clean the water tank with a damp cloth to wipe away any dust or mineral deposits.
•
Remove the Honeycomb Cooling Media and Carbon Dust Filter* from the Air Cooler and rinse under
fresh water to remove dust and dirt.
•
Replace the Honeycomb Cooling Media and Carbon Dust Filter* after they are clean and dry.
•
To protect the unit from dust and scratches, cover with a clean cloth or plastic bag before storing.
•
Coil the power cord and store it away from the floor to protect it.
Carbon Dust Filter is available in specific models of Honeywell Air Coolers only. Check the User Manual for your model
*
to see if it includes a Carbon Dust Filter.
EN 3
TROUBLESHOOTING GUIDE
Customer Service Center: See the last page of the User Manual to find the contact details for the
Customer Service Center for your area.
PROBLEM POSSIBLE CAUSE SOLUTION
No discharge of air. Cord is not plugged in.
Power is not ON.
Not Cooling /
Unit is making noise.
Excessive humidity in the
room.
Odors.
Remote control does not
work.
The unit does not
respond.
The outdoor Air Cooler is
wet from rain.
Pump is not turned ON.
Low or no water in tank, when
COOL is selected.
Damaged Pump or Calcium
deposits on blower.
In cooling mode, the Air Cooler
produces moisture as a result of
evaporative cooling. This is
normal.
When the Cooler is new.
Algae or mold due to moist parts.
In very damp conditions, algae
may form.
Remote control batteries are old
& used or inserted incorrectly in
the battery compartment.
Damaged remote control.
Damaged Control Panel
on unit.
The Air Cooler was placed
outdoors (this is only allowed for
outdoor Air Cooler models) and
soaked by heavy rain.
Make sure power cord is plugged in and the switch is
ON.
Turn the unit ON by pressing the power button on the
control panel or remote control.
Turn on COOL function from remote or control panel.
Refill water tank.
Contact Customer Service Center.
The Air Cooler cools best in dry climates. If the ambient
humidity level is high (60% or above), refrain from using
the Air Cooler until ambient humidity is reduced.
Make sure the window/doors are open and there is
adequate cross-ventilation in the room so that the
moisturized air can circulate better. Do not use the
evaporative cooling function on days with high ambient
humidity.
When the unit is used for the first time, the
Honeycomb Cooling Media will have an odor, which
will dissipate within a few hours of initial use.
Check the Honeycomb Cooling Media. If you see mold
spots on the media or suspect an algae issue, remove
and replace the Honeycomb Cooling Media. Contact
the Customer Service Center for more information.
Check water tank & other cooler parts. If you see mold
spots or suspect an algae issue, use a damp cloth to
wipe away the algae until all spots have disappeared.
Make sure all parts are clean & dry before storage.
Contact the Customer Service Center if problem
persists.
Replace with new batteries. Follow the polarity guide
inside the battery compartment.
If replacing new batteries in the correct position does
not work, contact the Customer Service Center.
Try to activate the unit with the Remote Control. If the
unit responds, then the Control Panel on the unit may
be experiencing problems - contact the Customer
Service Center.
If neither the Remote Control or the Control Panel is
working, contact the Customer Service Center.
A small amount of rain on the unit is not a problem as
long as the electrical plug and outlet are dry. If they are
wet, DO NOT touch the unit or electrical plug/outlet.
Switch off the master power for the outlet before
unplugging the unit from the electrical outlet. Make
sure all outlets and plugs are dry before use.
The Air Cooler is designed to IPX4 product standards
and not recommended to be placed outdoors during
heavy rain conditions. Do not operate the Air Cooler
when wet. Wait for the Air Cooler to dry before
plugging in and turning on the unit again.
EN 4

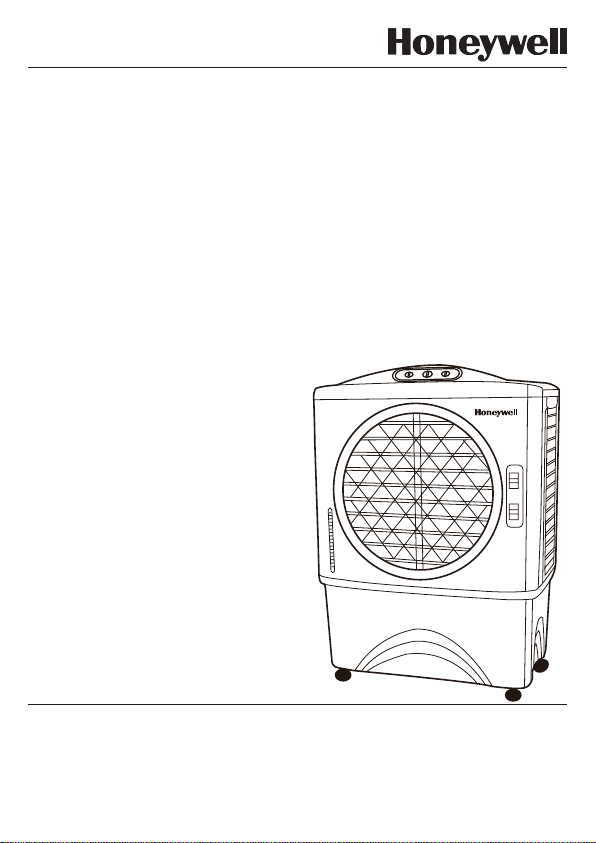

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
MAX
MIN
0
F
3
OF
ON
OFF
2
ON
1
SWING
EED
SP
COOL
www.jmatek.com
E-mail: usinfo@jmatek.com
Model: CL40PM / CO40PM
CL48PM / CO48PM
PARTS DESCRIPTION
(16)
(13)
(14)
(9)
(15)
G
N
WI
S
D
E
E
L
P
S
O
O
C
(1)
(2)
3
0
F
F
O
O
F
F
O
2
N
O
1
N
(3)
(10)
(4)
(11)
(8)
(5)
(6)
(12)
1) Water Inlet Hole
2) Handle
3) Left Side Grill
4) Lever for Horizontal Louvers
5) Water Tank
6) Casters
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY.
WARNING:
FOR OUTDOOR MODEL CO40PM / CO48PM, USE ONLY ON GFCI PROTECTED RECEPTACLES.
7) Louvers
8) Water Level Indicator
9) Control Panel
10) Right Side Grill
11) Water Inlet Valve
12) Drain Plug
(7)
13) Rear Grill
14) Power Cord & Plug
15) Rear Grill Screws
16) Water Fill Door
USE & OPERATION
CONTROL PANEL
0
3
OFF
ON
SWING
SPEED
FUNCTION BUTTONS
SPEED / ON - OFF
Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3 to
1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED knob to 0.
COOL
You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON position to
activate evaporative cooling. The water pump will operate and you will feel the cooler air after the
Honeycomb Cooling Media is completely wet.
SWING
Turn the SWING knob to the ON position to activate the movement of the louvers. The louvers will begin
to move left to right automatically. Vertical Air Flow - You can manually adjust the lever located at the
front of the unit to change vertical air flow.
EN 1
OFF
2
ON
1
COOL
USE & OPERATION (CONTINUED)
COOLER LOCATION
Make sure to position the air cooler correctly before you set up and start using the product. Please refer
to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

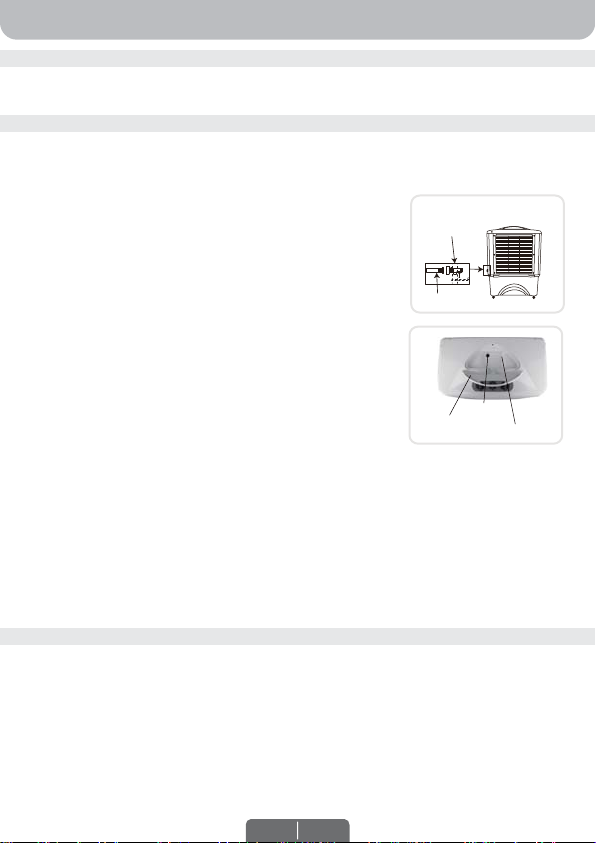

FILLING WITH WATER
CAUTION:
Unplug the unit from the electrical power outlet before filling or emptying the water tank
Continuous Water Supply Connection:
For a continuous water supply, you will need a garden hose that is
connected to a main water supply.
Locate the male connector at one end of the garden hose. Insert the
•
garden hose connector into the water inlet valve of the cooler. Screw
and tighten the water inlet valve onto the threaded part of the garden
hose connector, making sure the hose connector is secured to
ensure there will be no leaks. If there is leakage, the hose and the
water inlet valve may not be connected properly. Try to disconnect,
replace and tighten the water inlet valve again.
When the connection is secured, turn ON the water supply and the
•
water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically when the
•
water tank is empty, or when the water reaches below a minimum
level.
When the water tank is full, the water inlet valve will automatically
•
stop the water supply from overflowing.
Please open the water valve for minimum flow as too much pressure
•
could damage the inlet pressure control system.
WARNING: The maximum water inlet pressure is 0.5 MPa.
Manual Water Tank Refill:
Using a portable container or a garden hose, you can refill the water tank manually by pouring water
•
into the water tank through the water inlet hole located at the top of the air cooler.
Check the water level indicator to know when the water tank is full. Do not fill water above the "Max."
•
water level mark to avoid water droplets collecting on the louvers.
Note: The water capacity refers to the total volume of water that can be contained within the air cooler
water tank and water distribution system. The water capacity in the tank at the “Max.” indicator level
may be lower than the actual water capacity of the air cooler.
CLEANING & DRAINING THE WATER TANK
If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE
GUIDELINES located in the separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.
Move the unit to a location where the water can be drained. Remove the cap from the Drain plug
•
located at the bottom of the unit. Allow the tank to empty.
Refill the water tank with clean water, up to the maximum level and drain it completely.
•
Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
•
elements or chemicals to clean this product.
When the product is not in use, store the unit in a dry place away from direct sunlight.
•
EN 2
Water inlet valve
Garden Hose
Water Fill Door
Water Inlet Hole
Ice Loading
Compartment
USE & OPERATION (CONTINUED)
CLEANING THE HONEYCOMB COOLING MEDIA
The appliance is supplied with three Honeycomb Cooling Media pads.
•
The Honeycomb Cooling Media are located inside the Rear and Side Grills. Follow Steps 1 to 5 for
•
instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank and
•
refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas
•
where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling
Media and restrict air flow. Draining the water tank and refilling with fresh water at least once a week
will help reduce mineral deposits. If mineral deposits remain on the Honeycomb Cooling Media, the
media should be removed and washed under fresh water. The media should be cleaned every two
months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
•
function 15 minutes before turning the unit off.
Step 1:
Rear Grill
Screws
Step 3: Step 4:
Rear Grill
Step 2:
Rear Grill
Rear
Honeycomb Pad
Screws
Horizontal
Bars
Rear
Honeycomb Pad
Removing the Honeycomb Cooling Media:
Remove the screws from the Rear Grill of the Air Cooler.
1.
Carefully pull out the Rear Grill from the Air Cooler.
2.
The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are fixed in
3.
place by two screws on the Left and Right Sides of these Horizontal Bars. Remove these screws to
release the Horizontal Bars.
Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill. Replace with the new
4.
Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it fits comfortably and
securely in place on the grill. Replace the Horizontal Bars back onto the Rear Grill by replacing the Left
and Right Side screws and tightening them in place. This secures the Honeycomb Cooling Pad in
place on the Rear Grill.
Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills.
5.
WARNING: DO NOT operate the Air Cooler when any or all of the Rear or Side Grills are removed
from the Air Cooler, or if there is a loose-fitting Rear or Side Grill. Doing so can cause serious injury or
dangerous electrical shock.
EN 3
Rear Grill
JMATEK North America LLC
Mahwah, New Jersey 07495 USA
Phone: 1-800-474-2147
Email: usinfo@jmatek.com
Web: www.jmatek.com
Made in China
© 2015 JMATEK Limited. All rights reserved.
The Honeywell Trademark is used under license from
Honeywell International Inc.
Honeywell International Inc. makes no representations
or warranties with respect to this product.
This product is manufactured by JMATEK Limited.
Loading...
