Honeywell 3800 Linear, 3800g, 3800g HD, 3800g Lite Plus, 3800i Quick Start Manual

3800 Linear Series

Quick Start Guide

2

Note: Refer to your user’s guide for information

about cleaning your device.

Getting Started

Turn off computer’s power before connecting the
scanner, then power up the computer once the
scanner is fully connected.

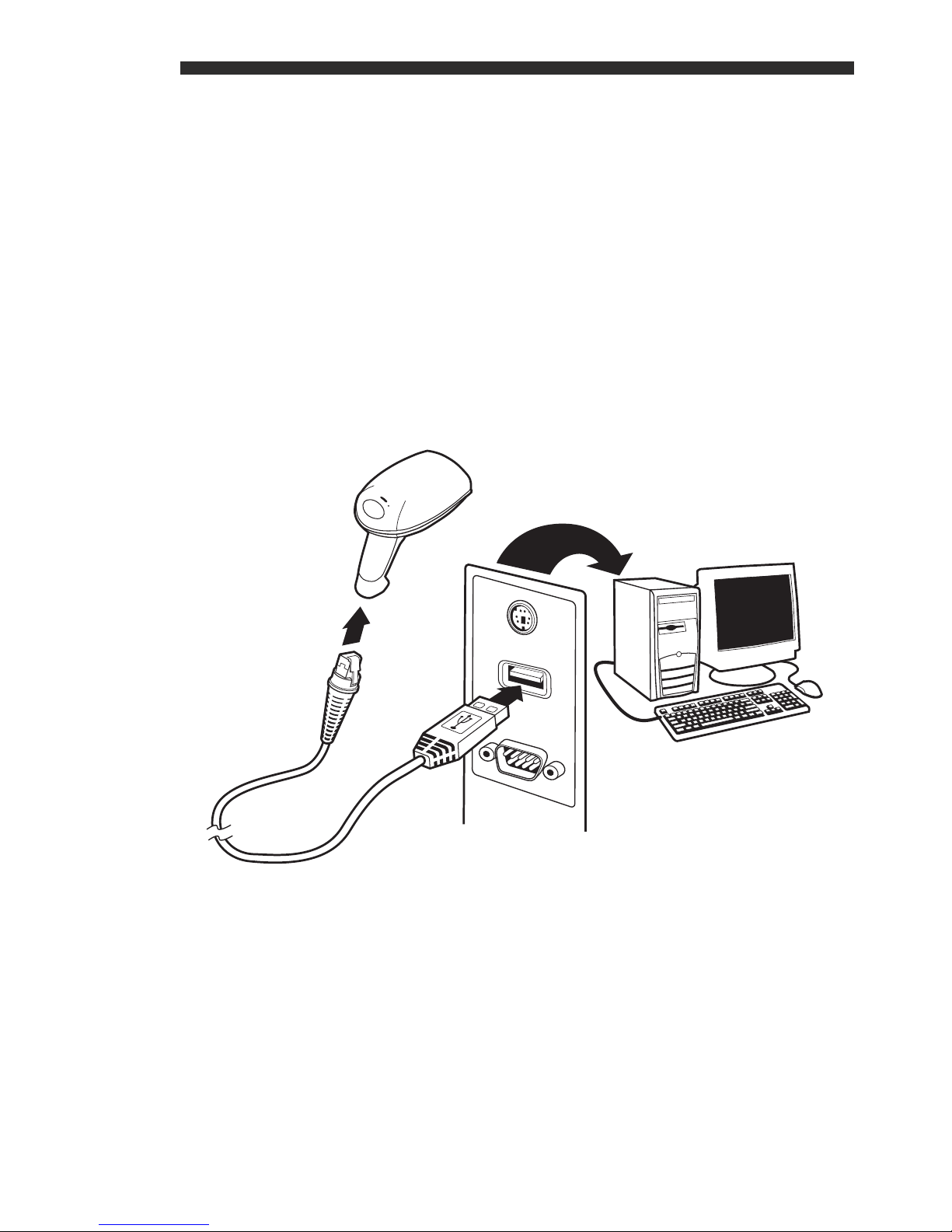

USB Connection

EN-1

Keyboard Wedge Connection

Serial (RS-232) Connection

Note: Does not apply to the 3800g Lite Plus.

EN-2

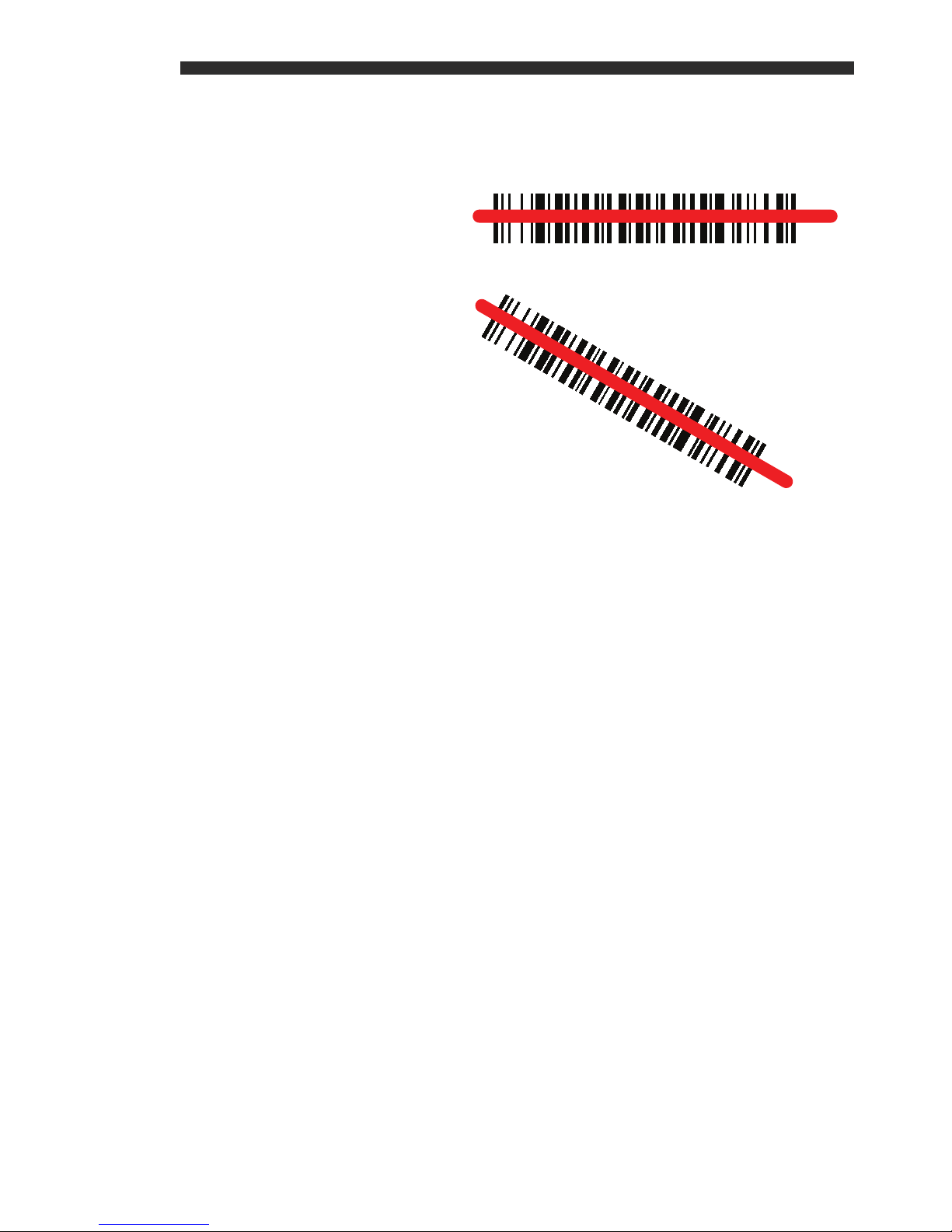

Reading Techniques

The view finder
projects a red
aiming beam that
should be
centered over the
bar code.

Hold the scanner
over the bar code,
pull the trigger,
and center the
aiming beam on
the bar code.

The aiming beam is smaller when the scanner is
closer to the code and larger when it is farther from
the code. Hold the scanner close to smaller bar
codes, and farther away from large bar codes to get
a proper read.

If the bar code is highly reflective (e.g., laminated),
you may need to tilt the scanner at an angle so the
bar code can be scanned.

EN-3

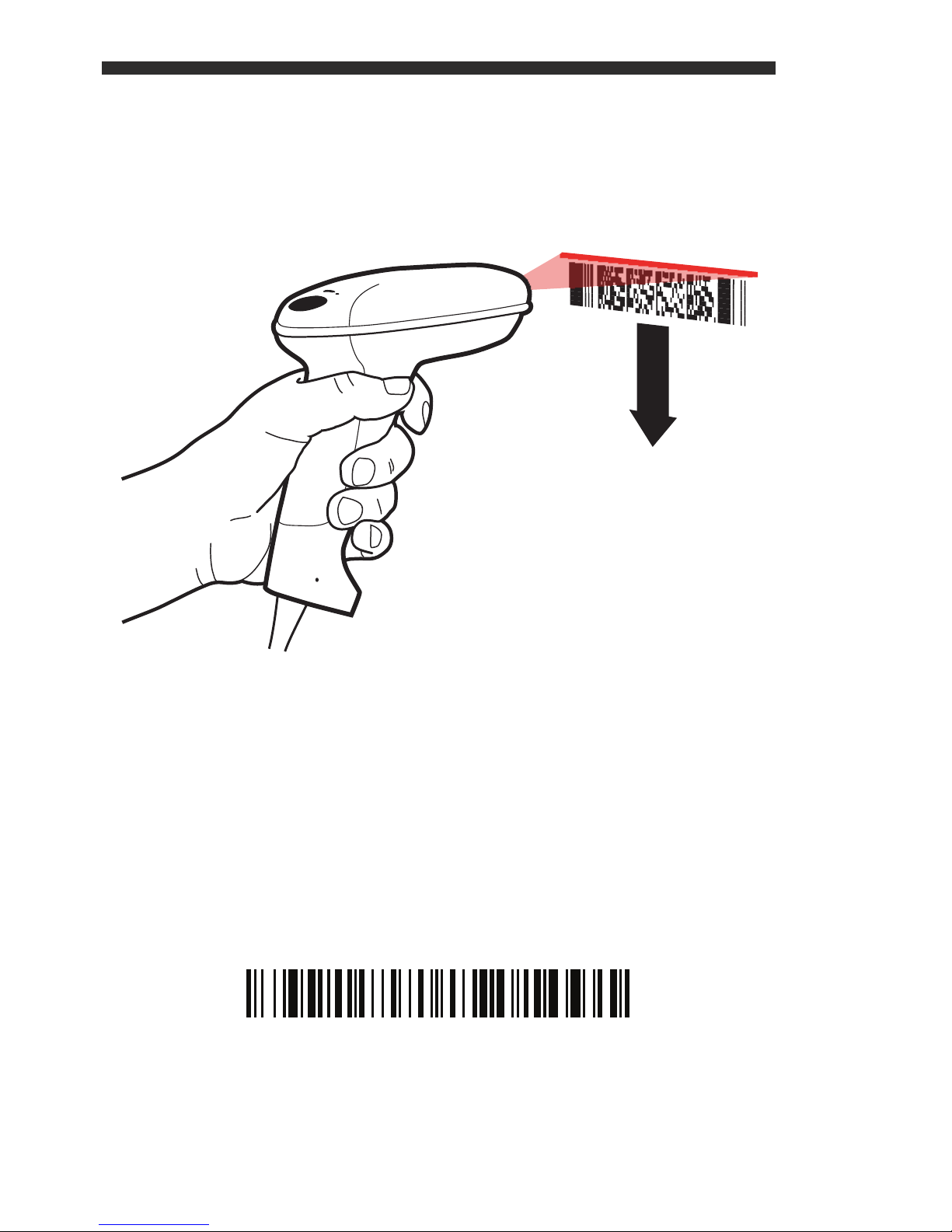

To read PDF417 bar codes with a PDF-enabled

Standard Product Defaults

3800, hold the trigger down and move the scanner
up and down so the aiming line sweeps from the top
of the bar code to the bottom, and back up.

This ensures that the entire code is scanned.

Note: This only applies to a PDF enabled 3800/

3800g.

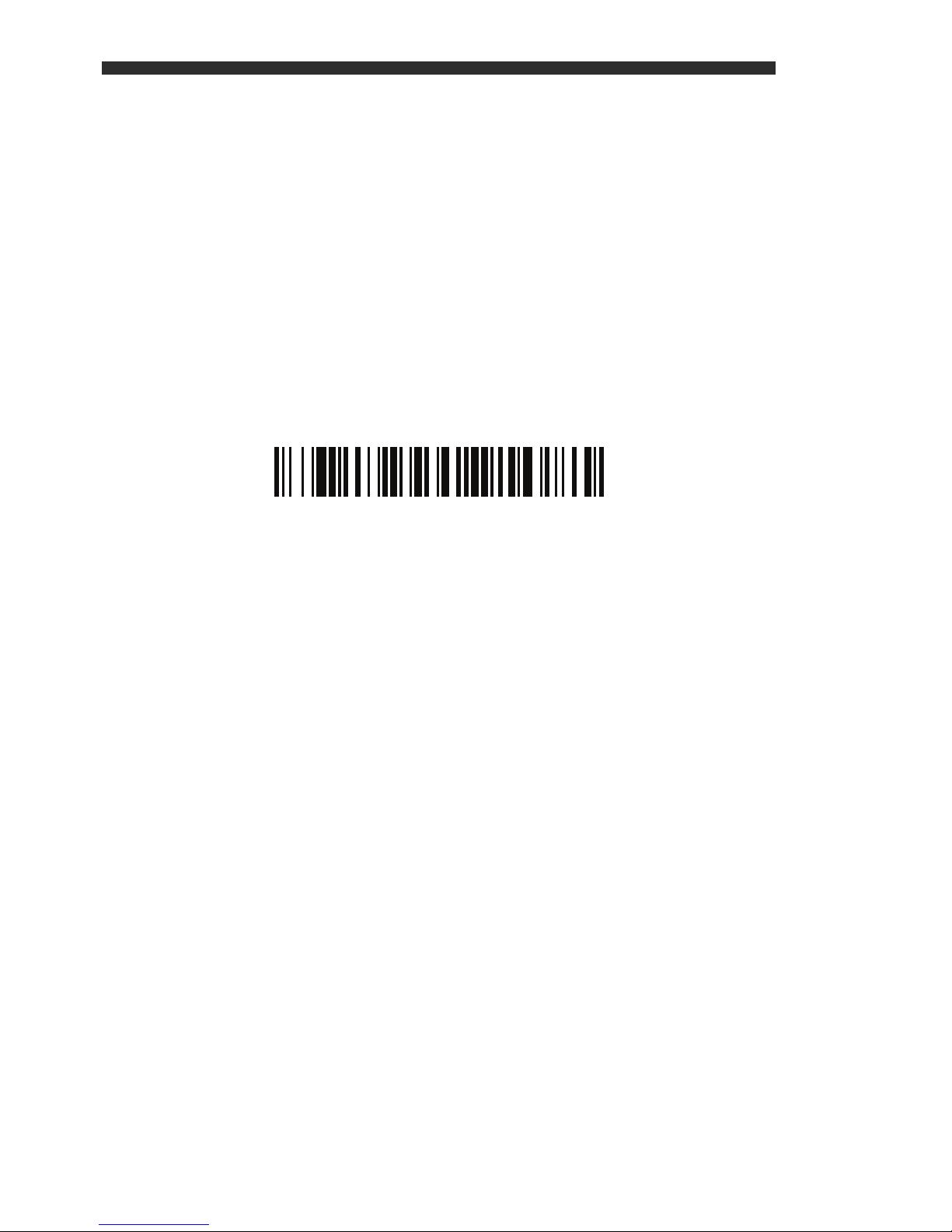

Standard Product Defaults

The following bar code resets all standard product
default settings.

EN-4

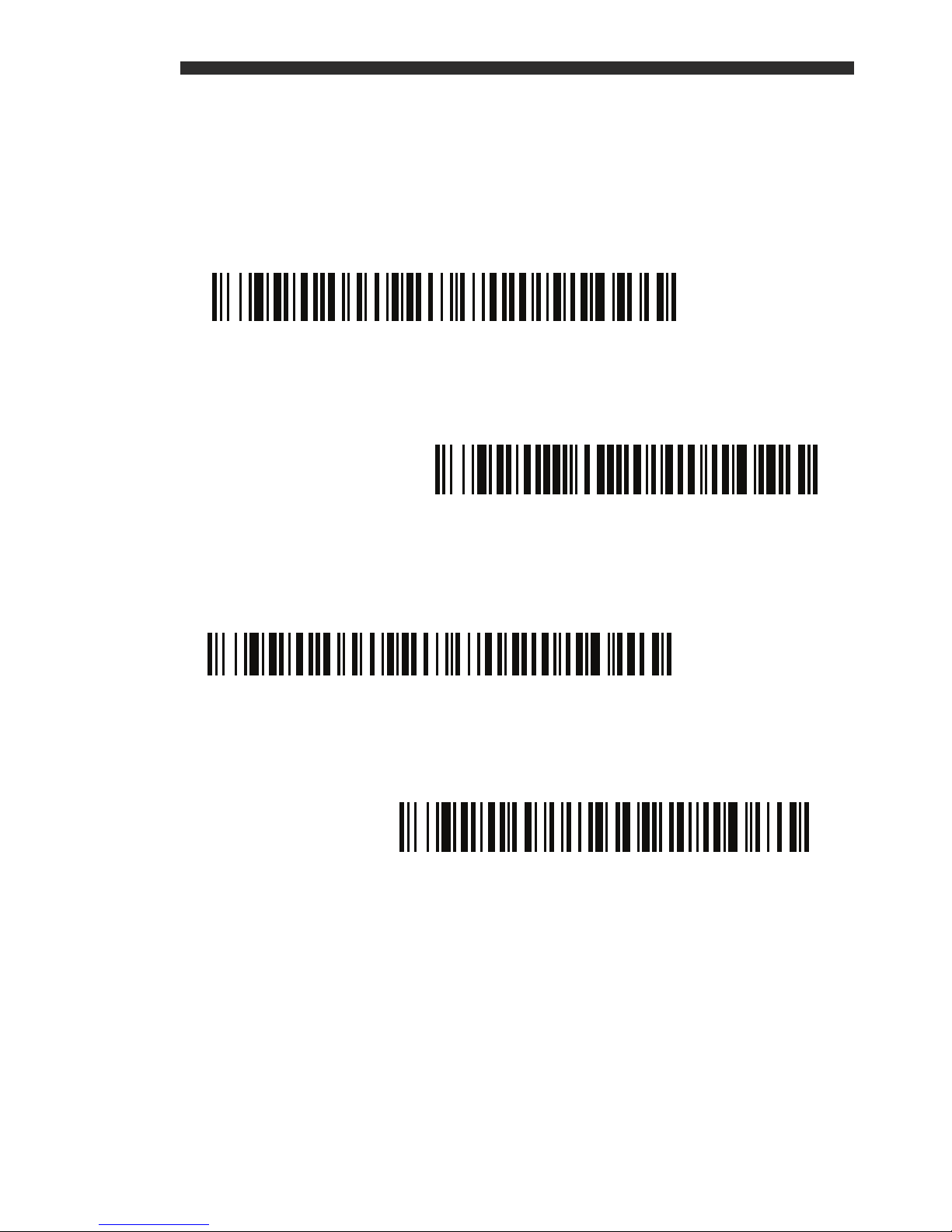

Interface

AT/PS2 Keyboard Wedge

(Default)

RS-232

(Does not apply to 3800g Lite Plus)

USB Keyboard (PC)

Emulate External Keyboard

Scan the bar code that describes the PC or
interface you are using.

EN-5

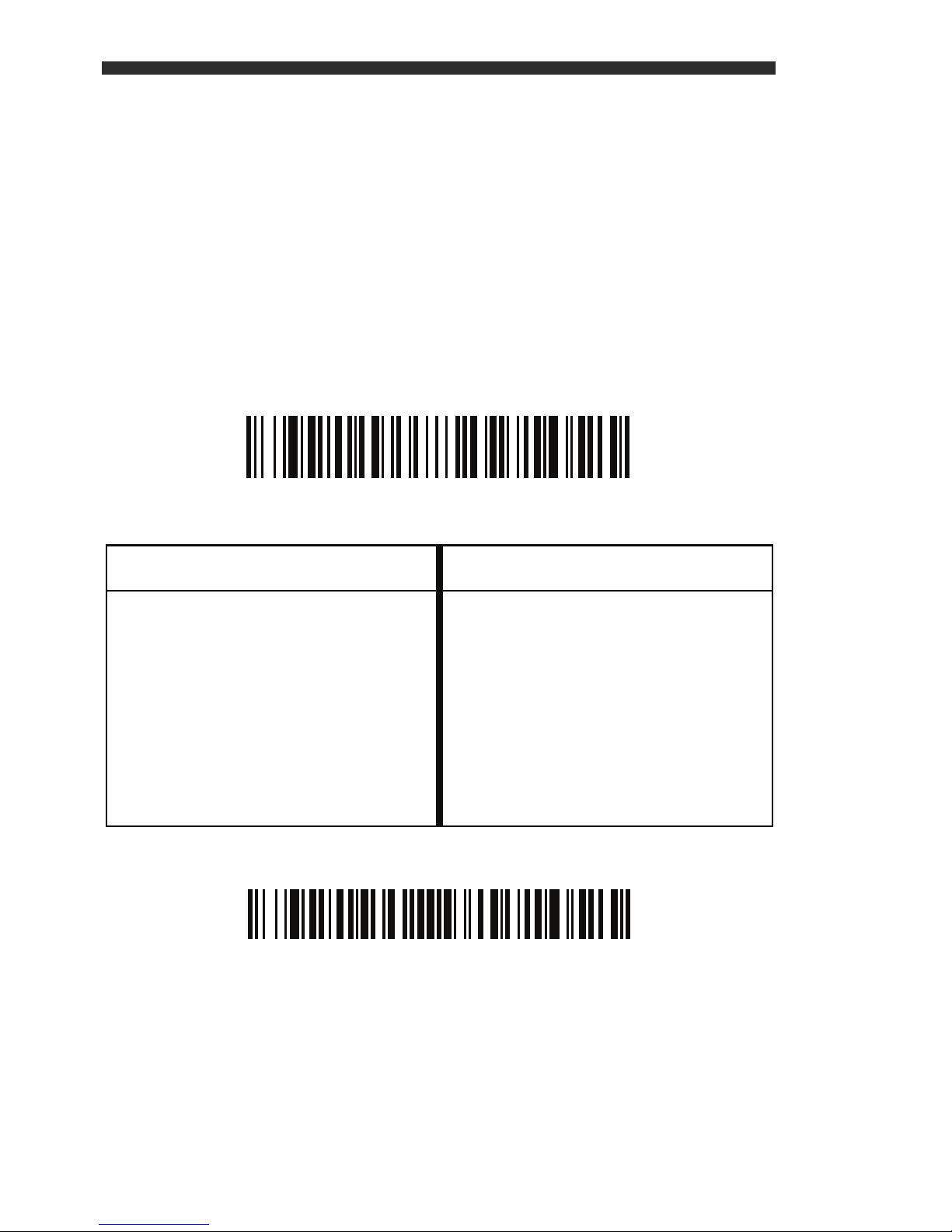

Keyboard Country

Program Keyboard Country

Save

Scan the Program Keyboard Country bar code
below, then scan the numeric bar code(s) from
page EN-10, then the Save bar code to program the
keyboard for your country. As a general rule, the
following characters are not supported by the
scanner for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~.

Country Code Scan Country Code Scan

Belgium 1 Italy 5
Denmark 8 Norway 9
Finland 2 Spain 10
France 3 Switzerland 6
Germany/Austria 4 USA (Default) 0
Great Britain 7

Note: For a complete list of country codes, see the

User’s Guide for your product at our website,

www.honeywell.com/aidc.

EN-6

Trigger

Manual Trigger

(Default)

Automatic Trigger

Presentation Mode

Medium Reread Delay

for 3800 only

Medium Reread Delay

for 3800g, 3800g Lite Plus, 3800r, and 3800i

The following bar codes will allow you to use the
reader in Manual Trigger mode (need to press the
trigger to read), Automatic Trigger mode (the beam
is always on), or Presentation mode (the reader is
activated when it “sees” a bar code).

Reread Delay

This sets the time period before the scanner can
read the
reread delay protects against accidental rereads of
the same bar code.

same

bar code a second time. Setting a

EN-7

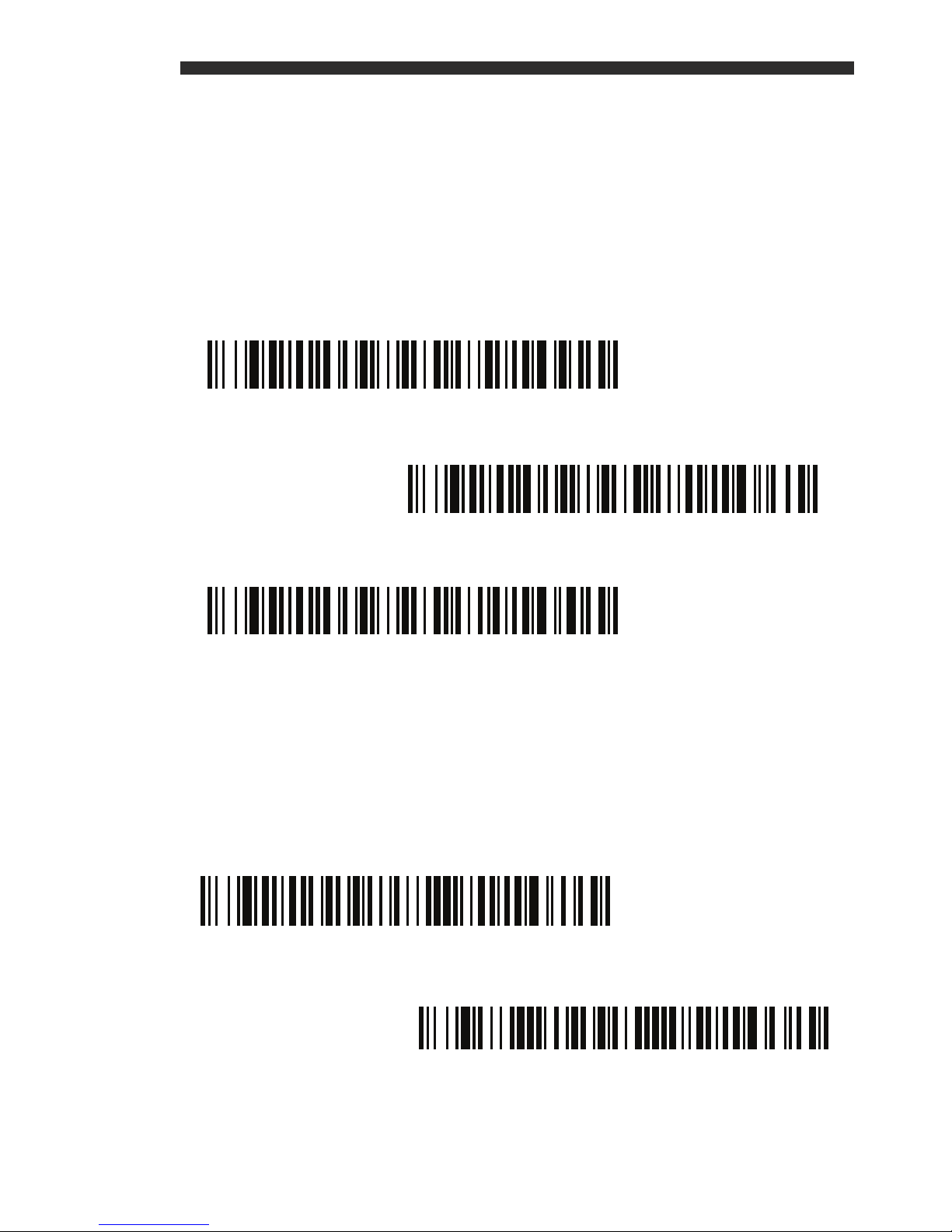

Suffix

Add CR Suffix

Remove Suffix

Add Tab Suffix

Add Code ID Prefix To All Symbologies

(Temporary)

If you want a carriage return after the bar code,
scan the Add CR Suffix bar code. To add a tab
after the bar code, scan the Add Tab Suffix bar
code. Otherwise, scan the Remove Suffix bar
code to remove the suffixes.

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a
Code ID prefix to all symbologies at once.

Note: For a complete list of Code IDs, see the

User’s Guide for your product at our website,

www.honeywell.com/aidc.

EN-8

Data Format Editor Instructions

Enter Data Format

Clear All Data Formats

Save

The following are abbreviated instructions for
entering a data format. For complete instructions
refer to your User’s Guide, available at our website,

www.honeywell.com/aidc.

1. Scan the Enter Data Format symbol.

2. Primary/Alternate Format: scan 0 for Primary

Format.

3. Terminal Type: scan 099 for any terminal type.

4. Code I.D.: scan 99 for any bar code type.

5. Length: scan 9999 for any length bar code.

6. Editor commands: use the Programming Chart
that follows.

7. Scan Save to save your entries.

EN-9

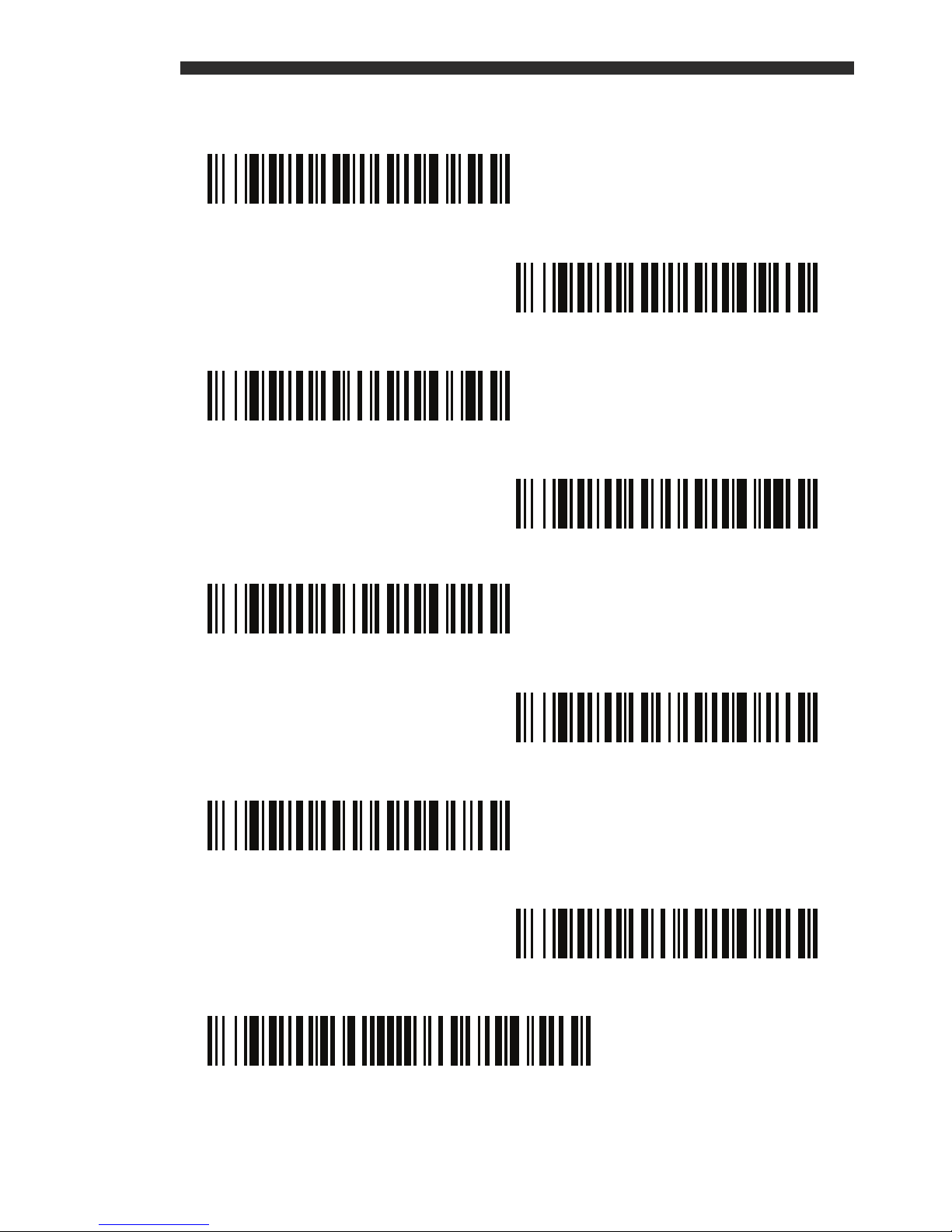

Programming Chart

0

2

1

4

3

5

6

7

EN-10

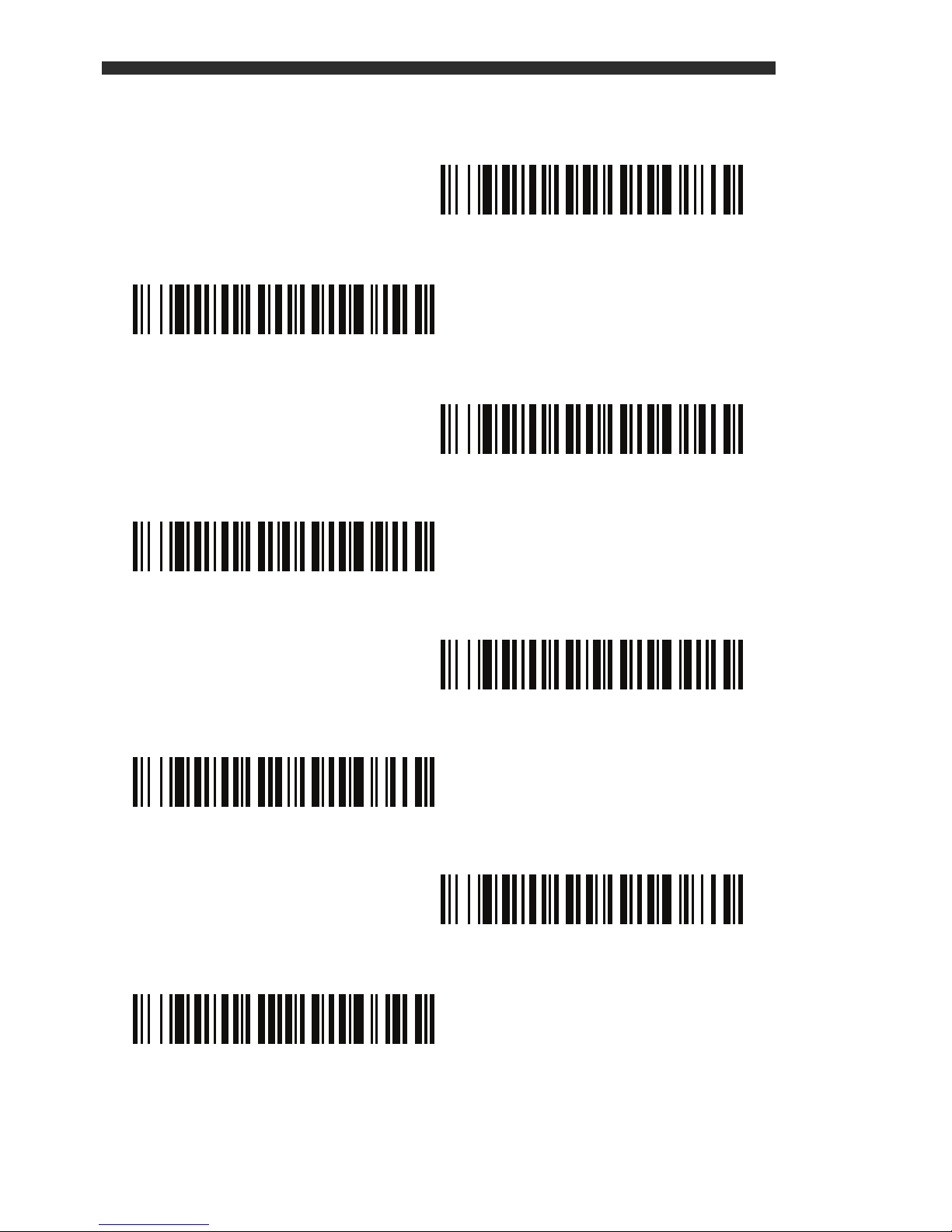

A

B

C

D

E

F

9

8

Save

EN-11

Note: For the 3800ISR000E and 3800RSR000E,

Visual Menu

software 35122063.bin is required.

Visual Menu

To obtain access to additional features for the 3800,
use Visual Menu, available from our website at

www.honeywell.com/aidc. For complete download

instructions and descriptions of Visual Menu’s
features, refer to your User’s Guide.

Visual Xpress™

To obtain access to additional features for the
3800g, 3800gHD, 3800gPDF, 3800g Lite Plus,
3800i, or 3800r, use Visual Xpress, available from
our website at www.honeywell.com/aidc. For
complete download instructions and descriptions of
Visual Xpress features, refer to your User’s Guide.

Technical Assistance

If you need assistance installing or troubleshooting
your device, please call your distributor or the
nearest technical support office:

EN-12

North America/Canada

Telephone: [phone]

E-mail: [e-mail]

Latin America

Telephone: [phone]
Telephone: [phone]

E-mail: [e-mail]

Brazil

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Mexico

Telephone: [phone]

E-mail: [e-mail]

Europe, Middle East, and Africa

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Hong Kong

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Singapore

Telephone: [phone]

EN-13

Fax: [phone]

E-mail: [e-mail]

China

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Japan

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Online Technical Assistance

You can also access technical assistance online at

www.honeywellaidc.com.

Product Service and Repair

Honeywell International Inc. provides service for all
its products through service centers throughout the
world. To obtain warranty or non-warranty service,
contact the appropriate location below to obtain a
Return Material Authorization number (RMA #)
before returning the product.

North America

Telephone: [phone]

E-mail: [e-mail]

EN-14

Latin America

Telephone: [phone]
Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Brazil

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Mexico

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Europe, Middle East, and Africa

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Hong Kong

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Singapore

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

EN-15

China

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Japan

Telephone: [phone]
Fax: [phone]

E-mail: [e-mail]

Online Product Service and Repair
Assistance

You can also access product service and repair
assistance online at www.honeywellaidc.com.

EN-16

Limited Warranty

Honeywell International Inc. ("HII") warrants its products
and optional accessories to be free from defects in
materials and workmanship and to conform to HII’s
published specifications applicable to the products
purchased at the time of shipment. This warranty does not
cover any HII product which is (i) improperly installed or
used; (ii) damaged by accident or negligence, including
failure to follow the proper maintenance, service, and
cleaning schedule; or (iii) damaged as a result of (A)
modification or alteration by the purchaser or other party,
(B) excessive voltage or current supplied to or drawn from
the interface connections, (C) static electricity or electro­static discharge, (D) operation under conditions beyond
the specified operating parameters, or (E) repair or
service of the product by anyone other than HII or its
authorized representatives.

This warranty shall extend from the time of shipment for
the duration published by HII for the product at the time of
purchase ("Warranty Period"). Any defective product
must be returned (at purchaser’s expense) during the
Warranty Period to HII factory or authorized service center
for inspection. No product will be accepted by HII without
a Return Materials Authorization, which may be obtained
by contacting HII. In the event that the product is returned
to HII or its authorized service center within the Warranty
Period and HII determines to its satisfaction that the
product is defective due to defects in materials or
workmanship, HII, at its sole option, will either repair or
replace the product without charge, except for return
shipping to HII.

EN-17

EXCEPT AS MAY BE OTHERWISE PROVIDED BY
APPLICABLE LAW, THE FOREGOING WARRANTY IS
IN LIEU OF ALL OTHER COVENANTS OR
WARRANTIES, EITHER EXPRESSED OR IMPLIED,
ORAL OR WRITTEN, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT.

HII’S RESPONSIBILITY AND PURCHASER’S
EXCLUSIVE REMEDY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR REPLACEMENT OF THE
DEFECTIVE PRODUCT WITH NEW OR REFURBISHED
PARTS. IN NO EVENT SHALL HII BE LIABLE FOR
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY
OF HII ARISING IN CONNECTION WITH ANY
PRODUCT SOLD HEREUNDER (WHETHER SUCH
LIABILITY ARISES FROM A CLAIM BASED ON
CONTRACT, WARRANTY, TORT, OR OTHERWISE)
EXCEED THE ACTUAL AMOUNT PAID TO HII FOR THE
PRODUCT. THESE LIMITATIONS ON LIABILITY SHALL
REMAIN IN FULL FORCE AND EFFECT EVEN WHEN
HII MAY HAVE BEEN ADVISED OF THE POSSIBILITY
OF SUCH INJURIES, LOSSES, OR DAMAGES. SOME
STATES, PROVINCES, OR COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.

EN-18

All provisions of this Limited Warranty are separate and
severable, which means that if any provision is held invalid
and unenforceable, such determination shall not affect the
validity of enforceability of the other provisions hereof.
Use of any peripherals not provided by the manufacturer
may result in damage not covered by this warranty. This
includes but is not limited to: cables, power supplies,
cradles, and docking stations. HII extends these
warranties only to the first end-users of the products.
These warranties are non-transferable.

The duration of the limited warranty for the 3800, 3800g,
3800gHD, 3800gPDF is five (5) years.

The duration of the limited warranty for the 3800i is three
(3) years.

EN-19

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to
make changes in specifications and other information
contained in this document without prior notice, and the
reader should in all cases consult HII to determine
whether any such changes have been made. The
information in this publication does not represent a
commitment on the part of HII.

HII shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing,
performance, or use of this material.

This document contains proprietary information that is

protected by copyright. All rights are reserved. No part of
this document may be photocopied, reproduced, or
translated into another language without the prior written
consent of HII.

©2006-2009 Honeywell Intenational Inc. All rights
reserved.

Web Address: www.honeywellaidc.com

EN-20

Nota: Consulte el manual de usuario para obtener

información sobre la limpieza del dispositivo.

Inicio

Apague el computador antes de conectar el
escáner y vuelva a encenderlo una vez que haya
conectado completamente el lector.

Conexión USB

ES-1

Conexión de teclado

Conexión a puerto serial (RS-232)

Nota: Esto no aplica al lector 3800g Lite Plus.

ES-2

Técnicas de lectura

El visor proyecta
un haz de
encuadre de color
rojo que se debe
colocar centrado
sobre el código de
barras.

Mantenga el
escáner encima
del código de
barras, accione el
disparador y
centre el haz de encuadre sobre el código.

El haz de encuadre se reduce o aumenta de
tamaño cuanto más se aproxima o se aleja,
respectivamente, del código. Acerque el escáner a
los códigos de barras de menor tamaño y aléjelo de
los más grandes para obtener una lectura correcta.

Si el código de barras es muy reflectante (p. ej., si
está laminado), deberá inclinar el escáner en un
ángulo que permita su lectura.

ES-3

Para leer códigos de barras PDF417 con un lector

Configuración predeterminada

estándar de los productos

3800 habilitado para PDF, mantenga presionado el
disparador y mueva el escáner hacia arriba y hacia
abajo de forma que la línea de encuadre haga un
barrido desde la parte superior del código a la
inferior y de nuevo a la superior.

Con esto se asegurará de que se lea el código
completo.

Nota: Esta situación sólo se aplica a los lectores

3800/3800g habilitados para PDF.

Configuración predeterminada estándar de
los productos

El siguiente código de barras restablece toda la
configuración predeterminada estándar de los
productos.

ES-4

Interfaz

Conexión de teclado AT/PS2

(predeterminada)

RS-232

(Esto no aplica al lector 3800g Lite Plus)

Teclado USB (PC)

Emulación de teclado externo

Escanee el código de barras que describe el PC o
la interfaz que utiliza.

Configuración del teclado según el país

El teclado puede ser diferente según los países. Es
posible configurar el lector según el teclado del
país. Para configurar el lector, escanee el código de
barras Configuración del teclado según el país.

ES-5

Y luego, identifique el número de su país en la tabla

Configuración del teclado según el país

Guardar

abajo y escanee el código correspondiente en la
page ES-11. Posteriormente, escanee el código
Guardar de la página 6.

En general, los caracteres @ | $ # { } [ ] = / ‘
\ < > ~ son los únicos admitidos por los lectores
configurados para los Estados Unidos.

Código de país Nº Código de país Nº

Bélgica 1 Italia 5
Dinamarca 8 Noruega 9
Finlandia 2 España 10
Francia 3 Suiza 6
Alemania/Austria 4 EE. UU. (predet.) 0
Gran Bretaña 7

Nota: Para ver una lista completa de los códigos

de país, consulte la guía del usuario del
producto en nuestro sitio web:

www.honeywell.com/aidc.

ES-6

Técnicas de lectura

Lectura manual

(predeterminado)

Lectura automática

Lectura en modo presentación

Hay tres técnicas de lectura disponibles.
Lectura manual, se debe presionar el disparador

para leer el código; Lectura automática, el haz
siempre está activado, el lector está listo para leer;
y Lectura en modo presentación, el lector se activa
únicamente cuando detecta un código de barras.

ES-7

Retardo de nueva lectura

Retardo medio de nueva lectura

sólo para 3800

Retardo medio de nueva lectura

para 3800g, 3800g Lite Plus, 3800r y 3800i

Agregar sufijo de retorno de carro

Eliminar sufijo

Agregar sufijo de tabulación

Establece el período de tiempo que pasa antes de
que el escáner pueda leer el

mismo

código de
barras una segunda vez. Establecer un retardo de
nueva lectura permite evitar nuevas lecturas
accidentales del mismo código.

Sufijos

Si desea que se incluya un retorno de carro detrás
del código de barras, escanee el código Agregar
sufijo de retorno de carro. Para agregar una
tabulación detrás del código de barras, escanee el
código Agregar sufijo de tabulación. De lo
contrario, escanee el código de barras Eliminar
sufijo para eliminar los sufijos.

ES-8

Adición de prefijos de ID de código a todas

Agregar prefijo de ID de código a todas las simbologías

(temporal)

las simbologías

Escanee el siguiente código de barras si desea
agregar un prefijo de ID de código a todas las
simbologías al mismo tiempo.

Nota: Para ver una lista completa de los ID de

código, consulte la guía del usuario del
producto en nuestro sitio web:

www.honeywell.com/aidc.

Instrucciones sobre el editor de formato de los
datos

A continuación se muestran instrucciones
resumidas del proceso de introducción de un
formato de datos. Para obtener las instrucciones
completas, consulte la guía del usuario disponible
en nuestro sitio web: www.honeywell.com/aidc.

1. Escanee el símbolo Introducir formato
de datos.

2. Formato principal/alternativo: escanee 0 para
el formato principal.

3. Tipo de terminal: escanee 099 para cualquier
tipo de terminal.

ES-9

4. ID de código: escanee 99 para especificar que

Introducir formato de datos

Borrar todos los formatos de datos

Guardar

este formato se aplica a todas las simbologías.

5. Longitud: escanee 9999 para especificar que

este formato se aplica a todas las longitudes
de códigos de barras.

6. Comandos del editor: utilice el gráfico de
programación que se muestra más adelante.

7. Escanee Guardar para guardar las entradas.

ES-10

Gráfico de programación

0

2

1

4

3

5

6

7

ES-11

A

B

C

D

E

F

9

8

Guardar

ES-12

Nota: Para los productos 3800ISR000E y

Visual Menu

3800RSR000E, se requiere el software

35122063.bin.

Visual Menu

Para acceder a características adicionales de los
lectores 3800, utilice el Visual Menu, disponible
desde nuestro sitio web: www.honeywell.com/aidc.
Para obtener las instrucciones de descarga
completas y descripciones de las características de
Visual, Menu consulte la guía del usuario.

Visual Xpress™

Para acceder a características adicionales de los
lectores 3800g, 3800gHD, 3800gPDF, 33800g Lite
Plus, 800i o 3800r, utilice Visual Xpress, disponible
desde nuestro sitio web: www.honeywell.com/aidc.
Para obtener las instrucciones de descarga
completas y descripciones de las características de
Visual Xpress, consulte la guía del usuario.

Asistencia técnica

Si necesita ayuda para la instalación o solución de
problemas del dispositivo, comuníquese con su
distribuidor o con la oficina de soporte técnico más
cercana:

ES-13

Norteamérica/Canadá

Teléfono: [phone]

E-mail: [e-mail]

Latinoamérica

Teléfono: [phone]
Teléfono: [phone]

E-mail: [e-mail]

Brasil

Teléfono: [phone]
Fax: [phone]

Email: [e-mail]

México

Teléfono: [phone]

Email: [e-mail]

Europa, Oriente Próximo y África

Teléfono: [phone]
Fax: [phone]

E-mail: [e-mail]

Hong Kong

Teléfono: [phone]
Fax: [phone]

E-mail: [e-mail]

Singapur

Teléfono: [phone]

ES-14

Fax: [phone]

E-mail: [e-mail]

China

Teléfono: [phone]
Fax: [phone]

E-mail: [e-mail]

Japón

Teléfono: ++813-3839-8511
Fax: [phone]

Email: [e-mail]

Asistencia técnica en línea

También puede obtener asistencia técnica en línea
en www.honeywellaidc.com.

Información adicional

Para descargar la guía del usuario completa de
estos productos, visite nuestro sitio web:

www.honeywellaidc.com

.

Servicio posventa y de reparación de
productos

Honeywell International Inc. ofrece servicios para
todos los productos a través de sus centros de
servicio en todo el mundo. Para acceder al servicio
con o sin garantía, póngase en contacto con la

ES-15

oficina adecuada de las que se muestran abajo
para obtener un número de autorización de
devolución (RMA: Return Material Authorization)
antes de devolver el producto.

Norteamérica

Teléfono: [phone]

E-mail: [e-mail]

Latinoamérica

Teléfono: [phone]
Teléfono: [phone]
Fax: [phone]

Email: [e-mail]

Brasil

Teléfono: [phone]
Fax: [phone]

Email: [e-mail]

México

Teléfono: [phone]
Fax: [phone]

Email: [e-mail]

Europa, Oriente Próximo y África

Teléfono: [phone]
Fax: [phone]

Email: [e-mail]

Hong Kong

Teléfono: [phone]

ES-16

Fax: [phone]

E-mail: [e-mail]

Singapur

Teléfono: [phone]
Fax: [phone]

E-mail: [e-mail]

China

Teléfono: [phone]
Fax: [phone]

E-mail: [e-mail]

Japón

Teléfono: ++813-3839-8511
Fax: ++813-3839-8519

Email: [e-mail]

Asistencia en línea del servicio posventa y de
reparación de productos

También puede obtener asistencia en línea del
servicio posventa y de reparación de productos en

www.honeywellaidc.com.

ES-17

Limited Warranty

Honeywell International Inc. ("HII") warrants its products
and optional accessories to be free from defects in
materials and workmanship and to conform to HII’s
published specifications applicable to the products
purchased at the time of shipment. This warranty does not
cover any HII product which is (i) improperly installed or
used; (ii) damaged by accident or negligence, including
failure to follow the proper maintenance, service, and
cleaning schedule; or (iii) damaged as a result of (A)
modification or alteration by the purchaser or other party,
(B) excessive voltage or current supplied to or drawn from
the interface connections, (C) static electricity or electro­static discharge, (D) operation under conditions beyond
the specified operating parameters, or (E) repair or
service of the product by anyone other than HII or its
authorized representatives.

This warranty shall extend from the time of shipment for
the duration published by HII for the product at the time of
purchase ("Warranty Period"). Any defective product
must be returned (at purchaser’s expense) during the
Warranty Period to HII factory or authorized service center
for inspection. No product will be accepted by HII without
a Return Materials Authorization, which may be obtained
by contacting HII. In the event that the product is returned
to HII or its authorized service center within the Warranty
Period and HII determines to its satisfaction that the
product is defective due to defects in materials or
workmanship, HII, at its sole option, will either repair or
replace the product without charge, except for return
shipping to HII.

ES-18

EXCEPT AS MAY BE OTHERWISE PROVIDED BY
APPLICABLE LAW, THE FOREGOING WARRANTY IS
IN LIEU OF ALL OTHER COVENANTS OR
WARRANTIES, EITHER EXPRESSED OR IMPLIED,
ORAL OR WRITTEN, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT.

HII’S RESPONSIBILITY AND PURCHASER’S
EXCLUSIVE REMEDY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR REPLACEMENT OF THE
DEFECTIVE PRODUCT WITH NEW OR REFURBISHED
PARTS. IN NO EVENT SHALL HII BE LIABLE FOR
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY
OF HII ARISING IN CONNECTION WITH ANY
PRODUCT SOLD HEREUNDER (WHETHER SUCH
LIABILITY ARISES FROM A CLAIM BASED ON
CONTRACT, WARRANTY, TORT, OR OTHERWISE)
EXCEED THE ACTUAL AMOUNT PAID TO HII FOR THE
PRODUCT. THESE LIMITATIONS ON LIABILITY SHALL
REMAIN IN FULL FORCE AND EFFECT EVEN WHEN
HII MAY HAVE BEEN ADVISED OF THE POSSIBILITY
OF SUCH INJURIES, LOSSES, OR DAMAGES. SOME
STATES, PROVINCES, OR COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.

All provisions of this Limited Warranty are separate and
severable, which means that if any provision is held invalid
and unenforceable, such determination shall not affect the
validity of enforceability of the other provisions hereof.
Use of any peripherals not provided by the manufacturer
may result in damage not covered by this warranty. This
includes but is not limited to: cables, power supplies,

ES-19

cradles, and docking stations. HII extends these
warranties only to the first end-users of the products.
These warranties are non-transferable.

The duration of the limited warranty for the 3800, 3800g,
3800gHD, 3800gPDF is five (5) years.

The duration of the limited warranty for the 3800i is three
(3) years.

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to
make changes in specifications and other information
contained in this document without prior notice, and the
reader should in all cases consult HII to determine
whether any such changes have been made. The
information in this publication does not represent a
commitment on the part of HII.

HII shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing,
performance, or use of this material.

This document contains proprietary information that is

protected by copyright. All rights are reserved. No part of
this document may be photocopied, reproduced, or
translated into another language without the prior written
consent of HII.

©2006-2009 Honeywell International Inc. Todos los
derechos reservados.

Dirección web: www.honeywellaidc.com

ES-20

Nota: Consulte o guia do usuário para obter

informações sobre a limpeza do dispositivo.

Introdução

Desligue o computador antes de conectar o
scanner e ligue-o quando o scanner estiver
totalmente conectado.

Conexão USB

BP-1

Conexão wedge via teclado

Conexão serial (RS-232)

Nota: Isto não se aplica ao leitor 3800g Lite Plus.

BP-2

Técnicas de leitura

O visor projeta um
feixe de mira
vermelho que deve
ser apontado para
o código de barras.

Segure o scanner
sob o código de
barras, acione
o disparador e
centralize o feixe
no código.

O feixe fica menor
quando o scanner está mais perto do código e
maior quando o equipamento está mais longe. Para
obter uma leitura adequada, mantenha o scanner
próximo para códigos de barras menores e afaste
para códigos maiores.

Se o código de barras for extremamente reflexivo
(por exemplo, laminado), incline o scanner em um
ângulo que permita o escaneamento do código.

BP-3

Para ler códigos de barras PDF417 com um 3800,

Configuração Padrão de Fábrica

pressione o gatilho e mova o scanner para cima
e para baixo, fazendo a varredura completa
do código.

Isso assegura a leitura completa do código.

Nota: esse procedimento se aplica somente ao

3800/3800g PDF.

Configuração Padrão de Fábrica

O código de barra a seguir redefine todas as
configurações predefinidas do produto padrão.

BP-4

Interface

Wedge via teclado AT/PS2

(Padrão)

RS-232

(Isto não se aplica ao leitor 3800g Lite Plus)

Teclado USB (PC)

Emulação de Teclado Externo

Leia o código de barras apropriado para a interface
que será utilizada.

BP-5

Idioma do Teclado

Programar o idioma do teclado

Salvar

Leia o código de barras Programar o idioma
do teclado abaixo. Em seguida, verifique na tabela
o código do país e leia os códigos de barras
numéricos da page BP-10. Leia o código de barras
Salvar para finalizar a programação. Como regra
geral, os seguintes caracteres são suportados pelo
scanner apenas no idioma americano.
@ | $ # { } [ ] = / ‘ \ < > ~.

País Código País Código

Bélgica 1 Itália 5
Dinamarca 8 Noruega 9
Finlândia 2 Espanha 10
França 3 Suíça 6
Alemanha/

4 EUA (Padrão) 0

Áustria
Grã Bretanha 7

Nota: para obter a lista completa dos códigos de

país, consulte o Guia do usuário em nosso
site www.honeywell.com/aidc.

BP-6

Modos de Leitura

Leitura Manual

(Padrão)

Leitura Automática

Modo de Apresentação

Tempo para releitura médio

apenas para 3800

Tempo para releitura médio

para 3800g, 3800g Lite Plus, 3800r e 3800i

Os códigos de barras a seguir permitem usar o
leitor no modo Manual (é necessário pressionar o
gatilho para ler), no modo Automático (o leitor está
sempre ativado) ou no modo Apresentação (o leitor
é ativado quando “vê" um código de barras).

Tempo para releitura

Define o período de tempo antes que o scanner
possa ler o

mesmo

vez. Definir um tempo de releitura protege contra
releituras acidentais do mesmo código de barras.

código de barras pela segunda

BP-7

Sufixo

Adicionar sufixo CR

Remover sufixo

Adicionar sufixo Tab

Adicionar prefixo com o ID do código

(Temporário)

Para inserir um <ENTER> após a leitura do código
de barras, leia o código Adicionar sufixo CR. Para
adicionar um <TAB> após a leitura do código de
barras, escaneie o código Adicionar sufixo Tab.
Leia o código Remover sufixo para remover todos
os sufixos configurados.

Adicionar prefixo com o ID do código

Leia o seguinte código de barras se desejar
adicionar um prefixo de identificação do código
lido, aplicado a todas as simbologias.

Nota: para obter a lista completa das

identificações de código, consulte o Guia do
usuário em nosso site www.honeywell.com/

aidc.

BP-8

Instruções para Formatação de Dados

Criar formatação de dados

Apagar todas as formatações de dados

Salvar

As informações a seguir são breves instruções para
inserir um formato de dados. Para obter as
instruções completas, consulte o Guia do usuário,
disponível em nosso site www.honeywell.com/aidc.

1. Leia o código Criar formatação de dados.

2. Formatação primária/alternativa: leia o número
0 nos códigos de programação para utilizar a
formatação primária.

3. Tipo de terminal: Leia 099 para utilizar a
programação em qualquer tipo de terminal.

4. Tipo de código: Leia 99 para ler todos os tipos
de código de barras.

5. Leia 9999 para códigos de barras com
qualquer quantidade de caracteres.

6. Utilize os códigos de programação para criar
a formatação.

7. Leia o código Salvar para armazenar
a configuração.

BP-9

Códigos de programação

0

2

1

4

3

5

6

7

BP-10

A

B

C

D

E

F

9

8

Salvar

BP-11

Nota: Para os productos 3800ISR000E e

Visual Menu

3800RSR000E, é necessário o software

35122063.bin.

Visual Menu

Para obter acesso aos recursos adicionais do
3800, use o Visual Menu, disponível em nosso
site no endereço www.honeywell.com/aidc. Para
obter instruções completas de download e
descrições dos recursos do Visual Menu, consulte
o Guia do usuário.

Visual Xpress™

Para obter acesso aos recursos adicionais do
3800g, 3800gHD, 3900gPDF, 3800g Lite Plus, do
3800i ou do 3800r, use o Visual Xpress, disponível
em nosso site no endereço www.honeywell.com/

aidc. Para obter instruções completas de download

e descrições dos recursos do Visual Xpress,
consulte o Guia do usuário.

Assistência técnica

Se precisar de assistência para instalar ou
solucionar problemas em seu dispositivo, entre em
contato com o distribuidor ou com a central de
suporte técnico mais próxima:

BP-12

América do Norte/Canadá:

Telefone: [phone]

E-mail: [e-mail]

América Latina:

Telefone: [phone]
Telefone: [phone]

E-mail: [e-mail]

Brasil

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

México

Telefone: [phone]

E-mail: [e-mail]

Europa, Oriente Médio e África:

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

Hong Kong:

Telefone: [phone]

ou

2511-3050

E-mail: [e-mail]

Cingapura

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

BP-13

China

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

Japão

Telefone: ++813-3839-8511
Fax: [phone]

E-mail: [e-mail]

Para obter mais informações

Para fazer o download do Guia do usuário completo
para esses produtos, visite nosso site no endereço

www.honeywellaidc.com

.

Assistência técnica

Se precisar de assistência para instalar ou
solucionar problemas em seu dispositivo, entre em
contato com o distribuidor ou com a central de
suporte técnico mais próxima:

América do Norte/Canadá:

Telefone: [phone]

E-mail: [e-mail]

América Latina:

Telefone: [phone]
Telefone: [phone]

E-mail: [e-mail]

BP-14

Brasil

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

México

Telefone: [phone]

E-mail: [e-mail]

Europa, Oriente Médio e África:

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

Hong Kong:

Telefone: [phone]

ou

2511-3050

E-mail: [e-mail]

Cingapura

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

China

Telefone: [phone]
Fax: [phone]

E-mail: [e-mail]

Japão

Telefone: ++813-3839-8511

BP-15

Fax: [phone]

E-mail: [e-mail]

Para obter mais informações

Para fazer o download do Guia do usuário completo
para esses produtos, visite nosso site no endereço

www.honeywellaidc.com

.

Limited Warranty

Honeywell International Inc. ("HII") warrants its products
and optional accessories to be free from defects in
materials and workmanship and to conform to HII’s
published specifications applicable to the products
purchased at the time of shipment. This warranty does not
cover any HII product which is (i) improperly installed or
used; (ii) damaged by accident or negligence, including
failure to follow the proper maintenance, service, and
cleaning schedule; or (iii) damaged as a result of (A)
modification or alteration by the purchaser or other party,
(B) excessive voltage or current supplied to or drawn from
the interface connections, (C) static electricity or electro­static discharge, (D) operation under conditions beyond
the specified operating parameters, or (E) repair or
service of the product by anyone other than HII or its
authorized representatives.

BP-16

This warranty shall extend from the time of shipment for
the duration published by HII for the product at the time of
purchase ("Warranty Period"). Any defective product
must be returned (at purchaser’s expense) during the
Warranty Period to HII factory or authorized service center
for inspection. No product will be accepted by HII without
a Return Materials Authorization, which may be obtained
by contacting HII. In the event that the product is returned
to HII or its authorized service center within the Warranty
Period and HII determines to its satisfaction that the
product is defective due to defects in materials or
workmanship, HII, at its sole option, will either repair or
replace the product without charge, except for return
shipping to HII.

EXCEPT AS MAY BE OTHERWISE PROVIDED BY
APPLICABLE LAW, THE FOREGOING WARRANTY IS
IN LIEU OF ALL OTHER COVENANTS OR
WARRANTIES, EITHER EXPRESSED OR IMPLIED,
ORAL OR WRITTEN, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT.

HII’S RESPONSIBILITY AND PURCHASER’S
EXCLUSIVE REMEDY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR REPLACEMENT OF THE
DEFECTIVE PRODUCT WITH NEW OR REFURBISHED
PARTS. IN NO EVENT SHALL HII BE LIABLE FOR
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY
OF HII ARISING IN CONNECTION WITH ANY
PRODUCT SOLD HEREUNDER (WHETHER SUCH
LIABILITY ARISES FROM A CLAIM BASED ON
CONTRACT, WARRANTY, TORT, OR OTHERWISE)
EXCEED THE ACTUAL AMOUNT PAID TO HII FOR THE
PRODUCT. THESE LIMITATIONS ON LIABILITY SHALL
REMAIN IN FULL FORCE AND EFFECT EVEN WHEN

BP-17

HII MAY HAVE BEEN ADVISED OF THE POSSIBILITY
OF SUCH INJURIES, LOSSES, OR DAMAGES. SOME
STATES, PROVINCES, OR COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.

All provisions of this Limited Warranty are separate and
severable, which means that if any provision is held invalid
and unenforceable, such determination shall not affect the
validity of enforceability of the other provisions hereof.
Use of any peripherals not provided by the manufacturer
may result in damage not covered by this warranty. This
includes but is not limited to: cables, power supplies,
cradles, and docking stations. HII extends these
warranties only to the first end-users of the products.
These warranties are non-transferable.

The duration of the limited warranty for the 3800, 3800g,
3800gHD, 3800gPDF is five (5) years.

The duration of the limited warranty for the 3800i is three
(3) years.

BP-18

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to
make changes in specifications and other information
contained in this document without prior notice, and the
reader should in all cases consult HII to determine
whether any such changes have been made. The
information in this publication does not represent a
commitment on the part of HII.

HII shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing,
performance, or use of this material.

This document contains proprietary information that is

protected by copyright. All rights are reserved. No part of
this document may be photocopied, reproduced, or
translated into another language without the prior written
consent of HII.

©2006-2009 Honeywell International Inc. All rights
reserved.

Web Address:

www.honeywellaidc.com

BP-19

BP-20

Honeywell

700 Visions Drive
P.O. Box 208
Skaneateles Falls, NY 13153-0208

Linear-02-LA-QS Rev D

8/09
