Xenon™ 1900/1910 Xenon™ 1902/1912 Granit™ 1910i/1911i

Area-Imaging Scanner

User’s Guide

™

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

national Inc. Microsoft® Windows®, Windows NT®, Windows 2000, Windows ME, Windows

XP, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their respective owners.

Product Agency Compliance - Xenon 1900/1910

USA

FCC Part 15 Subpart B Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for

help.

If necessary, the user should consult the dealer or an experienced radio/ television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Honeywell is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Honeywell. The correction is the responsibility of the user.

Use only shielded data cables with this system. This unit has been tested with cables less than 3 meters. Cables greater than 3 meters may not meet class B performance.

Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell may void the FCC authorization to operate this equipment.

UL Statement

UL listed: UL60950-1, 2nd Edition.

Canada

Industry Canada ICES-003

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07, 2nd Edition.

Europe

The CE marking indicates compliance to 2004/108/EC EMC Directive with Standards EN55022 CLASS B, EN55024, EN61000-3-2, EN61000-3-3 and 2011/65/EU RoHS directive. In addition, complies to 2006/95/EC Low Voltage Directive, when shipped with recommended power supply.European contact:

Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands

Honeywell International Inc. shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.

Waste Electrical and Electronic Equipment Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way.

The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environmental performances of this product.

Germany

If your product is marked with the GS symbol, then the product has been issued a GS certificate showing compliance to EN 60950-1, Second Edition.

This device is not intended for use in direct field of view at visual display workplaces. To avoid distracting reflections at visual display workplaces, this device should not be placed in direct field of view.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirement

Mexico

Conforms to NOM-019.

Japan

Russia

Gost-R certificate

South Korea

This product meets Korean agency approval.

Taiwan

If the following label is attached to your product, the product meets Taiwan agency approval:

BSMI Standard: CNS13438, CNS14336 依據標準 : CNS13438, CNS14336

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006.

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

If the following label is attached to your product, it indicates the product contains a laser engine or laser aimer:

LASER LIGHT. Do Not Stare into Beam. Class 2 Laser Product.

1.0 mW Max output: 650nM IEC 60825-1 Ed 2 (2007). Pulse duration of 15.5mSec. Complies with 21 CFR 1040.10 and

1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

This device has been tested in accordance with and complies with IEC60825-1 ed2 (2007) Pulse duration of 15.5 mSec. Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PRODUCT, 1.0 mW MAX OUTPUT: 650nM.

Caution: Use of controls or adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Solids and Water Protection

The Xenon 1900 has a rating of IP41, immunity of foreign particles and dripping water.

Warning

To reduce the possibility of heat-related injuries, avoid touching sections of the scanner that feel warm.

Product Agency Compliance - Xenon 1902/1912 and CCB01-010BT Base

USA

FCC Part 15 Subpart C

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications made to this equipment not

expressly approved by Honeywell may void the FCC authorization to operate this equipment.

Use only shielded data cables with this system. This unit has been tested with cables less than 3 meters. Cables greater than 3 meters may not meet class B performance.

UL Statement

UL listed: UL60950-1, 2nd Edition.

Canada

Industry Canada

This device complies with Canadian RSS-210. Operation is subject to the following conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil ISM est conforme à la norme CNR-210 du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07, 2nd Edition for I.T.E. product safety.

Europe

The CE marking on the product indicates that this device is in conformity with all essential requirements of the 1999/5/EC R&TTE Directive and 2011/65/EU RoHS directive. In addition, complies to 2006/95/EC Low Voltage Directive, when shipped with recommended power supply. European contact:

Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands

Honeywell shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. This equipment is intended for use throughout the European Community and has been assessed to the following standards:

EN 300 328 EN 301 489-1 EN 301 489-17 EN60950-1

Waste Electrical and Electronic Equipment Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL on waste electrical and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

If you need more information on the collection, reuse, and recycling systems, contact your local or regional waste administration.

You may also contact your supplier for more information on the environmental performances of this product.

Germany

If your product is marked with the GS symbol, then the product has been issued a GS certificate showing compliance to EN 60950-1, Second Edition.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirements.

Brazil

This product is approved by Anatel, according to the procedures regulated by Resolution No. 242/2000 and meets the technical requirements applied.

Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolução No. 242/2000 e atende aos requisitos técnicos aplicados.

Para maiores informações, consulte o site da ANATEL – www.anatel.gov.br

China

SRRC Radio Certificate.

Modelo: Xenon 1902

2876-10-6583

" Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário."

(01)07898927490072

Japan

Complies with Technical Regulations Conformity Certification of Specified Radio equipment.

Korea

This product meets Korean agency approval.

Mexico

Conforms to NOM-019.

This product meets Cofetel approval.

Russia

Gost-R certificate.

Taiwan

If the following label is attached to your product, the product meets Taiwan agency approval:

BSMI Standard: CNS13438, CNS14336 (Xenon 1902 only) 依據標準 : CNS13438, CNS14336

NCC standard: Low power frequency electric machineries technical standard: LP0002

International

LED Safety Statement

Scanner LEDs have been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006.

Radio Technology

Class II

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

If the following label is attached to your product, it indicates the product contains a laser engine or laser aimer:

LASER LIGHT. Do Not Stare into Beam. Class 2 Laser Product.

1.0 mW Max output: 650nM IEC 60825-1 Ed 2 (2007). Pulse duration of 15.5mSec. Complies with 21 CFR 1040.10 and

1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PRODUCT, 1.0 mW MAX OUTPUT: 650nM.

Caution: Use of controls or adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

Solids and Water Protection

The Xenon 1902 has a rating of IP41, immunity of foreign particles and dripping water.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Warning

To reduce the possibility of heat-related injuries, avoid touching sections of the scanner that feel warm.

Product Agency Compliance - Granit 1910i

USA

FCC Part 15 Subpart B Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for

help.

Use only shielded data cables with this system. This unit has been tested with cables less than 3 meters. Cables greater than 3 meters may not meet class B performance.

Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell may void the FCC authorization to operate this equipment.

TÜV-R Statement

TÜV Rheinland

TÜV R listed: UL 60950-1, Second Edition and CSA C22.2 No.60950-1-07, Second Edition.

Canada

Industry Canada ICES-003

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable.

TÜV-R Statement

TÜV Rheinland

TÜV R listed: UL 60950-1, Second Edition and CSA C22.2 No.60950-1-07, Second Edition.

Europe

Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands

Waste Electrical and Electronic Equipment Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environmental performances of this product.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirement

Russia

Gost-R certificate

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006.

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

If the following label is attached to your product, it indicates the product contains a laser engine or laser aimer:

LASER LIGHT. DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT.

1.0MW MAX OUTPUT: 650NM. IEC 60825-1 Ed 2 (2007). Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

This device has been tested in accordance with and complies with IEC60825-1 ed2 (2007). Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24,

2007. LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PROD-

UCT, 1.0 mW MAX OUTPUT: 650nM.

Caution: Use of controls or adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Solids and Water Protection

The Granit 1910i has a rating of IP65, totally protected against dust and protected against low pressure water jets.

Warning

To reduce the possibility of heat-related injuries, avoid touching sections of the scanner that feel warm.

Product Agency Compliance - Granit 1911i and CCB02-100BT Base

USA

FCC Part 15 Subpart C

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Caution: Any changes or modifications made to this equipment not

expressly approved by Honeywell may void the FCC authorization to operate this equipment.

Use only shielded data cables with this system. This unit has been tested with cables less than 3 meters. Cables greater than 3 meters may not meet class B performance.

TÜV-R Statement

TÜV Rheinland

TÜV R listed: UL 60950-1, Second Edition and CSA C22.2 No.60950-1-07, Second Edition.

Canada

Industry Canada

This device complies with Canadian RSS-210. Operation is subject to the following conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that

may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil ISM est conforme à la norme CNR-210 du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le

brouillage pouvant causer un fonctionnement indésirable.

TÜV-R Statement

TÜV Rheinland

TÜV R listed: UL 60950-1, Second Edition and CSA C22.2 No.60950-1-07, Second Edition.

Europe

Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands

EN 300 328 EN 301 489-1 EN 301 489-17 EN60950-1

Waste Electrical and Electronic Equipment Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL on waste electrical and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

If you need more information on the collection, reuse, and recycling systems, contact your local or regional waste administration.

You may also contact your supplier for more information on the environmental performances of this product.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirements.

China

SRRC Radio Certificate.

China Safety applies only to the CCB02-100BT.

Russia

Gost-R certificate.

International

LED Safety Statement

Scanner LEDs have been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006.

Radio Technology

Class I

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

If the following label is attached to your product, it indicates the product contains a laser engine or laser aimer:

LASER LIGHT. DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT.

1.0MW MAX OUTPUT: 650NM. IEC 60825-1 Ed 2 (2007). Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

This device has been tested in accordance with and complies with IEC60825-1 ed2 (2007). Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24,

2007. LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PROD-

UCT, 1.0 mW MAX OUTPUT: 650nM.

Caution: Use of controls or adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

Solids and Water Protection

The Granit 1911i has a rating of IP65, immunity of foreign particles and dripping water.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Warning

To reduce the possibility of heat-related injuries, avoid touching sections of the scanner that feel warm.

Required Safety Labels

Xenon 1900/1910/1902/1912 Scanner

Compliance Label location

Part Number, Serial Number and Revision Information location

Illumination output

CCB01-010BT Base

Part Number, Serial Number and Revision Information location

Compliance

Label

locations

Granit 1910i/1911i Scanner

Laser Label location

Illumination

output

Part Number, Serial Number and Revision Information location

Compliance label location

CCB02-100BT Base

Compliance

Label

locations

Chapter 1 - Getting Started

About This Manual ......................................................1-1

Unpacking Your Device............................................... 1-1

Connecting the Device ................................................ 1-2

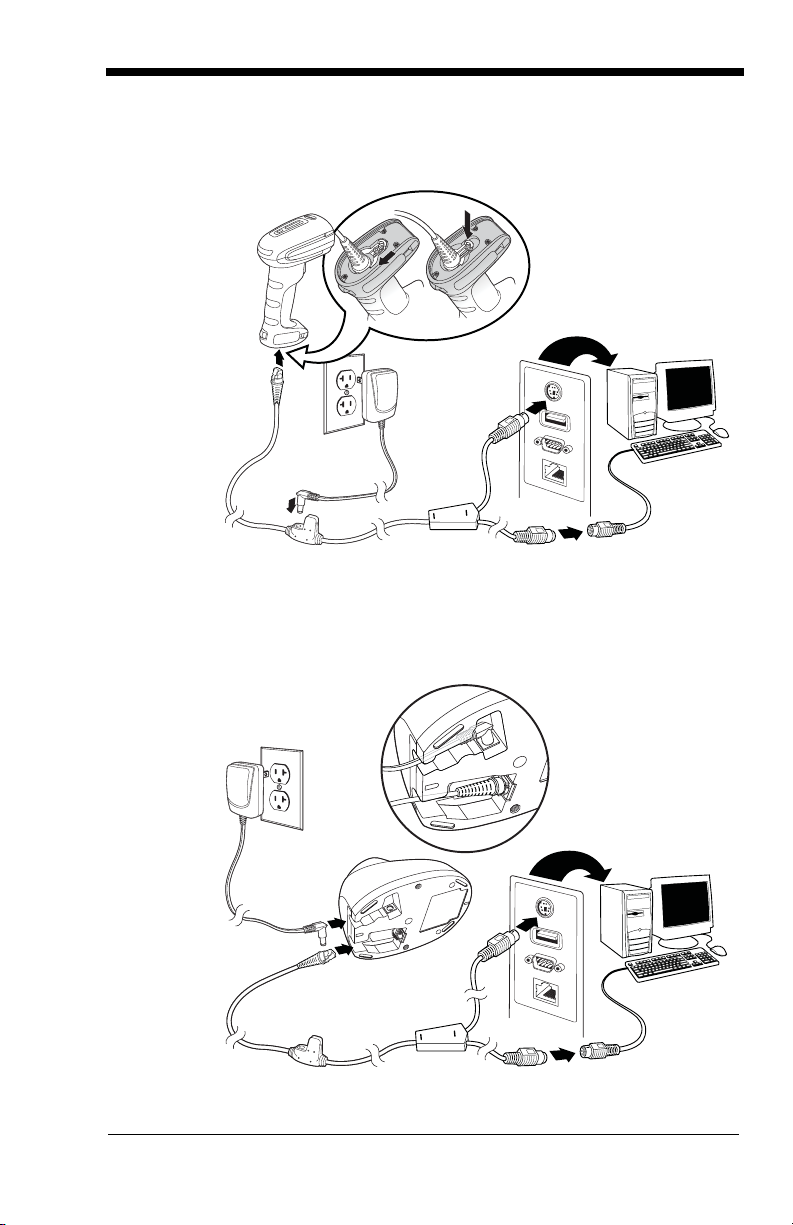

Connecting with USB ............................................ 1-2

Connecting with Keyboard Wedge........................ 1-4

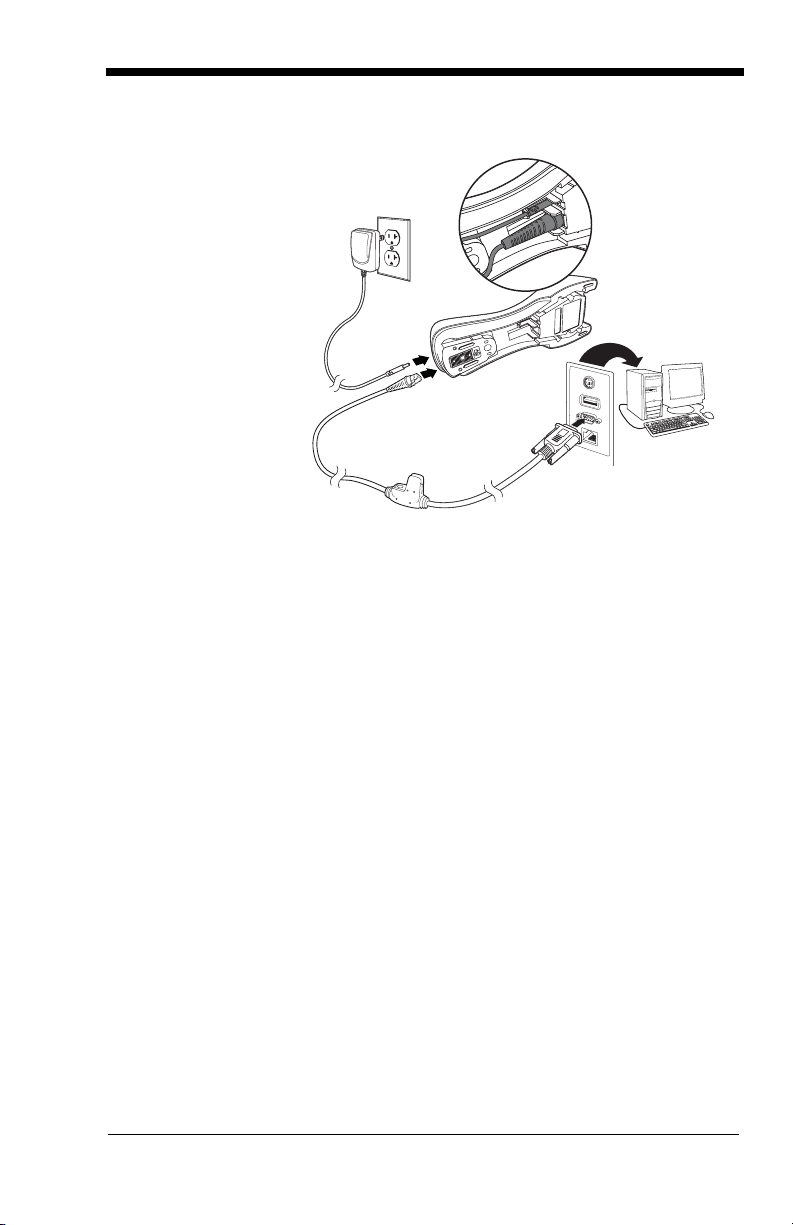

Connecting with RS232 Serial Port....................... 1-7

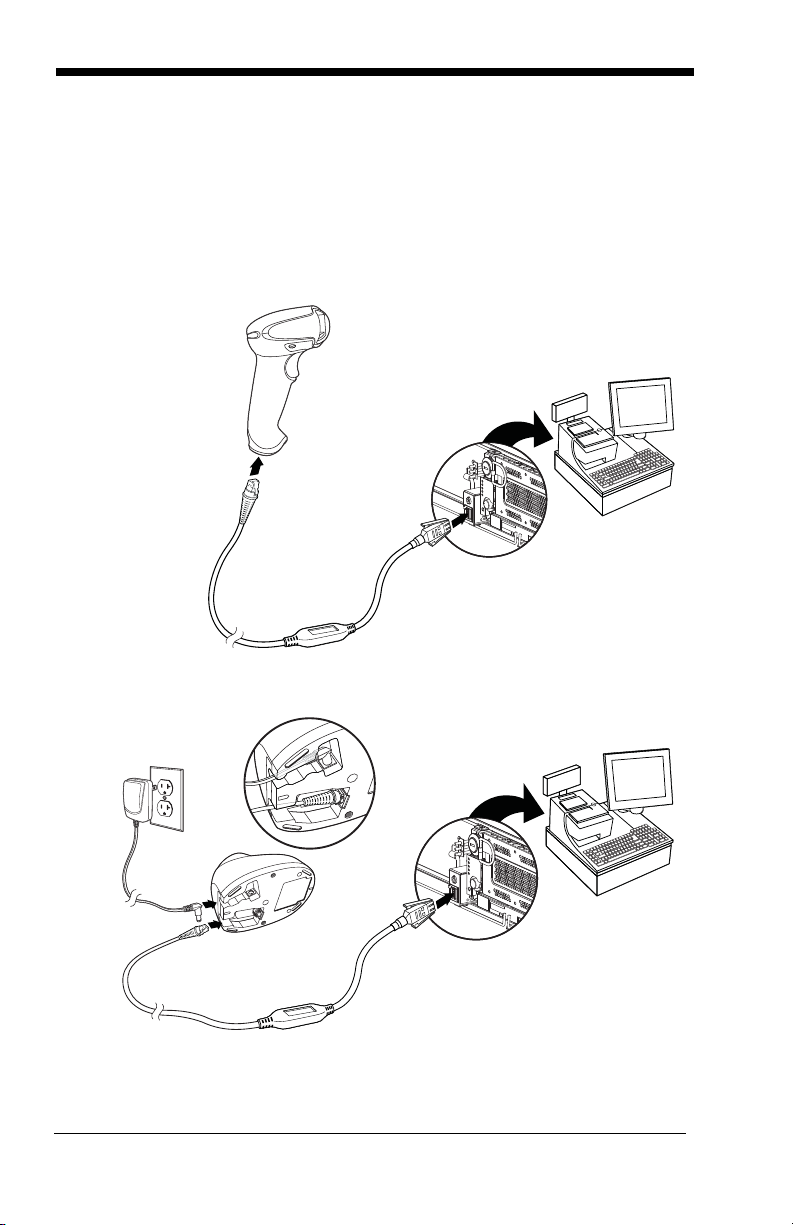

Connecting with RS485....................................... 1-10

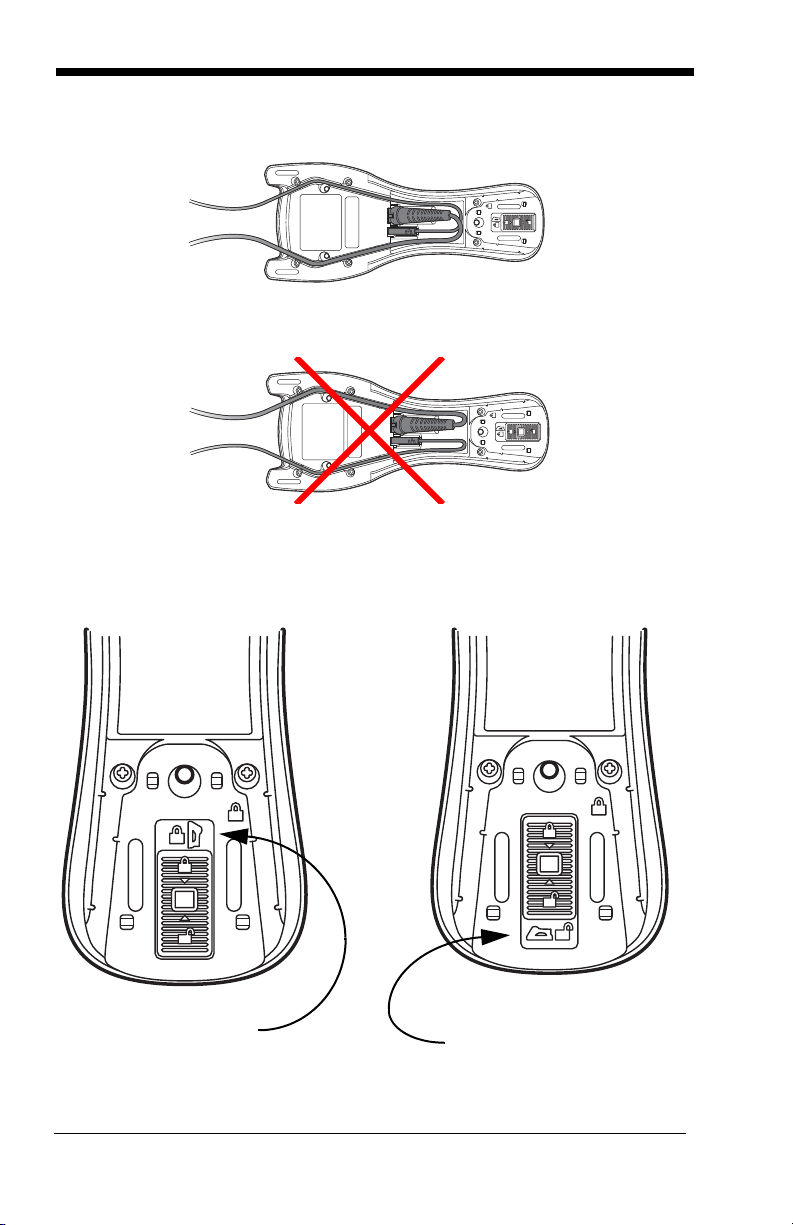

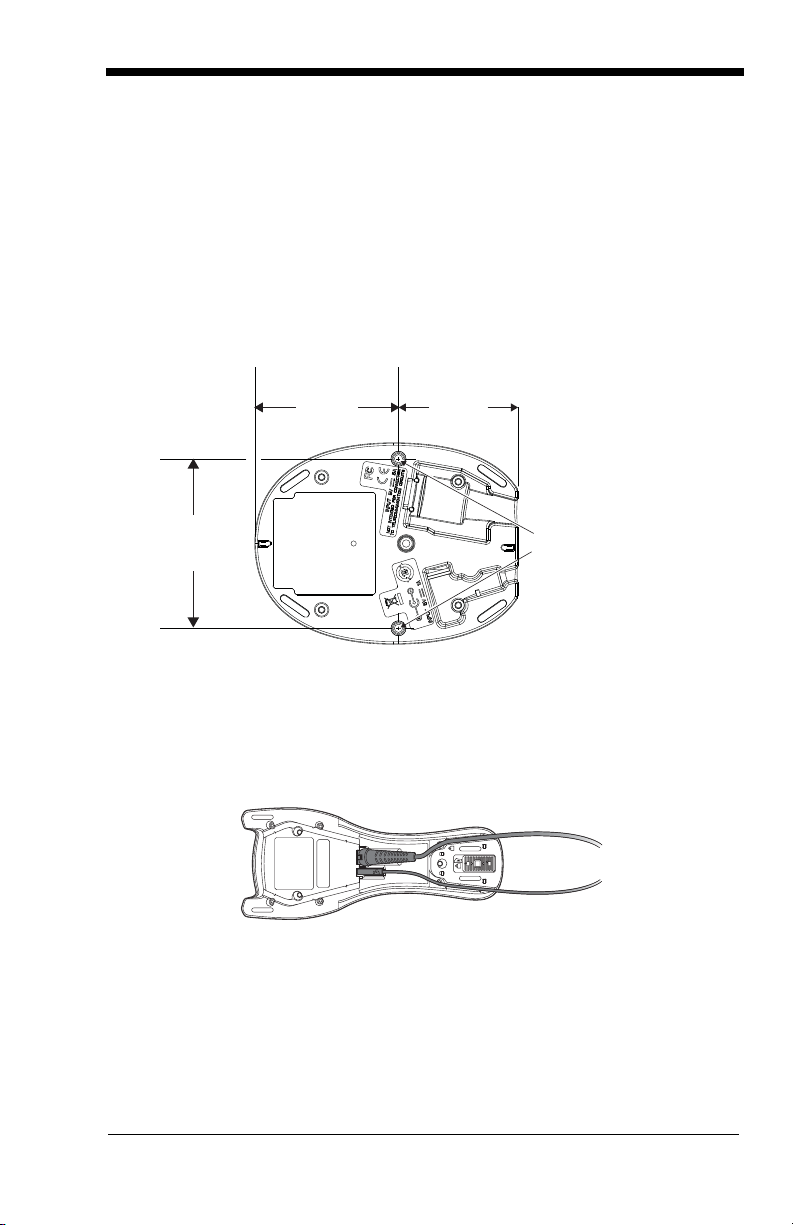

Mounting a CCB01-010BT Charge Base .................. 1-11

Mounting a CCB02-100BT Base............................... 1-11

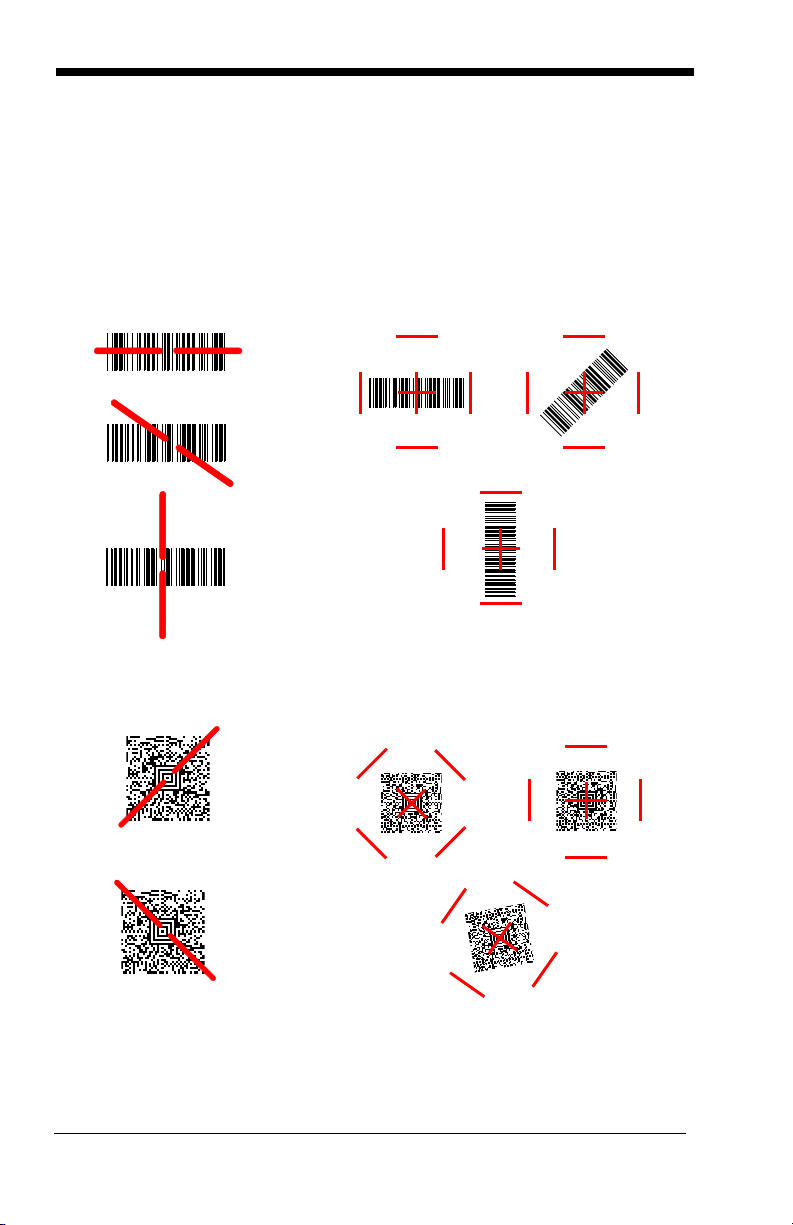

Reading Techniques ................................................. 1-14

Menu Bar Code Security Settings ............................. 1-15

Setting Custom Defaults ........................................... 1-15

Resetting the Custom Defaults ................................. 1-16

Resetting the Factory Defaults.................................. 1-16

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

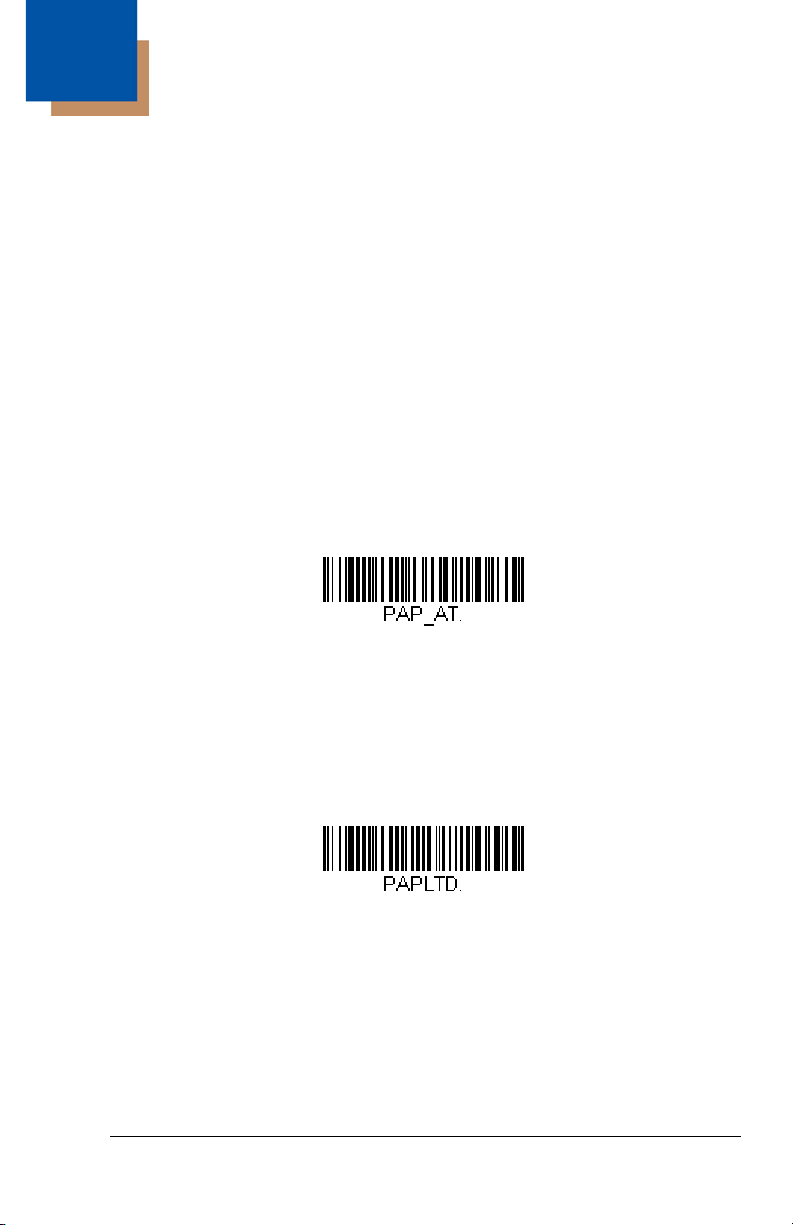

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge ........................................................ 2-1

Laptop Direct Connect ................................................ 2-1

RS232 Serial Port ....................................................... 2-2

RS485 .........................................................................2-2

RS485 Packet Mode ............................................. 2-3

USB IBM SurePos....................................................... 2-4

USB PC or Macintosh Keyboard................................. 2-4

USB HID...................................................................... 2-5

USB Serial................................................................... 2-5

CTS/RTS Emulation.............................................. 2-5

ACK/NAK Mode..................................................... 2-5

Remote MasterMind™ for USB................................... 2-6

Verifone Gilbarco

Honeywell Bioptic Aux Port Configuration................... 2-7

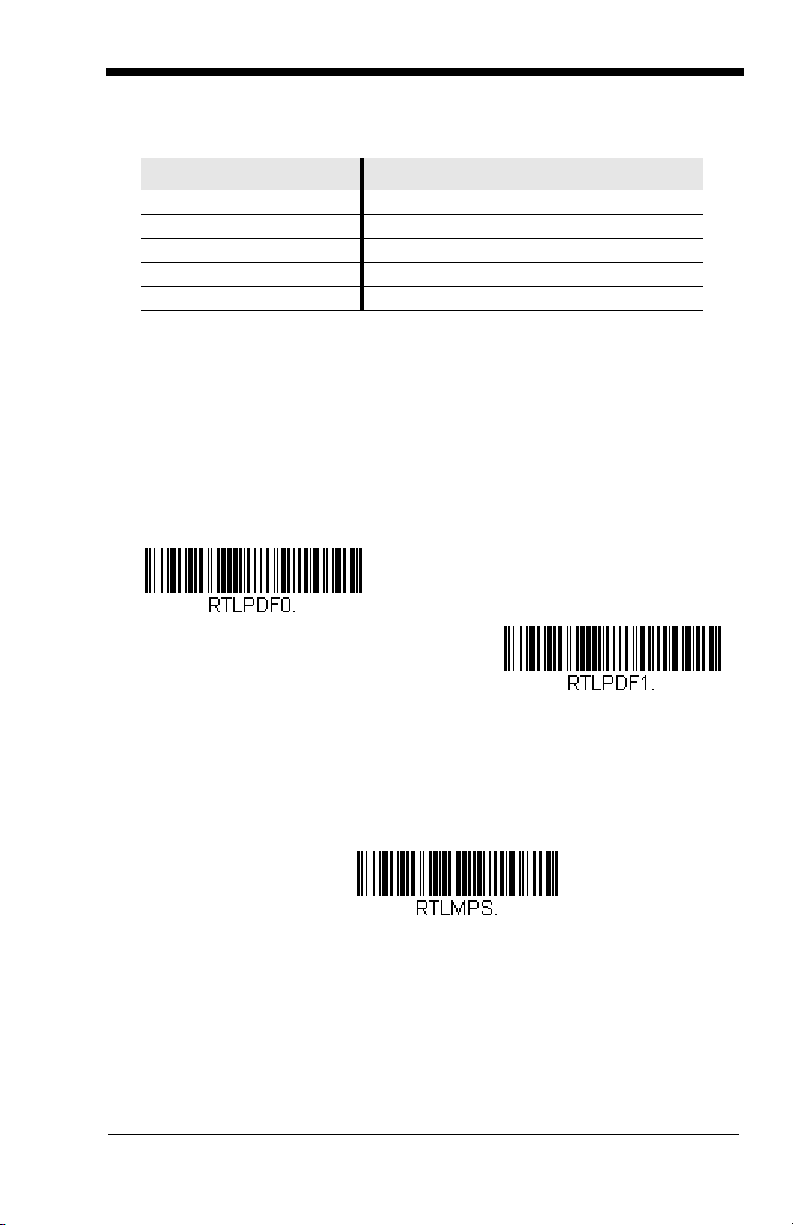

Ruby Terminal Default Settings.................. 2-6

Terminal Default Settings ........................... 2-7

Datalogic™ Magellan® Aux Port Configuration ...........2-7

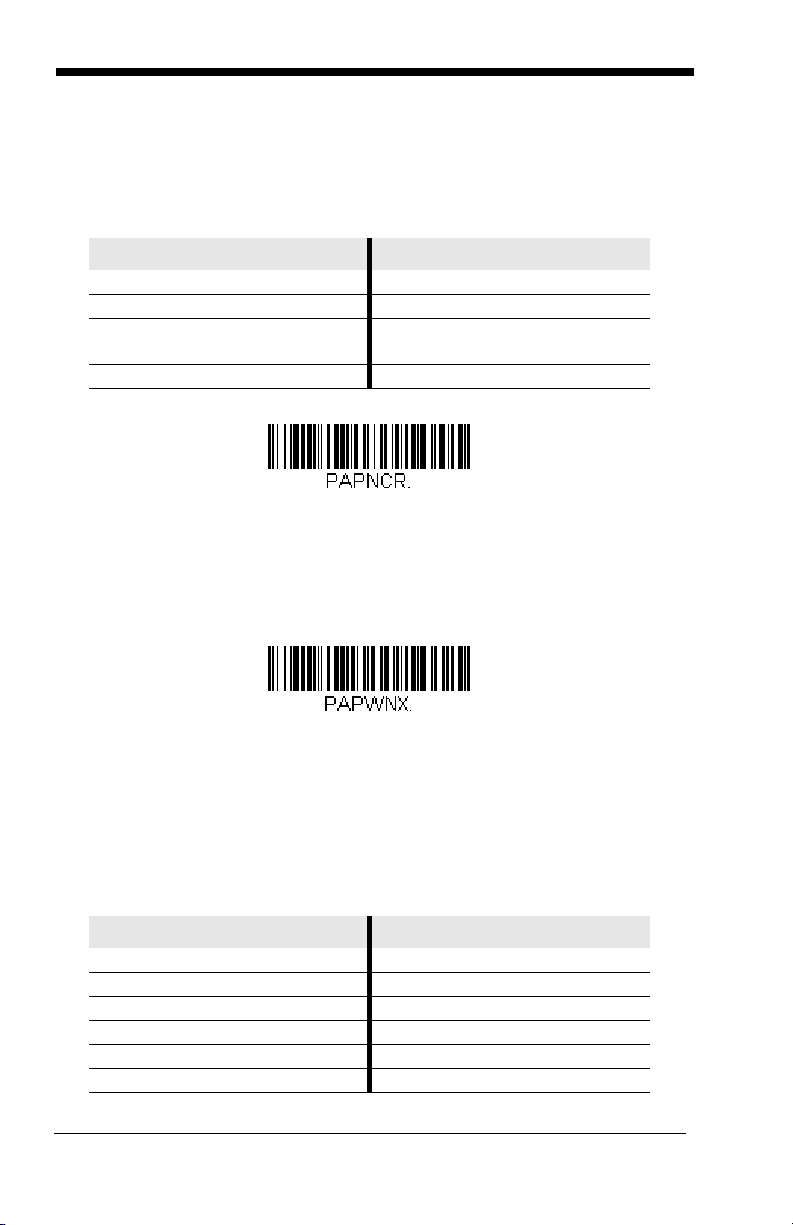

NCR Bioptic Aux Port Configuration............................2-8

Wincor Nixdorf Terminal Default Settings....................2-8

Wincor Nixdorf Beetle™ Terminal Default Settings.....2-8

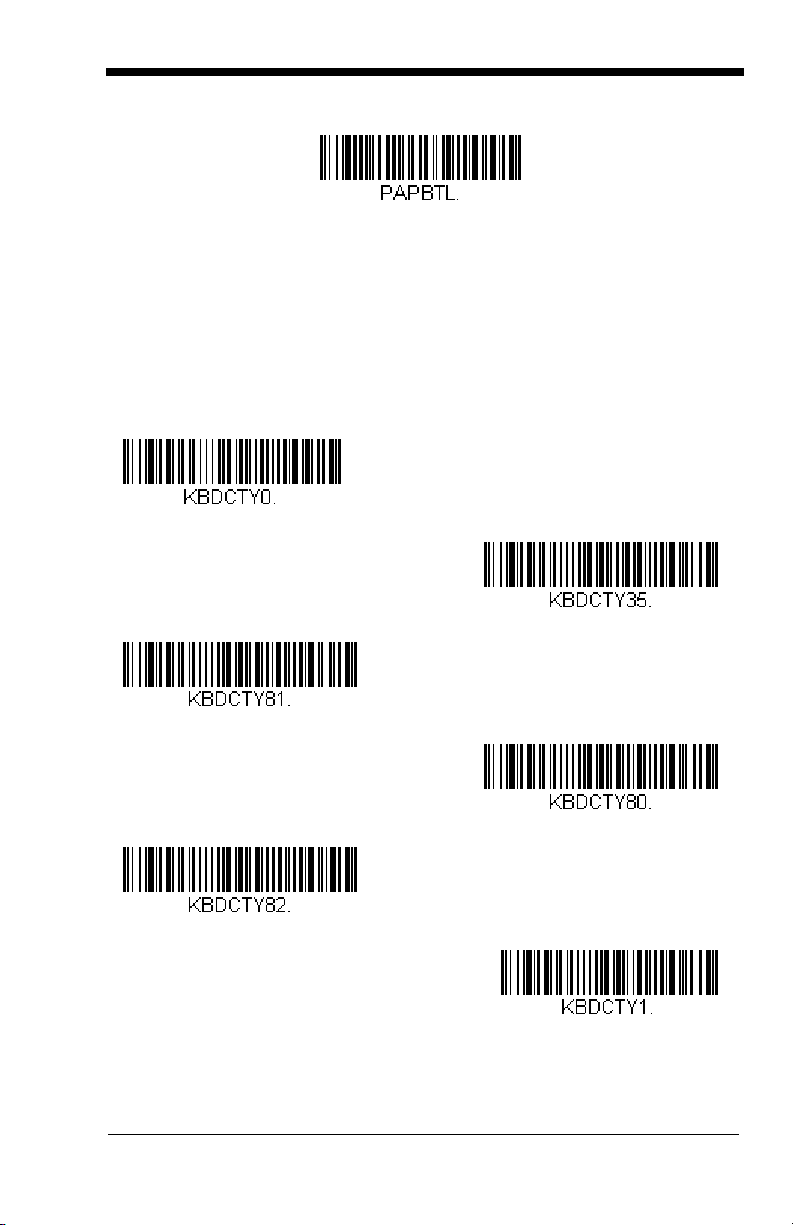

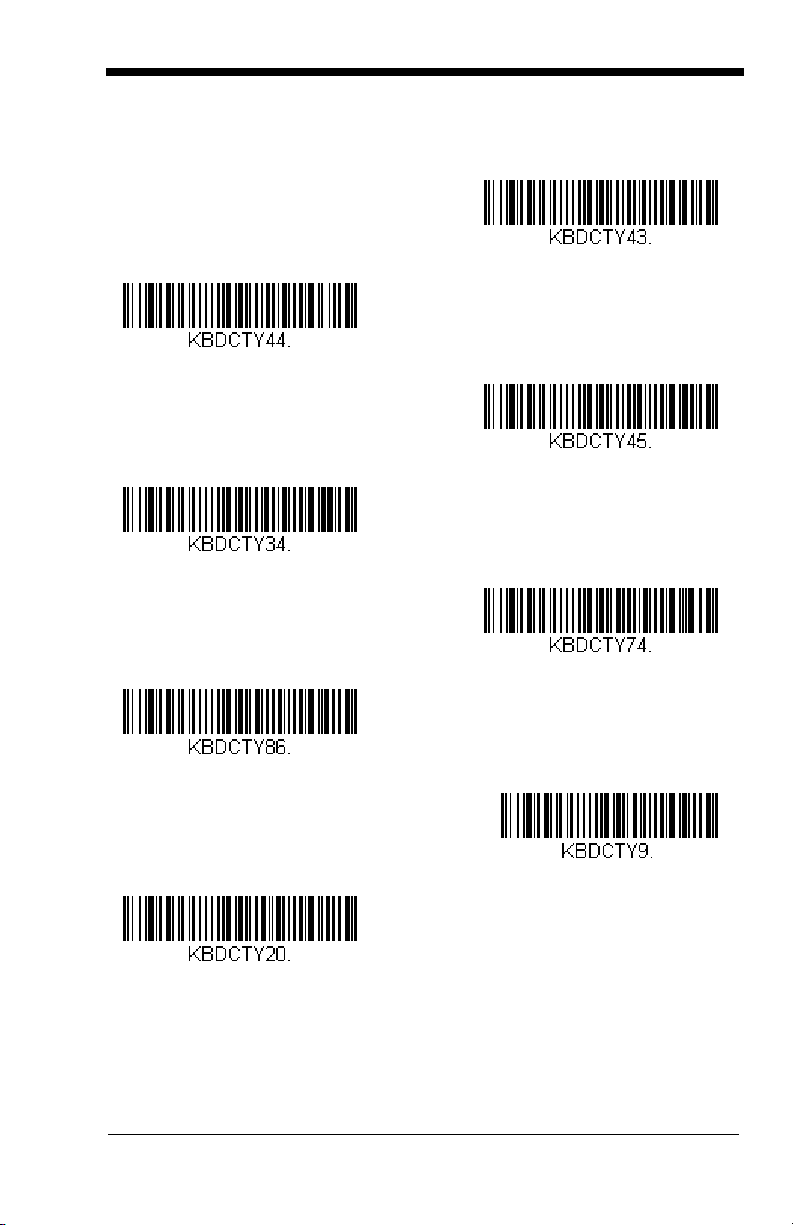

Keyboard Country Layout............................................2-9

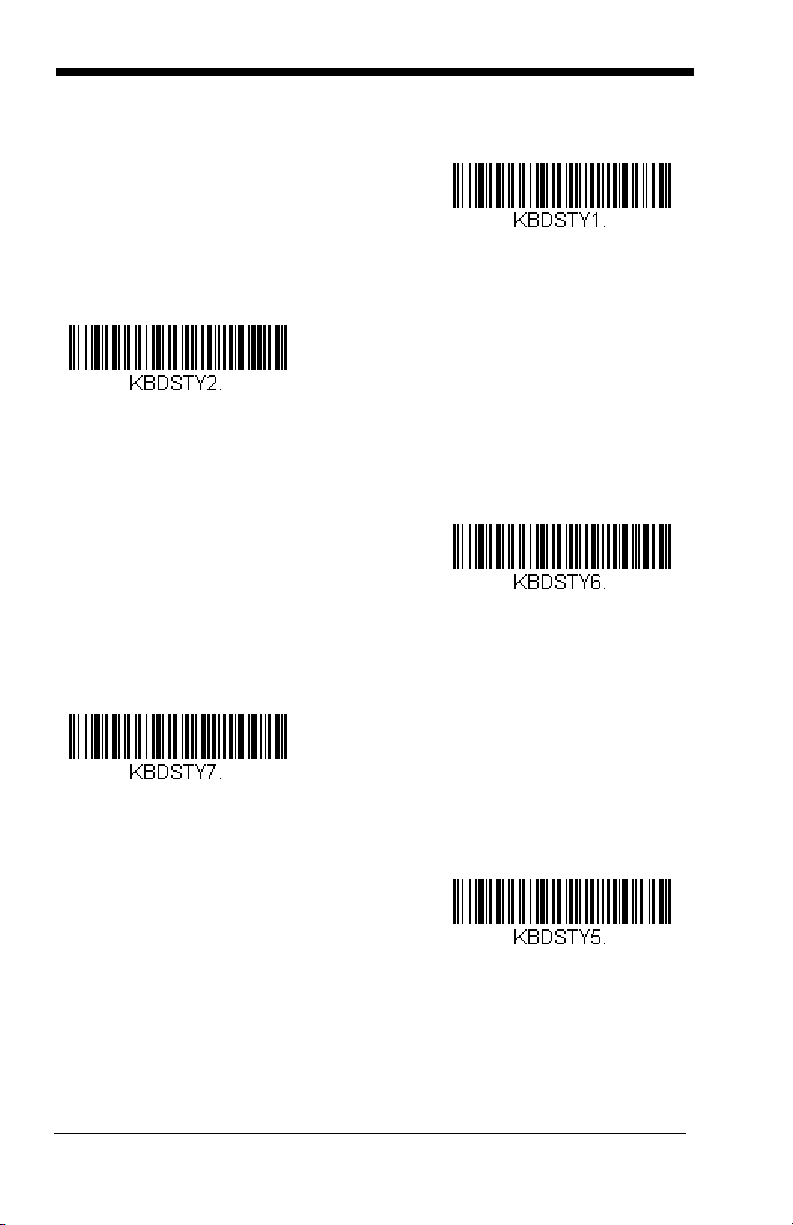

Keyboard Style ..........................................................2-19

Keyboard Conversion ................................................2-21

Control Character Output...........................................2-21

Keyboard Modifiers....................................................2-22

RS232 Modifiers ........................................................2-23

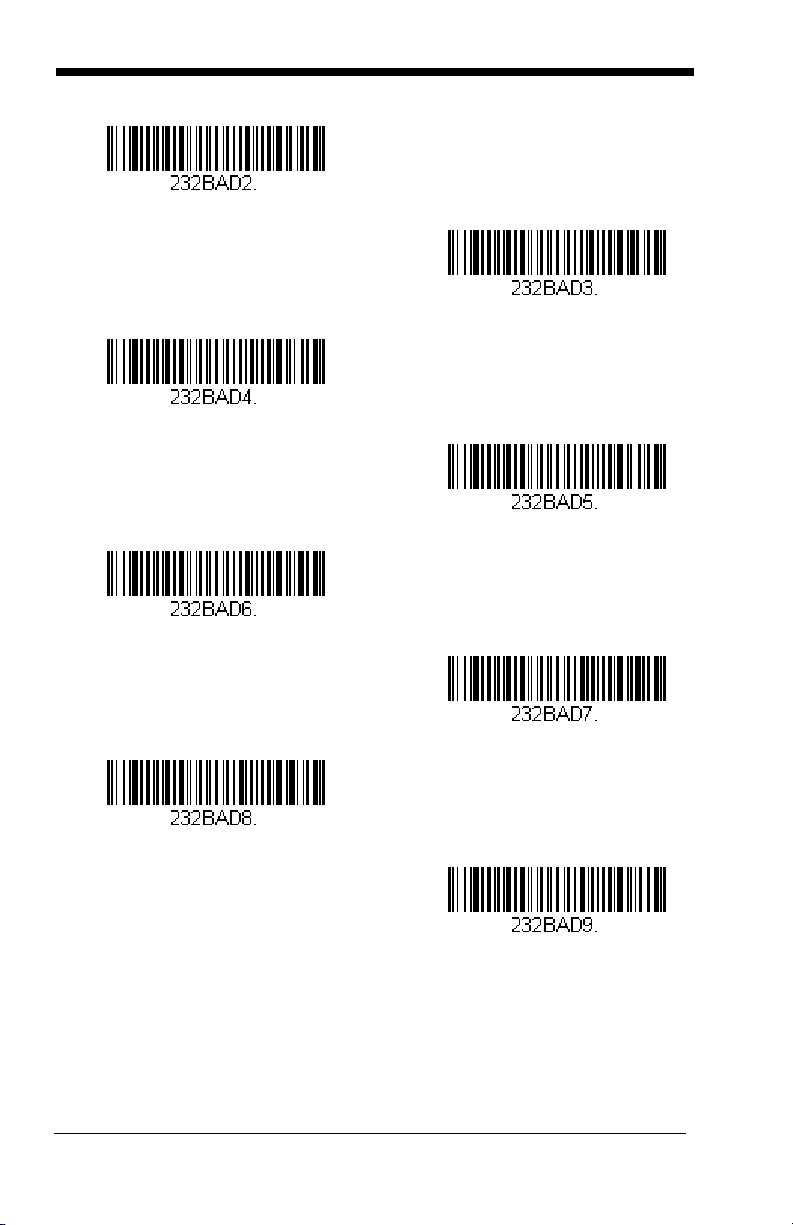

RS232 Baud Rate................................................2-23

RS232 Word Length: Data Bits, Stop Bits,

and Parity .......................................................2-25

RS232 Receiver Time-Out................................... 2-26

RS232 Handshaking............................................2-27

RS232 Timeout....................................................2-28

XON/XOFF ..........................................................2-28

ACK/NAK ............................................................. 2-28

Scanner to Bioptic Communication............................2-29

Scanner-Bioptic Packet Mode .............................2-29

Scanner-Bioptic ACK/NAK Mode......................... 2-30

Scanner-Bioptic ACK/NAK Timeout..................... 2-30

Chapter 3 - Cordless System Operation

How the Cordless Charge Base/

Access Point Works ..................................................3-1

Linking the Scanner to a Charge Base........................3-1

Linking the Scanner to an Access Point ......................3-2

Communication Between the Cordless System

and the Host..............................................................3-2

Programming the Scanner and Base or Access

Point ..........................................................................3-3

RF (Radio Frequency) Module Operation....................3-3

System Conditions.......................................................3-4

Linking Process .....................................................3-4

Scanner Is Out of Range .......................................3-4

Scanner Is Moved Back Into Range...................... 3-4

Out of Range and Back into Range

with Batch Mode On......................................... 3-4

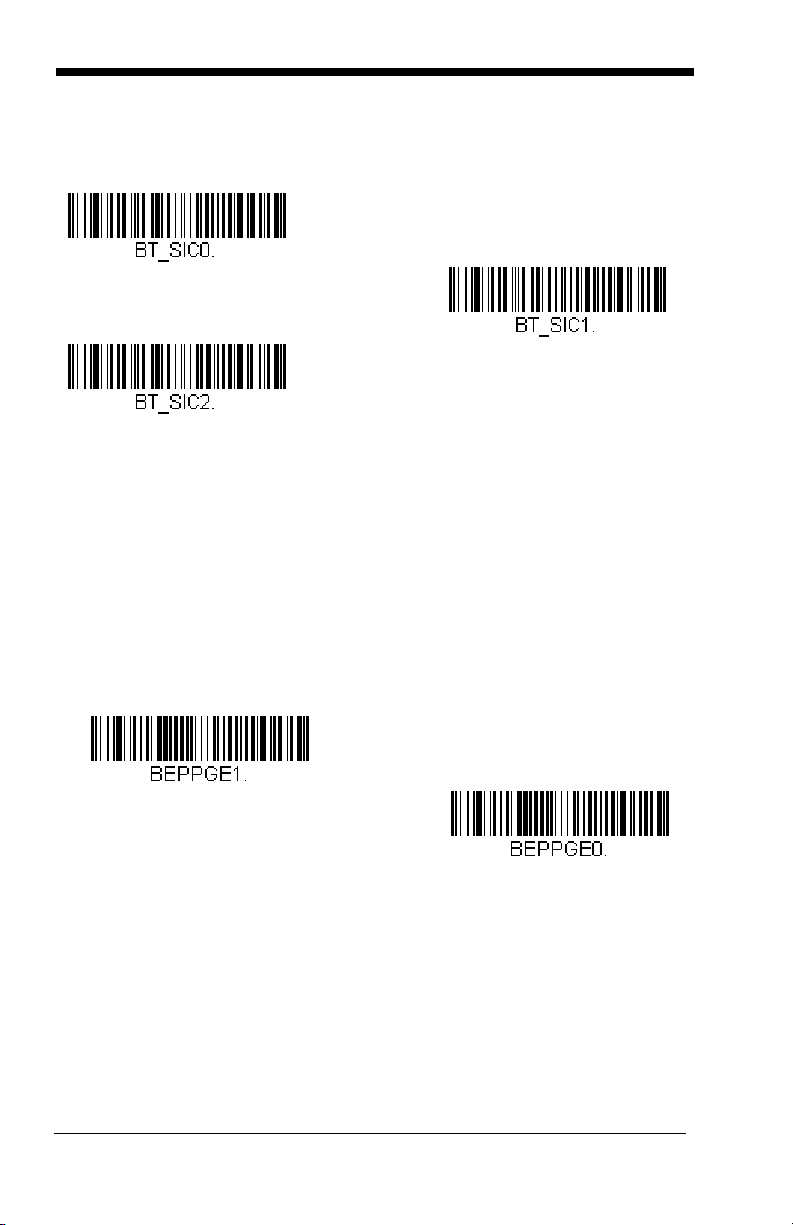

Page Button ................................................................ 3-5

About the Battery ........................................................ 3-5

Charging Information............................................. 3-5

Battery Recommendations.................................... 3-5

Proper Disposal of the Battery .............................. 3-6

Beeper and LED Sequences and Meaning................. 3-7

Scanner LED Sequences and Meaning ................ 3-8

Base/Access Point LED Sequences and

Meaning ........................................................... 3-8

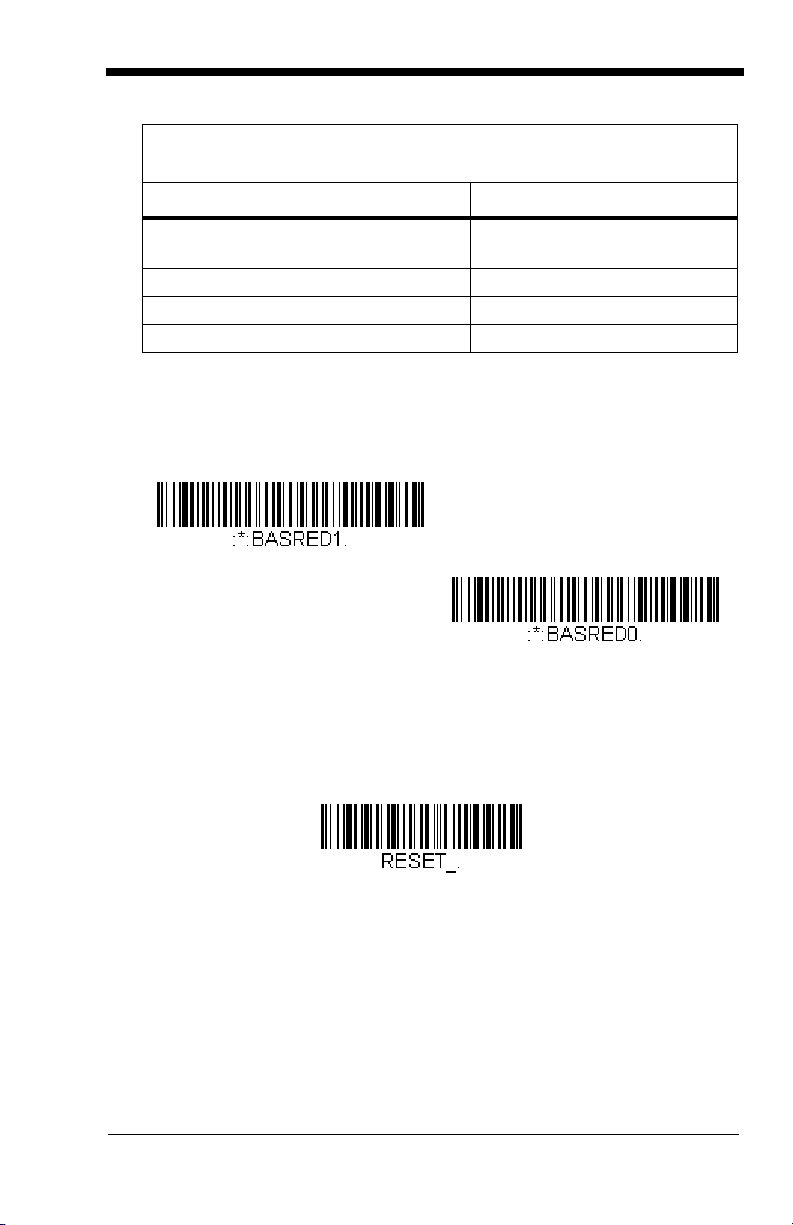

Base Power Communication Indicator .................. 3-9

Reset Scanner ............................................................ 3-9

Scanning While in Base Cradle................................... 3-9

Paging ....................................................................... 3-10

Paging Mode ....................................................... 3-10

Paging Pitch ........................................................ 3-11

Error Indicators.......................................................... 3-11

Beeper Pitch - Base Error ................................... 3-11

Number of Beeps - Base Error............................ 3-11

Scanner Report ......................................................... 3-12

Scanner Address....................................................... 3-12

Base or Access Point Address.................................. 3-12

Scanner Modes ......................................................... 3-13

Charge Only Mode .............................................. 3-13

Linked Modes...................................................... 3-13

Unlinking the Scanner ............................................... 3-14

Override Locked Scanner.................................... 3-15

Out-of-Range Alarm .................................................. 3-15

Alarm Sound Type............................................... 3-15

Scanner Power Time-Out Timer ............................... 3-16

Flexible Power Management..................................... 3-18

Batch Mode ............................................................... 3-19

Batch Mode Beep................................................ 3-20

Batch Mode Storage............................................ 3-20

Batch Mode Quantity........................................... 3-21

iii

Batch Mode Output Order.................................... 3-23

Total Records ......................................................3-24

Delete Last Code ................................................. 3-24

Clear All Codes....................................................3-24

Transmit Records to Host ....................................3-24

Batch Mode Transmit Delay ................................3-25

Multiple Scanner Operation .......................................3-25

Scanner Name...........................................................3-26

Application Work Groups...........................................3-27

Application Work Group Selection ....................... 3-28

Resetting the Factory Defaults:

All Application Work Groups....................................3-29

Resetting the Custom Defaults:

All Application Work Groups....................................3-30

Using the Scanner with Bluetooth Devices................3-30

Bluetooth HID Keyboard Connect........................ 3-30

Bluetooth HID Keyboard Disconnect ...................3-32

Bluetooth Serial Port - PCs/Laptops .................... 3-32

PDAs/Mobility Systems Devices..........................3-33

Changing the Scanner’s Bluetooth PIN Code...... 3-33

Minimizing Bluetooth/ISM Band Network Activity ......3-33

Auto Reconnect Mode .........................................3-34

Maximum Link Attempts ......................................3-35

Relink Time-Out...................................................3-36

Bluetooth/ISM Network Activity Examples...........3-36

Host Acknowledgment...............................................3-37

Chapter 4 - Input/Output Settings

Power Up Beeper ........................................................4-1

Beep on BEL Character...............................................4-2

Trigger Click.................................................................4-2

Good Read and Error Indicators..................................4-2

Beeper – Good Read.............................................4-2

Beeper Volume – Good Read................................ 4-3

Beeper Pitch – Good Read....................................4-3

Vibrate – Good Read ............................................. 4-4

Beeper Pitch – Error.............................................. 4-5

Beeper Duration – Good Read.............................. 4-5

LED – Good Read................................................. 4-5

Number of Beeps – Good Read............................ 4-6

Number of Beeps – Error ...................................... 4-6

Beeper Volume Max.............................................. 4-6

Good Read Delay.................................................. 4-7

User-Specified Good Read Delay ......................... 4-7

Manual Trigger Modes ................................................ 4-7

LED Illumination - Manual Trigger......................... 4-8

Serial Trigger Mode..................................................... 4-9

Read Time-Out...................................................... 4-9

Presentation Mode ...................................................... 4-9

LED Illumination - Presentation Mode................. 4-10

Presentation LED Behavior after Decode ........... 4-10

Presentation Sensitivity....................................... 4-11

Presentation Centering........................................ 4-11

In-Stand Sensor Mode .............................................. 4-14

CodeGate

................................................................ 4-14

Streaming Presentation™ Mode ............................... 4-15

Streaming Presentation In-Stand Programming.. 4-15

Mobile Phone Read Mode......................................... 4-16

Hands Free Time-Out ............................................... 4-16

Reread Delay ............................................................ 4-16

User-Specified Reread Delay.................................... 4-17

Illumination Lights ..................................................... 4-18

Aimer Delay............................................................... 4-18

User-Specified Aimer Delay ................................ 4-18

Scanner Time-Out..................................................... 4-19

Aimer Mode............................................................... 4-19

Centering................................................................... 4-19

Preferred Symbology ................................................ 4-21

High Priority Symbology...................................... 4-22

Low Priority Symbology....................................... 4-22

Preferred Symbology Time-out ........................... 4-22

Preferred Symbology Default .............................. 4-23

Output Sequence Overview ......................................4-23

Require Output Sequence ...................................4-23

Output Sequence Editor ......................................4-23

To Add an Output Sequence ...............................4-24

Other Programming Selections............................ 4-24

Output Sequence Editor ......................................4-26

Partial Sequence .................................................4-26

Require Output Sequence ...................................4-27

Multiple Symbols........................................................4-27

No Read.....................................................................4-28

Video Reverse ...........................................................4-28

Working Orientation...................................................4-29

Chapter 5 - Data Editing

Prefix/Suffix Overview..................................................5-1

To Add a Prefix or Suffix:.......................................5-1

To Clear One or All Prefixes or Suffixes ................5-2

To Add a Carriage Return Suffix

to All Symbologies............................................5-3

Prefix Selections..........................................................5-3

Suffix Selections ..........................................................5-3

Function Code Transmit ..............................................5-4

Intercharacter, Interfunction,

and Intermessage Delays..........................................5-4

Intercharacter Delay ..............................................5-5

User Specified Intercharacter Delay ...................... 5-5

Interfunction Delay.................................................5-6

Intermessage Delay...............................................5-6

Chapter 6 - Data Formatting

Data Format Editor Introduction...................................6-1

Add a Data Format ......................................................6-1

Other Programming Selections.............................. 6-3

Terminal ID Table ........................................................6-4

Data Format Editor Commands...................................6-4

Move Commands................................................... 6-9

Search Commands .............................................. 6-10

Miscellaneous Commands .................................. 6-13

Data Formatter .......................................................... 6-16

Data Format Non-Match Error Tone.................... 6-17

Primary/Alternate Data Formats................................ 6-18

Single Scan Data Format Change....................... 6-18

Chapter 7 - Symbologies

All Symbologies........................................................... 7-2

Message Length Description....................................... 7-2

Codabar ...................................................................... 7-3

Codabar Concatenation ........................................ 7-4

Code 39....................................................................... 7-6

Code 32 Pharmaceutical (PARAF)........................ 7-8

Full ASCII .............................................................. 7-9

Code 39 Code Page.............................................. 7-9

Interleaved 2 of 5 ...................................................... 7-10

NEC 2 of 5................................................................. 7-12

Code 93..................................................................... 7-14

Code 93 Code Page............................................ 7-15

Straight 2 of 5 Industrial (three-bar start/stop) .......... 7-16

Straight 2 of 5 IATA (two-bar start/stop).................... 7-17

Matrix 2 of 5 .............................................................. 7-18

Code 11..................................................................... 7-19

Code 128................................................................... 7-20

ISBT 128 Concatenation ..................................... 7-20

Code 128 Code Page.......................................... 7-22

GS1-128.................................................................... 7-23

Telepen ..................................................................... 7-24

UPC-A ....................................................................... 7-25

UPC-A/EAN-13

with Extended Coupon Code .................................. 7-27

Coupon GS1 DataBar Output ................................... 7-28

UPC-E0 ..................................................................... 7-29

UPC-E1 ..................................................................... 7-31

EAN/JAN-13.............................................................. 7-32

Convert UPC-A to EAN-13.................................. 7-32

vii

ISBN Translate ....................................................7-34

EAN/JAN-8 ................................................................7-35

MSI ............................................................................7-37

GS1 DataBar Omnidirectional ...................................7-39

GS1 DataBar Limited.................................................7-39

GS1 DataBar Expanded ............................................7-40

Trioptic Code .............................................................7-41

Codablock A ..............................................................7-41

Codablock F...............................................................7-43

PDF417......................................................................7-44

MacroPDF417............................................................7-45

MicroPDF417.............................................................7-45

GS1 Composite Codes..............................................7-46

UPC/EAN Version................................................ 7-46

GS1 Emulation...........................................................7-47

TCIF Linked Code 39 (TLC39) ..................................7-48

QR Code....................................................................7-49

QR Code Page ....................................................7-50

Data Matrix ................................................................7-51

Data Matrix Code Page .......................................7-52

MaxiCode...................................................................7-53

Aztec Code ................................................................7-54

Aztec Code Page.................................................7-55

Chinese Sensible (Han Xin) Code.............................7-56

Postal Codes - 2D......................................................7-57

Single 2D Postal Codes:......................................7-57

Combination 2D Postal Codes:............................ 7-58

Postal Codes - Linear ................................................7-61

China Post (Hong Kong 2 of 5)............................7-61

Korea Post ........................................................... 7-63

Chapter 8 - Imaging Commands

Single-Use Basis .........................................................8-1

Command Syntax ........................................................8-1

Image Snap - IMGSNP................................................8-2

IMGSNP Modifiers ................................................. 8-2

viii

Image Ship - IMGSHP................................................. 8-5

IMGSHP Modifiers................................................. 8-5

Intelligent Signature Capture - IMGBOX ................... 8-14

Signature Capture Optimize................................ 8-14

IMGBOX Modifiers .............................................. 8-15

RF Default Imaging Device ....................................... 8-19

Chapter 9 - Interface Keys

Keyboard Function Relationships ............................... 9-1

Supported Interface Keys............................................ 9-3

Chapter 10 - Utilities

To Add a Test Code I.D. Prefix to All

Symbologies ........................................................... 10-1

Show Decoder Revision............................................ 10-1

Show Scan Driver Revision....................................... 10-1

Show Software Revision ...........................................10-1

Show Data Format .................................................... 10-2

Test Menu ................................................................. 10-2

TotalFreedom............................................................ 10-2

Application Plug-Ins (Apps)....................................... 10-3

EZConfig-Scanning Introduction ...............................10-3

Installing EZConfig-Scanning from the Web ....... 10-4

Chapter 11 - Serial Programming Commands

Conventions .............................................................. 11-1

Menu Command Syntax............................................ 11-1

Query Commands ..................................................... 11-2

Responses .......................................................... 11-3

Trigger Commands ................................................... 11-4

Resetting the Custom Defaults ................................. 11-4

Menu Commands...................................................... 11-5

Chapter 12 - Product Specifications

Xenon 1900/1910 Corded Scanner Product

Specifications ..........................................................12-1

Xenon 1902/1912 Cordless Scanner Product

Specifications ..........................................................12-2

Granit 1910i Industrial Corded Scanner Product

Specifications ..........................................................12-3

Granit 1911i Industrial Cordless Scanner Product

Specifications ..........................................................12-4

CCB01-010BT Charge Base Product

Specifications ..........................................................12-6

CCB02-100BT Industrial Charge Base Product

Specifications ..........................................................12-7

Depth of Field Charts.................................................12-8

Xenon B&W Scanner Typical Performance.........12-8

Xenon B&W Scanner Guaranteed

Performance...................................................12-9

Xenon Color Scanner (Model COL) Typical

Performance.................................................12-10

Xenon Color Scanner (Model COL)

Guaranteed Performance ............................12-11

Granit Scanner Typical Performance ................ 12-11

Granit Scanner Guaranteed Performance ........12-12

Standard Connector Pinouts....................................12-13

Keyboard Wedge ............................................... 12-13

Serial Output......................................................12-13

RS485 Output .................................................... 12-14

USB ...................................................................12-14

Chapter 13 - Maintenance

Repairs ......................................................................13-1

Maintenance ..............................................................13-1

Cleaning the Scanner ..........................................13-1

Cleaning the Window...........................................13-1

Health Care Housing ...........................................13-1

Inspecting Cords and Connectors .......................13-2

Replacing Cables in Corded Scanners ..................... 13-2

Replacing a Xenon Interface Cable..................... 13-3

Replacing a Granit Interface Cable ..................... 13-3

Replacing Cables and Batteries

in Cordless Systems ............................................... 13-4

Replacing an Interface Cable in a Base.............. 13-4

Changing a Xenon Scanner Battery.................... 13-5

Changing a Granit Scanner Battery .................... 13-5

Troubleshooting a Corded Scanner ..........................13-5

Troubleshooting a Cordless System ......................... 13-6

Troubleshooting a Base ...................................... 13-6

Troubleshooting a Cordless Scanner.................. 13-7

Chapter 14 - Customer Support

Technical Assistance ................................................ 14-1

Appendix A - Reference Charts

Symbology Charts.......................................................A-1

Linear Symbologies...............................................A-1

2D Symbologies ....................................................A-3

Postal Symbologies...............................................A-3

ASCII Conversion Chart (Code Page 1252) ...............A-4

Lower ASCII Reference Table ....................................A-5

ISO 2022/ISO 646 Character Replacements ............A-10

Unicode Key Maps ....................................................A-13

xii

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the Xenon™ 1900 and 1910 corded area-imaging scanners, the Xenon 1902 and 1912 cordless area-imaging scanners, and the Granit 1910i corded and 1911i cordless industrial scanners. Product specifications, dimensions, warranty, and customer support information are also included.

Honeywell bar code scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking Your Device

After you open the shipping carton containing the product, take the following steps:

• Check for damage during shipment. Report damage immediately to the carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

1 - 1

Connecting the Device

Corded Xenon Scanner USB Connection:

Corded Granit Scanner USB Connection:

Connecting with USB

A scanner or a cordless base can be connected to the USB port of a computer.

1. Connect the appropriate interface cable to the device first, then to the computer.

1 - 2

2. If you are connecting a Granit scanner, make sure the cable is pushed

CCB01-010BT Base USB Connection:

CCB02-100BT Base USB Connection:

tightly into the scanner. Loosen the locking plate and slide it over the base of the cable connector to lock the cable in place. Tighten the screw.

Note: The power supply must be ordered separately, if needed.

3. If you are connecting a CCB01-010BT Base, make sure the cables are secured in the wireways in the bottom of the cordless base and the

1 - 3

base sits flat on a horizontal surface. If you are connecting a CCB02-

Corded Xenon Scanner Keyboard Wedge Connection:

100BT Base, see

4. The scanner beeps.

5. Verify the scanner or cordless base operation by scanning a bar code from the

Sample Symbols in the back of this manual.

Mounting a CCB02-100BT Base on page 1-11.

The unit defaults to a USB PC Keyboard. Refer to terminal settings.

For additional USB programming and technical information, refer to “USB Application Note,” available at

www.honeywellaidc.com.

page 2-4 for other USB

Connecting with Keyboard Wedge

A scanner or cordless base can be connected between the keyboard and PC as a “keyboard wedge,” where the scanner provides data output that is similar to keyboard entries. The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cable from the back of the terminal/computer.

2. Connect the appropriate interface cable to the device and to the terminal/computer.

1 - 4

3. If you are connecting a Granit scanner, make sure the cable is pushed

Corded Granit Scanner Keyboard Wedge Connection:

CCB01-010BT Base Keyboard Wedge Connection:

tightly into the scanner. Loosen the locking plate and slide it over the base of the cable connector to lock the cable in place. Tighten the screw.

1 - 5

Note: The power supply must be ordered separately, if needed.

CCB02-100BT Base Keyboard Wedge Connection:

4. If you are connecting a CCB01-010BT Base, make sure the cables are secured in the wireways in the bottom of the cordless base and the base sits flat on a horizontal surface. If you are connecting a CCB02100BT Base, see

5. Turn the terminal/computer power back on. The scanner beeps.

6. Verify the scanner or cordless base operation by scanning a bar code from the beeps once. If using a Granit scanner, it also vibrates.

The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard. A carriage return (CR) suffix is added to bar code data.

Sample Symbols in the back of this manual. The scanner

Mounting a CCB02-100BT Base on page 1-11.

1 - 6

Connecting with RS232 Serial Port

Corded Xenon Scanner RS232 Serial Port Connection:

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the scanner.

Note: For the scanner or cordless base to work properly, you must have the

correct cable for your type of terminal/computer.

1 - 7

3. If you are connecting a Granit scanner, make sure the cable is pushed

Corded Granit Scanner RS232 Serial Port Connection:

CCB01-010BT Base RS232 Serial Port Connection:

tightly into the scanner. Loosen the locking plate and slide it over the base of the cable connector to lock the cable in place. Tighten the screw.

1 - 8

Note: The power supply must be ordered separately, if needed.

CCB02-100BT Base RS232 Serial Port Connection:

5. Plug the serial connector into the serial port on your computer. Tighten the two screws to secure the connector to the port.

6. Once the scanner or cordless base has been fully connected, power up the computer.

Mounting a CCB02-100BT Base on page 1-11.

This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

1 - 9

Connecting with RS485

Corded Xenon Scanner RS485 Connection: CCB01-010BT Base RS485 Connection:

A Xenon scanner or cordless base can be connected for an IBM POS terminal interface. (This interface is not available in the Granit devices.)

1. Connect the appropriate interface cable to the device, then to the computer.

Note: The power supply must be ordered separately, if needed.

1 - 10

2. Make sure the cables are secured in the wireways in the bottom of the cordless base and the base sits flat on a horizontal surface.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner or cordless base operation by scanning a bar code from the beeps once. If using a Granit scanner, it also vibrates.

Sample Symbols in the back of this manual. The scanner

For further RS485 settings, refer to

RS485, page 2-2.

Mounting a CCB01-010BT Charge Base

2.8 in.

72.1mm

3.35 in.

85.09mm

2.36 in.

59.84mm

8x32 thread x .39 in. (10mm) deep

Mounting a CCB02-100BT Base

The CCB02-100BT Base can be mounted on either a horizontal or vertical surface. The cables can be routed through either the top or the bottom of the base.

The cables can be routed down through the bottom of the base, securing the cables in the wireways.

1 - 11

The cables can also be routed up through the top of the base, crossing them

Locked position for vertical mount

Unlocked position for horizontal mount

over and securing the cables in the wireways.

When routing the cables up through the top of the base, be sure to cross the cables over before placing in the wireways. If not, too much strain is placed on the cable connectors.

When mounted on a vertical surface, a locking system is used to secure the scanner when it is in the stand. When mounted on a horizontal surface, the locking mechanism should be set to unlocked (pushed up). When mounted on a vertical surface, the locking mechanism should be set to locked (pushed down).

1 - 12

Use 30mm screws, appropriate for the mounting surface material, to mount the base securely.

2.51 in.

63.7mm

5.31 in.

134.92mm

2 in.

51.17mm

2.36 in. 60mm

.84 in.

21.42mm

1 - 13

Reading Techniques

Linear bar codes

with aiming beam

2D Matrix symbol

with aiming beam

Linear bar codes

with aiming pattern

2D Matrix symbol

with aiming pattern

The Xenon 1900/1902 scanners have a view finder that projects a bright red aiming beam that corresponds to the scanner’s horizontal field of view. The Xenon 1910/1912 and Granit 1910i/1911i scanners have an aiming pattern . The aiming beam or pattern should be centered over the bar code, but it can be positioned in any direction for a good read.

1 - 14

The aiming beam or pattern is smaller when the scanner is closer to the code

Save Custom Defaults

Set Custom Defaults

and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger bars or elements (mil size) should be read farther from the unit. To read single or multiple symbols (on a page or on an object), hold the scanner at an appropriate distance from the target, pull the trigger, and center the aiming beam or pattern on the symbol. If the code being scanned is highly reflective (e.g., laminated), it may be necessary to tilt the code up 15° to 18° to prevent unwanted reflection.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by sending serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Bar Code Security settings. Please contact the nearest technical support office (see further information.

Technical Assistance on page 14-1) for

Setting Custom Defaults

You have the ability to create a set of menu commands as your own, custom defaults. To do so, scan the Set Custom Defaults bar code below before scanning the menu commands for your custom defaults. If a menu command requires scanning numeric codes from the back cover, then a Save code, that entire sequence will be saved to your custom defaults. When you have entered all the commands you want to save for your custom defaults, scan the Save Custom Defaults bar code.

Note: When using a cordless system, the Custom Defaults settings apply to all

workgroups. Scanning the Save Defaults bar code also causes both the scanner and the base unlinked. The scanner must be placed in its base to re-establish the link before any setup codes are entered. If using an Access Point, the linking bar code must be scanned. See on page 3-1 for additional information.

You may have a series of custom settings and want to correct a single setting. To do so, just scan the new setting to overwrite the old one. For example, if you had previously saved the setting for Beeper Volume at Low to your custom defaults, and decide you want the beeper volume set to High, just scan the Set Custom Defaults bar code, then scan the Beeper Volume High menu code, and then Save Custom Defaults. The rest of the custom defaults will remain, but the beeper volume setting will be updated.

or Access Point to perform a reset and become

Cordless System Operation beginning

1 - 15

Resetting the Custom Defaults

Activate Custom Defaults

Remove Custom Defaults

Activate Defaults

If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This is the recommended default bar

code for most users. It resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings.

Note: If using a cordless system, scanning this bar code also causes both the

scanner and the base or Access Point to perform a reset and become unlinked. The scanner must be placed in its base to re-establish the link. If using an Access Point, the linking bar code must be scanned. See

Cordless System Operation beginning on page 3-1 for additional

information.

Resetting the Factory Defaults

This selection erases all your settings and resets the scanner to the original factory defaults. It also disables all plugins

If you aren’t sure what programming options are in your scanner, or you’ve changed some options and want to restore the scanner to factory default settings, first scan the Remove Custom Defaults bar code, then scan Activate Defaults. This resets the scanner to the factory default settings.

Note: If using a cordless system, scanning the Activate Defaults bar code also

causes both the scanner and the base or Access Point to perform a reset and become unlinked. The scanner must be placed in its base to reestablish the link before any setup codes are entered. If using an Access Point, the linking bar code must be scanned. See

Operation

The Menu Commands, beginning on page 11-5 list the factory default settings for each of the commands (indicated by an asterisk (*) on the programming pages).

beginning on page 3-1 for additional information.

Cordless System

1 - 16

IBM PC AT and Compatibles with

CR suffix

Laptop Direct Connect

with CR suffix

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard, scan the bar code below. Keyboard wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows operation of the scanner in parallel with the integral keyboard. The following Laptop Direct Connect bar code also programs a carriage return (CR) suffix and turns on Emulate External Keyboard (

page 2-20).

2 - 1

RS232 Serial Port

RS232 Interface

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Interface bar code also programs a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indi-

cated below. It also changes the trigger mode to manual.

Option Setting

Baud Rate 115,200 bps Data Format 8 data bits, no parity bit, 1 stop bit

RS485

Scan one of the following “Plug and Play” codes to program the scanner for an IBM POS terminal interface.

Note: This interface is not supported in Granit devices.

After scanning one of these codes, you must power cycle the cash register.

2 - 2

Each bar code above also programs the following suffixes for each symbology:

Packet Mode On

* Packet Mode Off

Packet Length

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B EAN 13 16 Interleaved 2 of 5 00 0D 0B UPC A 0D Code 128 * 00 0A 0B UPC E 0A Code 128 ** 00 18 0B

MaxiCode 00 2F 0B

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B HHBCR1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

RS485 Packet Mode

The following selection allows you to break up large bar code data into smaller packets on an IBM POS terminal. To break up large bar codes into small packets, scan the Packet Mode On bar code below. Scan the Packet Mode Off bar code if you want large bar code data to be sent to the host in a single chunk.

Default = Packet Mode Off.

RS485 Packet Length

If you are using Packet mode, you can specify the size of the data “packet” that is sent to the host. Scan the Packet Length bar code, then then the packet size (from 20 - 256) from the inside the back cover of this manual, then Save.

Programming Chart

Default = 40

2 - 3

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

d (

)

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

Scan one of the following “Plug and Play” codes to program the scanner for an IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop scanner) interface.

Note: After scanning one of these codes, you must power cycle the cash

Each bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B EAN 13 16 Interleaved 2 of 5 00 0D 0B UPC A 0D Code 128 00 18 0B UPC E 0A Code 39 00 0A 0B

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard or USB Macintosh Keyboard. Scanning these codes also adds a CR suffix.

2 - 4

USB HID

USB HID Bar Code Scanner

USB Serial

CTS/RTS Emulation On

* CTS/RTS Emulation Off

ACK/NAK Mode On

* ACK/NAK Mode Off

Scan the following code to program the scanner for USB HID bar code scanners.

USB Serial

Scan the following code to program the scanner to emulate a regular RS232based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website driver will use the next available COM Port number. Apple® Macintosh computers recognize the scanner as a USB CDC class device and automatically use a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

(www.honeywellaidc.com). The

ACK/NAK Mode

2 - 5

Remote MasterMind™ for USB

ReM Off

ReM On

Verifone Ruby Settings

When using a USB interface, you may wish to configure your scanner to communicate with Remote MasterMind Scanner Management Software (ReM). Scan the ReM On bar code to communicate with ReM. To disable this capability, scan ReM Off.

Verifone® Ruby Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Verifone Ruby terminal. This bar code sets the baud rate to 1200 bps and the data format to 8 data bits, no parity bit, 1 stop bit. It also adds a line feed (LF) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A UPC-E A EAN-8 FF EAN-13 F

2 - 6

Gilbarco® Terminal Default Settings

Gilbarco Settings

Honeywell Bioptic Settings

Datalogic Magellan Settings

Scan the following Plug and Play code to program the scanner for a Gilbarco terminal. This bar code sets the baud rate to 2400 bps and the data format to 7 data bits, even parity, 2 stop bits. It also adds a carriage return (CR) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A UPC-E E0 EAN-8 FF EAN-13 F

Honeywell Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Honeywell bioptic scanner auxiliary port configuration. This bar code sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.

Datalogic™ Magellan® Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Datalogic Magellan auxiliary port configuration. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

2 - 7

NCR Bioptic Aux Port Configuration

NCR Bioptic Settings

Wincor Nixdorf Terminal Settings

Scan the following Plug and Play code to program the scanner for an NCR bioptic scanner auxiliary port configuration. The following prefixes are programmed for each symbology:

Symbology Prefix Symbology Prefix

UPC-A A Code 39 B1 UPC-E E0 Interleaved 2 of 5 B2 EAN-8 FF All other bar

codes

EAN-13 F

Wincor Nixdorf Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf terminal. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

Wincor Nixdorf Beetle™ Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. The following prefixes are programmed for each symbology:

Symbology Prefix Symbology Prefix

Code 128 K EAN-13 A Code 93 L GS1-128 P Codabar N Interleaved 2 of 5 I UPC-A A0 Plessey O UPC-E C Straight 2 of 5 IATA H EAN-8 B All other bar codes M

2 - 8

Keyboard Country Layout

Wincor Nixdorf Beetle Settings

* United States

Albania

Azeri (Cyrillic)

Azeri (Latin)

Belarus

Belgium

Scan the appropriate country code below to program the keyboard layout for your country or language. As a general rule, the following characters are supported, but need special care for countries other than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

Keyboard Countries

2 - 9

Keyboard Countries (Continued)

Bosnia

Brazil

Brazil (MS)

Bulgaria (Cyrillic)

Bulgaria (Latin)

Canada (French legacy)

Canada (French)

Canada (Multilingual)

2 - 10

Keyboard Countries (Continued)

Croatia

Czech

Czech (Programmers)

Czech (QWERTY)

Czech (QWERTZ)

Denmark

Dutch (Netherlands)

Estonia

2 - 11

Keyboard Countries (Continued)

Faroese

Finland

France

Gaelic

Germany

Greek

Greek (220 Latin)

Greek (220)

2 - 12

Keyboard Countries (Continued)

Greek (319 Latin)

Greek (319)

Greek (Latin)

Greek (MS)

Greek (Polytonic)

Hebrew

Hungarian (101 key)

Hungary

Iceland

2 - 13

Keyboard Countries (Continued)

Irish

Italian (142)

Italy

Japan ASCII

Kazakh

Kyrgyz (Cyrillic)

Latin America

Latvia

2 - 14

Keyboard Countries (Continued)

Latvia (QWERTY)

Lithuania

Lithuania (IBM)

Macedonia

Malta

Mongolian (Cyrillic)

Norway

Poland

2 - 15

Keyboard Countries (Continued)

Polish (214)

Polish (Programmers)

Portugal

Romania

Russia

Russian (MS)

Russian (Typewriter)

SCS

2 - 16

Keyboard Countries (Continued)

Serbia (Cyrillic)

Serbia (Latin)

Slovakia

Slovakia (QWERTY)

Slovakia (QWERTZ)

Slovenia

Spain

Spanish variation

2 - 17

Keyboard Countries (Continued)

Sweden

Switzerland (French)

Switzerland (German)

Tatar

Turkey F

Turkey Q

Ukrainian

United Kingdom

2 - 18

Keyboard Countries (Continued)

United States (Dvorak)

United States (Dvorak left)

United Stated (Dvorak right)

United States (International)

Uzbek (Cyrillic)

* Regular

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used

Keyboard Conversion settings, they will override any of the following Key-

board Style settings. Regular is used when you normally have the Caps Lock key off.

Default = Regular.

2 - 19

Caps Lock is used when you normally have the Caps Lock key on.

Caps Lock

Shift Lock

Automatic Caps Lock

Autocaps via NumLock

Emulate External Keyboard

Shift Lock

is used when you normally have the Shift Lock key on (not common

to U.S. keyboards).

Automatic Caps Lock is used if you change the Caps Lock key on and off. The software tracks and reflects if you have Caps Lock on or off . This selection can only be used with systems that have an LED that notes the Caps Lock status (AT keyboards).

Autocaps via NumLock

bar code should be scanned in countries (e.g., Germany, France) where the Caps Lock key cannot be used to toggle Caps Lock. The NumLock option works similarly to the regular Autocaps, but uses the NumLock key to retrieve the current state of the Caps Lock.

Emulate External Keyboard should be scanned if you do not have an external keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must power

cycle your computer.

2 - 20

Keyboard Conversion

* Keyboard Conversion Off

Convert All Characters

to Upper Case

Convert All Characters

to Lower Case

Control Character Output On

* Control Character Output Off

Alphabetic keyboard characters can be forced to be all upper case or all lowercase. So if you have the following bar code: “abc569GK,” you can make the output “ABC569GK” by scanning Convert All Characters to Upper Case, or to “abc569gk” by scanning Convert All Characters to Lower Case.

These settings override

Note: If your interface is a keyboard wedge, first scan the menu code for

Automatic Caps Lock (page 2-20). Otherwise, your output may not be as

expected.

Keyboard Style selections.

Default = Keyboard Conversion Off

Control Character Output

This selection sends a text string instead of a control character. For example, when the control character for a carriage return is expected, the output would display [CR] instead of the ASCII code of 0D. Refer to

(Code Page 1252)

first column of the chart).

on page A-4. Only codes 00 through 1F are converted (the

Note: Control + X (Control + ASCII) Mode overrides this mode.

Default = Off.

ASCII Conversion Chart

2 - 21

Keyboard Modifiers

Windows Mode Control + X

Mode On

* Control + X Mode Off

DOS Mode Control + X Mode On

Windows Mode Prefix/Suffix Off

Turbo Mode On

* Turbo Mode Off

This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo Mode.

Control + X (Control + ASCII) Mode On: The scanner sends key combinations for ASCII control characters for values 00-1F. Windows is the preferred mode. All keyboard country codes are supported. DOS mode is a legacy mode, and it does not support all keyboard country codes. New users should use the Windows mode. Refer to for CTRL+ X Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for ASCII control characters for values 00-1F, but it does not transmit any prefix or suffix information.

Default = Control + X Mode Off.

Keyboard Function Relationships, page 9-1

Turbo Mode: The scanner sends characters to a terminal faster. If the terminal drops characters, do not use Turbo Mode.

2 - 22

Default = Off

Numeric Keypad Mode: Sends numeric characters as if entered from a

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Automatic Direct Connect Mode

* Automatic Direct Connect

Mode Off

300

600

numeric keypad.

Automatic Direct Connect Mode: This selection can be used if you have an IBM AT style terminal and the system is dropping characters.

Default = Off

RS232 Modifiers

RS232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the same baud rate as the scanner.

Default = 115,200.

2 - 23

2 - 24

1200

2400

4800

9600

19200

38400

57,600

* 115,200

RS232 Word Length: Data Bits, Stop Bits, and Parity

7 Data, 1 Stop, Parity Even

7 Data, 1 Stop, Parity None

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop Parity None

7 Data, 2 Stop, Parity Odd

8 Data, 1 Stop, Parity Even

Data Bits sets the word length at 7 or 8 bits of data per character. If an

application requires only ASCII Hex characters 0 through 7F decimal (text, digits, and punctuation), select 7 data bits. For applications that require use of the full ASCII set, select 8 data bits per character.

Stop Bits sets the stop bits at 1 or 2.

Default = 1.

Parity provides a means of checking character bit patterns for validity.

Default = None.

Default = 8.

2 - 25

RS232 Receiver Time-Out

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Odd

7 Data, 1 Stop, Parity Space

7 Data, 2 Stop, Parity Space

8 Data, 1 Stop, Parity Space

7 Data, 1 Stop, Parity Mark

7 Data, 2 Stop, Parity Mark

8 Data, 1 Stop, Parity Mark

The unit stays awake to receive data until the RS232 Receiver Time-Out expires. A manual or serial trigger resets the time-out. When an RS232 receiver is sleeping, a character may be sent to wake up the receiver and reset the time-out. A transaction on the CTS line will also wake up the

2 - 26

receiver. The receiver takes 300 milliseconds to completely come up.

RS232 Receiver Time-Out

Flow Control, No Timeout

* RTS/CTS Off

Two-Direction Flow Control

Flow Control with Timeout

Change the RS232 receiver time-out by scanning the bar code below, then scanning digits from the inside back cover of this manual, then scanning Save. The range is 0 to 300 seconds.

Default = 0 seconds (no time-out -

always on).

RS232 Handshaking

RS232 Handshaking allows control of data transmission from the scanner using software commands from the host device. When RTS/CTS is turned Off, no data flow control is used.

Flow Control, No Timeout: The scanner asserts RTS when it has data to send, and will wait indefinitely for CTS to be asserted by the host.

Two-Direction Flow Control: The scanner asserts RTS when it is OK for the host to transmit. The host asserts CTS when it is OK for the device to transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data to send and waits for a delay (see be asserted by the host. If the delay time expires and CTS is not asserted, the device transmit buffer is cleared and scanning may resume.

Default = RTS/CTS Off.

RS232 Timeout on page 2-28) for CTS to

2 - 27

RS232 Timeout

* XON/XOFF Off

XON/XOFF On

When using Flow Control with Timeout, you must program the length of the delay you want to wait for CTS from the host. Set the length (in milliseconds) for a timeout by scanning the bar code below, then setting the timeout (from 1-5100 milliseconds) by scanning digits from the inside back cover, then scanning Save.

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start sending data (XON/XOFF On) or to stop sending data (XON/XOFF Off). When the host sends the XOFF character (DC3, hex 13) to the scanner, data transmission stops. To resume transmission, the host sends the XON character (DC1, hex 11). Data transmission continues where it left off when XOFF was sent.

Default = XON/XOFF Off

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or a NAK character (hex 15) response from the host. If ACK is received, the communications cycle is completed and the scanner looks for more bar codes. If NAK is received, the last set of bar code data is retransmitted and

2 - 28

the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by

ACK/NAK On

* ACK/NAK Off

* Packet Mode Off

Packet Mode On

scanning the ACK/NAK On bar code below. To turn off the protocol, scan ACK/NAK Off.

Default = ACK/NAK Off

Scanner to Bioptic Communication

The following settings are used to set up communication between Honeywell scanners and bioptic scanners.

Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout

must be set to 3000 in order to communicate with a bioptic scanner. See

RS232 Modifiers on page 2-23, and RS232 Timeout on page 2-28 for

further information.

Scanner-Bioptic Packet Mode

Packet Mode On must be scanned to set the scanner’s format so it is com-

patible with a bioptic scanner.

Default = Packet Mode Off.

2 - 29

Scanner-Bioptic ACK/NAK Mode

* Bioptic ACK/NAK Off

Bioptic ACK/NAK On

ACK/NAK Timeout

Bioptic ACK/Nak On must be scanned so the scanner will wait for an ACK

or NAK from a bioptic scanner after each packet is sent. The ScannerBioptic ACK/NAK Timeout (below) controls how long the scanner will wait for a response.

Default = Bioptic ACK/NAK Off.

Scanner-Bioptic ACK/NAK Timeout

This allows you to set the length (in milliseconds) for a timeout for a bioptic scanner’s ACK/NAK response. Scan the bar code below, then set the timeout (from 1-30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save.

Default = 5100.

2 - 30

Xenon Scanner

CCB01-010BT Charge Base Page Button and Base LEDs

Granit Scanner

CCB02-100BT Charge Base Page Button and Base LEDs

Cordless System Operation

Note: This chapter applies only to cordless scanning systems. It does not apply

to corded scanners.

How the Cordless Charge Base/Access Point Works

A cordless charge base or an Access Point provide the link between the cordless scanner and the host system. The base/Access Point contains an interface assembly and an RF communication module. The RF communication module performs the data exchange between the cordless scanner and the interface assembly. The control assembly coordinates the central interface activities including: transmitting/receiving commands and data to/from the host system, performing software activities (parameter menuing, visual indicator support, power-on diagnostics), and data translation required for the host system.

The cordless charge base is also a scanner’s battery charger. Refer to

Charging Information, page 3-5, for additional information.

Linking the Scanner to a Charge Base

Turn off power before connecting a base, then power up the computer once the base is fully connected. When the base is connected and powered up, put the scanner in the base to establish a link. The green LED on the base flashes to indicate the scanner’s battery is charging.

If the scanner and base have previously been linked, you do not receive any feedback. If this is the first time that the scanner and base are linked, both devices emit a short chirp when their radios link. At this point, that one scanner is linked to one base.

3 - 1

To determine if your cordless system is set up correctly, scan one of the sample

Page Button

bar codes in the back of this manual. If the scanner provides a single good read beep and the green LED lights, the scanner has successfully linked to the base. If using a Granit scanner, the scanner also vibrates. If you receive an error tone and the red LED lights, the scanner has not linked to the base. Refer to

page 13-7 for troubleshooting information.

Linking the Scanner to an Access Point

Turn on the computer (laptop/desktop). Plug the interface cable into the Access Point first and then into the appropriate port on the computer. The Page button lights up when the connection to the host is made.

Scan the linking bar code on the top of the Access Point to establish a connection between the Access Point and the scanner. The scanner emits a short beep and flashes the green LED to confirm a connection with the Access Point. The Access Point’s Page button remains blue.

Communication Between the Cordless System and the Host

The cordless scanner provides immediate feedback in the form of a “good read” indication with a green LED on the scanner and an audible beep. If using a Granit scanner, the scanner also vibrates. This indicates that the bar code has been scanned correctly and the base or Access Point has acknowledged receiving the data. This is possible since the cordless system provides two-way communication between the scanner and the base or Access Point.

When data is scanned, the data is sent to the host system via the base or Access Point. The cordless scanner recognizes data acknowledgement (ACK) from the base or Access Point. If it cannot be determined that the data has

3 - 2

been properly sent to the base or Access Point, the scanner issues an error

indication. You must then check to see if the scanned data was received by the host system.

1. Scanner reads code and gets ACK from base or Access Point

2. Base or Access Point sends data to host

Programming the Scanner and Base or Access Point

When using the scanner and charge base or Access Point together as a system, menu parameters and configuration settings are stored in the charge base or Access Point. Therefore, when programming any menu configuration settings, the scanner must be linked to the intended charge base or Access Point.

Note: This only applies when the scanner is linked to a charge base or Access

Point. If the scanner is in a non-base mode, configuration settings are stored in the scanner.

RF (Radio Frequency) Module Operation

The cordless system uses a two-way Bluetooth® radio to transmit and receive data between the scanner and the base or Access Point. Designed for point-topoint and multipoint-to-single point applications, the radio operates using a license free ISM band, which sends relatively small data packets at a fast data rate over a radio signal with randomly changing frequencies, makes the cordless system highly responsive to a wide variety of data collection applications and resistant to noisy RF environments. The CCB01-010BT (Bluetooth Class

3 - 3

2) provides a communication range of 33 feet (10m) between the scanner and base or Access Point, depending on the environment. The CCB02-100BT (Bluetooth Class 1) provides a communication range of 330 feet (100m) between the scanner and base or Access Point, depending on the environment.

Flexible Power Management, page 3-18, for information about controlling

See this range.

System Conditions

The components of the cordless system interact in specific ways as you associate a scanner to a base or Access Point, as you move a scanner out of range, bring a scanner back in range, or swap scanners between two cordless systems. The following information explains the cordless system operating conditions.

Linking Process

Once a scanner is placed into a cordless charge base, the scanner’s battery charge status is checked, and software automatically detects the scanner and links it to the base depending on the selected link mode.

Refer to about linking to an Access Point.

Scanner Is Out of Range

The cordless scanner is in communication with its base or Access Point, even when it is not transmitting bar code data. Whenever the scanner can’t communicate with the base or Access Point for a few seconds, it is out of range. If the scanner is out of range and you scan a bar code, the scanner issues an error tone indicating no communication with the base or Access Point. A cordless charge base can also sound an alarm. Refer to

Range Alarm

Linking the Scanner to an Access Point, page 3-2, for information

Out-of-

, page 3-15.

Scanner Is Moved Back Into Range

The scanner relinks if the scanner or the base or Access Point have been reset, or the scanner comes back into range. If the scanner relinks, you will hear a single chirp when the relinking process (uploading of the parameter table) is complete. Refer to information.

Out-of-Range Alarm on page 3-15 for further

Out of Range and Back into Range with Batch Mode On

The scanner may store a number of symbols (approximately 500 U.P.C. symbols; others may vary) when it is out of range and then send them to the base or Access Point when back in range (see

19).

3 - 4

Batch Mode on page 3-

You will not hear a communication error tone in this mode, but you will hear

a short buzz when you pull the trigger if the radio communication is not working. Once the radio connection is made, the scanner produces a series of beeps while the data is being transferred to the base or Access Point.

Page Button

When you press the Page button on the base or Access Point, the scanners associated with that base or Access Point will begin beeping (3 short and 1 long beep). If you pull the trigger on a scanner that is beeping in response, or press the Page button on the base or Access Point a second time, all associated scanners will stop beeping. See for further information about Page Button settings.

Paging on page 3-10

About the Battery

There is a danger of explosion if the batteries are incorrectly replaced. Replace the batteries with only the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the recycle program for batteries as directed by the governing agency for the country where the batteries are to be discarded.

Power is supplied to the cordless scanner by a rechargeable battery that is integrated in the scanner handle. Batteries are shipped approximately 30% to 60% charged. The battery should be charged for a minimum of 4 hours before initial use to ensure optimal performance.

Charging Information

The battery is designed to charge while the scanner is positioned in the cordless base unit. Refer to

Meaning

Refer to without linking it to the base.

Place the scanner in the base that is connected to an appropriate power supply. Use only a Listed Limited Power Source (LPS) or Class 2 type power supply with output rated 5 to 5.2Vdc, 1A.

Note: If you are powering the base through the interface cable (for

, page 3-8, for an interpretation of the Charge Status indicators.

Charge Only Mode (page 3-13) if you need to charge a scanner

example, a USB cable) and not using an external power supply plugged into the aux port, the current available for charging is reduced and charge times are increased.

Base/Access Point LED Sequences and

Battery Recommendations

• The battery is a lithium ion cell and can be used without a full charge, and can also be charged without fully discharging, without impacting the battery life. There is no need to perform any charge/discharge conditioning on this type of battery.

• Keep the base connected to power when the host is not in use.

• Replace a defective battery immediately since it could damage the scanner.

3 - 5

• Although your battery can be recharged many times, it will eventually be

depleted. Replace it after the battery is unable to hold an adequate charge.

• If you are not sure if the battery or charger is working properly, send it to Honeywell International Inc. or an authorized service center for inspection. Refer to information.

Caution:

Use only Honeywell Li-ion battery packs, model number BATSCN01, rated 3.7 Vdc, 7.4Whr in this device. Use of any nonHoneywell battery may result in damage not covered by the warranty.

Customer Support on page 14-1 for additional

Safety Precautions for Lithium Batteries

• Do not place batteries in fire or heat the batteries.

• Do not store batteries near fire or other high temperature locations.

• Do not store or carry batteries together with metal objects.

• Do not expose batteries to water or allow the batteries to get wet.

• Do not connect (short) the positive and negative terminals, of the batteries, to each other with any metal object.

• Do not pierce, strike or step on batteries or subject batteries to strong impacts or shocks.

• Do not disassemble or modify batteries.

Caution:

Danger of explosion if batteries are incorrectly replaced. Dispose of used batteries according to the recycle program for batteries as directed by the governing agency for the country where the batteries are to be discarded.

Proper Disposal of the Battery

When the battery has reached the end of its useful life, the battery should be disposed of by a qualified recycler or hazardous materials handler. Do not incinerate the battery or dispose of the battery with general waste materials. You may send the scanner’s battery to us. (postage paid). The shipper is responsible for complying with all federal, state, and local laws and regulations

ping of spent batteries. Contact the Product Service Department (

) for recycling or disposal information. Since you may find that your cost of returning the batteries significant, it may be more cost effective to locate a local recycle/disposal company.

related to the packing, labeling, manifesting, and ship-

3 - 6

page 14-

Beeper and LED Sequences and Meaning

The scanner contains LEDs on the rear of the unit that indicate linking status, decoding state, and battery condition. The base has LEDs on the top of the unit that indicate its power up, communication, and battery charge condition. The red LED = error; green LED = success of any type. Scanners and the CCB01010BT base have audible indicators as well: 1 razz or error tone = error; 2 beeps = menu change; 1 beep = all other successes.

The table below lists the indication and cause of the LED indication, beeps, and vibrations for the scanner.

3 - 7

Scanner LED Sequences and Meaning

LED

Indication

Normal

Operation

Red Flash None None Battery low

Green Flash 1 beep None Successful

Red, blinking Razz or error

Operation

Green Flash 2 beeps 2 vibrations Successful menu

Red, blinking Razz or error

Beeper Indication

tone

Vibrate Indication

None Failed communication

1 long vibration

Cause

communication or linking

change Unsuccessful menu change

Base/Access Point LED Sequences and Meaning

The base contains a red LED and the Access Point has a blue LED that indicate the status of the unit and verifies its communication with the host system. The base also has a green LED that indicates scanner battery charge condition.

Red or Blue LED - Host Communication

Red or Blue LED Communication Condition

Off USB suspend On continuously Power on, system idle Short blinks in multiple pulses. Occurs

while transferring data to/from the RF module or the Host port.

Receiving data

3 - 8

Green LED - Scanner Battery

* Base Power Communication

Indicator On

Base Power Communication

Indicator Off

Reset Scanner

(base only, does not apply to Access Point)

Green LED Charge Condition

Off Battery not detected or charge

suspended Slow flash, 1 second on, 1 second off Pre-charge and charging On continuously Charge complete Fast flash, 300 mSec on, 300 mSec off Charge Error

Base Power Communication Indicator

To display the power indicator on a base or an Access Point, scan the Base Power Communication Indicator On bar code. To turn off the power indi-

cator, scan the Off bar code.

Default = On

Reset Scanner

Scanning this bar code reboots the scanner and causes it to relink with the base or Access Point.

Scanning While in Base Cradle

Note: This feature only applies to the CCB01-010BT base.

If you want to be able to scan bar codes while the scanner is in the base cradle, scan the Scanning in Cradle On bar code below. If you want to only allow scanning when the scanner is out of the base cradle, scan Scanning in Cradle

3 - 9

Off. If you want the scanner to shut down when in the base cradle, scan Shut

Scanning in Cradle Off

* Scanning in Cradle On

Shut Down Scanner in Cradle

* Paging Mode On

Paging Mode Off

Down Scanner in Cradle.

010BT)

Default = Scanning in Cradle On (for CCB01-

Paging

Paging Mode

By default, the paging button on the base or Access Point pages the scanners associated with that base or Access Point. If you want the paging button on your base or Access Point to be disabled, scan the Paging Mode Off bar code, below. When Paging Mode is off, the base or Access Point will no longer page scanners when the button is pressed. The red LED on the base or blue LED on the Access Point will remain lit to indicate that Paging Mode is off. (This light will go out when the button is pressed, then back on when it’s released.)

Default = Paging Mode On.

3 - 10

Paging

* Low (1000 Hz)

Medium (3250 Hz)

High (4200 Hz)

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

When you press the Page button on the base or Access Point, the scanners associated with that base or Access Point will begin beeping (see

Page Button on page 3-5). You can set the pitch of the paging beep for

each scanner by scanning one of the following bar codes.

Pitch

Default = Low.

Error Indicators

Beeper Pitch - Base Error

Note: This feature only applies to the CCB01-010BT base.

The CCB01-010BT base can be configured to beep at a particular pitch when an error occurs, such as transmission problems to a host system. The beeper pitch codes modify the pitch (frequency) of the error tone the base emits when there is an error.

Default = Low.

Number of Beeps - Base Error

Note: This feature only applies to the CCB01-010BT base.

3 - 11

The number of beeps and LED flashes emitted by the CCB01-010BT base

Number of Base Error Beeps/LED Flashes

Scanner Report

Scanner Address

Base Address

for an error condition can be programmed from 1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response to an error. To change the number of error beeps, scan the bar code below and then scan a digit (1-9) bar code and the Save bar code on the this manual.

Default = 1.

Programming Chart inside the back cover of

Scanner Report

Scan the bar code below to generate a report for the connected scanners. The report indicates the port, work group, scanner name, and address. To assign a name to your scanner, refer to

Menu Command Syntax, page 11-1.

Scanner Address

Scan the bar code below to determine the address of the scanner you are using.

Base or Access Point Address

Scan the bar code below to determine the address of the base or Access Point you are using.

3 - 12

Scanner Modes

Charge Only Mode

* Charge and Link Mode

Your scanner is capable of working in single scanner mode, multiple scanner mode, or with Bluetooth devices other than the charge base or Access Point.

Charge Only Mode

There may be times when you want to charge your scanner, but not link to the base. For example, if a scanner is linked to an Access Point or other Bluetooth device and you need to charge the scanner, but want to retain your existing link.

In order to program the base for Charge Only Mode, you must link a scanner to it. Once the scanner is linked to the base, scan the Charge Only Mode bar code. Any subsequent scanners placed in that base will charge without linking to it. The scanner used to program the base remains linked to the base. To unlink this scanner, scan

Note: When in Charge Only Mode, the scanner periodically wakes up and

beeps. See "Power Up Beeper" on page 4-1 to change this setting.

If you want to charge a scanner and link to the base, use Charge and Link Mode. If the base is programmed for Charge Only Mode, you must link a scanner to it first in order to program it for Charge and Link Mode. Scan the linking bar code on the base to link the scanner, then scan Charge and Link Mode.

Default = Charge and Link Mode.

Unlink Scanner on page 3-14.

Linked Modes

Locked Link Mode and Open Link Mode are the link modes that accommodate different applications. Scan the appropriate bar codes included in the Open Link and Locked Link Mode explanations that follow to switch from one mode to another.

Default = Open Link Mode

3 - 13

Locked Link Mode - Single Scanner

Locked Link Mode

(Single Scanner)

* Open Link Mode

(Single Scanner)

Unlink Scanner

If you link a scanner to a base or an Access Point using the Locked Link Mode, other scanners are blocked from being linked if they are inadvertently placed into the base, or if the Access Point linking bar code is scanned. If you do place a different scanner into a base, it will charge the scanner, but the scanner will not be linked.

To use a different scanner, you need to unlink the original scanner by scanning the Unlink Scanner bar code. (See 3-13.)

Scanner Modes, page

Open Link Mode - Single Scanner

When newly shipped or defaulted to factory settings, a scanner is not linked to a base or an Access Point. A link is established when the scanner is placed into a base, or an Access Point linking bar code is scanned. When in Open Link Mode, a new link is established when a new scanner is placed in the base, or you scan an Access Point linking bar code. Each time a scanner is placed into a base or scans an Access Point linking bar code, the scanner becomes linked to the base or Access point and the old scanner is unlinked.

Unlinking the Scanner

If a base or an Access Point has a scanner linked to it, that scanner must be unlinked before a new scanner can be linked. Once the previous scanner is unlinked, it will no longer communicate with the base or Access Point. To unlink the scanner from a base or an Access Point, scan the Unlink Scanner bar code below.

3 - 14

Override Locked Scanner

(Single Scanner)

Base Alarm Duration

Scanner Alarm Duration

Note: The Access Point does not

have a base alarm.

If you need to replace a broken or lost scanner that is linked to a base or an Access Point, scan the Override Locked Scanner bar code below with a new scanner and place that scanner in the base, or scan the Access Point linking bar code. The locked link will be overridden; the broken or lost scanner’s link with the base or Access Point will be removed, and the new scanner will be linked.

Out-of-Range Alarm

If your scanner is out range of the base, an alarm sounds from both your base and scanner. If your scanner is out range of an Access Point, an alarm sounds from just the scanner. The alarm stops when the scanner is moved closer to the base or Access Point, when the base or Access Point connects to another scanner, or when the alarm duration expires. To activate the alarm options for the scanner or the base and to set the alarm duration, scan the appropriate bar code below and then set the time-out duration (from 0-3000 seconds) by scanning digits on the

Default = 0 sec (no alarm).

Save.

Programming Chart inside the back cover, then scanning

Note: If you are out of range when you scan a bar code, you will receive an error

tone even if you do not have the alarm set. You receive the error tone since the data could not be communicated to the base or Access Point or the host.

Alarm Sound Type

You may change the alarm type for the scanner or a CCB01-010BT base by scanning the appropriate bar code below and then scanning a digit (0-7) bar code and the Save bar code on the cover of this manual.

Default = 0.

Programming Chart inside the back

3 - 15

The sounds are as follows:

Base Alarm Type

Scanner Alarm Type

Note: Only the CCB01-010BT

base has an alarm

Setting Sound

0 3 long beeps, medium pitch 1 3 long beeps, high pitch 2 4 short beeps, medium pitch 3 4 short beeps, high pitch 4 single chirps, medium pitch 5 2 chirps, then 1 chirp, medium pitch 6 single chirps, high pitch 7 2 chirps, then 1 chirp, high pitch

Scanner Power Time-Out Timer

Note: Scanner Power Time-out Timer only applies to cordless systems. It does

not apply to corded scanners.

When there is no activity within a specified time period, the scanner enters low power mode. Scan the appropriate scanner power time-out bar code to change the time-out duration (in seconds).

Note: Scanning zero (0) is the equivalent of setting no time-out.

3 - 16

If there are no trigger pulls during the timer interval, the scanner goes into

0 seconds

200 seconds

400 seconds

900 seconds

* 3600 seconds

7200 seconds

power down mode. Whenever the trigger is enabled, the timer is reset. If the scanner is placed in the charge base cradle and the battery is in the process of being charged, the scanner will not go into power down mode.

Default = 3600

seconds.

Note: When the scanner is in power down mode, pull the trigger to power the

unit back up. There will be a set of power up beeps and a delay of up to a few seconds for the radio to join. The scanner will then be ready to use.

3 - 17

Flexible Power Management

* Full Power

Medium Power

Medium Low Power

Low Power

If you are experiencing network performance issues, and suspect the scanner is interfering with other devices, you can turn down the power output of the scanner. This reduces the range between the scanner and a base or an Access Point as shown in the following illustration:

1902

Scanner

802.11 LAN

Scan one of the bar codes below to set the scanner’s power output to Full Power (100%), Medium Power (35%), Medium Low Power (5%), or Low Power (1%).

Default = Full Power.

For the new power setting to take effect, the scanner and the base or Access Point must be reset. See

Reset Scanner and Base/Access Point (page 3-

19).
