Page 1

CFT125MR/MS/MRC

CFT125MR CFT125MS CFT125MRC

L L

2020 2020 2020

18KPYLP1

Page 2

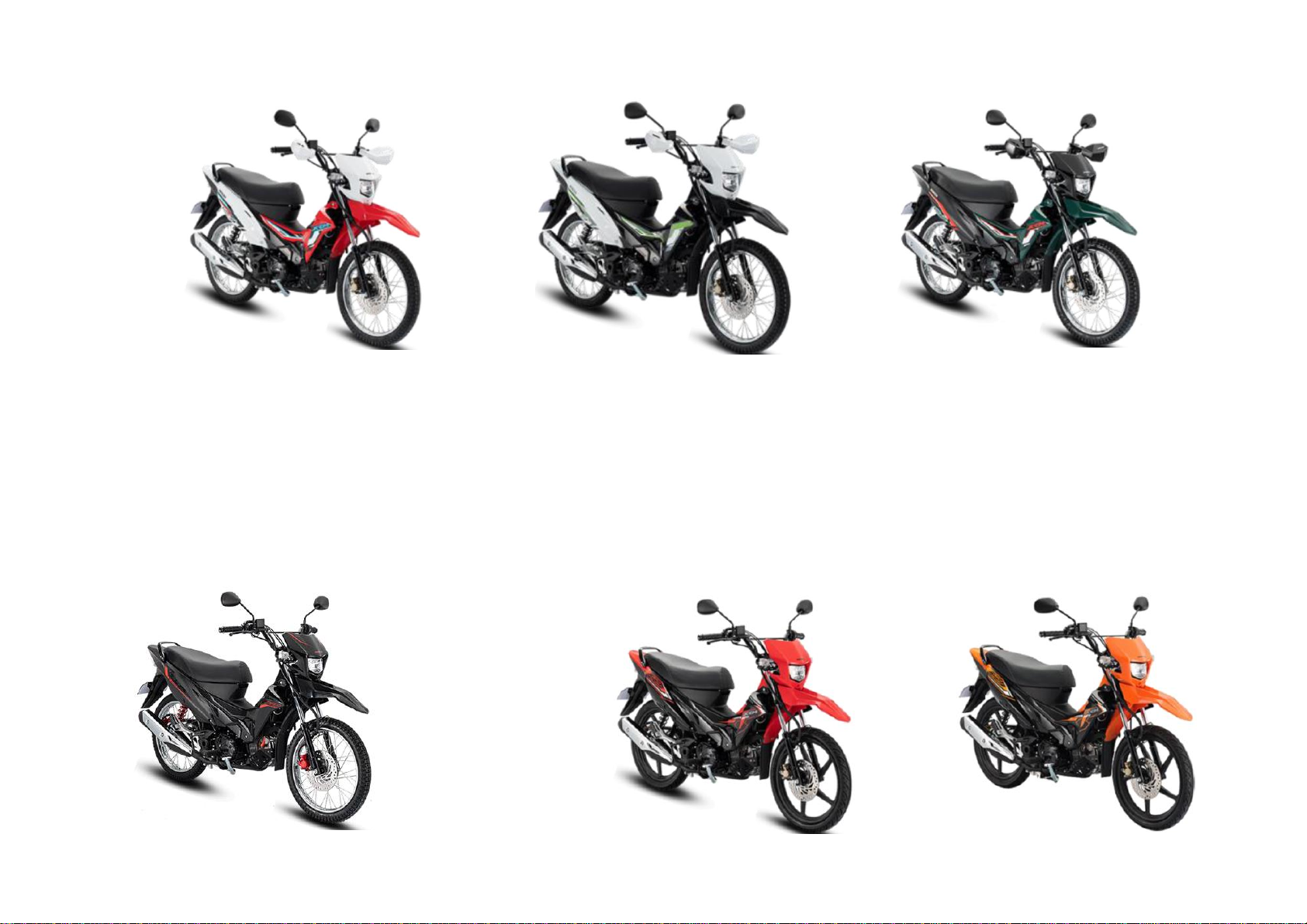

CFT125MSL (DS 2020YM)

Fighting red

(R-134)

CFT125MRL (DSX 2020YM)

Black

(NH-1)

CFT125MRCL (Motard 2020YM)

Chlorophyll green R

(G-213R)

Black

(NH-1)

Fighting red

(R-134)

Tangerine orange R

(YR-300R)

Page 3

FOREWORD INDEX

ENGINE GROUP

FRAME GROUP

PART NUMBER INDEX

PART NAME INDEX

Page 4

Page 5

Instruction for use of parts catalogue

CONTENTS

Page

• This parts catalogue has been created as of August 01, 2019.

• Since this date, the sales practice for repair parts may have been changed or the parts may have been eliminated (listed for those not for sale).

• The modified information is reflected on the latest Electronic Parts Catalogue (EPC).  Also, refer to the parts catalogue news for any change.

• See the parts catalogue news for any revision that is made after August 01, 2019.

• Always specify the part number when ordering a part.

• Check the model, type, serial numbers, color, maker, and the size as needed before ordering a part.

• Note that the illustrations (part drawings) can differ from the actual parts in shape. They are given just to help you to refer to the parts.

• When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time, with successively progressing revision numbers on the cover. We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To chec k whether a parts catalogue revision has been issued, please contact your Honda distributor.

Instruction for use of parts catalogue .................................... 1

How to refer to the part information ....................................... 2

Part catalogue structure ........................................................ 3

When the parts were revised................................................. 5

Abbreviations used in the parts catalogue............................. 5

Part block and serial number check ...................................... 6

Models, parts catalogue codes and applicable serial 

numbers................................................................................ 7

Color chart ............................................................................. 8

Fuel hose, general purpose hoses and vinyl hose .............. 16

FLAT RATE SERVICE TIME ............................................... 20

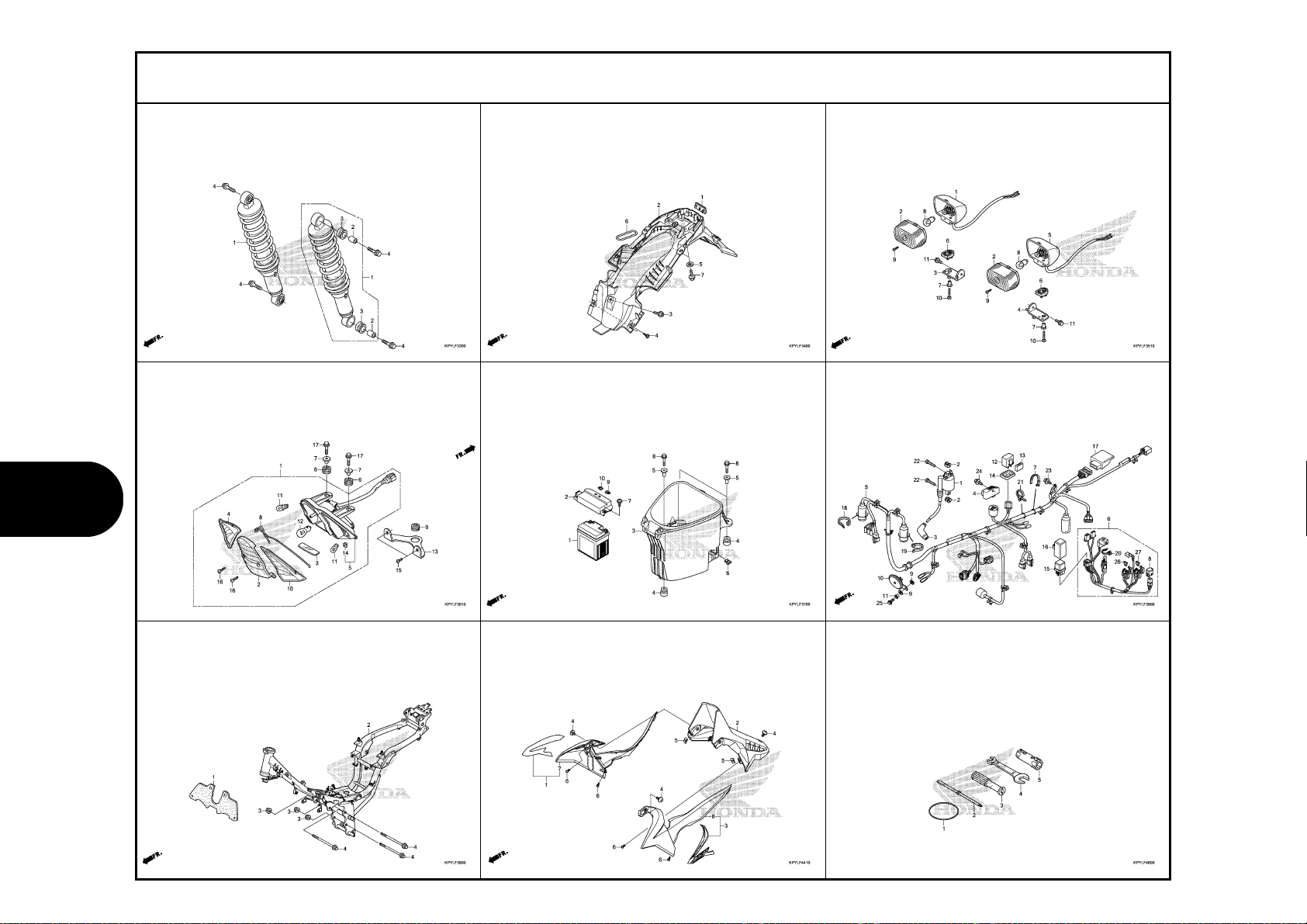

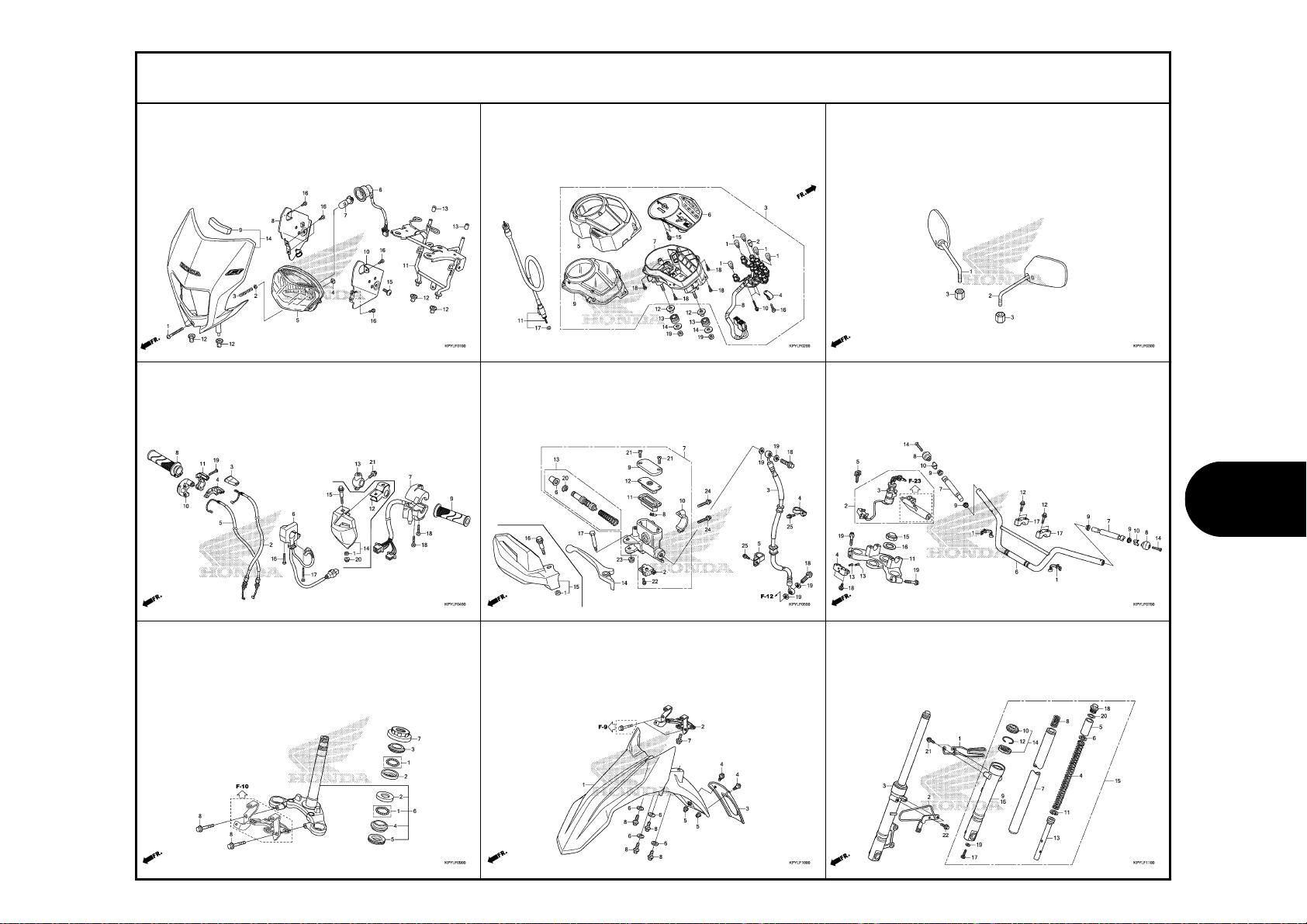

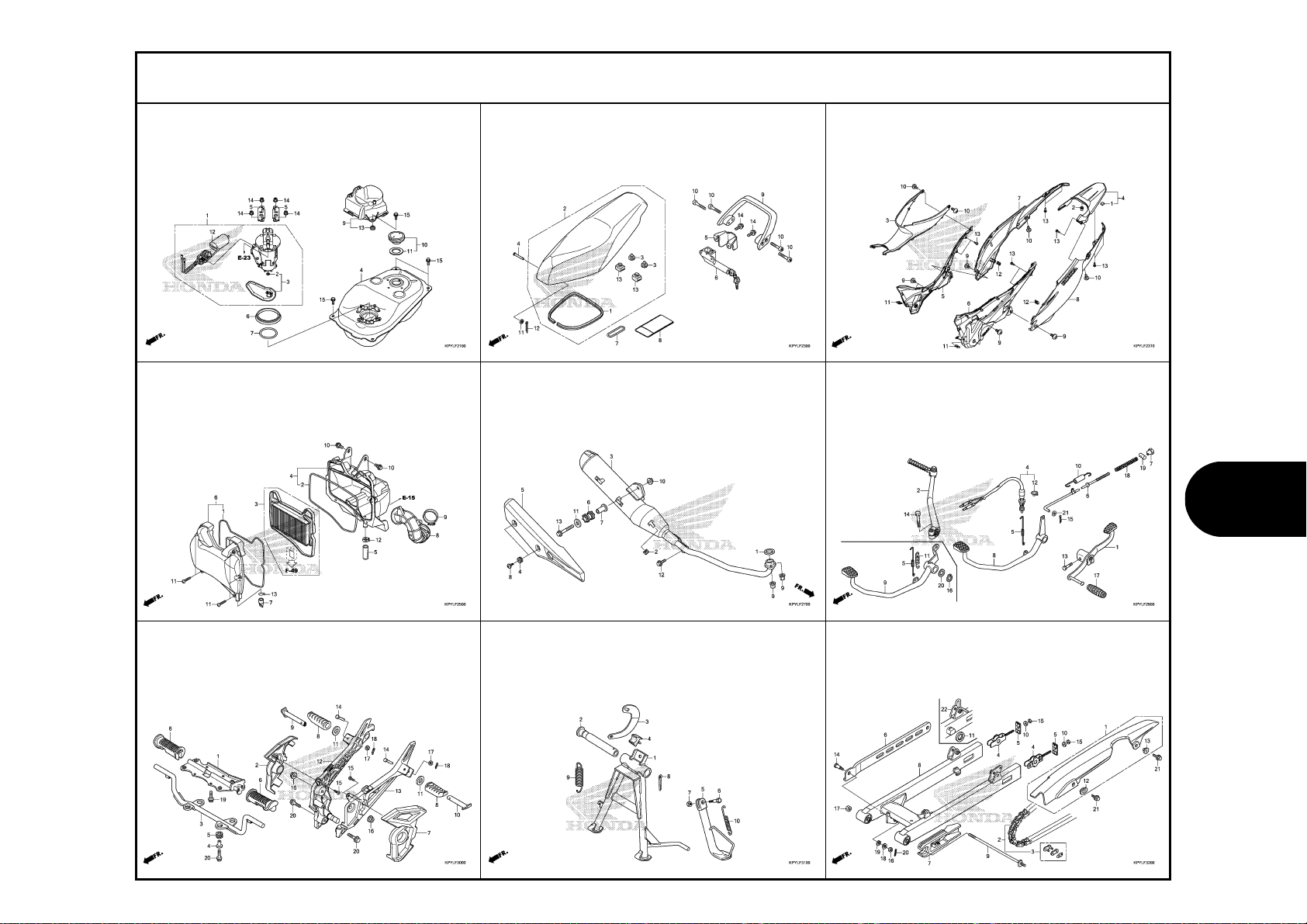

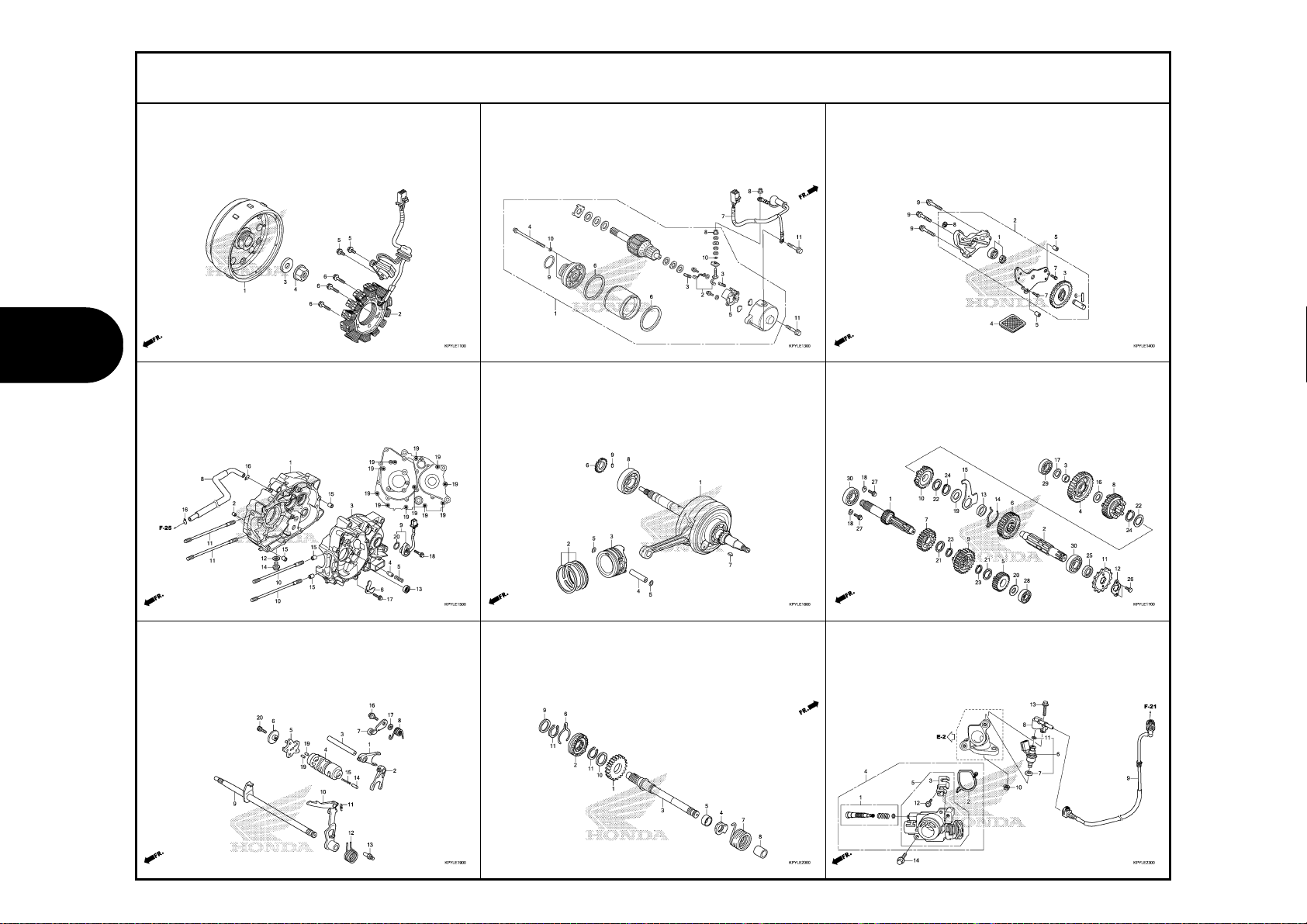

Illustrated index ................................................................... 25

ENGINE GROUP................................................................ 32

FRAME GROUP................................................................. 54

PART NO. INDEX.............................................................. 102

PART NAME INDEX.......................................................... 106

Initial version issue date

August 01, 2019

Honda Motor Co., Ltd.

2019.08.01 E

Page 6

Reference with “Part number index”

Reference with “Part name index”

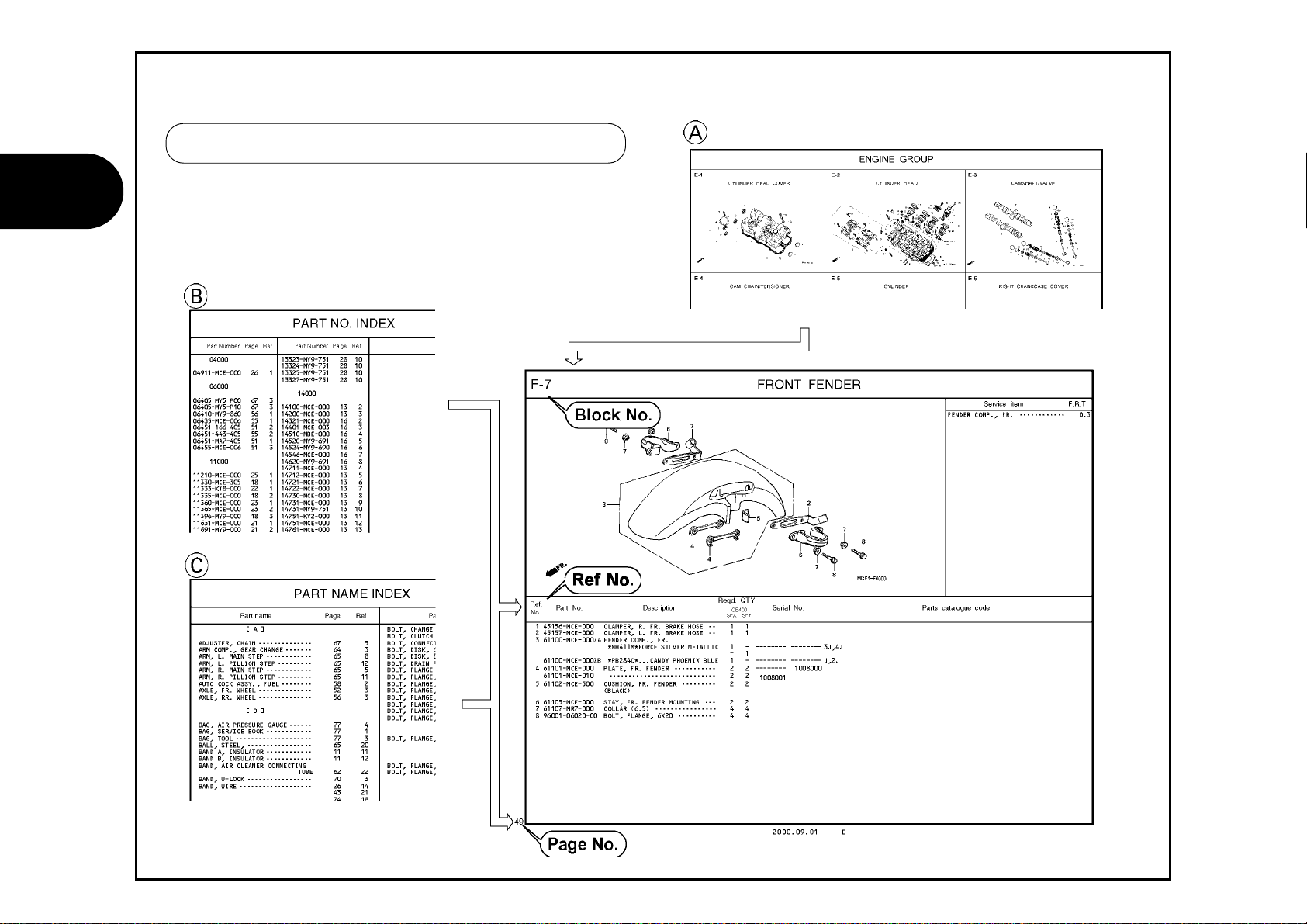

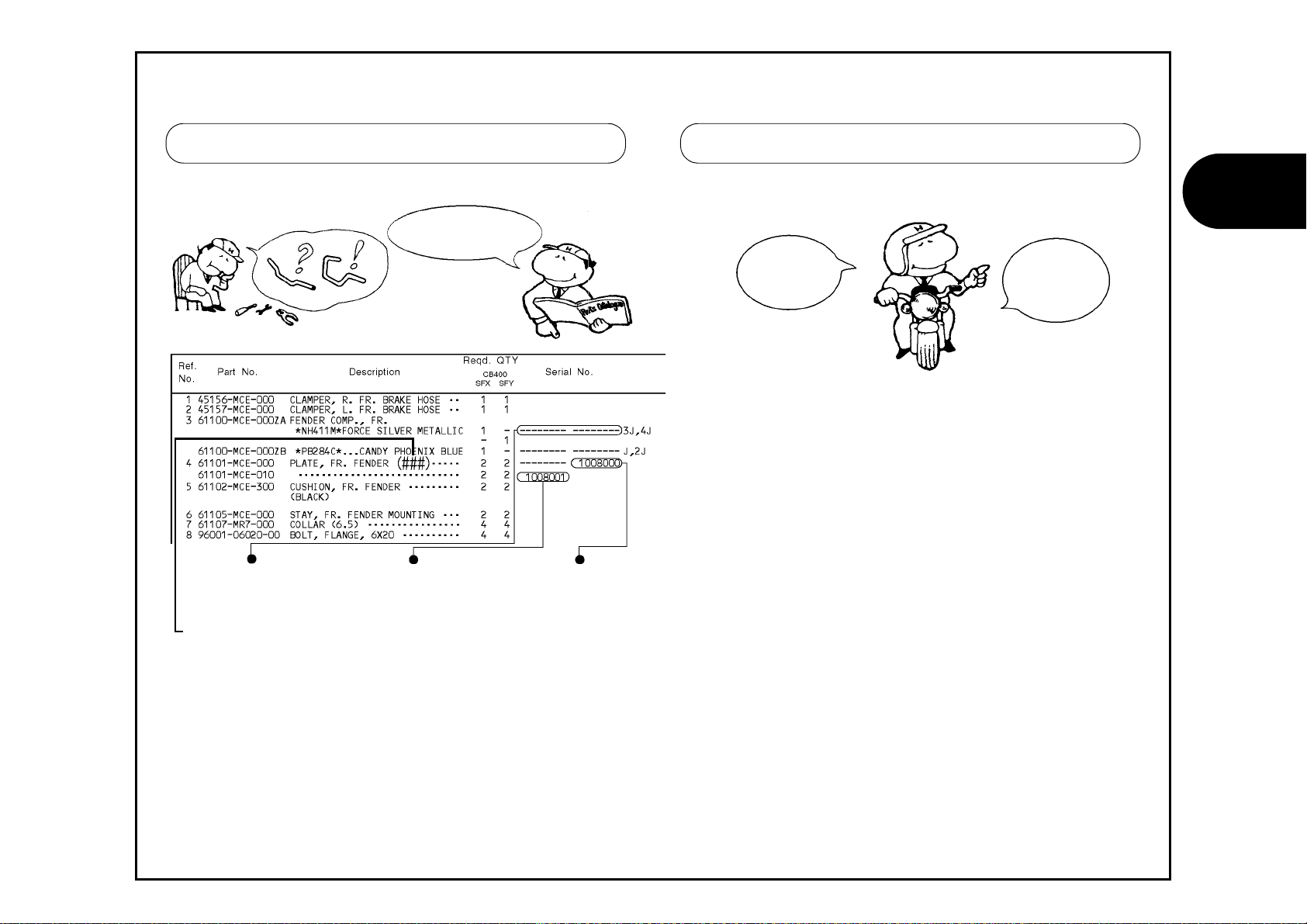

How to refer to the part information

Reference with “Illustrated index”

2019.08.01 E

Page 7

Part catalogue structure

Block title Block number Service item/Flat rate time Reference number

• Title number marked with the parenthesis or parentheses indicates that it continues from the previous page.

Part number Honda color code Description As semblies

• Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their individual parts can also be obtained.)

Color description Note

• Notes are shown with the parentheses in the part name column.

Required quantity

• Reqd. QTY shown in the parenthesis or parentheses indicates the optional part.

• Reqd. QTY marked with “N” indicates the optional part that should be selected as needed.

• Reqd. QTY indicates the number of the part used in the block.

Serial number

Parts catalogue code

• When the parts catalogue code column is blank, it indicates that the part is applicable to all codes.

2019.08.01 E

Page 8

14 15 17

• Parts enclosed within a dotted line are covered in a different block.

• A hollow arrow indicates the block No. for the parts enclosed within a dotted line .

• A solid arrow question is connected to.

indicates the block No. the part in

Replacement Identification Information for

Designated Part No.

Location of Replacement Identification Infor-

mation for Designated Part No.

• If an arrow mark is indicated in 18, the part is incompatible with a different part No.

• Make sure to order the part of the same manufacture, including the component part.

• To make an order, indicate the part No., which includes the symbol displayed on the applicable section of the part to be replaced.

2019.08.01 E

Page 9

When the parts were revised

Be sure to check the serial number!!

The number has been used from the initial model without revision.

When shown at the left side, it is applicable to the models of No.1008001 and the subsequent numbers.

When shown at the right side, it is applicable to the models up to No.1008000.

• The parts listed with "###" at the end of the parts name have limited supply period (parts not for sale).

Abbreviations used in the parts catalogue

RIGHT is abbreviated as “R.”

“L.” stands for LEFT

* “L.” or “R.” in the description of a part stands for the LEFT hand

side or the RIGHT hand side. Determine the left or right as if you were in the motorcycle seat.

• The following abbreviations are used in this parts catalogue.

A ........... Ampere

ABS ....... Anti-lock brake

system

A.C. ....... Alternating current

A.M. ...... Attaching mark

ASSY. .... Assembly

C.D.I. ..... Capacitive discharge

ignition

COMP. ... Complete

CP. ........ Candle power

D.C. ....... Direct current

EX. ........ Exhaust

FR. ........ Front

G ........... Gram

HEX. ..... Hexagonal

IN. ......... Inlet

L. ............Left

(

100L) .Link (100 Links)

L.E.D. .....Light emitted diode

MM .........Millimeter

MPH .......Miles per hour

R. ...........Right

RR. .........Rear

STD. .......Standard

T (22T) ...Tooth (22 Teeth)

TCS ........Traction control

system

T.M. ........Transcript mark

V ............Volt

W ...........Watt

WL .........With labelling

WOL .......Without labelling

KPH ...... Kilometers per hour

2019.08.01 E

Page 10

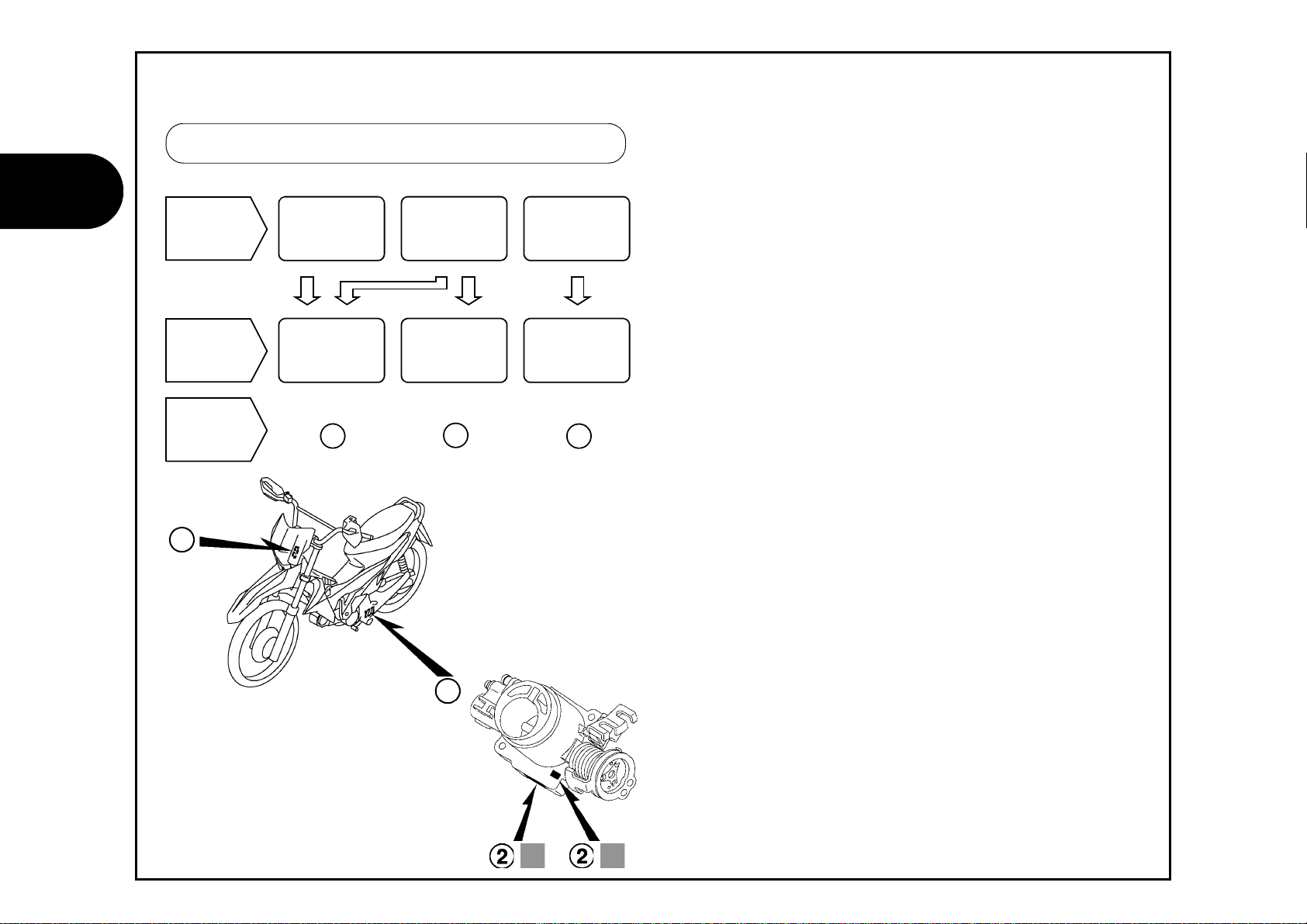

Part block and serial number check

Required

serial

number

Engine parts

E-2~

Engine serial

number

Throttle body

parts E-23

Throttle body

serial number

Frame parts

F-1~

Frame serial

number

Part block

Check

point

2019.08.01 E

Page 11

Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows.

Models, parts catalogue codes and applicable serial numbers

Model

Area code

Type

Applicable

engine

serial No.

Applicable

frame

serial No.

Applicable

throttle body

identification No.

CFT125MR

PH Philippines KPYT1E000001~ KPYT1000001~ GQYDB A

CFT125MRC

PH Philippines

GQYDB A

CFT125MS

GQYDB APhilippines

Parts with parts catalogue codes are exclusive for models destined for countries designated. If no area codes are listed, parts are for common use.

* Of carburetor/throttle body identification numbers, only the portions underlined in the example below are used for registration.

GQ YDB KC

KPYT0E000001~

KPYT2E000001~

KPYT0000001~

KPYT2000001~

2019.08.01 E

Page 12

Color chart

Black

NH-1

No. Name of colored parts Basic part No. NH1

Initial

applicable

Final

applicable

1 CASE SET, HEADLIGHT 61320-KPY-H70 ZA F-1 14

2 COVER SET, L. BODY 64600-KPY-H70 ZA F-23-10 8

3 COVER SET, L. MAIN PIPE 64400-KPY-H70 ZA F-44-10 3

4 COVER SET, R. BODY 64500-KPY-H70 ZA F-23-10 7

5 COVER SET, R. MAIN PIPE 64300-KPY-H70 ZA F-44-10 1

6 COVER, CENTER 64330-KPY-H00 ZA F-23-10 3

7 COVER, L. SIDE 64460-KPY-H00 ZA F-23-10 6

8 COVER, MAIN PIPE 64310-KPY-H00 ZD F-44-10 2

9 COVER, R. SIDE 64450-KPY-H00 ZA F-23-10 5

10 COVER, RR. CENTER 64430-KPY-A00 ZF F-23-10 4

11 FENDER SET, RR. 80110-KPY-H00 ZA F-34 2

12 FENDER, FR. 61100-KPY-H00 ZE F-10 1

13 HOLDER, L. PILLION STEP 50716-KPY-H00 ZA F-30 13

14 HOLDER, R. PILLION STEP 50715-KPY-H10 ZA F-30 12

15 HUB SUB ASSY., FR. 44635-KPY-H00 ZA F-14-20 7

16 HUB SUB ASSY., RR. 42635-KPY-H10 ZA F-19-20 9

17 MARK 86531-KYZ-710 ZA F-50 3

18 MARK, DRIVE CAUTION 87560-KW7-950 ZB F-49 5

CFT125MR (CFT125MRL)

MODEL CFT125MRL

COLOR

Applicable model

Applicable

block

No.

Ref.

No.

CODE

• When ordering a colored part, refer to the chart below and use a part number consisting of the relevant basic part number to which has been added a part color code.

model

2019.08.01 E

model

Page 13

Black

NH-1

No. Name of colored parts Basic part No. NH1

Initial

applicable

Final

applicable

19 MARK, HONDA 86101-KPY-A50 ZA F-50 1

20 MARK, HONDA 86801-KPY-A00 ZA F-50 22

21 RAIL, RR. GRAB 84100-KGC-900 ZA F-23 9

22 SEAT COMP., DOUBLE 77200-KPY-H00 ZA F-23 2

23 STRIPE, L. BODY COVER 86648-KPY-H70 ZA F-50 20

24 STRIPE, L. HEADLIGHT CASE 86613-KPY-H70 ZA F-50 5

25 STRIPE, L. MAIN PIPE COVER 86642-KPY-H70 ZA F-50 10

26 STRIPE, R. BODY COVER 86647-KPY-H70 ZA F-50 17

27 STRIPE, R. HEADLIGHT CASE 86612-KPY-H70 ZA F-50 4

28 STRIPE, R. MAIN PIPE COVER 86641-KPY-H70 ZA F-50 7

29 SWINGARM SET, RR. 52200-KPY-H10 ZA F-32 22

30 WHEEL SUB ASSY., FR. 44650-KPY-H00 ZA F-14-20 8

31 WHEEL SUB ASSY., RR. 42650-KPY-H10 ZA F-19-20 10

CFT125MR (CFT125MRL)

MODEL CFT125MRL

COLOR

Applicable model

Applicable

block

No.

Ref.

No.

CODE

model

2019.08.01 E

model

Page 14

Fighting

red

Black

Chlorophyll

green R

R-134 NH-1 G-213R

No. Name of colored parts Basic part No. R134 NH1 G213

Initial

applicable

model

Final

applicable

model

1 CASE SET, HEADLIGHT 61320-KPY-H00 ZF ZF ZE F-1 14

2 COVER SET, L. BODY 64600-KPY-H60 ZC ZB ZD F-23-10 8

3 COVER SET, L. MAIN PIPE 64400-KPY-H60 ZC ZB ZA F-44-10 3

4 COVER SET, R. BODY 64500-KPY-H60 ZC ZB ZD F-23-10 7

5 COVER SET, R. MAIN PIPE 64300-KPY-H60 ZC ZB ZA F-44-10 1

6 COVER, CENTER 64330-KPY-H00 ZA ZA ZA F-23-10 3

7 COVER, L. HANDLE 53185-KPY-H00 ZE ZE ZD F-4 14

8 COVER, L. SIDE 64460-KPY-H00 ZA ZA ZA F-23-10 6

9 COVER, MAIN PIPE 64310-KPY-H00 ZD ZD ZD F-44-10 2

10 COVER, R. HANDLE 53180-KPY-H00 ZE ZE ZD F-5 15

11 COVER, R. SIDE 64450-KPY-H00 ZA ZA ZA F-23-10 5

12 COVER, RR. CENTER 64430-KPY-A00 ZA ZA ZF F-23-10 4

13 FENDER SET, RR. 80110-KPY-H00 ZA ZA ZA F-34 2

14 FENDER, FR. 61100-KPY-H00 ZC ZE ZG F-10 1

15 HOLDER, L. PILLION STEP 50716-KPY-H00 ZA ZA ZA F-30 13

16 HOLDER, R. PILLION STEP 50715-KPY-H00 ZA ZA ZA F-30 12

17 HUB SUB ASSY., FR. 44635-KPY-H00 ZA ZA ZA F-14-20 7

18 HUB SUB ASSY., RR. 42635-KPY-H00 ZA ZA ZA F-19-10 7

19 MARK 86531-KYZ-710 ZA ZA ZA F-50 3

20 MARK, DRIVE CAUTION 87560-KW7-950 ZB ZB ZB F-49 5

21 MARK, HONDA 86101-KPY-A50 ZC ZC ZB F-50 1

22 MARK, HONDA 86801-KPY-A00 ZA ZA ZA F-50 22

MODEL CFT125MSL

COLOR

Applicable model

Applicable

block

No.

Ref.

No.

CODE

CFT125MS (CFT125MSL)

2019.08.01 E

Page 15

Fighting

red

Black

Chlorophyll

green R

R-134 NH-1 G-213R

No. Name of colored parts Basic part No. R134 NH1 G213

Initial

applicable

model

Final

applicable

model

23 PANEL COMP., RR. BRAKE 43100-KPH-700 ZE ZE ZE F-18 4

24 RAIL, RR. GRAB 84100-KGC-900 ZA ZA ZA F-23 9

25 SEAT COMP., DOUBLE 77200-KPY-H00 ZA ZA ZA F-23 2

26 STRIPE A, L. MAIN PIPE COVER 86642-KPY-H60 ZC ZB ZA F-50 9

27 STRIPE A, R. MAIN PIPE COVER 86641-KPY-H60 ZC ZB ZA F-50 6

28 STRIPE B, L. MAIN PIPE COVER 86644-KPY-H60 ZC ZB ZA F-50 14

29 STRIPE B, R. MAIN PIPE COVER 86643-KPY-H60 ZC ZB ZA F-50 12

30 STRIPE, L. BODY COVER 86648-KPY-H60 ZC ZB ZA F-50 19

31 STRIPE, R. BODY COVER 86647-KPY-H60 ZC ZB ZA F-50 16

32 SWINGARM SET, RR. 52200-KPY-H00 ZA ZA ZA F-32 8

33 WHEEL SUB ASSY., FR. 44650-KPY-H00 ZA ZA ZA F-14-20 8

34 WHEEL SUB ASSY., RR. 42650-KPY-H00 ZA ZA ZA F-19-10 8

CFT125MS (CFT125MSL)

MODEL CFT125MSL

COLOR

Applicable model

Applicable

block

No.

Ref.

No.

CODE

2019.08.01 E

Page 16

Fighting

red

Tangerine

orange R

R-134 YR-300R

No. Name of colored parts Basic part No. R134 YR300

Initial

applicable

model

Final

applicable

model

1 CASE SET, HEADLIGHT 61320-KPY-H80 ZB ZA F-1 14

2 COVER SET, L. BODY 64600-KPY-H80 ZB ZA F-23-10 8

3 COVER SET, L. MAIN PIPE 64400-KPY-H80 ZB ZA F-44-10 3

4 COVER SET, R. BODY 64500-KPY-H80 ZB ZA F-23-10 7

5 COVER SET, R. MAIN PIPE 64300-KPY-H80 ZB ZA F-44-10 1

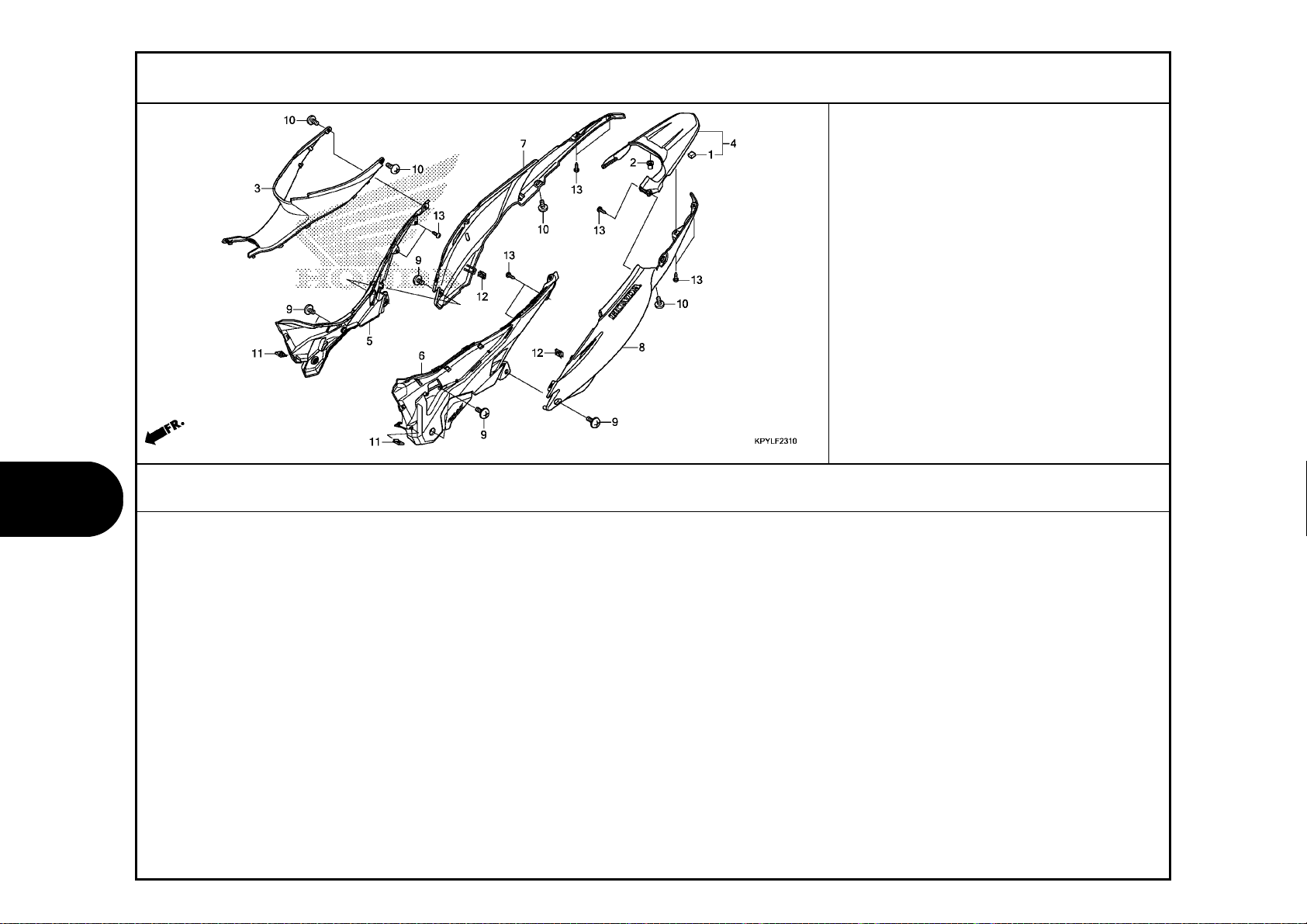

6 COVER, CENTER 64330-KPY-H00 ZA ZA F-23-10 3

7 COVER, L. SIDE 64460-KPY-H00 ZA ZA F-23-10 6

8 COVER, MAIN PIPE 64310-KPY-H00 ZB ZF F-44-10 2

9 COVER, R. SIDE 64450-KPY-H00 ZA ZA F-23-10 5

10 COVER, RR. CENTER 64430-KPY-A00 ZC ZG F-23-10 4

11 FENDER SET, RR. 80110-KPY-H00 ZA ZA F-34 2

12 FENDER, FR. 61100-KPY-H00 ZC ZB F-10 1

13 HOLDER, L. PILLION STEP 50716-KPY-H00 ZA ZA F-30 13

14 HOLDER, R. PILLION STEP 50715-KPY-H10 ZA ZA F-30 12

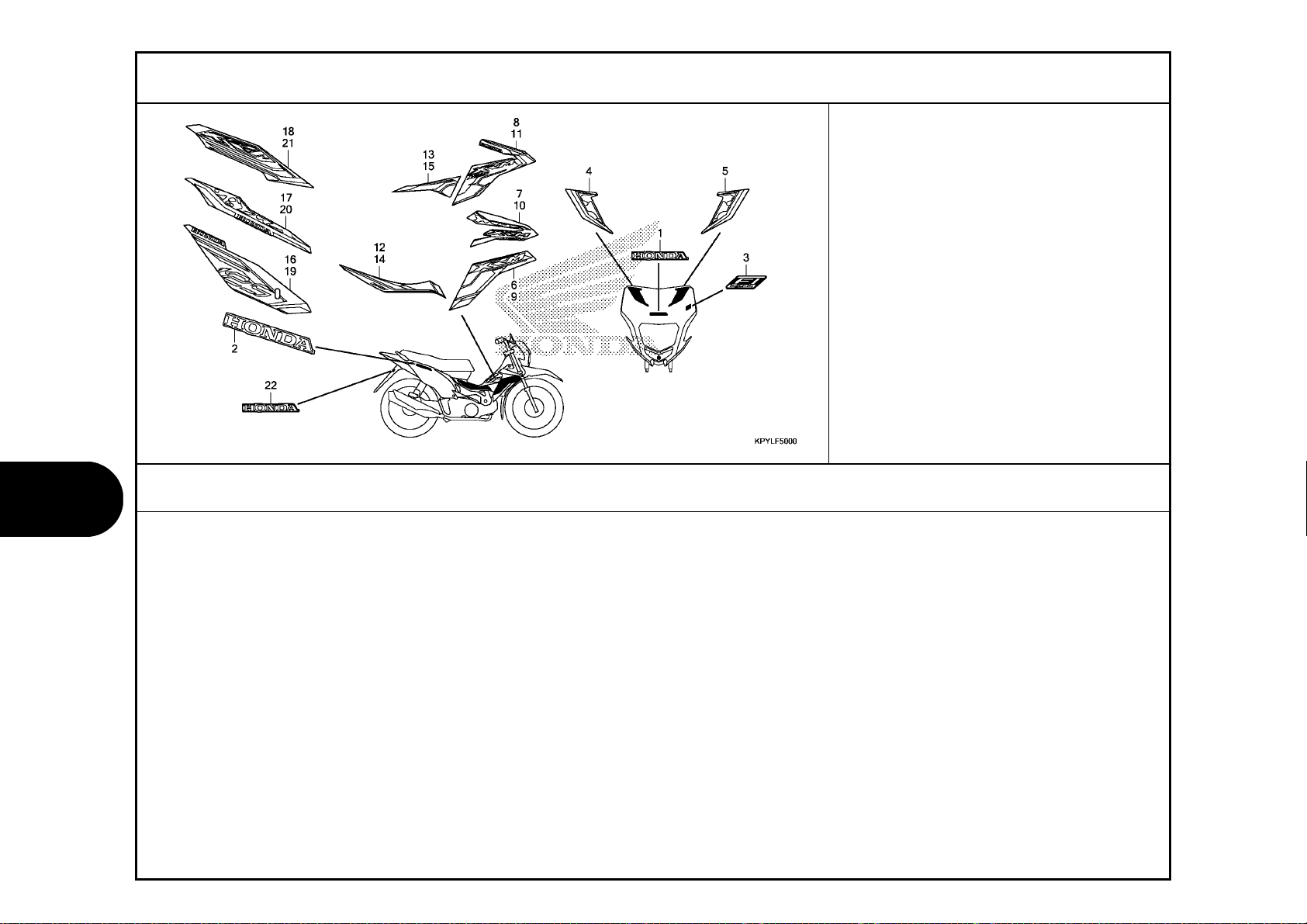

15 MARK 86531-KYZ-710 ZA ZA F-50 3

16 MARK, DRIVE CAUTION 87560-KW7-950 ZB ZB F-49 5

17 MARK, HONDA 86101-KPY-A50 ZC ZC F-50 1

18 MARK, HONDA 86801-KPY-A00 ZA ZA F-50 22

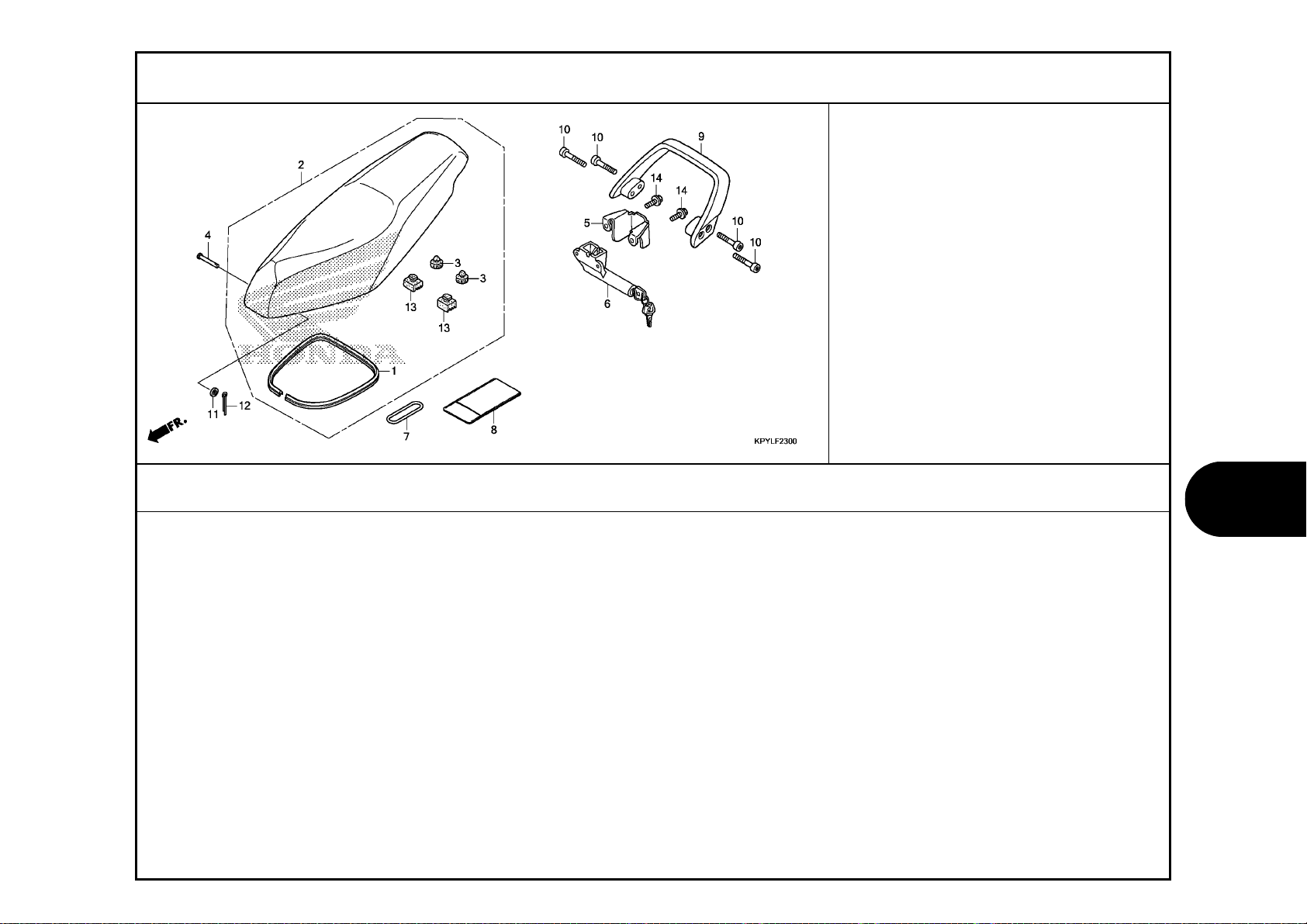

19 RAIL, RR. GRAB 84100-KGC-900 ZA ZA F-23 9

20 SEAT COMP., DOUBLE 77200-KPY-H00 ZA ZA F-23 2

21 STRIPE A, L. MAIN PIPE COVER 86642-KPY-H80 ZB ZA F-50 11

22 STRIPE A, R. MAIN PIPE COVER 86641-KPY-H80 ZB ZA F-50 8

CFT125MRC (CFT125MRCL)

MODEL CFT125MRCL

COLOR

Applicable model

Applicable

block

No.

Ref.

No.

CODE

2019.08.01 E

Page 17

Fighting

red

Tangerine

orange R

R-134 YR-300R

No. Name of colored parts Basic part No. R134 YR300

Initial

applicable

Final

applicable

23 STRIPE B, L. MAIN PIPE COVER 86644-KPY-H80 ZB ZA F-50 15

24 STRIPE B, R. MAIN PIPE COVER 86643-KPY-H80 ZB ZA F-50 13

25 STRIPE, L. BODY COVER 86648-KPY-H80 ZB ZA F-50 21

26 STRIPE, R. BODY COVER 86647-KPY-H80 ZB ZA F-50 18

27 SWINGARM SET, RR. 52200-KPY-H10 ZA ZA F-32 22

28 WHEEL SUB ASSY., FR. 44650-KPY-H80 ZA ZA F-14-40 5

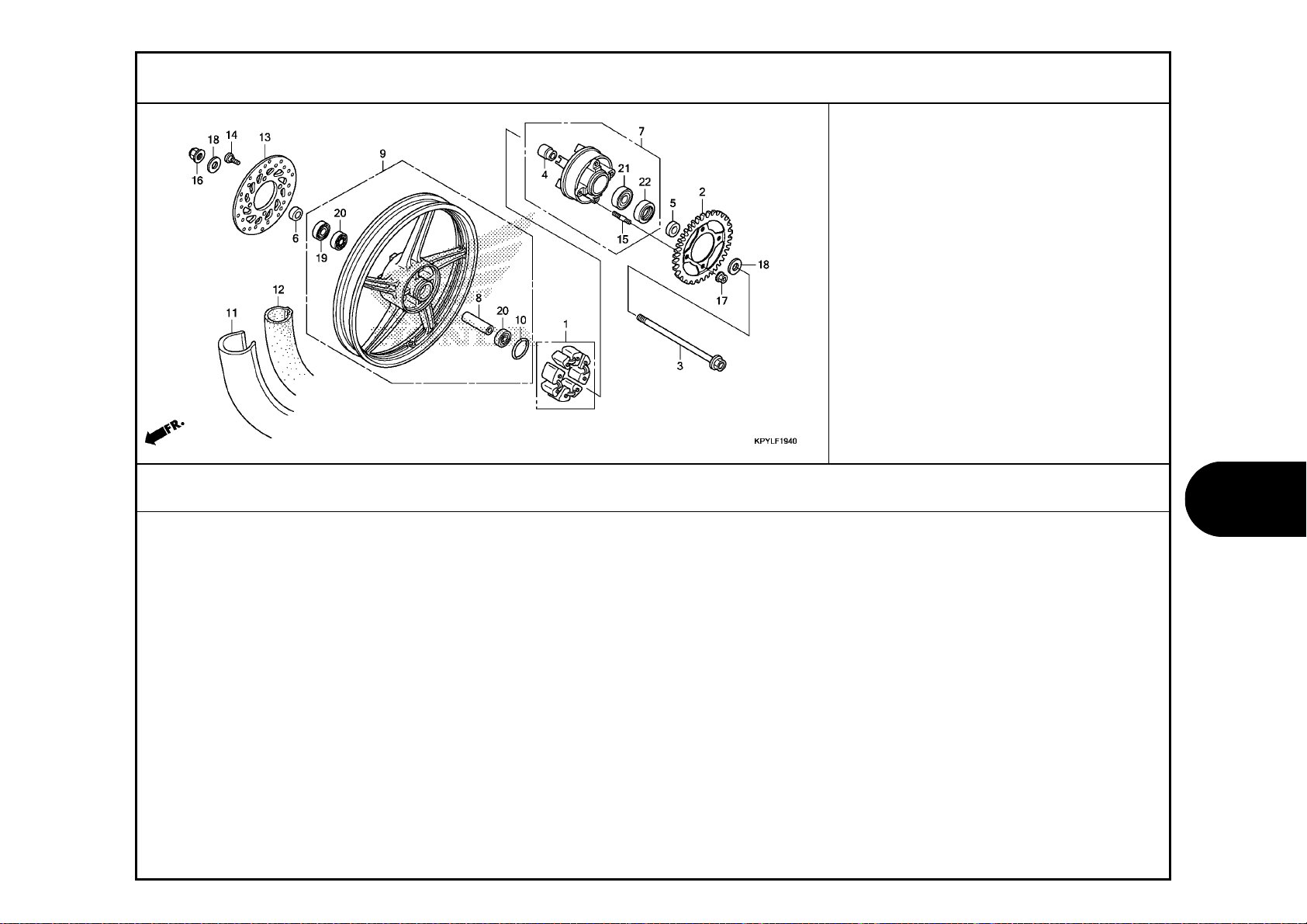

29 WHEEL SUB ASSY., RR. 42650-KPY-H80 ZA ZA F-19-40 9

CFT125MRC (CFT125MRCL)

MODEL CFT125MRCL

COLOR

Applicable model

Applicable

block

No.

Ref.

No.

CODE

model

2019.08.01 E

Page 18

Fuel hose, general purpose hoses and vinyl hose

Fuel hoses/Tubes

Standard part No. Bulk part No.

Bulk part

Inner

diameter

(mm)

Length

(m)

95001-30xxx-2x 95001-30001-20M 3.0 1 95001-30xxx-3x 95001-30001-30M 3.0 1 95001-30xxx-4x 95001-30001-40M 3.0 1

95001-35xxx-2x

95001-35001-50M

<95001-35003-50M>

3.5

1 3

95001-35xxx-3x

95001-35001-60M

<95001-35003-60M>

3.5

1 3

95001-35xxx-4x

95001-35001-60M

<95001-35003-60M>

3.5

1 3

95001-35xxx-5x

95001-35001-50M

<95001-35003-50M>

3.5

1 3

95001-35xxx-6x

95001-35001-60M

<95001-35003-60M>

3.5

1 3

95001-45xxx-2x

95001-45001-50M

<95001-45003-50M>

4.5

1 3

95001-45xxx-3x

95001-45001-60M <95001-45003-60M> <95001-45008-60M>

4.5

1 3 8

95001-45xxx-4x

95001-45001-60M <95001-45003-60M> <95001-45008-60M>

4.5

1 3 8

95001-45xxx-5x

95001-45001-50M <95001-45003-50M>

4.5

1 3

95001-45xxx-6x

95001-45001-60M <95001-45003-60M> <95001-45008-60M>

4.5

1 3 8

95001-55xxx-2x

95001-55001-50M <95001-55003-50M> <95001-55008-50M>

5.5

1 3 8

95001-55xxx-3x

95001-55001-60M <95001-55003-60M> <95001-55008-60M>

5.5

1 3 8

95001-55xxx-4x

95001-55001-60M <95001-55003-60M> <95001-55008-60M>

5.5

1 3 8

95001-55xxx-5x

95001-55001-50M <95001-55003-50M> <95001-55008-50M>

5.5

1 3 8

95001-55xxx-6x

95001-55001-60M <95001-55003-60M> <95001-55008-60M>

5.5

1 3 8

95001-75xxx-2x

95001-75001-50M <95001-75003-50M>

7.5

1 3

95001-75xxx-3x

95001-75001-60M <95001-75003-60M> <95001-75008-60M>

7.5

1 3 8

95001-75xxx-4x

95001-75001-60M <95001-75003-60M> <95001-75008-60M>

7.5

1 3 8

95001-75xxx-5x

95001-75001-50M <95001-75003-50M>

7.5

1 3

95001-75xxx-6x

95001-75001-60M <95001-75003-60M> <95001-75008-60M>

7.5

1 3

8 95001-80xxx-2x 95001-80001-50M 8.0 1 95001-80xxx-3x 95001-80001-60M 8.0 1 95001-80xxx-4x 95001-80001-60M 8.0 1 95001-80xxx-5x 95001-80001-50M 8.0 1 95001-80xxx-6x 95001-80001-60M 8.0 1

Fuel hoses/Tubes

Standard part No. Bulk part No.

Bulk part

Inner

diameter

(mm)

Length

(m)

• The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part.

• When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalogue in brackets ( ) underneath the part name, or use the catalogue below. (The bulk part standard length is 1 m, however, those displayed in the catalogue < > are available in 3 m and 8 m lengths.)

• When exchanging the hose, cut and use at the specified length as mentioned in the part name. (For the method of cutting the bulk part, and method of filling out orders etc., please refer to the service manual and the instructions issued with the bulk part.)

• The list below is a catalogue of the standard part numbers and bulk part numbers. Note that those numbers are applicable to the listed replacement parts only.

2019.08.01 E

Page 19

Standard part

No.

95003-01xxx-3x

95003-01xxx-60

95003-03xxx-3x

95003-03xxx-60

95003-05xxx-3x

95003-05xxx-60

95003-07xxx-1x

95003-07xxx-20

95003-07xxx-3x

95003-07xxx-60

95003-07xxx-7x

95003-08xxx-1x

95003-09xxx-3x

95003-09xxx-60

95003-10xxx-1x

95003-10xxx-20

95003-10xxx-3x

95003-10xxx-60

95003-11xxx-3x

95003-11xxx-60

95003-12xxx-1x

95003-12xxx-20

Vinyl tube

Bulk part No.

95003-01001-60M

<95003-01003-60M>

95003-01001-60M

<95003-01003-60M>

95003-03001-60M

<95003-03003-60M>

95003-03001-60M

<95003-03003-60M>

95003-05001-60M <95003-05003-60M> <95003-05008-60M>

95003-07001-10M <95003-07003-10M> <95003-07008-10M>

95003-07001-60M <95003-07003-60M> <95003-07008-60M>

95003-07001-70M <95003-07003-70M> <95003-07008-70M>

95003-08001-10M <95003-08003-10M> <95003-08008-10M>

95003-09001-60M <95003-09003-60M>

95003-10001-10M <95003-10003-10M>

95003-10001-60M <95003-10003-60M>

95003-11001-60M <95003-11003-60M> <95003-11008-60M>

95003-12001-10M <95003-12003-10M> <95003-12008-10M>

Inner

dia- meter

(mm)

2.9 6.8

3.0 6.0

3.5 6.5

4.0 7.0

4.5 6.5

4.5 8.0

5.0 8.0

5.0 9.0

5.0 7.0

Bulk part

Outer

dia-meter

(mm)

Length

(m)

1 3

1 3 8

1 3

1 3 8

Standard part

No.

95003-14xxx-1x

95003-14xxx-20

95003-14xxx-3x

95003-17xxx-1x

95003-19xxx-1x

95003-19xxx-20

95003-19xxx-3x

95003-19xxx-60

95003-21xxx-1x

95003-21xxx-20

95003-23xxx-1x

95003-23xxx-20

95003-23xxx-3x

95003-23xxx-60

95003-25xxx-1x

95003-25xxx-20

95003-25xxx-3x

95003-25xxx-7x

95003-27xxx-1x

95003-27xxx-20

95003-27xxx-3x

95003-27xxx-60

95003-33xxx-1x

95003-33xxx-20

Vinyl tube

Bulk part No.

95003-14001-10M

<95003-14003-10M>

95003-14001-10M

<95003-14003-10M>

95003-14001-60M

<95003-14003-60M>

95003-17001-10M

<95003-17003-10M>

95003-19001-10M <95003-19003-10M> <95003-19008-10M>

95003-19001-60M <95003-19003-60M> <95003-19008-60M>

95003-21001-10M <95003-21003-10M>

95003-23001-10M <95003-23003-10M>

95003-23001-60M <95003-23003-60M> <95003-23008-60M>

95003-25001-10M <95003-25003-10M>

95003-25001-60M <95003-25003-60M>

95003-25001-70M <95003-25003-70M>

95003-27001-10M <95003-27003-10M>

95003-27001-60M <95003-27003-60M>

95003-33001-10M <95003-33003-10M>

Inner

dia- meter

(mm)

6.0 9.0

7.0 9.0

7.0 11.0

8.0 9.0

8.0 12.0

9.0 11.0

9.0 13.0

10.0 14.0

Bulk part

Outer

dia-meter

(mm)

Length

(m)

1 3

1 3 8

1 3

1 3 8

1 3

Standard part

No.

95003-36xxx-1x

95003-36xxx-20

95003-37xxx-3x

95003-37xxx-60

95003-38xxx-1x

95003-38xxx-20

95003-39xxx-1x

95003-39xxx-20

95003-40xxx-20

95003-40xxx-3x

95003-40xxx-60

95003-43xxx-1x

95003-43xxx-20

95003-45xxx-1x

95003-45xxx-20

95003-50xxx-1x

95003-50xxx-20

95003-50xxx-3x

95003-55xxx-1x

95003-55xxx-20

95003-60xxx-1x

95003-60xxx-20

95003-60xxx-3x

95003-60xxx-60

Vinyl tube

Bulk part No.

95003-36001-10M <95003-36003-10M> <95003-36008-10M>

95003-37001-60M

95003-37003-60M>

95003-37001-60M <95003-37003-60M>

95003-38001-10M <95003-38003-10M>

95003-39001-10M <95003-39003-10M>

95003-40001-10M <95003-40003-10M>

95003-40001-60M <95003-40003-60M>

95003-43001-10M <95003-43003-10M> <95003-43008-10M>

95003-45001-10M <95003-45003-10M> <95003-45008-10M>

95003-50001-10M <95003-50003-10M>

95003-50001-60M <95003-50003-60M>

95003-55001-10M <95003-55003-10M>

95003-60001-10M <95003-60003-10M>

95003-60001-60M <95003-60003-60M>

Inner

dia- meter

(mm)

11.0 13.0

11.0 15.0

12.0 13.0

12.0 14.0

12.0 16.0

13.0 15.0

14.0 18.0

16.0 19.0

17.5 20.5

22.0 27.0

Bulk part

Outer

dia-meter

(mm)

Length

(m)

1 3 8

1 3

1 3 8

1 3

2019.08.01 E

Page 20

CAUTION: It is DANGEROUS to confuse the fuel hose with the general purpose hose or vinyl hose.

Never use a general purpose hose or vinyl hose in place of a fuel hose or vice versa. Always use the correct bulk part in the parts catalogue, according to the service manual or the instructions issued with the bulk part.

General purpose hoses

Bulk part

Standard part No. Bulk part No.

95005-11xxx-3x 95005-11001-30M 11.0 1 95005-11xxx-5x 95005-11001-50M 11.0 1

95005-12xxx-1x

95005-12xxx-2x 95005-12001-20M 12.0 1 95005-12xxx-3x 95005-12001-30M 12.0 1 95005-12xxx-5x 95005-12001-50M 12.0 1 95005-14xxx-1x 95005-14001-10M 14.0 1

95005-14xxx-2x

95005-14xxx-3x 95005-14001-30M 14.0 1 95005-14xxx-5x 95005-14001-50M 14.0 1 95005-17xxx-1x 95005-17001-10M 17.0 1 95005-17xxx-2x 95005-17001-20M 17.0 1 95005-17xxx-3x 95005-17001-30M 17.0 1 95005-17xxx-5x 95005-17001-50M 17.0 1 95005-30xxx-3x 95005-30001-30M 3.0 1 95005-30xxx-5x 95005-30001-50M 3.0 1

95005-35xxx-1x

95005-35xxx-2x 95005-35001-20M 3.5 1 95005-35xxx-3x 95005-35001-30M 3.5 1

95005-35xxx-4x

95005-35xxx-5x 95005-35001-50M 3.5 1

95005-45xxx-1x

95005-45xxx-2x 95005-45001-20M 4.5 1 95005-45xxx-3x 95005-45001-30M 4.5 1

95005-12001-10M

<95005-12003-10M>

95005-14001-20M

<95005-14003-20M>

95005-35001-10M <95005-35003-10M> <95005-35008-10M>

95005-45001-10M <95005-45003-10M> <95005-45008-10M>

Inner

diameter

(mm)

12.0

14.0

3.5

4.5

Length

(m)

1 3

1 3 8

General purpose hoses

Bulk part

Standard part No. Bulk part No.

95005-45xxx-4x

95005-45xxx-5x 95005-45001-50M 4.5 1

95005-50xxx-3x

95005-50xxx-5x 95005-50001-50M 5.0 1

95005-55xxx-1x

95005-55xxx-2x

95005-55xxx-4x

95005-65xxx-1x

95005-65xxx-2x 95005-65001-20M 6.5 1

95005-70xxx-3x

95005-70xxx-5x 95005-70001-50M 7.0 1

95005-75xxx-1x

95005-75xxx-2x 95005-75001-20M 7.3 1

95005-80xxx-1x

95005-80xxx-2x 95005-80001-20M 8.0 1 95005-80xxx-3x 95005-80001-30M 8.0 1 95005-80xxx-5x 95005-80001-50M 8.0 1 95005-91xxx-3x 95005-91001-30M 12.0 1 95005-91xxx-5x 95005-91001-50M 12.0 1 95005-92xxx-3x 95005-92001-30M 12.0 1 95005-92xxx-5x 95005-92001-50M 12.0 1

95005-45001-10M <95005-45003-10M> <95005-45008-10M>

95005-50001-30M <95005-50003-30M>

95005-55001-10M <95005-55003-10M> <95005-55008-10M>

95005-55001-20M <95005-55003-20M>

95005-55001-10M <95005-55003-10M> <95005-55008-10M>

95005-65001-10M <95005-65003-10M>

95005-70001-30M <95005-70003-30M>

95005-75001-10M <95005-75003-10M>

95005-80001-10M <95005-80003-10M>

NOTE: X is displayed to represent the omitted numerals and letters of the

roman alphabet.

Inner

diameter

(mm)

4.5

5.0

5.3

6.5

7.0

7.3

8.0

Length

(m)

1 3 8

1 3

1 3 8

1 3

1 3 8

1 3

2019.08.01 E

Page 21

(Example)

9 5 0 0 1 - 7 5 0 0 1 - 5 0 M

Bulk part number: Refers to the bulk part.

Marking code (hose type): (fuel hose and general purpose hose) Change code (for added hose): (Vinyl hose)

• Indicates number mark or change sequence, however, the code for the bulk part must be strictly 0 (zero).

Types of code:

• Fuel hose 2: Red outside braid (3 mm inside dia. only) 5: Black inside braid 3: Red (3 mm inside dia. only) 4: Ash gray with red stripe (3 mm inside dia. only) 6: Black

• Vinyl hose 1: Clear 2: Black 3: Light red 6: Light red 7: Pale black

• General hose 1: Ash gray 2: Ash gray 3: Black 5: Black

Lengths: 001: 1 m (standard)

003: 3 m 008: 8 m

I.D code: (fuel hose and general purpose hose)

30: 3.0 mm 11: 11 mm 35: 3.5 mm 91: 12 mm (outside dia. 15) mm 45: 4.5 mm 92: 12 mm (outside dia. 16) mm 50: 5.0 mm 12: 12 mm (outside dia. 17) mm 55: 5.3 mm, 5.5 mm 14: 14 mm 65: 6.5 mm 17: 17 mm 70: 7.0 mm 75: 7.3 mm, 7.5 mm 80: 8.0 mm

ID./OD. code: (vinyl hose)

01: ID. 2.9, OD. 6.8 mm 14: ID. 6.0, OD. 9.0 mm 37: ID. 11.0, OD. 15.0 mm 03: ID. 3.0, OD. 6.0 mm 17: ID. 7.0, OD. 9.0 mm 38: ID. 12.0, OD. 13.0 mm 05: ID. 3.5, OD. 6.5 mm 19: ID. 7.0, OD. 11.0 mm 39: ID. 12.0, OD. 14.0 mm 07: ID. 4.0, OD. 7.0 mm 21: ID. 8.0, OD. 9.0 mm 40: ID. 12.0, OD. 16.0 mm 08: ID. 4.5, OD. 6.5 mm 23: ID. 8.0, OD. 12.0 mm 43: ID. 13.0, OD. 15.0 mm 09: ID. 4.5, OD. 8.0 mm 25: ID. 9.0, OD. 11.0 mm 45: ID. 14.0, OD. 18.0 mm 12: ID. 5.0, OD. 7.0 mm 27: ID. 9.0, OD. 13.0 mm 50: ID. 16.0, OD. 19.0 mm 10: ID. 5.0, OD. 8.0 mm 33: ID. 10.0, OD. 14.0 mm 55: ID. 17.5, OD. 20.5 mm 11: ID. 5.0, OD. 9.0 mm 36: ID. 11.0, OD. 13.0 mm 60: ID. 22.0, OD. 27.0 mm

Hose type: 1: Fuel hose

3: Vinyl hose 5: General hose

• Bulk part number of fuel hose, general purpose hose and vinyl hose.

2019.08.01 E

Page 22

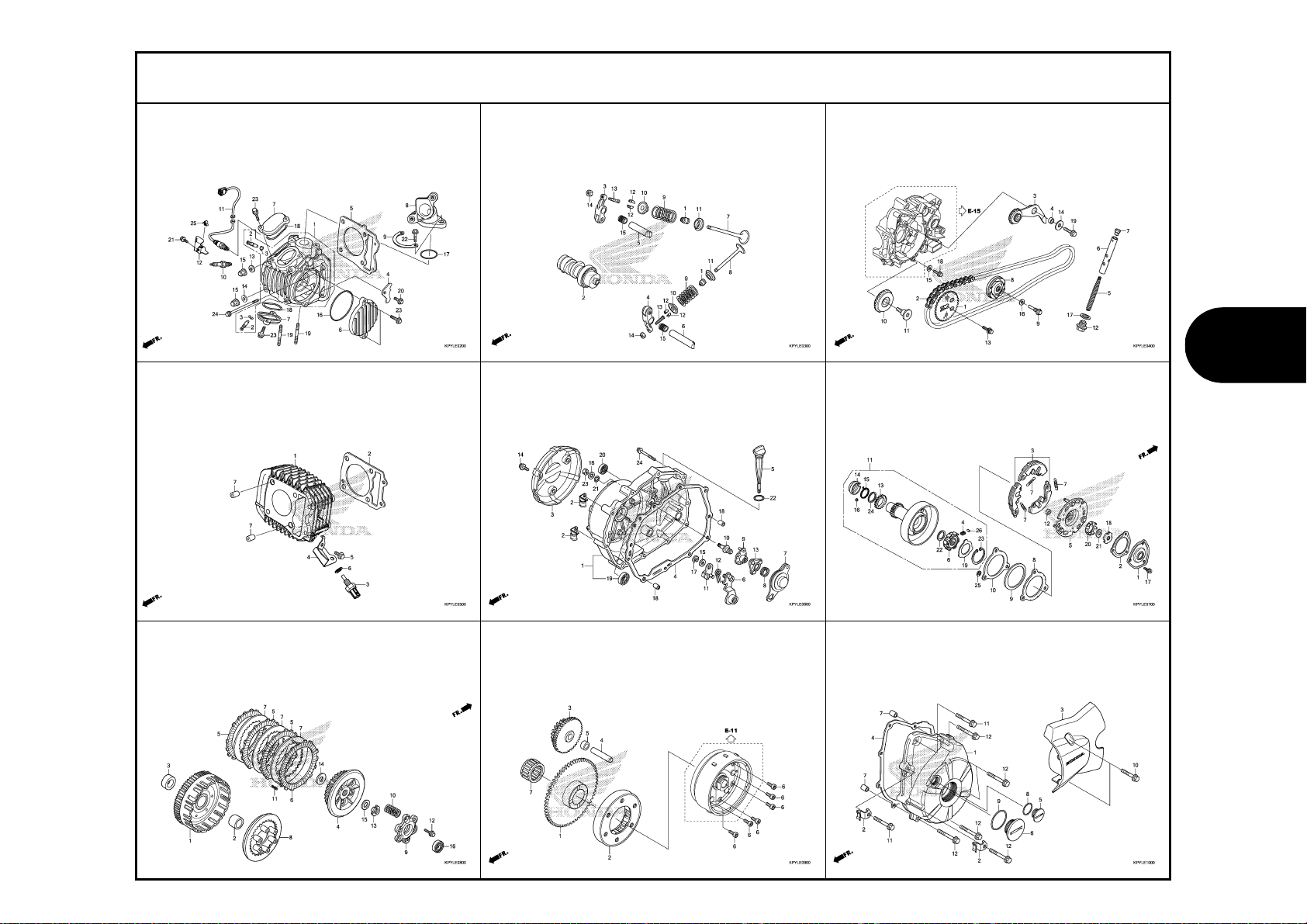

ENGINE GROUP

E-2

E-5

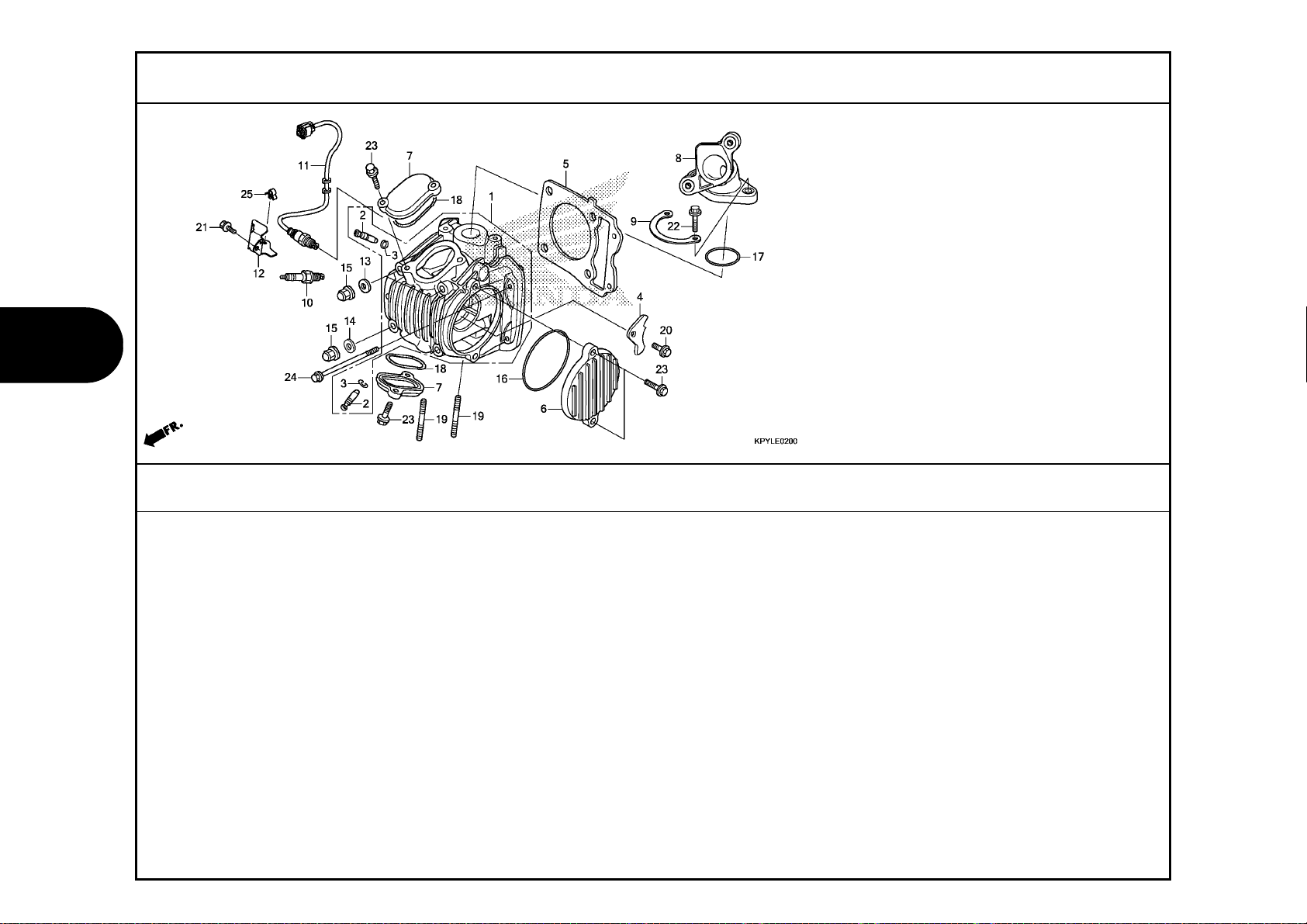

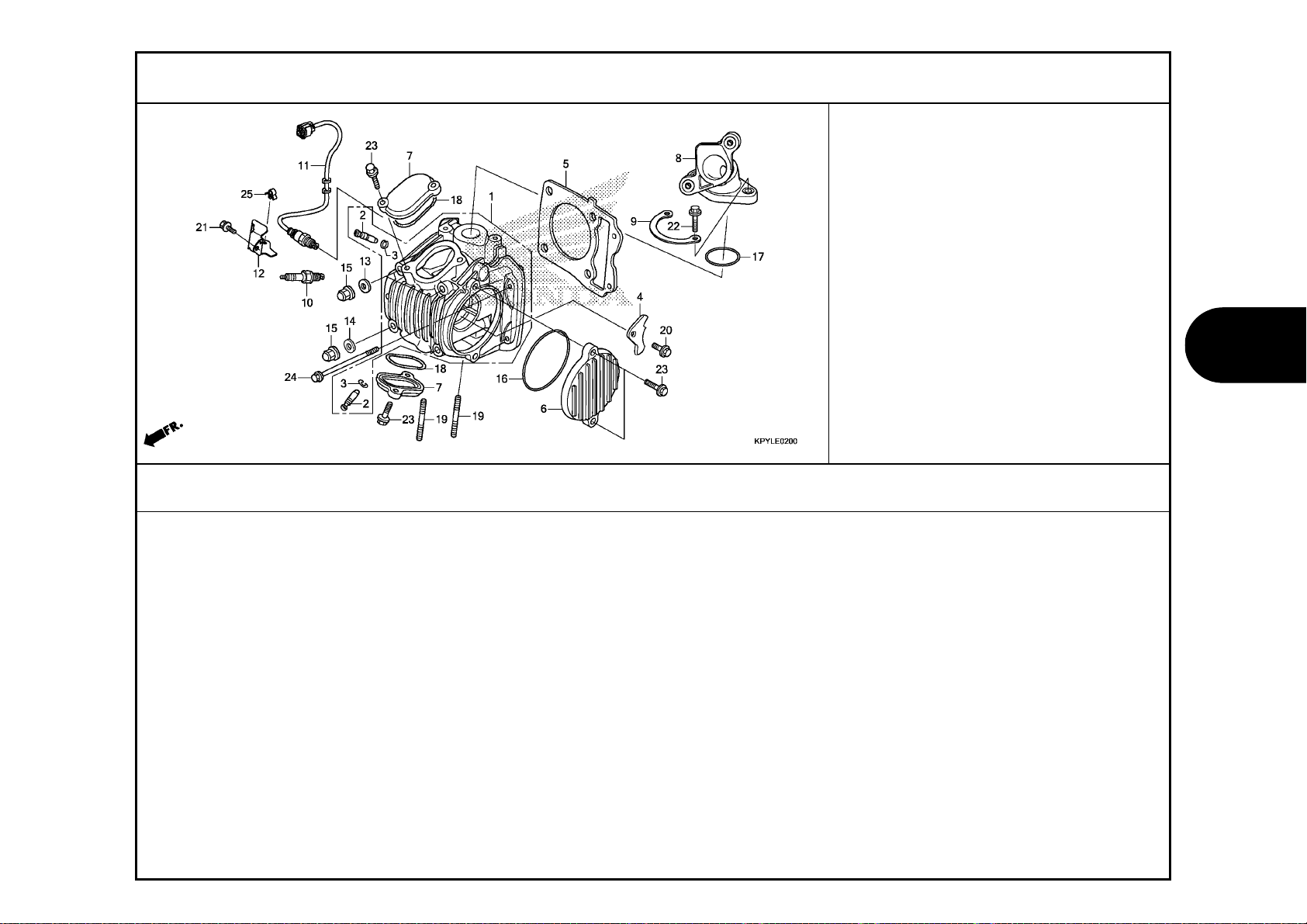

CYLINDER HEAD

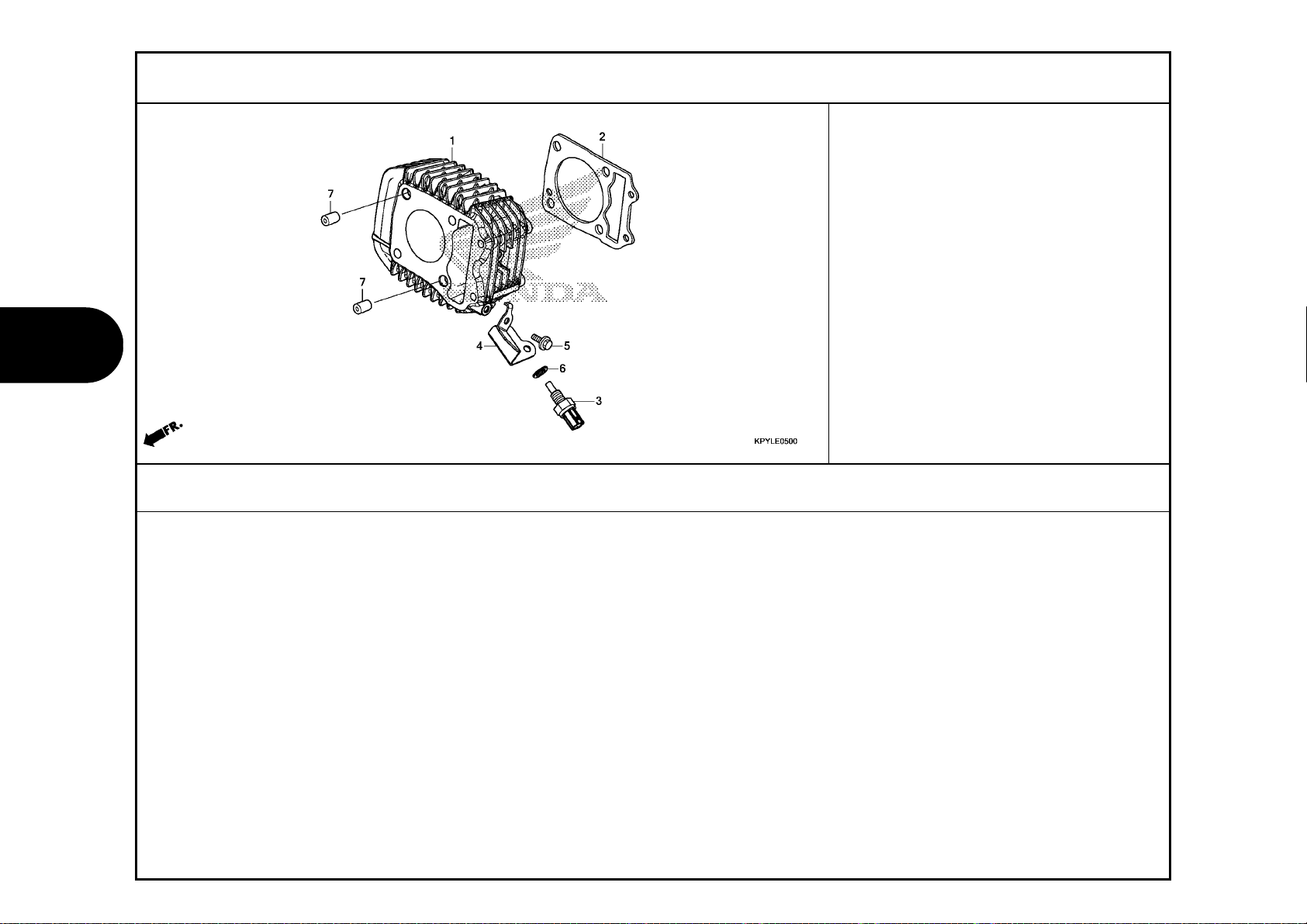

CYLINDER

E-3

E-6

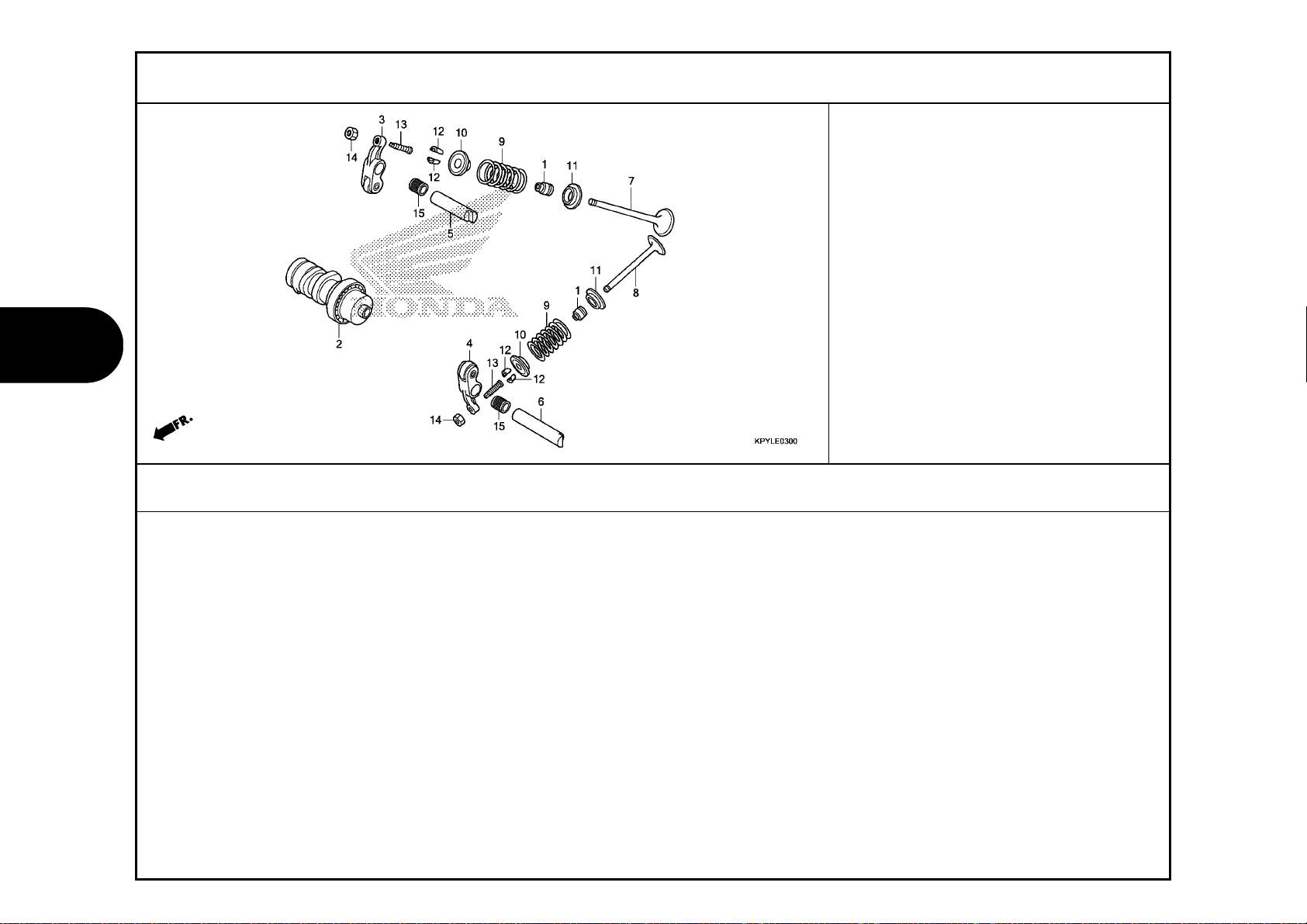

CAMSHAFT/VALVE

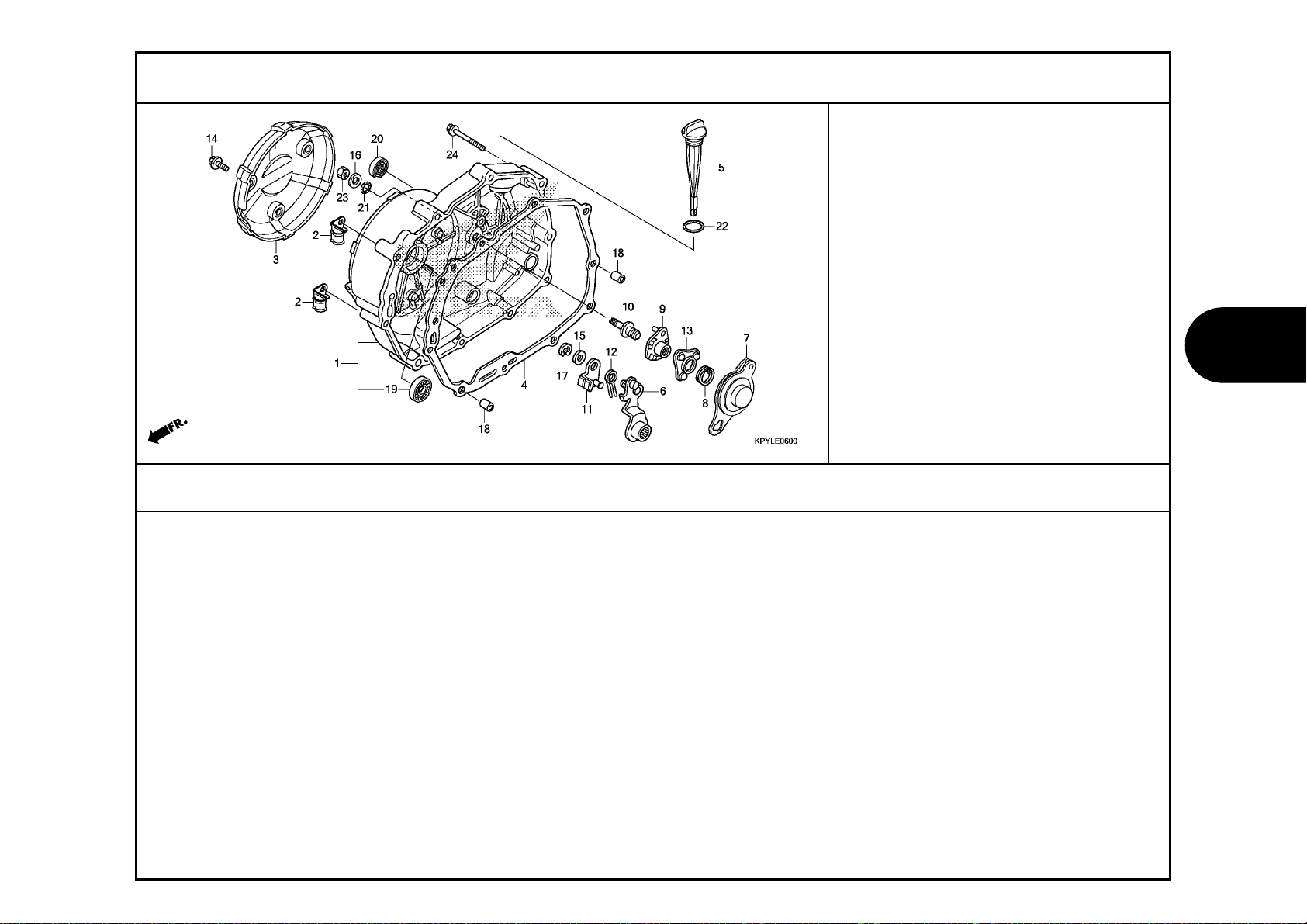

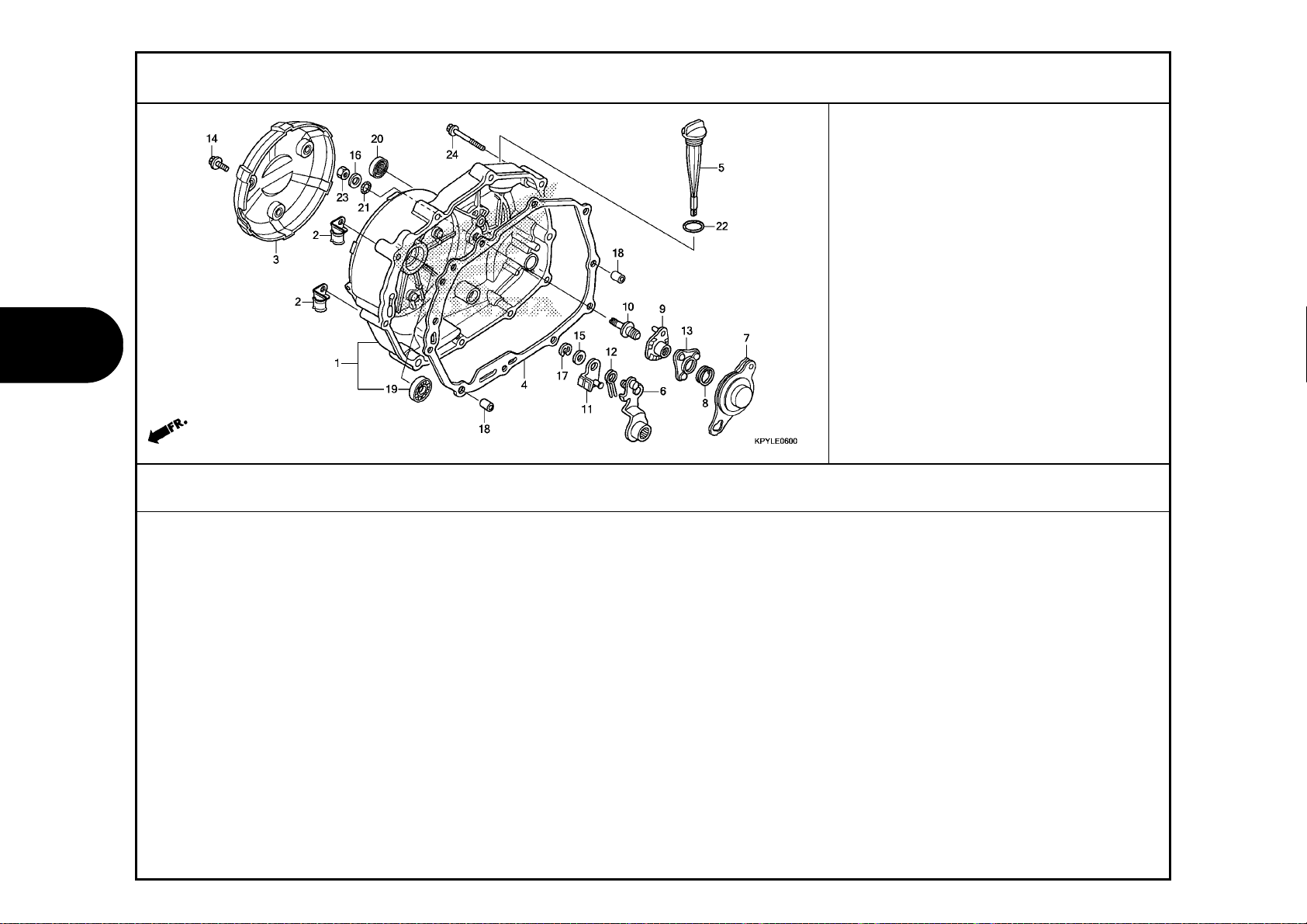

RIGHT CRANKCASE COVER

E-4

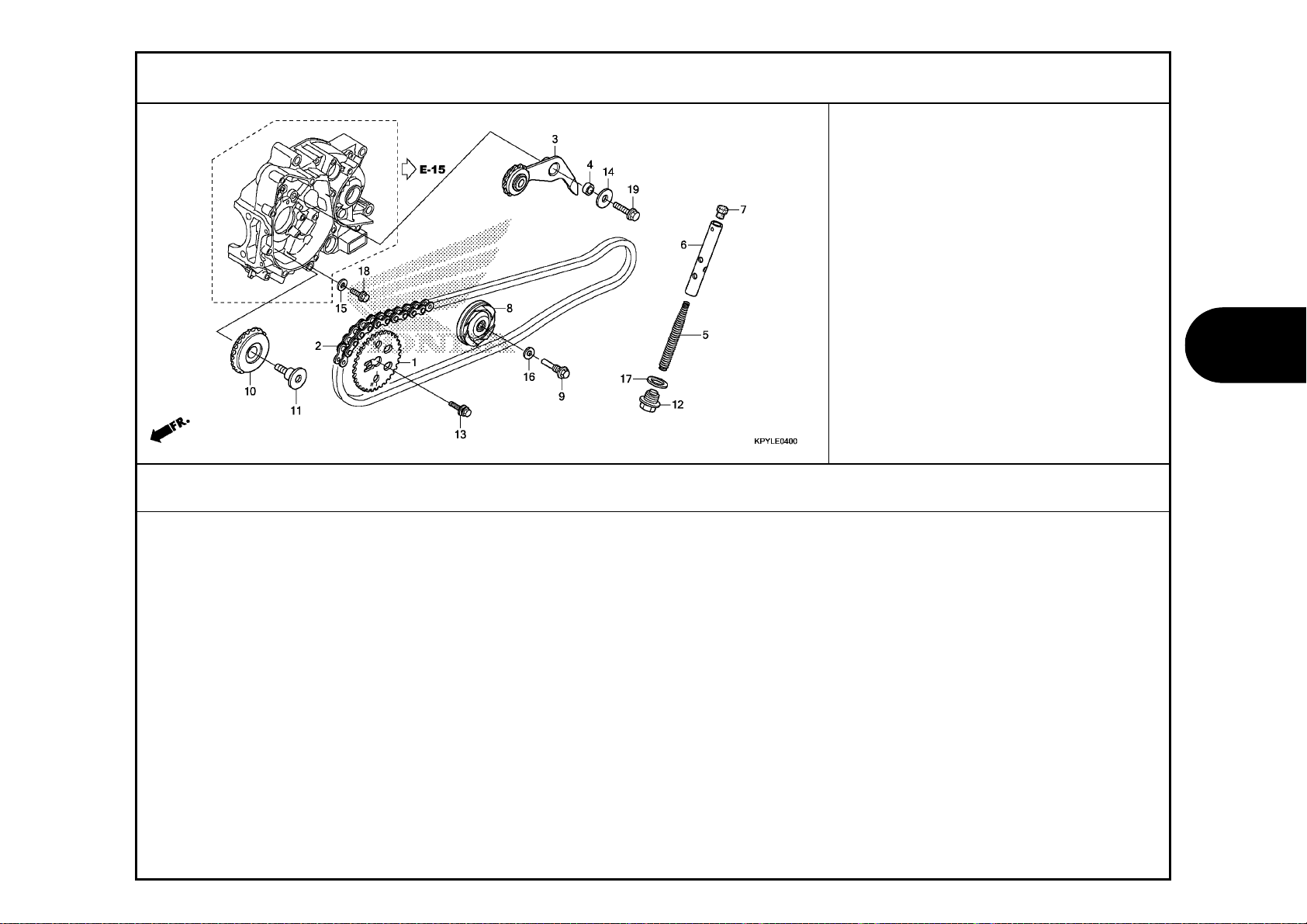

CAM CHAIN/TENSIONER

E-7

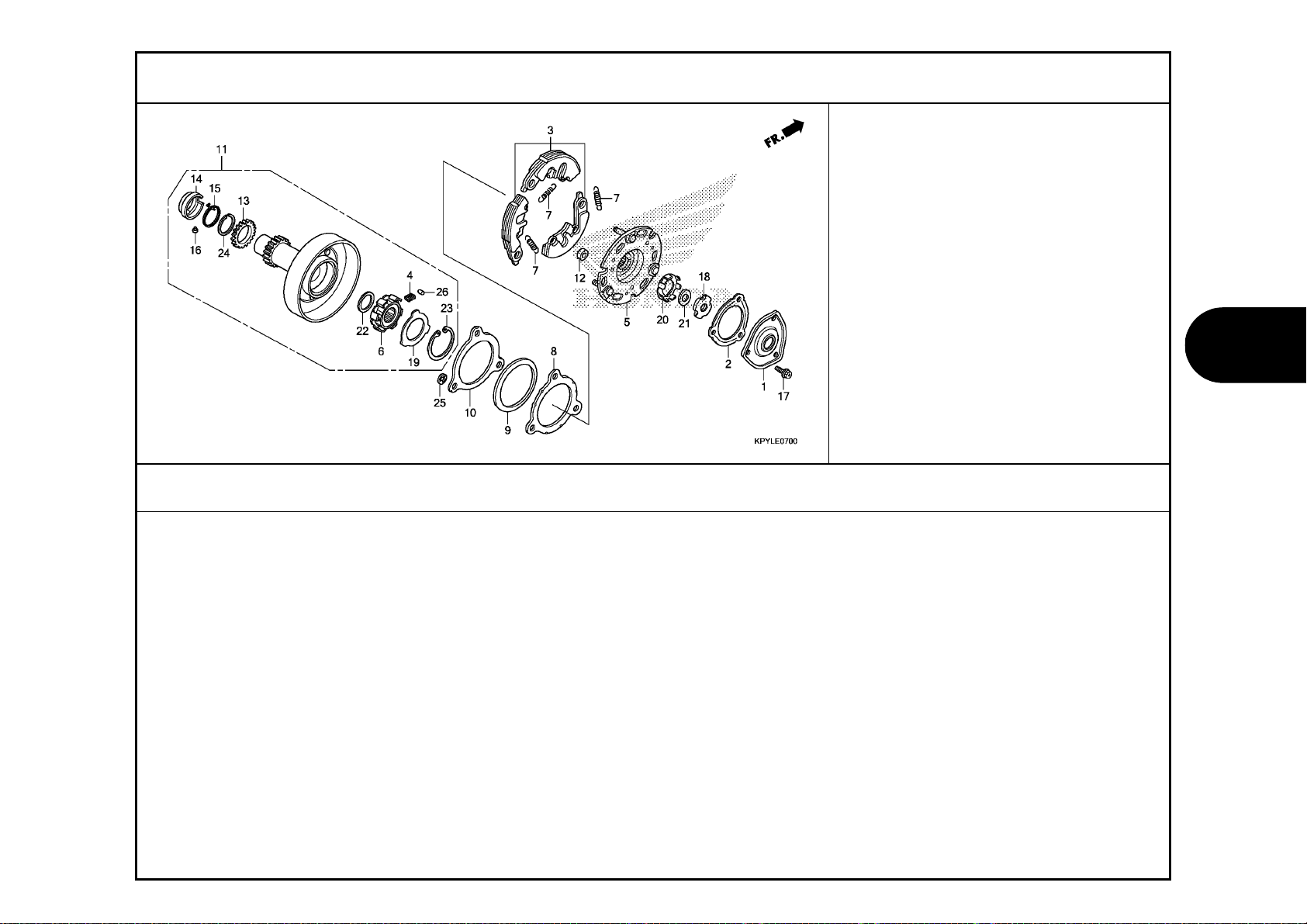

ONE WAY CLUTCH

E-8

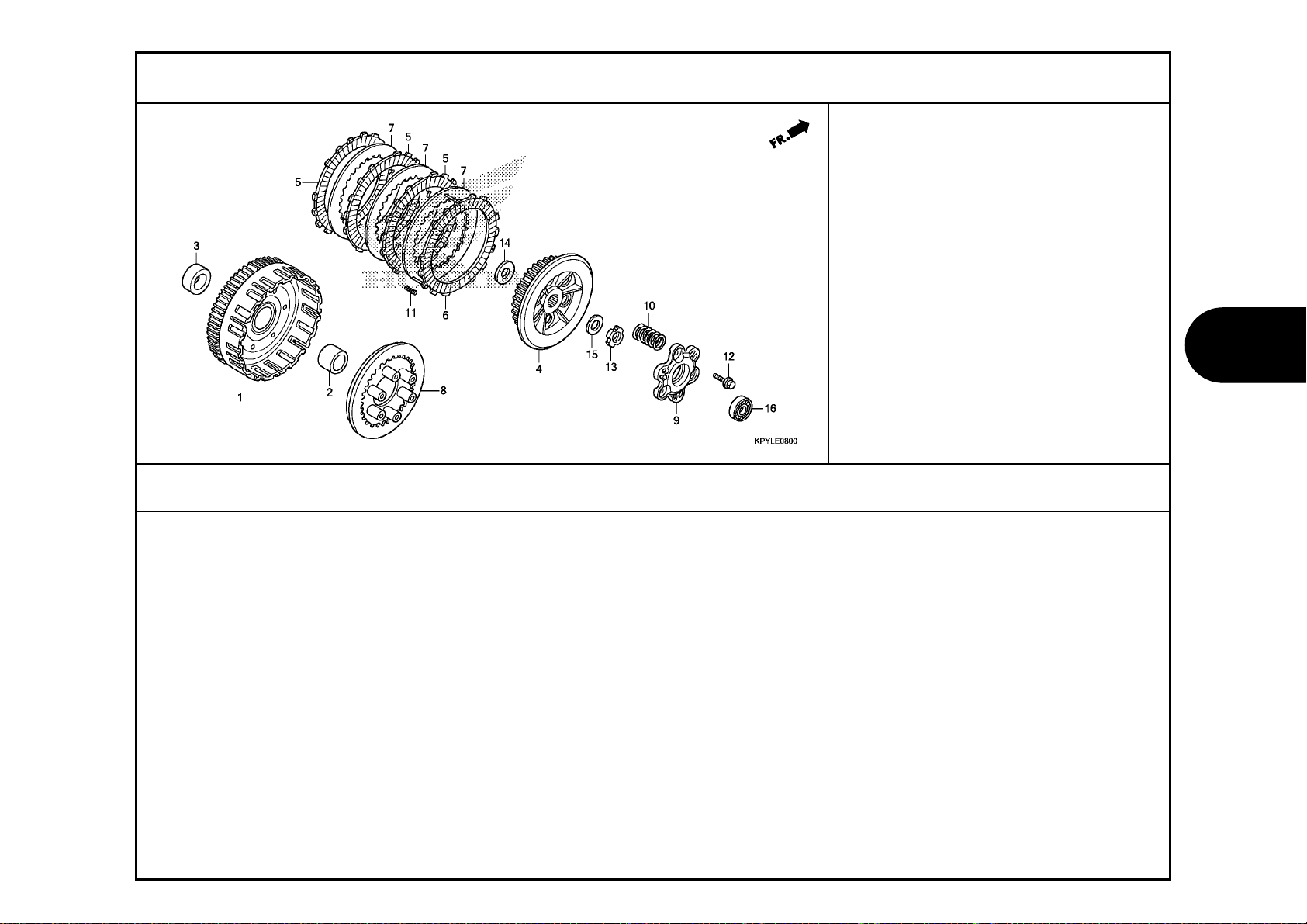

CLUTCH

E-9

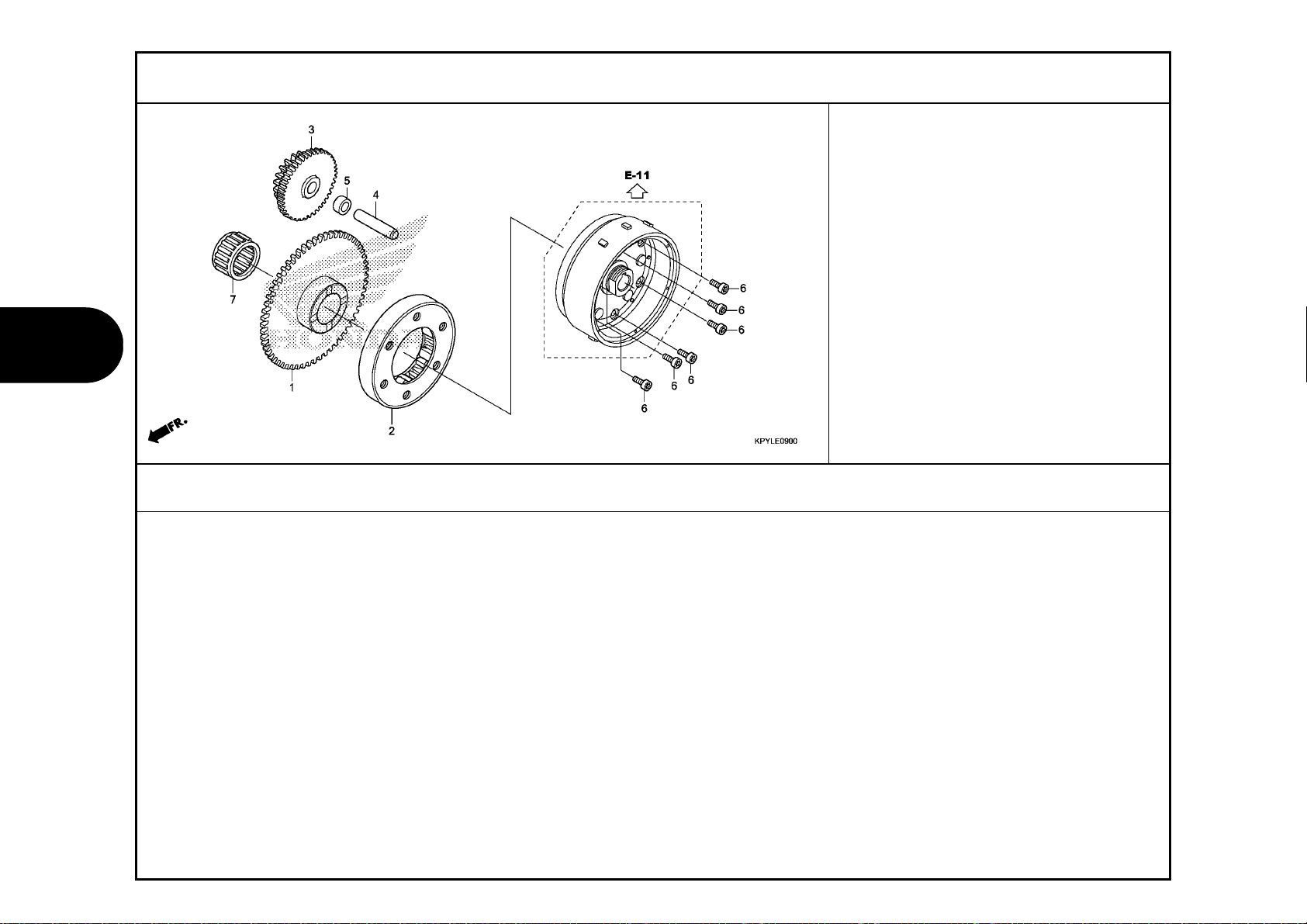

STARTING CLUTCH

2019.08.01 E

E-10

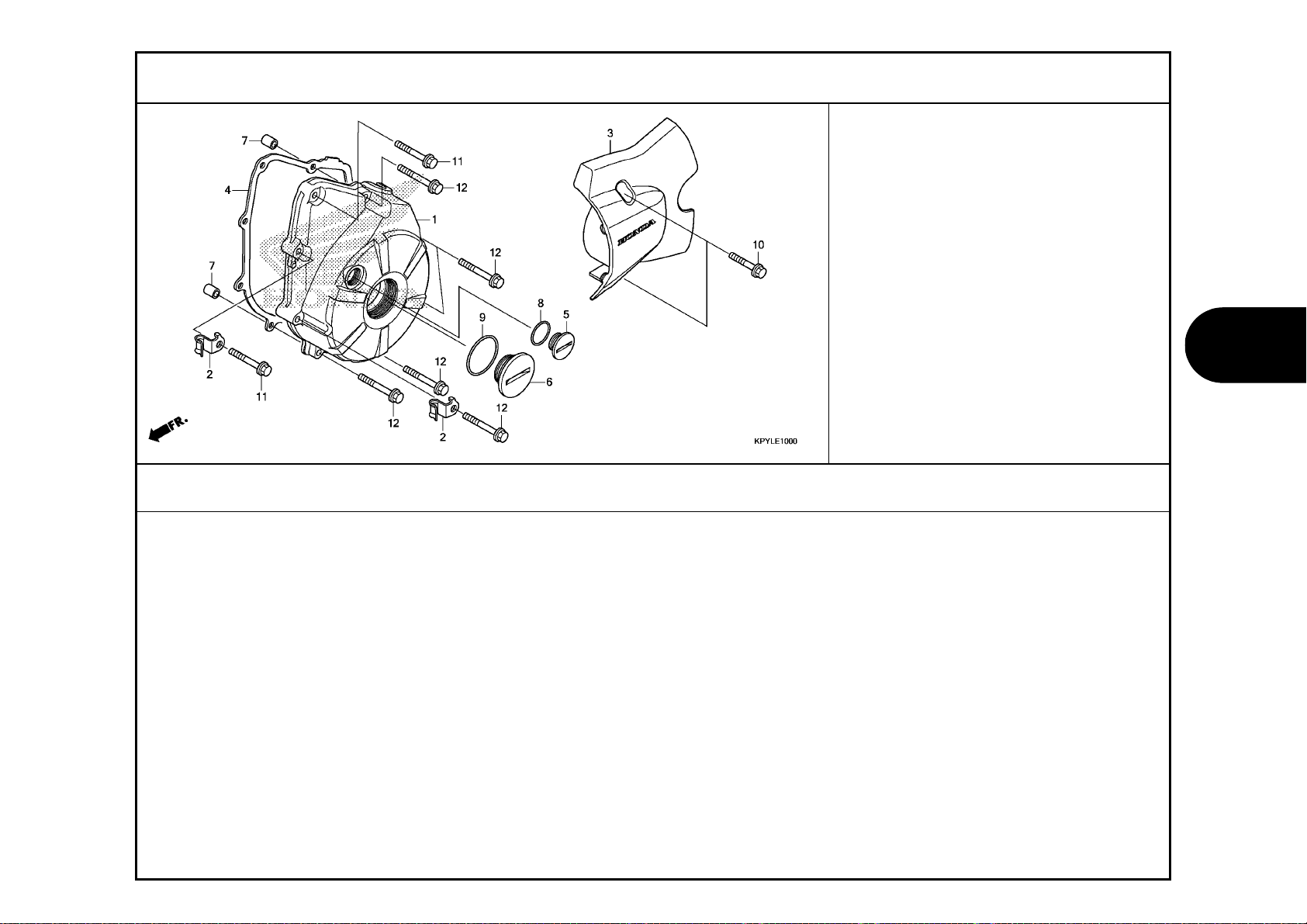

LEFT CRANKCASE COVER

Page 23

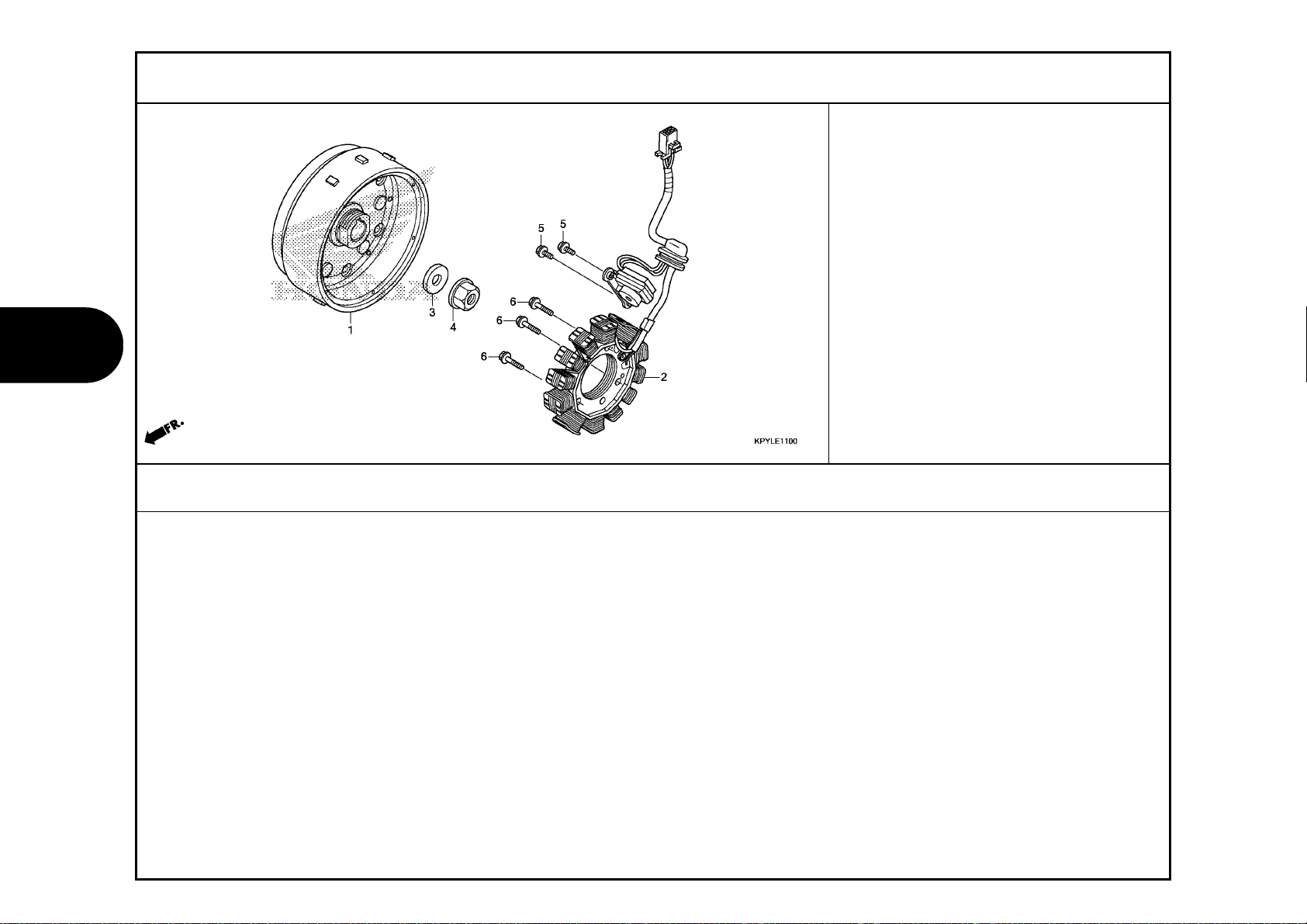

E-11

GENERATOR

E-13

ENGINE GROUP

STARTER MOTOR

E-14

OIL PUMP

E-15

E-19

CRANKCASE

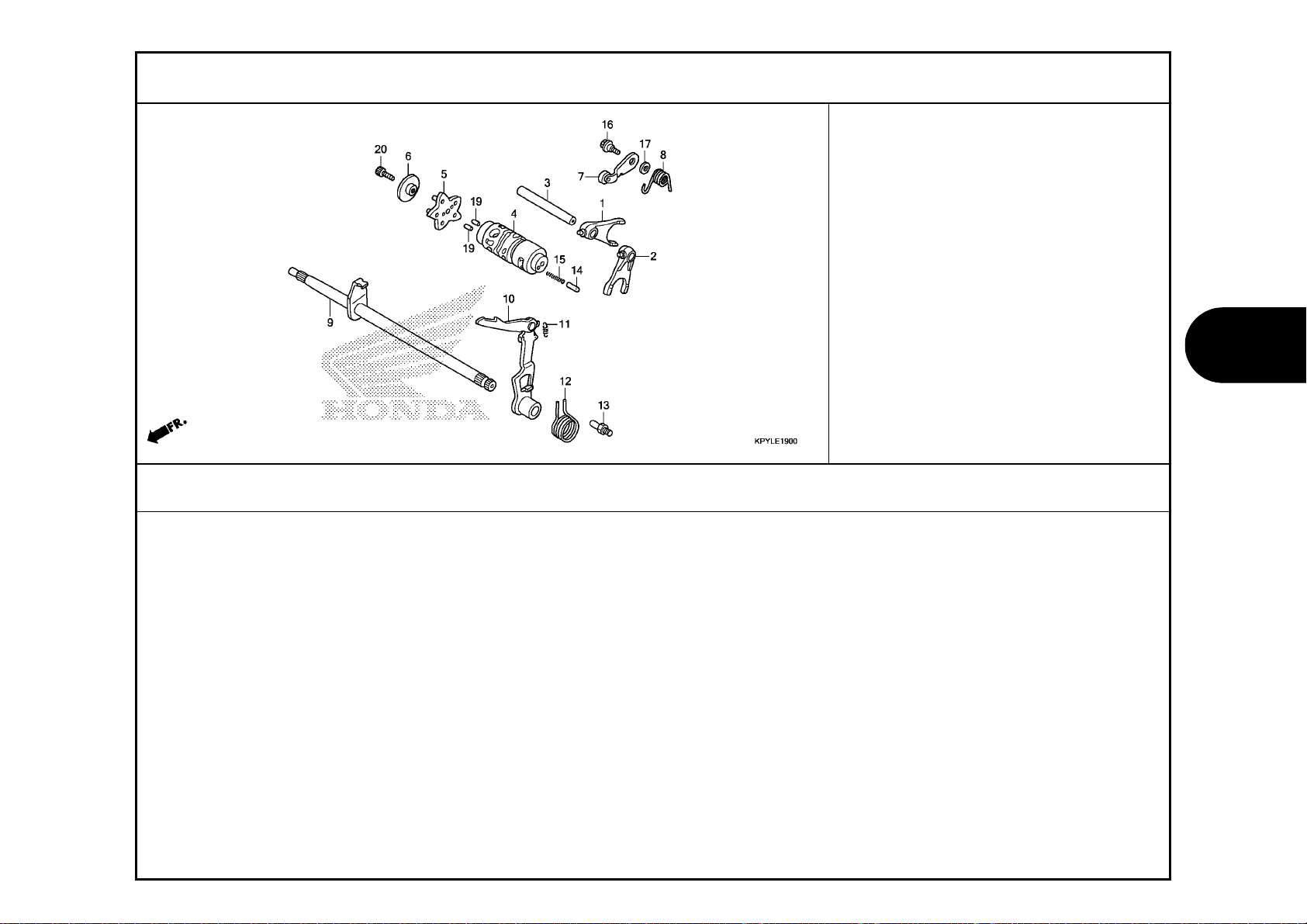

GEARSHIFT DRUM

E-16

E-20

CRANKSHAFT/PISTON

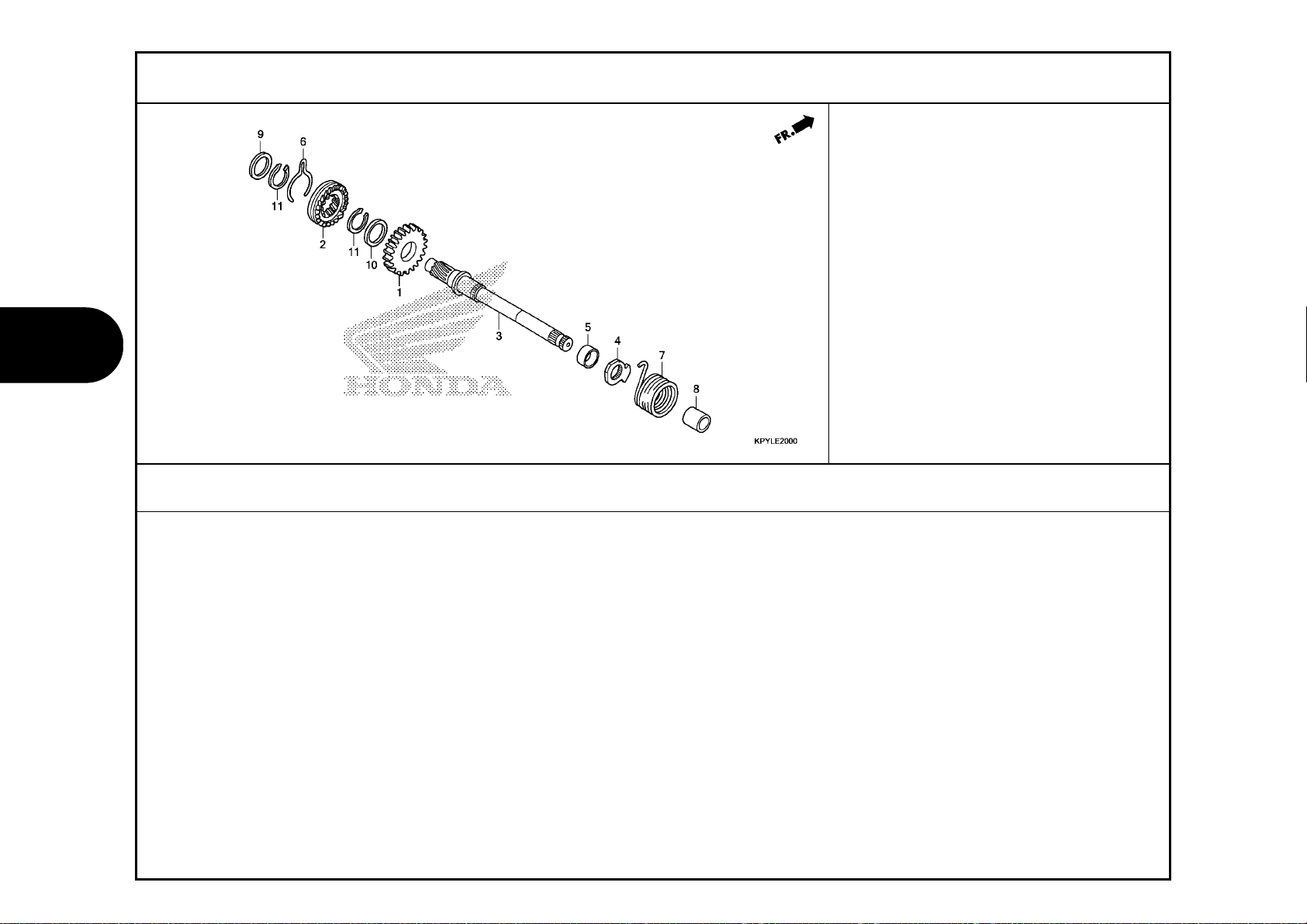

KICK STARTER SPINDLE

E-17

TRANSMISSION

E-23

THROTTLE BODY

2019.08.01 E

Page 24

FRAME GROUP

F-1

F-4

HEADLIGHT

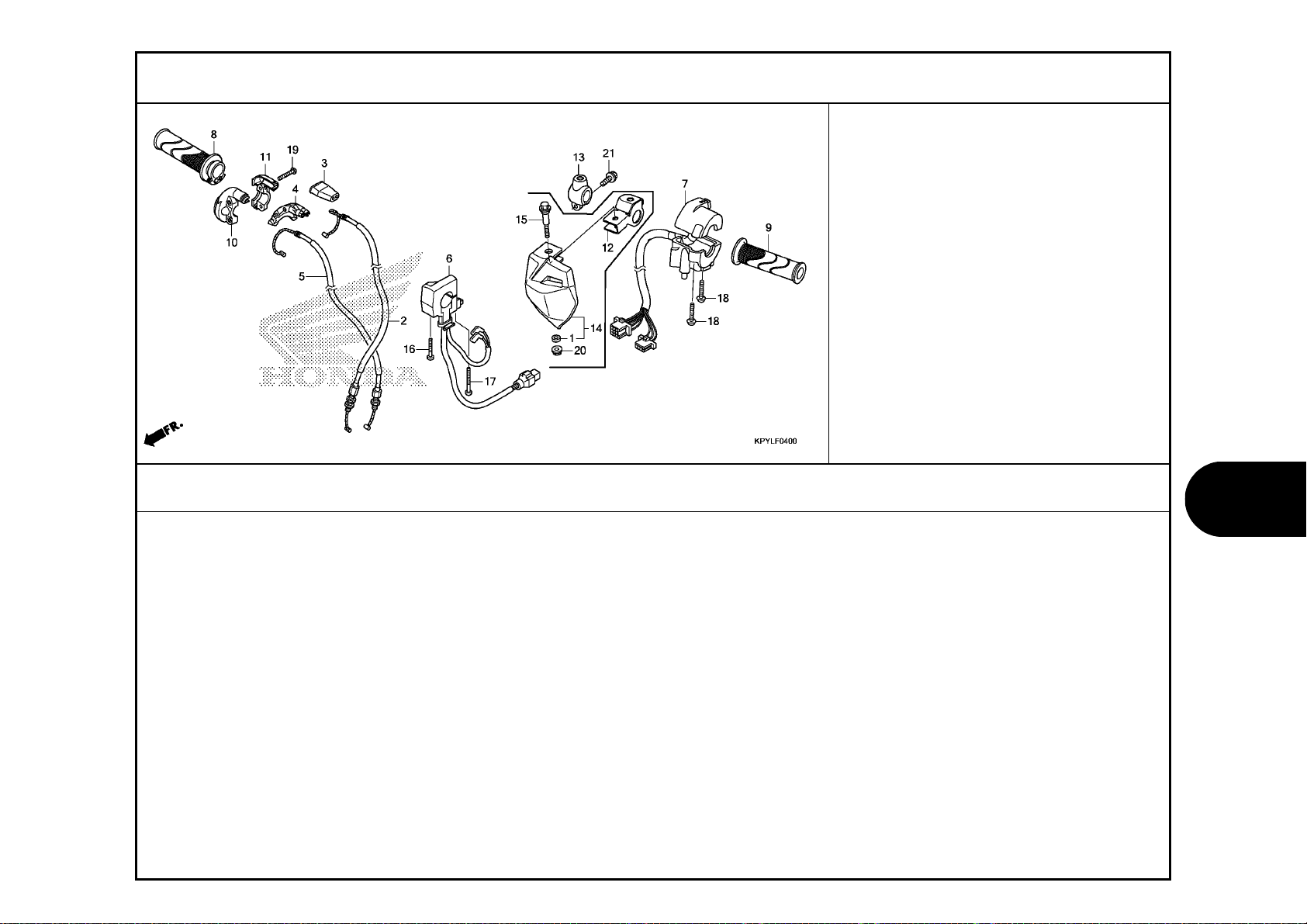

SWITCH/CABLE

F-2

F-5

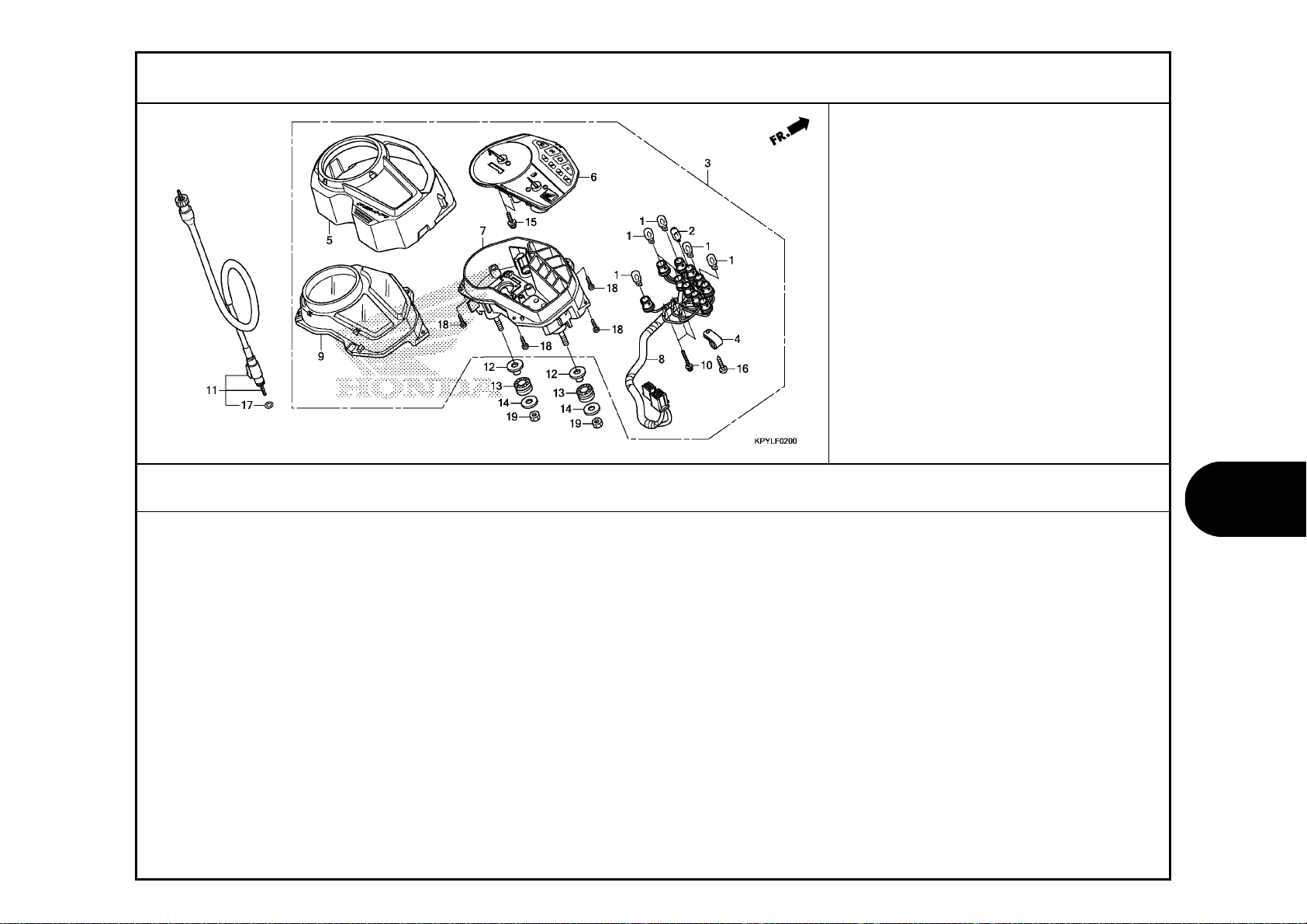

COMBINATION METER

FRONT BRAKE MASTER CYLINDER

F-3

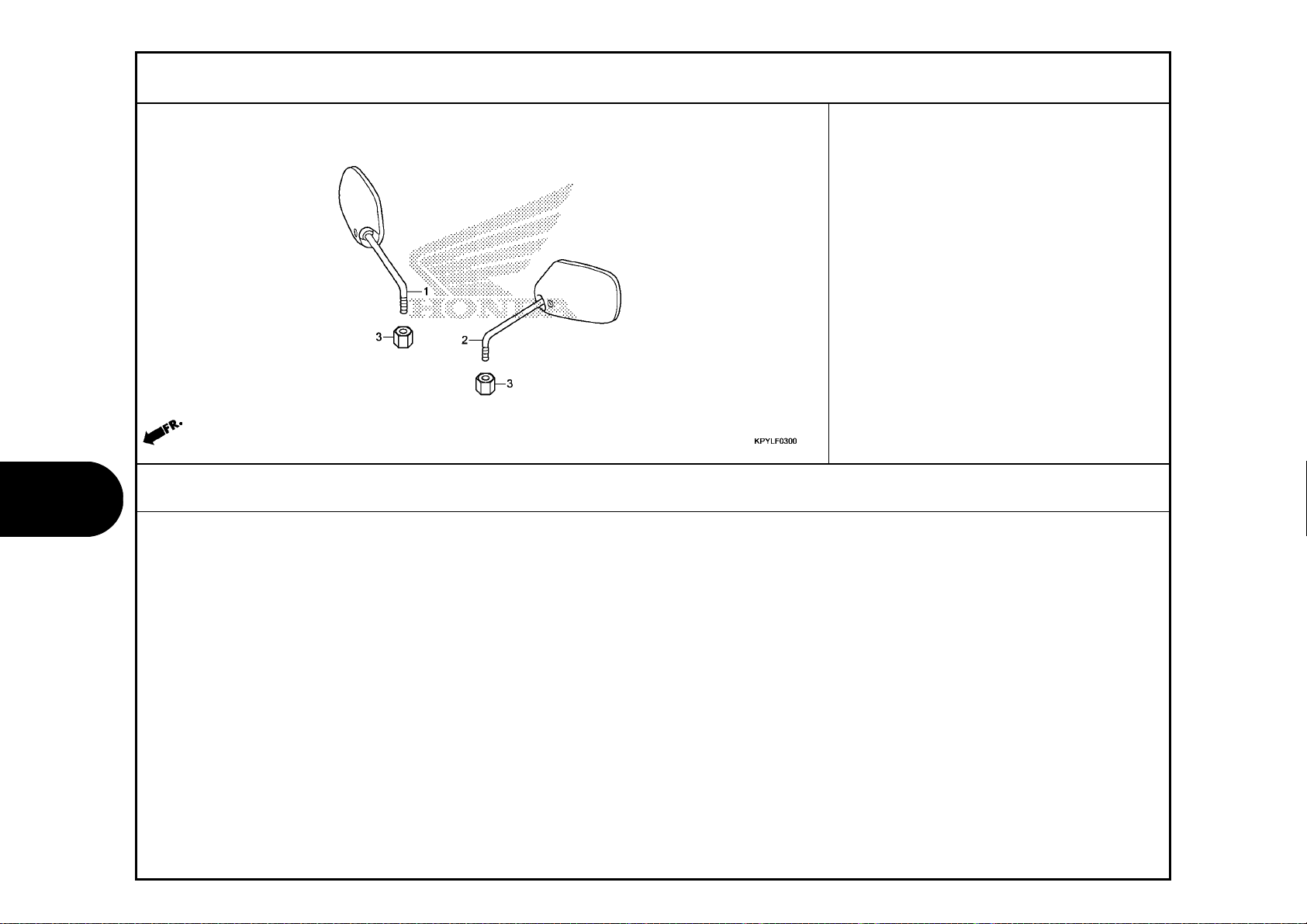

MIRROR

F-7

HANDLE PIPE/TOP BRIDGE

F-9

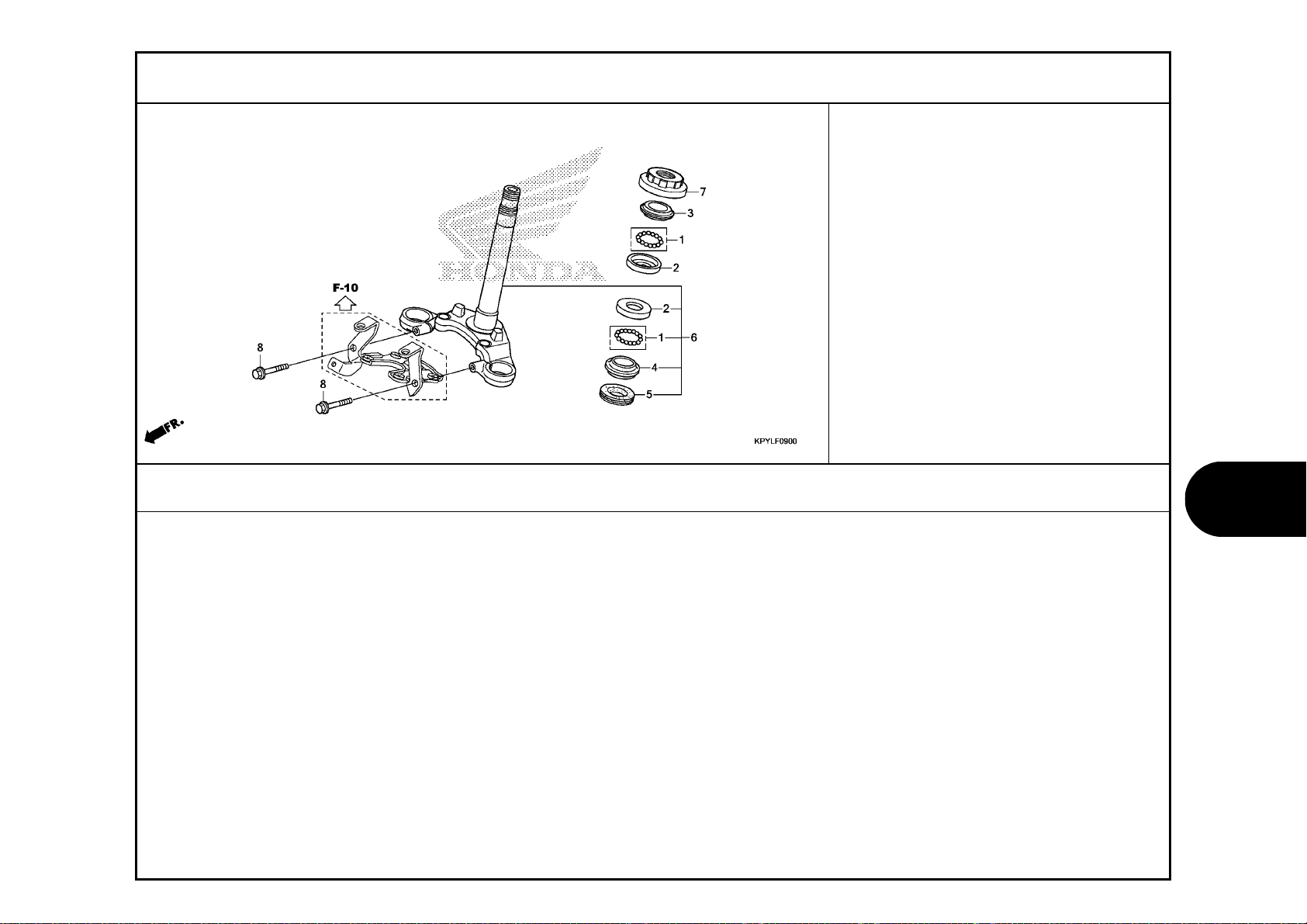

STEERING STEM

F-10

FRONT FENDER

2019.08.01 E

F-11

FRONT FORK

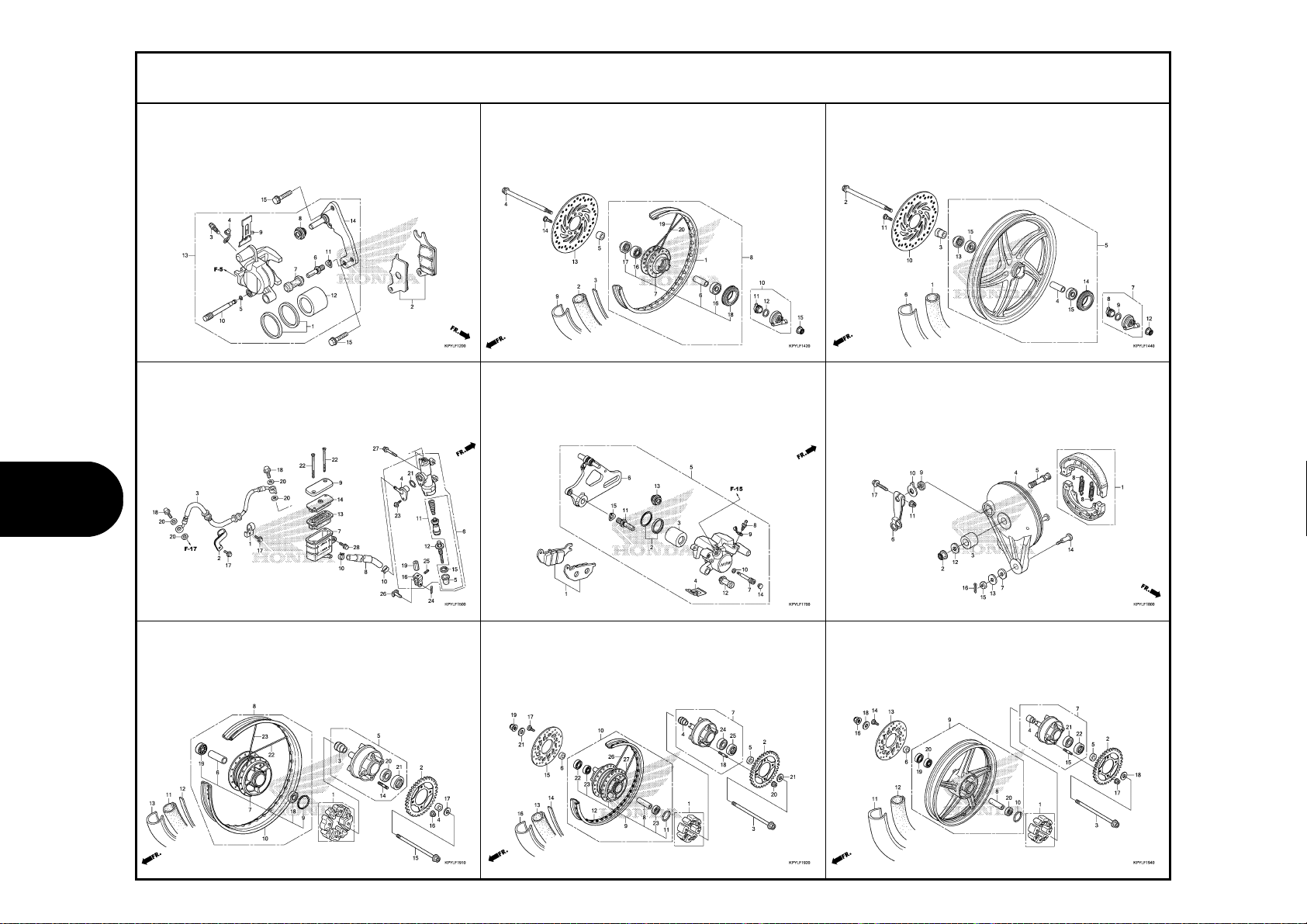

Page 25

F-12

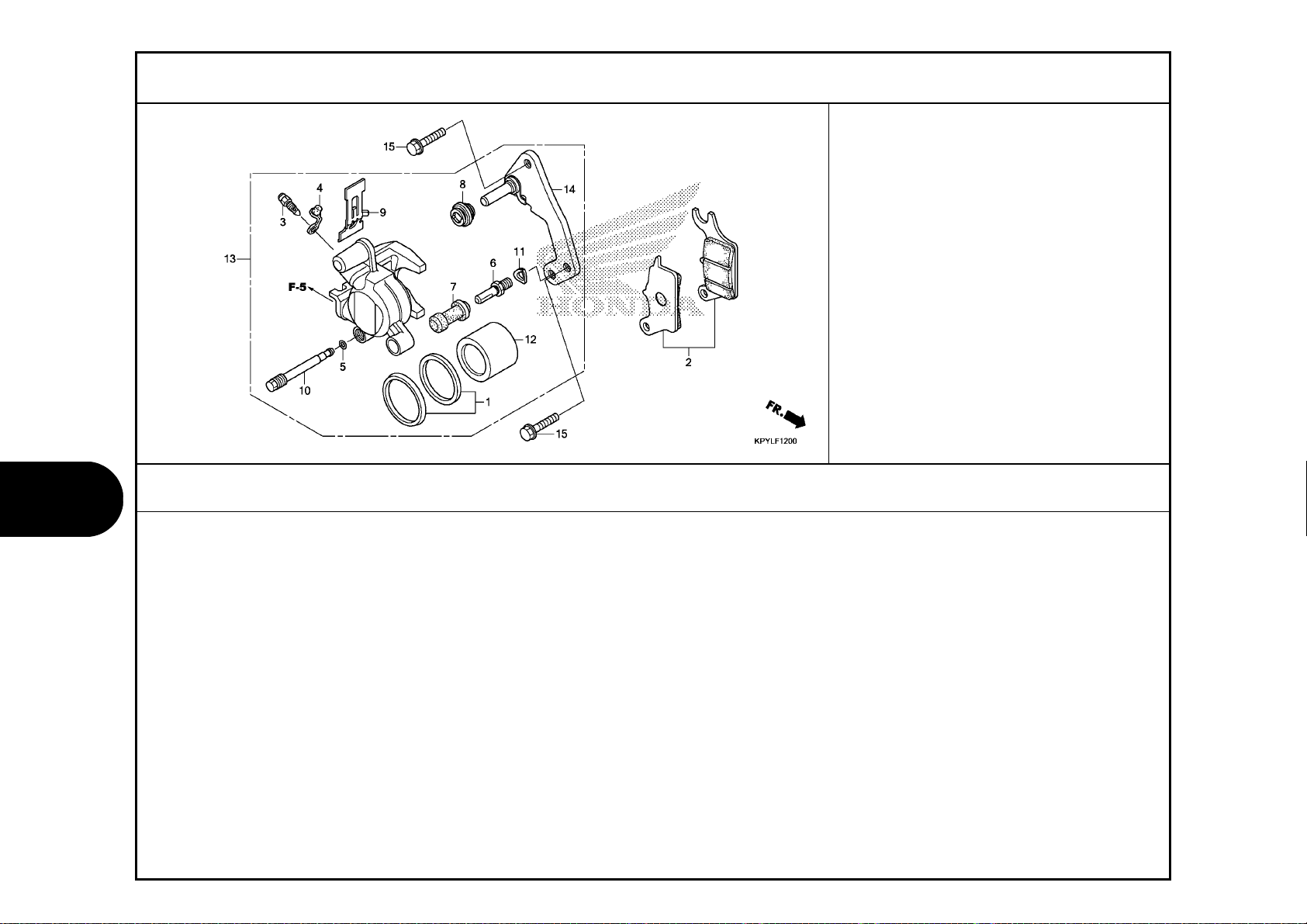

FRONT BRAKE CALIPER

F-14-20

FRAME GROUP

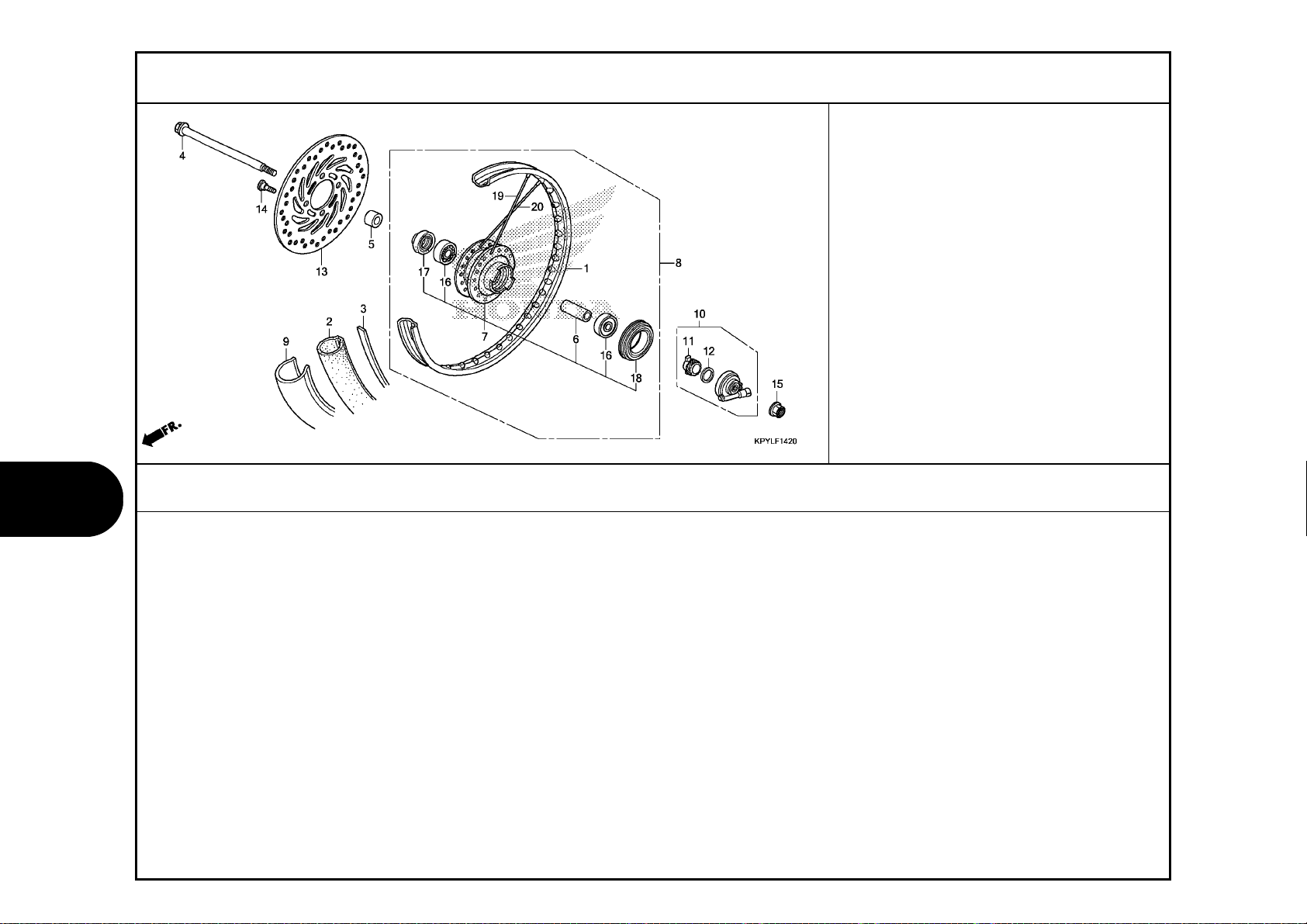

FRONT WHEEL(CFT125MR/MS)

F-14-40

FRONT WHEEL(CFT125MRC)

F-15

F-19-10

REAR BRAKE MASTER CYLINDER

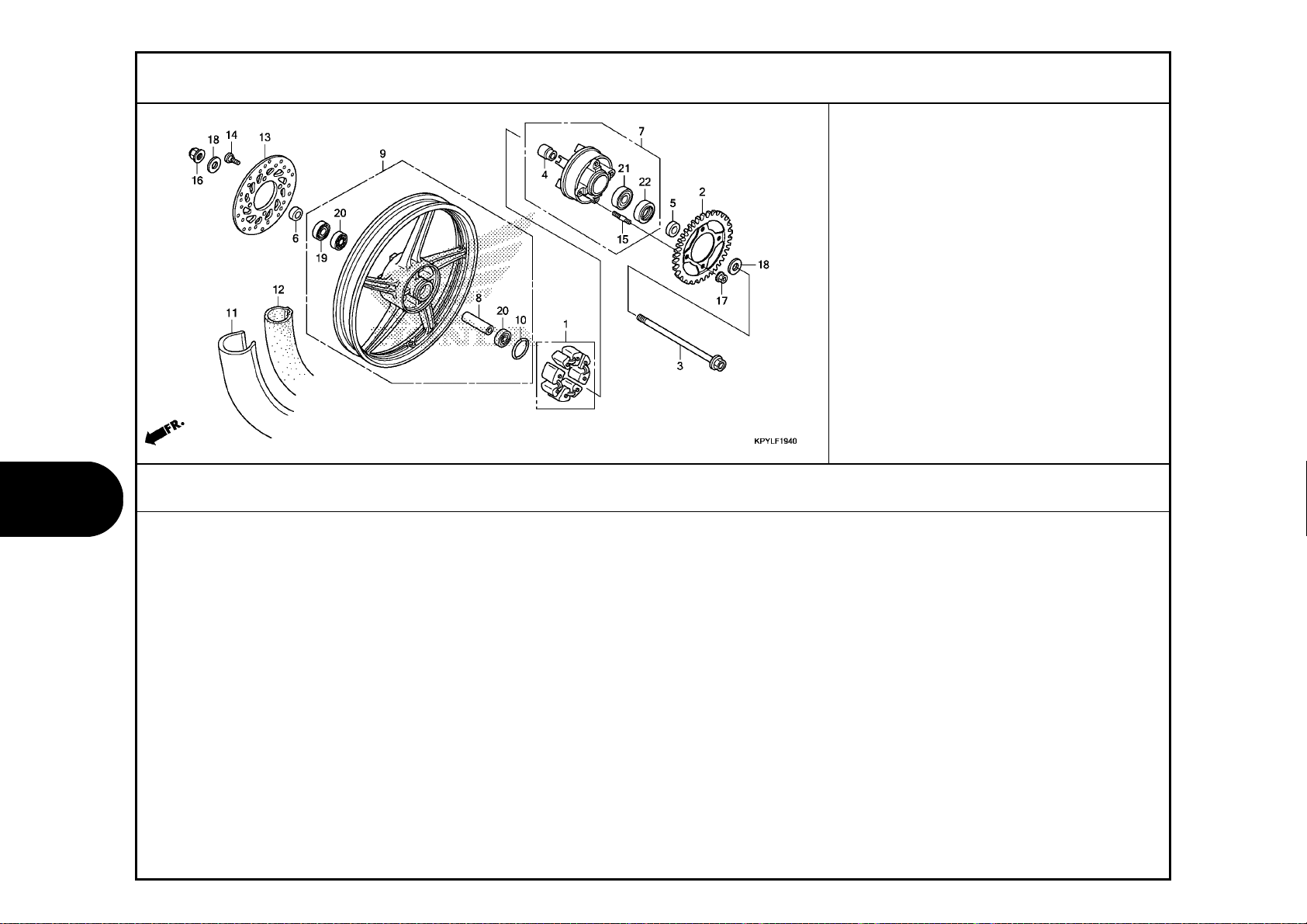

REAR WHEEL(CFT125MS)

F-17

F-19-20

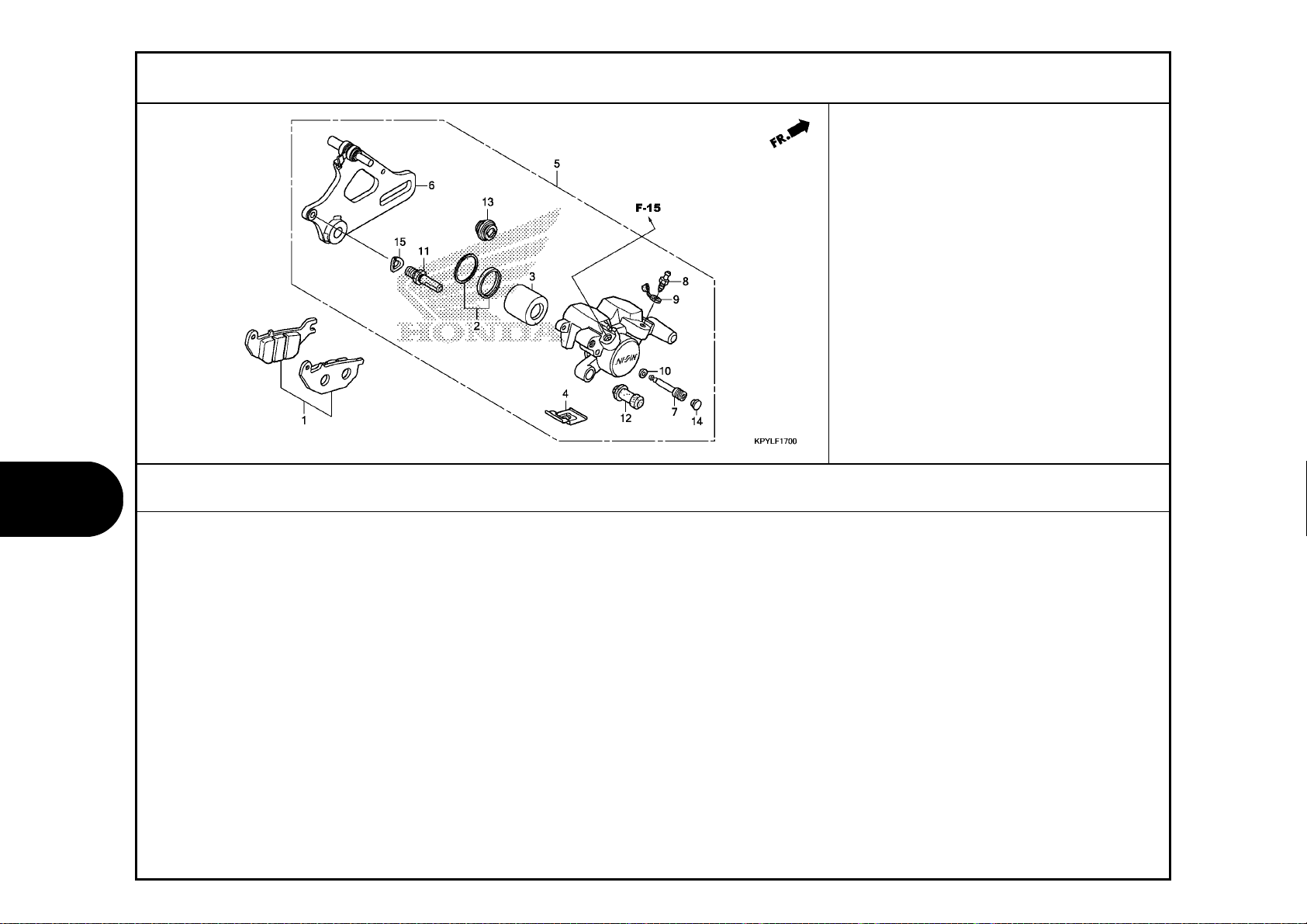

REAR BRAKE CALIPER

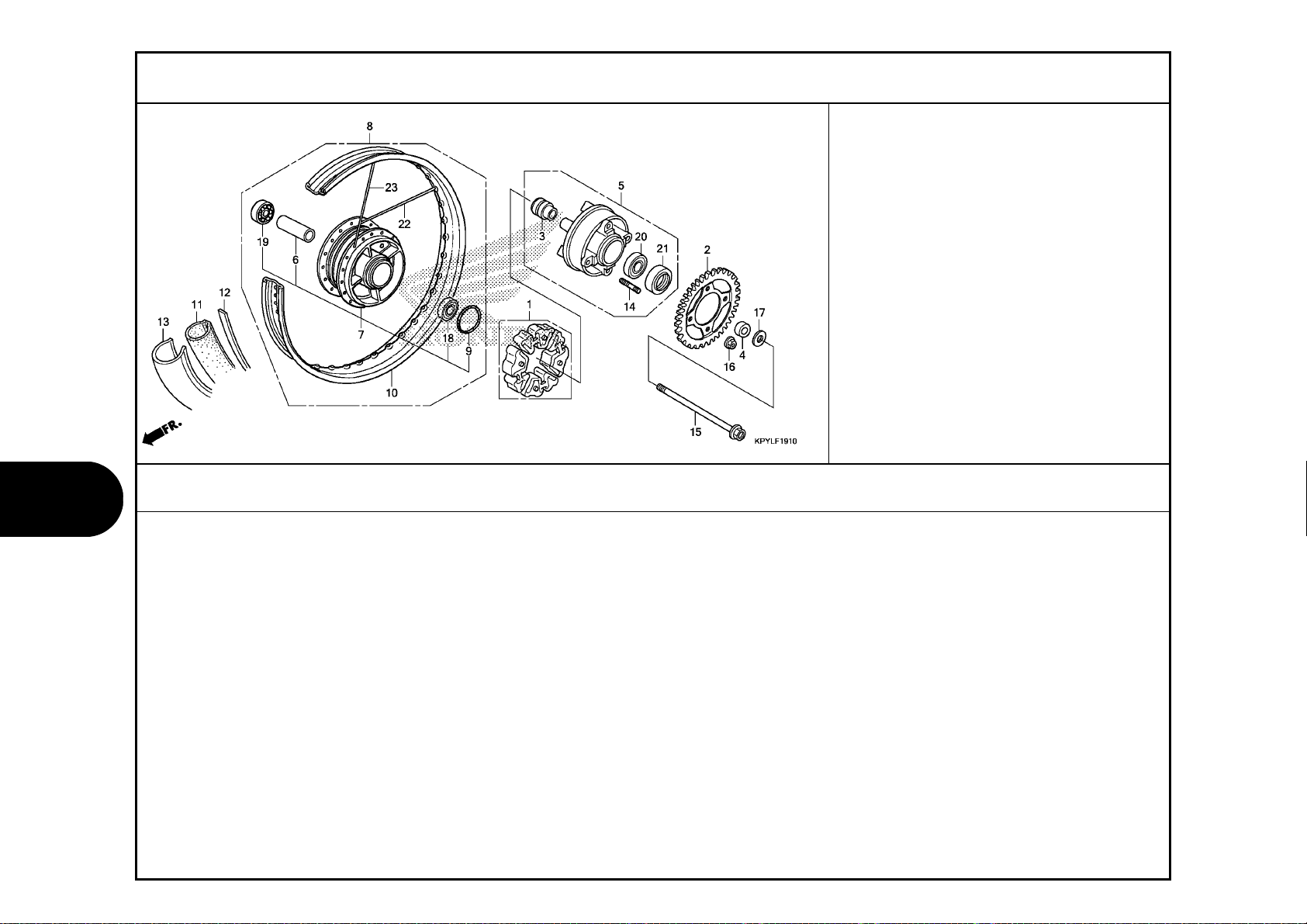

REAR WHEEL(CFT125MR)

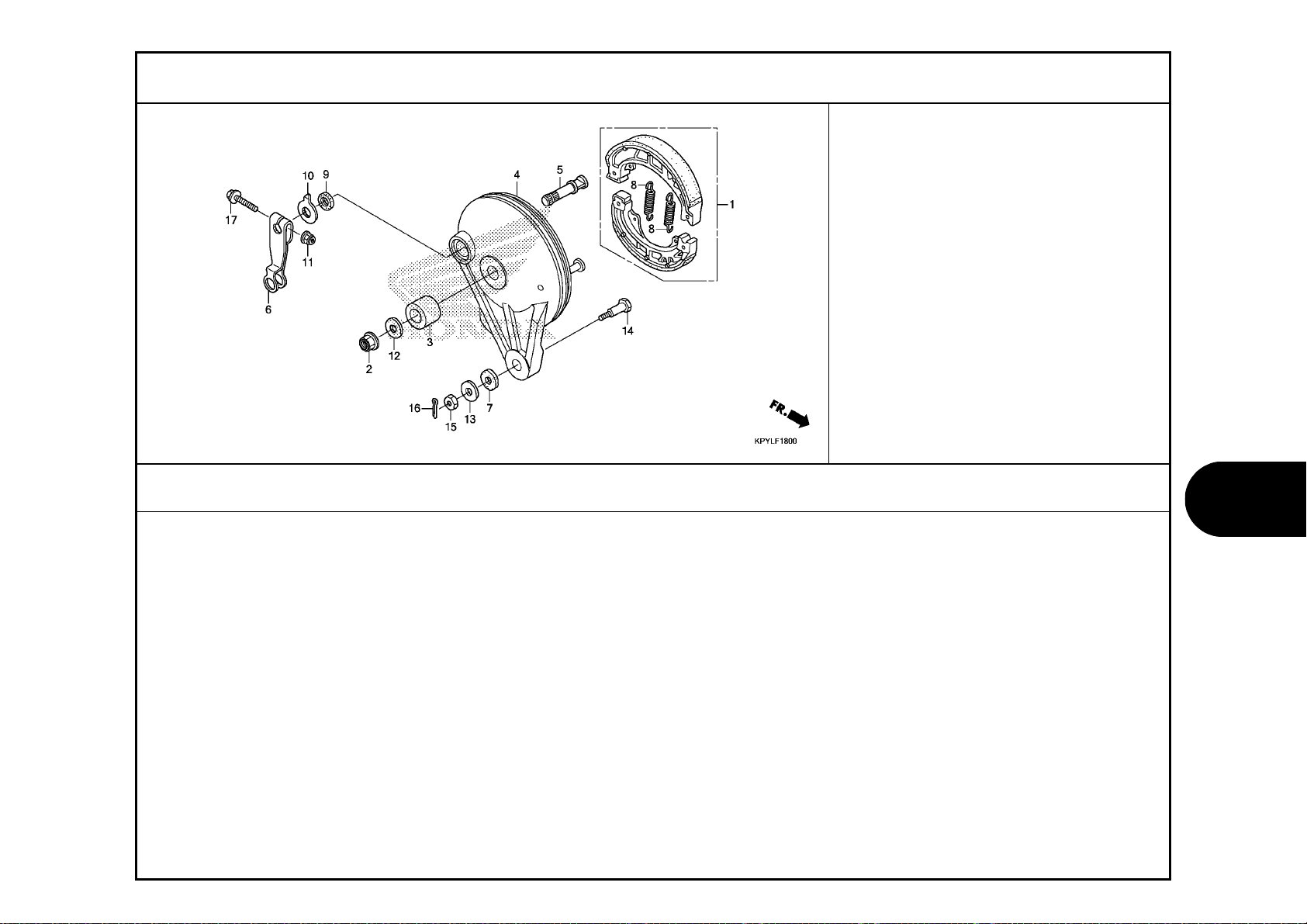

F-18

REAR BRAKE PANEL

F-19-40

REAR WHEEL(CFT125MRC)

2019.08.01 E

Page 26

F-21

FUEL TANK

F-23

FRAME GROUP

SEAT

F-23-10

BODY COVER

F-25

F-30

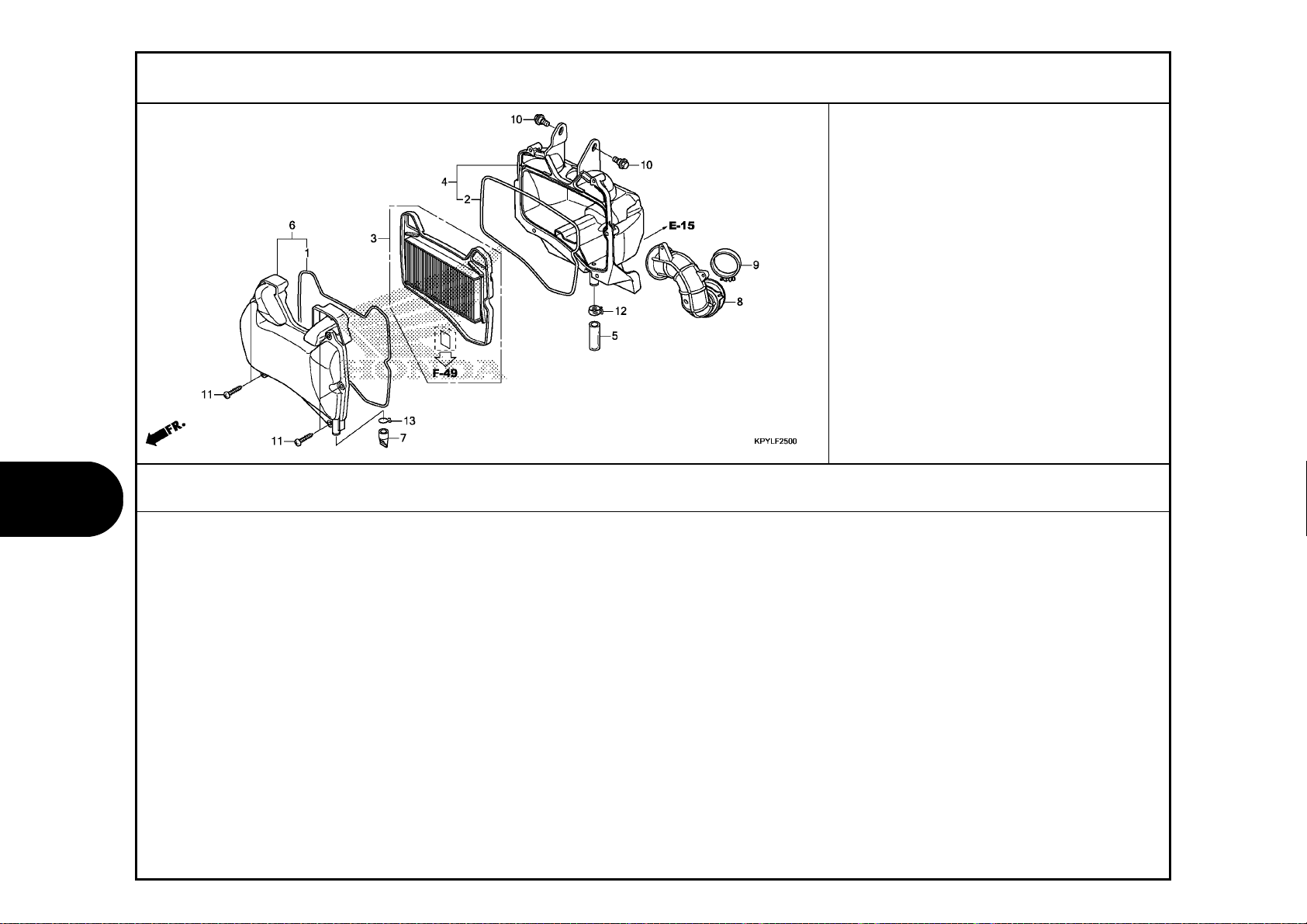

AIR CLEANER

STEP

F-27

F-31

EXHAUST MUFFLER

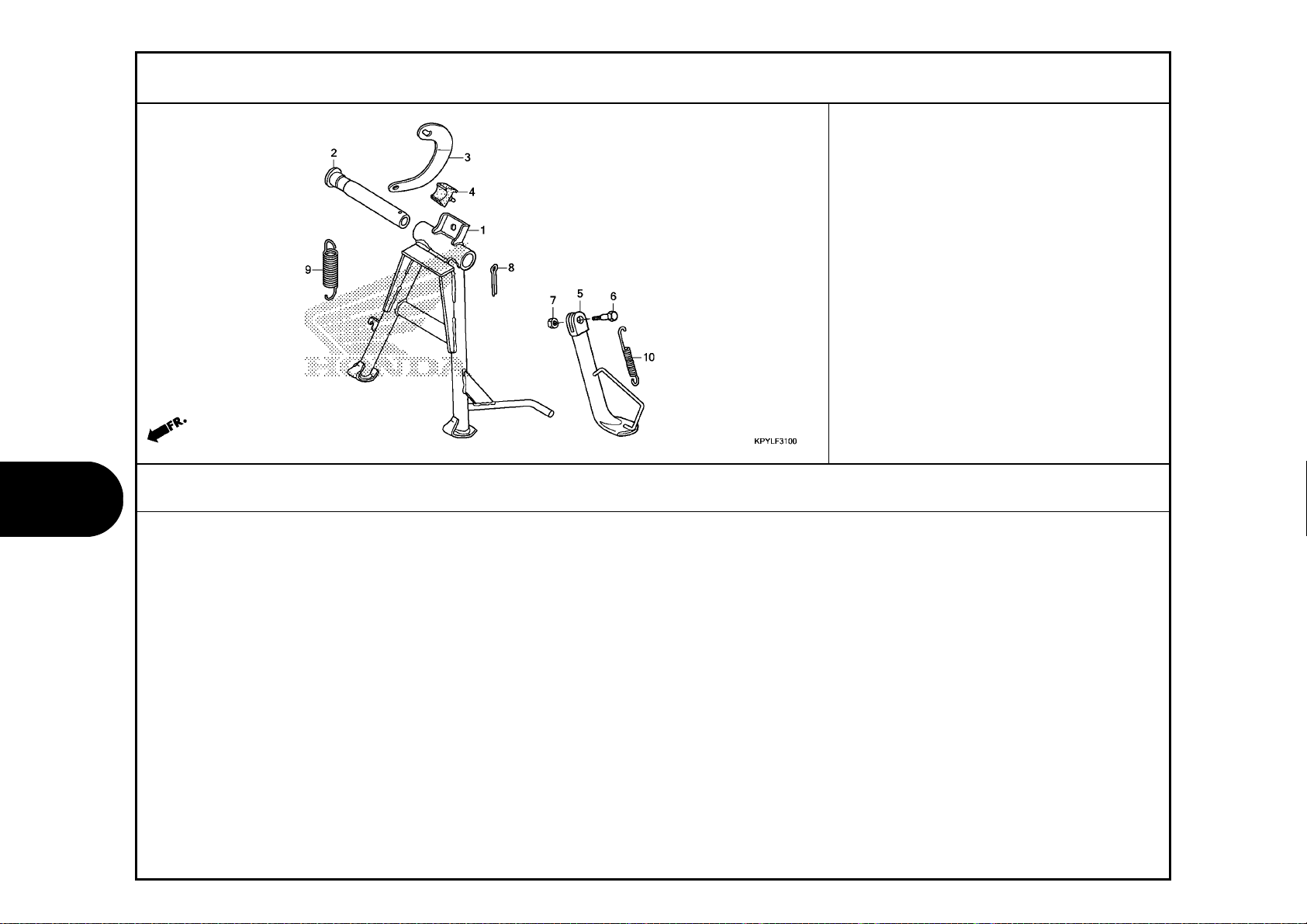

STAND

F-29

PEDAL/KICK STARTER ARM

F-32

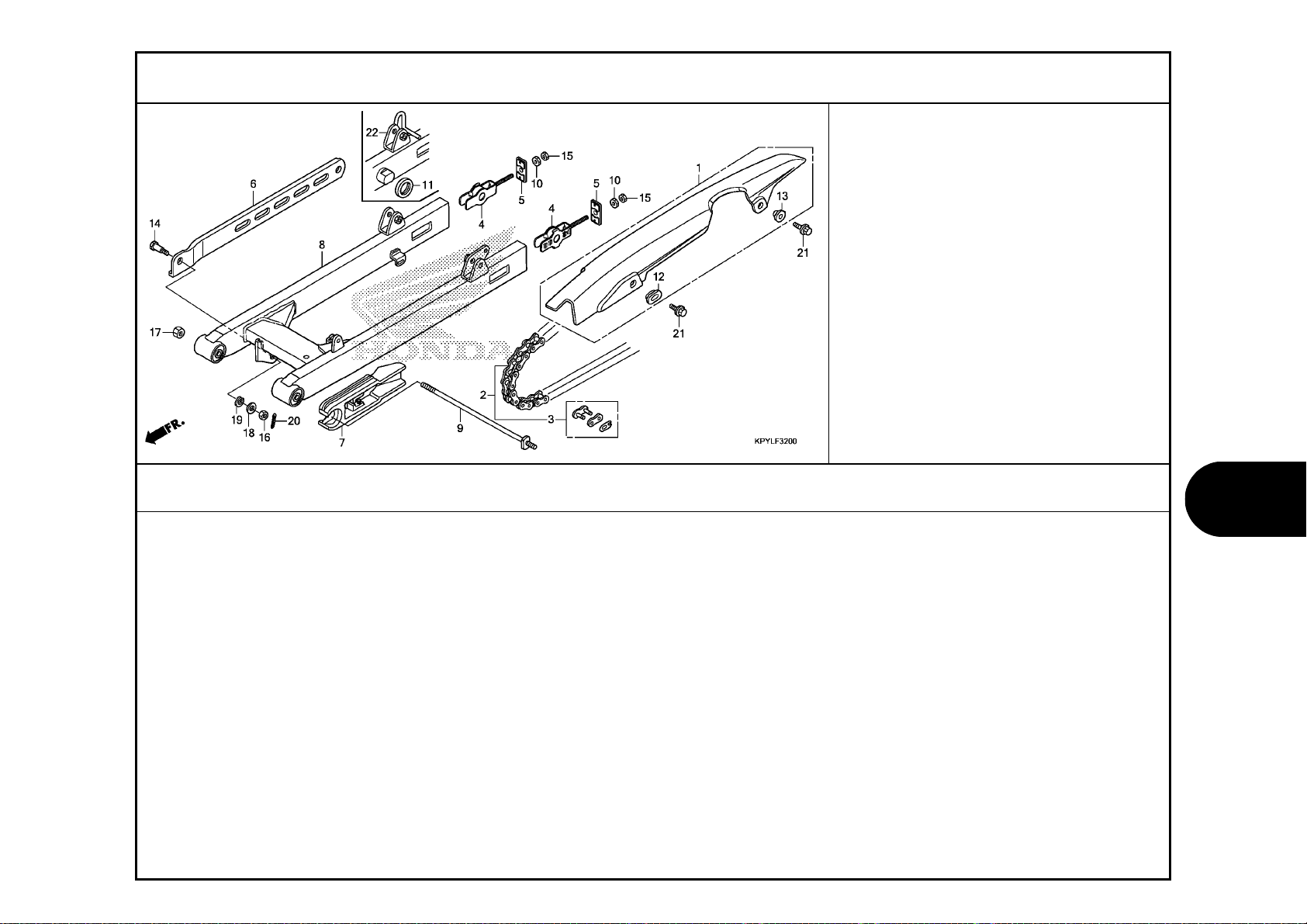

SWINGARM

2019.08.01 E

Page 27

F-33

REAR CUSHION

F-34

FRAME GROUP

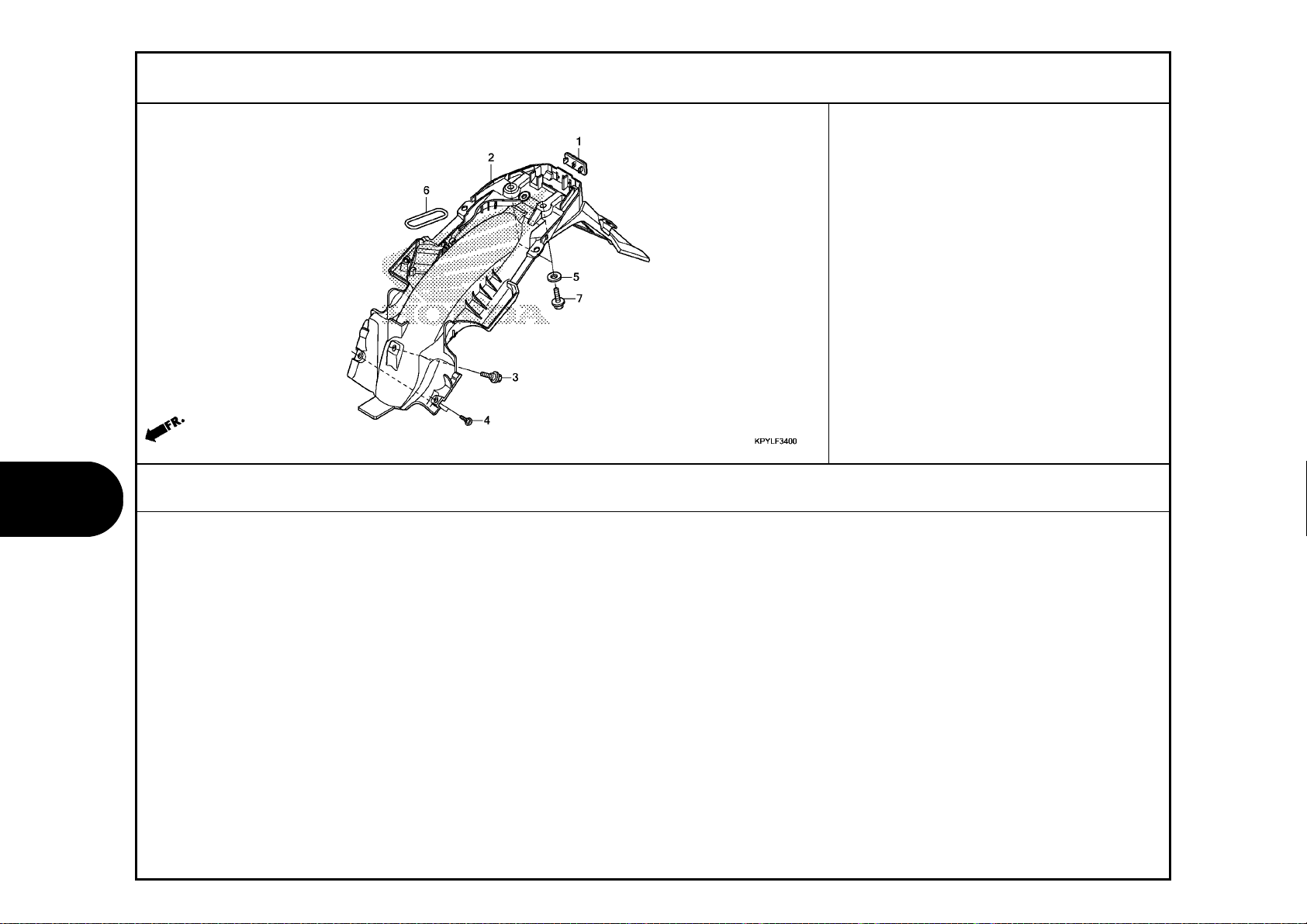

REAR FENDER

F-35-10

FRONT WINKER

F-36-10

F-39

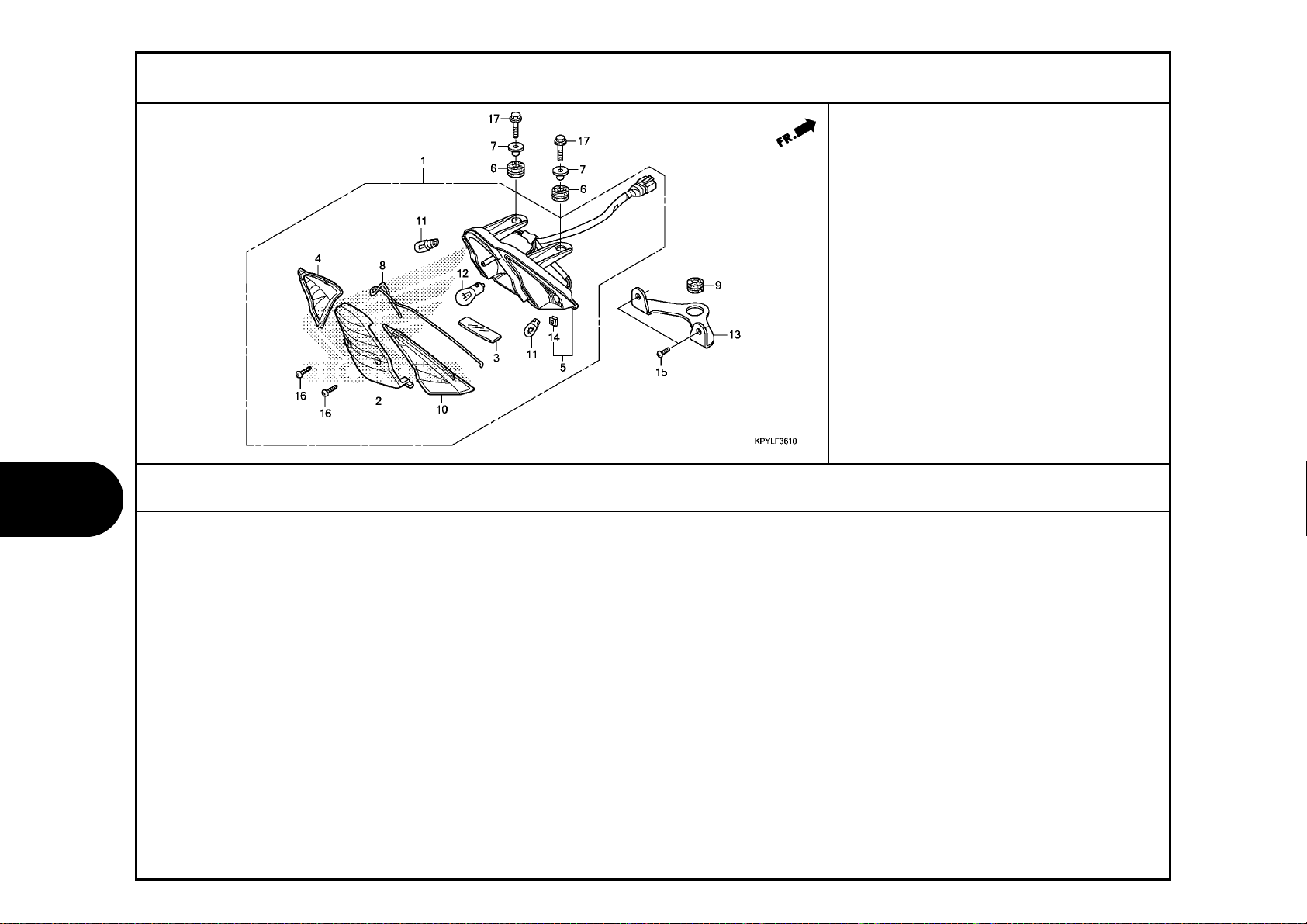

REAR COMBINATION LIGHT

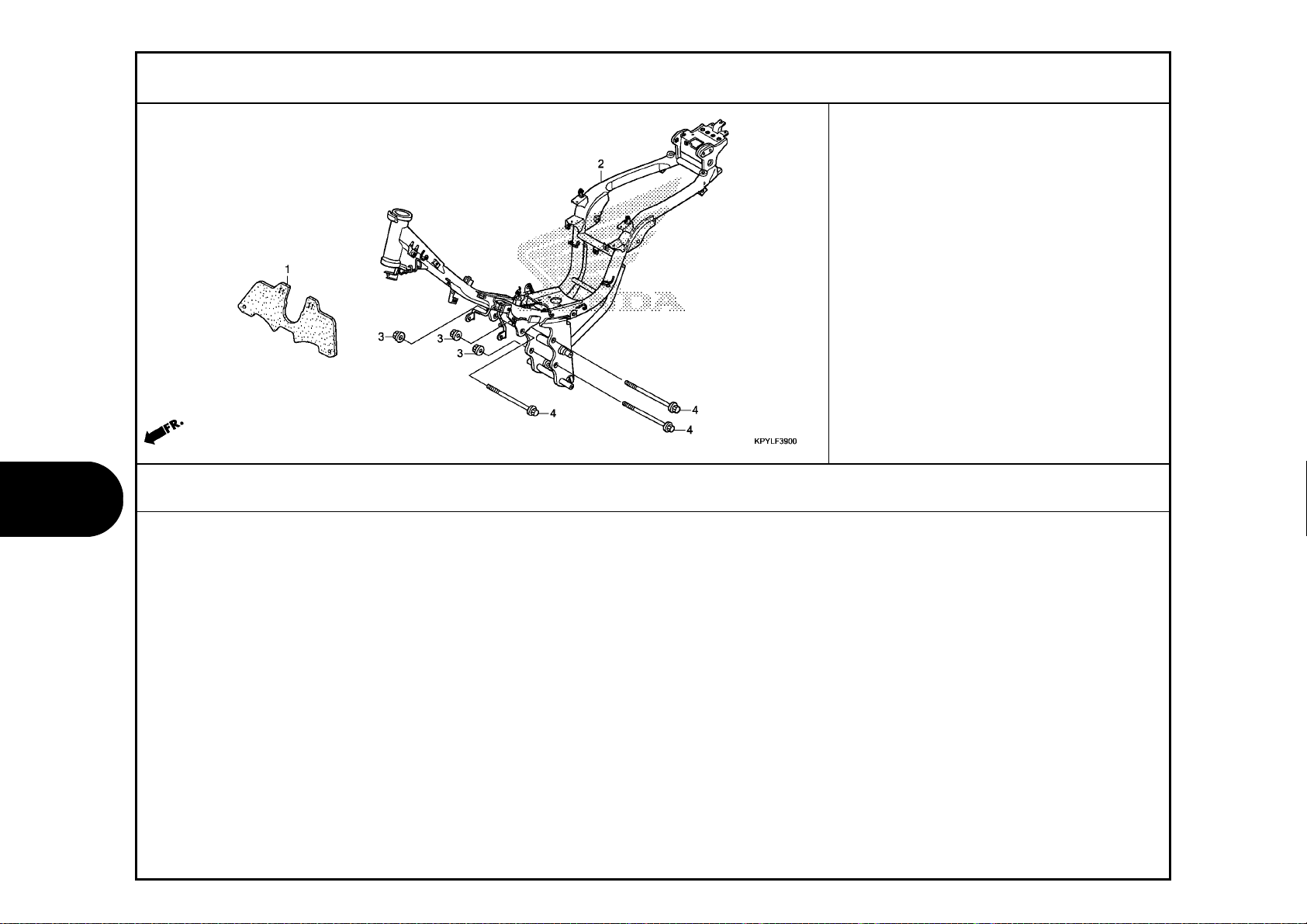

FRAME BODY

F-37

F-44-10

BATTERY/LUGGAGE BOX

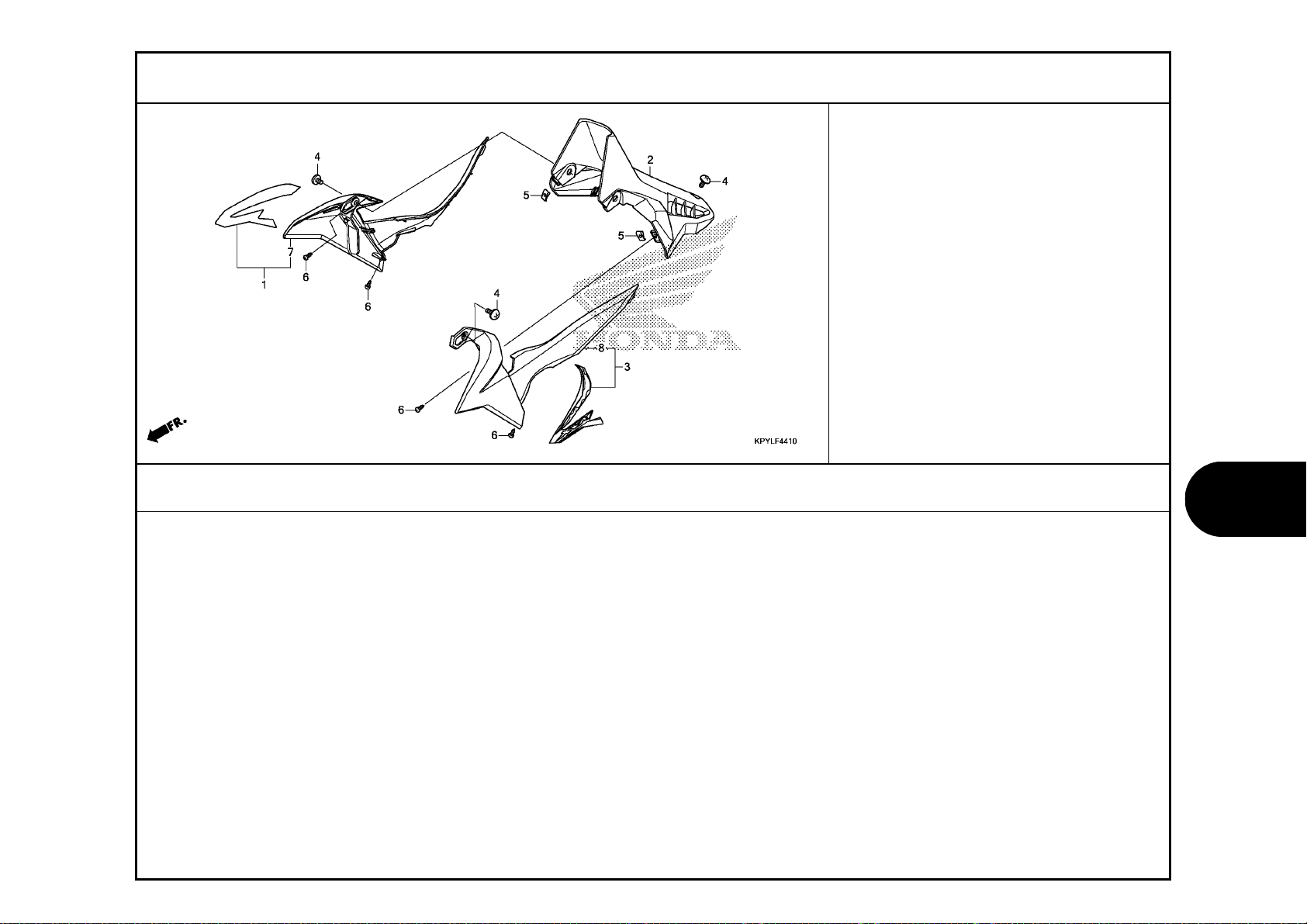

MAIN PIPE COVER

F-38

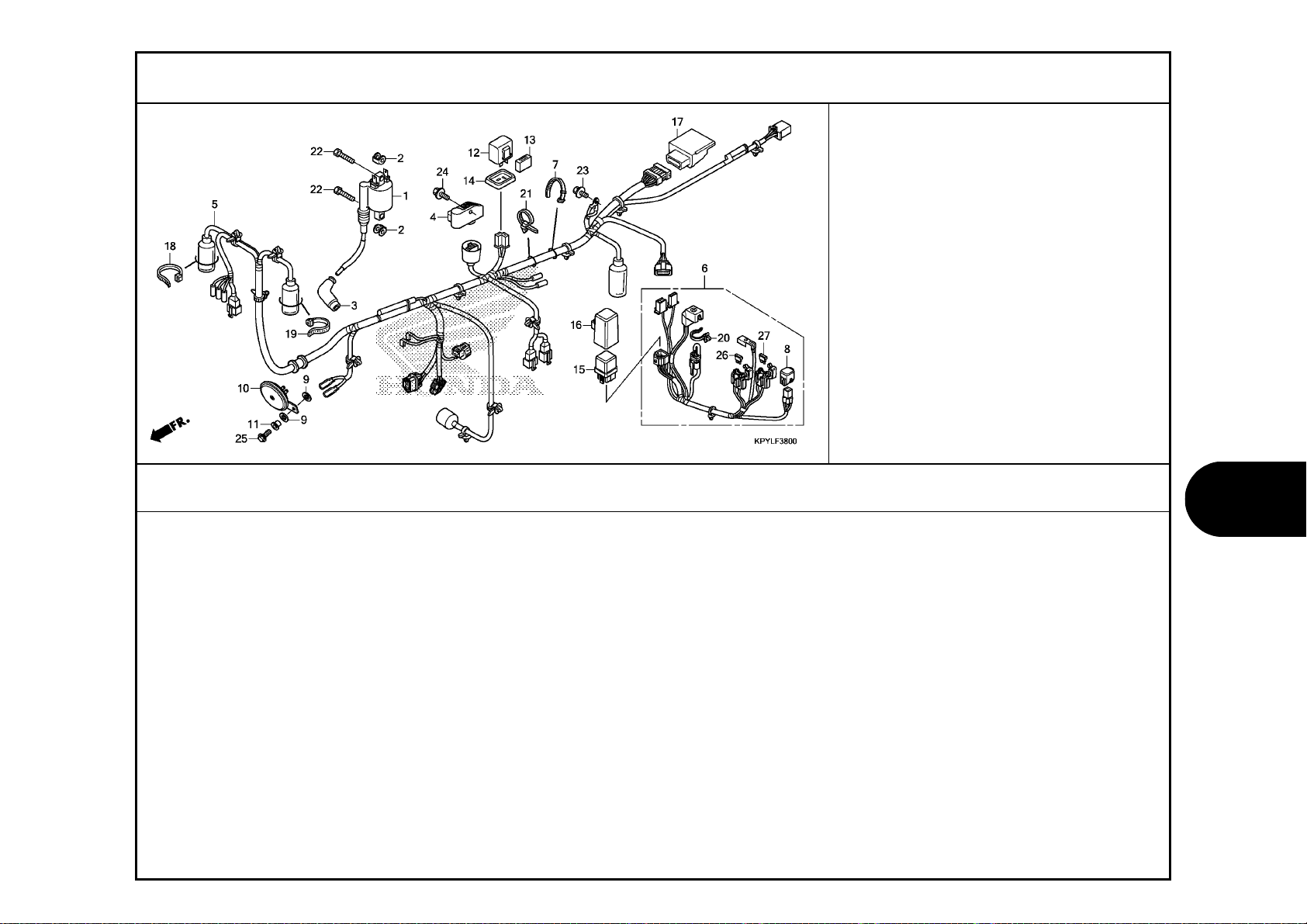

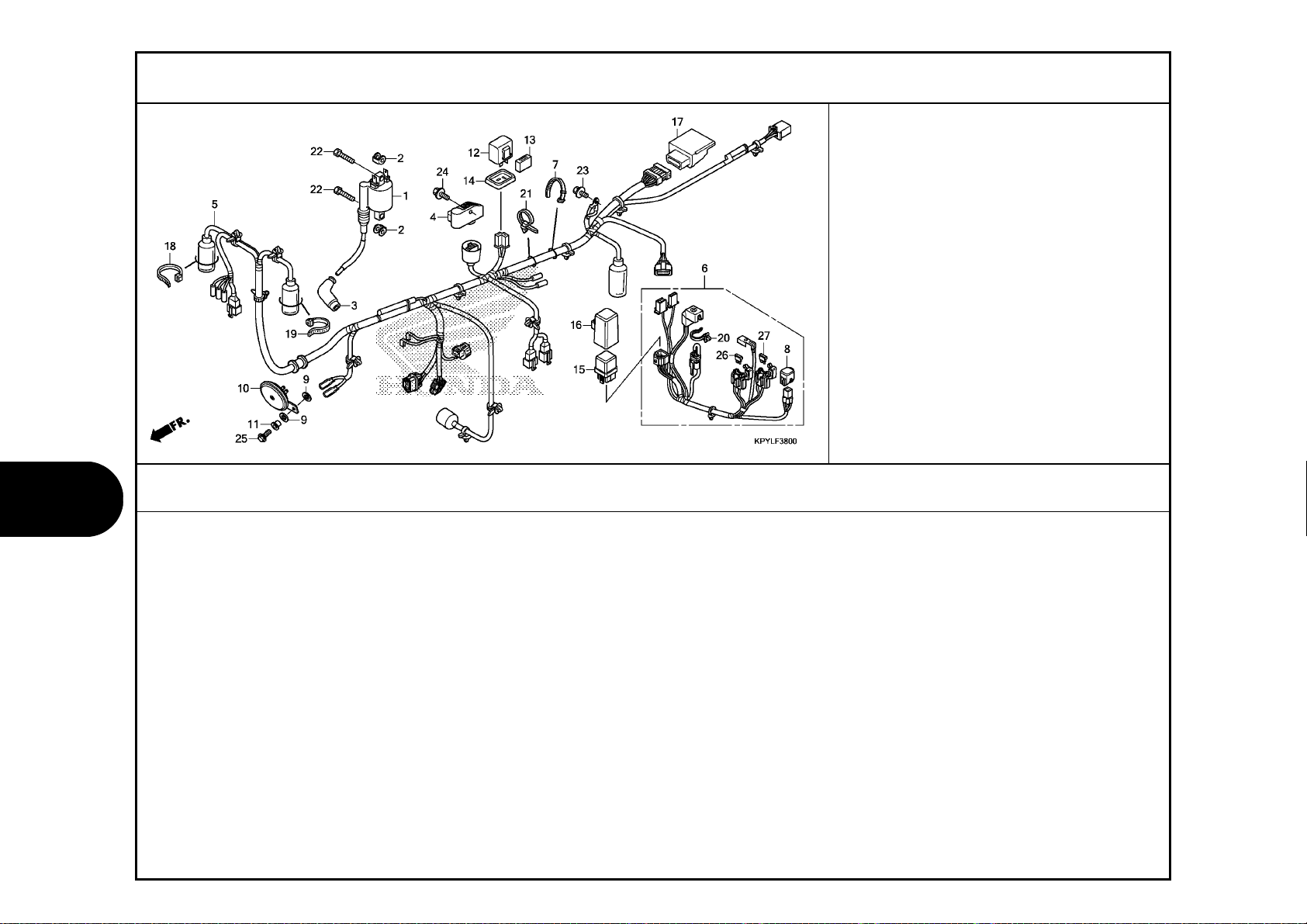

WIRE HARNESS

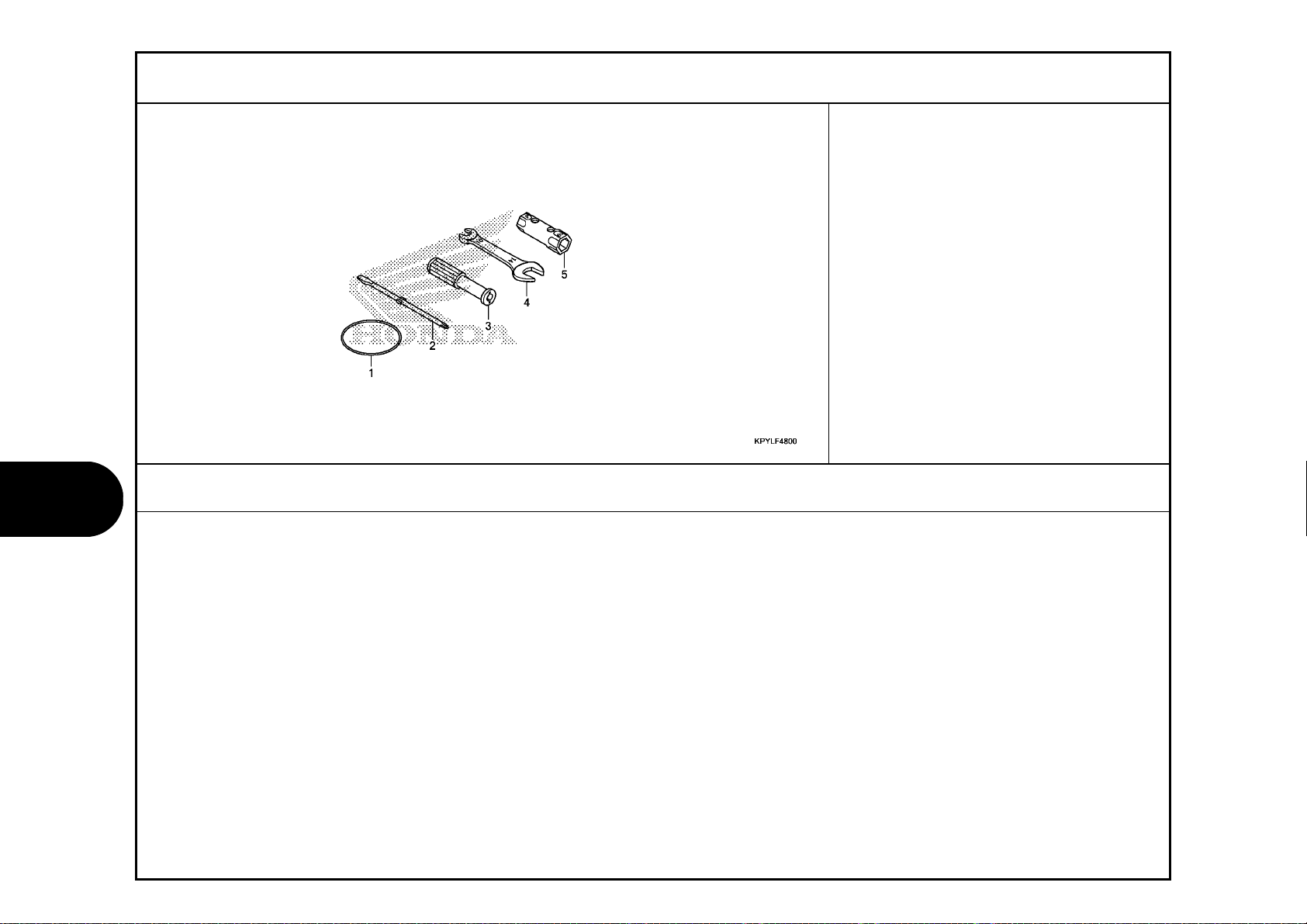

F-48

TOOLS

2019.08.01 E

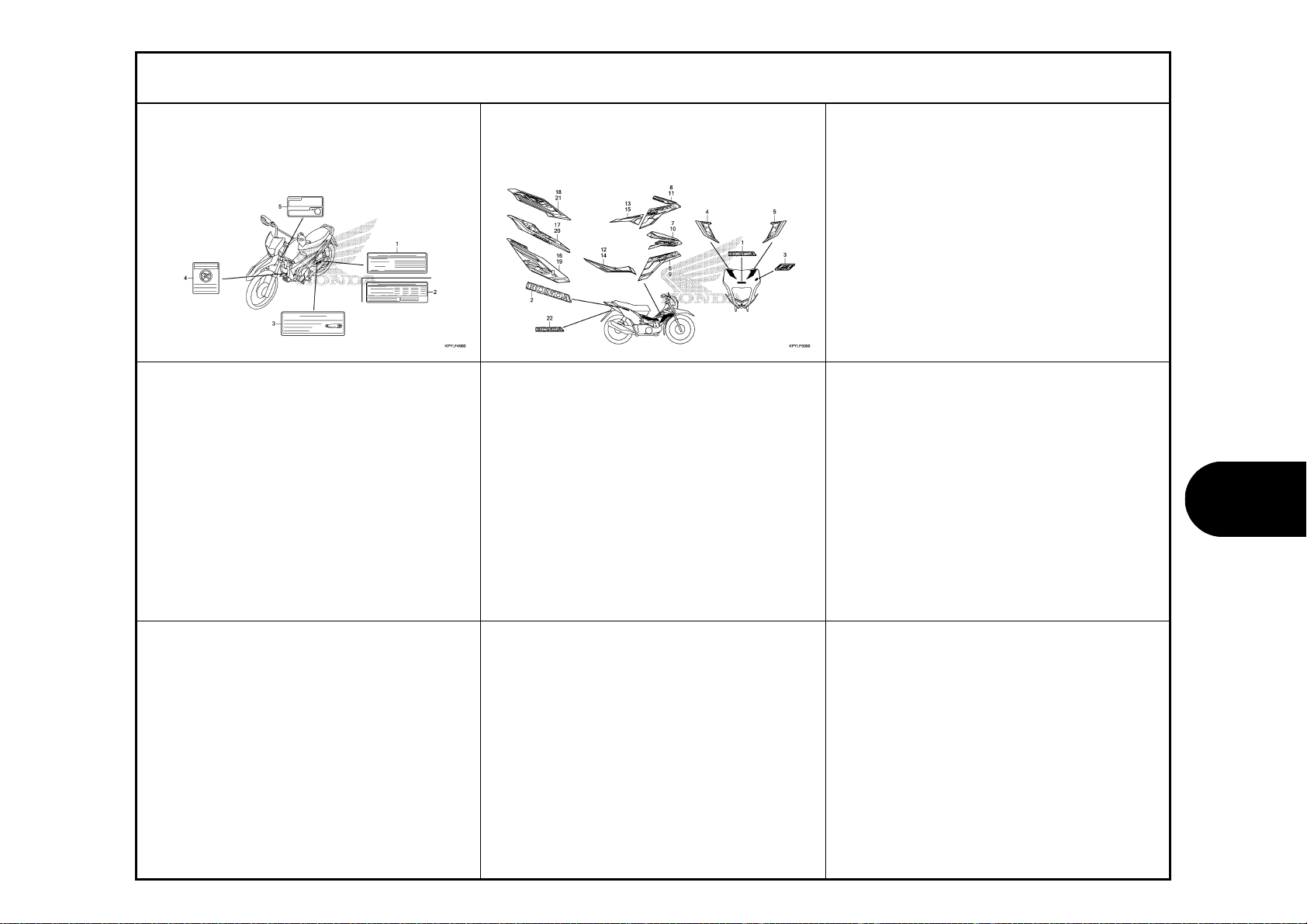

Page 28

F-49

CAUTION LABEL

F-50

FRAME GROUP

MARK/STRIPE

2019.08.01 E

Page 29

E-2

CYLINDER HEAD

Ref.

No.

Part No. Description

1 12200-KYZ-711 HEAD COMP., CYLINDER •••••••• 1 1 1 2 12204-KYZ-P00 GUIDE, VALVE(O.S.) •••••••••• 2 2 2 3 12206-KPL-900 CLIP, VALVE GUIDE ••••••••••• 2 2 2 4 12211-KPH-900 PLATE, STOPPER •••••••••••••• 1 1 1 5 12251-KYZ-901 GASKET, CYLINDER HEAD ••••••• 1 1 1

6 12341-KYZ-900 COVER, L. CYLINDER HEAD SIDE 1 1 1 7 12361-KPH-900 COVER, TAPPET ADJUSTING HOLE 2 2 2 8 17110-KYZ-710 PIPE COMP., IN. ••••••••••••• 1 1 1 9 17120-KYZ-710 PLATE ••••••••••••••••••••••• 1 1 1

10 31917-KPH-901 PLUG, SPARK(CPR7EA-9)(NGK) •• 1 1 1

31927-KPH-901 PLUG, SPARK(U22EPR9)(DENSO) • 1 1 1

11 36532-KPY-H61 SENSOR, OXYGEN •••••••••••••• 1 1 1 12 36535-K26-B00 GUARD, OXYGEN SENSOR •••••••• 1 1 1 13 90441-286-000 WASHER, SEALING, 8MM •••••••• 3 3 3 14 90441-ME9-000 WASHER, SEALING, 8MM •••••••• 1 1 1 15 90443-107-000 NUT, CAP, 8MM ••••••••••••••• 4 4 4

90443-KPH-900 NUT, CAP, 8MM(SAN SHING) •••• 4 4 4 90443-KTM-970 NUT, CAP, 8MM ••••••••••••••• 4 4 4

16 91301-PH8-005 O-RING, 74.5X2.5(NOK) ••••••• 1 1 1 17 91304-KPH-700 O-RING, 29X2.4 •••••••••••••• 1 1 1 18 91372-KPH-900 O-RING, TAPPET ADJUSTING HOLE

19 92900-08028-0E BOLT, STUD, 8X28 •••••••••••• 2 2 2 20 95701-06012-00 BOLT, FLANGE, 6X12 •••••••••• 1 1 1

21 90004-GHB-620 BOLT, FLANGE, 6X14(NSHF) •••• 1 1 1

Reqd. QTY

MR MS MRC L L L

CAP 2 2 2

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 30

E-2

CYLINDER HEAD

Ref.

No.

Part No. Description

22 95701-06025-00 BOLT, FLANGE, 6X25 •••••••••• 2 2 2 23 96001-06020-00 BOLT, FLANGE, 6X20 •••••••••• 6 6 6 24 96001-06090-00 BOLT, FLANGE, 6X90 •••••••••• 2 2 2 25 91504-SL0-003 CLIP, HOOD OPEN WIRE •••••••• 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 31

E-3

CAMSHAFT/VALVE

Ref.

No.

Part No. Description

1 12209-GB4-681 SEAL, VALVE STEM(NOK) ••••••• 2 2 2

12209-GB4-682 SEAL, VALVE STEM(ARAI) •••••• 2 2 2 2 14100-KYZ-902 CAMSHAFT COMP. •••••••••••••• 1 1 1 3 14430-KYZ-900 ARM COMP., IN. VALVE ROCKER • 1 1 1 4 14440-KYZ-901 ARM COMP., EX. VALVE ROCKER • 1 1 1 5 14451-KTC-900 SHAFT, IN. ROCKER ARM ••••••• 1 1 1

6 14452-KTC-900 SHAFT, EX. ROCKER ARM ••••••• 1 1 1 7 14711-KYZ-900 VALVE, IN. •••••••••••••••••• 1 1 1 8 14721-KPH-880 VALVE, EX. •••••••••••••••••• 1 1 1 9 14751-KYZ-900 SPRING, VALVE ••••••••••••••• 2 2 2

10 14771-GB4-680 RETAINER, VALVE SPRING •••••• 2 2 2

11 14775-KVY-900 SEAT, VALVE SPRING •••••••••• 2 2 2 12 14781-MA6-000 COTTER, VALVE ••••••••••••••• 4 4 4 13 90012-KWB-600 SCREW, TAPPET ADJUSTING ••••• 2 2 2 14 90206-001-000 NUT, TAPPET ADJUSTING ••••••• 2 2 2 15 91105-KYZ-901 BEARING, ROCKER ARM SHAFT ••• 2 2 2

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 32

E-4

CAM CHAIN/TENSIONER

Ref.

No.

Part No. Description

1 14321-KYZ-900 SPROCKET, CAM(32T) •••••••••• 1 1 1 2 14401-KYZ-900 CHAIN, CAM(88LE-SH) ••••••••• 1 1 1

14401-KYZ-T01 CHAIN, CAM(DID25SH-88LE) •••• 1 1 1 3 14500-K41-N00 ARM COMP., CAM CHAIN TENSIONER 1 1 1 4 14531-KYZ-900 COLLAR, CAM CHAIN TENSIONER • 1 1 1 5 14541-GB4-681 SPRING, CAM CHAIN TENSIONER • 1 1 1

6 14550-GB0-911 ROD COMP., TENSIONER PUSH ••• 1 1 1

14550-KRS-691 ROD COMP., TENSIONER PUSH

7 14566-086-030 HEAD, CAM CHAIN TENSIONER PUSH

8 14610-K41-N01 ROLLER COMP., CAM CHAIN GUIDE 1 1 1

14610-KWB-601 •••••••••••••••••••••••••••• 1 1 1 9 14615-KFL-850 PIN, GUIDE ROLLER ••••••••••• 1 1 1

10 14670-K41-N01 ROLLER COMP., CAM CHAIN GUIDE 1 1 1

14670-KYZ-901 •••••••••••••••••••••••••••• 1 1 1

11 14675-KYZ-900 BOLT, CAM CHAIN GUIDE ROLLER 1 1 1 12 90081-035-000 BOLT, SEALING, 14MM ••••••••• 1 1 1 13 90082-KWW-740 BOLT-WASHER, 8X22 ••••••••••• 1 1 1 14 90404-KWB-600 WASHER, 8.5X26X2.3 •••••••••• 1 1 1 15 90463-ML7-000 WASHER, SEALING, 6.5MM •••••• 1 1 1

16 90475-KWB-600 WASHER, 8MM ••••••••••••••••• 1 1 1 17 90544-KF0-000 WASHER, SEALING, 14MM ••••••• 1 1 1 18 95701-06018-00 BOLT, FLANGE, 6X18 •••••••••• 1 1 1 19 95701-08025-00 BOLT, FLANGE, 8X25 •••••••••• 1 1 1

(CENTRALIZE POWER) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

ROD 1 1 1

Serial No.

2019.08.01 E

Parts catalogue code

Page 33

E-5

CYLINDER

Ref.

No.

Part No. Description

1 12100-KYZ-710 CYLINDER COMP. •••••••••••••• 1 1 1 2 12191-KYZ-900 GASKET, CYLINDER •••••••••••• 1 1 1 3 37750-K16-A21 SENSOR ASSY., THERMOSTAT OIL

4 37751-K26-900 GUARD, THERMOSTAT OIL ••••••• 1 1 1 5 90004-GHB-620 BOLT, FLANGE, 6X14(NSHF) •••• 1 1 1

6 90443-MB0-000 WASHER, SEALING, 10.2MM ••••• 1 1 1 7 94301-10120 DOWEL PIN, 10X12 •••••••••••• 2 2 2

(MITSUBISHI) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 34

E-6

RIGHT CRANKCASE COVER

Ref.

No.

Part No. Description

1 11330-KPY-H00 COVER COMP., R. CRANKCASE ••• 1 1 1 2 11346-KTR-940 CLAMPER A, OIL TEMP SENSOR

3 11370-K26-B00 PROTECTOR COMP., R. COVER ••• 1 1 1 4 11394-KYZ-900 GASKET, R. CRANKCASE COVER •• 1 1 1 5 15651-KPY-710 GAUGE, OIL LEVEL •••••••••••• 1 1 1

6 22810-KPH-900 LEVER COMP., CLUTCH ••••••••• 1 1 1 7 22820-KYZ-900 PLATE COMP., CLUTCH CAM ••••• 1 1 1 8 22825-046-000 SPRING, CAM PLATE SIDE •••••• 1 1 1 9 22830-KYZ-900 PLATE COMP., CLUTCH LIFTER •• 1 1 1

10 22846-KPH-901 BOLT, CLUTCH ADJUSTING •••••• 1 1 1

11 22850-KPH-900 PLATE COMP., BRAKE •••••••••• 1 1 1 12 22853-KPH-900 SPRING, BRAKE ••••••••••••••• 1 1 1 13 22860-HB3-000 RETAINER COMP., BALL •••••••• 1 1 1 14 90005-GHB-610 BOLT, FLANGE, 6X12 •••••••••• 3 3 3 15 90443-844-000 WASHER, THRUST, 8MM ••••••••• 1 1 1

16 90485-040-000 WASHER, 8MM ••••••••••••••••• 1 1 1 17 90605-166-720 CIRCLIP, 7MM •••••••••••••••• 1 1 1 18 90702-KFM-900 DOWEL PIN, 8X12 ••••••••••••• 2 2 2 19 91007-K41-N01 BEARING, RADIAL BALL SPECIAL,

91007-KPH-901 •••••••••••••••••••••••••••• 1 1 1

20 91204-MC7-003 OIL SEAL, 16X28X7 ••••••••••• 1 1 1

21 91303-001-010 O-RING, 8MM ••••••••••••••••• 1 1 1 22 91307-KRM-840 O-RING, 18X3 •••••••••••••••• 1 1 1

6001U 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

CORD 2 2 2

Serial No.

2019.08.01 E

Parts catalogue code

Page 35

E-6

RIGHT CRANKCASE COVER

Ref.

No.

Part No. Description

23 94030-08000 NUT, HEX., 8MM •••••••••••••• 1 1 1 24 96001-06040-00 BOLT, FLANGE, 6X40 •••••••••• 10 10 10

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 36

E-7

ONE WAY CLUTCH

Ref.

No.

Part No. Description

1 15431-KPH-900 COVER, OIL FILTER ••••••••••• 1 1 1 2 15439-KWW-741 GASKET, OIL FILTER COVER

3 22535-KPH-309 WEIGHT SET, PRIMARY CLUTCH

4 22606-GN5-910 SPRING, ONE WAY RETAINER •••• 6 6 6 5 22610-KYZ-901 PLATE COMP., PRIMARY DRIVE •• 1 1 1

6 22630-KYZ-901 INNER COMP., ONE-WAY CLUTCH • 1 1 1 7 22641-KYZ-901 SPRING, PRIMARY CLUTCH •••••• 3 3 3 8 22642-KPH-900 WASHER, CLUTCH SIDE ••••••••• 1 1 1 9 22643-KPH-900 SPRING, SIDE FRICTION ••••••• 1 1 1

10 22644-KPH-900 PLATE, CLUTCH SIDE •••••••••• 1 1 1

11 22660-KYZ-901 OUTER ASSY., PRIMARY CLUTCH

12 22804-KPH-880 RUBBER, CLUTCH DAMPER ••••••• 3 3 3 13 23122-KPH-900 SUB GEAR(20T) ••••••••••••••• 1 1 1 14 23123-KPH-900 RETAINER, SPRING(F.C.C.) •••• 1 1 1 15 23124-KPH-900 SPRING, SUB GEAR •••••••••••• 1 1 1

16 23125-GN5-910 PIN(F.C.C.) ••••••••••••••••• 1 1 1 17 90083-KFL-850 BOLT, SPECIAL FLANGE, 5X8 ••• 3 3 3 18 90231-087-010 NUT, LOCK, 14MM ••••••••••••• 1 1 1 19 90401-GB2-000 WASHER, 30X45X0.8 ••••••••••• 1 1 1 20 90431-GN5-910 WASHER, LOCK •••••••••••••••• 1 1 1

21 90432-086-000 WASHER B, LOCK •••••••••••••• 1 1 1 22 90433-KWB-601 WASHER, 17X23X1.5(F.C.C.) ••• 1 1 1

(NICHIAS) 1 1 1

(F.C.C.) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 37

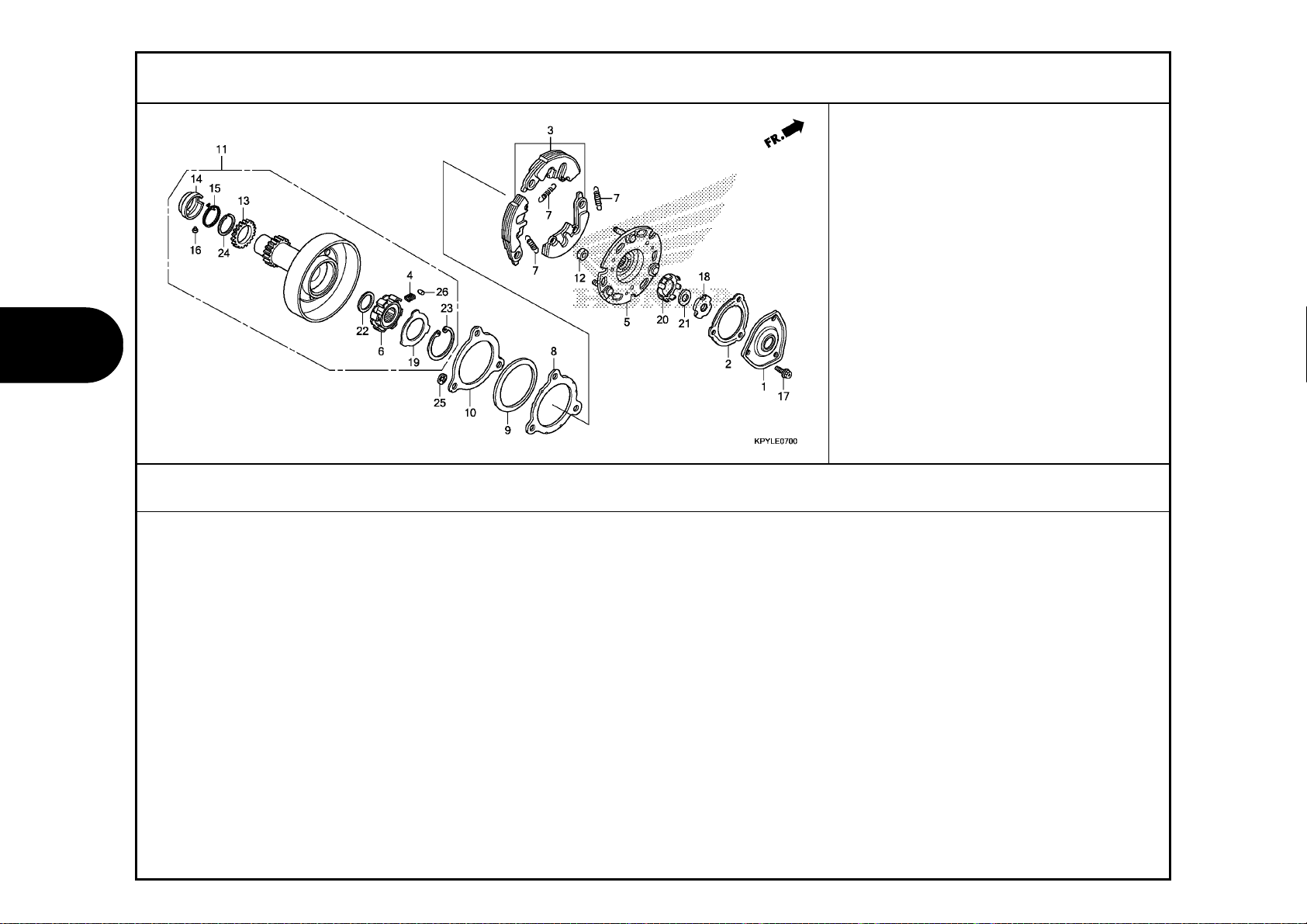

E-7

ONE WAY CLUTCH

Ref.

No.

Part No. Description

23 90455-GB2-000 CIRCLIP, INTERNAL, 45MM ••••• 1 1 1 24 90603-KPH-900 SET RING, 25MM •••••••••••••• 1 1 1 25 90605-166-720 CIRCLIP, 7MM •••••••••••••••• 3 3 3

26 91101-GB2-000 ROLLER, 5X8 ••••••••••••••••• 6 6 6

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 38

E-8

CLUTCH

Ref.

No.

Part No. Description

1 22100-KYZ-901 OUTER COMP., CLUTCH(67T) •••• 1 1 1 2 22115-KPH-900 GUIDE, CLUTCH OUTER ••••••••• 1 1 1 3 22116-KPH-900 COLLAR, CLUTCH OUTER •••••••• 1 1 1 4 22121-KPH-900 CENTER, CLUTCH •••••••••••••• 1 1 1 5 22201-KYZ-901 DISK, CLUTCH FRICTION ••••••• 3 3 3

6 22208-KYZ-901 DISK COMP., CLUTCH FRICTION • 1 1 1 7 22321-KE8-000 PLATE, CLUTCH ••••••••••••••• 3 3 3 8 22350-KPH-900 PLATE, CLUTCH PRESSURE •••••• 1 1 1 9 22361-KTM-950 PLATE, CLUTCH LIFTER •••••••• 1 1 1

10 22401-KPH-900 SPRING, CLUTCH •••••••••••••• 6 6 6

11 22402-KYZ-901 SPRING, DRAG •••••••••••••••• 3 3 3 12 90050-KPH-900 BOLT, SPECIAL FLANGE, 6X20 •• 3 3 3 13 90231-KM7-700 NUT, LOCK, 14MM ••••••••••••• 1 1 1 14 90403-KPH-900 WASHER, THRUST, 17MM •••••••• 1 1 1 15 90432-KPT-A00 WASHER, 14.2X26X3 ••••••••••• 1 1 1

16 91008-KK6-000 BEARING, RADIAL BALL, 16003 • 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 39

E-9

STARTING CLUTCH

Ref.

No.

Part No. Description

1 28110-K41-N00 GEAR, STARTER DRIVEN(57T) ••• 1 1 1 2 28120-KPH-701 CLUTCH ASSY., ONE WAY(EXEDY) 1 1 1

28120-KWB-921 CLUTCH ASSY., ONE WAY

3 28131-KYZ-901 GEAR, STARTER REDUCTION

4 28132-KPH-900 SHAFT, REDUCTION GEAR ••••••• 1 1 1 5 28133-KPH-900 COLLAR, STARTER REDUCTION ••• 1 1 1

6 90085-413-781 BOLT, SOCKET, 6MM ••••••••••• 6 6 6 7 91011-KWW-741 BEARING, NEEDLE, 21X27X18(NTN) 1 1 1

(KYUSHU MUSASHI SEIMITSU) 1 1 1

(17T/55T) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 40

E-10

LEFT CRANKCASE COVER

Ref.

No.

Part No. Description

1 11341-KYZ-T00 COVER, L. CRANKCASE ••••••••• 1 1 1 2 11346-KTR-940 CLAMPER A, OIL TEMP SENSOR

3 11360-KPY-H60 COVER COMP., L. RR. ••••••••• 1 1 1 4 11395-KPH-901 GASKET, L. CRANKCASE COVER •• 1 1 1 5 90084-KTR-940 CAP, A.C. GENERATOR ••••••••• 1 1 1

6 90087-KPY-H00 CAP, 30MM ••••••••••••••••••• 1 1 1 7 90702-KFM-900 DOWEL PIN, 8X12 ••••••••••••• 2 2 2 8 91303-377-000 O-RING, 13.8X2.5 •••••••••••• 1 1 1 9 91356-KWV-000 O-RING, 30MM •••••••••••••••• 1 1 1

10 96001-06025-00 BOLT, FLANGE, 6X25 •••••••••• 2 2 2

11 96001-06028-00 BOLT, FLANGE, 6X28 •••••••••• 2 2 2 12 96001-06035-00 BOLT, FLANGE, 6X35 •••••••••• 6 6 6

Reqd. QTY

CFT125 MR MS MRC L L L

CORD 2 2 2

Serial No.

2019.08.01 E

Parts catalogue code

Page 41

E-11

GENERATOR

Ref.

No.

Part No. Description

1 31110-K41-N01 FLYWHEEL COMP.(MITSUBA) ••••• 1 1 1 2 31120-K41-N01 STATOR COMP.(MITSUBA) ••••••• 1 1 1 3 90439-KWZ-900 WASHER, 12X24X2.3 ••••••••••• 1 1 1 4 94050-12000 NUT, FLANGE, 12MM ••••••••••• 1 1 1 5 96001-06016-00 BOLT, FLANGE, 6X16 •••••••••• 2 2 2

6 96001-06022-00 BOLT, FLANGE, 6X22 •••••••••• 3 3 3

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 42

E-13

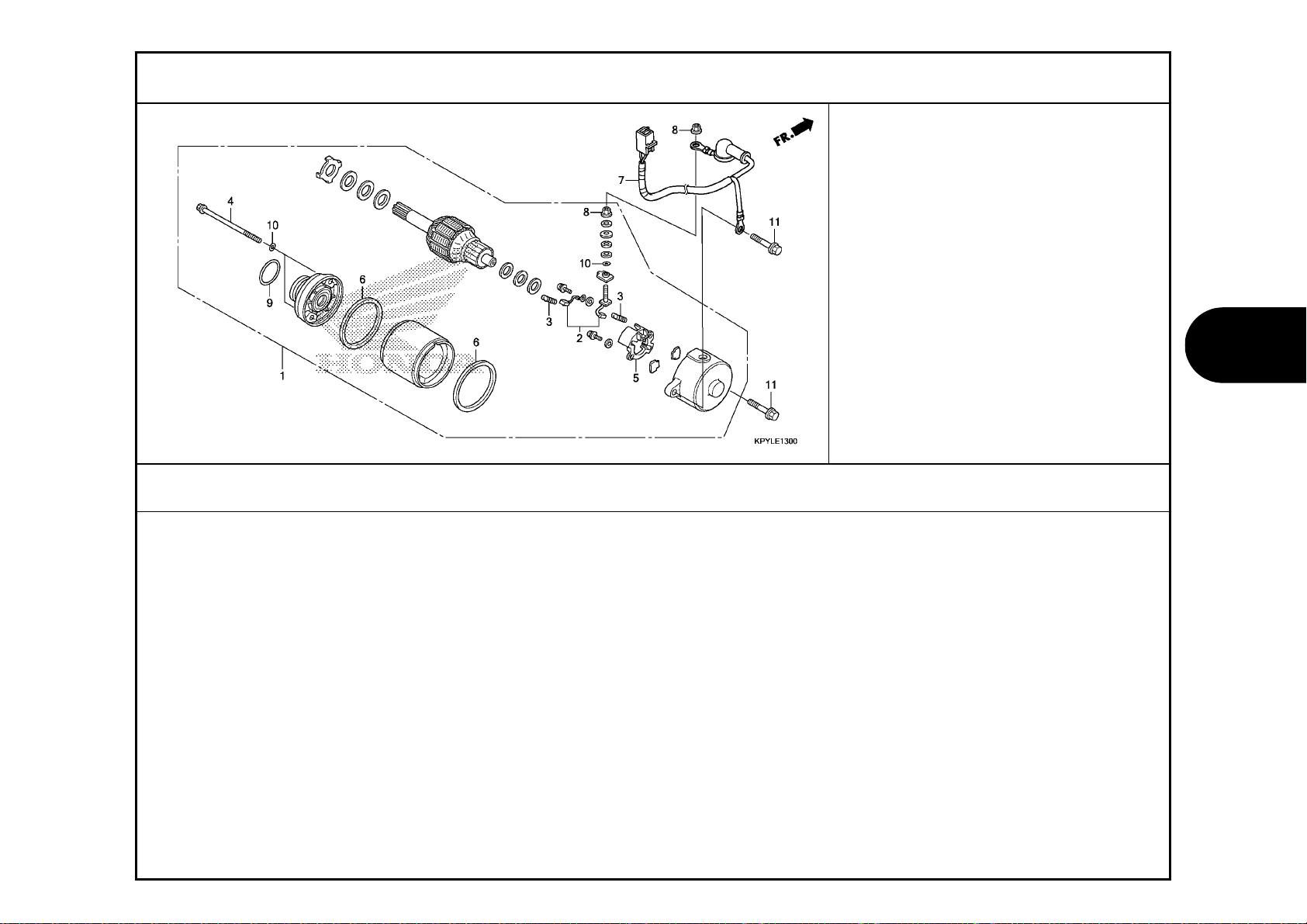

STARTER MOTOR

Ref.

No.

Part No. Description

1 31200-KPW-901 MOTOR ASSY., STARTER(MITSUBA) 1 1 1 2 31201-KVS-J01 TERMINAL SET, BRUSH ••••••••• 1 1 1 3 31204-KG8-004 SPRING, CARBON BRUSH •••••••• 2 2 2 4 31205-KPW-901 BOLT, SETTING ••••••••••••••• 2 2 2 5 31206-KPW-901 HOLDER, BRUSH ••••••••••••••• 1 1 1

6 31207-MBE-008 RING •••••••••••••••••••••••• 2 2 2 7 32410-KPY-H00 CABLE, STARTER MOTOR •••••••• 1 1 1 8 90071-MB0-000 NUT-WASHER, 6MM ••••••••••••• 2 2 2 9 91309-425-003 O-RING, 24.4X3.1(ARAI) •••••• 1 1 1

10 91320-MB0-000 O-RING, 4X2 ••••••••••••••••• 3 3 3

11 95701-06025-00 BOLT, FLANGE, 6X25 •••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 43

E-14

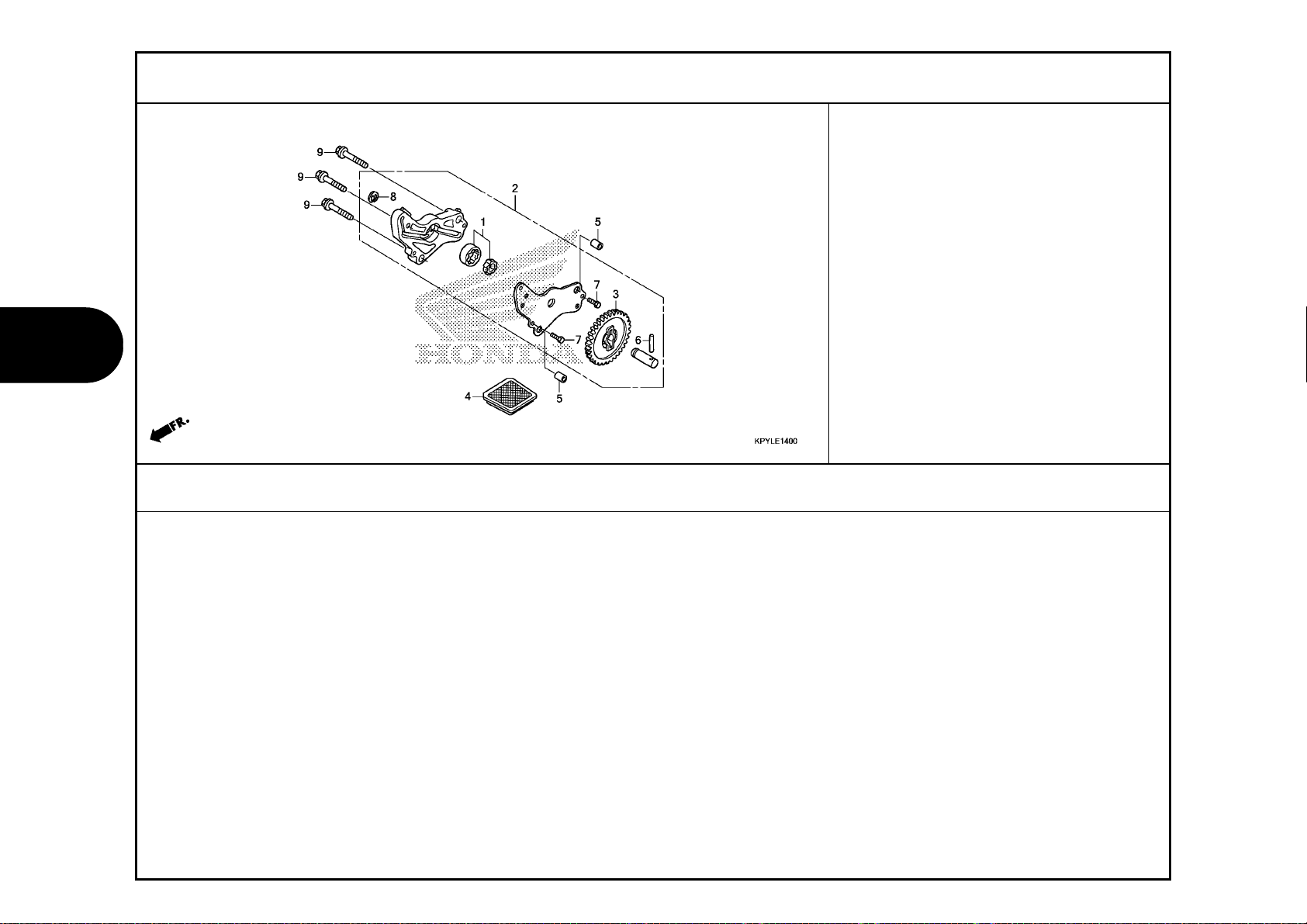

OIL PUMP

Ref.

No.

Part No. Description

1 15021-GF6-000 ROTOR SET, OIL PUMP ••••••••• 1 1 1 2 15100-KTM-D20 PUMP ASSY., OIL ••••••••••••• 1 1 1 3 15133-KTM-D20 GEAR, OIL PUMP DRIVEN(30T) •• 1 1 1 4 15421-KSP-910 SCREEN, OIL FILTER •••••••••• 1 1 1 5 90702-KFM-900 DOWEL PIN, 8X12 ••••••••••••• 2 2 2

6 91105-KTM-970 ROLLER, 4X23.8 •••••••••••••• 1 1 1

96220-40238 •••••••••••••••••••••••••••• 1 1 1 7 93301-05012-0J BOLT, HEX., 5X12 •••••••••••• 2 2 2 8 94540-06018 E-RING, 6MM ••••••••••••••••• 1 1 1 9 95701-06035-00 BOLT, FLANGE, 6X35 •••••••••• 3 3 3

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 44

E-15

CRANKCASE

Ref.

No.

Part No. Description

1 11100-KYZ-900 CRANKCASE COMP., R. ••••••••• 1 1 1 2 11133-KYZ-900 JET, OIL, 1.0MM ••••••••••••• 1 1 1 3 11200-KYZ-901 CRANKCASE COMP., L. ••••••••• 1 1 1 4 11215-KYZ-900 PLUG, BEARING PUSH •••••••••• 1 1 1 5 11216-KYZ-900 SPRING, BEARING PUSH •••••••• 1 1 1

6 11218-KYZ-900 PLATE, OIL STOPPER •••••••••• 1 1 1 8 15761-KPY-H00 TUBE, BREATHER •••••••••••••• 1 1 1 9 35759-K41-N01 CONTACT ASSY., CHANGE SWITCH 1 1 1

10 90031-KPH-900 BOLT, CYLINDER STUD, 8X203 •• 2 2 2

11 90031-KYZ-900 BOLT, STUD, 8X196 ••••••••••• 2 2 2 12 90407-259-000 PACKING, DRAIN COCK, 12.5X20 1 1 1 13 91208-KPH-901 OIL SEAL, 11.6X24X10(ARAI) •• 1 1 1 14 92800-12000 BOLT, DRAIN PLUG, 12MM •••••• 1 1 1 15 94301-10120 DOWEL PIN, 10X12 •••••••••••• 4 4 4

16 95002-80000 CLIP, TUBE(C12) ••••••••••••• 2 2 2 17 95701-06014-00 BOLT, FLANGE, 6X14 •••••••••• 1 1 1 18 95701-06018-00 BOLT, FLANGE, 6X18 •••••••••• 1 1 1 19 96001-06060-00 BOLT, FLANGE, 6X60 •••••••••• 11 11 11 20 91301-HP2-671 O-RING, 21X2.4 •••••••••••••• 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 45

E-16

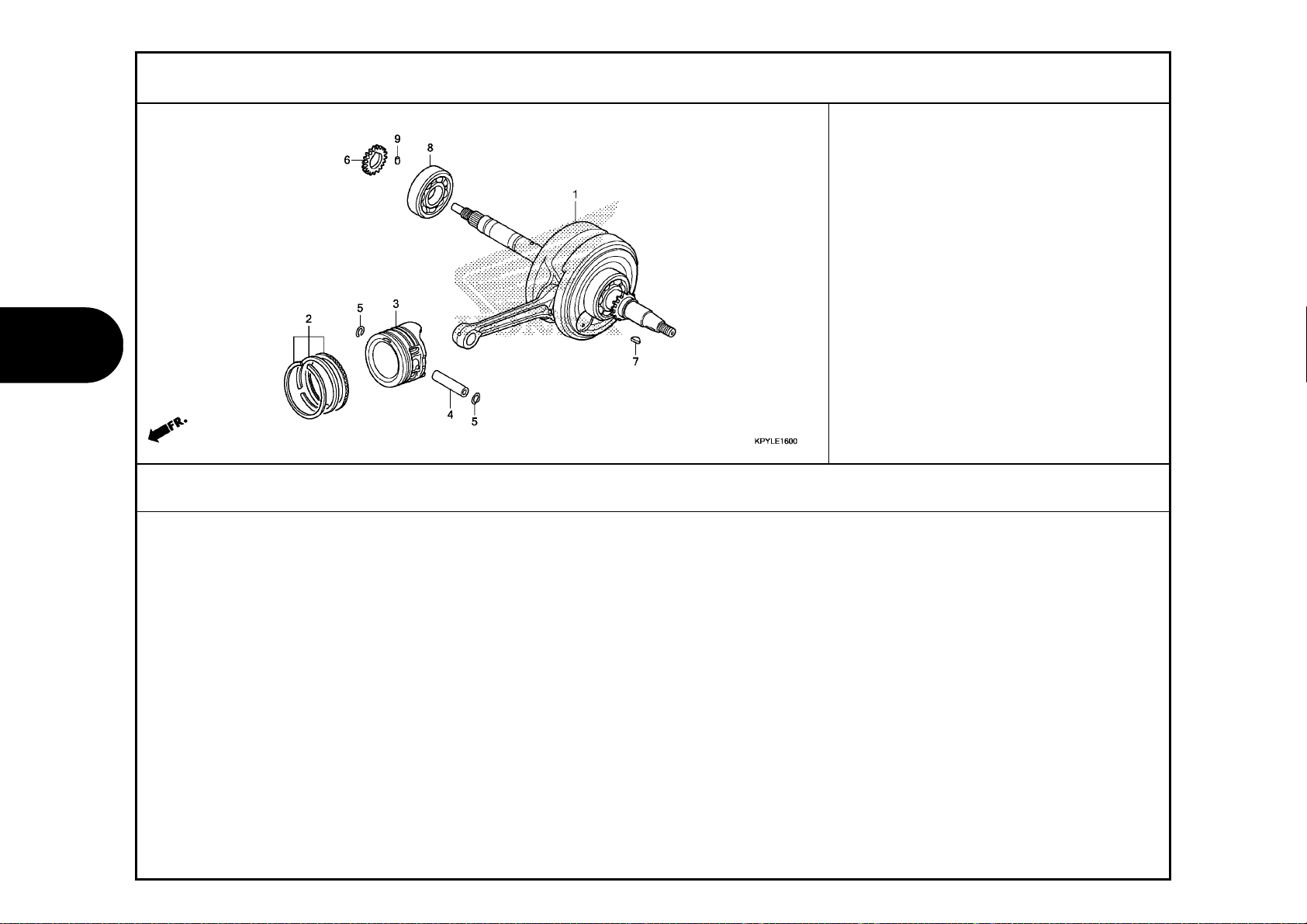

CRANKSHAFT/PISTON

Ref.

No.

Part No. Description

1 13000-KPY-H00 CRANKSHAFT COMP. •••••••••••• 1 1 1 2 13011-KYZ-900 RING SET, PISTON(STD.)(TPR) • 1 1 1

13021-KYZ-900 RING SET, PISTON(0.25)(TPR) • (1) (1) (1) 13031-KYZ-900 RING SET, PISTON(0.50)(TPR) • (1) (1) (1) 13041-KYZ-900 RING SET, PISTON(0.75)(TPR) • (1) (1) (1) 13051-KYZ-900 RING SET, PISTON(1.00)(TPR) • (1) (1) (1)

3 13101-K41-N00 PISTON(STD) ••••••••••••••••• 1 1 1

13102-K41-P00 PISTON(O.S. 0.25) ••••••••••• (1) (1) (1) 13103-K41-P00 PISTON(O.S. 0.50) ••••••••••• (1) (1) (1) 13104-K41-P00 PISTON(O.S. 0.75) ••••••••••• (1) (1) (1)

13105-K41-P00 PISTON(O.S. 1.00) ••••••••••• (1) (1) (1) 4 13111-087-000 PIN, PISTON ••••••••••••••••• 1 1 1 5 13115-GN5-910 CLIP, PISTON PIN, 13MM •••••• 2 2 2

6 15341-KPH-900 GEAR, OIL PUMP DRIVE(19T) ••• 1 1 1 7 90741-003-010 KEY, WOODRUFF, 4MM •••••••••• 1 1 1 8 91001-KWS-901 BEARING, RADIAL BALL, 63/22

91001-KWW-A01 BEARING, RADIAL BALL, 63/22

9 94303-03050 DOWEL PIN, 3X5 •••••••••••••• 1 1 1

(NSK) 1 1 1

(SKF) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 46

E-17

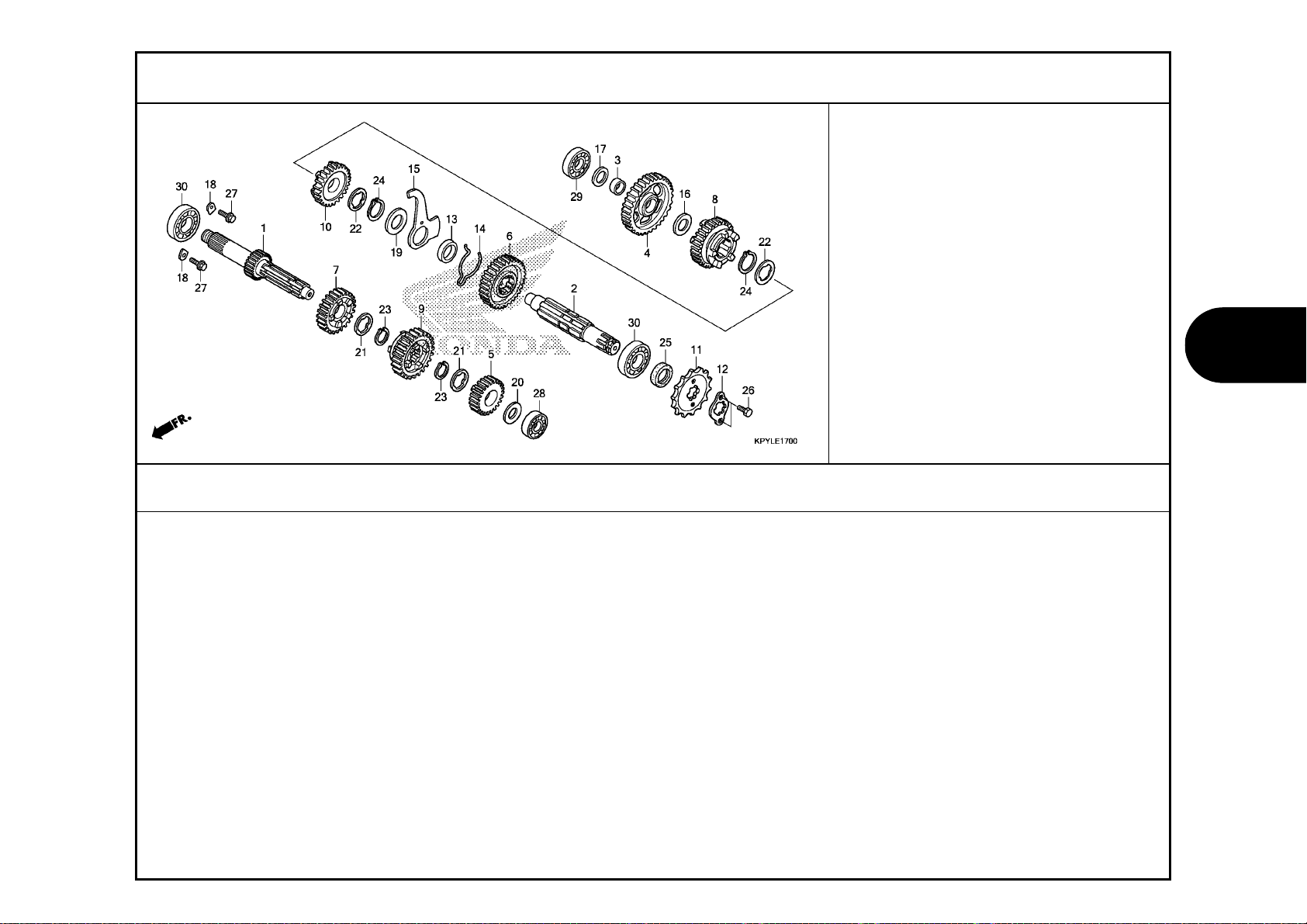

TRANSMISSION

Ref.

No.

Part No. Description

1 23211-KYZ-900 MAINSHAFT(14T) •••••••••••••• 1 1 1 2 23221-KYZ-900 COUNTERSHAFT •••••••••••••••• 1 1 1 3 23415-KPH-900 BUSH, 15MM •••••••••••••••••• 1 1 1 4 23421-KYZ-900 GEAR, COUNTERSHAFT FIRST(35T) 1 1 1 5 23431-KYZ-900 GEAR, MAINSHAFT SECOND(20T) • 1 1 1

6 23441-KYZ-900 GEAR, COUNTERSHAFT SECOND(31T) 1 1 1 7 23451-KYZ-900 GEAR, MAINSHAFT THIRD(20T) •• 1 1 1 8 23461-KYZ-900 GEAR, COUNTERSHAFT THIRD(23T) 1 1 1 9 23471-K41-N00 GEAR, MAINSHAFT FOURTH(26T) • 1 1 1

10 23481-K41-N00 GEAR, COUNTERSHAFT FOURTH(24T) 1 1 1

11 23801-KPY-H60 SPROCKET, DRIVE(14T) •••••••• 1 1 1 12 23802-GN5-910 PLATE, FIXING ••••••••••••••• 1 1 1 13 23911-KPH-900 COLLAR, LOCK PLATE •••••••••• 1 1 1

23911-KPH-C00 •••••••••••••••••••••••••••• 1 1 1

14 24305-KPH-900 SPRING, CHANGE FRICTION ••••• 1 1 1

24305-KPH-C00 •••••••••••••••••••••••••••• 1 1 1

15 24306-KPH-900 PLATE, DRUM LOCK •••••••••••• 1 1 1

24306-KPH-C00 •••••••••••••••••••••••••••• 1 1 1

16 90412-187-000 WASHER, THRUST, 15MM •••••••• 1 1 1 17 90412-KPH-900 WASHER, SPECIAL, 12X23 •••••• 1 1 1 18 90441-KRM-840 PLATE, BEARING HOLDER ••••••• 2 2 2 19 90452-413-000 WASHER, THRUST, 20MM •••••••• 1 1 1 20 90452-KGH-900 WASHER, SPECIAL, 12MM ••••••• 1 1 1

90452-KPH-C00 •••••••••••••••••••••••••••• 1 1 1

21 90461-115-000 WASHER, SPLINE, 17MM •••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 47

E-17

TRANSMISSION

Ref.

No.

21) 90461-KPH-C00 WASHER, SPLINE, 17MM •••••••• 2 2 2

Part No. Description

22 90461-GB4-770 WASHER, SPLINE, 20X1.2 •••••• 2 2 2 23 90601-KRM-840 CIRCLIP, 17MM ••••••••••••••• 2 2 2

90602-KWW-B10 CIRCLIP, 17MM(OCHIAI) ••••••• 2 2 2

24 90605-200-000 SET RING, 20MM •••••••••••••• 2 2 2

90605-KYY-900 •••••••••••••••••••••••••••• 2 2 2

25 91204-KPH-901 OIL SEAL, 17X30X5(ARAI) ••••• 1 1 1

91204-KPH-902 OIL SEAL, 17X30X5(NOK) •••••• 1 1 1

26 92101-06010-0A BOLT, HEX., 6X10 •••••••••••• 2 2 2 27 95701-06014-00 BOLT, FLANGE, 6X14 •••••••••• 2 2 2 28 96100-60010-00 BEARING, RADIAL BALL, 6001 •• 1 1 1 29 96100-62010-00 BEARING, RADIAL BALL, 6201 •• 1 1 1 30 96100-62030-00 BEARING, RADIAL BALL, 6203 •• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 48

E-19

GEARSHIFT DRUM

Ref.

No.

Part No. Description

1 24211-KPH-900 FORK, R. GEARSHIFT •••••••••• 1 1 1 2 24212-KPH-900 FORK, L. GEARSHIFT •••••••••• 1 1 1 3 24241-KPH-900 SHAFT, GEARSHIFT FORK ••••••• 1 1 1 4 24301-KPH-900 DRUM, GEARSHIFT ••••••••••••• 1 1 1 5 24410-KPH-900 PLATE COMP., GEARSHIFT DRUM

6 24421-KPH-900 HOLDER, DRUM STOPPER •••••••• 1 1 1 7 24430-KPH-901 STOPPER COMP., GEARSHIFT DRUM 1 1 1 8 24435-KYZ-900 SPRING, SHIFT DRUM STOPPER •• 1 1 1 9 24610-KPH-900 SPINDLE COMP., GEARSHIFT •••• 1 1 1

10 24630-KPH-900 ARM COMP., GEARSHIFT •••••••• 1 1 1

11 24641-KPH-900 SPRING, GEARSHIFT ARM ••••••• 1 1 1 12 24651-KPH-900 SPRING, GEARSHIFT RETURN •••• 1 1 1 13 24652-KPH-900 PIN, SHIFT RETURN SPRING •••• 1 1 1 14 35751-KPH-900 CAP, CHANGE SWITCH CONTACT •• 1 1 1 15 35752-KPH-900 SPRING, CHANGE SWITCH CONTACT 1 1 1

16 90022-MG8-000 PIVOT, SHIFT DRUM STOPPER ARM 1 1 1 17 90435-HB3-000 WASHER, 6.1MM ••••••••••••••• 1 1 1 19 96220-30085 ROLLER, 3X8.5 ••••••••••••••• 2 2 2 20 96600-06016-00 BOLT, SOCKET, 6X16 •••••••••• 1 1 1

STOPPER 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 49

E-20

KICK STARTER SPINDLE

Ref.

No.

Part No. Description

1 28211-KYZ-900 PINION, KICK STARTER(27T) ••• 1 1 1 2 28221-KYZ-900 RATCHET, STARTER DRIVE(10T) • 1 1 1 3 28251-KYZ-900 SPINDLE, KICK STARTER(10T) •• 1 1 1 4 28262-KPH-900 RETAINER, KICK SPRING ••••••• 1 1 1 5 28265-KPH-900 COLLAR, KICK RETAINER ••••••• 1 1 1

6 28271-KYZ-900 SPRING, FRICTION STARTER

7 28281-KPH-900 SPRING, KICK RETURN ••••••••• 1 1 1 8 28282-KPH-900 COLLAR, KICK SPRING ••••••••• 1 1 1 9 90452-KYZ-900 WASHER, THRUST, 15.5MM •••••• 1 1 1

10 90454-KPH-900 WASHER, 25X20.2X1 ••••••••••• 1 1 1

11 90605-200-000 SET RING, 20MM •••••••••••••• 2 2 2

90605-KPS-900 •••••••••••••••••••••••••••• 2 2 2 90605-KYY-900 •••••••••••••••••••••••••••• 2 2 2

PINION 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 50

E-23

THROTTLE BODY

Ref.

No.

Part No. Description

1 16016-K03-H11 SCREW SET ••••••••••••••••••• 1 1 1 2 16075-KYZ-711 O-RING •••••••••••••••••••••• 1 1 1 3 16169-K18-901 STAY, WIRE •••••••••••••••••• 1 1 1 4 16400-KPY-H01 BODY ASSY., THROTTLE(GQYDB A) 1 1 1 5 16410-KPY-H01 BODY SET •••••••••••••••••••• 1 1 1

6 16450-K0J-N01 INJECTOR ASSY., FUEL •••••••• 1 1 1 7 16472-KPC-D50 RING, SEAL •••••••••••••••••• 1 1 1 8 17560-KYZ-710 JOINT COMP., INJECTOR ••••••• 1 1 1 9 17650-KPY-H01 HOSE COMP., FUEL FEED ••••••• 1 1 1

10 90301-473-003 NUT, U, 6MM(FUSE RASHI) ••••• 1 1 1

11 91301-GGL-J01 O-RING, 6.3X2.2 ••••••••••••• 1 1 1 12 93892-05012-18 SCREW-WASHER, 5X12 •••••••••• 1 1 1 13 95701-06028-00 BOLT, FLANGE, 6X28 •••••••••• 1 1 1 14 96001-06018-00 BOLT, FLANGE, 6X18 •••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 51

F-1

HEADLIGHT

Ref.

No.

Part No. Description

1 33103-KPY-971 SCREW, BEAM ADJUSTING ••••••• 1 1 1 2 33104-KPY-971 WASHER, BEAM ADJUSTING •••••• 1 1 1 3 33107-KPY-971 SPRING, BEAM ADJUSTING •••••• 1 1 1 4 33117-KPY-971 NUT, BEAM ADJUSTING ••••••••• 1 1 1 5 33123-KPY-971 HEADLIGHT UNIT •••••••••••••• 1 1 1

6 33130-KPY-H01 SOCKET COMP., HEADLIGHT ••••• 1 1 1 7 34901-KVY-901 BULB, HEADLIGHT(12V 32/32W)

8 61302-KPY-A50 PLATE, R. HEADLIGHT ••••••••• 1 1 1 9 61303-KPY-900 MAT, FR. COWL ••••••••••••••• 1 1 1

10 61303-KPY-A50 PLATE, L. HEADLIGHT ••••••••• 1 1 1

11 61311-KPY-H00 STAY COMP., HEADLIGHT ••••••• 1 1 1 12 61312-149-300 BOOT, HEADLIGHT BRACKET ••••• 4 4 4 13 61312-KBP-900 BOOT, HEADLIGHT BRACKET ••••• 2 2 2 14 61320-KPY-H70ZA CASE SET, HEADLIGHT(WL)

61320-KPY-H00ZF *TYPE1*...................... - 1 -

61320-KPY-H00ZE *TYPE2*...................... - 1 -

61320-KPY-H80ZA *YR300R*...TANGERINE ORANGE R - - 1

61320-KPY-H80ZB *R134*...........FIGHTING RED - - 1

15 90107-KPY-A00 BOLT, BODY COVER SETTING •••• 2 2 2

16 93913-24280 SCREW, TAPPING, 4X12(PO) •••• 6 6 6

*NH1*...................BLACK 1 - -

(STANLEY) 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 52

F-2

COMBINATION METER

Ref.

No.

Part No. Description

1 34908-KVE-900 BULB, WEDGE BASE(T10)

2 34909-KVR-600 BULB, WEDGE BASE(T10)

3 37100-KPY-H61 METER ASSY., COMBINATION(KPH) 1 1 1 4 37121-ML7-671 CLAMP ••••••••••••••••••••••• 1 1 1 5 37205-KPY-H01 COVER ••••••••••••••••••••••• 1 1 1

6 37210-KPY-H61 SPEEDOMETER COMP. ••••••••••• 1 1 1 7 37220-KPY-H01 CASE ASSY., UNDER ••••••••••• 1 1 1 8 37224-KPY-H61 SOCKET COMP. •••••••••••••••• 1 1 1 9 37230-KPY-H01 LENS ASSY. •••••••••••••••••• 1 1 1

10 37305-KE5-008 SCREW-WASHER, 3X22 •••••••••• 3 3 3

11 44830-KPY-710 CABLE COMP., SPEEDOMETER •••• 1 1 1 12 61104-422-000 COLLAR, SETTING ••••••••••••• 3 3 3 13 77208-KW7-900 RUBBER B, SEAT MOUNTING ••••• 3 3 3 14 77302-KW7-900 WASHER, HEADLIGHT BRACKET

15 90035-166-008 SCREW-WASHER, SPECIAL, 4X10 • 2 2 2

16 90109-MZ5-008 SCREW, TAPPING, 4X14 •••••••• 1 1 1 17 91352-671-003 O-RING, 8.5X1.5(ARAI) ••••••• 1 1 1

91352-671-004 O-RING, 8.5X1.5(NOK) •••••••• 1 1 1 18 93903-22480 SCREW, TAPPING, 3X16 •••••••• 5 5 5 19 94001-06000-0S NUT, HEX., 6MM •••••••••••••• 3 3 3

(12V 1.7W)(TOSHIBA) 9 9 9

(12V 3.4W)(TOSHIBA) 1 1 1

MOUNTING 3 3 3

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 53

F-3

MIRROR

Ref.

No.

Part No. Description

1 88210-KPY-A00 MIRROR COMP., R. •••••••••••• 1 1 1 2 88220-KPY-A00 MIRROR COMP., L. •••••••••••• 1 1 1 3 90314-KFM-900 NUT, LOCK ••••••••••••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 54

F-4

SWITCH/CABLE

Ref.

No.

Part No. Description

1 17578-KPH-700 COLLAR, PUMP COVER •••••••••• - 1 2 17910-KPY-H61 CABLE COMP. A, THROTTLE ••••• 1 1 1 3 17913-KPY-H00 COVER, THROTTLE CABLE ••••••• 1 1 1 4 17914-K03-N30 SLIDER, THROTTLE CABLE •••••• 1 1 1 5 17920-KPY-H61 CABLE COMP. B, THROTTLE ••••• 1 1 1

6 35150-KPY-H01 SWITCH ASSY., START ••••••••• 1 1 1 7 35200-KPY-H01 SWITCH ASSY., WINKER •••••••• 1 1 1 8 53140-KPY-H00 GRIP COMP., THROTTLE •••••••• 1 1 -

53140-K03-N30 •••••••••••••••••••••••••••• - - 1

9 53166-KPY-H00 GRIP, L. HANDLE ••••••••••••• 1 1 -

53166-KWB-600 •••••••••••••••••••••••••••• - - 1

10 53167-K03-N30 HOUSING, FR. THROTTLE ••••••• 1 1 1

11 53168-K03-N30 HOUSING, RR. THROTTLE ••••••• 1 1 1 12 53172-KPY-H00 BRACKET, L. HANDLE COVER •••• - 1 13 53173-KBP-900 HOLDER, RR. VIEW MIRROR ••••• 1 1 1 14 53185-KPY-H00ZE COVER, L. HANDLE

53185-KPY-H00ZD *NH1*...................BLACK - 1 -

15 90113-KF0-770 BOLT, HANDLE LEVER PIVOT •••• - 1 -

16 93500-04032-0G SCREW, PAN, 4X32 •••••••••••• 1 1 1 17 93500-04045-0G SCREW, PAN, 4X45 •••••••••••• 1 1 1 18 93500-05020-0G SCREW, PAN, 5X20 •••••••••••• 2 2 2 19 93500-05022-0G SCREW, PAN, 5X22 •••••••••••• 2 2 2 20 94050-06000 NUT, FLANGE, 6MM •••••••••••• - 1 -

21 95701-06025-07 BOLT, FLANGE, 6X25 •••••••••• 1 1 1

*NH196*............ROSS WHITE - 1 -

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 55

F-5

FRONT BRAKE MASTER CYLINDER

Ref.

No.

Part No. Description

1 17578-KPH-700 COLLAR, PUMP COVER •••••••••• - 1 2 35340-KWB-601 SWITCH ASSY., FR. STOP •••••• 1 1 1 3 45126-KPY-H01 HOSE COMP., FR. BRAKE ••••••• 1 1 1 4 45157-KPY-710 CLAMPER B, BRAKE HOSE ••••••• 1 1 1 5 45157-KPY-H00 CLAMPER B, FR. BRAKE HOSE ••• 1 1 1

6 45504-410-003 BOOT COMP. •••••••••••••••••• 1 1 1 7 45510-K16-911 CYLINDER SUB ASSY., FR. BRAKE

8 45512-MA6-006 PROTECTOR ••••••••••••••••••• 1 1 1 9 45513-GW0-911 CAP, MASTER CYLINDER •••••••• 1 1 1

10 45517-166-006 HOLDER, MASTER CYLINDER ••••• 1 1 1

11 45520-GW0-911 DIAPHRAGM ••••••••••••••••••• 1 1 1 12 45521-GW0-911 PLATE, DIAPHRAGM •••••••••••• 1 1 1 13 45530-471-831 CYLINDER SET, MASTER •••••••• 1 1 1 14 53175-KYT-922 LEVER, R. STEERING HANDLE ••• 1 1 1 15 53180-KPY-H00ZE COVER, R. HANDLE

53180-KPY-H00ZD *NH1*...................BLACK - 1 -

16 90113-KF0-770 BOLT, HANDLE LEVER PIVOT •••• - 1 17 90114-KGH-900 BOLT, HANDLE LEVER PIVOT •••• 1 - 1 18 90145-KPH-B30 BOLT, OIL, 10X22(NISSIN) •••• 2 2 2 19 90545-300-000 WASHER, OIL BOLT •••••••••••• 4 4 4 20 90651-MA5-671 CIRCLIP ••••••••••••••••••••• 1 1 1

21 93600-04012-1G SCREW, FLAT, 4X12 ••••••••••• 2 2 2 22 93893-04012-17 SCREW-WASHER, 4X12 •••••••••• 1 1 1

*NH196*............ROSS WHITE - 1 -

MASTER(NISSIN) 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 56

F-5

FRONT BRAKE MASTER CYLINDER

Ref.

No.

Part No. Description

23 94050-06000 NUT, FLANGE, 6MM •••••••••••• 1 1 1 24 95701-06022-07 BOLT, FLANGE, 6X22 •••••••••• 2 2 2 25 96001-06012-00 BOLT, FLANGE, 6X12 •••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 57

F-7

HANDLE PIPE/TOP BRIDGE

Ref.

No.

Part No. Description

1 32161-404-000 BAND B1, WIRE ••••••••••••••• 2 2 2 2 35010-KPY-H00 KEY SET ••••••••••••••••••••• 1 1 1 3 35100-KPY-H01 SWITCH ASSY., COMBINATION &

4 35105-KPG-960 STAY, COMBINATION SWITCH •••• 1 1 1 5 35121-KV8-680 KEY, BLANK(TYPE 1)

35122-KV8-680 KEY, BLANK(TYPE 2)

6 53100-KPY-H00 PIPE, STEERING HANDLE ••••••• 1 1 1 7 53104-KPP-900 WEIGHT B, HANDLE •••••••••••• 2 2 2 8 53105-KPY-H00 WEIGHT A, STEERING HANDLE ••• 2 2 2 9 53106-KR3-000 RUBBER A, HANDLE WEIGHT ••••• 4 4 4

10 53108-KR3-770 RING, HANDLE WEIGHT SNAP •••• 2 2 2

11 53230-KPY-900 BRIDGE, FORK TOP •••••••••••• 1 1 1 12 90117-GE2-000 BOLT, FLANGE, 6X28 •••••••••• 4 4 4 13 90164-KZL-A00 SCREW, U-LOCK FLAT, 6X12 •••• 2 2 2 14 90191-K41-N21 SCREW, OVAL, 6X50 ••••••••••• 2 2 2

90191-KPP-900 •••••••••••••••••••••••••••• 2 2 2

15 90305-KGH-900 NUT, STEERING STEM •••••••••• 1 1 1

16 90503-KGH-900 WASHER, STEERING STEM ••••••• 1 1 1 17 95014-21201 HOLDER A2, HANDLE PIPE UPPER 2 2 2 18 95701-06012-07 BOLT, FLANGE, 6X12 •••••••••• 2 2 2 19 95801-08035-07 BOLT, FLANGE, 8X35 •••••••••• 2 2 2

(KEY NO. AXX / BXX) (1) (1) (1)

(KEY NO. CXX / DXX) (1) (1) (1)

Reqd. QTY

MR MS MRC L L L

LOCK 1 1 1

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 58

F-9

STEERING STEM

Ref.

No.

Part No. Description

1 06531-KW6-840 BALL ASSY., STEEL, #8X18 •••• 2 2 2 2 50301-268-010 RACE, STEERING TOP BALL ••••• 2 2 2 3 53211-268-010 RACE, STEERING TOP CONE ••••• 1 1 1 4 53212-200-000 RACE, STEERING BOTTOM CONE •• 1 1 1 5 53214-200-000 DUST SEAL, STEERING HEAD •••• 1 1 1

6 53219-KPY-A00 STEM SUB ASSY., STEERING •••• 1 1 1 7 53220-KE8-010 THREAD COMP., STEERING HEAD

8 95801-08035-07 BOLT, FLANGE, 8X35 •••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

TOP 1 1 1

Serial No.

2019.08.01 E

Parts catalogue code

Page 59

F-10

FRONT FENDER

Ref.

No.

Part No. Description

1 61100-KPY-H00ZE FENDER, FR.

61100-KPY-H00ZC *R134*...........FIGHTING RED - 1 1

61100-KPY-H00ZG *G213R*...CHLOROPHYLL GREEN R - 1 -

61100-KPY-H00ZB *YR300R*...TANGERINE ORANGE R - - 1 2 61102-KPY-711 STAY, FR. FENDER •••••••••••• 1 1 1 3 61103-KPY-900 MUDGUARD, FR. FENDER •••••••• 1 1 1 4 90103-GN5-910 SCREW, HEADLIGHT SETTING •••• 2 2 2 5 94050-05080 NUT, FLANGE, 5MM •••••••••••• 2 2 2

6 94103-06800 WASHER, PLAIN, 6MM •••••••••• 4 4 4 7 95701-06014-00 BOLT, FLANGE, 6X14 •••••••••• 1 1 1 8 95701-06016-08 BOLT, FLANGE, 6X16 •••••••••• 4 4 4

*NH1*...................BLACK

Reqd. QTY

CFT125 MR MS MRC L L L



1 1 -

Serial No.



2019.08.01 E

Parts catalogue code

Page 60

F-11

FRONT FORK

Ref.

No.

Part No. Description

1 44832-KPY-A50 CLAMPER, SPEEDOMETER CABLE •• 1 1 1 2 45156-KPY-A00 STAY, FR. BRAKE ••••••••••••• 1 1 1 3 51400-KPY-H61 FORK ASSY., R. FR. •••••••••• 1 1 1 4 51401-KPY-711 SPRING, FR. FORK •••••••••••• 2 2 2 5 51402-KPY-A51 COLLAR, SPRING •••••••••••••• 2 2 2

6 51403-GF4-003 JOINT, FR. CUSHION SPRING ••• 2 2 2 7 51410-KPY-A01 PIPE COMP., FR. FORK •••••••• 2 2 2 8 51412-GN5-901 SPRING, REBOUND(SHOWA) •••••• 2 2 2 9 51420-KPY-A51 CASE, R. FR. BOTTOM ••••••••• 1 1 1

10 51425-GN5-901 SEAL, DUST(SHOWA) ••••••••••• 2 2 2

11 51437-KWB-601 RING, PISTON •••••••••••••••• 2 2 2 12 51466-065-901 RING, OIL SEAL STOPPER(SHOWA) 2 2 2 13 51470-KPY-H61 PIPE, SEAT •••••••••••••••••• 2 2 2 14 51490-KGH-901 SEAL SET, FR. FORK(SHOWA) ••• 2 2 2 15 51500-KPY-H61 FORK ASSY., L. FR. •••••••••• 1 1 1

16 51520-KPY-A51 CASE, L. FR. BOTTOM ••••••••• 1 1 1 17 90116-KV3-701 BOLT, SOCKET, 8MM(SHOWA) •••• 2 2 2 18 90123-KW7-901 BOLT, FORK •••••••••••••••••• 2 2 2 19 90544-283-000 WASHER, SPECIAL, 8MM(SHOWA) • 2 2 2 20 91256-166-003 O-RING, 16.8X2.4 •••••••••••• 2 2 2

21 95701-06012-00 BOLT, FLANGE, 6X12 •••••••••• 2 2 2 22 96001-06012-00 BOLT, FLANGE, 6X12 •••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 61

F-12

FRONT BRAKE CALIPER

Ref.

No.

Part No. Description

1 06451-961-405 SEAL SET, PISTON •••••••••••• 1 1 1 2 06455-KWB-601 PAD SET, FR. •••••••••••••••• 1 1 1 3 43352-568-003 SCREW, BLEEDER(NISSIN) •••••• 1 1 1 4 43353-461-771 CAP, BLEEDER •••••••••••••••• 1 1 1 5 45111-MAJ-G41 RING, STOPPER ••••••••••••••• 1 1 1

6 45131-GZ0-006 BOLT, PIN ••••••••••••••••••• 1 1 1 7 45132-166-016 BOOT, PIN BUSH(NISSIN) •••••• 1 1 1 8 45133-MA3-006 BOOT B •••••••••••••••••••••• 1 1 1 9 45208-KWB-601 SPRING, PAD ••••••••••••••••• 1 1 1

10 45215-KPH-951 PIN, HANGER ••••••••••••••••• 1 1 1

11 45216-166-006 WASHER, WAVE •••••••••••••••• 1 1 1 12 45218-KWB-601 PISTON •••••••••••••••••••••• 1 1 1 13 45250-KPY-A52 CALIPER SUB ASSY., R. FR. ••• 1 - -

45250-KPY-A02 •••••••••••••••••••••••••••• - 1 1 14 45290-KPY-A01 BRACKET SUB ASSY., FR. CALIPER 1 1 1 15 90131-K97-T00 BOLT, FLANGE, 8X28 •••••••••• 2 2 2

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 62

F-14-20

FRONT WHEEL(CFT125MR/MS)

Ref.

No.

Part No. Description

1 42701-KVM-711 RIM, RR. WHEEL ••••••••••••••

2 44712-KPY-711 TUBE, TIRE(MBP) ••••••••••••• 1 1 3 44713-KPY-711 FLAP, TIRE(MBP) ••••••••••••• 1 1 4 44301-KAN-T40 AXLE, FR. WHEEL ••••••••••••• 1 1 5 44311-K56-N00 COLLAR, FR. WHEEL SIDE •••••• 1 1 -

6 44620-KPH-950 COLLAR, FR. AXLE DISTANCE ••• 1 1 7 44635-KPY-H00ZA HUB SUB ASSY., FR.

8 44650-KPY-H00ZA WHEEL SUB ASSY., FR.

9 42711-KPY-H01 TIRE(MBP)(2.50-17 43L) •••••• 1 1 -

10 44800-KWB-600 BOX ASSY., SPEEDOMETER GEAR • 1 1 -

11 44806-KWB-600 GEAR, SPEEDOMETER(19T) •••••• 1 1 12 44809-KFM-900 WASHER, SPEEDOMETER GEAR •••• 1 1 13 45251-K90-V01 DISK, FR. BRAKE(GSK) •••••••• 1 1 -

45251-KWB-602 DISK, FR. BRAKE(SUNSTAR) •••• 1 1 14 90105-KGH-900 BOLT, BRAKE DISK, 8X24 •••••• 4 4 15 90306-K66-V01 NUT, FLANGE, 12MM(PT) ••••••• 1 1 -

90306-KGH-901 NUT, U, 12MM(FUJI SEIMITSU) • 1 1 -

90306-KYA-601 NUT, FLANGE, 12MM(PT) ••••••• 1 1 -

16 91051-KWW-A81 BEARING, RADIAL BALL, 6201U

(FOR FR.)

*NH146M*

ACCURATE SILVER METALLIC

*NH146M*

ACCURATE SILVER METALLIC

(SKF) 2 2 -

Reqd. QTY

CFT125 MR MS MRC L L L



1 1 -

 

1 1 -

 

1 1 -

Serial No.

2019.08.01 E

Parts catalogue code

Page 63

F-14-20

FRONT WHEEL(CFT125MR/MS)

Ref.

No.

16) 91052-KVB-901 BEARING, RADIAL BALL, 6201U

Part No. Description

91052-KVB-S51 BEARING, RADIAL BALL, 6201U

91052-KWB-601 BEARING, RADIAL BALL, 6201U

91052-KWW-641 BEARING, RADIAL BALL, 6201U

17 91251-KPH-901 DUST SEAL, 21X37X7(ARAI) •••• 1 1 18 91251-KWB-601 DUST SEAL, 42X54X7(ARAI) •••• 1 1 19 97338-31207-F0 SPOKE SET A, 11X183.5 •••••••

20 97551-31207-F0 SPOKE SET A, 11X183.5 •••••••

(OUTSIDE)

(INSIDE)

(FUJIKOSHI) 2 2 -

(NSK) 2 2 -

(NTN) 2 2 -

(SCHAEFFLER) 2 2 -

Reqd. QTY

MR MS MRC L L L



18 18 -



18 18 -

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 64

F-14-40

FRONT WHEEL(CFT125MRC)

Ref.

No.

Part No. Description

1 44712-K09-H11 TUBE, TIRE(MBP)(70/90-17M/C) - - 1 2 44301-KAN-T40 AXLE, FR. WHEEL ••••••••••••• - - 1 3 44311-KWB-920 COLLAR, FR. WHEEL SIDE •••••• - - 1 4 44620-KPH-950 COLLAR, FR. AXLE DISTANCE ••• - - 1 5 44650-KPY-H80ZA WHEEL SUB ASSY., FR.

6 44711-K09-H11 TIRE, FR.(MBP)

7 44800-KWB-600 BOX ASSY., SPEEDOMETER GEAR • - - 1 8 44806-KWB-600 GEAR, SPEEDOMETER(19T) •••••• - - 1 9 44809-KFM-900 WASHER, SPEEDOMETER GEAR •••• - - 1

10 45251-K90-V01 DISK, FR. BRAKE(GSK) •••••••• - - 1

45251-KWB-602 DISK, FR. BRAKE(SUNSTAR) •••• - - 1

11 90105-KGH-900 BOLT, BRAKE DISK, 8X24 •••••• - - 4 12 90306-K66-V01 NUT, FLANGE, 12MM(PT) ••••••• - - 1

90306-KGH-901 NUT, U, 12MM(FUJI SEIMITSU) • - - 1

90306-KYA-601 NUT, FLANGE, 12MM(PT) ••••••• - - 1 13 91251-KPH-901 DUST SEAL, 21X37X7(ARAI) •••• - - 1 14 91251-KWB-601 DUST SEAL, 42X54X7(ARAI) •••• - - 1 15 91051-KWW-A91 BEARING, RADIAL BALL, 6201UU

91051-KWW-C51 BEARING, RADIAL BALL, 6201UU

*NH303M*

MAT AXIS GRAY METALLIC

(70/90-17 M/C 38P) - - 1

(SKF) - - 2

(NTN) - - 2

Reqd. QTY

CFT125 MR MS MRC L L L

 

- - 1

Serial No.

2019.08.01 E

Parts catalogue code

Page 65

F-15

REAR BRAKE MASTER CYLINDER

Ref.

No.

Part No. Description

1 43156-KPY-A00 CLAMPER A, RR. BRAKE HOSE ••• 1 - 1 2 43157-KPY-A00 CLAMPER B, RR. BRAKE HOSE ••• 1 - 1 3 43310-KPY-A51 HOSE COMP., RR. BRAKE ••••••• 1 - 1 4 43503-MR8-006 CONNECTOR, MASTER CYLINDER •• 1 - 1 5 43504-MB2-006 BOOT COMP. •••••••••••••••••• 1 - 1

6 43510-KTM-N32 CYLINDER SUB ASSY., RR. BRAKE

7 43511-KW7-881 CUP COMP., OIL(NISSIN) •••••• 1 - 1 8 43512-KPY-A01 HOSE, MASTER CYLINDER ••••••• 1 - 1 9 43513-KBP-881 CAP, MASTER CYLINDER •••••••• 1 - 1

10 43514-KS6-701 CLAMP, MASTER CYLINDER OIL

11 43520-MJ6-306 PISTON SET, MASTER CYLINDER • 1 - 1 12 43530-KBA-921 ROD COMP., PUSH(NISSIN) ••••• 1 - 1 13 45520-GW0-911 DIAPHRAGM ••••••••••••••••••• 1 - 1 14 45521-GW0-911 PLATE, DIAPHRAGM •••••••••••• 1 - 1 15 46182-MEL-D21 CIRCLIP ••••••••••••••••••••• 1 - 1

16 46504-MT8-006 JOINT, BRAKE ROD •••••••••••• 1 - 1 17 90102-KGH-900 BOLT, FLANGE, 6X10 •••••••••• 2 - 2 18 90145-KPH-B30 BOLT, OIL, 10X22(NISSIN) •••• 2 - 2 19 90315-KBA-921 NUT, SPECIAL, 8MM(NISSIN) ••• 1 - 1 20 90545-300-000 WASHER, OIL BOLT •••••••••••• 4 - 4

21 91212-422-006 O-RING, 14.8X2.4 •••••••••••• 1 - 1 22 93600-04045-1G SCREW, FLAT, 4X45 ••••••••••• 2 - 2 23 93893-04012-17 SCREW-WASHER, 4X12 •••••••••• 1 - 1

MASTER 1 - 1

Reqd. QTY

MR MS MRC L L L

HOSE 2 - 2

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 66

F-15

REAR BRAKE MASTER CYLINDER

Ref.

No.

Part No. Description

24 94201-20120 PIN, SPLIT, 2.0X12 •••••••••• 1 - 1 25 94305-20102 PIN, SPRING, 2X10 ••••••••••• 1 - 1

26 95015-54000 PIN D, JOINT •••••••••••••••• 1 - 1 27 95701-06022-00 BOLT, FLANGE, 6X22 •••••••••• 2 - 2 28 96001-06012-00 BOLT, FLANGE, 6X12 •••••••••• 1 - 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 67

F-17

REAR BRAKE CALIPER

Ref.

No.

Part No. Description

1 06435-KPP-902 PAD SET, RR. •••••••••••••••• 1 - 1 2 06451-MA7-405 SEAL SET, PISTON •••••••••••• 1 - 1 3 43107-MA7-006 PISTON •••••••••••••••••••••• 1 - 1 4 43108-KSP-B51 SPRING, PAD(NISSIN) ••••••••• 1 - 1 5 43150-KPY-A51 CALIPER SUB ASSY., RR. BRAKE

43150-KPY-A02 •••••••••••••••••••••••••••• - - 1

6 43190-KPY-A01 BRACKET SUB ASSY., RR. •••••• 1 - 1 7 43215-KGH-901 PIN, HANGER ••••••••••••••••• 1 - 1 8 43352-568-003 SCREW, BLEEDER(NISSIN) •••••• 1 - 1 9 43353-461-771 CAP, BLEEDER •••••••••••••••• 1 - 1

10 45111-MAJ-G41 RING, STOPPER ••••••••••••••• 1 - 1

11 45131-GZ0-006 BOLT, PIN ••••••••••••••••••• 1 - 1 12 45132-166-016 BOOT, PIN BUSH(NISSIN) •••••• 1 - 1 13 45133-MA3-006 BOOT B •••••••••••••••••••••• 1 - 1 14 45203-MCC-006 PLUG, PIN ••••••••••••••••••• 1 - 1 15 45216-166-006 WASHER, WAVE •••••••••••••••• 1 - 1

(NISSIN) 1 - -

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 68

F-18

REAR BRAKE PANEL

Ref.

No.

Part No. Description

1 06430-KFL-850 SHOE SET, BRAKE ••••••••••••• - 1 2 90306-K66-V01 NUT, FLANGE, 12MM(PT) ••••••• - 1 -

90306-KGH-901 NUT, U, 12MM(FUJI SEIMITSU) • - 1 -

90306-KYA-601 NUT, FLANGE, 12MM(PT) ••••••• - 1 3 42313-GBG-B20 COLLAR, RR. BRAKE PANEL SIDE - 1 4 43100-KPH-700ZE PANEL COMP., RR. BRAKE

5 43141-KTM-850 CAM, RR. BRAKE •••••••••••••• - 1 -

6 43410-KWB-600 ARM, RR. BRAKE •••••••••••••• - 1 7 43434-ME1-670 RUBBER, STOPPER ARM ••••••••• - 1 8 45133-028-000 SPRING, BRAKE SHOE •••••••••• - 2 9 45134-250-000 DUST SEAL, BRAKE CAM •••••••• - 1 -

10 45145-KFM-900 INDICATOR, FR. BRAKE ••••••••

11 90301-KGH-901 NUT, U, 6MM(FUJI SEIMITSU) •• - 1 12 90504-KW7-900 WASHER, RR. AXLE(12MM) •••••• - 1 13 90505-425-000 WASHER, 8MM ••••••••••••••••• - 1 14 90127-KWB-600 BOLT A, BRAKE STOPPER ••••••• - 1 -

92811-10000 •••••••••••••••••••••••••••• - 1 -

15 94001-08000-0S NUT, HEX., 8MM •••••••••••••• - 1 -

16 94201-20150 PIN, SPLIT, 2.0X15 •••••••••• - 1 17 95701-06035-00 BOLT, FLANGE, 6X35 •••••••••• - 1 -

*NH146M*

ACCURATE SILVER METALLIC

(FOR RR.)

Reqd. QTY

CFT125 MR MS MRC L L L

 

- 1 -



- 1 -

Serial No.

2019.08.01 E

Parts catalogue code

Page 69

F-19-10

REAR WHEEL(CFT125MS)

Ref.

No.

Part No. Description

1 06410-KAN-T40 DAMPER SET, WHEEL ••••••••••• - 1 2 41201-KPY-H60 SPROCKET, FINAL DRIVEN(38T) • - 1 3 42303-KPY-H00 SLEEVE, RR. WHEEL ••••••••••• - 1 4 42304-KFM-900 COLLAR, RR. WHEEL SIDE •••••• - 1 5 42615-KPY-H60 FLANGE SUB ASSY., FINAL DRIVEN - 1 -

6 42620-KFL-850 COLLAR, RR. AXLE DISTANCE ••• - 1 7 42635-KPY-H00ZA HUB SUB ASSY., RR.

8 42650-KPY-H00ZA WHEEL SUB ASSY., RR.

9 42653-001-004 O-RING, 40.5X3

10 42701-KEV-882 RIM, RR. WHEEL(1.60X17) ••••• - 1 -

11 44712-KPY-711 TUBE, TIRE(MBP) ••••••••••••• - 1 12 44713-KPY-711 FLAP, TIRE(MBP) ••••••••••••• - 1 13 42711-KPY-H01 TIRE(MBP)(2.50-17 43L) •••••• - 1 14 90128-KFM-900 BOLT, STUD, 8X19.5 •••••••••• - 4 15 42301-KPG-T00 AXLE, RR. WHEEL ••••••••••••• - 1 -

16 90309-KPH-971 NUT, U, 8MM(FUJI SEIMITSU) •• - 4 -

90309-ML3-791 NUT, U, 8MM(FUSE RASHI) ••••• - 4 17 90504-KW7-900 WASHER, RR. AXLE(12MM) •••••• - 1 18 91051-KWW-A81 BEARING, RADIAL BALL, 6201U

*NH146M*

ACCURATE SILVER METALLIC

*NH146M*

ACCURATE SILVER METALLIC

(NIPPON DUST KEEPER) - 1 -

(SKF) - 1 -

Reqd. QTY

MR MS MRC L L L

 

- 1 -

 

- 1 -

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 70

F-19-10

Ref.

No.

18) 91052-KVB-901 BEARING, RADIAL BALL, 6201U

Part No. Description

91052-KVB-S51 BEARING, RADIAL BALL, 6201U

91052-KWB-601 BEARING, RADIAL BALL, 6201U

91052-KWW-641 BEARING, RADIAL BALL, 6201U

19 91052-KWW-A81 BEARING, RADIAL BALL, 6301U

91053-KSS-901 BEARING, RADIAL BALL, 6301U

91053-KWB-601 BEARING, RADIAL BALL, 6301U

91053-KWW-641 BEARING, RADIAL BALL, 6301U

91053-KWW-642 BEARING, RADIAL BALL, 6301U

20 91053-KWW-A81 BEARING, RADIAL BALL, 6203U

91054-K09-841 BEARING, RADIAL BALL, 6203U

91054-KWB-601 BEARING, RADIAL BALL, 6203U

91054-KWW-641 BEARING, RADIAL BALL, 6203U

91054-KWW-642 BEARING, RADIAL BALL, 6203U

21 91251-KGH-901 DUST SEAL, 27X40X4.5(ARAI) •• - 1 -

91251-KGH-902 DUST SEAL, 27X40X4.5(NOK) ••• - 1 22 97282-41158-P0 SPOKE SET A, 10X159.0 •••••••

23 97548-41157-P0 SPOKE SET A, 10X158.5 •••••••

(INSIDE)

(OUTSIDE)

(FUJIKOSHI) - 1 -

(NSK) - 1 -

(NTN) - 1 -

(SCHAEFFLER) - 1 -

(SKF) - 1 -

(FUJIKOSHI) - 1 -

(NTN) - 1 -

(NSK) - 1 -

(FAG) - 1 -

(SKF) - 1 -

(FUJIKOSHI) - 1 -

(NTN) - 1 -

(NSK) - 1 -

(FAG) - 1 -

REAR WHEEL(CFT125MS)

Reqd. QTY

CFT125 MR MS MRC L L L



- 18 -



- 18 -

Serial No.

Parts catalogue code

2019.08.01 E

Page 71

F-19-20

REAR WHEEL(CFT125MR)

Ref.

No.

Part No. Description

1 06410-GCR-000 DAMPER SET, WHEEL ••••••••••• 1 - 2 41201-KPY-H60 SPROCKET, FINAL DRIVEN(38T) • 1 - 3 42301-KPG-T00 AXLE, RR. WHEEL ••••••••••••• 1 - 4 42303-KPY-H10 SLEEVE, RR. WHEEL ••••••••••• 1 - 5 42304-KFM-900 COLLAR, RR. WHEEL SIDE •••••• 1 - -

6 42313-KGH-900 COLLAR, RR. WHEEL SIDE •••••• 1 - 7 42615-KPY-H70 FLANGE SUB ASSY., FINAL DRIVEN 1 - 8 42620-KW7-880 COLLAR, RR. AXLE DISTANCE ••• 1 - 9 42635-KPY-H10ZA HUB SUB ASSY., RR.

10 42650-KPY-H10ZA WHEEL SUB ASSY., RR.

11 42653-001-004 O-RING, 40.5X3

12 42701-KEV-882 RIM, RR. WHEEL(1.60X17) ••••• 1 - 13 44712-KPY-711 TUBE, TIRE(MBP) ••••••••••••• 1 - 14 44713-KPY-711 FLAP, TIRE(MBP) ••••••••••••• 1 - 15 43351-KPY-H70 DISK, RR. BRAKE(ZHEJIANG) ••• 1 - -

43351-KPY-H81 DISK, RR. BRAKE(GSK) •••••••• 1 - 43351-KTM-N31 DISK, RR. BRAKE(YUTAKA) ••••• 1 - 43351-KTM-N32 DISK, RR. BRAKE(SUNSTAR) •••• 1 - -

16 42711-KPY-H01 TIRE(MBP)(2.50-17 43L) •••••• 1 - 17 90105-KGH-900 BOLT, BRAKE DISK, 8X24 •••••• 4 - 18 90128-KFM-900 BOLT, STUD, 8X19.5 •••••••••• 4 - -

*NH146M*

ACCURATE SILVER METALLIC

*NH146M*

ACCURATE SILVER METALLIC

(NIPPON DUST KEEPER) 1 - -

Reqd. QTY

MR MS MRC L L L

 

1 - -

 

1 - -

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 72

F-19-20

Ref.

No.

Part No. Description

19 90306-K66-V01 NUT, FLANGE, 12MM(PT) ••••••• 1 - -

90306-KGH-901 NUT, U, 12MM(FUJI SEIMITSU) • 1 - 90306-KYA-601 NUT, FLANGE, 12MM(PT) ••••••• 1 - -

20 90309-KPH-971 NUT, U, 8MM(FUJI SEIMITSU) •• 4 - -

90309-ML3-791 NUT, U, 8MM(FUSE RASHI) ••••• 4 - -

21 90504-KW7-900 WASHER, RR. AXLE(12MM) •••••• 2 - 22 90753-051-003 OIL SEAL, 26X37X6(ARAI) ••••• 1 - -

90753-051-005 OIL SEAL, 26X37X6(NOK) •••••• 1 - -

23 91052-KWW-A81 BEARING, RADIAL BALL, 6301U

91053-KSS-901 BEARING, RADIAL BALL, 6301U

91053-KWB-601 BEARING, RADIAL BALL, 6301U

91053-KWW-641 BEARING, RADIAL BALL, 6301U

91053-KWW-642 BEARING, RADIAL BALL, 6301U

24 91053-KWW-A81 BEARING, RADIAL BALL, 6203U

91054-K09-841 BEARING, RADIAL BALL, 6203U

91054-KWB-601 BEARING, RADIAL BALL, 6203U

91054-KWW-641 BEARING, RADIAL BALL, 6203U

91054-KWW-642 BEARING, RADIAL BALL, 6203U

25 91251-KGH-901 DUST SEAL, 27X40X4.5(ARAI) •• 1 - -

91251-KGH-902 DUST SEAL, 27X40X4.5(NOK) ••• 1 - -

26 97438-41163-P0 SPOKE SET A, 10X161.5 •••••••

27 97507-41161-P0 SPOKE SET A, 10X160.5 •••••••

(OUTSIDE)

(INSIDE)

(SKF) 2 - -

(FUJIKOSHI) 2 - -

(NTN) 2 - -

(NSK) 2 - -

(FAG) 2 - -

(SKF) 1 - -

(FUJIKOSHI) 1 - -

(NTN) 1 - -

(NSK) 1 - -

(FAG) 1 - -

REAR WHEEL(CFT125MR)

Reqd. QTY

CFT125 MR MS MRC L L L



18 - -



18 - -

Serial No.

Parts catalogue code

2019.08.01 E

Page 73

F-19-40

REAR WHEEL(CFT125MRC)

Ref.

No.

Part No. Description

1 06410-GCR-000 DAMPER SET, WHEEL ••••••••••• - - 1 2 41201-KPY-H60 SPROCKET, FINAL DRIVEN(38T) • - - 1 3 42301-KPG-T00 AXLE, RR. WHEEL ••••••••••••• - - 1 4 42303-KBA-900 SLEEVE, RR. WHEEL ••••••••••• - - 1 5 42304-KFM-900 COLLAR, RR. WHEEL SIDE •••••• - - 1

6 42313-KGH-900 COLLAR, RR. WHEEL SIDE •••••• - - 1 7 42615-KPY-H80 FLANGE SUB ASSY., FINAL DRIVEN - - 1 8 42620-KW7-880 COLLAR, RR. AXLE DISTANCE ••• - - 1 9 42650-KPY-H80ZA WHEEL SUB ASSY., RR.

10 42653-001-004 O-RING, 40.5X3

11 42711-K09-H11 TIRE, RR.(MBP)

12 42712-K09-H11 TUBE, TIRE(MBP)(80/90-17M/C) - - 1 13 43351-KPY-H70 DISK, RR. BRAKE(ZHEJIANG) ••• - - 1

43351-KPY-H81 DISK, RR. BRAKE(GSK) •••••••• - - 1 43351-KTM-N31 DISK, RR. BRAKE(YUTAKA) ••••• - - 1

43351-KTM-N32 DISK, RR. BRAKE(SUNSTAR) •••• - - 1 14 90105-KGH-900 BOLT, BRAKE DISK, 8X24 •••••• - - 4 15 90128-KFM-900 BOLT, STUD, 8X19.5 •••••••••• - - 4

16 90306-K66-V01 NUT, FLANGE, 12MM(PT) ••••••• - - 1

90306-KGH-901 NUT, U, 12MM(FUJI SEIMITSU) • - - 1

90306-KYA-601 NUT, FLANGE, 12MM(PT) ••••••• - - 1 17 90309-KPH-971 NUT, U, 8MM(FUJI SEIMITSU) •• - - 4

*NH303M*

MAT AXIS GRAY METALLIC

(NIPPON DUST KEEPER) - - 1

(80/90-17 M/C 50P) - - 1

Reqd. QTY

MR MS MRC L L L

 

- - 1

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 74

F-19-40

REAR WHEEL(CFT125MRC)

Ref.

No.

17) 90309-ML3-791 NUT, U, 8MM(FUSE RASHI) ••••• - - 4

Part No. Description

18 90504-KW7-900 WASHER, RR. AXLE(12MM) •••••• - - 2 19 90753-051-003 OIL SEAL, 26X37X6(ARAI) ••••• - - 1

90753-051-005 OIL SEAL, 26X37X6(NOK) •••••• - - 1 20 91052-KWW-A81 BEARING, RADIAL BALL, 6301U

91053-KSS-901 BEARING, RADIAL BALL, 6301U

91053-KWB-601 BEARING, RADIAL BALL, 6301U

91053-KWW-641 BEARING, RADIAL BALL, 6301U

91053-KWW-642 BEARING, RADIAL BALL, 6301U

21 91053-KWW-A81 BEARING, RADIAL BALL, 6203U

91054-K09-841 BEARING, RADIAL BALL, 6203U

91054-KWB-601 BEARING, RADIAL BALL, 6203U

91054-KWW-641 BEARING, RADIAL BALL, 6203U

91054-KWW-642 BEARING, RADIAL BALL, 6203U

22 91251-KGH-901 DUST SEAL, 27X40X4.5(ARAI) •• - - 1

91251-KGH-902 DUST SEAL, 27X40X4.5(NOK) ••• - - 1

(SKF) - - 2

(FUJIKOSHI) - - 2

(NTN) - - 2

(NSK) - - 2

(FAG) - - 2

(SKF) - - 1

(FUJIKOSHI) - - 1

(NTN) - - 1

(NSK) - - 1

(FAG) - - 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 75

F-21

FUEL TANK

Ref.

No.

Part No. Description

1 16700-KPY-H01 PUMP ASSY., FUEL •••••••••••• 1 1 1 2 16706-K81-N01 O-RING(P7) •••••••••••••••••• 1 1 1

16706-KVB-S51 •••••••••••••••••••••••••••• 1 1 1 3 16707-KZR-601 FILTER SET •••••••••••••••••• 1 1 1 4 17510-KPY-H00 TANK COMP., FUEL •••••••••••• 1 1 1 5 17517-GGL-J00 RETAINER, FUEL PUMP ••••••••• 2 2 2

6 17518-GHB-601 SEAL, DUST(OHTUKA POLY-TECH) 1 1 1 7 17572-GHB-601 O-RING, FUEL PUMP(ARAI) ••••• 1 1 1 9 17575-KPY-H00 COVER, FUEL PUMP •••••••••••• 1 1 1

10 17620-KGH-600 CAP, FUEL FILLER •••••••••••• 1 1 1

11 17631-KEV-900 PACKING, FUEL FILLER CAP •••• 1 1 1 12 37800-KPY-H01 FUEL UNIT ••••••••••••••••••• 1 1 1 13 80112-KRH-901 COLLAR, FENDER COVER •••••••• 1 1 1 14 94050-06000 NUT, FLANGE, 6MM •••••••••••• 4 4 4 15 95701-06016-00 BOLT, FLANGE, 6X16 •••••••••• 4 4 4

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 76

F-23

SEAT

Ref.

No.

Part No. Description

1 77115-KPY-H00 RUBBER, SEAL •••••••••••••••• 1 1 1 2 77200-KPY-H00ZA SEAT COMP., DOUBLE

3 77215-KW7-900 RUBBER C, SEAT SETTING •••••• 2 2 2 4 77215-KZL-930 PIN, SEAT HINGE ••••••••••••• 1 1 1 5 77238-KPG-900 COVER, SEAT LOCK •••••••••••• 1 1 1

6 77239-KPY-H01 LOCK ASSY., SEAT •••••••••••• 1 1 1 7 80124-KPH-700 BAND(ECU) ••••••••••••••••••• 1 1 1 8 83642-KZR-600 BAG, OWNERS MANUAL •••••••••• 1 1 1 9 84100-KGC-900ZA RAIL, RR. GRAB

10 90101-KPG-900 BOLT, SOCKET, 8X43 •••••••••• 4 4 4

11 94101-08000 WASHER, PLAIN, 8MM •••••••••• 1 1 1 12 94201-16180 PIN, SPLIT, 1.6X18 •••••••••• 1 1 1 13 95011-61000 RUBBER A, STAND STOPPER ••••• 2 2 2 14 95701-06016-00 BOLT, FLANGE, 6X16 •••••••••• 2 2 2

*TYPE3*...................... 1 1 1

*NH1*...................BLACK 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 77

F-23-10

BODY COVER

Ref.

No.

Part No. Description

1 61303-KPG-T00 MAT, MAIN PIPE SIDE COVER ••• 1 1 1 2 61312-149-300 BOOT, HEADLIGHT BRACKET ••••• 1 1 1 3 64330-KPY-H00ZA COVER, CENTER

4 64430-KPY-A00ZF COVER, RR. CENTER

64430-KPY-A00ZA *NH196*............ROSS WHITE - 1 -

64430-KPY-A00ZC *R134*...........FIGHTING RED - - 1

64430-KPY-A00ZG *YR249C*..CANDY ENERGY ORANGE - - 1

5 64450-KPY-H00ZA COVER, R. SIDE

6 64460-KPY-H00ZA COVER, L. SIDE

7 64500-KPY-H70ZA COVER SET, R. BODY(WL)

64500-KPY-H60ZB *TYPE2*...................... - 1 -

64500-KPY-H60ZC *TYPE1*...................... - 1 -

64500-KPY-H60ZD *TYPE3 1*................ - 1 -

64500-KPY-H80ZA *TYPE2*...................... - - 1

64500-KPY-H80ZB *TYPE1*...................... - - 1

8 64600-KPY-H70ZA COVER SET, L. BODY(WL)

64600-KPY-H60ZB *TYPE2*...................... - 1 -

64600-KPY-H60ZC *TYPE1*...................... - 1 -

64600-KPY-H60ZD *TYPE3

*NH1*...................BLACK 1 1 1

*NH303M*

MAT AXIS GRAY METALLIC 1 1 -

*NH1*...................BLACK 1 1 1

*TYPE1*...................... 1 - -

1*................ - 1 -

Reqd. QTY

CFT125 MR MS MRC L L L

 

Serial No.

 

2019.08.01 E

Parts catalogue code

Page 78

F-23-10

BODY COVER

Ref.

No.

(8) 64600-KPY-H80ZA COVER SET, L. BODY(WL)

Part No. Description

64600-KPY-H80ZB *TYPE1*...................... - - 1

9 90107-KPY-A00 BOLT, BODY COVER SETTING •••• 6 6 6

10 90114-KPH-C00 SCREW, 6X12 ••••••••••••••••• 4 4 4

11 90302-KWW-A00 NUT, SPRING, 4MM •••••••••••• 2 2 2 12 90677-KAN-T00 NUT, CLIP, 5MM •••••••••••••• 2 2 2 13 93903-34380 SCREW, TAPPING, 4X12 •••••••• 10 10 10

*TYPE2*...................... - - 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 79

F-25

AIR CLEANER

Ref.

No.

Part No. Description

1 17213-KPY-H00 SEAL, AIR CLEANER COVER ••••• 1 1 1 2 17214-KPY-H00 SEAL, AIR CLEANER CASE •••••• 1 1 1 3 17220-KPY-H00 ELEMENT SET, AIR CLEANER(WL) 1 1 1 4 17225-KPY-H00 CASE SUB ASSY., AIR CLEANER • 1 1 1 5 17227-KPK-900 TUBE, VINYL, 11X15X35 ••••••• 1 1 1

6 17235-KPY-H00 COVER SUB ASSY., AIR CLEANER 1 1 1 7 17236-KVB-900 PLUG, AIR CLEANER DRAIN ••••• 1 1 1 8 17253-KPY-H00 TUBE, AIR CLEANER CONNECTING 1 1 1 9 17256-KWZ-900 BAND, AIR CLEANER CONNECTING

10 90116-KVB-900 BOLT, FLANGE, 6MM ••••••••••• 2 2 2

11 93903-25510 SCREW, TAPPING, 5X25 •••••••• 5 5 5 12 95002-41300-08 CLAMP, TUBE(D13) •••••••••••• 1 1 1 13 95002-80000 CLIP, TUBE(C12) ••••••••••••• 1 1 1

TUBE(44) 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 80

F-27

EXHAUST MUFFLER

Ref.

No.

Part No. Description

1 18291-GE2-920 GASKET, EX. PIPE •••••••••••• 1 1 1 2 18293-MCA-A20 RUBBER, PROTECTOR PACKING ••• 1 1 1 3 18300-KPY-H00 MUFFLER COMP., EX. •••••••••• 1 1 1 4 18345-MBT-610 RUBBER, PROTECTOR MOUNTING •• 2 2 2 5 18355-K41-N00 COVER, MUFFLER •••••••••••••• 1 1 1

6 18421-KBA-900 RUBBER, MUFFLER MOUNTING •••• 1 1 1 7 18422-KPH-900 COLLAR, MUFFLER MOUNTING •••• 1 1 1 8 90113-KTA-920 SCREW, PAN, 6X12 •••••••••••• 2 2 2

90113-KYJ-710 •••••••••••••••••••••••••••• 2 2 2

9 90301-KWB-600 NUT, FLANGE, 8MM •••••••••••• 2 2 2

10 94050-08000 NUT, FLANGE, 8MM •••••••••••• 1 1 1

11 94103-08000 WASHER, PLAIN, 8MM •••••••••• 1 1 1 12 95701-08016-00 BOLT, FLANGE, 8X16 •••••••••• 1 1 1 13 95701-08045-00 BOLT, FLANGE, 8X45 •••••••••• 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 81

F-29

PEDAL/KICK STARTER ARM

Ref.

No.

Part No. Description

1 24701-KPY-H60 PEDAL, GEAR CHANGE •••••••••• 1 1 1 2 28300-KYZ-G00 ARM ASSY., KICK STARTER ••••• 1 1 1 4 35350-KYJ-902 SWITCH ASSY., RR. STOP •••••• 1 1 1 5 35357-KVL-N00 SPRING, STOP SWITCH ••••••••• 1 1 1

6 43451-KZV-T00 ROD COMP., RR. BRAKE •••••••• - 1 7 43459-GN5-760 NUT, BRAKE ROD ADJUSTING •••• - 1 8 46500-KPY-H60 PEDAL COMP., BRAKE •••••••••• - 1 9 46500-KPY-H70 PEDAL COMP., BRAKE •••••••••• 1 - 1

10 46513-KBP-900 SPRING ASSY., RR. BRAKE RETURN - 1 -

11 46514-086-720 SPRING, BRAKE PEDAL ••••••••• 1 - 1 12 90601-KAF-003 CLIP, SWITCH COVER •••••••••• 1 1 1 13 92101-06020-0A BOLT, HEX., 6X20 •••••••••••• 1 1 1 14 92101-08025-0A BOLT, HEX., 8X25 •••••••••••• 1 1 1 15 94201-20150 PIN, SPLIT, 2.0X15 •••••••••• - 1 -

16 94514-15000 CIRCLIP, EXTERNAL, 15MM ••••• 1 - 1 17 95011-40000 RUBBER, CHANGE PEDAL •••••••• 1 1 1 18 95014-73100 SPRING A, BRAKE ROD ••••••••• - 1 19 95015-32001 JOINT B, BRAKE ARM •••••••••• - 1 20 90521-028-000 WASHER, 17X22 ••••••••••••••• 1 - 1

21 94101-05000 WASHER, PLAIN, 5MM •••••••••• - 1 -

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 82

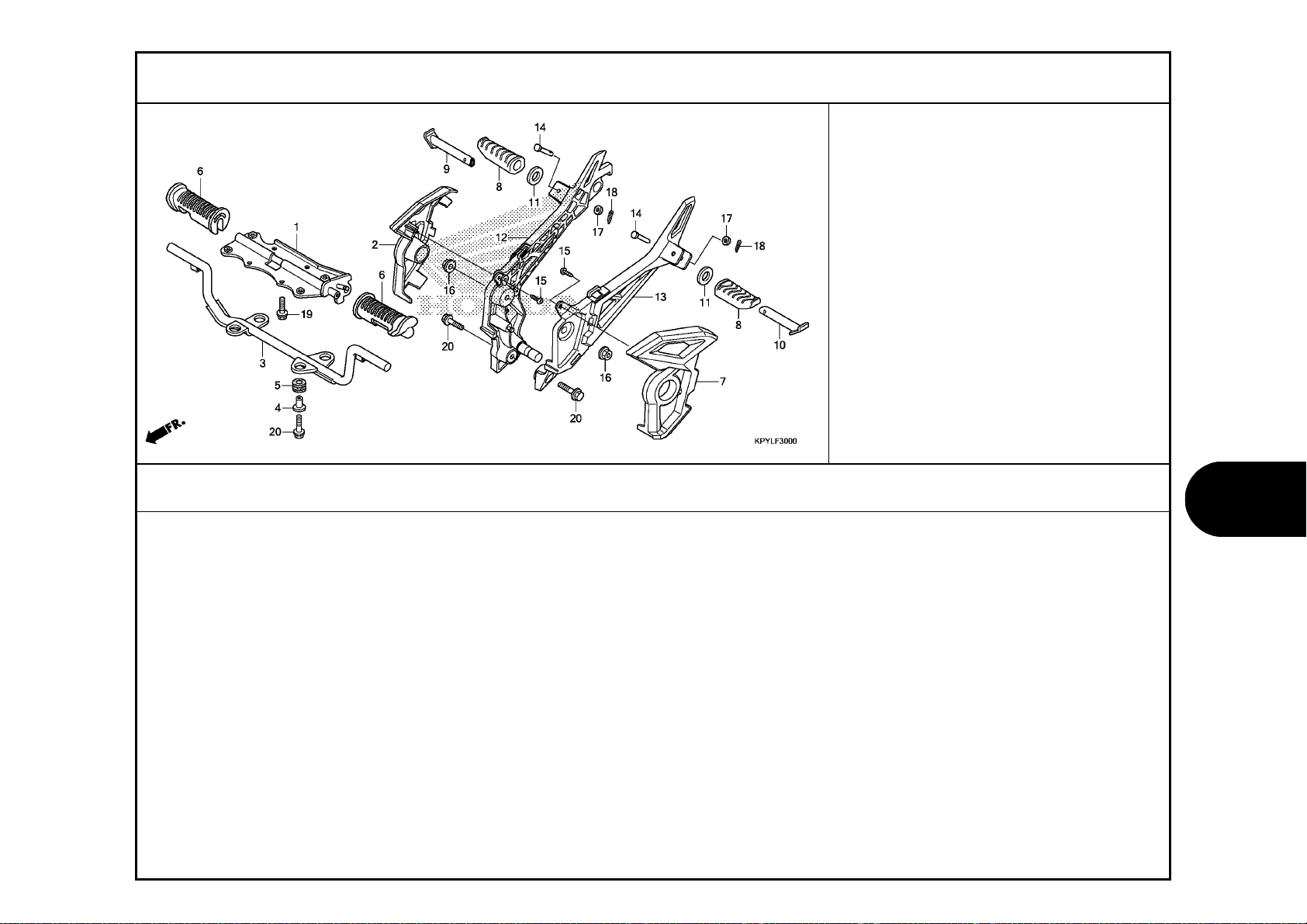

F-30

STEP

Ref.

No.

Part No. Description

1 50605-KPY-H00 BRACKET, MAIN STEP •••••••••• 1 1 1 2 50606-KPY-H00 GUARD, R. PIVOT COVER ••••••• 1 1 1 3 50610-KPH-900 BAR COMP., STEP ••••••••••••• 1 1 1 4 50612-KPH-900 COLLAR, MAIN STEP MOUNTING •• 4 4 4 5 50613-KFL-850 RUBBER, MAIN STEP MOUNTING •• 4 4 4

6 50661-GN8-920 RUBBER, STEP •••••••••••••••• 2 2 2 7 50706-KPY-H00 GUARD, L. PIVOT COVER ••••••• 1 1 1 8 50710-KWB-600 RUBBER, PILLION STEP •••••••• 2 2 2 9 50711-KBP-900 BAR, R. PILLION STEP •••••••• 1 1 1

10 50712-KBP-900 BAR, L. PILLION STEP •••••••• 1 1 1

11 50715-KE8-000 PLATE, PILLION STEP SIDE •••• 2 2 2 12 50715-KPY-H10ZA HOLDER, R. PILLION STEP

50715-KPY-H00ZA *NH44MS*

13 50716-KPY-H00ZA HOLDER, L. PILLION STEP

14 90131-KWB-600 PIN, PILLION STEP ••••••••••• 2 2 2 15 93903-35280 SCREW, TAPPING, 5X12 •••••••• 2 2 2

16 94050-10000 NUT, FLANGE, 10MM ••••••••••• 2 2 2 17 94101-06000 WASHER, PLAIN, 6MM •••••••••• 2 2 2 18 94201-16150 PIN, SPLIT, 1.6X15 •••••••••• 2 2 2 19 95701-08020-00 BOLT, FLANGE, 8X20 •••••••••• 4 4 4 20 95701-08025-00 BOLT, FLANGE, 8X25 •••••••••• 6 6 6

*NH44MS*

SPECIAL SILVER METALLIC

SPECIAL SILVER METALLIC - 1 -

*NH44MS*

SPECIAL SILVER METALLIC

Reqd. QTY

CFT125 MR MS MRC L L L

 

1 - 1

 

1 1 1

Serial No.

2019.08.01 E

Parts catalogue code

Page 83

F-31

STAND

Ref.

No.

Part No. Description

1 50500-KPY-710 STAND COMP., MAIN ••••••••••• 1 1 1 2 50512-KPG-T10 PIPE, MAIN STAND PIVOT •••••• 1 - 1

50512-KPH-900 SHAFT, RR. BRAKE PIVOT •••••• - 1 3 50523-KPY-H00 HOOK, MAIN STAND SPRING ••••• 1 1 1 4 50524-397-000 RUBBER, STAND STOPPER ••••••• 1 1 1 5 50530-KPY-H00 BAR COMP., SIDE STAND ••••••• 1 1 1

6 90108-223-000 SCREW, SIDE STAND PIVOT ••••• 1 1 1 7 94002-10000-0S NUT, HEX., 10MM ••••••••••••• 1 1 1 8 94201-30250 PIN, SPLIT, 3.0X25 •••••••••• 1 1 1 9 95014-71102 SPRING A, MAIN STAND •••••••• 1 1 1

10 95014-72102 SPRING A, SIDE STAND •••••••• 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 84

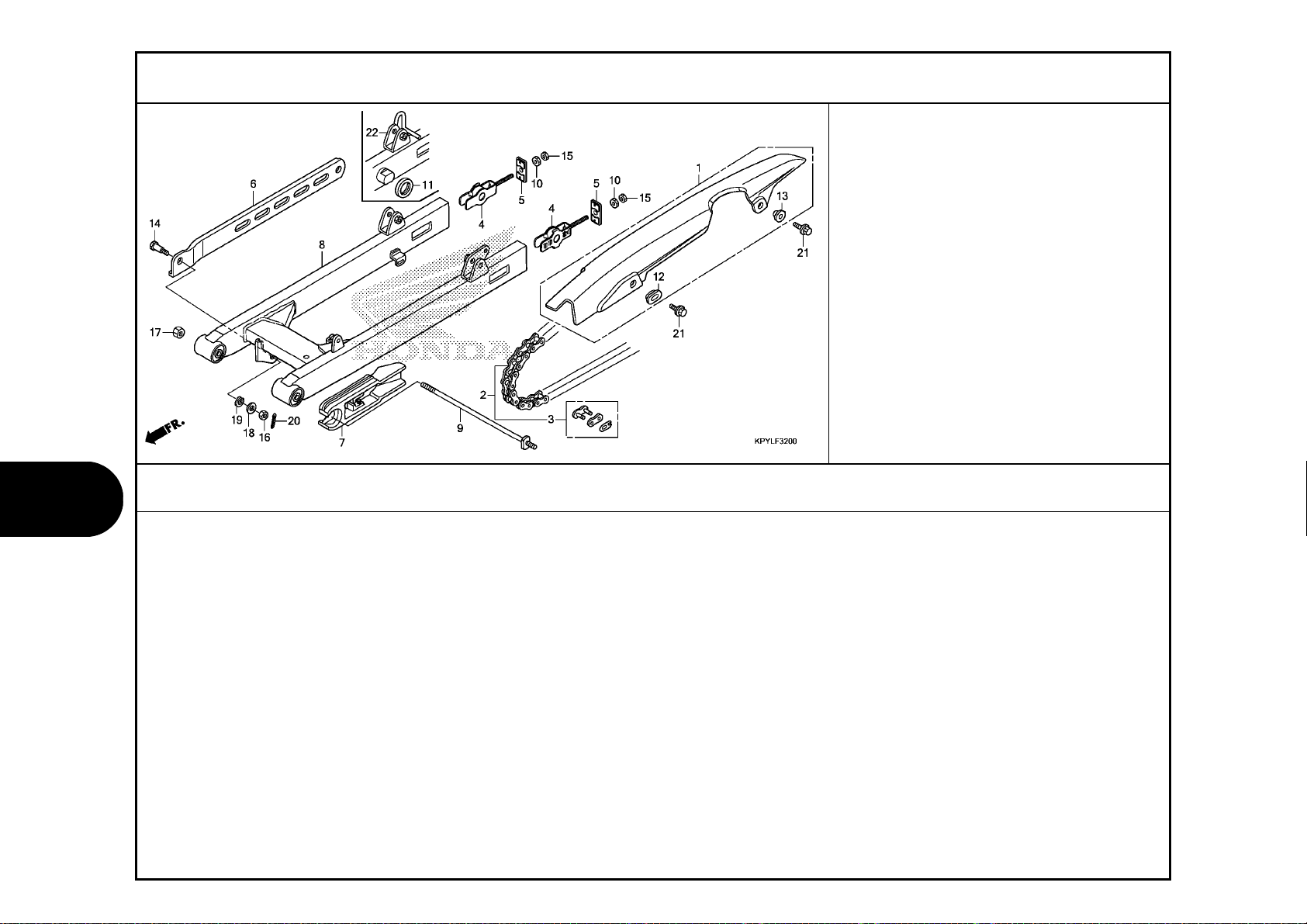

F-32

SWINGARM

Ref.

No.

Part No. Description

1 40510-KPG-T00 CASE, DRIVE CHAIN ••••••••••• 1 1 1 2 40530-GGJ-741 CHAIN, DRIVE(RK420EL-104RJ) • 1 1 1

40530-K58-T81 CHAIN, DRIVE(DAIDO)

40530-KYL-843 CHAIN, DRIVE(KMC)(420JB-104) 1 1 1 3 40531-KWB-601 JOINT, DRIVE CHAIN(DAIDO) ••• 1 1 1

40531-KWB-602 JOINT, DRIVE CHAIN(RK EXCEL) 1 1 1

40531-KWW-B21 JOINT, DRIVE CHAIN(KMC) ••••• 1 1 1 4 40543-KPG-T00 ADJUSTER, CHAIN ••••••••••••• 2 2 2 5 40546-KPG-T00 CAP, SWINGARM END ••••••••••• 2 2 2

6 43431-KPY-710 ARM, RR. BRAKE STOPPER •••••• - 1 7 52170-KPG-T00 SLIDER, CHAIN ••••••••••••••• 1 1 1 8 52200-KPY-H00ZA SWINGARM SET, RR.

9 90121-KTL-740 BOLT, SWINGARM PIVOT •••••••• 1 1 1

10 90302-KBP-900 NUT, SPECIAL, 6MM ••••••••••• 2 2 2

11 90502-KGH-900 SPACER, RR. CALIPER ••••••••• 1 - 1 12 90513-405-000 WASHER, 6X9 ••••••••••••••••• 1 1 1 13 90563-KEV-750 WASHER, CHAIN CASE SETTING •• 1 1 1 14 90126-KWB-600 BOLT A, STOPPER ARM ••••••••• - 1 -

92812-10000 •••••••••••••••••••••••••••• - 1 -

15 94001-06000-0S NUT, HEX., 6MM •••••••••••••• 2 2 2

16 94001-08000-0S NUT, HEX., 8MM •••••••••••••• - 1 17 94031-10000 NUT, HEX., 10MM ••••••••••••• 1 1 1 18 94101-08000 WASHER, PLAIN, 8MM •••••••••• - 1 19 94111-10000 WASHER, SPRING, 10MM •••••••• - 1 -

*NH1*...................BLACK - 1 -

(DID420AD2-104RB) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 85

F-32

SWINGARM

Ref.

No.

Part No. Description

20 94201-20150 PIN, SPLIT, 2.0X15 •••••••••• - 1 -

21 95701-06012-00 BOLT, FLANGE, 6X12 •••••••••• 2 2 2 22 52200-KPY-H10ZA SWINGARM SET, RR.

*NH1*...................BLACK 1 - 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 86

F-33

REAR CUSHION

Ref.

No.

Part No. Description

1 52400-KPY-H11 CUSHION ASSY., RR.(SHOWA) ••• 2 - -

52400-KPY-H01 2 52486-KBW-901 COLLAR, RUBBER BUSH ••••••••• 4 4 4 3 52489-399-601 BUSH, UPPER RUBBER(SHOWA) ••• 4 4 4 4 95801-10035-00 BOLT, FLANGE, 10X35 ••••••••• 4 4 4

•••••••••••••••••••••••••••• - 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 87

F-34

REAR FENDER

Ref.

No.

Part No. Description

1 33741-KAN-961 REFLECTOR, RR. REFLEX(STANLEY) 1 1 1 2 80110-KPY-H00ZA FENDER SET, RR.(WL)

3 90111-162-000 BOLT, FLANGE, 6MM ••••••••••• 1 1 1 4 90115-KW7-900 SCREW, VISOR SPECIAL SETTING 2 2 2 5 90485-286-000 WASHER, 6MM ••••••••••••••••• 2 2 2

6 80124-KPH-700 BAND(ECU) ••••••••••••••••••• 1 1 1 7 95701-06012-00 BOLT, FLANGE, 6X12 •••••••••• 2 2 2

*TYPE1*...................... 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 88

F-35-10

FRONT WINKER

Ref.

No.

Part No. Description

1 33401-KZ9-710 BASE COMP., R. FR. WINKER ••• 1 1 1 2 33402-KPY-710 LENS, WINKER •••••••••••••••• 2 2 2 3 33407-KPY-A50 STAY, R. FR. WINKER ••••••••• 1 1 1 4 33408-KPY-A50 STAY, L. FR. WINKER ••••••••• 1 1 1 5 33451-KZ9-710 BASE COMP., L. FR. WINKER ••• 1 1 1

6 33611-KAE-000 RUBBER, WINKER •••••••••••••• 2 2 2 7 33612-KPY-900 COLLAR, WINKER •••••••••••••• 2 2 2 8 34905-KPY-710 BULB, WINKER(12V 10W) ••••••• 2 2 2 9 90104-GT4-000 SCREW, TAPPING, 3X14 •••••••• 2 2 2

10 90140-KAE-000 SCREW, PAN, 4X28 •••••••••••• 2 2 2

11 95701-06012-07 BOLT, FLANGE, 6X12 •••••••••• 2 2 2

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 89

F-36-10

REAR COMBINATION LIGHT

Ref.

No.

Part No. Description

1 33700-KPY-H01 LIGHT ASSY., RR. COMBINATION 1 1 1 2 33701-KGH-601 LENS, TAILLIGHT ••••••••••••• 1 1 1 3 33702-KGH-601 LENS, LICENSE ••••••••••••••• 1 1 1 4 33703-KGH-601 LENS, L. RR. WINKER ••••••••• 1 1 1 5 33704-KPY-H01 BASE COMP. •••••••••••••••••• 1 1 1

6 33705-KW7-900 RUBBER A, TAILLIGHT MOUNTING 2 2 2 7 33706-KAN-960 COLLAR, TAILLIGHT MOUNTING •• 2 2 2 8 33706-KGH-601 PACKING ••••••••••••••••••••• 1 1 1 9 33707-KPG-T00 RUBBER, TAILLIGHT MOUNTING •• 1 1 1

10 33753-KGH-601 LENS, R. RR. WINKER ••••••••• 1 1 1

11 34905-KAN-W01 BULB, WINKER(12V 10W)(AMBER)

12 34906-GB6-921 BULB, TAILLIGHT(12V 18/5W)

13 80106-KPY-A00 STAY, TAILLIGHT ••••••••••••• 1 1 1 14 90677-KAN-T00 NUT, CLIP, 5MM •••••••••••••• 2 2 2 15 93500-05012-0G SCREW, PAN, 5X12 •••••••••••• 2 2 2

16 93901-34480 SCREW, TAPPING, 4X16 •••••••• 2 2 2 17 95701-06022-00 BOLT, FLANGE, 6X22 •••••••••• 2 2 2

(STANLEY) 2 2 2

(STANLEY) 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 90

F-37

BATTERY/LUGGAGE BOX

Ref.

No.

Part No. Description

1 31500-K46-N21 BATTERY(NTZ4V)(NIPRESS) ••••• 1 1 1

31500-KVB-T02 BATTERY(YTZ4V)(YUASA) ••••••• 1 1 1

31500-KWW-A01 BATTERY(GTZ4V)(PT. GS BATTERY) 1 1 1 2 50381-KPY-H00 COVER, BATTERY •••••••••••••• 1 1 1 3 81250-KPY-H00 BOX, LUGGAGE •••••••••••••••• 1 1 1 4 81253-KPH-900 RUBBER, LUGGAGE BOX MOUNTING 3 3 3 5 90502-KPH-900 COLLAR, 6.2X20 •••••••••••••• 3 3 3

6 90677-KAN-T00 NUT, CLIP, 5MM •••••••••••••• 1 1 1 7 91509-GE2-760 SCREW, PAN, 5X11.5 •••••••••• 1 1 1 8 95701-06030-00 BOLT, FLANGE, 6X30 •••••••••• 3 3 3 9 98200-41000 FUSE, MINI(10A) ••••••••••••• 1 1 1

10 98200-41500 FUSE, MINI(15A) ••••••••••••• 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 91

F-38

WIRE HARNESS

Ref.

No.

Part No. Description

1 30510-KPY-H11 COIL COMP., IGNITION •••••••• 1 - -

30510-KPY-H01 2 30520-GFM-900 SPACER, IGNITION COIL ••••••• 2 2 2 3 30700-MA0-163 CAP ASSY., NOISE SUPPRESSOR • 1 - -

30701-MN8-003 •••••••••••••••••••••••••••• - 1 1 4 31600-K73-M01 RECTIFIER COMP., REGULATOR •• 1 1 1 5 32100-KPY-H60 HARNESS, WIRE ••••••••••••••• 1 1 1

6 32103-KPY-H60 SUB HARNESS, BATTERY •••••••• 1 1 1 7 32161-404-000 BAND B1, WIRE ••••••••••••••• 1 1 1 8 32606-GEV-761 CAP, DUMMY(4P)(RED) ••••••••• 1 1 1 9 33714-KL3-620 RUBBER, TAILLIGHT BRACKET ••• 2 2 2

10 38110-KYZ-M01 HORN COMP.(HIGH) •••••••••••• 1 1 1

11 38117-KPH-880 COLLAR, HORN SETTING •••••••• 1 1 1 12 38301-GBG-911 RELAY COMP., WINKER

38301-K69-T01 RELAY COMP., WINKER ••••••••• 1 1 1

13 38306-KK4-000 SUSPENSION, WINKER RELAY

14 38307-K93-N01 COVER, SEAL(MITSUBA) •••••••• 1 1 1

38307-KPY-H11 COVER, SEAL ••••••••••••••••• 1 1 1

15 38501-KPH-901 RELAY COMP., STARTER(OMRON) • 1 1 1

38501-KVB-901 RELAY COMP., STARTER

16 38506-GN5-740 SUSPENSION, STARTER RELAY ••• 1 1 1

38506-KWW-711 SUSPENSION, STARTER RELAY

•••••••••••••••••••••••••••• - 1 1

(PT.MITSUBA) 1 1 1

(MITSUBA) 1 1 1

(HONDA LOCK) 1 1 1

Reqd. QTY

MR MS MRC L L L

CFT125

Serial No.

2019.08.01 E

Parts catalogue code

Page 92

F-38

WIRE HARNESS

Ref.

No.

Part No. Description

17 38770-KPY-H61 PGM-FI UNIT ••••••••••••••••• 1 1 1 18 90620-SB2-003 BAND, WIRE HARNESS •••••••••• 1 1 1 19 90651-KV6-003 BAND, WIRE, 165MM(BLACK) •••• 1 1 1 20 91540-S7S-003 CLIP, HARNESS BAND(BLACK)

21 91541-S0A-003 CLIP, HARNESS BAND(BLACK)

22 92101-06020-4J BOLT, HEX., 6X20 •••••••••••• 2 2 2 23 95701-06012-00 BOLT, FLANGE, 6X12 •••••••••• 1 1 1 24 95701-06014-00 BOLT, FLANGE, 6X14 •••••••••• 1 1 1 25 95701-06016-00 BOLT, FLANGE, 6X16 •••••••••• 1 1 1

26 98200-41000 FUSE, MINI(10A) ••••••••••••• 1 1 1 27 98200-41500 FUSE, MINI(15A) ••••••••••••• 1 1 1

(157.7MM) 1 1 1

(145MM) 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 93

F-39

FRAME BODY

Ref.

No.

Part No. Description

1 17270-KPY-710 RUBBER, AIR CLEANER WATER

2 50100-KPY-H10 BODY COMP., FRAME ••••••••••• 1 - 1

50100-KPY-H00 •••••••••••••••••••••••••••• - 1 3 94050-10080 NUT, FLANGE, 10MM ••••••••••• 3 3 3 4 95801-10110-08 BOLT, FLANGE, 10X110 •••••••• 3 3 3

GUARD 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 94

F-44-10

MAIN PIPE COVER

Ref.

No.

Part No. Description

1 64300-KPY-H70ZA COVER SET, R. MAIN PIPE(WL)

64300-KPY-H60ZA *TYPE3*...................... - 1 -

64300-KPY-H60ZB *TYPE2*...................... - 1 -

64300-KPY-H60ZC *TYPE1*...................... - 1 -

64300-KPY-H80ZA *TYPE2*...................... - - 1

64300-KPY-H80ZB *TYPE1*...................... - - 1

2 64310-KPY-H00ZD COVER, MAIN PIPE

64310-KPY-H00ZB *R134*...........FIGHTING RED - - 1

64310-KPY-H00ZF *YR300R*...TANGERINE ORANGE R - - 1

3 64400-KPY-H70ZA COVER SET, L. MAIN PIPE(WL)

64400-KPY-H60ZA *TYPE3*...................... - 1 -

64400-KPY-H60ZB *TYPE2*...................... - 1 -

64400-KPY-H60ZC *TYPE1*...................... - 1 -

64400-KPY-H80ZA *TYPE2*...................... - - 1

64400-KPY-H80ZB *TYPE1*...................... - - 1

4 90107-KPY-A00 BOLT, BODY COVER SETTING •••• 3 3 3 5 90302-KWW-A00 NUT, SPRING, 4MM •••••••••••• 2 2 2

6 93903-24310 SCREW, TAPPING, 4X12 •••••••• 4 4 4

*TYPE1*...................... 1 - -

*NH1*...................BLACK

*TYPE1*...................... 1 - -

Reqd. QTY

CFT125 MR MS MRC L L L



1 1 -

Serial No.

2019.08.01 E

Parts catalogue code

Page 95

F-48

TOOLS

Ref.

No.

Part No. Description

1 80124-KPH-700 BAND(ECU) ••••••••••••••••••• 1 1 1 2 89102-538-000 DRIVER, SCREW(NO.2 + -) ••••• 1 1 1 3 89103-538-000 GRIP •••••••••••••••••••••••• 1 1 1 4 89211-KWW-640 SPANNER, 10X14 •••••••••••••• 1 1 1 5 89216-GBG-770 WRENCH, SPARK PLUG •••••••••• 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L

Serial No.

2019.08.01 E

Parts catalogue code

Page 96

F-49

CAUTION LABEL

Ref.

No.

Part No. Description

1 87505-KPY-A10 LABEL, TIRE ••••••••••••••••• - - 1 2 87505-KPY-H00 LABEL, TIRE ••••••••••••••••• 1 1 3 87507-KW2-980 LABEL, DRIVE CHAIN •••••••••• 1 1 1 4 87509-KWP-900 LABEL, AIR CLEANER ELEMENT

5 87560-KW7-950ZB MARK, DRIVE CAUTION

*TWHITE*................WHITE

NOTICE 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L



1 1 1

Serial No.

2019.08.01 E

Parts catalogue code

Page 97

F-50

MARK/STRIPE

Ref.

No.

Part No. Description

1 86101-KPY-A50ZA MARK, HONDA(60MM)

86101-KPY-A50ZC *TYPE1*...................... - 1 1

86101-KPY-A50ZB *TYPE2*...................... - 1 -

3 86531-KYZ-710ZA MARK(FI)

4 86612-KPY-H70ZA STRIPE, R. HEADLIGHT CASE

5 86613-KPY-H70ZA STRIPE, L. HEADLIGHT CASE

6 86641-KPY-H60ZA STRIPE A, R. MAIN PIPE COVER

86641-KPY-H60ZB *TYPE2*...................... - 1 -

86641-KPY-H60ZC *TYPE1*...................... - 1 -

7 86641-KPY-H70ZA STRIPE, R. MAIN PIPE COVER

8 86641-KPY-H80ZA STRIPE A, R. MAIN PIPE COVER

86641-KPY-H80ZB *TYPE1*...................... - - 1

9 86642-KPY-H60ZA STRIPE A, L. MAIN PIPE COVER

86642-KPY-H60ZB *TYPE2*...................... - 1 -

86642-KPY-H60ZC *TYPE1*...................... - 1 -

10 86642-KPY-H70ZA STRIPE, L. MAIN PIPE COVER

*TYPE3*...................... 1 - -

*TYPE1*...................... 1 1 1

*TYPE1*...................... 1 - -

*TYPE3*......................

*TYPE1*...................... 1 - -

*TYPE2*...................... - - 1

*TYPE3*......................

*TYPE1*...................... 1 - -

100

Reqd. QTY

CFT125 MR MS MRC L L L

 



- 1 -



- 1 -

Serial No.

2019.08.01 E

Parts catalogue code



Page 98

F-50

Ref.

No.

Part No. Description

11 86642-KPY-H80ZA STRIPE A, L. MAIN PIPE COVER

86642-KPY-H80ZB *TYPE1*...................... - - 1

12 86643-KPY-H60ZA STRIPE B, R. MAIN PIPE COVER

86643-KPY-H60ZB *TYPE2*...................... - 1 -

86643-KPY-H60ZC *TYPE1*...................... - 1 -

13 86643-KPY-H80ZA STRIPE B, R. MAIN PIPE COVER

86643-KPY-H80ZB *TYPE1*...................... - - 1

14 86644-KPY-H60ZA STRIPE B, L. MAIN PIPE COVER

86644-KPY-H60ZB *TYPE2*...................... - 1 -

86644-KPY-H60ZC *TYPE1*...................... - 1 -

15 86644-KPY-H80ZA STRIPE B, L. MAIN PIPE COVER

86644-KPY-H80ZB *TYPE1*...................... - - 1

16 86647-KPY-H60ZA STRIPE, R. BODY COVER

86647-KPY-H60ZB *TYPE2*...................... - 1 -

86647-KPY-H60ZC *TYPE1*...................... - 1 -

17 86647-KPY-H70ZA STRIPE, R. BODY COVER

18 86647-KPY-H80ZA STRIPE, R. BODY COVER

86647-KPY-H80ZB *TYPE1*...................... - - 1

19 86648-KPY-H60ZA STRIPE, L. BODY COVER

86648-KPY-H60ZB *TYPE2*...................... - 1 -

86648-KPY-H60ZC *TYPE1*...................... - 1 -

20 86648-KPY-H70ZA STRIPE, L. BODY COVER

21 86648-KPY-H80ZA STRIPE, L. BODY COVER

86648-KPY-H80ZB *TYPE1*...................... - - 1

22 86801-KPY-A00ZA MARK, HONDA(60MM)

*TYPE2*...................... - - 1

*TYPE3*......................

*TYPE2*...................... - - 1

*TYPE3*......................

*TYPE2*...................... - - 1

*TYPE3*......................

*TYPE1*...................... 1 - -

*TYPE2*...................... - - 1

*TYPE3*......................

*TYPE1*...................... 1 - -

*TYPE2*...................... - - 1

*TYPE1*...................... 1 1 1

Reqd. QTY

CFT125 MR MS MRC L L L



- 1 -



- 1 -



- 1 -



- 1 -

MARK/STRIPE

Serial No.



Parts catalogue code

101

2019.08.01 E

Page 99

06000

06410-GCR-000 74 1

06410-KAN-T40 72 1 06430-KFL-850 71 1 06435-KPP-902 70 1 06451-961-405 64 1 06451-MA7-405 70 2 06455-KWB-601 64 2 06531-KW6-840 61 1

11000

11100-KYZ-900 47 1 11133-KYZ-900 47 2 11200-KYZ-901 47 3 11215-KYZ-900 47 4 11216-KYZ-900 47 5 11218-KYZ-900 47 6 11330-KPY-H00 37 1 11341-KYZ-T00 43 1 11346-KTR-940 37 2

11360-KPY-H60 43 3 11370-K26-B00 37 3 11394-KYZ-900 37 4 11395-KPH-901 43 4

12000

12100-KYZ-710 36 1 12191-KYZ-900 36 2 12200-KYZ-711 32 1 12204-KYZ-P00 32 2 12206-KPL-900 32 3 12209-GB4-681 34 1 12209-GB4-682 34 1 12211-KPH-900 32 4 12251-KYZ-901 32 5 12341-KYZ-900 32 6 12361-KPH-900 32 7

13000

13000-KPY-H00 48 1 13011-KYZ-900 48 2 13021-KYZ-900 48 2 13031-KYZ-900 48 2 13041-KYZ-900 48 2 13051-KYZ-900 48 2 13101-K41-N00 48 3 13102-K41-P00 48 3 13103-K41-P00 48 3 13104-K41-P00 48 3 13105-K41-P00 48 3 13111-087-000 48 4 13115-GN5-910 48 5

102

Page Ref.Part Number Page Ref.Part NumberPage Ref.Part NumberPage Ref.Part NumberPage Ref.Part NumberPage Ref.Part Number

14000

76 1

43 2

14100-KYZ-902 34 2 14321-KYZ-900 35 1 14401-KYZ-900 35 2 14401-KYZ-T01 35 2 14430-KYZ-900 34 3 14440-KYZ-901 34 4 14451-KTC-900 34 5 14452-KTC-900 34 6 14500-K41-N00 35 3 14531-KYZ-900 35 4 14541-GB4-681 35 5 14550-GB0-911 35 6 14550-KRS-691 35 6 14566-086-030 35 7 14610-K41-N01 35 8 14610-KWB-601 35 8 14615-KFL-850 35 9 14670-K41-N01 35 10 14670-KYZ-901 35 10 14675-KYZ-900 35 11 14711-KYZ-900 34 7 14721-KPH-880 34 8 14751-KYZ-900 34 9 14771-GB4-680 34 10 14775-KVY-900 34 11 14781-MA6-000 34 12

15000

15021-GF6-000 46 1 15100-KTM-D20 46 2 15133-KTM-D20 46 3 15341-KPH-900 48 6 15421-KSP-910 46 4 15431-KPH-900 39 1 15439-KWW-741 39 2 15651-KPY-710 37 5 15761-KPY-H00 47 8

16000

16016-K03-H11 53 1 16075-KYZ-711 53 2 16169-K18-901 53 3 16400-KPY-H01 53 4 16410-KPY-H01 53 5 16450-K0J-N01 53 6 16472-KPC-D50 53 7 16700-KPY-H01 78 1 16706-K81-N01 78 2 16706-KVB-S51 78 2 16707-KZR-601 78 3

17000

17110-KYZ-710 32 8 17120-KYZ-710 32 9

PART NO. INDEX

17213-KPY-H00 82 1 17214-KPY-H00 82 2 17220-KPY-H00 82 3 17225-KPY-H00 82 4 17227-KPK-900 82 5 17235-KPY-H00 82 6 17236-KVB-900 82 7 17253-KPY-H00 82 8 17256-KWZ-900 82 9 17270-KPY-710 96 1 17510-KPY-H00 78 4 17517-GGL-J00 78 5 17518-GHB-601 78 6 17560-KYZ-710 53 8 17572-GHB-601 78 7 17575-KPY-H00 78 9 17578-KPH-700 57 1

17620-KGH-600 78 10 17631-KEV-900 78 11 17650-KPY-H01 53 9 17910-KPY-H61 57 2 17913-KPY-H00 57 3 17914-K03-N30 57 4 17920-KPY-H61 57 5

18000

18291-GE2-920 83 1 18293-MCA-A20 83 2 18300-KPY-H00 83 3 18345-MBT-610 83 4 18355-K41-N00 83 5 18421-KBA-900 83 6 18422-KPH-900 83 7

22000

22100-KYZ-901 41 1 22115-KPH-900 41 2 22116-KPH-900 41 3 22121-KPH-900 41 4 22201-KYZ-901 41 5 22208-KYZ-901 41 6 22321-KE8-000 41 7 22350-KPH-900 41 8 22361-KTM-950 41 9 22401-KPH-900 41 10 22402-KYZ-901 41 11 22535-KPH-309 39 3 22606-GN5-910 39 4 22610-KYZ-901 39 5 22630-KYZ-901 39 6 22641-KYZ-901 39 7 22642-KPH-900 39 8 22643-KPH-900 39 9 22644-KPH-900 39 10 22660-KYZ-901 39 11 22804-KPH-880 39 12

58 1

2019.08.01 E

22810-KPH-900 37 6 22820-KYZ-900 37 7 22825-046-000 37 8 22830-KYZ-900 37 9 22846-KPH-901 37 10 22850-KPH-900 37 11 22853-KPH-900 37 12 22860-HB3-000 37 13

23000

23122-KPH-900 39 13 23123-KPH-900 39 14 23124-KPH-900 39 15 23125-GN5-910 39 16 23211-KYZ-900 49 1 23221-KYZ-900 49 2 23415-KPH-900 49 3 23421-KYZ-900 49 4 23431-KYZ-900 49 5 23441-KYZ-900 49 6 23451-KYZ-900 49 7 23461-KYZ-900 49 8 23471-K41-N00 49 9 23481-K41-N00 49 10 23801-KPY-H60 49 11 23802-GN5-910 49 12 23911-KPH-900 49 13 23911-KPH-C00 49 13

24000

24211-KPH-900 51 1 24212-KPH-900 51 2 24241-KPH-900 51 3 24301-KPH-900 51 4 24305-KPH-900 49 14 24305-KPH-C00 49 14 24306-KPH-900 49 15 24306-KPH-C00 49 15 24410-KPH-900 51 5 24421-KPH-900 51 6 24430-KPH-901 51 7 24435-KYZ-900 51 8 24610-KPH-900 51 9 24630-KPH-900 51 10 24641-KPH-900 51 11 24651-KPH-900 51 12 24652-KPH-900 51 13 24701-KPY-H60 84 1

28000

28110-K41-N00 42 1 28120-KPH-701 42 2 28120-KWB-921 42 2 28131-KYZ-901 42 3 28132-KPH-900 42 4 28133-KPH-900 42 5

28211-KYZ-900 52 1 28221-KYZ-900 52 2 28251-KYZ-900 52 3 28262-KPH-900 52 4 28265-KPH-900 52 5 28271-KYZ-900 52 6 28281-KPH-900 52 7 28282-KPH-900 52 8 28300-KYZ-G00 84 2

30000

30510-KPY-H01 94 1 30510-KPY-H11 94 1 30520-GFM-900 94 2 30700-MA0-163 94 3 30701-MN8-003 94 3

31000

31110-K41-N01 44 1 31120-K41-N01 44 2 31200-KPW-901 45 1 31201-KVS-J01 45 2 31204-KG8-004 45 3 31205-KPW-901 45 4 31206-KPW-901 45 5 31207-MBE-008 45 6 31500-K46-N21 93 1 31500-KVB-T02 93 1 31500-KWW-A01 93 1 31600-K73-M01 94 4 31917-KPH-901 32 10 31927-KPH-901 32 10

32000

32100-KPY-H60 94 5 32103-KPY-H60 94 6 32161-404-000 60 1

32410-KPY-H00 45 7 32606-GEV-761 94 8

33000

33103-KPY-971 54 1 33104-KPY-971 54 2 33107-KPY-971 54 3 33117-KPY-971 54 4 33123-KPY-971 54 5 33130-KPY-H01 54 6 33401-KZ9-710 91 1 33402-KPY-710 91 2 33407-KPY-A50 91 3 33408-KPY-A50 91 4 33451-KZ9-710 91 5 33611-KAE-000 91 6 33612-KPY-900 91 7

94 7

33700-KPY-H01 92 1 33701-KGH-601 92 2 33702-KGH-601 92 3 33703-KGH-601 92 4 33704-KPY-H01 92 5 33705-KW7-900 92 6 33706-KAN-960 92 7 33706-KGH-601 92 8 33707-KPG-T00 92 9 33714-KL3-620 94 9 33741-KAN-961 90 1 33753-KGH-601 92 10

34000

34901-KVY-901 54 7 34905-KAN-W01 92 11 34905-KPY-710 91 8 34906-GB6-921 92 12 34908-KVE-900 55 1 34909-KVR-600 55 2

35000

35010-KPY-H00 60 2 35100-KPY-H01 60 3 35105-KPG-960 60 4 35121-KV8-680 60 5 35122-KV8-680 60 5 35150-KPY-H01 57 6 35200-KPY-H01 57 7 35340-KWB-601 58 2 35350-KYJ-902 84 4 35357-KVL-N00 84 5 35751-KPH-900 51 14 35752-KPH-900 51 15 35759-K41-N01 47 9

36000

36532-KPY-H61 32 11 36535-K26-B00 32 12

37000

37100-KPY-H61 55 3 37121-ML7-671 55 4 37205-KPY-H01 55 5 37210-KPY-H61 55 6 37220-KPY-H01 55 7 37224-KPY-H61 55 8 37230-KPY-H01 55 9 37305-KE5-008 55 10 37750-K16-A21 36 3 37751-K26-900 36 4 37800-KPY-H01 78 12

Page 100

Page Ref.Part Number Page Ref.Part NumberPage Ref.Part NumberPage Ref.Part NumberPage Ref.Part NumberPage Ref.Part Number

38000

38110-KYZ-M01 94 10 38117-KPH-880 94 11 38301-GBG-911 94 12 38301-K69-T01 94 12 38306-KK4-000 94 13 38307-K93-N01 94 14 38307-KPY-H11 94 14 38501-KPH-901 94 15 38501-KVB-901 94 15 38506-GN5-740 94 16 38506-KWW-711 94 16 38770-KPY-H61 95 17

40000

40510-KPG-T00 87 1 40530-GGJ-741 87 2 40530-K58-T81 87 2 40530-KYL-843 87 2 40531-KWB-601 87 3 40531-KWB-602 87 3 40531-KWW-B21 87 3 40543-KPG-T00 87 4 40546-KPG-T00 87 5

41000

41201-KPY-H60 72 2

74 2 76 2

42000

42301-KPG-T00 72 15

74 3

42303-KBA-900 76 4 42303-KPY-H00 72 3 42303-KPY-H10 74 4 42304-KFM-900 72 4

42313-GBG-B20 71 3 42313-KGH-900 74 6

42615-KPY-H60 72 5 42615-KPY-H70 74 7 42615-KPY-H80 76 7 42620-KFL-850 72 6 42620-KW7-880 74 8

42635-KPY-H00ZA 72 7 42635-KPY-H10ZA 74 9 42650-KPY-H00ZA 72 8 42650-KPY-H10ZA 74 10 42650-KPY-H80ZA 76 9 42653-001-004 72 9

76 3

74 5 76 5

76 6

76 8

74 11

42701-KEV-882 72 10

42701-KVM-711 65 1 42711-K09-H11 76 11 42711-KPY-H01 65 9

42712-K09-H11 76 12

76 10

74 12

72 13 74 16

43000

43100-KPH-700ZE 71 4 43107-MA7-006 70 3 43108-KSP-B51 70 4 43141-KTM-850 71 5 43150-KPY-A02 70 5 43150-KPY-A51 70 5 43156-KPY-A00 68 1 43157-KPY-A00 68 2 43190-KPY-A01 70 6 43215-KGH-901 70 7 43310-KPY-A51 68 3 43351-KPY-H70 74 15

43351-KPY-H81 74 15

43351-KTM-N31 74 15

43351-KTM-N32 74 15

43352-568-003 64 3

43353-461-771 64 4

43410-KWB-600 71 6 43431-KPY-710 87 6 43434-ME1-670 71 7 43451-KZV-T00 84 6 43459-GN5-760 84 7 43503-MR8-006 68 4 43504-MB2-006 68 5 43510-KTM-N32 68 6 43511-KW7-881 68 7 43512-KPY-A01 68 8 43513-KBP-881 68 9 43514-KS6-701 68 10 43520-MJ6-306 68 11 43530-KBA-921 68 12

44000

76 13

70 8

70 9

44301-KAN-T40 65 4

44311-K56-N00 65 5 44311-KWB-920 67 3 44620-KPH-950 65 6

67 2

67 4

PART NO. INDEX

44635-KPY-H00ZA 65 7 44650-KPY-H00ZA 65 8 44650-KPY-H80ZA 67 5 44711-K09-H11 67 6 44712-K09-H11 67 1 44712-KPY-711 65 2

44713-KPY-711 65 3

44800-KWB-600 65 10

44806-KWB-600 65 11

44809-KFM-900 65 12

44830-KPY-710 55 11 44832-KPY-A50 63 1

45000

45111-MAJ-G41 64 5

45126-KPY-H01 58 3 45131-GZ0-006 64 6

45132-166-016 64 7

45133-028-000 71 8 45133-MA3-006 64 8

45134-250-000 71 9 45145-KFM-900 71 10 45156-KPY-A00 63 2 45157-KPY-710 58 4 45157-KPY-H00 58 5 45203-MCC-006 70 14 45208-KWB-601 64 9 45215-KPH-951 64 10 45216-166-006 64 11

45218-KWB-601 64 12 45250-KPY-A02 64 13 45250-KPY-A52 64 13 45251-K90-V01 65 13

45251-KWB-602 65 13

45290-KPY-A01 64 14 45504-410-003 58 6 45510-K16-911 58 7 45512-MA6-006 58 8 45513-GW0-911 58 9 45517-166-006 58 10 45520-GW0-911 58 11

45521-GW0-911 58 12

72 11 74 13

72 12 74 14

67 7

67 8

67 9

70 10

70 11

70 12

70 13

70 15

67 10

68 13

68 14

2019.08.01 E

45530-471-831 58 13

46000

46182-MEL-D21 68 15 46500-KPY-H60 84 8 46500-KPY-H70 84 9 46504-MT8-006 68 16 46513-KBP-900 84 10 46514-086-720 84 11

50000

50100-KPY-H00 96 2 50100-KPY-H10 96 2 50301-268-010 61 2 50381-KPY-H00 93 2 50500-KPY-710 86 1 50512-KPG-T10 86 2 50512-KPH-900 86 2 50523-KPY-H00 86 3 50524-397-000 86 4 50530-KPY-H00 86 5 50605-KPY-H00 85 1 50606-KPY-H00 85 2 50610-KPH-900 85 3 50612-KPH-900 85 4 50613-KFL-850 85 5 50661-GN8-920 85 6 50706-KPY-H00 85 7 50710-KWB-600 85 8 50711-KBP-900 85 9 50712-KBP-900 85 10 50715-KE8-000 85 11 50715-KPY-H00ZA 85 12 50715-KPY-H10ZA 85 12 50716-KPY-H00ZA 85 13

51000

51400-KPY-H61 63 3 51401-KPY-711 63 4 51402-KPY-A51 63 5 51403-GF4-003 63 6 51410-KPY-A01 63 7 51412-GN5-901 63 8 51420-KPY-A51 63 9 51425-GN5-901 63 10 51437-KWB-601 63 11 51466-065-901 63 12 51470-KPY-H61 63 13 51490-KGH-901 63 14 51500-KPY-H61 63 15 51520-KPY-A51 63 16

52000

52170-KPG-T00 87 7 52200-KPY-H00ZA 87 8

52200-KPY-H10ZA 88 22 52400-KPY-H01 89 1 52400-KPY-H11 89 1 52486-KBW-901 89 2 52489-399-601 89 3

53000

53100-KPY-H00 60 6 53104-KPP-900 60 7 53105-KPY-H00 60 8 53106-KR3-000 60 9 53108-KR3-770 60 10 53140-K03-N30 57 8 53140-KPY-H00 57 8 53166-KPY-H00 57 9 53166-KWB-600 57 9 53167-K03-N30 57 10 53168-K03-N30 57 11 53172-KPY-H00 57 12 53173-KBP-900 57 13 53175-KYT-922 58 14 53180-KPY-H00ZD 58 15 53180-KPY-H00ZE 58 15 53185-KPY-H00ZD 57 14 53185-KPY-H00ZE 57 14 53211-268-010 61 3 53212-200-000 61 4 53214-200-000 61 5 53219-KPY-A00 61 6 53220-KE8-010 61 7 53230-KPY-900 60 11

61000

61100-KPY-H00ZB 62 1 61100-KPY-H00ZC 62 1 61100-KPY-H00ZE 62 1 61100-KPY-H00ZF 62 1 61100-KPY-H00ZG 62 1 61102-KPY-711 62 2 61103-KPY-900 62 3 61104-422-000 55 12 61302-KPY-A50 54 8 61303-KPG-T00 80 1 61303-KPY-900 54 9 61303-KPY-A50 54 10 61311-KPY-H00 54 11 61312-149-300 54 12

61312-KBP-900 54 13 61320-KPY-H00ZE 54 14 61320-KPY-H00ZF 54 14 61320-KPY-H70ZA 54 14 61320-KPY-H80ZA 54 14 61320-KPY-H80ZB 54 14

80 2

64000

64300-KPY-H60ZA 97 1 64300-KPY-H60ZB 97 1 64300-KPY-H60ZC 97 1 64300-KPY-H70ZA 97 1 64300-KPY-H80ZA 97 1 64300-KPY-H80ZB 97 1 64310-KPY-H00ZB 97 2 64310-KPY-H00ZD 97 2 64310-KPY-H00ZE 97 2 64310-KPY-H00ZF 97 2 64330-KPY-H00ZA 80 3 64350-KPY-H00ZF 97 7 64360-KPY-H00ZF 97 8 64400-KPY-H60ZA 97 3 64400-KPY-H60ZB 97 3 64400-KPY-H60ZC 97 3 64400-KPY-H70ZA 97 3 64400-KPY-H80ZA 97 3 64400-KPY-H80ZB 97 3 64430-KPY-A00ZA 80 4 64430-KPY-A00ZC 80 4 64430-KPY-A00ZF 80 4 64430-KPY-A00ZG 80 4 64450-KPY-H00ZA 80 5 64460-KPY-H00ZA 80 6 64500-KPY-H00ZF 80 7 64500-KPY-H60ZB 80 7 64500-KPY-H60ZC 80 7 64500-KPY-H60ZD 80 7 64500-KPY-H70ZA 80 7 64500-KPY-H80ZA 80 7 64500-KPY-H80ZB 80 7 64600-KPY-H00ZF 80 8 64600-KPY-H60ZB 80 8 64600-KPY-H60ZC 80 8 64600-KPY-H60ZD 80 8 64600-KPY-H70ZA 80 8 64600-KPY-H80ZA 81 8 64600-KPY-H80ZB 81 8

77000

77115-KPY-H00 79 1 77200-KPY-H00ZA 79 2 77208-KW7-900 55 13 77215-KW7-900 79 3 77215-KZL-930 79 4 77238-KPG-900 79 5 77239-KPY-H01 79 6 77302-KW7-900 55 14

80000

80106-KPY-A00 92 13 80110-KPY-H00ZA 90 2 80112-KRH-901 78 13 80124-KPH-700 79 7

103
