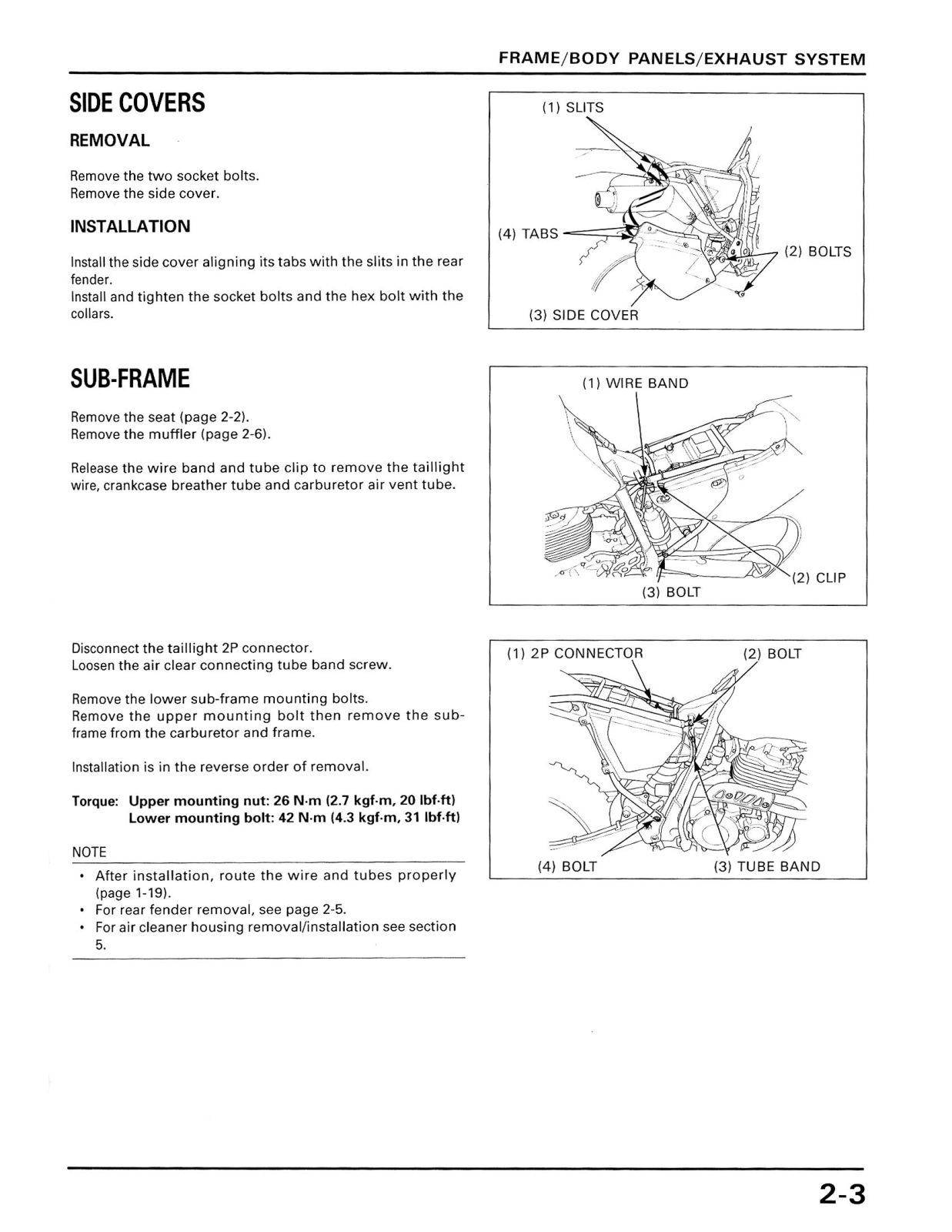

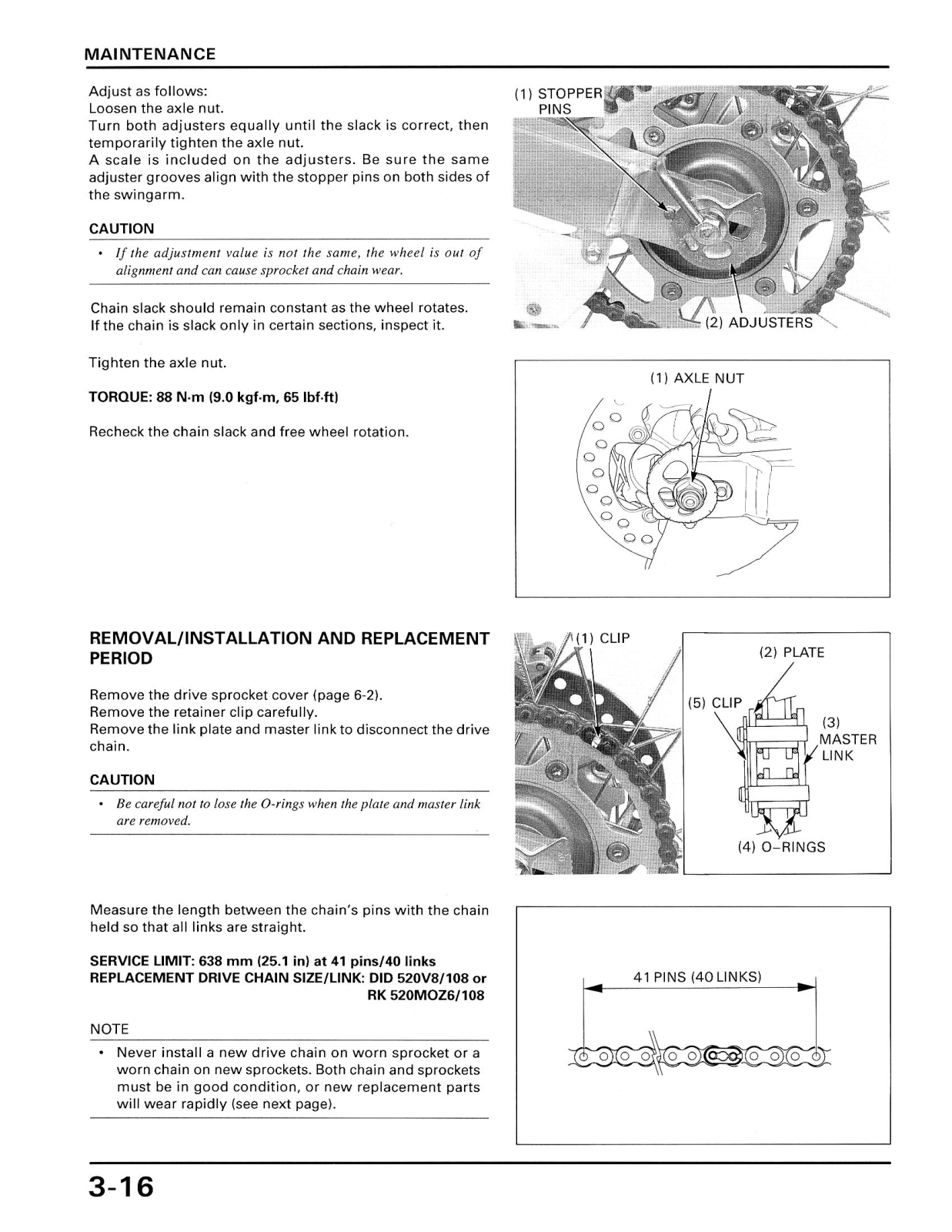

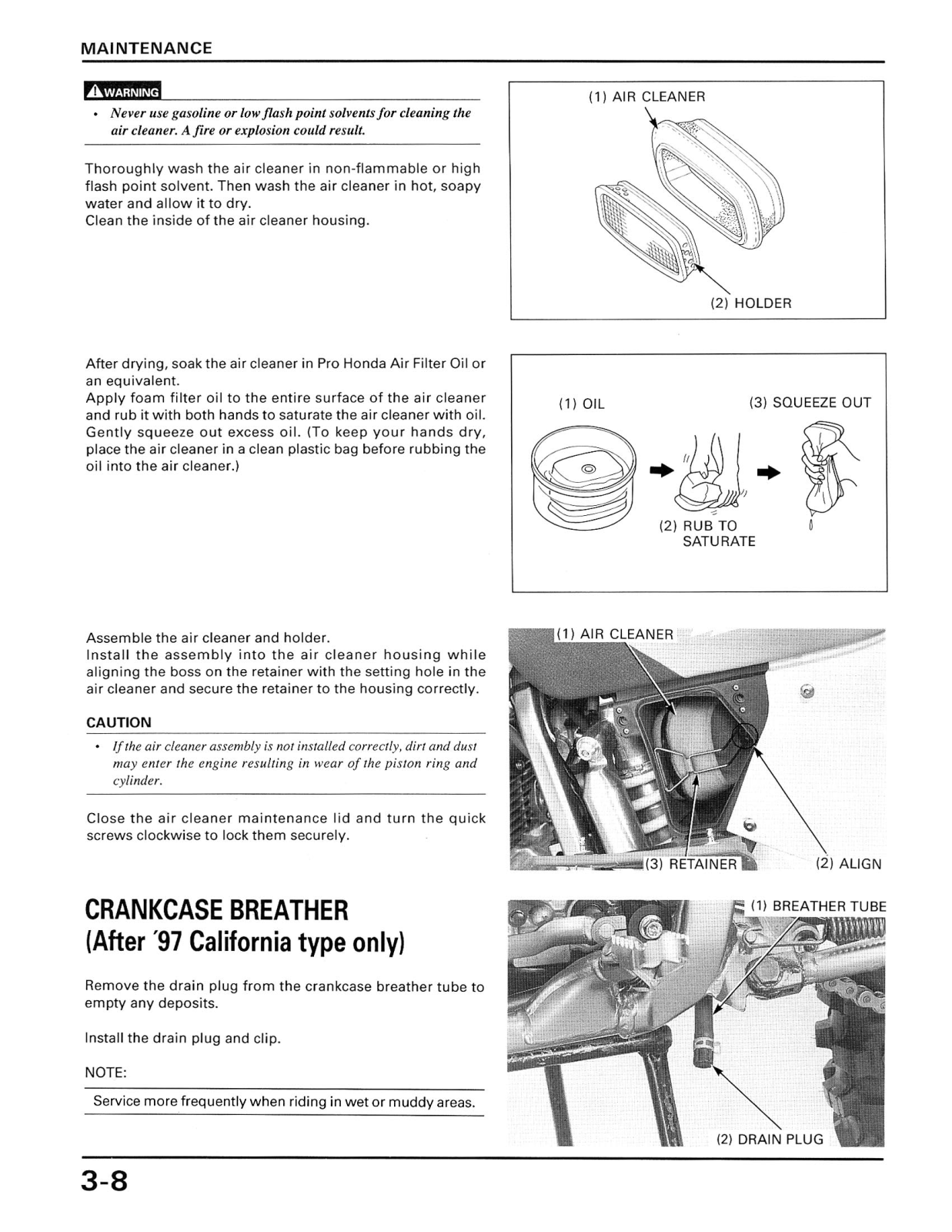

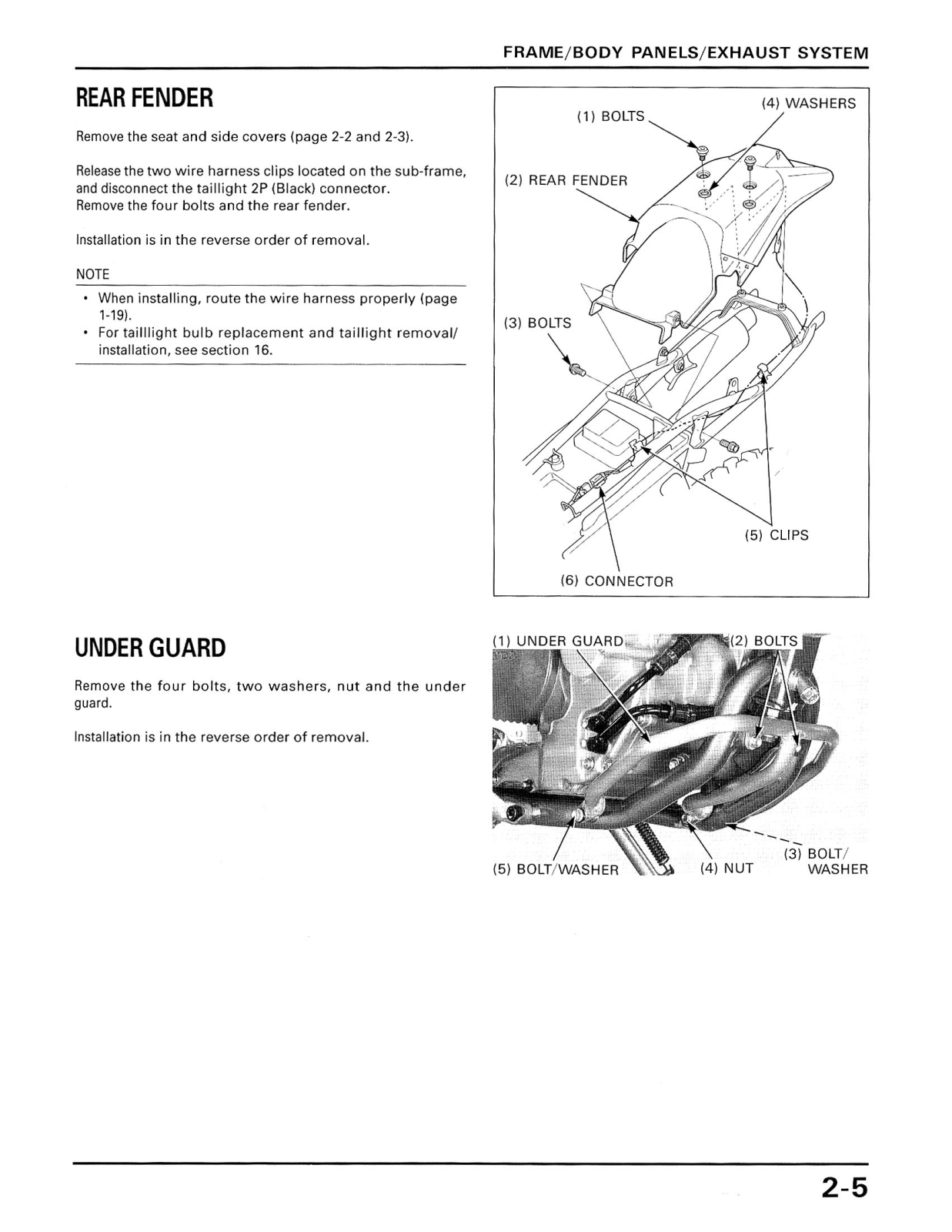

Specifications and Main Features

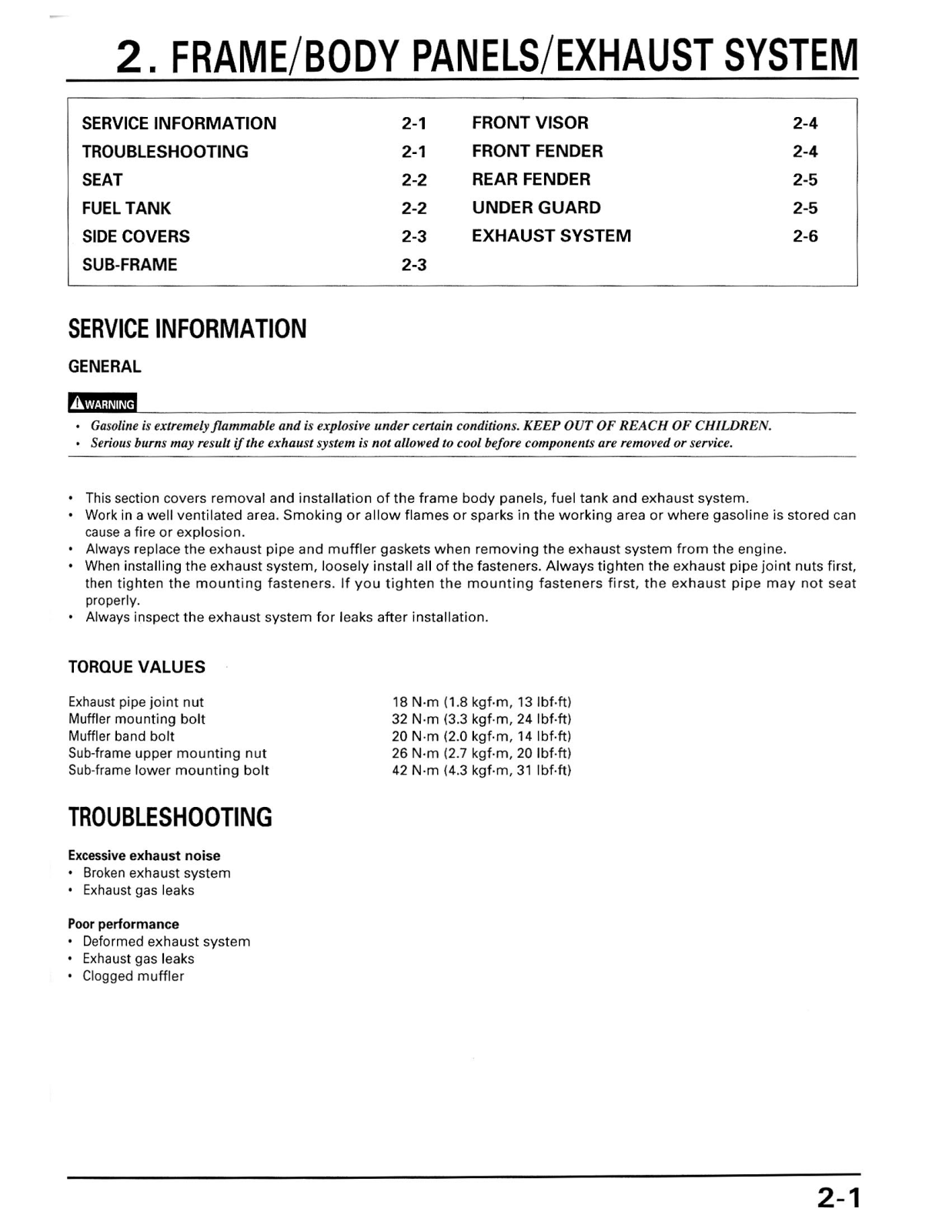

- Total length: 2130mm. (83.9 inches)
- Total width: 840 mm (33.1 inches)
- Total height: 1240 mm (48.8 inches)
- Distance between axles: 1425 mm (56.1 inches)
- Height of the seat: 930 mm (36.6 inches)
- Minimum ground clearance: 310 mm (12.2 inches)
- Weight without fuel: 116.5 kg. (257 pounds)
- Total weight with full fuel: 125 kg. (276 pounds)
- Limit of gross weight: 100 kg (220 pounds)

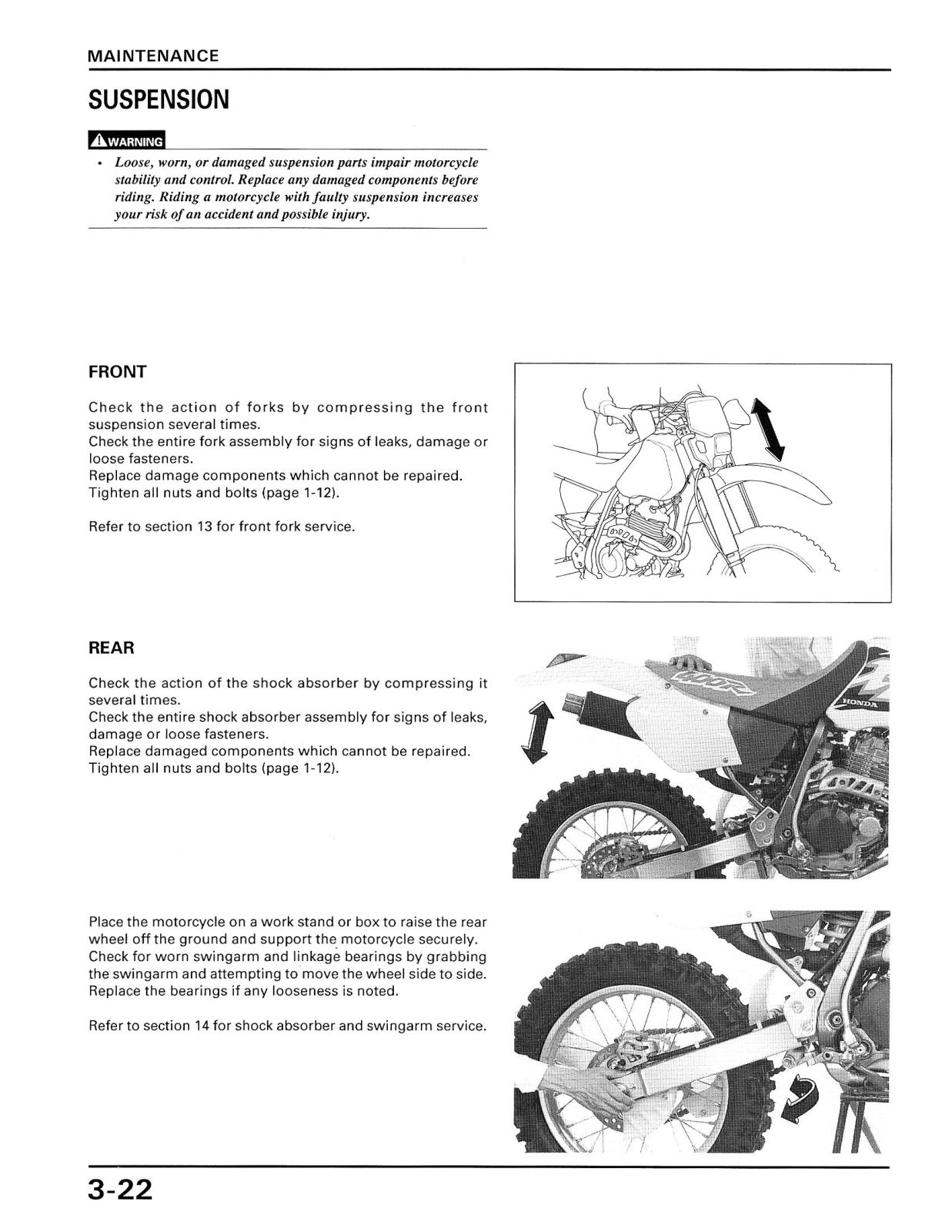

- Type of front suspension: Telescopic fork with a travel of 280 mm (11.0 inches)
- Type of rear suspension: Swingarm with a travel of 300 mm (11.8 inches)
- The size of the front tire: 80/100-21 51M
- The size of the rear tire: 110/100-18 64M

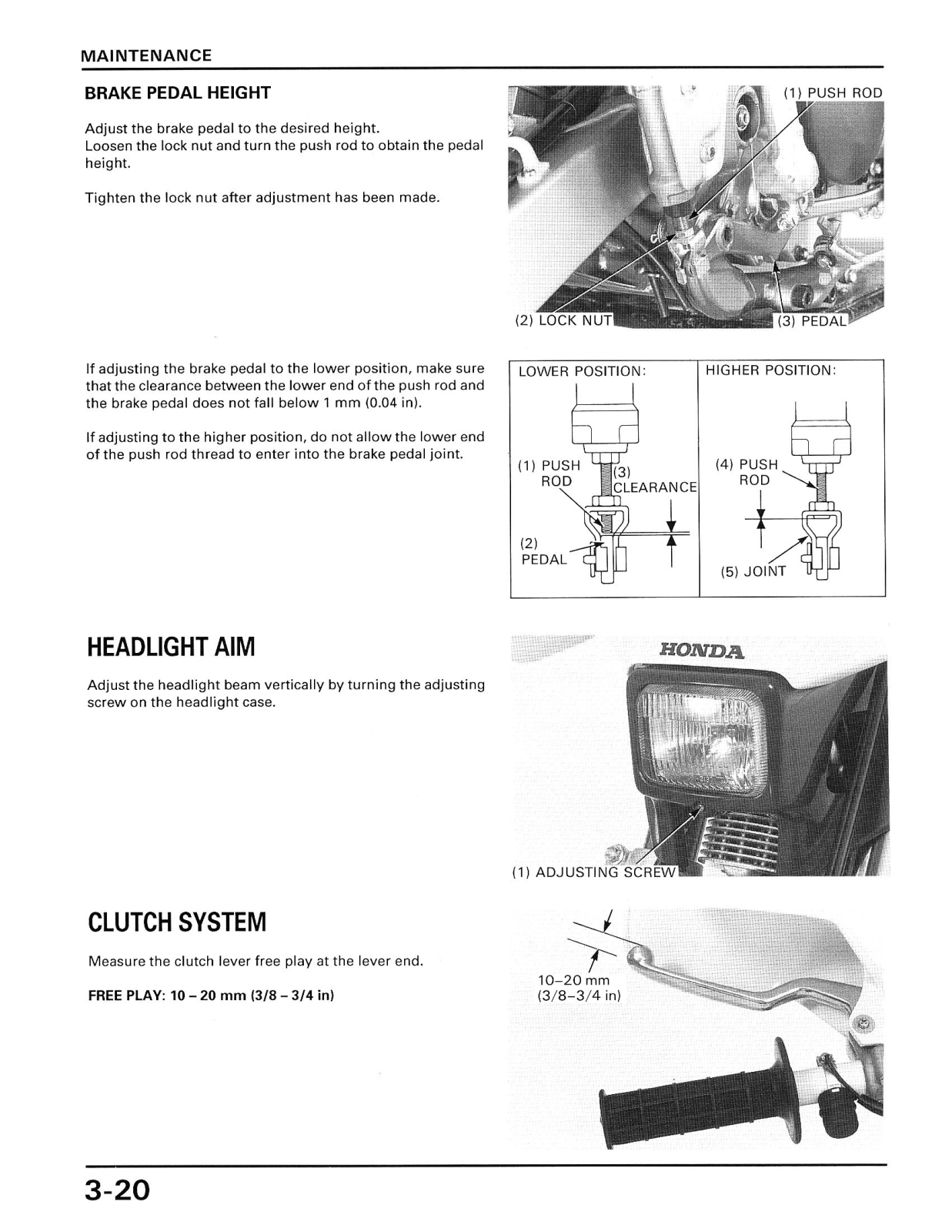

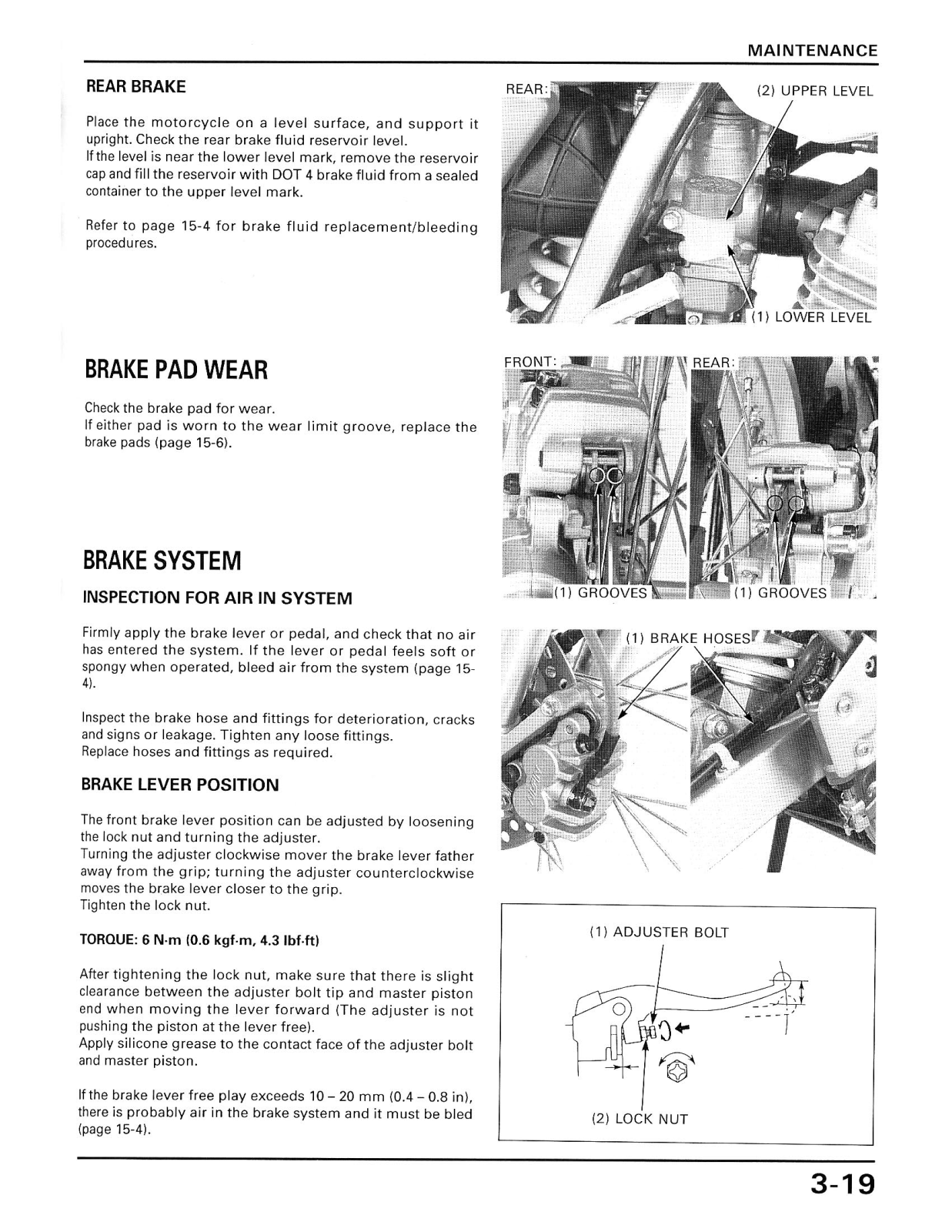

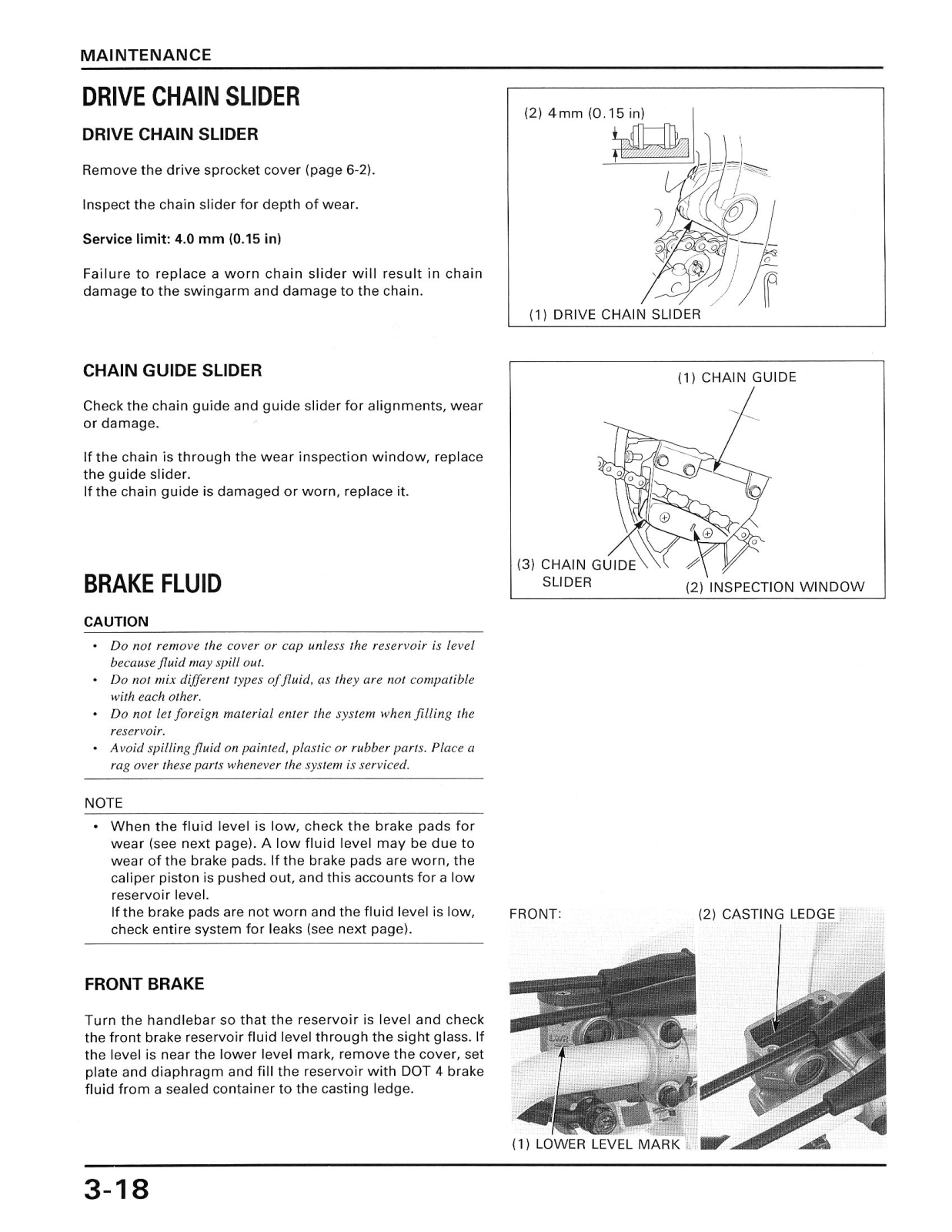

- Front brake: Disc with hydraulic mechanism single
- Rear brake: Disc with hydraulic mechanism single
- Caster angle: 25° 15’
- Length of trail: 94 mm (3.7 in)

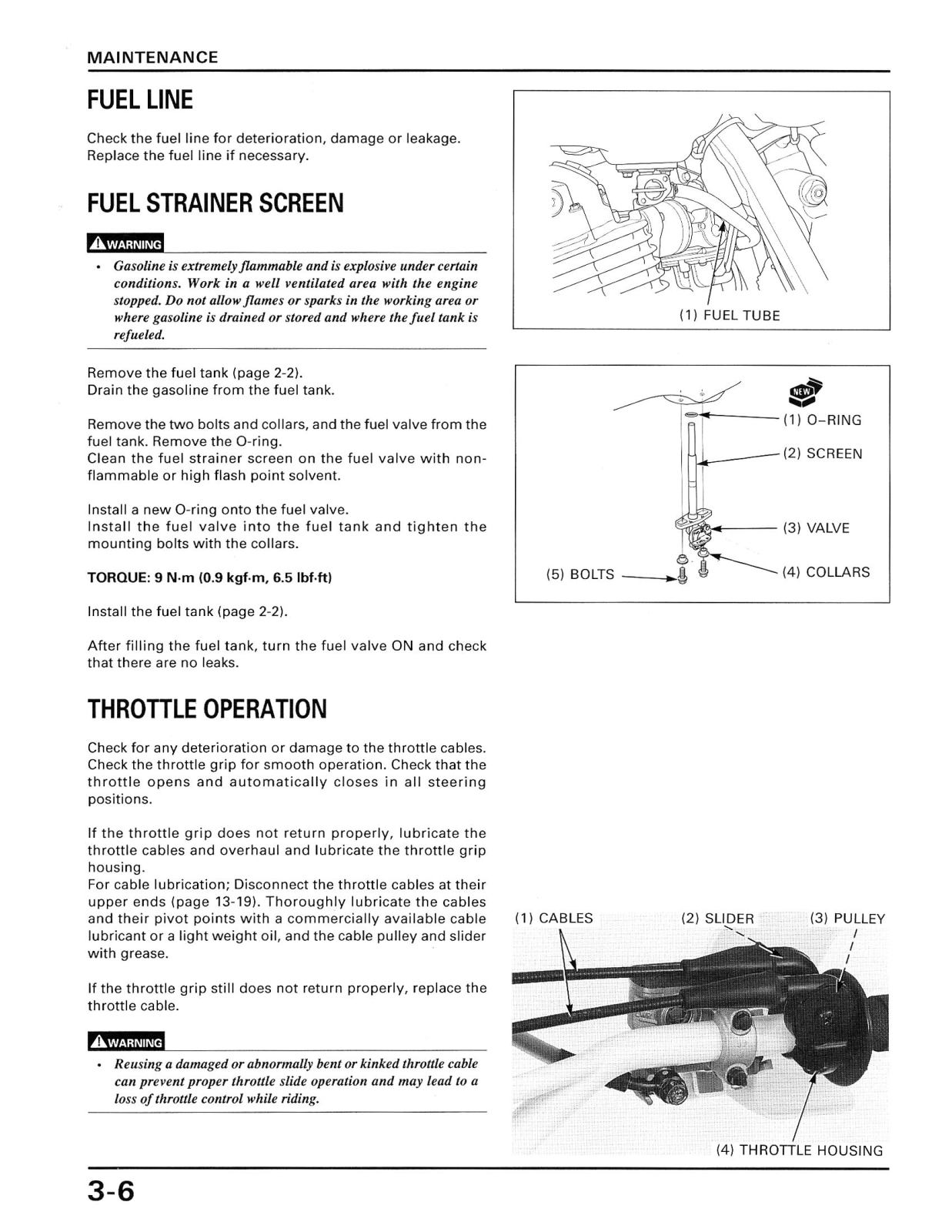

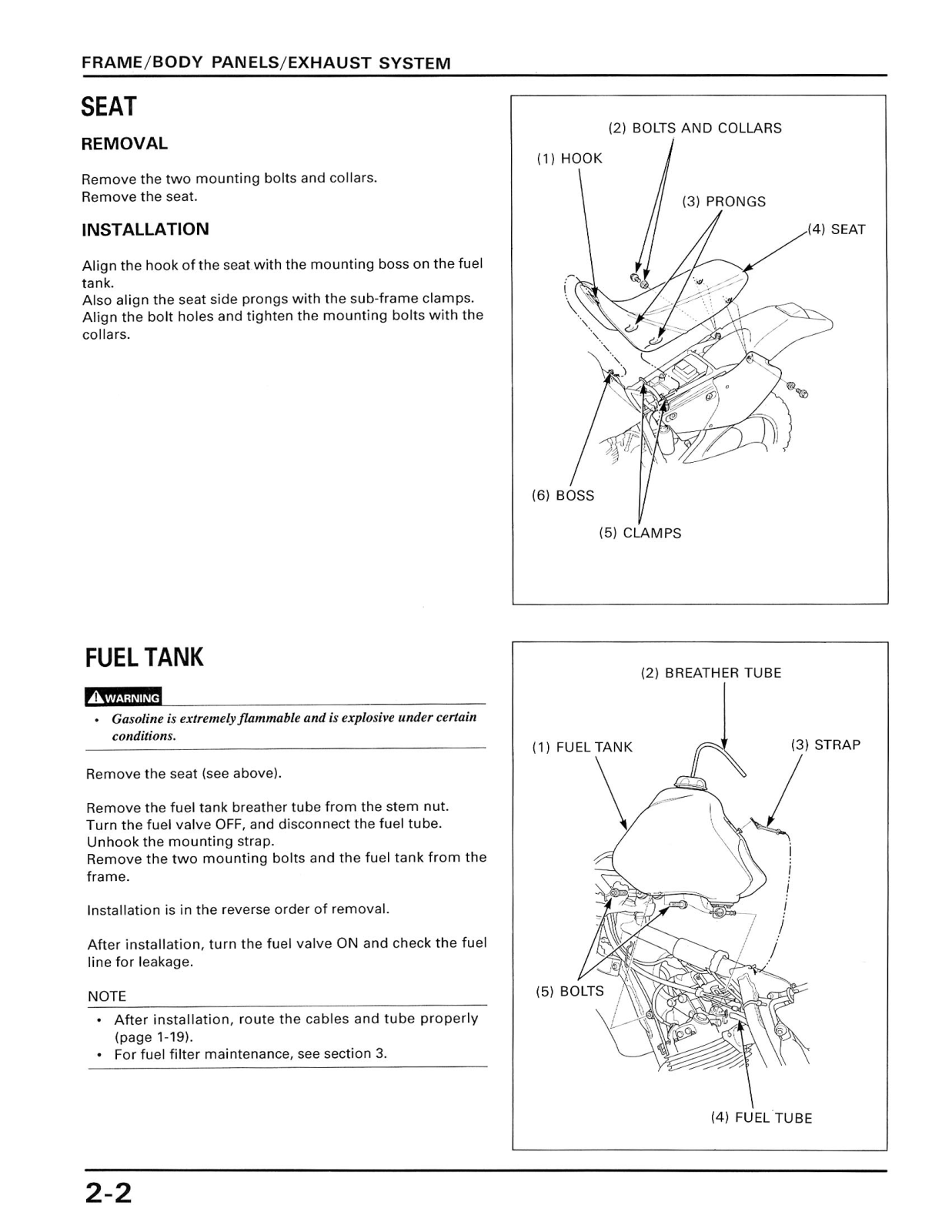

- Volume of the fuel tank: 9.5 liters (US gallon 2.5 or 2.1 Imp gallons)
- Capacity of the reserve fuel tank: 1.5 liters (US gallon 0.4 or 0.3 Imp gallons)

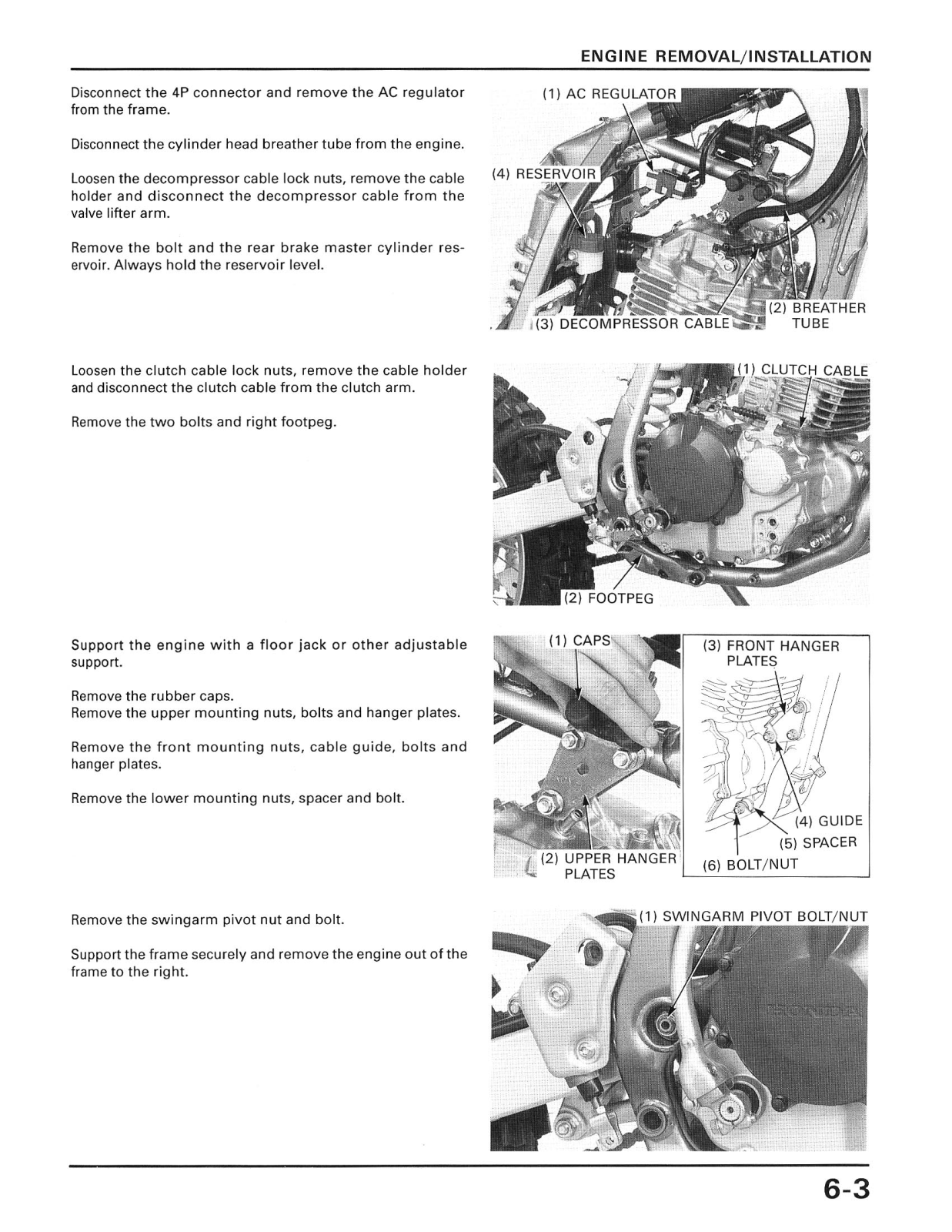

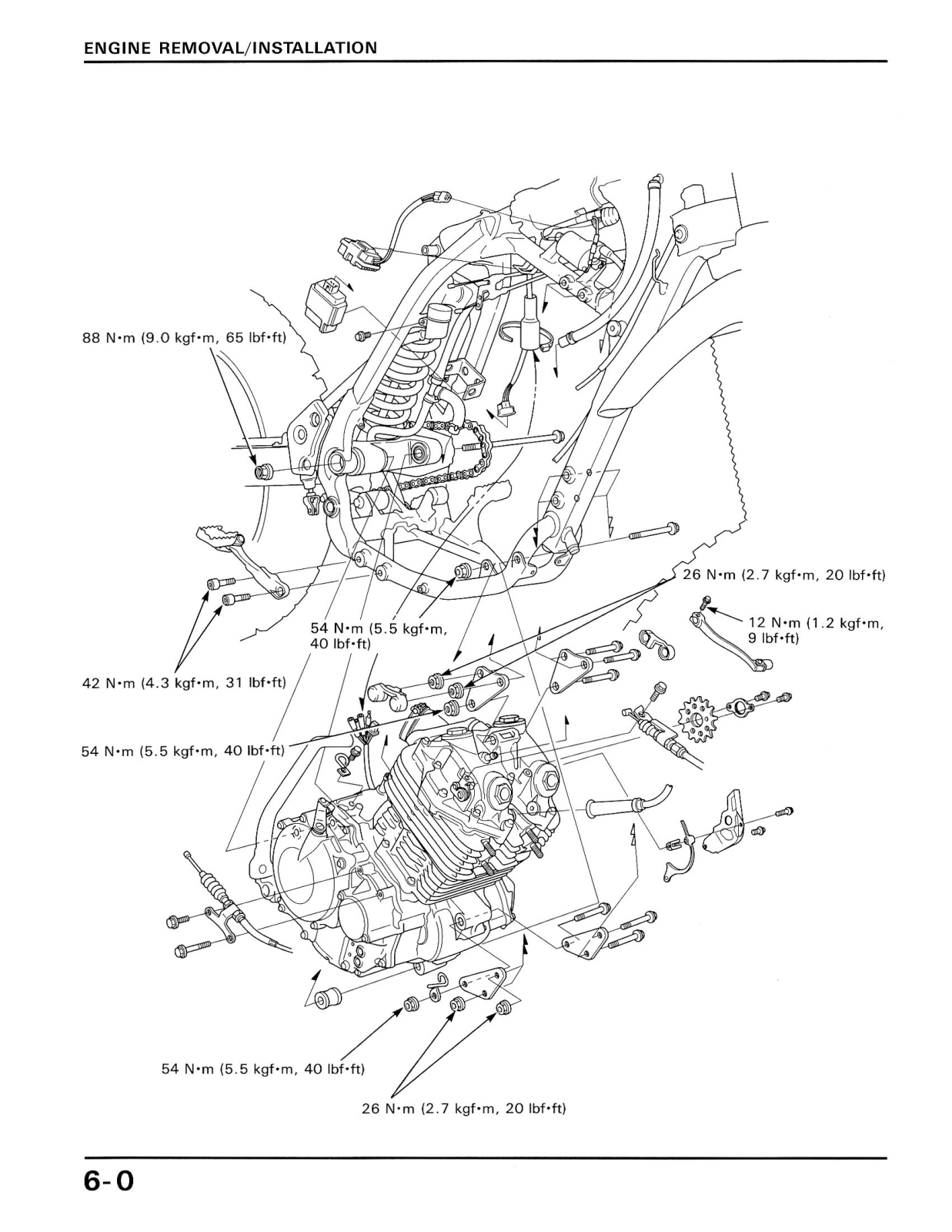

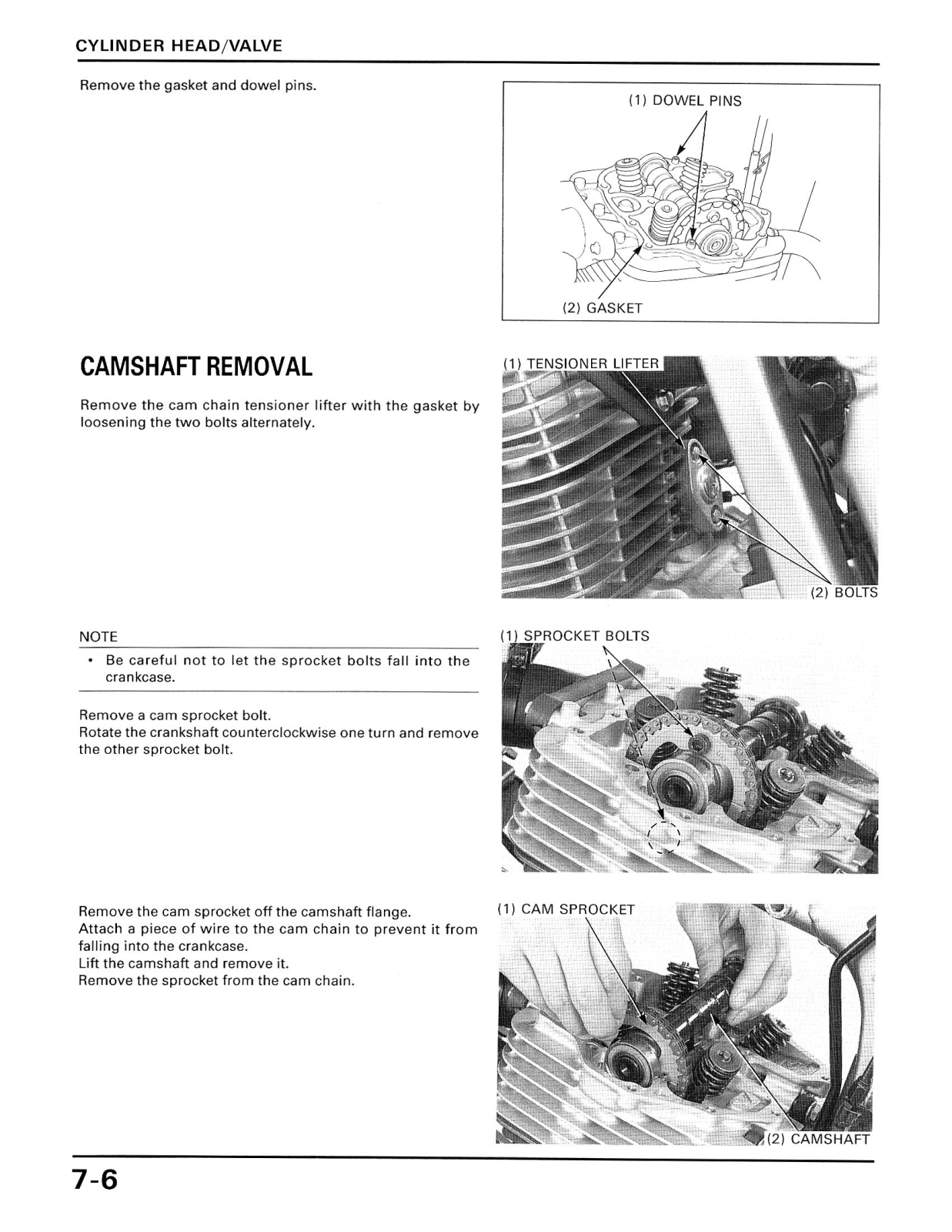

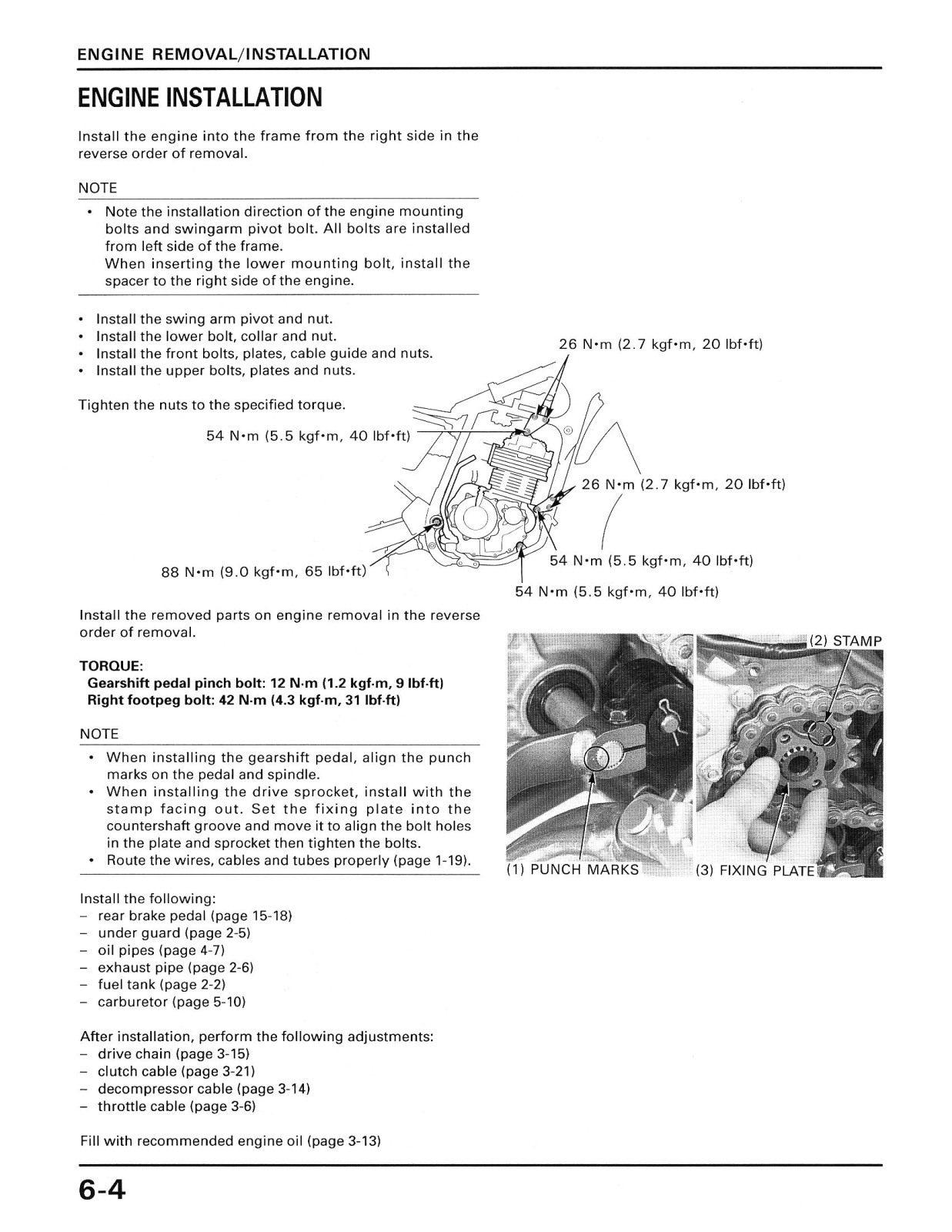

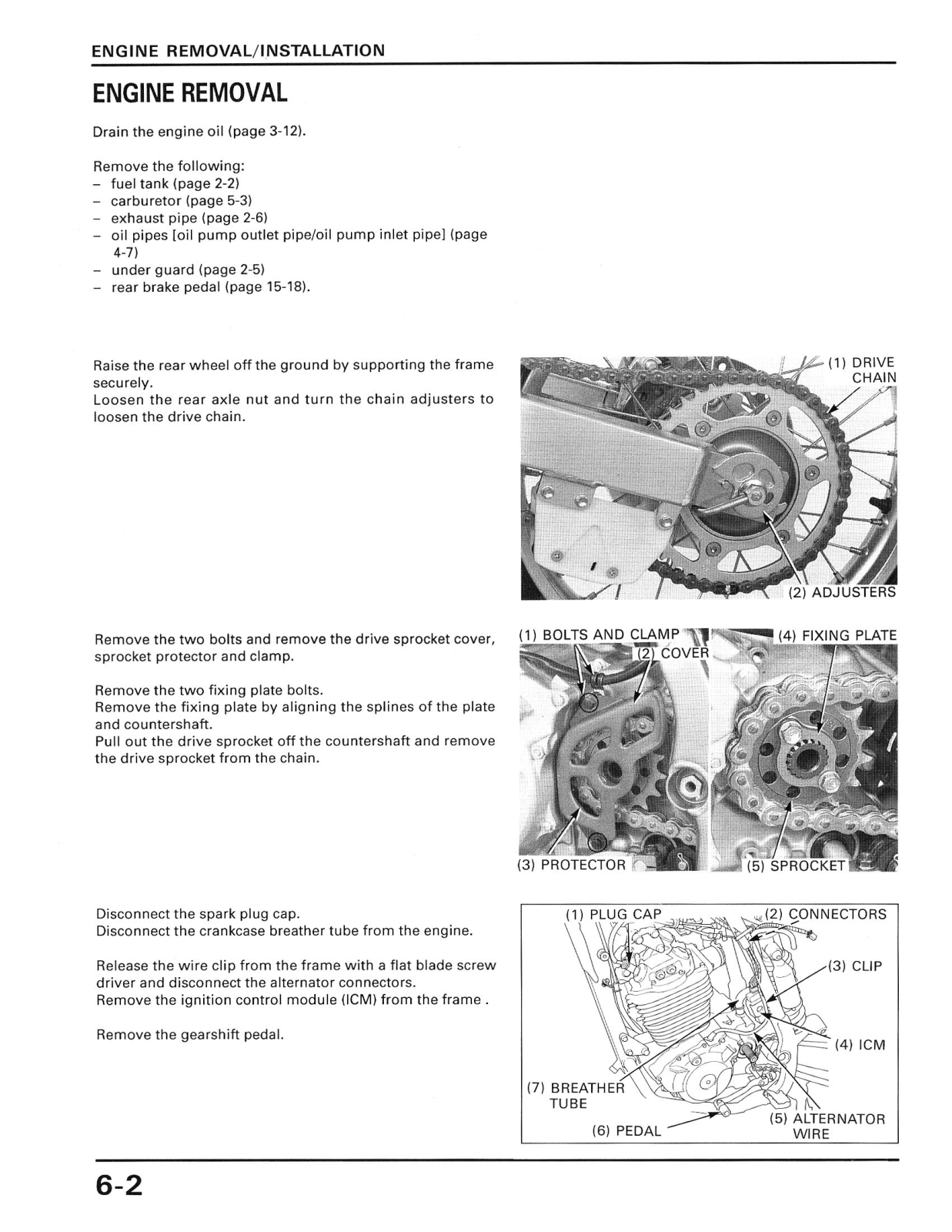

- Type of engine: SOHC air-cooled four stroke with a bore and stroke of 85.0 X 70.0 mm 3.35 x 2.76 inches.
- Volume: 397 cm ³ (24.2 cu in)
- Ratio of Compression: 9:5

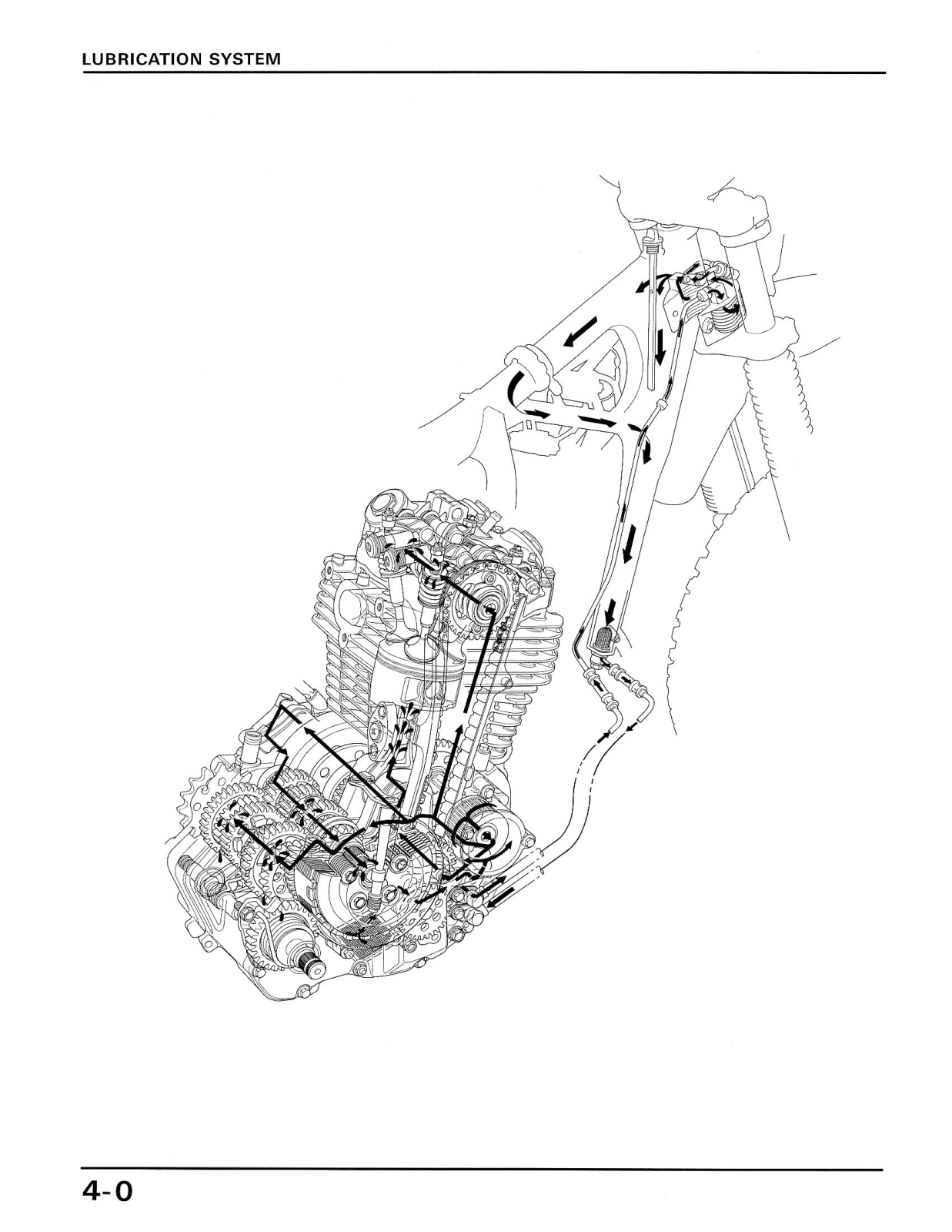

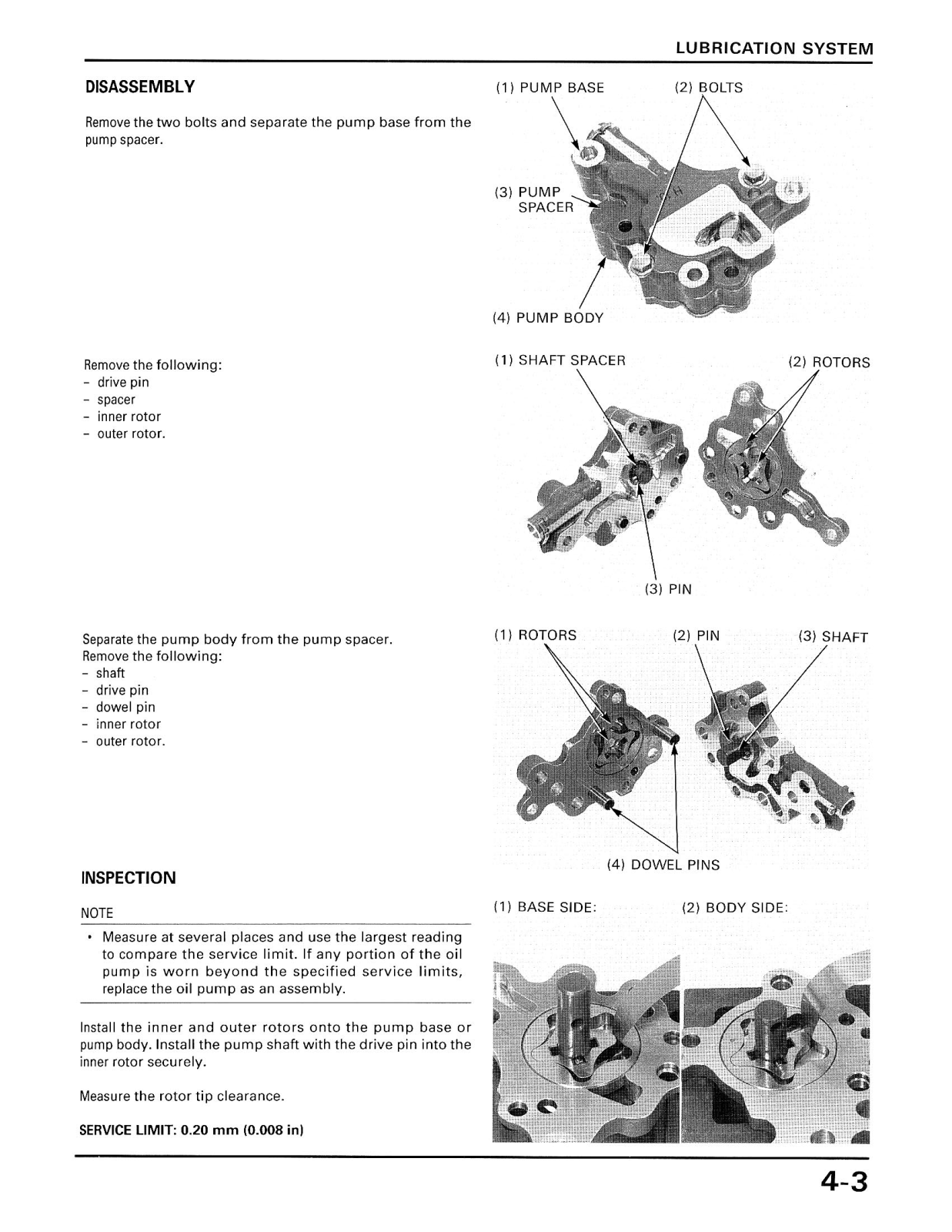

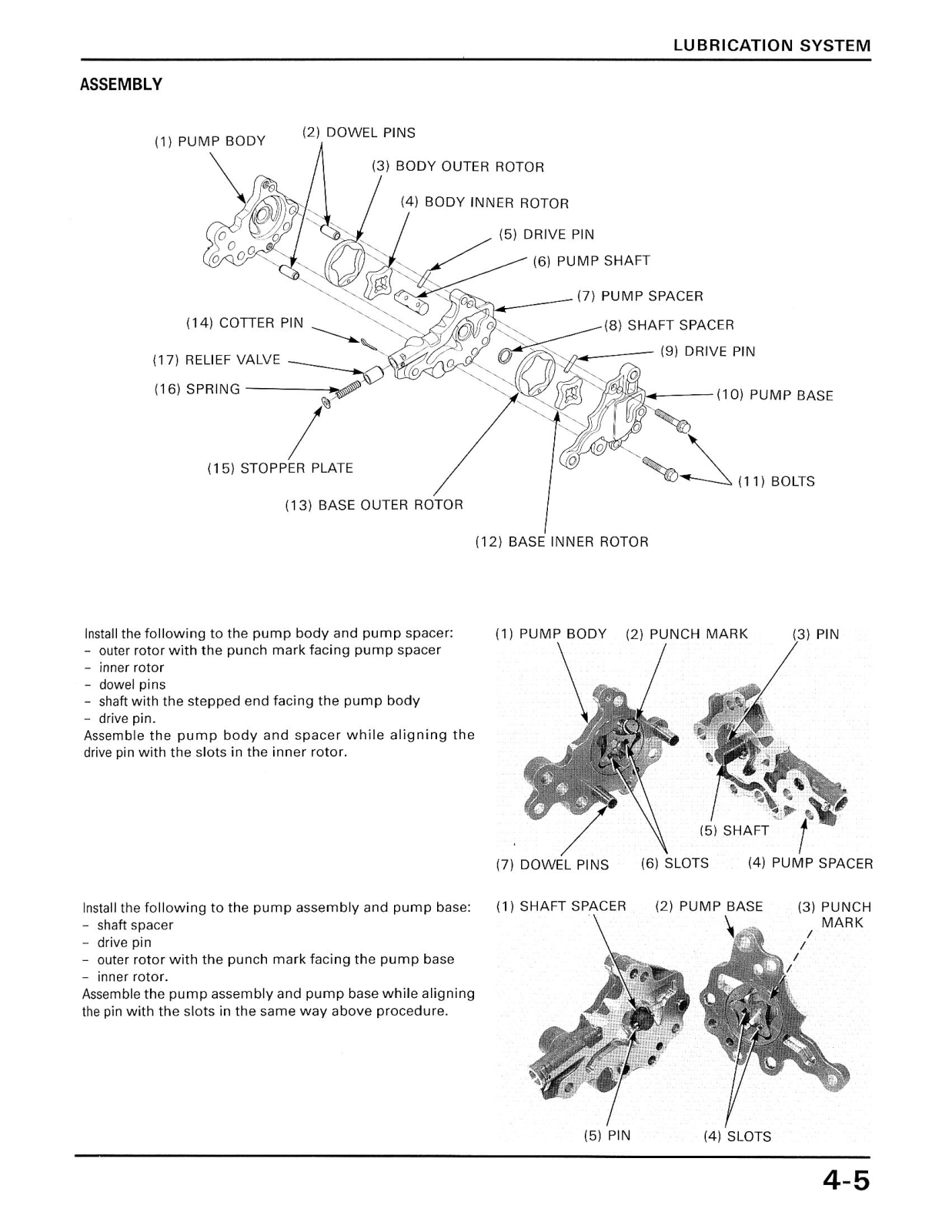

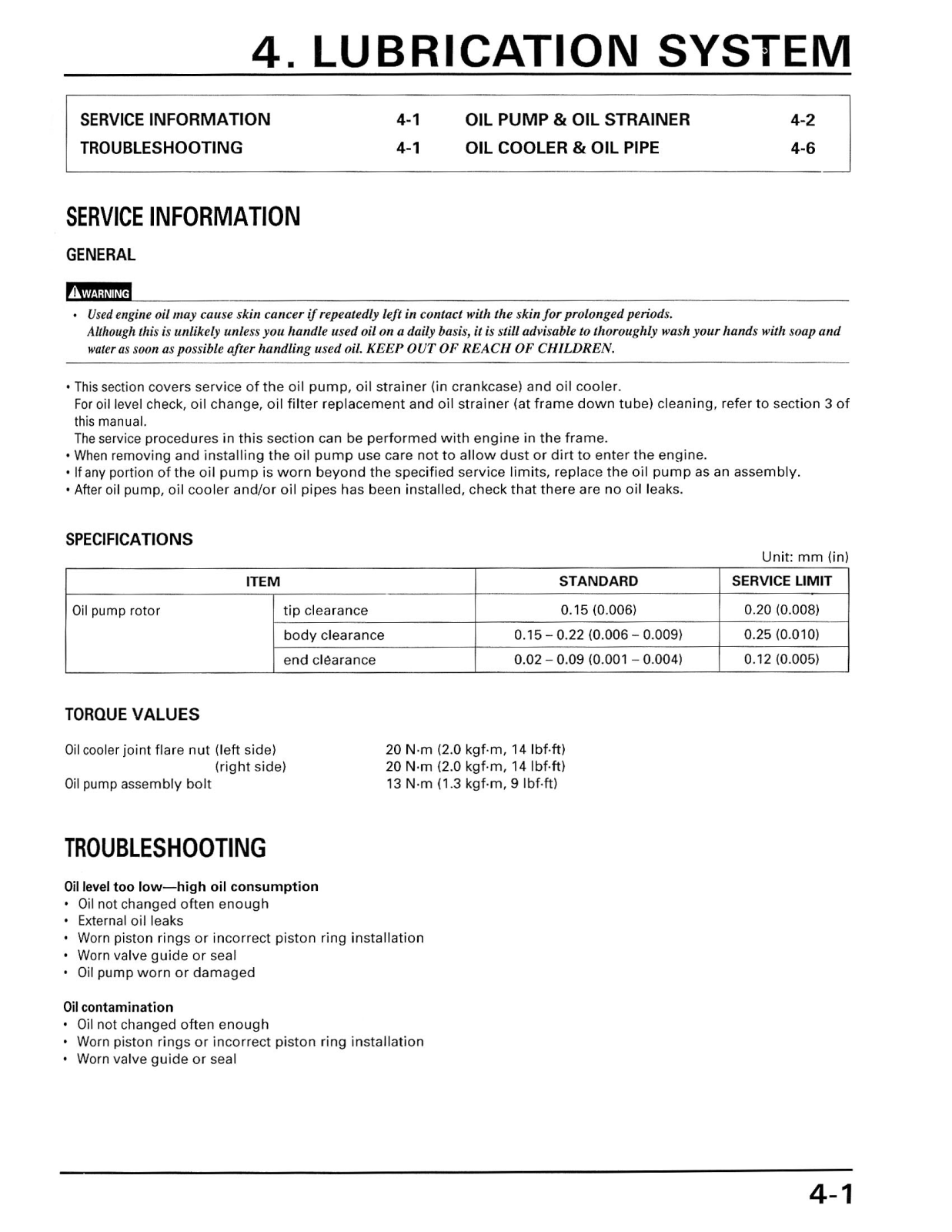

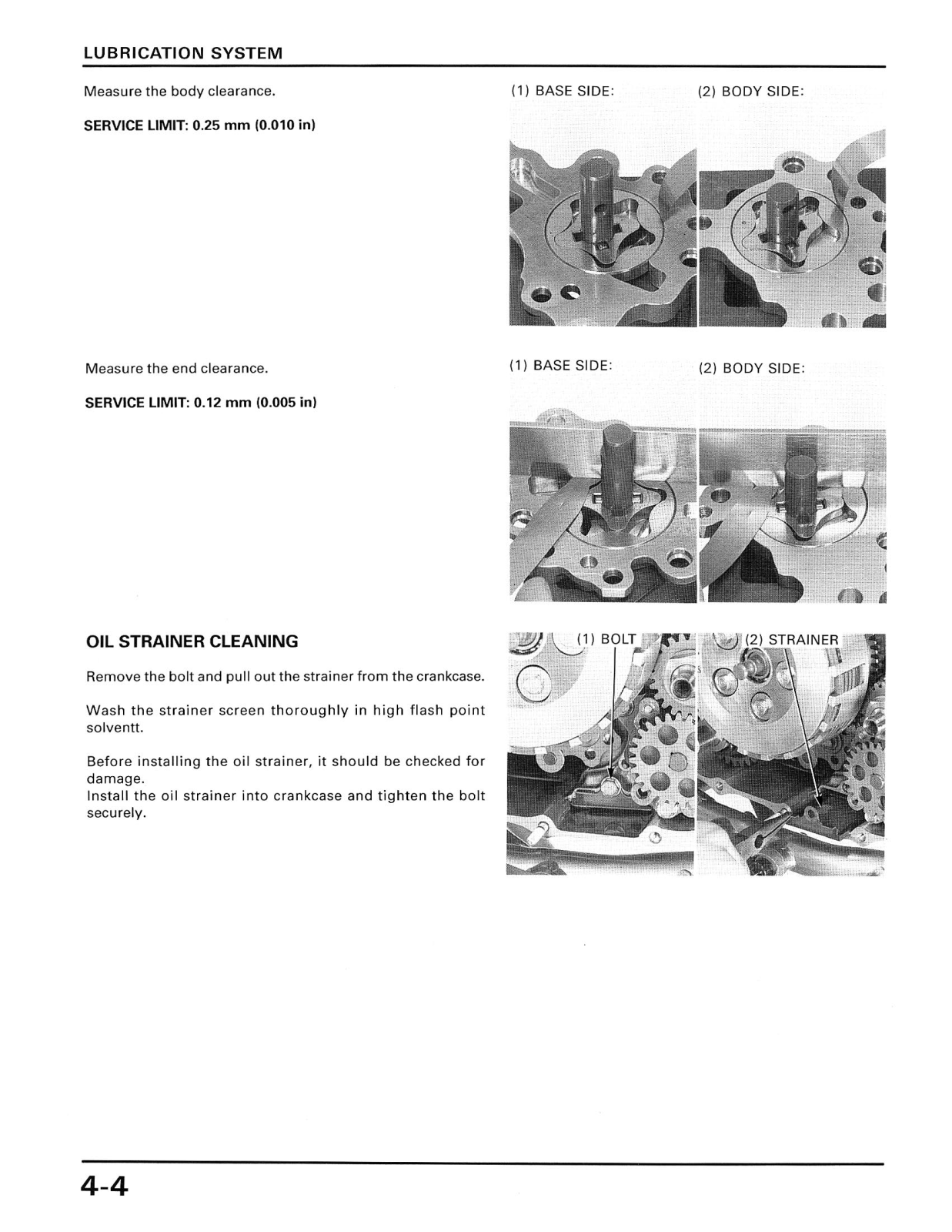

- Type of lubrication system: Forced Wet Multi-Sump System
- Type of cooling system: Air cooled

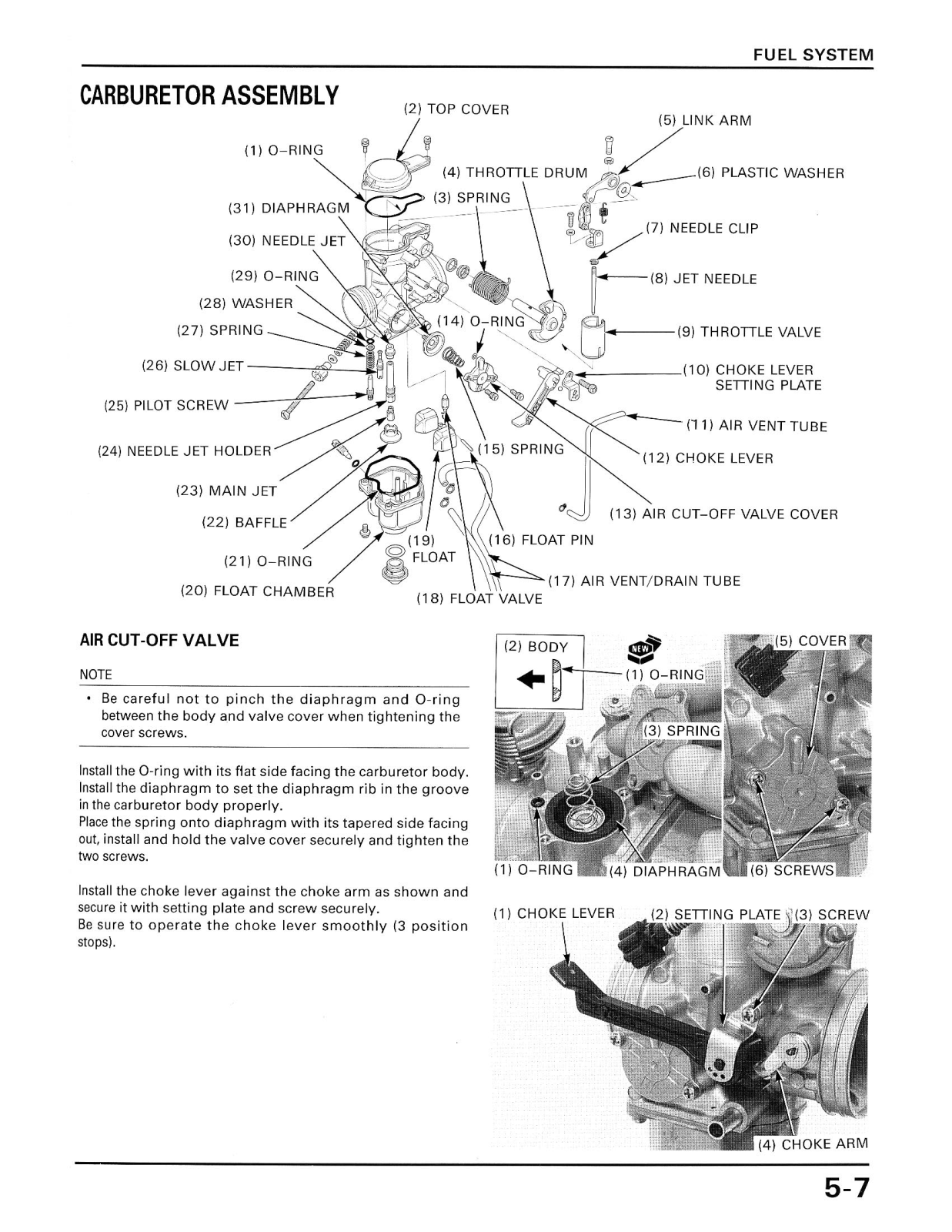

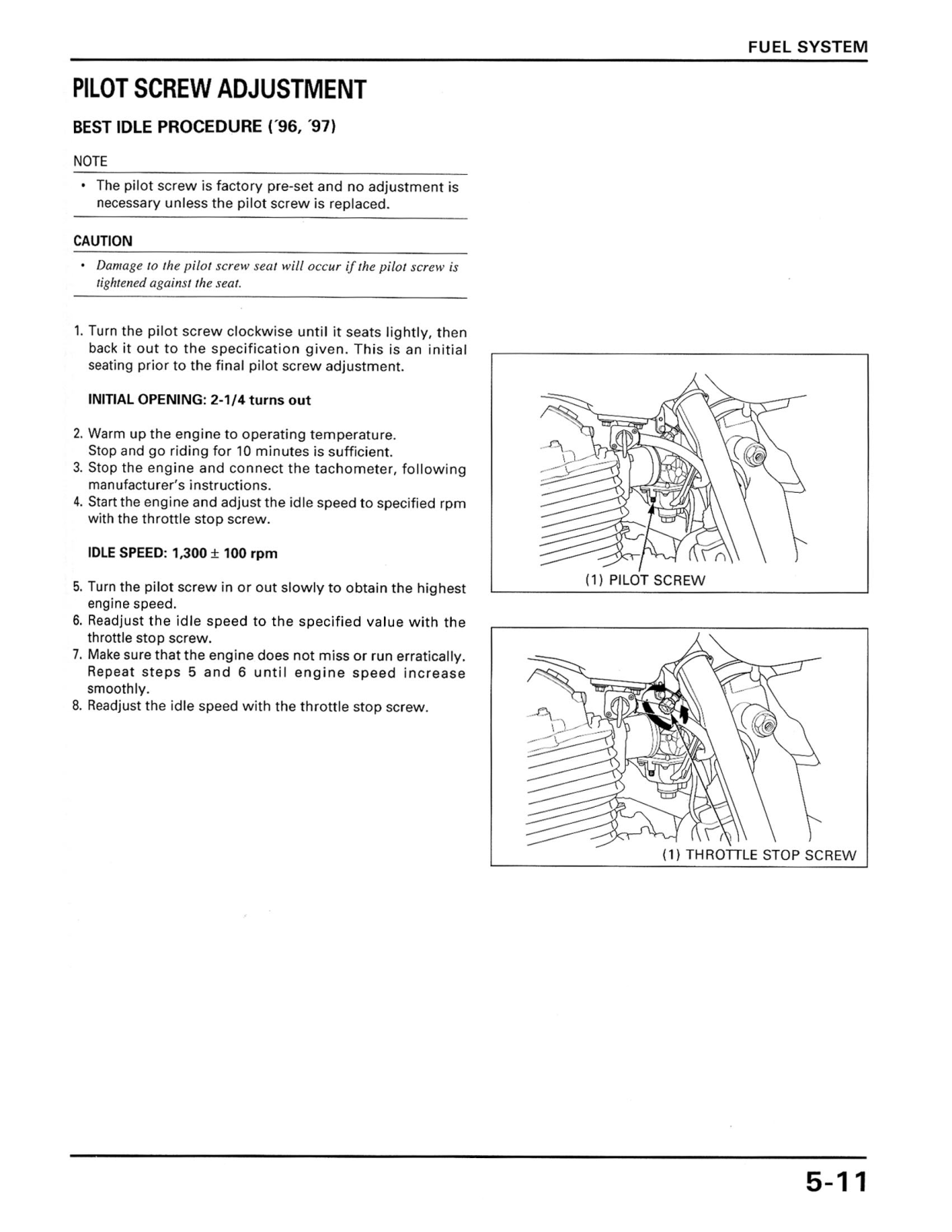

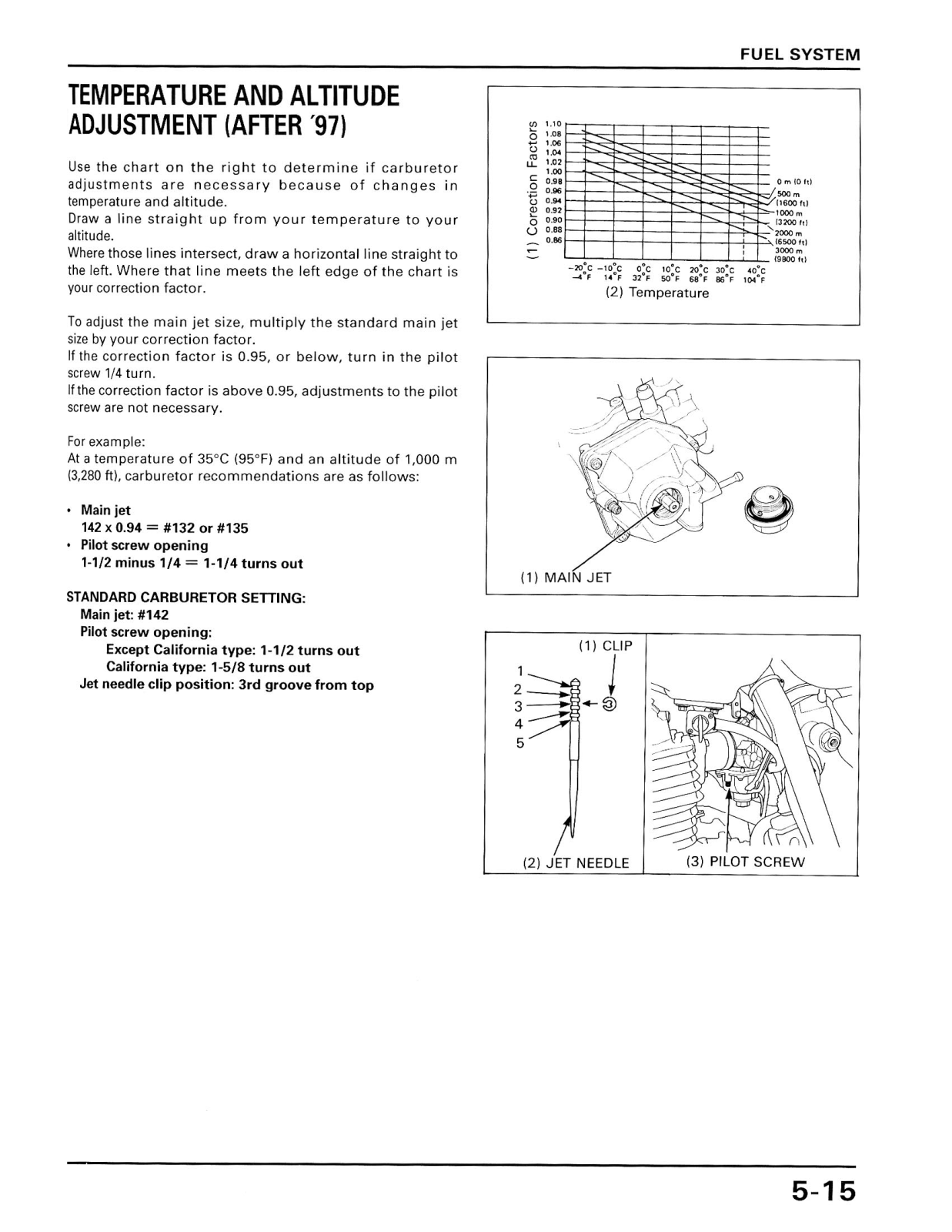

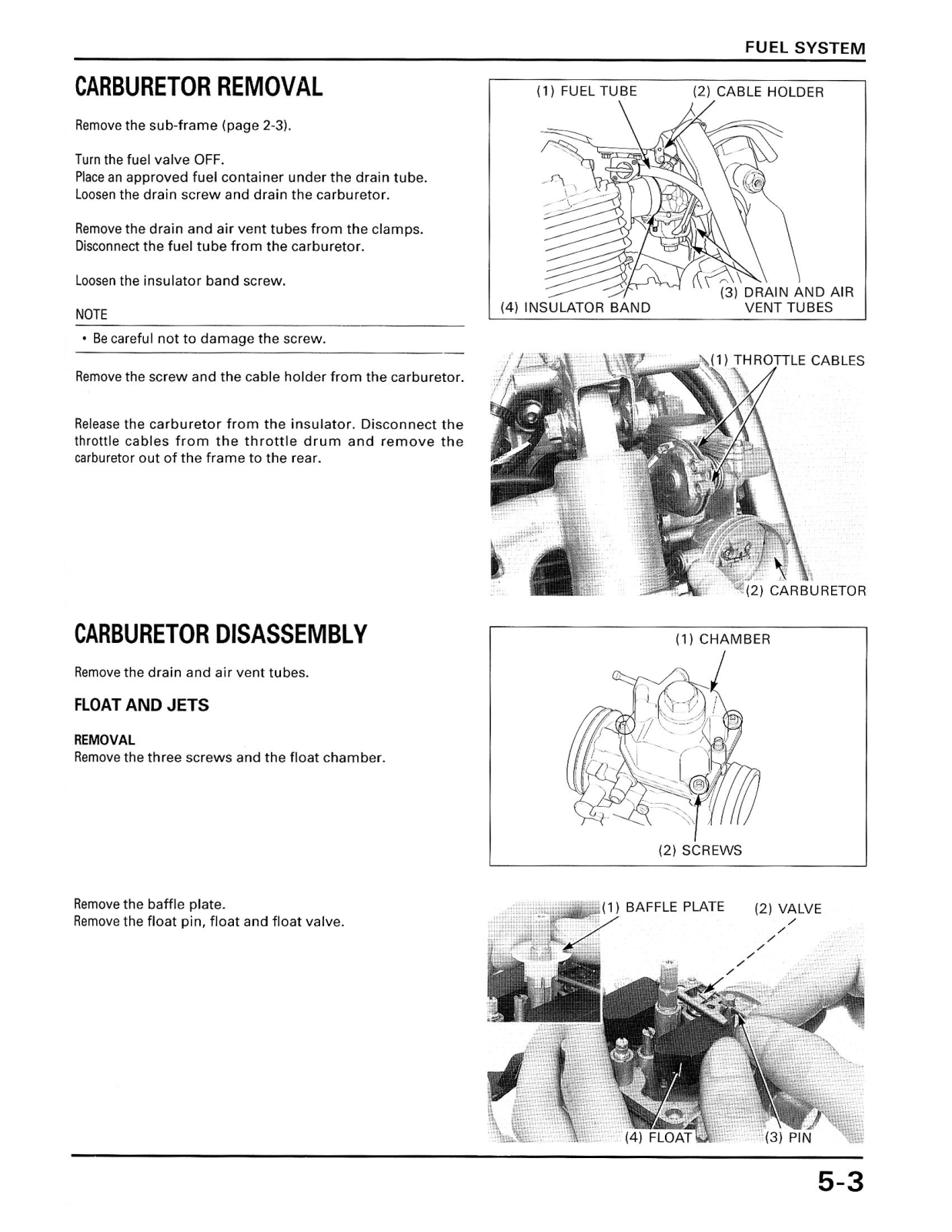

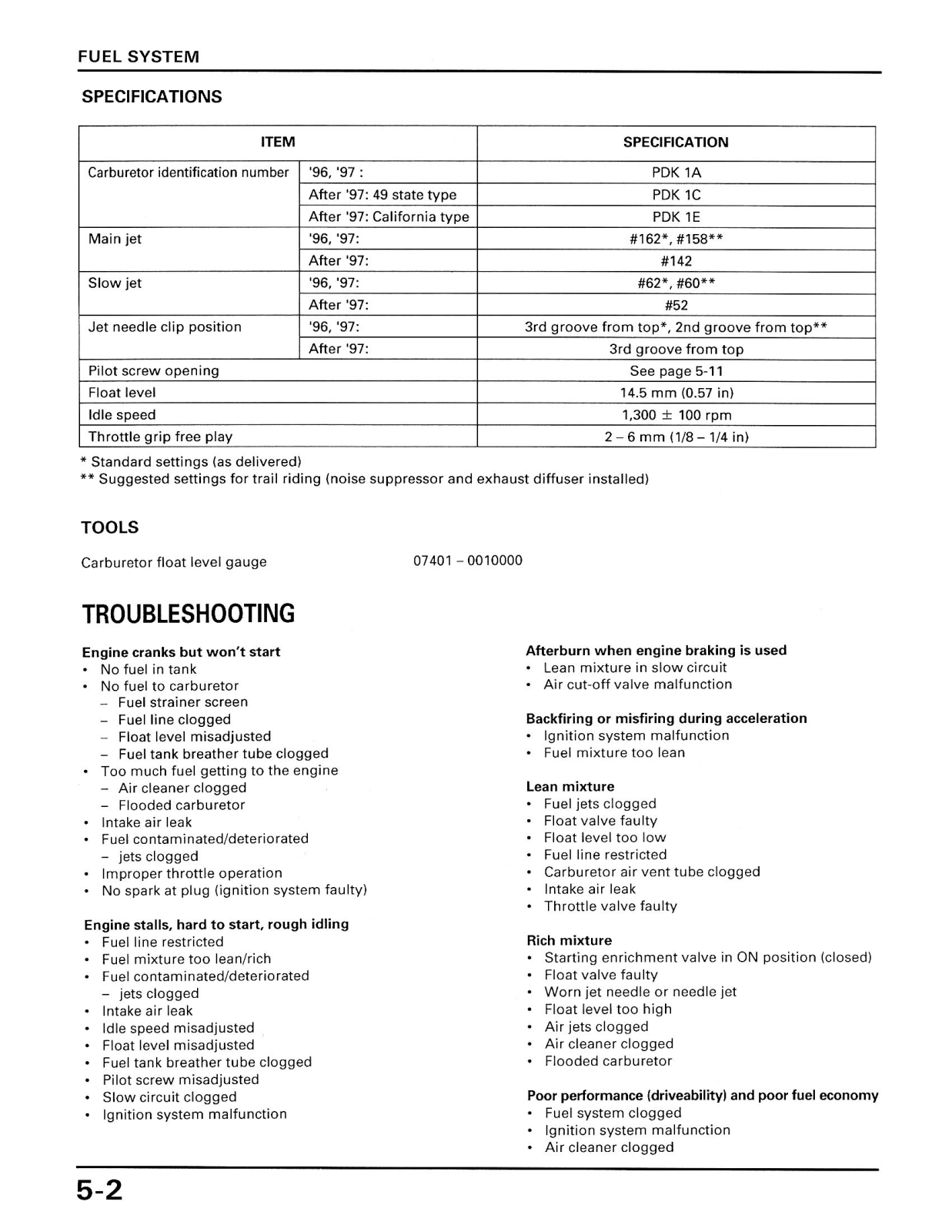

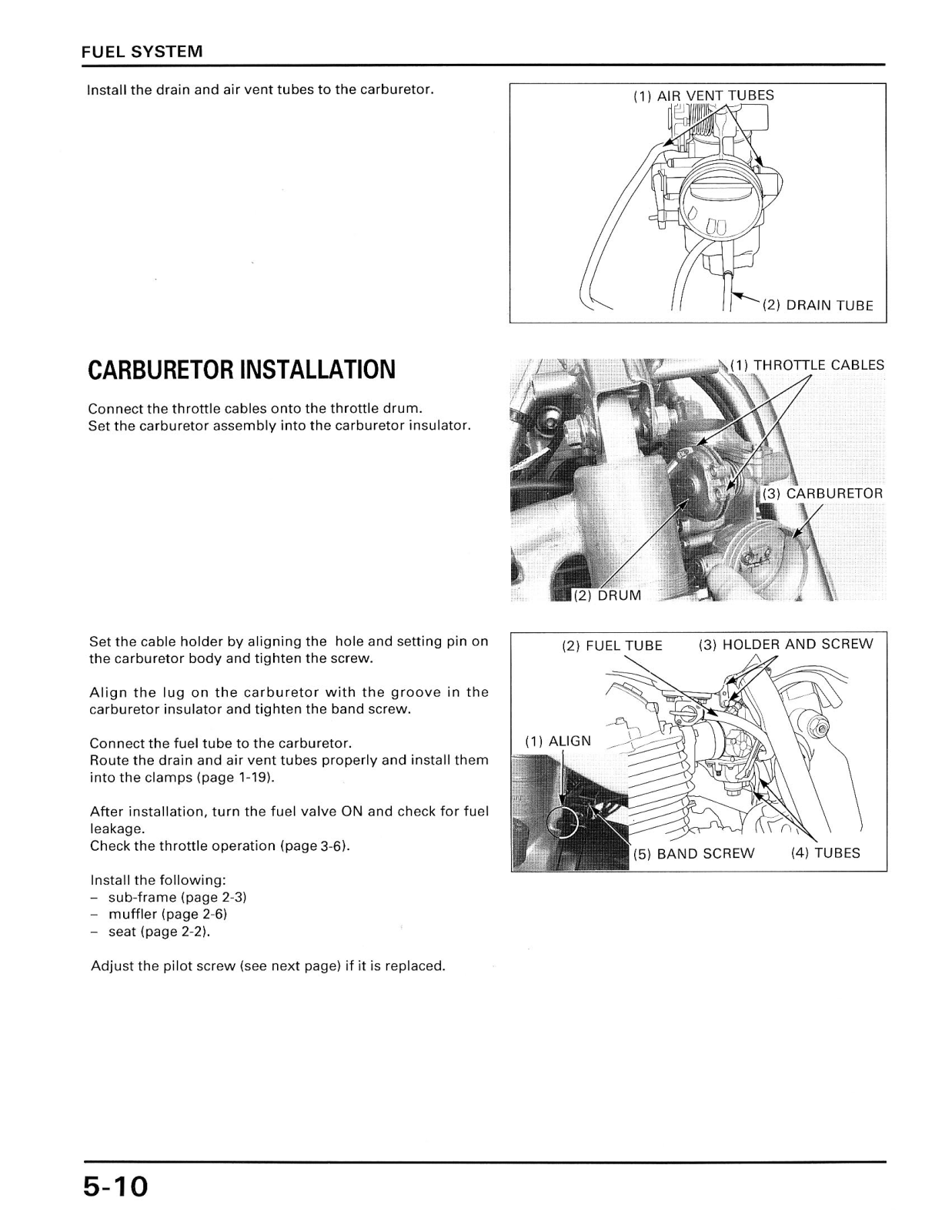

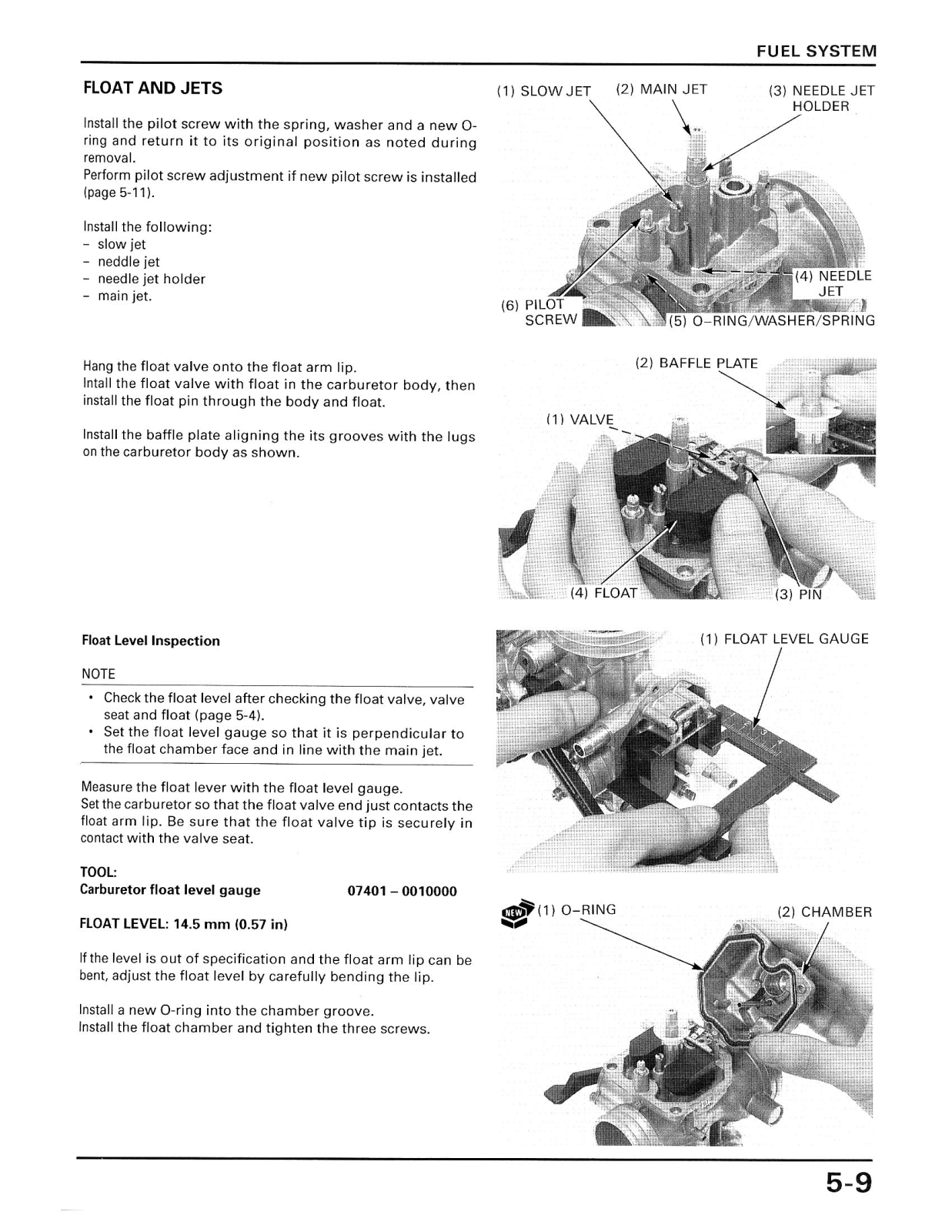

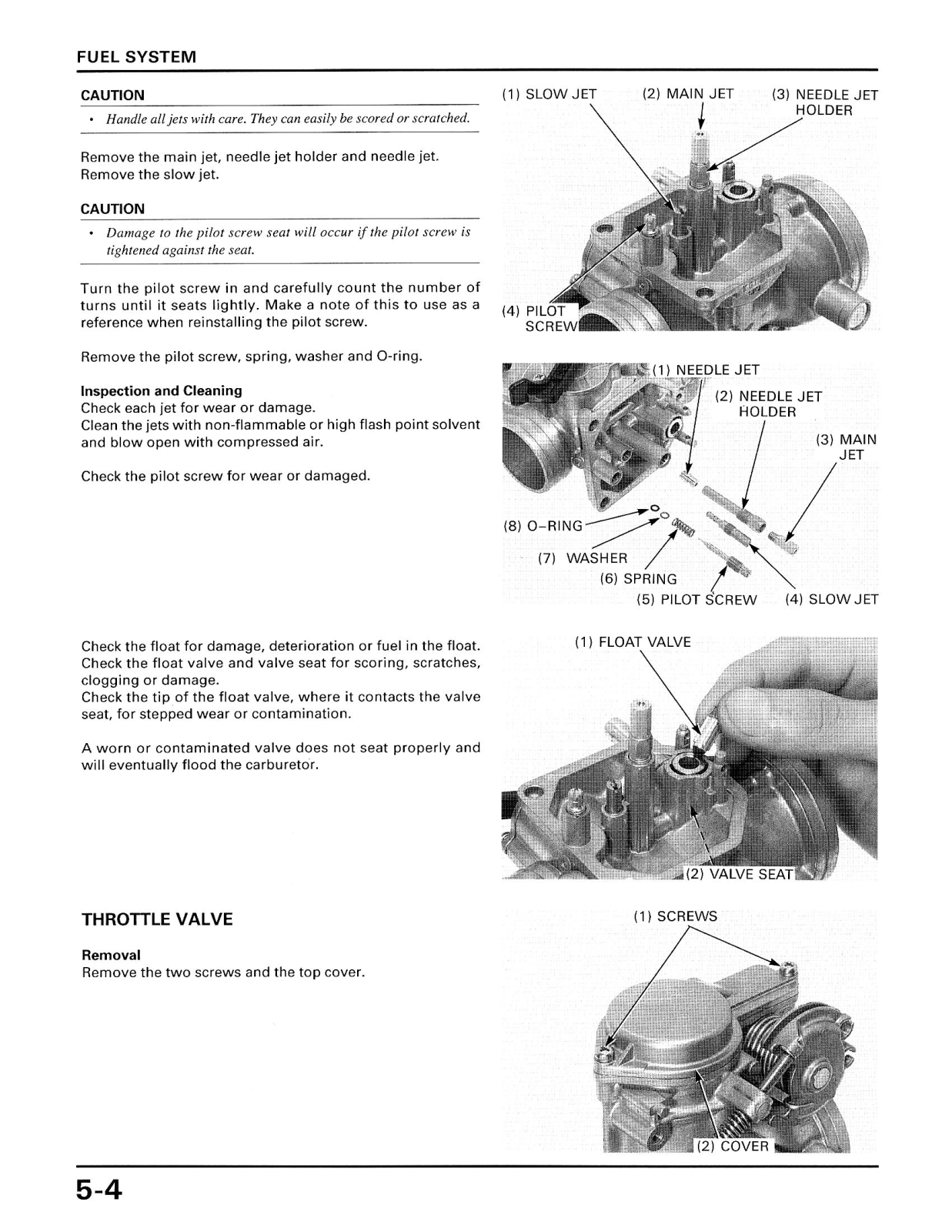

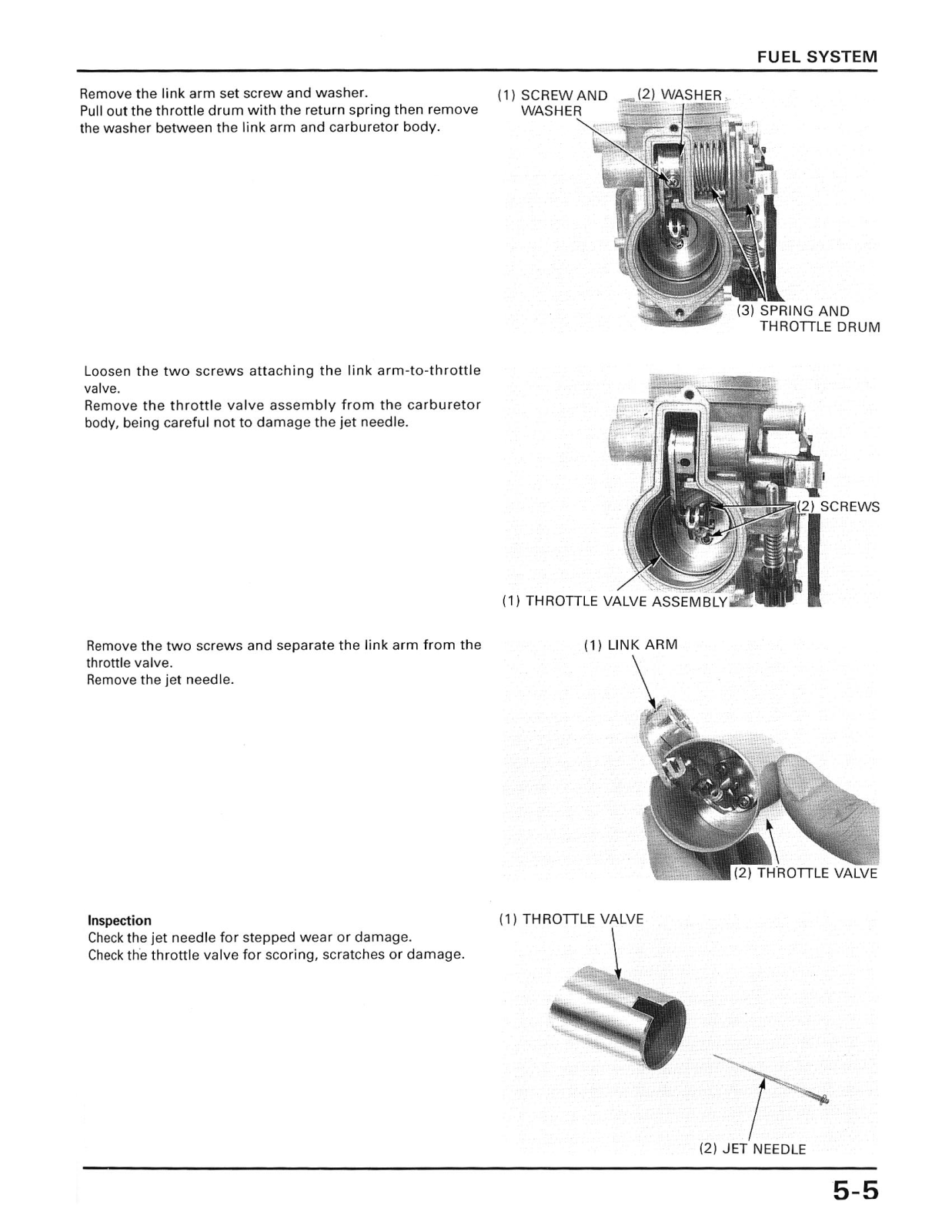

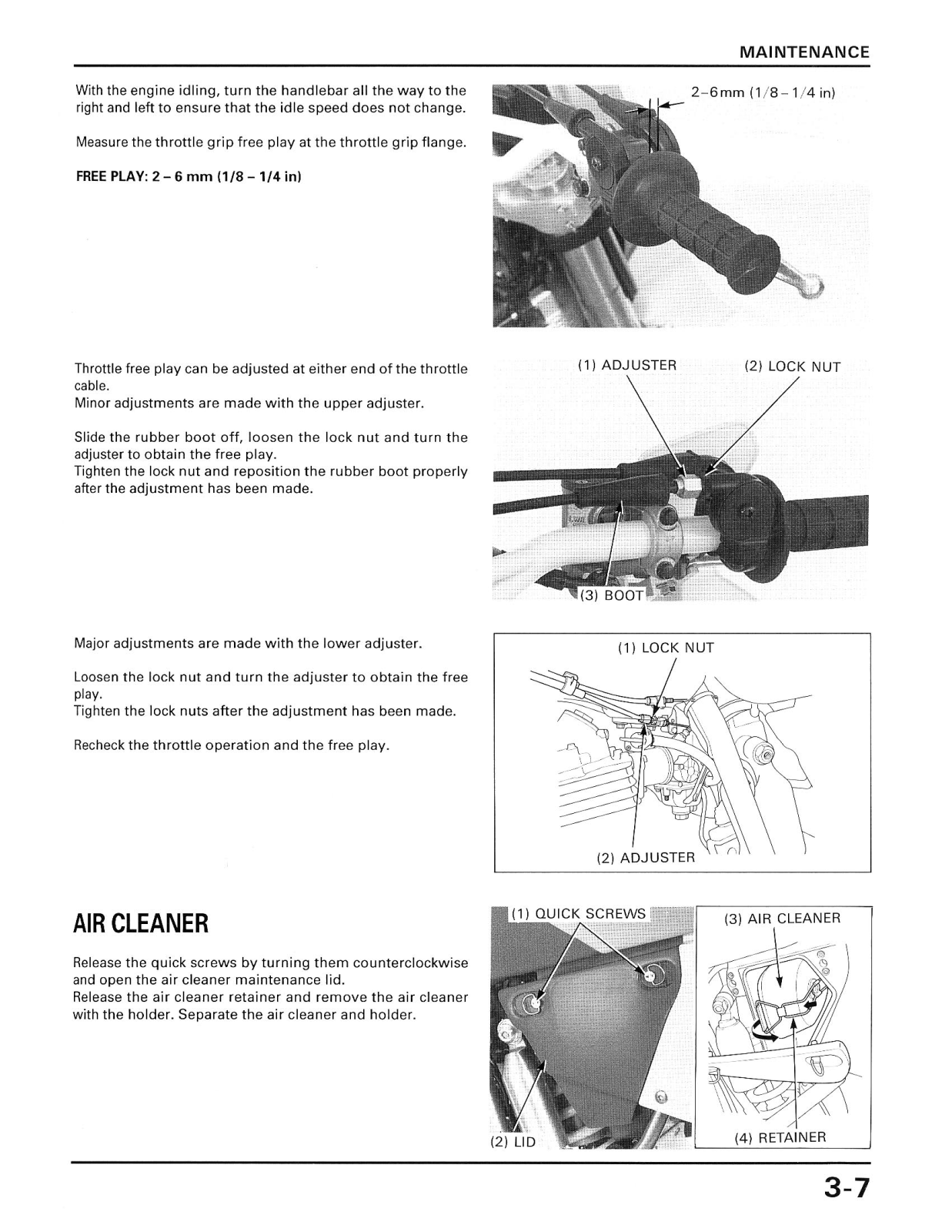

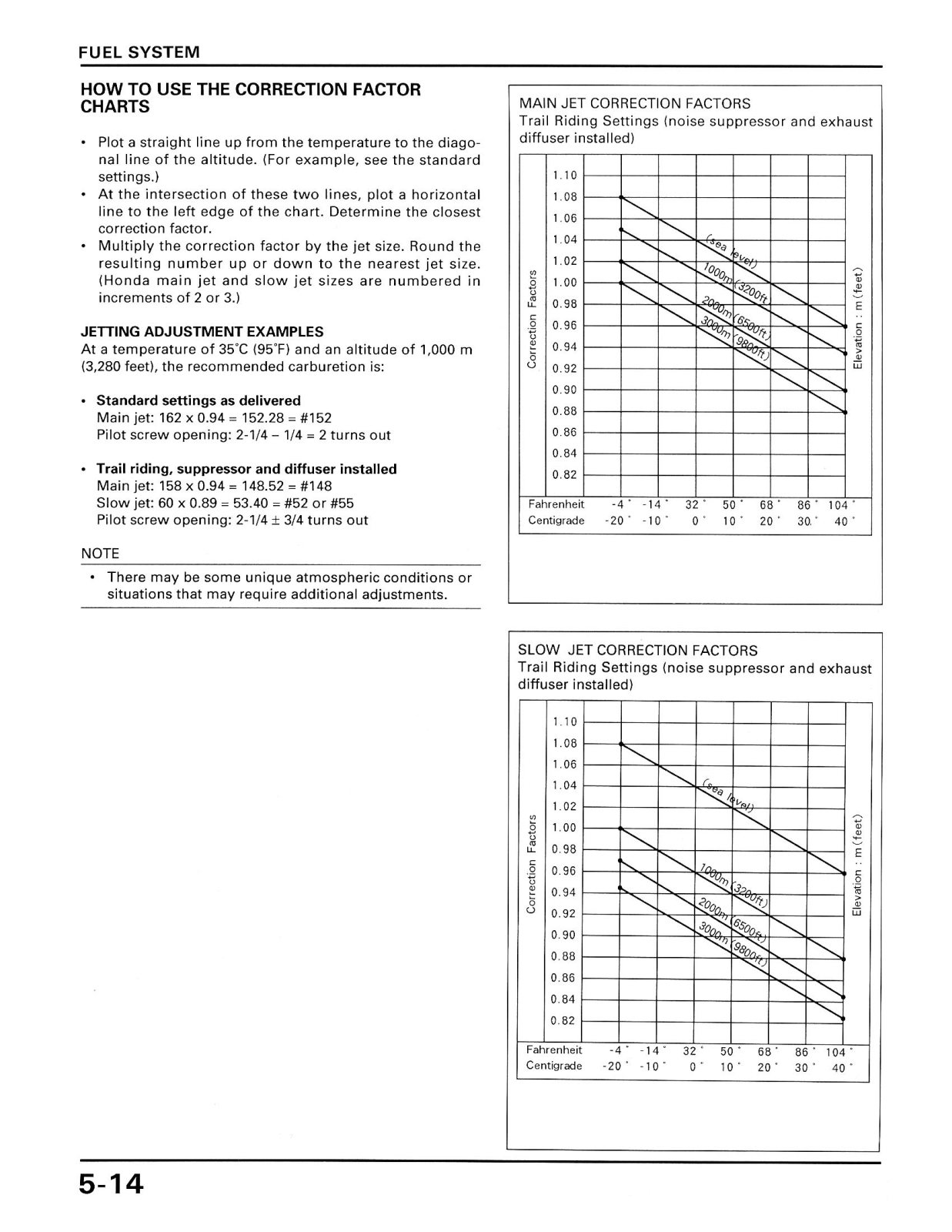

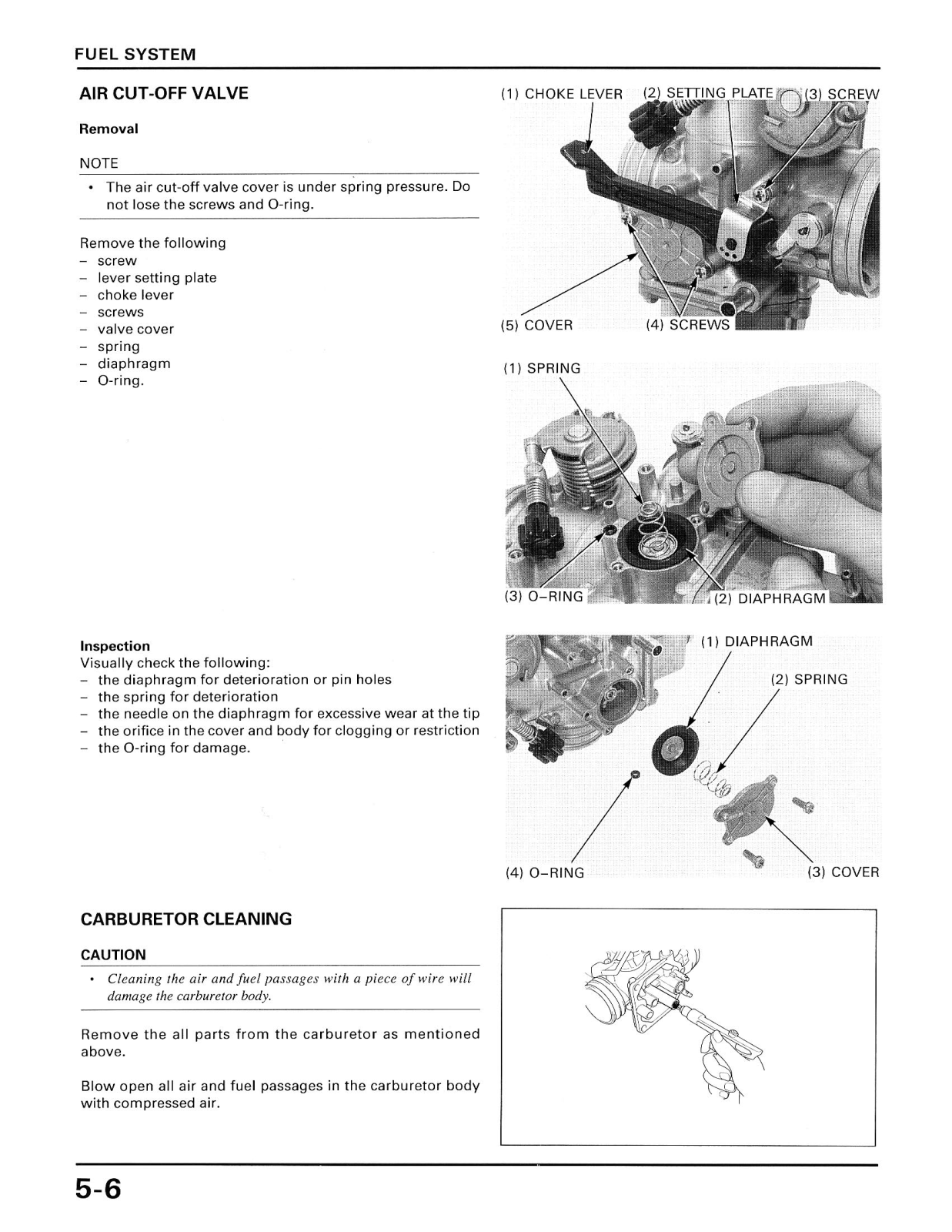

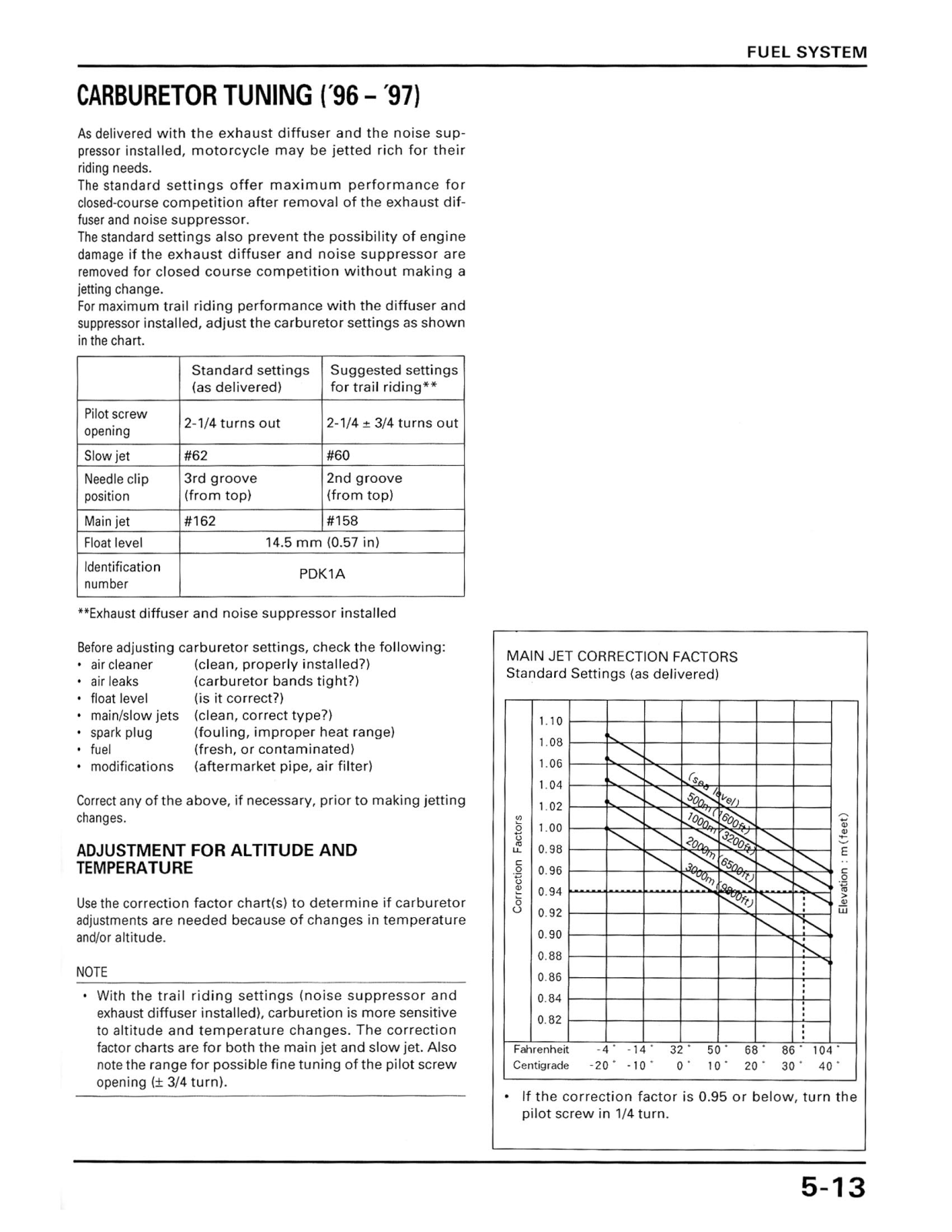

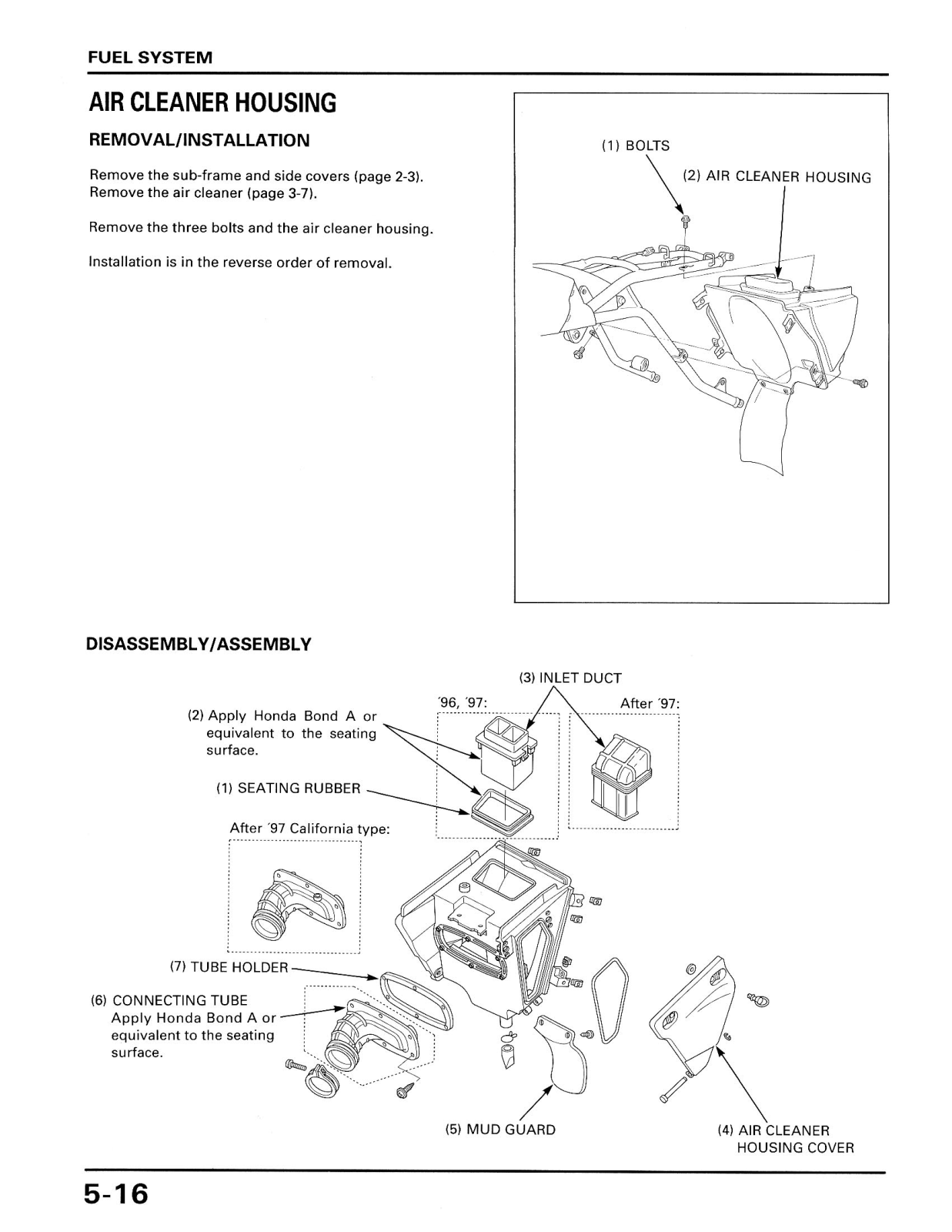

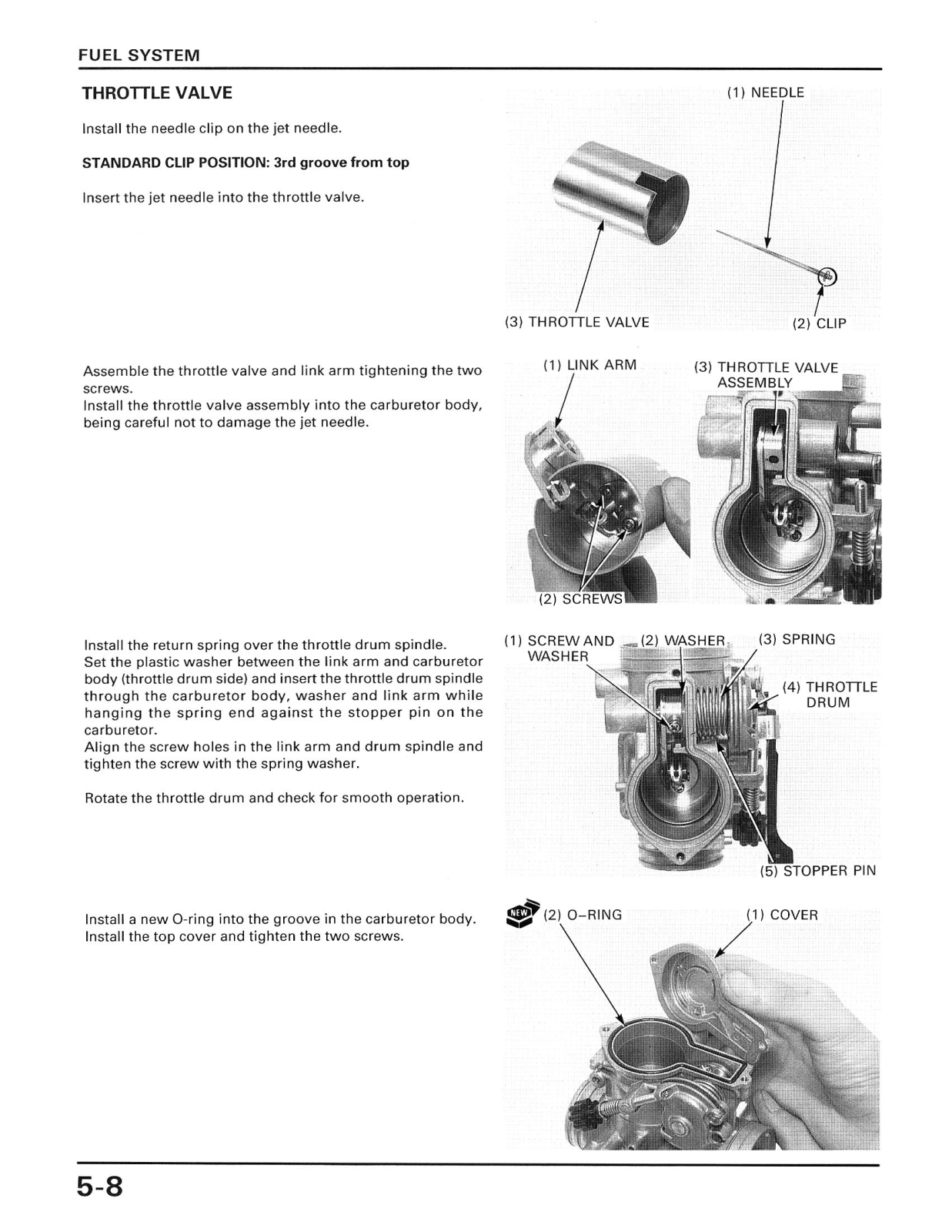

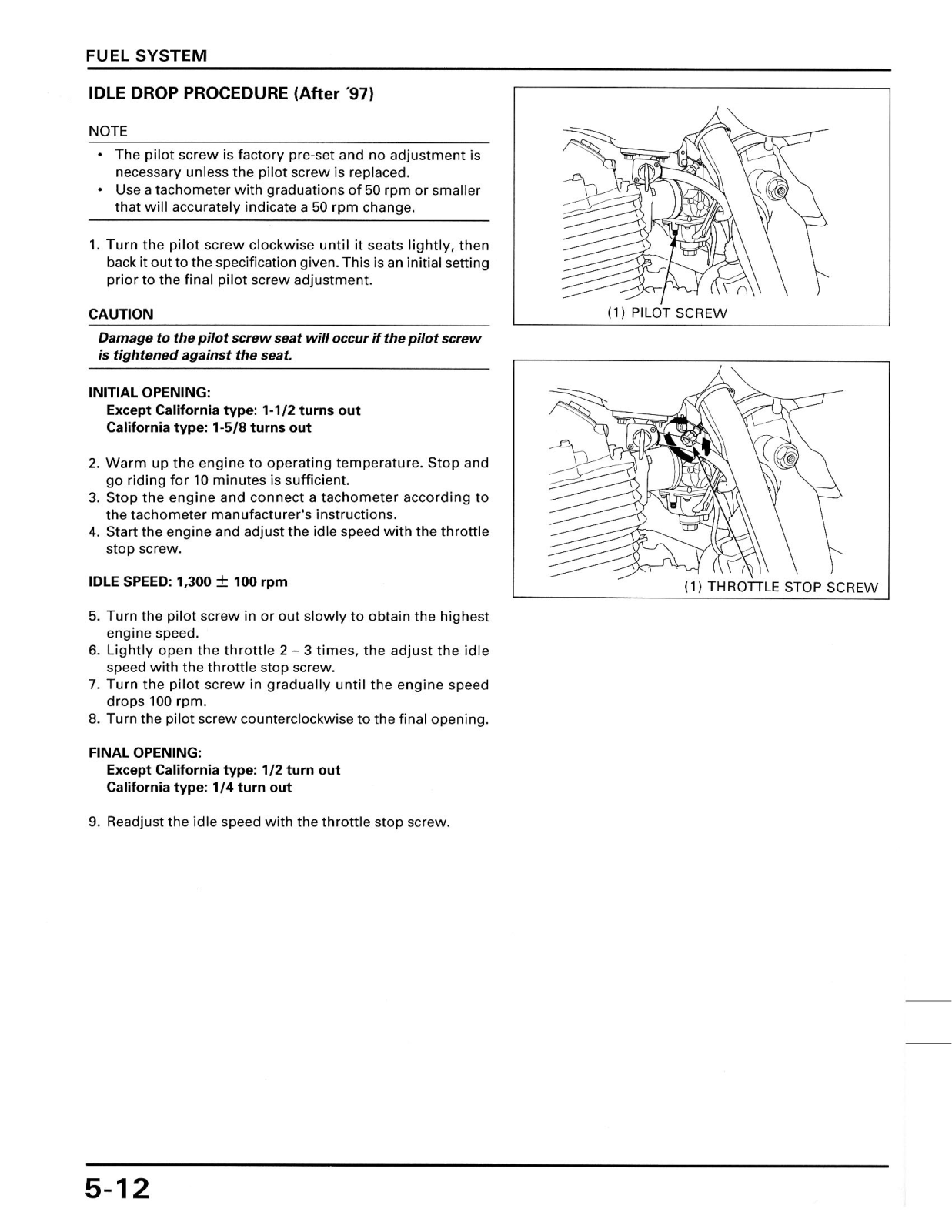

- Carburetor type: Piston valve with a throttle bore of 38 mm (1.5 in)

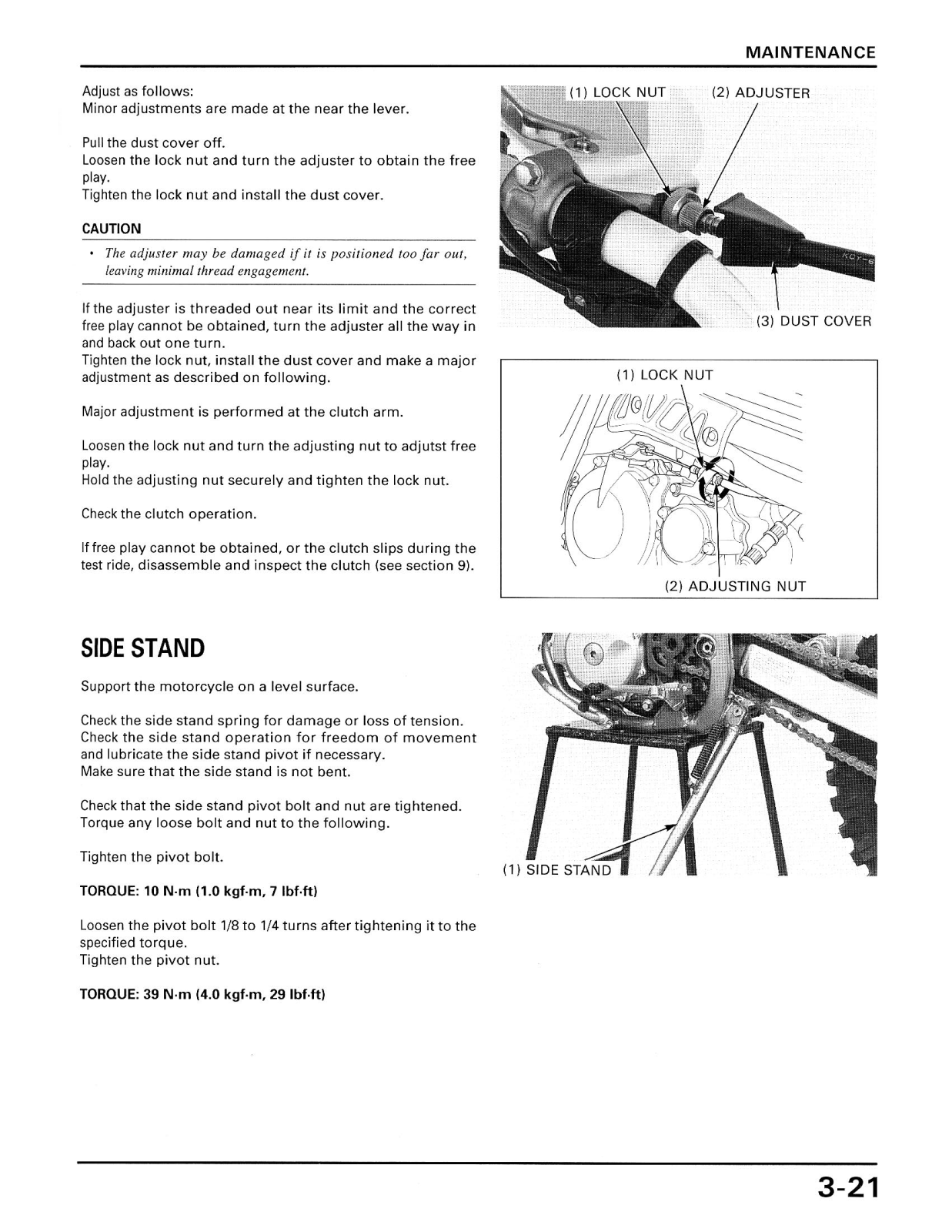

- Clutch system: Multi-plate, wet

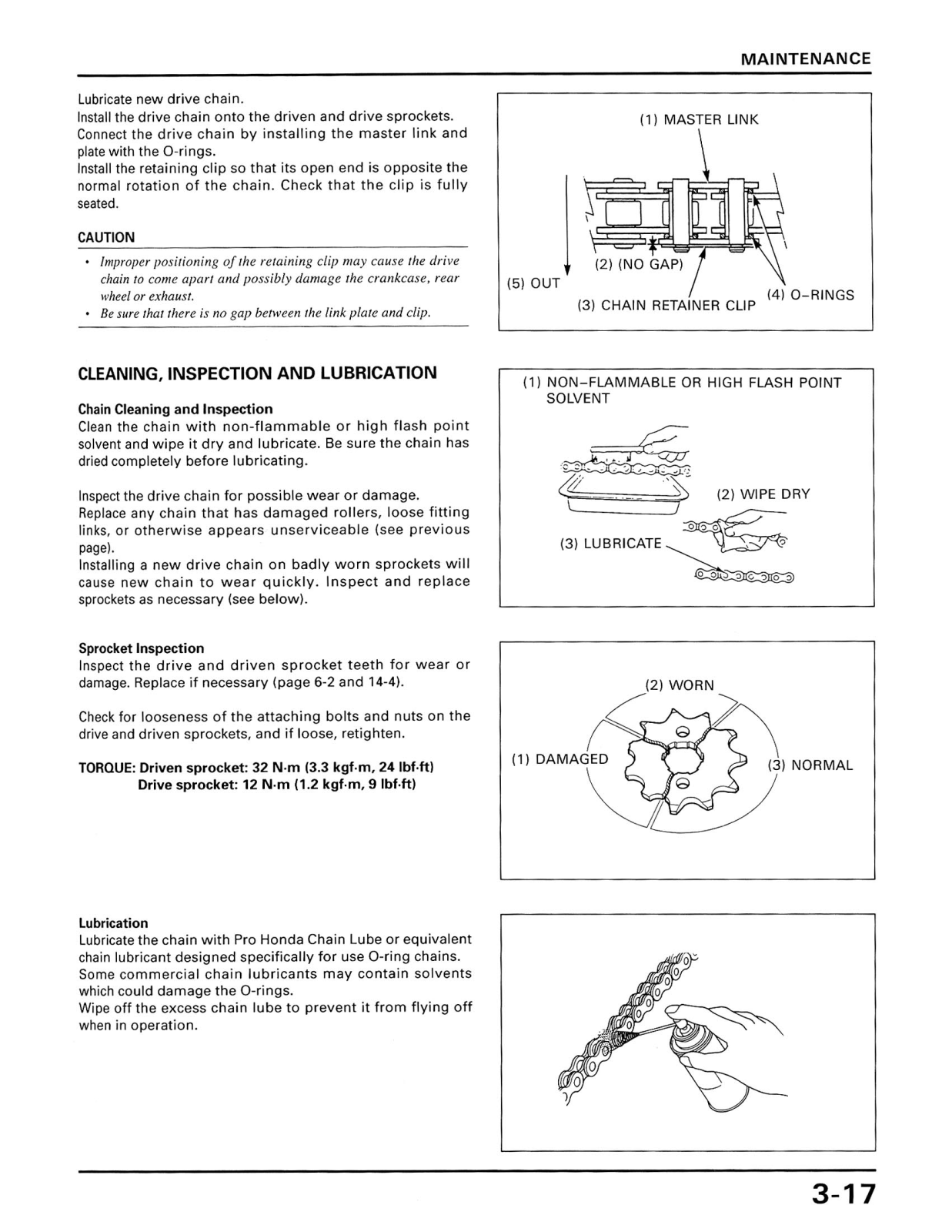

- Transmission: 5 speeds
- Ignition system: CDI (Capacitive Discharge Ignition)

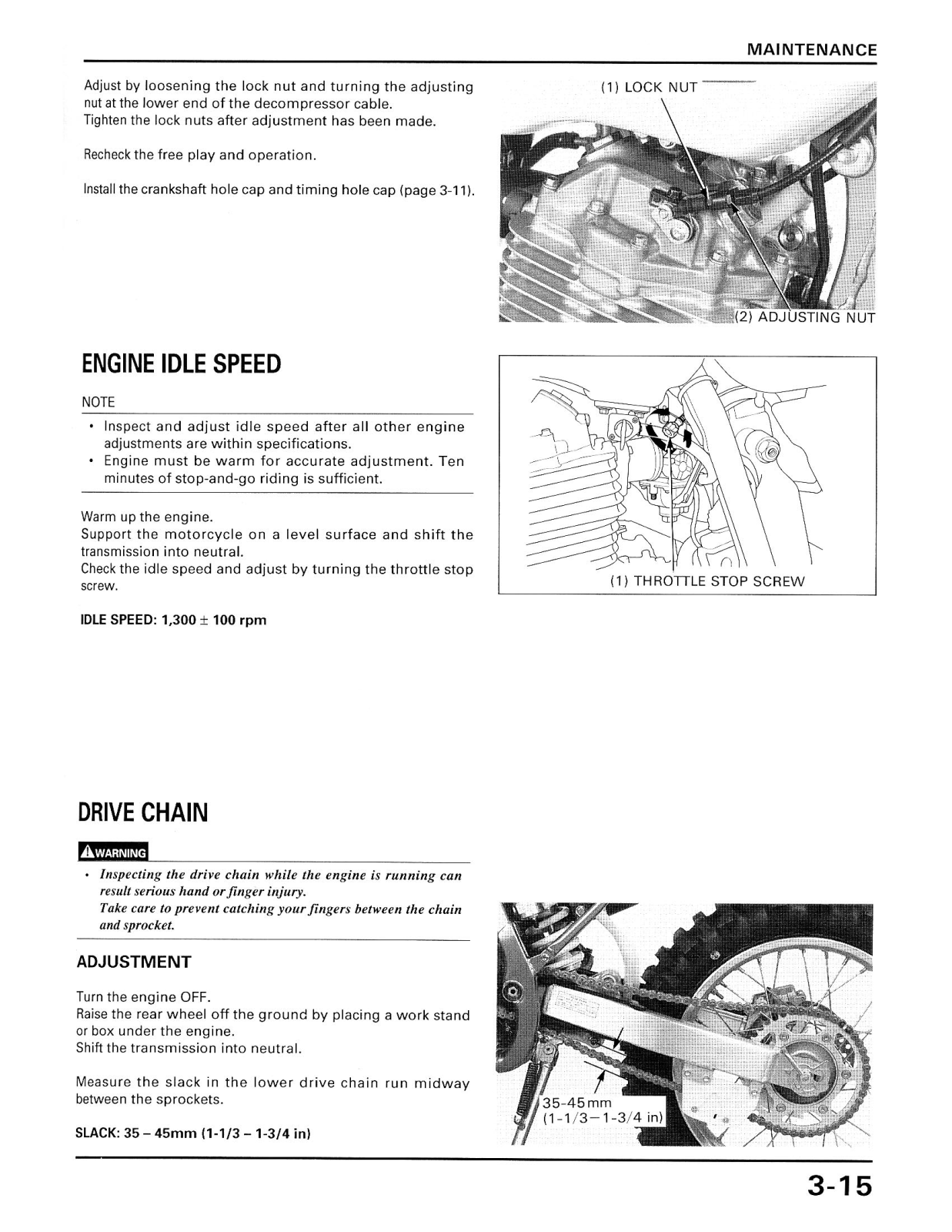

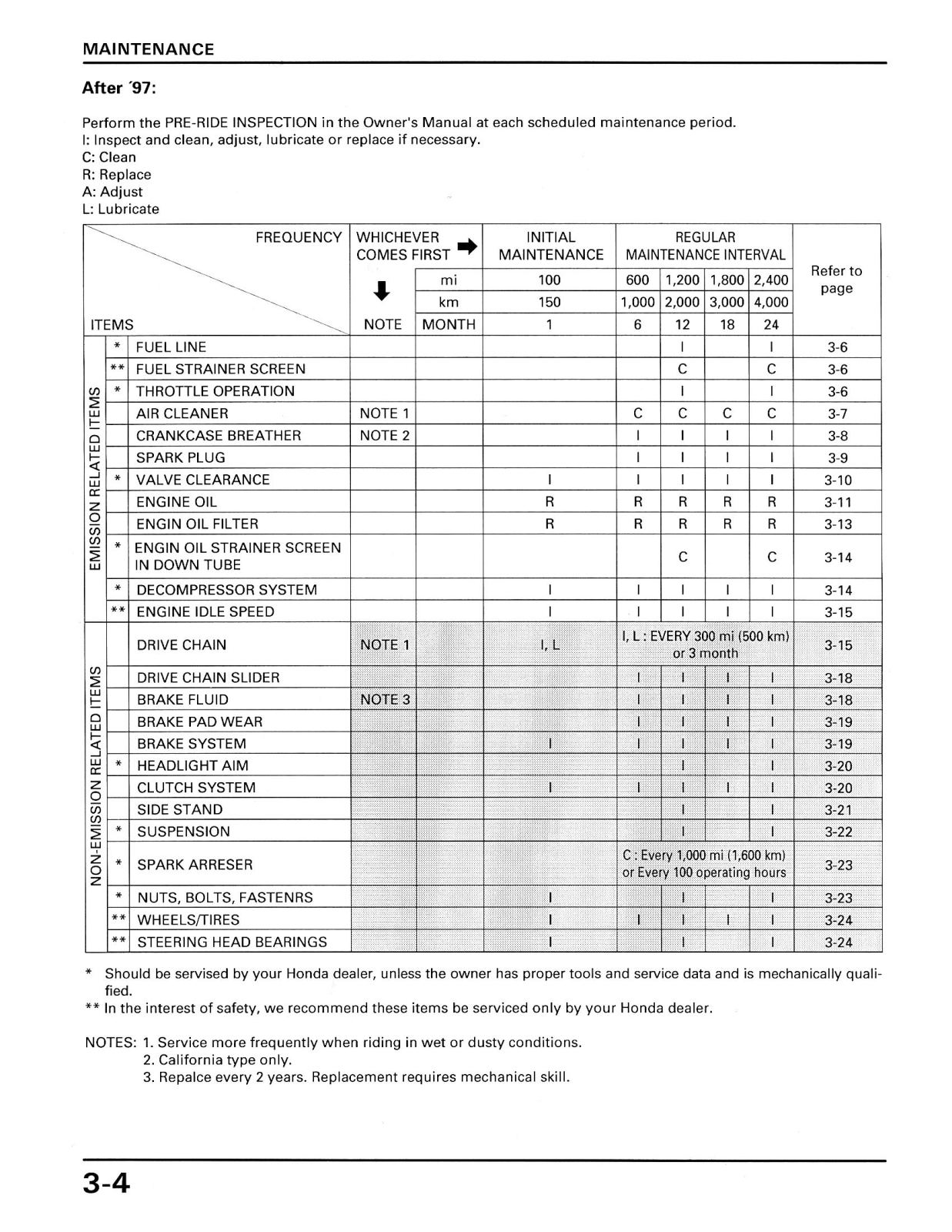

Frequently Asked Questions

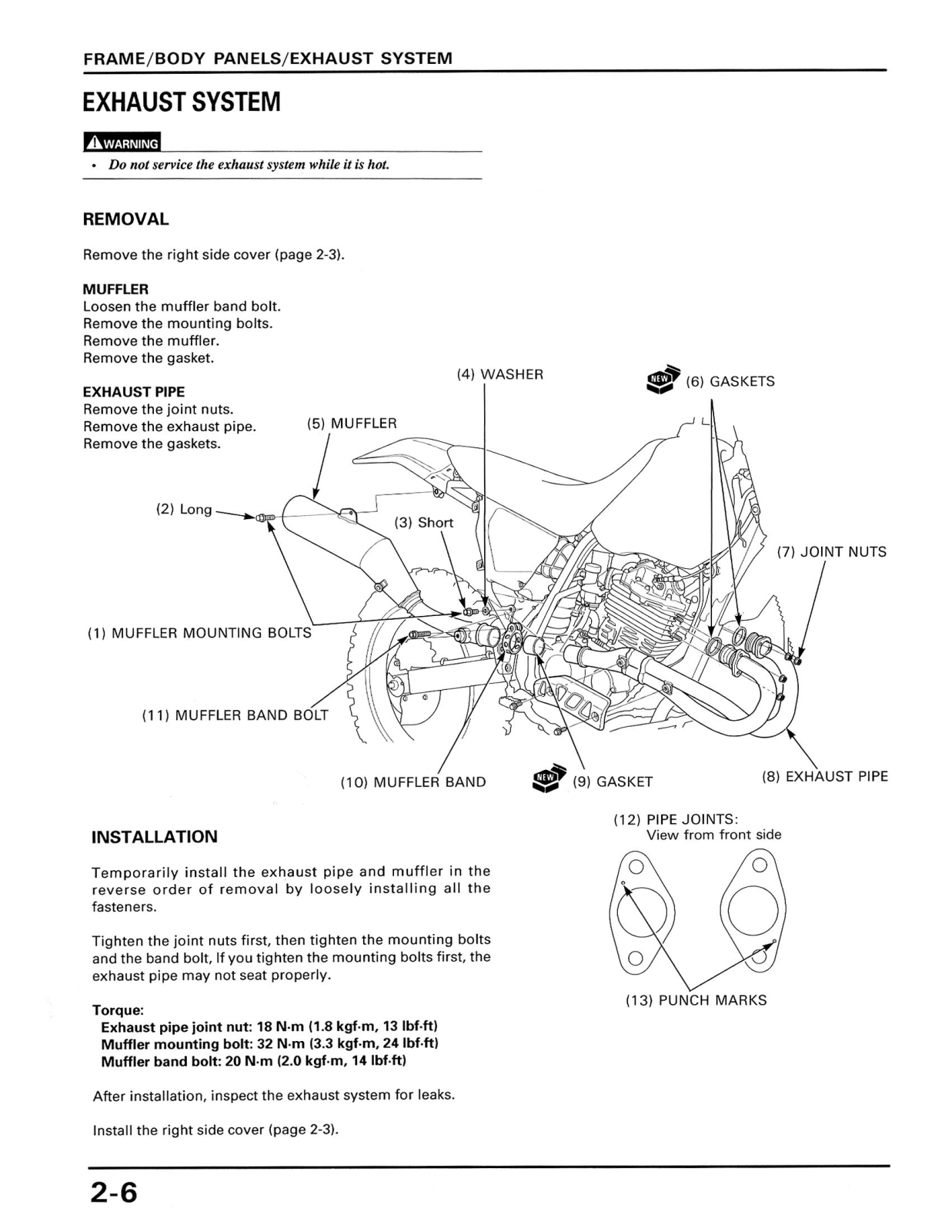

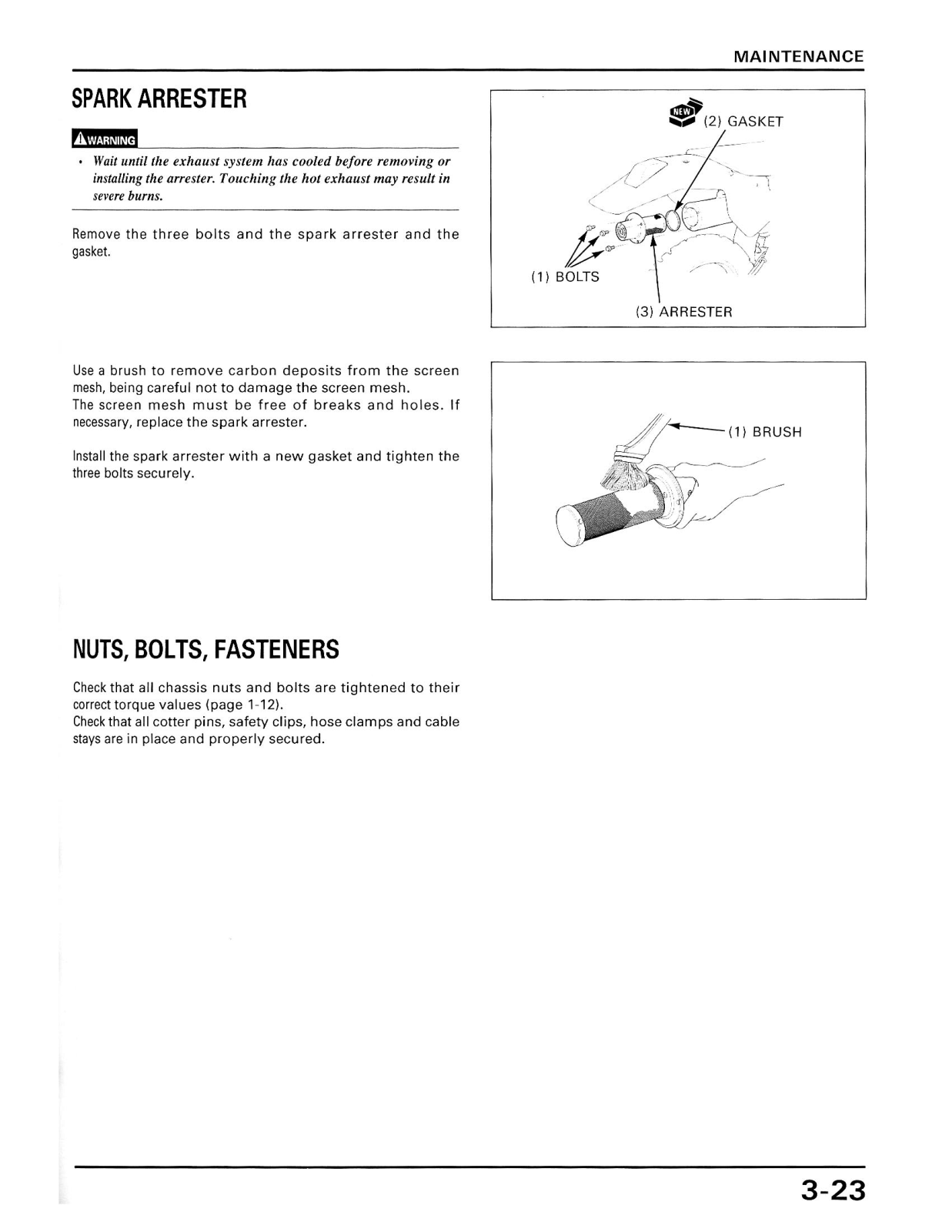

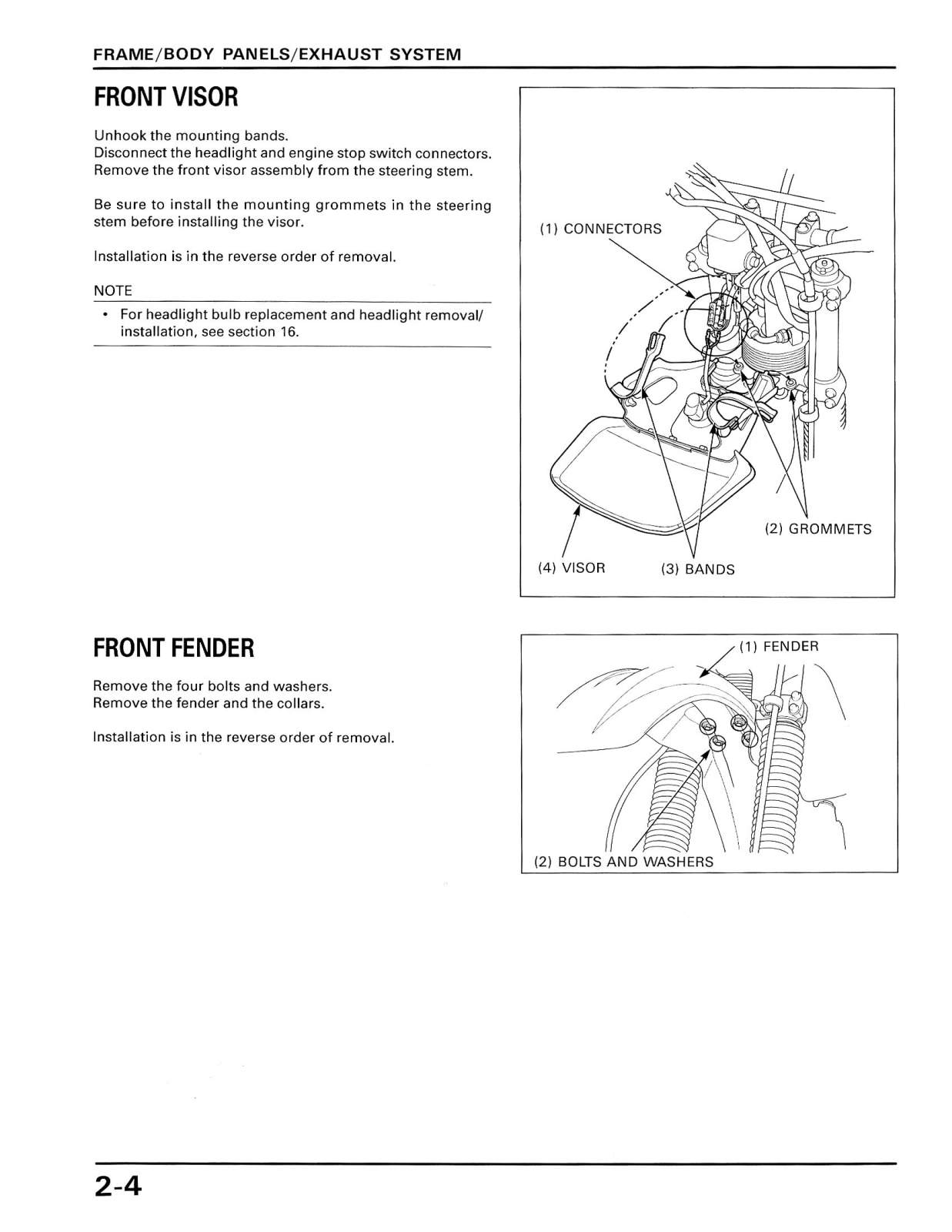

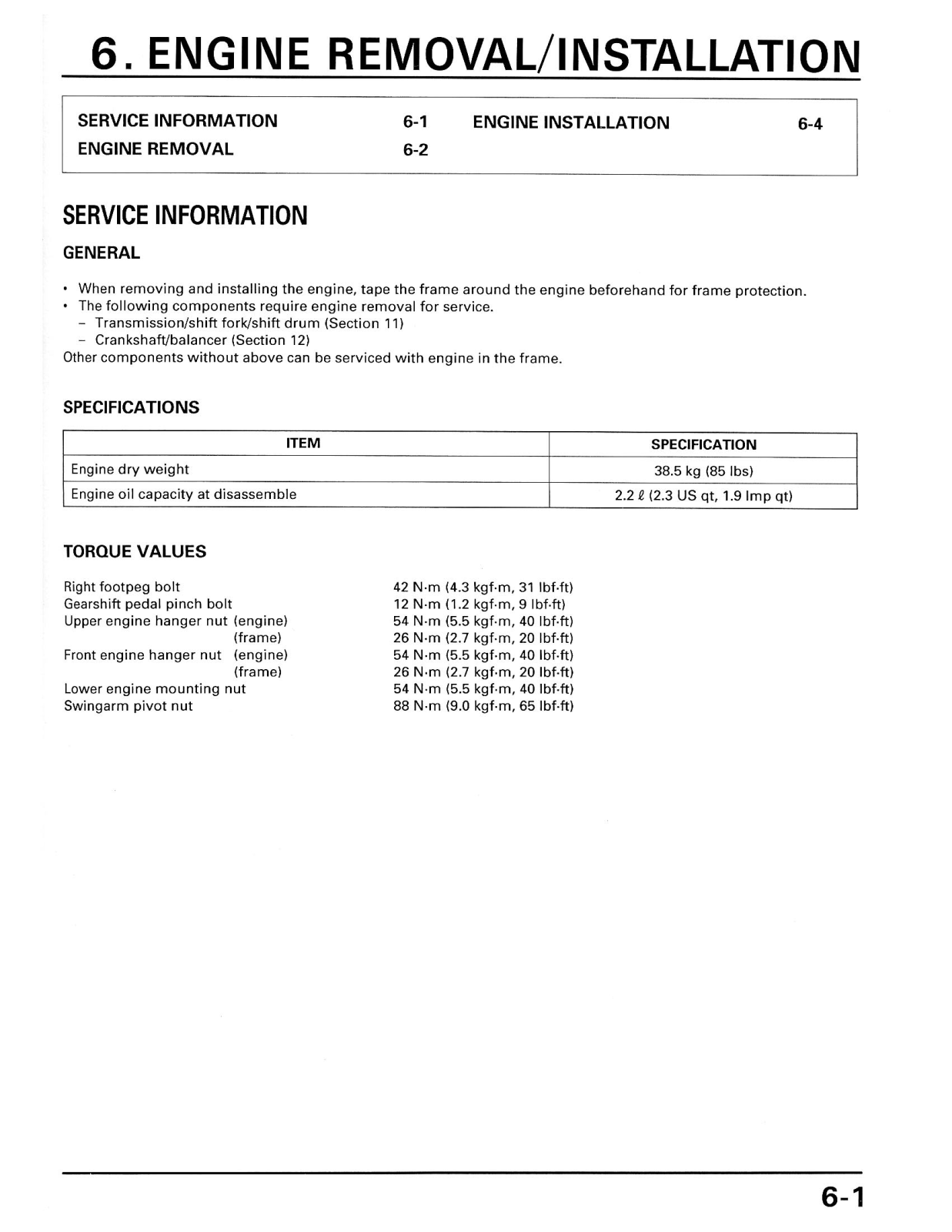

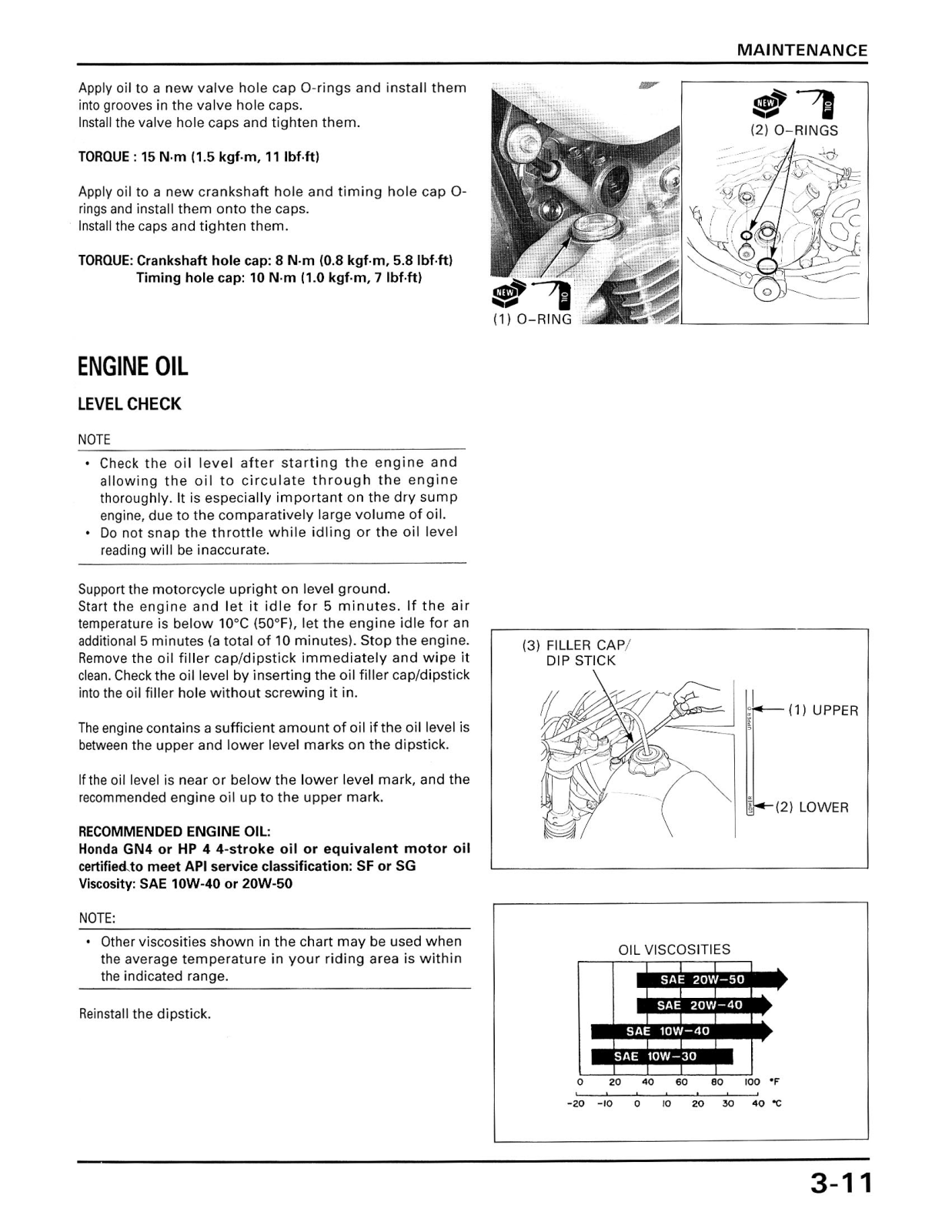

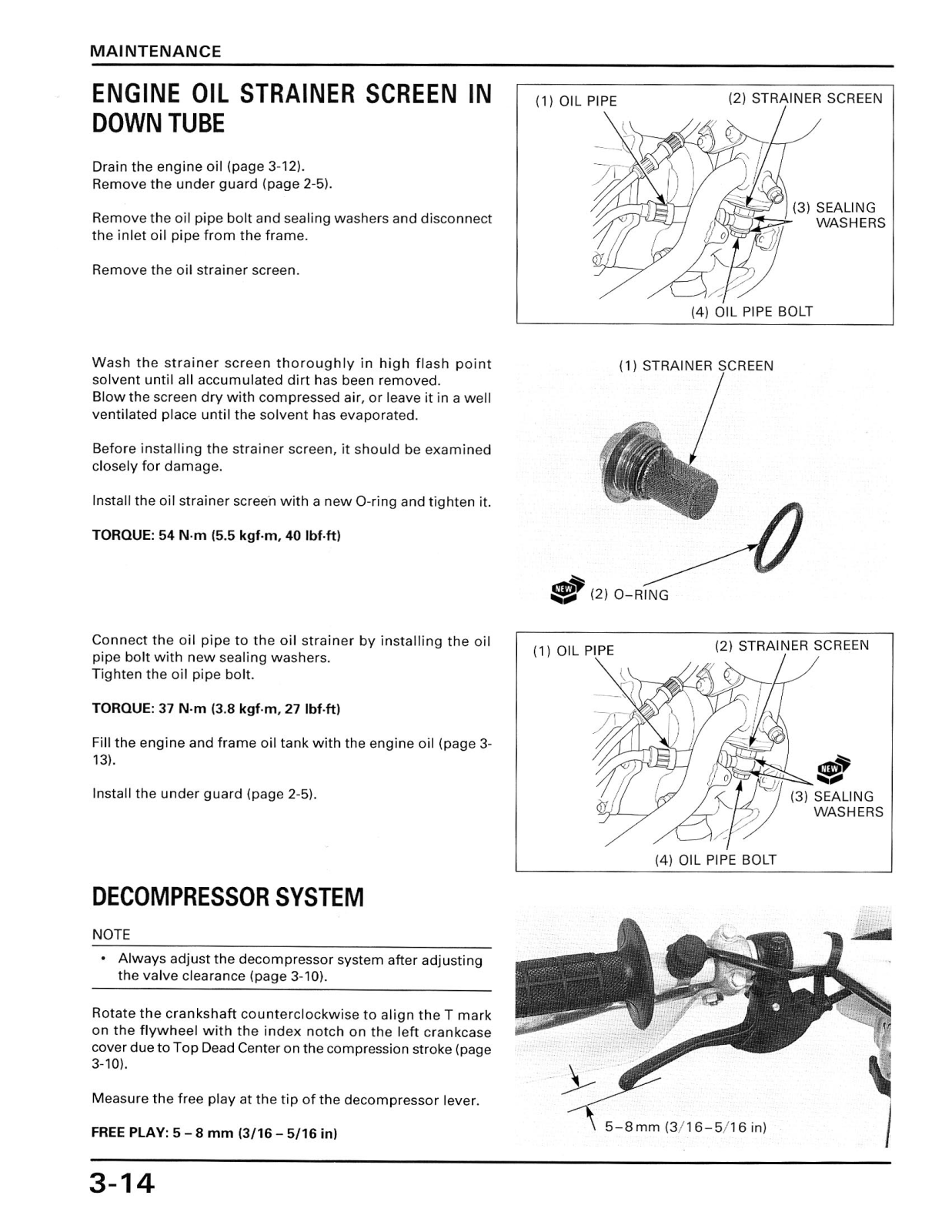

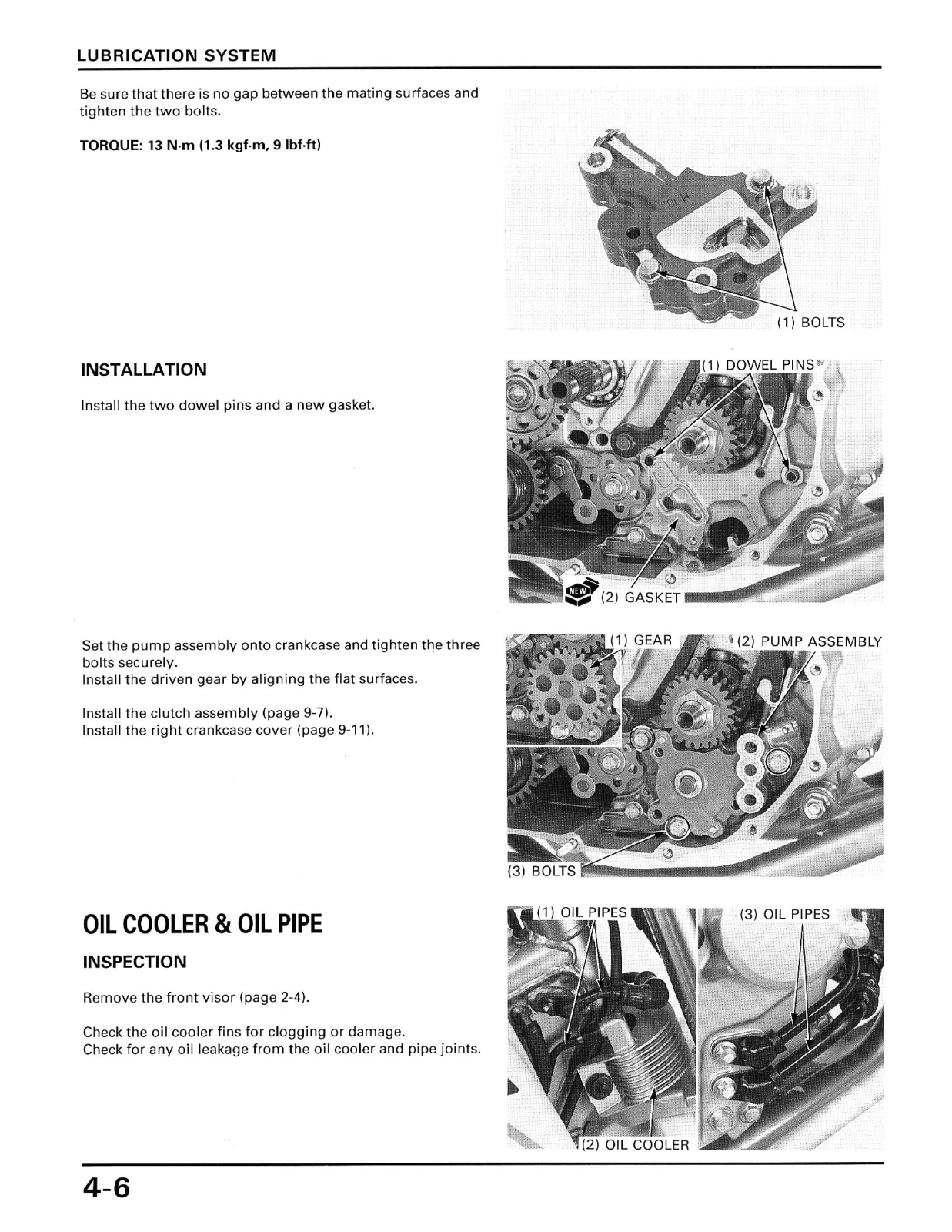

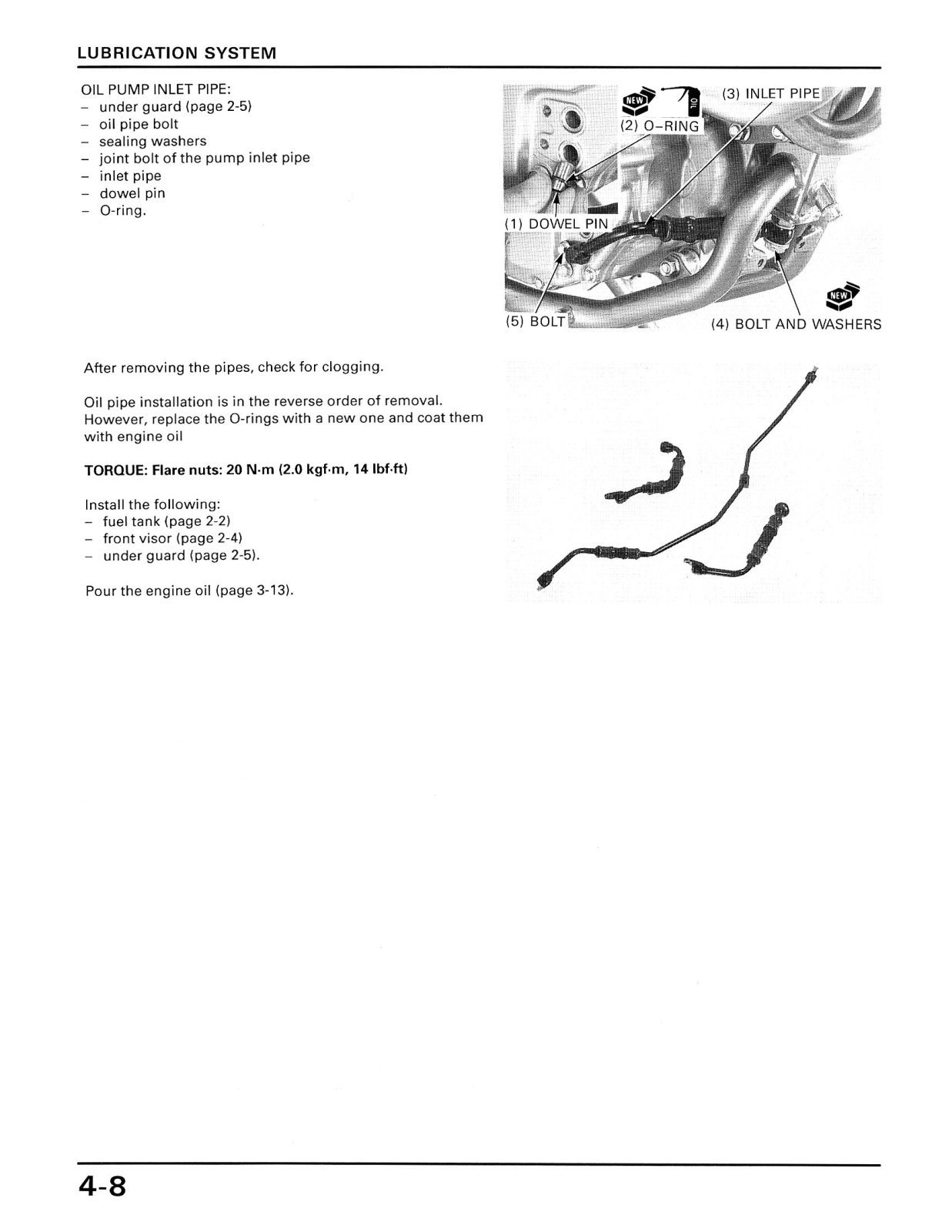

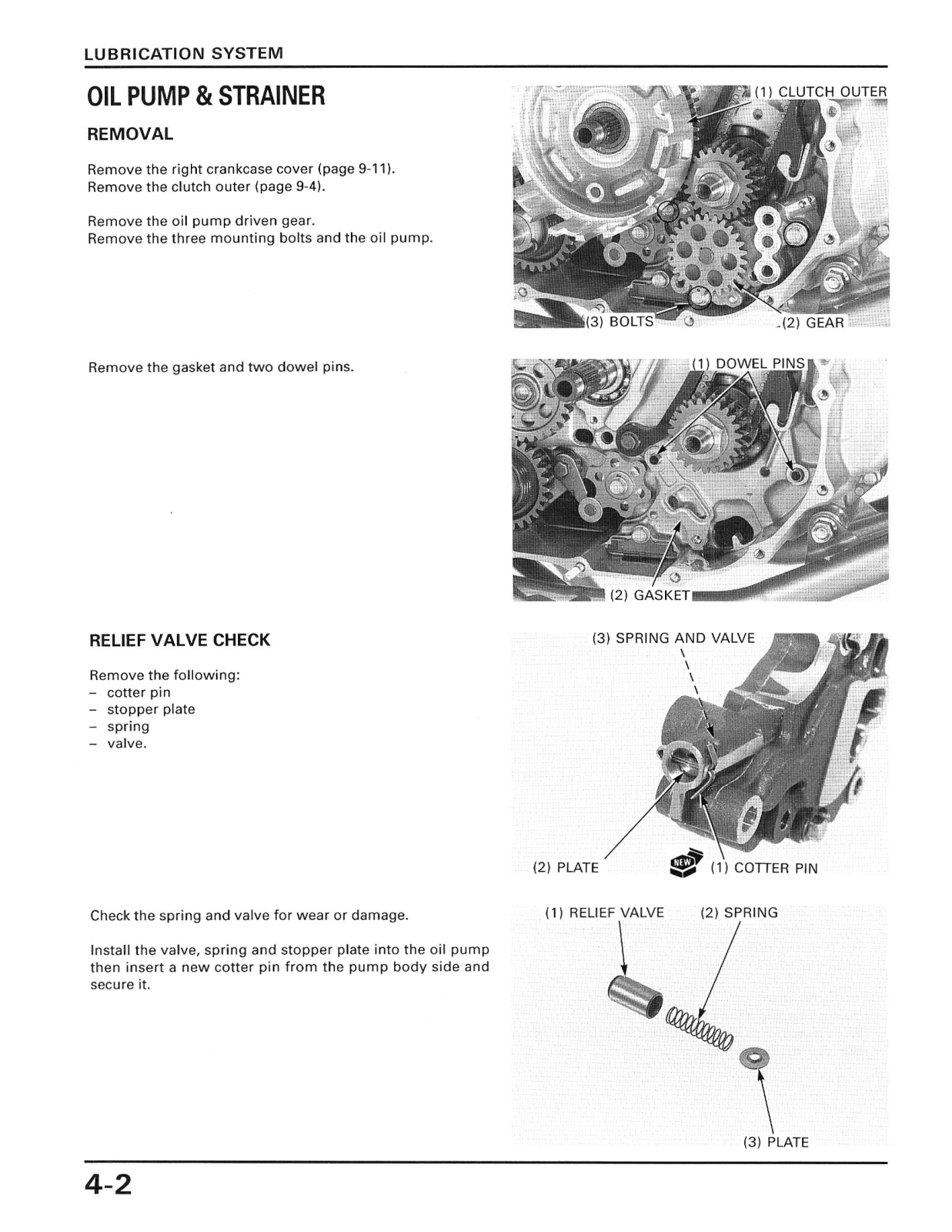

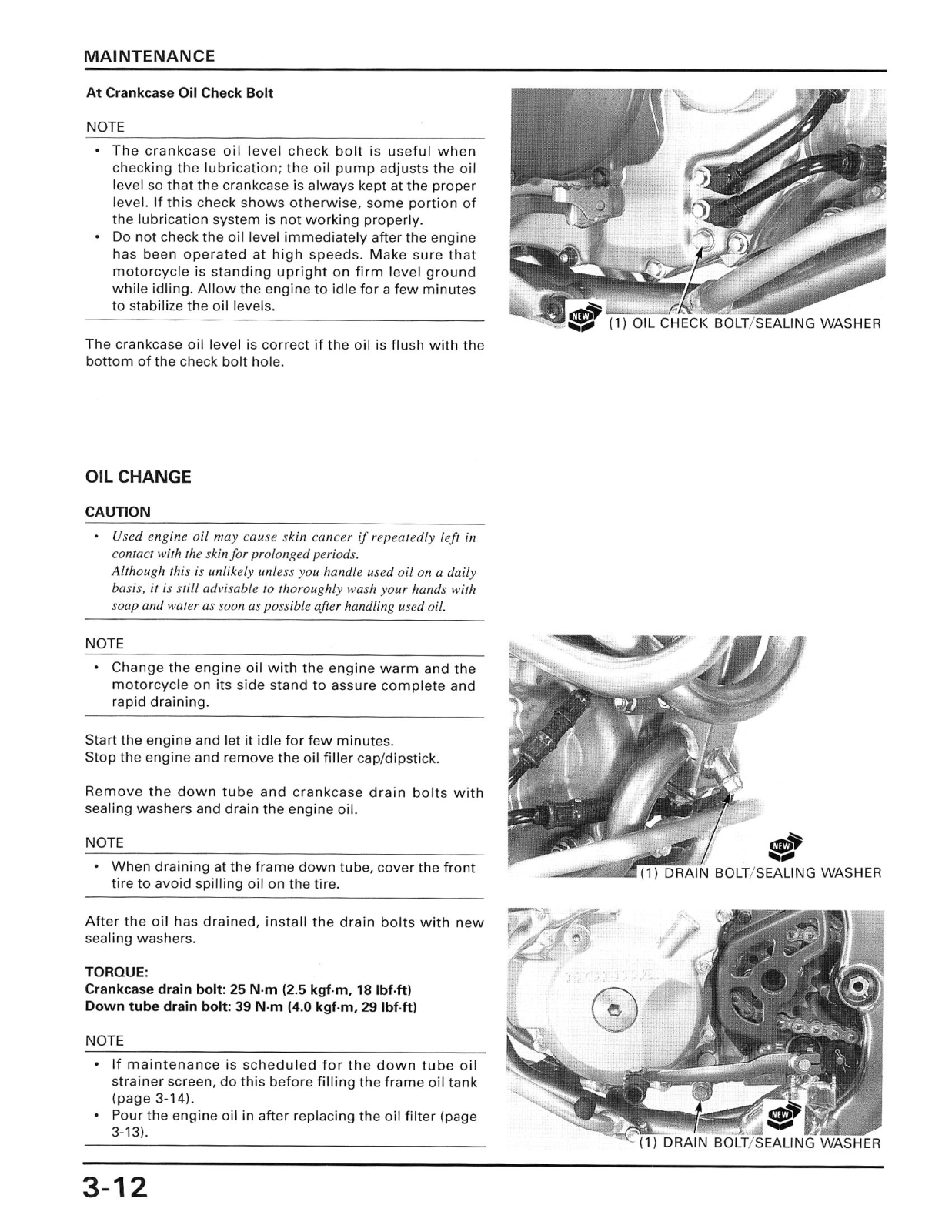

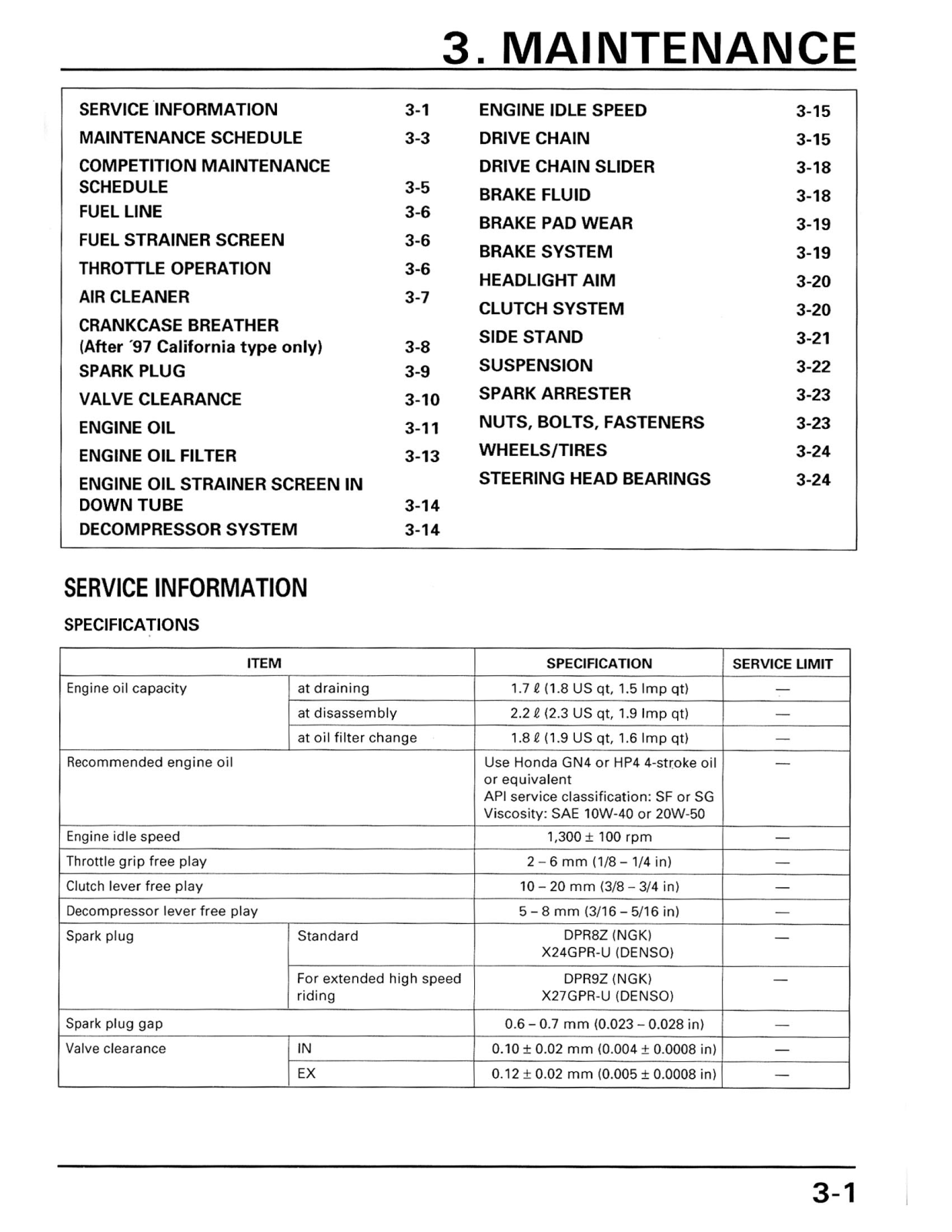

- Q: What is the recommended oil capacity?

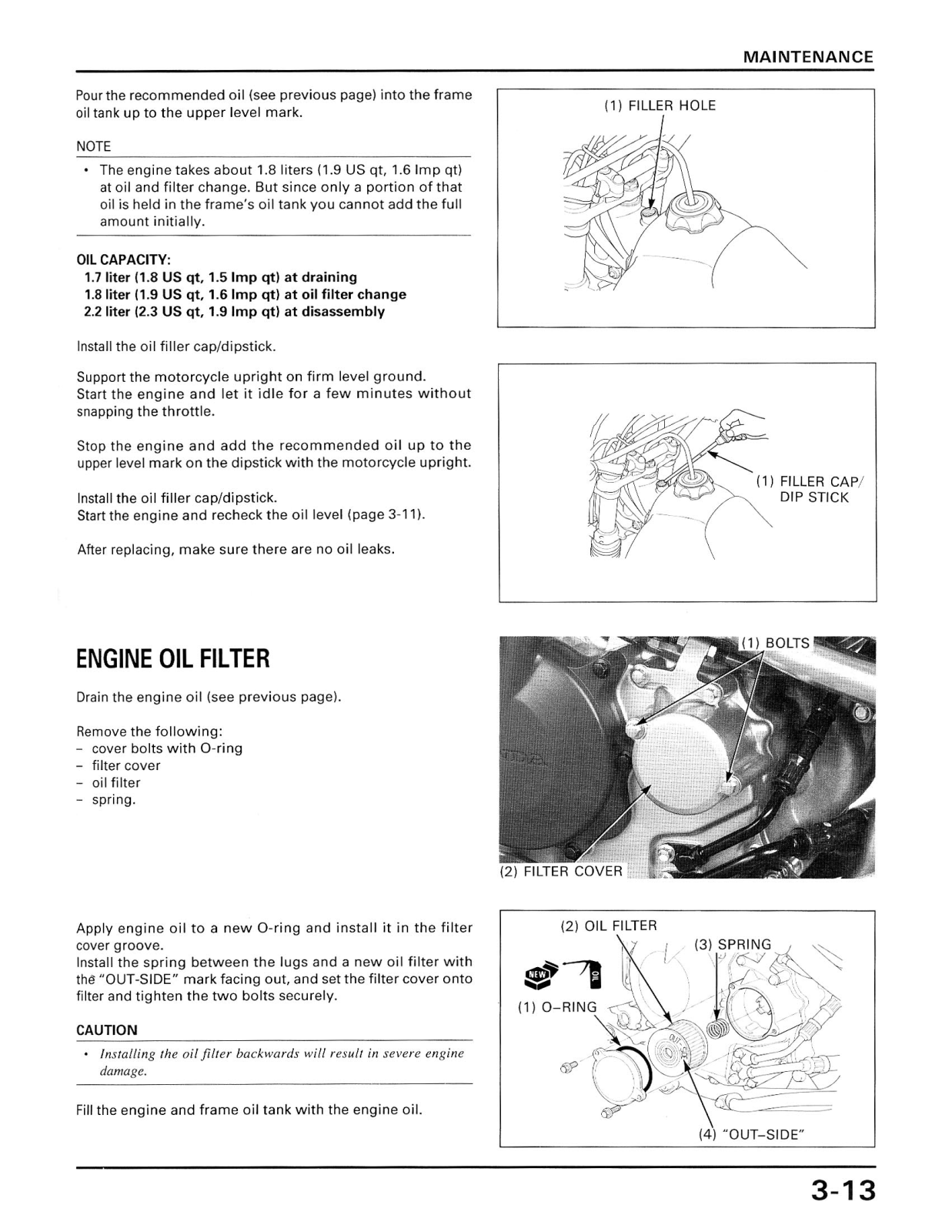

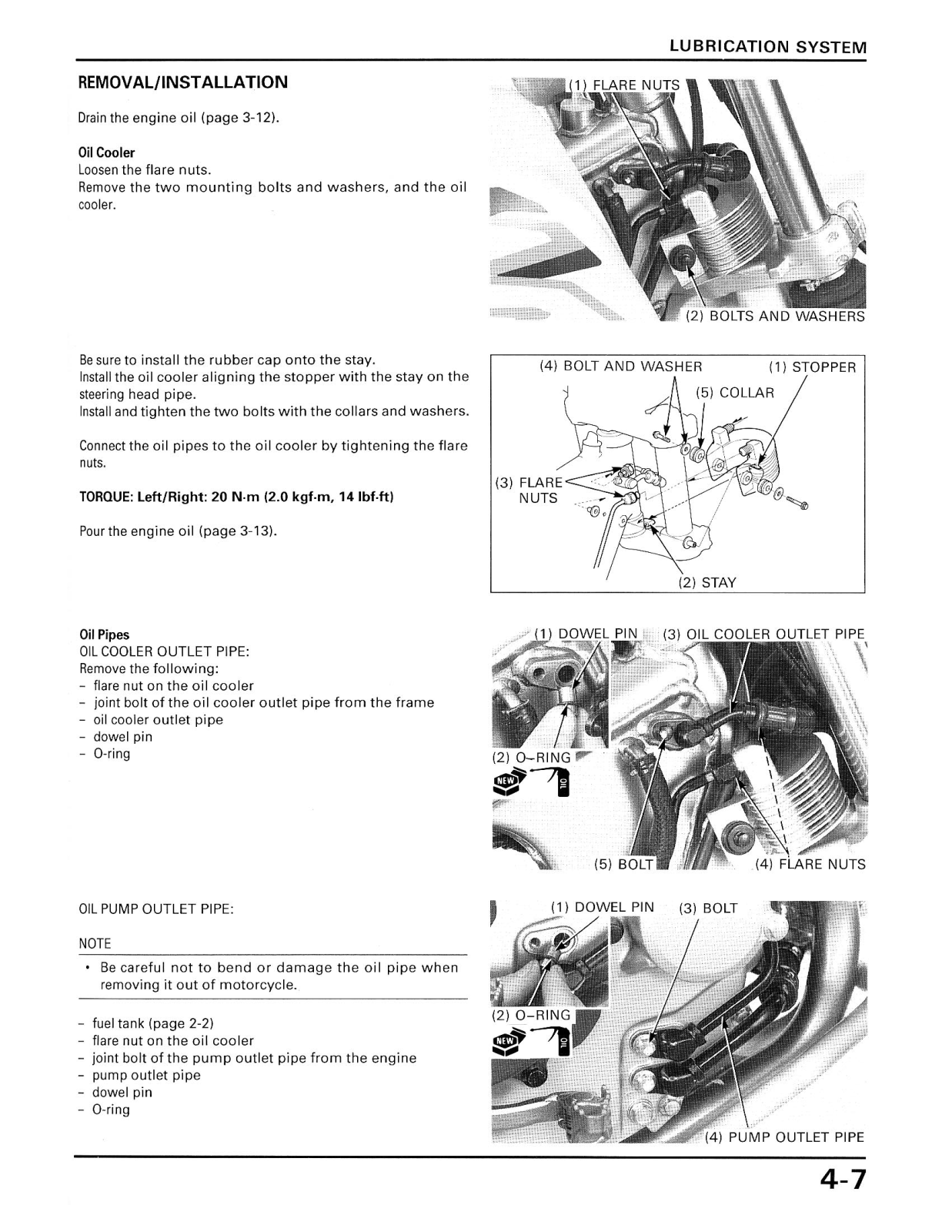

A: KCM recommends oil capacities of 1.7 liters (1.8 US qt) for draining, 1.8 liters (1.9 US qt) for oil filter changing and 2.2 liters (2.3 US qt) for complete disassembly.

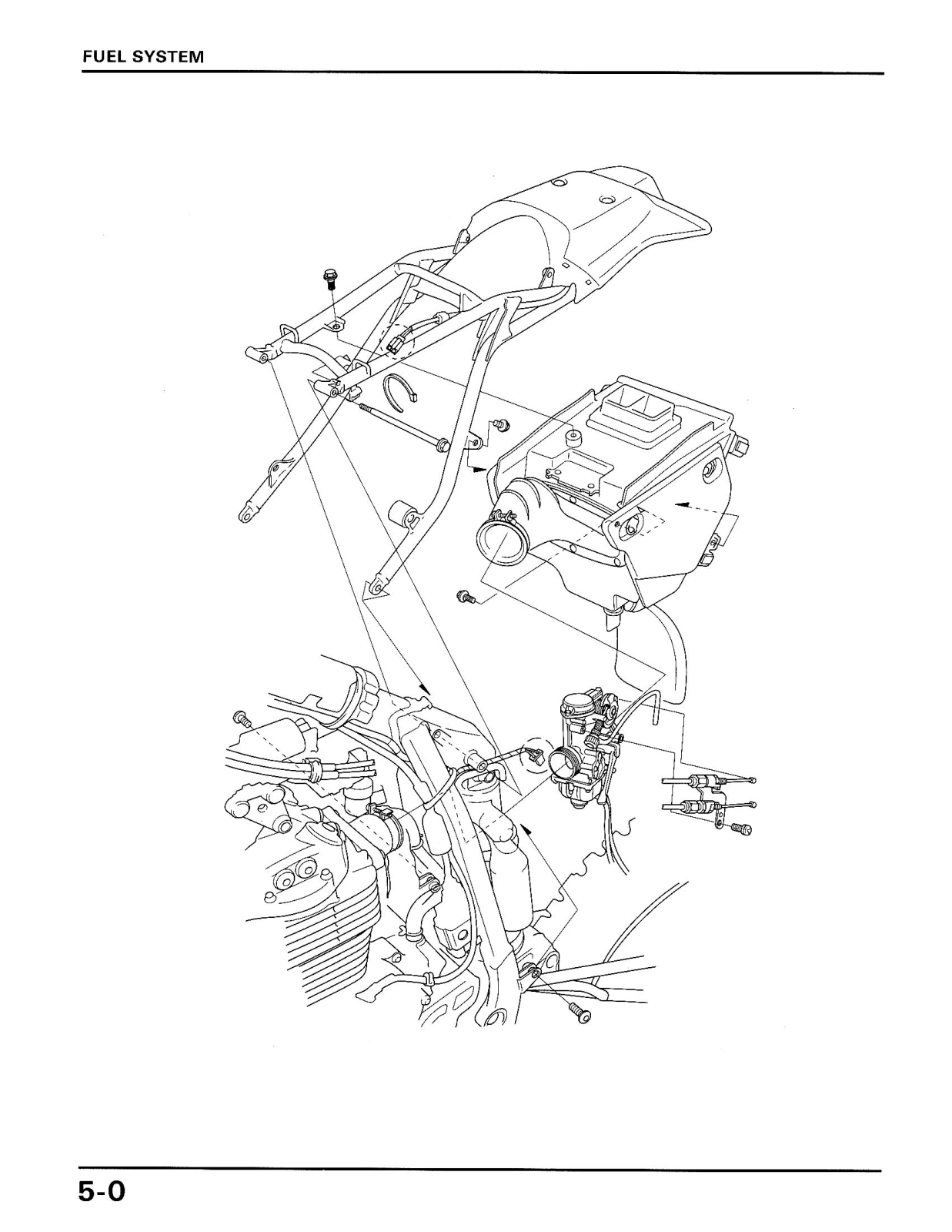

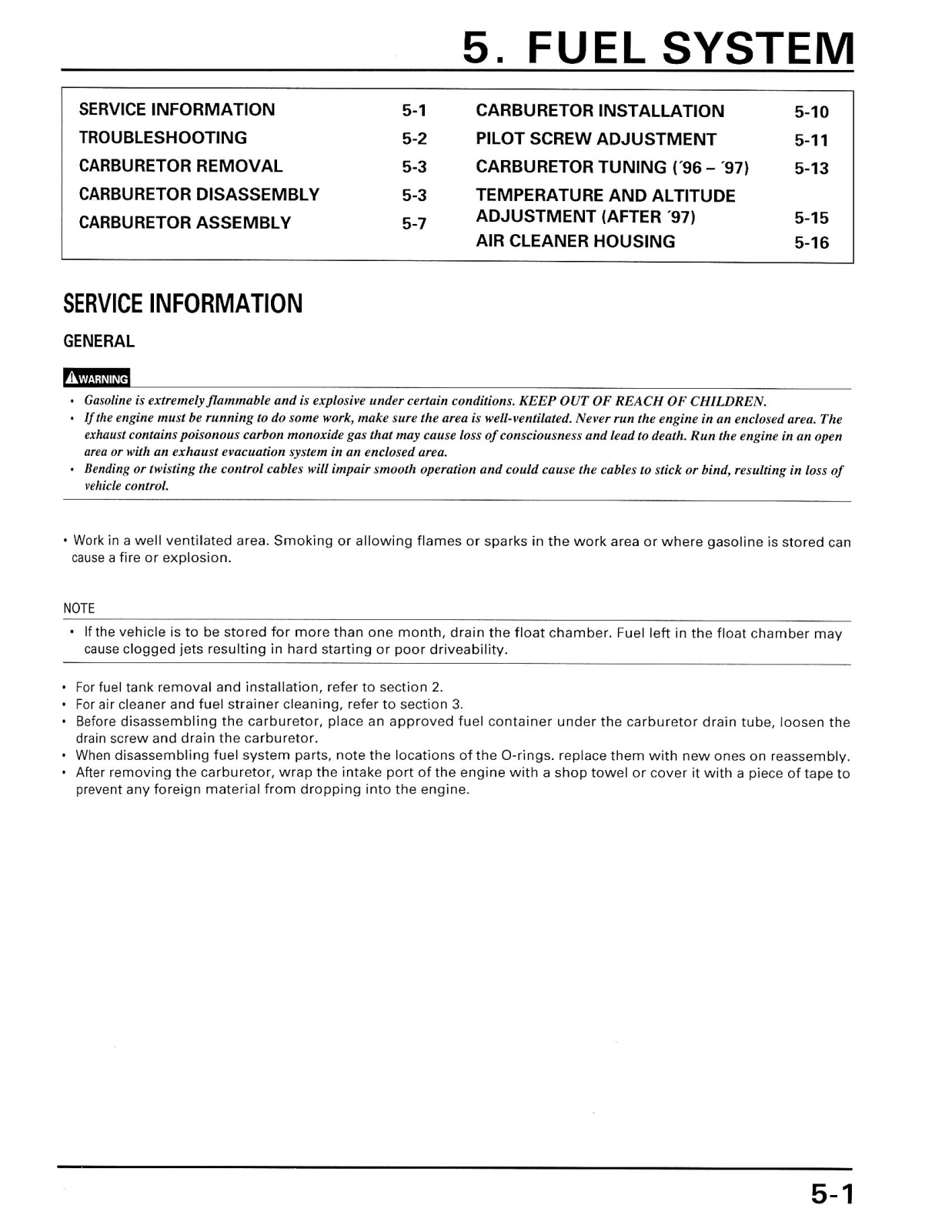

- Q: What is the proper fuel type for this motorcycle?
A: This motorcycle requires gasoline.

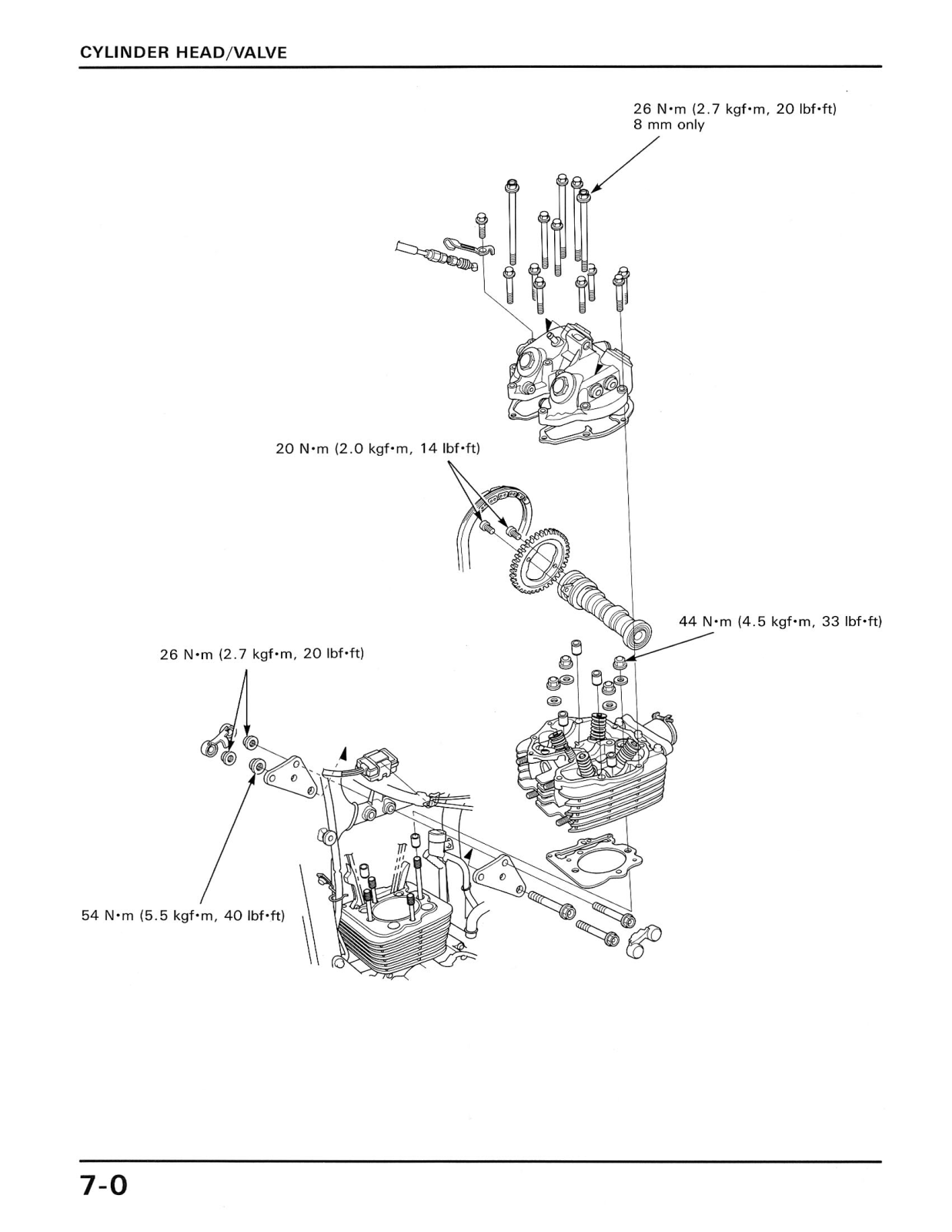

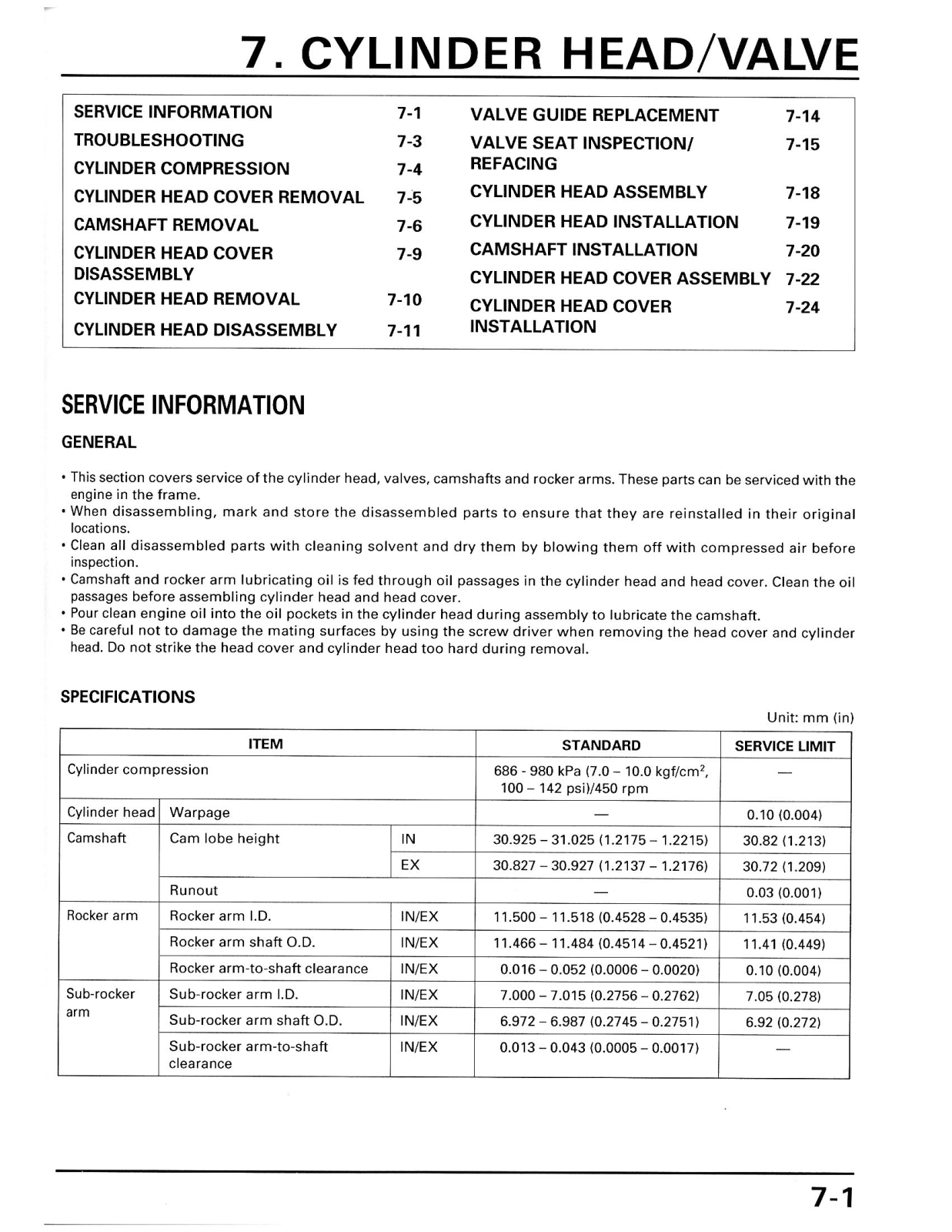

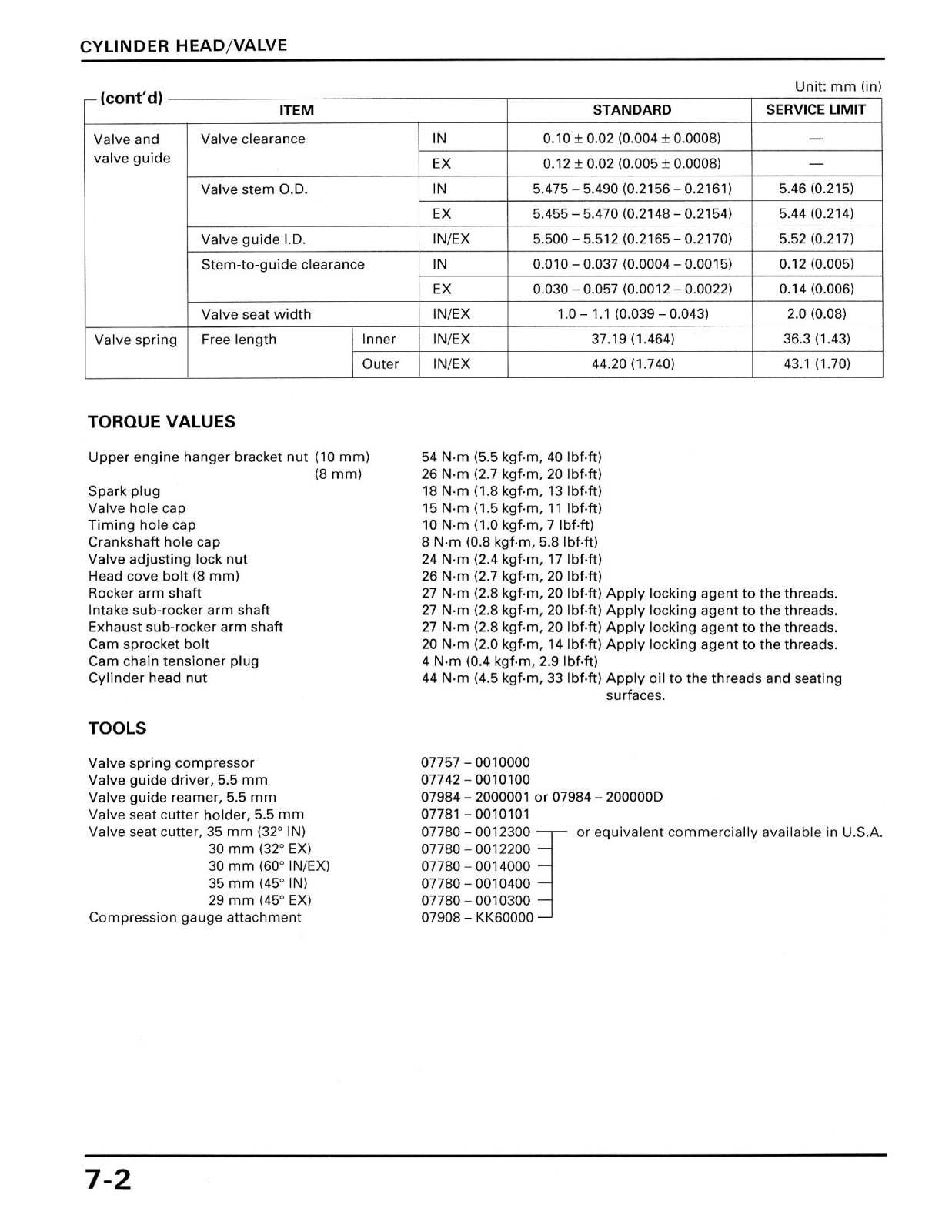

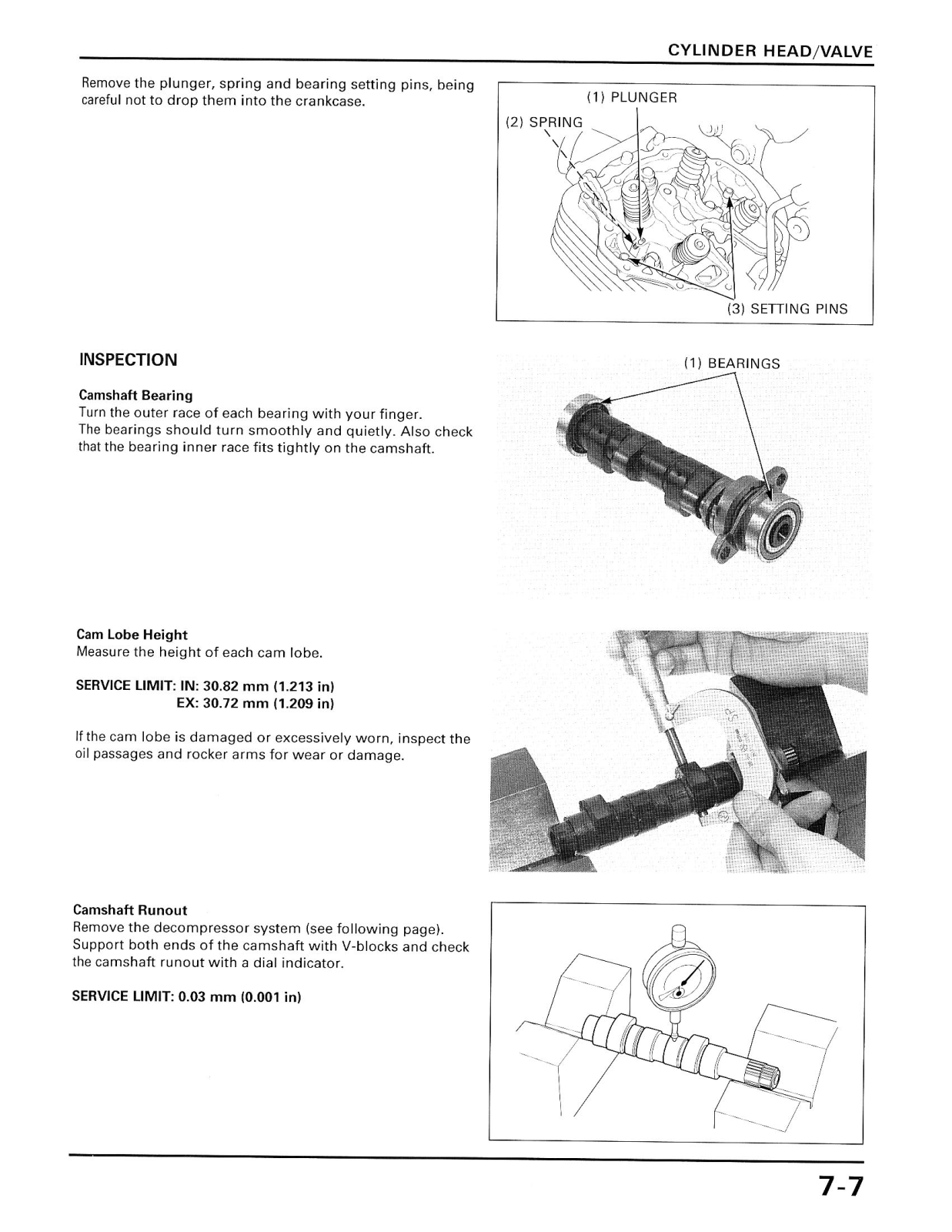

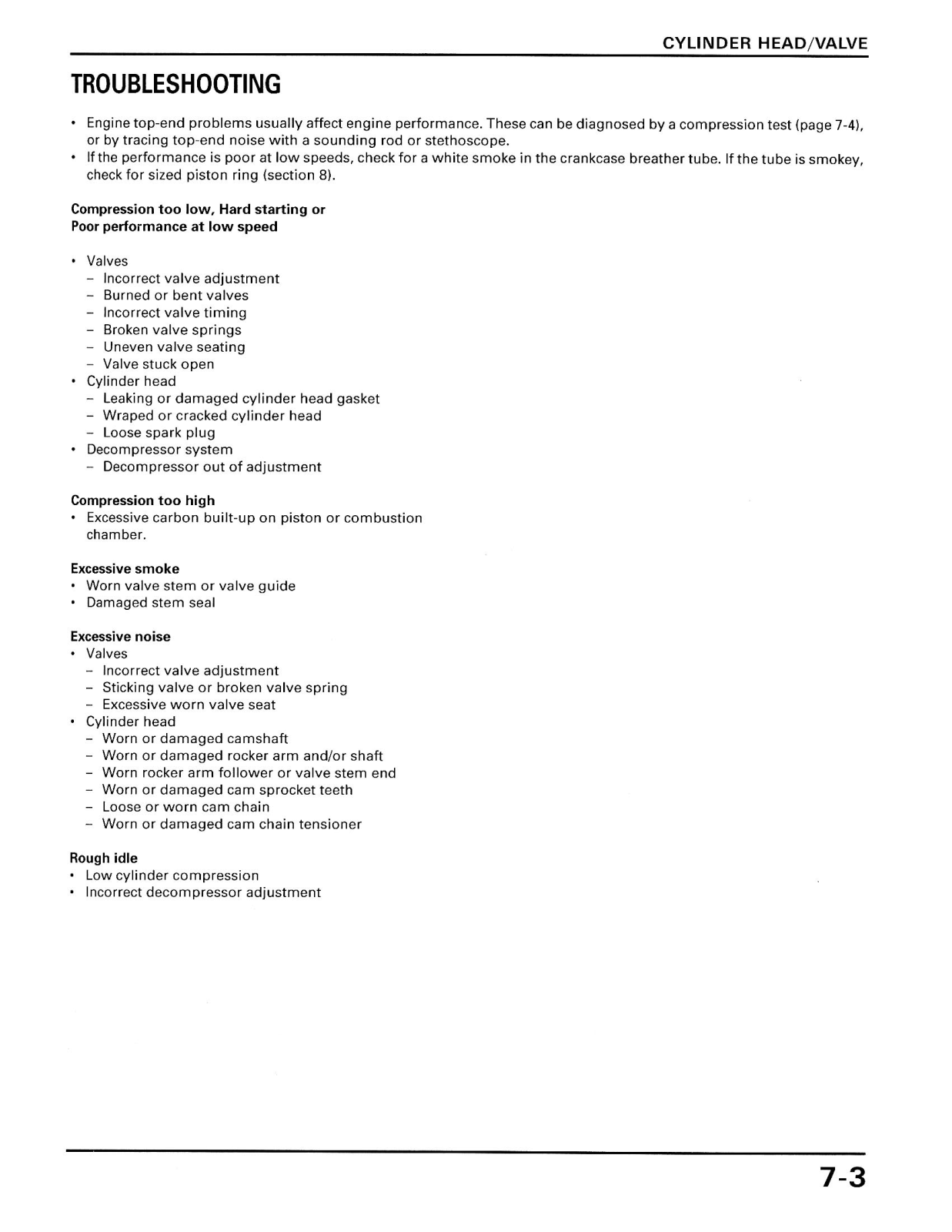

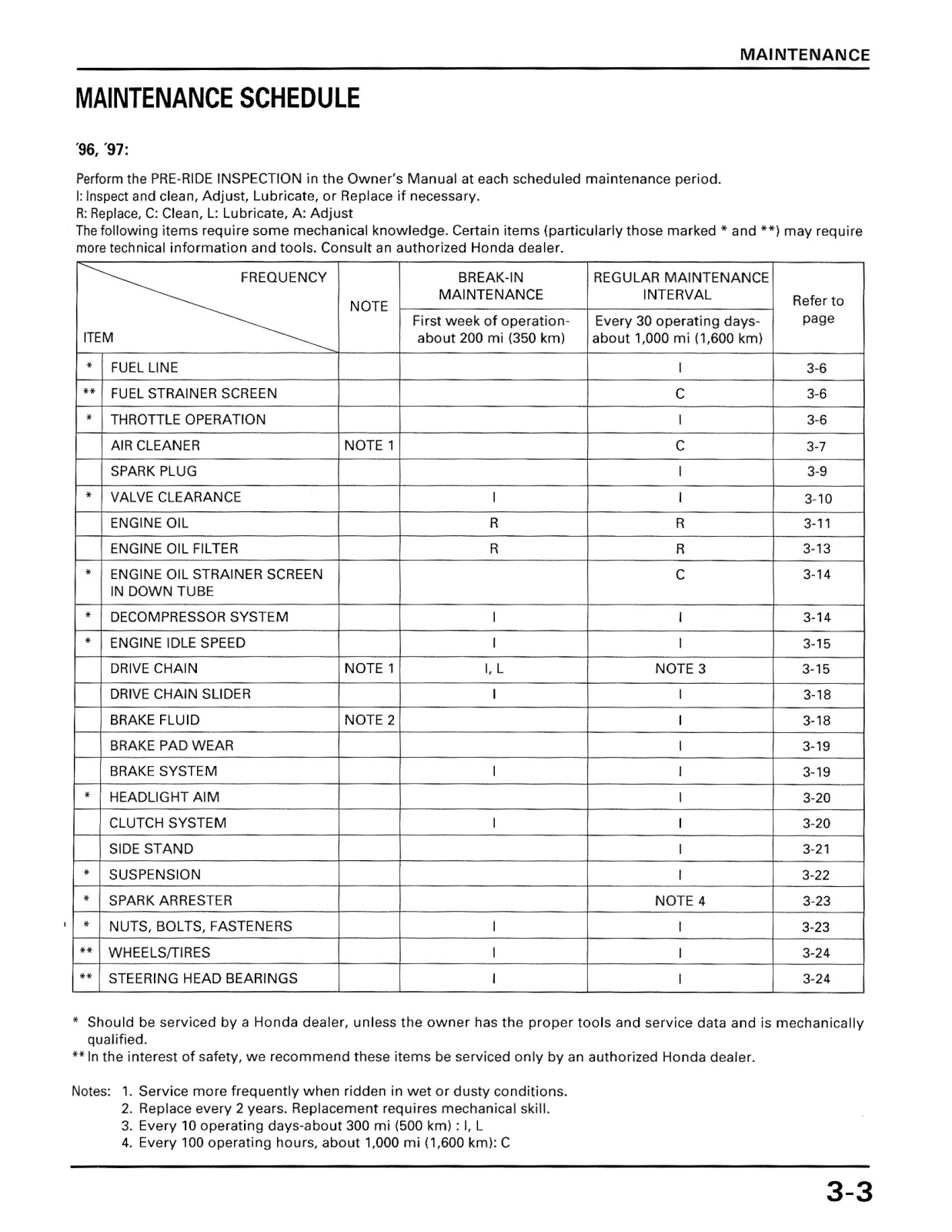

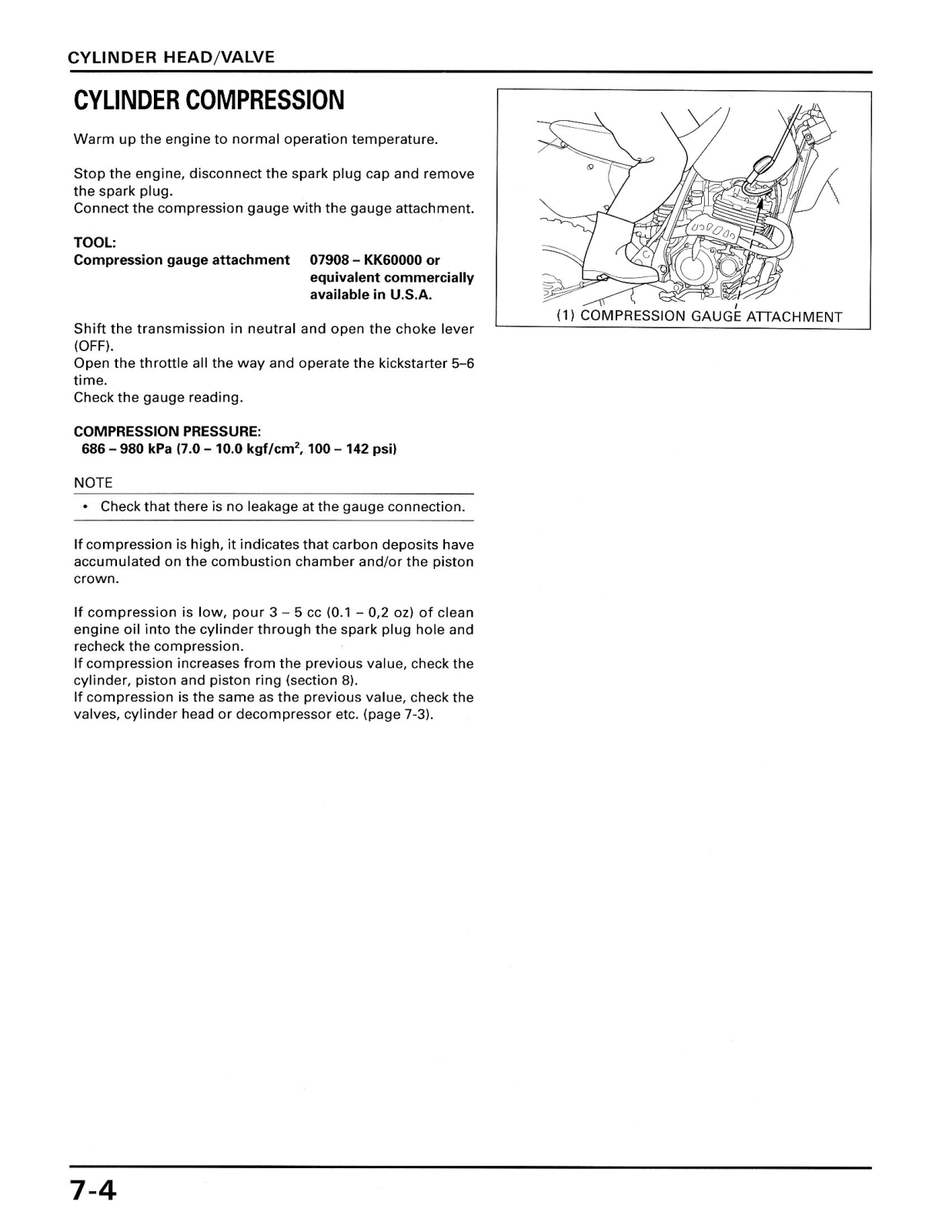

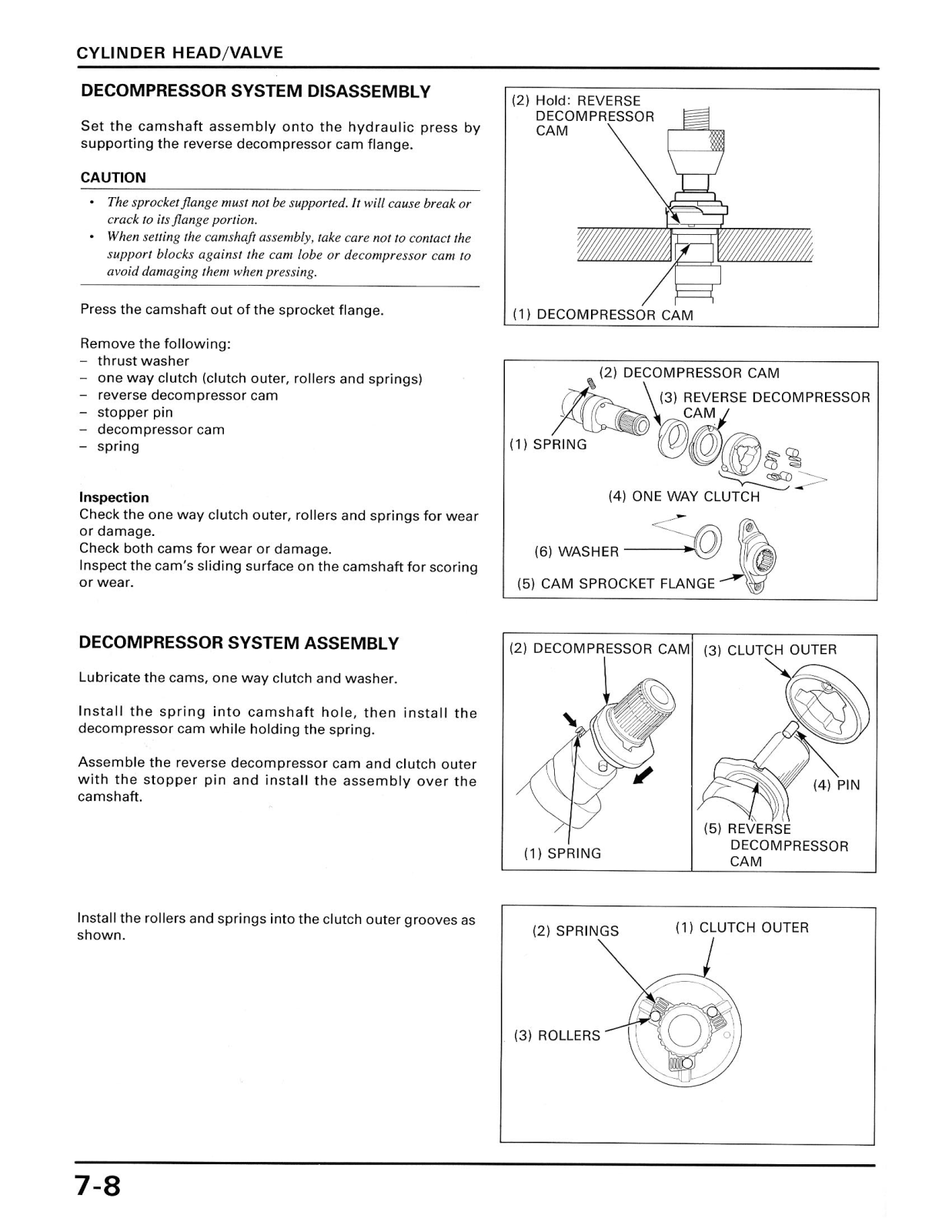

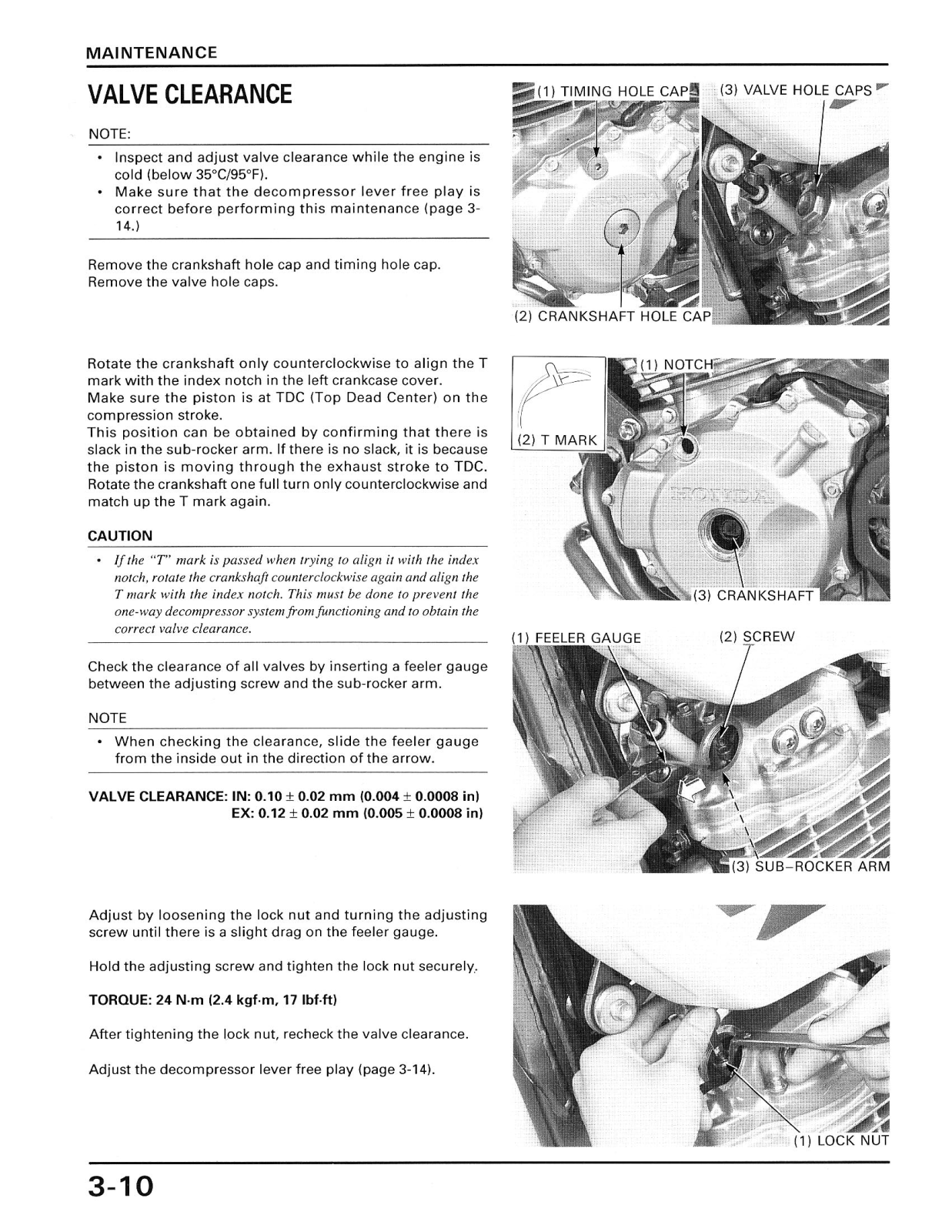

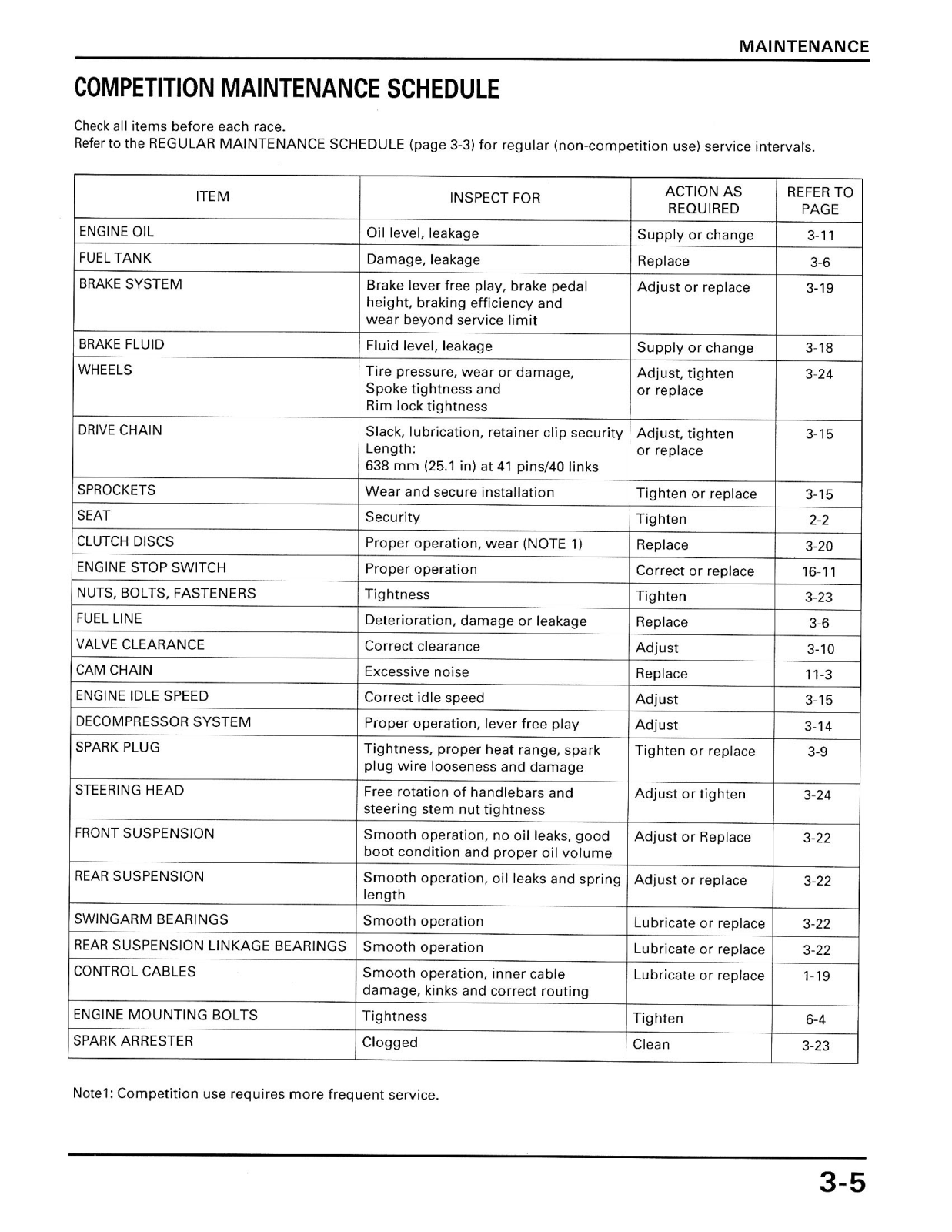

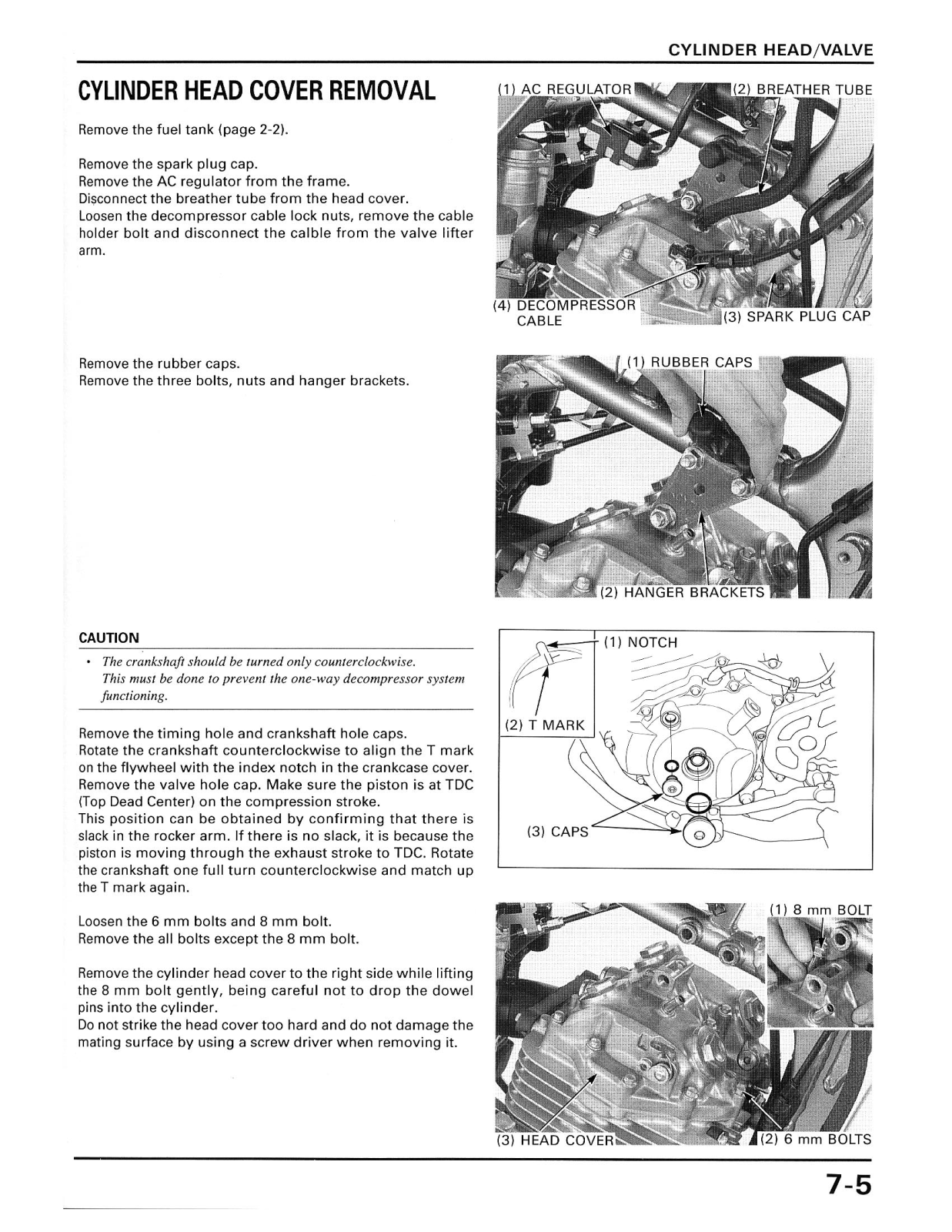

- Q: How often should the valve clearance be checked?
A: Normally, it’s done at regular periods, and hence the engine is opened and checked.

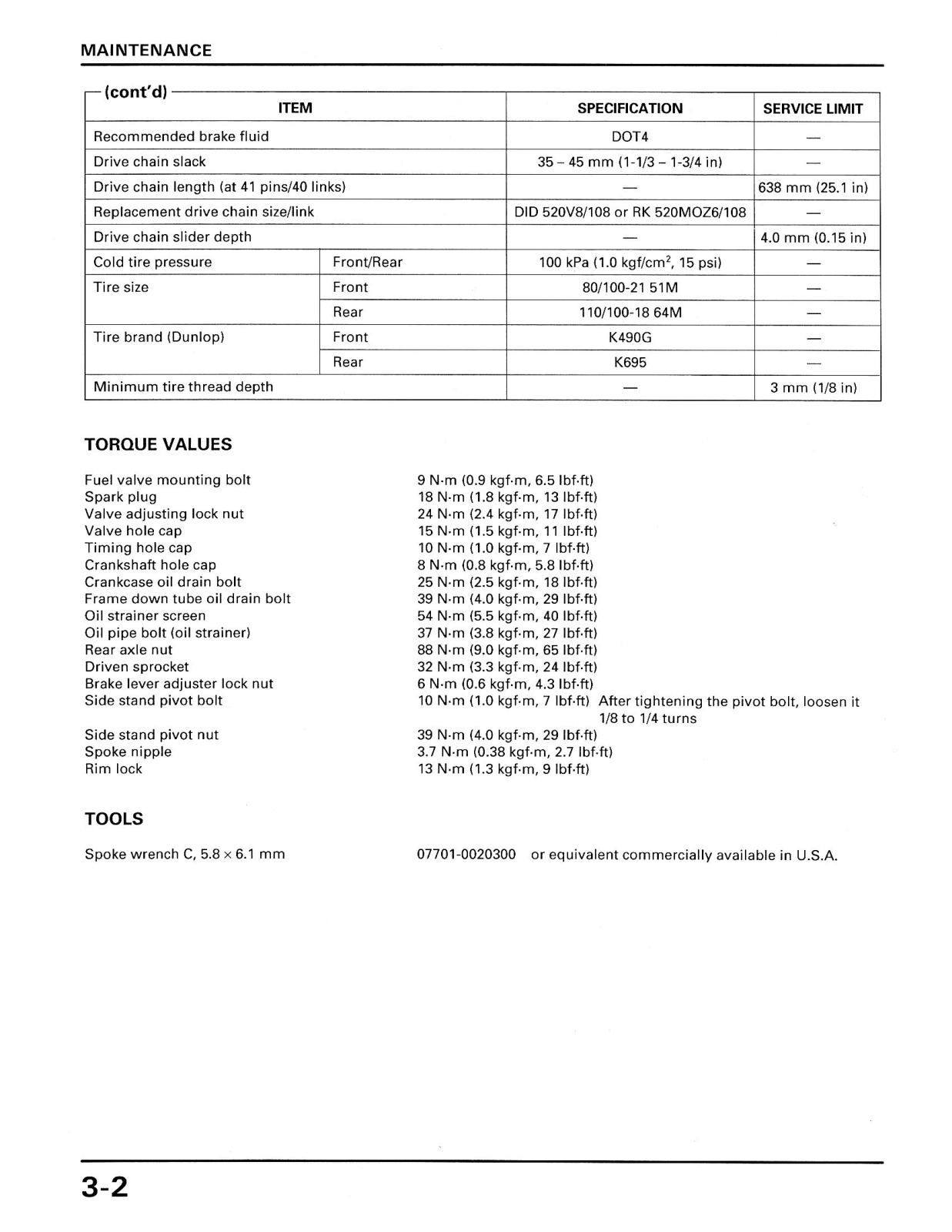

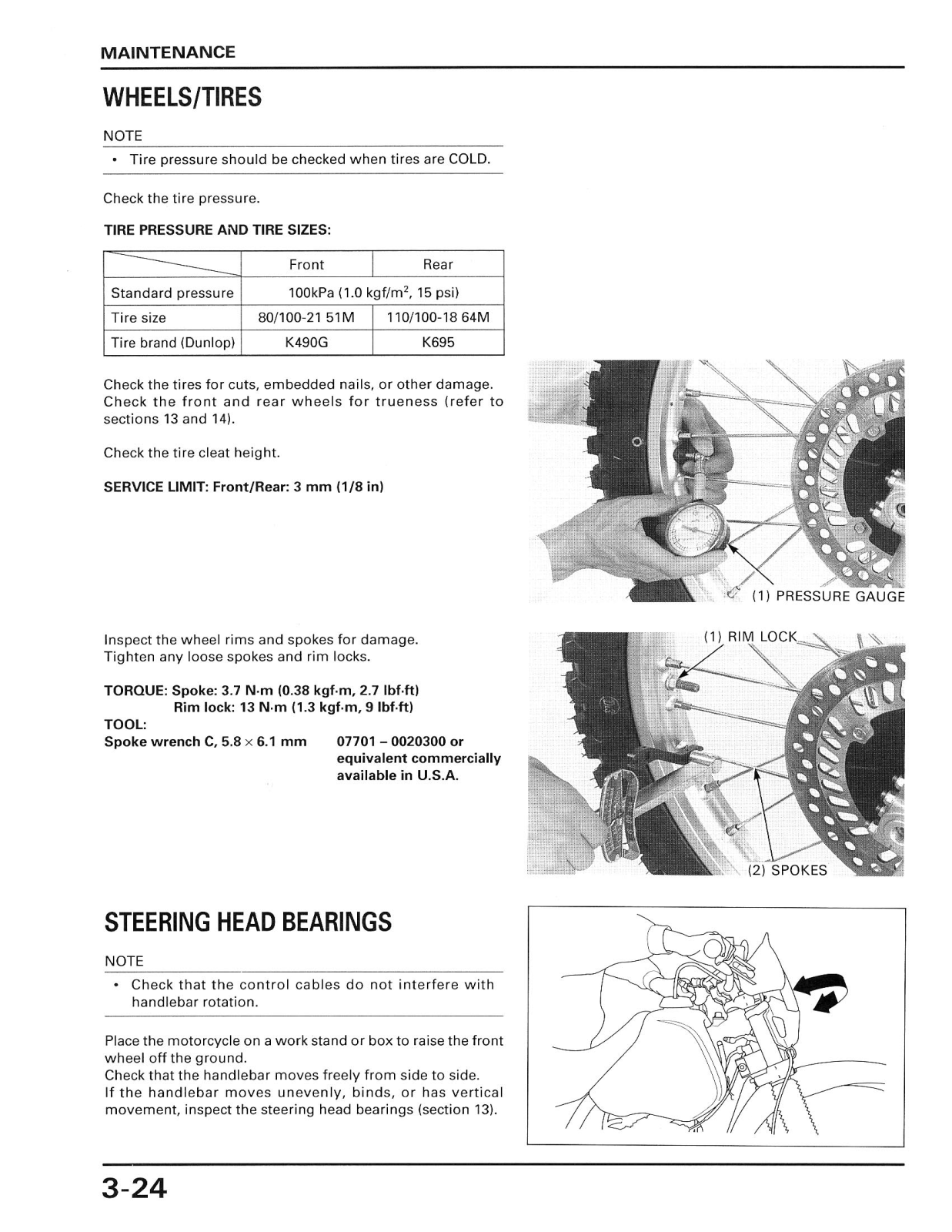

- Q: What is the recommended tire pressure for both front and rear tires?
A: Front and Rear tires—recommended cold tire pressure is 100 kPa (1.0 kgf/cm² , 15 psi).

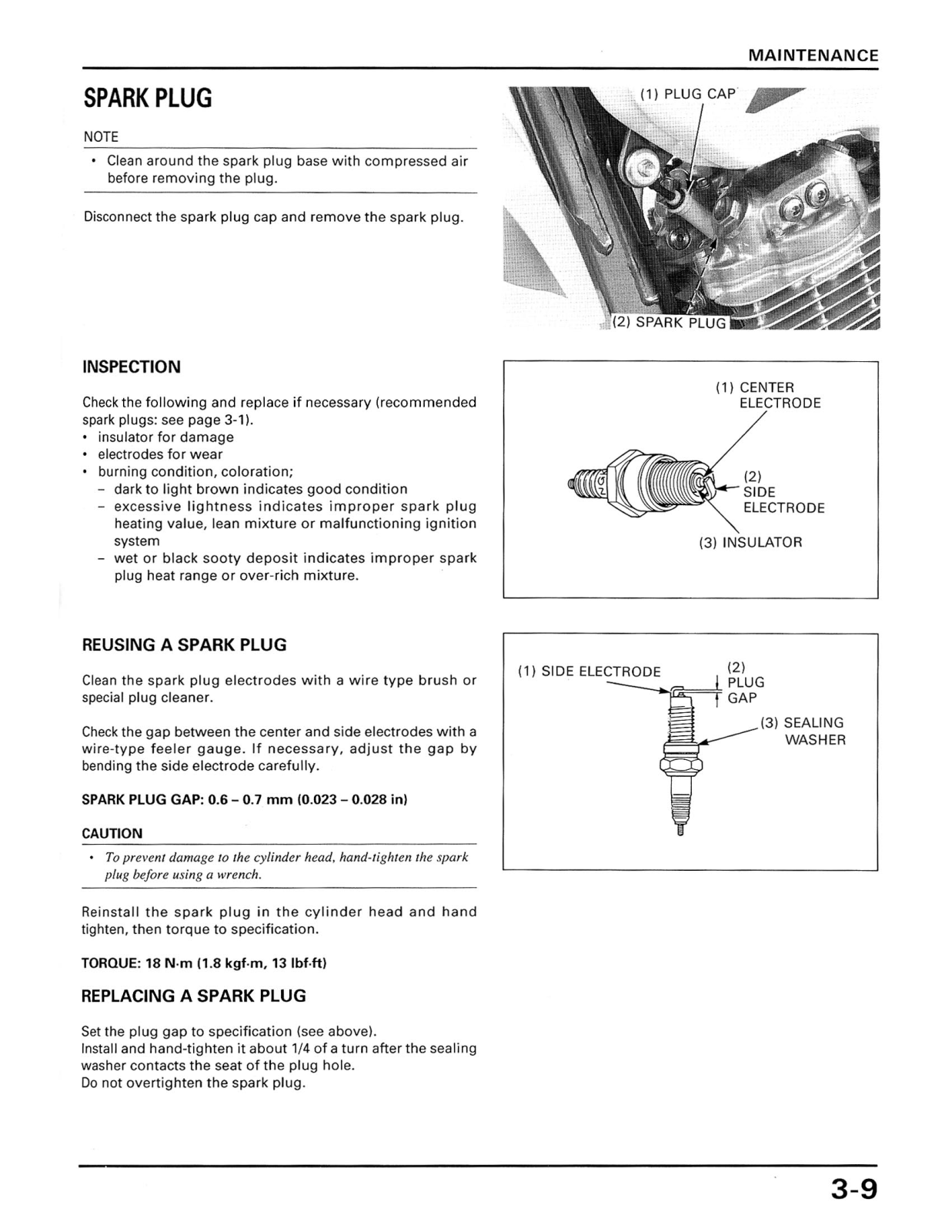

- Q: What are the spark plug specifications?
A: Standard spark plug seems to be DPR8Z (NGK) or X24GPR-U (DENSO) together with a spark plug gap of 0.6 - 0.7 mm(0.023 - 0.028 in).
