2014 Pilot
EX-L with Navigation
TECHN OLO G Y R EFE REN CE GUI DE
This Technology Reference Guide is designed to help you
get acquainted with your 2014 Honda Pilot EX-L with
BLUETOOTH
®
HANDSFREELINK®p.15
AUDIO p. 19
Navigation and provide basic instructions on some of its
technology and convenience features.
This guide is not intended to be a substitute for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual or Navigation Manual.
Instrument Panel Indicators ...................................................................................2
Information Display..................................................................................................4
Tire Pressure Monitoring System (TPMS)...........................................................5
VOICE
RECOGNITION p. 9
Bluetooth®Audio......................................................................................................19
®
iPod
or USB Flash Drive .....................................................................................20
Hard Disc Drive (HDD) Audio ...........................................................................21
INSTRUMENT
PANEL p.2
NAVIGATION p.12
Auto Door Locks .....................................................................................................6
Multi-View Rear Camera ........................................................................................8
Voice Recognition .....................................................................................................9
Navigation.................................................................................................................12
Bluetooth
®
HandsFreeLink®(HFL)........................................................................15
Song By Voice
HomeLink
Honda Owners .......................................................................................................24
Safety Reminder......................................................................................................24
Fuel Recommendation...........................................................................................25
TM
(SBV) ...........................................................................................22
®
...............................................................................................................23
INSTRUMENT PANEL INDICATORS
ECO
Briefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information. See your Owner’s Manual for
more information.
If an indicator remains on, there may be a problem; see your dealer
Charging system
Low brake fluid, Brake system
Low oil pressure
Supplemental Restraint System
(SRS)
Daytime Running Lights (DRL)
Power tailgate
Anti-Lock Brake System (ABS)
Variable Torque Management
(VTM-4) (4WD only)
Malfunction lamp
(check engine light)
Vehicle Stability Assist®(VSA)
Tire Pressure Monitoring System
(TPMS)
Condition Indicators
Action is needed by driver
Malfunction Indicators
Parking brake on:
Release
Door/Tailgate open:
Close door(s) / tailgate
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
Refill
Low tire pressure:
Add air
Maintenance Minder™:
Make dealer appointment
Starter system: Hold ignition
switch in START (III) for
up to 15 seconds
A/T temperature (4WD only):
Pull over and let engine idle
On/Off Indicators
PASSENGER AIRBAG OFF
(located on center panel)
SIDE AIRBAG OFF
VSA OFF
CRUISE MAIN on
CRUISE CONTROL on
Immobilizer (blinks):
Use other vehicle key and
see dealer
VTM-4 (blinks):
Pull over and let engine idle
Fog lights on
Exterior lights on
Turn signals/hazards on
High beams on
Fuel economy on
2 3
INFOR MATION DISPLAY
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Consists of several displays that provide you with useful information.
Accessing the Information Display
When you start the engine, the
display shows your last active
selection from the previous drive
cycle.
To toggle between the different
displays, press and release the
select/reset knob repeatedly.
Information Displays
Monitors the vehicle’s tire pressures.
How It Works
When the tire pressure drops
significantly below recommended
levels, the low tire pressure
indicator comes on.
The specific tire with low pressure
is indicated on the information
display.
What to Do
1. Visually inspect the tires for damage.
2. Check the information display to see
which tire(s) have low pressure.
3. Inflate the tire(s), if necessary, to the
recommended pressures listed on
the label on the driver’s doorjamb.
Odometer Fuel range
Engine oil life
Trip meter
A or B,
Average and
instant fuel
economy
4 5
AUTO DOOR LO CKS
Program how and when the vehicle doors automatically lock and unlock.
Auto Door Locks
Default Lock Setting
All doors and the tailgate are
preset to lock when your vehicle
reaches about 10 mph.
Default Unlock Setting
Only the driver’s door is preset to
unlock when you shift into Park (P).
Programmable Auto Door Lock/Unlock Settings
Below are the options you can choose. See Auto Door Locking/Unlocking in your
Owner’s Manual for instructions on programming these settings.
Programming the Auto Door Unlock Setting
To program all doors and the tailgate to unlock when you shift to Park:
1. Close the driver’s door. Shift into
Park.
2. Turn the ignition switch to ON (II).
3. Press and hold the unlock side of
the master lock switch for about
10 seconds. In that time, you will
hear three clicks.
4. Within 20 seconds, turn the ignition
switch to LOCK (0).
Auto Lock
Turn off
Auto Lock
AUTO DOOR LOCK
When you
reach 10 mph
Operate manually
When you shift
out of Park
Auto Unlock
Auto Unlock
(only driver’s
Auto Unlock
AUTO DOOR UNLOCK
(all doors)
door)
Turn off
When you turn
the ignition OFF
When you turn
the ignition OFF
Operate manually
When you shift
into Park
When you shift
into Park
6 7
MULTI -VIEW R EAR CAM ERA
VOICE RECOGN ITION
For added convenience, the area behind your vehicle is displayed to help you navigate
while backing up.
How It Works
• When you shift into Reverse (R), a real-time image of the area behind your vehicle
is shown in the navigation display along with helpful parking guidelines.
• Press the interface dial to toggle between views. Rotate the interface dial to adjust
screen brightness.
• The rearview display turns off when you shift out of Reverse.
Wide (default)
Normal Top down
To keep your eyes on the road and hands on the wheel, use the Talk button to say
voice commands to operate certain vehicle features.
Voice Control System
The voice control system uses the steering wheel buttons and the ceiling microphone.
Pick-Up button: Answer an
incoming call, or go directly to the
Phone screen.
Talk button: Give HFL, navigation,
audio, or climate control commands.
Back button: Cancel a command
and return to the previous screen.
Hang-Up button: End a call or
decline a call.
Parking Guidelines
Press and hold CANCEL for about 3 seconds
to turn the yellow parking guidelines on or off
8
Voice Command Tips
• To hear a list of available commands at any time, press and release the Talk
button, then say “Help.” For a full list of commands, say “Information” and “Voice
.
help,” or see your Navigation Manual.
• When using the Talk button, wait for a beep, then say a command. To bypass
system prompts, press the Talk button again to say a command.
• When the Talk button is pressed, all available voice commands are
highlighted in blue.
• Speak in a clear, natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
9
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
Press and release the Talk button before you say a command. Press and release the Talk button before you say a command.
G e n e r a l C o m m a n d s
(Accepted on most screens to change
displays)
• Display map
• Display menu
• Display phone
• Information
• Display audio screen
• What time is it?
F i n d P l a c e C o m m a n d s
(Accepted on Map screen)
• Find nearest:
- ATM - Honda dealer
- gas station - airport
- Mexican - hospital
restaurant - bank
- post office
N a v i g a t i o n C o m m a n d s
(Accepted on Map screen)
• How long/far to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s
(Accepted on Map screen)
• Display (or hide):
- ATM
- gas station
- restaurant
- post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
A u d i o C o m m a n d s
(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset 1/2/3/4/5/6
• XM channel #
• XM preset 1/2/3/4/5/6
• DISC play
• DISC play track #
• DISC skip forward/back
• iPod/USB/HDD play
S e t u p C o m m a n d s
(Accepted on Setup screen)
• Brightness up/down
• Volume up/down/min/max/off
• Interface dial feedback
off/auto/on
Climate Cont rol Commands
(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/
fresh air
• Fan speed up/down
• Temperature # degrees
(# = 57–87)
• Temperature max hot/cold
H e l p C o m m a n d s
(Accepted on most screens)
• Help (list of available commands
for current screen)
• Voice help (from INFO screen -
list of all available navigation,
audio, and climate control
commands)
10 11
NAVIG ATION
Real-time navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination.
Entering a Destination Using Voice Commands
Set a destination using a street address. For other destination options, see your
Navigation Manual.
Press and release the Talk button before you say a command.
1. Say “Display menu.”
Say “Address.”
2. Say “Street,” then say the street
name on the next screen. Do not
include the direction (N, S, E, W)
or type (St., Ave., Blvd., etc.).
4. Say the entire street address
number. For example, “1-2-3-4.”
If necessary, say “OK” to proceed.
5. If the street address is in more
than one city, a list of city names
appears. Say the number next to
the city you want to select.
Using the “Find Nearest” Command
Find a nearby point of interest, such as a gas station, movie theater, restaurant, etc.
Press and release the Talk button before you say a command.
1. From the map screen, say “Find
nearest ATM.”
2. A list of the nearest ATMs in
your area is displayed by
shortest distance to destination.
3. Say the number next to the
destination you want to select.
4. The system calculates and
displays the route.
Map Screen Legend
3. A list of street names appears.
Say the number next to the
street you want.
12 13
6. The system displays the
“Calculate route to” screen.
Say “OK” to set the route.
Direction of destination
Distance to go
Time to go
Calculated route
Current vehicle
location
FM Traffic
Provides continuously updated info, including traffic speed, incidents, and
construction in major metro areas. Works in cities where a clear FM traffic signal
is available.
Press and release the Talk button before you say a command.
BLUETOOTH
®
HANDSFREELINK®(HFL)
Make and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if this feature is compatible with your phone.
Displaying Traffic Information
Say “Display traffic” to view traffic flow and icons.
Heavy traffic
Moderate traffic
Occasionally, a green line may appear
indicating free-flow traffic.
Note: Traffic flow and incident icons
are only displayed on map scales of 5
miles or less.
Traffic
Traffic
Flow
Flow
data
data
Incident Icons
Incident
Congestion
Construction
Incident
Incident
icon
icon
Road closed
Weather
Traffic Rerouting
When a destination is already set, you can create a detour to avoid traffic
incidents or congestion.
1. Say “Display traffic list” to view a
list of incidents on your route.
3. Say “Avoid” and the incident
list returns.
How to Use HFL
Pick-Up button: Answer an
incoming call, or go directly to the
Phone screen.
Talk button: Give HFL commands.
Back button: Cancel a command
and return to the previous screen.
Hang-Up button: End a call or
decline a call.
PHONE button:
Go directly to the
phone screen.
2. Say the number of the
incident you want to avoid.
When the incident appears,
4. Say “Reroute” to set the new
route.
CANCEL button:
Cancel an operation
or return to the
previous screen.
say “Traffic detail.”
Interface dial: Rotate or
move up/down/left/right to
scroll through selections. Press
ENTER to make a selection.
14 15

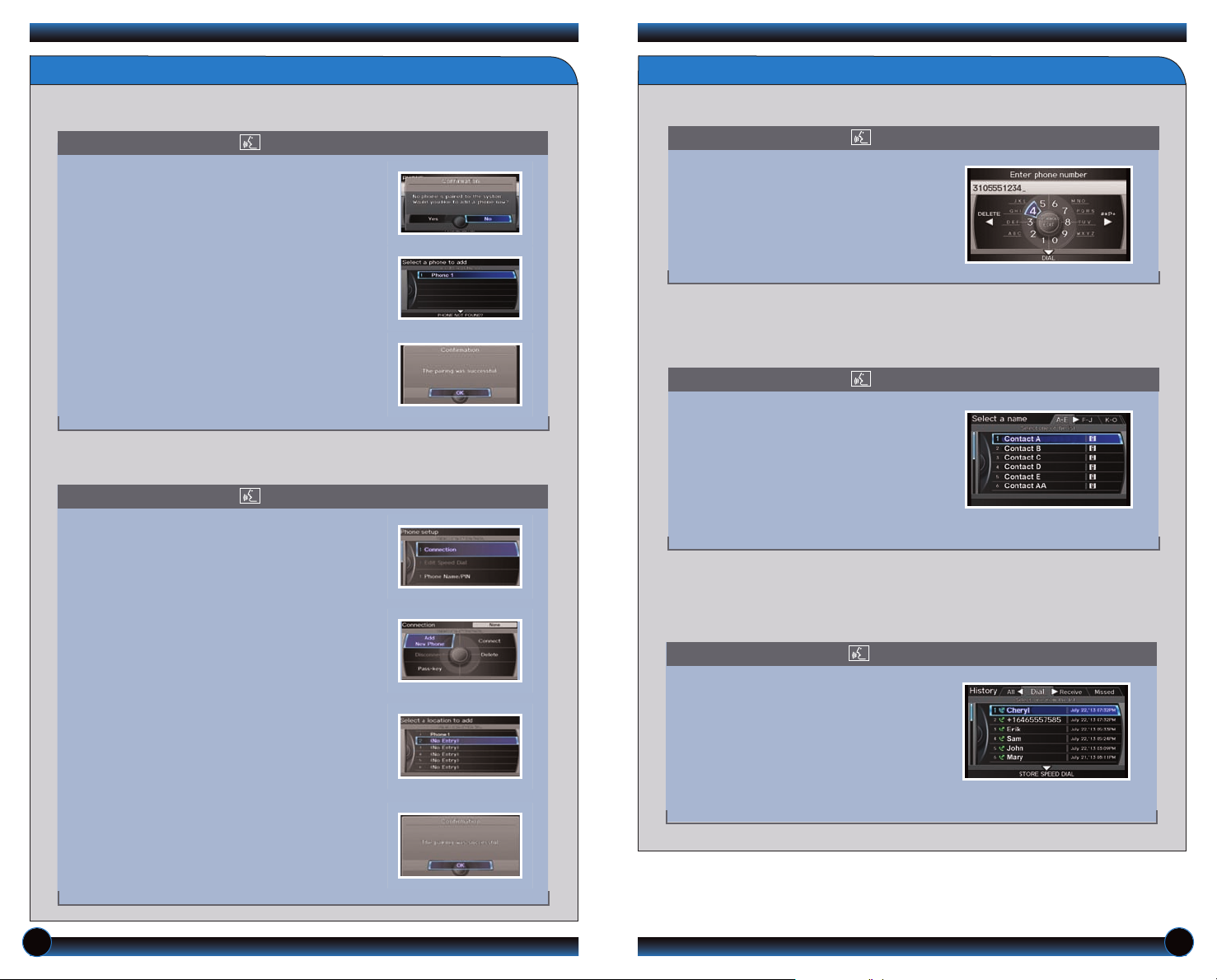

Pairing Your Phone
Making a Call
Use this pairing method when no phone has ever been paired to the system. You
can pair your compatible phone only when the vehicle is stopped.
Press and release the Talk button before you say a command.
1. Press PHONE to go to the Phone screen.
A prompt appears. Say “Yes.”
2. Make sure your phone is in discovery
mode, and say “OK.”
3. HFL searches for your phone. Say the
number next to the phone when it appears
on the list.
If your phone does not appear:
Say “Phone Not Found?” and search for a
HandsFreeLink device from your phone.
Connect to HFL.
4. HFL gives you a four-digit code. Enter it on
your phone when prompted. The phone is
now paired.
Use this pairing method when a phone has already been paired to the system, or
when you want to pair an additional phone.
Press and release the Talk button before you say a command.
1. Press PHONE to go to the Phone screen.
If a prompt appears asking to connect to a
phone, say “No.”
2. Say “Phone setup.”
3. Say “Connection.”
4. Say “Add New Phone.”
5. Say the number of the location (1-6) to add
the phone.
6. Make sure your phone is in discovery
mode, and say “OK.”
7. HFL searches for your phone. Say the
number next to the phone when it appears
on the list.
If your phone does not appear:
Say “Phone Not Found?” and search for a
HandsFreeLink device from your phone.
Connect to HFL.
8. HFL gives you a four-digit code. Enter it on
your phone when prompted. The phone is
now paired.
Dialing a Number
Press and release the Talk button before you say a command.
1. Press PHONE to go to the Phone
screen.
2. Say “Dial.”
3. Say the entire phone number.
4. Say “Dial” to begin the call.
Using the Imported Phonebook*
When your phone is paired, its entire phonebook is automatically imported to
the system.
Press and release the Talk button before you say a command.
1. Press PHONE to go to the Phone
screen.
2. Say “Phonebook.”
3. Scroll through the list to find the name
you want to call.
4. Say the number of the entry to begin
the call.
* Visit handsfreelink.honda.com to check if this feature is available on your phone.
Using Call History
View dialed, received, or missed calls from your phone.
Press and release the Talk button before you say a command.
1. Press PHONE to go to the Phone
screen.
2. Say “Call history.”
3. Scroll through the list to find the name
or number you want to call.
4. Say the number next to the entry to
begin the call.
16 17
Making a Call (continued)
BLUETOOTH
®
AUDIO
Using Speed Dial and Voice Tags
Press and release the Talk button before you say a command.
1. Press PHONE to go to the Phone
screen.
2. Say the number next to one of the first
four entries to begin the call. For
example, “One.”
For the complete list of speed dial
entries, say “More speed dial.”
If an entry has a stored voice tag, say “Dial by voice tag,” followed by the
voice tag name and “Dial” from any screen.
Note: See your Owner’s Manual for instructions on storing speed dial entries
and voice tags.
Receiving a Call
A notification is heard and the following screen appears:
Press the Pick-Up
button to accept the call.
Press the Hang-Up button
to end or decline the call.
Play stored or streaming audio from your compatible phone through your vehicle’s audio
system. Visit handsfreelink.honda.com to check if this feature is compatible with your phone.
Playing
Bluetooth
1. Make sure your phone is on and
paired to Bluetooth
(see page 16).
2. Press USB/AUX until “Bluetooth
Audio” appears.
3. From your phone, open the desired
audio player or app and begin playing.
Sound is redirected to the audio
system.
Make sure the volume on your phone
is properly adjusted.
Audio
®
HandsFreeLink
®
4. Press (
tracks.
) (:) or (+) (-) to change
9
Notes:
• You may need to enable additional settings on your phone for playback.
• The play/pause function and remote audio controls may not be supported on all phones.
• Operate your phone only when your vehicle is stopped.
18 19
iPod®OR US B FLASH DRIVE
HARD DISC DRIVE (HDD) AUDIO
Play audio files from your compatible iPod or USB flash drive through your vehicle’s
audio system.
Connecting Devices and Playing Audio
1. Open the center console, and pull out
the USB adapter cable.
Connect the USB connector to your
iPod cable or flash drive.
2. Press USB/AUX until iPod or USB
appears.
3. Press (9) (:) or (+) (-) to change
tracks.
Record CDs onto your vehicle’s hard disc drive. Songs are automatically recorded once a
CD is inserted into the disc slot.
Playing HDD Audio
1. Press HDD.
2. The first song of the last recorded
album plays. Press (9) (:) or (+) (-)
to change tracks.
Searching for Music
1. Press AUDIO.
3. Select one of the categories.
2. Push the interface dial up to select
MUSIC SEARCH.
Note: Connect your device only when your vehicle is stopped.
iPod is a trademark of Apple, Inc.
4. Select a track and press ENTER to
begin playing.
20 21
SONG BY VOICETM(SBV)
Press and hold the button on the
remote and the HomeLink button at
the same time. Then, while
continuing to hold the HomeLink
button, press and release the button
on the remote every 2 seconds.
Does the LED blink at a faster rate within 20
seconds?
Press and hold
the HomeLink
button again.
Training
complete
YESNO
HomeLink indicator
flashes for 2 seconds,
then remains on.
HomeLink LED
remains on.
YESNO
YESNO
Position the remote transmitter you
wish to link 1–3 inches from the
HomeLink button you want to program.
1
Press and hold the desired HomeLink
button and the button on the remote
transmitter.
Does the HomeLink indicator (LED) blink at a
faster rate after about 10 seconds?
2
a
The remote has a rolling code.
Press the “learn” button on the
remote-controlled device (e.g.,
garage door opener).
Press the programmed HomeLink
button again; the remote-controlled
device should operate.
Within 30 seconds, press and hold
the programmed HomeLink button
for 2 seconds.
a
Press and hold the programmed
HomeLink button for about a
second.
Does the device (garage door opener) work?
3
b
4
5
HOMEL INK
®
Play songs from your iPod and HDD from most navigation/audio screens by using simple
voice commands.
Using the “Play” Command
Press and release the Talk button before you say a command.
1. Say “iPod search” or “HDD search.”
2. Say “Play” and one of the options on the
Search Mode screen. For example, say
“Play Artist XYZ” or “Play song XYZ.”
If an exact match is not found, the
system lists possible matches. Say the
number next to the selection you want
to play.
3. The system plays the selection and
returns to the Search Mode screen.
Using the “List” Command
Press and release the Talk button before you say a command.
1. Say “iPod search” or “HDD search.”
2. Say “List” and one of the options on the
Search Mode screen. For example, say
“List Artist XYZ.”
is displayed. Say the number of the track
you want to play.
If an exact match is not found, the
system lists possible matches. Say the
number next to the selection you want
to play.
3. A list of tracks from the selected artist
4. The system plays the selection and
returns to the Search Mode screen.
Program your vehicle to operate up to three remote-controlled devices around your
home, such as garage doors, lighting, or home security systems.
Training a Button
If you have any problems programming HomeLink, see the owner’s manual included
with the device you are trying to program, call HomeLink at (800) 355-3515, or
visit www.homelink.com.
2322
HONDA OWNERS
FUEL RECOMME NDATION
Visit owners.honda.com and register to explore features and technologies specific to
your vehicle, obtain and update maintenance and service records, manage your
financial services account, and access other useful information. For added convenience,
Honda Owners can also be accessed on a mobile device.
SAFET Y REMIN DER
Your vehicle is equipped with airbags. Airbags do not replace seat belts; they add to
the protection offered by seat belts. Airbags can help protect you in some types of
collisions, but they do not provide protection in all collisions.
Use of unleaded gasoline of 87 octane or higher is recommended.
• Honda recommends TOP TIER Detergent Gasoline where available.
• Do NOT use gasoline containing more than 15% ethanol.
• Do NOT use gasoline containing methanol.
• Do NOT use gasoline containing MMT.
• See your Owner’s Manual for more information.
Some gasoline in North America contains MMT, a manganese-based fuel additive.
Prolonged and consistent use of gasoline containing MMT can deteriorate your
vehicle’s performance, fuel economy, and the emission control system. Always use
MMT-free gasoline if available. Failures caused by use of gasoline containing MMT
may not be covered under your new vehicle warranty.
TOP TIER Detergent Gasoline (recommended) never contains MMT and has
detergent additives to keep your engine clean. For further information on fuel and
lubricants for your car and information on gasoline that does not contain MMT,
contact your dealer or visit owners.honda.com.
Always make sure you and your passengers wear seat belts, and that young children
are properly secured in a child seat or booster in the rear seat. Never place an
infant seat in the front passenger’s seat as the force of a deploying airbag can
seriously injure an infant. See your Owner's Manual for more information.
2524
Loading...
