CRF300L / CRF300LR

CRF300L CRF300LR

2021 2021

13K1TM01

FOREWORD INDEX

ENGINE GROUP

FRAME GROUP

PART NUMBER INDEX

PART NAME INDEX

Instruction for use of parts catalogue

CONTENTS

Page

• This parts catalogue has been created as of November 20, 2020.

• Since this date, the sales practice for repair parts may have been changed or the parts may have been eliminated (listed for those not for sale).

• The modified information is reflected on the latest Electronic Parts Catalogue (EPC). Also, refer to the parts catalogue news for any change.

• See the parts catalogue news for any revision that is made after November 20, 2020.

• Always specify the part number when ordering a part.

• Check the model, type, serial numbers, color, maker, and the size as needed before ordering a part.

• Note that the illustrations (part drawings) can differ from the actual parts in shape. They are given just to help you to refer to the parts.

• When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time, with successively progressing revision numbers on the cover. We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether a parts catalogue revision has been issued, please contact your Honda distributor.

•Instruction for use of parts catalogue..........................................1

•How to refer to the part information........................................... 2

•Part catalogue structure..................................................................3

•When the parts were revised.......................................................... 5

•Abbreviations used in the parts catalogue................................. 5

•Part block and serial number check............................................. 6

•Color label attachment position check........................................ 6

•Models, parts catalogue codes and applicable serial

numbers.............................................................................................7

•Color label...........................................................................................8

•Color chart........................................................................................... 9

•Fuel hose, general purpose hoses and vinyl hose.................. 26

•FLAT RATE SERVICE TIME ................................................................30

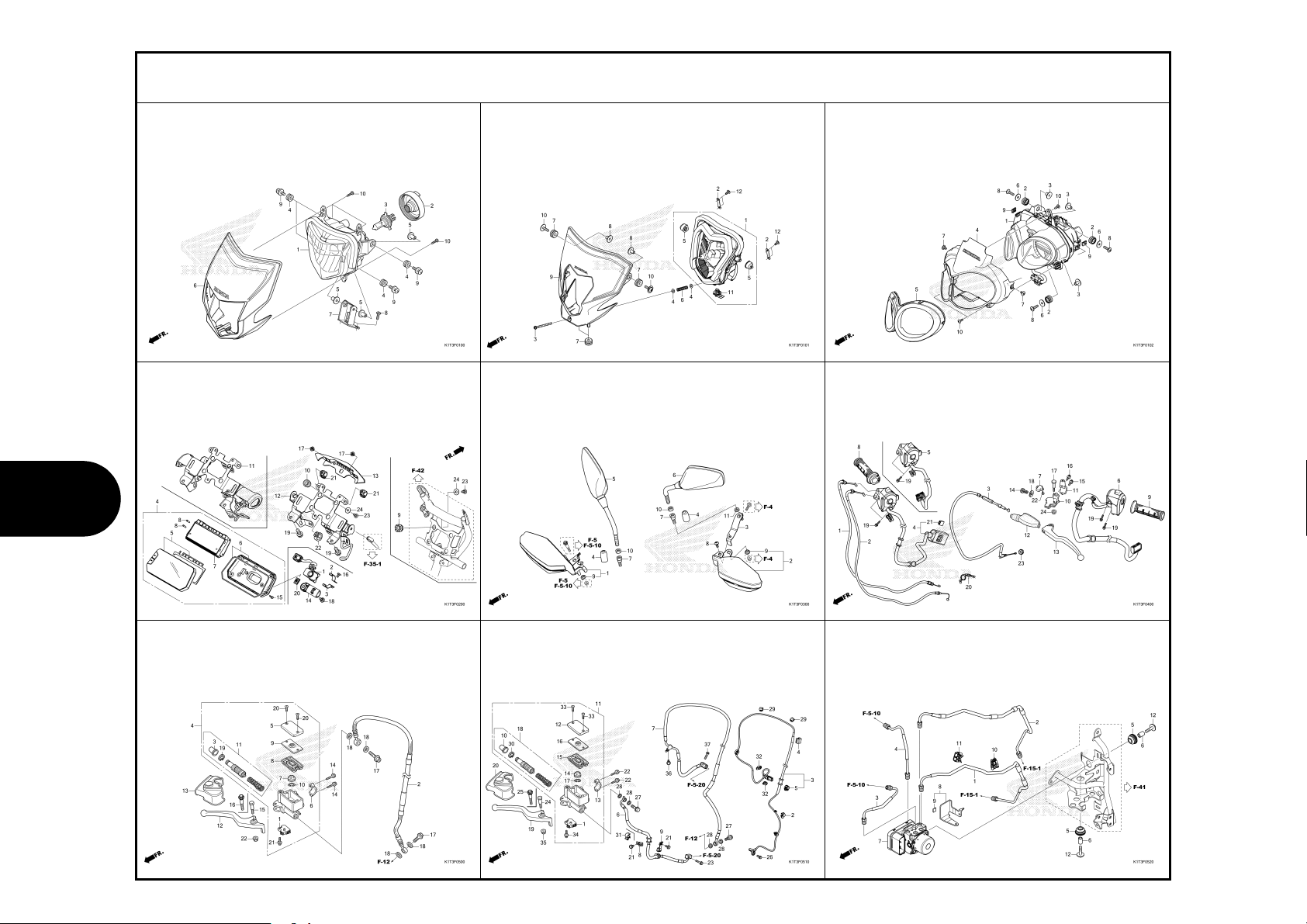

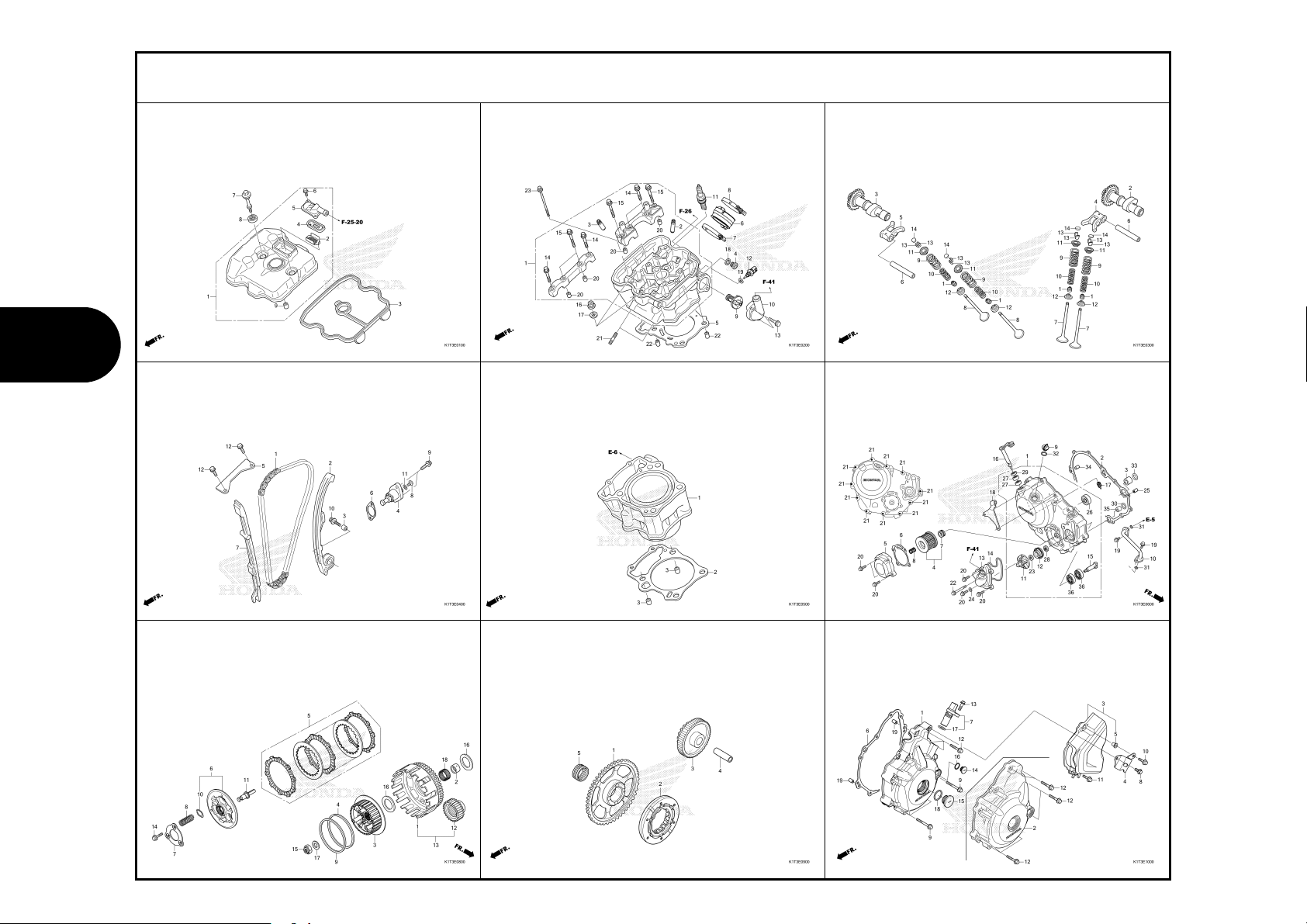

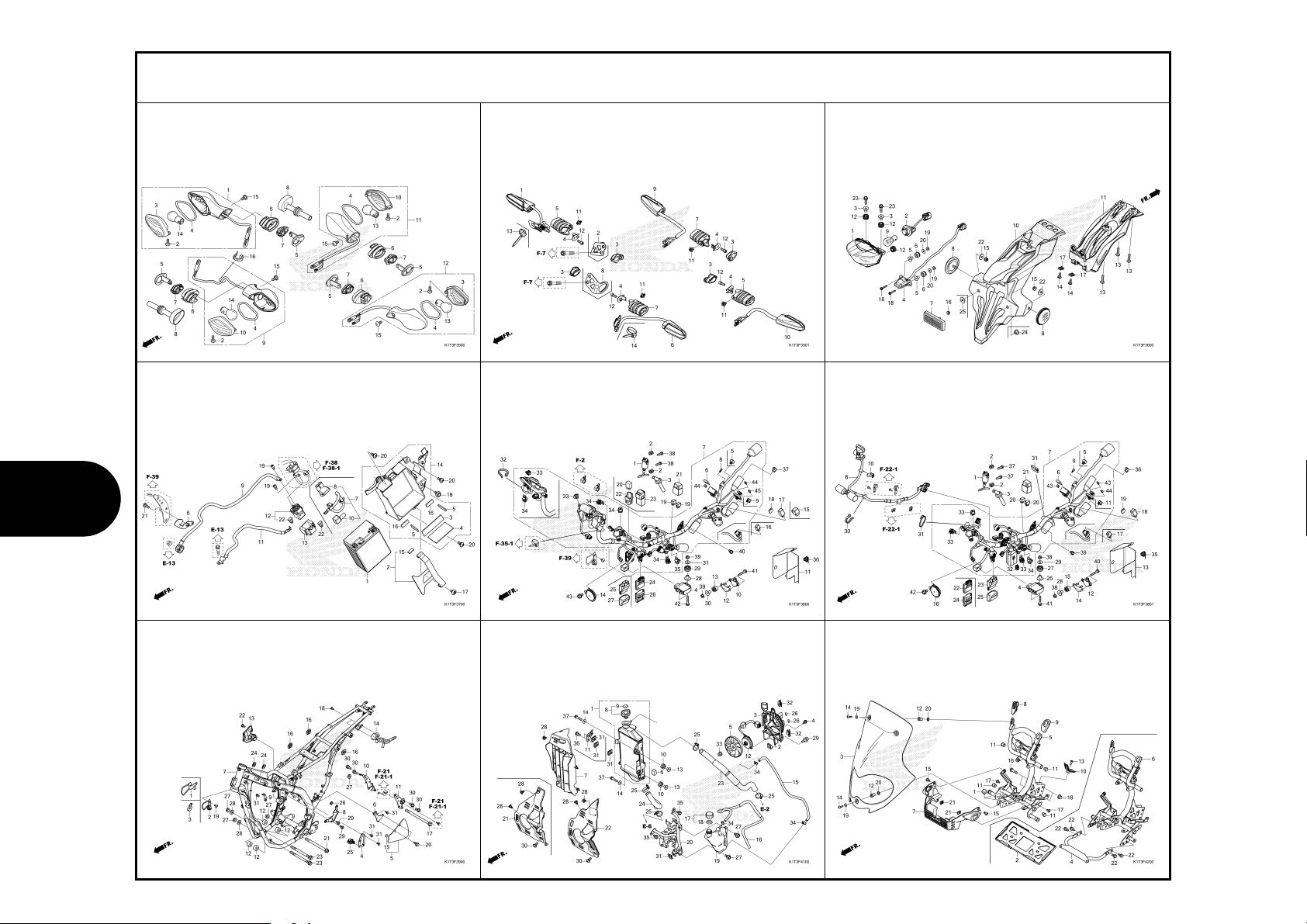

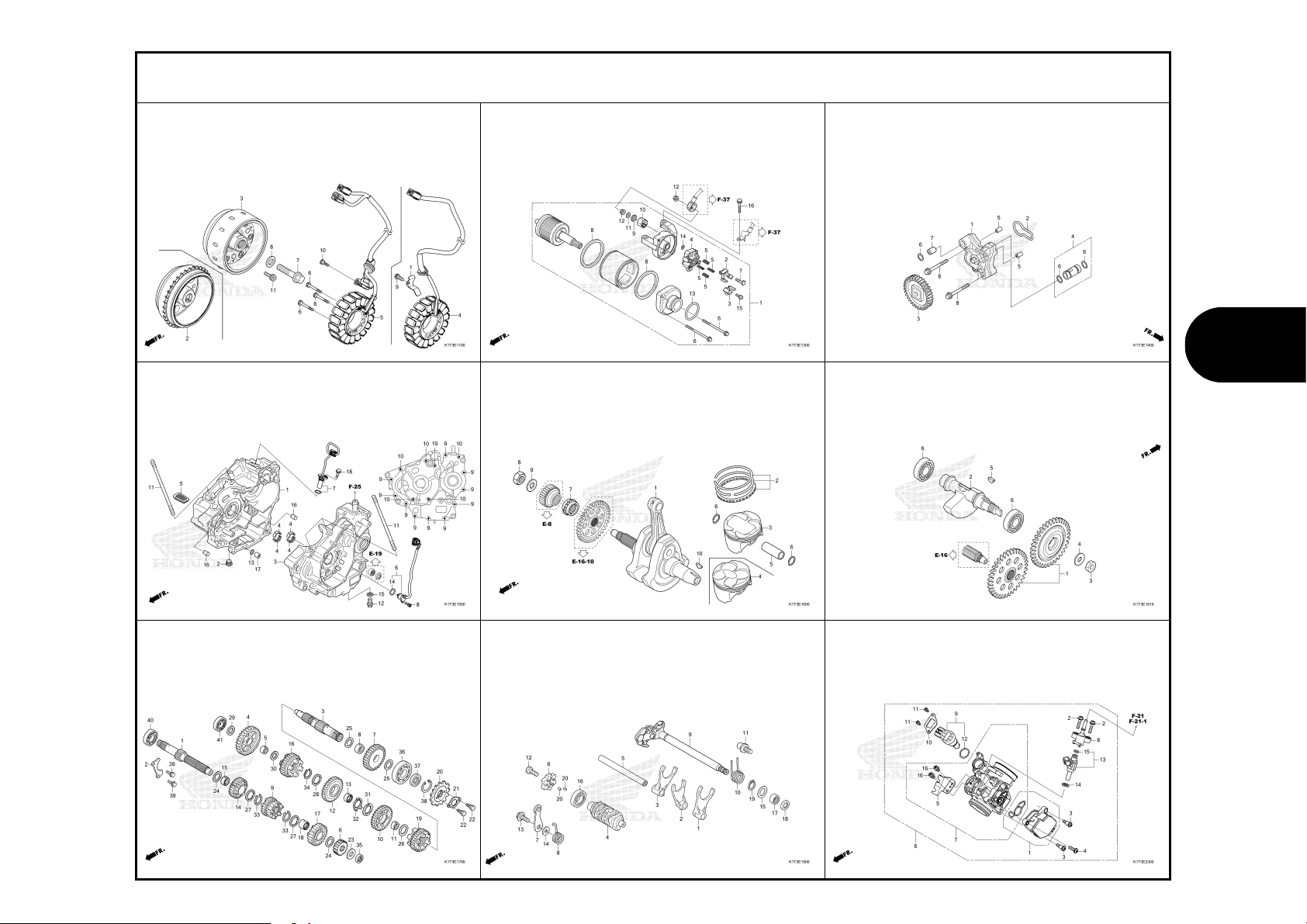

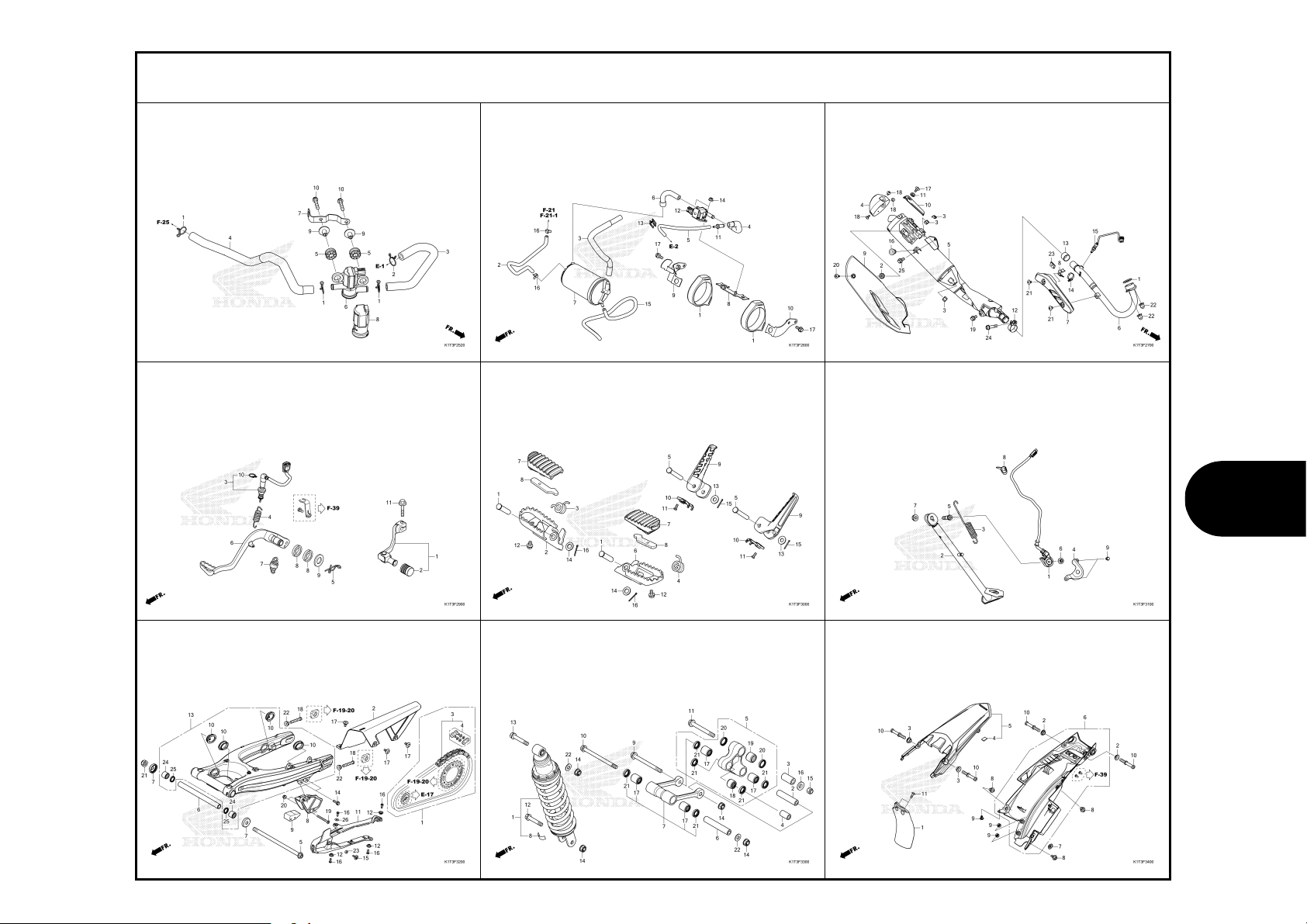

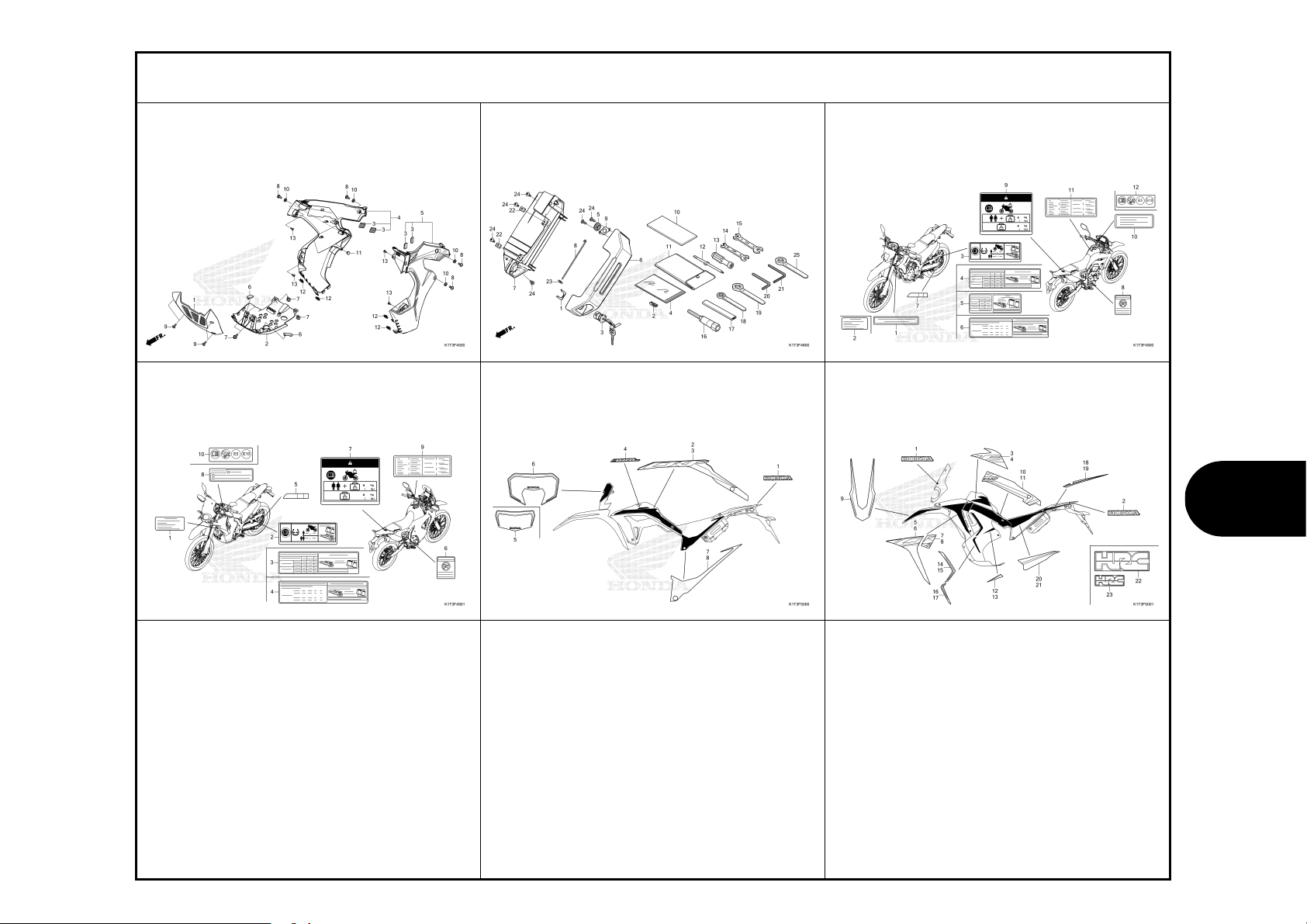

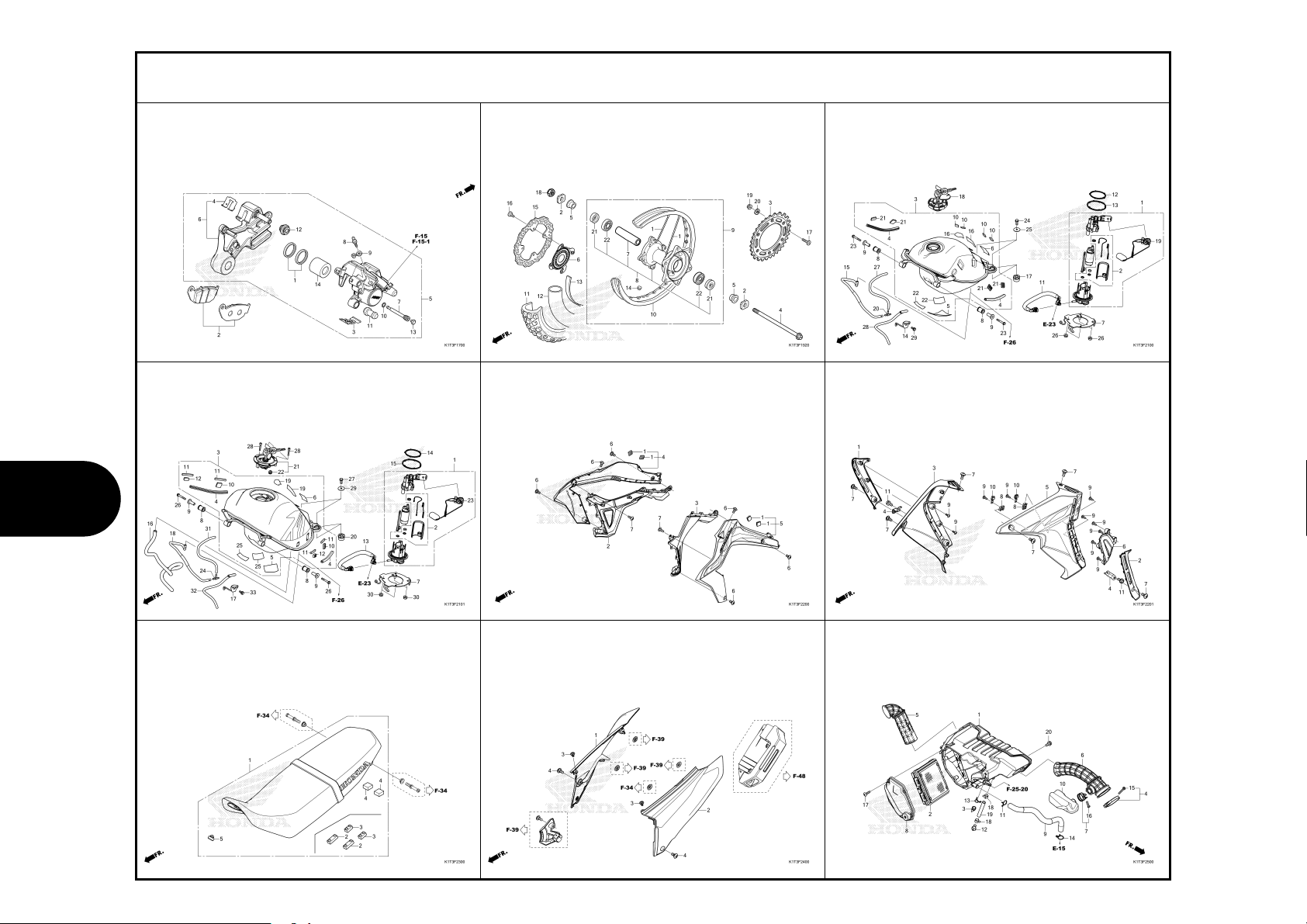

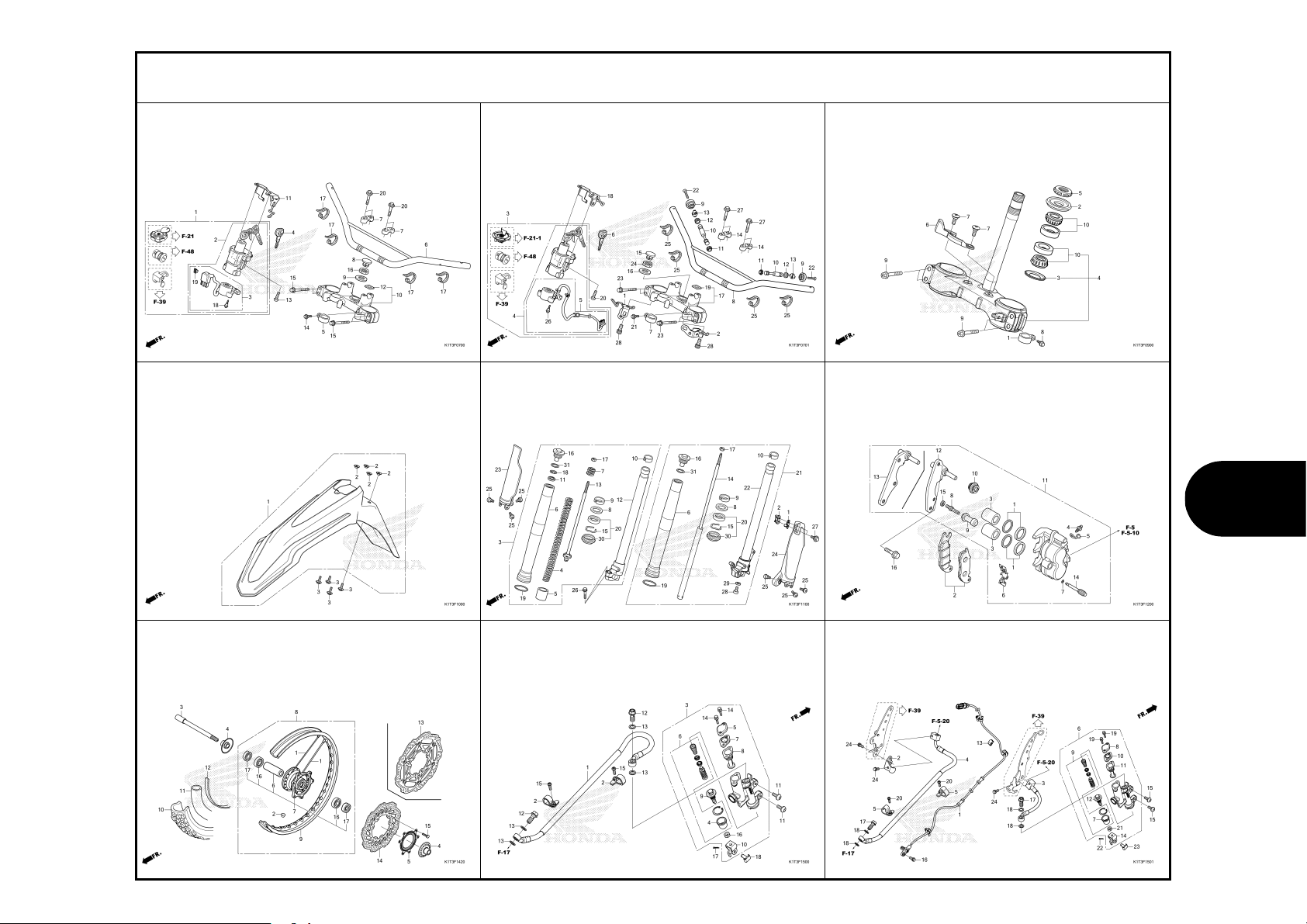

•Illustrated index .............................................................................36

•ENGINE GROUP ................................................................................44

•FRAME GROUP..................................................................................68

•PART NO. INDEX.............................................................................. 136

•PART NAME INDEX...........................................................................141

Initial version issue date

November 20, 2020

Honda Motor Co., Ltd.

2020.11.20 E

Reference with “Part number index”

Reference with “Part name index”

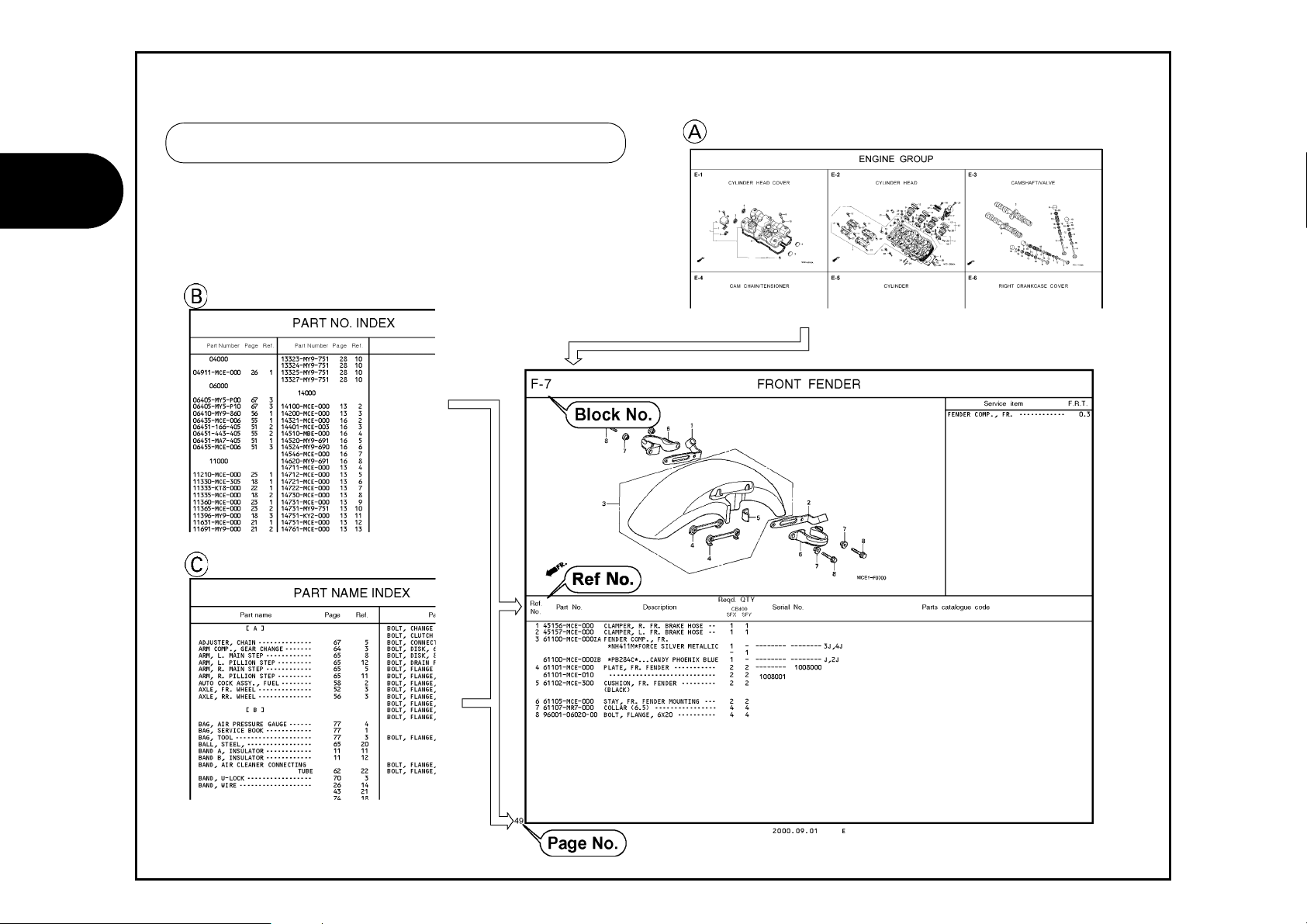

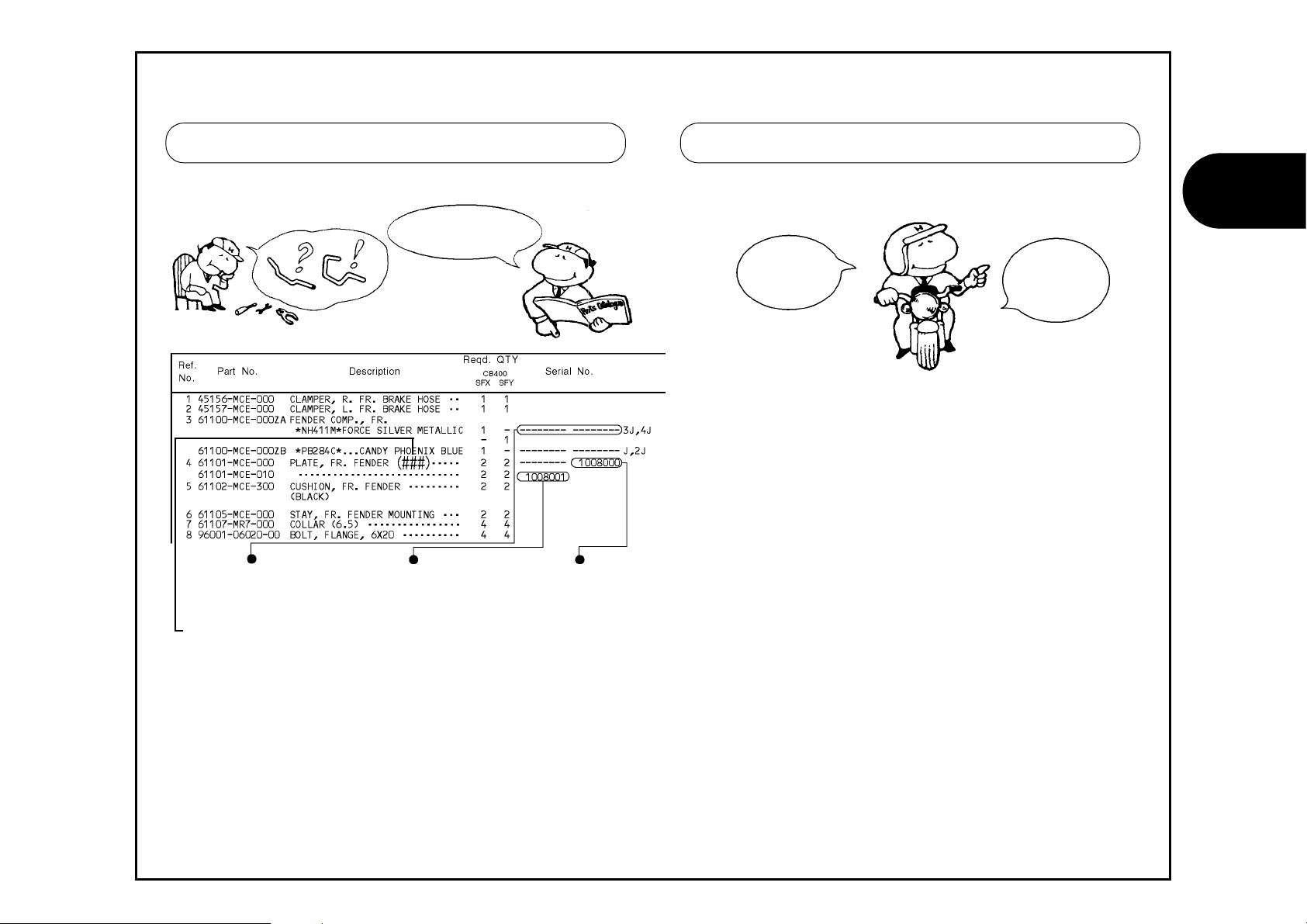

How to refer to the part information

Reference with “Illustrated index”

2020.11.20 E

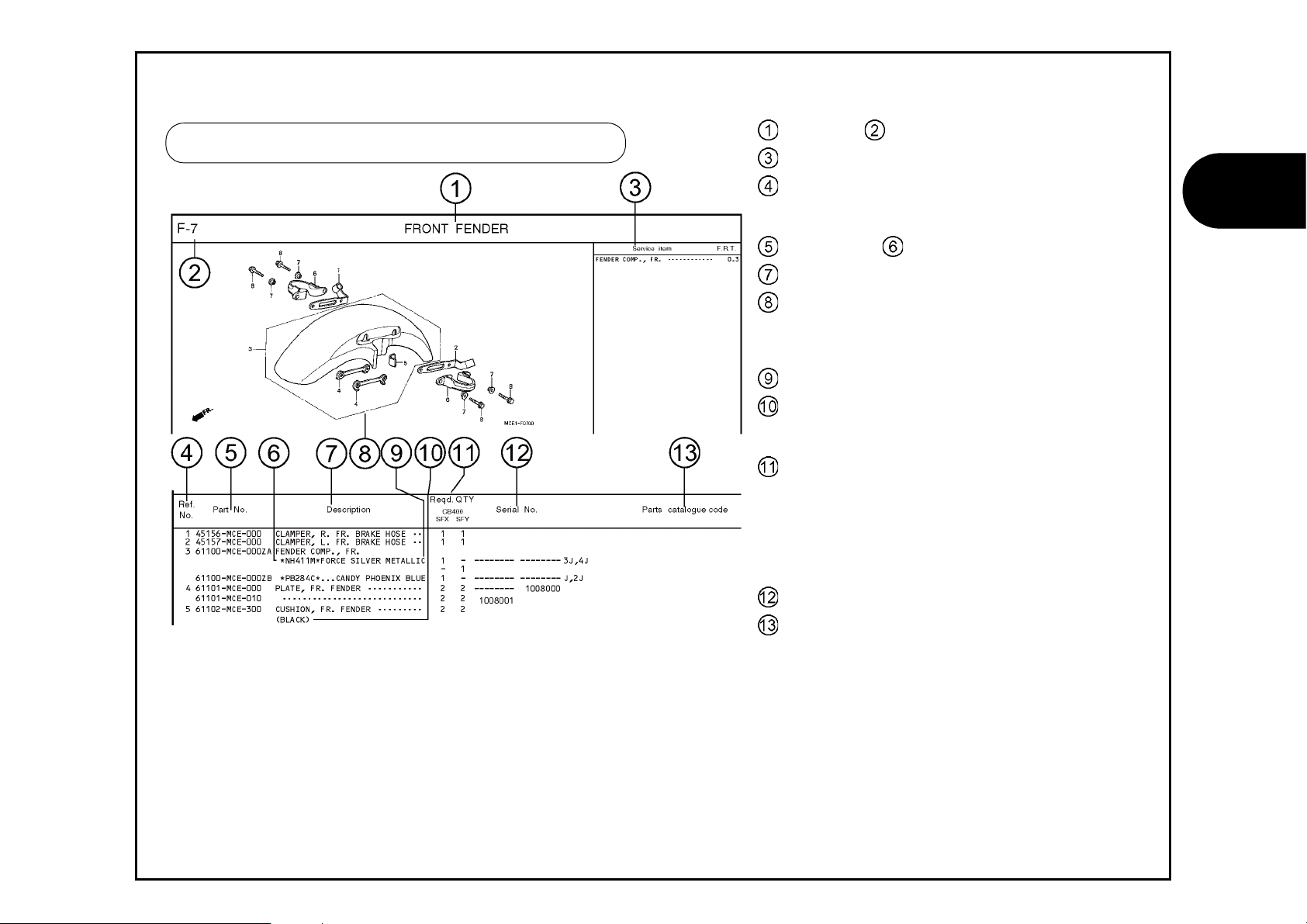

Part catalogue structure

Block title Block number Service item/Flat rate time Reference number

• Title number marked with the parenthesis or parentheses indicates that it continues from the previous page.

Part number Honda color code Description Assemblies

• Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their individual parts can also be obtained.)

Color description Note

• Notes are shown with the parentheses in the part name column.

Required quantity

• Reqd. QTY shown in the parenthesis or parentheses indicates the optional part.

• Reqd. QTY marked with “N” indicates the optional part that should be selected as needed.

• Reqd. QTY indicates the number of the part used in the block.

Serial number

Parts catalogue code

• When the parts catalogue code column is blank, it indicates that the part is applicable to all codes.

2020.11.20 E

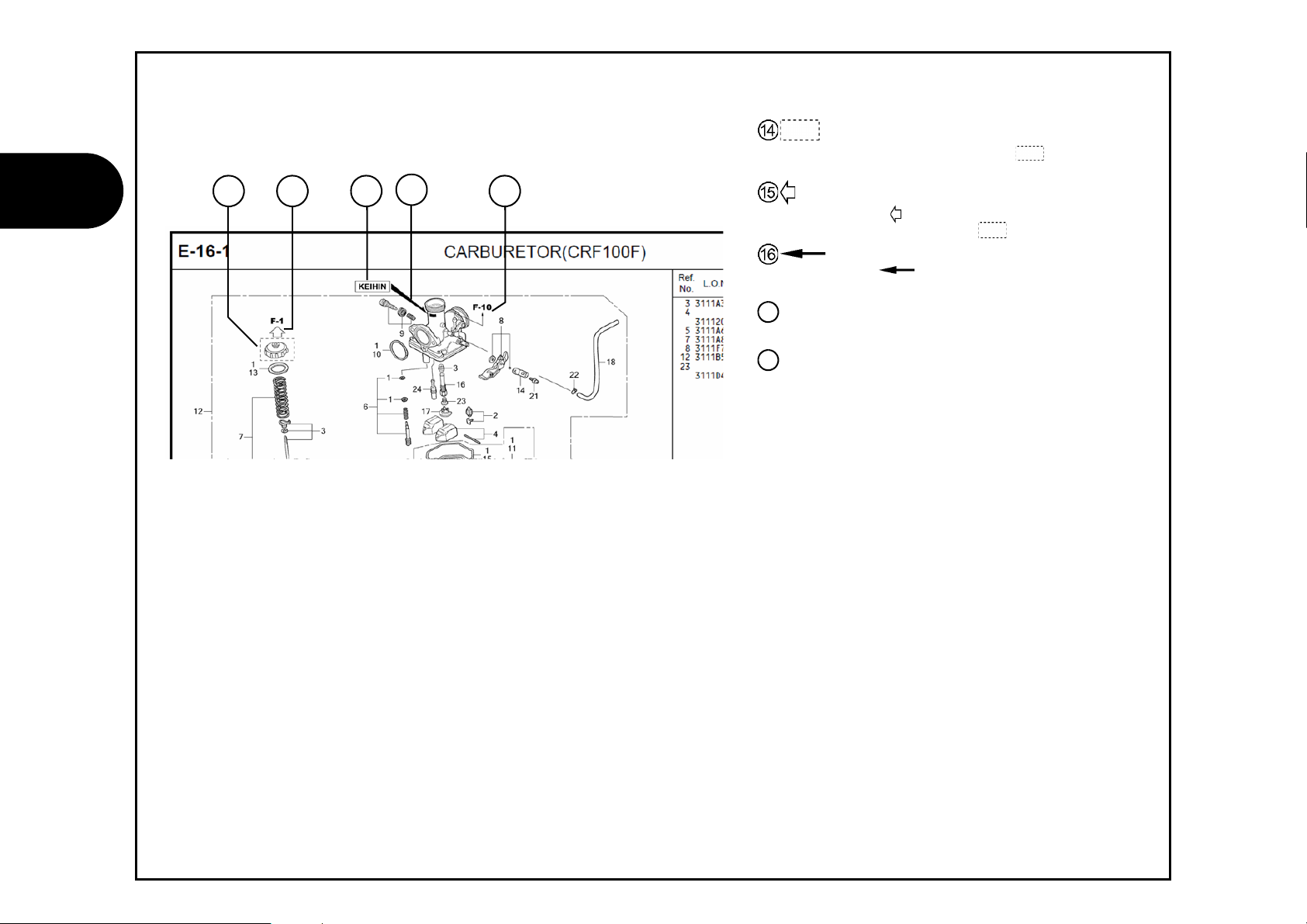

14 15 17

• Parts enclosed within a dotted line are covered in a different block.

• A hollow arrow indicates the block No. for the parts enclosed within a dotted line .

• A solid arrow indicates the block No. the part in question is connected to.

Replacement Identification Information for

Designated Part No.

Location of Replacement Identification Infor-

mation for Designated Part No.

• If an arrow mark is indicated in 18, the part is incompatible with a different part No.

• Make sure to order the part of the same manufacture, including the component part.

• To make an order, indicate the part No., which includes the symbol displayed on the applicable section of the part to be replaced.

2020.11.20 E

When the parts were revised

Be sure to check the serial number!!

The number has been used from the initial model without revision.

When shown at the left side, it is applicable to the models of No.1008001 and the subsequent numbers.

When shown at the right side, it is applicable to the models up to No.1008000.

• The parts listed with "###" at the end of the parts name have limited supply period (parts not for sale).

Abbreviations used in the parts catalogue

RIGHT is abbreviated as “R.”

“L.” stands for LEFT

* “L.” or “R.” in the description of a part stands for the LEFT hand

side or the RIGHT hand side. Determine the left or right as if you were in the motorcycle seat.

• The following abbreviations are used in this parts catalogue.

A ..............Ampere

ABS ..........Anti-lock brake

system

A.C. ..........Alternating current

A.M. .........Attaching mark

ASSY. .......Assembly

C.D.I. ........Capacitive discharge

ignition

COMP. ......Complete

CP. ............Candle power

D.C. ..........Direct current

EX. ...........Exhaust

FR. ...........Front

G ..............Gram

HEX. .........Hexagonal

IN. ............Inlet

L. ..............Left

(

100L) ...Link (100 Links)

L.E.D. .......Light emitted diode

MM ..........Millimeter

MPH ........Miles per hour

R. .............Right

RR. ...........Rear

STD. .........Standard

T (22T) .....Tooth (22 Teeth)

TCS ..........Traction control

system

T.M. ..........Transcript mark

V ...............Volt

W .............Watt

WL ...........With labelling

WOL ........Without labelling

KPH .........Kilometers per hour

2020.11.20 E

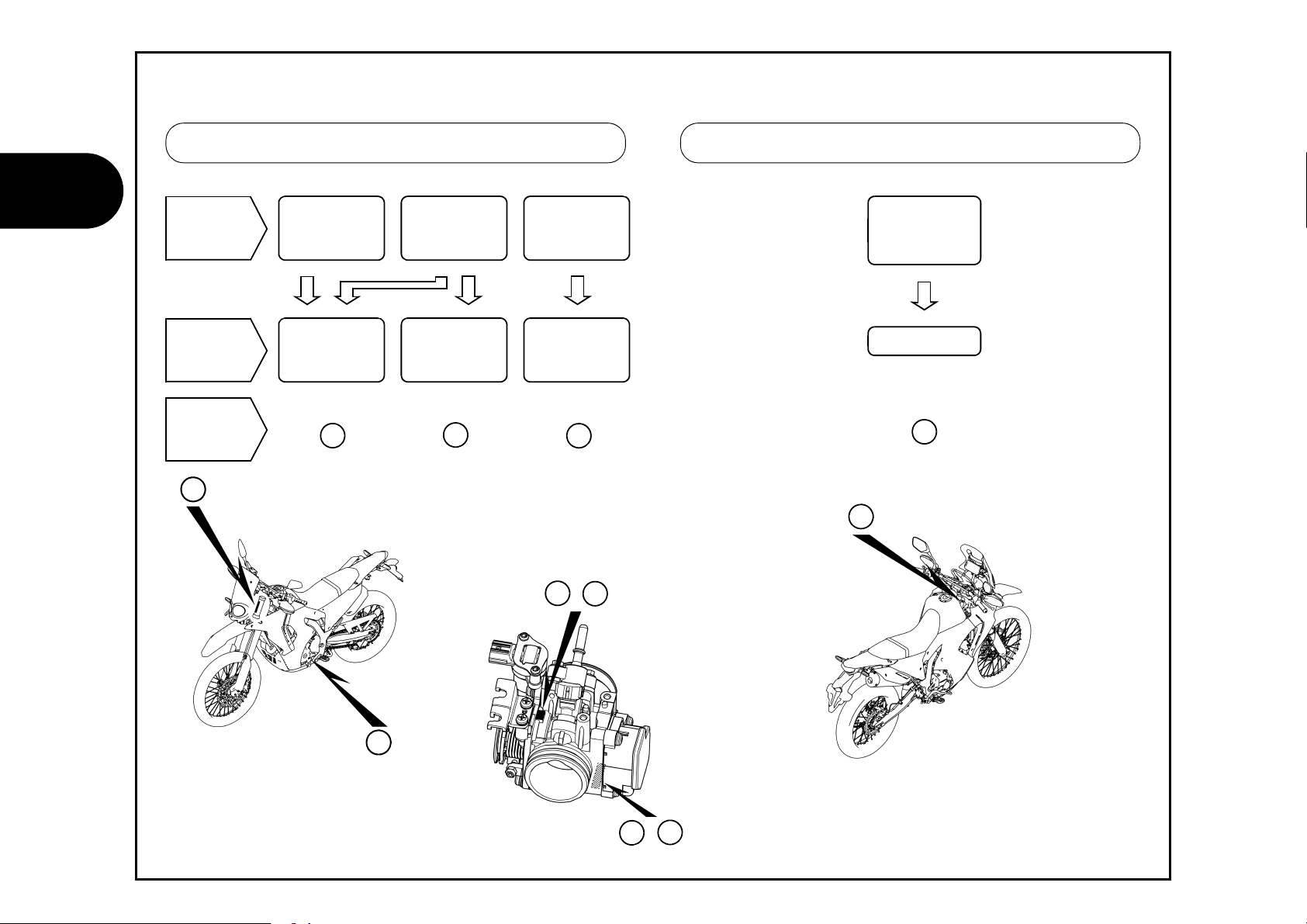

Part block and serial number check

Required

serial

number

Engine parts

E-1~

Engine serial

number

Throttle body

parts

E-23

Throttle body serial number

Frame parts

F-1~

Frame serial

number

Part block

Check

point

Color label attachment position check

Colored parts

Color label

2020.11.20 E

Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows.

Models, parts catalogue codes and applicable serial numbers

Parts with parts catalogue codes are exclusive for models destined for countries designated. If no area codes are listed, parts are for common use.

Model

Area

Type

Applicable engine

serial No.

Applicable frame

serial No.

Applicable throttle body

identification No.

CRF300L

CRF300LR

* Of carburetor/throttle body identification numbers, only the portions underlined in the example below are used for registration.

PH Philippines ND16E-6000001~ MLHND169*M5000001~

GQ 9UA KC

GQ9UA A

2020.11.20 E

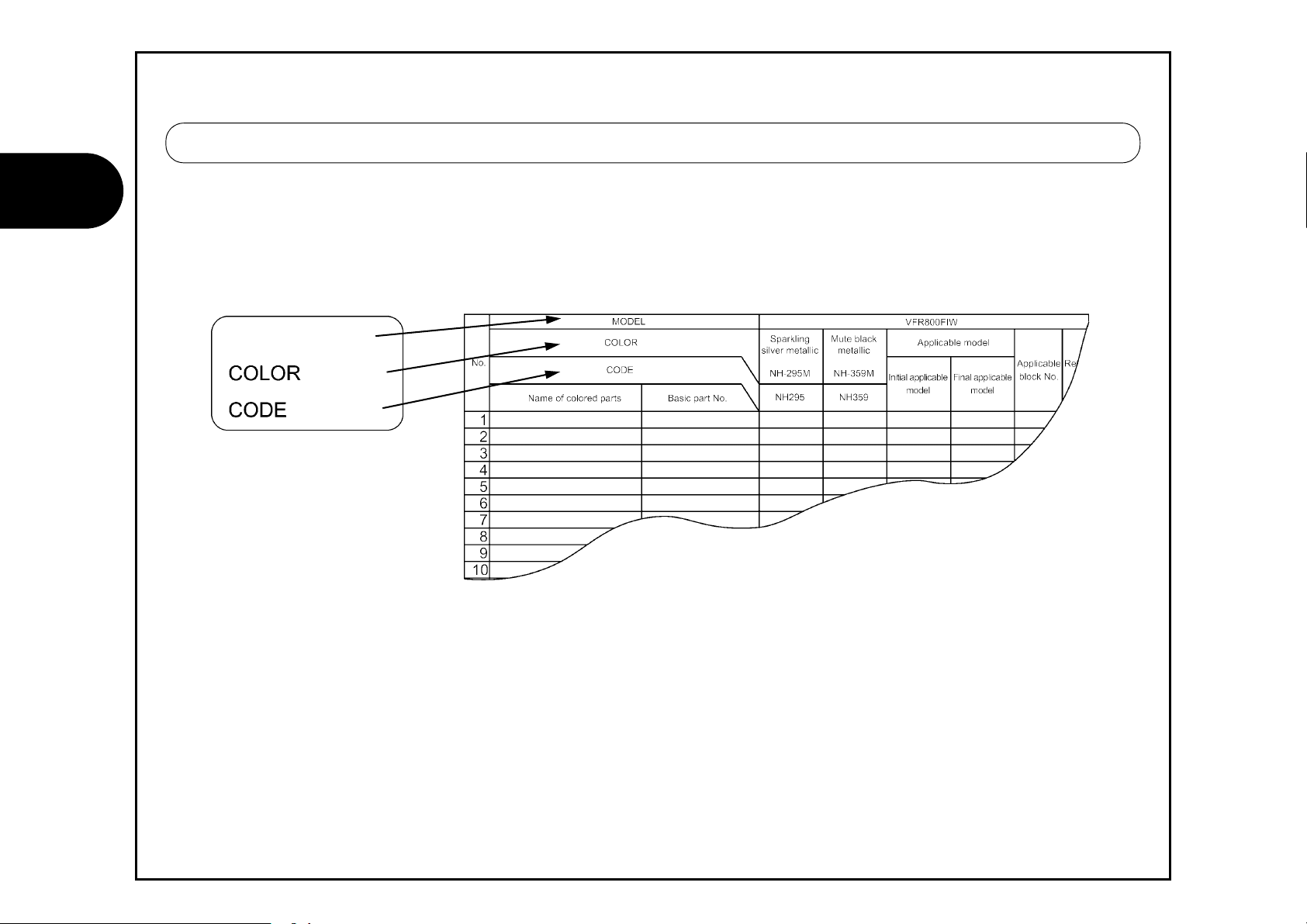

Color label

VFR800FIW

R-157

R157

• When ordering parts, check the model name, main color, and code by observing the “COLOR LABEL” on the vehicle.

• When ordering a colored part, use the color chart in the instruction for use of parts catalogue.

2020.11.20 E

Extreme

red

R-292R

No. Name of colored parts Basic part No. R292

Initial

applicable

model

Final

applicable

model

1 BODY COMP., FRAME 50100-K1T-E50 ZA F-39 7 2 BRIDGE COMP., FORK TOP 53300-KZZ-J00 ZC F-7 10 3 COVER ASSY., R. SIDE 83510-K1T-E50 ZA F-24 1 4 COVER SET, L. SIDE 83600-K1T-E50 ZA F-24 2 5 COWL ASSY., RR. 80130-K1T-E50 ZA F-34 5 6 FENDER SUB ASSY., FR. 61200-K1T-J50 ZA F-10 1 7 MARK 86193-K1T-E50 ZA F-50 4 8 MARK, HONDA 86102-KZZ-L30 ZA F-50 1 9 PROTECTOR, L. FR. FORK 51620-KZZ-D20 ZC F-11 24

10 PROTECTOR, R. FR. FORK 51610-KZZ-D20 ZC F-11 23 11 SEAT ASSY., DOUBLE 77200-K1T-E50 ZA F-23 1 12 SHROUD ASSY., L. FR. 19060-K1T-E50 ZA F-22 5 13 SHROUD ASSY., R. FR. 19050-K1T-E50 ZA F-22 4 14 STRIPE, FR. VISOR 86611-K1T-J50 ZA F-50 6 15 STRIPE, L. FR. SHROUD 86192-K1T-E50 ZA F-50 3 16 STRIPE, L. SIDE COVER 86832-K1T-E50 ZA F-50 8 17 STRIPE, R. FR. SHROUD 86191-K1T-E50 ZA F-50 2 18 STRIPE, R. SIDE COVER 86831-K1T-E50 ZA F-50 7 19 TANK ASSY., FUEL 17500-K1T-E50 ZA F-21 3 20 VISOR SET, FR. 61300-K1T-J50 ZA F-1-1 9

MODEL CRF300LM

COLOR

Applicable model

Applicable

block

No.

Ref.No.CODE

CRF300L (CRF300LM)….........PH

2020.11.20 E

Extreme

red

R-292R

No. Name of colored parts Basic part No. R292

Initial

applicable

model

Final

applicable

model

1 BODY COMP., FRAME 50100-K1T-E10 ZA F-39 7 2 BRIDGE COMP., FORK TOP 53300-KZZ-J00 ZC F-7-1 17 3 COVER SET, HEADLIGHT 61140-KZZ-J00 ZA F-1-2 4 4 COVER SET, L. SIDE 83600-K1T-E10 ZA F-24 2 5 COVER SET, R. SIDE 83500-K1T-E10 ZA F-24 1 6 COWL ASSY., L. MIDDLE 64400-K1T-E10 ZA F-45 5 7 COWL ASSY., R. MIDDLE 64300-K1T-E10 ZA F-45 4 8 COWL ASSY., RR. 80130-K1T-E10 ZA F-34 5 9 COWL, FR. UNDER 50375-KZZ-J00 ZA F-45 1

10 FENDER SET, FR. 61000-K1T-E10 ZA F-10 1 11 MARK, HONDA 86102-KZZ-900 ZC F-50-1 1 12 MARK, HONDA 86102-KZZ-L30 ZA F-50-1 2 13 PROTECTOR, L. FR. FORK 51620-KZZ-D20 ZC F-11 24 14 PROTECTOR, R. FR. FORK 51610-KZZ-D20 ZC F-11 23 15 SEAT ASSY., DOUBLE 77200-K1T-E10 ZA F-23 1 16 SHROUD SET, L. FR. 19090-K1T-E10 ZA F-22-1 5 17 SHROUD SET, R. FR. 19070-K1T-E10 ZA F-22-1 3 18 SHROUD, L. RR. 19045-KZZ-J00 ZA F-22-1 2 19 SHROUD, R. RR. 19035-KZZ-J00 ZA F-22-1 1 20 STRIPE A, L. FR. SHROUD 86192-K1T-E10 ZA F-50-1 6 21 STRIPE A, L. MIDDLE COWL 86642-K1T-E10 ZA F-50-1 11 22 STRIPE A, R. FR. SHROUD 86191-K1T-E10 ZA F-50-1 5

MODEL CRF300LRM

COLOR

Applicable model

Applicable

block

No.

Ref.No.CODE

CRF300LR (CRF300LRM)….........PH

2020.11.20 E

Extreme

red

R-292R

No. Name of colored parts Basic part No. R292

Initial

applicable

model

Final

applicable

model

23 STRIPE A, R. MIDDLE COWL 86641-K1T-E10 ZA F-50-1 10 24 STRIPE B, L. FR. SHROUD 86194-K1T-E10 ZA F-50-1 8 25 STRIPE B, L. MIDDLE COWL 86644-KZZ-U00 ZB F-50-1 13 26 STRIPE B, R. FR. SHROUD 86193-K1T-E10 ZA F-50-1 7 27 STRIPE B, R. MIDDLE COWL 86643-KZZ-U00 ZB F-50-1 12 28 STRIPE C, L. MIDDLE COWL 86646-KZZ-J00 ZA F-50-1 15 29 STRIPE C, R. MIDDLE COWL 86645-KZZ-J00 ZA F-50-1 14 30 STRIPE D, L. MIDDLE COWL 86648-KZZ-J00 ZA F-50-1 17 31 STRIPE D, R. MIDDLE COWL 86647-KZZ-J00 ZA F-50-1 16 32 STRIPE, FR. FENDER 86611-K1T-E10 ZA F-50-1 9 33 STRIPE, L. FUEL TANK 86172-K1T-E10 ZA F-50-1 4 34 STRIPE, L. RR. FENDER 86804-K1T-E10 ZA F-50-1 19 35 STRIPE, L. SIDE COVER 86832-K1T-E10 ZA F-50-1 21 36 STRIPE, R. FUEL TANK 86171-K1T-E10 ZA F-50-1 3 37 STRIPE, R. RR. FENDER 86803-K1T-E10 ZA F-50-1 18 38 STRIPE, R. SIDE COVER 86831-K1T-E10 ZA F-50-1 20 39 TANK ASSY., FUEL 17500-K1T-E10 ZA F-21-1 3

CRF300LR (CRF300LRM)….........PH

MODEL CRF300LRM

COLOR

Applicable model

Applicable

block

No.

Ref.No.CODE

2020.11.20 E

Fuel hose, general purpose hoses and vinyl hose

Fuel hoses/Tubes

Standard part No. Bulk part No.

Bulk part

Inner

diameter

(mm)

Length

(m)

95001-30xxx-2x 95001-30001-20M 3.0 1 95001-30xxx-3x 95001-30001-30M 3.0 1 95001-30xxx-4x 95001-30001-40M 3.0 1

95001-35xxx-2x

95001-35001-50M

<95001-35003-50M>

3.5

1 3

95001-35xxx-3x

95001-35001-60M

<95001-35003-60M>

3.5

1 3

95001-35xxx-4x

95001-35001-60M

<95001-35003-60M>

3.5

1 3

95001-35xxx-5x

95001-35001-50M

<95001-35003-50M>

3.5

1 3

95001-35xxx-6x

95001-35001-60M

<95001-35003-60M>

3.5

1 3

95001-45xxx-2x

95001-45001-50M

<95001-45003-50M>

4.5

1 3

95001-45xxx-3x

95001-45001-60M <95001-45003-60M> <95001-45008-60M>

4.5

1 3 8

95001-45xxx-4x

95001-45001-60M <95001-45003-60M> <95001-45008-60M>

4.5

1 3 8

95001-45xxx-5x

95001-45001-50M <95001-45003-50M>

4.5

1 3

95001-45xxx-6x

95001-45001-60M <95001-45003-60M> <95001-45008-60M>

4.5

1 3 8

95001-55xxx-2x

95001-55001-50M <95001-55003-50M> <95001-55008-50M>

5.5

1 3 8

95001-55xxx-3x

95001-55001-60M <95001-55003-60M> <95001-55008-60M>

5.5

1 3 8

95001-55xxx-4x

95001-55001-60M <95001-55003-60M> <95001-55008-60M>

5.5

1 3 8

95001-55xxx-5x

95001-55001-50M <95001-55003-50M> <95001-55008-50M>

5.5

1 3 8

95001-55xxx-6x

95001-55001-60M <95001-55003-60M> <95001-55008-60M>

5.5

1 3 8

95001-75xxx-2x

95001-75001-50M <95001-75003-50M>

7.5

1 3

95001-75xxx-3x

95001-75001-60M <95001-75003-60M> <95001-75008-60M>

7.5

1 3 8

95001-75xxx-4x

95001-75001-60M <95001-75003-60M> <95001-75008-60M>

7.5

1 3 8

95001-75xxx-5x

95001-75001-50M <95001-75003-50M>

7.5

1 3

95001-75xxx-6x

95001-75001-60M <95001-75003-60M> <95001-75008-60M>

7.5

1 3

8 95001-80xxx-2x 95001-80001-50M 8.0 1 95001-80xxx-3x 95001-80001-60M 8.0 1 95001-80xxx-4x 95001-80001-60M 8.0 1 95001-80xxx-5x 95001-80001-50M 8.0 1 95001-80xxx-6x 95001-80001-60M 8.0 1

Fuel hoses/Tubes

Standard part No. Bulk part No.

Bulk part

Inner

diameter

(mm)

Length

(m)

• The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part.

• When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalogue in brackets ( ) underneath the part name, or use the catalogue below. (The bulk part standard length is 1 m, however, those displayed in the catalogue < > are available in 3 m and 8 m lengths.)

• When exchanging the hose, cut and use at the specified length as mentioned in the part name. (For the method of cutting the bulk part, and method of filling out orders etc., please refer to the service manual and the instructions issued with the bulk part.)

• The list below is a catalogue of the standard part numbers and bulk part numbers. Note that those numbers are applicable to the listed replacement parts only.

2020.11.20 E

Standard part

No.

95003-01xxx-3x

95003-01xxx-60

95003-03xxx-3x

95003-03xxx-60

95003-05xxx-3x

95003-05xxx-60

95003-07xxx-1x

95003-07xxx-20

95003-07xxx-3x

95003-07xxx-60

95003-07xxx-7x

95003-08xxx-1x

95003-09xxx-3x

95003-09xxx-60

95003-10xxx-1x

95003-10xxx-20

95003-10xxx-3x

95003-10xxx-60

95003-11xxx-3x

95003-11xxx-60

95003-12xxx-1x

95003-12xxx-20

Vinyl tube

Bulk part No.

95003-01001-60M

<95003-01003-60M>

95003-01001-60M

<95003-01003-60M>

95003-03001-60M

<95003-03003-60M>

95003-03001-60M

<95003-03003-60M>

95003-05001-60M <95003-05003-60M> <95003-05008-60M>

95003-07001-10M <95003-07003-10M> <95003-07008-10M>

95003-07001-60M <95003-07003-60M> <95003-07008-60M>

95003-07001-70M <95003-07003-70M> <95003-07008-70M>

95003-08001-10M <95003-08003-10M> <95003-08008-10M>

95003-09001-60M <95003-09003-60M>

95003-10001-10M <95003-10003-10M>

95003-10001-60M <95003-10003-60M>

95003-11001-60M <95003-11003-60M> <95003-11008-60M>

95003-12001-10M

<95003-12003-10M>

<95003-12008-10M>

95003-12001-10M

<95003-12003-10M>

<95003-12008-10M>

Inner

dia- meter

(mm)

2.9 6.8

3.0 6.0

3.5 6.5

4.0 7.0

4.5 6.5

4.5 8.0

5.0 8.0

5.0 9.0

5.0 7.0

Bulk part

Outer

dia-meter

(mm)

Length

(m)

1 3

1 3 8

1 3

1 3 8

Standard part

No.

95003-14xxx-1x

95003-14xxx-20

95003-14xxx-3x

95003-17xxx-1x

95003-19xxx-1x

95003-19xxx-20

95003-19xxx-3x

95003-19xxx-60

95003-21xxx-1x

95003-21xxx-20

95003-23xxx-1x

95003-23xxx-20

95003-23xxx-3x

95003-23xxx-60

95003-25xxx-1x

95003-25xxx-20

95003-25xxx-3x

95003-25xxx-7x

95003-27xxx-1x

95003-27xxx-20

95003-27xxx-3x

95003-27xxx-60

95003-33xxx-1x

95003-33xxx-20

Vinyl tube

Bulk part No.

95003-14001-10M

<95003-14003-10M>

95003-14001-10M

<95003-14003-10M>

95003-14001-60M

<95003-14003-60M>

95003-17001-10M

<95003-17003-10M>

95003-19001-10M <95003-19003-10M> <95003-19008-10M>

95003-19001-60M <95003-19003-60M> <95003-19008-60M>

95003-21001-10M <95003-21003-10M>

95003-23001-10M <95003-23003-10M>

95003-23001-60M <95003-23003-60M> <95003-23008-60M>

95003-25001-10M <95003-25003-10M>

95003-25001-60M <95003-25003-60M>

95003-25001-70M <95003-25003-70M>

95003-27001-10M <95003-27003-10M>

95003-27001-60M <95003-27003-60M>

95003-33001-10M <95003-33003-10M>

Inner

dia- meter

(mm)

6.0 9.0

7.0 9.0

7.0 11.0

8.0 9.0

8.0 12.0

9.0 11.0

9.0 13.0

10.0 14.0

Bulk part

Outer

dia-meter

(mm)

Length

(m)

1 3 8

1 3

1 3 8

1 3

Standard part

No.

95003-36xxx-1x

95003-36xxx-20

95003-37xxx-3x

95003-37xxx-60

95003-38xxx-1x

95003-38xxx-20

95003-39xxx-1x

95003-39xxx-20

95003-40xxx-20

95003-40xxx-3x

95003-40xxx-60

95003-43xxx-1x

95003-43xxx-20

95003-45xxx-1x

95003-45xxx-20

95003-50xxx-1x

95003-50xxx-20

95003-50xxx-3x

95003-55xxx-1x

95003-55xxx-20

95003-60xxx-1x

95003-60xxx-20

95003-60xxx-3x

95003-60xxx-60

Vinyl tube

Bulk part No.

95003-36001-10M <95003-36003-10M> <95003-36008-10M>

95003-37001-60M

95003-37003-60M>

95003-37001-60M <95003-37003-60M>

95003-38001-10M <95003-38003-10M>

95003-39001-10M <95003-39003-10M>

95003-40001-10M <95003-40003-10M>

95003-40001-60M <95003-40003-60M>

95003-43001-10M <95003-43003-10M> <95003-43008-10M>

95003-45001-10M <95003-45003-10M> <95003-45008-10M>

95003-50001-10M <95003-50003-10M>

95003-50001-60M <95003-50003-60M>

95003-55001-10M <95003-55003-10M>

95003-60001-10M <95003-60003-10M>

95003-60001-60M <95003-60003-60M>

Inner

dia- meter

(mm)

11.0 13.0

11.0 15.0

12.0 13.0

12.0 14.0

12.0 16.0

13.0 15.0

14.0 18.0

16.0 19.0

17.5 20.5

22.0 27.0

Bulk part

Outer

dia-meter

(mm)

Length

(m)

1 3 8

1 3

1 3 8

1 3

2020.11.20 E

CAUTION: It is DANGEROUS to confuse the fuel hose with the general purpose hose or vinyl hose.

Never use a general purpose hose or vinyl hose in place of a fuel hose or vice versa. Always use the correct bulk part in the parts catalogue, according to the service manual or the instructions issued with the bulk part.

General purpose hoses

Bulk part

Standard part No. Bulk part No.

95005-11xxx-3x 95005-11001-30M 11.0 1 95005-11xxx-5x 95005-11001-50M 11.0 1

95005-12xxx-1x 95005-12xxx-2x 95005-12001-20M 12.0 1

95005-12xxx-3x 95005-12001-30M 12.0 1 95005-12xxx-5x 95005-12001-50M 12.0 1 95005-14xxx-1x 95005-14001-10M 14.0 1

95005-14xxx-2x 95005-14xxx-3x 95005-14001-30M 14.0 1

95005-14xxx-5x 95005-14001-50M 14.0 1 95005-17xxx-1x 95005-17001-10M 17.0 1 95005-17xxx-2x 95005-17001-20M 17.0 1 95005-17xxx-3x 95005-17001-30M 17.0 1

95005-17xxx-5x 95005-17001-50M 17.0 1 95005-30xxx-3x 95005-30001-30M 3.0 1 95005-30xxx-5x 95005-30001-50M 3.0 1

95005-35xxx-1x

95005-35xxx-2x 95005-35001-20M 3.5 1 95005-35xxx-3x 95005-35001-30M 3.5 1

95005-35xxx-4x

95005-35xxx-5x 95005-35001-50M 3.5 1

95005-45xxx-1x

95005-45xxx-2x 95005-45001-20M 4.5 1 95005-45xxx-3x 95005-45001-30M 4.5 1

95005-12001-10M

<95005-12003-10M>

95005-14001-20M

<95005-14003-20M>

95005-35001-10M <95005-35003-10M> <95005-35008-10M>

95005-45001-10M <95005-45003-10M> <95005-45008-10M>

Inner

diameter

(mm)

12.0

14.0

3.5

4.5

Length

(m)

1 3

1 3 8

General purpose hoses

Bulk part

Standard part No. Bulk part No.

95005-45xxx-4x

95005-45xxx-5x 95005-45001-50M 4.5 1 95005-50xxx-3x 95005-50xxx-5x 95005-50001-50M 5.0 1

95005-55xxx-1x

95005-55xxx-2x

95005-55xxx-4x

95005-65xxx-1x 95005-65xxx-2x 95005-65001-20M 6.5 1 95005-70xxx-3x 95005-70xxx-5x 95005-70001-50M 7.0 1

95005-75xxx-1x 95005-75xxx-2x 95005-75001-20M 7.3 1 95005-80xxx-1x 95005-80xxx-2x 95005-80001-20M 8.0 1

95005-80xxx-3x 95005-80001-30M 8.0 1 95005-80xxx-5x 95005-80001-50M 8.0 1 95005-91xxx-3x 95005-91001-30M 12.0 1 95005-91xxx-5x 95005-91001-50M 12.0 1 95005-92xxx-3x 95005-92001-30M 12.0 1 95005-92xxx-5x 95005-92001-50M 12.0 1

95005-45001-10M <95005-45003-10M> <95005-45008-10M>

95005-50001-30M <95005-50003-30M>

95005-55001-10M <95005-55003-10M> <95005-55008-10M>

95005-55001-20M <95005-55003-20M>

95005-55001-10M <95005-55003-10M> <95005-55008-10M>

95005-65001-10M <95005-65003-10M>

95005-70001-30M <95005-70003-30M>

95005-75001-10M <95005-75003-10M>

95005-80001-10M <95005-80003-10M>

NOTE: X is displayed to represent the omitted numerals and letters of

the roman alphabet.

Inner

diameter

(mm)

4.5

5.0

5.3

6.5

7.0

7.3

8.0

Length

(m)

1 3 8

1 3

1 3 8

1 3

1 3 8

1 3

2020.11.20 E

(Example)

9 5 0 0 1 - 7 5 0 0 1 - 5 0 M

Bulk part number: Refers to the bulk part. Marking code (hose type): (fuel hose and general purpose hose)

Change code (for added hose): (Vinyl hose)

• Indicates number mark or change sequence, however, the code for the bulk part must be strictly 0 (zero).

Types of code:

• Fuel hose 2: Red outside braid (3 mm inside dia. only) 5: Black inside braid 3: Red (3 mm inside dia. only) 4: Ash gray with red stripe (3 mm inside dia. only) 6: Black

• Vinyl hose 1: Clear 2: Black 3: Light red 6: Light red 7: Pale black

• General hose 1: Ash gray 2: Ash gray 3: Black 5: Black

Lengths: 001: 1 m (standard)

003: 3 m 008: 8 m

I.D code: (fuel hose and general purpose hose)

30: 3.0 mm 11: 11 mm 35: 3.5 mm 91: 12 mm (outside dia. 15) mm 45: 4.5 mm 92: 12 mm (outside dia. 16) mm 50: 5.0 mm 12: 12 mm (outside dia. 17) mm 55: 5.3 mm, 5.5 mm 14: 14 mm 65: 6.5 mm 17: 17 mm 70: 7.0 mm 75: 7.3 mm, 7.5 mm 80: 8.0 mm

ID./OD. code: (vinyl hose)

01: ID. 2.9, OD. 6.8 mm 14: ID. 6.0, OD. 9.0 mm 37: ID. 11.0, OD. 15.0 mm 03: ID. 3.0, OD. 6.0 mm 17: ID. 7.0, OD. 9.0 mm 38: ID. 12.0, OD. 13.0 mm 05: ID. 3.5, OD. 6.5 mm 19: ID. 7.0, OD. 11.0 mm 39: ID. 12.0, OD. 14.0 mm 07: ID. 4.0, OD. 7.0 mm 21: ID. 8.0, OD. 9.0 mm 40: ID. 12.0, OD. 16.0 mm 08: ID. 4.5, OD. 6.5 mm 23: ID. 8.0, OD. 12.0 mm 43: ID. 13.0, OD. 15.0 mm 09: ID. 4.5, OD. 8.0 mm 25: ID. 9.0, OD. 11.0 mm 45: ID. 14.0, OD. 18.0 mm 12: ID. 5.0, OD. 7.0 mm 27: ID. 9.0, OD. 13.0 mm 50: ID. 16.0, OD. 19.0 mm 10: ID. 5.0, OD. 8.0 mm 33: ID. 10.0, OD. 14.0 mm 55: ID. 17.5, OD. 20.5 mm 11: ID. 5.0, OD. 9.0 mm 36: ID. 11.0, OD. 13.0 mm 60: ID. 22.0, OD. 27.0 mm

Hose type: 1: Fuel hose

3: Vinyl hose 5: General hose

• Bulk part number of fuel hose, general purpose hose and vinyl hose.

2020.11.20 E

ENGINE GROUP

Illustrated index

E-1

E-4

CYLINDER HEAD COVER

CAM CHAIN/TENSIONER

E-2

E-5

CYLINDER HEAD

CYLINDER

E-3

CAMSHAFT/VALVE

E-6

RIGHT CRANKCASE COVER

E-8

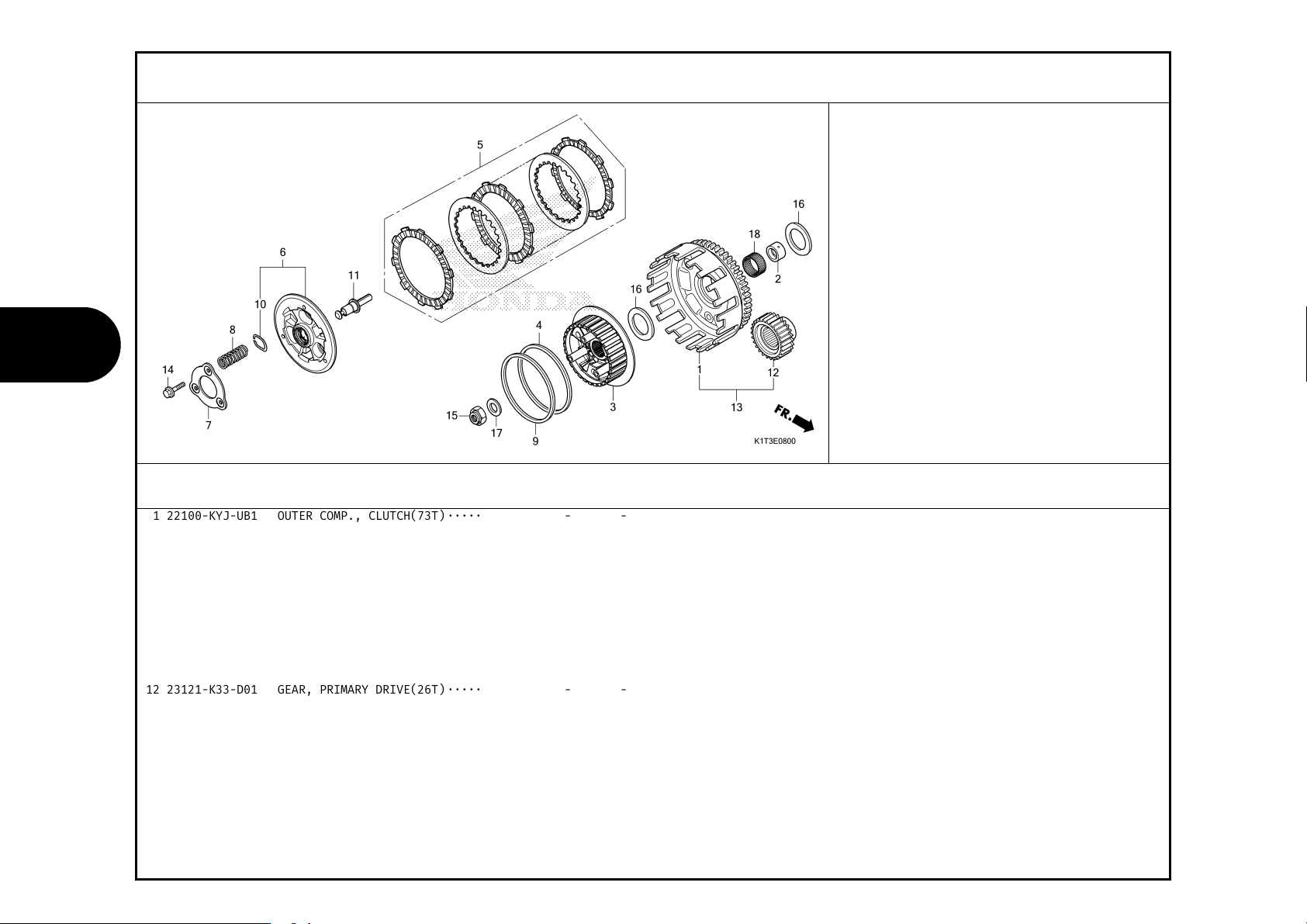

CLUTCH

E-9

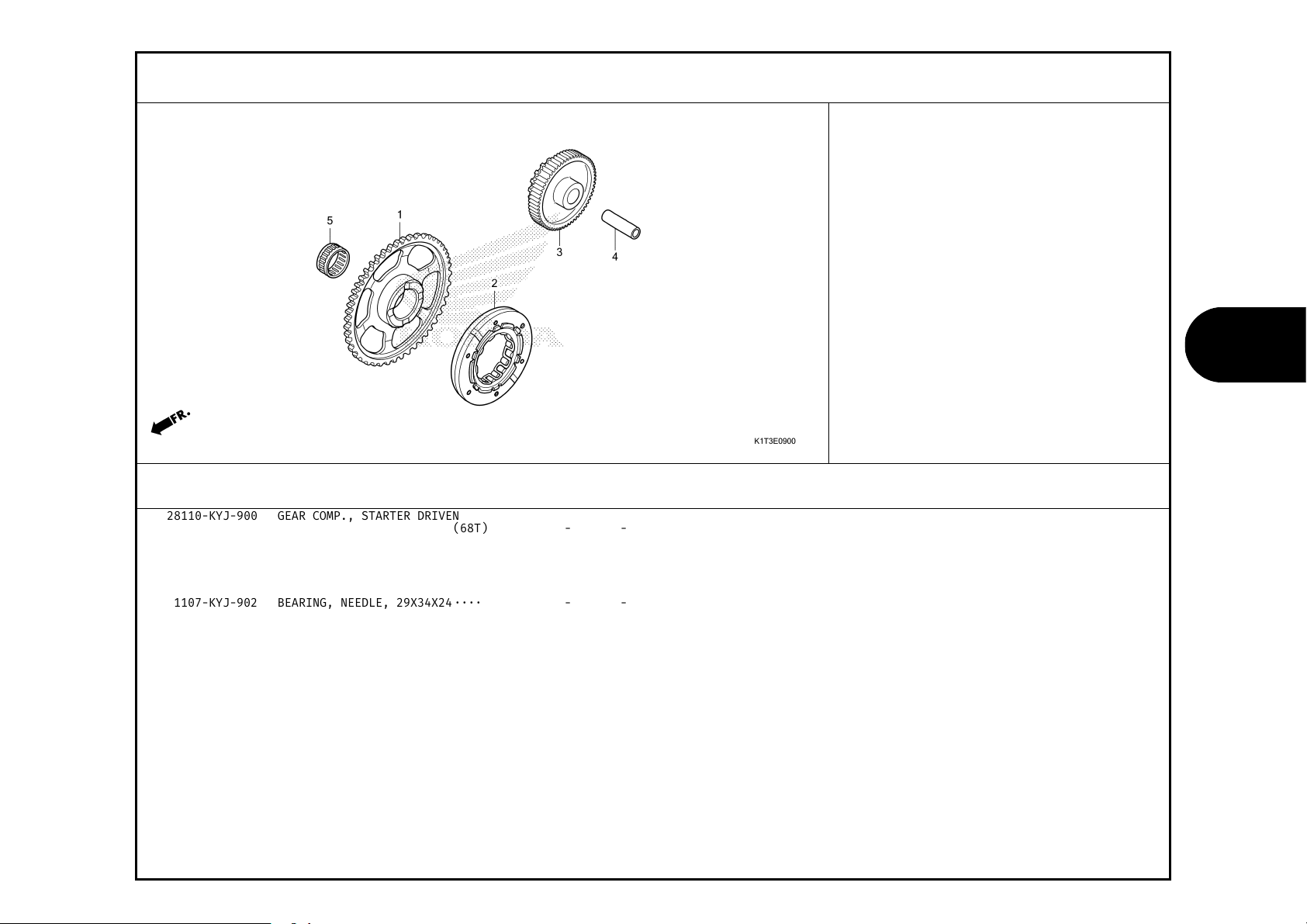

STARTING CLUTCH

2020.11.20 E

E-10

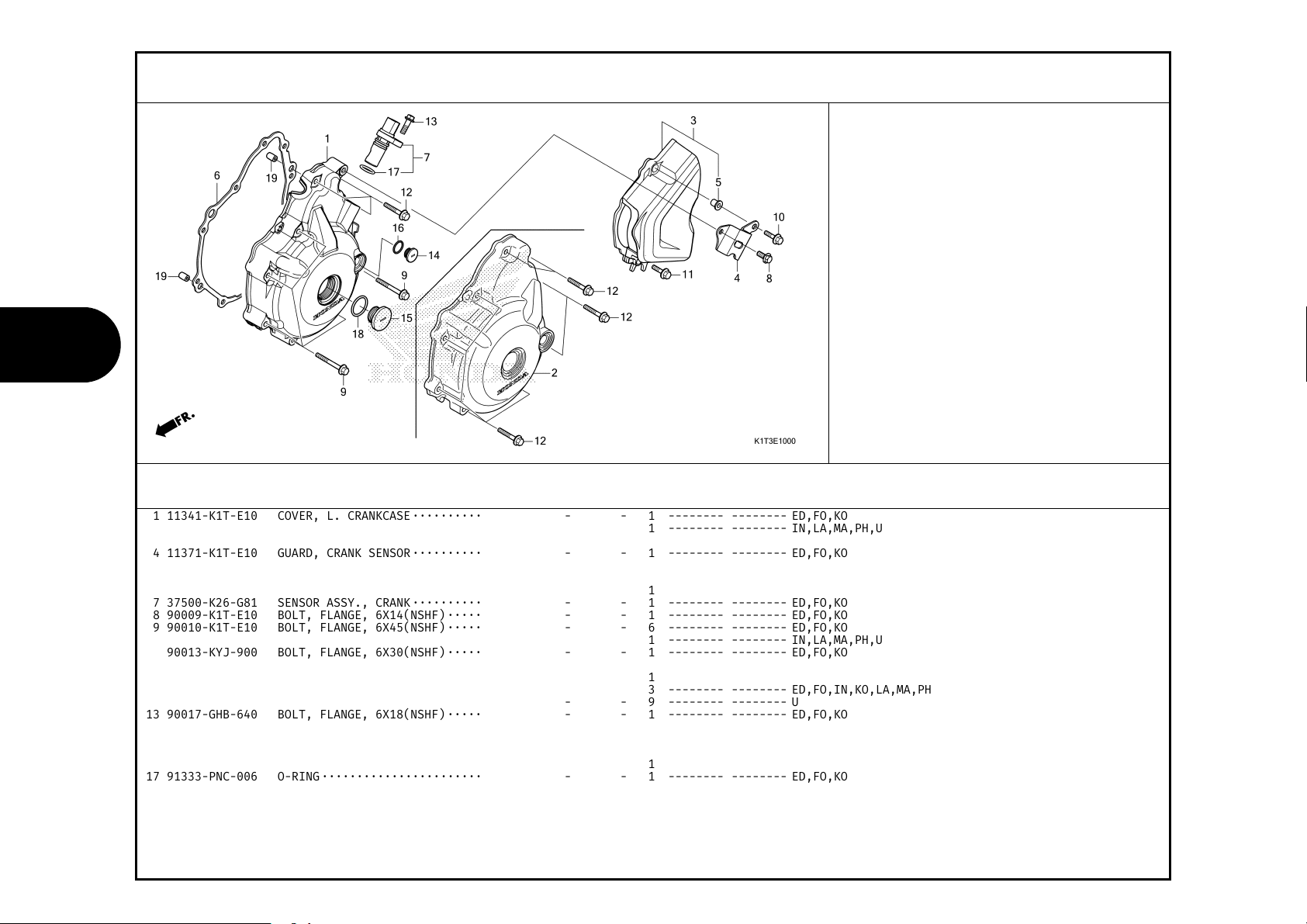

LEFT CRANKCASE COVER

E-11

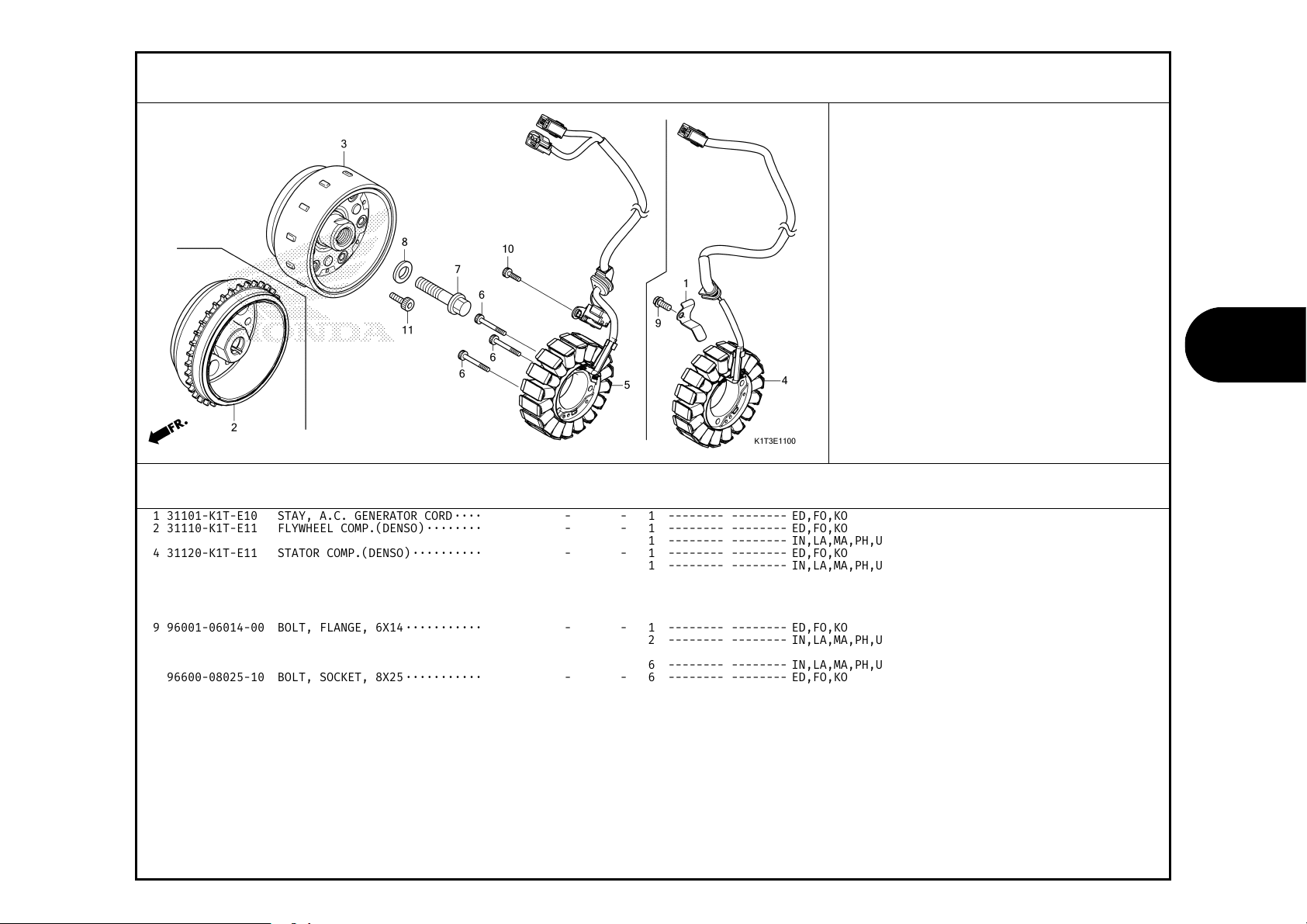

GENERATOR

E-13

ENGINE GROUP

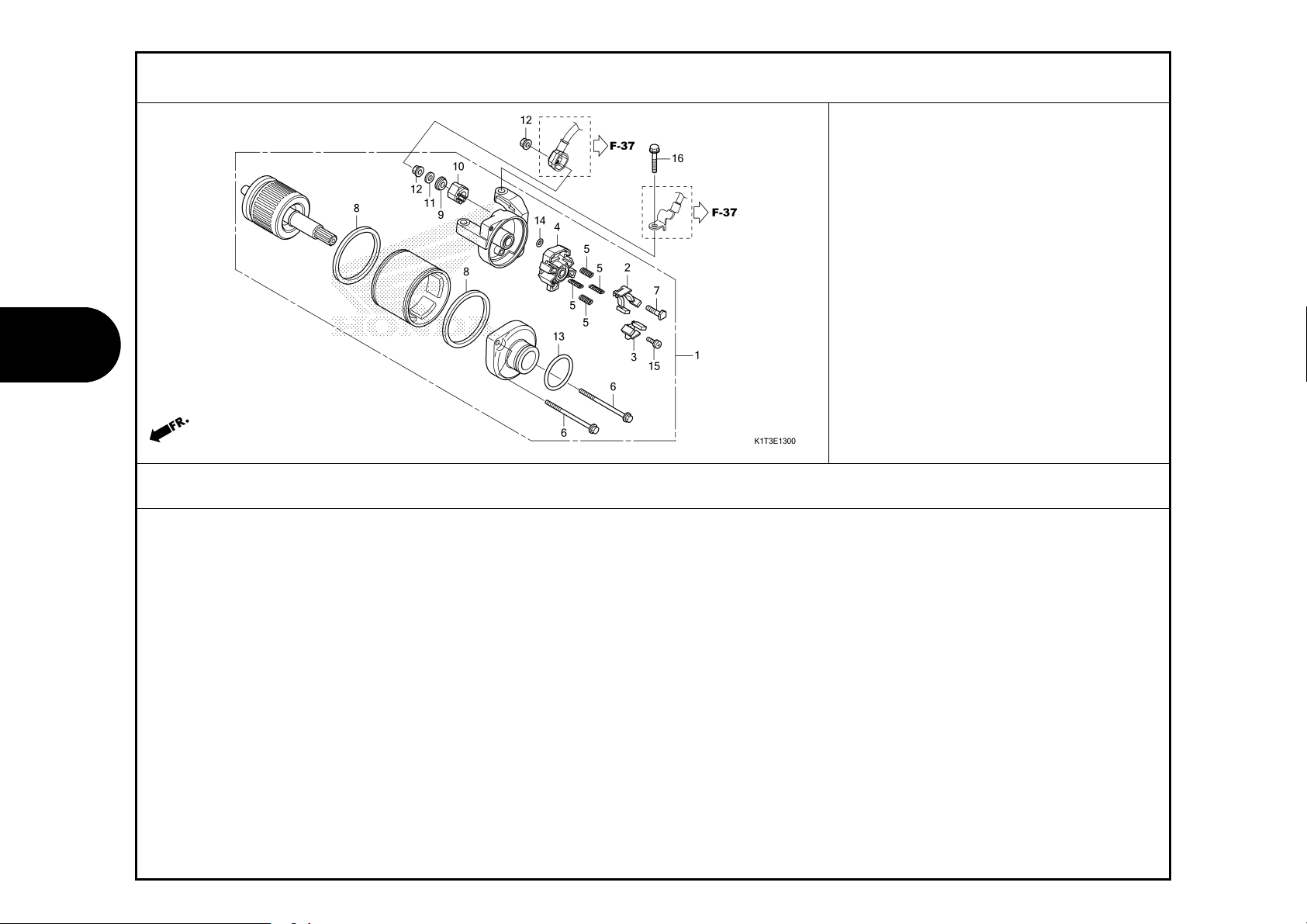

STARTER MOTOR

E-14

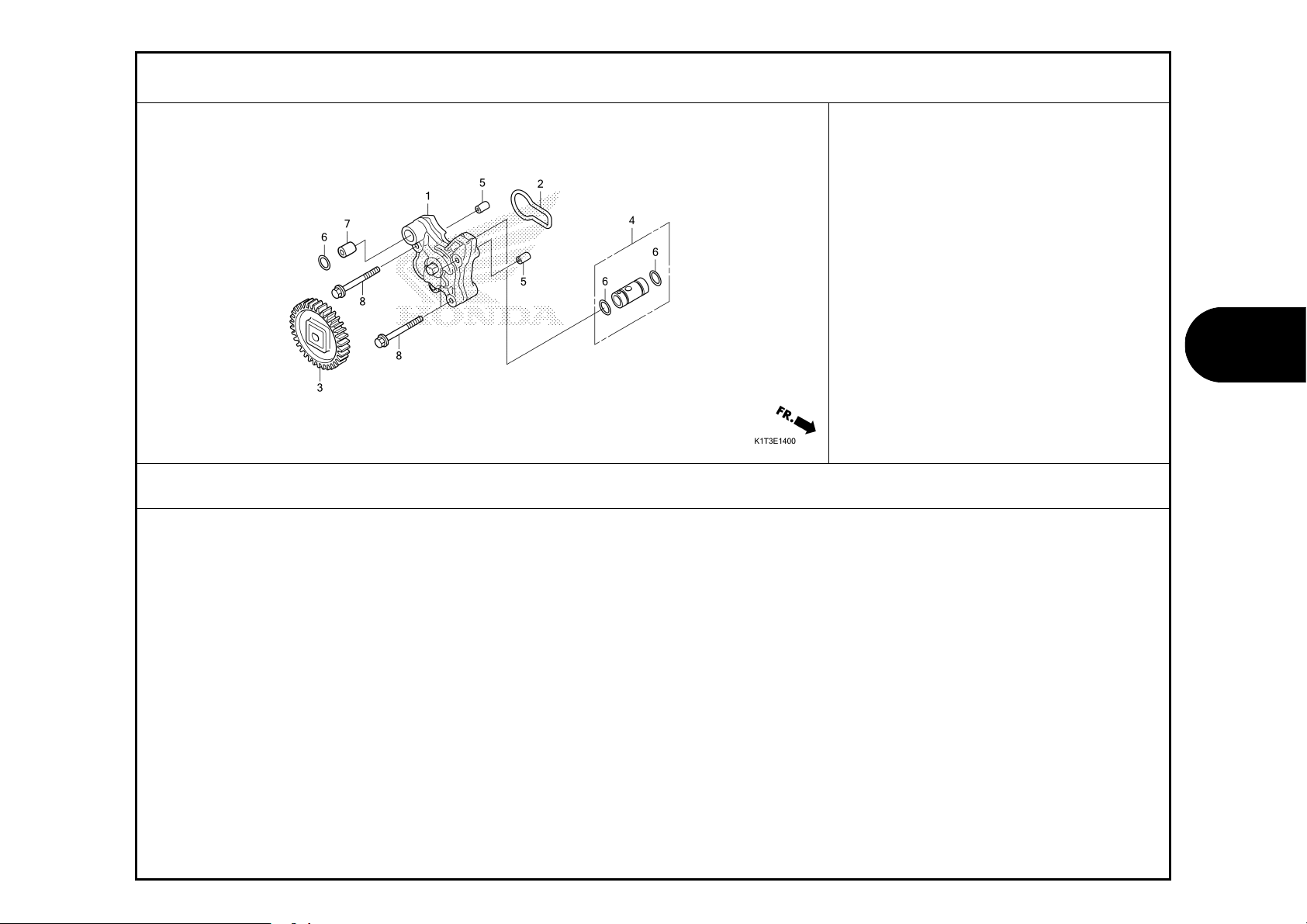

OIL PUMP

E-15

E-17

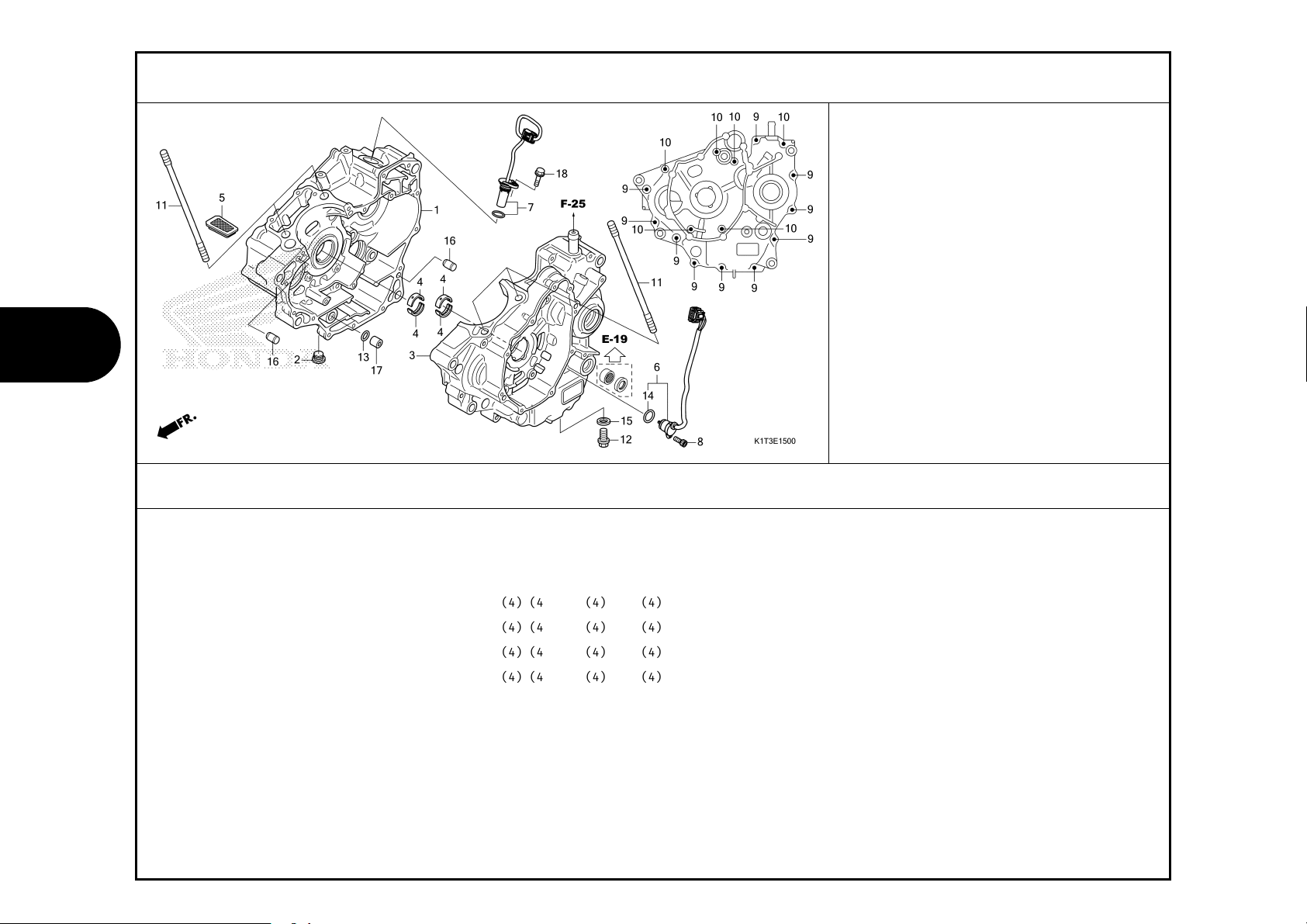

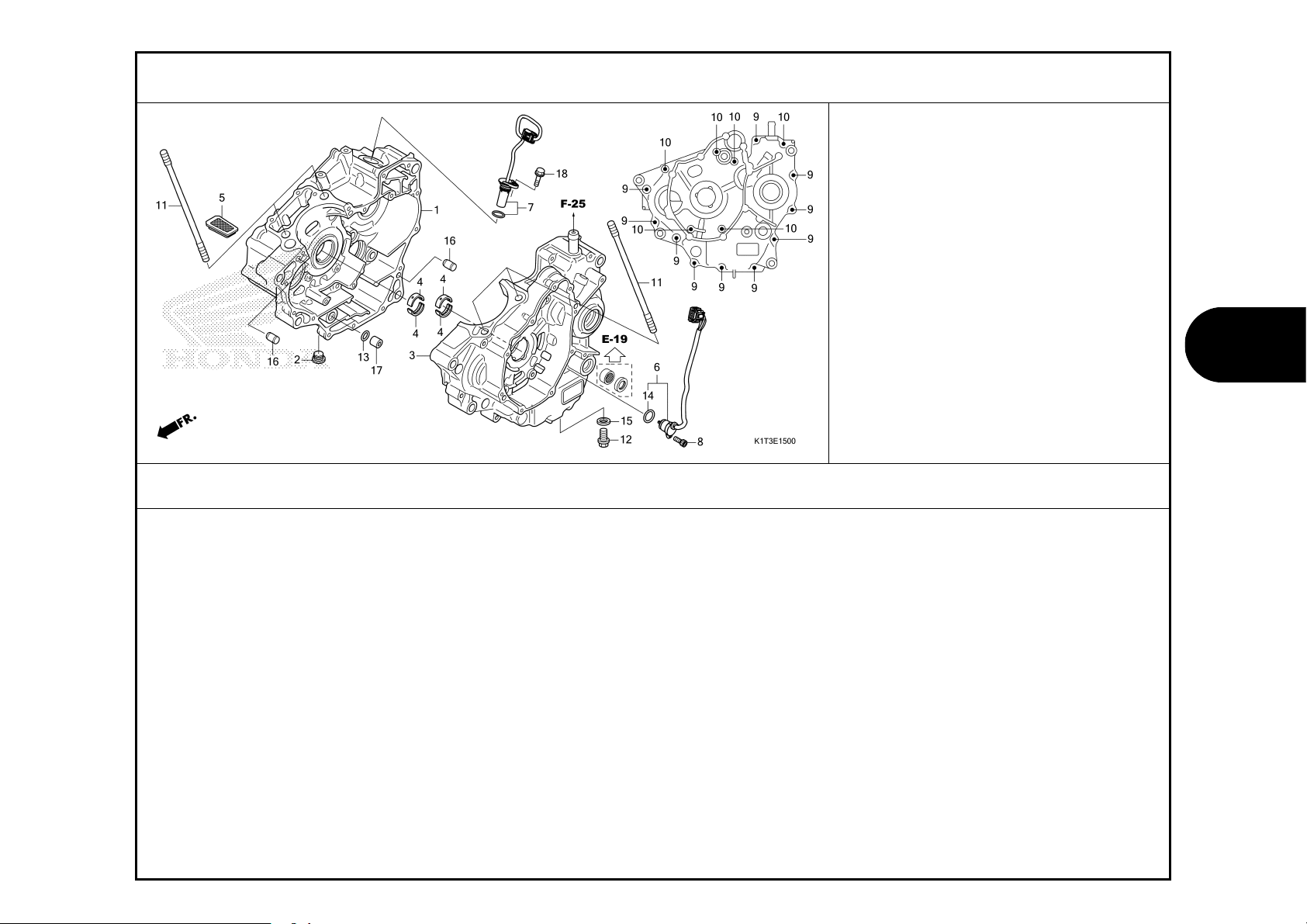

CRANKCASE

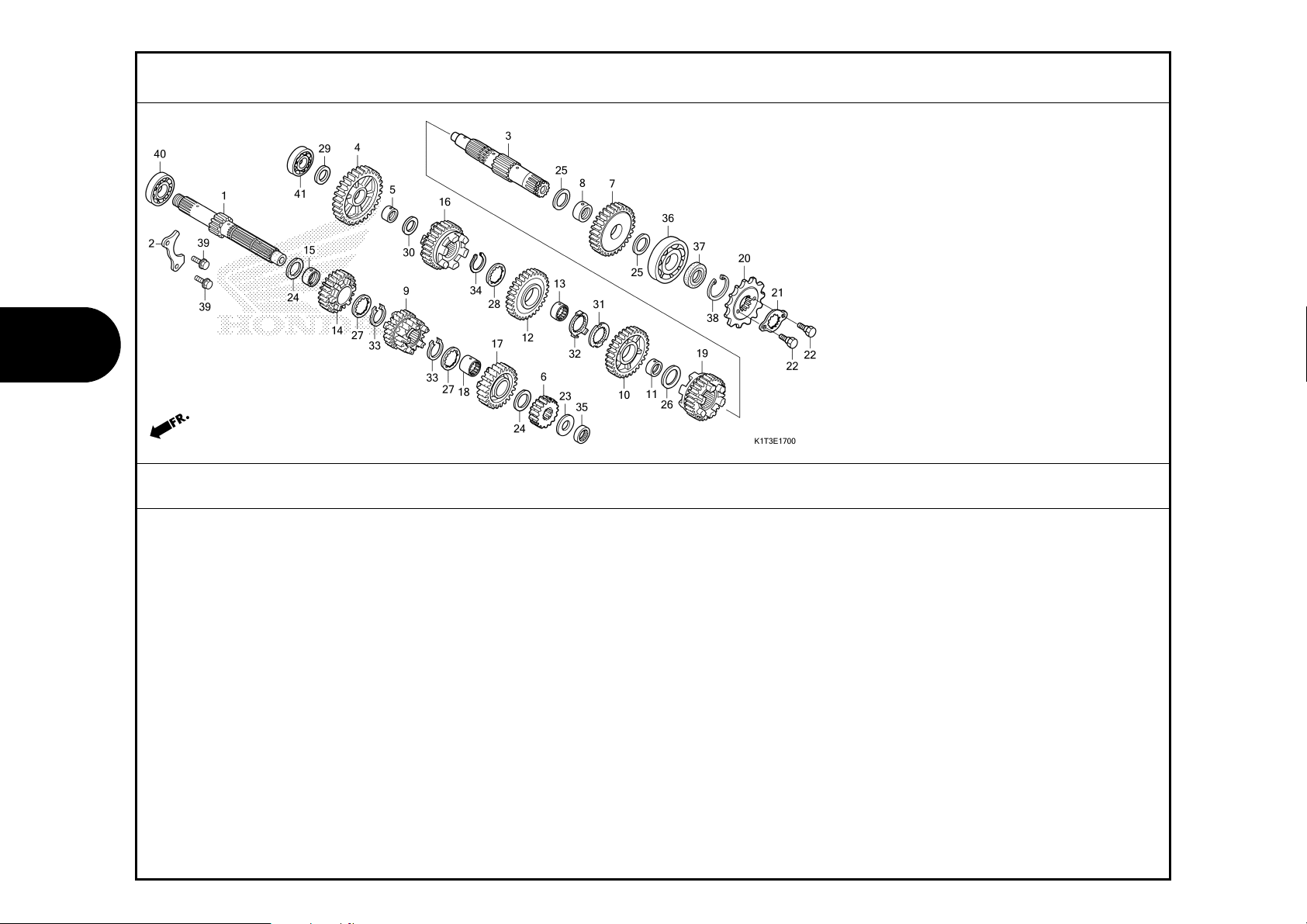

TRANSMISSION

E-16

E-19

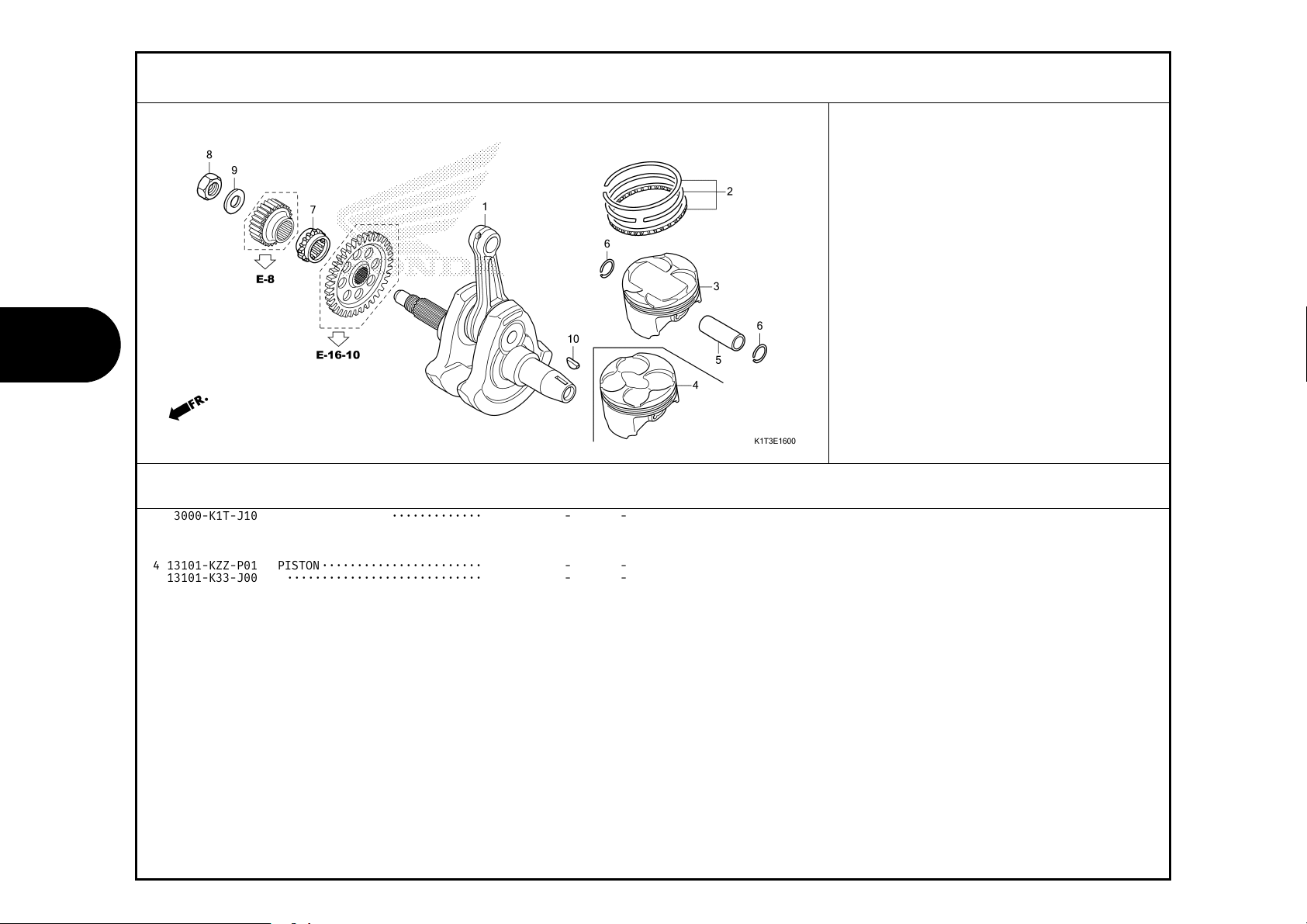

CRANKSHAFT/PISTON

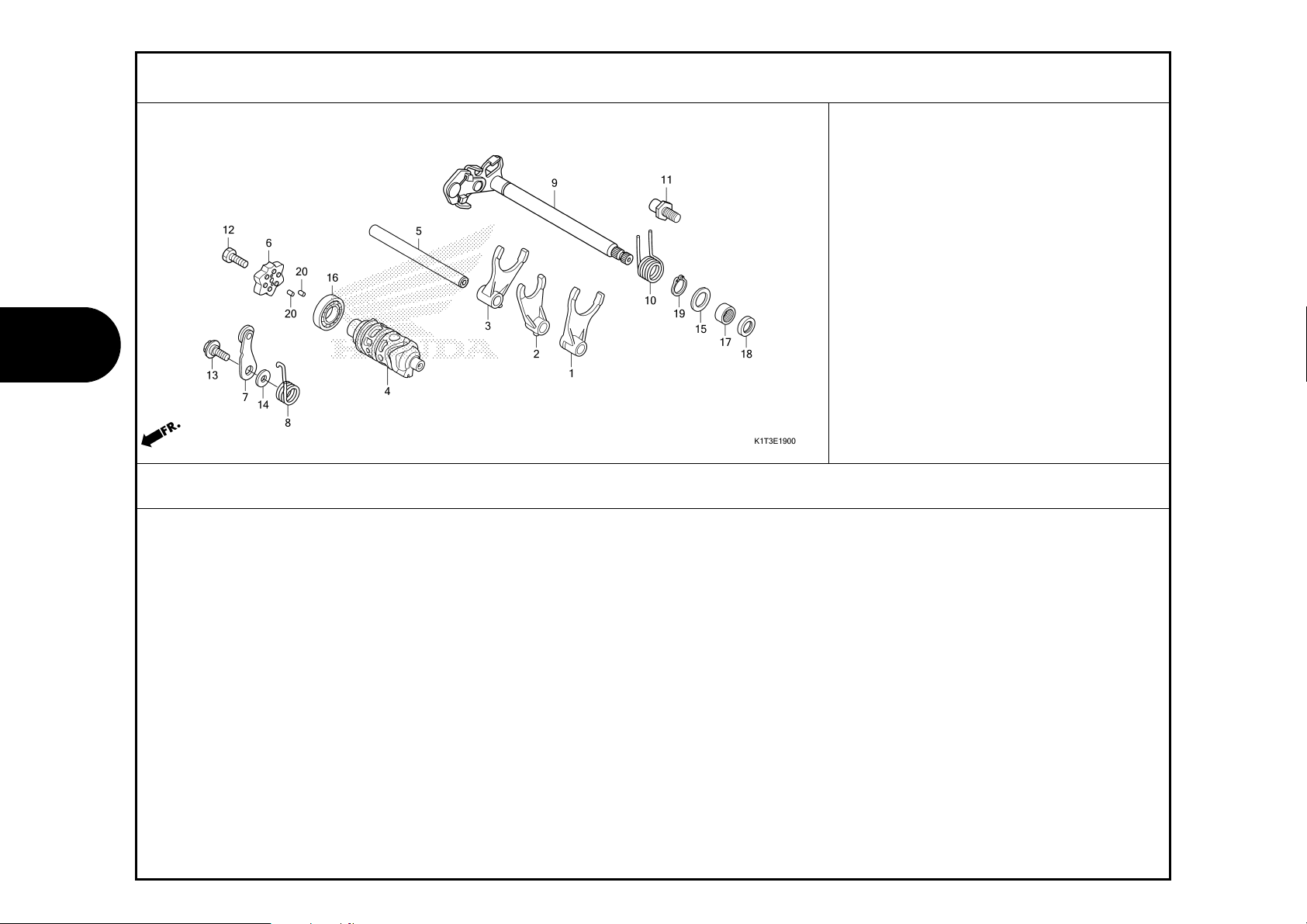

GEARSHIFT DRUM

E-16-10

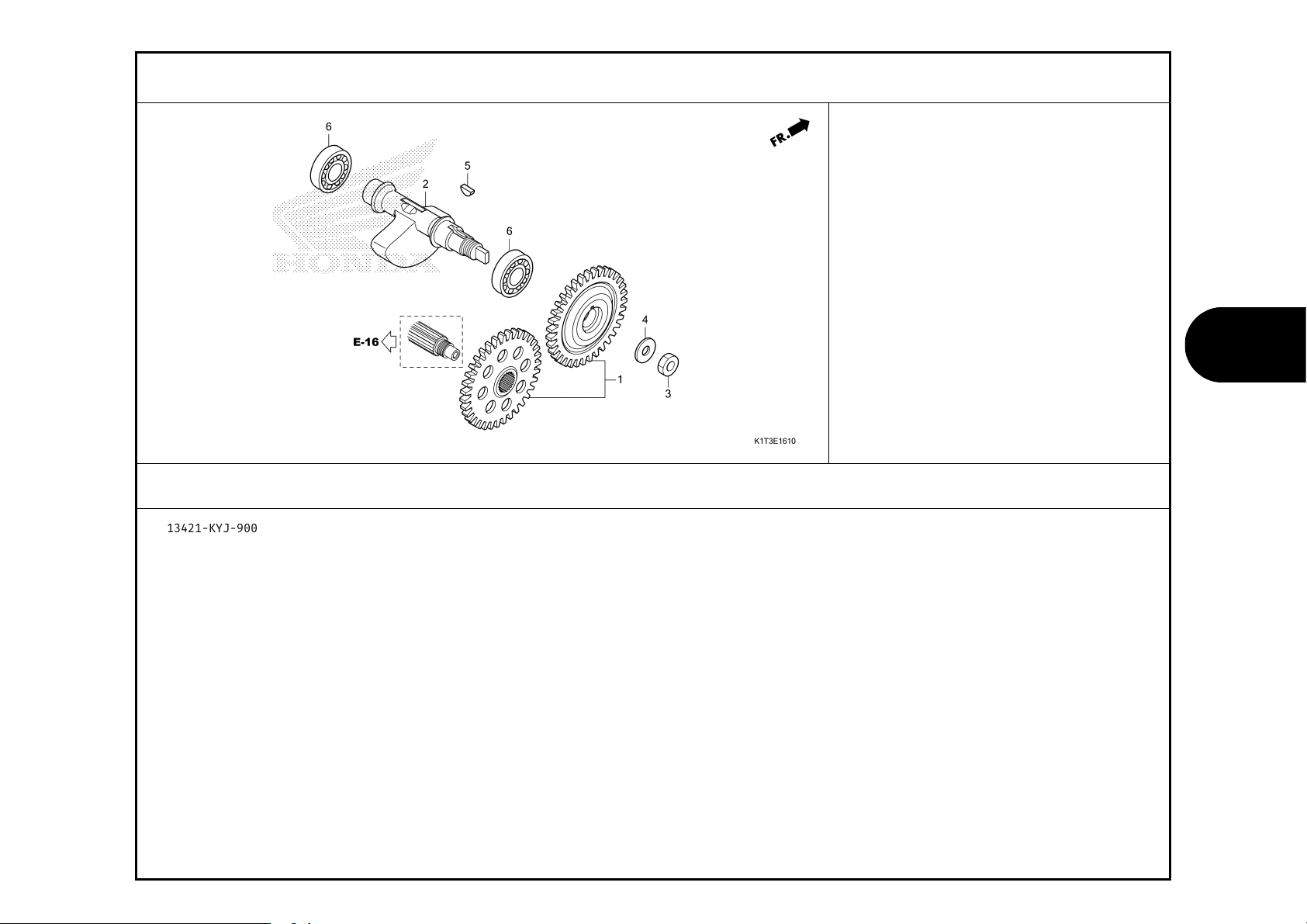

BALANCER SHAFT

E-23

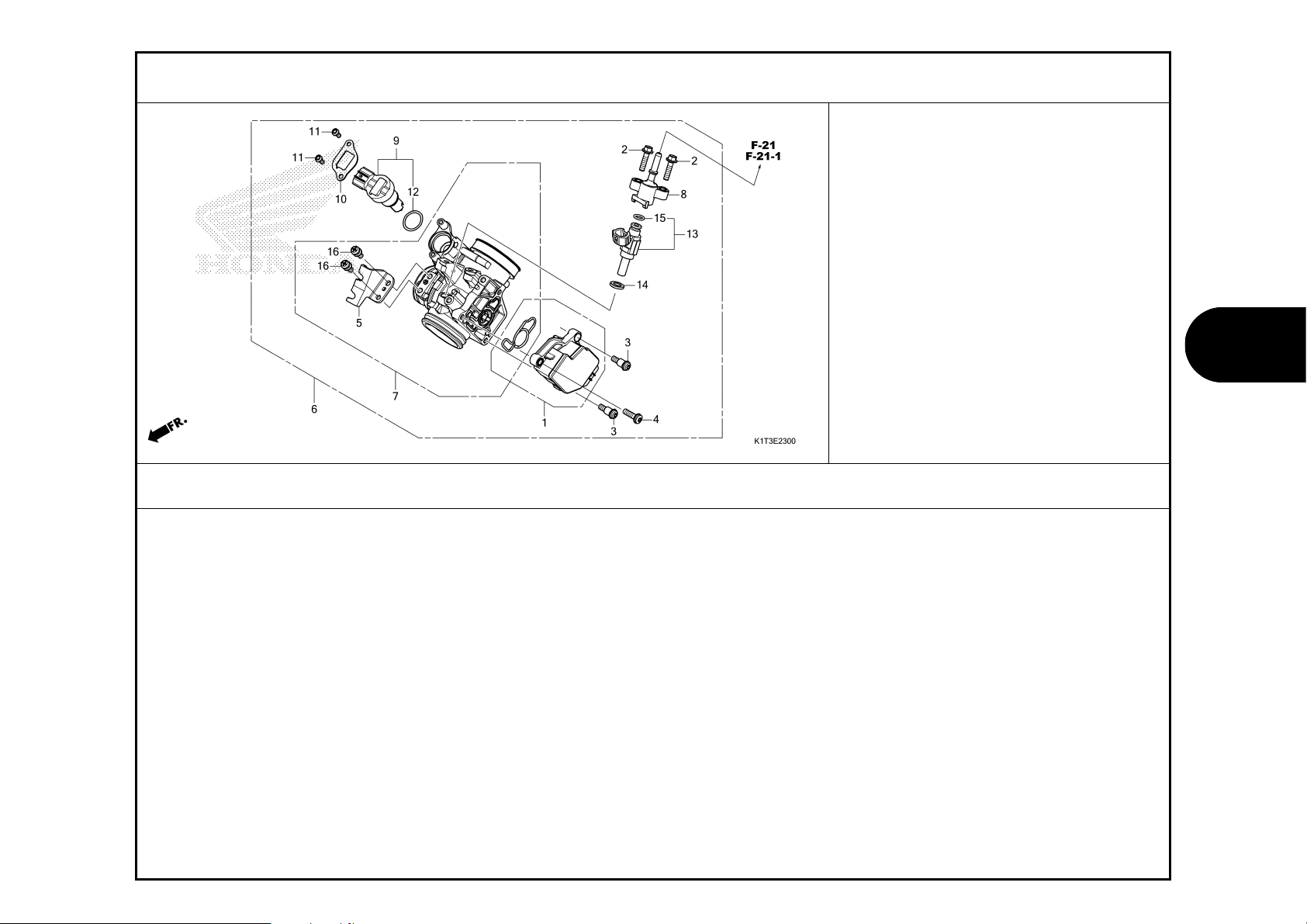

THROTTLE BODY

2020.11.20 E

FRAME GROUP

F-1

F-2

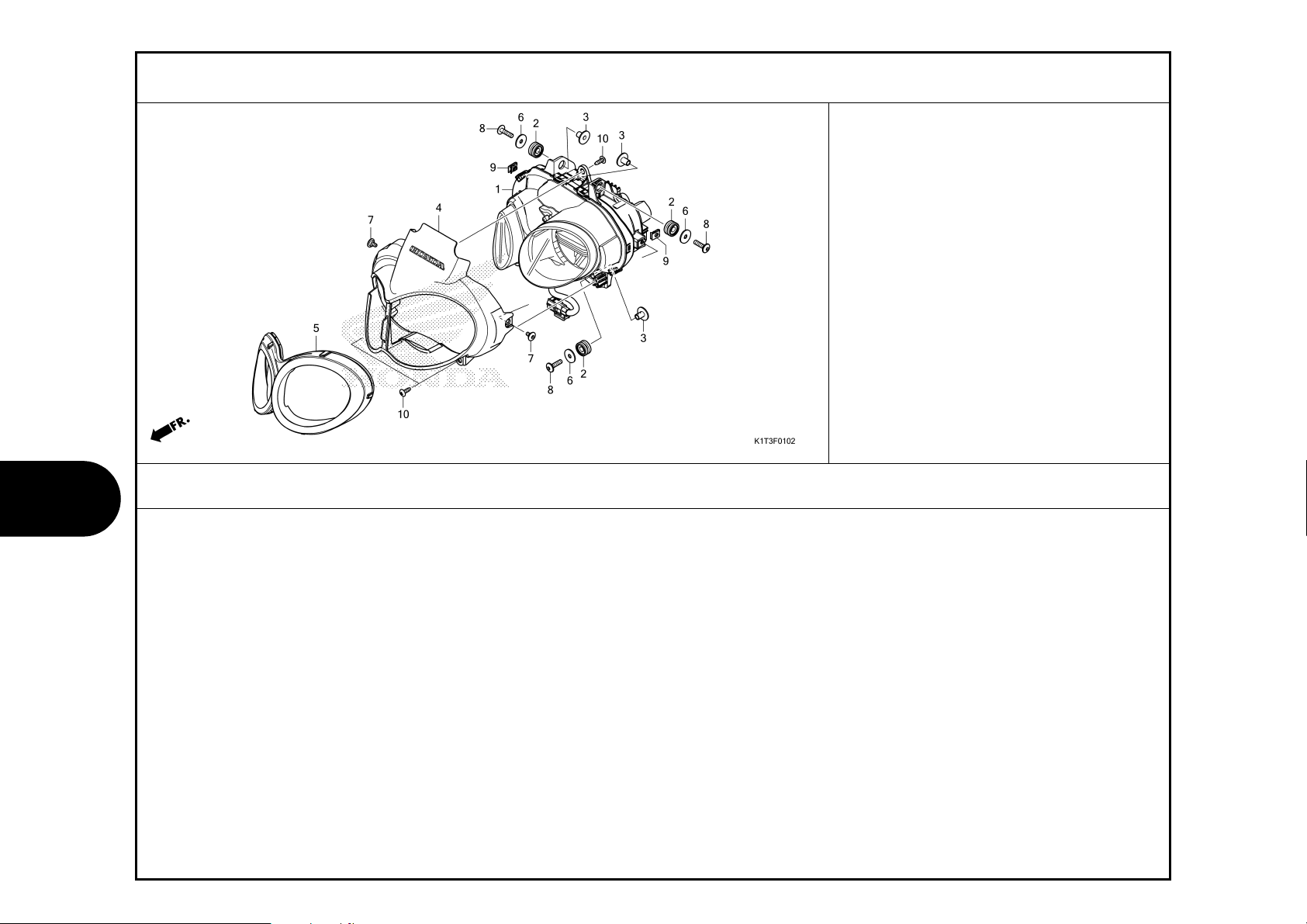

HEADLIGHT(CRF300LA-ED)

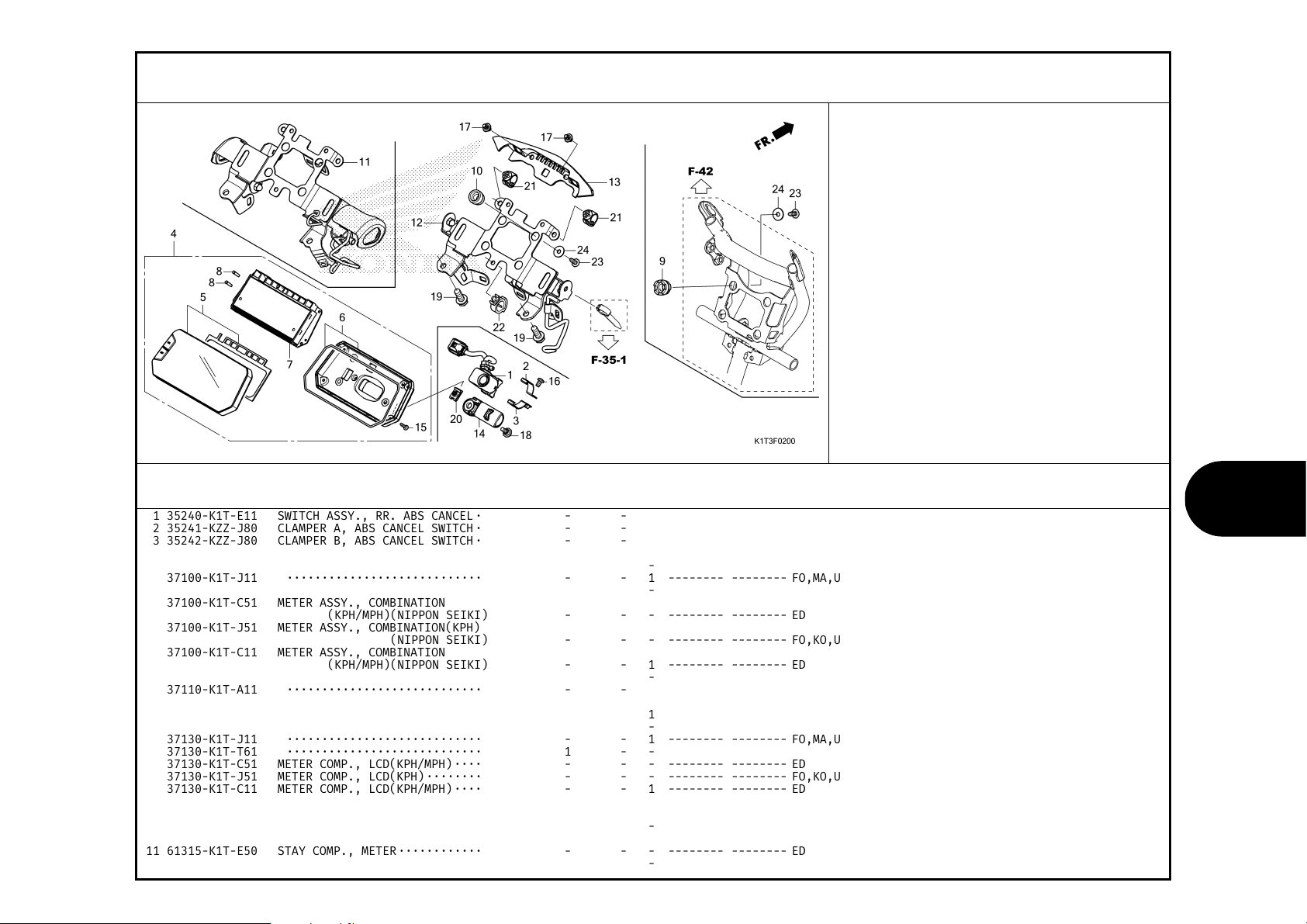

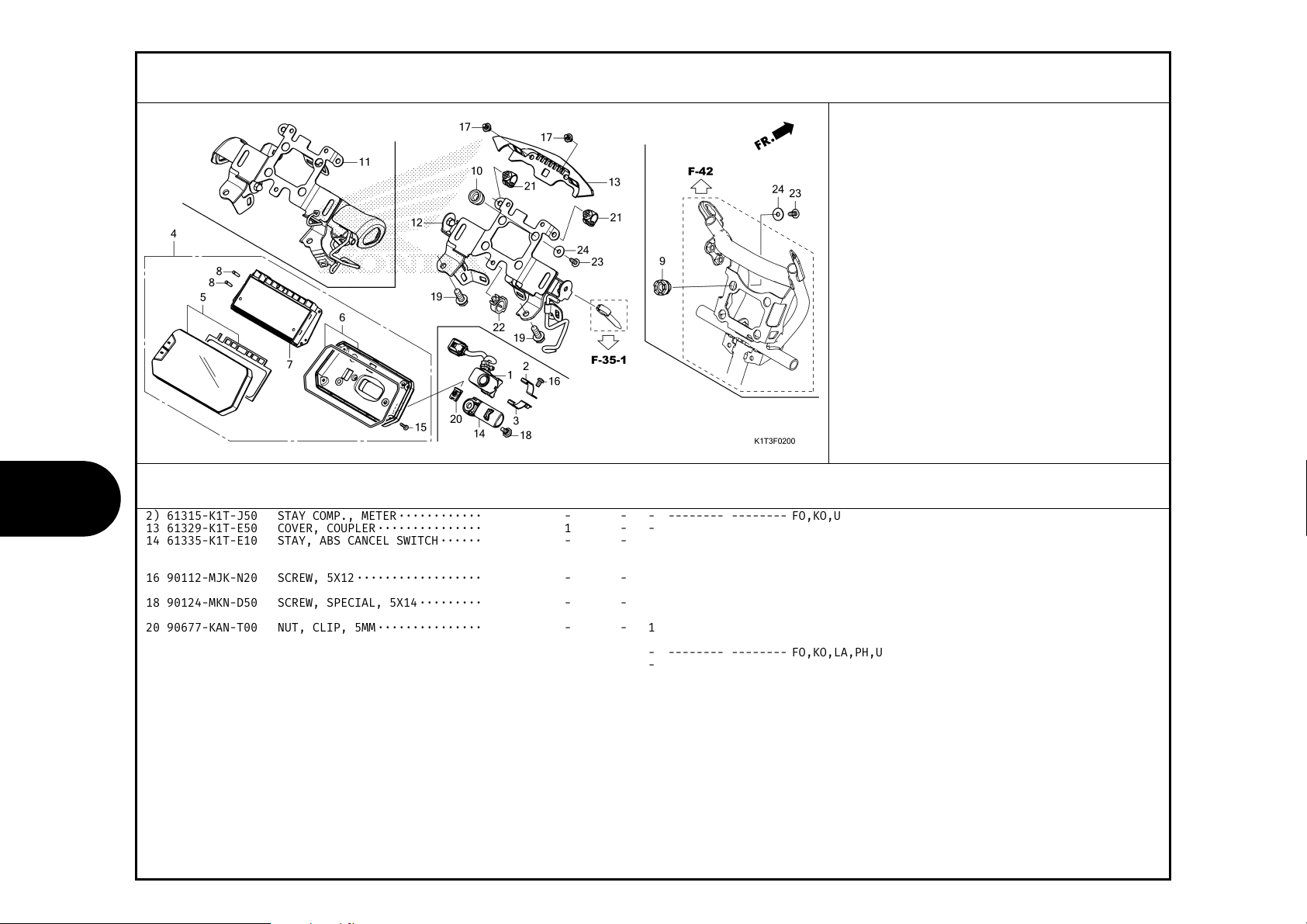

METER

F-1-1

F-3

HEADLIGHT(CRF300L/LA)(EXCEPT ED)

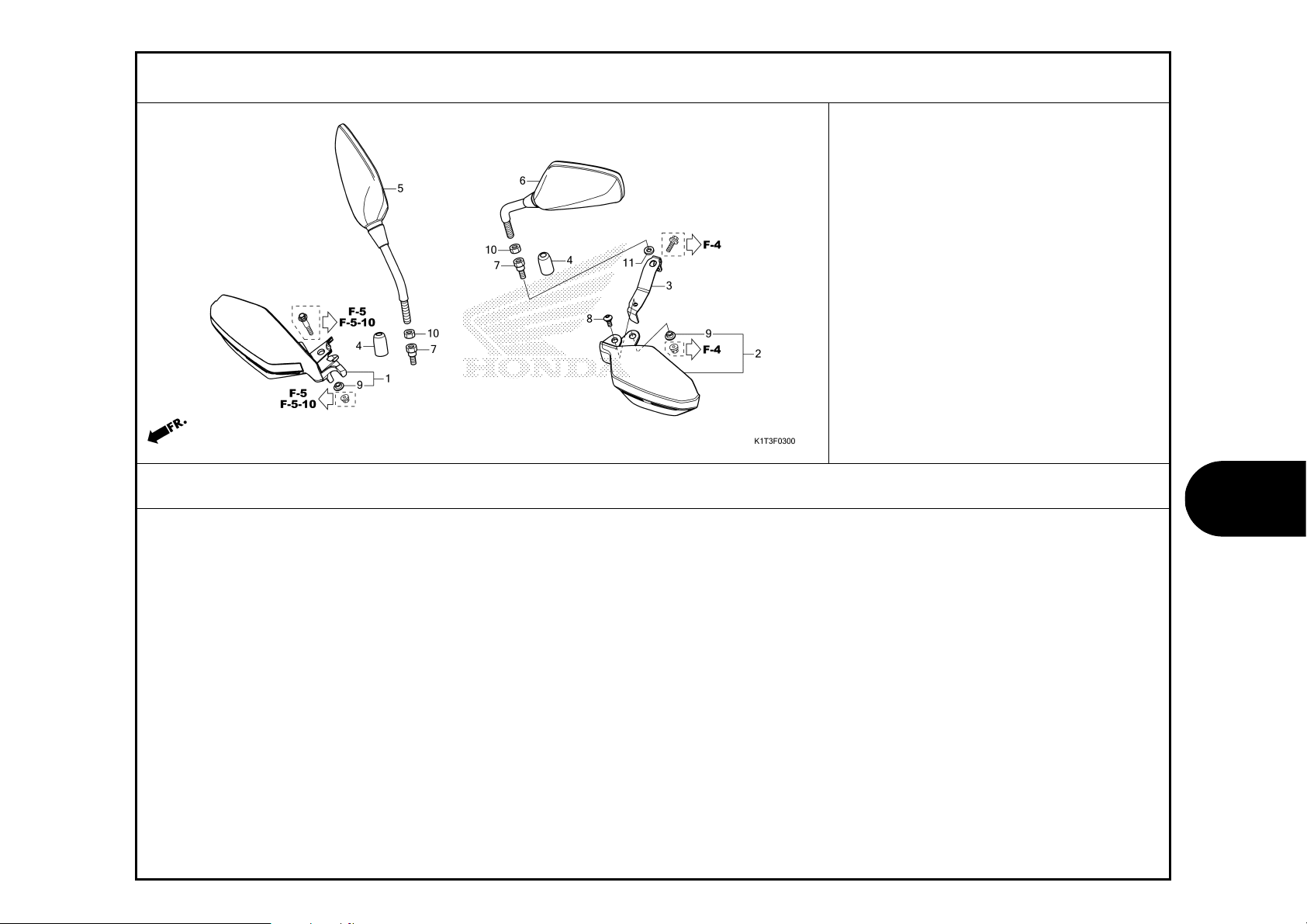

MIRROR/KNUCKLE GUARD

F-1-2

HEADLIGHT(CRF250LR/LRA,CRF300LR/LRA)

F-4

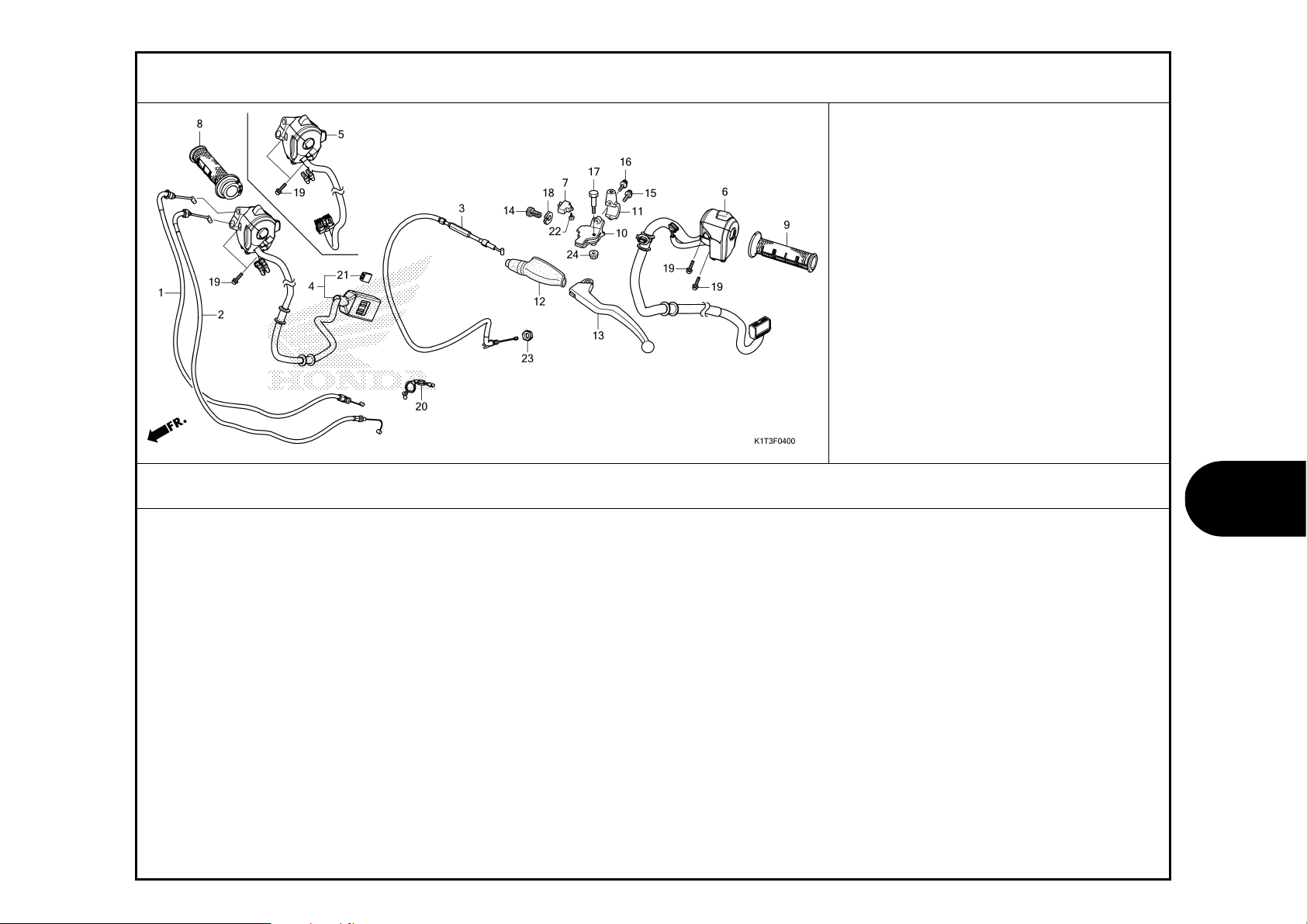

HANDLE LEVER/SWITCH/CABLE

F-5

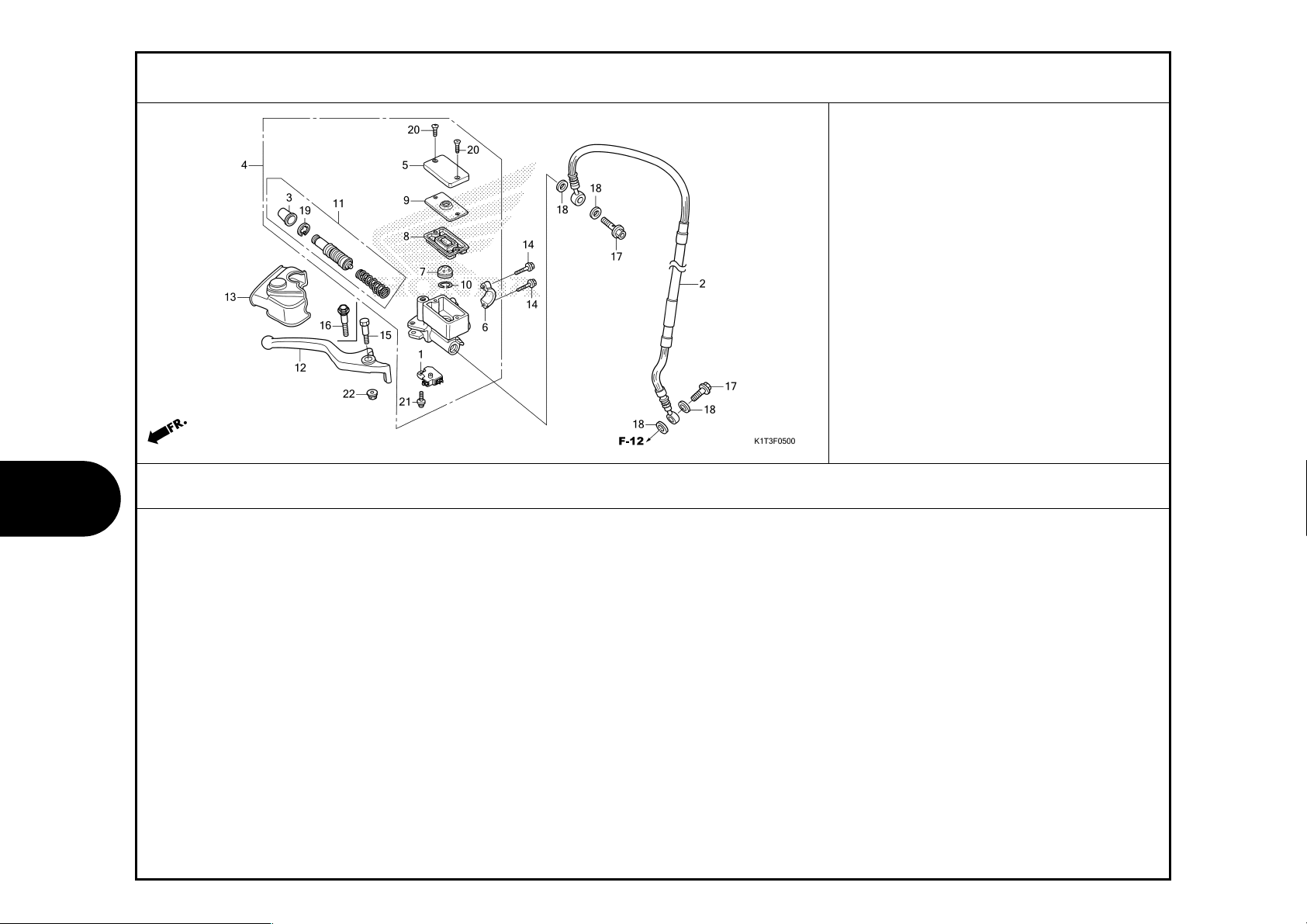

FRONT BRAKE MASTER CYLINDER

(CRF250LR,CRF300L/LR)

F-5-10

FRONT BRAKE MASTER CYLINDER

(CRF250LRA/300LA/LRA)

2020.11.20 E

F-5-20

ABS MODULATOR/BRAKE PIPE

(CRF250LRA/300LA/LRA)

F-7

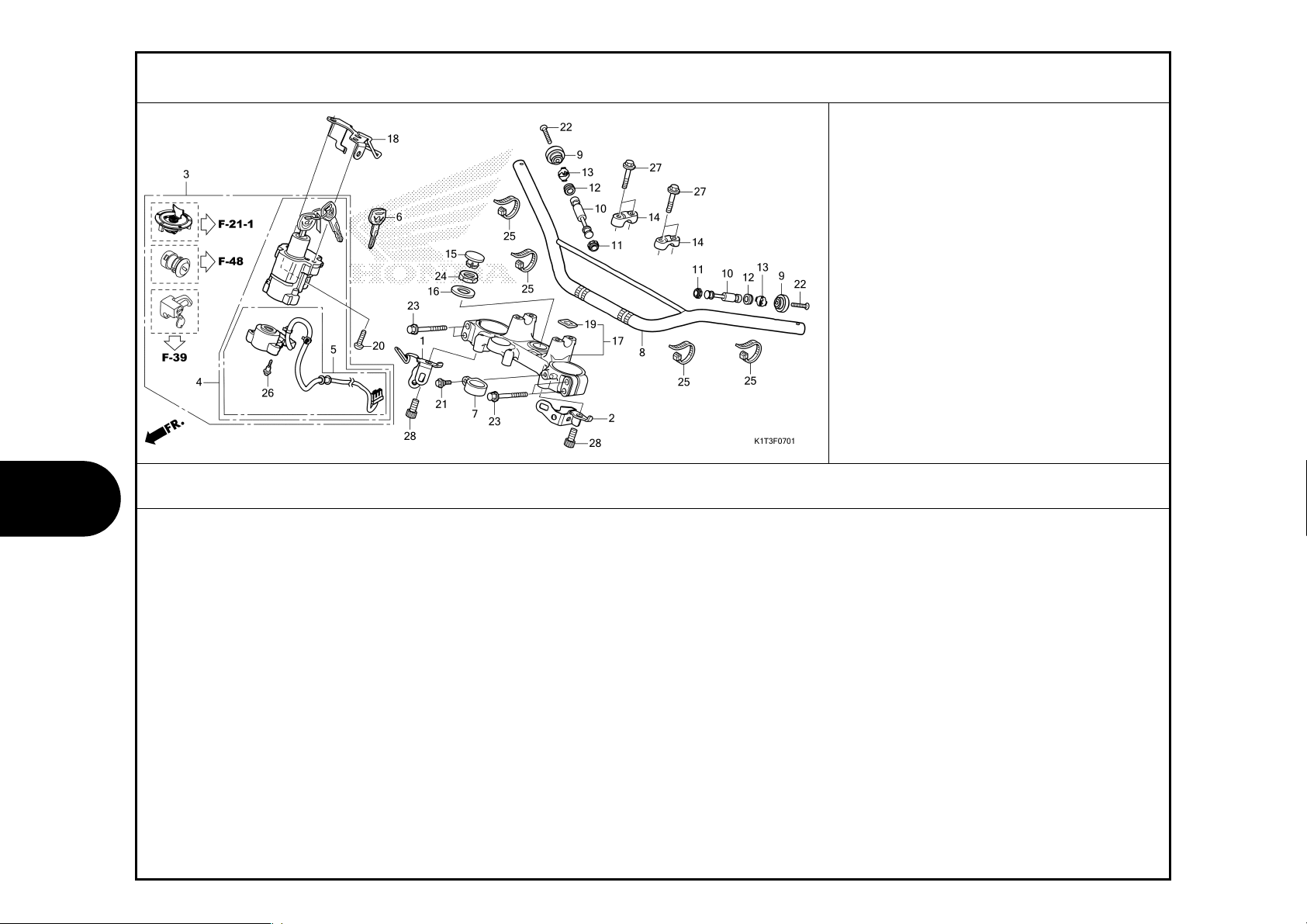

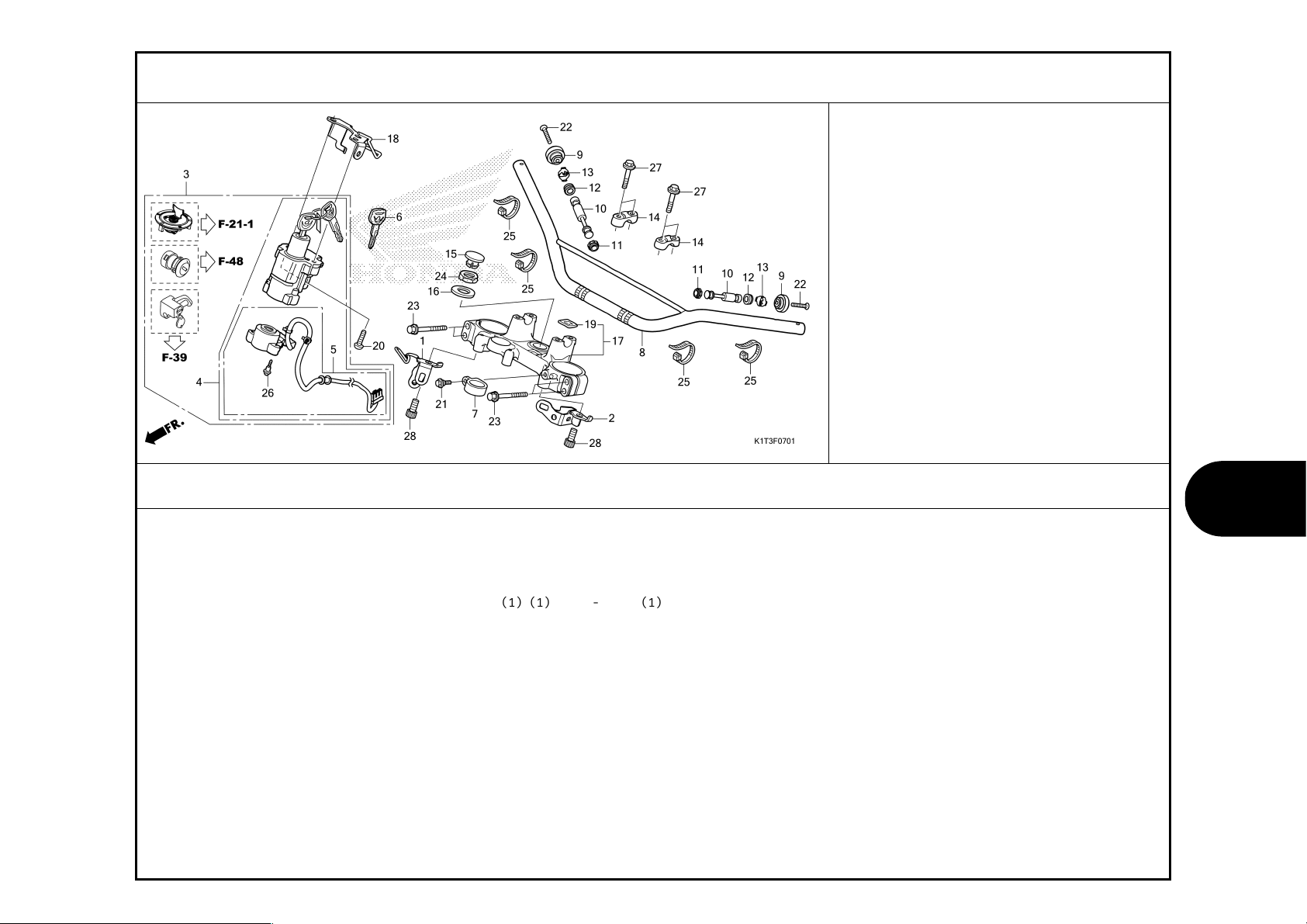

HANDLE PIPE/TOP BRIDGE(CRF300L/LA)

F-7-1

FRAME GROUP

HANDLE PIPE/TOP BRIDGE

(CRF250LR/LRA,CRF300LR/LRA)

F-9

STEERING STEM

F-10

F-14-20

FRONT FENDER

FRONT WHEEL

F-11

F-15

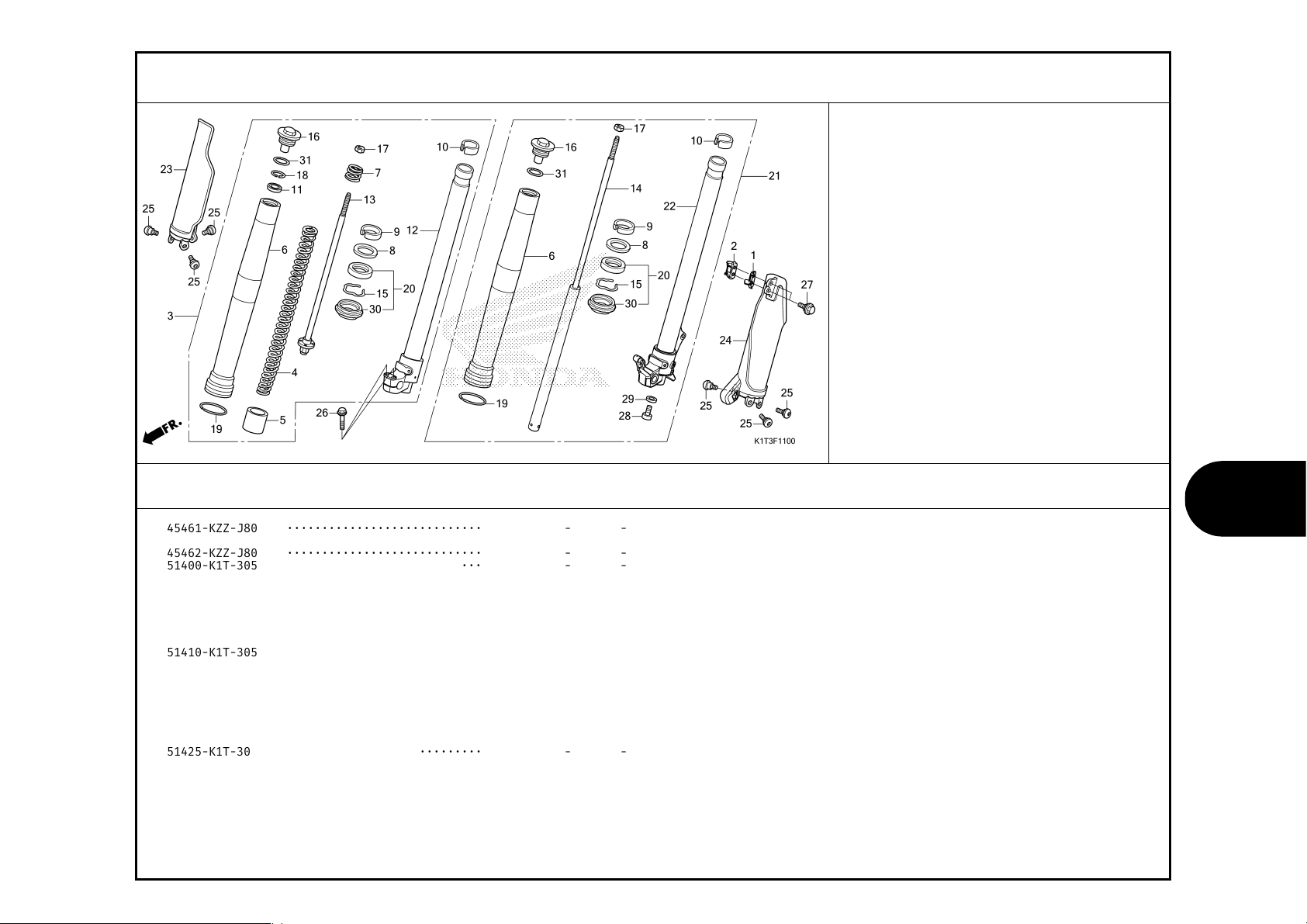

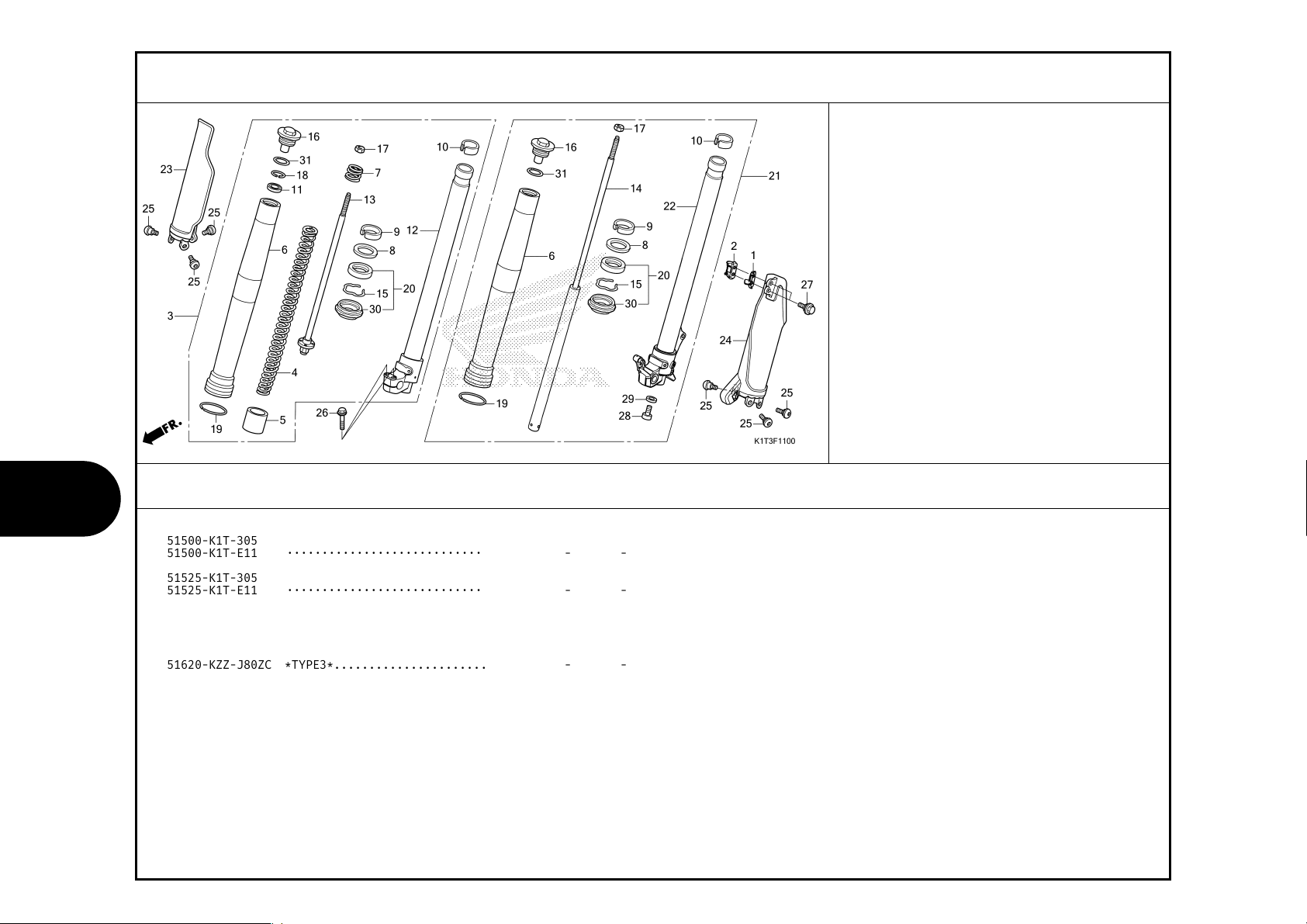

FRONT FORK

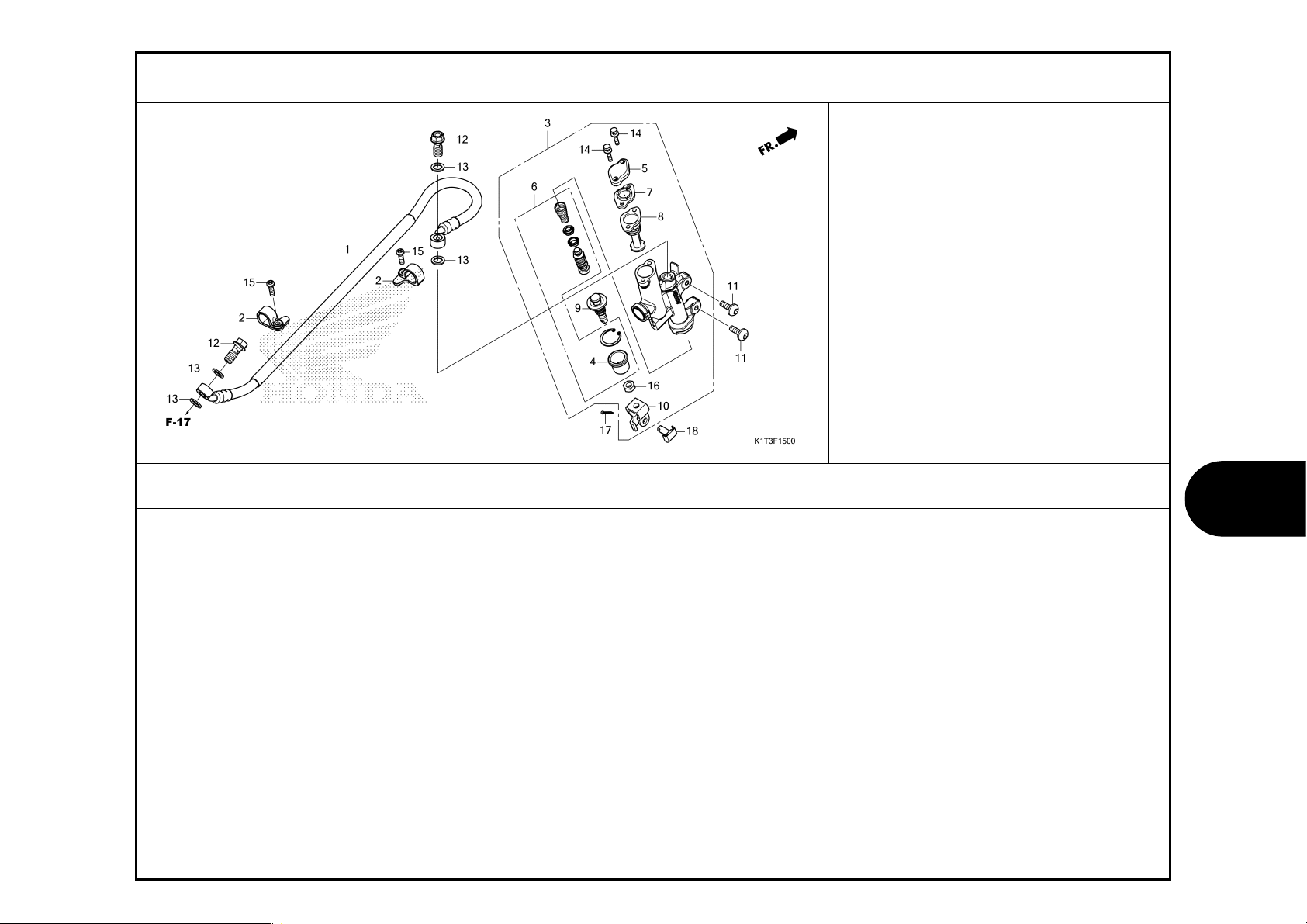

REAR BRAKE MASTER CYLINDER

(CRF250LR,CRF300L/LR)

F-12

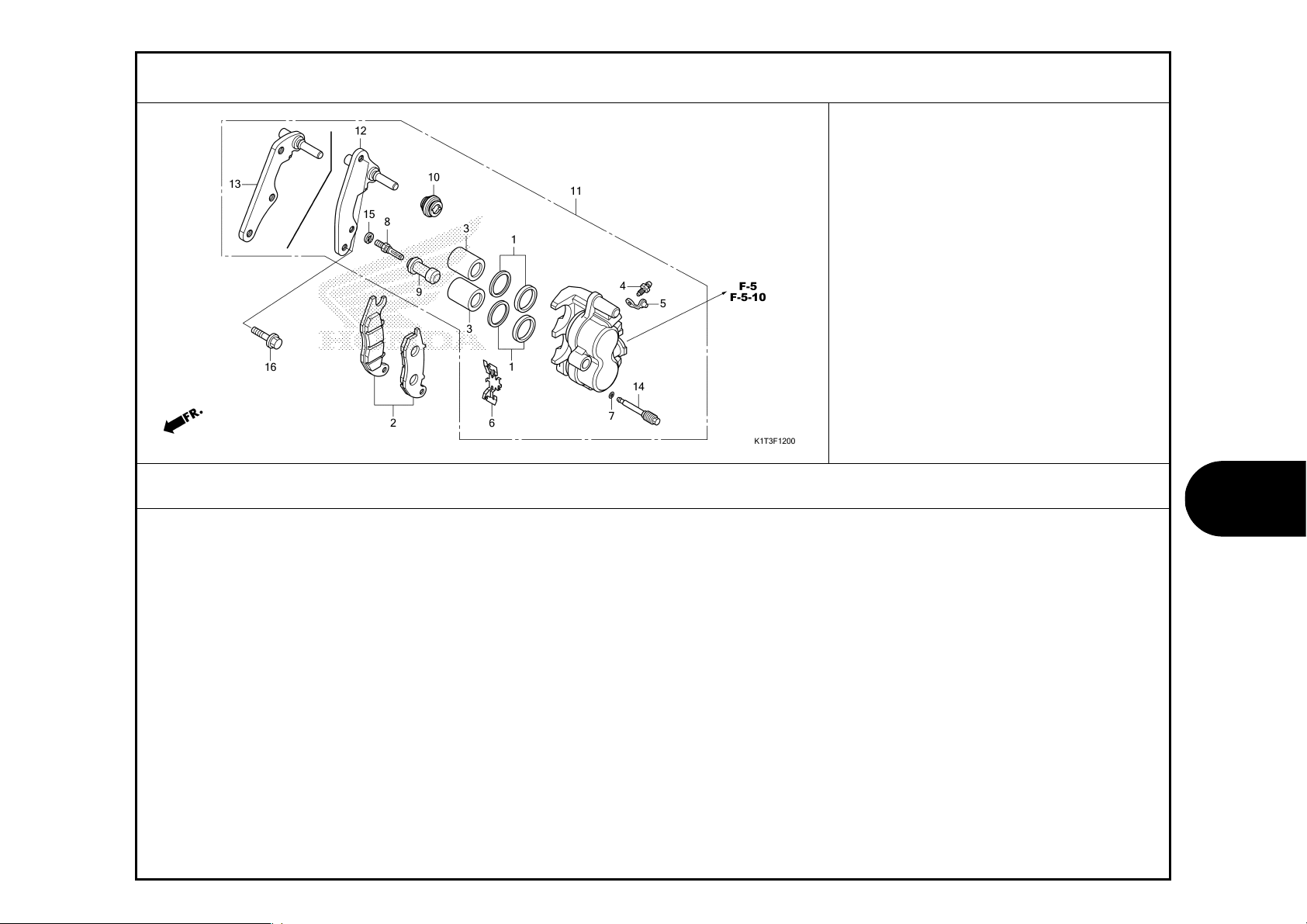

FRONT BRAKE CALIPER

F-15-1

REAR BRAKE MASTER CYLINDER

(CRF250LRA/300LA/LRA)

2020.11.20 E

F-17

REAR BRAKE CALIPER

F-19-20

FRAME GROUP

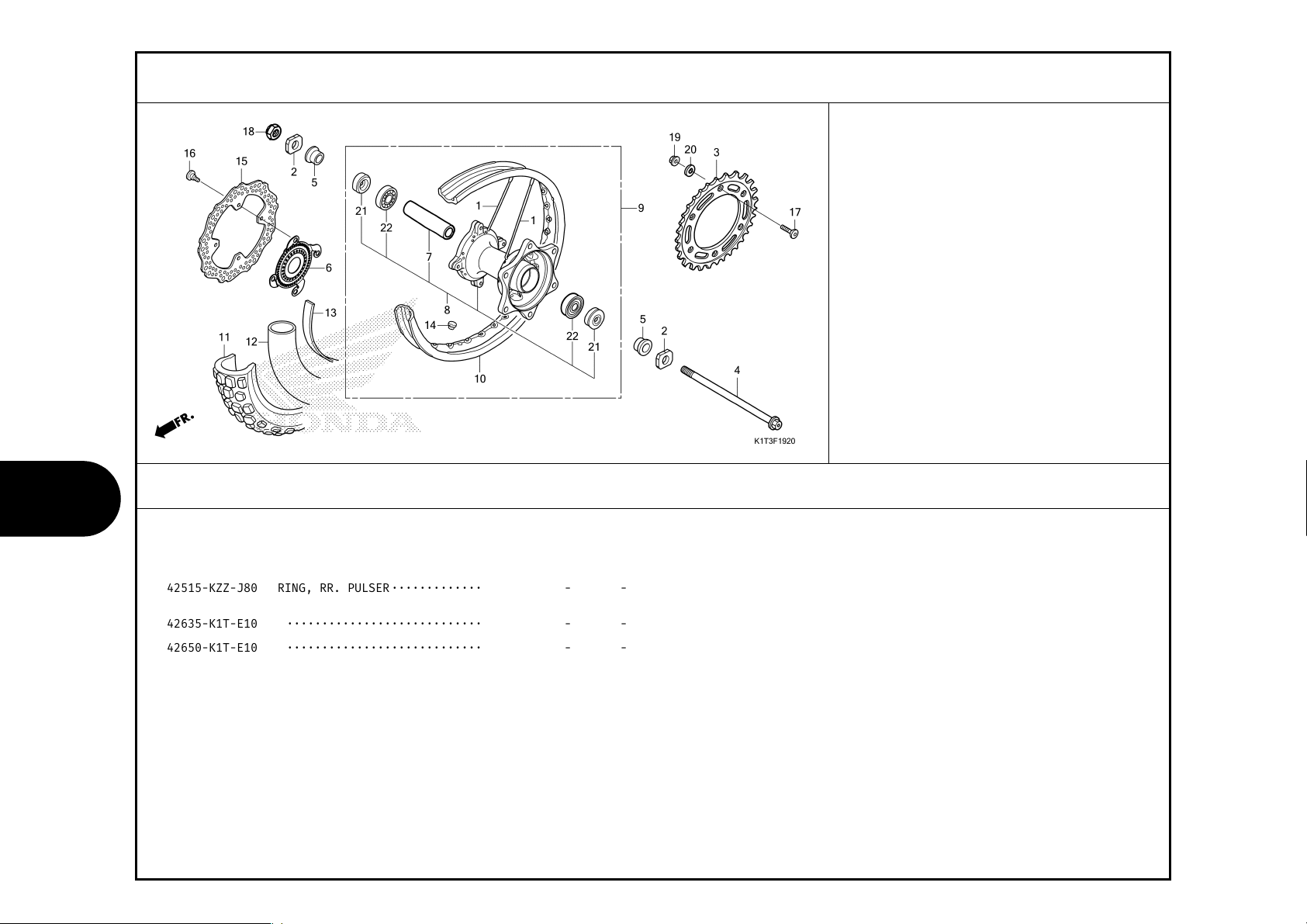

REAR WHEEL

F-21

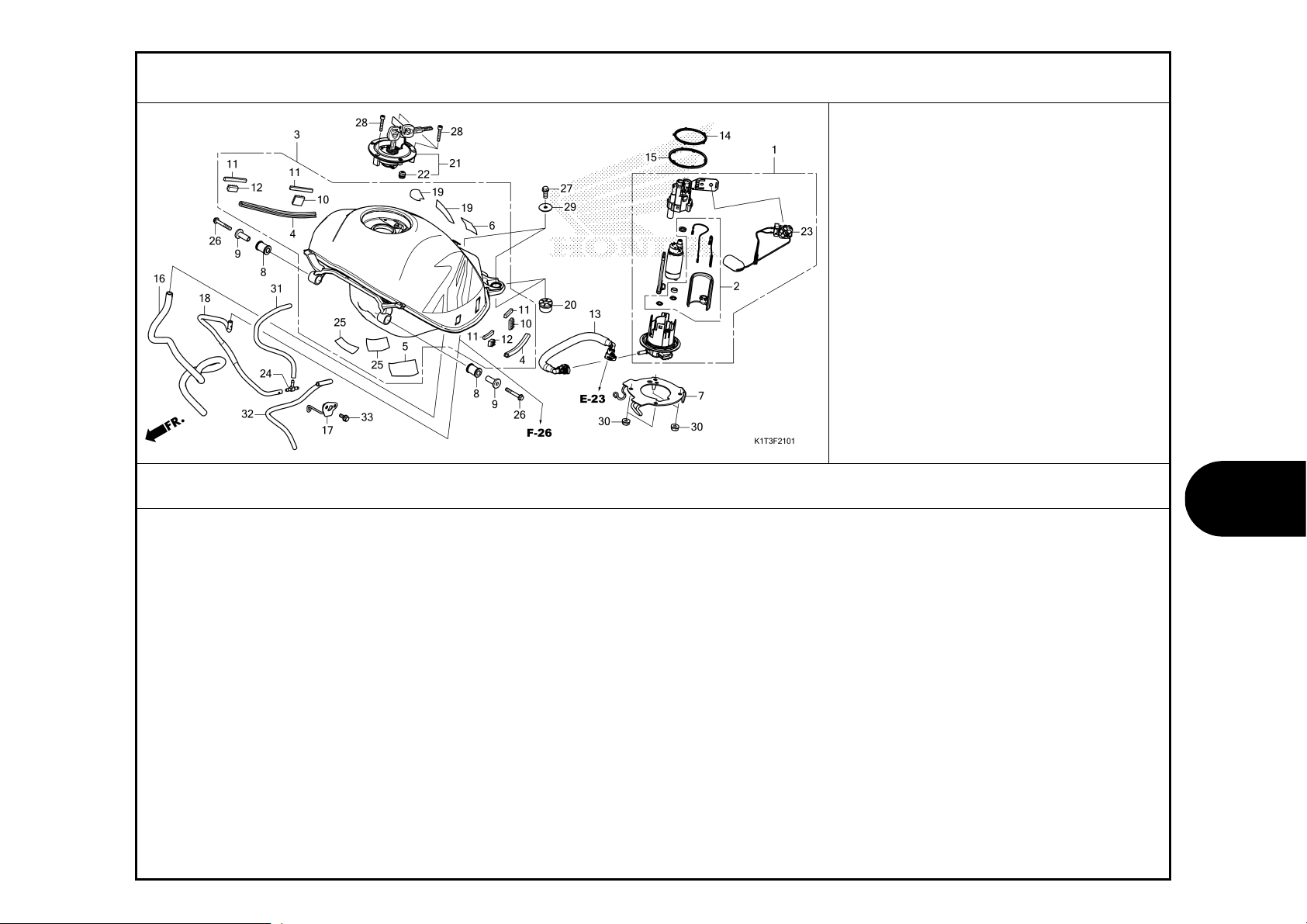

FUEL TANK(CRF300L/LA)

F-21-1

FUEL TANK(CRF250LR/LRA,CRF300LR/LRA)

F-23

SEAT

F-22

F-24

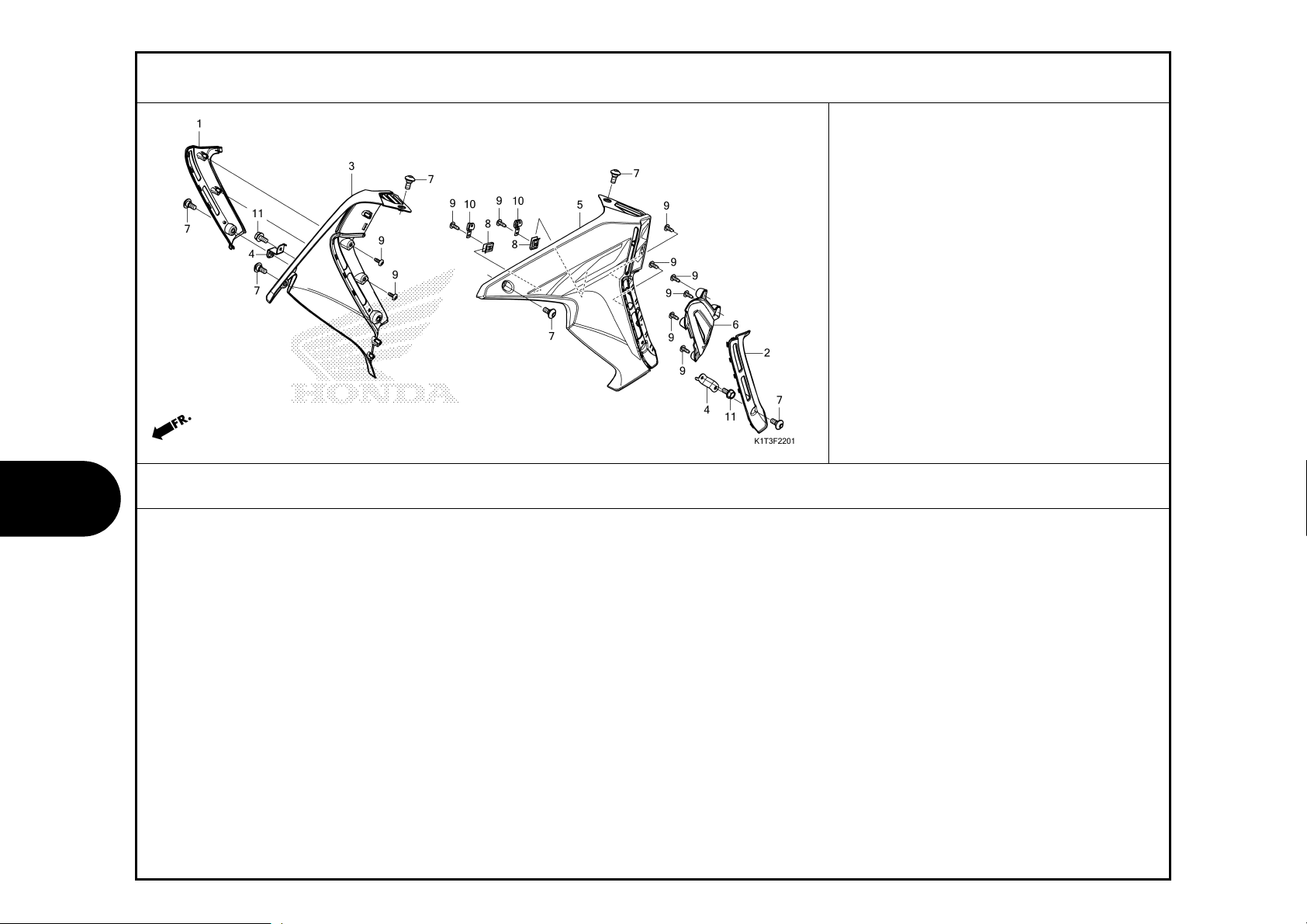

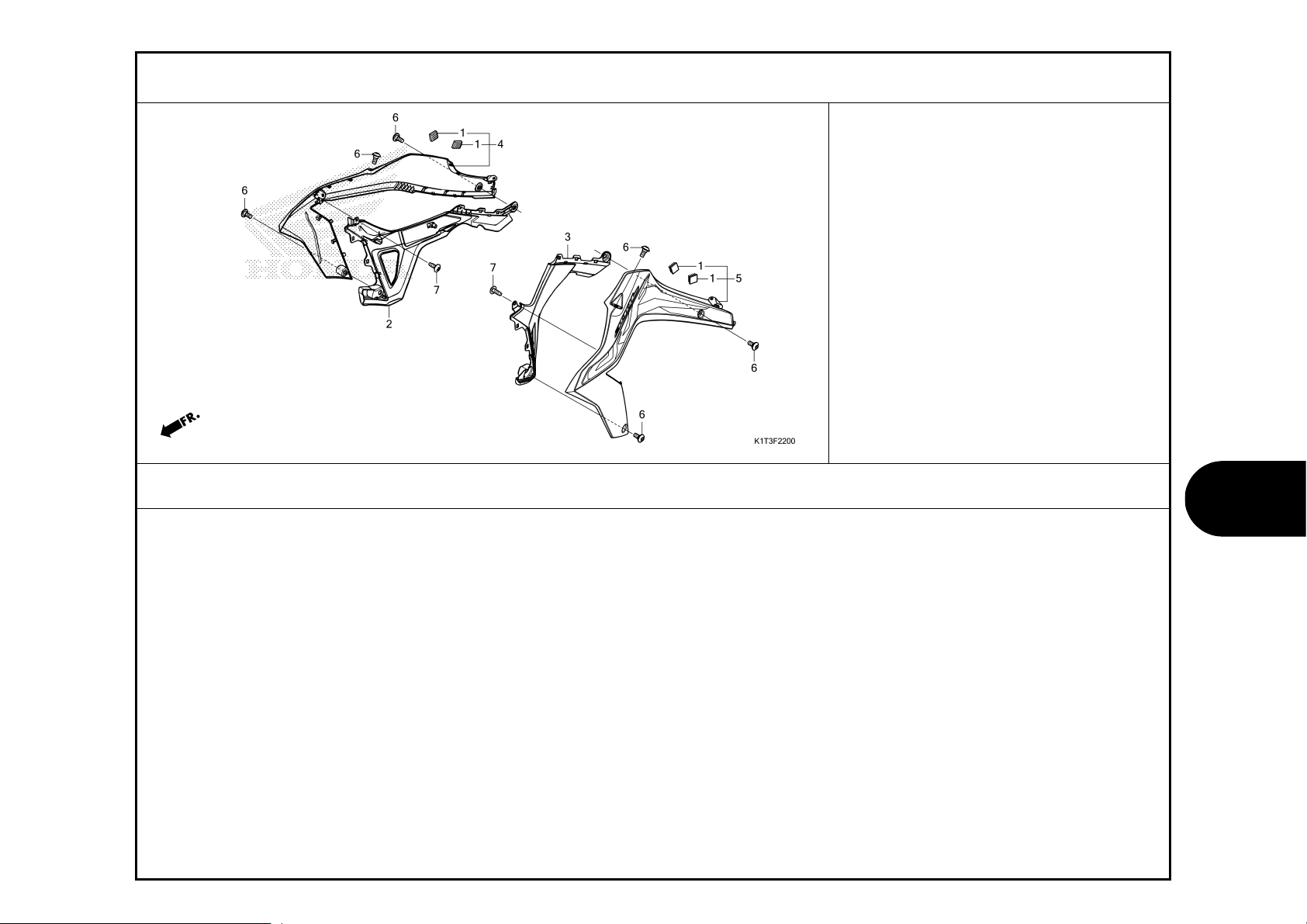

SHROUD(CRF300L/LA)

SIDE COVER

F-22-1

SHROUD(CRF250LR/LRA,CRF300LR/LRA)

F-25

AIR CLEANER

2020.11.20 E

F-25-20

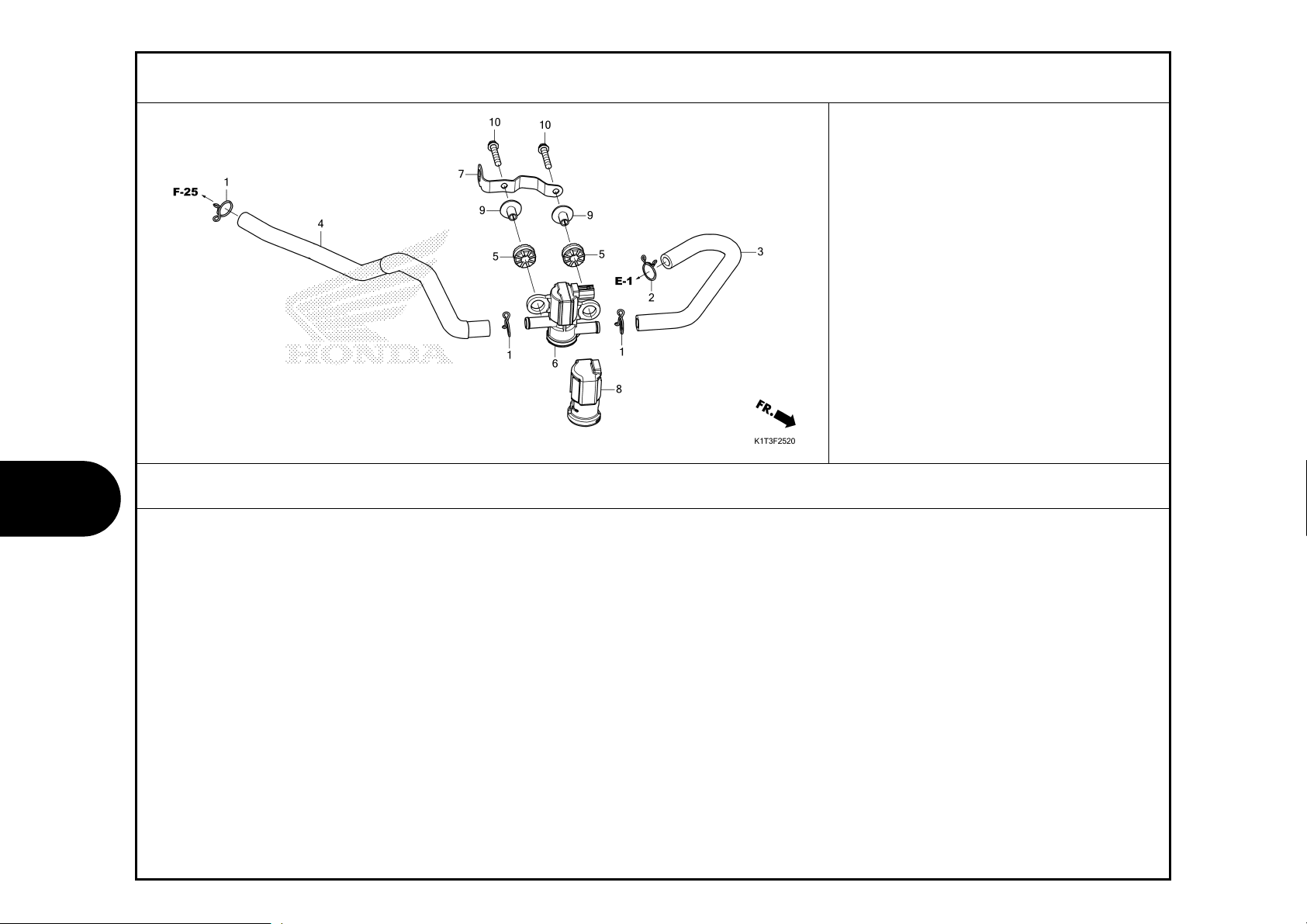

AIR INJECTION SOLENOID VALVE

F-26

FRAME GROUP

CANISTER

F-27

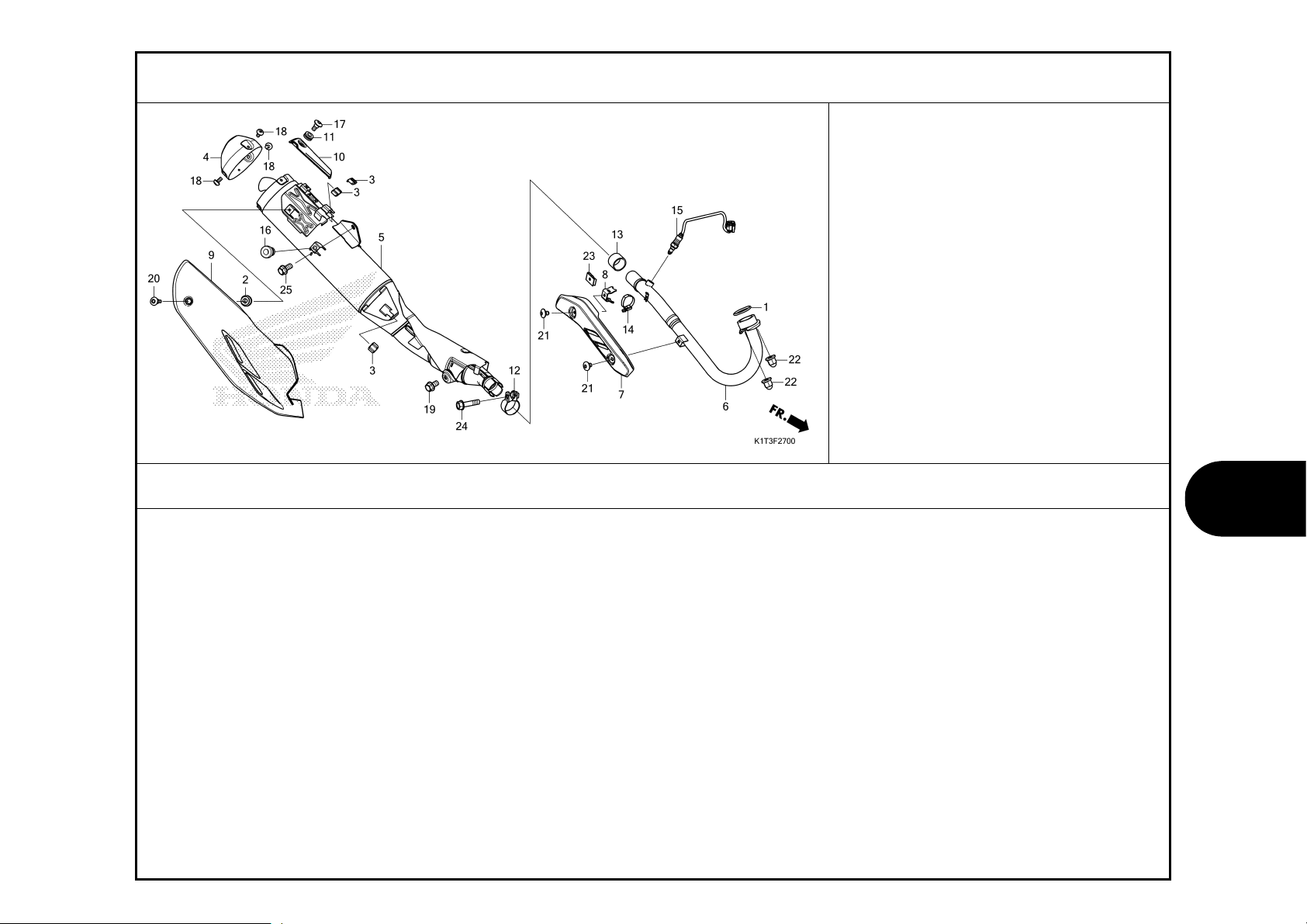

EXHAUST MUFFLER

F-29

F-32

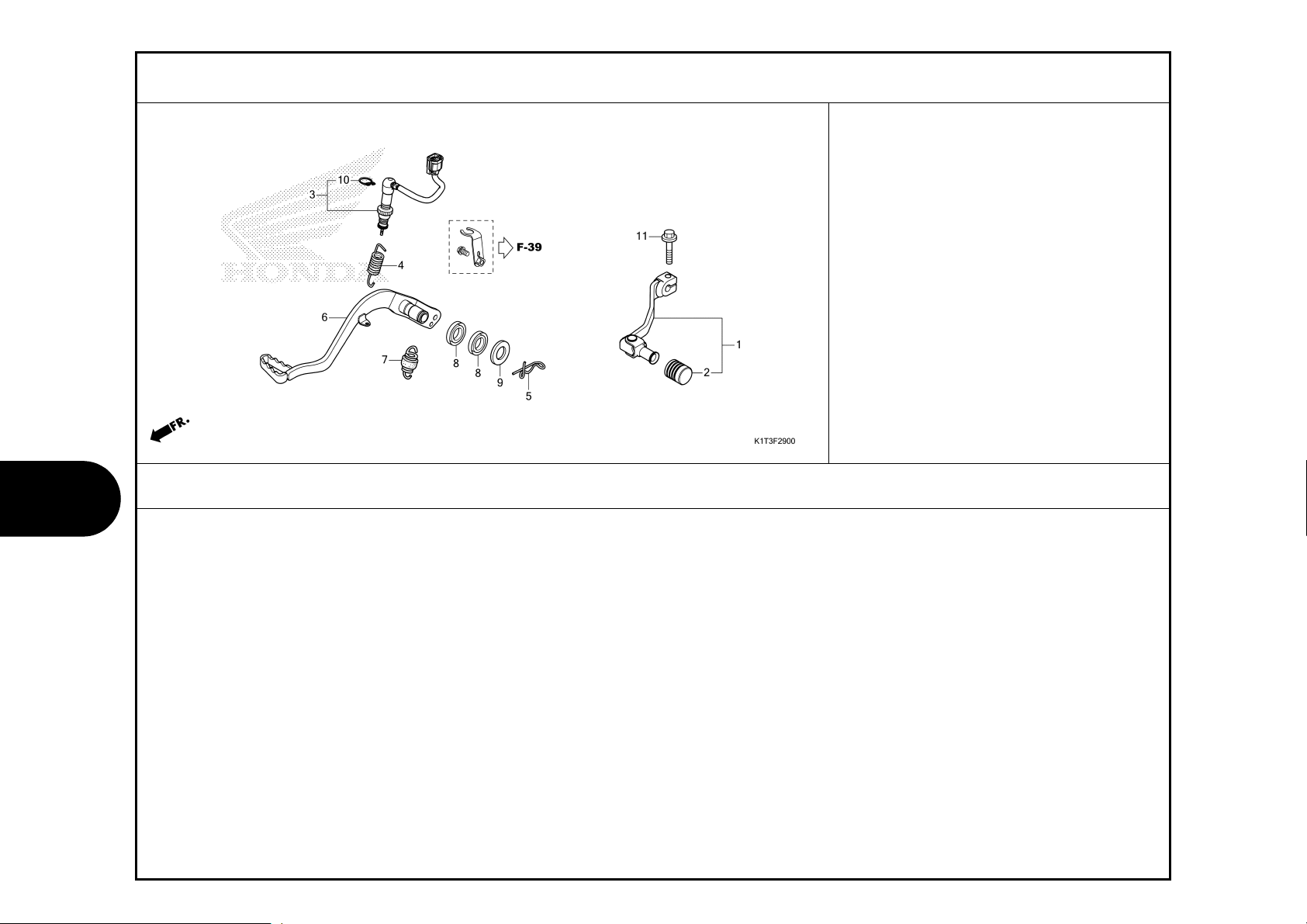

PEDAL

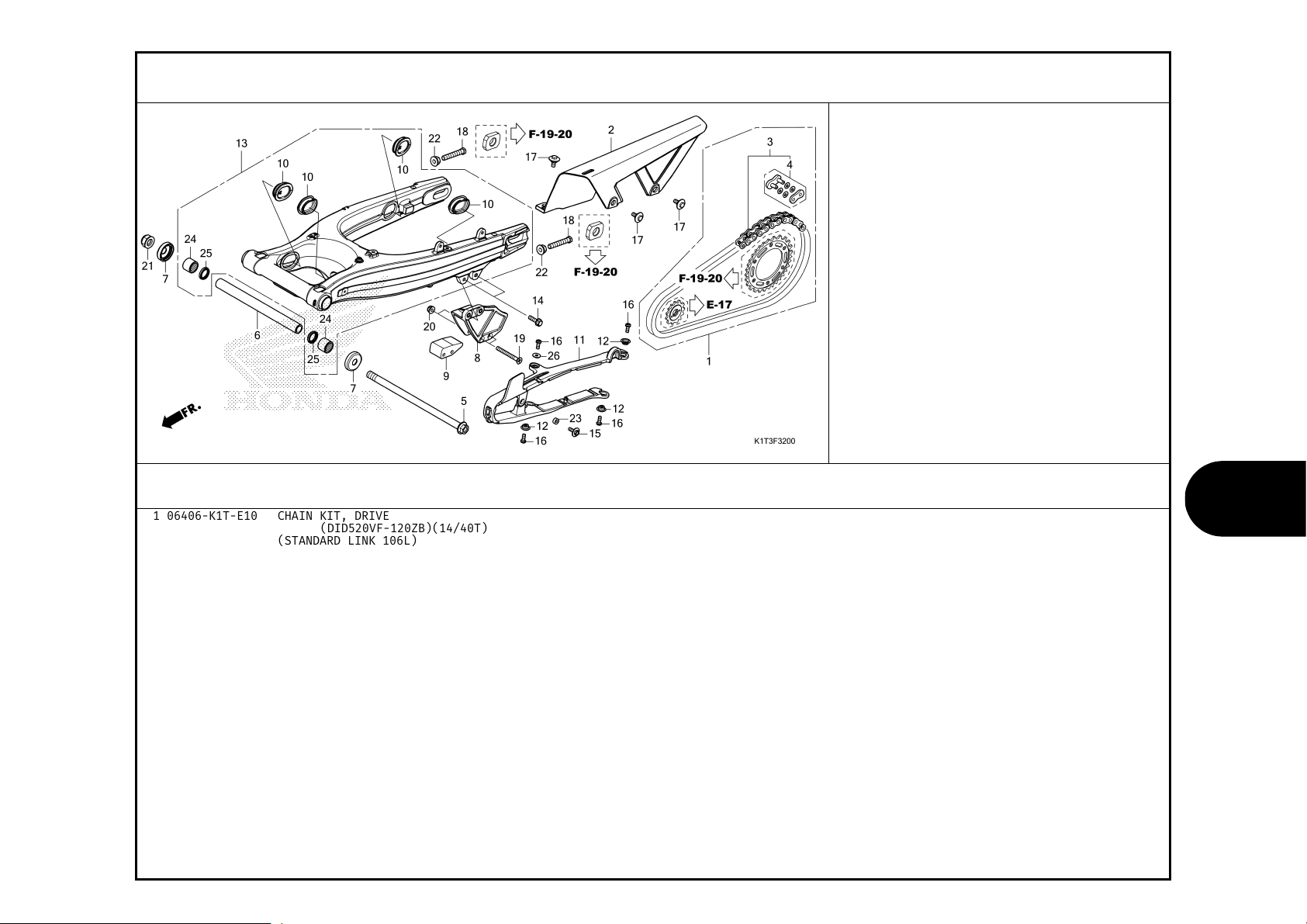

SWINGARM

F-30

F-33

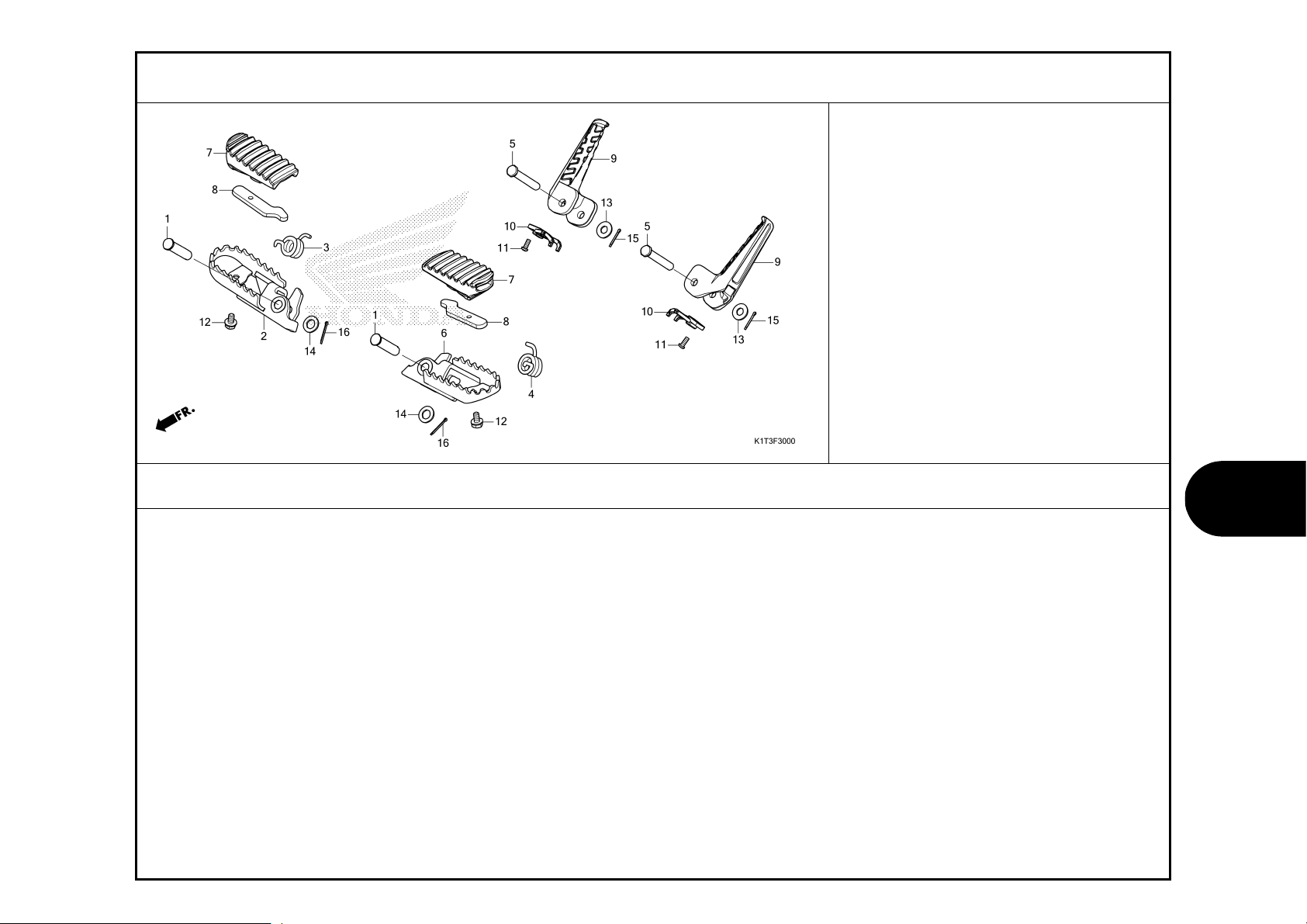

STEP

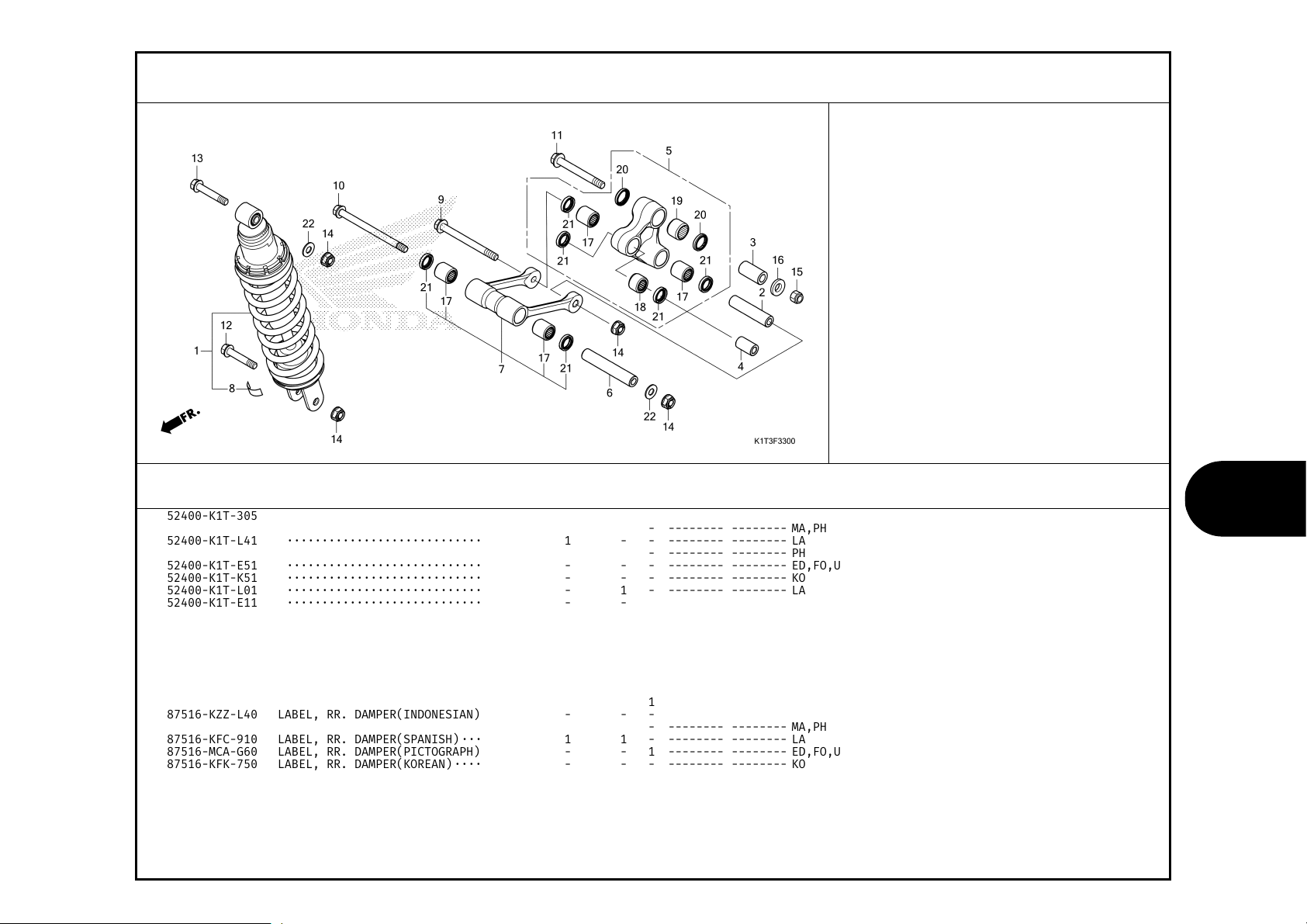

REAR CUSHION

F-31

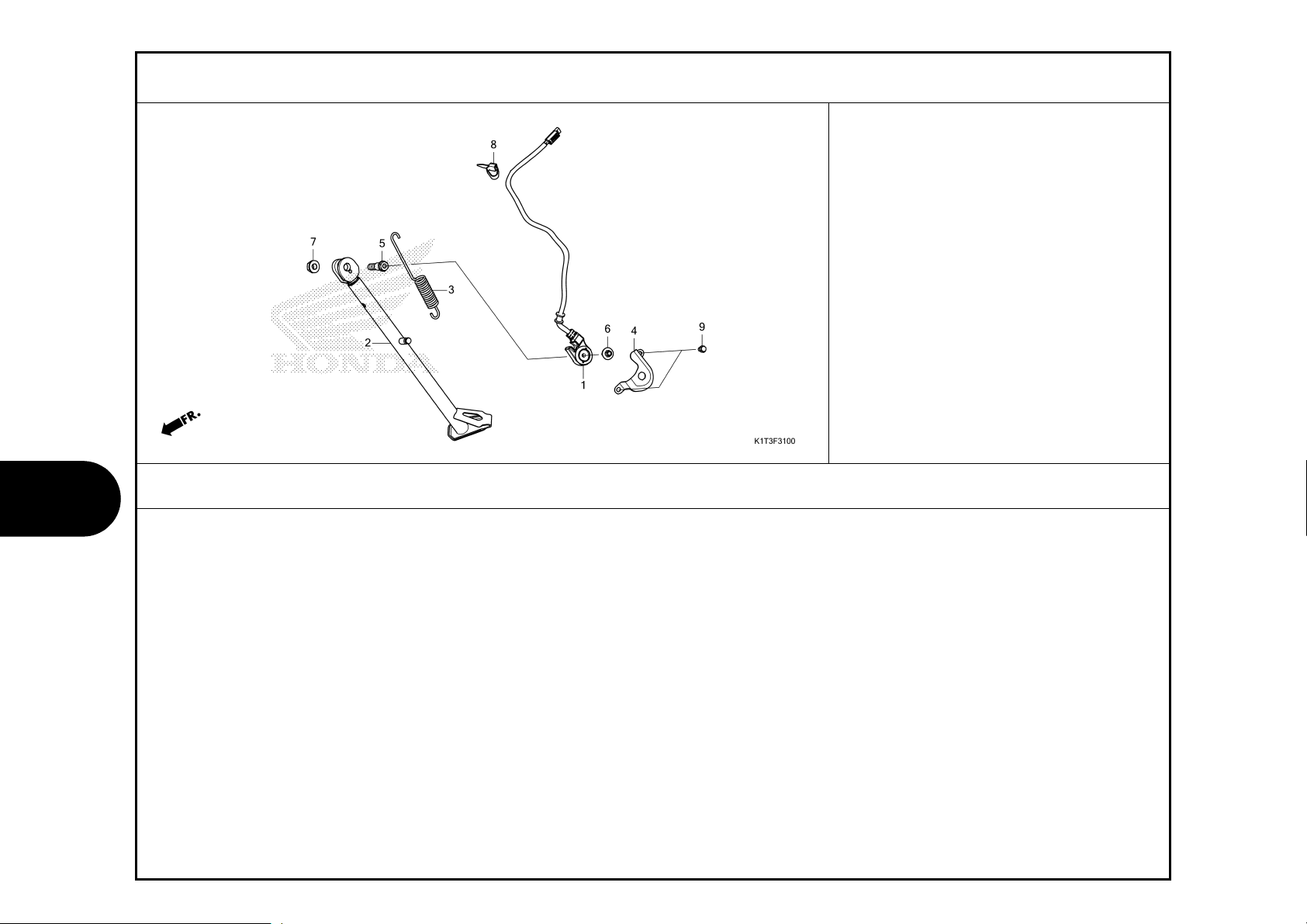

SIDE STAND

F-34

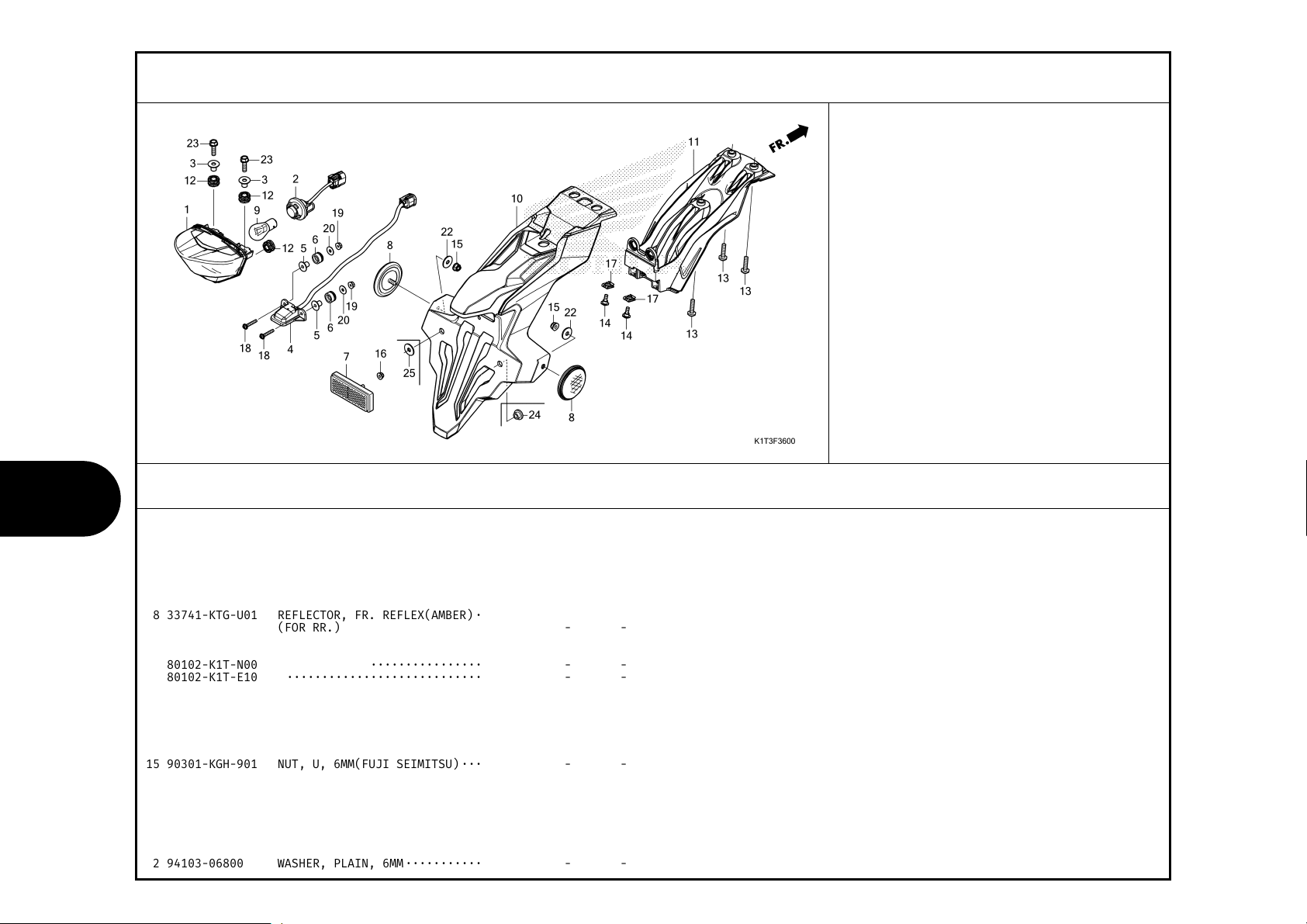

REAR FENDER

2020.11.20 E

F-35

WINKER(CRF300LA-ED)

F-35-1

FRAME GROUP

WINKER(EXCEPT CRF300LA-ED)

F-36

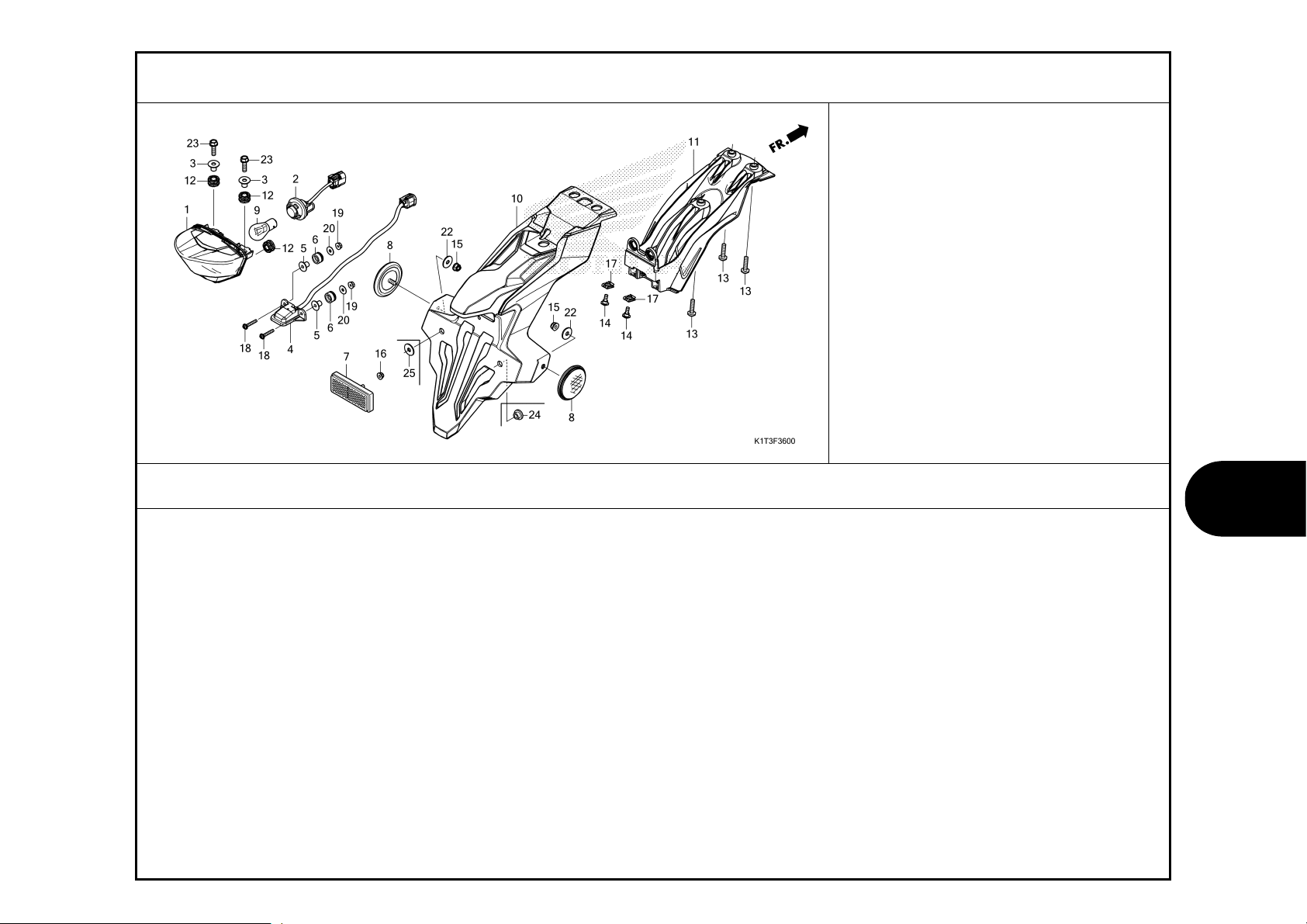

TAILLIGHT/LICENSE LIGHT

F-37

F-39

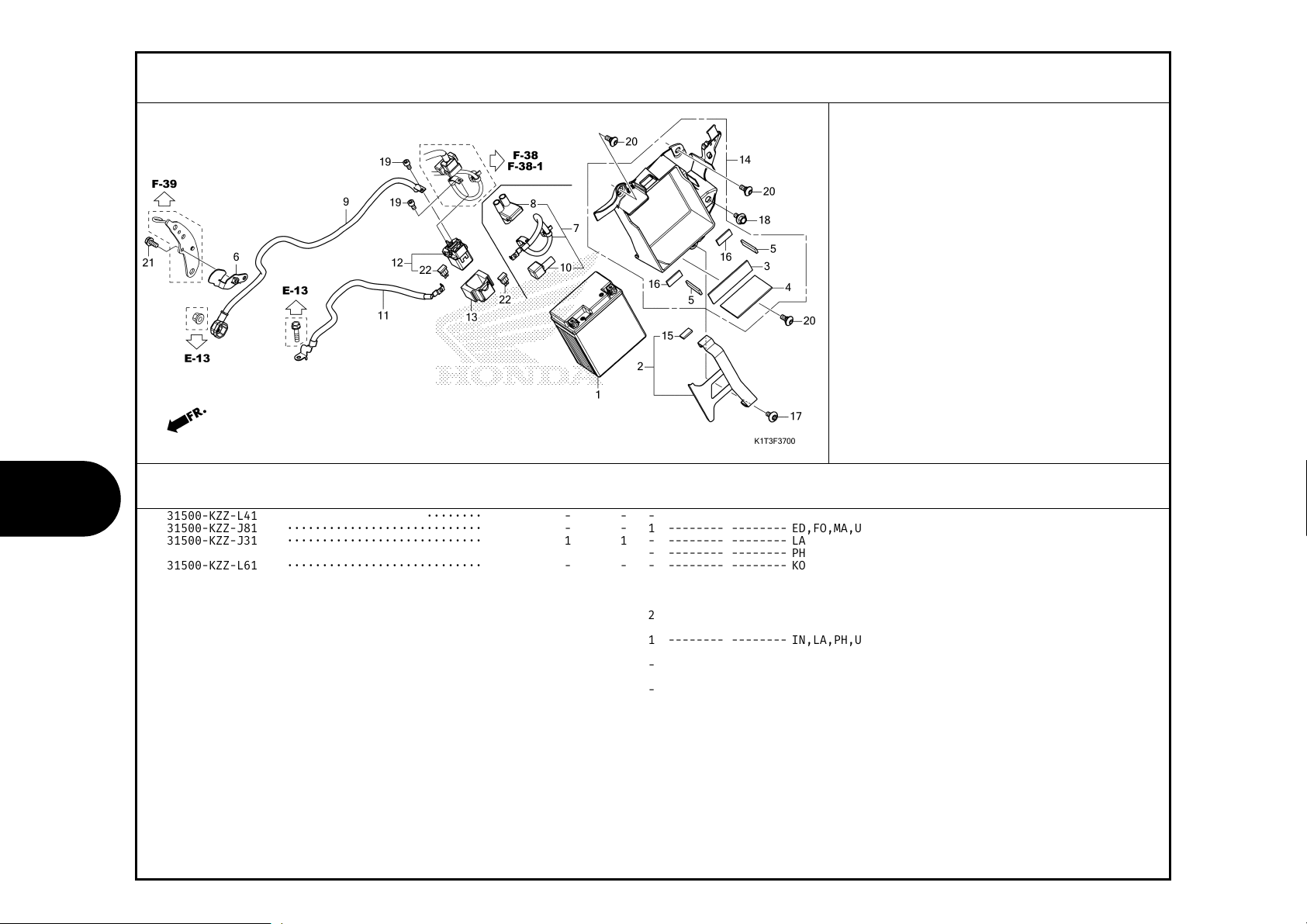

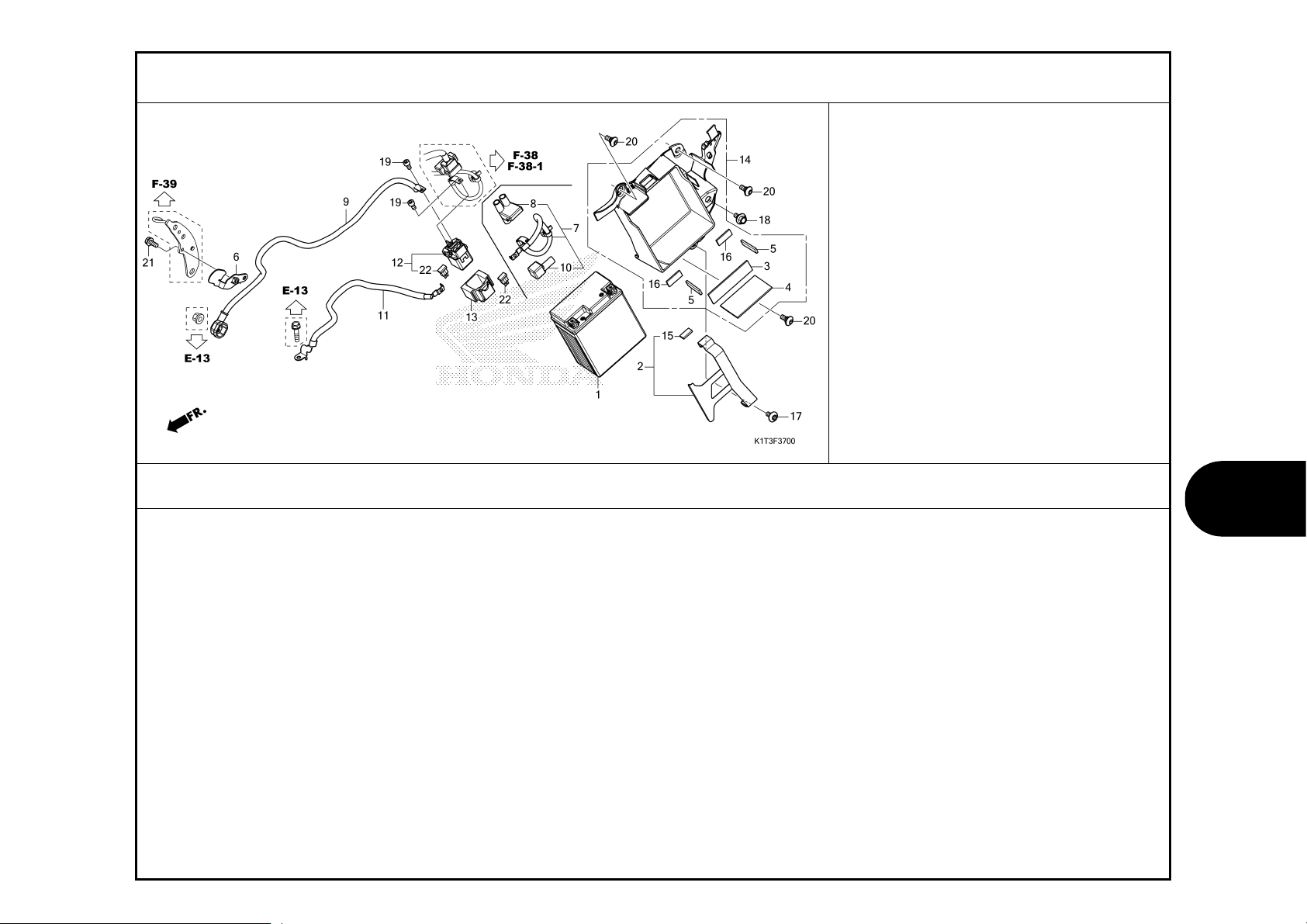

BATTERY

FRAME BODY

F-38

F-41

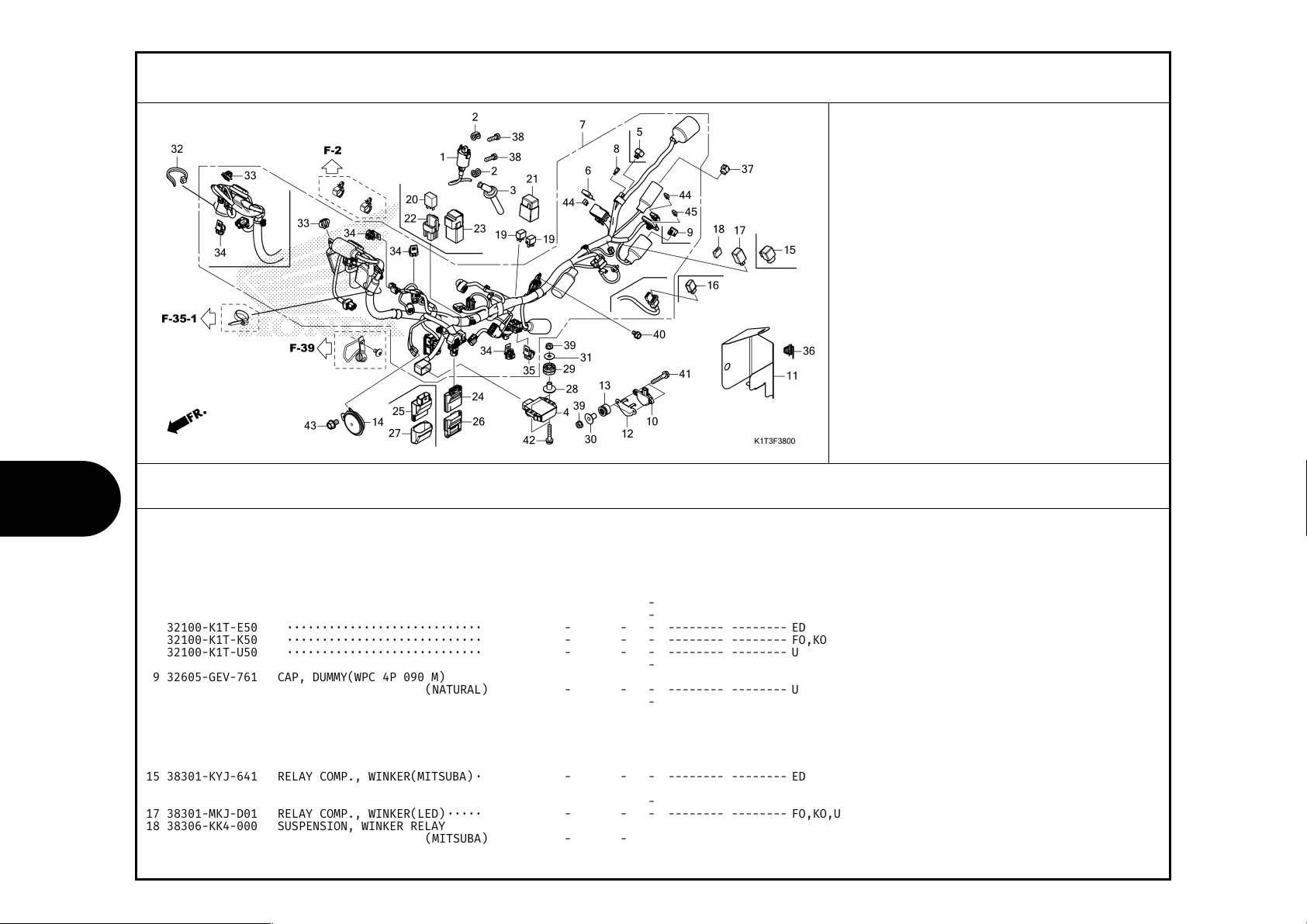

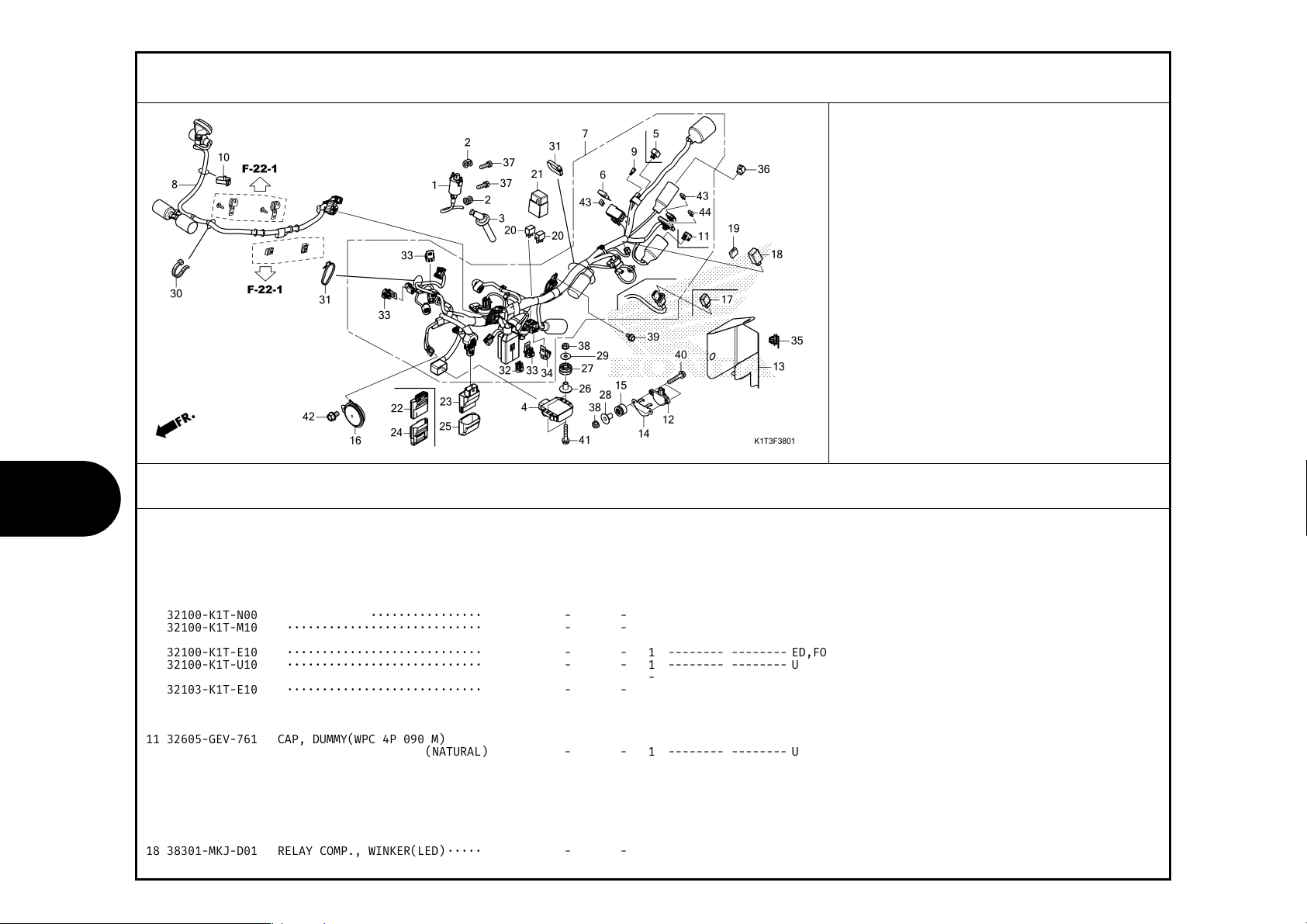

WIRE HARNESS(CRF300L/LA)

RADIATOR

F-38-1

WIRE HARNESS(CRF250LR/LRA,CRF300LR/LRA)

F-42

WINDSCREEN

2020.11.20 E

F-45

MIDDLE COWL

F-48

FRAME GROUP

TOOL/TOOL BOX

F-49

CAUTION LABEL(CRF300L/LA)

F-49-1

CAUTION LABEL(CRF250LR/LRA,CRF300LR/LRA)

F-50

MARK/STRIPE(CRF300L/LA)

F-50-1

MARK/STRIPE(CRF250LR/LRA,CRF300LR/LRA)

2020.11.20 E

E-1

ENGINEGROUP

CYLINDER HEAD COVER

Ref.

Part No. Description

No.

1 12300-KYJ-900 COVER ASSY., CYLINDER HEAD∙∙∙ 1 1 2 12341-MAT-750 PLATE, PORT(AI) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 12391-KYJ-901 GASKET COMP., CYLINDER HEAD

4 18601-KEA-741 VALVE COMP., REED(ARAI)∙∙∙∙∙∙ 1 1 5 18612-KYJ-900 COVER, REED VALVE∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 90002-KGH-900 BOLT, FLANGE, 5X14∙∙∙∙∙∙∙∙∙∙∙ 2 2 7 90018-KYJ-900 BOLT, HEAD COVER ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 8 90543-MV9-670 RUBBER, MOUNTING ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 9 94301-10160 DOWEL PIN, 10X16∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

COVER 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-2

ENGINEGROUP

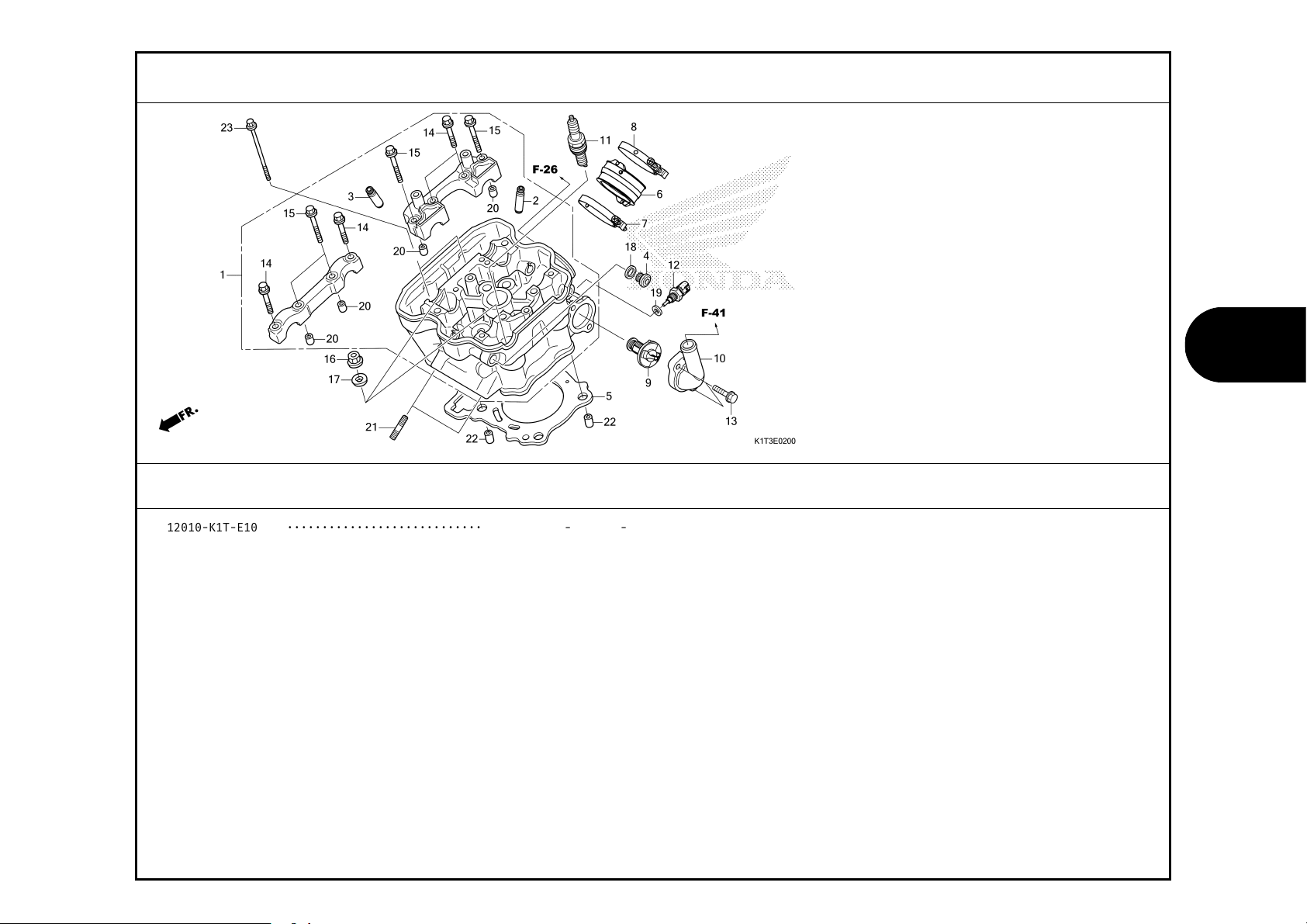

CYLINDER HEAD

Ref.

Part No. Description

No.

1 12010-K1T-C00 HEAD ASSY., CYLINDER∙∙∙∙∙∙∙∙∙ 1 1

12010-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 2 12204-KYJ-305 GUIDE, IN. VALVE(O.S.)∙∙∙∙∙∙∙ 2 2 3 12205-KYJ-305 GUIDE, EX. VALVE(O.S.)∙∙∙∙∙∙∙ 2 2 4 12207-KYJ-900 BOLT, SEALING, 12MM∙∙∙∙∙∙∙∙∙∙ 2 2 5 12251-KYJ-901 GASKET, CYLINDER HEAD ∙∙∙∙∙∙∙∙ 1 1

6 16211-K1T-E10 INSULATOR, THROTTLE BODY∙∙∙∙∙ 1 1 7 16217-K1T-E10 BAND, INSULATOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 16218-K1T-E10 BAND, INSULATOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 19300-KGF-911 THERMOSTAT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 19321-KZZ-900 COVER, THERMOSTAT∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 31916-MEH-003 PLUG, SPARK(SIMR8A9)(NGK)∙∙∙∙ 1 1

12 37870-KRJ-901 SENSOR ASSY., WATER 13 90011-KYJ-900 BOLT, FLANGE, 6X22(NSHF)∙∙∙∙∙ 2 2

14 90017-KYJ-900 BOLT, FLANGE, 6X32∙∙∙∙∙∙∙∙∙∙∙ 4 4 15 90019-KYJ-900 BOLT, FLANGE, 6X39.5∙∙∙∙∙∙∙∙∙ 4 4

16 90204-K87-A30 NUT, FLANGE, 10MM∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 17 90410-GCC-000 WASHER, 10MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 18 90418-KYJ-900 WASHER, 12.2X17X1.5∙∙∙∙∙∙∙∙∙∙ 2 2 19 90454-MC7-000 WASHER, SPECIAL, 12MM ∙∙∙∙∙∙∙∙ 1 1 20 91105-KSP-910 DOWEL PIN, 8X14 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4

94301-08140 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4

21 92900-08022-3E BOLT, STUD, 8X22∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 22 94301-12160 PIN A, DOWEL, 12X16∙∙∙∙∙∙∙∙∙∙ 2 2 23 95701-06120-00 BOLT, FLANGE, 6X120∙∙∙∙∙∙∙∙∙∙ 2 2

TEMPERATURE

Reqd. QTY

CRF300 L LR M M

1 1

2020.11.20 E

Serial No. Parts catalogue code

E-3

ENGINEGROUP

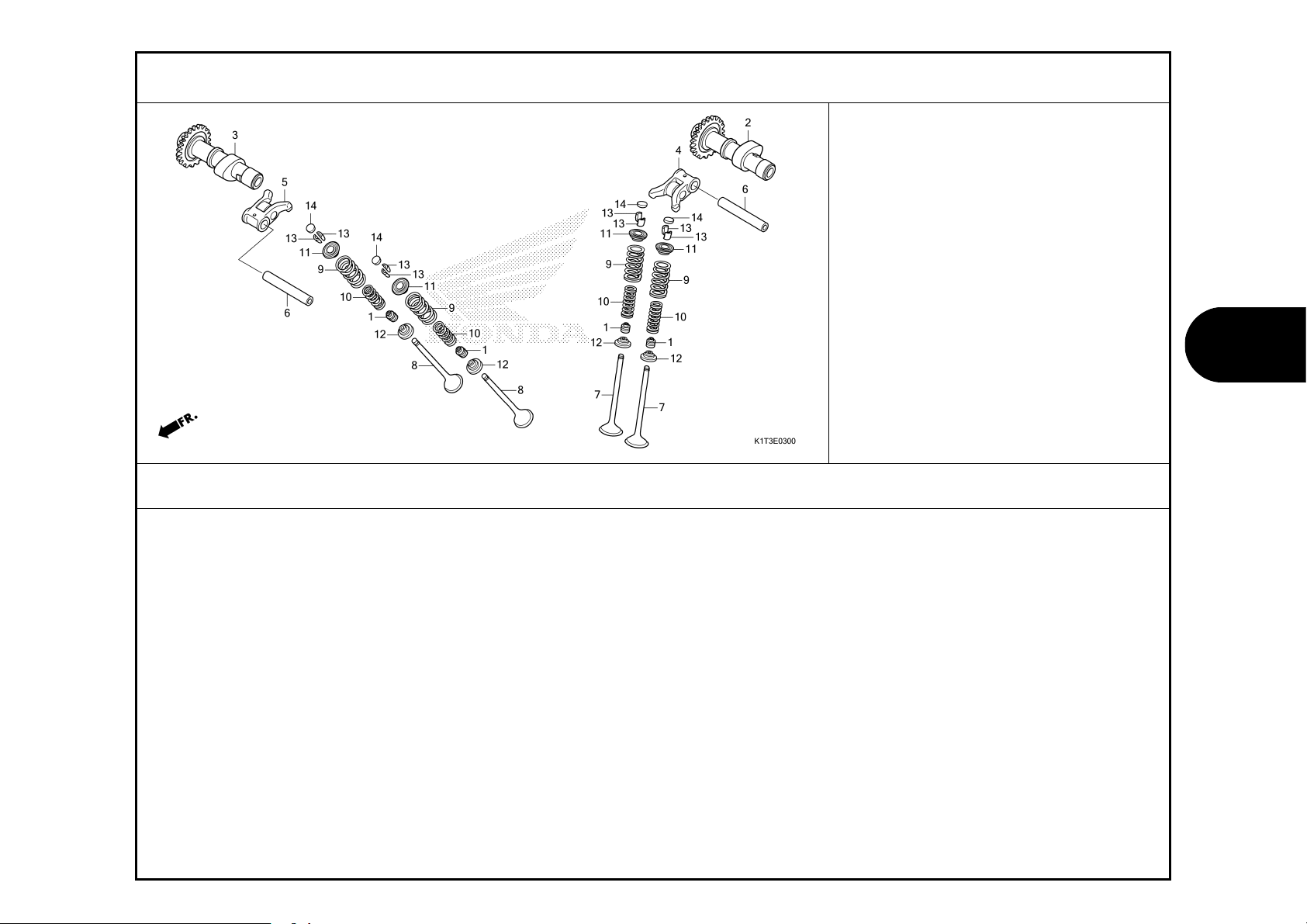

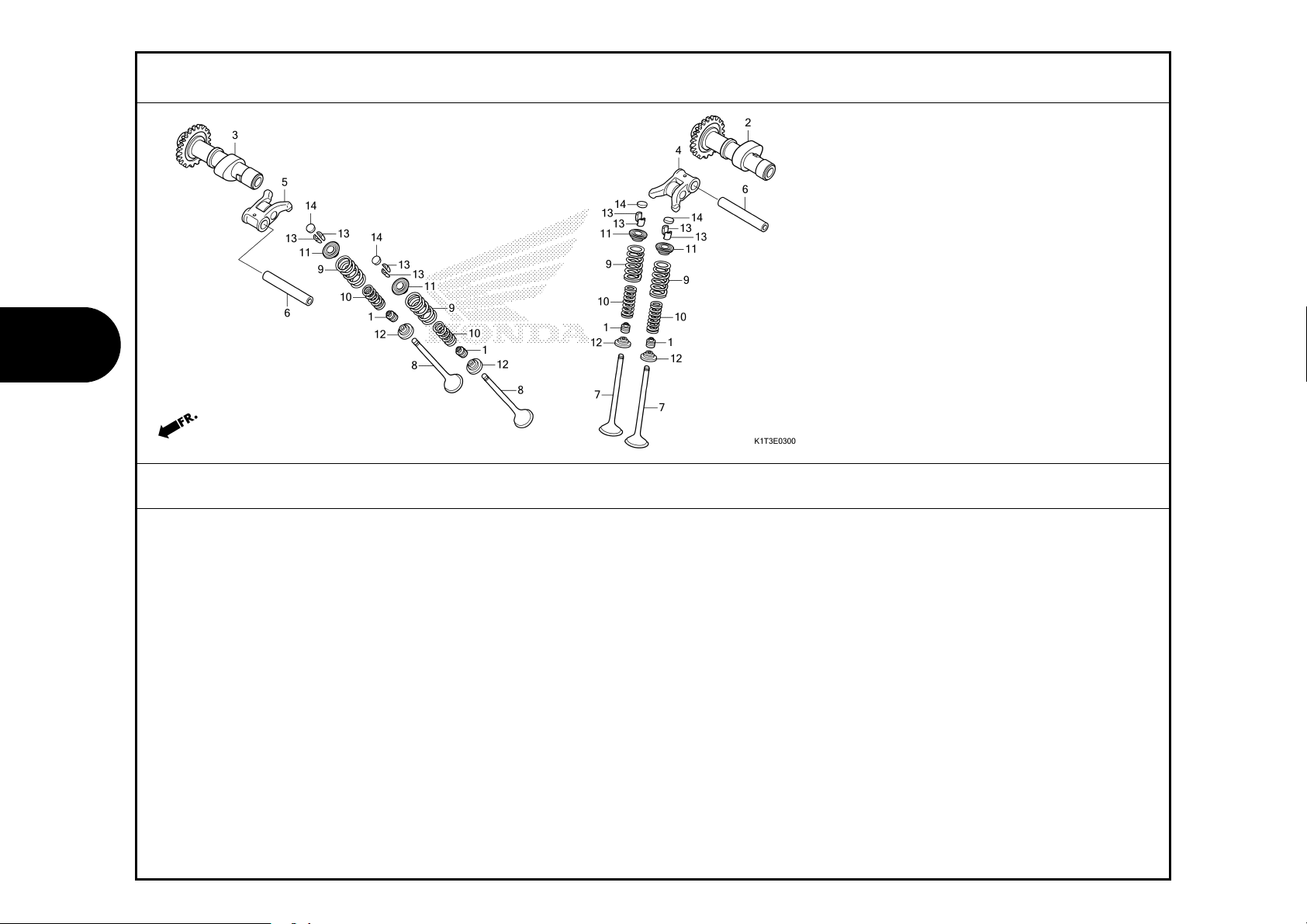

CAMSHAFT/VALVE

Ref.

Part No. Description

No.

1 12209-K1B-T01 SEAL, VALVE STEM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 2 14110-K1T-E10 CAMSHAFT COMP., IN.(34T) ∙∙∙∙∙ 1 1 3 14210-K1T-E10 CAMSHAFT COMP., EX.(34T) ∙∙∙∙∙ 1 1 4 14430-K33-D00 ARM COMP., IN. VALVE ROCKER∙∙ 1 1 5 14440-K33-D00 ARM COMP., EX. VALVE ROCKER∙∙ 1 1

6 14451-KYJ-900 SHAFT, ROCKER ARM∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 7 14711-KYJ-900 VALVE, IN. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 8 14721-KYJ-900 VALVE, EX. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 9 14751-K33-D01 SPRING, VALVE OUTER∙∙∙∙∙∙∙∙∙∙ 4 4

10 14761-K33-D01 SPRING, VALVE INNER∙∙∙∙∙∙∙∙∙∙ 4 4 11 14771-MFL-000 RETAINER, VALVE SPRING ∙∙∙∙∙∙∙ 4 4

12 14775-KYJ-900 SEAT, VALVE SPRING∙∙∙∙∙∙∙∙∙∙∙ 4 4 13 14781-MJE-D00 COTTER, VALVE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 8 14 14901-KT7-013 SHIM, TAPPET(1.200)∙∙∙∙∙∙∙∙∙∙ 4 4

14902-KT7-013 SHIM, TAPPET(1.225)∙∙∙∙∙∙∙∙∙∙ 4 4 14903-KT7-013 SHIM, TAPPET(1.250)∙∙∙∙∙∙∙∙∙∙ 4 4 14904-KT7-013 SHIM, TAPPET(1.275)∙∙∙∙∙∙∙∙∙∙ 4 4 14905-KT7-013 SHIM, TAPPET(1.300)∙∙∙∙∙∙∙∙∙∙ 4 4 14906-KT7-013 SHIM, TAPPET(1.325)∙∙∙∙∙∙∙∙∙∙ 4 4 14907-KT7-013 SHIM, TAPPET(1.350)∙∙∙∙∙∙∙∙∙∙ 4 4 14908-KT7-013 SHIM, TAPPET(1.375)∙∙∙∙∙∙∙∙∙∙ 4 4 14909-KT7-013 SHIM, TAPPET(1.400)∙∙∙∙∙∙∙∙∙∙ 4 4 14910-KT7-013 SHIM, TAPPET(1.425)∙∙∙∙∙∙∙∙∙∙ 4 4 14911-KT7-013 SHIM, TAPPET(1.450)∙∙∙∙∙∙∙∙∙∙ 4 4 14912-KT7-013 SHIM, TAPPET(1.475)∙∙∙∙∙∙∙∙∙∙ 4 4 14913-KT7-013 SHIM, TAPPET(1.500)∙∙∙∙∙∙∙∙∙∙ 4 4 14914-KT7-013 SHIM, TAPPET(1.525)∙∙∙∙∙∙∙∙∙∙ 4 4

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-3

CAMSHAFT/VALVE

Ref.

14) 14915-KT7-013 SHIM, TAPPET(1.550)∙∙∙∙∙∙∙∙∙∙ 4 4

Part No. Description

No.

14916-KT7-013 SHIM, TAPPET(1.575)∙∙∙∙∙∙∙∙∙∙ 4 4 14917-KT7-013 SHIM, TAPPET(1.600)∙∙∙∙∙∙∙∙∙∙ 4 4 14918-KT7-013 SHIM, TAPPET(1.625)∙∙∙∙∙∙∙∙∙∙ 4 4 14919-KT7-013 SHIM, TAPPET(1.650)∙∙∙∙∙∙∙∙∙∙ 4 4 14920-KT7-013 SHIM, TAPPET(1.675)∙∙∙∙∙∙∙∙∙∙ 4 4 14921-KT7-013 SHIM, TAPPET(1.700)∙∙∙∙∙∙∙∙∙∙ 4 4 14922-KT7-013 SHIM, TAPPET(1.725)∙∙∙∙∙∙∙∙∙∙ 4 4 14923-KT7-013 SHIM, TAPPET(1.750)∙∙∙∙∙∙∙∙∙∙ 4 4 14924-KT7-013 SHIM, TAPPET(1.775)∙∙∙∙∙∙∙∙∙∙ 4 4 14925-KT7-013 SHIM, TAPPET(1.800)∙∙∙∙∙∙∙∙∙∙ 4 4 14926-KT7-013 SHIM, TAPPET(1.825)∙∙∙∙∙∙∙∙∙∙ 4 4 14927-KT7-013 SHIM, TAPPET(1.850)∙∙∙∙∙∙∙∙∙∙ 4 4 14928-KT7-013 SHIM, TAPPET(1.875)∙∙∙∙∙∙∙∙∙∙ 4 4 14929-KT7-013 SHIM, TAPPET(1.900)∙∙∙∙∙∙∙∙∙∙ 4 4 14930-KT7-013 SHIM, TAPPET(1.925)∙∙∙∙∙∙∙∙∙∙ 4 4 14931-KT7-013 SHIM, TAPPET(1.950)∙∙∙∙∙∙∙∙∙∙ 4 4 14932-KT7-013 SHIM, TAPPET(1.975)∙∙∙∙∙∙∙∙∙∙ 4 4 14933-KT7-013 SHIM, TAPPET(2.000)∙∙∙∙∙∙∙∙∙∙ 4 4 14934-KT7-013 SHIM, TAPPET(2.025)∙∙∙∙∙∙∙∙∙∙ 4 4 14935-KT7-013 SHIM, TAPPET(2.050)∙∙∙∙∙∙∙∙∙∙ 4 4 14936-KT7-013 SHIM, TAPPET(2.075)∙∙∙∙∙∙∙∙∙∙ 4 4 14937-KT7-013 SHIM, TAPPET(2.100)∙∙∙∙∙∙∙∙∙∙ 4 4 14938-KT7-013 SHIM, TAPPET(2.125)∙∙∙∙∙∙∙∙∙∙ 4 4 14939-KT7-013 SHIM, TAPPET(2.150)∙∙∙∙∙∙∙∙∙∙ 4 4 14940-KT7-013 SHIM, TAPPET(2.175)∙∙∙∙∙∙∙∙∙∙ 4 4 14941-KT7-013 SHIM, TAPPET(2.200)∙∙∙∙∙∙∙∙∙∙ 4 4 14942-KT7-013 SHIM, TAPPET(2.225)∙∙∙∙∙∙∙∙∙∙ 4 4 14943-KT7-013 SHIM, TAPPET(2.250)∙∙∙∙∙∙∙∙∙∙ 4 4

Reqd. QTY

L LR M M

CRF300

Serial No. Parts catalogue code

2020.11.20 E

E-3

CAMSHAFT/VALVE

Ref.

14) 14944-KT7-013 SHIM, TAPPET(2.275)∙∙∙∙∙∙∙∙∙∙ 4 4

Part No. Description

No.

14945-KT7-013 SHIM, TAPPET(2.300)∙∙∙∙∙∙∙∙∙∙ 4 4 14946-KT7-013 SHIM, TAPPET(2.325)∙∙∙∙∙∙∙∙∙∙ 4 4 14947-KT7-013 SHIM, TAPPET(2.350)∙∙∙∙∙∙∙∙∙∙ 4 4 14948-KT7-013 SHIM, TAPPET(2.375)∙∙∙∙∙∙∙∙∙∙ 4 4 14949-KT7-013 SHIM, TAPPET(2.400)∙∙∙∙∙∙∙∙∙∙ 4 4 14950-KT7-013 SHIM, TAPPET(2.425)∙∙∙∙∙∙∙∙∙∙ 4 4 14951-KT7-013 SHIM, TAPPET(2.450)∙∙∙∙∙∙∙∙∙∙ 4 4 14952-KT7-013 SHIM, TAPPET(2.475)∙∙∙∙∙∙∙∙∙∙ 4 4 14953-KT7-013 SHIM, TAPPET(2.500)∙∙∙∙∙∙∙∙∙∙ 4 4 14954-KT7-013 SHIM, TAPPET(2.525)∙∙∙∙∙∙∙∙∙∙ 4 4 14955-KT7-013 SHIM, TAPPET(2.550)∙∙∙∙∙∙∙∙∙∙ 4 4 14956-KT7-013 SHIM, TAPPET(2.575)∙∙∙∙∙∙∙∙∙∙ 4 4 14957-KT7-013 SHIM, TAPPET(2.600)∙∙∙∙∙∙∙∙∙∙ 4 4 14958-KT7-013 SHIM, TAPPET(2.625)∙∙∙∙∙∙∙∙∙∙ 4 4 14959-KT7-013 SHIM, TAPPET(2.650)∙∙∙∙∙∙∙∙∙∙ 4 4 14960-KT7-013 SHIM, TAPPET(2.675)∙∙∙∙∙∙∙∙∙∙ 4 4 14961-KT7-013 SHIM, TAPPET(2.700)∙∙∙∙∙∙∙∙∙∙ 4 4 14962-KT7-013 SHIM, TAPPET(2.725)∙∙∙∙∙∙∙∙∙∙ 4 4 14963-KT7-013 SHIM, TAPPET(2.750)∙∙∙∙∙∙∙∙∙∙ 4 4 14964-KT7-013 SHIM, TAPPET(2.775)∙∙∙∙∙∙∙∙∙∙ 4 4 14965-KT7-013 SHIM, TAPPET(2.800)∙∙∙∙∙∙∙∙∙∙ 4 4 14966-KT7-013 SHIM, TAPPET(2.825)∙∙∙∙∙∙∙∙∙∙ 4 4 14967-KT7-013 SHIM, TAPPET(2.850)∙∙∙∙∙∙∙∙∙∙ 4 4 14968-KT7-013 SHIM, TAPPET(2.875)∙∙∙∙∙∙∙∙∙∙ 4 4 14969-KT7-013 SHIM, TAPPET(2.900)∙∙∙∙∙∙∙∙∙∙ 4 4

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

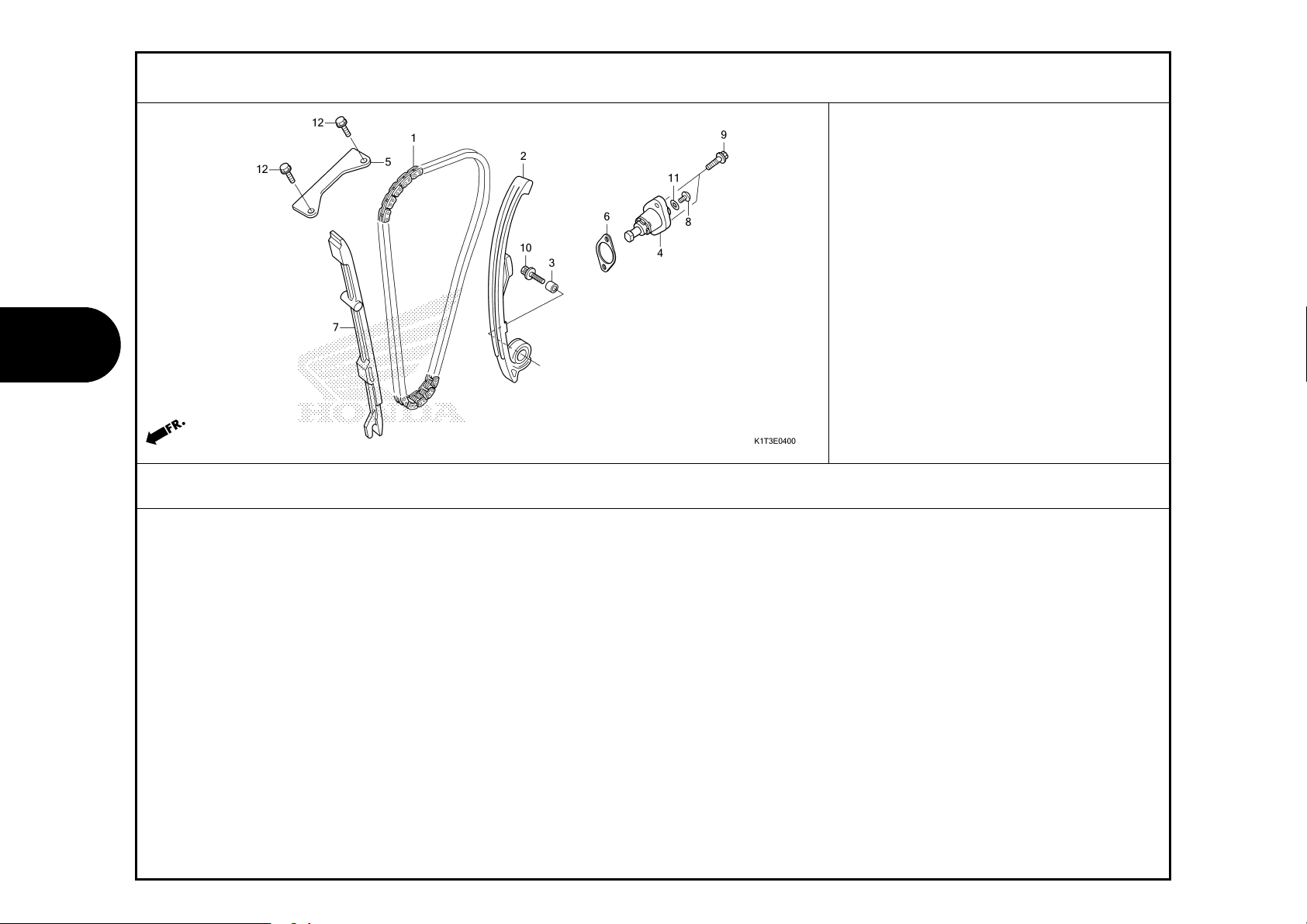

E-4

ENGINEGROUP

CAM CHAIN/TENSIONER

Ref.

Part No. Description

No.

1 14401-K1T-E11 CHAIN, CAM(128L)(DAIDO)∙∙∙∙∙∙ 1 1 2 14510-K33-D00 TENSIONER COMP., CAM CHAIN ∙∙∙ 1 1 3 14517-KYJ-900 COLLAR, TENSIONER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 14520-K33-701 LIFTER ASSY., TENSIONER∙∙∙∙∙∙ 1 1 5 14546-KYJ-900 GUIDE B, CAM CHAIN∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 14560-KGH-900 GASKET, TENSIONER LIFTER∙∙∙∙∙ 1 1 7 14611-KYJ-900 GUIDE A, CAM CHAIN∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 90005-KYJ-900 SCREW, PAN, 6X6 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 90011-KYJ-900 BOLT, FLANGE, 6X22(NSHF)∙∙∙∙∙ 2 2

10 90022-KYJ-900 BOLT-WASHER, 6X25∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 91306-MG3-000 O-RING, 1.5X9.5 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

12 95701-06014-00 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-5

ENGINEGROUP

CYLINDER

Ref.

Part No. Description

No.

1 12100-KZZ-900 CYLINDER COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

12100-K33-950 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 12191-K87-A30 GASKET, CYLINDER ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 94301-12160 PIN A, DOWEL, 12X16∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-6

ENGINEGROUP

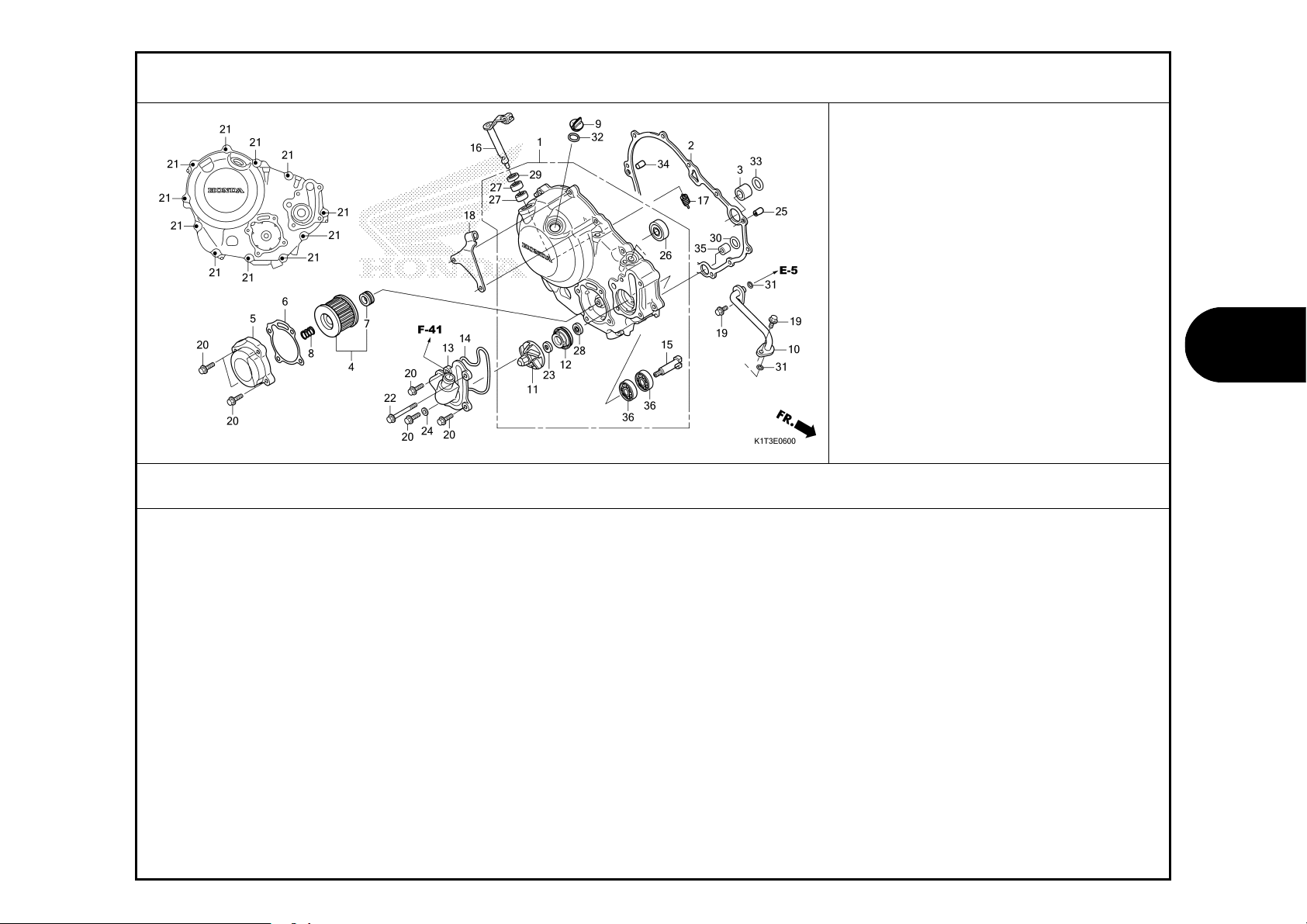

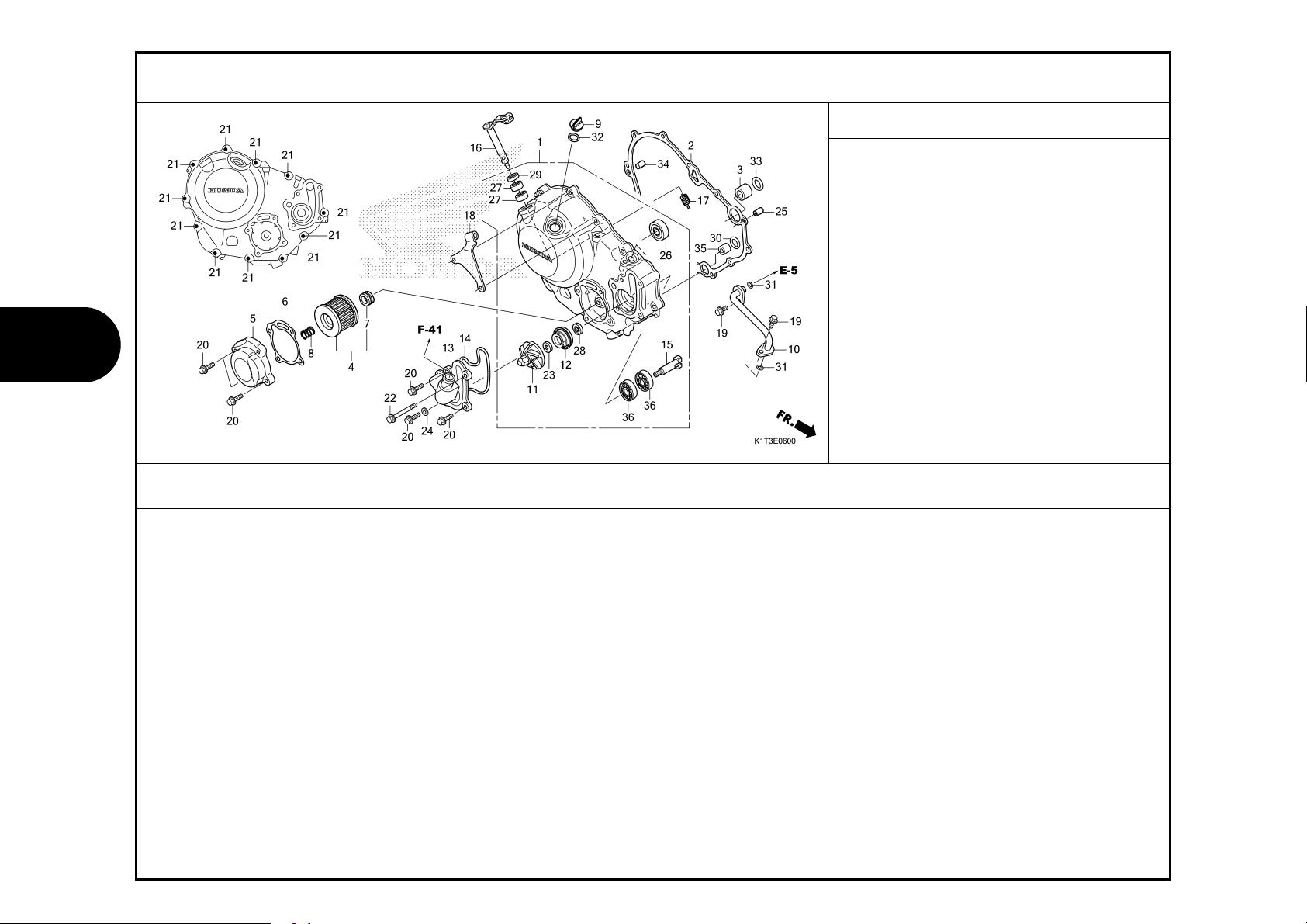

RIGHT CRANKCASE COVER

Ref.

Part No. Description

No.

1 11300-K1T-E10 COVER ASSY., R. CRANKCASE ∙∙∙∙ 1 1 2 11394-K87-A30 GASKET, R. CRANKCASE COVER∙∙∙ 1 1 3 15326-KT7-000 COLLAR, OIL PATH, 18MM∙∙∙∙∙∙∙ 1 1 4 15410-KYJ-902 ELEMENT, OIL FILTER∙∙∙∙∙∙∙∙∙∙ 1 1 5 15411-KZZ-900 COVER, OIL FILTER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 15412-KYJ-901 GASKET, OIL FILTER COVER∙∙∙∙∙ 1 1 7 15413-MC8-000 RUBBER, FILTER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 15414-KF0-000 SPRING, OIL FILTER ELEMENT

9 15611-KA4-710 CAP, OIL FILLER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 19120-KZZ-900 PIPE COMP., WATER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 19215-KGH-900 IMPELLER, WATER PUMP ∙∙∙∙∙∙∙∙∙ 1 1

12 19217-P72-013 SEAL, MECHANICAL ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 13 19220-KZZ-900 COVER COMP., WATER PUMP∙∙∙∙∙∙ 1 1 14 19226-KYJ-901 GASKET, WATER PUMP COVER∙∙∙∙∙ 1 1 15 19241-KZZ-D20 SHAFT, WATER PUMP∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 22810-KZZ-900 LEVER COMP., CLUTCH∙∙∙∙∙∙∙∙∙∙ 1 1 17 22815-KM7-700 SPRING, CLUTCH LEVER∙∙∙∙∙∙∙∙∙ 1 1 18 22821-KZZ-900 RECEIVER, CLUTCH CABLE ∙∙∙∙∙∙∙ 1 1 19 90010-KYJ-900 BOLT, FLANGE, 6X16(NSHF)∙∙∙∙∙ 2 2 20 90012-KYJ-900 BOLT, FLANGE, 6X25(NSHF)∙∙∙∙∙ 7 7

21 90013-KYJ-900 BOLT, FLANGE, 6X30(NSHF)∙∙∙∙∙ 11 11 22 90015-KYJ-900 BOLT, FLANGE, 6X65(NSHF)∙∙∙∙∙ 1 1 23 90423-KW6-900 WASHER, 7X13X1.2 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 24 90463-ML7-000 WASHER, SEALING, 6.5MM ∙∙∙∙∙∙∙ 1 1

SETTING 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-6

RIGHT CRANKCASE COVER

Ref.

Part No. Description

No.

25 90702-KFM-900 DOWEL PIN, 8X12 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 26 91009-KYJ-901 BEARING, RADIAL BALL, 6001U ∙∙ 1 1

27 91021-MKS-E01 BEARING, NEEDLE, 12X16X10 ∙∙∙∙ 2 2

91022-KYJ-711 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

91053-MFJ-D01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 28 91202-KTW-901 OIL SEAL, 12X26X5∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 29 91204-KK0-003 OIL SEAL, 12X18X5(ARAI)∙∙∙∙∙∙ 1 1 30 91301-KYJ-901 O-RING, 11.8X1.9 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

31 91302-KYJ-901 O-RING, 9.8X2.4 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 32 91307-035-000 O-RING, 18X3 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 33 91322-K87-A30 O-RING, 17.8X1.9(ARAI)∙∙∙∙∙∙∙ 1 1 34 94301-08140 DOWEL PIN, 8X14∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 35 94301-12160 PIN A, DOWEL, 12X16∙∙∙∙∙∙∙∙∙∙ 1 1

36 96100-60013-00 BEARING, RADIAL BALL, 6001∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-8

ENGINEGROUP

CLUTCH

Ref.

Part No. Description

No.

1 22100-KYJ-UB1 OUTER COMP., CLUTCH(73T)∙∙∙∙∙ - - 2 22116-K33-D00 GUIDE A, CLUTCH OUTER(WHITE) ∙ 1 1

22117-K33-D00 GUIDE B, CLUTCH OUTER(BLUE) ∙∙ 1 1 3 22121-K87-A31 CENTER, CLUTCH ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 22125-ML7-000 SEAT, JUDDER SPRING∙∙∙∙∙∙∙∙∙∙ 1 1 5 22210-K87-305 DISK SET, CLUTCH ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 22350-K87-A31 PLATE COMP., CLUTCH PRESSURE∙ 1 1 7 22361-MKN-D11 PLATE, SETTING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 22401-K87-A31 SPRING, CLUTCH ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 3 9 22402-K87-A31 SPRING, JUDDER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 22425-MJP-G51 SEAT, CLUTCH SPRING∙∙∙∙∙∙∙∙∙∙ 3 3 11 22847-KZZ-900 PIN, CLUTCH LIFTER∙∙∙∙∙∙∙∙∙∙∙ 1 1

12 23121-K33-D01 GEAR, PRIMARY DRIVE(26T)∙∙∙∙∙ - - 13 23121-K87-305 GEAR SET, PRIMARY DRIVEN∙∙∙∙∙ 1 1 14 90008-KRM-840 BOLT, FLANGE, 6X25∙∙∙∙∙∙∙∙∙∙∙ 3 3 15 90201-KYJ-900 NUT, SPECIAL, 16MM∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 90404-KVK-900 WASHER, 20X40X2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 17 90434-KPS-900 WASHER, 16MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 18 91012-KYJ-901 BEARING, NEEDLE, 28X33X16.8 ∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-9

ENGINEGROUP

STARTING CLUTCH

Ref.

Part No. Description

No.

1 28110-KYJ-900 GEAR COMP., STARTER DRIVEN

28110-K33-D00 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 28125-KYJ-901 OUTER COMP., STARTING CLUTCH∙ 1 1 3 28130-KYJ-900 GEAR, STARTER REDUCTION

4 28132-MK5-000 SHAFT C, IDLE GEAR∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 91107-KYJ-902 BEARING, NEEDLE, 29X34X24 ∙∙∙∙ - -

91007-K33-D03 BEARING, NEEDLE, 29X36X24 ∙∙∙∙ 1 1

(68T) - -

(17T/60T) 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-10

ENGINEGROUP

LEFT CRANKCASE COVER

Ref.

Part No. Description

No.

1 11341-K1T-E10 COVER, L. CRANKCASE∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 2 11341-K1T-J10 COVER, L. CRANKCASE∙∙∙∙∙∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,MA,PH,U 3 11360-K1T-E10 COVER COMP., L. RR. ∙∙∙∙∙∙∙∙∙∙ 1 1 4 11371-K1T-E10 GUARD, CRANK SENSOR∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 5 11382-MKG-A00 COLLAR, 6.5X10.5 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 11395-K87-A30 GASKET, L. CRANKCASE COVER∙∙∙ 1 1 1 7 37500-K26-G81 SENSOR ASSY., CRANK∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 8 90009-K1T-E10 BOLT, FLANGE, 6X14(NSHF)∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 9 90010-K1T-E10 BOLT, FLANGE, 6X45(NSHF)∙∙∙∙∙ - - 6 -------- -------- ED,FO,KO

10 90010-MGZ-J00 BOLT, FLANGE, 6X28(NSHF)∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,MA,PH,U

90013-KYJ-900 BOLT, FLANGE, 6X30(NSHF)∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO

11 90012-KYJ-900 BOLT, FLANGE, 6X25(NSHF)∙∙∙∙∙ 1 1 1 12 90013-KYJ-900 BOLT, FLANGE, 6X30(NSHF)∙∙∙∙∙ 9 9 3 -------- -------- ED,FO,IN,KO,LA,MA,PH

13 90017-GHB-640 BOLT, FLANGE, 6X18(NSHF)∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 14 90084-KPP-860 CAP, A.C. GENERATOR∙∙∙∙∙∙∙∙∙∙ 1 1 15 90087-KPP-860 CAP, 30MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 91303-377-000 O-RING, 13.8X2.5 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 1 17 91333-PNC-006 O-RING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 18 91356-KWV-000 O-RING, 30MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 19 94301-08140 DOWEL PIN, 8X14∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

- - 9 -------- -------- U

Serial No. Parts catalogue code

2020.11.20 E

E-11

ENGINEGROUP

GENERATOR

Ref.

Part No. Description

No.

1 31101-K1T-E10 STAY, A.C. GENERATOR CORD∙∙∙∙ - - 1 -------- -------- ED,FO,KO 2 31110-K1T-E11 FLYWHEEL COMP.(DENSO)∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 3 31110-K1T-J11 FLYWHEEL COMP.(DENSO)∙∙∙∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,MA,PH,U 4 31120-K1T-E11 STATOR COMP.(DENSO)∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO 5 31120-K1T-J11 STATOR COMP.(DENSO)∙∙∙∙∙∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,MA,PH,U

6 90001-K1T-E10 BOLT, SOCKET, 6X30∙∙∙∙∙∙∙∙∙∙∙ 3 3 7 90023-KYJ-900 BOLT, FLANGE, 12X50∙∙∙∙∙∙∙∙∙∙ 1 1 8 90401-KCY-670 WASHER, 12.5X30X5∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 96001-06014-00 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO

10 96600-06016-00 BOLT, SOCKET, 6X16∙∙∙∙∙∙∙∙∙∙∙ 2 2 2 -------- -------- IN,LA,MA,PH,U 11 96600-08020-10 BOLT, SOCKET, 8X20∙∙∙∙∙∙∙∙∙∙∙ 6 6 6 -------- -------- IN,LA,MA,PH,U

96600-08025-10 BOLT, SOCKET, 8X25∙∙∙∙∙∙∙∙∙∙∙ - - 6 -------- -------- ED,FO,KO

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

2020.11.20 E

E-13

ENGINEGROUP

STARTER MOTOR

Ref.

Part No. Description

No.

1 31200-KZZ-901 MOTOR ASSY., STARTER(MITSUBA) 1 1 2 31201-MEW-921 BRUSH SET A, CARBON∙∙∙∙∙∙∙∙∙∙ 1 1 3 31202-MEW-921 BRUSH SET B, CARBON∙∙∙∙∙∙∙∙∙∙ 1 1 4 31203-MEW-921 HOLDER, BRUSH ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 31204-MEW-921 SPRING, CARBON BRUSH∙∙∙∙∙∙∙∙∙ 4 4

6 31205-HP5-601 BOLT, SETTING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 7 31206-MEW-921 BOLT, TERMINAL ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 31207-HP5-601 RING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 9 31208-MEW-921 INSULATOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 31209-MEW-921 STOPPER, TERMINAL∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 31210-MEW-921 WASHER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

12 90071-MB0-000 NUT-WASHER, 6MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 13 91309-425-003 O-RING, 24.4X3.1(ARAI)∙∙∙∙∙∙∙ 1 1 14 91320-MB0-000 O-RING, 4X2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 93892-05012-08 SCREW-WASHER, 5X12∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 95701-06025-00 BOLT, FLANGE, 6X25∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-14

ENGINEGROUP

OIL PUMP

Ref.

Part No. Description

No.

1 15100-KYJ-900 PUMP ASSY., OIL ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 15119-KYJ-901 GASKET, OIL PUMP ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 15130-KYJ-900 GEAR COMP., OIL PUMP(32T) ∙∙∙∙ 1 1 4 15220-KYJ-900 VALVE ASSY., RELIEF∙∙∙∙∙∙∙∙∙∙ 1 1 5 90702-KFM-900 DOWEL PIN, 8X12 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

6 91301-KYJ-901 O-RING, 11.8X1.9 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 3 7 94301-12160 PIN A, DOWEL, 12X16∙∙∙∙∙∙∙∙∙∙ 1 1 8 95701-06045-00 BOLT, FLANGE, 6X45∙∙∙∙∙∙∙∙∙∙∙ 3 3

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-15

ENGINEGROUP

CRANKCASE

Ref.

Part No. Description

No.

1 11100-K33-700 CRANKCASE COMP., R. ∙∙∙∙∙∙∙∙∙∙ 1 1 2 11107-KYJ-900 BOLT, SEALING, 16MM∙∙∙∙∙∙∙∙∙∙ 1 1 3 11200-K1T-E10 CRANKCASE COMP., L. ∙∙∙∙∙∙∙∙∙∙ 1 1 4 13312-K33-D01 BEARING A, CRANKSHAFT(BLUE)∙∙ 4 4

13313-K33-D01 BEARING B, CRANKSHAFT(BLACK)∙ 4 4 13314-K33-D01 BEARING C, CRANKSHAFT(BROWN)∙ 4 4 13315-K33-305 BEARING D, CRANKSHAFT(RED)

13316-K33-305 BEARING E, CRANKSHAFT(GREEN) 13317-K33-305 BEARING F, CRANKSHAFT(YELLOW)

13318-K33-305 BEARING G, CRANKSHAFT(PINK) 5 15421-KYJ-900 SCREEN, OIL FILTER∙∙∙∙∙∙∙∙∙∙∙ 1 1 6 35759-K1T-E11 SWITCH ASSY., CHANGE∙∙∙∙∙∙∙∙∙ 1 1

7 37700-KZZ-901 SENSOR ASSY., SPEED∙∙∙∙∙∙∙∙∙∙ 1 1 8 90011-MGP-000 BOLT, SOCKET KNOCK, 6MM∙∙∙∙∙∙ 1 1 9 90014-KYJ-900 BOLT, FLANGE, 6X40(NSHF)∙∙∙∙∙ 10 10

10 90016-KYJ-900 BOLT, FLANGE, 6X70(NSHF)∙∙∙∙∙ 6 6 11 90032-K33-D00 BOLT, STUD, 10X178∙∙∙∙∙∙∙∙∙∙∙ 4 4

12 90061-KYJ-900 BOLT, DRAIN PLUG, 12MM∙∙∙∙∙∙∙ 1 1 13 91301-KYJ-901 O-RING, 11.8X1.9 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 91305-KC1-850 O-RING, 16.5X2.5 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 94109-12000 WASHER, DRAIN PLUG, 12MM∙∙∙∙∙ 1 1

16 94301-08140 DOWEL PIN, 8X14∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

(O.S.) (4) (4) (4) (4) (4) (4) (O.S.) (4) (4) (4) (4) (4) (4) (O.S.) (4) (4) (4) (4) (4) (4) (O.S.) (4) (4) (4) (4) (4) (4)

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-15

CRANKCASE

Ref.

Part No. Description

No.

17 94301-12160 PIN A, DOWEL, 12X16∙∙∙∙∙∙∙∙∙∙ 1 1 18 95701-06018-00 BOLT, FLANGE, 6X18∙∙∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-16

ENGINEGROUP

CRANKSHAFT/PISTON

Ref.

Part No. Description

No.

1 13000-K1T-J10 CRANKSHAFT COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

13000-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 13011-KZZ-D20 RING SET, PISTON(STD.)∙∙∙∙∙∙∙ 1 1 3 13101-K33-D00 PISTON ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 13101-KZZ-P01 PISTON ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

13101-K33-J00 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 5 13111-MEL-000 PIN, PISTON ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 13112-K33-D00 CLIP, PISTON PIN, 17MM∙∙∙∙∙∙∙ 2 2 7 14311-KYJ-900 SPROCKET, TIMING(17T)∙∙∙∙∙∙∙∙ 1 1 8 90235-KYJ-900 NUT, LOCK, 16MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 90434-KPS-900 WASHER, 16MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 90742-KYJ-900 KEY, WOODRUFF, 25X18∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-16-10

ENGINEGROUP

BALANCER SHAFT

Ref.

Part No. Description

No.

1 13410-K87-A00 GEAR SET, BALANCER∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 13421-KYJ-900 SHAFT, BALANCER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

13421-K33-D01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 90204-KYJ-900 NUT, HEX., 14MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 90433-MEY-670 WASHER, 14.2X24 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 90741-KFB-000 KEY, WOODRUFF, 4MM∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 91008-K33-D02 BEARING, RADIAL BALL, 6304 ∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-17

ENGINEGROUP

TRANSMISSION

Ref.

Part No. Description

No.

1 23211-K1T-E10 MAINSHAFT(A)(12T)(WHITE)∙∙∙∙∙ 1 1

23212-K1T-E10 MAINSHAFT(B)(12T)(BLUE)∙∙∙∙∙∙ 1 1 2 23212-KYJ-900 PLATE, BEARING SETTING∙∙∙∙∙∙∙ 1 1 3 23221-KZZ-901 COUNTERSHAFT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 23411-K1T-E10 GEAR, COUNTERSHAFT FIRST(46T) 1 1 5 23412-KYJ-900 COLLAR, 20X23X10.5∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 23421-K1T-E10 GEAR, MAINSHAFT SECOND(16T) ∙∙ 1 1 7 23431-K1T-E10 GEAR, COUNTERSHAFT SECOND(36T) 1 1 8 23432-KYJ-900 COLLAR, 22X25X11 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 23441-K1T-E10 GEAR, MAINSHAFT THIRD

10 23451-K1T-E10 GEAR, COUNTERSHAFT THIRD(33T) 1 1 11 23452-KYJ-900 COLLAR, 25X28X10 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

12 23471-K1T-E10 GEAR, COUNTERSHAFT FOURTH(35T) 1 1 13 23472-KYJ-900 COLLAR, SPLINE, 25X10 ∙∙∙∙∙∙∙∙ 1 1 14 23481-K1T-E10 GEAR, MAINSHAFT FIFTH(26T) ∙∙∙ 1 1 15 23482-KYJ-900 BUSH, 20X23X17.4 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 23491-K1T-E10 GEAR, COUNTERSHAFT FIFTH(29T) 1 1 17 23501-K1T-E10 GEAR, MAINSHAFT SIXTH(27T) ∙∙∙ 1 1 18 23502-KYJ-900 COLLAR, SPLINE, 23MM ∙∙∙∙∙∙∙∙∙ 1 1 19 23511-K1T-E10 GEAR, COUNTERSHAFT SIXTH(25T) 1 1 20 23801-KYJ-901 SPROCKET, DRIVE(14T)∙∙∙∙∙∙∙∙∙ 1 1

21 23802-KYJ-900 PLATE, FIXING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 22 90084-041-000 BOLT, DRIVE SPROCKET FIXING∙∙ 2 2 23 90405-KYJ-900 WASHER, 17X26X1.0∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

FOURTH

(20T/26T) 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-17

TRANSMISSION

Ref.

Part No. Description

No.

24 90406-KYJ-900 WASHER, 20X27X1.0∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 25 90407-KYJ-900 WASHER, 22X29X1.0∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

26 90408-KYJ-900 WASHER, 25X32X1.0∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 27 90451-KYJ-900 WASHER, SPLINE, 20X26X1.6 ∙∙∙∙ 2 2 28 90452-KYJ-900 WASHER, SPLINE, 25X31X1.0 ∙∙∙∙ 1 1 29 90453-KYJ-900 WASHER, 17X28X1.0∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 30 90454-KPS-900 WASHER B, THRUST, 20MM∙∙∙∙∙∙∙ 1 1

31 90454-KYJ-900 WASHER, SPLINE, 25X42X1.6 ∙∙∙∙ 1 1 32 90455-KYJ-900 WASHER, LOCK, 25MM∙∙∙∙∙∙∙∙∙∙∙ 1 1 33 90601-KYJ-900 CIRCLIP, EXTERNAL, 20MM∙∙∙∙∙∙ 2 2 34 90602-KYJ-900 CIRCLIP, EXTERNAL, 25MM∙∙∙∙∙∙ 1 1 35 91003-KYJ-901 BEARING, NEEDLE, 17X27X13 ∙∙∙∙ 1 1

36 91005-KYJ-901 BEARING, RADIAL BALL, 63/22 ∙∙ 1 1 37 91207-KYJ-901 OIL SEAL, 22X36X5∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 38 94520-37000 CIRCLIP, INTERNAL, 37MM∙∙∙∙∙∙ 1 1 39 95701-06014-00 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ 2 2 40 96100-63040-00 BEARING, RADIAL BALL, 6304∙∙∙ 1 1

41 96140-62030-00 BEARING, RADIAL BALL, 6203U∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-19

ENGINEGROUP

GEARSHIFT DRUM

Ref.

Part No. Description

No.

1 24211-KZZ-900 FORK, L. GEARSHIFT∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 24212-KZZ-900 FORK, CENTER GEARSHIFT∙∙∙∙∙∙∙ 1 1 3 24213-KZZ-900 FORK, R. GEARSHIFT∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 24301-K87-A30 DRUM, GEARSHIFT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 24321-KYJ-900 SHAFT, GEARSHIFT FORK ∙∙∙∙∙∙∙∙ 1 1

6 24410-KYJ-900 PLATE COMP., GEARSHIFT DRUM 7 24430-KGH-901 STOPPER COMP., GEARSHIFT DRUM 1 1

8 24435-KYJ-900 SPRING, DRUM STOPPER∙∙∙∙∙∙∙∙∙ 1 1 9 24610-KYJ-900 SPINDLE COMP., GEARSHIFT∙∙∙∙∙ 1 1

10 24651-KRM-840 SPRING, GEARSHIFT RETURN∙∙∙∙∙ 1 1 11 24652-KRM-840 PIN, SHIFT RETURN SPRING∙∙∙∙∙ 1 1

12 90003-KVS-900 BOLT, HEX., 6X20 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 13 90022-MG8-000 PIVOT, SHIFT DRUM STOPPER ARM 1 1 14 90435-HB3-000 WASHER, 6.1MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 90457-KRM-840 WASHER, 14MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 91015-MCA-003 BEARING, RADIAL BALL, 6905 ∙∙∙ 1 1 17 91101-121-691 BEARING, NEEDLE, 14MM(TOYO) ∙∙ 1 1 18 91203-KSP-911 OIL SEAL, 14X22X5(ARAI)∙∙∙∙∙∙ 1 1 19 94510-14000 CIRCLIP, EXTERNAL, 14MM∙∙∙∙∙∙ 1 1 20 96220-30085 ROLLER, 3X8.5∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

STOPPER 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

E-23

ENGINEGROUP

THROTTLE BODY

Ref.

Part No. Description

No.

1 16060-KZZ-D21 SENSOR SET ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 16080-KPH-701 BOLT, FLANGE, 5X20∙∙∙∙∙∙∙∙∙∙∙ 2 2 3 16081-KYJ-901 SCREW, TORX, 5X8.7∙∙∙∙∙∙∙∙∙∙∙ 2 2 4 16082-KYJ-901 SCREW, TORX, 5X17∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 16169-MFR-671 STAY, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 16400-K1T-E11 BODY ASSY., THROTTLE(GQ9UA A) 1 1 7 16410-K1T-E11 BODY SET ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 16422-K1T-E11 JOINT, INJECTOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 16430-KYJ-901 VALVE SET, IDLE AIR CONTROL ∙∙ 1 1

10 16432-MFE-641 PLATE, IDLE AIR CONTROL VALVE 1 1 11 16433-HN8-A61 SCREW, TORX ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

12 16435-HN8-A61 O-RING, 17.8X1.9 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 13 16450-K1T-E11 INJECTOR ASSY., FUEL ∙∙∙∙∙∙∙∙∙ 1 1 14 16472-MKP-T00 SEAL RING, INJECTOR∙∙∙∙∙∙∙∙∙∙ 1 1 15 91301-MKP-T01 O-RING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 93892-05012-18 SCREW-WASHER, 5X12∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-1-1

FRAMEGROUP

HEADLIGHT(CRF300L)

Ref.

Part No. Description

No.

1 33100-K1T-J51 HEADLIGHT ASSY. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 2 33101-K1T-J50 PLATE, HEADLIGHT UNIT ∙∙∙∙∙∙∙∙ 2 3 33103-MKE-A50 SCREW, PAN, 5X70 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 4 33104-MKE-A50 WASHER, PLAIN, 5MM∙∙∙∙∙∙∙∙∙∙∙ 2 5 33105-MKE-A51 CAP, RUBBER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 -

6 33107-MKE-A50 SPRING, BEAM ADJUST∙∙∙∙∙∙∙∙∙∙ 1 7 61103-357-000 RUBBER, FR. FENDER MOUNTING∙∙ 4 8 61104-KZZ-900 COLLAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 -

9 61300-K1T-J50ZA VISOR SET, FR.(WL) 10 90104-KZZ-D20 BOLT-WASHER, SPECIAL, 6X22∙∙∙ 2 11 91535-TA0-003 CLIP, COUPLER(DARK BROWN)∙∙∙∙ 1 -

12 93903-25280 SCREW, TAPPING, 5X12∙∙∙∙∙∙∙∙∙ 4 -

*TYPE1*...................... 1 -

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-1-2

FRAMEGROUP

HEADLIGHT(CRF300LR)

Ref.

Part No. Description

No.

1 33100-KZZ-J01 HEADLIGHT ASSY. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 2 61103-MKN-D50 RUBBER, HEADLIGHT∙∙∙∙∙∙∙∙∙∙∙∙ - 4 3 61104-KZZ-900 COLLAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 4 4 61140-KZZ-J00ZA COVER SET, HEADLIGHT(WL)

5 61146-KZZ-J00 RING, HEADLIGHT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 6 77302-KW7-900 WASHER, HEADLIGHT BRACKET 7 90114-KPH-700 SCREW, SPECIAL, 5X11 ∙∙∙∙∙∙∙∙∙ - 2

8 90185-KZZ-J00 BOLT, SPECIAL, 6X24∙∙∙∙∙∙∙∙∙∙ - 4 9 90677-KAN-961 NUT, CLIP, 5MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2

10 93913-25480 SCREW, TAPPING, 5X16(PO)∙∙∙∙∙ - 3

*TYPE1*...................... - 1

MOUNTING - 4

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-2

FRAMEGROUP

METER

Ref.

Part No. Description

No.

1 35240-K1T-E11 SWITCH ASSY., RR. ABS CANCEL∙ - - 2 35241-KZZ-J80 CLAMPER A, ABS CANCEL SWITCH∙ - - 3 35242-KZZ-J80 CLAMPER B, ABS CANCEL SWITCH∙ - - 4 37100-K1T-T01 METER ASSY., COMBINATION(KPH)

37100-K1T-J11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- FO,MA,U 37100-K1T-T61 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - 37100-K1T-C51 METER ASSY., COMBINATION

37100-K1T-J51 METER ASSY., COMBINATION(KPH) 37100-K1T-C11 METER ASSY., COMBINATION

5 37110-K1T-A01 CASE ASSY., UPPER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 -

37110-K1T-A11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

6 37120-K26-G01 CASE ASSY., UNDER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 1 7 37130-K1T-T01 METER COMP., LCD(KPH)∙∙∙∙∙∙∙∙ - 1 -

37130-K1T-J11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- FO,MA,U 37130-K1T-T61 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - 37130-K1T-C51 METER COMP., LCD(KPH/MPH)∙∙∙∙ - - - -------- -------- ED 37130-K1T-J51 METER COMP., LCD(KPH)∙∙∙∙∙∙∙∙ - - - -------- -------- FO,KO,U

37130-K1T-C11 METER COMP., LCD(KPH/MPH)∙∙∙∙ - - 1 -------- -------- ED 8 37205-K26-G01 KEY, TOP ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 9 37215-KZZ-D20 RUBBER, METER SETTING∙∙∙∙∙∙∙∙ - 4

10 37215-MKK-D00 RUBBER, METER SETTING∙∙∙∙∙∙∙∙ 4 - - 11 61315-K1T-E50 STAY COMP., METER∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED

12 61315-K1T-T60 STAY COMP., METER∙∙∙∙∙∙∙∙∙∙∙∙ 1 - -

(KPH/MPH)(NIPPON SEIKI) - - - -------- -------- ED

(KPH/MPH)(NIPPON SEIKI) - - 1 -------- -------- ED

(NIPPON SEIKI) - 1 -

(NIPPON SEIKI) - - - -------- -------- FO,KO,U

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

2020.11.20 E

F-2

METER

Ref.

12) 61315-K1T-J50 STAY COMP., METER∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- FO,KO,U

Part No. Description

No.

13 61329-K1T-E50 COVER, COUPLER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - 14 61335-K1T-E10 STAY, ABS CANCEL SWITCH ∙∙∙∙∙∙ - - 15 90101-KY6-008 SCREW, TAPPING, 3X14 ∙∙∙∙∙∙∙∙∙ 5 5

16 90112-MJK-N20 SCREW, 5X12 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 17 90116-K0A-E11 RIVET, PUSH, 6MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 18 90124-MKN-D50 SCREW, SPECIAL, 5X14 ∙∙∙∙∙∙∙∙∙ - - 19 90163-GHB-650 BOLT, FLANGE, 8X20∙∙∙∙∙∙∙∙∙∙∙ 2 20 90677-KAN-T00 NUT, CLIP, 5MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1

21 90683-MGC-920 CLIP, HARNESS ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 - - -------- -------- FO,KO,LA,PH,U 22 90684-ZA0-601 CLIP, HARNESS ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - 23 93913-25380 SCREW, TAPPING, 5X14(PO)∙∙∙∙∙ 4 4 24 94103-05700 WASHER, PLAIN, 5MM∙∙∙∙∙∙∙∙∙∙∙ 4 4

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

2020.11.20 E

F-3

FRAMEGROUP

MIRROR/KNUCKLE GUARD

Ref.

Part No. Description

No.

1 53800-KZZ-J00 GUARD, R. KNUCKLE∙∙∙∙∙∙∙∙∙∙∙∙ - 1 2 53840-KZZ-J00 GUARD, L. KNUCKLE∙∙∙∙∙∙∙∙∙∙∙∙ - 1 3 53841-KZZ-J00 STAY, L. KNUCKLE GUARD ∙∙∙∙∙∙∙ - 1 4 88130-MFG-D00 COVER, LOCK NUT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 5 88210-K1T-E10 MIRROR COMP., R. ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 88220-K1T-E10 MIRROR COMP., L. ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 7 90003-MW3-620 BOLT, ADAPTER, 10MM∙∙∙∙∙∙∙∙∙∙ 2 2 8 90115-MGZ-J00 SCREW, SPECIAL, 6X14 ∙∙∙∙∙∙∙∙∙ - 1 9 90127-KF0-770 COLLAR, 6X4 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2

10 90201-MW3-620 NUT, HEX., 10MM

11 94102-10700 WASHER, PLAIN, 10MM∙∙∙∙∙∙∙∙∙∙ - 1

(LEFT HAND THREAD) 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-4

FRAMEGROUP

HANDLE LEVER/SWITCH/CABLE

Ref.

Part No. Description

No.

1 17910-KZZ-J00 CABLE COMP. A, THROTTLE∙∙∙∙∙∙ - 1

17910-KZZ-900 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

2 17920-KZZ-J00 CABLE COMP. B, THROTTLE∙∙∙∙∙∙ - 1

17920-KZZ-900 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

3 22870-K1T-E11 CABLE COMP., CLUTCH∙∙∙∙∙∙∙∙∙∙ - 1

22870-K1T-E51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 4 35130-K1T-E11 SWITCH ASSY., ENGINE STOP∙∙∙∙ - 1 5 35130-K1T-J51 SWITCH ASSY., ENGINE STOP∙∙∙∙ 1 - - -------- -------- FO,KO,LA,PH,U

35130-K1T-E51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED 6 35200-K1T-E11 SWITCH ASSY., WINKER∙∙∙∙∙∙∙∙∙ - 1

35200-K1T-E51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 7 35330-MK5-003 SWITCH ASSY., CLUTCH∙∙∙∙∙∙∙∙∙ 1 1 8 53140-K1T-E10 GRIP COMP., THROTTLE∙∙∙∙∙∙∙∙∙ - 1

53140-KZZ-900 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 9 53150-K1T-E10 GRIP, L. HANDLE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1

53150-KZZ-900 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

10 53172-KZZ-900 BRACKET, L. HANDLE LEVER∙∙∙∙∙ 1 1 11 53174-KZZ-900 HOLDER, L. LEVER BRACKET ∙∙∙∙∙ 1 1

12 53177-KZZ-900 COVER, L. HANDLE LEVER ∙∙∙∙∙∙∙ 1 1 13 53178-K1T-E10 LEVER, L. HANDLE ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 53192-268-000 BOLT, WIRE ADJUSTING∙∙∙∙∙∙∙∙∙ 1 1 15 90013-GHB-650 BOLT, FLANGE, 6X20∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 90013-GHB-670 BOLT, FLANGE, 6X25∙∙∙∙∙∙∙∙∙∙∙ - 1

90013-GHB-650 BOLT, FLANGE, 6X20∙∙∙∙∙∙∙∙∙∙∙ 1 -

17 90113-KZZ-J00 BOLT, HANDLE LEVER PIVOT∙∙∙∙∙ - 1

90113-HA0-770 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

2020.11.20 E

F-4

HANDLE LEVER/SWITCH/CABLE

Ref.

Part No. Description

No.

18 90321-315-670 NUT, FIXING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 19 90507-MGZ-J00 SCREW-WASHER, 5X20∙∙∙∙∙∙∙∙∙∙∙ 4 4 20 90647-657-671 CLIP, PURSE LOCK ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

21 91554-SM4-003 HOLDER, BRACKET(RED)∙∙∙∙∙∙∙∙∙ - 1 22 93901-32320 SCREW, TAPPING, 3X12∙∙∙∙∙∙∙∙∙ 1 1 23 94002-08000-0S NUT, HEX., 8MM∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 24 94050-06070 NUT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-5

FRAMEGROUP

FRONT BRAKE MASTER CYLINDER(CRF300L/LR)

Ref.

Part No. Description

No.

1 35340-MGS-D31 SWITCH ASSY., FR. STOP∙∙∙∙∙∙∙ 1 1 2 45124-KZZ-J01 HOSE COMP., FR. BRAKE ∙∙∙∙∙∙∙∙ - 1

45125-K1T-T61 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 3 45504-410-003 BOOT COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 45510-KZZ-901 CYLINDER SUB ASSY., FR. BRAKE

5 45513-HA2-006 CAP, MASTER CYLINDER∙∙∙∙∙∙∙∙∙ 1 1 6 45517-166-006 HOLDER, MASTER CYLINDER∙∙∙∙∙∙ 1 1

7 45518-MEN-J01 SEPARATOR COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 45520-MG7-006 DIAPHRAGM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 45521-HA2-006 PLATE, DIAPHRAGM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 45523-KA3-731 RING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 45530-471-831 CYLINDER SET, MASTER∙∙∙∙∙∙∙∙∙ 1 1

12 53175-KZZ-900 LEVER, R. STEERING HANDLE∙∙∙∙ 1 1 13 53176-KZZ-901 COVER, R. HANDLE LEVER ∙∙∙∙∙∙∙ 1 14 90013-GHB-660 BOLT, FLANGE, 6X22∙∙∙∙∙∙∙∙∙∙∙ 2 2 15 90114-166-006 BOLT, HANDLE LEVER PIVOT∙∙∙∙∙ 1 -

16 90114-KZZ-J01 BOLT, LEVER PIVOT∙∙∙∙∙∙∙∙∙∙∙∙ - 1 17 90145-MS9-612 BOLT, OIL, 10X22(SAGA)∙∙∙∙∙∙∙ 2 2 18 90545-300-000 WASHER, OIL BOLT ∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 19 90651-MA5-671 CIRCLIP ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 20 93600-04012-1G SCREW, FLAT, 4X12∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

21 93893-04012-17 SCREW-WASHER, 4X12∙∙∙∙∙∙∙∙∙∙∙ 1 1 22 94050-06000 NUT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

MASTER(NISSIN) 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-7

FRAMEGROUP

HANDLE PIPE/TOP BRIDGE(CRF300L)

Ref.

Part No. Description

No.

1 35010-K1T-J50 KEY SET ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- FO,KO,LA,PH,U

35010-K1T-E50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED

2 35100-K1T-J51 SWITCH ASSY., COMBINATION

35100-KZZ-D21 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED

3 35101-K1T-J51 BASE COMP., CONTACT∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- FO,KO,LA,PH,U

35101-KZZ-901 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED 4 35121-MAS-G01 KEY, BLANK ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - (1) (1) - - 5 45468-KZZ-J80 GUIDE, FR. BRAKE HOSE ∙∙∙∙∙∙∙∙ 1 - -

6 53100-K1T-E50 PIPE COMP., STEERING HANDLE∙∙ 1 7 53131-KZZ-A20 HOLDER, UPPER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 8 53208-KCH-900 CAP, STEERING STEM∙∙∙∙∙∙∙∙∙∙∙ 1 9 53215-GF8-000 WASHER, DUST SEAL∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

10 53300-KZZ-J00ZC BRIDGE COMP., FORK TOP

11 61325-KZZ-G40 GUIDE, CLUTCH CABLE∙∙∙∙∙∙∙∙∙∙ 1 12 86150-KPG-901 EMBLEM, PRODUCT(MARUI)∙∙∙∙∙∙∙ 1 13 90107-MBG-000 BOLT, ONE-WAY, 8MM∙∙∙∙∙∙∙∙∙∙∙ 2 14 90113-KZZ-900 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ 1 15 90155-KZZ-J00 BOLT, FLANGE, 8X45∙∙∙∙∙∙∙∙∙∙∙ 4 -

16 90304-425-000 NUT, STEERING STEM∙∙∙∙∙∙∙∙∙∙∙ 1 17 90650-KW3-000 BAND, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 18 91059-KY2-711 SCREW, TAPPING, 3X16 ∙∙∙∙∙∙∙∙∙ 3 19 91533-S04-003 CLIP, COUPLER(NATURAL)∙∙∙∙∙∙∙ 1 20 96300-08035-00 BOLT, FLANGE, 8X35∙∙∙∙∙∙∙∙∙∙∙ 4 -

*NH303M*

MAT AXIS GRAY METALLIC 1 -

LOCK 1 - - -------- -------- FO,KO,LA,PH,U

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

2020.11.20 E

F-7-1

FRAMEGROUP

HANDLE PIPE/TOP BRIDGE(

CRF300LR)

Ref.

Part No. Description

No.

1 17915-KZZ-J00 STAY, THROTTLE CABLE(A)∙∙∙∙∙∙ - 1 2 22875-KZZ-J00 STAY COMP., FR. HARNESS CLIP ∙ - 1 3 35010-K1T-E10 KEY SET ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 4 35100-K1T-E11 SWITCH ASSY., COMBINATION

5 35101-K1T-E11 BASE COMP., CONTACT∙∙∙∙∙∙∙∙∙∙ - 1 6 35121-MAS-G01 KEY, BLANK ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ (1) (1) - - (1) (1)

7 45468-KZZ-J80 GUIDE, FR. BRAKE HOSE ∙∙∙∙∙∙∙∙ - 1 8 53100-K1T-E10 PIPE COMP., STEERING HANDLE∙∙ - 1 9 53104-MJE-D40 WEIGHT, STEERING HANDLE ∙∙∙∙∙∙ - 2

10 53105-K1T-E10 WEIGHT B, STEERING HANDLE∙∙∙∙ - 2 11 53106-KR3-770 RUBBER A, HANDLE WEIGHT ∙∙∙∙∙∙ - 2

12 53107-MY1-000 RUBBER B, HANDLE WEIGHT ∙∙∙∙∙∙ - 2 13 53108-KR3-770 RING, HANDLE WEIGHT SNAP∙∙∙∙∙ - 2 14 53131-KZZ-A20 HOLDER, UPPER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2 15 53208-KCH-900 CAP, STEERING STEM∙∙∙∙∙∙∙∙∙∙∙ - 1

16 53215-GF8-000 WASHER, DUST SEAL∙∙∙∙∙∙∙∙∙∙∙∙ - 1 17 53300-KZZ-J00ZC BRIDGE COMP., FORK TOP

18 61325-K1T-E10 GUIDE, CLUTCH CABLE∙∙∙∙∙∙∙∙∙∙ - 1 19 86150-KPG-901 EMBLEM, PRODUCT(MARUI)∙∙∙∙∙∙∙ - 1 20 90107-MBG-000 BOLT, ONE-WAY, 8MM∙∙∙∙∙∙∙∙∙∙∙ - 2

21 90113-KZZ-900 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ - 1 22 90122-MKN-D50 SCREW, OVAL, 6X40∙∙∙∙∙∙∙∙∙∙∙∙ - 2

*NH303M*

MAT AXIS GRAY METALLIC - 1

LOCK - 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-7-1

HANDLE PIPE/TOP

BRIDGE(CRF300LR)

Ref.

Part No. Description

No.

23 90155-KZZ-J00 BOLT, FLANGE, 8X45∙∙∙∙∙∙∙∙∙∙∙ - 4 24 90304-425-000 NUT, STEERING STEM∙∙∙∙∙∙∙∙∙∙∙ - 1 25 90650-KW3-000 BAND, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 4

26 91059-KY2-711 SCREW, TAPPING, 3X16 ∙∙∙∙∙∙∙∙∙ - 3 27 96300-08035-00 BOLT, FLANGE, 8X35∙∙∙∙∙∙∙∙∙∙∙ - 4 28 96600-08016-07 BOLT, SOCKET, 8X16∙∙∙∙∙∙∙∙∙∙∙ - 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-9

FRAMEGROUP

STEERING STEM

Ref.

Part No. Description

No.

1 45468-KZZ-J80 GUIDE, FR. BRAKE HOSE ∙∙∙∙∙∙∙∙ 1 1 2 53214-KZZ-901 DUST SEAL, STEERING UPPER∙∙∙∙ 1 1 3 53214-MCJ-751 DUST SEAL, STEERING HEAD(ARAI) 1 1 4 53219-K1T-E10 STEM SUB ASSY., STEERING ∙∙∙∙∙ 1 1 5 53229-MN1-650 THREAD, STEERING HEAD TOP ∙∙∙∙ 1 1

6 61150-K1T-E10 COVER, HEAD PIPE ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 7 90001-K04-930 BOLT, SOCKET, 6X18∙∙∙∙∙∙∙∙∙∙∙ - 2 8 90113-KZZ-900 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 90155-KZZ-J00 BOLT, FLANGE, 8X45∙∙∙∙∙∙∙∙∙∙∙ 4 4

10 91015-425-831 BEARING, HEAD PIPE UPPER(NTN) 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-10

FRAMEGROUP

FRONT FENDER

Ref.

Part No. Description

No.

1 61000-K1T-E10ZA FENDER SET, FR.(WL)

61200-K1T-J50ZA FENDER SUB ASSY., FR.(WOL)

61200-K1T-E50ZA *R292R*...........EXTREME RED - -

2 61101-KZZ-900 COLLAR, FR. FENDER∙∙∙∙∙∙∙∙∙∙∙ 4 4 3 93404-06020-00 BOLT-WASHER, 6X20∙∙∙∙∙∙∙∙∙∙∙∙ 4 4

*TYPE1*...................... - 1

*R292R*...........EXTREME RED 1 -

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-11

FRAMEGROUP

FRONT FORK

Ref.

Part No. Description

No.

1 45461-KZZ-J00 CLAMPER A, BRAKE HOSE ∙∙∙∙∙∙∙∙ 1 1

45461-KZZ-J80 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

2 45462-KZZ-J00 CLAMPER B, BRAKE HOSE ∙∙∙∙∙∙∙∙ 1 1

45462-KZZ-J80 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

3 51400-K1T-305 FORK ASSY., R. FR.(SHOWA)∙∙∙∙ - -

51400-K1T-E11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 51400-K1T-E51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

4 51401-K1T-E11 SPRING, FR. FORK ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1

51401-K1T-E51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

5 51402-KZZ-J01 COLLAR, SPRING ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 6 51410-K1T-305 TUBE, OUTER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

51410-K1T-E11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 7 51412-K1T-E11 SPRING B, REBOUND∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 51412-KA4-711 RING, BACK UP ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 9 51414-MFN-D01 BUSH, GUIDE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

10 51415-MGP-D01 BUSH, SLIDER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 11 51419-KZZ-901 SEAT, STOPPER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

12 51425-K1T-305 PIPE COMP., R. SLIDE∙∙∙∙∙∙∙∙∙ - -

51425-K1T-E11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

13 51426-K1T-E11 ROD COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 51430-K1T-E11 DAMPER COMP., FR.∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 51447-KA4-711 RING, OIL SEAL STOPPER(SHOWA) 2 2

16 51450-KZZ-901 BOLT COMP., FR. FORK ∙∙∙∙∙∙∙∙∙ 2 2 17 51451-MAJ-G41 NUT, HEX., 10MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 18 51456-KZZ-901 RING, STOPPER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 19 51476-MFB-003 RING, WEAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-11

FRONT FORK

Ref.

Part No. Description

No.

20 51490-KZZ-J01 SEAL SET, FR. FORK∙∙∙∙∙∙∙∙∙∙∙ 2 2 21 51500-K1T-305 FORK ASSY., L. FR.(SHOWA)∙∙∙∙ - -

51500-K1T-E11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 51500-K1T-T01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

22 51525-K1T-305 PIPE COMP., L. SLIDE∙∙∙∙∙∙∙∙∙ - -

51525-K1T-E11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 51525-K1T-T01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

23 51610-KZZ-D20ZC PROTECTOR, R. FR. FORK 24 51620-KZZ-D20ZC PROTECTOR, L. FR. FORK

51620-KZZ-J80ZC *TYPE3*...................... - -

25 90106-KZZ-900 BOLT, PROTECTOR(6MM)∙∙∙∙∙∙∙∙∙ 6 6 26 90107-MGE-000 BOLT, FLANGE, 8X40∙∙∙∙∙∙∙∙∙∙∙ 2 2

27 90113-KZZ-900 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 28 90116-KV3-701 BOLT, SOCKET, 8MM(SHOWA)∙∙∙∙∙ 1 1 29 90544-283-000 WASHER, SPECIAL, 8MM(SHOWA) ∙∙ 1 1 30 91254-ML3-791 SEAL, DUST ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

31 91356-KZ3-003 O-RING, 44.7X2.4 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

*TYPE3*...................... 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-12

FRAMEGROUP

FRONT BRAKE CALIPER

Ref.

Part No. Description

No.

1 06431-MA3-405 SEAL SET, PISTON ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 2 06451-KZZ-902 PAD SET, FR. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 43107-MBG-006 PISTON, 27X27 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 4 43352-568-003 SCREW, BLEEDER(NISSIN)∙∙∙∙∙∙∙ 1 1 5 43353-461-771 CAP, BLEEDER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 45108-KPH-951 SPRING, PAD ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 7 45111-MAJ-G41 RING, STOPPER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 45131-GZ0-006 BOLT, PIN ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 45132-166-016 BOOT, PIN BUSH(NISSIN)∙∙∙∙∙∙∙ 1 1

10 45133-MA3-006 BOOT B ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 45150-KZZ-A22 CALIPER SUB ASSY., L. FR.

45150-KZZ-902 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 12 45190-KZZ-901 BRACKET SUB ASSY., FR. CALIPER 1 13 45190-KZZ-A21 BRACKET SUB ASSY., FR. CALIPER - 1 14 45215-KPH-951 PIN, HANGER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 45216-166-006 WASHER, WAVE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 90131-KZZ-900 BOLT, FLANGE, 8X32∙∙∙∙∙∙∙∙∙∙∙ 2 2

(NISSIN) - 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-14-20

FRAMEGROUP

FRONT WHEEL

Ref.

Part No. Description

No.

1 06440-KZZ-900 SPOKE SET, FR. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 36 36 2 42717-329-000 CAP, RIM HOLE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 44301-KZZ-J00 AXLE, FR. WHEEL ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 44310-KZZ-J00 COLLAR COMP., FR. WHEEL SIDE∙ 2 2 5 44515-KZZ-J80ZA RING, FR. PULSER

6 44620-KZZ-J00 COLLAR, FR. AXLE DISTANCE ∙∙∙∙ 1 1 7 44635-KZZ-J00 HUB SUB ASSY., FR.∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 44650-K1T-E10 WHEEL SUB ASSY., FR. ∙∙∙∙∙∙∙∙∙ 1 1 9 44701-K1T-E11 RIM, FR. WHEEL(21X1.60)∙∙∙∙∙∙ 1 1

10 44711-MKE-A52 TIRE, FR.(IRC)

11 44712-KAE-015 TUBE, TIRE(IRC)(3.00-21)∙∙∙∙∙ 1 1 12 44713-KZZ-901 FLAP, TIRE(IRC) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 13 45120-KZZ-A21 DISK COMP., FR. BRAKE ∙∙∙∙∙∙∙∙ - 1 14 45351-KZZ-901 DISK, FR. BRAKE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 15 90105-KZZ-900 BOLT, DISK, 6X17 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 6

16 91004-MCT-003 BEARING, RADIAL BALL, 6003U ∙∙ 2 2

91051-KSE-003 BEARING, RADIAL BALL, 6003 ∙∙∙ 2 2 91051-KZZ-J00 BEARING, RADIAL BALL, 6003U ∙∙ 2 2

17 91253-K35-V01 DUST SEAL, 25X35X6∙∙∙∙∙∙∙∙∙∙∙ 2 2

*TYPE2*...................... - -

(80/100-21M/C 51P) 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-15

FRAMEGROUP

REAR BRAKE MASTER CYLINDER(CRF300L/LR)

Ref.

Part No. Description

No.

1 43310-K1T-T01 HOSE COMP., RR. BRAKE ∙∙∙∙∙∙∙∙ 1 1 2 43468-KZZ-J00 GUIDE, BRAKE HOSE∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 3 43500-K1T-E11 CYLINDER ASSY., RR. BRAKE

4 43504-MB2-006 BOOT COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 43513-K1T-E11 CAP, MASTER CYLINDER∙∙∙∙∙∙∙∙∙ 1 1

6 43520-MJ6-315 PISTON SET, MASTER CYLINDER 7 43521-K1T-E11 PLATE, DIAPHRAGM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

8 43522-K1T-E11 DIAPHRAGM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 43530-KZZ-901 ROD COMP., PUSH ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 46504-KV6-702 JOINT, BRAKE ROD ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 90106-KGH-600 BOLT, BRAKE DISK, 6X17∙∙∙∙∙∙∙ 2 2

12 90145-MS9-612 BOLT, OIL, 10X22(SAGA)∙∙∙∙∙∙∙ 2 2 13 90545-300-000 WASHER, OIL BOLT ∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 14 93401-04016-00 BOLT-WASHER, 4X16∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 15 93500-05016-0G SCREW, PAN, 5X16∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

16 94002-08000-0S NUT, HEX., 8MM∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 17 94201-20120 PIN, SPLIT, 2.0X12∙∙∙∙∙∙∙∙∙∙∙ 1 1 18 95015-54000 PIN D, JOINT∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

MASTER(NISSIN) 1 1

(NISSIN) 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-17

FRAMEGROUP

REAR BRAKE CALIPER

Ref.

Part No. Description

No.

1 06431-MA3-405 SEAL SET, PISTON ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 06435-KZZ-902 PAD SET, RR. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 43108-KSP-B51 SPRING, PAD(NISSIN)∙∙∙∙∙∙∙∙∙∙ 1 1 4 43112-KZZ-901 RETAINER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 43150-KZZ-J01 CALIPER SUB ASSY., RR.(NISSIN) 1 1

43150-KZZ-J81 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

6 43190-KZZ-J01 BRACKET SUB ASSY., RR.∙∙∙∙∙∙∙ 1 1

43190-KZZ-J81 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 7 43215-KGH-901 PIN, HANGER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 43352-568-003 SCREW, BLEEDER(NISSIN)∙∙∙∙∙∙∙ 1 1 9 43353-461-771 CAP, BLEEDER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 45111-MAJ-G41 RING, STOPPER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 45132-166-016 BOOT, PIN BUSH(NISSIN)∙∙∙∙∙∙∙ 1 1

12 45133-MA3-006 BOOT B ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 13 45203-MCC-006 PLUG, PIN ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 45218-MAJ-G41 PISTON B, 27X35 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-19-20

FRAMEGROUP

REAR WHEEL

Ref.

Part No. Description

No.

1 06420-KZZ-900 SPOKE SET, RR. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 32 32 2 40544-KZZ-900 ADJUSTER, CHAIN ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 3 41201-K1T-E10 SPROCKET, FINAL DRIVEN(40T) ∙∙ 1 1 4 42301-K1T-E10 AXLE, RR. WHEEL ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 42312-KZZ-900 COLLAR, RR. WHEEL∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

6 42515-KZZ-J80 RING, RR. PULSER ∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 7 42620-KZZ-900 COLLAR, RR. AXLE DISTANCE ∙∙∙∙ 1 1 8 42635-K1T-T00 HUB SUB ASSY., RR.∙∙∙∙∙∙∙∙∙∙∙ 1 1

42635-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

9 42650-K1T-T00 WHEEL SUB ASSY., RR. ∙∙∙∙∙∙∙∙∙ 1 1

42650-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

10 42701-K1T-E11 RIM, RR. WHEEL(18X2.15)∙∙∙∙∙∙ 1 1 11 42711-KZZ-904 TIRE, RR.(IRC)

42712-KT1-672 TUBE, TIRE(IRC)(120/80-18)∙∙∙ 1 1

12 13 42713-KZZ-901 FLAP, TIRE(IRC) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 42717-329-000 CAP, RIM HOLE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 43351-KZZ-901 DISK, RR. BRAKE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 90105-KSP-930 BOLT, DISK, 8X22 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4

90105-MK5-010 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 17 90125-KZJ-900 BOLT, SPROCKET FIXING∙∙∙∙∙∙∙∙ 6 6 18 90306-KCJ-951 NUT, U, 16MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 19 90309-ML3-791 NUT, U, 8MM(FUSE RASHI) ∙∙∙∙∙∙ 6 6 20 90511-KRH-780 WASHER, 8MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 6

21 91253-033-003 OIL SEAL, 25X47X6.5∙∙∙∙∙∙∙∙∙∙ 2 2 22 96140-63030-10 BEARING, RADIAL BALL, 6303U∙∙ 2 2

(120/80-18 M/C 62P)

Reqd. QTY

CRF300 L LR M M

1 1

2020.11.20 E

Serial No. Parts catalogue code

F-21

FRAMEGROUP

FUEL TANK(CRF300L)

Ref.

Part No. Description

No.

1 16700-K1T-E51 PUMP ASSY., FUEL ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 2 16707-K45-N01 FILTER SET ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 3 17500-K1T-E50ZA TANK ASSY., FUEL

4 17516-KZZ-900 TRIM A, FUEL TANK∙∙∙∙∙∙∙∙∙∙∙∙ 2 5 17519-K1B-T00 FILM, TANK PROTECTOR∙∙∙∙∙∙∙∙∙ 1 -

6 17519-K35-V00 FILM, TANK PROTECTOR∙∙∙∙∙∙∙∙∙ 1 7 17527-K1T-E10 PLATE COMP., SETTING∙∙∙∙∙∙∙∙∙ 1 8 17534-MFJ-D00 RUBBER, RR. TANK MOUNTING ∙∙∙∙

9 17538-KZZ-900 COLLAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 -

10 17546-K1T-E50 RUBBER, TANK ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 11 17570-K1T-E11 HOSE COMP., FUEL FEED ∙∙∙∙∙∙∙∙ 1 -

12 17572-GHB-613 GASKET, FUEL PUMP∙∙∙∙∙∙∙∙∙∙∙∙ 1 13 17573-KPN-A71 SEAL, DUST ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 14 17576-K1T-C10 GUIDE, TUBE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 15 17580-K1T-C10 TUBE, BREATHER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

16 17583-K1T-E10 FILM, TANK PROTECTOR∙∙∙∙∙∙∙∙∙ 2 17 17613-K1T-E10 CUSHION, FUEL TANK∙∙∙∙∙∙∙∙∙∙∙ 2 18 17620-K1T-E51 CAP COMP., FUEL FILLER

19 37800-K1T-E51 FUEL UNIT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 20 38581-671-003 JOINT, TUBE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

21 64243-MEW-920 FASTENER B, DUAL LOCK, 20X20 ∙ 4 22 84114-MFP-C80 FILM, PROTECTOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 -

*NH105*....MAT BLACK(#15-#20) 1 -

(FOR FR.) 2 -

(HONDA LOCK) 1 -

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-21

FUEL

TANK(CRF300L)

Ref.

Part No. Description

No.

23 90004-GHB-710 BOLT, FLANGE, 6X40(NSHF)∙∙∙∙∙ 2 24 90013-GHB-620 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ 2 25 90521-K1T-E10 WASHER, PLAIN, 6MM∙∙∙∙∙∙∙∙∙∙∙ 2 -

26 94050-06080 NUT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 27 95005-45330-20 TUBE, 4.5X330(95005-45001-20M) 1 28 95005-45400-20 TUBE, 4.5X400(95005-45001-20M) 1 29 96300-06014-00 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ 1 -

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-21-1

FRAMEGROUP

FUEL TANK(CRF300LR)

Ref.

Part No. Description

No.

1 16700-K1T-E11 PUMP ASSY., FUEL ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 2 16707-K45-N01 FILTER SET ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 3 17500-K1T-E10ZA TANK ASSY., FUEL(WL)

4 17516-KZZ-900 TRIM A, FUEL TANK∙∙∙∙∙∙∙∙∙∙∙∙ - 2 5 17519-K1B-T00 FILM, TANK PROTECTOR∙∙∙∙∙∙∙∙∙ - 1

6 17519-K35-V00 FILM, TANK PROTECTOR∙∙∙∙∙∙∙∙∙ - 1 7 17527-K1T-E10 PLATE COMP., SETTING∙∙∙∙∙∙∙∙∙ - 1 8 17534-MFJ-D00 RUBBER, RR. TANK MOUNTING ∙∙∙∙

9 17538-KZZ-900 COLLAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2

10 17540-MJW-J80 FASTENER, DUAL LOCK, 20X20∙∙∙ - 2 11 17544-K1T-E10 RUBBER, TANK ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 4

12 17545-K1T-E10 FASTENER, DUAL LOCK, 10X20∙∙∙ - 2 13 17570-K1T-E11 HOSE COMP., FUEL FEED ∙∙∙∙∙∙∙∙ - 1 14 17572-GHB-613 GASKET, FUEL PUMP∙∙∙∙∙∙∙∙∙∙∙∙ - 1 15 17573-KPN-A71 SEAL, DUST ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1

16 17575-K1T-E10 TUBE, DRAIN ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 17 17576-K1T-C10 GUIDE, TUBE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 18 17580-K1T-C10 TUBE, BREATHER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 19 17583-K1T-E10 FILM, TANK PROTECTOR∙∙∙∙∙∙∙∙∙ - 2 20 17613-K1T-E10 CUSHION, FUEL TANK∙∙∙∙∙∙∙∙∙∙∙ - 2

21 17620-KZZ-J02 CAP COMP., FUEL FILLER ∙∙∙∙∙∙∙ - 1 22 17621-MGP-D62 SEAL, BREATHER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 23 37800-K1T-E11 FUEL UNIT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1

*TYPE1*...................... - 1

(FOR FR.) - 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-21-1

FUEL

TANK(CRF300LR)

Ref.

Part No. Description

No.

24 38581-671-003 JOINT, TUBE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 25 84114-MFP-C80 FILM, PROTECTOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2

26 90004-GHB-710 BOLT, FLANGE, 6X40(NSHF)∙∙∙∙∙ - 2 27 90013-GHB-620 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ - 2 28 90120-MJE-D00 BOLT, SOCKET, 4X25(SUS)∙∙∙∙∙∙ - 3 29 90521-K1T-E10 WASHER, PLAIN, 6MM∙∙∙∙∙∙∙∙∙∙∙ - 2 30 94050-06080 NUT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙∙ - 4

31 95005-45330-20 TUBE, 4.5X330(95005-45001-20M) - 1 32 95005-45400-20 TUBE, 4.5X400(95005-45001-20M) - 1 33 96300-06014-00 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ - 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-22

FRAMEGROUP

SHROUD(CRF300L)

Ref.

Part No. Description

No.

1 17542-MJE-D00 FASTENER D, DUAL LOCK, 20X20 ∙ 4 2 19020-K1T-E50 SHROUD ASSY., R. RR. ∙∙∙∙∙∙∙∙∙ 1 3 19045-K1T-E50 SHROUD, L. RR. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 4 19050-K1T-E50ZA SHROUD ASSY., R. FR.(WL)

5 19060-K1T-E50ZA SHROUD ASSY., L. FR.(WL)

6 90133-KPP-T00 SCREW, PAN, 6X14 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 7 93903-24380 SCREW, TAPPING, 4X12∙∙∙∙∙∙∙∙∙ 2 -

*TYPE1*...................... 1 -

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-22-1

FRAMEGROUP

SHROUD(CRF300LR)

Ref.

Part No. Description

No.

1 19035-KZZ-J00ZA SHROUD, R. RR. 2 19045-KZZ-J00ZA SHROUD, L. RR. 3 19070-K1T-E10ZA SHROUD SET, R. FR.(WL) 4 19071-K1T-E10 STAY, SHROUD ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2

5 19090-K1T-E10ZA SHROUD SET, L. FR.(WL)

6 19165-K1T-E10 COVER, RR. RESERVE TANK∙∙∙∙∙∙ - 1 7 90133-KPP-T00 SCREW, PAN, 6X14 ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 6 8 90302-KWW-A00 NUT, SPRING, 4MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2 9 93903-24380 SCREW, TAPPING, 4X12∙∙∙∙∙∙∙∙∙ - 10

10 94591-47000 CLIP, 4X70∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2 11 95701-06012-07 BOLT, FLANGE, 6X12∙∙∙∙∙∙∙∙∙∙∙ - 2

*NH1*...................BLACK - 1

*TYPE1*...................... - 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-23

FRAMEGROUP

SEAT

Ref.

Part No. Description

No.

1 77200-K1T-E10ZA SEAT ASSY., DOUBLE

77200-K1T-E50ZA *TYPE1*...................... 1 -

2 77205-286-000 RUBBER B, SEAT SETTING∙∙∙∙∙∙∙ - 2 3 77205-KPP-T00 RUBBER, SEAT SETTING∙∙∙∙∙∙∙∙∙ - 2 4 77206-K1T-E10 SPONGE, SEAT STAY∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 5 77215-GC2-000 RUBBER B, SEAT STOPPER∙∙∙∙∙∙∙ 1 1

*TYPE1*...................... - 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-24

FRAMEGROUP

SIDE COVER

Ref.

Part No. Description

No.

1 83500-K1T-E10ZA COVER SET, R. SIDE(WL)

83510-K1T-E50ZA COVER ASSY., R. SIDE(WL)

2 83600-K1T-E10ZA COVER SET, L. SIDE(WL)

83600-K1T-E50ZA *TYPE1*...................... 1 -

3 90116-K0A-E11 RIVET, PUSH, 6MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 4 90133-KPP-T00 SCREW, PAN, 6X14 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2

*TYPE1*...................... - 1

*TYPE1*...................... 1 -

*TYPE1*...................... - 1

100

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-25

FRAMEGROUP

AIR CLEANER

Ref.

Part No. Description

No.

1 17210-K1T-E10 CASE COMP., AIR CLEANER ∙∙∙∙∙∙ 1 1 2 17220-K1T-E10 ELEMENT COMP., AIR CLEANER∙∙∙ 1 1 3 17234-KCW-871 TUBE, AIR CLEANER DRAIN∙∙∙∙∙∙ 1 1 4 17235-MKH-D00 BAND, AIR CLEANER CONNECTING

5 17241-K1T-E10 DUCT, AIR CLEANER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 6 17251-K1T-E10 TUBE, AIR CLEANER CONNECTING∙ 1 1

7 17255-MCG-000 BAND, RESONATOR(28)∙∙∙∙∙∙∙∙∙∙ 1 1 8 17260-K1T-E10 LID, AIR CLEANER ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 17265-K1T-E10 TUBE, BREATHER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 17311-K1T-E10 RESONATOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 17316-611-000 CLIP, BREATHER TUBE∙∙∙∙∙∙∙∙∙∙ 1 1

12 17370-419-700 PLUG, BREATHER TUBE∙∙∙∙∙∙∙∙∙∙ 1 1 13 17371-174-670 CLIP, BREATHER TUBE∙∙∙∙∙∙∙∙∙∙ 1 1 14 17724-102-700 CLIP, SUB TANK HOSE∙∙∙∙∙∙∙∙∙∙ 1 1 15 93500-04035-0G SCREW, PAN, 4X35∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 93500-05025-0G SCREW, PAN, 5X25∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 17 93903-25480 SCREW, TAPPING, 5X20∙∙∙∙∙∙∙∙∙ 5 5 18 95002-41200-08 CLAMP, TUBE(D12)∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 19 95003-23008-60 TUBE, VINYL, 8X12X80

20 95701-06012-08 BOLT, FLANGE, 6X12∙∙∙∙∙∙∙∙∙∙∙ 1 1

(95003-23001-60M) 1 1

TUBE(56) 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

101

F-25-20

FRAMEGROUP

AIR INJECTION SOLENOID VALVE

Ref.

Part No. Description

No.

1 15772-551-000 CLIP, BREATHER TUBE∙∙∙∙∙∙∙∙∙∙ 3 3 2 17316-611-000 CLIP, BREATHER TUBE∙∙∙∙∙∙∙∙∙∙ 1 1 3 18651-K1T-E10 TUBE(AISV-ENGINE)∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 18653-K1T-E10 TUBE(AISV-AIR CLEANER)∙∙∙∙∙∙∙ 1 1 5 33115-KVK-900 RUBBER, HEADLIGHT∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

6 36450-KVK-902 VALVE ASSY., AIR INJECTION 7 36451-K1T-E10 STAY, CONNECTOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

8 36452-K1T-E10 COVER(AISV) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 61104-428-010 COLLAR, FR. FENDER(WHITE)∙∙∙∙ 2 2

10 96001-06028-08 BOLT, FLANGE, 6X28∙∙∙∙∙∙∙∙∙∙∙ 2 2

SOLENOID 1 1

102

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-27

FRAMEGROUP

EXHAUST MUFFLER

Ref.

Part No. Description

No.

1 18291-MEB-670 GASKET, EX. PIPE ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 18293-K1T-E10 RUBBER, PROTECTOR PACKING∙∙∙∙ 1 1 3 18293-MCA-A20 RUBBER, PROTECTOR PACKING∙∙∙∙ 3 3 4 18306-K1T-E10 CAP, TAIL ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 5 18310-K1T-N00 MUFFLER COMP. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,PH,U

18310-K1T-J10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - 18310-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,KO 18310-K1T-F50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- FO

6 18320-K1T-E10 PIPE COMP., EX. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 1

18320-K1T-E50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- ED,KO,LA,PH,U 18320-K1T-F50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- FO

7 18325-K1T-E50 PROTECTOR, EX. PIPE∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- ED,KO,LA,PH,U

18326-K1T-F50 PROTECTOR ASSY., EX. PIPE ∙∙∙∙ - - - -------- -------- FO 8 18327-K1T-E50 STAY, RR. EX. PIPE PROTECTOR∙ 1 - - 9 18340-K1T-E10 COVER COMP., PROTECTOR∙∙∙∙∙∙∙ 1 1

10 18341-K1T-E10 COVER COMP., PROTECTOR INNER∙ 1 1 11 18345-K15-920 RUBBER, MOUNTING ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

12 18374-ML4-003 BAND, L. EX. PIPE∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 13 18391-ML8-000 PACKING, MUFFLER ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 19516-GAG-003 CLAMP, HOSE, 30-37MM∙∙∙∙∙∙∙∙∙ 1 - - 15 36531-K1T-J11 SENSOR, OXYGEN(NGK)∙∙∙∙∙∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,MA,PH,U

36533-K1T-E11 SENSOR, AIR FUEL RATIO ∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,KO

16 83512-K1T-E10 RUBBER, MUFFLER PROTECTOR ∙∙∙∙ 1 1 17 90113-K1T-E10 SCREW, PAN, 6X14 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 18 90114-KZZ-900 SCREW, SPECIAL, 5X10 ∙∙∙∙∙∙∙∙∙ 3 3 19 90118-K1T-E10 BOLT, FLANGE, 8X14∙∙∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

104

2020.11.20 E

F-27

EXHAUST MUFFLER

Ref.

Part No. Description

No.

20 90160-KZZ-900 BOLT, MUFFLER PROTECTOR(5MM)∙ 1 1 21 90170-KZZ-900 SCREW, PAN, 6X10 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 -

22 90304-KPH-700 NUT, HEX. CAP, 8MM∙∙∙∙∙∙∙∙∙∙∙ 2 2 23 90344-KEV-900 NUT C, CLIP, 6MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 24 95701-08032-02 BOLT, FLANGE, 8X32∙∙∙∙∙∙∙∙∙∙∙ 1 1 25 96300-08016-00 BOLT, FLANGE, 8X16∙∙∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

105

F-29

FRAMEGROUP

PEDAL

Ref.

Part No. Description

No.

1 24700-K1T-E10 PEDAL ASSY., CHANGE∙∙∙∙∙∙∙∙∙∙ 1 1 2 24781-KZZ-J00 RUBBER, CHANGE PEDAL∙∙∙∙∙∙∙∙∙ 1 1 3 35350-K1T-E11 SWITCH ASSY., RR. STOP∙∙∙∙∙∙∙ 1 1 4 35357-KZZ-900 SPRING, STOP SWITCH∙∙∙∙∙∙∙∙∙∙ 1 1 5 43950-KZZ-900 PIN, SNAP ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

6 46500-K1T-E10 PEDAL COMP., RR. BRAKE ∙∙∙∙∙∙∙ 1 1 7 46511-KZ4-J00 SPRING ASSY., RR. BRAKE RETURN 1 1 8 46525-KK0-003 DUST SEAL, 17X20X2.5∙∙∙∙∙∙∙∙∙ 2 2 9 90439-463-000 WASHER, PLAIN, 16MM∙∙∙∙∙∙∙∙∙∙ 1 1

10 90601-KAF-003 CLIP, SWITCH COVER∙∙∙∙∙∙∙∙∙∙∙ 1 1 11 95701-06020-00 BOLT, FLANGE, 6X20∙∙∙∙∙∙∙∙∙∙∙ 1 1

106

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-30

FRAMEGROUP

STEP

Ref.

Part No. Description

No.

1 50603-KZZ-900 PIN, STEP JOINT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 2 50616-K1T-E10 STEP COMP., R. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 50617-KZZ-900 SPRING, R. STEP RETURN ∙∙∙∙∙∙∙ 1 1 4 50618-KZZ-900 SPRING, L. STEP RETURN ∙∙∙∙∙∙∙ 1 1 5 50639-KZZ-900 PIN, STEP BAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

6 50642-K1T-E10 STEP COMP., L. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 7 50661-K1T-E10 RUBBER, MAIN STEP∙∙∙∙∙∙∙∙∙∙∙∙ - 2 8 50662-K1T-E10 PLATE, STEP RUBBER SETTING∙∙∙ - 2 9 50711-KZZ-900 STEP, PILLION ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

10 50713-KZZ-900 GUIDE, PILLION STEP∙∙∙∙∙∙∙∙∙∙ 2 2 11 90020-KZZ-900 SCREW, PAN, 4X10 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

12 90102-KGH-900 BOLT, FLANGE, 6X10∙∙∙∙∙∙∙∙∙∙∙ - 2 13 94101-08000 WASHER, PLAIN, 8MM∙∙∙∙∙∙∙∙∙∙∙ 2 2 14 94102-10000 WASHER, PLAIN, 10MM∙∙∙∙∙∙∙∙∙∙ 2 2 15 94201-20150 PIN, SPLIT, 2.0X15∙∙∙∙∙∙∙∙∙∙∙ 2 2

16 94201-20180 PIN, SPLIT, 2.0X18∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

107

F-31

FRAMEGROUP

SIDE STAND

Ref.

Part No. Description

No.

1 35700-K1T-E11 SWITCH ASSY., SIDE STAND∙∙∙∙∙ 1 1 2 50530-K1T-E10 BAR COMP., SIDE STAND ∙∙∙∙∙∙∙∙ - 1

50530-K1T-E50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 3 50541-KZZ-J00 SPRING, SIDE STAND∙∙∙∙∙∙∙∙∙∙∙ 1 1 4 50547-K1T-E10 GUARD, SIDE STAND SWITCH∙∙∙∙∙ 1 1 5 90108-KPP-860 BOLT, SIDE STAND PIVOT ∙∙∙∙∙∙∙ 1 1

6 90147-MCE-950 BOLT, SPECIAL, 6X16∙∙∙∙∙∙∙∙∙∙ 1 1 7 90304-KGH-901 NUT, U, 10MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 90650-KV6-003 BAND, WIRE, 95MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 96001-06010-07 BOLT, FLANGE, 6X10∙∙∙∙∙∙∙∙∙∙∙ 2 2

108

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-32

FRAMEGROUP

SWINGARM

Ref.

Part No. Description

No.

1 06406-K1T-E10 CHAIN KIT, DRIVE

2 40510-K1T-E10 CASE, DRIVE CHAIN∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 3 40540-KYJ-902 CHAIN, DRIVE(DAIDO)

4 40545-KYJ-902 JOINT, DRIVE CHAIN(DAIDO)∙∙∙∙ 1 1 5 52101-KZZ-900 BOLT, SWINGARM PIVOT∙∙∙∙∙∙∙∙∙ 1 1

6 52141-KZZ-900 COLLAR, CENTER PIVOT DISTANCE 1 1 7 52144-356-005 CAP, SWINGARM DUST SEAL(NOK)∙ 2 2 8 52146-KV6-010 GUIDE, CHAIN ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 52147-KV6-010 SLIDER, CHAIN GUIDE∙∙∙∙∙∙∙∙∙∙ 1 1

10 52161-KZZ-900 CAP, RR. SWINGARM∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 11 52170-K1T-E10 SLIDER COMP., CHAIN∙∙∙∙∙∙∙∙∙∙ 1 1

12 52171-MAN-620 WASHER, CHAIN SLIDER∙∙∙∙∙∙∙∙∙ 3 3 13 52200-K1T-E10 SWINGARM SUB ASSY., RR.∙∙∙∙∙∙ 1 1 14 90103-KZZ-900 BOLT, FLANGE, 6X20∙∙∙∙∙∙∙∙∙∙∙ 2 2 15 90107-K28-910 BOLT-WASHER, 5X16∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

16 90107-MJP-G50 SCREW, PAN, 5X12 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 17 90111-KZZ-900 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ 3 3 18 90112-KZZ-900 BOLT, HEX., 8X47.5∙∙∙∙∙∙∙∙∙∙∙ 2 2 19 90115-KZZ-900 SCREW, FLAT, 6X53∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 20 90301-KGH-901 NUT, U, 6MM(FUJI SEIMITSU) ∙∙∙ 2 2

21 90305-KCJ-951 NUT, U, 14MM(FUJI SEIMITSU)∙∙ 1 1

(DID520VF-120ZB)(14/40T)

(STANDARD LINK 106L)

(STANDARD LINK 106L) 1 1

(DID520VF-120ZB)

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

109

F-32

SWINGARM

Ref.

110

Part No. Description

No.

22 90309-357-000 NUT, HEX., 8MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 23 90503-K1T-E10 COLLAR, 5.3X12X5.8∙∙∙∙∙∙∙∙∙∙∙ 1 1 24 91070-GC4-601 BEARING, NEEDLE, 20X26X20(NTN) 2 2 25 91254-KS6-003 DUST SEAL, 20X26X4.5(ARAI)∙∙∙ 2 2

26 94103-05700 WASHER, PLAIN, 5MM∙∙∙∙∙∙∙∙∙∙∙ 1 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-33

FRAMEGROUP

REAR CUSHION

Ref.

Part No. Description

No.

1 52400-K1T-305 CUSHION ASSY., RR.(SHOWA)∙∙∙∙ - - -

52400-K1T-A01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 - -------- -------- MA,PH 52400-K1T-L41 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- LA 52400-K1T-A41 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- PH 52400-K1T-E51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED,FO,U 52400-K1T-K51 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- KO 52400-K1T-L01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 - -------- -------- LA

52400-K1T-E11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 2 52462-K1T-E10 COLLAR B, CUSHION ARM∙∙∙∙∙∙∙∙ 1 1 3 52462-KZZ-900 COLLAR C, CUSHION ARM∙∙∙∙∙∙∙∙ 1 1 4 52464-KPE-900 COLLAR C, CUSHION ARM∙∙∙∙∙∙∙∙ 1 1 5 52465-K1T-E10 ARM SUB ASSY., CUSHION∙∙∙∙∙∙∙ 1 1

6 52472-K99-A00 COLLAR, CONNECTING ROD∙∙∙∙∙∙∙ 1 1 7 52475-K1T-E10 ROD SUB ASSY., CUSHION

8 87516-KZZ-L40 LABEL, RR. DAMPER(INDONESIAN) - - -

87516-KV6-610 LABEL, RR. DAMPER(ENGLISH)∙∙∙ 1 1 - -------- -------- MA,PH

87516-KFC-910 LABEL, RR. DAMPER(SPANISH)∙∙∙ 1 1 - -------- -------- LA

87516-MCA-G60 LABEL, RR. DAMPER(PICTOGRAPH) - - 1 -------- -------- ED,FO,U

87516-KFK-750 LABEL, RR. DAMPER(KOREAN)∙∙∙∙ - - - -------- -------- KO 9 90105-MG3-000 BOLT, FLANGE, 10X110∙∙∙∙∙∙∙∙∙ 1 1

10 90151-K1T-E10 BOLT, FLANGE, 10X132∙∙∙∙∙∙∙∙∙ 1 1 11 90153-KZZ-900 BOLT, FLANGE, 12X88∙∙∙∙∙∙∙∙∙∙ 1 1

12 90154-KZZ-900 BOLT, FLANGE, 10X53∙∙∙∙∙∙∙∙∙∙ 1 1 13 90182-KA3-730 BOLT, FLANGE, 10X57∙∙∙∙∙∙∙∙∙∙ 1 1 14 90304-GE8-003 NUT, U, 10MM(FUSE RASHI)∙∙∙∙∙ 4 4 15 90305-KZZ-901 NUT, U, 12MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

CONNECTING 1 1 1

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

2020.11.20 E

111

F-33

REAR CUSHION

Ref.

Part No. Description

No.

16 90501-KZ4-J40 WASHER, PLAIN, 12MM∙∙∙∙∙∙∙∙∙∙ 1 1 17 91071-KV3-005 BEARING, NEEDLE(KOYO)∙∙∙∙∙∙∙∙ 4 4 18 91071-MY1-005 BEARING, NEEDLE, 17X24X17

19 91072-MY1-005 BEARING, NEEDLE, 20X26X20 ∙∙∙∙ 1 1 20 91254-KS6-003 DUST SEAL, 20X26X4.5(ARAI)∙∙∙ 2 2

21 91262-KV3-831 DUST SEAL, 17X24X5(ARAI)∙∙∙∙∙ 6 6 22 94101-10800 WASHER, PLAIN, 10MM∙∙∙∙∙∙∙∙∙∙ 2 2

(KOYO) 1 1

112

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-34

FRAMEGROUP

REAR FENDER

Ref.

Part No. Description

No.

1 17218-K1T-E10 MUDGUARD ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 2 77223-K1T-E10 COLLAR A, FENDER SETTING ∙∙∙∙∙ 2 2 3 77224-KZZ-900 COLLAR B, FENDER SETTING ∙∙∙∙∙ 2 2 4 80109-MGZ-J80 RUBBER, UNDER COVER∙∙∙∙∙∙∙∙∙∙ 1 1 5 80130-K1T-E10ZA COWL ASSY., RR.(WL)

80130-K1T-E50ZA *TYPE1*...................... 1 -

6 80150-K1T-305 FENDER SET B, RR.∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 7 83551-GE2-000 GROMMET, AIR CLEANER CASE∙∙∙∙ 1 1 8 90110-K1T-E10 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ 3 3 9 90116-K0A-E11 RIVET, PUSH, 6MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 3

10 90116-KZZ-900 BOLT, HOOK, 8MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 11 93903-25380 SCREW, TAPPING, 5X16∙∙∙∙∙∙∙∙∙ 2 2

*TYPE1*...................... - 1

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

113

F-35-1

FRAMEGROUP

WINKER

Ref.

Part No. Description

No.

1 33400-K1T-E11 WINKER ASSY., R. FR. ∙∙∙∙∙∙∙∙∙ 1 1 2 33405-K1T-J50 STAY, R. WINKER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

3 33409-K1T-E10 HOLDER, WINKER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 4 33411-MKE-A50 COLLAR, WINKER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 5 33412-K1T-E10 RUBBER, R. FR. WINKER MOUNTING

6 33450-MKW-D01 WINKER ASSY., L. FR. ∙∙∙∙∙∙∙∙∙ 1 1 7 33452-K1T-E10 RUBBER, L. FR. WINKER MOUNTING

8 33505-K1T-J50 STAY, L. WINKER ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 9 33600-KZZ-J01 WINKER ASSY., R. RR. ∙∙∙∙∙∙∙∙∙ 1 1

10 33650-KZZ-J01 WINKER ASSY., L. RR. ∙∙∙∙∙∙∙∙∙ 1 1

11 90116-K0A-E11 RIVET, PUSH, 6MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 4 12 90122-MKE-A50 BOLT, SOCKET SPECIAL, 5X14∙∙∙ 4 4 13 90650-KV6-003 BAND, WIRE, 95MM ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

14 90652-KT1-771 BAND, WIRE(BLACK)∙∙∙∙∙∙∙∙∙∙∙∙ 1 -

(R. FR./L. RR.) 2 2

(L. FR./R. RR.) 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

115

F-36

FRAMEGROUP

TAILLIGHT/LICENSE LIGHT

Ref.

Part No. Description

No.

1 33703-KZZ-J01 BASE COMP., TAILLIGHT∙∙∙∙∙∙∙∙ 1 1 2 33704-K1T-E10 SOCKET COMP., TAILLIGHT∙∙∙∙∙∙ 1 1 3 33705-KZZ-J01 COLLAR, TAILLIGHT∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 4 33720-K1B-T01 LIGHT ASSY., LICENSE∙∙∙∙∙∙∙∙∙ 1 1 5 33721-K1T-E10 COLLAR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

6 33722-K1T-E10 RUBBER, LICENSE LIGHT ∙∙∙∙∙∙∙∙ 2 2 7 33741-KPL-902 REFLECTOR, REFLEX∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 8 33741-KTG-U01 REFLECTOR, FR. REFLEX(AMBER)∙

9 34906-MGZ-J01 BULB, TAILLIGHT(P21/5W)

10 80102-K1T-N00 FENDER A, RR. ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

80102-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 80102-K1T-J10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

11 80103-K1T-E10 STAY, RR. FENDER ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 12 83545-KZZ-J00 RUBBER, TAILLIGHT MOUNTING∙∙∙ 3 3 13 90102-K1T-E10 BOLT, SOCKET, 6X23.5∙∙∙∙∙∙∙∙∙ 3 3 14 90124-MKN-D50 SCREW, SPECIAL, 5X14 ∙∙∙∙∙∙∙∙∙ 2 2 15 90301-KGH-901 NUT, U, 6MM(FUJI SEIMITSU) ∙∙∙ - -

16 90301-KWN-901 NUT, U, 5MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 17 90677-KAN-T00 NUT, CLIP, 5MM ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 18 93893-04025-00 SCREW-WASHER, 4X25∙∙∙∙∙∙∙∙∙∙∙ 2 2 19 94050-04080 NUT, FLANGE, 4MM∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 20 94103-04800 WASHER, PLAIN, 4MM∙∙∙∙∙∙∙∙∙∙∙ 2 2

22 94103-06800 WASHER, PLAIN, 6MM∙∙∙∙∙∙∙∙∙∙∙ - -

(FOR RR.) - -

(LIFE ELEX) 1 1

116

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-36

TAILLIGHT/LICENSE LIGHT

Ref.

Part No. Description

No.

23 95701-06020-08 BOLT, FLANGE, 6X20∙∙∙∙∙∙∙∙∙∙∙ 2 2 24 44125-MN5-000 COLLAR, FR. WHEEL COVER∙∙∙∙∙∙ 2 2 25 94103-06000 WASHER, PLAIN, 6MM∙∙∙∙∙∙∙∙∙∙∙

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

117

F-37

FRAMEGROUP

BATTERY

Ref.

Part No. Description

No.

1 31500-KZZ-L41 BATTERY(YTZ8V)(YUASA)∙∙∙∙∙∙∙∙ - - -

31500-KZZ-J81 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO,MA,U 31500-KZZ-J31 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 - -------- -------- LA 31500-KZZ-J01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 - -------- -------- PH

31500-KZZ-L61 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- KO 2 31510-K1T-E10 BAND COMP., BATTERY∙∙∙∙∙∙∙∙∙∙ 1 1 3 31511-088-740 RUBBER, BATTERY MOUNTING ∙∙∙∙∙ 1 1 4 31511-KE2-850 RUBBER, BATTERY CUSHION ∙∙∙∙∙∙ 1 1 5 31511-KZZ-900 RUBBER, BATTERY CUSHION ∙∙∙∙∙∙ 2 2 2

6 32125-K1T-C10 STAY, HEAT GUARD ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 1 -------- -------- IN,LA,PH,U 7 32401-KZZ-900 CABLE, STARTER MAGNETIC

8 32406-MFF-D00 COVER, STARTER MAGNETIC 9 32410-K1T-E10 CABLE, STARTER MOTOR∙∙∙∙∙∙∙∙∙ 1 1

10 32414-GAG-000 COVER, BATTERY TERMINAL∙∙∙∙∙∙ 1 1 11 32601-K1T-E10 CABLE, BATTERY EARTH∙∙∙∙∙∙∙∙∙ 1 1

12 35850-MT4-003 SWITCH ASSY., STARTER MAGNETIC 1 1 13 35856-MT3-000 RUBBER, SHOCK ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 50325-K1T-E10 BOX COMP., BATTERY∙∙∙∙∙∙∙∙∙∙∙ 1 1 15 50383-KZZ-900 RUBBER, BATTERY(10X20X3)∙∙∙∙∙ 1 1

16 84703-KC2-960 CUSHION, NUMBER PLATE ∙∙∙∙∙∙∙∙ 2 2 17 90101-K87-A00 BOLT, SOCKET SPECIAL, 6X12∙∙∙ 1 1 18 90110-K1T-E10 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 19 90111-MR5-000 BOLT, SOCKET, 5X9∙∙∙∙∙∙∙∙∙∙∙∙ 2 2 20 90127-MKN-D50 SCREW, SPECIAL, 6X14 ∙∙∙∙∙∙∙∙∙ 3 3

BATTERY 1 1 -

TERMINAL 1 1 -

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

118

2020.11.20 E

F-37

BATTERY

Ref.

Part No. Description

No.

21 96300-06014-00 BOLT, FLANGE, 6X14∙∙∙∙∙∙∙∙∙∙∙ 1 1 22 98200-33000 FUSE, BLADE(30A)∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 2

Reqd. QTY

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

119

F-38

FRAMEGROUP

WIRE HARNESS(CRF300L)

Ref.

Part No. Description

No.

1 30510-K1T-E11 COIL COMP., IGNITION∙∙∙∙∙∙∙∙∙ 1 2 30520-GFM-900 SPACER, IGNITION COIL ∙∙∙∙∙∙∙∙ 2 3 30700-KZZ-901 CAP ASSY., NOISE SUPPRESSOR ∙∙ 1 4 31600-KZZ-J01 RECTIFIER ASSY., REGULATE ∙∙∙∙ 1 5 31700-MM8-610 RECTIFIER COMP., SILICON ∙∙∙∙∙ 1 -

6 31730-MAS-601 DIODE ASSY., THREE WAY 7 32100-K1T-H40 HARNESS, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - -

32100-K1T-E50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED 32100-K1T-K50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- FO,KO

32100-K1T-U50 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- U 8 32146-S84-003 CONNECTOR, DIODE(2P)(3A)∙∙∙∙∙ 1 - - 9 32605-GEV-761 CAP, DUMMY(WPC 4P 090 M)

10 35160-KVS-751 SENSOR ASSY., BANK ANGLE(M6)∙ 1 - - 11 35161-K1T-E10 RUBBER, HEAT GUARD∙∙∙∙∙∙∙∙∙∙∙ 1 -

12 35161-KZZ-900 STAY, BANK ANGLE SENSOR ∙∙∙∙∙∙ 1 13 37244-MM4-000 RUBBER, SPEEDOMETER MOUNTING∙ 2 14 38110-KPP-T01 HORN COMP.(HIGH) ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 15 38301-KYJ-641 RELAY COMP., WINKER(MITSUBA)∙ - - - -------- -------- ED

16 38301-KZZ-J01 RELAY COMP., WINKER(LED)∙∙∙∙∙ 1 - - 17 38301-MKJ-D01 RELAY COMP., WINKER(LED)∙∙∙∙∙ - - - -------- -------- FO,KO,U 18 38306-KK4-000 SUSPENSION, WINKER RELAY

19 38501-MKR-D11 RELAY COMP., POWER

(SUMITOMO) 1 - -

(NATURAL) - - - -------- -------- U

(MITSUBA) - -

(MICRO ISO 4P) 2 -

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

120

2020.11.20 E

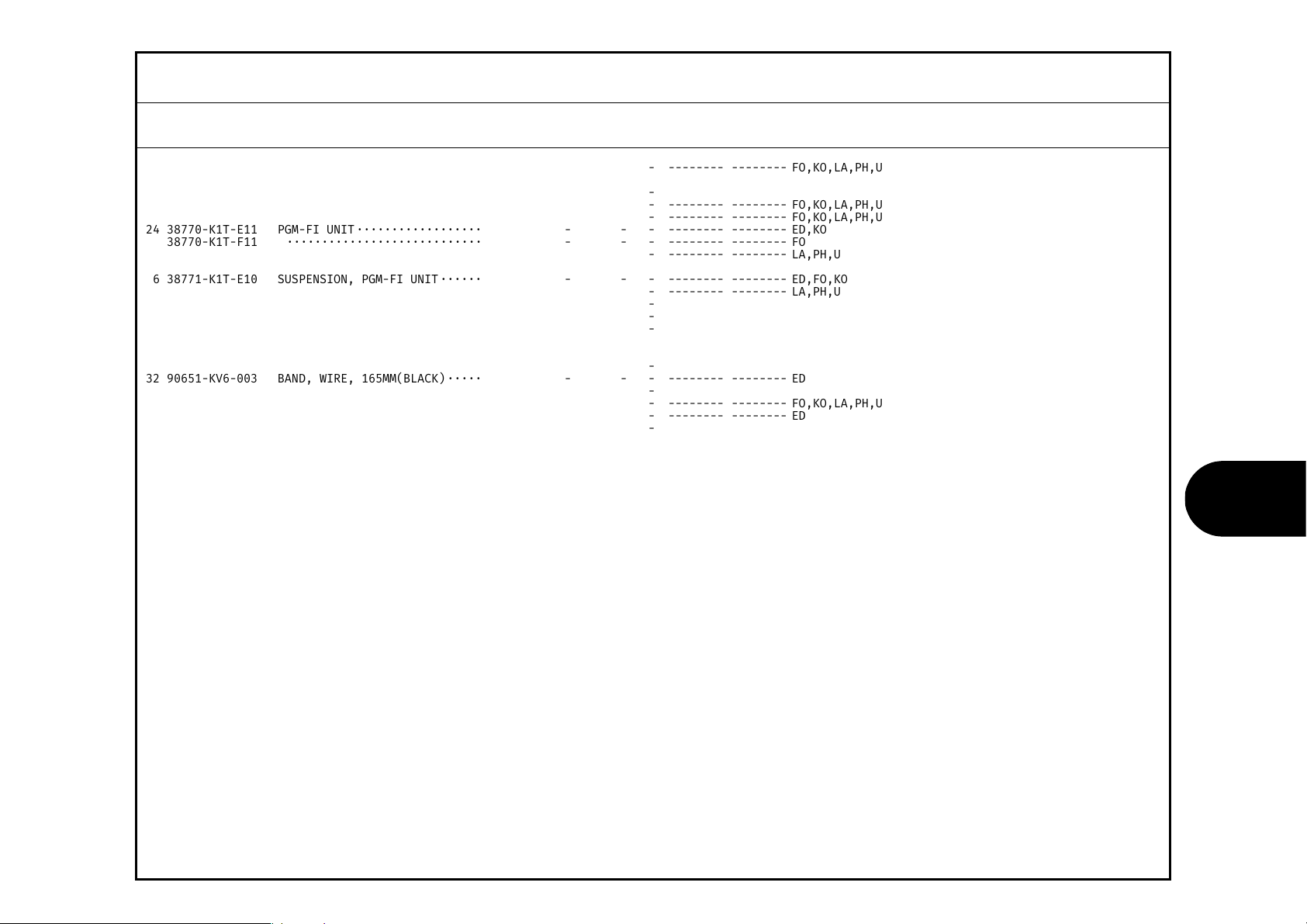

F-38

Ref.

Part No. Description

No.

20 38502-MCS-G01 RELAY COMP., POWER

21 38506-KZZ-900 COVER, RELAY(2P) ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - 22 38506-MBW-G91 HOLDER, RELAY ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- FO,KO,LA,PH,U 23 38506-MJM-D10 SUSPENSION, POWER RELAY∙∙∙∙∙∙ 1 - - -------- -------- FO,KO,LA,PH,U 24 38770-K1T-E11 PGM-FI UNIT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED,KO

38770-K1T-F11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- FO

25 38770-K1T-H01 PGM-FI UNIT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- LA,PH,U 26 38771-K1T-E10 SUSPENSION, PGM-FI UNIT∙∙∙∙∙∙ - - - -------- -------- ED,FO,KO

27 38771-K1T-J10 SUSPENSION, PGM-FI UNIT∙∙∙∙∙∙ 1 - - -------- -------- LA,PH,U 28 61104-428-010 COLLAR, FR. FENDER(WHITE)∙∙∙∙ 2 - - 29 77208-KW7-900 RUBBER B, SEAT MOUNTING∙∙∙∙∙∙ 2 - - 30 77302-473-000 COLLAR, PILLION SEAT ∙∙∙∙∙∙∙∙∙ 2 - -

31 90525-030-000 WASHER B, HANDLE HOLDER 32 90651-KV6-003 BAND, WIRE, 165MM(BLACK)∙∙∙∙∙ - - - -------- -------- ED

33 91533-MGS-D30 CLIP, COUPLER(BLACK)∙∙∙∙∙∙∙∙∙ 1 - - 34 91535-TA0-003 CLIP, COUPLER(DARK BROWN)∙∙∙∙ 3 - - -------- -------- FO,KO,LA,PH,U

35 91565-S0X-003 CLIP, COUPLER(DARK GREEN)∙∙∙∙ 1 - - 36 91565-SEL-003 CLIP, COUPLER(BLACK)∙∙∙∙∙∙∙∙∙ 1 -

37 91771-MKK-H11 CAP, DUMMY(6P)(RED) ∙∙∙∙∙∙∙∙∙∙ 1 38 92101-06020-4J BOLT, HEX., 6X20∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 39 94050-06000 NUT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 40 95701-06010-08 BOLT, FLANGE, 6X10∙∙∙∙∙∙∙∙∙∙∙ 1 -

41 95701-06030-00 BOLT, FLANGE, 6X30∙∙∙∙∙∙∙∙∙∙∙ 2 42 95701-06032-08 BOLT, FLANGE, 6X32∙∙∙∙∙∙∙∙∙∙∙ 2 43 95701-08012-08 BOLT, FLANGE, 8X12∙∙∙∙∙∙∙∙∙∙∙ 1 44 98200-41000 FUSE, MINI(10A)∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 -

(MICRO ISO 5P) 1 - - -------- -------- FO,KO,LA,PH,U

SETTING 2 - -

WIRE

HARNESS(CRF300L)

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

- -------- -------- ED

121

2020.11.20 E

F-38-1

FRAMEGROUP

WIRE HARNESS(CRF3

00LR)

Ref.

Part No. Description

No.

1 30510-K1T-E11 COIL COMP., IGNITION∙∙∙∙∙∙∙∙∙ - 1 2 30520-GFM-900 SPACER, IGNITION COIL ∙∙∙∙∙∙∙∙ - 2 3 30700-KZZ-901 CAP ASSY., NOISE SUPPRESSOR ∙∙ - 1 4 31600-KZZ-J01 RECTIFIER ASSY., REGULATE ∙∙∙∙ - 1 5 31700-MM8-610 RECTIFIER COMP., SILICON ∙∙∙∙∙ - 1

6 31730-MAS-601 DIODE ASSY., THREE WAY 7 32100-K1T-N00 HARNESS, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

32100-K1T-M10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 32100-K1T-H00 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 32100-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED,FO 32100-K1T-U10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- U

8 32103-K1T-T00 SUB HARNESS, FR. ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 -

32103-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

9 32146-S84-003 CONNECTOR, DIODE(2P)(3A)∙∙∙∙∙ - 1

10 32161-404-000 BAND B1, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 11 32605-GEV-761 CAP, DUMMY(WPC 4P 090 M) 12 35160-KVS-751 SENSOR ASSY., BANK ANGLE(M6)∙ - 1

13 35161-K1T-E10 RUBBER, HEAT GUARD∙∙∙∙∙∙∙∙∙∙∙ - 1 14 35161-KZZ-900 STAY, BANK ANGLE SENSOR ∙∙∙∙∙∙ - 1 15 37244-MM4-000 RUBBER, SPEEDOMETER MOUNTING∙ - 2

16 38110-KPP-T01 HORN COMP.(HIGH) ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 17 38301-KZZ-J01 RELAY COMP., WINKER(LED)∙∙∙∙∙ - 1 18 38301-MKJ-D01 RELAY COMP., WINKER(LED)∙∙∙∙∙ - -

(SUMITOMO) - 1

(NATURAL) - - 1 -------- -------- U

Reqd. QTY

122

CRF300 L LR M M

2020.11.20 E

Serial No. Parts catalogue code

F-38-1

Ref.

Part No. Description

No.

19 38306-KK4-000 SUSPENSION, WINKER RELAY 20 38501-MKR-D11 RELAY COMP., POWER

21 38506-KZZ-900 COVER, RELAY(2P) ∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 1 22 38770-K1T-E11 PGM-FI UNIT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- ED

38770-K1T-F11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- FO

23 38770-K1T-N01 PGM-FI UNIT ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - -

38770-K1T-M11 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - -

38770-K1T-H01 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 1 -------- -------- LA,PH,U 24 38771-K1T-E10 SUSPENSION, PGM-FI UNIT∙∙∙∙∙∙ - - 1 -------- -------- ED,FO 25 38771-K1T-J10 SUSPENSION, PGM-FI UNIT∙∙∙∙∙∙ - 1 1 -------- -------- IN,LA,MA,PH,U

26 61104-428-010 COLLAR, FR. FENDER(WHITE)∙∙∙∙ - 2 27 77208-KW7-900 RUBBER B, SEAT MOUNTING∙∙∙∙∙∙ - 2 28 77302-473-000 COLLAR, PILLION SEAT ∙∙∙∙∙∙∙∙∙ - 2 29 90525-030-000 WASHER B, HANDLE HOLDER

30 90650-KW3-000 BAND, WIRE ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 1 31 90651-KV6-003 BAND, WIRE, 165MM(BLACK)∙∙∙∙∙ - 2

32 91534-SWA-003 CLIP, COUPLER(DARK GRAY)∙∙∙∙∙ - 1 33 91535-TA0-003 CLIP, COUPLER(DARK BROWN)∙∙∙∙ - 3 34 91565-S0X-003 CLIP, COUPLER(DARK GREEN)∙∙∙∙ - 1 35 91565-SEL-003 CLIP, COUPLER(BLACK)∙∙∙∙∙∙∙∙∙ - 1

36 91771-MKK-H11 CAP, DUMMY(6P)(RED) ∙∙∙∙∙∙∙∙∙∙ - 1 37 92101-06020-4J BOLT, HEX., 6X20∙∙∙∙∙∙∙∙∙∙∙∙∙ - 2 38 94050-06000 NUT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙∙ - 4 39 95701-06010-08 BOLT, FLANGE, 6X10∙∙∙∙∙∙∙∙∙∙∙ - 1 40 95701-06030-00 BOLT, FLANGE, 6X30∙∙∙∙∙∙∙∙∙∙∙ - 2

41 95701-06032-08 BOLT, FLANGE, 6X32∙∙∙∙∙∙∙∙∙∙∙ - 2 42 95701-08012-08 BOLT, FLANGE, 8X12∙∙∙∙∙∙∙∙∙∙∙ - 1 43 98200-41000 FUSE, MINI(10A)∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - 6 7 -------- -------- ED,FO,IN,LA,MA,PH

44 98200-43000 FUSE, MINI(30A)∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

WIRE

(MICRO ISO 4P) - 2

HARNESS(CRF300LR)

(MITSUBA) - -

SETTING - 2

Reqd. QTY

CRF300 L LR M M

- - 8 -------- -------- U

Serial No. Parts catalogue code

123

2020.11.20 E

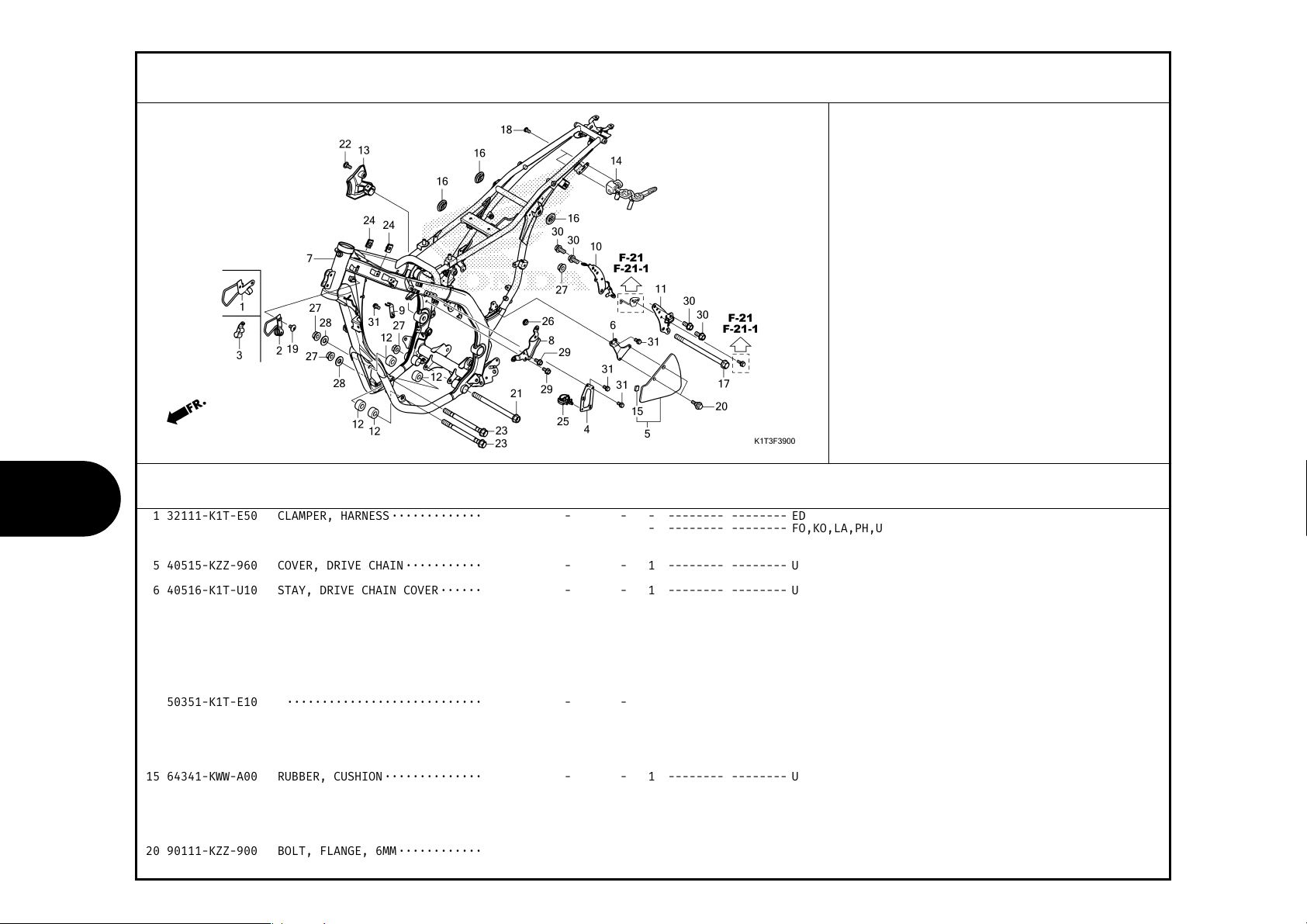

F-39

FRAMEGROUP

FRAME BODY

Ref.

Part No. Description

No.

1 32111-K1T-E50 CLAMPER, HARNESS ∙∙∙∙∙∙∙∙∙∙∙∙∙ - - - -------- -------- ED 2 32111-K1T-J50 CLAMPER, HARNESS ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 - - -------- -------- FO,KO,LA,PH,U 3 35205-K1T-E10 CLAMPER, L. HARNESS∙∙∙∙∙∙∙∙∙∙ - 1 4 35206-KZZ-J00 STAY, WINKER SWITCH COUPLER∙∙ - 1 5 40515-KZZ-960 COVER, DRIVE CHAIN∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- U

6 40516-K1T-U10 STAY, DRIVE CHAIN COVER∙∙∙∙∙∙ - - 1 -------- -------- U 7 50100-K1T-E10ZA BODY COMP., FRAME

50100-K1T-E50ZA *NH146M*

8 50189-K1T-E10 STAY, FR. MUFFLER∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 9 50193-K1T-E10 STAY, STOP SWITCH∙∙∙∙∙∙∙∙∙∙∙∙ 1 1

10 50351-K1T-N00 PLATE, R. ENGINE HANGER ∙∙∙∙∙∙ 1 1

50351-K1T-E10 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - -

11 50352-K1T-E10 PLATE COMP., L. ENGINE HANGER 1 1 12 50361-K1T-E10 COLLAR, ENGINE HANGER∙∙∙∙∙∙∙∙ 4 4 13 50615-K1T-E10 GUARD, HEEL ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 14 50710-KCZ-J71 HOLDER ASSY., HELMET∙∙∙∙∙∙∙∙∙ 1 1 15 64341-KWW-A00 RUBBER, CUSHION ∙∙∙∙∙∙∙∙∙∙∙∙∙∙ - - 1 -------- -------- U

16 83551-300-000 GROMMET, AIR CLEANER CASE∙∙∙∙ 3 3 17 90102-KZZ-900 BOLT, FLANGE, 10X150∙∙∙∙∙∙∙∙∙ 1 1 18 90105-KGA-B00 BOLT, ONE-WAY, 6X10∙∙∙∙∙∙∙∙∙∙ 2 2 19 90106-GBB-710 SCREW, PAN, 6X10 ∙∙∙∙∙∙∙∙∙∙∙∙∙ 1 1 20 90111-KZZ-900 BOLT, FLANGE, 6MM∙∙∙∙∙∙∙∙∙∙∙∙

*NH303M*

MAT AXIS GRAY METALLIC - 1

ACCURATE SILVER METALLIC 1 -

Reqd. QTY

CRF300 L LR M M

Serial No. Parts catalogue code

124

2020.11.20 E

Honda CRF300L (2021), CRF300L RALLY (2021) User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
