Holux NAV-51 User Manual

The advanced technology Car Navigator in the global market

equipped with SiRF Star III super high sensitivity chipset

NAV-51 Car Navigator

 Integrated GPS flip-up antenna, ultra

thin and compact case, does not take

too much space in your car.

 Touch pad screen makes it very

convenient for configuring and

operating the device while driving.

 Most advanced MP3 function for audio .

 Independent audio volume adjustment

(VR) Function.

Highlights

With SiRFstarIII super high

sensitivity chipset.

Whether you are in the

downtown areas with many

high-rise buildings or in the

forest with numerous tall

trees, the NAV-51 is capable

of providing accurate

navigation. Advanced MP3

function can provide you

audio fun for your life. Its

user friendly interface allows

you to operate your

 With SD interface to provide user to

download map from computer easily.

 IrDA for data transfer with PC, Laptop,

Printer…. to output data and map.

 3.5" TFT LCD screen with 262K colors,

perfect for reading

 Elegant, stylish design, free-adjustable car

holder suitable for all models of vehicles.

 Rechargeable and removable Lithium-ion

battery, can easily buy and change.

 Build-in larger speakers.

 2 colors LED for the status display of

battery status.

Applications:

navigation easily and

delightedly.

Enjoy it

your personal navigator

Car Navigation

(Turn-by-turn with voice guidance)

Personal/Portable Navigation

g

Specifications

 Integrated GPS Receiver : 20

parallel channels

 Acquisition Time :

Reacquisition : 0.1 sec.

Hot start : 8 sec.

Warm start : 35 sec.

Cold start : 42 sec.

 Accuracy

Position : 10 m. for 90%

Velocity: 0.1 m/s.

 Handheld Software (Pre-loaded) :

Companion CD: Adobe® Acrobat®

Reader® for Pocket PC - PDF file

viewer NAV-51 Handheld Manual

 Processor : Centrality Atlas

processor at 200 MHz. O.S.

Microsoft Windows CE.Net 4.2

 Memory : 32 MB flash memory

and 64MB SDRAM for operating

system and embedded

applications

 Weight : < 180 g.

 Extension Slot : SD/MMC

 Display :

3.5" high-brightness & contrast

ratio transflective TFT LCD (262k

colors) with 240 x 320 (QVGA)

resolution

 LED :

Red/Green LED for battery

charging status;

 Audio : Built-in microphone and

speaker 18 mm. stereo earphone

jack

 Proprietary 24-pin Connector :

USB client ; DC power in

 Operation Temperature:

-10℃ ~ 55℃

 Storage Temperature:

-20℃ ~ 70℃

 Special Keys and Buttons :

4-way directional pad (up, down,

left, right) ; Four quick-launch

application buttons ; Scroll wheel

 Size : 127 x 76 x 28 mm.

 Battery :

Rechargeable 1050 mAh. Li-ion

8 hours battery life when backlight

is inactive.

 Car Holder / Charger :

Input voltage : 11V. ~ 28V.

Output voltage : 5.5V. ± 0.3V.

 Accessories:

USB sync cable; AC adaptor kit;

3 hours to fully charge

Holux Technology Inc.
1F., No. 30, R&D Rd. II, Hsinchu City
300, Science-based Industrial Park, Taiwan
Tel: [phone] Fax: [phone]

www.holux.com

Holux 2005. All rights, including rights created by patent grant or registration of a utility model or design are reserved.
Specifications subject to change for technical reasons. Delivery subject to availability. All other product, service and company
names are trademarks or re

istered trademarks and are the property of their owners.

Datasheet 2005DS0002v.01

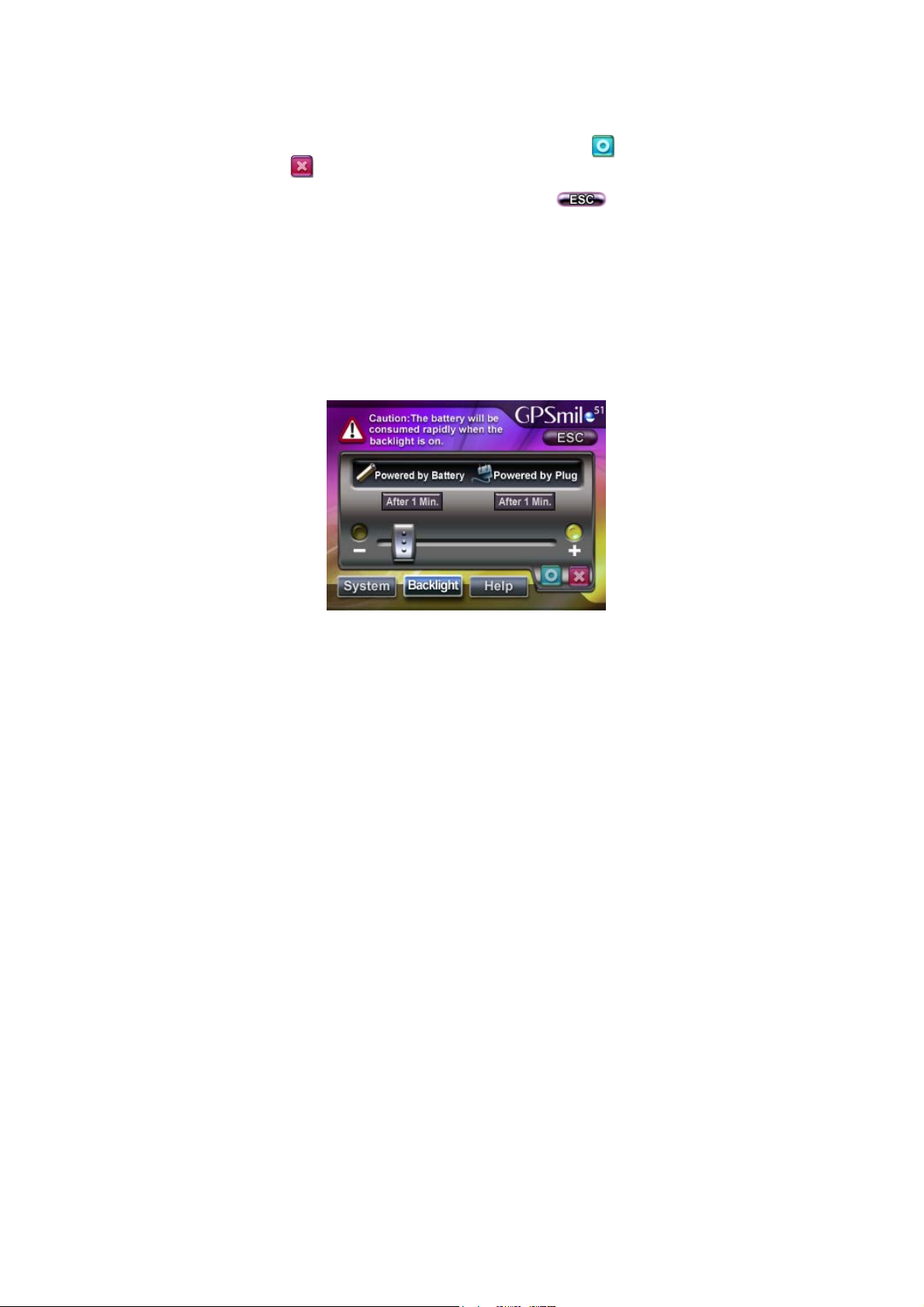

In addition to the navigation system, this unit also provides functions
for music playback, image browsing, and system settings. You can
control and operate the system on screen with a stylus, or by using the
directional keys located on the right hand side of the unit. Control the
menus by moving up, down, left and right.

Music Playback Function

This unit has a complete MP3 Music Playback function, capable of
playing back MP3 files stored on SD memory cards.

Storing MP3 files onto SD memory cards

On your computer, you must first convert the music from an audio CD
into MP3 files, then save them onto the SD memory card.

Starting music playback

1. Insert the SD memory card with stored MP3 files into the SD
memory card slot on the unit.

2. Power on, and at the Main Menu Screen, select the [ Music ] icon.

1

3. The Music Playback Window.

4. Use the buttons in the Music Playback Window to control each
playback function.

5. For functions of different buttons in the Music Playback Window,
please refer to the illustration below:

Exit

Increase Volume

Volume Display

Progress Bar Display

Decrease Volume

Repeat Single Song

Repeat All Songs

Timer

Song Title

Previous

Play/Pause

To Song
Selection Window

Back to First Song

Stop

Skip to Last Song

Next

Battery Indicator

2

Create Custom Playlist

The Create Custom Playlist function lets you create a personalized
playlist, specifying which songs to play and in what order.
Adding/removing a song from the playlist will not copy or delete the
actual file. It will only add/remove the path and position of the music
file from the playlist.

1. Under the Music Playback Window, select [ Select Song ] and go to
the Song Selection Window.

2. The panel on the left lists the source directories, select a directory
and double click to enter the directory.

3
