Holux M-89 SPECIFICATION

GPS Engine Board

M-89
SPECIFICATION

1F, No. 30, R&D Rd. II, HsinChu City 300, Science-based Industrial Park, Taiwan

(300) 新竹市科學園區 研發二路30號1 樓

TEL: [phone] FAX: [phone]

Website: www.holux.com

All Right Reserved

M-89

GPS Module series THE PRO NAME IN GPS

Version Change History

Version Date Revised Reason

0.1 2007/04/18 Draft release

1.0 2007/05/22 Official release

1.1 2007/06/27 Modify 6.2 reference design

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

Outline

1. Introduction........................................................................................................4

1.1 General introductions ..............................................................................4

1.2 Key Features.............................................................................................4

1.3 Applications ..............................................................................................4

2 Technical Description......................................................................................5

2.1 Block Diagram..........................................................................................5

2.2 Pin Definition............................................................................................5

2.3 Specification...............................................................................................7

3. Mechanical Dimension........................................................................................9

3.1 Mechanical Dimension.............................................................................9

4. Package................................................................................................................10

4.1 Packing.....................................................................................................10

4.2 Reference Product photo........................................................................11

5. User Interface..................................................................................................12

5.1 Protocol.........................................................................................................12

5.2 NMEA Protocol......................................................................................12

5.3 MTK NMEA Packet Format..................................................................13

6. Reference design...........................................................................................14

6.1 Reference circuit......................................................................................14

6.2 Reference PCB pattern...........................................................................15

6.3 Recommendation reflow profile ............................................................16

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

1. Introduction

1.1 General introductions
M-89 is an ultra miniature 25.4 * 25.4 * 3 mm GPS engine board designed by low

power consumption MTK GPS solution. It provides superior sensitivity up to

-159dBm and fast Time-To-First-Fix in navigation application. The stable
performance of M-89 is your best choice to be embedded in your portable device
design, like PDA、PND、mobile phone、Digital Camera for GPS service.

1.2 Key Features

• small form factor: 25.4 * 25.4 * 3 mm

• RoHS/WEEE compliant

• High sensitivity -159dBm

• Searching up to 32 Channel of satellites

• Fast Position Fix

• Low power consumption

• RTCM -in ready.

• Built-in WAAS/EGNOS/MSAS Demodulator.

• Support NMEA0183 V 3.01 data protocol .

• Real time navigation for location based services.

• For Car Navigation, Marine Navigation, Fleet Management, AVL and

Location-Based Services, Auto Pilot, Personal Navigation or touring
devices, Tracking devices/systems and Mapping devices application

1.3 Applications

• Automotive and Marine Navigation

• Automotive Navigator Tracking

• Emergency Locator

• Geographic Surveying

• Personal Positioning

• Sporting and Recreation

• Embedded applications:

• Smart phone, UMPC, PND, MP4

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

2 Technical Description

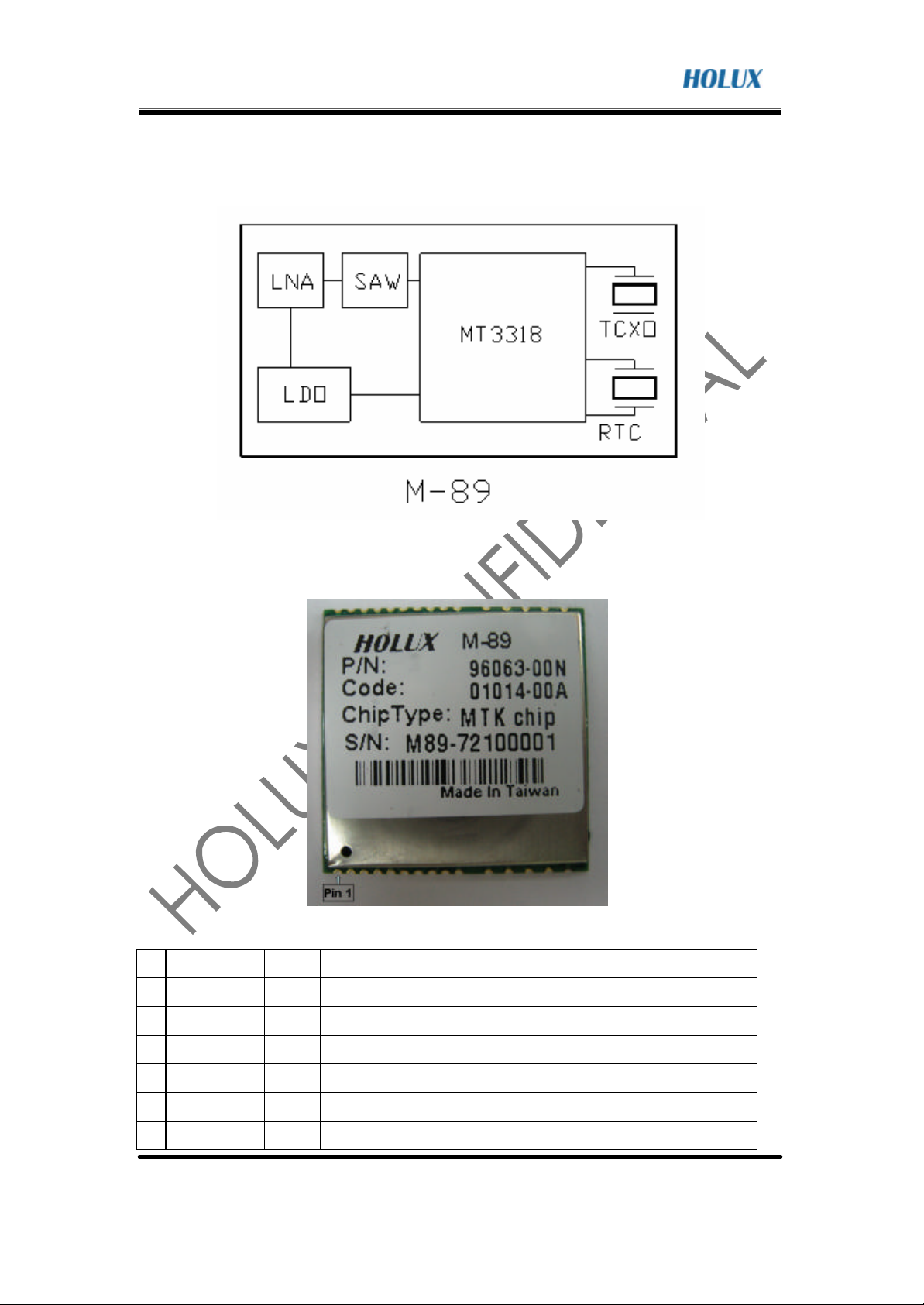

2.1 Block Diagram

2.2 Pin Definition

Pin Pin Name Type

1

VCC_IN I 3.3 ~ 5 V supply input

Function description

2
3
4
5
6

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

GND G Ground

NC I NC

RXDA I Serial Data input A

TXDA O Serial Data Output A
TXDB O Serial Data Output B

M-89

1 PPS output, synchronized with GPS time. TIME_MARK 1

GPS Module series THE PRO NAME IN GPS

7

RXDB I Serial Data input B

8

GPIO0 I/O General purpose I/O. flash at 1Hz when position is fixed.

9

10

11
12
13
14
15
16
17
18
19 V_ANT_IN
20 VCC_RF_O O Antenna power supply, 2.8V
21
22
23
24

INT1 I/O General purpose I/O
GND G Ground
GND G Ground
GND G Ground
GND G Ground
GND G Ground
GND G Ground
GND G Ground

RF_IN I GPS signal input

GND I Ground

I Antenna power supply input,3V

V_BAT I RTC and backup SRAM power, 2.6 ~ 3.6 VDC.

HRST I Reset, active low
GPIO1 I/O General purpose I/O
GPIO2 I/O General purpose I/O

25
26
27
28
29

30

GPIO3 I/O General purpose I/O
GPIO4 I/O General purpose I/O
GPIO5 I/O General purpose I/O
GPIO6 I/O General purpose I/O

PPS O

PPS output, 1us/s

GND G Ground

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

2.3 Specification
General

GPS technology MTK GPS chipset

Frequency L1,1575.42MHZ

C/A Code 1.023MHZ chip rate

Channels 32 channels all in view searching

Sensitivity Better than -159dBm

Receiver Accuracy (Follow MTK chip specification)

Position

Without aid:3.0 M 2D-RMS
DGPS(WAAS, EGNOS, MSAS, RTCM):2.5 M

Velocity Without aid:0.1 M/sec

Time 0.1μs. Sync GPS time

Datum

Datum WGS84(Default) total 219 datum’s

Time to First Fix (Follow MTK chip specification)

Hot start 1 sec. average

Warm start 33 sec. average

Cold start 36 sec. average

Reacquisition ＜1sec.

Protocol

NMEA0183(v3.1)- GGA,GLL,GSA,GSV,RMC,VTG

GPS Output Data

Support Baud rate 4800/9600/…./115200 bps (default 4800),
Data bit:8,Stop bit:1, No parity.

Update Rata

1Hz(default)

Protocol Support NMEA-0183

1PPS Enable(1Hz pulse 10% duty cycle)
Limitations (Follow MTK chip specification)

Acceleration Limit ＜4G
Altitude Limit ＜18000 meters
Velocity Limit ＜515 M/sec
Jerk Limit 20 M/sec3
Power

Operation Current Acquisition:65 mA@3.3V
Operation Current Tracking:＜35mA@3.3V

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

VCC 3.0~5.0V

DC Input Range

VBAT 3.0~5.0V

Processing Core

Processor Type ARM7EJ-S
Processor Speeds
Integrated program

Flash
Interface CMOS 2.8 V Level
Temp erature

Operating Temperature

Storage Temperature -40 to +85 .

Operating Humidity 5% to 95%, No n condensing

Physical

Dimension

Weight

48 MHz
4 MHz

-40 to +85 .

25.4 * 25.4 * 3 mm .
3g.

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

3. Mechanical Dimension

3.1 Mechanical Dimension

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

4. Package

4.1 Packing

Tray dimension : 370*312*15mm，Standard Content Qty : 50 pcs.

Carton dimension : 370*312*15mm ，Standard Content Qty : 1,000 pcs。

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

4.2 Reference Product photo

Top side :

Bottom side

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

5. User Interface

M-89 provides 2-wire digital UART port for communication of GPS position data
using NMEA protocol or MTK extension protocol. UART port is capable of 4800 to
115200 baud rate.

5.1 Protocol

M-89 is default to support standard NMEA-0183 protocol. In addition, a series of
MTK extensions (PMTK messages) have been developed that can be used to provide
extended capabilities common to many applications.

5.2 NMEA Protocol

M-89 is capable of supporting following NMEA formats:

NMEA RECORD Description

GGA GPS fix data

GLL Geographic

GSA GNSS DOP and active satellite

GSV GNSS Satellites in view

RMC Recommended minimum specific GNSS data

VTG Course Over Ground and Ground Speed

ZDA Time&Data

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

5.3 MTK NMEA Packet Format

Preamble TalkerID PktType Datafield * CHK1 CHK2 CR LF

Maximum packet length is restricted to 255 bytes

Field Length Type D

Preamble 1 byte Character “$”

TalkerID 4 byte Character string “PMTK”

“000”to “999”, an identifier

PktType 3 byte Character string

DataField Variable

* 1 byte Character

CHK1

2 byte Character string

CHK2

CR, LF 2 byte Binary data

used to tell the decoder how to
decode the packet

“, ”must be inserted ahead
each data filed to help the decoder
process the Data Field

The star symbol is used to mark

the end of Data Field

checksum of the data between
Preamble “, ”and “*”

used to identify the end of a
packet

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

M-89 Engine Board

RS232 Interface

RF_IN

GPS Module series THE PRO NAME IN GPS

6. Reference design

6.1 Reference circuit

Fig A-1 is M-89 connects to RS-232 transceiver solutions intended for

portable or hand-held applications such as notebook and palmtop computers.

VCC

R1

100K-R0402

J1

1
2

SIP2P\2.54

BT1
BAT

R2
470-R0402

J3

MCX-JACK-180

RF_IN

J5

DB9 female

C0402B104KP

1
6
2
7
3
8
4
9
5

R4

10-R0603

19

12

C6

12
12

UART_TX1

UART_RX1

VCC

C5104P

3

V+

C4104P

7

V-

17

T1_232

8

T2_232

16

R1_232

9

R2_232

11

INVALID

18

GND

C1+

C2+

T1_TTL

T2_TTL
R1_TTL
R2_TTL

OFF

C1-

C2-

EN

ON

VCC_IN

U4SP3223EEA-SSOP20

C3104P

2

12

4

C2104P

5

12
6
13

12
15
10

1
14
20

10uF/10V-C3216+

R19

10K-R0402

12

12

VCC_IN

C1

D1
RED-0603

R3
240-R0402

+

1

VCC

2

GND1

3

BOOTSEL

4

RXA

5

TXA

6

TXB

7

RXB

8

GPIO0

9

RF_ON

10

GND2

11

AGND1

12

AGND2

13

AGND3

14

AGND4
AGND515AGND6

Y1

GND3

PPS
GPIO6
GPIO5
GPIO4
GPIO3
GPIO2
GPIO1

nRESET

VBAT

VCC_RF_O

V_ANT_I

AGND7

RFIN

M-89 Engine Board

30
29
28
27
26
25
24
23
22
21

20
19
18
17
16

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

6.2 Reference PCB pattern

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw

M-89

GPS Module series THE PRO NAME IN GPS

6.3 Recommendation reflow profile

1. We strongly recommend that this module should be designed to mount
on top side of motherboard with main chip together which process the
final reflow.

2. The maximum frequency of this module to pass reflow process should
be no more than twice, including repair operation , otherwise it may
cause side effect to the performance.

3. Below is the recommend reflow profile referred to Main chip MT3318.

HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[e-mail] http:www.holux.com.tw
