HOLUX M-1200A Bluetooth GPS Receiver User’s Manual
M-1200A
Bluetooth GPS Receiver
07,2007
Rev.A
HOLUX Technology Inc.
1F, No. 30, R&D Rd. II, HsinChu City 300, Science-based Industrial Park, Taiwan
TEL: 886-3-6687000 FAX: 886-3-6687111
Website: www.holux.com
All Right Reserved
User’s Guide
HOLUX M-1200A Bluetooth GPS Receiver Manual
2
Table of Contents
TABLE OF CONTENTS ..................................................................................................2
1. OVERVIEW ..............................................................................................................3
2. PACKING LIST ........................................................................................................4
3. MAIN FEATURES ....................................................................................................5
4.1. BASIC SPECIFICATION..........................................................................................6
4.2. ACQUISITION TIME ...............................................................................................6
4.3. RECEIVER ACCURACY..........................................................................................6
4.4. USE LIMITATION...................................................................................................6
4.5. POWER SUPPLY...................................................................................................6
4.6. OUTPUT AND INTERFACE ......................................................................................6
4.7. PHYSICAL ...........................................................................................................7
4.8. OTHER FUNCTIONS ..............................................................................................7
5. GETTING STARTED................................................................................................8
5.1. HARDWARE DESCRIPTION ....................................................................................9
5.2. BLUETOOTH DEVICE CONNECTION INSTALLATION..................................................12
5.3. INSTALLATION OF MINI GPS VIEWER PROGRAM ...................................................13
5.4. EXECUTE THE MINI GPS VIEWER PROGRAM ........................................................13

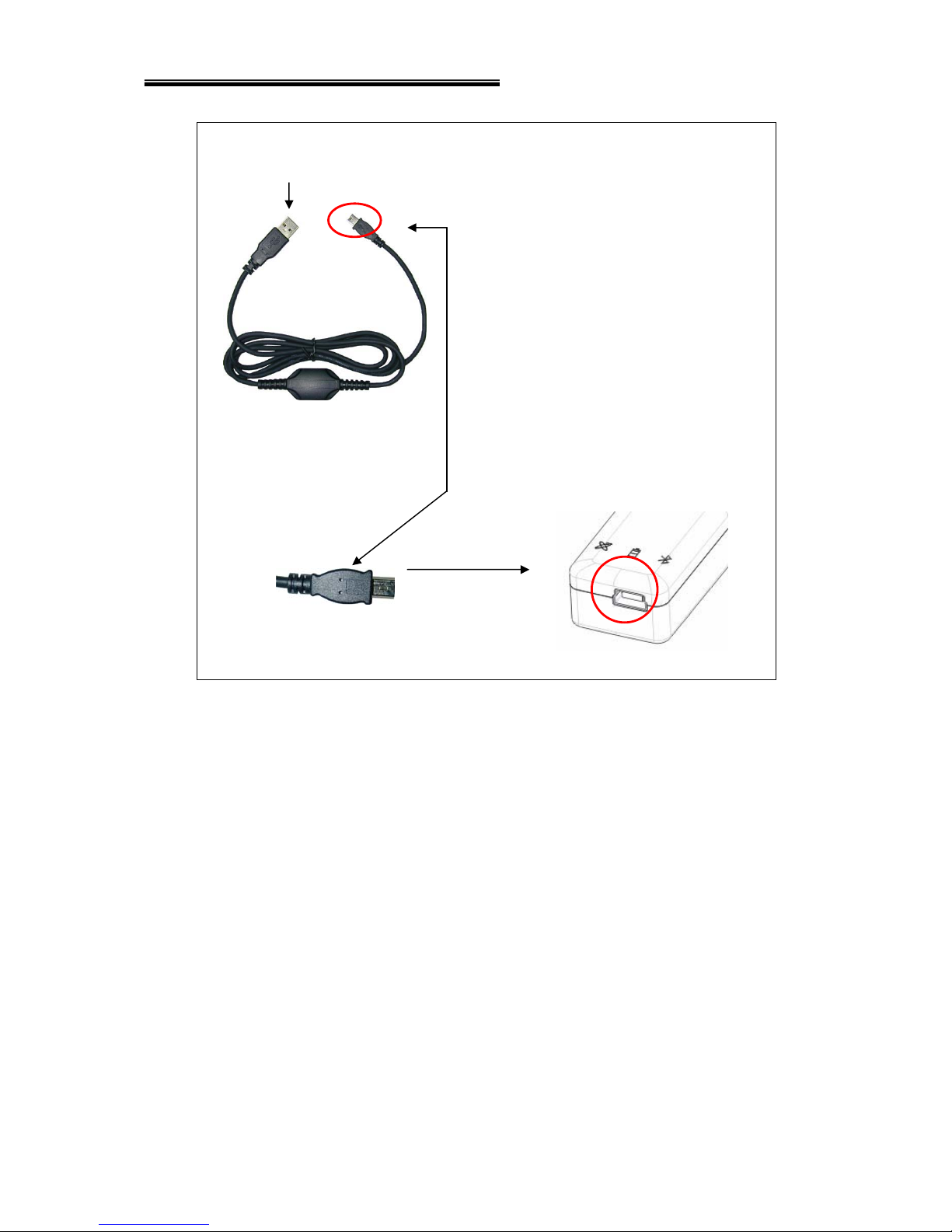

6. OPTIONAL CABLE ACCESSORY ........................................................................15
7. DRIVER INSTALLATION.......................................................................................15
7.1 SYSTEM REQUIREMENT......................................................................................15
7.2 INSTALLATION....................................................................................................15
7.3 IMPORTANT .......................................................................................................15
8. WARRANTY...........................................................................................................16
9. TROUBLESHOOTING ...........................................................................................17
Federal Communications Commission (FCC) Statement…………………………...18
HOLUX M-1200A Bluetooth GPS Receiver Manual
3
1. Overview
(Fig.1)
The HOLUX M-1200A Bluetooth GPS Receiver (Fig. 1) is a total solution GPS
receiver with Bluetooth, UART interface and built-in rechargeable battery for high
sensitivity to tracking signal. M-1200A design is based on MediaTek Inc.(MTK) GPS
solution-MT3318 low power Architecture.
M-1200A is a dual-function GPS receiver. Not only transmit satellite information
through the PDA or Notebook by Bluetooth interfaces but also is a G-Mouse GPS
receiver through a HOLUX designed data cable (Optional cable, see chapter 6 ) to
deliver satellite signal to the device without Bluetooth interface.
M-1200A meets the requirement of field application, such as car navigation,
mapping, agriculture surveying and security use under clear view of sky. M-1200A
contacts to other device through Bluetooth interface, and built-in rechargeable Li-ion
battery to save satellite information such as the status of satellite signal, the previous
available location, date and time.
With the advanced technology, M-1200A can track up to 32 satellites
simultaneously, re-acquires satellite signals in 0.1 microsecond and updates position
data per second.
HOLUX M-1200A Bluetooth GPS Receiver Manual
4
2. Packing List
Thank you for purchasing the M-1200A Bluetooth GPS Receiver. Before you start,
make sure that the following items are included in your package. If any of these items are
missing, please contact your original local HOLUX dealer or distributor.
z M-1200A Bluetooth GPS receiver 1 Set
z Car Cigarette adapter 1 Set
z User guide and Driver CD 1 Pcs
z M-1200A Quick Guide 1 Pcs
z Warranty card 1 Pcs
Option
z Travel power supply 1 Set
z HOLUX USB data cable 1 Set
HOLUX M-1200A Bluetooth GPS Receiver Manual
5
3. Main features
z Built in MTK MT3318 Low power consumption GPS chipset.
z 32 parallel satellite-tracking channels for fast acquisition and reacquisition.
z Superior sensitivity up to -159 dBm.
z Built-in WAAS/EGNOS Demodulator without any additional hardware.
z Compatible with Bluetooth Serial Port Profile (SPP) completely.
z Low power consumption. Built-in rechargeable and changeable Lithium-ion
battery, the working time can last 15 hours maximum.
z Provide expand terminal contact to other system without Bluetooth device.
z Support NMEA0183 V 3.01 data protocol
z 3 color-LEDs indicate to show the status of device.
z FLASH based program memory. New software revisions upgradeable through
serial interface.
z Small, sleek, and lightweight design easily fits in your hand.
z Over-Temperature protection
z Enhanced algorithms -SnapLock and SnapStart provide superior navigation,
performance in urban, canyon and foliage environments.
z For Car navigation, Marine navigation, Fleet management, AVL, Personal
navigation, Tracking System, and Mapping device application.
HOLUX M-1200A Bluetooth GPS Receiver Manual
6
4.Technical Specification
4.1. Basic Specification
z Chipset：MTK MT3318 chipset.
z Channels： 32 parallel satellite-tracking channels.
z Frequency： 1575.42 MHz
z Receiver： L1, C/A code.
4.2. Acquisition Time (refer to MTK chip specification)
z Reacquisition： 0.1 second.
z Cold start： < 36 seconds.
z Warm start：< 33 seconds .
z Hot start： < 1 second
4.3. Receiver Accuracy
z Normal： < 3 meters CEP without SA.
z Enable EGNOS or WAAS：
Position: < 2.2 meters, horizontal 95% of time
< 5 meters, Vertical 95% of time
z Velocity： within 0.1 meters / second
z Time： 0.1 microsecond synchronized GPS time
4.4. Use Limitation
z Altitude： < 18,000 meters (60,000 feet)
z Velocity: ：< 515 meters/ second (1000Knots)
z Acceleration： 4 G.
z Jerk： 20 meters / second3, max
4.5. Power Supply
z External Voltage: 5V DC +/-5%
z Batteries：
Main Power: Built-in rechargeable Lithium-ion for system power.
z Working voltage: 40~50mA (Normal mode).
35mA (Power Saving).
z Auto Power Saving mode.
z Circuit protection on M-1200A when over-temperature condition 50℃ occurs.
4.6. Output and Interface
z Output
I. Output protocol
Baud Rate： 38400 bps
