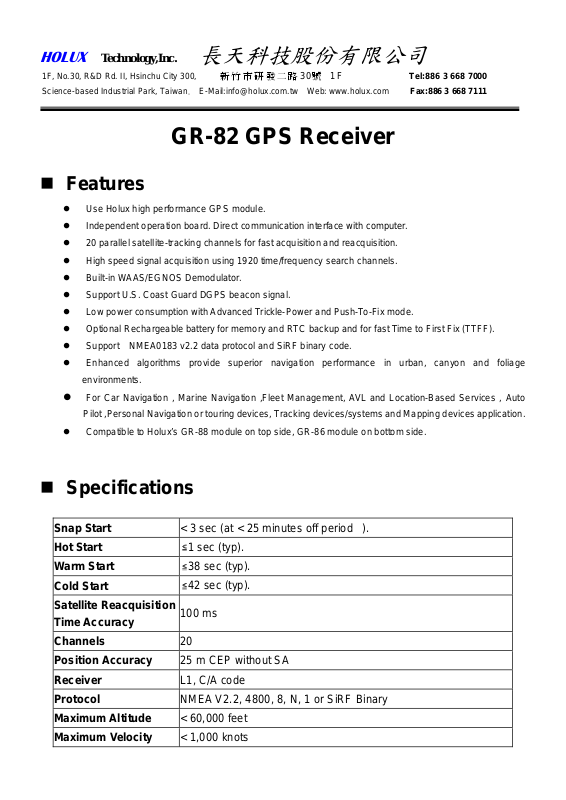

Features
z Use Holux high performance GPS module. z Independent operation board. Direct communication interface with computer. z 20 parallel satellite-tracking channels for fast acquisition and reacquisition. z High speed signal acquisition using 1920 time/frequency search channels. z Built-in WAAS/EGNOS Demodulator. z Support U.S. Coast Guard DGPS beacon signal. z Low power consumption with Advanced Trickle-Power and Push-To-Fix mode. z Optional Rechargeable battery for memory and RTC backup and for fast Time to First Fix (TTFF). z Support NMEA0183 v2.2 data protocol and SiRF binary code. z Enhanced algorithms provide superior navigation performance in urban, canyon and foliage
environments.
z For Car Navigation , Marine Navigation ,Fleet Management, AVL and Location-Based Services , Auto
Pilot ,Personal Navigation or touring devices, T racking device s/systems and Map ping device s application.
z Compatible to Holux’s GR-88 module on top side, GR-8 6 module on bottom side.
Specifications
Snap Start Hot Start Warm Start Cold Start Satellite Reacquisition
Time Accuracy
< 3 sec (at < 25 minutes off period ).
1 sec (typ). 38 sec (typ). 42 sec (typ).
100 ms
Channels Position Accuracy Receiver Protocol Maximum Altitude Maximum V e locity
20 25 m CEP without SA L1, C/A code NMEA V2.2, 4800, 8, N, 1 or SiRF Binary < 60,000 feet < 1,000 knots
Page 2
HOLUX
1F, No.30, R&D Rd. II, Hsinchu City 300, 新竹市研發二路30號 1F Tel:886 3 668 7000 Science-based Industrial Park, Taiwan. E-Mail:[email protected] Web: www.holux.com Fax:886 3 668 7111
Technology,Inc.
長天科技股份有限公司
Max. Update Rate RF Connector Dimension Weight Firmware Upgrade Time Mark Operating
Temperature Storage Temperature Operating Humidity
1 Hz MMCX, MCX or SMA 40(W) x 50 (L) x 13.5 (H) (mm) (The height of pin is included) 9 g Flash EPROM field programming software available Output 1 pulse/sec, aligned with GPS time +-0.1 usec
-10 to +60 degree C
-20 to +70 degree C 5% to 95%, no condensing
Electrical specifications:
Less than 75 mA without antenna。
Electrical Output specification:
z Interface
1、 RS-232 2、 CMOS 3V 3、 5 GPIO
z NMEA output protocol:
Baud rate: 4800 bps Data bit: 8 Parity: N Stop bit: 1 Output format: GGA, GSA, GSV, MC.(VTG , GLL, RMS option)
z Output terminal and definition
20-pin header (2.0 mm pitch)
Page 3
HOLUX
1F, No.30, R&D Rd. II, Hsinchu City 300, 新竹市研發二路30號 1F Tel:886 3 668 7000 Science-based Industrial Park, Taiwan. E-Mail:[email protected] Web: www.holux.com Fax:886 3 668 7111
Technology,Inc.
長天科技股份有限公司

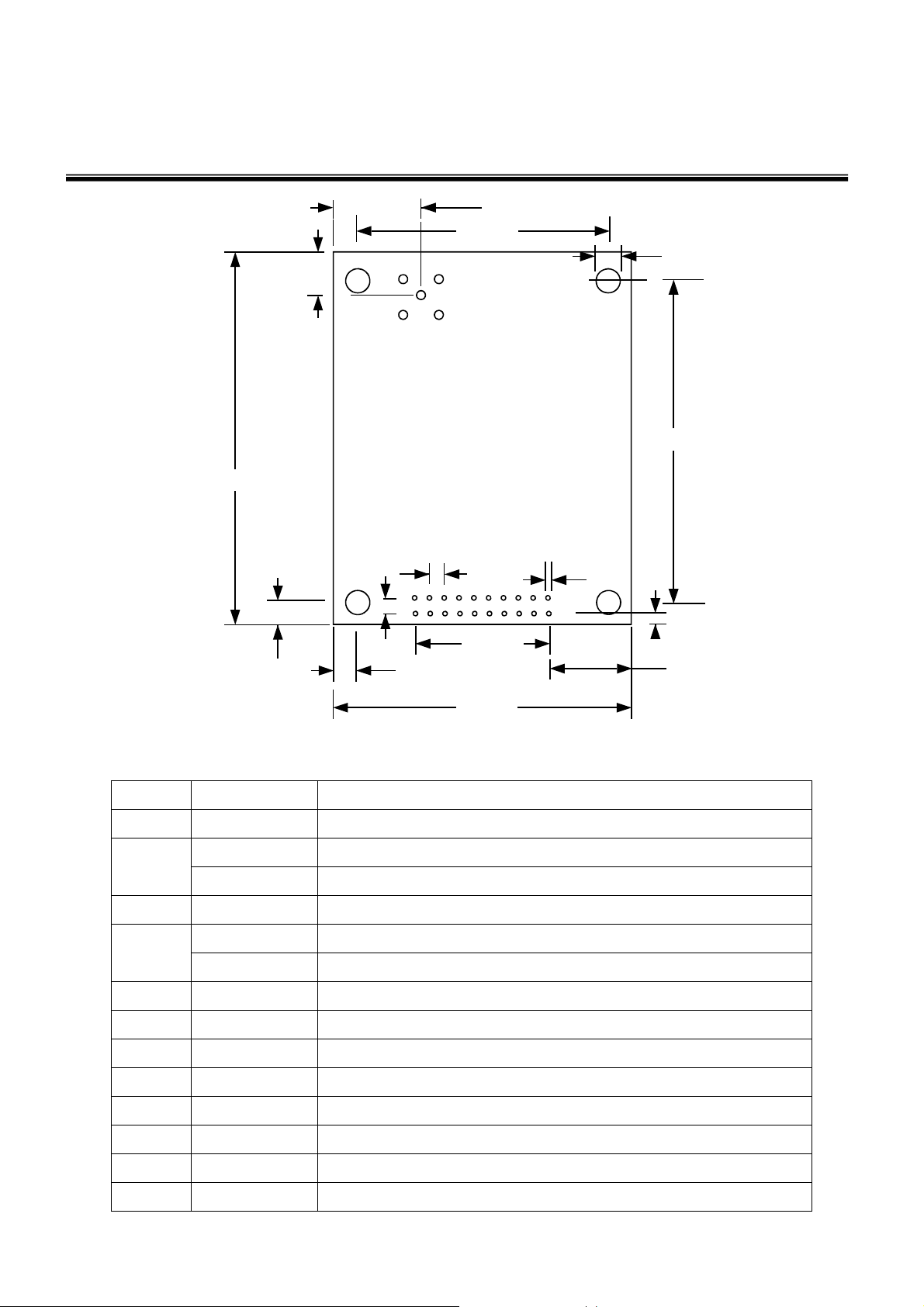

11.8 mm.
34.0 mm.
3.6 mm.
5.8 mm.
43.5 mm.
50.0 mm.
2.0 mm.
2 1
2.0 mm.
3.25 mm.
3.0 mm.
18.0 mm.
40.0 mm.
J4, 20-pin connector (2 mm pitch) pin definition
Pin Pin Name Function description
1 2
3 4
5
NC
VCC_5V
NC NC NC
VCC_3V nRESET
No function +3.3 ~ +5V DC power input for -5 model No function for -3 model No function No function for -5 model regulated 3V power input for -3 model Reset input, active low
0.8 mm.
20 19
1.5 mm.
11.0 mm.
6 7 8 9
10
11
12
GPIO1 GPIO2 GPIO3 GPIO4
GND
TXA
RXA
General purpose I/O pin General purpose I/O pin General purpose I/O pin General purpose I/O pin, LED flash when tracking Ground Serial Data output A Serial Data input A
Page 4
HOLUX
1F, No.30, R&D Rd. II, Hsinchu City 300, 新竹市研發二路30號 1F Tel:886 3 668 7000 Science-based Industrial Park, Taiwan. E-Mail:[email protected] Web: www.holux.com Fax:886 3 668 7111
Technology,Inc.
長天科技股份有限公司
13
GND
Ground
14 15 16 17
18 19 20
TXB RXB GND
GPIO5
GND
TIMEMARK
NC
Serial Data output B Serial Data input B Ground General purpose I/O pin, BOOT_SEL, Reserved for re-programming flash. Ground 1 PPS time mark output
No function
J7, 3-pin connector (2.54 mm pitch) pin definition, for TEST board only
Pin Pin Name Function description
1 2 3
TXDA RXDA
GND
Serial Data output A, RS-232 Serial Data input A, RS-232 Ground
J8, 3-pin connector (2.54 mm pitch) pin definition, for TEST board only
Pin Pin Name Function description
1 2 3
TXDB RXDB
GND
Serial Data output B, RS-232 Serial Data input B, RS-232 Ground
J10, 2-pin connector (2.54 mm pitch)
BOOT Selection. Short these two pins at power on stage will set CPU into boot mode. Used for flash program update.
Page 5
HOLUX
1F, No.30, R&D Rd. II, Hsinchu City 300, 新竹市研發二路30號 1F Tel:886 3 668 7000 Science-based Industrial Park, Taiwan. E-Mail:[email protected] Web: www.holux.com Fax:886 3 668 7111
Technology,Inc.
長天科技股份有限公司
Products Classification
Selection Guide
The following options are for the GPS module used, connector signal level, DB9 connector, backup battery , RF signal connector and input voltage.
Ordering Information
Output
Model No.
RS-232
GR-82-A0M-5-A Y GR-82-A0M-3-A Y GR-82-A0X-5-A Y - 3.3~5 2.85 - Y ­GR-82-A0X-3-A Y GR-82-A0A-5-A Y GR-82-A0A-3-A Y GR-82-T0M-5-A GR-82-T0M-3-A GR-82-T0X-5-A - Y 3.3~5 2.85 - Y ­GR-82-T0X-3-A GR-82-T0A-5-A GR-82-T0A-3-A
Level
CMOS 3V Volt. Volt MMCX
-
-
-
-
-
-
-
-
-
-
Y 3.3~5 2.85 Y - ­Y 3.3 2.85 Y - -
Y 3.3 2.85 - Y ­Y 3.3~5 2.85 - - Y Y 3.3 2.85 - - Y
Input
Voltage
3.3~5 2.85 Y - -
3.3 2.85 Y - -
3.3 2.85 - Y -
3.3~5 2.85 - - Y
3.3 2.85 - - Y
RF Connector
Output Voltage
180 Degree
Connector
Type MCX
180 Degree
SMA
90 Degree
GR-82-A0M-5-B Y GR-82-A0M-3-B Y GR-82-A0X-5-B Y - 3.3~5 VCC_IN - Y ­GR-82-A0X-3-B Y GR-82-A0A-5-B Y GR-82-A0A-3-B Y GR-82-T0M-5-B GR-82-T0M-3-B GR-82-T0X-5-B - Y 3.3~5 VCC_IN - Y ­GR-82-T0X-3-B GR-82-T0A-5-B GR-82-T0A-3-B
-
-
-
-
-
-
-
-
-
-
Y 3.3~5 VCC_IN Y - ­Y 3.3 VCC_IN Y - -
Y 3.3 VCC_IN - Y ­Y 3.3~5 VCC_IN - - Y Y 3.3 VCC_IN - - Y
3.3~5 VCC_IN Y - -
3.3 VCC_IN Y - -
3.3 VCC_IN - Y -
3.3~5 VCC_IN - - Y
3.3 VCC_IN - - Y
Page 6
HOLUX
1F, No.30, R&D Rd. II, Hsinchu City 300, 新竹市研發二路30號 1F Tel:886 3 668 7000 Science-based Industrial Park, Taiwan. E-Mail:[email protected] Web: www.holux.com Fax:886 3 668 7111
Technology,Inc.
長天科技股份有限公司
GR-82 - A 0 M - 5 - A
Output Level Connector Type Input Voltage RF Output Voltage
A= RS-232 T=CMOS 3V
M=MMCX 180 degree X=MCX 180 degree A=SMA 90 degree
Accessories
Active antenna with connector and 26 dB gain.
Part No.
68001-02 Y - - - Y ­68001-00 - Y - - Y ­68001-04 Y - - - - Y 68001-08 - Y - - - Y 68012-00 Y - - Y - ­68012-10 - Y - Y - ­68011-00 Y - Y - - -
Cable length Connector
2 M 5M MMCX-90 MMCX-180 MCX SMA
5=3.3 ~ 5 V 3=3.3 V
A=3V B=VCC_IN
68011-10 - Y Y - - -
