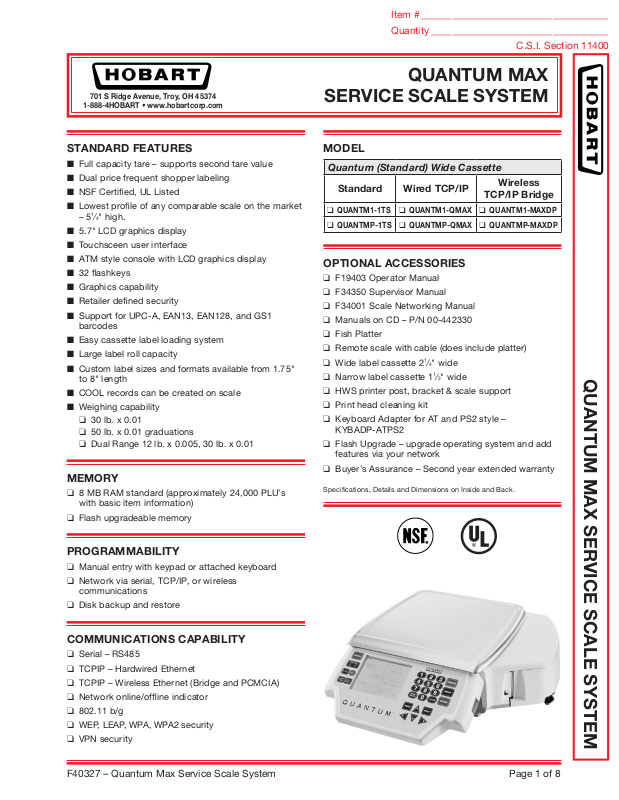

Hobart QUANTM1-1TS User Manual

Download

Page 1

Item # _____________________________________ Quantity ___________________________________

C.S.I. Section 11400

QUANTUM MAX

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

STANDARD FEATURES

■ Full capacity tare – supports second tare value

■ Dual price frequent shopper labeling

■ NSF Certied, UL Listed

■ Lowest prole of any comparable scale on the market

– 51⁄4" high.

■ 5.7" LCD graphics display

■ Touchsceen user interface

■ ATM style console with LCD graphics display

■ 32 ashkeys

■ Graphics capability

■ Retailer dened security

■ Support for UPC-A, EAN13, EAN128, and GS1

barcodes

■ Easy cassette label loading system

■ Large label roll capacity

■ Custom label sizes and formats available from 1.75"

to 8" length

■ COOL records can be created on scale

■ Weighing capability

❑ 30 lb. x 0.01 ❑ 50 lb. x 0.01 graduations ❑ Dual Range 12 lb. x 0.005, 30 lb. x 0.01

MEMORY

❑ 8 MB RAM standard (approximately 24,000 PLU’s

with basic item information)

❑ Flash upgradeable memory

SERVICE SCALE SYSTEM

MODEL

Quantum (Standard) Wide Cassette

Standard Wired TCP/IP

❑

QUANTM1-1TS❑ QUANTM1-QMAX❑ QUANTM1-MAXDP

❑

QUANTMP-1TS❑ QUANTMP-QMAX❑ QUANTMP-MAXDP

OPTIONAL ACCESSORIES

❑ F19403 Operator Manual ❑ F34350 Supervisor Manual ❑ F34001 Scale Networking Manual ❑ Manuals on CD – P/N 00-442330 ❑ Fish Platter ❑ Remote scale with cable (does include platter) ❑ Wide label cassette 21⁄4" wide ❑ Narrow label cassette 11⁄2" wide ❑ HWS printer post, bracket & scale support ❑ Print head cleaning kit ❑ Keyboard Adapter for AT and PS2 style –

KYBADP-ATPS2

❑ Flash Upgrade – upgrade operating system and add

features via your network

❑ Buyer’s Assurance – Second year extended warranty

Specications, Details and Dimensions on Inside and Back.

Wireless

TCP/IP Bridge

QUANTUM MAX SERVICE SCALE SYSTEM

PROGRAMMABILITY

❑ Manual entry with keypad or attached keyboard ❑ Network via serial, TCP/IP, or wireless

communications

❑ Disk backup and restore

COMMUNICATIONS CAPABILITY

❑ Serial – RS485 ❑ TCPIP – Hardwired Ethernet ❑ TCPIP – Wireless Ethernet (Bridge and PCMCIA) ❑ Network online/ofine indicator ❑ 802.11 b/g ❑ WEP, LEAP, WPA, WPA2 security ❑ VPN security

F40327 – Quantum Max Service Scale System Page 1 of 8

Page 2

QUANTUM MAX SERVICE SCALE SYSTEM

QUANTUM FEATURES:

Lowest prole of any comparable scale on the market – 51⁄4” high.

OPERATOR’S CONSOLE

■ ATM style, 5.7" monochrome pivoting display: provides clear, concise graphic images which ensures best operator viewing.

■ All PLU data is displayed on screen: Product number, unit price, by count, weight, tare, shelf life, sell-by, best-before, packed-on, freeze-by, UPC#, net weight, total price, label type, label format, graphics, and customer marquee message for verication.

NOTICE: Fluorescent lamp in display panel contains a

small amount of mercury. Please dispose of according to local, state or federal laws.

■ Seven position screen adjustments ensure best viewing angle, avoid glare.

■ Retailer dened operator security is accessed by operator ID on the console.

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

■ Weigh types (modes of operation)

❑ Wait on a customer

❑ Prepackaged Products

❑ Print Multiple Labels

❑ Production Entry

❑ Accumulate Items

❑ Verify Fixed Weight

❑ Forced Price

❑ Forced Tare

■ Total Types

Total types allow the Retailer/ Supervisor to audit and

track ALL Totals types. PRODUCTION totals are permanently congured. In contrast, the Retailer/ Supervisor can congure additional total types required for your operation. Examples:

❑ AD ITEMS

❑ CUTTING TEST

■ Touchscreen navigation of functions makes menu selections access with ease. The functions accelerates product look-up and enables swift selection of operator ID and retailer dened macros.

SUPERIOR OPERATOR FUNCTIONS

■ Help key – Quantum is equipped with context sensitive HELP-Key functions to assist in quick, efcient scale operation.

■ Flash keys – Allow easy access to PLU Search and Entry.

❑ Maximum (32) FLASH KEYS displayed per screen at

one time.

❑ Unlimited multiple screens can be programmed to

Mirror your display case.

❑ RE-WRAPS

❑ MANAGER’S SPECIAL

❑ NEW ITEMS

❑ COUPON ITEMS

❑ MARK DOWNS – MARK UPS

Class totals track product categories. Hourly totals can

assist in scheduling Operator ID. Totals track operator productivity.

Page 2 of 8 F40327 – Quantum Max Service Scale System

Page 3

QUANTUM MAX

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

MEMORY CAPACITY

■ 8 MB RAM standard memory (approximately 24,000 PLU’s with basic item information)

■ Flash upgradeable memory.

■ Battery back-up for memory retention for up to 100

hours.

MEMORY PROGRAMMING FORMATS

■ Through the external IBM XT/AT/PS2 type computer keyboard, or

■ IntraNet – Intradepartment Network. Allows high speed programming to be performed by connecting the data of all scales in the department through a Client Server arrangement.

■ Mini Net allows programming to be performed by each department on its own individual network.

■ Disk Player Recorder or External Disk Drive le transfer.

DISK PLAYER RECORDER

SERVICE SCALE SYSTEM

ITEM FILE INFORMATION STORED IN MEMORY

■ PLU number – 1 to 6 Digits

■ UPC Numbering Systems

❑ 2 & 4 Random Price

❑ 0, 6, & 7 Fixed Price

■ UPC Number – 1 to 10 Digits

■ Portrait Description – UP TO 2,000 Characters

■ Landscaped Description – UP TO 2,000 Characters

■ Special Message – up to 2,000 Characters

■ Portrait Expanded Text – UP TO 2,000 Characters

■ Landscaped Expanded Text – UP TO 2,000 characters

■ FDA Nutri-Data Template

■ Tare – Maximum of 30.09 lbs.

■ Shelf Life – UP TO 997 Days

■ Product Life – UP TO 997 Days

■ Information Tracker provides the supervisor information.

■ Any price or tare change is recorded by PLU, date and

Operator ID.

■ Class/Category Number 1 to 6 Digits

■ Graphic – 1 Graphic per PLU code

■ Graphic – 1 Graphic logo per store

■ Label Type – Assigned by PLU by Retailer/Supervisor or

Operator for primary and secondary printer.

■ Marquee Messages

REAR CUSTOMER DISPLAY INCORPORATES MERCHANDISING DISPLAY

■ Four crisp, clear, bold marquee formats:

1. Permanent Message

2. Daily Message

3. Linked message by PLU – for cross merchandising

4. 24 – timed Daily messages – Capacity 8,760 messages per year or (1) different message per hour every day of the year!

SCROLL, FLASH, HOLD, BLINK!

■ Customize each message as it is displayed.

F40327 – Quantum Max Service Scale System Page 3 of 8

Page 4

QUANTUM MAX SERVICE SCALE SYSTEM

LABELS AND PRINTING OPTIONS:

■ LABELS

Cassette label loading system provides fast and

efcient change of label stock or easy label size change for merchandising exibility.

■ PRINTING

The Quantum thermal printhead requires no ink or

ribbon.

Preprinted labels may be printed with a customer logo

and/or other information.

When using blank labels, the Quantum can be set up

to print all of the necessary information including store logo.

Print elds available:

❑ Store Name & Address – 2 lines

❑ Bar Code – Portrait Top or Bottom

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

❑ Time

❑ Tare

❑ Operator ID

❑ Operator Name

❑ Special Message – UP TO 108 lines

❑ Merchandising Graphic

❑ Sell-by

❑ Packed-on

❑ Product Life

❑ Freeze-by

❑ Weight/Count

❑ Unit Price

❑ Total Price

❑ Store ID

❑ Bar Code – Landscaped Left or Right

❑ PLU Description – Up to 4 lines

❑ FDA Nutri-Data Template

❑ Expanded Text – Up to 108 lines

❑ Net Weight – (1/4' Format) in Ounces, Pounds or

Kilograms

❑ Customer Store Graphic Logo

■ NETWORKING

❑ Work with scale manegment software such as:

Plum, ADC, Interscale & Perisable solutions.

Page 4 of 8 F40327 – Quantum Max Service Scale System

Page 5

QUANTUM MAX

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

LANDSCAPE FORMAT

❑ 11⁄2" x 1"

❑ 11⁄2" x 2"

❑ 11⁄2" x 3"

❑ 11⁄2" x 31⁄2"

❑ 11⁄2" x 5"

❑ 11⁄2" x Continuous

❑ 21⁄4" x 1"

❑ 21⁄4" x 11⁄2"

❑ 21⁄4" x 13⁄4"

❑ 21⁄4" x 23⁄8"

❑ 21⁄4" x 3"

❑ 21⁄4" x 31⁄2"

SERVICE SCALE SYSTEM

LABELS & PRINTING OPTIONS

❑ 21⁄4" x 4"

❑ 21⁄4" x 41⁄2"

❑ 21⁄4" x 6"

❑ 21⁄4" x 61⁄2"

❑ 21⁄4" x 8"

❑ 21⁄4" x Continuous

F40327 – Quantum Max Service Scale System Page 5 of 8

Page 6

QUANTUM MAX SERVICE SCALE SYSTEM

LABELS & PRINTING OPTIONS

PORTRAIT FORMAT

❑ 11⁄2" x 1"

❑ 11⁄2" x 2"

❑ 11⁄2" x 3"

❑ 11⁄2" x 31⁄2"

❑ 11⁄2" x 5"

❑ 11⁄2" x Continuous

❑ 21⁄4" x 1"

❑ 21⁄4" x 11⁄2"

❑ 21⁄4" x 13⁄4"

❑ 21⁄4" x 23⁄8"

❑ 21⁄4" x 3"

❑ 21⁄4" x 31⁄2"

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

❑ 21⁄4" x 4"

❑ 21⁄4" x 41⁄2"

❑ 21⁄4" x 6"

❑ 21⁄4" x 61⁄2"

❑ 21⁄4" x 8"

❑ 21⁄4" x Continuous

Page 6 of 8 F40327 – Quantum Max Service Scale System

Page 7

QUANTUM MAX

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

LABELS & PRINTING OPTIONS

MERCHANDISING GRAPHICS

■ Design your own labels – We’ll create them!

SERVICE SCALE SYSTEM

FONTS

F40327 – Quantum Max Service Scale System Page 7 of 8

Page 8

QUANTUM MAX SERVICE SCALE SYSTEM

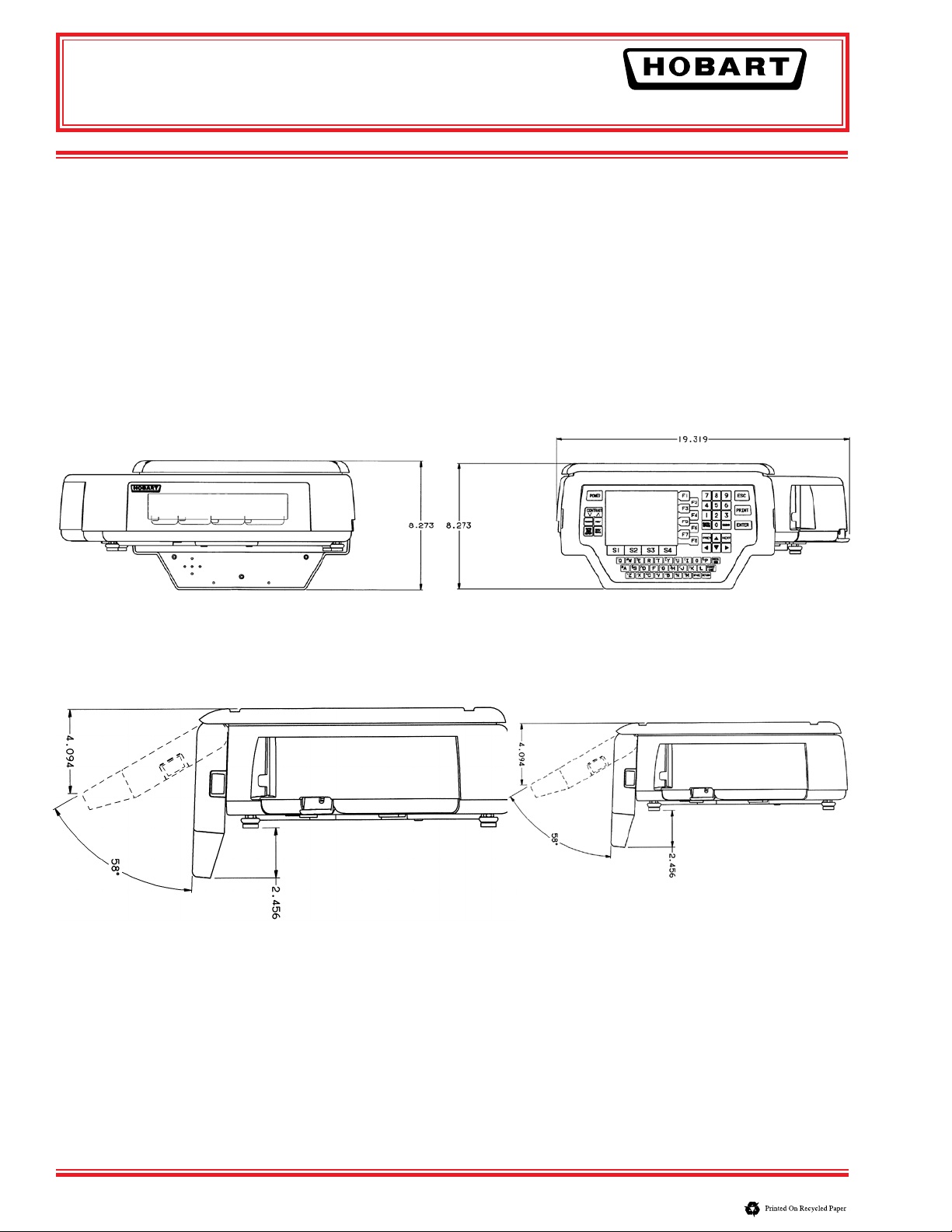

DETAILS AND DIMENSIONS

PLATTER: Stainless steel 14" wide x 15" deep

CAPACITY: 30 lb. x 0.01 Graduations Unit Price – $999.99,

Total Price – $999.99

ELECTRICAL: 120 volts, 60 Hz, single phase, 1.5 amps, 180 watts. 9 foot standard cord cap with ground type plug furnished. Battery back-up 100 hours.

WEIGHT: (Approximate) net 331⁄2 lbs., shipping 391⁄2 lbs.

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

NATIONWIDE SERVICE: Same day Hobart Service provided for your: Bakery, Deli, Seafood, Produce, Floral, Photo, Food Service, Sushi, Coffee, Juice Bar, Service Meat and other perishable departments enables you to serve your customers quickly.

As continued product improvement is a policy of Hobart, specications are subject to change without notice.
