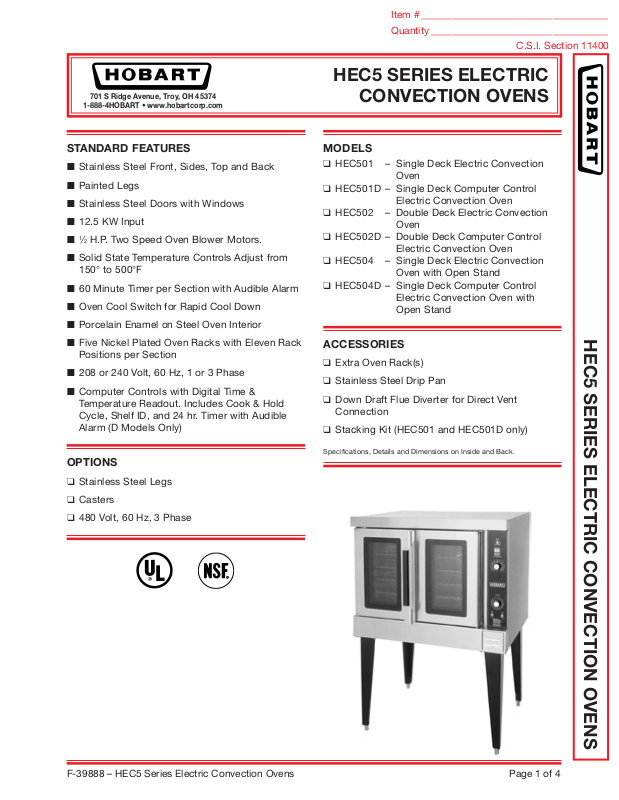

HEC5 SERIES ELECTRIC
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Stainless Steel Front, Sides, Top and Back
■ Painted Legs
■ Stainless Steel Doors with Windows
■ 12.5 KW Input
■ 1⁄2 H.P. Two Speed Oven Blower Motors.
■ Solid State Temperature Controls Adjust from
150° to 500°F
■ 60 Minute Timer per Section with Audible Alarm
■ Oven Cool Switch for Rapid Cool Down
■ Porcelain Enamel on Steel Oven Interior
■ Five Nickel Plated Oven Racks with Eleven Rack
Positions per Section
■ 208 or 240 Volt, 60 Hz, 1 or 3 Phase
■ Computer Controls with Digital Time &
Temperature Readout. Includes Cook & Hold
Cycle, Shelf ID, and 24 hr. Timer with Audible
Alarm (D Models Only)
CONVECTION OVENS
MODELS
❑ HEC501 – Single Deck Electric Convection
Oven
❑ HEC501D – Single Deck Computer Control
Electric Convection Oven
❑ HEC502 – Double Deck Electric Convection
Oven
❑ HEC502D – Double Deck Computer Control
Electric Convection Oven
❑ HEC504 – Single Deck Electric Convection
Oven with Open Stand
❑ HEC504D – Single Deck Computer Control
Electric Convection Oven with
Open Stand
HEC5 SERIES ELECTRIC CONVECTION OVENS
ACCESSORIES
❑ Extra Oven Rack(s)
❑ Stainless Steel Drip Pan
❑ Down Draft Flue Diverter for Direct Vent
Connection
❑ Stacking Kit (HEC501 and HEC501D only)
OPTIONS
❑ Stainless Steel Legs
❑ Casters
❑ 480 Volt, 60 Hz, 3 Phase
Specifications, Details and Dimensions on Inside and Back.
F-39888 – HEC5 Series Electric Convection Ovens Page 1 of 4
HEC5 SERIES ELECTRIC
CONVECTION OVENS
IMPORTANT
1. An adequate ventilation system is required for
commercial cooking equipment. Information may be
obtained by writing to the National Fire Protection
Association, Batterymarch Park, Quincy, MA 02289.
When writing, refer to NFPA No. 96.
2. This appliance is manufactured for commercial
installation only and is not intended for home use.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
MODEL NO. WIDTH
HEC501
HEC501D
HEC502
HEC502D
MODEL
NO.
HEC501
HEC501D
HEC502
HEC502D
40" 411⁄2" 563⁄4" 12.5 12.5 208 or 240/60/1 or 3 472
40" 411⁄2" 70" 12.5 25 208 or 240/60/1 or 3 1,180
TOTAL
CONN.
KW
12.5 4 4 4.5 35 33 35 33 29 33 14.4 15.3 15.3 60 52
25 8 8 9 70 66 70 66 58 66 28.8 30.6 30.6 120 104
DEPTH
(INCLUDES
HANDLES) HEIGHTKWPER OVEN
NOMINAL AMPS PER LINE WIRE
3 PHASE LOAD
KW PER PHASE
X-Y Y-Z X-Z X Y Z X Y Z X Y Z 208V 240V
TOTAL
KW ELECTRICAL
3 PHASE
APPROX.
SHP. WT.
LBS.
1 PHASE208 VOLT 240 VOLT 480 VOLT
Page 2 of 4 F-39888 – HEC5 Series Electric Convection Ovens
HEC5 SERIES ELECTRIC
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DETAILS AND DIMENSIONS
CONVECTION OVENS
F-39888 – HEC5 Series Electric Convection Ovens Page 3 of 4
Printed On Recycled Paper
HEC5 SERIES ELECTRIC
CONVECTION OVENS
SPECIFICATIONS
General: Electric convection oven. Basic section
(HEC5/HEC5D) is without legs; may be ordered
separately for replacement, for stacking 2-high or for
mounting on legs. HEC501/HEC501D single basic
section on 253⁄4" legs. HEC502/HEC502D two basic
HEC5/HEC5D sections on 8" legs.
Construction: Stainless steel front, sides, top and
back, painted legs. Porcelain enamel on steel oven
interior. Simultaneously operated stainles2s steel
doors with windows. Two interior oven lights per
section. Non-sag insulation applied to the top, rear,
sides, bottom and doors.
Oven interior measures 29"w x 221⁄8"d x 20"h. Five
nickel plated oven racks per section measure
281⁄4" x 201⁄2". Eleven position nickel plated rack
guides with positive rack stops per section.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Controls: Side mounted, solid-state temperature
controls adjust from 150° to 500°F. 60-minute timer
with audible alarm. Oven cool switch for rapid cool
down.
“D” models feature side-mounted computer controls
adjustable from 150° to 500°F, 24-hour timer with
audible alarm, six programmable preset buttons,
Cook & Hold and Shelf ID.
Electrical: One 1⁄2 H.P. two-speed oven blower-motor
per section. Rated power input is 12.5 KW per
section. 208 or 240 volts, 60 Hz, 1 or 3 phase.
IMPORTANT
WHEN ORDERING: The following must be specified:
1) Required voltage
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Page 4 of 4 F-39888 – HEC5 Series Electric Convection Ovens
F-39888 (REV. 05/07) LITHO IN U.S.A. (H-01)
