Hitachi X200-022S, X200-005S, X200-007N, X200-015N, X200-015L Instruction Manual

...
X200 Series Inverter Instruction Manual
x Single-phase Input 200V class x Three-phase Input 200V class x Three-phase Input 400V class
Hitachi Industrial Equipment Systems Co., Ltd.
Manual Number: NT301XC
Sep 2007
Keep it handy for future reference.
Safety Messages
For the best results with the X200 Series inverter, carefully read this manual and all of the warning labels attached to the inverter before installing and operating it, and follow the instructions exactly. Keep this manual handy for quick reference.
Definitions and Symbols
A safety instruction (message) includes a “Safety Alert Symbol” and a signal word or phrase such as WARNING or CAUTION. Each signal word has the following meaning:
H
IGH VOLTAGE: This symbol indicates high voltage. It calls your attention to items or operations that could be dangerous to you and other persons operating this equipment. Read the message and follow the instructions carefully.
W
ARNING: indicates a potentially hazardous situation that, if not avoided, can result in serious injury or death.
C
AUTION: Indicates a potentially hazardous situation that, if not avoided, can result in minor to moderate injury or serious damage to the product. The situation described in the C
AUTION may, if not avoided, lead to serious results. Important safety measures
are described in CAUTION (as well as WARNING), so be sure to observe them.
S
tep 1: Indicates a step in a series of action steps required to accomplish a goal. The
number of the step will be contained in the step symbol.
N
OTE: Notes indicates an area or subject of special merit, emphasizing either the
product’s capability or common errors in operation or maintenance.
T
IP: Tips give a special instruction that can save time or provide other benefits while installing or using the product. The tip calls attention to an idea that may not be obvious to first-time users of the product.
Hazardous High Voltage i
HIGH VOLTAGE: Motor control equipment and electronic controllers are connected to hazardous line voltages. When servicing drives and electronic controllers, there may be exposed components with housing or protrusions at or above line potential. Extreme care should be taken to protect against shock. Stand on an insulating pad and make it a habit to use only one hand when checking components. Always work with another person in case an emergency occurs. Disconnect power before checking controllers or performing maintenance. Be sure equipment is properly grounded. Wear safety glasses whenever working on electronic controllers or rotating machinery.
i
i
General Precautions – Read These First!
WARNING: This equipment should be installed, adjusted, and serviced by qualified electrical maintenance personnel familiar with the construction and operation of the equipment and the hazards involved. Failure to observe this precaution could result in bodily injury.
WARNING: The user is responsible for ensuring that all driven machinery, drive train mechanism not supplied by Hitachi Industrial Equipment Systems Co., Ltd., and process line material are capable of safe operation at an applied frequency of 150% of the maximum selected frequency range to the AC motor. Failure to do so can result in destruction of equipment and injury to personnel should a single-point failure occur.
WARNING: For equipment protection, install a ground leakage type breaker with a fast response circuit capable of handling large currents. The ground fault protection circuit is not designed to protect against personal injury.
WARNING: HAZARDOUS OF ELECTRICAL SHOCK. DISCONNECT INCOMING POWER BEFORE WORKING ON THIS CONTROL.
WARNING: Wait at least five (5) minutes after turning OFF the input power supply before performing maintenance or an inspection. Otherwise, there is the danger of electric shock.
CAUTION: These instructions should be read and clearly understood before working on X200 series equipment.
CAUTION: Proper grounds, disconnecting devices and other safety devices and their location are the responsibility of the user and are not provided by Hitachi Industrial Equipment Systems Co., Ltd.
CAUTION: Be sure to connect a motor thermal disconnect switch or overload device to the X200 series controller to assure that the inverter will shut down in the event of an overload or an overheated motor.
HIGH VOLTAGE: Dangerous voltage exists until power light is OFF. Wait at least five (5) minutes after input power is disconnected before performing maintenance.
WARNING: This equipment has high leakage current and must be permanently (fixed) hard-wire to earth ground via two independent cables.
ii
ii
WARNING: Rotating shafts and above-ground electrical potentials can be hazardous. Therefore, it is strongly recommended that all electrical work conform to the National Electrical Codes and local regulations. Installation, alignment and maintenance should be performed only by qualified personnel.
CAUTION: a) Class I motor must be connected to earth ground via low resistive path (<0.1:) b) Any motor used must be of a suitable rating. c) Motors may have hazardous moving path. In this event suitable protection must be
provided.
CAUTION: Alarm connection may contain hazardous live voltage even when inverter is disconnected. When removing the front cover for maintenance or inspection, confirm that incoming power for alarm connection is completely disconnected.
CAUTION: Hazardous (main) terminals for any interconnection (motor, contact breaker, filter, etc.) must be inaccessible in the final installation.
CAUTION: This equipment should be installed in IP54 or equivalent (see EN60529) enclosure. The end application must be in accordance with BS EN60204-1. Refer to the section “Choosing a Mounting Location” on page 2-9. The diagram dimensions are to be suitably amended for your application.
CAUTION: Connection to field wiring terminals must be reliably fixed having two independent means of mechanical support. Use a termination with cable support (figure below), or strain relief, cable clamp, etc.
CAUTION: A double-pole disconnection device must be fitted to the incoming main power supply close to the inverter. Additionally, a protection device meet IEC947-1/ IEC947-3 must be fitted at this point (protection device data shown in “Determining Wire and Fuse Sizes” on page 2-17).
NOTE: The above instructions, together with any other requirements highlighted in this manual, must be followed for continue LVD (European Low Voltage Directive) compliance.
iii
iii
Index to Warnings and Cautions in This Manual iv
Cautions and Warnings for Orientation and Mounting Procedures
HIGH VOLTAGE: Hazard of electrical shock. Disconnect incoming power before working on this control. Wait five (5) minutes before removing the front cover.
H
IGH VOLTAGE:Hazard of electrical shock. Never touch the naked PCB
(printed circuit board) portions while the unit is powered up. Even for switch portion, the inverter must be powered OFF before you change.
WARNING: In the cases below involving a general-purpose inverter, a large peak current can flow on the power supply side, sometimes destroying the converter module:
1. The unbalance factor of the power supply is 3% or higher.
2. The power supply capacity is at least 10 times greater than the inverter capacity (or the power supply capacity is 500kVA or more).
3. Abrupt power supply changes are expected, due to the conditions such as:
a. Several inverters are interconnected with a short bus. b. A thyristor converter and an inverter are interconnected with a short bus. c. An installed phase advance capacitor opens and closes.
C
AUTION: Be sure to install the unit on flame-resistant material such as a steel plate.
Otherwise, there is the danger of fire.
C
AUTION: Be sure not to place any flammable materials near the inverter. Otherwise,
there is the danger of fire.
C
AUTION: Be sure not to let the foreign matter enter vent openings in the inverter housing, such as wire clippings, spatter from welding, metal shavings, dust, etc. Otherwise, there is the danger of fire.
C
AUTION: Be sure to install the inverter in a place that can bear the weight according to the specifications in the text (Chapter 1, Specifications Tables). Otherwise, it may fall and cause injury to personnel.
C
AUTION: Be sure to install the unit on a perpendicular wall that is not subject to vibration. Otherwise, it may fall and cause injury to personnel.
C
AUTION: Be sure not to install or operate an inverter that is damaged or has missing parts. Otherwise, it may cause injury to personnel.
C
AUTION: Be sure to install the inverter in a well-ventilated room that does not have direct exposure to sunlight, a tendency for high temperature, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, grinding-fluid mist, salt damage, etc. Otherwise, there is the danger of fire.
C
AUTION: Be sure to maintain the specified clearance area around the inverter and to provide adequate ventilation. Otherwise, the inverter may overheat and cause equipment damage or fire.
…2-3
…2-4
…2-8
…2-9
…2-9
…2-9
…2-9
…2-9
…2-9
…2-9
…2-10
iv
iv
Wiring – Warnings for Electrical Practice and Wire Specifications
WARNING: “USE 60/75qC Cu wire only” or equivalent. For models X200-005S, -007S,
-011S, -022S, -007N, -015N, -015L, -022L, -037L, -055L, -075L.
WARNING: “USE 75qC Cu wire only” or equivalent. For models X200-002S, -004S, ­002N, -004N, -002L, -004L, -007L, -022H, -030H, -037H, -040H, -055H, -075H.
WARNING: “USE 60qC Cu wire only” or equivalent. For models X200-004H, -007H, and –015H.
W
ARNING: “Open Type Equipment.”
W
ARNING: “Suitable for use on a circuit capable of delivering not more than 100k rms symmetrical amperes, 240V maximum when protected by Class CC, G, J or R fuses or circuit breaker having an interrupting rating not les than 100,000 rms symmetrical amperes, 240 volts maximum”. For models with suffix S, N or L.
W
ARNING: “Suitable for use on a circuit capable of delivering not more than 100k rms symmetrical amperes, 480V maximum when protected by Class CC, G, J or R fuses or circuit breaker having an interrupting rating not les than 100,000 rms symmetrical amperes, 480 volts maximum.” For models with suffix H.
H
IGH VOLTAGE: Be sure to ground the unit. Otherwise, there is a danger of electric shock and/or fire.
H
IGH VOLTAGE: Wiring work shall be carried out only by qualified personnel. Otherwise, there is a danger of electric shock and/or fire.
H
IGH VOLTAGE: Implement wiring after checking that the power supply is OFF. Otherwise, you may incur electric shock and/or fire.
H
IGH VOLTAGE: Do not connect wiring to an inverter operate an inverter that is not mounted according to the instructions given in this manual. Otherwise, there is a danger of electric shock and/or injury to personnel.
W
ARNING: Make sure the input power to the inverter is OFF. If the drive has been powered, leave it OFF for five minutes before continuing.
C
AUTION: Power terminal assignment is different compared to old models such as
L100, L200 series, etc,. Pay attention when wiring the power cable.
…2-18
…2-18
…2-18
…2-18
…2-18
…2-18
…2-18
…2-18
…2-23
…2-11
~21
v
v
Wiring – Cautions for Electrical Practice
CAUTION: Fasten the screws with the specified fastening torque in the table below.
Check for any loosening of screws. Otherwise, there is the danger of fire.
2-18
CAUTION: Be sure that the input voltage matches the inverter specifications;
x Single phase 200V to 240V 50/60Hz (up to 2.2kW) for SFEF model
x Single/Three phase 200V to 240V 50/60Hz (up to 2.2kW) for NFU model
x Three phase 200V to 240V 50/60Hz (7.5kW) for LFU model
x Three phase 380V to 480V 50/60Hz (up to 7.5kW) for HFx model
2-20
CAUTION: Be sure not to power a three-phase-only inverter with single phase
power. Otherwise, there is the possibility of damage to the inverter and the danger
of fire.
2-20
CAUTION: Be sure not to connect an AC power supply to the output terminals.
Otherwise, there is the possibility of damage to the inverter and the danger of
injury and/or fire.
2-20
vi
Power Input
Output to Motor
X200 Inverter
vi
CAUTION: Remarks for using ground fault interrupter breakers in the main power
supply: Adjustable frequency inverter with integrated CE-filters and shielded
(screened) motor cables have a higher leakage current toward earth GND.
Especially at the moment of switching ON this can cause an inadvertent trip of
ground fault interrupters. Because of the rectifier on the input side of the inverter
there is the possibility to stall the switch-off function through small amounts of DC
current.
Please observe the following:
x Use only short time-invariant and pulse current-sensitive ground fault
interrupters with higher trigger current.
x Other components should be secured with separate ground fault interrupters.
x Ground fault interrupters in the power input wiring of an inverter are not an
absolute protection against electric shock.
2-20
CAUTION: Be sure to install a fuse in each phase of the main power supply to the
inverter. Otherwise, there is the danger of fire.
2-20
CAUTION: For motor leads, ground fault interrupter breakers and electromagnetic
contactors, be sure to size these components properly (each must have the capacity
for rated current and voltage). Otherwise, there is the danger of fire.
2-20
Powerup Test Caution Messages
CAUTION: The heat sink fins will have a high temperature. Be careful not to touch
them. Otherwise, there is the danger of getting burned.
2-23
CAUTION: The operation of the inverter can be easily changed from low speed to
high speed. Be sure to check the capability and limitations of the motor and
machine before operating the inverter. Otherwise, there is the danger of injury.
2-23
CAUTION: If you operate a motor at a frequency higher than the inverter standard
default setting (50Hz/60Hz), be sure to check the motor and machine specifications
with the respective manufacturer. Only operate the motor at elevated frequencies
after getting their approval. Otherwise, there is the danger of equipment damage
and/or injury.
2-232-29
CAUTION: Check the following before and during the Powerup test. Otherwise,
there is the danger of equipment damage.
x Is the shorting bar between the [+1] and [+] terminals installed? DO NOT power
or operate the inverter if the jumper is removed.
x Is the direction of the motor rotation correct?
x Did the inverter trip during acceleration or deceleration?
x Were the rpm and frequency meter readings as expected?
x Were there any abnormal motor vibration or noise?
2-23
vii
vii
Warnings for Configuring Drive Parameters
WARNING: When parameter B012, level of electronic thermal setting, is set to
motor FLA rating (Full Load Ampere nameplate rating), the inverter provides solid
state motor overload protection at 115% of motor FLA or equivalent. If parameter
B012 exceeds the motor FLA rating, the motor may overheat and damaged.
Parameter B012, level of electronic thermal setting, is a variable parameter.
3-34
Cautions for Configuring Drive Parameters
CAUTION: Be careful to avoid specifying a braking time that is long enough to
cause motor overheating. If you use DC braking, we recommend using a motor with
a built-in thermistor, and wiring it to the inverter’s thermistor input (see
“Thermistor Thermal Protection” on page 4-24). Also refer to the motor
manufacturer’s specifications for duty-cycle recommendations during DC braking.
3-19
HIGH VOLTAGE: When set RDY function ON, there will be a voltage appear at
motor output terminals U, V and W even if the motor is in stop mode. So never
touch the inverter power terminal even the motor is not running.
3-47
CAUTION: Do not change Debug mode for safety reasons. Otherwise unexpected
performances may occur.
3-62
Warnings for Operations and Monitoring
WARNING: Be sure to turn ON the input power supply only after closing the front
case. While the inverter is energized, be sure not to open the front case. Otherwise,
there is the danger of electric shock.
4-3
WARNING: Be sure not to operate electrical equipment with wet hands. Otherwise,
there is the danger of electric shock.
4-3
WARNING: While the inverter is energized, be sure not to touch the inverter
terminals even when the motor is stopped. Otherwise, there is the danger of electric
shock.
4-3
WARNING: If the retry mode is selected, the motor may suddenly restart after a
trip stop. Be sure to stop the inverter before approaching the machine (be sure to
design the machine so that safety for personnel is secure even if it restarts.)
Otherwise, it may cause injury to personnel.
4-3
WARNING: If the power supply is cut OFF for a short period of time, the inverter
may restart operating after the power supply recovers if the Run command is
active. If a restart may pose danger to personnel, so be sure to use a lock-out circuit
so that it will not restart after power recovery. Otherwise, it may cause injury to
personnel.
4-3
WARNING: The Stop Key is effective only when the stop function is enabled. Be
sure to enable the Stop Key separately from the emergency stop. Otherwise, it may
cause injury to personnel.
4-3
WARNING: During a trip event, if the alarm reset is applied and the Run command
is present, the inverter will automatically restart. Be sure to apply the alarm reset
only after verifying the Run command is OFF. Otherwise, it may cause injury to
personnel.
4-3
viii
viii
WARNING: Be sure not to touch the inside of the energized inverter or to put any
conductive object into it. Otherwise, there is a danger of electric shock and/or fire.
4-3
WARNING: If power is turned ON when the Run command is already active, the
motor will automatically start and injury may result. Before turning ON the power,
confirm that the RUN command is not present.
4-3
4-3
WARNING: When the Stop key function is disabled, pressing the Stop key does not
stop the inverter, nor will it reset a trip alarm.
WARNING: Be sure to provide a separate, hard-wired emergency stop switch when
the application warrants it.
4-3
WARNING: If the power is turned ON and the Run command is already active, the
motor starts rotation and is dangerous! Before turning power ON, confirm that the
Run command is not active.
4-11
WARNING: After the Reset command is given and the alarm reset occurs, the
motor will restart suddenly if the Run command is already active. Be sure to set the
alarm reset after verifying that the Run command is OFF to prevent injury to
personnel.
4-22
Cautions for Operations and Monitoring
CAUTION: The heat sink fins will have a high temperature. Be careful not to touch
them. Otherwise, there is the danger of getting burned.
4-2
CAUTION: The operation of the inverter can be easily changed from low speed to
high speed. Be sure to check the capability and limitations of the motor and
machine before operating the inverter. Otherwise, it may cause injury to personnel.
4-2
CAUTION: If you operate a motor at a frequency higher than the inverter standard
default setting (50Hz/60Hz), be sure to check the motor and machine specifications
with the respective manufacturer. Only operate the motor at elevated frequencies
after getting their approval. Otherwise, there is the danger of equipment damage.
4-2
CAUTION: It is possible to damage the inverter or other devices if your application
exceeds the maximum current or voltage characteristics of a connection point.
4-4
CAUTION: Be sure to turn OFF power to the inverter before changing the short
circuit bar position to change SR/SK. Otherwise, damage to the inverter circuitry
may occur.
4-8
CAUTION: Be careful not to turn PID clear ON and reset the integrator sum when
the inverter is in Run mode (output to motor is ON). Otherwise, this could cause the
motor to decelerate rapidly, resulting in a trip.
4-26
HIGH VOLTAGE: When set RDY function ON, there will be a voltage appear at
motor output terminals U, V and W even if the motor is in stop mode. So never
touch the inverter power terminal even the motor is not running.
4-31
HIGH VOLTAGE: Dangerous voltage exists even after the Emergency Stop is
activated. It does
NOT
mean that the main power has been removed.
4-32
ix
ix
Warnings and Cautions for Troubleshooting and Maintenance
WARNING: Wait at least five (5) minutes after turning OFF the input power supply
before performing maintenance or an inspection. Otherwise, there is the danger of
electric shock.
6-2
WARNING: Make sure that only qualified personnel will perform maintenance,
inspection, and part replacement. Before starting to work, remove any metallic
objects from your person (wristwatch, bracelet, etc.). Be sure to use tools with
insulated handles. Otherwise, there is a danger of electric shock and/or injury to
personnel.
6-2
WARNING: Never remove connectors by pulling on its wire leads (wires for cooling
fan and logic P.C.board). Otherwise, there is a danger of fire due to wire breakage
and/or injury to personnel.
6-2
CAUTION: Do not connect the megger to any control terminals such as intelligent
I/O, analog terminals, etc. Doing so could cause damage to the inverter.
6-10
CAUTION: Never test the withstand voltage (HIPOT) on the inverter. The inverter
has a surge protector between the main circuit terminals above and the chassis
ground.
6-10
CAUTION: Do not connect the megger to any control circuit terminals such as
intelligent I/O, analog terminals, etc. Doing so could cause damage to the inverter.
6-10
CAUTION: Never test the withstand voltage (HIPOT) on the inverter. The inverter
has a surge protector between the main circuit terminals above and the chassis
ground.
6-10
HIGH VOLTAGE: Be careful not to touch wiring or connector terminals when
working with the inverters and taking measurements. Be sure to place the
measurement circuitry components above in an insulated housing before using
them.
6-14
General Warnings and Cautions iv
WARNING: Never modify the unit. Otherwise, there is a danger of electric shock and/or injury.
CAUTION: Withstand voltage test and insulation resistance tests (HIPOT) are executed before the units are shipped, so there is no need to conduct these tests before operation.
CAUTION: Do not attach or remove wiring or connectors when power is applied. Also, do not check signals during operation.
CAUTION: Be sure to connect the grounding terminal to earth ground.
CAUTION: When inspecting the unit, be sure to wait five minutes after turning OFF the power supply before opening the cover.
x
x
CAUTION: Do not stop operation by switching OFF electromagnetic contactors on the primary or secondary side of the inverter.
When there has been a sudden power failure while an operation instruction is active, then the unit may restart operation automatically after the power failure has ended. If there is a possibility that such an occurrence may harm humans, then install an electromagnetic contactor (Mgo) on the power supply side, so that the circuit does not allow automatic restarting after the power supply recovers. If the optional remote operator is used and the retry function has been selected, this will also cause automatic restarting when a Run command is active. So, please be careful.
CAUTION: Do not insert leading power factor capacitors or surge absorbers between the output terminals of the inverter and motor.
When there has been a sudden power failure while an operation instruction is active, then the unit may restart operation automatically after the power failure has ended. If there is a possibility that such an occurrence may harm humans, then install an electromagnetic contactor (Mgo) on the power supply side, so that the circuit does not allow automatic restarting after the power supply recovers. If the optional remote operator is used and the retry function has been selected, this will also cause automatic restarting when a Run command is active. So, please be careful.
CAUTION: MOTOR TERMINAL SURGE VOLTAGE SUPPRESSION FILTER (For the 400V CLASS) In a system using an inverter with the voltage control PWM system, a voltage surge caused by the cable constants such as the cable length (especially when the distance between the motor and the inverter is 10m or more) and cabling method may occur at the motor terminals. A dedicated filter of the 400V class for suppressing this voltage surge is available. Be sure to install a filter in this situation.
Power
Input
Ground fault
interrupter
L1, L2, L3
Inverter
U, V, W
Motor
PCS
FW
Power
Input
Ground fault
interrupter
L1, L2, L3
Inverter
U, V, W
Motor
Surge absorber
Leading power factor capacitor
GND lug
xi
xi
CAUTION: EFFECTS OF POWER DISTRIBUTION SYSTEM ON INVERTER In the case below involving a general-purpose inverter, a large peak current can flow on the power supply side, sometimes destroying the converter module:
1. The unbalance factor of the power supply is 3% or higher.
2. the power supply capacity is at least 10 times greater than the inverter capacity (or the power supply capacity is 500kVA or more).
3. Abrupt power supply changes are expected, due to conditions such as:
a. Several inverters are interconnected with a short bus. b. A thyristor converter and an inverter are interconnected with a short bus. c. An installed phase advance capacitor opens and closes. Where these conditions exist or when the connected equipment must be highly reliable, you MUST install an input side AC-reactor of 3% (at a voltage drop at rated current) with respect to the supply voltage on the power supply side. Also, where the effects of an indirect lightening strike are possible, install a lightening conductor.
CAUTION: SUPPRESSION FOR NOISE INTERFERENCE FROM INVERTER The inverter uses many semiconductor switching elements such as transistors and IGBTs. Thus, a radio receiver or measuring instrument located near the inverter is susceptible to noise interference. To protect the instruments from erroneous operation due to noise interference, they should be used well away from the inverter. It is also effective to shield the whole inverter structure. The addition of an EMI filter on the input side of the inverter also reduces the effect of noise from the commercial power line on external devices. Note that the external dispersion of noise from the power line can be minimized by connecting an EMI filter on the primary side of the inverter.
x SFEF model has integrated filter complies to EN61800-3 category C1. x HFEF model has integrated filter complies to EN61800-3 category C2.
CAUTION: When the EEPROM error E08 occurs, be sure to confirm the setting values again.
CAUTION: When using
normally closed
active state settings (C011 to C015) for externally
commanded Forward or Reverse terminals [FW] or [RV], the inverter may start automatically
when the external system is powered OFF or disconnected from the inverter!
So do not use normally closed active state settings for Forward or Reverse terminals [FW] or [RV] unless your system design protects against unintended motor operation.
EMI Filter
R1
S1
T1
R2
S2
T2
Inverter
L1
L2
L3
U
V
W
Motor
Motor
EMI Filter Inverter
Remote
Operator
Completely ground the enclosure panel, metal screen, etc. with as short a wire as possible.
noise
Grounded frame
Conduit or shielded cable
-- to be grounded
xii
xii
CAUTION: In all the instrumentations in this manual, covers and safety devices are occasionally removed to describe the details. While operating the product, make sure that the covers and safety devices are placed as they were specified originally and operate it according to the instruction manual.
CAUTION: Do not discard the inverter with household waste. Contact an industrial waste management company in your area who can treat industrial waste without polling the environment.
UL Cautions, Warnings and Instructions xii
Warnings and Cautions for Troubleshooting and Maintenance
The warnings and instructions in this section summarizes the procedures necessary to ensure an inverter installation complies with Underwriters Laboratories
£
guidelines.
W
ARNING: “USE 60/75qC Cu wire only” or equivalent. For models X200-005S, -007S,
-011S, -022S, -007N, -015N, -015L, -022L, -037L, -055L, -075L.
WARNING: “USE 75qC Cu wire only” or equivalent. For models X200-002S, -004S, -002N, -004N,
-002L, -004L, -007L, -022H, -030H, -037H, -040H, -055H, 075H.
WARNING: “USE 60qC Cu wire only” or equivalent. For models X200-004H, -007H, and –015H.
WARNING: “Open Type Equipment”
WARNING: “Suitable for use on a circuit capable of delivering not more than 100k rms symmetrical amperes, 240V maximum when protected by Class CC, G, J or R fuses or circuit breaker having an interrupting rating not les than 100,000 rms symmetrical amperes, 240 volts maximum”. For models with suffix S, N or L.
WARNING: “Suitable for use on a circuit capable of delivering not more than 100k rms symmetrical amperes, 480V maximum when protected by Class CC, G, J or R fuses or circuit breaker having an interrupting rating not les than 100,000 rms symmetrical amperes, 480 volts maximum.” For models with suffix H.
WARNING: “Install device inn pollution degree 2 environment.”
WARNING: “Maximum Surrounding Air Temperature 50qC”. or equivalent.
WARNING: “Caution-Risk of electric shockcapacitor discharge time is at least 5 minutes.”
WARNING: “Solid state motor overload protection is provided in each model”.
WARNING: “Integral solid state short circuit protection does not provide branch circuit protection. Branch circuit protection must be provided in accordance with the National Electric Code and any additional local codes” or equivalent.
xiii
xiii
Terminal Tightening Torque and Wire Size
The wire size range and tightening torque for field wiring terminals are presented in the tables below.
Motor Output Torque
Input
Voltage
kW HP
Inverter Model
Power Terminal
Wiring Size
Range (AWG)
Ft-lbs (N-m)
0.2 1/4 X200-002SFEF/NFU
0.4 1/2 X200-004SFEF/NFU
0.6 0.8
0.55 3/4 X200-005SFEF
0.75 1 X200-007SFEF/NFU
14
(75qC only)
1.1 1 1/2 X200-011SFEF
1.5 2 X200-015SFEF/NFU
12
2.2 3 X200-022SFEF/NFU 10
0.9 1.2
3.7 5 X200-037LFU 12 0.9 1.2
5.5 7 1/2 X200-055LFU
200V
Class
7.5 10 X200-075LFU
8 1.5 2.0
0.4 1/2 X200-004HFEF/HFU
0.75 1 X200-007HFEF/HFU
1.5 2 X200-015HFEF/HFU
16
(60qC only)
2.2 3 X200-022HFEF/HFU
3.0 4 X200-030HFEF
4.0 5 X200-040HFEF/HFU
14
(75qC only)
0.9 1.2
5.5 7 1/2 X200-055HFEF/HFU
400V
Class
7.5 10 X200-075HFEF/HFU
10 1.5 2.0
Torque
Terminal Connector
Wiring Size
Range (AWG)
Ft-lbs (N-m)
Logic and Analog connectors 30 – 16 0.16 – 0.19 0.22 – 0.25 Relay connector 30 – 14 0.37 – 0.44 0.5 – 0.6
Wire Connectors
WARNING: Field wiring connections must be made by a UL Listed and CSA certified ring lug terminal connector sized for the wire gauge being used. The connector must be fixed using the crimping tool specified by the connector manufacturer.
Terminal (ring lug)
Cable support
Cable
xiv
xiv
Circuit Breaker and Fuse Sizes
The inverter’s connections to input power must include UL Listed inverse time circuit breakers with 600V rating, or UL Listed fuses as shown in the table below.
Input
Voltage
Inverter Model Circuit Breaker / Fuse Ratings (A)
X200-002SFEF/NFU X200-004SFEF/NFU X200-005SFEF
10
X200-007SFEF/NFU X200-011SFEF
15
X200-015SFEF/NFU 20 X200-022SFEF/NFU X200-037LFU
30
X200-055LFU 40
Single/
Three-
Phase
200V
X200-075LFU
Inverse time circuit Breaker
50 X200-004HFEF/HFU 3 X200-007HFEF/HFU 6
X200-015HFEF/HFU X200-022HFEF/HFU
10
X200-030HFEF X200-040HFEF/HFU
15
X200-055HFEF/HFU 20
Three-
Phase
400V
X200-075HFEF/HFU
Distribution Fuse (Class J)
25
Motor Overload Protection
Hitachi X200 inverters provide solid state motor overload protection, which depends on the proper setting of the following parameters:
x B012 “electronic overload protection” x B212 “electronic overload protection, 2nd motor”
Set the rated current [Amperes] of the motor(s) with the above parameters. The setting range is 0.2 * rated current to 1.0 * rated current.
W
ARNING: When two or more motors are connected to the inverter, they cannot be protected by the electronic overload protection. Install an external thermal relay on each motor.
xv
xv
Table of Contents
Safety Messages
Hazardous High Voltage...............................................................................................................i
General Precautions – Read These First! ................................................................................. ii
Index to Warnings and Cautions in This Manual ....................................................................iv
General Warnings and Cautions.................................................................................................x
UL Cautions, Warnings and Instructions .............................................................................. xiii
Circuit Breaker and Fuse Sizes................................................................................................xv
Table of Contents
Revisions ............................................................................................................................... xviii
Contact Information ................................................................................................................xix
Chapter 1: Getting Started
Introduction ............................................................................................................................ 1-2
X200 Inverter Specifications .................................................................................................. 1-5
Introduction to Variable-Frequency Drives ........................................................................ 1-19
Frequently Asked Questions ................................................................................................ 1-24
Chapter 2: Inverter Mounting and Installation
Orientation to Inverter Features ........................................................................................... 2-2
Basic System Description .......................................................................................................2-7
Step-by-Step Basic Installation ............................................................................................. 2-8
Powerup Test ......................................................................................................................... 2-24
Using the Front Panel Keypad ............................................................................................ 2-26
Chapter 3: Configuring Drive Parameters
Choosing a Programmable Device ......................................................................................... 3-2
Using the Keypad Devices ..................................................................................................... 3-3
“D” Group: Monitoring Functions .......................................................................................... 3-6
“F” Group: Main Profile Parameters ..................................................................................... 3-9
“A” Group: Standard Functions ........................................................................................... 3-10
“B” Group: Fine Tuning Functions ...................................................................................... 3-32
“C” Group: Intelligent Terminal Functions ......................................................................... 3-49
“H” Group: Motor Constants Functions .............................................................................. 3-65
xvi
xvi
Chapter 4: Operations and Monitoring
Introduction ............................................................................................................................ 4-2
Connecting to PLCs and Other Devices ................................................................................ 4-4
Control Logic Signal Specifications ....................................................................................... 4-6
Intelligent Terminal Listing ...................................................................................................4-7
Using Intelligent Input Terminals ........................................................................................ 4-8
Using Intelligent Output Terminals .................................................................................... 4-36
Analog Input Operation ....................................................................................................... 4-55
Analog Output Operation ..................................................................................................... 4-57
PID Loop Operation .............................................................................................................. 4-58
Configuring the Inverter for Multiple Motors .................................................................... 4-60
Chapter 5: Inverter System Accessories
Introduction ............................................................................................................................ 5-2
Component Description ..........................................................................................................5-3
Dynamic Braking .................................................................................................................... 5-5
Chapter 6: Troubleshooting and Maintenance
Troubleshooting ...................................................................................................................... 6-2
Monitoring Trip Events, History, & Conditions .................................................................... 6-5
Restoring Factory Default Settings ....................................................................................... 6-8
Maintenance and Inspection .................................................................................................. 6-9
Warranty ............................................................................................................................... 6-16
Appendix A: Glossary and Bibliography
Glossary ...................................................................................................................................A-2
Bibliography ............................................................................................................................A-8
Appendix B: ModBus Network Communications
Introduction ............................................................................................................................B-2
Connecting the Inverter to ModBus ......................................................................................B-3
Network Protocol Reference ...................................................................................................B-6
ModBus Data Listing ...........................................................................................................B-19
Appendix C: Drive parameter Setting Tables
Introduction ............................................................................................................................C-2
Parameter Settings for Keypad Entry ..................................................................................C-2
Appendix D: CE-EMC Installation Guidelines
CE-EMC Installation Guidelines ...........................................................................................D-2
Hitachi EMC Recommendations ............................................................................................D-5
Index
xvii
xvii
Revisions
Revision History Table
No. Revision Comments
Date of
Issue
Operation
Manual No.
Initial release of manual NT301X
This manual is valid with QRG (NT3011X) and Caution (NTZ301X)
March
2007
NT301X
Description was reviewed.
March
2007
NT301XA
Page xiii: Corrected UL warning description Pages 1-5 to 1-9: corrected watt loss values Page 1-9: Added torque characteristics Pages 1-12 to 1-17: Added derating curves Page 3-16: Corrected manual torque boost explanation Page 3-34: Corrected electronic thermal explanation Page 3-39: Corrected parameter range of b050 Page 3-46 and C-6: Corrected run mode edit of b055 and b056 Pages 4-5 to 4-11: Corrected terminal name of PCS Pages 4-32 to 4-35: Added explanation and certificate Pages 4-40 to 4-41: Corrected the timing chart of FA2 Page 4-61: Removed H007 (no H007 on X200 inverter) Page 6-6: Corrected thermistor connected terminal number (#6Æ#5) of E21 description Page 6-16: Corrected warranty period Page D-4: Corrected EMC installation condition Other minor corrections throughout. Added 5.5kW and 7.5kW information. Pages xiii, xiv, xv, 1-7, 1-9, 1-15, 1-18, 3-65, 5-6, 5-7, 6-11
Sept
2007
NT301XC
xviii
xviii
Contact Information
Hitachi America, Ltd. Power and Industrial Division 50 Prospect Avenue Tarrytown, NY 10591 U.S.A. Phone: +1-914-631-0600 Fax: +1-914-631-3672
Hitachi Europe GmbH Am Seestern 18 D-40547 Dusseldorf Germany Phone: +49-211-5283-0 Fax: +49-211-5283-649
Hitachi Asia Ltd. 16 Collyer Quay #20-00 hitachi Tower, Singapore 049318 Singapore Phone: +65-538-6511 Fax: +65-538-9011
Hitachi Asia (Hong Kong) Ltd. 7th Floor, North Tower World Finance Centre, Harbour City Canton Road, Tsimshatsui, Kowloon Hong Kong Phone: +852-2735-9218 Fax: +852-2735-6793
Hitachi Australia Ltd. Level 3, 82 Waterloo Road North Ryde, N.S.W. 2113 Australia Phone: +61-2-9888-4100 Fax: +61-2-9888-4188
Hitachi Industrial Equipment Systems Co., Ltd. AKS Building, 3, kanda Neribei-cho Chiyoda-ku, Tokyo, 101-0022 Japan Phone: +81-3-4345-6910 Fax: +81-3-4345-6067
Hitachi Industrial Equipment Systems Co., Ltd. Narashino Division 1-1, Higashi-Narashino 7-chome Narashino-shi, Chiba 275-8611 Japan Phone: +81-47-474-9921 Fax: +81-47-476-9517
NOTE: To receive technical support for the Hitachi inverter you purchased, contact the Hitachi inverter dealer from whom you purchased the unit, or the sales office or factory contact listed above. Please be prepared to provide the following inverter nameplate information:
1. Model
2. Date of purchase
3. Manufacturing number (MFG No.)
4. Symptoms of any inverter problem If any inverter nameplate information is illegible, please provide your Hitachi contact with any other legible nameplate items. To reduce unpredictable downtime, we recommend that you stock a spare inverter.
xix
xix
Getting Started
In This Chapter… page
- Introduction...................................................................................... 2
- X200 Inverter Specifications ........................................................... 5
- Introduction to Variable-Frequency Drives.................................. 19
- Frequently Asked Questions ........................................................ 24
1
11
Getting started
1
1
Getting started
Introduction
Main Features
Congratulation on your purchase of an X200 Series Hitachi inverter! This inverter drive features state-of-the-art circuitry and components to provide high performance. The housing footprint is exceptionally small, given the size of the corresponding motor. The Hitachi X200 product line includes more than a dozen inverter models to cover motor sizes from 1/4 horsepower to 10 horsepower, in either 240VAC or 480VAC power input versions. The main features are:
x 200V and 400V class inverters x US or EU versions available (country-specific input voltage range and default values) x Built-in RS485 MODBUS RTU as standard x New current suppressing function x Sixteen programmable speed levels x PID control adjusts motor speed automatically to maintain a process variable value x Integrated CE filter for SFE and HFE versions
The design in Hitachi inverters overcomes many of the traditional trade-offs between speed, torque and efficiency. The performance characteristics are:
x High starting torque of 100% at 6Hz x Continuous operation at 100% torque within a 1:10 speed range (6/60Hz / 5/50Hz)
without motor derating.
x Fan has ON/OFF selection to provide longer life for cooling fan.
A full line of accessories from Hitachi is available to complete your motor application:
x Digital remote operator keypad x Panel-mount keypad bezel kit and DIN rail mounting adapter (35mm rail size) x Dynamic braking unit with resistors x Radio noise filters
12
Getting started
X200-037LFU
X200-004LFU
1
2
Getting started
Operator Interface Options
The X200 inverter can utilize a remote keypads, such as the OPE-SRmini (right) or SRW-0EX (below). This allows the keypad to operate the inverter remotely, as shown (below, left). A cable (part no. ICS-1 or ICS-3, 1m or 3m) connects the modular connectors of the keypad and inverter.
Hitachi offers a panel mount keypad kit for the OPE-SRmini (below, right). It includes the mounting flange, gasket, keypad, and other hardware. You can mount the keypad with the potentiometer for a NEMA1 rating. The kit also provides for removing the potentiometer knob to meet NEMA4X requirements, as shown (part no. 4X-KITmini).
D
igital Operator Copy Unit – The optional digital operator / copy unit (part no.SRW-0EX) is shown to the right. It has a 2-line display that shows parameters by function code and by name. It has the additional capability of reading (uploading) the parameter settings in the inverter into its memory. Then you can connect the copy unit on another inverter and write (download) the parameter settings into that inverter. OEMs will find this unit particularly useful, as one can use a single copy unit to transfer parameter settings from one inverter to many.
N
OTE: Copy is possible between X200 series. It is not
possible to copy between X200 series and other models.
Other digital operator interfaces may be available from your Hitachi distributor for particular industries or international markets. Contact your Hitachi distributor for further details.
N
OTE: Never turn power OFF while copying (display “Copy CMD!!”). Otherwise the
inverter may lose functionality at next power ON.
13
Getting started
1
3
Getting started
Inverter Specification Label
The Hitachi X200 inverters have product labels located on the right side of the housing, as pictured below. Be sure to verify that the specifications on the labels match your power source, and application safety requirements.
Inverter Specification Label
The model number for a specific inverter contains useful information about its operating characteristics. Refer to the model number legend below:
14
X200 007 S F E
Series name
Restricted distribution
E=Europe, U=USA, R=Japan
Configuration type
F=with keypad
Input voltage:
S=Single-phase 200V class L=Three-phase 200V class N=Single/Three-phase 200V class H=Three-phase 400V class
A
pplicable motor capacity in kW
002=0.2kW 022=2.2kW 004=0.4kW 030=3.0kW 005=0.55kW 037=3.7kW 007=0.75kW 040=4.0kW 011=1.1kW 055=5.5kW 015=1.5kW 075=7.5kW
F
Integrated Filter
F= With EMC filter No mark = No integrated filter
Getting started
Specifications label
Regulatory agency approval labels (opposite side)
Inverter model number
Motor capacity for this model
Power Input Rating: Frequency, voltage, current
Output Rating: Frequency, voltage, current
Manufacturing codes: Lot number, date, etc.
1
4
Getting started
X200 Inverter Specifications
Model-specific tables for 200V and 400V class inverters
The following tables are specific to X200 inverters for the 200V and 400V class model groups. Note that “General Specifications” on page 1
-10 apply to both voltage class
groups. Footnotes for all specification tables follow the table below.
Item 200V class Specifications
EU version 002SFEF 004SFEF 005SFEF 007SFEF 011SFEFX200 inverters,
200V models
USA version 002NFU 004NFU 007NFU
kW 0.2 0.4 0.55 0.75 0.11Applicable motor size *2 H
P 1/4 1/2 3/4 1 1.5
230V 0.5 1.0 1.1 1.5 1.9Rated capacity
(kVA)
240V 0.5 1.0 1.2 1.6 2.0
Rated input voltage - SFEF type: 1-phase input only
- NFU type: 1-phase or 3-phase input 1-phase: 200V-15% to 240V +10%, 50/60Hz r5% 3-phase: 200V-15% to 240V r10%, 50/60Hz r5%
EU version SFEF series : EN61800-3 category C1 filterIntegrated EMC
filter
USA version – EU version 3.1 5.8 6.7 9.0 11.2Rated input
current (A)
USA version 1.8 3.4 - 5.2 ­Rated output voltage *3 3-phase: 200 to 240V (proportional to input voltage) Rated output current (A) 1.4 2.6 3.0 4.0 5.0 Efficiency at 100% rated output 89.0% 92.3% 93.2% 94.1% 94.7%
at 70% output 18 24 26 33 42
Watt loss (fc=3kHz) Approximate (W)
at 100% output 22 31 34 44 58 Starting torque *7 100% at 6Hz
100%: d 50Hz
50%:
d 60Hz
Dynamic braking,
approx. % torque
(short time stop
from 50/60Hz) *8
Capacitive feedback type, dynamic braking unit and
braking resistor optional, individually installed
Braking
DC braking Variable operating frequency, time, and braking force
Kg 0.8 1.0 1.5 1.5 2.4EU version
(-SFEF)
lb 1.77 2.21 3.31 3.31 5.30 Kg 0.8 0.9 1.5
Weight
USA version
(-NFU)
lb 1.77 1.99 3.31
15
Getting started
1
5
Getting started
Footnotes for the preceding table and the tables that follow:
N
ote1: The protection method conforms to JEM 1030.
N
ote2: The applicable motor refers to Hitachi standard 3-phase motor (4p). When
using other motors, care must be taken to prevent the rated motor current (50/60Hz) from exceeding the rated output current of the inverter.
N
ote3: The output voltage decreases as the main supply voltage decreases (except
when using the AVR function). In any case, the output voltage cannot exceed the input power supply voltage.
N
ote4: To operate the motor beyond 50/60Hz, consult the motor manufacturer for the
maximum allowable rotation speed.
N
ote5: EU version inverters (-SFE and -HFE) have integrated EMC filter.
N
ote6: For achieving approved input voltage rating categories:
x 460 to 480VAC – Over-voltage category 2 x 380 to 460VAC – Over-voltage category 3
To meet the Over-voltage category 3, insert an EN or IEC standard compliant isolation transformer that is earth grounded and star connected (for Low Voltage Directive).
N
ote7: At the rated voltage when using a Hitachi standard 3-phase, 4-pole motor.
N
ote8: The braking torque via capacitive feedback is the average deceleration torque
at the shortest deceleration (stopping from 50/60Hz as indicated). It is not continuous regenerative braking torque. The average deceleration torque varies with motor loss. This value decreases when operating beyond 50Hz. If a large regenerative torque is required, the optional regenerative braking unit and a resistor should be used.
N
ote9: The frequency command is the maximum frequency at 9.8V for input voltage
0 to 10VDC, or at 19.6mA for input current 4 to 20mA. If this characteristic is not satisfactory for your application, contact your Hitachi representative.
N
ote10: If the inverter is operated outside the region shown in the graph in the
derating curve, the inverter may be damaged or its service life may be shortened. Set B083 Carrier Frequency Adjustment in accordance with the expected output current level. See derating curve section for the detailed information of the inverter operating range.
N
ote11: The storage temperature refers to the short-term temperature during
transportation.
N
ote12: Conforms to the test method specified in JIS C0040 (1999). For the model
types excluded in the standard specifications, contact your Hitachi sales representative.
16
Getting started
1
6
Getting started
X200 Inverter Specifications, continued…
Item 200V class Specifications
EU version 015SFEF 022SFEF X200 inverters, 200V models
USA version 015NFU 022NFU 037LFU 055LFU 075LFU
kW 1.5 2.2 3.7 5.5 7.5Applicable motor size *2 H
P 2 3 5 7.5 10
230V 2.8 3.9 6.3 9.5 12.7Rated capacity (kVA)
240V 2.9 4.1 6.6 9.9 13.3 Rated input voltage - SFEF type: 1-phase input only
- NFU type: 1-phase or 3-phase input
- LFU type: 3-phase input only 1-phase: 200V-15% to 240V +10%, 50/60Hz r5% 3-phase: 200V-15% to 240V r10%, 50/60Hz r5%
EU version SFE series : EN61800-3 category C1 filterIntegrated EMC filter
USA version
EU version 16.0 22.5 Rated input current (A)
USA version 9.3 13.0 20.0 30.0 40.0 Rated output voltage *3 3-phase: 200 to 240V (proportional to input voltage) Rated output current (A) 7.1 10.0 15.9 24 32 Efficiency at 100% rated output 94.5% 96.0% 96.4% 96.1% 96.1%
at 70% output 58 61 91 138 186
Watt loss (fc=3kHz) Approximate (W)
at 100% output 83 87 133 215 295
Starting torque *7 100% at 6Hz
50%: d 60Hz 20%: d 60Hz
Dynamic braking,
approx. % torque
(short time stop
from 50/60Hz) *8
Capacitive feedback type, dynamic braking unit and
braking resistor optional, individually installed
Braking
DC braking Variable operating frequency, time, and braking force
Kg 2.4 2.5 EU version
(-SFEF)
lb 5.30 5.52 – Kg 2.3 2.4 2.3 4.2 4.2
Weight
USA version
(-N/LFU)
lb 5.08 5.30 5.08 9.27 9.27
17
Getting started
1
7
Getting started
Item 400V class Specifications
EU version 004HFEF 007HFEF 015HFEF 022HFEFX200 inverters,
400V models
USA version 004HFU 007HFU 015HFU 022HFU
kW 0.4 0.75 1.5 2.2Applicable motor size *2 H
P 1/2 1 2 3
380V 0.9 1.6 2.5 3.6Rated capacity
(kVA)
480V 1.2 2.0 3.1 4.5
Rated input voltage *6
3-phase: 380V-15% to 480V r10%, 50/60Hz r5%
EU version SFE series : EN61800-3 category C2 filterIntegrated EMC
filter
USA version – Rated input current (A) 2.0 3.3 5.0 7.0 Rated output voltage *3 3-phase: 380 to 480V (proportional to input voltage) Rated output current (A) 1.5 2.5 3.8 5.5 Efficiency at 100% rated output 93.8% 94.9% 96.4% 96.9%
at 70% output 20 29 40 49
Watt loss (fc=3kHz) Approximate (W)
at 100% output 25 38 54 68 Starting torque *7 100% at 6Hz
50%: d 60Hz 20%: d 60Hz
Dynamic braking,
approx. % torque
(short time stop
from 50/60Hz) *8
Capacitive feedback type, dynamic braking unit and braking
resistor optional, individually installed
Braking
DC braking Variable operating frequency, time, and braking force
Kg 1.5 2.3 2.4 2.4EU version
(-HFEF)
lb 3.31 5.08 5.30 5.30 Kg 1.4 2.2 2.3 2.3
Weight
USA version
(-HFU)
lb 3.09 4.86 5.08 5.08
18
Getting started
1
8
Getting started
Item 400V class Specifications
EU version 030HFEF 040HFEF 055HFEF 075HFEFX200 inverters, 400V models
USA version 040HFU 055HFU 075HFU
kW 3.0 4.0 5.5 7.5Applicable motor size *2 H
P 4 5 7.5 10
380V 5.1 5.6 8.5 10.5Rated capacity (kVA)
480V 6.4 7.1 10.8 13.3 Rated input voltage *6
3-phase: 380V-15% to 480V r10%, 50/60Hz r5%
EU version SFE series : EN61800-3 category C2 filterIntegrated EMC filter
USA version – Rated input current (A) 10.0 11.0 16.5 20.0 Rated output voltage *3 3-phase: 380 to 480V (proportional to input voltage) Rated output current (A) 7.8 8.6 13 16 Efficiency at 100% rated output 96.8% 97.3% 97.3% 98.3%
at 70% output 68 74 101 127
Watt loss (fc=3kHz) Approximate (W)
at 100% output 96 107 150 189
Starting torque *7 100% at 6Hz
20%: d 60Hz
Dynamic braking,
approx. % torque
(short time stop
from 50/60Hz) *8
Capacitive feedback type, dynamic braking unit and braking
resistor optional, individually installed
Braking
DC braking Variable operating frequency, time, and braking force
Kg 2.4 2.4 4.2 4.2EU version
(-HFEF)
lb 5.30 5.30 9.27 9.27 Kg 2.3 4.2 4.2
Weight
USA version
(-HFU)
lb 5.08 9.27 9.27
Torque characteristics
NOTE: The data are based on the Hitachi standard induction motor (4p). The torque performance depends on the characteristics of the motor to be used.
19
Getting started
Output frequency (Hz)
Output torque (%)
45
55
80
95
100
130
150
106 20 60 120
Continuous performance
Short time performance
Base frequency = 60Hz
Output frequency (Hz)
Output torque (%)
35
45
55
75
90
100
130
150
105 16.7 50 120
Continuous performance
Short time performance
Base frequency = 50Hz
35
0.2~4kW
5.5, 7.5kW
0.2~4kW
5.5, 7.5kW
0.2~4kW
5.5, 7.5kW
0.2~4kW
5.5, 7.5kW
1
9
Getting started
General Specifications
The following table applies to all X200 inverters.
Item General Specifications
Protective housing *1 IP00 Control method Sinusoidal Pulse Width Modulation (PWM) control Carrier frequency 2kHz to 12kHz (default setting: 3kHz) Output frequency range *4 0.5 to 400Hz Frequency accuracy Digital command: 0.01% of the maximum frequency
Analog command: 0.4% of the maximum frequency (25qC r 10qC)
Frequency setting resolution Digital: 0.1Hz; Analog: max. frequency/1000 Volt./Freq. characteristic V/f control (constant torque, reduced torque) Overload capacity 150% rated current for 1 minute Acceleration/deceleration time 0.01 to 3000 seconds, linear and S-curve accel/decel, second
accel/decel setting available Operator panel Up and Down keys / Value settings Potentiometer Analog setting
Freq.
setting
External signal*90 to 10 VDC (input impedance 10k Ohms), 4 to 20mA (input
impedance 250 Ohms), Potentiometer (1k to 2k Ohms, 2W) Operator panel Run/Stop (Forward/Reverse run change by command)
FWD/
REV run
External signal Forward run/stop, Reverse run/stop
Input
signal
Intelligent input terminal
F
W (forward run command), RV (reverse run command), CF1~CF4 (multi-stage speed setting), JG (jog command), DB (external braking), SET (set second motor), 2CH (2-stage accel./decel. command), F
RS (free run stop command), EXT (external trip), USP (startup function), SFT (soft lock), AT (analog current input select signal), R
S (reset), PTC (thermistor thermal protection), STA (start), STP (stop), F/R (forward/reverse), PID (PID disable), PIDC (PID reset), U
P (remote control up function), DWN (remote control down function), UDC (remote control data clearing), OPE (operator control), ADD (add frequency enable), F-TM (force terminal mode), RDY (Run ready), SP-SET (Special set) , EMR (Emergency Stop)
Intelligent output terminal
RUN (run status signal), FA1,FA2 (frequency arrival signal), OL (overload advance notice signal), OD (PID error deviation signal), AL (alarm signal), Dc (analog input disconnect detect), FBV (PID two-stage control output), NDc (network detection signal), LOG (Logic output), ODc (comm. watchdog error), LOC (Low load)
Output
signal
Frequency monitor Analog output; Select output frequency or output current monitor
Alarm output contact ON for inverter alarm (1c contacts, both normally open or closed
avail.)
Other functions AVR function, curved accel/decal profile, upper and lower limiters,
16-stage speed profile, fine adjustment of start frequency, carrier frequency change (2 to 12kHz) *10, frequency jump, gain and bias setting, process jogging, electronic thermal level adjustment, retry func., trip history monitor, 2nd setting select, fan ON/OFF selection.
Protective function Over-current, over-voltage, under-voltage, overload, extreme high
temperature, CPU error, memory error, ground fault detection at startup, electronic thermal
Temperature
Operating (ambient): -10 to 40qC(*10), / Storage: -25 to 70qC(*11)
Humidity 20 to 90% humidity (non-condensing) Vibration *12 5.9m/s2 (0.6G), 10 to 55 Hz
Operating environment
Location Altitude 1,000m or less, indoors (no corrosive gasses or dust) Coating color Blue Options Remote operator unit, copy unit, cables for the units, braking unit,
braking resistor, AC reactor, DC reactor, noise filter
110
Getting started
1
10
Getting started
Signal Ratings
Detailed ratings are in “Control Logic Signal Specifications” on page 4-6.
Signal / Contact Ratings
Built-in power for inputs 24VDC, 30mA maximum Discrete logic inputs 27VDC maximum Discrete logic outputs 50mA maximum ON state current, 27 VDC maximum OFF state voltage Analog output 0 to 10VDC, 1mA Analog input, current 4 to 19.6 mA range, 20mA nominal Analog input, voltage
0 to 9.8 VDC range, 10VDC nominal, input impedance 10k:
+10V analog reference 10VDC nominal, 10mA maximum Alarm relay contacts 250 VAC, 2.5A (R load) max., 0.2A (I load, P.F.=0.4) max.
100 VAC, 10mA min 30 VDC, 3.0A (R load) max., 0.7A (I load, P.F.=0.4) max.) 5 VDC, 100mA min.
111
Getting started
1
11
Getting started
Derating Curves
The maximum available inverter current output is limited by the carrier frequency and ambient temperature. The carrier frequency is the inverter’s internal power switching frequency, settable from 2kHz to 12kHz. Choosing a higher carrier frequency tends to decrease audible noise, but it also increases the internal heating of the inverter, thus decreasing (derating) the maximum current output capability. Ambient temperature is the temperature just outside the inverter housingsuch as inside the control cabinet where the inverter is mounted. A higher ambient temperature decreases (derates) the inverter’s maximum current output capacity.
An inverter may be mounted individually in an enclosure or side-by-side with other inverter(s)As shown below. Side-by-side mounting causes greater derating than mounting inverters separately. Graphs for either mounting methods are included in this section. Refer to “Ensure Adequate Ventilation” on page 2-10 for minimum clearance dimensions for both mounting configurations.
Use the following derating curves to help determine the optimal carrier frequency setting for your inverter and find the output current derating. Be sure to use the proper curve for your particular X200 inverter model number.
Legend for Graphs:
Ambient temperature 40qC max., individual mounting Ambient temperature 50qC max., individual mounting Ambient temperature 40qC max., side-by-side mounting
112
Enclosure
Individual mounting
Enclosure
Side-by-side mounting
1
12
Getting started
Derating curves:
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-002SFEF/NFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-004SFEF/NFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-005SFEF
% of rated
output current
Carrier frequency
kHz
113
1
13
Getting started
Derating curves, continued…
114
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-007SFEF/NFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-011SFEF
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-015SFEF/NFU
% of rated
output current
Carrier frequency
kHz
1
14
Getting started
Derating curves, continued…
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-022SFEF/NFU
% of rated
output current
Carrier frequency
kHz
115
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-037LFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-055LFU
% of rated
output current
Carrier frequency
kHz
1
15
Getting started
Derating curves, continued…
116
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-007HFEF/HFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-004HFEF/HFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-075LFU
% of rated
output current
Carrier frequency
kHz
1
16
Getting started
Derating curves, continued…
117
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-030HFEF
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-015HFEF/HFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-022HFEF/HFU
% of rated
output current
Carrier frequency
kHz
1
17
Getting started
Derating curves, continued…
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-040HFEF/HFU
% of rated
output current
Carrier frequency
kHz
118
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-055HFEF/HFU
% of rated
output current
Carrier frequency
kHz
30%
40%
50%
60%
70%
80%
90%
100%
2
4 6 8 10 12
X200-075HFEF/HFU
% of rated
output current
Carrier frequency
kHz
1
18
Getting started
Introduction to Variable-Frequency Drives
The Purpose of Motor Speed Control for Industry
Hitachi inverters provide speed control for 3-phase AC induction motors. You connect AC power to the inverter, and connect the inverter to the motor. Many applications benefit from a motor with variable speed, in several ways:
x Energy savings – HVAC x Need to coordinate speed with an adjacent process – textile and printing presses x Need to control acceleration and deceleration (torque) x Sensitive loads – elevators, food processing, pharmaceuticals
What is an Inverter
The term
inverter
and
variable-frequency drive
are related and somewhat interchangeable. An electronic motor drive for an AC motor can control the motor’s speed by
varying the frequency
of the power sent to the motor.
An inverter, in general, is a device that converts DC power to AC power. The figure below shows how the variable-frequency drive employs an internal inverter. The drive first converts incoming AC power to DC through a rectifier bridge, creating an internal DC bus voltage. Then the inverter circuit converts the DC back to AC again to power the motor. The special inverter can vary its output frequency and voltage according to the desired motor speed.
The simplified drawing of the inverter shows three double-throw switches. In Hitachi inverters, the switches are actually IGBTs (insulated gate bipolar transistors). Using a commutation algorithm, the microprocessor in the drive switches the IGBTs on and off at a very high speed to create the desired output waveforms. The inductance of the motor windings helps smooth out the pulses.
Rectifier
Motor
InverterConverter
Internal DC Bus
Power
Input
L1
L2
L3
U/T1
V/T2
W/T3
Variable-frequency Drive
119
Getting started
1
19
Getting started
Torque and Constant Volts/Hertz Operation
In the past, AC variable speed drives used an open loop (scalar) technique to control speed. The constant-volts-hertz operation maintains a constant ratio between the applied voltage and the applied frequency. With these conditions, AC induction motors inherently delivered constant torque across the operating speed range. For some applications, this scalar technique was adequate.
Today, with the advent of sophisticated microprocessors and digital signal processors (DSPs), it is possible to control the speed and torque of AC induction motors with unprecedented accuracy. The X200 utilizes these devices to perform complex mathematical calculations required to achieve superior performance. You can choose various torque curves to fit the needs of your application. Constant torque applies the same torque level across the frequency (speed) range.
Variable torque
, also called
reduced torque
, lowers the torque delivered at mid-level frequencies. A torque boost setting will add additional torque in the lower half of the frequency range for the constant and variable torque curves. With the
free-setting torque
curve feature, you can specify a series of data points that will define a custom torque curve to fit your application.
Inverter Input and Three-phase Power
The Hitachi X200 Series of inverters includes two sub-groups: the 200V class and the 400V class inverters. The drive described in this manual may be used in either the United States or Europe, although the exact voltage level for commercial power may be slightly different from country to country. Accordingly, a 200V class inverter requires (nominal) 200 to 240VAC, and 400V class inverter requires from 380 to 480VAC. The 200V class inverters having a suffix of –SFE accept single-phase 200V class input voltage, those with a –NFU suffix single- or three-phase power, and those with a suffix –LFU three-phase power only. All 400V class inverters require three-phase power supply.
T
IP: If your application only has single phase power available, refer to X200 inverter of 3HP or less (European version with a suffix of -SFE); they can accept single phase input power. Note: Larger models may be able to accept single-phase with derating. Contact your Hitachi distributor for assistance.
The common terminology for single phase power is line (L) and Neutral (N). Three­phase power connections are usually labeled Line 1 [R/L1], Line 2 [S/L2] and Line 3 [T/L3]. In any case, the power source should include an earth ground connection. That ground connection will need to connect to the inverter chassis and to the motor frame (see “Wire the Inverter Output to Motor” on page 2-21).
Output voltage
V
0
Output frequency
100%
f
Constant torque
120
Getting started
1
20
Getting started
Inverter Output to the Motor
The AC motor must be connected only to the inverter’s output terminals. The output terminals are uniquely labeled (to differentiate them from the input terminals) with the designations U/T1, V/T2, and W/T3. This corresponds to typical motor lead connection designations T1, T2, and T3. It is often not necessary to connect a particular motor lead for a new application. The consequence of swapping any two of the three connections is the reversal of the motor direction. In applications where reversed rotation could cause equipment damage or personnel injury, be sure to verify direction of rotation before attempting full-speed operation. For safety to personnel, you must connect the motor chassis ground to the ground connection at the bottom of the inverter housing.
Notice the three connections to the motor do not include one marked “Neutral” or “Return”. The motor represents a balanced “Y” impedance to the inverter, so there is no need for a separate return. In other words, each of the three “Hot” connections serves also as a return for the other connections, because of their phase relationship.
The Hitachi inverter is a rugged and reliable device. The intention is for the inverter to assume the role of controlling power to the motor during all normal operations. Therefore, this manual instructs you not to switch off power to the inverter
while the
motor is running
(unless it is an emergency stop). Also, do not install or use disconnect switches in the wiring from the inverter to the motor (except thermal disconnect). Of course, safety-related devices such as fuses must be in the design to break power during a malfunction, as required by NEC and local codes.
3-phase AC motor
U/T1
V/T2
W/T3
Earth GND
121
Getting started
1
21
Getting started
Intelligent Functions and Parameters
Much of this manual is devoted to describing how to use inverter functions and how to configure inverter parameters. The inverter is micro-processor-controlled, and has many independent functions. The microprocessor has an on-board EEPROM for parameter storage. The inverter’s front panel keypad provides access to all functions and parameters, which you can access through other devices as well. The general name for all these devices is the
digital
operator, integrated operator,
or
digital operator panel
. Chapter 2 will show you how to get a motor running, using a minimal set of function commands or configuring parameters.
The optional read/write programmer will let you read and write inverter EEPROM contents from the programmer. This feature is particularly useful for OEMs who need to duplicate a particular inverter’s settings in many other inverters in assembly-line fashion.
Braking
In general, braking is a force that attempts to slow or stop motor rotation. So it is associated with motor deceleration, but may also occur even when the load attempts to drive the motor faster than the desired speed (overhauling). If you need the motor and load to decelerate quicker than their natural deceleration during coasting, we recommend installing an optional dynamic braking unit. See “Introduction” on page 5-2 and “Dynamic Braking” on page 5-5 for more information on the BRD-E3 and BRD-EZ3 braking units. The X200 inverter sends excess motor energy into a resistor in the dynamic braking unit to slow the motor and load. For loads that continuously overhaul the motor for extended periods of time, the X200 may not be suitable (contact your Hitachi distributor).
The inverter parameters include acceleration and deceleration, which you can set to match the needs of the application. For a particular inverter, motor, and load, there will be a range of practically achievable accelerations and decelerations.
122
Getting started
1
22
Getting started
Velocity Profiles
The X200 inverter is capable of sophisticated speed control. A graphical representation of that capability will help you understand and configure the associated parameters. This manual makes use of the velocity profile graph used in industry (shown at right). In the example,
acceleration
is a ramp to a set speed,
and
deceleration
is a decline to a stop.
Acceleration and deceleration settings specify the time required to go from a stop to maximum frequency (or vise versa). The resulting slope (speed change divided by time) is the acceleration or deceleration. An increase in output frequency uses the acceleration slope, while a decrease uses the deceleration slope. The accel or decel time a particular speed change depends on the starting and ending frequencies. However, the slope is constant, corresponding to the full-scale accel or decel time setting. For example, the full-scale acceleration setting (time) may be 10 seconds – the time required to go from 0 to 60Hz.
The X200 inverter can store up to 16 preset speeds. And, it can apply separate acceleration and deceleration transitions from any preset to any other preset speed. A multi-speed profile (shown at right) uses two or more preset speeds, which you can select via intelligent input terminals. This external control can apply any preset speed at any time. Alternatively, the selected speed is infinitely variable across the speed range. You can use the potentiometer control on the keypad for manual control. The drive accepts analog 0-10VDC signals and 4-20 mA control signals as well.
The inverter can drive the motor in either direction. Separate FW and RV commands select the direction of rotation. The motion profile example shows a forward motion followed by a reverse motion of shorter duration. The speed presets and analog signals control the magnitude of the speed, while the FWD and REV commands determine the direction before the motion starts.
N
OTE: The X200 can move loads in both directions. However, it is not designed for use
in servo-type applications that use a bipolar velocity signal that determines direction.
Speed
0
Velocity Profile
t
A
ccel Decel
Set speed
Speed
0
t
Maximum speed
Acceleration
(time setting)
Speed
0
Multi-speed Profile
t
Speed 1
Speed 2
Speed
0
Bi-directional Profile
t
Forward move
Reverse move
123
Getting started
1
23
Getting started
Frequently Asked Questions
Q. What is the main advantage in using an inverter to drive a motor, compared to
alternative solutions?
A
. An inverter can vary the motor speed with very little loss of efficiency, unlike
mechanical or hydraulic speed control solutions. The resulting energy savings usually pays for the inverter in a relatively short time.
Q
. The term “inverter” is a little confusing, since we also use “drive” and “amplifier” to
describe the electronic unit that controls a motor. What does “inverter” mean?
A
. The term
inverter, drive,
and
amplifier
are used somewhat interchangeably in
industry. Nowadays, the term
drive,variable-frequency drive,variable-speed
drive
, and
inverter
are generally used to describe electronic, microprocessor-
based motor speed controllers. In the past,
variable-speed drive
also referred to
various mechanical means to vary speed.
Amplifier
is a term almost
exclusively used to describe drives for servo or stepper motors.
Q
. Although the X200 inverter is a variable speed drive, can I use it in a fixed-speed
application?
A
. Yes, sometimes an inverter can be used simply as a “soft-start” device,
providing controlled acceleration and deceleration to a fixed speed. Other functions of the X200 may be useful in such applications, as well. However, using a variable speed drive can benefit many types of industrial and commercial motor applications, by providing controlled acceleration and deceleration, high torque at low speeds, and energy savings over alternative solutions.
Q
. Can I use an inverter and AC induction motor in a positioning application?
A
. That depends on the required precision, and the slowest speed the motor must
turn and still deliver torque. The X200 inverter will deliver full torque while turning the motor at 6Hz (180RPM). DO NOT use an inverter if you need the motor to stop and hold the load position without the aid of a mechanical brake (use a servo or stepper motion control system).
Q
. Can the inverter be controlled and monitored via a network?
A
. Yes. X200 inverters have built-in ModBus communications. See Appendix B for
more information on network communications.
Q
. Why does the manual or other documentation use terminology such as “200V class”
instead of naming the actual voltage, such as “230 VAC”
A
. A specific inverter model is set at the factory to work across a voltage range
particular to the destination country for that model. The model specifications are on the label on the side of the inverter. A European 200V class inverter (“EU” marking) has different parameter settings than a USA 200V class.
N
OTE: The European 200V class inverter is for single phase input (-SFE), while the USA 200V class inverter is for 3/single phase input (-NFU up to 2.2kW) and 3-phase input (-LFU) 3.7kW.
124
Getting started
1
24
Getting started
Q. Why doesn’t the motor have a neutral connection as a return to the inverter?
A
. The motor theoretically represents a “balanced Y” load if all three stator
windings have the same impedance. The Y connection allows each of the three wires to alternatively serve as input or return on alternate half-cycle.
Q
. Does the motor need a chassis ground connection?
A
. Yes, for several reasons. Most importantly, this provides protection in the event
of a short in the motor that puts a hazardous voltage on its housing. Secondly, motors exhibit leakage current that increase with aging. Lastly, a grounded chassis generally emits less electrical noise than an ungrounded one.
Q
. What type of motor is compatible with the Hitachi inverters?
A
. Motor type – It must be a three-phase AC induction motor. Use an inverter-
grade motor that has at least 800V insulation for 200V class inverters, or 1600V insulation for 400V class. M
otor size – In practice, it’s better to find the right size motor for your
application; then look for the inverter to match the motor.
N
OTE: There may be other factors that will affect motor selection, including heat dissipation, motor operating speed profile, enclosure type, and cooling method.
Q. How many poles should the motor have?
A
. Hitachi inverters can be configured to operate motors with 2, 4, 6, or 8 poles.
The greater the number of the poles, the slower the top motor speed will be, but it will have higher torque at the base speed.
125
Getting started
1
25
Getting started
Q. How will I know if my application will require resistive braking?
A
. For new applications, it may be difficult to tell before you actually test a
motor/drive solution. In general, some application can rely on system losses such as friction to serve as the deceleration force, or otherwise can tolerate a long decel time. These applications will not need dynamic braking. However, applications with a combination of a high-inertia load and a required short decel time will need dynamic braking. This is a physics question that may be answered either empirically or through extensive calculations.
Q
. Several options related to electrical noise suppression are available for the Hitachi
inverters. How can I know if my application require any of these options?
A
. The purpose of these noise filters is to reduce the inverter electrical noise so
the operation of nearby electrical devices is not affected. Some applications are governed by particular regulatory agencies, and noise suppression is mandatory . in those cases, the inverter must have the corresponding noise filter installed. Other applications may not need noise suppression, unless you notice electrical interference with the operation of other devices.
Q
. The X200 features a PID control. PID loops are usually associated with chemical
processes, heating, or process industries in general. How could the PID loop feature be useful in my application?
A
. You will need to determine the particular main variable in your application the
motor affects. That is the process variable (PV) for the motor. Over time, a faster motor speed will cause a faster change in the PV than a slow motor speed will. By using the PID loop feature, the inverter commands the motor to run at the optimal speed required to maintain the PV at the desired value for current conditions. Using the PID loop feature will require an additional sensor and other wiring, and is considered an advanced application.
126
Getting started
1
26
Getting started
Inverter Mounting and Installation
In This Chapter… page
- Orientation to Inverter Features ..................................................... 2
- Basic System Description............................................................... 7
- Step-by-Step Basic Installation ...................................................... 8
- Powerup Test.................................................................................. 24
- Using the Front Panel Keypad...................................................... 26
2
2121
Inverter Mounting
and installation
2
1
Inverter Mountingand
installation
Orientation to Inverter Features
Unpacking and Inspection
Please take a few moments to unpack your new X200 inverter and perform these steps:
1
. Look for any damage that may have occurred during transportation.
2
. Verify the contents of the box include:
a
. One X200 inverter
b
. One instruction Manual
c
. One X200 Quick Reference Guide
3
. Inspect the specifications label on the side of the inverter. Make sure it matches the
product part number you ordered.
Main Physical Features
The X200 Series inverters vary in size according to the current output rating and motor size for each model number. All feature the same basic Keypad and connector interface for consistent ease of use. The inverter construction has a heat sink at the back of the housing. The larger models include a fan to enhance heat sink performance. The mounting holes are predrilled in the heat sink for your convenience. Smaller models have two mounting holes, while larger ones have four. Be sure to use all the mounting holes provided.
Never touch the heat sink during or just after operation; it can be very hot.
The electronics housing and front panel are built onto the front of the heat sink.
I
nverter Keypad – The inverter uses a digital operator interface, or keypad. The four-digit display can show a variety of performance parameters. LEDs indicate whether the display units are Hertz or Amperes. Other LEDs indicate Power (external), and Run/Stop mode and Program/Monitor Mode status. Membrane keys Run and Stop/Reset, and an output frequency potentiometer (speed setting knob) control monitor operation. The FUNC., 1 and 2 keys allow an operator to navigate to the inverter’s functions and parameter values. The Store key is used when changing a setting.
22
Inverter Mounting
and installation
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
2
2
Inverter Mountingand
installation
Front Housing Cover
HIGH VOLTAGE: Hazard of electrical shock. Disconnect incoming power before working on this control. Wait five (5) minutes before removing the front cover.
Housing Cover Removal – The front housing cover is held in place by a screw and two pairs of tabs. Since these tabs are hidden from view, it is good to become familiar with their locations
before
attempting to remove the cover. The figure below shows a typical housing cover in an upside-down position to reveal the tabs. The two locking tabs are the ones which you will need to press to remove the cover. The two hinging tabs will allow the cover to tilt open after the locking tabs are released.
N
OTE: Use care when removing the knock-out for the communication connector (indicated by A in above figure). After removal of the knock-out, some burrs may remain. Carefully file them smooth, if necessary.
The figure below shows the procedure for removing the housing cover. First, unscrew the screw, squeeze the side locking tabs, and then lift up the housing cover. DO NOT force the cover open; it is possible to break a tab in this way.
23
Inverter Mounting
and installation
Hinging tabs
Locking tabs
A
1. Unscrew the screw 2. Lift up the bottom side of the cover
2
3
Inverter Mountingand
installation
Logic Connector Introduction
After removing the front housing cover, take a moment to become familiar with the connectors, as shown below.
H
IGH VOLTAGE: Hazard of electrical shock. Never touch the exposed PCB conductors while the unit is powered up. Also, the inverter must be powered OFF before you change any of the DIP switch settings.
24
Inverter Mounting
and installation
Relay output contacts
Logic and analog signal connections
Danger! Do not touch!
Serial communication port
2
4
Inverter Mountingand
installation
DIP Switch Introduction
The inverter has internal DIP switches, located near the middle of the logic connectors as shown below. This section provides an introduction. Refer to later chapters that discuss the DIP switch operation in more detail.
The 485/OPE (RS485/Operator) DIP switch configures the inverter’s RJ45 serial port. You can use either the inverter’s integrated keypad or the OPE-SRmini connected via a cable to the serial port. In this case, SW7 should be set OPE (default setting). The port is configured for RS422 in this setting. Inverter control via a ModBus network communication requires the “485” setting. See “Connecting the Inverter to ModBus” on
page B-3 for more details.
DIP switch SW8 controls the Emergency stop signal input. Turning this DIP switch ON will enable the inverter to receive a Emergency stop signal from the dedicated safe stop terminal (#3). The inverter will shut off its output by means of direct hardware control (bypassing the internal microprocessor normal program execution) when a signal is given to this terminal. Additionally, the intelligent input terminal assignment will be changed automatically when SW8 is ON. See “Safe Stop” on
page 4-32 for more details.
25
Inverter Mounting
and installation
SW7
SW8
485
OPE
ON
OFF
SW7
485
OPE
SW8
ON
OFF
2
5
Inverter Mountingand
installation
Power Wiring Access – First, ensure no power source is connected to the inverter. If power has been connected, verify that the Power LED is OFF and then wait five minutes after power down to proceed. After removing the front housing cover, the two housing partitions that cover the power and motor wiring exits will be able to slide upward as shown to the right. The upper cover is for main power input wiring, and the lower one is for the motor output wiring.
Notice the four wire exit slots in the housing partition. This helps keep the power and motor wiring (to the left) separated from the signal-level logic or analog wiring (to the right).
Remove the housing partitions and as shown as set them aside in a secure place while wiring. Be sure to replace them afterward. Never operate the inverter with the partition removed or the front housing cover removed.
The power input mains connect to the terminals at the top of the inverter, and the motor 3-phase leads connect to the lower row of the terminals at the bottom of the inverter. The upper row of the bottom terminals connect to optional braking units or DC link choke.
The following section in this chapter will describe system design and guide you through a step-by-step installation process. After the section on wiring, this chapter will show how to use the front panel keys to access functions and edit parameters.
26
Inverter Mounting
and installation
Inverter Mounting
and installation
Power input terminals
Motor connecting terminals and terminals for other options (DC link choke, Braking unit)
2
6
Inverter Mountingand
installation

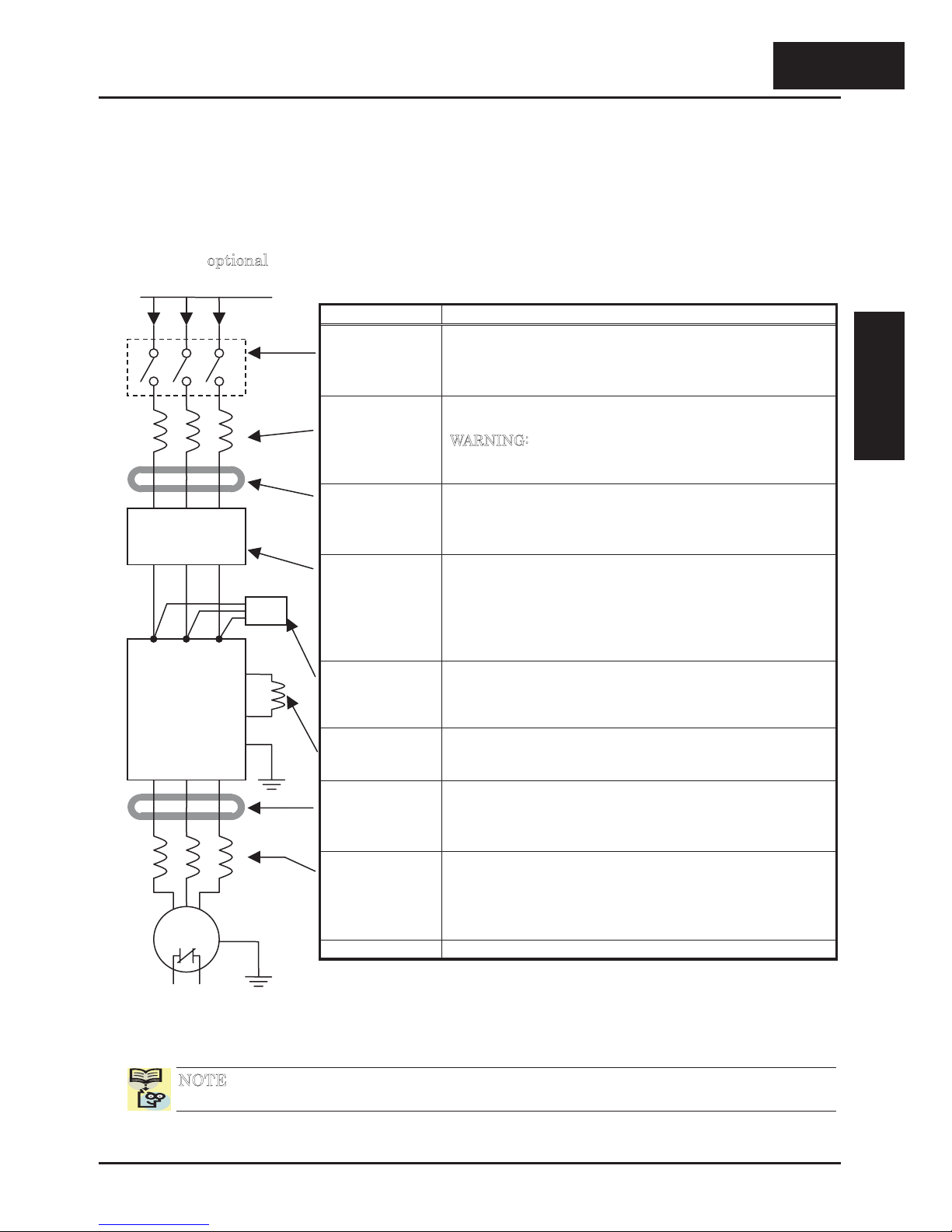

Basic System Description
A motor control system will obviously include a motor and inverter, as well as a circuit breaker or fuses for safety. If you are connecting a motor to the inverter on a test bench just to get started, that’s all you may need for now. But a system can also have a variety of additional components. Some can be for noise suppression, while others may enhance the inverter’s braking performance. The figure and table below show a system with all the o
ptional components you might need in your finished application.
Name Function
Breaker / disconnect
A molded-case circuit breaker (MCCB), ground fault interrupter (GFI), or a fused disconnect device. NOTE: The installer must refer to the NEC and local codes to ensure safety and compliance.
Input-side AC Reactor
This is useful in suppressing harmonics induced on the power supply lines and for improving the power factor. W
ARNING: Some applications
must
use an input-side AC Reactor to prevent inverter damage. See Warning on next page.
Radio noise filter
Electrical noise interference may occur on nearby equipment such as a radio receiver. This magnetic choke filter helps reduce radiated noise (can also be used on output).
EMI filter (for CE applications, see Appendix D)
Reduces the conducted noise on the power supply wiring between the inverter and the power distribution system. Connect to the inverter primary (input) side. EU version (with a suffix of -FEF have integrated EMC Filter, which is category C1 for 200V class and C2 for 400V class.)
Radio noise filter (use in non-CE applications)
This capacitive filter reduces radiated noise from the main power wires in the inverter input side.
DC link choke
Suppress harmonics generated by the inverter. However, it will not protect the input diode bridge rectifier.
Radio noise filter
Electrical noise interference may occur on nearby equipment such as a radio receiver. This magnetic choke filter helps reduce radiated noise (can also be used on input).
Output-side AC Reactor
This reactor reduces the vibration in the motor caused by the inverter’s switching waveforms, by smoothing the waveform to approximate commercial power quality. It is also useful to reduce harmonics when wiring from the inverter to the motor is more than 10m in length.
LCR filter
Sine wave shaping filter for output side.
NOTE: Note that some components are required for regulatory agency compliance (see Chapter 5 and Appendix D).
Breaker, MCCB or GFI
From power supply
Motor
Thermal switch
L1 L2 L3
T1 T2 T3
Inverter
+1
+
GND
27
Inverter Mounting
and installation
2
7
Inverter Mountingand
installation
WARNING: In the cases below involving a general-purpose inverter, a large peak current can flow on the power supply side, sometimes destroying the converter module:
1. The unbalance factor of the power supply is 3% or higher.
2. The power supply capacity is at least 10 times greater than the inverter capacity (or the power supply capacity is 500kVA or more).
3. Abrupt power supply changes are expected, due to conditions such as: a. Several inverters are interconnected with a short bus. b. A thyristor converter and an inverter are interconnected with a short bus. c. An installed phase advance capacitor opens and closes.
Where these conditions exist or when the connected equipment must be highly reliable, you MUST install an input-side AC reactor of 3% (at a voltage drop at rated current) with respect to the supply voltage on the power supply side. Also, where the effects of an indirect lightning strike are possible, install a lightning conductor.
Step-by-Step Basic Installation
This section will guide you through the following basic steps of installation:
Step Activity Page
1 Choose a mounting location in compliance with the Warnings and Cautions.
See NOTE below.
2-9
2 Check the mounting location for adequate ventilation 2-10 3 Cover the inverter’s ventilation openings to prevent debris from entering. 2-10 4 Check the inverter dimensions for footprint and mounting hole locations. 2-11 5 Study the Cautions, Warnings, wire and fuse sizes, and terminal torque
specifications before wiring the inverter.
2-16
6 Connect wiring for the inverter power input. 2-17 7 Wire the inverter output to the motor. 2-21 8 Uncover the inverter’s ventilation openings applied in Step 3. 2-22 9 Perform the Powerup Test. (This step includes several sub steps.) 2-22
10 Make observations and check your installation. 2-33
NOTE: If the installation is in an EU country, study the EMC installation guidelines in
Appendix D.
28
Inverter Mounting
and installation
2
8
Inverter Mountingand
installation
Choosing a Mounting Location
Step 1: Study the following caution messages associated with mounting the inverter. This is the time when mistakes are most likely to occur that will result in expensive rework, equipment damage, or personal injury.
C
AUTION: Be sure to install the unit on flame-resistant material such as steel plate.
Otherwise, there is the danger of fire.
CAUTION: Be sure not to place any flammable materials near the inverter. Otherwise, there is the danger of fire.
CAUTION: Be sure not to let the foreign matter enter vent openings in the inverter housing, such as wire clippings, spatter from welding, metal shavings, dust, etc. Otherwise, there is the danger of fire.
CAUTION: Be sure to install the inverter in a place that can bear the weight according to the specifications in the text (Chapter 1, Specifications Tables). Otherwise, it may fall and cause injury to personnel.
CAUTION: Be sure to install the unit on a perpendicular wall that is not subject to vibration. Otherwise, it may fall and cause injury to personnel.
CAUTION: Be sure not to install or operate an inverter that is damaged or has missing parts. Otherwise, it may cause injury to personnel.
CAUTION: Be sure to install the inverter in a well-ventilated room that does not have direct exposure to sunlight, a tendency for high temperature, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, grinding-fluid mist, salt damage, etc. Otherwise, there is the danger of fire.
1
29
Inverter Mounting
and installation
2
9
Inverter Mountingand
installation
Ensure Adequate Ventilation
Step 2: To summarize the caution messages – you will need to find a solid, non­flammable, vertical surface that is in a relatively clean and dry environment. In order to ensure enough room for air circulation around the inverter to aid in cooling, maintain the specified clearance and the inverter specified in the diagram.
C
AUTION: Be sure to maintain the specified clearance area around the inverter and to provide adequate ventilation. Otherwise, the inverter may overheat and cause equipment damage or fire.
Keep Debris Out of Inverter Vents
Step 3: Before proceeding to the wiring section, it’s a good time to
temporarily
covers the inverter’s ventilation openings. Paper and masking tape are all that is needed. This will prevent harmful debris such as wire clippings and metal shavings from entering the inverter during installation.
Please observe this checklist while mounting the inverter:
1. The ambient temperature must be in the range
of 10 to 40qC.
2. Keep any other heat-producing equipment as
far away from the inverter as possible.
3. When installing the inverter in an enclosure, maintain the clearance around the
inverter and verify that its ambient is within specification when the enclosure door is closed.
4. Do not remove the front housing at any time during operation.
2
3
210
Inverter Mounting
and installation
Ventilation holes
(top)
Ventilation holes
(both sides)
A
ir flow
10 cm (3.94”)
minimum
10 cm (3.94”)
minimum
5 cm (1.97”)
minimum
5 cm (1.97”)
minimum
Clear area
X200
inverter
2
10
Inverter Mountingand
installation
Check Inverter Dimensions
Step 4: Locate the applicable drawing on the following pages for your inverter. Dimensions are given in millimeters (inches) format.
X200-002SFEF, -004SFEF, -002NFU, -004NFU
D [mm] D1 [mm] Applied model
93 13 -002NFU, -002SFEF
107 27 -004NFU, -004SFEF
NOTE: Some inverter housing require two mounting screws, while other requires four. Be sure to use lock washers or other means to ensure screws do not loosen due to vibration.
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
4
Inverter Mounting
and installation
211
D
D1
2
11
Inverter Mountingand
installation
Dimensional drawings, continued…
X200-005SFEF,007SFEF, -007NFU
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
212
Inverter Mounting
and installation
2
12
Inverter Mountingand
installation
Dimensional drawings, continued…
X200-011SFEF~022SFEF, -015NFU~022NFU, -037LFU
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
Inverter Mounting
and installation
213
2
13
Inverter Mountingand
installation

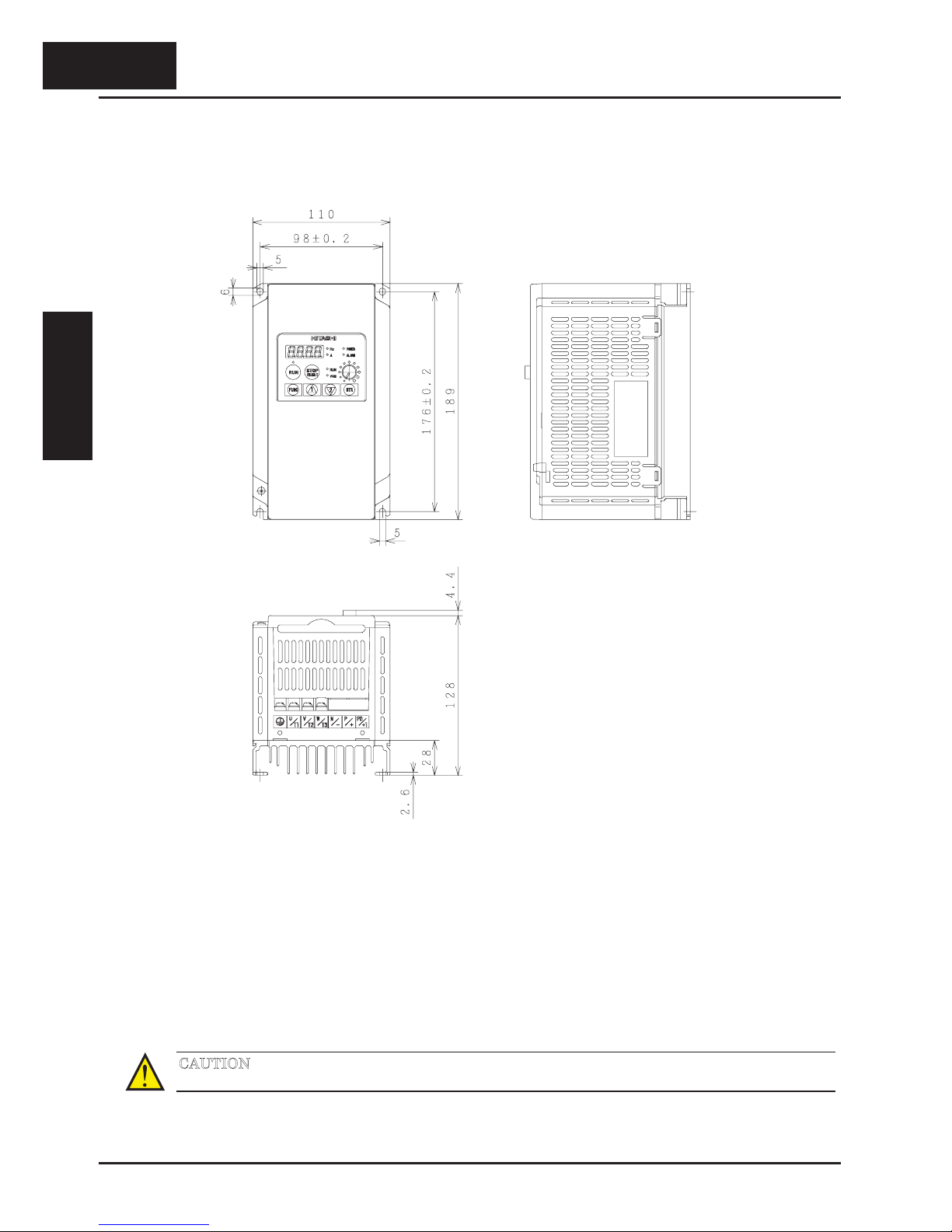

Dimensional drawings, continued…
X200-004HFEF, -004HFU
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
Inverter Mounting
and installation
214
2
14
Inverter Mountingand
installation
Dimensional drawings, continued…
X200-007HFEF, -007HFU
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
215
Inverter Mounting
and installation
2
15
Inverter Mountingand
installation
Dimensional drawings, continued…
X200-015HFEF~040HFEF, -015HFU~040HFU
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
Inverter Mounting
and installation
216
2
16
Inverter Mountingand
installation
Dimensional drawings, continued…
X200-055LFU, -075LFU, -055HFU, -075HFU, -055HFEF, -075HFEF
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
Inverter Mounting
and installation
217
2
17
Inverter Mountingand
installation
Prepare for Wiring
Step 5: It is very important to perform the wiring steps carefully and correctly. Before proceeding, please study the caution and warning message herebelow.
W
ARNING: “USE 60/75qC Cu wire only” or equivalent. For models X200-005S, -007S,
-011S, -022S, 007N, -015N, 015L, -022L, -037L.
WARNING: “USE 75qC Cu wire only” or equivalent. For models X200-002S, -004S,
002N, -004N, 002L, -004L, -007L, -022H, -030H, 037H and X200-040H.
WARNING: “USE 60qC Cu wire only” or equivalent. For models X200-004H, -007H,
and –015H.
WARNING: “Open Type Equipment.”
WARNING: “Suitable for use on a circuit capable of delivering not more than 100k rms symmetrical amperes, 240V maximum.” For models with suffix S, N or L.
WARNING: “Suitable for use on a circuit capable of delivering not more than 100k rms symmetrical amperes, 480V maximum.” For models with suffix H.
HIGH VOLTAGE: Be sure to ground the unit. Otherwise, there is a danger of electric shock and/or fire.
HIGH VOLTAGE: Wiring work shall be carried out only by qualified personnel. Otherwise, there is a danger of electric shock and/or fire.
HIGH VOLTAGE: Implement wiring after checking that the power supply is OFF. Otherwise, you may incur electric shock and/or fire.
HIGH VOLTAGE: Do not connect wiring to an inverter or operate an inverter that is not mounted according to the instructions given in this manual. Otherwise, there is a danger of electric shock and/or injury to personnel.
5
Inverter Mounting
and installation
218
2
18
Inverter Mountingand
installation
Determining Wire and Fuse Sizes
The maximum motor currents in your application determines the recommended wore size. The following table gives the wire size in AWG. The “Power Lines” column applies to the inverter input power, output wires to the motor, the earth ground connection, and any other components shown in the “Basic System Description” on page 2-7. The “Signal Lines” column applies to any wire connecting to the two green connectors just inside the front cover panel.
Motor Output Wiring
Applicable
equipment
kW HP
Inverter Model
Power Lines Signal Lines
Fuse (UL-rated,
class J, 600V)
0.2 1/4 X200-002SFEF/NFU 10A
0.4 1/2 X200-004SFEF/NFU 10A
0.55 3/4 X200-005SFEF 10A
0.75 1 X200-007SFEF/NFU
AWG14 / 2.1mm
2
15A
1.1 1 1/2 X200-011SFEF 15A
1.5 2 X200-015SFEF/NFU 20A
2.2 3 X200-022SFEF/NFU
AWG10 / 5.3mm
2
30A
3.7 5 X200-037LFU AWG12 / 3.3mm
2
30A
5.5 7 1/2 X200-055LFU AWG10 / 5.3mm
2
40A
7.5 10 X200-075LFU AWG8 / 8.4mm
2
50A
0.4 1/2 X200-004HFEF/HFU 3A
0.75 1 X200-007HFEF/HFU 6A
1.5 2 X200-015HFEF/HFU
AWG16 / 1.3mm
2
2.2 3 X200-022HFEF/HFU
10A
3.0 4 X200-030HFEF
4.0 5 X200-040HFEF/HFU
AWG14 / 2.1mm
2
(60qC only)
15A
5.5 7 1/2 X200-055HFEF/HFU 20A
7.5 10 X200-075HFEF/HFU
AWG12 / 3.3mm
2
(60qC only)
18 to 28 AWG /
0.14 to 0.75 mm
2
shielded wire (see Note 4)
25A
Note 1: Field wiring must be made by a UL-Listed and CSA-certified closed-loop
terminal connector sized for the wire gauge involved. Connector must be fixed by using the crimping tool specified by the connector manufacturer.
N
ote 2: Be sure to consider the capacity of the circuit breaker to be used.
N
ote 3: Be sure to use a larger wire gauge if power line length exceeds 66ft. (20m).
N
ote 4: Use 18 AWG / 0.75mm2 wire for the alarm signal wire ([AL0], [AL1], [AL2]
terminals).
Inverter Mounting
and installation
219
2
19
Inverter Mountingand
installation
Terminal Dimensions and Torque Specs
The terminal screw dimensions for all X200 inverters are listed in table below. This information is useful in sizing spade lug or ring lug connectors for wire terminations.
W
ARNING: Fasten the screws with the specified fastening torque in the table below.
Check for any loosening of screws. Otherwise, there is the danger of fire.
Models 002S~004S,
002N~004N
Models 007S~022S,
007N~022N,037L,
004H~040H
Models 055~075L/H
Connector
Number
of Screw
Ter mi na ls
Screw
Diameter
Width
(mm)
Screw
Diameter
Width
(mm)
Screw
Diameter
Width
(mm)
Power Terminals (Top side)
5 M3.5 7.1 M4 9.2 M5 12
8(dual in row)
M3.5 7.1

Power Terminals (Bottom side)
7

M4 9.2 M5 12
Control Signal
15 M2
M2
M2
Alarm Signal
3M3
M3
M3
When connecting wiring, use the tightening torque listed in the following table to safely attach wiring to the connectors.
Screw Tightening Torque Screw Tightening Torque Screw Tightening Torque
M2
0.2Nxm (max. 0.25 Nxm)
M3.5
0.8Nxm (max. 0.9 Nxm)
M5
2.0Nxm (max. 2.2 Nxm)
M3
0.5Nxm (max. 0.6 Nxm)
M4
1.2Nxm (max. 1.3 Nxm) 
Wire the Inverter Input to a Supply
Step 6: In this step, you will connect wiring to the input of the inverter. First, you must determine whether the inverter model you have required three-phase power only, or single-phase power only. All models have the same power connection terminals [
R/L1], [S/L2], and [T/L3]. So you must refer to the specifications label (on the side of the inverter)
for the acceptable power source types! For inverters that can accept single-
phase power and are conn
ected that way, terminal [S/L2] will remain unconnected. The wiring example to the right shows an X200 inverter wired for 3-phase input. Note the use of ring lug connectors for a secure connection.
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
6
Inverter Mounting
and installation
220
Input wiring for 3-phase input (models -NFU, -LFU, -HFEF, -HFU)
Input wiring for single-phase input (-SFEF and -NFU models)
2
20
Inverter Mountingand
installation
Please use the terminal arrangement below corresponding to your inverter model.
Inverter models X200-002SFEF~004SFEF, X200-005SFEF~022SFEF,
X200-002NFU~004NFU X200-007NFU~022NFU,037LFU
X200-004HFEF~040HFEF X200-004HFU~040HFU X200-055LFU~075LFU X200-055HFU~075HFU X200-055HFEF~075HFEF
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
NOTE: An inverter powered by a portable power generator may receive a distorted power waveform, overheating the generator. In general, the generator capacity should be five times that of the inverter (kVA).
Inverter Mounting
and installation
221
U/T1 V/T2 W/T3
- + +1
Jumper
U/T1 V/T2 W/T3
+1+-
Jumper
L1 /
N
L1 L2
L3/N
SFEF
NFU, LFU
Jumper
Jumper
L1 /
N
L1 L2
L3/N
SFEF
NFU,LFU
Jumper
Jumper
R/L1 S/L2 T/L3
HFEF, HFU
Jumper
2
21
Inverter Mountingand
installation
CAUTION: Be sure that the input voltage matches the inverter specifications:
x Single-phase 200 to 240 V 50/60 Hz (0.2kW~2.2kW) for SFEF models x Single/Three-phase 200 to 240 V 50/60 Hz (0.2kW~2.2kW) for NFU models x Three-phase 200 to 240 V 50/60 Hz (3.7kW~7.5kW) for LFU models x Three-phase 380 to 480 V 50/60Hz (0.4kW~7.5kW) for HFEF and HFU models
CAUTION: Be sure not to power a three-phase-only inverter with single phase power. Otherwise, there is the possibility of damage to the inverter and the danger of fire.
CAUTION: Be sure not to connect an AC power supply to the output terminals. Otherwise, there is the possibility of damage to the inverter and the danger of injury and/or fire.
CAUTION: Remarks for using ground fault interrupter breakers in the main power supply: Adjustable frequency inverter with integrated CE-filters and shielded (screened) motor cables have a higher leakage current toward earth GND. Especially at the moment of switching ON this can cause an inadvertent trip of ground fault interrupters. Because of the rectifier on the input side of the inverter there is the possibility to stall the switch-off function through small amounts of DC current. Please observe the following: x Use only short time-invariant and pulse current-sensitive ground fault interrupters
with higher trigger current.
x Other components should be secured with separate ground fault interrupters. x Ground fault interrupters in the power input wiring of an inverter are not an absolute
protection against electric shock.
CAUTION: Be sure to install a fuse in each phase of the main power supply to the inverter. Otherwise, there is the danger of fire.
CAUTION: For motor leads, ground fault interrupter breakers and electromagnetic contactors, be sure to size these components properly (each must have the capacity for rated current and voltage). Otherwise, there is the danger of fire.
Inverter Mounting
and installation
222
Power Input
Output to Motor
X200 Inverter
2
22
Inverter Mountingand
installation
Wire the Inverter Output to Motor
Step 7: The process of motor selection is beyond the scope of this manual. However, it must be an AC induction motor with three phases. It should also come with a chassis ground lug. If the motor does not have three power input leads, stop the installation and verify the motor type. Other guidelines for wiring the motor include:
x Use an inverter-grade motor for maximum motor life (1600V insulation).
x For standard motors, use the AC reactor accessory if the wiring between the
inverter and motor exceeds 10 meters in length.
Simply connect the mot or to the terminals [U/T1], [V/T2], and [W/T3] as shown to the right. This is a good time to connect the chassis ground lug on the drive as well. The motor chassis ground must also connect to the same point. Use a star ground (single­point) arrangement, and never daisy-chain the grounds (point-to-point).
x Check the mechanical integrity of each
wire crimp and terminal connection.
x Replace the housing partition that
covers access to the power connections.
CAUTION: Power terminal assignment is different compared to old models such as L100, L200 series, etc,. Pay attention when wiring the power cable
Logic Control Wiring
After completing the initial installation and powerup test in this chapter, you may need to wire the logic signal connector for your application. For new inverter users/applications, we highly recommend that you first complete the powerup test in this chapter without adding any logic control wiring. Then you will be ready to set the required parameters for logic control as covered in Chapter 4, Operations and Monitoring.
7
Inverter Mounting
and installation
223
2
23
Inverter Mountingand
installation
Uncover the Inverter Vents
Step 8: After mounting and wiring the inverter, remove any covers from the inverter housing. This includes material over the side ventilation ports.
W
ARNING: Make sure the input power to the inverter is OFF. If the drive has been powered, leave it OFF for five minutes before continuing.
Powerup Test
Step 9: After wiring the inverter and motor, you’re ready to do a powerup test. The procedure that follows is designed for the first-time use of the drive. Please verify the following conditions before conducting the powerup test:
x You have followed all the steps in this chapter up to this step.
x The inverter is new, and is securely mounted to a non-flammable vertical surface.
x The inverter is connected to a power source and a motor.
x No additional wiring of the inverter connectors or terminals has been done.
x The power supply is reliable, and the motor is a known working unit, and the motor
nameplate ratings match the inverter ratings.
x The motor is securely mounted, and is not connected to any load.
Goals for the Powerup Test
If there are any exceptions to the above conditions at this step, please take a moment to take any measures necessary to reach this basic starting point. The specific goals of this powerup test are:
1
. Verify that the wiring to the power supply and motor is correct.
2
. Demonstrate that the inverter and motor are generally compatible.
3
. Get an introduction to the use of the built-in operator keypad.
The powerup test gives you an important starting to ensure a safe and successful application of the Hitachi inverter. We highly recommend performing this test before proceeding to the other chapters in this manual.
8
9
224
Inverter Mounting
and installation
Ventilation holes
(top)
Ventilation holes
(both sides)
2
24
Inverter Mountingand
installation
Pre-test and Operational Precautions
The following instructions apply to the powerup test, or to any time the inverter is powered and operating. Please study the following instructions and messages before proceeding with the powerup test. 1
. The power supply must have fusing suitable for the load. Check the fuse size chart
presented in Step 5, if necessary.
2
. Be sure you have access to a disconnect switch for the drive input power if
necessary. However, do not turn OFF power during inverter operation unless it is an emergency.
3
. Turn the keypad potentiometer to the minimum position (full counter-clockwise).
C
AUTION: The heat sink fins will have a high temperature. Be careful not to touch
them. Otherwise, there is the danger of getting burned.
CAUTION: The operation of the inverter can be easily changed from low speed to high speed. Be sure to check the capability and limitations of the motor and machine before operating the inverter. Otherwise, there is the danger of injury.
CAUTION: If you operate a motor at a frequency higher than the inverter standard default setting (50Hz/60Hz), be sure to check the motor and machine specifications with the respective manufacturer. Only operate the motor at elevated frequencies after getting their approval. Otherwise, there is the danger of equipment damage and/or injury.
CAUTION: Check the following before and during the Powerup test. Otherwise, there is the danger of equipment damage. x Is the shorting bar between the [+1] and [+] terminals installed? DO NOT power or
operate the inverter if the jumper is removed.
x Is the direction of the motor rotation correct? x Did the inverter trip during acceleration or deceleration? x Were the rpm and frequency meter readings as expected? x Were there any abnormal motor vibration or noise?
Powering the Inverter
If you have followed all the steps, cautions and warnings up to this point, you’re ready to apply power. After doing so, the following events should occur: x The
POWER
LED will illuminate.
x The numeric (7-segment) LEDs will display a test pattern, then stop at
0.0
.
x The
Hz
LED will be ON.
If the motor starts running unexpectedly or any other problem occurs, press the STOP key. Only if necessary should you remove power to the inverter as a remedy.
N
OTE: If the inverter has been previously powered and programmed, the LEDs (other than the POWER LED) may illuminate differently than as indicated above. If necessary, you can initialize all parameters to the factory default settings. See “Restoring Factory
Default Settings” on page 6-8.
225
Inverter Mounting
and installation
2
25
Inverter Mountingand
installation
Using the Front Panel Keypad
Please take a moment to familiarize yourself with the keypad layout shown in the figure below. The display is used in programming the inverter’s parameters, as well as monitoring specific parameter values during operation.
Key and Indicator Legend
x Run/Stop LED – ON when the inverter output is ON and the motor is developing
torque (Run Mode), and OFF when the inverter output is OFF (Stop Mode).
x
P
rogram/Monitor LED – This LED is ON when the inverter is ready for parameter editing (Program Mode). It is OFF when the parameter display is monitoring data (Monitor Mode).
x
R
un Key Enable LED – is ON when the inverter is ready to respond to the Run key, OFF when the Run key is disabled.
x
R
un Key – Press this key to run the motor (the Run Enable LED must be ON first). Parameter F004, Keypad Run Key Routing, determines whether the Run key generates a Run FWD or Run REV command.
x
S
top/Reset Key – Press this key to stop the motor when it is running (uses the programmed deceleration rate). This key will also reset an alarm that has tripped.
x
P
otentiometer – Allows an operator to directly set the motor speed when the potentiometer is enabled for output frequency control.
x
P
otentiometer Enable LED – ON when the potentiometer is enabled for value entry.
x
P
arameter Display – A 4-digit, 7-segment display for parameters and function codes.
x
D
isplay Units, Hertz/Amperes – One of these LEDs will be ON to indicate the units
associated with the parameter display.
x
P
ower LED – This is ON when the power input to the inverter is ON.
x
A
larm LED – ON when an inverter trip is active (alarm relay contact will be closed).
x
F
unction Key – This key is used to navigate through the lists of parameters and functions for setting and monitoring parameter values.
x
U
p/Down keys – Use these keys alternatively to move up or down the lists of
parameter and functions shown in the display, and increment/decrement values.
x
S
tore key – When the unit is in Program Mode and you have edited a parameter value, press the Store key to write the new value to the EEPROM.
226
Inverter Mounting
and installation
Display Units (Hertz / Amperes) LEDs
Parameter Display
Run key Enable LED
Run key
Stop/Reset key
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
Function key
Up/Down keys Store key
Power LED
A
larm LED
Run/Stop LED
Program/Monitor LED
Potentiometer Enable LED
Potentiometer
1
FUNC STR
2
26
Inverter Mountingand
installation
Keys, Modes, and Parameters
The purpose of the keypad is to provide a way to change modes and parameters. The term
function
applies to both monitoring modes and parameters. These are all accessible through
function codes
that are primary 4-character codes. The various functions are separated into related groups identifiable by the left-most character, as the table shows.
Function
Group
Type (Category) of Function Mode to Access
PRG LED
Indicator
“D” Monitoring functions Monitor
“F” Main profile parameters
Program
z
“A” Standard functions
Program
z
“B” Fine tuning functions
Program
z
“C” Intelligent terminal functions
Program
z
“H” Motor constant functions
Program
z
“P” DeviceNet functions
Program
z
“E” Error codes

For example, function “A004” is the
base frequency setting
for the motor, typically 50Hz or 60Hz. To edit the parameter, the inverter must be in Program Mode (PRG LED will be ON). You use the front panel keys to first select the function code “A004”. After displaying the value for “A004”, use the Up/Down keys ( or ) to edit it.
N
OTE: The inverter 7-segment display shows lower case “b” and “d”, meaning the same
as the upper case letters “B” and “D” used in this manual (for uniformity “A” to “F”).
The inverter automatically switches into Monitor Mode when you access “D” Group functions. It switches into Program Mode when you access any other group, because they all have editable parameters. Error codes use the “E” Group, and appear automatically when a fault event occurs. “P” group appears when DeviceNet communication is available. Refer to “Monitoring Trip Events,
History, & Conditions” on page 6-5 for error code
details.
T
IP: Pressing FUNC key continuously for 3 seconds makes the display back to d001.
FUNC FUNC
MONITOR
“D” Group
PROGRAM
“A” Group
“B” Group “C” Group “F” Group “H” Group “P” Group
227
Inverter Mounting
and installation
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
2
1
2
27
Inverter Mountingand
installation
Keypad Navigation Map
The X200 Series inverter drives have many programmable functions and parameters. Chapter 3 will cover these in detail, but you need to access just a few items to perform the powerup test. The menu structure makes use of function codes and parameter codes to allow programming and monitoring with only a 4-digit display and a keys and LEDs. So, it is important to become familiar with the basic navigation map of parameters and functions in the diagram below. You may later use this map as a reference.
The navigation map shows the relationship of all resources of the inverter in one view. In general, use the key to move left and right, and the (arrow) keys to move up and down.
1
2
FUNC
228
Inverter Mounting
and installation
1
2
STR
Monitor Mode
PRG LED=OFF
Program Mode
PRG LED=ON
Display Data
FUNC
1
2
1
2
1
2
1
2
1
2
1
2
2
1
Select Function or Grou
p
Power down
1
2
1
2
1
2
1
2
1
2
1
2
1
2
2
1
FUNC FUNC
Store as powerup
default
Increment/ decrement
value
1
2
Edit
FUNC
Write
data to
EEPROM
Return to
parameter
list
Select parameter Edit parameter
2
28
Inverter Mountingand
installation
Selecting Functions and Editing Parameters
To prepare to run the motor in the powerup test, this section will show how to configure the necessary parameters:
1
. Select the keypad potentiometer as the source of motor speed command (A001).
2
. Select the keypad as the source of the RUN command (A002).
3
. Set the inverters maximum output frequency to the motor (A003).
4
. Set the motor current for proper thermal protection (B012).
5
. Set the inverter’s Automatic Voltage Regulation for the motor (A082).
6
. Set the number of poles for the motor (H004).
The following series of programming tables are designed for successive use. Each table uses the previous table’s final state as the starting point. Therefore, start with the first and continue programming until the last one. If you get lost or concerned that some of the other parameters setting may be incorrect, refer to “Restoring Factory Default
Settings” on page 6-8.
Prepare to Edit Parameters – This sequence begins with powering ON the inverter, then it shows how to navigate to the “A” Group parameters for subsequent settings. You can also refer to the “Keypad Navigation Map” on page 2-26 for orientation throughout the steps.
Action Display Func./Parameter
Turn ON the inverter.
0.0
Inverter output frequency Displayed (0Hz in Stop Mode)
Press the key.
d001
“D” Group selected
Press the key four times. A- - - “A” Group selected
Select the Potentiometer for Speed Command – The inverter output frequency can be set from several sources, including an analog input, memory setting, or the network, for example. The powerup test uses the keypad potentiometer as the speed control source for your convenience. In the figure to the right, notice the Potentiometer Enable LED, just above the knob. It the LED is ON, the potentiometer is already selected as the source, and you may skip this step. Note that the default setting depends on the country.
FUNC
2
229
Inverter Mounting
and installation
Potentiometer Enable LED
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
2
29
Inverter Mountingand
installation
If the Potentiometer Enable LED is OFF, follow these steps below.
Action Display Func./Parameter
(Starting point)
A- - -
“A” Group selected
Press the key. A001 Speed command source setting
Press the key again. 01
00 = Keypad potentiometer 01 = Control terminals 02 = Function F001 setting 03 = ModBus network 04 = Calculate function output
Press the key. 00 00 = Potentiometer (selected)
Press the key. A001
Store parameter, returns to “A” Group list
Select the Keypad for RUN Command – To RUN command causes the inverter to accelerate the motor to the selected speed. The Run command can arrive from various sources, including the control terminals, the Run key on the keypad or the network. In the figure to the right, notice the Run Key Enable LED, just above the Run key. If the LED is ON, the Run key is already selected as the source, and you may skip this step. Note that the default setting depends on the country.
If the Potentiometer Enable LED is OFF, follow these steps below (the table resumes action from the end of the previous table).
Action Display Func./Parameter
(Starting point)
A001
Speed command source setting
Press the key once.
A002
Run command source setting
Press the key.
01
01 = Control terminals 02 = Run key on keypad 03 = ModBus network
Press the key. 02 02 = Run key on keypad (selected)
Press the key.
A002
Store parameter, returns to “A” Group list
NOTE: After completing the steps above, the Run Key Enable LED will be ON. This does not mean the motor is trying to run; it means that the RUN key is now enabled. DO NOT press the RUN key at this time – complete the parameter setup first.
FUNC
2
FUNC
STR
FUNC
STR
1
1
230
Inverter Mounting
and installation
Run Key Enable LED
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
2
30
Inverter Mountingand
installation
Set the Motor Base Frequency – The motor is designed to operate at a specific AC frequency. Most commercial motors are designed for 50/60 Hz operation. First, check the motor specifications. Then follow the steps below to verify the setting or correct it for your motor. DO NOT set it greater than 50/60 Hz unless the motor manufacturer specifically approves operation at the higher frequency.
Action Display Func./Parameter
(Starting point)
A002
Run command source setting
Press the key once.
A003
Base frequency setting
Press the key.
60.0
or
50.0
Default value for the base frequency. US = 60 Hz, Europe = 50 Hz
Press the or key as needed. 60.0
Set to your motor specs (your display may be different)
Press the key. A003
Store parameter, returns to “A” Group list
CAUTION: If you operate a motor at a frequency higher than the inverter standard default setting (50Hz/60Hz), be sure to check the motor and machine specifications with the respective manufacturer. Only operate the motor at elevated frequencies after getting their approval. Otherwise, there is the danger of equipment damage.
Set the AVR Voltage Setting – The inverter has an Automatic Voltage Regulation (AVR) function. It adjusts the output voltage to match the motor’s nameplate voltage rating. The AVR smoothes out fluctuation in the input power source, but note that it does not boost the voltage in the event of a brown-out. Use the AVR setting (A082) that most closely matches the one for your motor.
x 200V class: 200 / 215 / 220 / 230 / 240 VAC
x 400V class: 380 / 400 / 415 / 440 / 460 / 480 VAC
T
IP: If you need to scroll through a function or parameter list, press and hold the or
key to auto-increment through the list.
To set the motor voltage, follow the steps on the following page.
FUNC
STR
1
1
2
1
2
231
Inverter Mounting
and installation
2
31
Inverter Mountingand
installation
Action Display Func./Parameter
(Starting point)
A003
Base frequency setting
Press the key and hold until Æ
A082
AVR voltage select
Press the key.
230
or
400
Default value for AVR voltage: 200V class = 230VAC 400V class = 400VAC (HFE)
= 460VAC (HFU)
Press the or key as needed. 215
Set to your motor specs (your display may be different)
Press the key. A082
Store parameter, returns to “A” Group list
Set the Motor Current – The inverter has thermal overload protection that is designed to protect the inverter and motor from overheating due to an excessive load. The inverter’s uses the motor’s current rating to calculate the time-based heating effect. This protection depends on using correct current rating for your motor. The level of electronic thermal setting, parameter B012, is adjustable from 20% to 120% of the inverter’s rated current. A proper configuration will also help prevent unnecessary inverter trip events.
Read the motor’s current rating on its manufacturer’s nameplate. Then follow the steps below to configure the inverter’s overload protection setting.
Action Display Func./Parameter
(Starting point)
A082
AVR voltage select
Press the key.
A- - -
“A” Group selected
Press the key. b- - - “B” Group selected
Press the key.
b001
First “B” Group parameter selected
Press the key and hold until Æ
b012
Level of electronic thermal setting
Press the key. 1.60
Default value will be 100% of inverter rated current
Press the or key as needed. 1.80
Set to your motor specs (your display may be different)
Press the key. b012
Store parameter, returns to “B” Group list
FUNC
STR
1
1
2
FUNC
1
FUNC
1
1
2
FUNC
STR
232
Inverter Mounting
and installation
2
32
Inverter Mountingand
installation
Set the Number of Motor Poles – The motor’s internal winding arrangement determines its number of magnetic poles. The specification label on the motor usually indicates the number of poles. For proper operation, verify the parameter setting matches the motor poles. Many industrial motors have four poles, corresponding to the default setting in the inverter (H004).
Follow the steps in the table below to verify the motor poles setting and change if necessary (the table resumes action from the end of the previous table.)
Action Display Func./Parameter
(Starting point)
b012
Level of electronic thermal setting
Press the key. b- - - “B” Group selected
Press the key two times.
H- - -
“H” Group selected
Press the key.
H003
First “H” Group parameter
Press the key once H004 Motor poles parameter
Press the key. 4
2 = 2 poles 4 = 4 poles (default) 6 = 6 poles 8 = 8 poles
Press the or key as needed.
4
Set to your motor specs (your display may be different)
Press the key.
H004
Store parameter, returns to “H” Group list
This step concludes the parameter setups for the inverter. You are almost ready to run the motor for the first time!
T
IP: If you became lost during any of these steps, first observe the state of the PRG LED. Then study the “Keypad Navigation Map on page 2-26 to determine the current state of the keypad controls and display. As long as you do not press the STR key, no parameter will be changed by keypad entry errors. Note that power cycling the inverter causes it to power up Monitor Mode, displaying the value for D001 (output frequency).
The next section will show you how to monitor a particular parameter from the display. Then you will be ready to run the motor.
FUNC
1
FUNC
FUNC
1
1
2
STR
233
Inverter Mounting
and installation
2
33
Inverter Mountingand
installation
Monitoring Parameters with the Display
After using the keypad for parameter editing, it’s a good idea to switch the inverter from Program Mode to Monitor Mode. The PRG LED will be OFF, and the Hertz or Ampere LED indicates the display units.
For the powerup test, monitor the motor speed indirectly by viewing the inverter’s output frequency. The
output frequency
must not be confused with
base
frequency
(50/60 Hz) of the motor, or the
carrier
frequency
(switching frequency of the inverter, in the kHz range). The monitoring functions are in the “D” list, located near the top left of the “Keypad Navigation Map”on
page 2-26.
O
utput frequency (speed) monitor – Resuming keypad operation from the previous table, follow the steps below. Or instead, you can simply power cycle the inverter, which automatically sets the display to D001 (output frequency value).
Action Display Func./Parameter
(Starting point)
H004
Motor poles parameter
Press the key.
H- - -
“H” Group selected
Press the key.
d001
Output frequency selected
Press the key. 0.0 Output frequency displayed
When the inverter displays a monitor value, the PRG LED is OFF. This confirms the inverter is not in programming mode, even while you are selecting the particular monitoring parameter. The display shows the current speed (is zero at this point). The Hz LED will be ON, indicating the display units. For current, the Amperes LED will be ON.
Running the Motor
If you have programmed all the parameters up to this point, you’re ready to run the motor! First, review this checklist:
1
. Verify the power LED is ON. If not, check the power connections.
2
. Verify the Potentiometer Enable LED is ON. If it is OFF, check the A001 setting.
3
. Verify the Run Key Enable LED is ON. If it is OFF, check the A002 setting.
4
. Verify the PRG LED is OFF. If it is ON, review the instructions above.
5
. Make sure the motor is disconnected from any mechanical load.
6
. Turn the potentiometer to the minimum position (completely counter clock-wise).
7
. Now, press the RUN key on the keypad. The RUN LED will turn ON.
8
. Slowly increase the potentiometer setting in clockwise fashion. The motor should
start turning.
9
. Press the STOP key to stop the motor rotation.
1
FUNC
FUNC
234
Inverter Mounting
and installation
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
1
FUNC STR
2
34
Inverter Mountingand
installation
Powerup Test Observations and Summary
Step 10: Reading this section will help you make some useful observations when first running the motor.
E
rror Codes – If the inverter displays an error code (format is “E xx”), see “Monitoring
Trip Events, History, & Conditions” on page 6-5 to interpret and clear the error.
Acceleration and Deceleration – The X200 inverter has programmable acceleration and deceleration value. The test procedure left these at the default value, 10 seconds. You can observe this by setting the potentiometer at about half speed before running the motor. Then press RUN, and the motor will take 5 seconds to reach a steady speed. Press the STOP key to see a 5 second deceleration to a STOP.
S
tate of Inverter at Stop – If you adjust the motor’s speed to zero, the motor will slow to a near stop, and the inverter turns the outputs OFF. The high-performance X200 can rotate at a very slow speed with high torque output, but not zero (must use servo systems with position feedback for that feature). This characteristic means you must use a mechanical brake for some applications.
I
nterpreting the Display – First, refer to the output frequency display readout. The maximum frequency setting (parameter A044) defaults to 50 Hz or 60 Hz (Europe and United States, respectively) for your application.
Example: Suppose a 4-pole motor is rated for 60 Hz operation, so the inverter is configured to output 60 Hz at full scale. Use the following formula to calculate the rpm.
Speed in RPM
RPM
polesof
Frequency
polesofPairs
Frequency
1800
4
12060
#
12060
u
u
u
The theoretical speed for the motor is 1800 RPM (speed of torque vector rotation). However, the motor cannot generate torque unless its shaft turns at a slightly different speed. This difference is called
slip
. So it’s common to see a rated speed of approximately 1750 RPM on a 60 Hz, 4-pole motor. Using a tachometer to measure shaft speed, you can see the difference between the inverter output frequency and the actual motor speed. The slip increases slightly as the motor’s load increases. This is why the inverter output value is called “frequency”, since it is not exactly equal to motor speed.
R
un/Stop Versus Monitor/Program Modes – The Run LED on the inverter is ON in Run Mode, and OFF in Stop Mode. The Program LED is ON when the inverter is in Program Mode, and OFF for Monitor Mode. All four mode combinations are possible. The diagram to the right depicts the modes and the mode transitions via keypad.
N
OTE: Some factory automation devices such as PLCs have alternative Run/Program modes; the device is in either one mode or the other. In the Hitachi inverter, however, Run Mode alternates with Stop Mode, and Program Mode alternates with Monitor Mode. This arrangement lets you program some value while the inverter is operating – providing flexibility for maintenance personnel.
Run Stop
RUN
STOP RESET
Monitor Program
FUNC
10
235
Inverter Mounting
and installation
2
35
Inverter Mountingand
installation
Configuring
Drive Parameters
In This Chapter… page
- Choosing a Programming Device................................................... 2
- Using the Keypad Devices .............................................................. 3
- “D” Group: Monitoring Functions .................................................. 6
- “F” Group: Main Profile Parameters .............................................. 9
- “A” Group: Standard Functions ................................................... 10
- “B” Group: Fine Tuning Functions............................................... 32
- “C” Group: Intelligent Terminal Functions .................................. 49
- “H” Group: Motor Constants Functions ...................................... 65
3
31
Configuring Drive
Parameters
3
1
&RQ¿JXULQJ'ULYH
Parameters
Choosing a Programming Device
Introduction
Hitachi variable frequency drives (inverters) use the latest electronics technology for getting the right AC waveform to the motor at the right time. The benefits are many, including energy savings and higher machine output or productivity. The flexibility required to handle a broad range of applications has required ever more configurable options and parameters – inverter are now a complex industrial automation component. And this can make a product seem difficult to use, but the goal of this chapter is to make this easier for you.
As the powerup test in Chapter 2 demonstrated, you do not have to program very many parameters to run the motor. In fact, most applications would benefit only from programming just a few, specific parameters. This chapter will explain the purpose of each set of parameters, and help you choose the ones that are important to your application.
If you are developing a new application for the inverter and a motor, finding the right parameters to change is mostly an exercise in optimization. Therefore, it is okay to begin running the motor with a loosely tuned system. By making specific, individual changes and observing their effects, you can achieve a finely tuned system.
Introduction of Inverter Programming
The front panel keypad is the first and best way to get to know the inverter’s capabilities. Every function or programmable parameter is accessible from the keypad. The other devices simply imitate the keypad’s layout and inverter access, while adding another valuable aspect to the system. For example, the Digital Operator/Copy Unit can transfer one inverter’s parameter settings to another inverter, while still providing standard operator keypad control. In this way, you can use a variety of programming devices with basically the same keypad skills. The following table shows various programming options, the features unique to each device, and the cables required.
Cables (choose one)
Device
Part
Number
Parameter
Access
Parameter
setting
storage
Part number Length
ICS-1 1 meter
External inverter keypad
OPE-SRmini
Monitor and Program
EEPROM in inverter
ICS-3 3 meters ICS-1 1 meter
Digital Operator/ Copy Unit
SRW-0EX
Monitor and Program
EEPROM in operator panel
ICS-3 3 meters
NOTE: When an external digital operator device such as an OPE-SRmini or SRW-0EX is connected to the inverter, the inverter’s keypad is automatically disabled (except for the Stop Key).
32
Configuring Drive
Parameters
3
2
&RQ¿JXULQJ'ULYH
Parameters
Using the Keypad Devices
The X200 Series inverter front keypad contains all the elements for both monitoring and programming parameters. The keypad is layout is pictured below. All other programming devices for the inverter have a similar key arrangement and function.
Key and Indicator Legend
x Run/Stop LED – ON when the inverter output is ON and the motor is developing
torque (Run Mode), and OFF when the inverter output is OFF (Stop Mode).
x
P
rogram/Monitor LED – This LED is ON when the inverter is ready for parameter editing (Program Mode). It is OFF when the parameter display is monitoring data (Monitor Mode).
x
R
un Key Enable LED – is ON when the inverter is ready to respond to the Run key, OFF when the Run key is disabled.
x
R
un Key – Press this key to run the motor (the Run Enable LED must be ON first). Parameter F004, Keypad Run Key Routing, determines whether the Run key generates a Run FWD or Run REV command.
x
S
top/Reset Key – Press this key to stop the motor when it is running (uses the programmed deceleration rate). This key will also reset an alarm that has tripped.
x
P
otentiometer – Allows an operator to directly set the motor speed when the potentiometer is enabled for output frequency control.
x
P
otentiometer Enable LED – ON when the potentiometer is enabled for value entry.
x
P
arameter Display – A 4-digit, 7-segment display for parameters and function codes.
x
D
isplay Units, Hertz/Amperes – One of these LEDs will be ON to indicate the units
associated with the parameter display.
x
P
ower LED – This is ON when the power input to the inverter is ON.
x
A
larm LED – ON when an inverter trip is active (alarm relay contact will be closed).
x F
unction Key – This key is used to navigate through the lists of parameters and functions for setting and monitoring parameter values.
x
U
p/Down keys – Use these keys alternatively to move up or down the lists of
parameter and functions shown in the display, and increment/decrement values.
x
S
tore key – When the unit is in Program Mode and you have edited a parameter value, press the Store key to write the new value to the EEPROM.
33
Configuring Drive
Parameters
Display Units (Hertz / Amperes) LEDs
Parameter Display
Run key Enable LED
Run key
Stop/Reset key
PRG
RUN
Hz
RUN
A
2
POWER
A
LARM
STOP
RESET
Function key
Up/Down keys Store key
Power LED
A
larm LED
Run/Stop LED
Program/Monitor LED
Potentiometer Enable LED
Potentiometer
1
FUNC STR
3
3
&RQ¿JXULQJ'ULYH
Parameters
Keypad Navigation Map
You can use the inverter’s front panel keypad to navigate to any parameter or function. The diagram below shows the basic navigation map to access these items.
N
OTE: The inverter 7-segment display shows lower case “b” and “d”, meaning the same
as the upper case letters “B” and “D” used in this manual (for uniformity “A” to “F”).
NOTE: The Store Key saves the edited parameter (shown in the display) to the inverter’s EEPROM. Upload or download of parameters to/from external devices is accomplished through a different command – do not confuse
Store
with
Download
or
Upload
.
34
Configuring Drive
Parameters
1
2
STR
Monitor Mode
PRG LED=OFF
Programming Mode
PRG LED=OFF
Display Data
FUNC
1
2
1
2
1
2
1
2
1
2
1
2
2
1
Select Function or Grou
p
Power down
1
2
1
2
1
2
1
2
1
2
1
2
1
2
2
1
FUNC FUNC
Store as powerup
default
Increment/ decrement
value
1
2
Edit
FUNC
Write
data to
EEPROM
Return to
parameter
list
Select parameter Edit parameter
3
4
&RQ¿JXULQJ'ULYH
Parameters
Operational Modes
The RUN and PRG LEDs tell just part of the story; Run Mode and Program Modes are independent modes, not opposite modes. In the state diagram to the right, Run alternates with Stop, and Program Mode alternates with Monitor Mode. This is a very important ability, for it shows that a technician can approach a running machine and change some parameters without shutting down the machine.
The occurrence of a fault during operation will cause the inverter to enter Trip Mode as shown. An event such as an output overload will cause the inverter to exit the Run Mode and turn OFF its output to the motor. In the Trip Mode, any request to run the motor is ignored. You must clear the error by pressing the Stop/Reset switch. See “Monitoring Trip
Events, History, & Conditions” on page 6-5.
Run Mode Edit
The inverter can be in Run Mode (inverter output is controlling motor) and still allow you to edit certain parameters. This is useful in applications that must run continuously, you need some inverter parameter adjustment.
The parameter tables in this chapter have a column titled “Run Mode Edit”. An Ex mark
U means the parameter cannot be
edited; a Check mark
9 means the parameter can be edited.
The Software Lock Setting (parameter B031) determines when the Run Mode access permission is in effect and access permission in other conditions, as well. It is the responsibility of the user to choose a useful and safe software lock setting for the inverter operating conditions and personnel. Please refer to
“Software Lock Mode” on page 3-36 for more information.
Control Algorithms
The motor control program in the X200 inverter has two sinusoidal PWM switching algorithms. The intent is that you select the best algorithm for the motor and load characteristics of your application. Both algorithms generate the frequency output in a unique way. Once configured, the algorithm is the basis for other parameter settings as well (see “Torque Control Algorithms” on
page 3-16). Therefore, choose the best
algorithm early in your application design process.
Run Stop
RUN
STOP
RESET
Monitor Program
FUNC
Run Stop
RUN
STOP
RESET
Trip
STOP RESET
Fault
Fault
35
Configuring Drive
Parameters
Run
Mode
Edit
U
9
Variable freq. control,
constant torque
Variable freq. control,
reduced torque
Output
Inverter Control Algorithms
3
5
&RQ¿JXULQJ'ULYH
Parameters
“D” Group: Monitoring Functions
You can access important parameter values with the “D” Group monitoring functions, whether the inverter is in Run Mode or Stop Mode. After selecting the function code number for the parameter you want to monitor, press the Function key once to show the value on the display. In functions D005 and D006, the intelligent terminals use individual segments of the display to show ON/OFF status.
If the inverter display is set to monitor a parameter and powerdown occurs, the inverter stores the present monitor function setting. For your convenience, the display automatically returns to the previously monitored parameter upon the next powerup.
“D” Function
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
Units
Output frequency monitorD001
FM 000.00Hz
Real time display of output frequency to motor from
0.0 to 400.0Hz
Hz
Output current monitorD002
Iout 0000.0A
Filtered display of output current to motor (100 ms internal filter time constant), range is 0 to 999.9 ampere
A
Rotation direction monitorD003
Dir STOP
Three different indications: “F” }Forward “o” }Stop “r” }Reverse

Process variable (PV), PID feedback monitor
D004
FB 00000.00%
Displays the scaled PID process variable (feedback) value (A075 is scale factor),
0.00 to 99.99, 100.0 to 999.9
1000. to 9999., 1000 to 999, and 10000 to 99900
% times
constant
Intelligent input terminal status
D005
IN-TM LHLHL
Displays the state of the intelligent input terminals:

Intelligent output terminal status
D006
OUT-TM L H
Displays the state of the intelligent output terminals:

ON
OFF
54
3
21
Terminal numbers
Terminal numbers
AL
11
ON
OFF
36
Configuring Drive
Parameters
3
6
&RQ¿JXULQJ'ULYH
Parameters
“D” Function
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
Units
Scaled output frequency monitor
D007
F-Cnv 00000.00
Displays the output frequency scaled by the constant in B086. Decimal point indicates range: XX.XX 0.00 to 99.99 XXX.X 100.0 to 999.9 XXXX. 1000. to 9999. XXXX 1000 to 9999
(x10=10000 to 99999)
Hz times
constant
Output voltage monitorD013
Vout 00000V
Voltage of output to motor, Range is 0.0 to 600.0V
V
Cumulative operation RUN time monitor
D016
RUN 0000000hr
Displays total time the inverter has been in RUN mode in hours. Range is 0 to 9999 / 1000 to 9999 /
ª
100 to ª999 (10,000 to 99,900)
hours
Cumulative power-on time monitor
D017
RUN 0000000hr
Displays total time the inverter has been powered up in hours. Range is 0 to 9999 / 1000 to 9999 /
ª
100 to ª999 (10,000 to 99,900)
hours
Cooling Fin temperature monitor
D018
TH-Fin 0000.0 C
Temperature of the cooling fin. (0.0~200)
qC
Trip Event and History Monitoring
The trip event and history monitoring feature lets you cycle through related information using the keypad. See “Monitoring Trip Events, History, & Conditions” on page 6-5 for more details.
“D” Function
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
Units
Trip counterD080
ERR CNT 00000
Number of trip events, Range is 0. to 9999
events
Trip monitor 1D081
ERR1 ########
Trip monitor 2D082
ERR2 ########

Trip monitor 3D083
ERR3 ########
Displays trip event information:
x Error code x Output frequency at trip point x Motor current at trip point x DC bus voltage at trip point x Cumulative inverter operation
time at trip point
x Cumulative power-ON time at
trip point

DC bus voltage monitorD102
Vpn 0000.0Vdc
Voltage of inverter internal DC bus, Range is 0.0 to 999.9
V
Electronic thermal monitorD104
E-THM 0000.0%
Accumulated value of electronic thermal detection, range is from 0.0 to 100.0
%
37
Configuring Drive
Parameters
3
7
&RQ¿JXULQJ'ULYH
Parameters
Local Monitoring During Network Operation
The X200 inverter’s serial port may be connected to a network or to an external digital operator. During those times, the inverter keypad keys will not function (except for the Stop key). However, the inverter’s 4-digit display still provides the Monitor Mode function, displaying any of the parameters D001 to D007. Function B089, Monitor Display Select for Networked Inverter, determines the particular D00x parameter displayed. Refer to table below.
B089 Monitor Display Select for Networked Inverter
Option
Code
Monitor
Code
Monitor Function Name
01 D001 Output frequency monitor 02 D002 Output current monitor 03 D003 Rotation direction monitor 04 D004 Process variable (PV),PID feedback monitor 05 D005 Intelligent input terminal status 06 D006 Intelligent output terminal status 07 D007 Scaled output frequency monitor
When monitoring the inverter during network operation, please note the following:
x The inverter display will monitor D00x functions according to B089 setting when…
¾ The OPE/485 DIP switch is set to the “485” position, or ¾ A device is already connected to the inverter’s serial port at inverter powerup.
x During network operation, the inverter keypad will also display error codes for
inverter trip events. Use the Stop key or inverter Reset function to clear the error. Refer to “Error Codes” on page 6-5 to interpret the error codes.
x The Stop key can be disabled, if you prefer, by using function B087.
38
Configuring Drive
Parameters
3
8
&RQ¿JXULQJ'ULYH
Parameters
“F” Group: Main Profile Parameters
The basic frequency (speed) profile is defined by parameters contained in the “F” Group as shown to the right. The set running frequency is in Hz, but acceleration and deceleration are specified in the time duration of the ramp (from zero to maximum frequency, or from maximum frequency to zero). The motor direction parameter determines whether the keypad Run key produces a FWD or REV command. This parameter does not affect the intelligent terminal [FW] and [REV] functions, which you configure separately.
Acceleration 1 and Deceleration 1 are the standard default accel and decel values for the main profile. Accel and decel values for an alternative profile are specified by using parameters Ax92 through Ax93. The motor direction selection (F004) determines the direction of rotation as commanded only from the keypad. This setting applies to any motor profile (1st or 2nd) in use at t particular time.
“D” Function Defaults
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
-FE
(EU)
-FU
(USA)
Units
Output frequency settingF001
VR 0000.0Hz
Standard default target frequency that determines constant motor speed, range is
0.0 / start frequency to 400 Hz
9
0.0 0.0 Hz
Acceleration (1) time settingF002
ACC 1 010.00s
Standard default acceleration, range is 0.01 to 3000 sec.
9
10.0 10.0 sec.
Acceleration (1) time setting, 2nd motor
F202
2ACC 1 010.00s
Standard default acceleration, 2nd motor range is 0.01 to 3000 sec.
9
10.0 10.0 sec.
Deceleration (1) time settingF003
DEC 1 010.00s
Standard default deceleration, range is 0.01 to 3000 sec.
9
10.0 10.0 sec.
Deceleration (1) time setting, 2nd motor
F203
2DEC 1 010.00s
Standard default deceleration, 2nd motor range is 0.01 to 3000 sec.
9
10.0 10.0 sec.
Cumulative power-on time monitor
F004
DIG-RUN FWD
Two options; select codes: 00 }Forward 01 }Reverse
U
00 00
Output frequency
0
t
F001
F002 F003
39
Configuring Drive
Parameters
3
9
&RQ¿JXULQJ'ULYH
Parameters
“A” Group: Standard Functions
The inverter provides flexibility in how you control Run/Stop operation and set the output frequency (motor speed). It has other control sources that can override the A001 / A002 settings. Parameter A001 sets the source selection for the inverter’s output frequency. Parameter A002 selects the Run command source (for FW or RV Run commands). The default settings use the input terminals for –FE (European) models, and the keypad for –FU (USA) models.
“A” Function Defaults
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
-FE
(EU)
-FU
(USA)
Units
Frequency source settingA001
F-COM VR
U
01 00
Frequency source setting, 2nd motor
A201
2F-COM VR
Five options; select codes: 00 }Keypad potentiometer 01 }Control terminal 02 }Function F001 setting 03 }ModBus network input 10 }Calculate function output
U
01 00
Run command source settingA002
OPE-Mode REM
U
01 02
Run command source setting, 2nd motor
A202
OPE-Mode REM
Three options; select codes: 01 }Control terminal 02 }Run key on keypad,
or digital operator
03 } ModBus network input
U
01 02
Frequency Source Setting – For parameter A001, the following table provides a further description of each option, and a reference to other page(s) for more information.
Code Frequency Source Refer to page(s)…
00 Keypad potentiometer – The range of rotation of the knob
matches the range defined by B082 (Start frequency adjustment) to A004 (Maximum frequency setting)
2-24
01 Control terminal – The active analog input signal on analog
terminals [O] or [OI] sets the output frequency
4-53, 3-13, 3-28,
3-49
02 Function F001 setting – The value in F001 is a constant,
used for the output frequency
3-9
03 ModBus network input – The network has a dedicated
register for inverter output frequency
B-19
10 Calculate function output – The Calculated function has
user-selectable analog input sources (A and B). The output can be the sum, difference, or product (+, -, x) of the two outputs.
3-29
310
Configuring Drive
Parameters
3
10
&RQ¿JXULQJ'ULYH
Parameters
Run Command Source Setting – For parameter A002, the following table provides a further description of each option, and a reference to other page(s) for more information.
Code Run Command Source Refer to page(s)…
01 Control terminal – The [FW] or [RV] input terminals control
Run/Stop operation
4-11
02 Keypad Run key – The Run and Stop keys provide control 2-24 03 ModBus network input – The network has a dedicated coil
for Run/Stop command and a coil for FW/RV
B-19
A001/A002 Override Sources – The inverter allows some sources to override the setting for output frequency and Run command in A001 and A002. This provides flexibility for applications that occasionally need to use a different source, leaving the standard settings in A001/A002.
The inverter has other control sources that can temporarily override the parameter A001 setting, forcing a different output frequency source. The following table lists all frequency source setting methods and their relative priority (“1” is the highest priority).
Priority A001 Frequency Source Setting Method Refer to page…
1 [CF1] to [CF4] Multi-speed terminals 4-12
2 [OPE] Operator Control intelligent input 4-29
3 [F-TM] intelligent input 4-31
4 [AT] terminal 4-22
5 A001 Frequency source setting 3-10
The inverter also has other control sources that can temporarily override the parameter A002 setting, forcing a different Run command source. The following table lists all Run command setting methods and their relative priority (“1” is the highest priority).
Priority A002 Run Command Setting Method Refer to page…
1 [OPE] Operator Control intelligent input 4-29
2 [F-TM] intelligent input 4-31
3 A002 Run command source setting 3-10
311
Configuring Drive
Parameters
3
11
&RQ¿JXULQJ'ULYH
Parameters
Basic Parameter Settings
These settings affect the most fundamental behavior of the inverter – the outputs to the motor. The frequency of the inverter’s AC output determines the motor speed. You may select from three different sources for the reference speed. During application development you may prefer using the potentiometer, but you may switch to an external source (control terminal setting) in the finished application, for example.
The base frequency and maximum frequency settings interact according to the graph below (left). The inverter output operation follows the constant V/f curve until it reaches the full-scale output voltage at the base frequency. This initial straight line is the constant-torque part of the operating characteristic. The horizontal line over to the maximum frequency serves to let the motor run faster, but at a reduced torque. This is the constant-power operating range. If you want the motor to output constant torque over its entire operating range (limited to the motor nameplate voltage and frequency rating), then set the base frequency and maximum frequency equal as shown (below right).
N
OTE: The “2nd motor” settings in the table in this chapter store an alternate set of parameters for a second motor. The inverter can use the 1st set or 2nd set of parameters to generate the output frequency to the motor. See
Configuring the
Inverter for Multiple Motors” on page 4-58.
“A” Function Defaults
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
-FE
(EU)
-FU
(USA)
Units
Base frequency settingA003
F-BASE 00060Hz
Settable from 30 Hz to the maximum frequency(A004)
U
50.0 60.0 Hz
Base frequency setting, 2nd motor
A203
2F-BASE 00060Hz
Settable from 30 Hz to the 2nd maximum frequency(A204)
U
50.0 60.0 Hz
Maximum frequency settingA004
F-MAX 00060Hz
Settable from the base frequency to 400 Hz
U
50.0 60.0 Hz
Maximum frequency setting, 2nd motor
A204
2F-MAX 00060Hz
Settable from the 2nd base frequency to 400 Hz
U
50.0 60.0 Hz
V
100%
A003 A004
0
Base
Frequency
Maximum
Frequency
f
V
100%
A003
A004
0
Base Frequency =
Maximum Frequency
f
312
Configuring Drive
Parameters
3
12
&RQ¿JXULQJ'ULYH
Parameters
Analog Input Settings
The inverter has the capability to accept an external analog input that can command the output frequency to the motor. Voltage input (0-10 V) and current input (4-20mA) are available on separate terminals ([O] and [OI] respectively). Terminal [L] serves as signal ground for the two analog inputs. The analog input settings adjust the curve characteristics between the analog input and the frequency output.
Please note that you cannot use the [O] and [OI] input at the same time.
Adjusting [O-L] characteristics – In the graph to the right, A013 and A014 select the active portion of the input voltage range. Parameters A011 and A012 select the start and end frequency of the converted output frequency range, respectively. Together, these four parameters define the major line segment as shown. When the line does not begin at the origin (A011 and A013 > 0), then A015 defines whether the inverter outputs 0Hz or the A011-specified frequency when the analog input value is less than the A013 setting. When the input voltage is greater than the A014 ending value, the inverter outputs the ending frequency specified by A012.
A
djusting [OI-L] characteristics – In the graph to the right, A103 and A104 select the active portion of the input current range. Parameters A101 and A102 select the start and end frequency of the converted output frequency range, respectively. Together, these four parameters define the major line segment as shown. When the line does not begin at the origin (A101 and A103 > 0), then A105 defines whether the inverter outputs 0Hz or the A101-specified frequency when the analog input value is less than the A103 setting. When the input voltage is greater than the A104 ending value, the inverter outputs the ending frequency specified by A102.
A
djusting keypad potentiometer characteristics – Refer to parameters A151~A155.
Max frequency
A012
A011
A
014
100%
0V
10V
A
013
0%
A015=00
A015=01
0
Input scale
%
Max frequency
A102
A101
A
104
100%
0
20mA
A
103
0%
A105=00
A105=01
0
Input scale
%
313
Configuring Drive
Parameters
3
13
&RQ¿JXULQJ'ULYH
Parameters
“A” Function Defaults
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
-FE
(EU)
-FU
(USA)
Units
[AT] selectionA005
AT-Slct O/VR
Five options; select codes:
02...Select between [O] and keypad potentiometer at [AT]
03...Select between [OI] and integrated POT at [AT]
04...Only [O] input active
05...Only [OI] input active
U
02 02
O-L input active range start frequency
A011
O-EXS 0000.0Hz
The output frequency corresponding to the analog input range starting point, range is 0.0 to 400.0
U
0.0 0.0 Hz
O-L input active range end frequency
A012
O-EXE 0000.0Hz
The output frequency corresponding to the analog input range ending point, range is 0.0 to 400.0
U
0.0 0.0 Hz
O-L input active range start voltage
A013
O-EX%S 00000%
The starting point (offset) for the active analog input range, range is 0. to 100.
U
0. 0. %
O-L input active range end voltage
A014
O-EX%E 00000%
The ending point (offset) for the active analog input range, range is 0. to 100.
U
100. 100. %
O-L input start frequency enable
A015
O-LVL 0Hz
Two options; select codes: 00}Use offset (A011 value) 01}Use 0Hz
U
01 01
External frequency filter time constant
A016
F-SAMP 00008
Range n = 1 to 17, where n = number of samples for avg.
U
8. 8. Sam­ples
A016: External Frequency Filter Time Constant – This filter smoothes the analog input signal for the inverter’s output frequency reference. A016 set the filter range from n=1 to 16. This is a simple moving average calculation, where n (number of samples used) can be selected.
314
Configuring Drive
Parameters
3
14
&RQ¿JXULQJ'ULYH
Parameters
Multi-speed and Jog Frequency Setting
The X200 inverter has the capability to store and output up to 16 preset frequencies to the motor (A020 to A035). As in traditional motion terminology, we call this
multi-speed
profile
capability. These preset frequencies are selected by means of digital inputs to the inverter. The inverter applies the current acceleration or deceleration setting to change from the current output frequency to the new one. The first multi-speed setting is duplicated for the second motor settings (the remaining 15 multi-speeds apply only to the first motor).
The jog speed setting is used whenever the Jog command is active. The jog speed setting range is arbitrarily limited to 10 Hz, to provide safety during manual operation. The acceleration to the jog frequency is instantaneous, but you can choose from three modes for the best method for stopping the jog operation.
“A” Function Defaults
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
-FE
(EU)
-FU
(USA)
Units
Multi-speed frequency settingA020
SPD 00s 0000.0Hz
Defines the first speed of a multi­speed profile, range is 0.0 / start frequency to 400Hz A020 = Speed 0 (1st motor)
9
0.0 0.0 Hz
Multi-speed frequency setting, 2nd motor
A220
2SPD00s 0000.0Hz
Defines the first speed of a multi­speed profile or a 2nd motor, range is 0.0 / start frequency to 400Hz A220 = Speed 0 (2nd motor)
9
0.0 0.0 Hz
Multi-speed frequency settings (for both motors)
Defines 15 more speeds, range is 0.0 / start frequency to 400 Hz. A021=Speed 1 ~ A035=Speed15
See
next
row
See
next
row
A021
to
A035
SPD 01s 000.0Hz SPD 02s 000.0Hz SPD 03s 000.0Hz SPD 04s 000.0Hz SPD 05s 000.0Hz SPD 06s 000.0Hz SPD 07s 000.0Hz SPD 08s 000.0Hz SPD 09s 000.0Hz SPD 10s 000.0Hz SPD 11s 000.0Hz SPD 12s 000.0Hz SPD 13s 000.0Hz SPD 14s 000.0Hz SPD 15s 000.0Hz
A021 A022 A023 A024 A025 A026 A027 A028 A029 A030 A031 A032 A033 A034 A035
9
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
Hz
Jog frequency settingA038
Jog-F 001.00Hz
Defines limited speed for jog, range is 0.00 / start frequency to
9.99 Hz
9
1.00 1.00 Hz
Jog stop modeA039
Jog-Mode FRS
Define how end of jog stops the motor; three options: 00}Free-run stop 01}Controlled deceleration 02}DC braking to stop
U
00 00
315
Configuring Drive
Parameters
3
15
&RQ¿JXULQJ'ULYH
Parameters
Torque Control Algorithms
The inverter generates the motor output according to the V/f algorithm selected. Parameter A044 selects the inverter algorithm for generating the frequency output, as shown in the diagram to the right (A244 for 2nd motor). The factory default is 00 (constant torque).
Review the following description to help you choose the best torque control algorithm for your application.
The built-in V/f curves are oriented toward developing constant torque or variable torque characteristics (see graphs below). You can select either constant torque or reduced torque V/f control.
C
onstant and Variable (Reduced) Torque – The graph at right shows the constant torque characteristic from 0Hz to the base frequency A003. The voltage remains constant for output frequencies higher than the base frequency. The graph below (left) shows the general variable (reduced) torque curve. The range from 0Hz to the base frequency is the variable characteristic.
The graph above (right) shows the variable (reduced) torque curve, which has a constant torque characteristic from 0Hz to 10% of the base frequency. This helps to achieve higher torque at low speed with reduced torque curve at higher speeds.
M
anual Torque Boost – The Constant and Variable Torque algorithms feature an adjustable
torque boost
curve. When the motor load has a lot of inertia or starting friction, you may need to increase the low frequency starting torque characteristics by boosting the voltage above the normal V/f ratio (shown at right). The function attempts to compensate for voltage drop in the motor primary winding in the low speed range. The boost is applied from zero to the base frequency. You set the breakpoint of the boost (point A
on the graph) by using parameters A042 and A043. The manual boost is
calculated as an addition to the standard V/f curve.
316
Hz
100%
0
Base
freq.
V
Max.
freq.
A044 = 00
Constant torque
316
Configuring Drive
Parameters
00
06
01
Variable freq. control,
constant torque
Variable freq. control,
reduced torque1
Output
Inverter Torque Control Algorithms
A044
Variable freq. control,
reduced torque
Hz
100%
0
Base
freq.
V
Max.
freq.
A044 = 06
Variable torque
Hz
100%
0
Base
freq.
V
Max.
freq.
A044 = 01
Variable torque
10% Base
freq.
0
5% voltage boost (100%=A082)
A042 = 5 (%)
fbase = 60Hz30Hz
V
100%
1.8Hz
A043 = 3 (%)
Hz
A
3
16
&RQ¿JXULQJ'ULYH
Parameters
Be aware that running the motor at a low speed for a long time can cause motor overheating. This is particularly true when manual torque boost is ON, or if the motor relies on a built-in fan for cooling.
V
oltage gain – Using parameter A045 you can modify the voltage gain of the inverter (see graph at right). This is specified as a percentage of the full scale output voltage. The gain can be set from 20% to 100%. It should be adjusted in accordance with the motor specifications.
The following table shows the methods of torque control selection.
“A” Function Defaults
Func.
Code
Name /
SRW Display
Description
Run
Mode
Edit
-FE
(EU)
-FU
(USA)
Units
Torque boost selectA041
V-Bst Slct MN
U
00 00 %
Torque boost select, 2nd motorA241
2VBst Slct MN
Two options: 00}Manual torque boost 01}Automatic torque boost
U
00 00 %
Manual torque boost valueA042
V-Bst V 0005.0%
9
1.8 1.8 %
Manual torque boost value, 2nd motor
A242
2VBst V 0005.0%
Can boost starting torque between 0 and 20% above normal V/f curve, range is 0.0 to 20.0%
9
0.0 0.0 %
Manual torque boost frequency adjustment
A043
M-Bst F 0003.0%
9
10.0 10.0 %
Manual torque boost frequency adjustment, 2nd motor
A243
2MBst F 0000.0%
Sets the frequency of the V/f breakpoint A in graph (top of previous page) for torque boost, range is 0.0 to 50.0%
9
0.0 0.0 %
V/f characteristic curveA044
CTRL C-TRQ
U
00 00
V/f characteristic curve, 2nd motor
A244
2CTRL C-TRQ
Two available V/f curves; 00}Constant torque 01}Reduced torque 06}Reduced torque1
U
00 00
V/f gain settingA045
V-Gain 00100%
9
100. 100. %
V/f gain setting, 2nd motor
A245
2V-Gain 00100%
Sets voltage gain of the inverter, range is 20. to 100.%
9
100. 100. %
100%
fbase
fmax
A045=100
80%
A045=80
V
0
317
3
17
&RQ¿JXULQJ'ULYH
Parameters
Loading...
