Hitachi RAD-50DH7, RAC-50DH7, RAD-60DH7, RAC-60DH7, RAD-70DH7 User guide

SPLIT TYPE AIR CONDITIONER

INDOOR UNIT/OUTDOOR UNIT

MODEL

RAD-50DH7 / RAC-50DH7

RAD-60DH7 / RAC-60DH7

RAD-70DH7 / RAC-70DH7

OUTDOOR UNIT

INDOOR UNIT

<![if ! IE]>

<![endif]>ENGLISH

RAC-50DH7 RAC-60DH7 RAC-70DH7

RAD-50DH7 RAD-60DH7 RAD-70DH7

Instruction manual Page 1~18 To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.

Bedlenungsanleitung Suite 19~36 Bitte lesen Sie diese Bedienungsanleitung aufmerksam durch, um durch richtige Bedienung jahrelangen und störungsfreien Betrieb zu gewährleisten.

Mode d’emploi Page 37~54 Des performances optimales et un fonctionnement à long terme seront assurés en appliquant les présentes instructions après avoir entièrement lu ce mode d’emploi.

Manuale di istruzioni Pag. 55~72 Per garantire la migliore prestazione e la più lunga durataleggere attentamente e al completo le seguanti istruzioni.

Manual de instrucciones Página 73~90 Para obtener el mejor funcionamiento y asegurar años de uso libre de problemas, lea cuidadosamente este manual de instrucciones.

Manual de instruções Página 91~108 A fim de obter um bom funcionamento e de garantir uma utilização sem falhas durante muitos anos, é favor ler este manual de instruções completamente.

O‰ЛБ›В˜ XВИЪИЫМФ‡ ™ÂÏ›‰· 109~126

°И· ЩЛУ О·П‡ЩВЪЛ ‰˘У·Щ‹ · fi‰ФЫЛ О·И ЩЛУ М·ОЪФ¯ЪfiУИ· О·И ¯ˆЪ›˜ ЪФ‚П‹М·Щ· ¯Ъ‹ЫЛ ЩЛ˜ Ы˘ЫОВ˘‹˜ ·˘Щ‹˜,·Ъ·О·ПФ‡МВ ‰И·‚¿ЫЩВ П‹Ъˆ˜ ЩИ˜ Ф‰ЛБ›В˜ ¯ВИЪИЫМФ‡ ЩЛ˜.

Инструкция по эксплуатации	стр. 127~146
Для обеспечения наилучших	эксплуатационных
характеристик и многолетней безотказной		работы
оборудования необходимо ознакомиться с		данной
Инструкцией по эксплуатации.

– 1 –

(EN1) RAD/RAC-50/60/70DH7

1

13/4/07, 2:03 PM

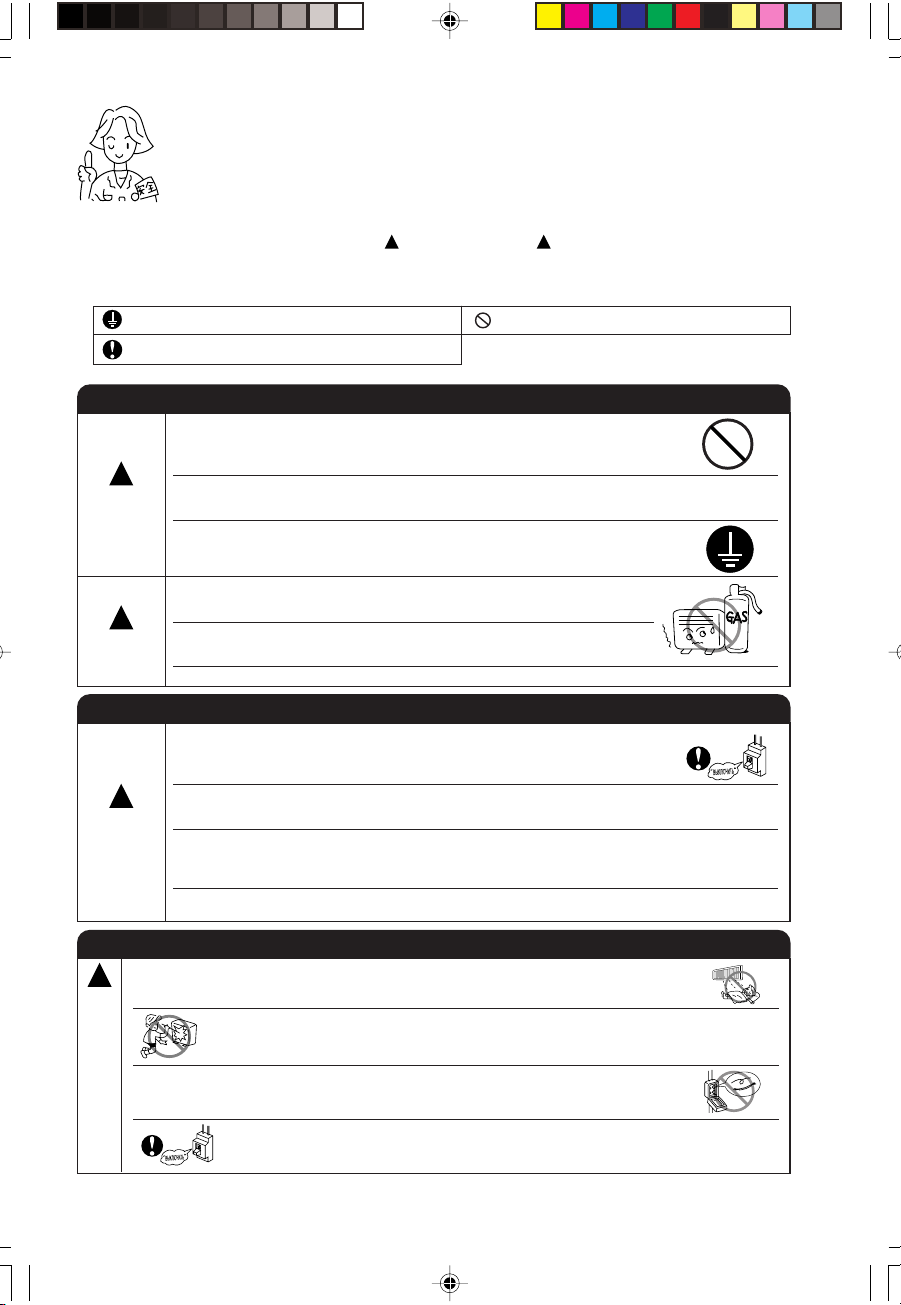

SAFETY PRECAUTION

●Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.

●Pay special attention to signs of “ ! Warning” and “ ! Caution”. The “Warning” section contains matters which, if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.

●The sign indicate the following meanings.

Make sure to connect earth line.	The sign in the figure indicates prohibition.

Indicates the instructions that must be followed.

● Please keep this manual after reading.

						PRECAUTIONS DURING INSTALLATION
						● Do not reconstruct the unit.
						Water leakage, fault, short circuit or fire may occur if you reconstruct the
						unit by yourself.
	!					● Please ask your sales agent or qualified technician for the installation of
						your unit. Water leakage, short circuit or fire may occur if you install the unit
WARNING						by yourself.
						● Please use earth line.
						Do not place the earth line near water or gas pipes, lightning-conductor, or
						the earth line of telephone. Improper installation of earth line may cause
						electric shock.
						● A circuit breaker should be installed depending on the mounting site of the
	!					unit. Without a circuit breaker, the danger of electric shock exists.
						● Do not install near location where there is flammable gas. The outdoor unit
CAUTION
						may catch fire if flammable gas leaks around it.
						● Please ensure smooth flow of water when installing the drain hose.
					PRECAUTIONS DURING SHIFTING OR MAINTENANCE
!			● Should abnormal situation arises (like burning smell), please stop operating the unit
				and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may
				occur if you continue to operate the unit under abnormal situation.
W
				Please contact your agent for maintenance. Improper self maintenance may cause
A			●
R				electric shock and fire.
N			●	Please contact your agent if you need to remove and reinstall the unit. Electric
I
				shock or fire may occur if you remove and reinstall the unit yourself improperly.
N
G			● If the supply cord is damaged, it must be replaced by the special cord obtainable
				at authorized service/parts centers.
						PRECAUTIONS DURING OPERATION

● Avoid an extended period of direct air flow for your health.

!		Do not insert a finger, a rod or other objects into the air outlet or inlet. As the
W	●
A		fan is rotating at a high speed, it will cause injury. Before cleaning, be sure
		to stop the operation and turn the breaker OFF.
R
N
● Do not use any conductor as fuse wire, this could cause fatal accident.
I
N
G	● During thunder storm, disconnect and turn off the circuit breaker.
			– 2 –
(EN1) RAD/RAC-50/60/70DH7		2	13/4/07, 2:03 PM

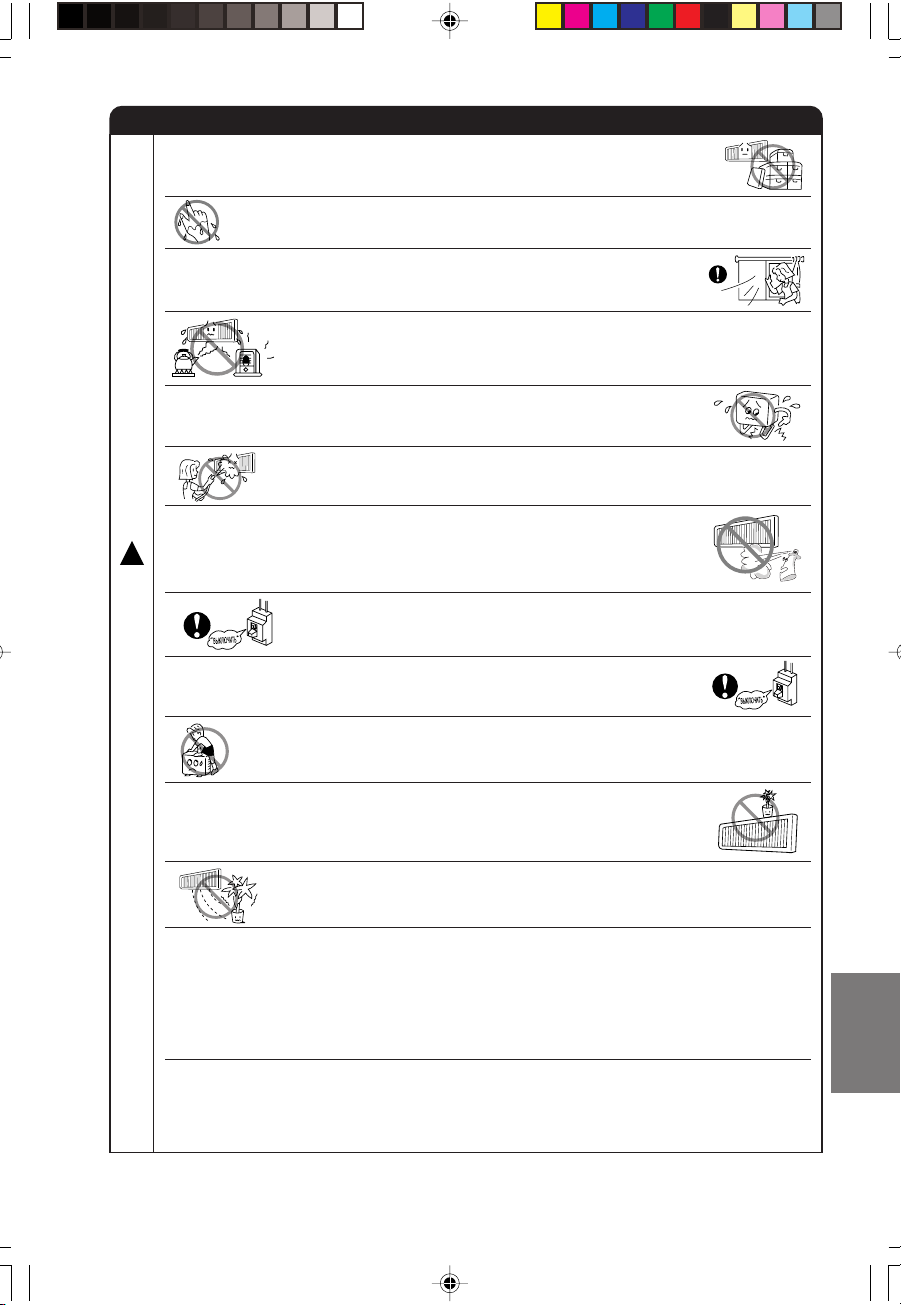

PRECAUTIONS DURING OPERATION

	● The product shall be operated under the manufacturer specification and
	not for any other intended use.
	● Do not attempt to operate the unit with wet hands, this could cause fatal
	accident.
	● When operating the unit with burning equipments, regularly ventilate the
	room to avoid oxygen insufficiency.
	● Do not direct the cool air coming out from the air-conditioner panel to face
	household heating apparatus as this may affect the working of apparatus
	such as the electric kettle, oven etc.
	● Please ensure that outdoor mounting frame is always stable, firm and
	without defect. If not, the outdoor unit may collapse and cause danger.
	● Do not splash or direct water to the body of the unit when cleaning it as this
	may cause short circuit.
	● Do not use any aerosol or hair sprays near the indoor unit. This chemical
	can adhere on heat exchanger fin and blocked the evaporation water flow
!	to drain pan. The water will drop on tangential fan and cause water splashing
	out from indoor unit.
C
A	● Please switch off the unit and turn off the circuit breaker during cleaning, the
U	high-speed fan inside the unit may cause danger.
T
I
O	● Turn off the circuit breaker if the unit is not to be operated for a long period.
N
	● Do not climb on the outdoor unit or put objects on it.
	● Do not put water container (like vase) on the indoor unit to avoid water
	dripping into the unit. Dripping water will damage the insulator inside the unit
	and causes short-circuit.
	● Do not place plants directly under the air flow as it is bad for the plants.
	● When operating the unit with the door and windows opened, (the room humidity is always above
	80%) and with the air deflector facing down or moving automatically for a long period of time,
	water will condense on the air deflector and drips down occasionally. This will wet your furniture.
	Therefore, do not operate under such condition for a long time.
	● If the amount of heat in the room is above the cooling or heating capability of the unit (for
	example: more people entering the room, using heating equipments and etc.), the preset room
	temperature cannot be achieved.
	● This appliance is not intended for use by young children or infirm persons unless they have been
	adequately supervised by a responsible person to ensure that they can use the appliance safely.
	● Young children should be supervised to ensure that they do not play with the appliance.
	– 3 –

<![if ! IE]>

<![endif]>ENGLISH

(EN1) RAD/RAC-50/60/70DH7

3

13/4/07, 2:03 PM

NAMES AND FUNCTIONS OF EACH PART

INDOOR UNIT

OUTDOOR UNIT

DRAIN PIPE

Condensed water drain to outside.

CONNECTING CORD

AIR INLET (BACK, LEFT SIDE)

AIR OUTLET

MODEL NAME AND DIMENSIONS

MODEL	WIDTH (mm)	HEIGHT (mm)	DEPTH (mm)
RAD-50DH7 / RAD-60DH7 / RAD-70DH7	900	270	720
RAC-50DH7 / RAC-60DH7 / RAC-70DH7	850	800	298

– 4 –

(EN1) RAD/RAC-50/60/70DH7

4

13/4/07, 2:03 PM

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT

■ This controls the operation function and timer setting of the room air conditioner.

START/STOP Button

<![if ! IE]>

<![endif]>ENGLISH

	Use this button to select the		Hr.
	operating mode. Every time you
	press it, the mode will change from
	(AUTO) to (HEAT) to
	(DEHUMIDIFY) and to	(COOL)
	cyclically.
	11

This determines the fan speed. Every time you press this button, the intensity of circulation will

change from	(AUTO) to (HI)
to (MED) to	(LOW) (This

button allows selecting the optimal or preferred fan speed for each operation mode).

Precautions for Use

●Do not put the remote controller in the following places.

●Under direct sunlight.

●In the vicinity of a heater.

●Handle the remote controller carefully. Do not drop it on the floor, and protect it from water.

●Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn the power switch off and on or unplug the power cord and plug it in again).

This is to protect the device and does not indicate a failure.

●If you press the FUNCTION selector button during operation, the device may stop for about 3 minutes for protection.

– 5 –

(EN1) RAD/RAC-50/60/70DH7

5

13/4/07, 2:03 PM

VARIOUS FUNCTIONS

■Auto Restart Control

●If there is a power failure, operation will be automatically restarted when the power is resumed with previous operation mode. (As the operation is not stopped by remote controller.)

●If you intend not to continue the operation when the power is resumed, switch off the power supply.

When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode. Note: 1. If you do not require Auto Restart Control, please consult your sales agent or OFF by remote control.

2.Auto Restart Control is not available when Timer or Sleep Timer mode is set.

AUTOMATIC OPERATION

The device will automatically determine the mode of operation, HEAT, COOL or DEHUMIDIFY depending on the current room temperature. The selected mode of operation will change when the room temperature varies.

Press the FUNCTION selector so that the display indicates the (AUTO) mode of operation.

● When AUTO has been selected, the device will automatically determine 1 the mode of operation, HEAT, COOL or DEHUMIDIFY depending on the current room temperature. However the mode of operation will

not change when indoor unit connected to multi type outdoor unit.

●If the mode automatically selected by the unit is not satisfactory,

manually change the mode setting (heat, dehumidify, cool or fan).

START	Press the	(START/STOP) button.
	Operation starts with a beep.
STOP	Press the button again to stop operation.

■As the settings are stored in memory in the remote controller, you only have to press the (START/STOP) button next time.

FAN SPEED (AUTO) ..... When the AUTO fan speed mode is set in the cooling/heating operation:

		● The fan speed will automatically change according to the temperature
		of discharged air.
	For the heating operation	● When the difference of room temperature and setting temperature is
		large, fan starts to run at HI speed.
		● When the room temperature reaches setting temperature, fan speed
		changes to LOW automatically.
		● When the difference of room temperature and setting temperature is
	For the cooling operation	large, fan starts to run at HI speed.
		● After room temperature reaches the preset temperature, the cooling
		operation, which changes the fan speed and room temperature to obtain
		optimum conditions for natural healthful cooling will be performed.
		– 6 –

(EN1) RAD/RAC-50/60/70DH7

6

13/4/07, 2:03 PM

HEATING OPERATION

			<![if ! IE]> <![endif]>ENGLISH
●	Use the device for heating when the outdoor temperature is under 21°C.
	When it is too warm (over 21°C), the heating function may not work in order to protect the device.
●	In order to keep reliability of the device, please use this device above -15°C of the outdoor temperature.

	1	Press the FUNCTION selector so that the display indicates
		(HEAT).
		Set the desired FAN SPEED with the		(FAN SPEED) button
		(the display indicates the setting).
		(AUTO): The fan speed is HI		at first and varies to
	2		MED or LOW automatically when the preset
			temperature has been reached.
		(HI)	: Economical as the room will become warm
			quickly.
			But you may feel a chill at the beginning.
		(MED)	: Fan speed slow.
		(LOW) : Fan speed slower.
		Set the desired room temperature with the TEMPERATURE
	3	buttons (the display indicates the setting).
		The temperature setting and the actual room temperature may
		vary somewhat depending on conditions.
	START	Press the	(START/STOP) button. Heating operation starts
	STOP	with a beep. Press the button again to stop operation.

■ As the settings are stored in memory in the remote controller, you only have to press the (START/STOP) button next time.

– 7 –

(EN1) RAD/RAC-50/60/70DH7

7

13/4/07, 2:03 PM

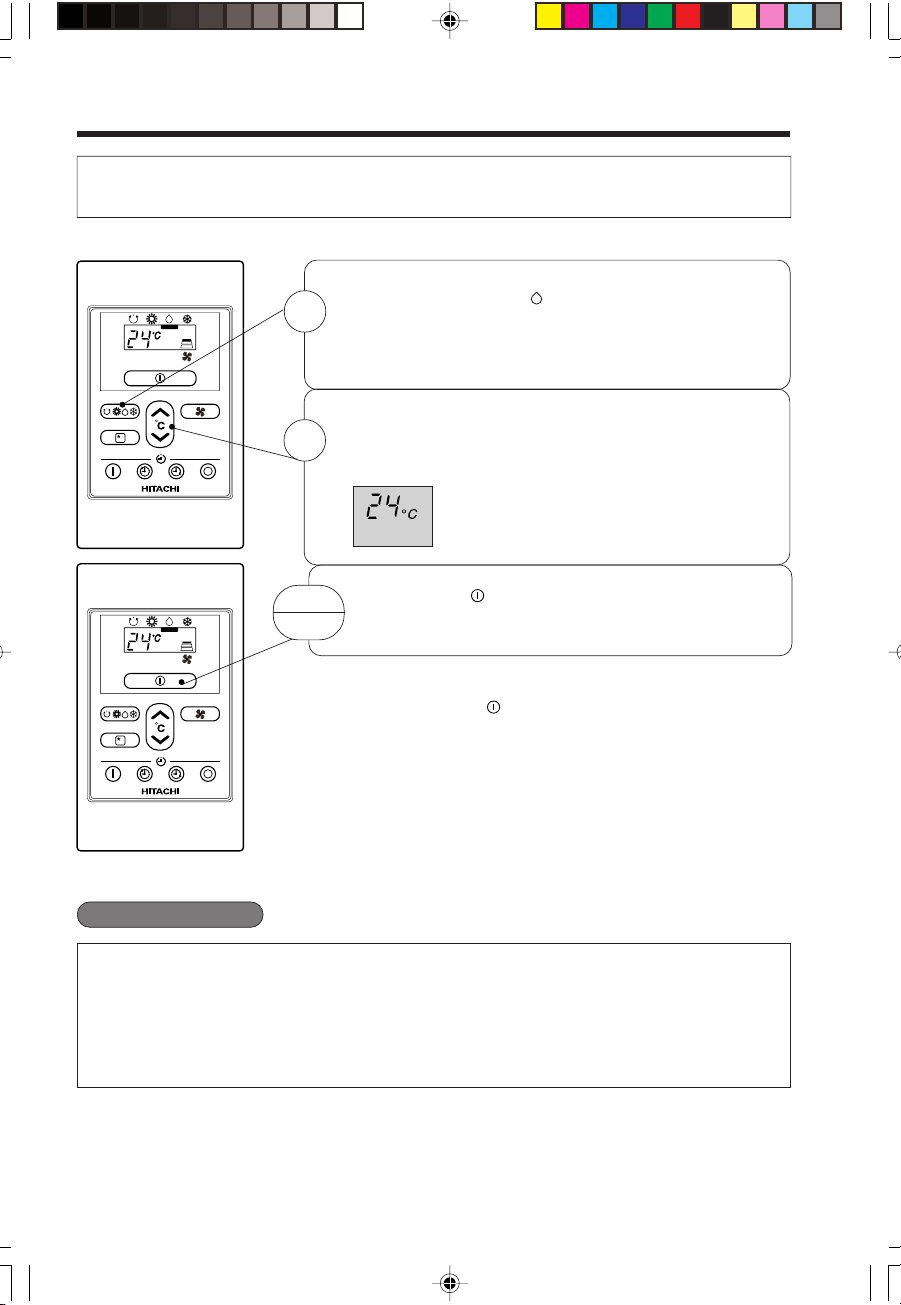

DEHUMIDIFYING OPERATION

Use the device for dehumidifying when the room temperature is over 16°C.

When it is under 15°C, the dehumidifying function will not work.

Press the FUNCTION selector so that the display indicates (DEHUMIDIFY).

1 The FAN SPEED is set at LOW automatically. The FAN SPEED button does not work.

2

START

STOP

Set the desired room temperature with the TEMPERATURE button (the display indicates the setting).

The range of 20-26˚C is recommended as the room temperature for dehumidifying.

Press the (START/STOP) button. Dehumidifying operation starts with a beep. Press the button again to stop operation.

■As the settings are stored in memory in the remote controller, you only have to press the (START/STOP) button next time.

■ Dehumidifying Function

When the room temperature is higher than the temperature setting: The device will dehumidify the room, reducing the room temperature to the preset level.

When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the temperature setting slightly lower than the current room temperature, regardless of the temperature setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature becomes lower than the setting temperature.

– 8 –

(EN1) RAD/RAC-50/60/70DH7

8

13/4/07, 2:03 PM

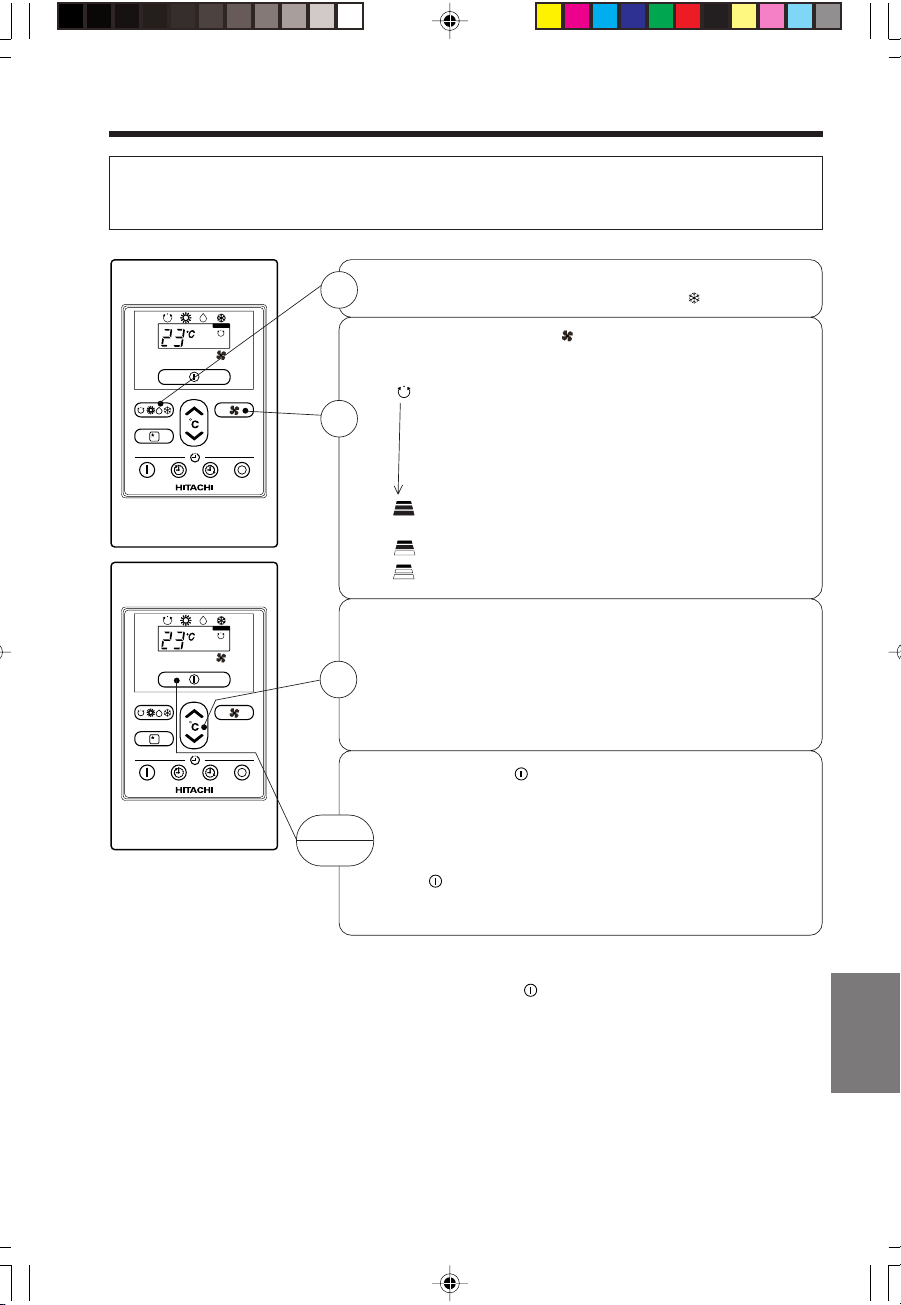

COOLING OPERATION

Use the device for cooling when the outdoor temperature is –10 ~ 43°C.

If indoor humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit.

	1	Press the FUNCTION selector so that the display indicates
		(COOL).
		Set the desired FAN SPEED with the (FAN SPEED) button
		(the display indicates the setting).
		(AUTO): The FAN SPEED is HI at first and varies to
	2				MED or LOW automatically when the preset
					temperature has been reached.
		(HI)			: Economical as the room will become cool
					quickly.
		(MED)			: Fan speed slow.
		(LOW) : Fan speed slower.
	3	Set the desired room temperature with the TEMPERATURE
		button (the display indicates the setting).
		The temperature setting and the actual room temperature may
		vary some how depending on conditions.
		Press the			(START/STOP) button. Cooling operation starts
		with a beep. Press the button again to stop operation. The
	START	cooling function does not start if the temperature setting is
	STOP	higher than the current room temperature (even though the
		(OPERATION) lamp lights). The cooling function will start as

soon as you set the temperature below the current room temperature.

■As the settings are stored in memory in the remote controller, you only have to press the (START/STOP) button next time.

– 9 –

<![if ! IE]>

<![endif]>ENGLISH

(EN1) RAD/RAC-50/60/70DH7

9

13/4/07, 2:03 PM

TIMER RESERVATION

■ ON Timer and OFF Timer are available.

OFF Timer Reservation

1 OFF TIME setting

●Select the OFF TIME by pressing the (OFF) Button.

●Setting time will change according to the below sequence when you press the button.

0.5 hour interval	1 hour interval
0 . 5 1 . 0 1 . 5	9 . 5 10 11 12

■ Operation stop at setting time

Hr.

●The value change quicker if you keep pressing the button.

2 Press the (Reserve) button

●OFF TIMER reserved with a signal received sound “beep”.

●The (OFF) Mark starts lighting instead of blinking.

ON Timer Reservation

1 ON TIME setting

●Select the ON TIMER by pressing the (ON) Button.

●At the beginning of setting, time 6 hours was set.

●Setting time will change according to the below sequence.

0.5 hour interval	1 hour interval
0 . 5 1 . 0 1 . 5	9 . 5 10 11 12

●The value change quicker if you keep pressing the button.

2 Press the (Reserve) button

●ON TIMER reserved with a signal received sound “beep”.

●The (ON) Mark starts lighting instead of blinking.

CANCELLATION of Timer Reservation

1 Press the (Cancel) button

●As the time settings are stored in remote controller memory, you only have to press the (Reserve) button in order to use the same setting next time.

–10 –

Hr.

■Operation will start for setting temperature at setting time (The starting time may different depend on the room temperature and set temperature).

Hr.

Hr.

(EN1) RAD/RAC-50/60/70DH7

10

13/4/07, 2:03 PM

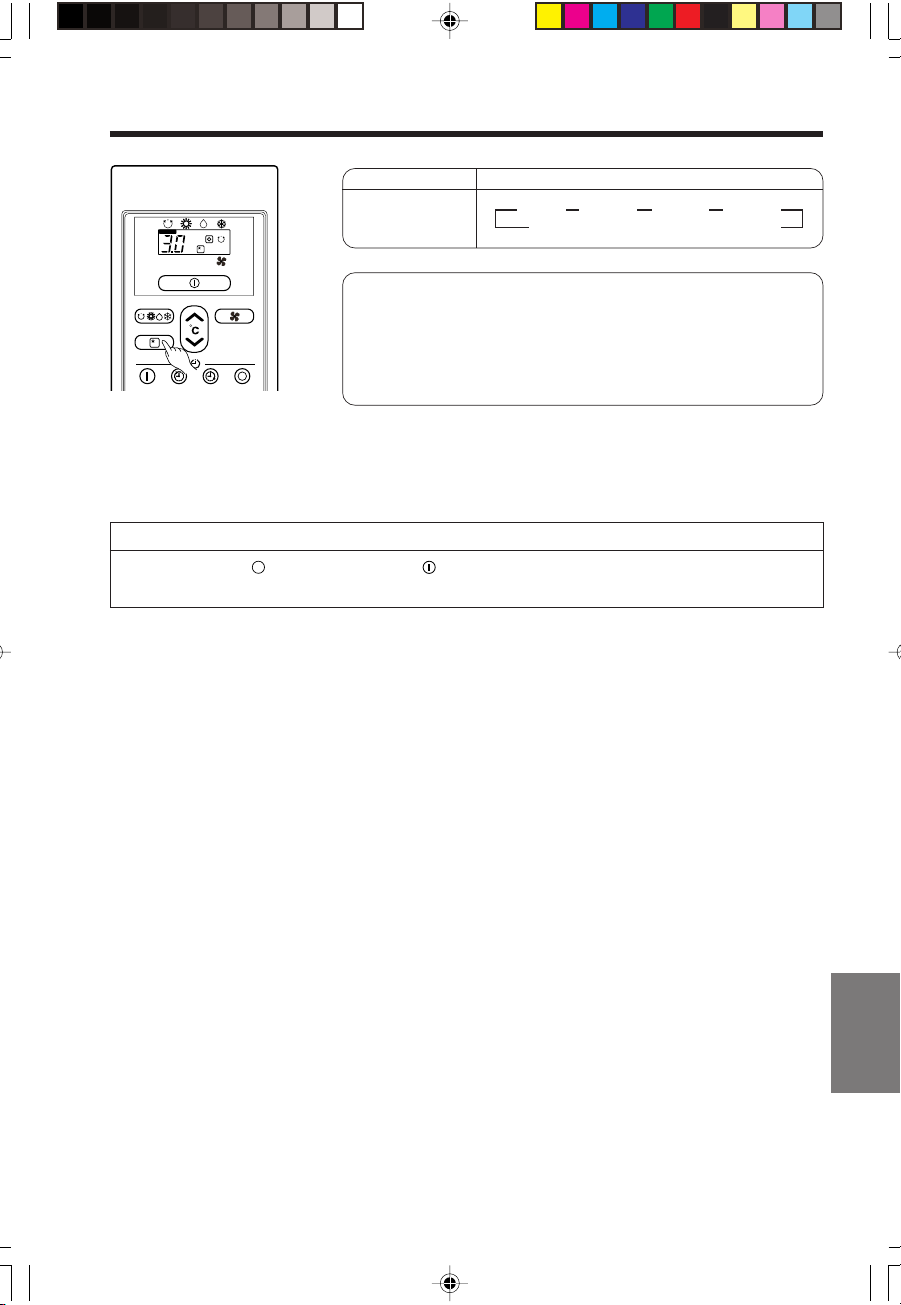

HOW TO SET THE SLEEP TIMER

Mode					Indication
Sleep timer		4	1 hour	4 2 hours		4 3 hours	4 7 hours
					Sleep timer off 1

Hr.

Sleep Timer: The device will continue working for the designated number of hours and then turn off.

Press the SLEEP button, indoor unit will produce a beep.

The timer information will be displayed on the remote controller.

Example: Setting 3 hours sleep time.

How to Cancel Reservation

Press the (CANCEL) button. The (RESERVED) sign goes out with a beep.

– 11 –

<![if ! IE]>

<![endif]>ENGLISH

(EN1) RAD/RAC-50/60/70DH7

11

13/4/07, 2:03 PM

Explanation of the sleep timer

The device will control the FAN SPEED and room temperature automatically so as to be quiet and good for people’s health.

NOTE

●If you set the sleep timer after the off or on-timer has been set, the sleep timer becomes effective instead of the off or on-timer set earlier.

●You can not set other timer during sleep timer operation.

●After sleep timer time is up and when press sleep button again, the sleep timer will be set as last setting.

●Sleep timer effective only once.

– 12 –

(EN1) RAD/RAC-50/60/70DH7

12

13/4/07, 2:03 PM
