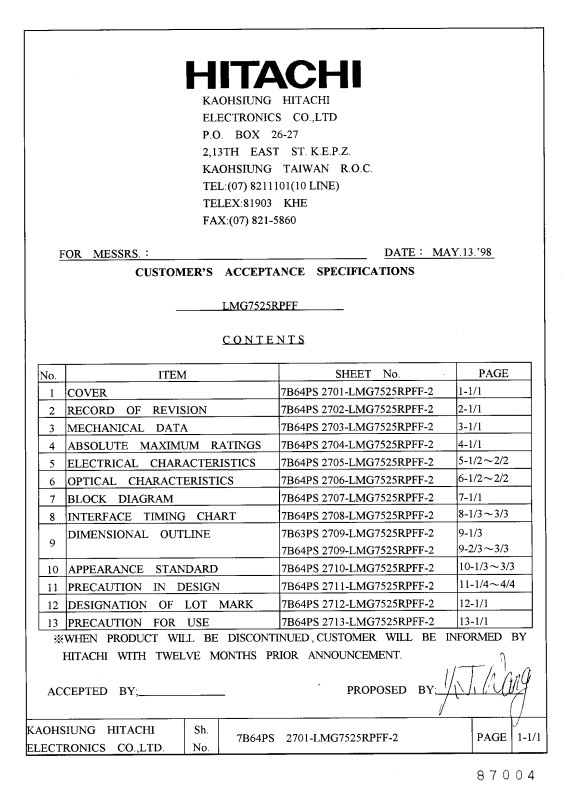

HITACHI LMG7525RPFF User Manual

RECORD OF REVISION

DATE SHEET No. SUMMARY

MAY.13.’98 7B64PS 2703

LMG7525RPFF-2
PAGE 3-1/1
7B64PS 2705­LMG7525RPFF-2
PAGE 5-1/2

7B64PS 2705­LMG7525RPFF-2
PAGE 5-2/2
7B64PS 2706­LMG7525RPFF-2
PAGE 6-1/2
7B64PS 2706­LMG7525RPFF-2
PAGE 6-2/2
7B64PS 2709­LMG7525RPFF-2
PAGE 9-1/2

(8) LCD
THE UPPER POLARIZER TYPE CHANGED.
ANTI – GLARE → GLARE

5.1 ELECTRICAL CHARACTERISTICS
RECOMMENDED LC DRIVING VOLTAGE CHANGED.
Ta=0°C, (24.1)V → 24.8V
Ta=25°C, (23.0)V → 23.8V
Ta=40°C, (21.6)V → 23.0V
NOTE 2 VDD-VEE=(23.0)V → 23.8V

5.2 ELECTRICAL CHARACTERISTICS OF BACKLIGHT
FREQUENCY CHANGED
70(TYP), 85(MAX) → 30(MIN)

6.1 OPTICAL CHARACTERISTICS
CONTRAST RATIO CHANGED
(8) (TYP) → 5 (TYP)

6.2 OPTICAL CHARACTERISTICS OF BACKLIGHT
BRIGHTNESS CHANGED

80.0 (MIN) , (100) (TYP) → 15 (MIN) , 26 (TYP)

9.1 DIMENSIONAL OUTLINE
DOT & VIEWING AREA MEASUREMENT CHANGED
(6.815) → 6.815+/-0.3

4.8+/-0.3 → (4.8)
(14.065) → 14.065+/-0.3

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.

DATE MAY.13.’98 7B64PS 2710-LMG7525RPFF-2 PAGE 2-1/1

Sh.

No.

3. MECHANICAL DATA

(1) PART NAME LMG7525RPFF
(2) MODULE SIZE 129.6(W)mm*92.6(H)mm*7.5(D)mm
(3) EFFECTIVE DISPLAY AREA 100.0 min * 75.5 min.
(4) DOT SIZE 0.285(W)mm*0.285(H)mm
(5) DOT PITCH 0.3 (W)mm * 0.3 (H)mm
(6) NUMBER OF DOTS 320 (W) * 240 (H)DOTS
(7) DUTY 1/240
(8) LCD FILM TYPE BLACK/WHITE (NEGATIVE TYPE)

THE UPPER POLARIZER IS GLARE TYPE
THE BOTTOM POLARIZER IS TRANSMISSIVE
TYPE.

(9) VIEWING DIRECTION 6 O’CLOCK
(10) BACK LIGHT COLD CATHODE FLUORESCENT LAMP
(11) WEIGHT 110g

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2703-LMG7525RPFF-2 PAGE 3-1/1

Sh.

No.

4. ABSOLUTE MAXIMUM RATINGS

4.1 ELECTRICAL ABSOLUTE MAXIMUM RATINGS. VSS=0V:STANDARD
ITEM SYMBOL MIN. MAX. UNIT COMMENT

POWER SUPPLY FOR LOGIC VDD-VSS 0 6.5 V
POWER SUPPLY FOR LC DRIVE VDD-VEE 0 27.5 V
INPUT VOLTAGE Vi -0.3 VDD+0.3 V NOTE 1
INPUT CURRENT Ii 0 1 A

NOTE 1 :DISP.OFF,FRAME,LOAD,CP,D0~D3.
NOTE 2 :.MAKE CERTAINS YOU ARE GROUNDED WHEN HANDLING LCM.

4.2 ENVIRONMENTAL ABSOLUTE MAXIMUM RATINGS.

I T E M OPERATING STORAGE COMMENT

MIN. MAX. MIN. MAX.

AMBIENT TEMPERATURE 0°C

NOTE6

HUMIDITY NOTE 1 NOTE 1 WITHOUT CONDENSATION

VIBRATION - (0.25G) - (1.2G) NOTE 4

SHOCK 29.4m/s

- (3G) - (50G) NOTE 5

CORROSIVE GAS NOT ACCEPTABLE NOT ACCEPTABLE

40°C -20°C 60°C NOTE 2,3

2.45m/s

2

11.76m/s

2

NOTE 5

2

490.0m/s2XYZ DIRECTIONS

NOTE 1 :Ta<=40°C:85%RH max.
Ta> 40°C:ABSOLUTE HUMIDITY MUST BE LOWER
THAN THE HUMIDITY OF 85%RH AT 40°C.
NOTE 2 :Ta AT -20°C ------ < 48HRS,AT 60°C ------< 168HRS.
NOTE 3 :BACKGROUND COLOR CHANGES SLIGHTLY DEPENDING ON AMBIENT
TEMPERATURE. THIS PHENOMENON IS REVERSIBLE.
NOTE 4 :5Hz~100Hz (EXCEPT RESONANCE FREQUENCY, X.Y.Z EACH DIRECTION
WITHIN 1 HOUR)
NOTE 5 :THIS MODULE SHOULD BE OPERATED NORMALLY AFTER FINISH
THE TEST.
NOTE 6 :HIGHER STARTING VOLTAGE OF CFL AND HEIGHER LCD DRIVING
VOLTAGE ARE NEEDED WHILE OPERATING AT 0°C. THE LIFE
TIME OF CFL WILL BE REDUCED WHILE OPERATING AT 0°C.
NEED TO MAKE SURE OF VALUE OF IL AND CHARACTERISTICS
OF INVERTER. ALSO THE RESPONSE TIME AT 0°C WILL BE
SLOWER.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2704-LMG7525RPFF-2 PAGE 4-1/1

Sh.

No.

5.2 ELECTRICAL CHARACTERISTICS OF BACKLIGHT

I T E M SYMBOLMIN. TYP. MAX. UNIT UNIT

LAMP VOLTAGE VL - 300 - V Ta=25°C
FREQUENCY fL 30 - - KHz Ta=25°C
LAMP CURRENT IL 4 5 6 mA Ta=25°C
STARTING
DISCHARGE VOLTAGE

NOTE 1 :PLEASE CERTAINLY INFORM HITACHI BEFORE DESIGNING LAMP DRIVE
CIRCUIT ACCORDING TO THE ABOVE SPECIFICATIONS.
NOTE 2 :STARING DISCHARGE VOLTAGE IS INCREASED WHEN LCM IS OPERATING
AT LOWER TEMPERATURE.
PLEASE CHECK THE CHARACTERISTICS OF INVERTER BEFORE APPLING
TO YOUR SET.
NOTE 3 :AVERAGE LIFE TIME OF CFL WILL BE DECREASED WHEN LCM IS
OPERATINGAT LOWER TEMPERATURE.
NOTE 4 :UNDER LOWER DRIVING FREQUENCY OF THE INVERTER, A CERTAIN
BACKLIGHT (FROM CFL & CFL REELECTION SHEET) MAY GENERATE
SOUND NOISE. BEFORE DISIGNING THE INERTER, PLEASE CONSIDER
DRIVING FREQUENCY AND CHECK SOUND NOISE FROM THE BACKLIGHT
SYSTEM

VS

NOTE 2

(1000) - - V Ta=25°C

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

.

DATE MAY.13.’98 7B64PS 2705-LMG7525RPFF-2 PAGE 5-2/2

Sh.

No.

5. ELECTRICAL CHARACTERISTICS

5.1 ELECTRICAL CHARACTERISTICS

I T E M SYMBOL CONDITION MIN. TYP. MAX. UNIT
POWER SUPPLY VOLTAGE
FOR LOGIC
POWER SUPPLY VOLTAGE
FOR LC DRIVING
INPUT VOLTAGE VI H LEVEL 0.8VDD - VDD V
NOTE 1 L LEVEL 0 - 0.2VDD V
POWER SUPPLY CURRENT
FOR LOGIC
NOTE 2
POWER SUPPLY CURRENT
FOR LC DRIVING
NOTE 2
RECOMMENDED Ta= 0°C , φ=10° - 24.8 - V
LC DRIVING VOLTAGE VDD-VEE Ta= 25°C , φ=10° - 23.8 - V
NOTE 3 Ta=40°C , φ=10° - 23.0 - V
FRAME FREQUENCY NOTE4 fFRAME - 70 - (140) Hz

VDD-VSS - 3.0 5.0 5.25 V

VEE-VSS - - -22.0 - V

VDD-VSS=5.0V

IDD

VEE-VSS=-22.0V

VDD-VSS=5.0V

IEE

VEE-VSS=-22.0V

- 8.0 - mA

- 6.0 - mA

NOTE 1 :DISP.OFF,FRAME,LOAD,CP,D0~D3.
NOTE 2 :fFRAME=75Hz,D0~UD3=0,1,0,1,…

VDD-VEE=23.8V,Ta=25°C
NOTE 3 :RECOMMENDED LC DRIVING VOLTAGE FLUCTUATE ABOUT ±1.0V

BY EACH MODULE.
TEST PATTERN IS ALL “Q” .

NOTE 4 :NEED TO MAKE SURE OF FLICKING AND RIPPLING OF DISPLAY
WHEN SETTING THE FRAME FREQUENCY IN YOUR SET.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2705-LMG7525RPFF-2 PAGE 5-1/2

Sh.

No.

6. OPTICAL CHARACTERISTICS

φ

φ

φ

φ

NON-SELECTIVE STATE

(B2)

(B1)

BRIGHTNESS

BACKLIGH

LCD

SENSOR

BRIGHTNESS

6.1 OPTICAL CHARACTERISTICS Ta=25°C (BACKLIGHT ON)

ITEM SYMBOL CONDITION MIN. TYP. MAX. UNIT NOTE

VIEWING ANGLE φ2-φ1 K>=2.0 - 40 - deg 1,2
CONTRAST RATIO K φ=10° θ=0° - 5 - - 3

RESPONSE TIME

(MEASURE CONDITION BY HITACHI)

NOTE 1.DEFINITION OF θ AND φ NOTE 3.DEFINITION OF CONTRAST “K”

(NORMAL)
y(θ=180°)

φ2

φ1

tr φ=10° θ=0° - 250 - ms 4
tf φ=10° θ=0° - 350 - ms 4

BRIGHTESS ON NON-SELECTED DOT (B2)

K=

BRIGHTESS ON SELECTED DOT (B1)

(B1)

(Di=”L”)

X

X’

y'(θ=0°)

VIEWING DIRECTION)

NOTE 2.DEFINITION OF VIEWING ANGLE
φ1 AND φ1

.

K

1<10°<φ2

2.0
1

2

CONTRAST RATIO K VS
VIEWING ANGLE

NOTE 4.DEFINITION OF OPTICAL RESPONSE

φ=10°

(B2)

(Di=”H”)

OPERATING VOLTAGE

NON-SELECTIVE STATE

100%

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

SELECTIVE STATE

90%

tr

RISE TIME

FALL TIME

10%

tf

Sh.

DATE MAY.13.’98 7B64PS 2706-LMG7525RPFF-2 PAGE 6-1/2

No.

6.2 OPTICAL CHARACTERISTICS OF BACKLIGHT

Y=60

Y=160

Y=240

X=60

X=120

X=180

P1P4P7P2P3P5P6P8P9

(LCM,BACKLIGHT ON,Ta=25°C)

ITEM MIN. TYP. MAX. UNIT NOTE

IL=5mA

BRIGHTNESS 15 25 - cd/m

RISE TIME - 5 ­BRIGHTNESS

UNIFORMITY

CFL : INITAL , Ta=25°C , VDD-VEE=23.8V
DISPLAY DATA SHOULD BE ALL “ON” .

NOTE 1 MEASUREMENT AFTER 10 MINUTES OF CFL OPERATING.

NOTE 2 BRIGHTNESS CONTROL :100%

NOTE 3 MEASUREMENT OF THE FOLLOWING 9 PLACES ON THE DISPLAY.
DEFINITION OF THE BRIGHTNESS TOLERANCE.

- - +/-30 %

MINUTE IL=5mA

2

NOTE 1,2

BRIGHTNESS 80%
UNDERMENTIONED
NOTE 1,3

MAX BRIGHTNESS OR MIN BRIGHTNESS - AVERAGE BRIGHTNESS

( ) * 100

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

AVERAGE BRIGHTNESS

Sh.

DATE MAY.13.’98 7B64PS 2706-LMG7525RPFF-2 PAGE 6-2/2

No.

7. BLOCK DIAGRAM

IC2

IC1

IC5

IC6

IC7

IC4

X1

X80

X81

X160

X161

X420

CFL

POWER

SUPPLY

VCFL

VCFL

VEE

VSS

VDD

CP

LOAD

FRAME

D0~D3

DISP.OFF

320*240 DOTS

* TIMING CIRCUIT

*

Y320

Y241

Y160

Y81

D0

Y80

Y1

X1

D1

D2

D3

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2707-LMG7525RPFF-2 PAGE 7-1/1

Sh.

No.

8. INTERFACE TIMING CHART

8.1 TIMING CHART

29.8µs<=T<=59.5µs

LOAD

CP

X240 X1 X2

D3

D2

D1

D0

FRAME

LOAD

Y1 Y5

Y2

Y6

Y3

Y7

Y4

Y8

Y317

Y318

Y319

Y320

FRAME

D0~D3

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

240*T

X1 X2

DATE MAY.13.’98 7B64PS 2708-LMG7525RPFF-2 PAGE 8-1/3

X239 X240

Sh.
No.

8.2 TIMING CHARACTERISTICS 0°C<=Ta<=40°C

tWtWtWtftr

tDSU

tDHD

tLSU

tLC

tWC

tSETUP

tHOLD

tr

tf

CP

D0~D3

LOAD

FRAME

VDD=5V+/-5%

ITEM SYMBOL MIN. TYP. MAX. UMIT
CLOCK FREQUENCY FCP - - 6.5 MHz
CLOCK PULSE WIDTH tW 63 - - ns
CLOCK RISE,FALL TIME tr,tf - - 20 ns
DATA SET UP TIME tDSU 50 - - ns
DATA HOLD TIME tDHD 50 - - ns
LOAD SET UP TIME tLSU 80 - - ns
LOAD→CLOCK TIME tLC 80 - - ns
“FRAME” SET UP TIME tSETUP 100 - - ns
“FRAME” HOLD TIME tHOLD 100 - - ns
“LOAD“ PULSE WIDTH tWC 125 - - ns

0.8VDD 0.8VDD

0.8VDD

0.2VDD

0.2VDD

0.8VDD

0.2VDD

0.8VDD 0.8VDD

0.8VDD 0.8VDD

0.8VDD 0.8VDD

0.2VDD

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2708-LMG7525RPFF-2 PAGE 8-2/3

Sh.

No.

8.3 TIMING OF POWER SUPPLY AND INTERFACE SIGNAL

5V

0~50mm

0~50mm

4.75V

GND

GND

GND

GND

GND

GND

GND

GND

0 min.

0 min.

0 min.

0 min.

4.75V

VDD

SIGNAL

VEE

DISP.OFF

VDD

SIGNAL

VEE

DISP.OFF

POWER ON

POWER OFF

LCM

Tr

CVR-22.0V

+5V

AND INTERFACE SIGNAL

THE MISSING PIXELS MAY OCCUR OCCUR WHEN THE LCM
IS DRIVEN EXCEPT ABOVE POWER INTERFACE TIMING SEQUENCE.

8.4 POWER SUPPLY FOR LCM

VDD

VDD
VDD

C :3.3µf(ALUMINUM ELECTROLYTIC CAPACITOR)
VR:10~20KΩ
Tr :2SA673APKC(hfe=100,IC=500mA)OR EQUIVALENT Tr.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2708-LMG7525RPFF-2 PAGE 8-3/3

Sh.

No.

9. DIMENSIONAL OUTLINE

9.1 DIMENSIONAL OUTLINE

CN1

(14.8)

(30.0)

129.6+/-0.5

104.0+/-0.3

100.0min

320*0.3-0.015=95.985+/-0.1

2.8+/-0.3
(4.8)

6.815+/-0.3

(14.8)

(12.3)

14.065+/-0.3

10.3+/-0.3

(50.1)

(73.8)

4-R1.5

IF1

(4.0)(4.0)

(2.2)

1

12

0.285

0.015

0.285

0.015

320*240 DOTS

(138.6)
(142.6)

VIEWING DIRECTION

79.5+/-0.3

92.6+/-0.5

(73.8)

75.5min

240*0.3-0.015=71.985+/-0.1

UNIT : mm
SCALE : NTS

7.5 max.

NOTE1 : IF1 : GMOLEX/52103-1217
CN1 : GMITSUMI/M63M83-04
NOTE2 : GTHE COSMETIC INSPECTION SHOULD BE NEGLECTED ON LCD WITH PROTECTIVE FILM.
NOTE3 : GTHE PROTECTIVE FILM SHOULD BE TAKEN OFF BEFORE USE.

Kaohsiung Hitachi
Electronics Co.,Ltd.

Date Page 9-1/3

MAY.13.'98

Sh.

7B63PS 2709-LMG7525RPFF-2

No.

9.2 DISPLAY PATTERN

0.285

0.3

71.985 (240 DOTS)

0.285

0.3

95.985 (320 DOTS)

SCALE : NTS

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

UNIT : mm
MEASUREMENT TOLERANCE : +/-0.1

Sh.

DATE MAY.13.’98 7B64PS 2709-LMG7525RPFF-2 PAGE 9-2/3

No.

9.3 INTERNAL PIN CONNECTION
I/F1 :MOLEX/52103-1217
(SUITABLE FPC :1.0 Pitch,12 Pin,0.3t)

INTERFACE PIN NO. SIGNAL LEVEL FUNCTION

1 FRAME H FIRST LINE MARKER
2 LOAD H→L DATA LATCH
3 CP H→L DATA SHIFT
4 VDD - POWER SUPPLY FOR LOGIC
5 VSS - GND

LCM I/F1 6 VEE - POWER SUPPLY FOR LC

7 D0
8 D1

9 D2 H/L DISPLAY DATA
10 D3
11 DISP OFF H/L H:ON/L:OFF
12 NC -

INTERFACE PIN NO. SIGNAL LEVEL FUNCTION

1 H.V - CFL SUPPLY FOR CFL

CFL 2 N.C - -

LCM

I/F1 3 N.C - -

4 GND - CFL GND

CFL I/F1:MITSUMI/M63M83-04
SUITABLE CONNECTOR: MITSUMI M61M73-04
MITSUMI M60-04-30-1149(STRAIGHT)
MITSUMI M60-04-30-1349(ANGLE)

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2709-LMG7525RPFF-2 PAGE 9-3/3

Sh.

No.

10. APPEARANCE STANDARD

EYE

EYE

EFFECTIVE VIEWING AREA

B ZONE

A ZONE

B ZONE

B ZONE

A ZONE

B ZONE

10.1 APPEARANCE INSPECTION CONDITION
VISUAL INSPECTION SHOULD BE DONE UNDER THE FOLLOWING CONDITION.

(1) IN THE DARK ROOM
(2) WITH CFL PANEL LIGHTED WITH PRESCRIBED INVERTER CIRCUIT.
(3) WITH EYES 25cm DISTAND FROM LCM
(4) VIEWING ANGLE WITHIN 45 DEGREES FROM THE VERTICAL LINE
TO THE CENTER OF LCD

LCD

BEZEL

10.2 DEFINITION OF EACH ZONE

PCB

A ZONE:EFFECTIVE VIEWING AREA (REFER TO OUR DRAWING)
B ZONE:EXCEPT A ZONE

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2710-LMG7525RPFF-2 PAGE 10-1/3

Sh.

No.

10.3 APPEARANCE SPECIFICATION
*) IF THE PROBLEM OCCURES, ABOUT THIS ITEM THE RESPONSIBLE PERSON
OF BOTH PARTY (CUSTOMER AND HITACHI) WILL DISCUSS MORE DETAIL.

No. ITEM CRITERIA A B

SCRATCHES DISTINGUISHED ONE IS NOT ACCEPTABLE

(TO BE JUDGE BY HITACHI LIMIT SAMPLE)

DENT SAME AS ABOVE * -

WRINKLES IN POLARIZER SAME AS ABOVE * *

BUBBLES AVERAGE DIAMETER

D(mm)

L D<=0.2 IGNORE

0.2<D<=0.3 12

0.3<D<=0.5 3

NOTE(1) 0.5<D NONE

C STAINS, FILAMENTOUS

FOREIGN
MATERIALS

LENGTH

L(mm)

WIDTH

W(mm)

DARK SPOT L<=2.0 W<=0.03 IGNORE

D L<=3.0 0.03<W<=0.05 6

- 0.05<W NONE
ROUND

AVERAGE DIA-

METER D(mm)

MAXIMUM NUMBER

ACCEPTABLE

D<0.2 IGNORE -

0.2 <=D<0.33 8 10 mm

0.33<=D NONE ­THE WHOLE

FILAMENTOUS + ROUND = 10
NUMBER
THOSE WIPED OUT EASILY ARE ACCEPTABLE

COLOR TONE TO BE JUDGE BY HITACHI LIMIT SAMPLE
COLOR UNIFORMITY SAME AS ABOVE
PINHOLE (a+b)/2<=0.15MAX. NO. ACCEPTABLE IGNORE

0.15<(a+b)/2<=0.3MAX. NO.ACCEPTABLE<=10
C<=0.03 IGNORE

MAXIMUM NUMBER

ACCEPTABLE

MAXIMUMNUMBER

ACCEPTABLE

SPACE

* -

Ο

Ο

Ο

Ο Ο
Ο
Ο

Ο

-

*

*

-

-

-

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2710-LMG7525RPFF-2 PAGE 10-2/3

Sh.
No.

No. ITEM CRITERIA A B

acb

a

bba

a

b

CONTRAST
IRREGULARITY
(SPOT)

NOTE(3) 0.35<D<=0.5 LIMIT <=4 20mm

NOTE(2) 0.5 <D SAMPLE NONE ­ CONTRAST
IRREGULARITY

(A PAIR OF SCRATCH) T<=0.25 L<=1.2 <=2 20mm

L T<=0.15 L<=2.0 <=3 20mm

NOTE(3) T<=0.1 L<=3.0 <=4 20mm

C NOTE(2) THE WHOLE NUMBER <=6

RUBBING SCRATCH TO BE JUDGE BY HITACHI LIMIT SANPLE * -

AVERAGE

DIAMETER

D(mm)

D<0.25 TO BE JUDGE IGNORE -

0.25<D<=0.35 BYHITACHI <=10 20mm

THICKNESS

T(mm)

T<=0.2 L<=1.5 <=3 20mm

CONTRAST MAXIMUM

NUMBER

ACCEPTABLE

LENGTH

L(mm)

MAXIMUM

NUMBER

ACCEPTABLE

DISTANCE

DISTANCE

NOTE(1)

-

Ο

-

Ο

a+

=D…AVERAGE DIAMETER

b

C…SALIENT

NOTE 2 LCM BACKLIGHT ON.
NOTE 3 THERE ARE TWO SCRATCHES IN A PAIR.

KAOHSIUNG HITACHI

Sh.

DATE MAY.13.’98 7B64PS 2710-LMG7525RPFF-2 PAGE 10-3/3

ELECTRONICS CO.,LTD

No.

11. PRECAUTION IN DESIGN

LOCATION OF SPACERS

74.0+/-0.3

37.0+/-0.3

11.1 MOUNTING METHOD
SINCE THE MODULE IS SO CONSTRUCTED AS TO BE FIXED BY
UTILIZING FITTING HOLES IN THE PRINTED CIRCUIT BOARD AS
SHOWN BELOW, IT IS NECESSARY TO TAKE CONSIDERATION THE

FOLLOWING ITEMS ON ATTACHMENT TO A FRAME.

PROTECTIVE PLATE

THE MODULE

SPACER

EXAMPLE OF MOUNTING

139.0+/-0.3

69.5+/-0.3

79.0+/-0.330.0+/-0.3

SPACER

CUSTOMER'S HOUSING

PROTECTIVE SPACER

UNIT:mm
SCALE:NTS

SPACER 4-φ7.0

PROTECTIVE SPACER 4-φ5.0

(1) USE OF PROTECTIVE PLATE, MADE OF AN ACRYLIC PLATE, ETC, IN
ORDER TO PROTECT A POLARIZER AND LC CELL.
(2) TO PREVENT THE MODULE COVER FROM BEING PRESSED, THE
SPACERS BETWEEN THE MODULE AND THE FITTING PLATES SHOUD
BE LONGER THAN 0.5mm.
(3) WE RECOMMEND YOU TO USE PROTECTIVE SPACER AS FIGURE FOR
PROTECTING LCD MODULE FROM ANY KIND OF SHOCK TO YOUR SET.

11.2 LC DRIVING VOLTAGE(VEE) AND VIEWING ANGLE RANGE.
SETTING VEE OUT OF THE RECOMMENDED CONDITION WILL BE A
CAUSE FOR A CHANGE OF VIEWING ANGLE RANGE.

KAOHSIUNG HITACHI

Sh.

DATE MAY.13.’98 7B64PS 2711-LMG7525RPFF-2 PAGE 11-1/4

ELECTRONICS CO.,LTD

No.

11.3 CAUTION AGAINST STATIC CHARGE
AS THIS MODULE IS PROVIDED WITH C-MOS LSI, THE CARE TO TAKE
SUCH A PRECAUTION AS TO GROUNDING THE OPERATOR’S BODY IS
REQUIRED WHEN HANDLING IT.

11.4 POWER ON SEQUENCE
INPUT SIGNALS SHOULD NOT BE APPLIED TO LCD MODULE BEFORE
POWER SUPPLY VOLTAGE IS APPLIED AND REACHES TO SPECIFIED
VOLTAGE (5+/-0.25V) IF ABOVE SEQUENCE IS NOT KEPT, C-MOS LSI OF
LCD MODULES MAY BE DAMAGED DUE TO LATCH UP PROBLEM.

11.5 PACKAGING
(1) NO. LEAVING PRODUCTS IS PREFERABLE IN THE PLACE OF HIGH
HUMIDITY FOR A LONG PERIOD OF TIME. FOR THEIR STORAGE IN
THE PLACE WHERE TEMPERATURE IS 35°C OR HIGHER, SPECIAL CARE
TO PREVENT THEM FROM HIGH HUMIDITY IS REQUIRED. A COMBINATION
OF HIGH TEMPERATURE AND HIGH HUMIDITY MAY CAUSE THEM
POLARIZATION DEGRADATION AS WELL AS BUBBLE GENERATION AND
POLARIZER PEEL-OFF. PLEASE KEEP THE TEMPERATURE AND HUMIDITY
WITHIN THE SPECIFIED RANGE FOR USE AND STORING.
(2) SINCE UPPER POLARIZERS AND LOWER ALUMINUM PLATES TEND TO BE
EASILY DAMAGED, THEY SHOULD BE HANDLED WITH FULL CARE SO AS
NOT TO GET THEM TOUCHED, PUSHED OR RUBBED BY A PIECE OF
GLASS. TWEEZERS AND ANYTHING ELSE WHICH ARE HARDER THAN A
PENCIL LEAD 3H.
(3) AS THE ADHESIVES USED FOR ADHERING UPPER/LOWER POLARIZES AND
ALUMINUM PLATES ARE MADE OF ORGANIC SUBSTANCES WHICH WILL
BE DETERIORATED BY A CHEMICAL REACTION WITH SUCH CHEMICALS
AS ACETONE, TULUENE ETHANOLE AND ISOPROPYLALCOHIL. THE
FOLLOWING SOLVENTS ARE RECOMMENDED FOR USE:
NORMAL HEXANE
PLEASE CONTACT US WHEN IT IS NECESSARY FOR YOU TO USE
CHEMICALS OTHER THAN THE ABOVE.
(4) LIGHTLY WIPE TO CLEAN THE DIRTY SURFACE WITH ABSORBENT
COTTON WASTE OR OTHER SOFT MATERIAL LIKE CHAMOIS, SOAKED IN
THE CHEMICALS RECOMMENDED WITHOUT SCRUBBING IT HARDLY.
TO PREVENT THE DISPLAY SURFACE FROM DAMAGE AND KEEP THE
APPEARANCE IN GOOD STATE, IT IS SUFFICIENT, IN GENERAL, TO WIPE
IT WITH ABSORBENT COTTON.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2711-LMG7525RPFF-2 PAGE 11-2/4

Sh.

No.

(5) IMMEDIATELY WIPE OFF SALIVA OFF SALIVA OR WATER DROP
ATTACHED ON THE DISPLAY AREA BECAUSE ITS LONG PERIOD
ADHERENCE MAY CAUSE DEFORMATION OR FADED COLOR ON THE
SPOT.
(6) FOGY DEW DEPOSITED ON THE SURFACE AND CONTACT TERMINALS
DUE TO COLDNESS WILL BE CAUSE FOR POLARIZER DAMAGE,
STAIN AND DIRT ON PRODUCT. WHEN NECESSARY TO TAKE OUT
THE PRODUCTS FROM SOME PLACE AT LOW TEMPERATURE FOR
TEST, ETC. IT IS REQUIRED THEM TO BE WARMED UP IN A
CONTAINER ONCE AT THE TEMPERATURE HIGHER THAN THAT OF
ROOM.
(7) TOUCHING THE DISPLAY AREA AND CONTACT TERMINALS WITH
BARE HANDS AND CONTAMINATING THEM ARE PROHIBITED, BECAUSE
THE STAIN ON THE DISPLAY AREA AND POOR INSULATION BETWEEN
TERMINALS ARE OFTEN CAUSED BY BEING TOUCHED BY BARE HANDS.
(THERE ARE SOME COSMETICS DETRIMENTAL TO POLARIZERS.)
(8) IN GENERAL THE QUALITY OF GLASS IS FRAGILE SO THAT IT
TENDS TO BE CRACKED OR CHIPPED IN HANDLING,SPECIALLY ON
ITS PERIPHERY DOWN, ECT.

11.6 CAUTION FOR OPERATION
(1) IT IS AN INDISPENSABLE CONDITION TO DRIVE LCD‘S WITHIN THE
SPECIFIED VOLTAGE LIMIT SINCE THE HIGHER VOLTAGE THAN THE

LIMIT CAUSES THE SHORTER LCD LIFE.AN ELECTROCHEMICAL REACTION
DUE TO DIRECT CURRENT CAUSES LCD‘S UNDESIRABLE DETERIORATION,

SO THAT THE USE OF DIRECT CURRENT DRIVER SHOULD BE AVOIDED.
(2) RESPONSE TIME WILL BE EXTREMELY DELAYED AT LOWER
TEMPERATURE THAN THE OPERATING TEMPERATURE RANGE AND ON
THE OTHER HAND AT HIGHER TEMPERATURE LCD‘S SHOW DARK BLUE
COLOR IN HEM.HOWEVER THOSE PHENOMENA DO NOT MEAN
MALFUNCTION OR OUT OF ORDER WITH LCD‘S WHICH WILL COME
BACK IN THE SPECIFIED OPERATING TEMPER ATURE RANGE.
(3) IF THE DISPLAY AREA IS PUSHED HARD DURING OPERATION,SOME
FONT WILL BE ABNORMALLY DISPLAYED BUT IT RESUMES NORMAL
CONDITION AFTER TURNING OFF ONCE.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2711-LMG7525RPFF-2 PAGE 10-3/4

Sh.
No.

(4) A SLIGHT DEW DEPOSITING ON TERMINALS IS A CAUSE FOR
ELECTROCHEMICAL REACTION RESULTING IN TERMINAL OPER CIRCUIT.
USAGE UNDER THE RELATIVE CONDITION OF 40°C 50%RH LESS IS
REQUIRED.

11.7 STORAGE
IN CASE OF STORING FOR A LONG PERIOD TIME (FOR INSTANCE,FOR
YEARS) FOR THE PURPOSE OF REPLACEMENT USE,THE FOLLOWING WAYS
ARE RECOMMENDED.
(1) STORAGE IN A POLYETHYLENE BAG WITH THE OPENING SEALED SO
AS NOT TO ENTER FRESH AIR OUTSIDE IN IT,AND WITH NO
DESICCANT.
(2) PLACING IN A DARK PLACE WHERE NEITHER EXPOSURE TO DIRECT
SUNLIGHT NOR LIGHT IS, KEEPING TEMPERATURE IN THE RANGE
FOR 0°C TO 35°C.
(3) STORING WITH NO TOUCH ON POLARIZER SURFACE BY ANYTHING
ELSE.
(IT IS RECOMMENDED TO STORE THEM AS THEY HAVE BEEN
CONTAINED IN THE INNER CONTAINER AT THE TIME OF DELIVERY
FOR US.)

11.8 SAFETY
(1) IT IS RECOMMENDABLE TO CRASH DAMAGED OR UNNECESSARY
LCD‘S INTO PIECES AND WASH OFF LIQUID CRYSTAL BY EITHER
OF SOLVENTS SUCH AS ACETONE AND ETHANOL, WHICH SHOUD UP
LATER.
(2) WHEN ANY LIQUID LEAKED OUT OF A DAMAGED GLASS CELL IN
CONTACT WITH YOUR HANDS, PLEASE WASH IT OFF WELL WITH
SOAP AND WATER.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2711-LMG7525RPFF-2 PAGE 11-4/4

Sh.

No.

12. DESIGNATION OF LOT MARK
LOT MARK
LOT MARK IS CONSISTED OF 4 DIGIT NUMBER.

1308

WEEK

MONTH

YEAR

FIGURE IN

MONTH

JAN. 01 JULY. 07

FEB. 02 AUG. 08

MAR. 03 SEPT. 09

APR. 04 OCT. 10
MAY. 05 NOV. 11
JUNE. 06 DEC. 12

LOT MARK MONTH

FIGURE IN
LOT MARK

YEAR FIGURE IN

LOT MARK
1997 7
1998 8
1999 9
2000 0
2001 1

WEEK

(DAY IN

CALENDAR

01~07 1
08~14 2
15~21 3
22~28 4
29~31 5

FIGURE IN
LOT MARK

LOCATION OF LOT MARK : ON THE BACK SIDE OF LCM

8 0 3 1 T

T:MADE IN TAIWAN.

KAOHSIUNG HITACHI

.
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2712-LMG7525RPFF-2 PAGE 12-1/1

Sh.

No.

13. PRECAUTION FOR USE
(1) A LIMIT SAMPLE SHOULD BE PROVIDED BY THE BOTH PARTIES

ON AN OCCASION WHEN THE BOTH PARTIES AGREED ITS NECESSITY.
JUDGMENT BY A LIMIT SAMPLE SHALL TAKE EFFECT AFTER THE
LIMIT SAMPLE HAS BEEN ESTABLISHED AND CONFIRMED BY THE
BOTH PARTIES.
(2) ON THE FOLLOWING OCCASION, THE HANDLING OF THE PROBLEM
SHOULD BE DECIDED THROUGH DISCUSSION AND AGREEMENT
BETWEEN RESPONSIBLE PERSONS OF THE BOTH PARTIES.
(1) WHEN A QUESTION IS ARISEN IN THE SPECIFICATIONS.
(2) WHEN A NEW PROBLEM IS ARISEN WHICH IS NOT SPECIFIED
IN THIS SPECIFICATIONS.
(3) WHEN AN INSPECTION SPECIFICATIONS CHANGE OR OPERATING
CONDITION CHANGE IN CUSTOMER IS REPORTED TO HITACHI,
AND SOME PROBLEM IS ARISEN IN THIS SPECIFICATION DUE TO
THE CHANGE.
(4) WHEN A NEW PROBLEM IS ARISEN AT THE CUSTOMER‘S
OPERATING SET FOR SAMPLE EVALUATION IN THE CUSTOMER
SITE.

THE PRECAUTION THAT SHOULD BE OBSERVED WHEN HANDLING LCM
HAVE BEEN EXPLAIND ABOVE. IF ANY POINTS ARE UNCLEAR OF IF
YOU HAVE ANY REQUESTS,PLEASE CONTACT HITACHI.

KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD

DATE MAY.13.’98 7B64PS 2713-LMG7525RPFF-2 PAGE 13-1/1

Sh.

No.
