32" LCD Colour Television

L32HP03U A

Instructions for use

Contents

Features ................................................................. 3

Accessories ............................................................ 3

Introduction ............................................................. 4

Preparation ............................................................. 4

Safety Precautions ................................................. 4

Power Source ..................................................... 5

Power Cord ......................................................... 5

Moisture and Water ............................................ 5

Cleaning.............................................................. 5

Ventilation ........................................................... 5

Heat and Flames ................................................ 5

Lightning ............................................................. 5

Replacement Parts ............................................. 5

Servicing ............................................................. 5

Waste Disposal ................................................... 5

Information for Users in European Union

Countries ............................................................ 6

Disconnecting the Device ................................... 6

Headphone Volume ............................................ 6

Installation........................................................... 6

LCD Screen ........................................................ 6

Warning .............................................................. 6

Overview of the Remote Control ............................ 7

LCD TV and Operating Buttons .............................. 8

Viewing the Connections- Back Connectors .......... 9

Viewing the Connections - Side Connectors .........11

Power Connection ................................................ 12

Aerial Connection ................................................. 12

Using the Cable Holder ........................................ 12

Using Digital Multimedia Connectors.................... 13

USB Memory Connection ................................. 13

Connecting the LCD TV to a PC ........................... 14

Connecting to a DVD Player................................. 15

Using Side AV Connectors ................................... 16

Using Other Connectors ....................................... 17

Connecting Other Equipment via Scart ................ 18

Inserting Batteries in the Remote Control

Handset ................................................................ 19

Operating Range for the Remote Control ............. 19

Switching the TV On/Off ....................................... 19

To Switch the TV On ......................................... 19

The TV will then switch on. ............................... 19

To Switch the TV Off ......................................... 19

Input Selection ...................................................... 20

Basic Operations .................................................. 20

Operation with the Buttons on the TV ............... 20

Volume Setting .............................................. 20

Programme Selection ................................... 20

Viewing Main Menu ....................................... 20

AV Mode ....................................................... 20

Operation with the Remote Control .................. 20

Volume Setting .............................................. 20

Programme Selection (Previous or Next

Programme) .................................................. 20

Programme Selection (Direct Access) .......... 20

English - 1 -

Initial Settings ....................................................... 21

General Operation ................................................ 22

Information Banner ........................................... 22

Electronic Programme Guide (EPG) .................... 22

Displaying the Subtitles .................................... 23

Digital Teletext (** for UK only) ......................... 23

Widescreen ....................................................... 23

IDTV Menu System .............................................. 23

Channel List ...................................................... 24

Navigating the Entire Channel List ............... 24

Moving the channels in the channel list ........ 24

Deleting the Channels in the Channel List .... 24

Renaming Channels ..................................... 25

Adding Locks to Channels ............................ 25

Setting Favourites ......................................... 25

How to Add a Channel to a Favourites

List .......................................................... 25

Removing a Channel from Favourite List 25

On Screen Help ........................................... 25

Program Guide ............................................. 26

Timers ............................................................... 26

Conditional Access ........................................... 26

TV Setup ........................................................... 27

Setup ................................................................ 27

Con guration ................................................ 27

AC3 Audio (**for EU countries only) .......27

Hard of Hearing (**for EU countries

only) ........................................................ 27

Favourite Mode.......................................27

Channel List ...........................................27

Active Antenna ....................................... 27

Scan Encrypted .....................................27

Receiver Upgrade ..................................28

Over Air Download (OAD) ......................28

Parental Control .....................................28

Maturity Lock ........................................28

Menu Lock ...........................................28

Set PIN .................................................28

Time Settings ..........................................29

Audio Description ...................................29

Audio Description .................................29

Preferred Language ............................. 29

Relative Volume ...................................29

Standby Search (*) .................................29

Language ...................................................... 29

Preferred.................................................29

Current....................................................30

Language Settings ............................................ 30

Installation ..................................................... 30

Automatic Channel Scan ........................ 30

Manual Channel Scan ............................31

Clear Service List (*) ............................ 31

First Time Installation..............................31

Media Browser .................................................. 32

Playing MP3 Files ............................................. 32

Viewing JPG Files ............................................. 33

Slideshow Options ............................................ 33

Navigating the Analogue TV Menu System .......... 33

Analogue TV Menu System .................................. 33

Picture Menu..................................................... 33

Mode ............................................................. 33

Brightness/Contrast/Colour/Sharpness ........ 33

Colour Temp .................................................. 34

Noise Reduction ........................................... 34

Film Mode ..................................................... 34

Game Mode .................................................. 34

Picture Zoom ................................................ 34

Reset ............................................................ 34

Store ............................................................. 34

Sound Menu ..................................................... 34

Volume .......................................................... 34

Equalizer ....................................................... 34

Balance ......................................................... 35

Headphone ................................................... 35

Volume....................................................35

Store ....................................................... 35

Sound Mode ................................................. 35

AVL ............................................................... 35

Spdif Out ....................................................... 35

Effect ............................................................. 35

Store ............................................................. 35

Feature Menu ................................................... 35

Pip-Pap ......................................................... 35

Pip-Pap ................................................... 36

Pip Size ..................................................36

PIP Position ............................................ 36

Source .................................................... 36

Program .................................................. 36

Swap.......................................................36

Sleep Timer ................................................... 36

Child Lock ..................................................... 36

Language ...................................................... 36

Default Zoom ................................................ 36

Blue Background .......................................... 36

Menu Background ......................................... 36

Backlight ....................................................... 36

Menu Timeout ............................................... 36

Teletext Language ........................................ 37

Ext Out .......................................................... 37

Install Menu ...................................................... 37

Program ........................................................ 37

Band ............................................................. 37

Channel ........................................................ 37

Colour System .............................................. 37

Sound System .............................................. 37

Fine Tune ...................................................... 37

Search .......................................................... 37

Store ............................................................. 37

Install Menu in AV Modes .............................. 37

Colour System ........................................ 37

Store ............................................................. 37

Program Table ............................................... 37

Name ...................................................... 38

Insert.......................................................38

English - 2 -

Delete ..................................................... 38

APS (Auto Programming System) .......... 38

Country ................................................38

Source Menu .................................................... 38

PC Mode Menu System........................................ 39

PC Position Menu ............................................. 39

Autoposition .................................................. 39

H (Horizontal) Position .................................. 39

V (Vertical) Position ...................................... 39

Phase ............................................................ 39

Dot Clock ...................................................... 39

PC Picture Menu ........................................... 39

Sound Menu ................................................. 39

Feature Menu ............................................... 40

Source Menu ................................................ 40

Displaying TV Information .................................... 40

Mute Function ....................................................... 40

PIP (Picture-in-Picture) and PAP (Picture-and-

Picture) Modes ..................................................... 40

Picture Mode Selection......................................... 40

Freezing Picture ................................................... 40

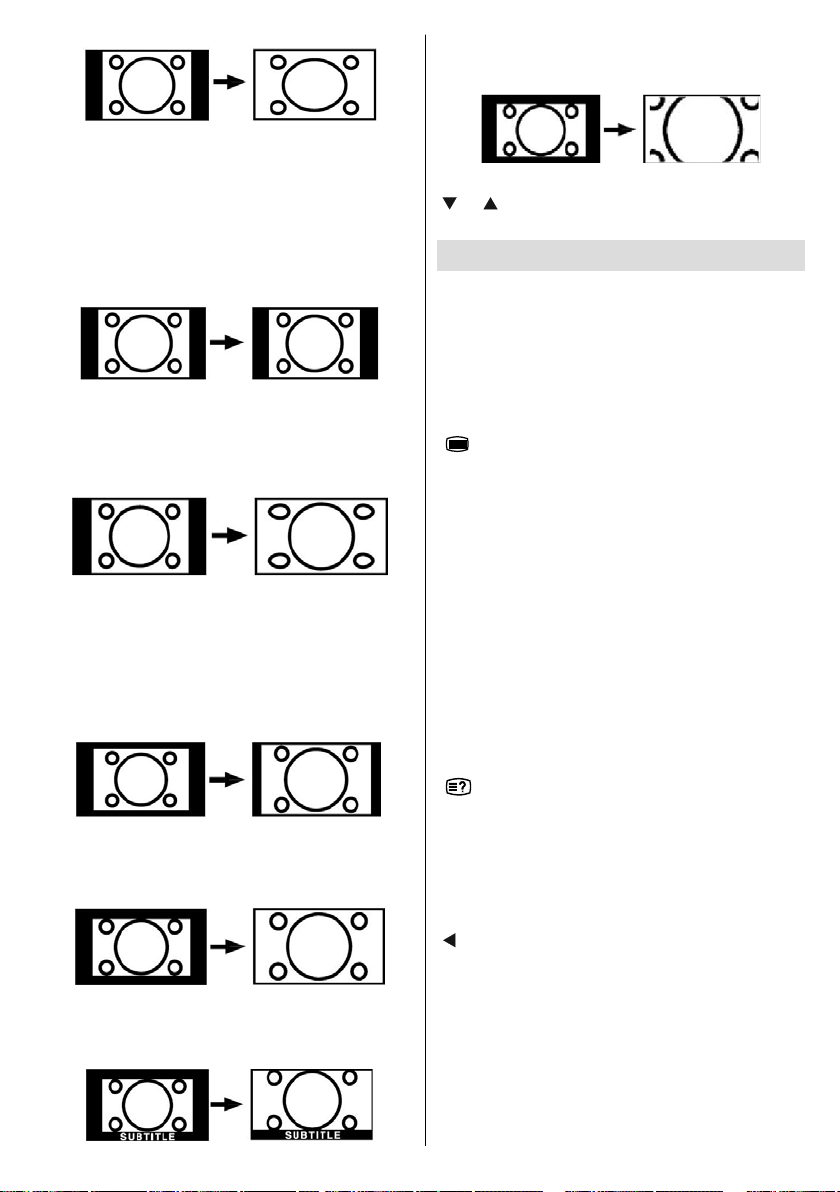

Zoom Modes......................................................... 40

Auto .................................................................. 40

16:9 ................................................................... 40

4:3 ..................................................................... 41

Panoramic......................................................... 41

14:9 ................................................................... 41

Cinema ............................................................. 41

Subtitle .............................................................. 41

Zoom................................................................. 41

Teletext ................................................................. 41

Tips ....................................................................... 42

Screen Care...................................................... 42

Image Persistence ............................................ 42

No Power .......................................................... 42

Poor Picture ...................................................... 42

No Picture ......................................................... 42

Sound ............................................................... 42

Remote Control................................................. 42

Input Sources.................................................... 42

Appendix A: PC Input Typical Display Modes ....... 43

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 44

Appendix C: Pin Speci cations............................. 45

SCART connector pin speci cations ................ 45

HDMI connector pin speci cations ................... 45

Signal Input ....................................................... 45

PC RGB Terminal (D-sub 15-pin connector) . 45

Appendix D: PIP/PAP Mode Combinations .......... 46

Appendix E: Supported File Formats for

USB Mode ............................................................ 47

Speci cations ....................................................... 48

Features

• Remote controlled colour LCD TV.

• Fully integrated digital TV (DVB-T).

• Two HDMI connectors for digital video and audio. This connection is also designed to accept high de nition signals.

• 200 programmes from VHF, UHF(analogue).

• 300 programmes for digital mode (IDTV).

• OSD menu system.

• Two scart sockets for external devices (such as video, video games, audio set, etc.).

• Stereo sound system. (

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward

• Sleep timer.

• Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

• PIP / PAP / PAT functions.

• AVL (Automatic Volume Limiting).

• When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98, ME, 2000, XP, Vista.

• Audio line out.

• Game Mode.

• Active antenna power (optional)

German+Nicam)

manual tuning.

Accessories

Remote Controller

Instruction Book

SELECT

ABC

DEF GHI

JKL

MNO

VWX

STU

PRESETS

P+

P-

DTV

SWAP

FAV

SUBTITLE

LANG

SCREEN

EPG

RC 1800

Batteries

2 X AAA

INFO/

PQR

RETURN

SOURCE

SLEEP

English - 3 -

Quick Guide

Cable Holder

Introduction

Thank you for choosing this product. This manual will guide you operation of your TV. Before operating the TV, please read this manual thoroughly.

Please do keep this manual in a safe place for future references.

in the proper

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any faults and unsafe situations, please do not place any objects on top of the set.

Use this device in moderate climates.

10 cm

Safety Precautions

Please read the following recommended safety precautions carefully for your safety.

SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

**************

DO read the operating instructions before you

attempt to use the equipment.

DO ensure that all electrical connections

(including the mains plug, extension leads and inter-connections between the pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt

about the installation, operation or safety of your equipment.

English - 4 -

DO be careful with glass panels or doors on

equipment.

DO route the mains lead so that it is not likely

to be walked on, crushed, chafed, or subjected to excessive wear and tear or heat.

**************

DON’T remove any xed cover as this may

expose dangerous voltages.

DON’T obstruct the ventilation openings of the

equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DON’T allow electrical equipment to be

exposed to dripping or splashing, or objects lled with liquids, such as vases, to be placed on the equipment.

DON’T place hot objects or naked flame

sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to res.

DON’T use makeshift stands and NEVER x

legs with wood screws - to ensure

complete safety always t the manufacturer’s approved stand or legs with the xings

provided according to the instructions.

DON’T use equipment such as personal stereos

or radios so that you are distracted from

the requirements of traf c safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume, as

such use can permanently damage your

hearing.

DON’T leave equipment switched on when it is

unattended unless it is speci cally stated

that it is designed for unattended operation or has a stand-by mode. Switch off using the

switch on the equipment and make sure that your family know how to do this. Special

arrangements may need to be made for in rm or handicapped people.

DON’T continue to operate the equipment if you

are in any doubt about it working

normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult

your dealer.

ABOVE ALL

--- NEVER let anyone especially children

push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock;

--- NEVER guess or take chances with

electrical equipment of any kind

--- it is better to be safe than sorry!

*************

Power Source

The TV set should be operated only from a 220240 V AC, 50 Hz outlet.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause re or give you an electric shock. When it is damaged and needs to be replaced, it should be done by quali ed personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects lled with liquids, such as vases, on top. Avoid dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by quali ed personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open ame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, re or the like.

Lightning

Before a storm and lightning or when going on holiday, disconnect the power aerial leads from the wall sockets.

and

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are speci ed by the manufacturer or have the same speci cations as the original one. Unauthorized substitutions may result in re, electrical shock or other hazards.

Servicing

Please refer all servicing to quali ed personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.

• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an enviromentally friendly manner. Find out about the legal regulations which apply in your area.

English - 5 -

• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal.

Information for Users in European Union Countries

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available. If the batteries or accumulators included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium or more than,

0.004% Lead.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Warning

Do not leave your TV in standby or operating mode when you leave your house.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin lm transistors, giving you ne picture details. Occasionally, a few non-active pixels may appear on the screen as a xed blue, green or red point. Please note that this does not affect the performance of your product.

English - 6 -

Overview of the Remote Control

Standby1. Cursor up / Page up (in TXT mode)2. Cursor right / Subpage (in TXT mode)3. Info / Reveal (in TXT mode)4. Numeric buttons5. Return / Exit (in DTV mode) / Index page 6.

(in TXT mode)

Programme up / Page down (in DTV 7.

mode)

Volume up8. Favourite mode (in DTV mode) 9. AV / Source selection10. Yellow / Feature menu / Current language 11.

(*)(in DTV mode)

Blue / Install menu / Favourite mode (*) (in 12.

DTV mode)

Subtitle on-off / TXT subtitle13. Sleep timer14. PIP/PAP mode 15. Guide (in DTV mode)16. Update (in TXT mode)17. Teletext / Mix / PAT 18. Image size / Expand (in TXT mode)19. Mono-Stereo / Dual I-II / Current language 20.

(in DTV mode) (*)

Red / Sound menu / Channel list (in DTV 21.

mode)

Green / Picture menu / Subtitle on-off (in 22.

DTV mode) (*)

Previous Programme / Swap23. TV – Digital TV mode 24. Programme down / Page up (in DTV 25.

mode)

Volume down26. Picture mode selection27. Menu on-off28. Cursor down / Page down (in TXT mode)29. Cursor left 30. OK / Select / Freeze picture / Hold (in TXT 31.

mode)

Mute32.

ABC

JKL

STU

SELECT

DEF GHI

MNO

VWX

PRESETS

P+

P-

23 22

SWAP

DTV

FAV

20 19 18

SCREEN

LANG

SUBTITLE

EPG

RC 1800

(*) Only for EU country options.

RETURN

INFO /

PQR

SOURCE

SLEEP

2 3

12 13 14

English - 7 -

LCD TV and Operating Buttons

FRONT VIEW

me un

Standby button1. TV/AV button2. Programme Up/Down 3.

buttons

Volume Up/Down buttons4.

Note: Press “ ” / “

”buttons at the same time to view

main menu.

SIDE VIEW

REAR VIEW

English - 8 -

Viewing the Connections- Back Connectors

1. S/PDIF Out outputs digital audio signals of the currently watched source.

Use

a digital optic cable to transfer audio signals to a device that has S/PDIF input.

2. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much

deeper bass effect. Use an appropriate RCA cable to connect the set to a subwoofer unit.

Audio Line Out 3. outputs audio signals to an external device such as an optional sound

system.

To connect an external ampli er and speakers to your TV; connect the TV’s audio LINE OUT sockets to the line input sockets on an external ampli er with a stereo phono to phono

cable.

4. SCART 2 inputs or outputs for external devices.

5. SCART 1 inputs or outputs for external devices. Connect the SCART cable between SCART sockets on TV and SCART socket on your

external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART sockets, the TV will automatically switch to AV mode. If both sockets are employed at the same time, SCART 1 will override SCART 2 unless manually selected. Note: You should connect the decoder to EXT-1, if you are planning to watch a scrambled

channel. The decoder might not function properly if you do not connect the decoder to the Scart 1 (Ext-1) socket.

6. Component Video Inputs (YPbPr) are used for connecting component video.

You can connect the component video and audio sockets with a device that has component

English - 9 -

output. Connect the component video cables between the COMPONENT VIDEO INPUTS

on on the TV and the component video outputs of your device. While connecting, be sure

that the letters on your TV, “ Y ”, “ Pb ”, “ Pr ” correspond with your device’s connectors.

7. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that

connects to the TV via YPbPr.

Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of

your PC to enable PC audio. Connect the audio cable between enable component audio.

8. S/PDIF Coaxial Out outputs digital audio signals of the currently watched source. Use an SPDIF coaxial cable to trasfer audio signals to a device that has S/PDIF input.

ANT Input9. connects to an aerial.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate aerial cable, as shown in the illustration on the following pages.

10. PC Input is for connecting a personal computer to the TV set. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

1 1. HDMI-2: HDMI Input HDMI Inputs are for connecting a device that has an HDMI socket.

Your LCD Television is capable of displaying High De nition pictures from devices such as a High De nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection.

HDMI 1: 12. HDMI Input

AUDIO IN on the TV and audio outputs of your device to

If you use a wall mount kit (not provided with the LCD TV), we would de nitely recommend to plug all your cables into the back of the LCD before mounting to the wall.

English - 10 -

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to 1.

view channels that you subscribe to. For more information, see “Conditional Access” section.

Side USB input . 2.

Note: Codec update cannot be performed.

3. Headphone jack is used for connecting an external headphone

to the system. Connect to the HEADPHONE jack to listen to the TV from headphones.

Video Input is used for connecting video signals 4. from external

devices.Connect the video cable between the VIDEO on the TV and the VIDEO OUT jack on your device.

Audio Inputs are used for connecting audio signals 5. from

external devices. Connect the audio cable between AUDIO IN on the TV and the AUDIO OUTPUT jacks on your device. Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect your device with an audio cable to AUDIO IN on the TV to enable audio.

Standby switch is used for turning the TV on or off.6.

IN socket

English - 11 -

Power Connection

IMPORTANT : The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.

• Plug the power cable to the mains socket outlet.

Aerial Connection

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

REAR VIEW

Using the Cable Holder

You can use the supplied cable holder as the following:

• Place the cable holder into the cable holder hole located on the rear side of the TV as illustrated above.

• Place cables into the cable holder after all necessary connections are made.

English - 12 -

Using Digital Multimedia Connectors

• You can connect USB devices to your TV by using the USB input of the TV. This feature allows

you to display/play JPG and MP3 les stored in a USB stick.

• It is possible that certain types of USB devices

this TV.

• You may back up your les before making any connections to the TV set in order to avoid any

possible data loss. Note that manufacturer will not be responsible for any le damage or data loss.

• Do not pull out USB module while playing a le.

CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself .

SIDE VIEW USB MEMORY

(e.g. MP3 Players) may not be compatible with

USB Memory Connection

• Plug your USB device to the USB input of the TV.

Note: USB hard disk drives are not supported.

• It is recommended that you connect your USB device directly to the USB input of the TV. Some

compatibility problems may occur if you use a separate cable connection.

English - 13 -

Connecting the LCD TV to a PC

For displaying your computer’s screen image on your LCD TV, you can connect your computer to the TV set.

• Power off both computer and display before making any connections.

• Use 15-pin D-sub display cable to connect a PC to the LCD TV.

• When the connection is made, switch to PC source. See “Input selection” section.

• Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix section.

REAR VIEW

PC audio cable

(not supplied)

to AUDIO INPUTS

on the TV

Audio Inputs

PC Input

PC RGB cable (not supplied) to PC input

English - 14 -

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors on the TV set. DVD players may have different connectors. Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD

player as illustrated below, switch to HDMI source. See, “Input Selection” section.

Most DVD players are connected through SCART sockets. Use a scart cable to connect as

•

shown below.

• You may also connected through COMPONENT sockets. Use a component video cable to connect

video input. For enabling audio, use a component audio cable as illustrated below. When done,

switch to YPbPr source. See, “Input selection” section.

Note : These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Component

audio

inputs

DVD Player

Scart sockets

Component

video

inputs

REAR VIEW

English - 15 -

HDMI

inputs

Using Side AV Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. For selecting the related source, see the section “Input selection” in the following parts.

• To listen the TV sound from headphones, connect to the HEADPHONE jack of theTV.

Headphone

Camcorder

SIDE VIEW

English - 16 -

Using Other Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to

enable sound connection.

• To connect external speakers; connect the audio output sockets on the TV to an external ampli er

that is connected to a speaker system.

• After connecting the cable between your TV and external ampli er, turn your TV and ampli er

on.

• You can refer to your ampli er and speaker set instruction manual for further information.

External Speakers

A device that

supports

SPDIF signal.

REAR VIEW

English - 17 -

Connecting Other Equipment via Scart

Scart sockets

Decoder

DVD Recorder

Video Recorder

Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART sockets. Note that cables shown in the illustration are not supplied.

Power off both the TV and the devices before making any connections.

For more information, refer to your device’s own instruction book.

REAR VIEW

English - 18 -

Inserting Batteries in the Remote Control Handset

• Remove the battery cover located on the back

of the handset by gently pulling backwards from the indicated part.

• Insert two AAA/R3 or equivalent type batteries

inside. Place the batteries in the right directions and replace the battery cover.

Note : If you are not going to use the remote control for a long period, please remove the batteries in order to avoid any battery leakage. Otherwise, the remote control can get damaged because of battery leakage.

Operating Range for the Remote Control

• Point the top of the remote control toward the

LCD TV’s remote sensor LED while pressing a button.

Switching the TV On/Off

To Switch the TV On

· Connect the power cord to the 220-240V AC 50 Hz.

· Switch the “ will switch to standby mode. Then the standby LED lights up.

· To switch on the TV from standby mode either:

· Press the “ button on the remote control.

· Press the -P/CH or P/CH+ button on the TV.

The TV will then switch on.

Note : If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Switch the “ ” button to position 2 as

illustrated,

• To power down the TV completely , unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

” button to position “|” so the TV

” button, P+ / P- or a numeric

( ) so the TV will switch OFF.

SELECT

INFO/

ABC

DEF GHI

JKL

MNO

PQR

VWX

STU

RETURN

PRESETS

P+

P-

SOURCE

DTV

SWAP

FAV

SLEEP

SUBTITLE

LANG

SCREEN

EPG

RC 1800

Remote range is approximately 7m/23ft.

English - 19 -

Input Selection

Once you have connected external equipment to your TV, you can switch to different input sources.

• Press “SOURCE”

control to select the required source.

or,

• Select “Source” option from the main menu

by using “ “ ” button to highlight an input and press “ ” button to select.

Note : You can mark desired source options by pressing the OK button. Therefore, when “SOURCE”

button is pressed, only the marked source options will be available (except for the TV source).

repeatedly on the remote

” or “ ” button. Use then “ ” or

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

• Press “ ” button to decrease volume or button to increase volume, so a volume

level scale (slider) will be displayed on the screen.

Programme Selection

• Press “ P/CH + ” button to select the next

programme or “ P/CH - ” button to select the

previous programme.

Viewing Main Menu

• Press the “ MENU ” button to enter main menu.

In the Main menu select sub-menu using

“ P/CH - ” or “ P/CH + ” buttons and enter the

sub-menu using “ To learn the usage of the menus, refer to the menu system sections.

” or “ ” buttons.

English - 20 -

AV Mode

• Press the “ TV/AV ” button in the control panel

on the TV to switch between AV modes.

Operation with the Remote Control

• The remote control of your TV is designed to control all the functions on your TV. The functions will be described in accordance with the menu system of your TV.

• Functions of the menu system are described in the following sections.

Volume Setting

• Press “ Press “ button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press “ P - ” button to select the previous

programme.

• Press “ P + ” button to select the next

programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10 (for IDTV) or 10-199 (for analogue), press the numeric buttons consecutively (e.g. for programme 27, first press 2 and then 7). When the pressing time is due for the second numeric button, only the rst digit programme will be displayed. The limit of the delay time is 3 seconds.

• Press directly the programme number to reselect single digit programmes.

” button to increase the volume.

299

Initial Settings

When the TV set is operated for the rst time, the IDTV turns on rst.

Because this is the rst time the TV is used, there are no channels stored in the memory.

When the TV is turned on for the rst time, the menu for the language selection appears on the screen. The message “Welcome please select your language!” is displayed in all language options sequentially in the

By pressing the “ ” or “ ” buttons highlight the language you want to set and press OK button. After then, “First time installation” OSD will appear on the screen.

OSD.

• To select the “Yes” or “No” option, highlight the

item by using “ OK button.

The IDTV will automatically tune to the VHF (** for EU countries) transmission channels, searching for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take cancel searching, you can press the “M” button at any time during the process.

” or “ ” buttons and press the

UHF or

about a few minutes. To

By pressing “ ” or “ ” buttons, select the country you want to set and press OK button. button (** for EU countries).

Note: Country selection OSD will not be available for UK.

After then, the active antenna selection OSD appears on the screen:

By pressing “ ” or “ ” buttons, set active antenna mode as on or off.

If an active antenna is connected to your TV, you can select this option as On. Antenna power should be “Off” when standard antenna is used instead of the active antenna. See Con guration Menu in the following sections for more information.

Press OK button on the remote control to continue and the following message will be displayed on the screen:

To start installation process, select “Yes”, to cancel select “No”.

After Automatic Search is completed, the following message asking for analogue channel search appears on the screen:

To search for analogue channels, select “Yes”. TV switches to the analogue TV mode. The menu below is displayed to search for analogue channels:

Select your Country, Language and Text language by using “ buttons. Press OK or RED button to continue. To cancel, press the BLUE button.

” or “ ” and “ ” or “ ”

English - 21 -

For more information on this process, see “Install Menu” section.

Note : For proper functioning of digital teletext in DTV mode, you should set country as UK in analogue AUTO PROGRAM (for UK only).

General Operation

Pressing the “TV/DTV” button at any time while watching television programmes will switch the TV set between the digital terrestrial television broadcasting and normal analogue broadcasting.

Information Banner

• Whenever you change channel, using the P- / P+ button or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen (available only in DTV mode). This will remain on the screen for a few seconds.

• The information banner can also be displayed at any time while watching TV by pressing the INFO button on the remote control:

Electronic Programme Guide (EPG)

• Some, but not all, channels send information about the current and next events.

• Please note that event information is updated automatically. If there is no event information data available in channels, only channel names with “No Information Available” banner is displayed.

• Press GUIDE button to view the EPG menu.

• Electronic Programme Guide appears on the screen. It is able to get Information of the channel - programs weekly by means of 7-DAYEPG. All programs of channels are displayed. The current program is highlighted and there is brief information about the programs of the channel, such as: name, short/extended event description, start & end time. The time scale can be changed by pressing left or right buttons. If there is any event information data available, only programme names and dates are displayed. On the bottom of the screen; info bar, showing all the available commands, will be displayed.

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list

Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

• Icons are also displayed in the information banner and if this channel is a favourite channel, favourite channel icon will also be displayed.

If the selected channel is locked, you must enter the correct four numeric code to view the channel. “ screen in such a case:

Enter PIN ” will be displayed on the

number.

English - 22 -

RED button (Shrink) : makes the info boxes

smaller.

GREEN button (Expand) : makes the info

boxes larger.

YELLOW button (Prev. Day) : displays the

programmes of previous day.

BLUE button (Next day) : displays the

programmes of the next day.

INFO (Details) : displays the programmes in

detail.

Numeric buttons (Jump) : go to preferred

channel directly via numeric buttons.

OK : views options for future programmes. P<P : jumps to the current

broadcast.

• Press “0” button to view Guide Search

menu. Using this feature, you can search the programme guide database in accordance with the genre Info available in the programme guide will be searched and results matching your criteria will be listed. You can select programmes or set timers by highlighting a channel and then

pressing “OK” button.

Note: Searching process can be performed by the desired date rate or by the channel basis.

selected or with name match.

Displaying the Subtitles

With digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles. Subtitles can be displayed while watching these programmes.

Note: You can enable subtitles by pressing the “ ” (* for UK) or GREEN (** for EU countries) buttons.

Press the “ M ” button to display the main menu, highlight the Setup and then Language menu using “ ” or “ ” button and press the OK button

to display the “Language settings” menu.

Highlight the “Subtitle” item in “Language

settings” menu and use “ ” or “ ” button to set Subtitle to the desired language.

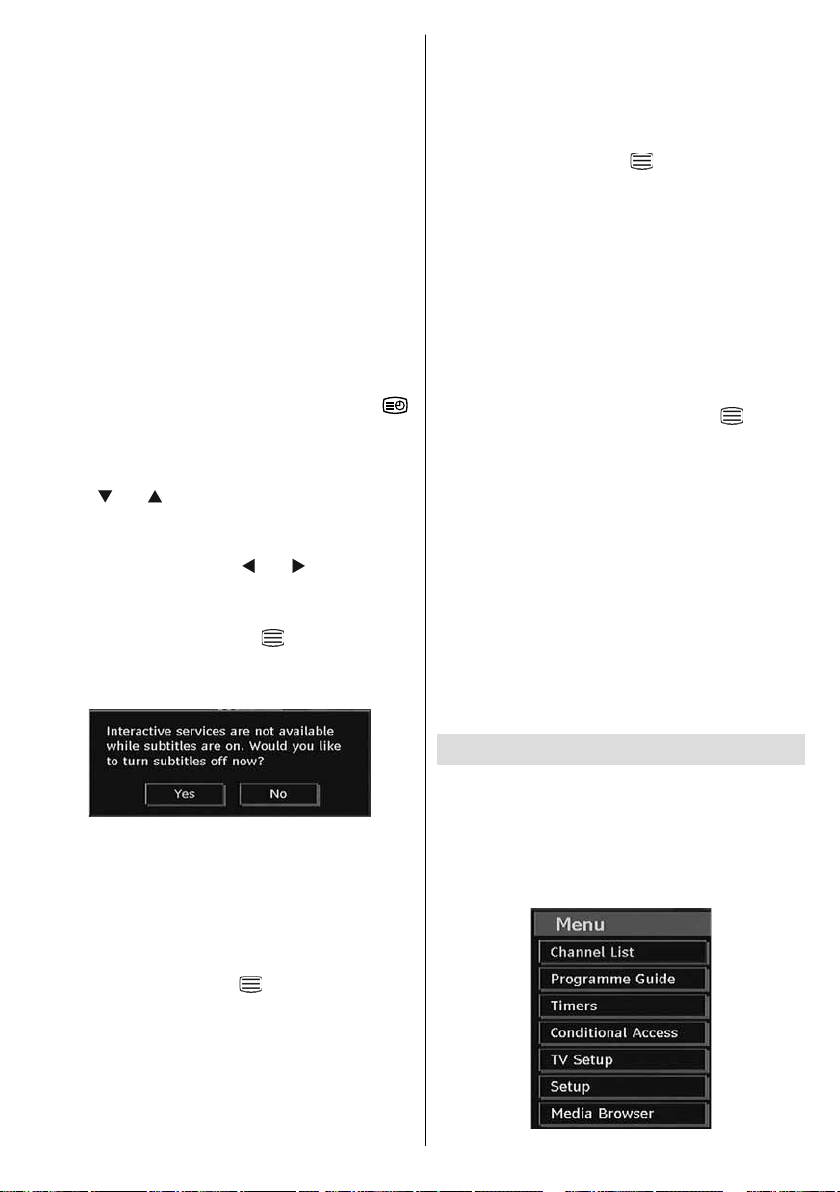

If “Subtitle” is on and a language option is set,

pressing the TELETEXT ( ) button causes

the following warning message display on the screen (* for UK only):

Follow the instructions displayed on digital teletext screen.

• When press “SELECT” button or similar

message appears on the screen, press the OK button.

• When the the TV returns to television broadcasting.

• With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.

• The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.

• When you press the again, the digital teletext screen will be displayed.

TELETEXT ( ) button is pressed,

TELETEXT ( ) button

Widescreen

Depending on the type of the broadcast being transmitted, programmes can be viewed in a

number of formats. Press the SCREEN button

repeatedly to select between Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Zoom or Subtitle.

When Auto is selected, the format being displayed is determined by the picture being broadcast.

PLEASE NOTE : Menu size changes depending on the chosen image size.

Digital Teletext (** for UK only)

With digital terrestrial broadcasting (DVB-T), in addition to pictures and sound, you can also view digital teletext.

Digital teletext is sometimes broadcast at the same time with the normal broadcast.

• Press the

• The digital teletext information appears.

• Operate it with the coloured buttons, cursor

buttons and “OK” button.

The operation method may differ depending on the contents of the digital teletext.

TELETEXT ( ) button.

English - 23 -

IDTV Menu System

The IDTV menu can only be viewed when watching digital terrestrial broadcasting. Press the TV/DTV button to turn IDTV on while the TV is in analogue mode.

Press the “ M ” button. The menu below appears

on the screen:

Channel List

Using the “ ” or “ ” button on the remote control, make sure that the rst item, Channel List, is highlighted and press the OK button to display the Channel List.

The following operations can be performed in this menu:

• Navigating the entire list of channels

• Deleting channels

• Renaming channels

• Adding locks to channels

• Setting favourites

• Moving channels

Channel List is the place where the channels are managed.

Navigating the Entire Channel List

Press “

previous or next channel. You can press “P+” or “P-” button to move page up or page down.

To watch a speci c channel, highlight it using

“ ” or “ ” button and then press “ OK ” button,

while the “Select” item on Channel List menu is highlighted by using “ ” or “ ” button.

Then the name and number of the selected channel will be displayed in the top-left and top-right of the channel display at the top-right of the screen, respectively.

Moving the channels in the channel list

• Press “ that will be moved.

• Press “ ” or “ ” buttons to select the “ Move ”

item on Channel List menu.

The following OSD will be displayed to indicate that a channel number should be entered using the numeric buttons.

” or “ ” button for selecting the

” or “ ” buttons to select the channel

Note: If you enter the programme number of the

channel that you want to move, “.... channel services

will be replaced. Do you want to continue?” OSD will be displayed. Press OK to conﬁ rm or select “No” to cancel.

Deleting the Channels in the Channel List

• Press “ ” or “ ” button to select the channel that will be deleted.

• Press “

” or “ ” button to select the “Delete’’

item on Channel List menu.

• Press the OK button to delete the highlighted

channel in the channel list. Then the message below appears on the screen:

English - 24 -

Press “ ” or “ ” button to highlight the desired

option. If OK button is pressed while “ Yes ” is

highlighted, the highlighted channel is deleted.

Selecting “ No ” cancels the deletion.

Renaming Channels

To rename a speci c channel, the channel must be highlighted by pressing “

Then highlight the Edit Name item by pressing

“

” or “ ” button as illustrated below. Press the

OK button to activate the rename feature.

” or “ ” button.

Enter the password by using the numeric buttons on the remote control. The lock icon “

” will now be displayed next to the selected channel. Repeat the same operation to cancel the lock.

Setting Favourites

You can set various channels as favourites so that only the favourite channels are navigated.

To set a favourite you should highlight the “Favourites” item at the bottom of the Channel List menu. Then press OK button Favourite List menu appears on the screen.

You can list your favourite channels using Favourite List

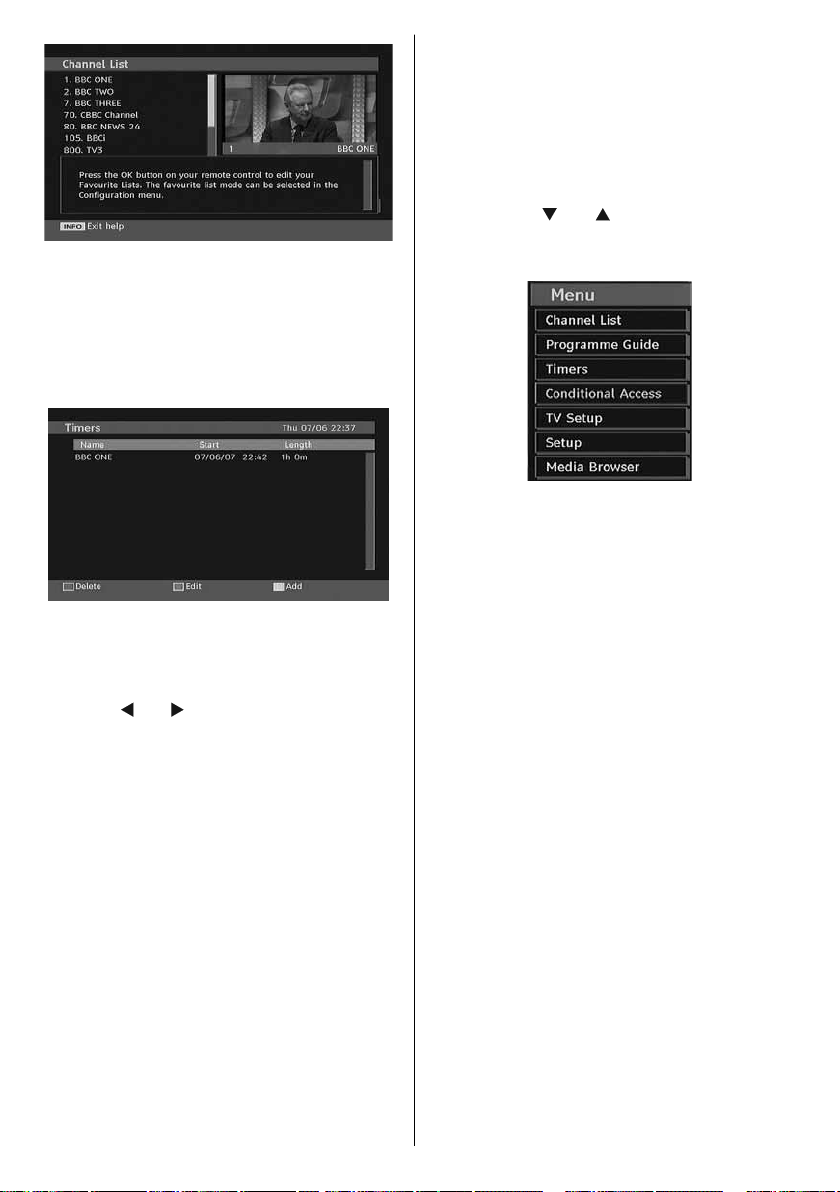

Channel list OSD will look like this:

Now pressing “ previous/next character. Pressing “ ” or “ ” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

Press the “M” button to cancel the editing or OK button to save the new name.

Adding Locks to Channels

Channel locking provides a password-protected access to channels selected by parents. In order to lock a channel you should know the parental lock password (default value is set to 0000 in the factory and can only be changed from the Con guration menu).

Select the channel to be locked by highlighting it and select the Lock option by pressing “ or “ ” button. When the OK button is pressed, a dialog OSD asking for the password will be displayed.

” or “ ” button moves to the

How to Add a Channel to a Favourites List

• By pressing “

channel that you want to add to the favourite list.

• By pressing OK button, the highlighted channel

is added to the Favourite List.

• F icon indicates that a channel is added to

Favourite List.

Removing a Channel from Favourite List

• Highlight the channel that you want to remove

from the favourite list and press OK button to remove.You can press OK button again to re-

”

add a channel.

• To activate Favourites, go to the Con guration

menu and select Favourite mode. Use “

” to set Favourite mode as on. To cancel

Favourites, set Favourite Mode to Off.

On Screen Help

For all menus, press the “INFO” button to display

the help information about the menu functions. For Channel List menu the following message is displayed on the screen:

” or “ ” buttons, highlight the

” / “

English - 25 -

Program Guide

This section is same with the instructions given in the General Operations page. Please see Electronic Programme Guide (EPG) section in the General Operations part.

Timers

To display timers window, activate the item from the main menu. To add a timer, press the

YELLOW button on the remote control. Then

“Add Timer” window appears.

Channel : “

through the list.

Date : Starting date is entered via the Left/Right

or the numeric buttons.

Start : Starting time is entered via the Left/Right

or the numeric buttons.

End : Ending time is entered via the Left/Right

or the numeric buttons.

Duration: Duration between Start and End

time.

Repeat: You can set a timer to be repeated as

Once, Daily or Weekly.

Change/Delete : permits or prohibits any

modi cations for other users.

You can save the adjustments by pressing the GREEN key or cancel the process by pressing the RED button. You can edit the list via GREEN key and delete with the RED button.

” or “ ” keys will navigate the user

Note: You can set timers for the desired broadcast and time. Recording broadcasts is also possible by using a recording device that you connect to your TV’s Ext Out. When the timer is due, output will be provided via the TV-Out and the recording can be performed by the connected recorder that you have set.

Conditional Access

• Press the “M ” button to display the main menu

and use the “

“Conditional Access” line and press the “OK” button:

Some Digital Terrestrial channels operate on a Pay Per View basis. These require a subscription and a hardware decoder.

Obtain the and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

• Switch off the TV and unplug from the mains.

• Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the left-hand side of the TV (from front view).

• The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

• Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

• Some CAMs may require the following set up. Please set the CAM by entering the IDTV menu,

the “OK” button. (CAM set up menu is not

displayed when it is not required.)

• To see the viewing contract information: enter

IDTV; press the “ M ” button, then highlight Conditional Access and press the “OK”

button.

” or “ ” button to highlight the

Conditional Access Module (CAM)

Conditional Access then pressing

English - 26 -

• When no module is inserted, “No Conditional module detected” message appears

Access on the screen.

• Refer to the module instruction manual for

details of the settings.

Note: Insert or remove the CI module only when the TV is in STAND-BY mode or SWITCHED OFF.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed

from the main menu. Press the “M” button to

display the main menu and use “

” or “ ” button

to highlight “TV Setup”, press the “OK” button

to display TV Setup menu screen.

You can nd detailed information for all menu items in “Analogue TV Menu System” section.

Setup

The adjustments in this menu are given as the following:

Conﬁ guration

You can con gure the settings of your TV. Select

Con guration from Setup menu and press OK to view this menu. Press the EXIT button on the

remote control to exit.

English - 27 -

AC3 Audio (**for EU countries only)

In the Con guration Menu, highlight the AC3 Audio item by pressing “

” or “ ” buttons. Use the “ ” or “ ” buttons to set the AC3 Audio as On or Off.

If the channel that you are watching supports AC3 Audio, turn this setting on.

Hard of Hearing (**for EU countries only)

” or “ ” button to select Hard of Hearing

Use “ and then press “ ” or “ ” button to set this setting as On or Off.

If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Favourite Mode

Use this function to enable or disable favourite mode. Press “ ” / “ ” button to set this function as on or off.

Channel List

” or “ ” buttons to go to Channel List

Use “ option. Use “ ” or “ ” buttons to toggle Channel List Mode. If you select “TV Only”, with the “ ” or “ ” buttons, you navigate through only TV channels. If you select “Radio Only”, with the “ ” or “ ” buttons, you navigate through only radio channels. If you select “Text Only”, with the “ ” or “ ” buttons, you navigate through only text channels. To save the recent changes and exit;

press the “M” button.

Active Antenna

“ ” or “ ” buttons to highlight Active

Use Antenna option.

When antenna power option is set as On by pressing “ ” or “ ” button, +5V will be transmitted to the antenna output.

This feature enables the use of active antenna.

Note: Antenna power should be “Off” when standard antenna is used instead of the active antenna.

Scan Encrypted

Scan Encrypted Channel feature will always be ON after performing rst time installation.

When this setting is on, search process will locate the encrypted channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search.

Use “ ” or “ ” button to select Scan Encrypted and then press

“ ” or “ ” button to set this

setting as On or Off.

Receiver Upgrade Over Air Download (OAD)

To ensure that your TV always has the most update information, use this setting. Please ensure that the TV is set to standby mode. The TV automatically powers up at 3.00 A.M. each day and searches for any new information which may be broadcast and will download this to your receiver automatically. This operation will normally take approximately 30 minutes. If you have an important recording to be carried out at 3.00 A.M. and you do not want to interrupt it, disable auto OAD search by performing the following:

• Press “M” button and using the “

” or “ ”

buttons to choose Setup and press the OK

button.

• Highlight Con guration menu with “ ” or “ ”

keys and press OK .

• Use “ ” or “ ” buttons to choose “RECEIVER

UPGRADE” and press OK button.

• Using the“

” or “ ” button change “Automatic

scanning” from Enabled to Disabled.

• Highlight “Scan for upgrade” menu with “ ” or “ ” keys and pres OK to commence

upgrade.

• After the search progress is completed, the

message “ Completed searching for upgrade. No new software was found” appears on the screen if no new software is found.

• Do not forget to re enable the automatic OAD

function after you have made your recording by repeating the above instructions but this time selecting ENABLE.

Note: Your TV may start in First Time Installation mode after OAD update.

Parental Control

” or “ ” buttons to go to Parental Lock

Use “

option. Press “OK” button to enter the menu.

A dialog box asking for the lock key will be displayed. The key is set to “0000” initially. Enter

. If it is incorrect, “Wrong Pin” OSD will be

PIN displayed. If it is correct, the Parental Control menu will be displayed:

Maturity Lock

When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, does not show video-audio.

Menu Lock

In menu lock you can set locking for all menus, or the Installation Menu to restrict access to these menus. If the menu lock is disabled, there will be free access to the menu system. Use “ or “ ” buttons to go to Menu Lock option. Use “

” or “ ” buttons to choose Menu Lock Mode.

DISABLED : All menus are unlocked. ALL MENUS : All Menus are accessible only

with the correct lock key. So the user cannot add, delete, rename, channels, cannot set timers.

INSTALLATION MENU : Installation menu is

locked.So the user can’t add channels. Changes will be updated after exiting ‘Configuration Menu’.

Set PIN

” or “ ” buttons to go to “Set PIN” option.

Use “

Press OK to display the “Set PIN” window. Use

numeric buttons to enter new pin number you will need to input your new pin a second time for veri cation purposes. If both pin numbers are four digits long and the same, the pin will be changed. The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

”

English - 28 -

Time Settings

In the con guration menu, highlight the Time Settings item by pressing Press OK and Time Settings sub menu will be displayed on the screen. Current Time,Time Zone Setting and Time Zone will be available.

Use

“ ” or “ ” buttons to highlight the Time

Zone

Setting. Time Zone Setting is set using

” buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Current Time and Time

Zone options will not be available to be set. If MANUAL option is selected as the Time Zone

Setting, Time Zone can be altered:

• By pressing

Zone.

Use “ ” or “ ” buttons to change the Time Zone between GMT-12 or GMT+12. Current Time on the top of the menu list will then change according to the selected Time Zone.

Audio Description

Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track. Use an item. Then use “ ” or “ ” buttons to set.

Audio Description

This function enables or disables the audio description feature by pressing the ” buttons.

Preferred Language

By pressing the “ ” or “ ” buttons the preferred audio description language is being changed.

This setting can be used, only if it is available.

“ ” or “ ” buttons select Time

“ ” or “ ” buttons.

“ ” or “

“ ” or “ ” buttons to select

“ ” or “

English - 29 -

Relative Volume

Using this option, the Audio Description volume level can be increased or decrased relatively,

according to the general volume.

Standby Search (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

“ ” or “ ” button to select Standby Search

Use and then press “ ” or “ ” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.

To use Standby search please make sure that

you select Standby Search as On.

Language

In this menu the user can adjust the preferred language. Language is changed by pressing OK button.

Menu : shows the language of the system

Preferred

These settings will be used if available. Otherwise the current settings will be used.

• Audio : by pressing “

audio language.

” or “ ” keys change the

• Subtitle : alter the subtitle language with “

” or “ ” keys. The chosen language will be seen in subtitles.

• Guide : By pressing “

” or “ ” buttons change

the guide language.

Current

• Audio : if audio language is supported change

the audio language by pressing “

” or “ ”

buttons

• Subtitle : if subtitles are supported, alter the

subtitle language with “ ” or “ ” buttons. The chosen language will be seen in subtitles.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

In the configuration menu, highlight the Language Settings item by pressing “ ” or “ ”

buttons. Press OK and Language Settings sub

menu will be displayed on the screen:

Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “ ” or “ ” button to set.

Notes:

• System Language determines the on-screen menu language.

• Audio Language is used for selecting the soundtrack of a channels.

• Primary settings are the rst priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the rst options are not available.

Installation

The Installation menu is mainly intended to help you for creating a Channel Table in the most ef cient way. Select Installation from the Con guration menu by pressing “ ” or “ ” buttons.

This menu includes the following items:

• Automatic channel scan

• Manual Channel Scan

• Clear Service List (*)

• First Time Installation

Automatic Channel Scan

Automatic channel scan is started by pressing OK button while Automatic channel scan item is highlighted.

The following message appears on the screen:

Highlight Yes or No by using “

” or “ ” buttons

and press OK button to con rm.

If Yes is selected, automatic search starts.

Selecting No cancels automatic search.

After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Press the OK button to search for analogue

channels. The following menu appears on the screen for analogue channel search:

Select your Country , Language and Text language by using “

” or “ ” and “ ” or “ ”

buttons. Press OK or RED button to continue. To

English - 30 -

cancel, press BLUE button. The following menu

will be displayed during the automatic tuning:

button while the “Yes” is highlighted will delete the existing channel table.

Then you will be asked to con rm for deleting all channels and settings:

After APS is nalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the programme names, you can change them via the program table.

Manual Channel Scan

In manual channel scan, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For every valid channel number, signal quality are shown on the screen.

In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.

Clear Service List (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored.

“ ” or “ ” button to select Clear Service

Press List and then press OK. The following OSD message will be displayed on the screen:

Are you sure you want to delete all channels?

Press OK to cancel.

Select Yes by pressing

press OK to delete all of the channels.

level and signal

“ ” or “ ” button and

By selecting Yes and pressing the OK button,

the existing channel table will be deleted.

After factory settings are loaded, “First Time Installation” menu will be displayed.

The menu which is displayed for language selection appears on the screen at rst. By using “

” or “ ” buttons, select the desired language

option, and press OK button to activate.

“First time installation” OSD will appear on the screen. By pressing “

the Country you want to set and press OK

button (** only for EU countries).

- Next, active antenna mode selection OSD will appear on the screen.Use “ ” or “ ” to set and press OK to continue.See the section, “Initial Settings” for more information.

After active antenna mode option is selected, a message asking for automatic search appears on the screen:

Press the OK button to start installation. After

search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

” or “ ” buttons, select

First Time Installation

The user can use this item to load default settings, which were loaded to the receiver at the factory.

To install factory settings, highlight “First Time Installation” menu item and press OK button,

then you will be asked whether or not to delete

the settings. Selecting “Yes” by pressing OK

English - 31 -

Press the OK button to search for analogue

channels. The following menu appears on the screen for analogue channel search:

Select your Country , Language and TXT Language by using “

” or “ ” and “ ” or “ ”

buttons. Press OK or RED button to continue. To cancel, press BLUE button. The following menu

will be displayed during the automatic tuning:

• You can play

music and picture from a USB

memory stick.

Note : If you plug USB stick while in analogue mode, the TV will automatically switch to digital TV mode.

Note : Some USB compliant devices may not be supported.

Note : If the USB stick is not recognized after power off/on or First Time Installation, ﬁ rst, plug the USB device out and power off/on the TV set. Plug the USB device in again.

Playing MP3 Files

After APS is nalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the programme names, you can change them via the program table.

Media Browser

• To display Media Browser window, press

either “ M ” button on the remote control and

then select Media Browser by pressing “ ”

or “ ” button. Press OK button to continue.

Media Browser menu contents (depending on the contents of your USB drive) will be displayed.

• Also, when you plug a USB device, the following screen will be displayed:

Select YES by pressing “ ” or “ ” button

and press OK button. Media browser will be

displayed.

Play This

(OK button) : Plays the selected le.

Play (Green button) : Plays all media les in the folder starting with the selected one.

Pause (Yellow button) : Pause playing le.

(Red button) : Stop the playing le.

Stop

Previous/Next (Left/Right buttons) : Jumps to previous or next le to play.

(INFO button) : Plays the les randomly.

Shuf e If shuffle mode is enabled, previous/next function will also jump to the tracks randomly.

Loop (Blue button) : Plays the selected le repeatedly.

English - 32 -

Viewing JPG Files

Jump

(Numeric buttons) : jump to selected le

using the numeric buttons.

OK : views the selected picture in full screen.

Play / Slideshow

(Green button) : starts the

slideshow with all pictures in the folder.

Slideshow Options

Pause (

Continue (Green button) : Continue with the slideshow.

Previous/Next previous or next le of slideshow.

Rotate (Up/Down buttons) : Rotate the picture using up/down buttons.

EXIT : Back to le list.

Shuf e and continuous in current folder and turns the highlighted icon. If during a slideshow the shuf e mode is enabled, the next pictures will be choosen randomly (If the loop function is not enabled, the slideshow will stop at the end. If the loop function is enabled, after the slideshow ends, it will start again and again).

Loop : Slideshow goes on continuously and

Info : Activates the operations bar.

Yellow button) : Pause the slideshow.

(Left/Right buttons) : Jump to

(Red button) : Shows the les randomly

icon

icon turns the highlighted icon.

Navigating the Analogue TV Menu System

For navigation

For displaying menu options

To confirm choices

• Press “ M ” to display the main menu.

• Press “

” or “ ” button to select an icon.

• Use “ ” or “ ” button to highlight a setting.

• Press “

” or “ ” buttons to change the

settings.

• Press “

” for more options.

• Press OK to store.

• To exit the menu or return from sub-menu

screen, press “ M ”.

Note : These explanations are valid for the navigation of the analogue TV menu system. To select options that are explained in the following parts, refer to “Navigating the Analogue TV Menu System”.

Analogue TV Menu System

Picture Menu

Mode

For your viewing requirements, you can set the related mode option.

Press “ “ ” or “ ” button to choose from one of these

options: Cinema , Dynamic and Natural .

Brightness/Contrast/Colour/Sharpness

Press “ ” or “ ” button to select the desired option. Press “ ” or “ ” button to set the level.

Note : Hue option is only be visible when the TV receives an NTSC signal.

” or “ ” button to select Mode . Press

English - 33 -

Colour Temp

Press “ Press “

” or “ ” button to select Colour T emp .

” or “ ” to choose from one of these

options: Cool , Normal and Warm .

Note :

• Setting Cool option gives white colours a slight

blue stress.

• Setting Warm option gives white colours a slight

red stress.

• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture

is noisy, use Noise Reduction setting to reduce

the amount of noise.

Press “

” or “ ” button to select Noise Reduction. Press “ ” or “ ” to choose from one of these options: Low , Medium , High or Off .

Film Mode

Films are recorded at a different number of frames per second to normal television programmes.

Press “

” or “ ” button to select Film Mode .

Press “ ” or “ ” button to set this feature On or Off.

Turn this feature on when you are watching.

lms to see the fast motion scenes clearly.

Game Mode

Select Game Mode by pressing “

” or “

” button. Use “ ” or “ ” button to set Game

Mode as On or Off . When Game Mode is set

to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on.

Note : Picture mode selection button on the remote control

will have no function while Game Mode is on. If the TV is switched to PIP/PAP mode, Game Mode

setting will be disabled and be removed from the Picture menu.

Picture Zoom

Select Picture Zoom by pressing “

” or “

” button.

” or “ ” buttons, to change picture zoom

Use “

to Auto , 16:9 , 4:3 , Panoramic , 14:9 , Cinema , Subtitle or Zoom .

Reset

Press “

” or “ ” button to select Reset . Press

“ ” or “ ” or OK button to reset the picture

modes to factory default settings.

Store

Press “

” or “ ” button to select Store. Press “

” or OK button to store the settings. “ Stored... ”

will be displayed on the screen.

Sound Menu

Volume

Press “ Press “ ” or “ ” button to change the level of the Volume.

Equalizer

Press “ Press “ ” button to view equalizer menu.

” or “ ” button to select Volume .

” or “ ” button to select Equalizer .

English - 34 -

Press “ ” or “ ” button to change the preset. In equalizer menu, the preset can be changed

to Music , Movie , Speech , Flat , Classic and User .

Select the desired frequency by pressing “ ” or “ ” button and increase or decrease the frequency gain by pressing “

” or “ ” button.

Press the “ M ” button to return to the previous

menu.

Note : Equalizer menu settings can be changed only when the Equalizer Mode is in User .

Balance

This setting is used for emphasizing left or right speaker balance.

Press “

” or “ ” button to select Balance.

Press “ ” or “ ” button to change the level of the balance. Balance level can be adjusted

between -32 and + 32.

Headphone

Press “ ” or “ ” button to select Headphone .

Press “ ” button to view the headphone menu.

Headphone sub-menu options are described below:

Volume

Press “

” or “ ” button to select Volume . Press

“ ” button to increase headphone volume level. Press “ ” button to decrease headphone volume level. Headphone volume level can be

adjusted between 0 and 63 .

Store

Press “

” or “ ” button to select Store. Press “

” or OK button to store the settings. “ Stored... ”

will be displayed on the screen.

Sound Mode

Press “

” or “ ” button to select Sound Mode .

Using “ ” or “ ” button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain xed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Press “

” or “ ” button to select AVL . Press “ ”

or “ ” button to set the AVL as On or Off .

English - 35 -

Spdif Out

Press “ Press “

” or “ ” button to select Spdif Out .

” or “ ” button to set the Spdif Out .

as On or Off .

Note : If Spdif Out is set to On, headphone will be disabled.

Effect

If you are watching a mono broadcast, set Effect on to obtain a better sound effect which will be more stereo-like. If the current sound system is stereo, switching this effect on will give a more spatial effect.

Press “

” or “ ” button to select Effect. Press

“ ” or “ ” button to set as On or Off.

Store

Press “ ” or “ ” button to select Store. Press “

” or OK button to store the settings. “ Stored... ”

will be displayed on the screen.

Feature Menu

Pip-Pap

In the Feature menu, highlight PIP item by

pressing “

to enter PIP submenu:

” or “ ” buttons. Press “ ” button

Using “ ” or “ ” button, you can switch to PIP, PAP mode or turn off the feature.

If the TV is switched to PIP or PAP mode, Pip-Pap submenu will change accordingly and the following settings will appear on the same menu screen.

Note that if you switch to PAP mode by using Pip-Pap setting, only Source and Swap options will be active among the menu settings.

Pip-Pap

This line controls Pip/Pap modes. Use “ ” or “ ”

buttons to switch the TV to Pip , Pap or Off .

Pip Size

Using this setting, you can set the size of the Pip window. Press “

” or “ ” button to highlight Pip Size item. Use “ ” or “ ” button to set Pip Size to Small or Large.

Note : This setting will be inactive if the TV is set to Pap mode.

PIP Position

This setting is used for moving the sub picture.

Select PIP Position item by using “ ” or “ ” button. Use “ ” or “ ” button to adjust PIP position.

Positions available are: Bottom Right,Bottom Left, Top Left and Top Right.

Source

PIP Source setting enables you to select the source of the sub picture.

Select PIP Source item by using “

” or “

” button. Use “ ” or “ ” button to set PIP source.

Program

This setting will be unavailable to be used.

Swap

Select Swap item by using “

” or “ ” button. Use “ ” or “ ” button to set. This function enables to swap between the main and the PIP picture.

Note : See Appendix E for all PIP/PAP modes.

Sleep Timer

Press “ Use “

” or “ ” button to select Sleep Timer .

” or “ ” button to set the Sleep Timer.

The timer can be programmed between Off and 120 minutes in steps of 10 minutes.

English - 36 -

If Sleep Timer is activated, at the end of the

selected time, the TV goes automatically to standby mode.

Child Lock

Press “

Use “

” or “ ” button to select Child Lock .

” or “ ” button to set the Child Lock On

or Off . When On is selected, the TV can only

be controlled by the remote control handset. In this case the control panel buttons (except for

the STANDBY button) will not work. Hence, if one of those buttons is pressed, Child

Lock On will be displayed on the screen when

the menu screen is not visible.

Language

Press “

” or “ ” button to select Language .

Use “ ” or “ ” button to select the Language .

Default Zoom

While zoom mode is set as AUTO , the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press “

” or “ ” button to select

Default Zoom . You can set Default Zoom to Panoramic , 16:9 , 4:3 or 14:9 by pressing “ ”

or “ ” button.

Blue Background

If the signal is weak or absent, the TV will automatically change to a blue screen. To

enable this, set Blue Background to On .

By pressing “

” or “ ” button, select Blue Background . Press “ ” or “ ” button to set Blue Background as On or Off .

Menu Background Press “ ” or “ ” button to select Menu

Background . You can set menu background

level by pressing “ ” or “ ” button.

Backlight

This setting controls the backlight level. Select

Backlight by pressing “

” or “ ” button. Press“

” or “ ” button to set Backlight to Medium ,

Maximum, Minimum or Auto.

Menu Timeout

To set a specific display timeout for menu screens, set a value for this option.

Press “

” or “ ” button to select Menu Timeout .

Use “ ” or “ ” button to change menu timeout

to 15 sec , 30 sec or 60 sec .

Teletext Language

Press “

Language . Use “

” or “ ” button to select Teletext

” or “ ” button to change

Teletext Language to West, East , Turk/Gre , Cyrillic or Arabic .

Ext Out

Press “

” or “ ” button to select Ext Out. Use “

” or “ ” button to set the Ext Out as On or Off.

Note : For copying from a DVD or VCR device, you should

choose desired source from source menu and turn “On” to EXT Out from feature menu.

Install Menu

Program

Press “ “ ” or “ ” button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 200 programme storage between 0 and 199.

Band

Band can be selected either C or S. Press “ or “ ” button to set Band.

Channel

Channel can be changed by “ ” or “ ” button or numeric buttons.

Colour System

Press “ Use “ ” or “ ” button to change the colour system to PAL, PAL 60, SECAM or AUTO.

Sound System

Press “ Press “ ” or “ ” button to change the sound system to BG,DK, I, L or L’.

” or “ ” button to select Program. Use

” or “ ” button to select Colour System.

” or “ ” button to select Sound System.

Fine Tune

Press “ Press “

” or “ ” button to select Fine Tune.

” or “ ” button to adjust the tuning.

Press “

” or “ ” button to select Search. Use “

” or “ ” button to start programme searching. You can also enter the desired frequency using the numeric buttons while Search item is highlighted.

Store

Press “

” or “ ” button to select Store. Press “

” or OK button to store the settings. “ Stored... ”

will be displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when the TV is in AV modes. Note that limited options will be available. Switch to TV mode for

viewing complete version of the Install menu.

Colour System

Press “

”

System . Use “ ” or “ ” button to change the

” or “ ” button to select Colour

colour system to PAL , SECAM , PA L 6 0 or AUTO .

Store

Press “

” or “ ” button to select Store Program . Press “ ” or OK button to store the settings. “ Stored... ” will be displayed on the

screen.

Program Table

Select Program Table by pressing “ ” or “

” button.

English - 37 -

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically.

Name

To change the name of a programme, select the

programme and press the RED button.

The rst letter of the selected name will be highlighted. Press “

” or “ ” button to change

that letter and “ ” or “ ” button to select the

other letters. By pressing the RED button, you

can store the name.

NB. You can also use the alpha-numeric buttons on the remote control to change the name.

Insert

Select the programme which you want to insert

by navigation buttons. Press the GREEN

button. By navigation buttons move the selected programme to the decided programme space

and press the GREEN button again.

Delete

To delete a programme, press the YELLOW button. Pressing the YELLOW button again

erases the selected programme from the programme list, and the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button to start automatic tuning, Auto Programming System

menu will appear on the screen:

Country

Press

“ ” or “ ” button to select your country.

If you want to exit from A.P.S. function, press

the BLUE button. When you press OK or RED button to start

automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS

function stops and Program Table appears on the screen.

If you wait until the end of APS, Program Table will be displayed with the programmes found and located.

Source Menu

Press “ ” or “ ” button and select the sixth icon.

Then press “ ” or OK button. Source menu

appears on the screen:

English - 38 -

In source menu, highlight a source by pressing

” or “ ” button and switch to that mode

“ by pressing “

” button. Source options are;

TV , DTV/USB , EXT-1 , EXT-2 , EXT-2S FAV , HDMI-1 , HDMI-2 , YPbPr or PC-VGA .

Note : Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source.

PC Mode Menu System

See “Connecting the LCD TV to a PC” section

for connecting a PC to the TV set.

For switching to PC source, press “SOURCE”

button on your remote control and select PC

input. You can also use “Source” menu to switch to PC mode.

Note that PC mode menu settings are available only while the TV is in PC source.

PC Position Menu

Press “M” button.

Select the first icon by pressing “ ” or

“ ” button. PC Position menu appears on the

screen:

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display.

Select Autoposition item by using “

buttons. Press OK button.

Warning : Please ensure auto adjustment is performed with a full screen image to ensure best results.

” or “ ”

H (Horizontal) Position

This item shifts the image horizontally to right hand side or left hand side of the screen.

Select H Position item by using “

” or “ ” button. Use “ ” or “ ” button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top or bottom of the screen.

Select V Position item by using “

” or “ ” button. Use “ ” or “ ” button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Select Phase item by using “

” or “ ” buttons.

Use “ ” or “ ” button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Select Dot Clock item by using “

” or “ ” buttons. Use “ ” or “ ” button to adjust the value.

PC Picture Menu

For adjusting PC picture items, do the following:

Press the “M” button.

Press “

” or “ ” button to select the second icon.

PC Picture menu appears on the screen.

Brightness, Contrast and Colour Temperature

settings in this menu are identical to settings de ned in TV picture menu under “Analogue TV Menu System”.

Note : If you set Colour Temp as User, you can deﬁ ne R, G, B settings manually.

Sound Menu The items in this menu are described at “Sound

Menu” section explained in “Menu System”.

English - 39 -

Feature Menu

Feature menu settings are identical to the

settings explained in “ Feature Menu ” section in “ Menu System ”.

Source Menu

Source menu settings are identical to the

settings explained in “ Source Menu ” section in “ Menu System ”.

Displaying TV Information

Programme Number , Programme Name , Sound Indicator and Zoom Mode information is

displayed on the screen when a new programme

is entered or “INFO” button is pressed.

Mute Function

Press “ ” button to disable sound. Mute indicator will be displayed in the upper side of the screen.

To cancel mute, there are two alternatives; the rst one is pressing the “ second one is increasing the volume level.

” button and the

PIP (Picture-in-Picture) and PAP (Picture-and-Picture) Modes

Press the “ ” button to switch to PIP mode.

In PIP Mode, a small picture (PIP picture) is displayed on the main picture. There is 1 size and 4 positions (upper left, upper right, bottom left and bottom right) available for the PIP window. You can use “ PIP position. Aspect Ratio of the PIP window is xed and 4:3.

When PIP Mode is entered, the default active window is the PIP window and the active window is indicated by a red frame around it. The active window can be changed by pressing “ ” or “ ” button. The status info OSD belongs to active window. The place of the status OSDs are same for both windows.

Press the “ ” button again to exit the PIP mode.

Press the “

In PAP Mode, two pictures with equal sizes are displayed on the screen. Aspect Ratios of the windows are xed.

” button to switch to PAP mode.

” button to change the

When you switch to PAP Mode, main window in PAP Mode will be displayed on the right side of the screen. The active window can be changed by pressing “ ” or “ ” button.

Press the “ mode.

” button again to exit the PAP

Picture Mode Selection

By pressing PRESETS button, you can change Picture Mode settings in accordance with your

viewing requirements. Available options are Dynamic, Natural and Cinema.

Freezing Picture

You can freeze the picture on the screen by

pressing the “ OK ” button on the remote control. Press the “ OK ” button to freeze picture. Press

again to quit freeze mode.

Note : This feature will be unavailable when watching PC, YPBPr and HDMI sources.

Zoom Modes

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

Press “SCREEN” button to directly change the

zoom mode.

Available zoom modes are listed below.

Note: In YPbPr and HDMI modes, while in 720p-1080i

resolutions, only 16:9 mode is available. In PC mode, only 4:3 and 16:9 modes are

available.

Auto

When a WSS (Wide Screen Signalling) signal,

which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically

changes the ZOOM mode according to the WSS signal.

• When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to ll the wide TV screen.

English - 40 -

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect

ratio), use the 16:9 mode to restore the picture

to its original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Zoom

This option zooms to the picture.

Note: You can shift to screen up or down by pressing

” / “ ” buttons while picture zoom is selected as

“ Panoramic, 14:9, Cinema, Subtitle or Zoom.

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

” Teletext / Mix / PAT Mode

“

Activates teletext mode when pressed once.

Press again to place the teletext screen over the programme (mix). Pressing this button again will split the screen into two windows, one displaying the teletext and the other displaying the current channel. Pressing again will quit the teletext mode.

“RETURN” Index

Selects the teletext index page.

“SCREEN” Expand

Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size.

” Reveal

“

Shows hidden information (e.g. solutions of games).

“OK”Hold

Holds a text page when convenient. Press again to resume.

” Subcode Pages

“

Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9)

Press to select a page.

Note : Most TV stations use code 100 for their index pages.

English - 41 -

Coloured Buttons (RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text

systems. When these systems are available, the pages are divided into groups or topics.

When FASTEXT system is available, sections in

a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs.

The coloured writings will appear, showing you

which coloured buttons to use when TOP text transmission is present. Pressing P - or P+

commands will request the next or previous page respec tively.

Tips

Screen Care

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen.

For your safety, unplug the mains plug when cleaning the set. When moving the TV, support it from the base.

Image Persistence

Please note that ghosting may occur while displaying a persistent image. LCD TVs’ image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave a screen for extended periods.

No Power

If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels.

still picture on the

English - 42 -

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.

Also make sure the correct input source has been selected.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the button?

Sound is coming from only one of the speakers.

Is the balance set to one extreme? See Sound

Menu .

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the side of the TV.

Input Sources

If you cannot select an input source, it is possible that no device is connected.

Check the AV cables and connections if you have tried to connect a device.

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1920 x 1200 . The following table is an illustration of some of the typical video display modes.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Note: Resolution modes indicated with (*) are not available for PIP/PAP modes.

Index

10 640 480 85 43.3 VESA 11 800 600 56 35.2 VESA 12 800 600 60 37.9 VESA 13 800 600 70 43.8 14 800 600 72 48.1 VESA 15 800 600 75 46.9 VESA 16 800 600 85 53.7 VESA 17 832 624 75 49.7 MAC

18 1024 768 43 35.5

19 1024 768 60 48.4 VESA 20 21 22 23

24 1152 864 60 53.8 25 26 27 28

29 1280 768 60 47.7 VESA

30 1360 768 60 47.7 31

32 1280 960 60 60.0 VESA 33 34

35 1280 1024 60 64.0 VESA 36 37

38 1400 1050 60 65.3 39

40 1440 900 60 55.9 41 42

43 1680 1050 60 65.3 44

Resolution Frequency

Hor Ver Ver (Hz)

1 640 350 85 37.9 VESA 3 640 400 85 37.9 VESA 4 640 400 70 31-May IBM VGA 6 640 480 60 31-May VESA 7 640 480 66 35.0 MAC 8 640 480 72 37.9 VESA 9 640 480 75 37.5 VESA

* 1024 768 70 56.5 VESA * 1024 768 72 57.7 * 1024 768 75 60.0 * 1024 768 85 68.3

* 1152 864 70 64.2 VESA * 1152 864 75 67.5 VESA * 1152 864 85 77.1 VESA * 1152 870 75 68.9 MAC

* 1280 768 75 60.2 VESA

* 1280 960 75 75.0 VESA * 1280 960 85 85.9 VESA

* 1280 1024 75 80.0 VESA * 1280 1024 85 91.1 VESA

* 1400 1050 75 82.3

* 1440 900 75 70.6 * 1600 1200 60 75.0 VESA

* 1920 1200 60 74.5

(KHz)

Hor

Standard

VESA

(interlace)

English - 43 -

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source Supported Signals Available

PAL 50/60 O

EXT-1

(SCART 1)

EXT-2

(SCART-2)

FAV

YPbPr

HDMI1 HDMI2

(X: Not Available, O: Available)

Note : In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do expereince such a problem please contact your dealer and also the manufacturer of the source equipment.

NTSC 60 O

RGB 50 O

RGB 60 O

PAL 50/60 O

NTSC 60 O

RGB 50 X

RGB 60 X

S-VHS 50 O

S-VHS 60 O

PAL 50/60 O

NTSC 60 O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

1080P 24 HZ O

English - 44 -

Appendix C : Pin Speciﬁ cations

SCART connector pin speciﬁ cations

Pin Input signal Pin Input signal

1 AUDIO OUT (RIGHT) 12 2 AUDIO IN (RIGHT) 13 3 AUDIO OUT (LEFT/MONO) 14 4 AUDIO GND 15 5 RGB-B GND 16 6 AUDIO IN (LEFT/MONO) 17 7 RGB-B IN 18 8 AUDIO / RGB SWITCH / 16:9 19 9 RGB-G GND 20

COMPOSITE VIDEO / S.VHS LUMINANCE IN

10 Not used 21

RGB-G IN

HDMI connector pin speciﬁ cations

Pin Input signal Pin

1 TMDS Data2+ 11 TMDS Clock Shield

TMDS Data2 Shield 12 TMDS Clock-

TMDS Data 2- 13 CEC

TMDS Data 1+ 14 Reserved (N.C. on device)

TMDS Data1 Shield 15 SCL

TMDS Data1- 16 SDA

TMDS Data0+ 17 DDC/CED Ground

TMDS Data0 Shield 18 +5V Power

TMDS Data0- 19 Hot Plug Detect

TMDS Clock+

Input signal

Signal Input

PC RGB Terminal (D-sub 15-pin connector)

Pin Input signal

H.sync or H/V composite sync

G or sync on green

B No connection No connection

R.GND G.GND B.GND

No connection

GND

No connection

[SDA]

V.sync. [V.CLK]

[SCL]

Not used

RGB-R GND

GND

RGB-R / S.VHS CHROMINANCE IN

BLANKING SIGNAL

COMPOSITE VIDEO GND

BLANKING SIGNAL GND

COMPOSITE VIDEO OUT

GND / SHIELD (CHASSIS)

English - 45 -

Appendix D: PIP/PAP Mode Combinations

MAIN

DTV/

USB

Scart1

Scart2

Scart2S

FAV

HDMI1

HDMI2

YPbPr

PC-

VGA

DTV/

Scart1 Scart2 Scart2S FAV HDMI1 HDMI2 YPbPr

USB

(RGB)

8 8 89999

8 899 9 99999

(RGB)

(RGB)9(RGB)9(RGB)

(RGB)

8 8 89999

9999

9999 9 9 8 8 99

9999 9 999 89

9999 9 9999 8

PC-

VGA

( RGB ): This indicates that, selection is possible only if Scart-1 has a RGB signal. Restrictions : Scart-1 source must have RGB signal to perform PIP\PAP with sources TV, Scart-2,

Scart-2 S, FAV.

If these sources are set to main window, and Scart-1 does not have a RGB signal, Pip\Pap source can not be switched to the Scart-1 source.

If scart-1 source is set to main window, and scart-1 does not have a RGB signal, Pip\Pap source can not be switched to TV, Scart-2,

Scart-2 S and FAV sources.

English - 46 -

Appendix E: Supported File Formats for USB Mode

Media

Music


File

Extension

- - PCM Sample Rate: 8K ~ 48KHz

.mp3 -

.jpg

.gif GIF WxH = 14592x12288, Up to 179 Mega-pixel

.bmp bit map WxH = 14592x12288, Up to 179 Mega-pixel

Video Audio

Baseline

JPEG

Progressive

JPEG

Format

MPEG 1/2

Layer 1/ 2/

(Maximum resolution/Bit rate etc.)

Sample Rate: 8K ~ 48KHz, Bit Rate:

3 (MP3)

WxH = 14592x12288, Up to 179 Mega-pixel

Support format: 444/ 440/ 422/ 420/ Grayscale

Remarks

32K~320Kbps

Up to 4 Mega-pixel

English - 47 -

Speciﬁ cations

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Pro le 1

Object carousel support compliant with ISO/IEC 135818-6 and UK DTT pro le

Frequency range: 474-850 MHz for UK models

Digital

Reception

NUMBER OF PRESET CHANNELS

200

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W

2 x 8

POWER CONSUMPTION (W)

150 W (max)

< 1 W (Standby)

PANEL

32” Wide Screen

DIMENSIONS (mm)

DxLxH (With foot):

212 x 776 x 567

Weight (Kg): 12.30

DxLxH (Without foot):

94 x 776 x 524

Weight (Kg): 11.6

Demodulation: COFDM with 2K/8K FFT mode

) (10% THD)

RMS.

170-862 MHz for EU models

Transmission standard: DVB-T. MPEG-2

FEC: all DVB modes

Video: MP@ML, PAL, 4:3/16:9

Audio: MPEG Layer I&II 32/44.148kHz.

for UK

English - 48 -

ARGOS

Product Guarantee

This product is guaranteed against manufacturing defects for a period

1 Year

This does not cover the product where the fault is due to misuse,

abuse, use in contravention of the instructions, or where the product

has been the subject of unauthorised modiﬁ cations or alterations, or

has been the subject of commercial use

In the event of a problem with the product within the guarantee period

please return it to your nearest Argos store

If the item is shown to have had an inherent defect present at the time

of sale, the store will provide you with a replacement

Your statutory rights remain unaffected

Guarantor; Home Retail Group

489 - 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

English - 49 -

QUICK GUIDE

L32HP03U A

IMPORTANT - If placing TV into cabinet or alcove, ensure there is at least a 100mm (10cm) gap to the sides, rear and top of the TV. This is to allow for adequate ventilation during operation. Please read the main Users Guide for more safety information before installation.

insert the batteries into your handset

either connect the aerial straight to your TV...

ANT.

5VDC 60mA

wall

Aerial (RF)

Lead

socket

Aerial (RF) Socket

...or connect the aerial through a VCR...

Aerial (RF) Socket

Aerial (RF) Socket VCR

Optional Scart Lead TV to VCR

(RF) connector

wall

Aerial (RF)

socket

Lead

• It is recommended that a scart lead should be fitted between your TV and VCR to enhance your picture and sound quality. Scart leads are essential if you have a stereo TV and VCR and wish to obtain stereo sound from your equipment. These leads can be purchased from your Hitachi dealer or any good High Street electrical retailer.

lead VCR to TV

ANT.IN

AV-1

AV-2

ANT.

5VDC 60mA

VCR

...or through a HDMI and YPBPR products (DVD-RW)

TFT-LCD TV

ANT.

5VDC 60mA

Aerial (RF) Socket

• Scart Lead to

(RF) connector

AV on TV.-1

lead Device to TV

wall

ANTENNA

Aerial (RF)

socket

ANT.IN

Lead

Note : These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

• High Definition

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Device.These devices must be connected via the HDMI socket or Component Socket.

COMPONENT

HDMI OUT

DVD RECORDER

...or through a VCR and satellite decoder.

TFT-LCD TV

ANT.

5VDC 60mA

RF Lead from VCR to TV

RF Lead from VCR to Satellite

Aerial

ANT.IN

RF Lead to Aerial

ANT.IN

• Scart Lead to AV on TV.-1

TV VCR

AV-1

AV-2

Satellite LNB lead

VCR

connect the TV plug to the mains socket

UK plug

insert plug...

...and switch on

European plug

insert plug...

switch your TV on by setting the on/off button to position | .

SIDE VIEW

NB: When the set is first switched on, the set will be in standby and the indicator

on the front of the set will illuminate red. Press Operate/Standby or channel up down (P- , P+) or numeric buttons (1, 2, 3, ...) to operate.

basic functions of remote control

To enter the main menu

Volume Up

Volume Down

SCREEN

PRESETS

SWAP

Operate/Standby

SELECT

ABC

DEF GHI

JKL

MNO

VWX

STU

P+

P -

DTV

FAV

SUBTITLE

LANG

EPG

RC 1800

For navigation of the menus

INFO /

PQR

To select a programme

number.

RETURN

Programme Up

Programme Down

SOURCE

SLEEP

start A.P.S. (Auto Programming System)

When the TV is turned on for the first time, the menu for the language selection appears on the screen. The messag e “Welc ome please sel ect your language!” is written in all language options sequentially in the menu on the screen. By pressing or buttons highlight the language you want to set and press OK. After then, First time Installation Menu will appear on screen. By pressing or buttons, select country item you want to set and press OK button.| }

After the First Time Installation is set, the following message appears on the screen. Do you want to start an automatic channel scan? To start automatic search, select “Yes”, to cancel select “No”. This process will take about five minutes. To cancel searching, you can press “MENU” button at any time during the process.

After Automatic Search process is completed, a message asking for analogue channel search appears on the screen. To continue Auto Program, first set the language, country and teletext language by using or button and then press the RED or OK button

| }

After APS is finalized, the programme table will appear on the screen. In the programme list you will see the programme numbers and names assigned to the programmes.

For details, please refer to the Install Menu section of the instruction book.

important note.

Once the TV has found all your local stations, they are then automatically assigned a programme number and name, if available from the broadcast.
