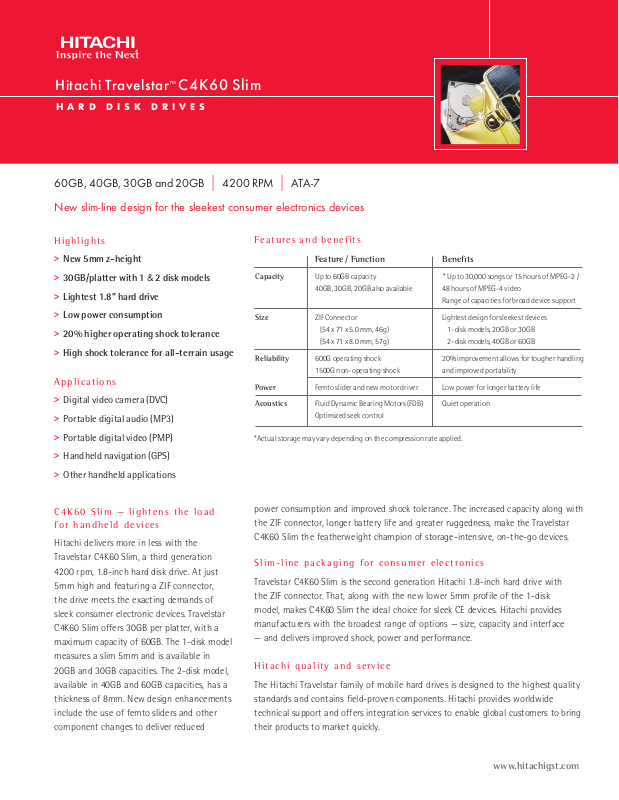

Hitachi Travelstar™ C4K60 Slim |
H A R D D I S K D R I V E S |
60GB, 40GB, 30GB and 20GB | 4200 RPM | ATA-7 |
New slim-line design for the sleekest consumer electronics devices
Highlights
>New 5mm z-height
>30GB/platter with 1 & 2 disk models
>Lightest 1.8” hard drive
>Low power consumption
>20% higher operating shock tolerance
>High shock tolerance for all-terrain usage
Applications
>Digital video camera (DVC)
>Portable digital audio (MP3)
>Portable digital video (PMP)
>Handheld navigation (GPS)
>Other handheld applications
Features and benefits
|
Feature / Function |
|
Benefits |
|||
|
|
|||||
|
|
|
|
|
|
|
Capacity |
Up to 60GB capacity |
|
* Up to 30,000 songs or 15 hours of MPEG-2 / |
|||
|
40GB, 30GB, 20GB also available |
|
48 hours of MPEG-4 video |
|||
|
|
|
Range of capacities for broad device support |
|||
|
|
|
|
|
||
Size |
ZIF Connector |
|
Lightest design for sleekest devices |
|||
|
(54 x 71 x 5.0 mm, 46g) |
|
1-disk models, 20GB or 30GB |
|||
|
(54 x 71 x 8.0 mm, 57g) |
|
2-disk models, 40GB or 60GB |
|||
|
|
|
|
|
||
Reliability |
600G operating shock |
|
20% improvement allows for tougher handling |
|||
|
1500G non-operating shock |
|
and improved portability |
|||
Power |
|
|
|
|
|
|
Femto slider and new motor driver |
|
Low power for longer battery life |
||||
|
|
|
|
|
|
|
Acoustics |
Fluid Dynamic Bearing Motors (FDB) |
|
Quiet operation |
|||
|
Optimized seek control |
|
|
|
|
|
|
|
|
|
|
|
|
*Actual storage may vary depending on the compression rate applied.
C4K60 Slim — lightens the load for handheld devices
Hitachi delivers more in less with the Travelstar C4K60 Slim, a third generation 4200 rpm, 1.8-inch hard disk drive. At just 5mm high and featuring a ZIF connector, the drive meets the exacting demands of sleek consumer electronic devices. Travelstar C4K60 Slim offers 30GB per platter, with a
maximum capacity of 60GB. The 1-disk model measures a slim 5mm and is available in 20GB and 30GB capacities. The 2-disk model, available in 40GB and 60GB capacities, has a thickness of 8mm. New design enhancements include the use of femto sliders and other component changes to deliver reduced
power consumption and improved shock tolerance. The increased capacity along with the ZIF connector, longer battery life and greater ruggedness, make the Travelstar C4K60 Slim the featherweight champion of storage-intensive, on-the-go devices.
Slim-line packaging for consumer electronics
Travelstar C4K60 Slim is the second generation Hitachi 1.8-inch hard drive with the ZIF connector. That, along with the new lower 5mm profile of the 1-disk model, makes C4K60 Slim the ideal choice for sleek CE devices. Hitachi provides manufacturers with the broadest range of options — size, capacity and interface
— and delivers improved shock, power and performance.
Hitachi quality and service
The Hitachi Travelstar family of mobile hard drives is designed to the highest quality standards and contains field-proven components. Hitachi provides worldwide technical support and offers integration services to enable global customers to bring their products to market quickly.
www.hitachigst.com
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H i t a c h i |
T r a v e l s t a r |
C 4 K 6 0 |
S l i m |
|
|
|
Hitachi Global Storage Technologies |
|||||
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|||||
|
Product |
|
Travelstar C4K60 |
|
|
|
|
|
|||||
|
Model names |
|
HTC426060G8CE00 / HTC426040G8CE00 |
|
|
|
|
||||||
|
|
|
|
|
|
|
HTC426030G5CE00 / HTC426020G5CE00 |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||||
|
Specifications |
|
|
|
|
|
|
|
|
||||
|
Configuration |
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface |
|
ATA-7 |
|
|
|
|
|
|
||||
|
Capacity (GB)1 |
|
60 / 40 / 30 / 20 |
|
|
|
How to read the Travelstar model number |
||||||
|
Sector size (Bytes) |
|
512 |
|
|
|
|
||||||
|
|
|
|
|
|
HTC426030G5CE00 = 30GB |
|||||||
|
Data heads (physical) |
|
4 / 4 / 2 / 2 |
|
|
|
|||||||
|
|
|
|
|
H = Hitachi |
||||||||
|
Data disks |
|
2 / 2 / 1 / 1 |
|
|
|
|||||||
|
|
|
|
|
T |
= Travelstar |
|||||||
|
Performance |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
C = Compact |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Data buffer (MB)2 |
|
2 |
|
|
|
|
42 = 4200 RPM |
|||||
|
Rotational speed (RPM) |
|
4200 |
|
|
|
|
60 = Full capacity – 60GB |
|||||
|
Latency average (ms) |
|
7.1 |
|
|
|
|
30 = Capacity this model – 30GB (60 = 60GB, |
|||||
|
Interface transfer rate (MB/sec, max) |
100 Ultra DMA mode-5 |
|
|
|
|
40 = 40GB, 20 = 20GB) |
||||||
|
PIO |
|
16.6 PIO mode-4 |
|
|
|
G = Generation code |
||||||
|
Seek time (read, average) (ms) |
|
15 |
|
|
|
|
7 |
= 5mm z - height (8 = 8mm z - height) |
||||
|
|
|
|
|
|
|
|
|
|
|
|
CE = CE interface connector (ZIF type) |
|
|
Reliability |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
0 |
= Revision code |
|||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
Error rate (non-recoverable) |
|
< 1 per 1.0 E 13 bits transferred |
|
|
|
0 |
= Reserved |
|||||
|
Load/Unload cycle |
|
600,000 |
|
|
|
For more information: |
||||||
|
Power |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
Internet: |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Requirement |
|
3.3 VDC (+/- 5%) |
|
|
|
> www.hitachigst.com (Main Web site) |
||||||
|
Start up (max) |
|
1.4W |
|
|
|
|
> www.hitachigst.com/vpp (Reseller Web site) |
|||||
|
Read (average) |
|
1.0W |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Write (average) |
|
1.0W |
|
|
|
|
Technical Support E-mail: |
|||||
|
Active idle (average) |
|
0.4W |
|
|
|
|
||||||
|
|
|
|
|
|
> support_usa@hitachigst.com (N. America) |
|||||||
|
Low power idle (average) |
|
0.08W |
|
|
|
|
||||||
|
|
|
|
|
|
> support_ap@hitachigst.com (Asia Pacific) |
|||||||
|
Physical Size |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
> support_uk@hitachigst.com (EMEA and UK) |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Height (mm) |
|
8.0 / 8.0 / 5.0 / 5.0 |
|
|
||||||||
|
|
|
|
|
|
|
|||||||
|
Width (mm) |
|
54 |
|
|
|
|
Technical Support Phone Numbers: |
|||||
|
Depth (mm) |
|
71 |
|
|
|
|
||||||
|
|
|
|
|
|
> 1 888 426-5214 (N. America) |
|||||||
|
Weight – typical (g) |
|
57 / 57 / 46 / 46 |
|
|
|
|||||||
|
|
|
|
|
> 65 6840 9595 (Asia Pacific) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Environmental Characteristics |
|
|
|
|
||||||||
|
|
|
|
|
|
> 44 20 7133 0032 (EMEA and UK) |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Operating shock (half-sine wave) |
600G/2ms |
|
|
|
> 49 6929 993601 (Germany) |
|||||||
|
Non-operating shock (half-sine wave) |
1500G/1ms |
|
|
|
||||||||
|
|
|
|
|
|
||||||||
|
RoHS compliant3 |
|
yes |
|
|
|
|
© 2007 Hitachi Global Storage Technologies |
|||||
|
Acoustics (A-Weighted Sound Power (Bels)) |
|
|
|
|
|
Hitachi Global Storage Technologies |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Idle (typical) |
|
1.8 / 1.8 / 1.6 / 1.6 |
|
|||||||||
|
|
|
|
|
3403 Yerba Buena Road |
||||||||
|
Seek (typical) |
|
2.4 / 2.4 / 2.2 / 2.2 |
|
|
|
San Jose, CA 95135 USA |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
Produced in the United States 1/05, revised 4/07 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
1 GB equals one billion bytes when referring to hard drive capacity; accessible capacity may be less |
|
|
All rights reserved. |
|||||||||
|
2 Upper 128KB reserved for firmware |
|
|
|
|
|
Hitachi Global Storage Technologies (GST) trademarks |
||||||
|
3 RoHS refers to the European Union Directive 2002/95/EC on the restriction of certain hazardous substances in |
|
|
||||||||||
|
|
|
