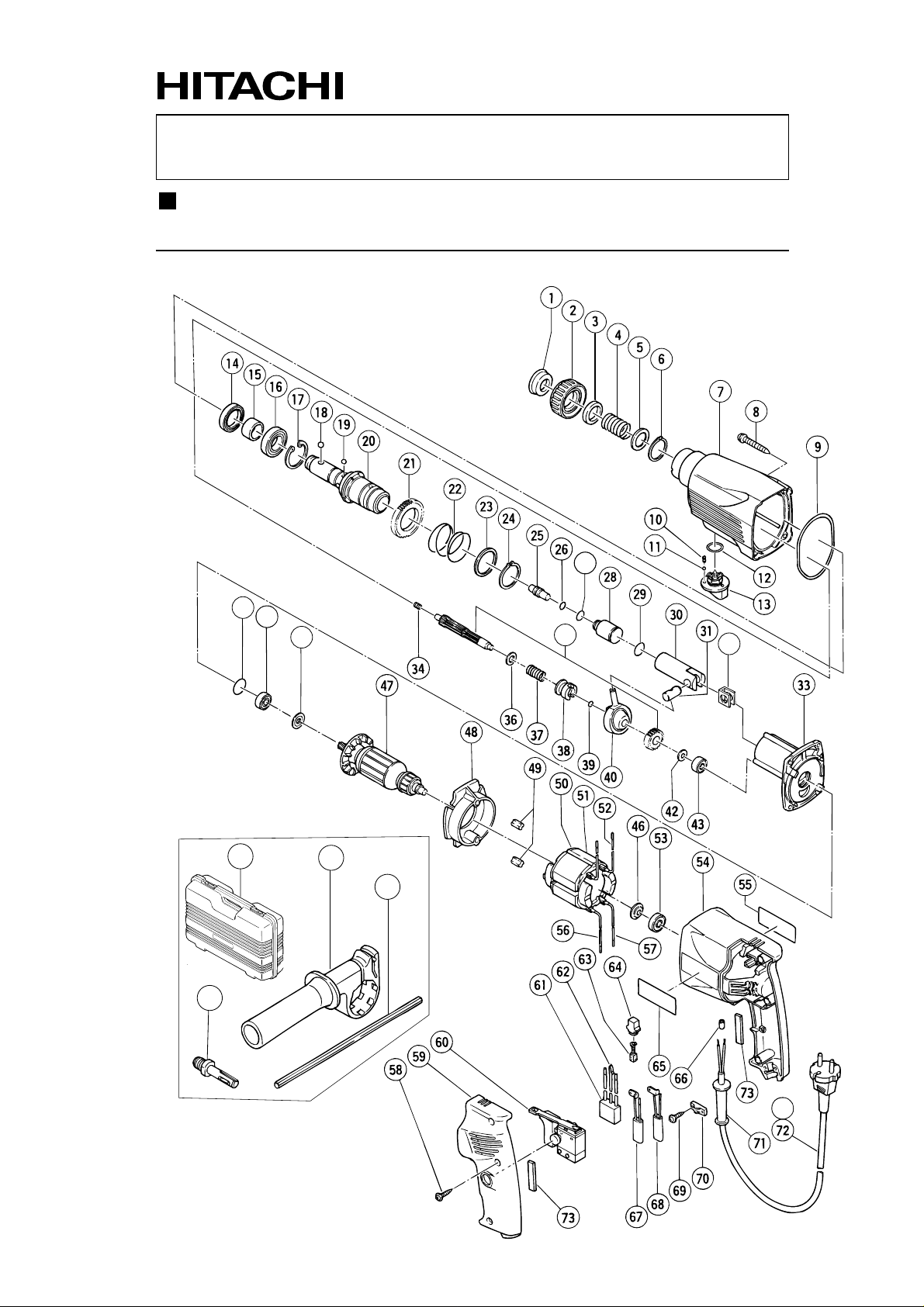

LIST NO. E438
ELECTRIC TOOL PARTS LIST
HAMMER DRILL
Model DH 24PB
44
45
46
35A
2000•9•29
(E2)
27A
32A
504
501
502
503
72A
--- 1 ---
PARTS
ITEM
* 47 360-446U ARMATURE ASS'Y 110V-115V 1 INCLUD.45,46,53
* 47 360-446E ARMATURE 220V-230V 1
* 47 360-446F ARMATURE 240V 1
* 50 340-398C STATOR 110V-115V 1
CODE NO. DESCRIPTION
No.
1 306-345 FRONT CAP 1
2 306-992 GRIP 1
3 306-343 BALL HOLDER 1
4 306-342 HOLDER SPRING 1
5 984-118 WASHER (B) 1
6 939-547 RETAINING RING FOR D20 SHAFT (10 PCS.) 1
7 314-876 GEAR COVER 1
8 301-654 TAPPING SCREW (W/FLANGE) D5X35 4
9 314-881 O-RING 1
10 981-328 SPRING (H) 1
11 959-155 STEEL BALL D3.97 (10 PCS.) 1
12 314-878 O-RING 1
13 314-877 CHANGE LEVER 1
14 307-688 OIL SEAL 1
15 307-690 SLEEVE 1
16 690-4DD BALL BEARING 6904DDPS2L 1
17 986-147 RETAINING RING FOR D37 HOLE 1
18 959-156 STEEL BALL D7.0 (10 PCS.) 1
19 959-154 STEEL BALL D5.556 (10 PCS.) 3
20 314-882 CYLINDER 1
21 301-677 SECOND GEAR 1
22 301-678 SPRING (A) 1
23 301-679 WASHER (A) 1
24 948-310 RETAINING RING FOR D30 SHAFT 1
25 301-671 SECOND HAMMER 1
26 301-672 O-RING (B) 1
27A 301-680 O-RING (I.D. 10.5) 1
28 301-669 STRIKER 1
29 301-670 O-RING (A) 1
30 301-668 PISTON 1
31 301-666 PISTON PIN 1
32A 303-977 WASHER (C) 1
33 314-880 INNER COVER 1
34 301-664 SPRING (B) 1
35A 315-161 GEAR.SHAFT SET 1
36 301-659 WASHER (B) 1
37 301-660 CLUTCH SPRING 1
38 301-661 CLUTCH 1
39 992-912 O-RING (S-8) 1
40 306-990 RECIPROCATING BEARING 1
42 301-663 SPACER 1
43 626-VVM BALL BEARING 626VVC2PS2L 1
44 876-796 O-RING (P-22) 1
45 608-DDM BALL BEARING 608DDC2PS2L 1
46 982-631 WASHER (A) 2
48 314-879 FAN GUIDE ASS'Y 1 INCLUD.49
49 994-343 RUBBER BUSHING 2
: ALTERNATIVE PARTS
*
NO.
USED
--- 2 ---
REMARKS
DH 24PB
---
