Hitachi CP-TW2505, CP-TW3005 User Manual

Download

Projector

CP-TW2505/CP-TW3005

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

WARNING

product. Be sure to read “Safety Guide” rst. After reading them, store them in a safe place for future reference.

►Before using this product, please read all manuals for this

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

• The information in this manual is subject to change without notice.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



Contents



Introduction ............... 3

Features ...................... 3

Checking the contents of package

Part names ....................4

Setting up ................. 9

Arrangement ...................9

Connecting with your devices Connecting to a power supply

Using the security bar and slot ....18

Using the cable cover ...........19

Remote control ............20

Interactive pen ............23

Power on/off ..............24

Operating ................ 27

Adjusting the volume ............27

Temporarily muting the screen and

audio output ..................27

Selecting an input signal .........28

Selecting an aspect ratio .........28

Selecting an Interactive Function . . 29

Calibration ....................29

Adjusting the projector's elevator . . 30

Adjusting the zoom and focus .....30

Using the automatic adjustment feature

Using the TEMPLATE feature .....32

Other buttons .................32

Adjusting the position ........... 33

Correcting the keystone/perfect t distortions

....................33

Using the magnify feature ........34

Temporarily freezing the screen ...35

Using the menu function ........36

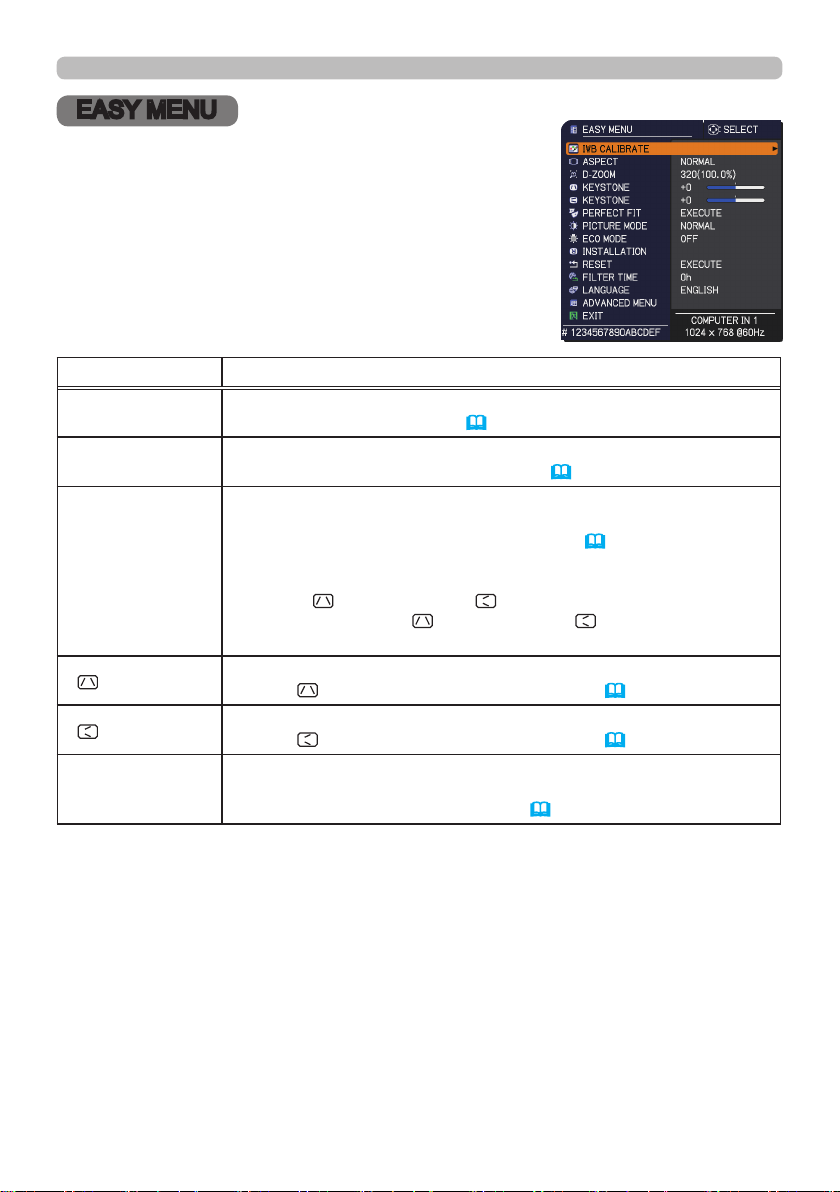

EASY MENU. . . . . . . . . . . . . . . 38

Iwb calIbrate, aspect, D-zoom,

Keystone, perfect fIt

eco moDe, InstallatIon, reset, fIlter tIme, l

anguage, aDvanceD menu, exIt

, pIcture moDe,

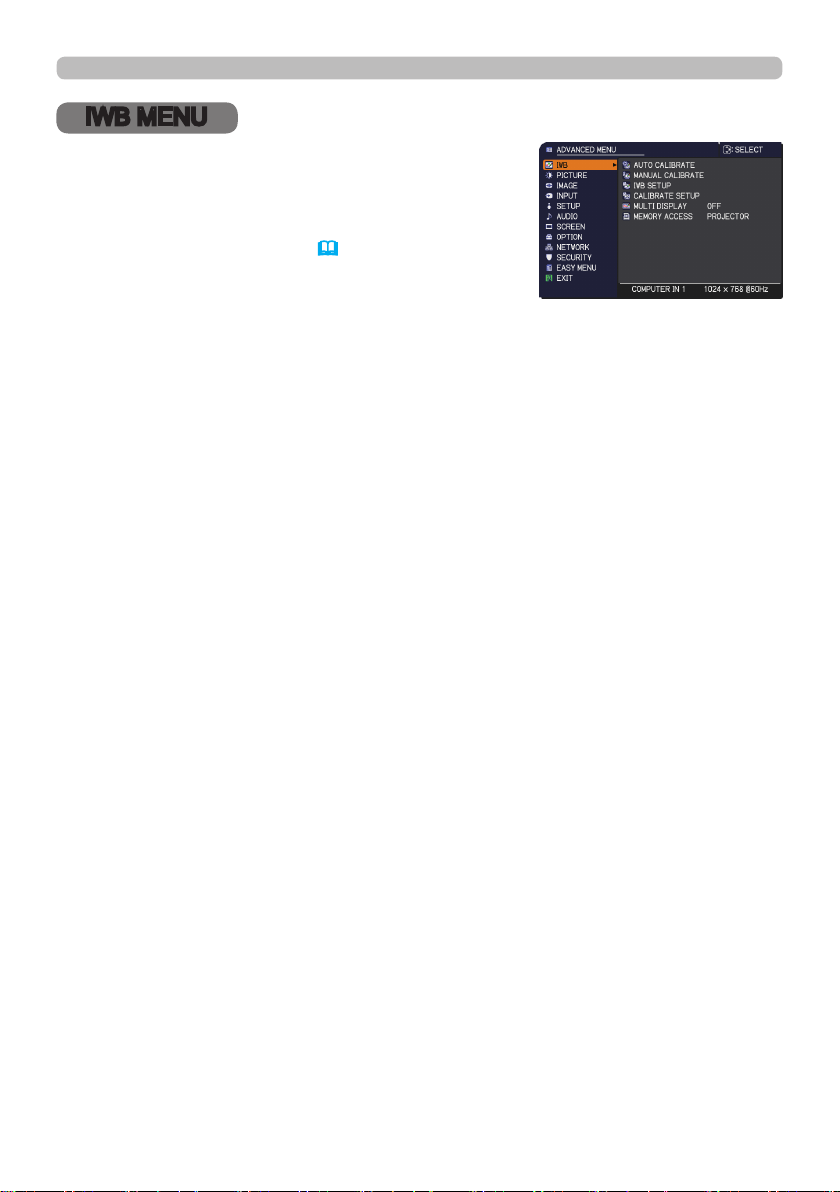

IWB menu ................41

PICTURE menu ............ 42

brIghtness, contrast, hDcr, a

ccentualIzer, gamma, color temp,

color, tInt, sharpness, actIve IrIs, my memory

IMAGE menu .............. 46

aspect, over scan, v posItIon, h posItIon, h

phase, h sIze, auto aDjust execute

...3

.....12

.....18

...31

Keystone,

INPUT menu ..............49

progressIve, vIDeo nr, color space, v

IDeo format, DIgItal format,

IgItal range, computer In, frame locK,

esolutIon, mhl stanDby pwr.

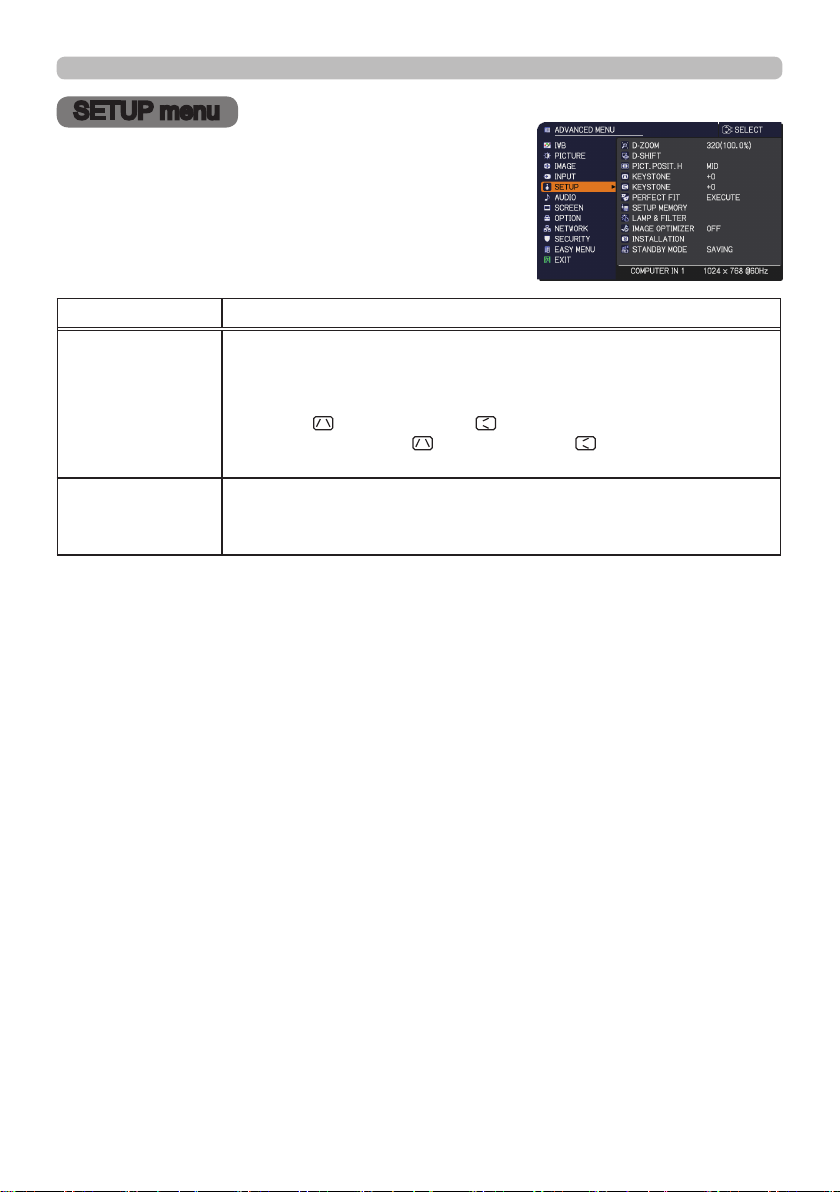

SETUP menu ..............54

D-zoom, D-shIft, pIct.posIt.h,

Keystone, perfect fIt

amp & fIlter, Image optImIzer, InstallatIon

l s

tan Dby moDe

Keystone,

, setup memory,

AUDIO menu .............. 61

volume, speaKer, auDIo source, m

Ic level,mIc volume

SCREEN menu ............. 63

language, menu posItIon, blanK, a

uto blanK, sta rt up,

yScreen Lock

emplate, c.c.

, message, source name,

yScreen

OPTION menu ............. 69

auto search, DIrect power on, a

uto power off, my button, scheDule,

ervIce

NETWORK menu ...........83

SECURITY menu ...........84

securIty passworD change,

m m

passworD, pIn locK,

yScreen

y text passworD, my text DIsplay, y text wrItIng, clonIng locK

Presentation tools ......... 89

Interactive function ...............89

PC-LESS Presentation USB Display (Windows® computer) USB Display (Mac computer)

Maintenance .............135

..........116

. 126

......131

Replacing the lamp ............135

Cleaning and replacing the air lter . 137

Caring for the projection window and camera lens

Replacing the internal clock battery

...................139

...

Other care ...................141

Troubleshooting .......... 142

Related messages ............142

Regarding the indicator lamps ...144

Resetting all settings ...........147

Phenomena that may be easy to

be mistaken for machine defects

. . 147

Specications ............159



140

Introduction

Features

The projector provides you with the broad use by the following features.

ü The unique optics system produces a large projected image in a short

distance, which provides you with various ways of use.

ü This projector has a variety of I/O ports that supposedly cover for any

business scene.

ü The HDMI/MHL port can support various image equipment which have digital

interface to get clearer pictures on a screen.

ü Has HDCR and ACCENTUALIZER features which are Hitachi's original

image stabilizer for a clearer image.

ü Has DICOM

mode.This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.

ü The built-in 16W speaker can deliver sufcient sound volume in a large

space like a classroom without external speakers.

ü This projector's network supports the PJLink™ standard.PJLink™ is a unied

standard for operating and controlling data projectors.For specications of PJLink™, see the web site of the PJLink™.

ü Equipped with IMAGE OPTIMIZER which is Hitachi's original function to

maintain visibility by automatic image correction in accordance with lamp deterioration.

ü The Interactive Pen included with the projector allows you to write or draw

directly on the projected image. Also, you can control the connected computer on the screen in the same way as using a mouse.

("Digital Imaging and Communication in Medicine") simulation

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

NOTE

to use the original packing materials when moving the projector. Use special caution for the lens.

• Keep the original packing materials, for future reshipment. Be sure

Introduction

Part names Projector

(1) Lamp cover (135)

The lamp unit is inside.

(2) Control panel (5) (3) Elevator feet (x 2) (30) (4) Remote sensor (x 2)(21) (5) Projection window (139) (6) Intake vents (7) Filter cover (137)

The air lter and intake vent are inside.

(8) Speaker (15, 27, 61) (9) Exhaust vent (10) AC (AC inlet) (18) (11) Ports (6) (12) Security bar (18) (13) Security slot (18) (14) Spacer (x 2) (30) (15) Battery cover (140) (16) Camera lens (139)

(8)

(14)

(4)

(7)

(1)

(6)

(3)

HOT!

(9)

HOT!

(2)

(3)

(5)

(11)

(13)

(12)

(15)

(14)

(16)

(10)

WARNING

►HOT! : Do not touch around the lamp cover and the exhaust

vents during use or just after use, since it is too hot. ►Never look into the projection window while the projection lamp lights, since the projection lamp ray may cause a trouble on your eyes. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.

CAUTION

►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air lter periodically.

Introduction

Part names (continued) Control panel

(1) STANDBY/ON button (

24)

(3)

(4)

(6)

(2) INPUT button (28) (3) POWER indicator (24, 144) (4) TEMP indicator (144) (5) LAMP indicator (144) Buttons ◄/►/▲/▼ (6) FOCUS +/- buttons

when no menu is displayed (31), or

(5)

(7)

(2)

(1)

Cursor ◄/► buttons

when a menu is displayed (36). FOCUS +/- function is invalid when the USB TYPE A port is selected as the input source.

(7) MENU buttons

when no menu is displayed (36), or

Cursor ▲/▼ buttons

when a menu is displayed (36).

The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the template is displayed (67).

Introduction

Part names (continued) Ports (

12 ~ 17)

(1) USB TYPE A port (x2) (2) LAN port (3) USB TYPE B port (4) HDMI1/MHL port (5) HDMI2 port (6) MIC port

(9) AUDIO OUT port (10) COMPUTER IN1 port (11) COMPUTER IN2 / MONITOR OUT port (12) VIDEO IN port (13) CONTROL port (14) Option port *

(7) AUDIO IN1 port (8) AUDIO IN2(L,R) ports

(11)

(9)

(10)

(7)

NOTE

(12)

(6)

(5)

(4)

(3)

(13)

* Option port is a port used only when using the optional part (FT-01B).

(8)

(14)

(2)

(1)

A cover is attached for protecting the port. Do not remove the cover. Refer to the manual of the optional part (FT-01B) for detail.

Part names (continued) Remote control

Introduction

(1) INPUT button (

28) (2) IWB button (29) (3) CALIBRATION button (29) (4) STANDBY/ON button (24) (5) ASPECT button (28) (6) AUTO button (31) (7) ACCENTUALIZER button (32) (8) HDCR button (32) (9) FOCUS - button (31) (10) FOCUS + button (31) (11) D-ZOOM - button (30) (12) D-ZOOM + button (30) (13) PAGE UP button (22) (14) MAGNIFY - ON button (34) (15) MY BUTTON - 1 button (71) (16) VOLUME + button (27) (17) PAGE DOWN button (22) (18) MAGNIFY - OFF button (34) (19) MY BUTTON - 2 button (71) (20) VOLUME - button (27) (21) KEYSTONE/PERFECT FIT button (33) (22) TEMPLATE button (32) (23) FREEZE button (35) (24) AV MUTE button (27) (25) ESC button (36) (26) MENU button (36, 37) (27) ENTER button (36, 37) (28) POSITION button (33, 37) (29) RESET button (36) (30) ▲/▼/◄/► cursor buttons (36) (31) Battery cover (20)

(2) (1) (6) (5)

INPUT

ASPECT

(10) (9) (13) (14) (17) (18)

PAGE

KEYSTONE/

PERFECT FIT

ESC MENU

(21) (22) (25) (30)

POSITION

(28)

the remote control

IWB

CALIBRATION

AUTO

ACCENTUALIZER

D-ZOOM

FOCUS

MAGNIFY

MYBUTTON

DOWNONOFF

FREEZE

TEMPLATE

ENTER

Back of

HDCR

VOLUME

AV MUTE

RESET

(3) (4) (7) (8) (11)

(12)

＋

(16)

ー

(15) (20) (19) (24) (23) (26) (27) (29)

(31)

Introduction

Part names (continued) Interactive pen

(1) Pen tip (

23)

(2) Battery cover (23)

NOTE

• Interactive Pen is henceforth denoted as "pen".

(1) (2)

Setting up

Install the projector according to the environment and manner the projector will be used in.

Arrangement

Refer to table T-1 and gures F-1 and F-2 at the end of User’s Manual (concise) to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen.

Screen size (diagonal)

• For the case of installation in special conditions such as on the wall or ceiling, the specied mounting accessories and service may be required. Tabletop use must be setup with the designated optional accessories. Before installing the projector, consult your dealer about your installation.

The screen position may shift after installation if the projector is mounted on locations

• such as the wall or ceiling, due to the exibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel.

• The projected image position and/or focus may change during warm-up (approx. 30 minutes after the lamp is turned on) or when the ambient conditions change. Readjust the image position and/or focus as necessary.

• Since the projector features an ultra short throw, be aware that it is required to select a screen carefully to have better performance.

- A soft screen such as a pull-down screen may cause serious distortion of a projected image. A hard screen such as a board screen is recommended for use with this projector.

- A high-gain screen such as a bead screen that has narrow viewing angle is not suitable for this projector. A low-gain screen (around 1.0) such as a matte screen that has wide viewing angle is recommended for use with this projector.

A screen with a weave pattern may cause moiré on the projected image, which is not a failure of the projector. A screen that has less moiré effects is recommended for use with this projector.

b1 , b2

Projection distance (±8%)

c1 , c2 Screen height (±8%)

►

WARNING

Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in re and/or electric shock.

• Do not place the projector on an unstable, slanted or vibrational surface such

as a wobbly or inclined stand.

• Do not place the projector on its side or front position. To place the projector

on its rear position for the table top use, it is required to use the designated optional parts. Consult with your dealer.

• Consult with your dealer before a special installation such as on the wall or

ceiling.

(continued on next page)

Setting up

Arrangement (continued)

WARNING

►Place the projector in a cool place, and ensure that there is sufcient ventilation. The high temperature of the projector could cause re, burns and/or malfunction of the projector.

• Do not stop-up, block or otherwise cover the projector's vents.

• Keep a space of 30 cm or more between the sides of the projector and other

objects such as walls.

• Do not place or attach anything that would block the projection window, camera

lens or vent holes.

• Do not place the projector on metallic thing or anything weak in heat.

• Do not place the projector on carpet, cushions or bedding.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

Do not place the projector where the air from an air conditioner or similar unit will blow on it directly.

•

Do not place anything near the projection window or vents, or on top of the

projector. It causes high temperature and could result in re or smoke.

•

Do not place anything that may be sucked into or stick to the vents on the

bottom of the projector. This projector has some intake vents also on the bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause re, electric shock and/or malfunction of the projector.

• Do not place the projector in a bathroom or the outdoors.

• Do not place anything containing liquid near the projector.

•

Do not place the projector where any oils, such as cooking or machine oil, are used.

►

Use only the mounting accessories the manufacturer specied, and leave installing

and removing the projector with the mounting accessories to the service personnel.

• Read and keep the user’s manual of the mounting accessories used.

(continued on next page)

Arrangement (continued)

Setting up

CAUTION

►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause re, electric shock and/or malfunction of the projector.

• Do not place the projector near humidiers, smoking spaces or a kitchen. Also

do not use an ultrasonic humidier near the projector. Otherwise chlorine and minerals contained in tap water are atomized and could be deposited in the projector causing image degradation or other problems.

►

Position the projector to prevent light from directly hitting the projector's remote sensor. ►Do not place the product in a place where radio interference may be caused. ►Do not place this product in a magnetic eld. ►

If the projector is used at an altitude of about 1600 m or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH

(75). Otherwise, set it to

NORMAL. If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside. ►Do not touch the camera lens with your ngers.

NOTE

• The projector may make a rattling sound when tilted, moved or shaken, since a ap to control the air ow inside of the projector has moved. Be aware that this is not a failure or malfunction.

• The incoming light to the screen from the projector has a large angle. While the white image is on the screen, you may see it with colors, but this is because of the type of the screen used or the angles viewed, and it is not a malfunction.

• When the ambient temperature is around 35 to 40°C, the brightness of lamp is reduced automatically.

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the device and projector are turned off, connect them following the instructions below.

►

WARNING

a re or damage to the device and the projector.

- Use only the accessories specified or recommended by the projector’s manufacturer. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. It may be regulated under some standard.

- For a cable with a core at only one end, connect the end with the core to the projector. That may be required by EMI regulations.

- Neither disassemble nor modify the projector and the accessories.

- Do not use the damaged accessory. Be careful not to damage the accessories. Route a cable so that it is neither stepped on nor pinched out.

CAUTION

in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector. ►Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of the

projector are recessed.

Use only the appropriate accessories. Otherwise it could cause

►Do not turn on or off the projector while connected to a device

(continued on next page)

Setting up

Connecting with your devices (continued)

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the

COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Please use the standard drivers in your computer as this projector is a Plug-and-

Play monitor.

• When AUTO is selected for the COMPUTER IN1 or COMPUTER IN2 port in

COMPUTER IN of the INPUT menu, that port will accept component video signals (

•

When the USB TYPE B port and the computer's type A USB port are connected,

51).

you can use the USB TYPE B port as a picture input port from the computer, use the remote control as a simple mouse and keyboard of the computer, or use the Interactive Function (22).

VCR/DVD/Blu-ray Disc

player

OUT

AUDIO

VIDEO

Cr/Pr

Cb/Pb Y

COMPONENT

HDMI

Smartphone Tablet

(continued on next page)

Computer

AUDIO

OUT

DISPLAY

RS-232C

USB

(A)

HDMI

Setting up

Connecting with your devices (continued)

NOTE

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600X1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the

display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this

projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (51).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

(continued on next page)

Setting up

Connecting with your devices (continued)

• If you insert a USB storage device, such as a USB memory, into the USB TYPE A port and select the port as the input source, you can view images stored in the

device (116).

• You can connect a dynamic microphone to the MIC port with a 3.5 mm miniplug. In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. In the normal mode, the volume of the microphone can be adjusted separately from the volume of the projector using the menu. (62)

In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector. (27) Even when the sound of projector is set to mute mode by the AUDIO SOURCE function (61), the volume of the microphone is adjustable. In both modes (standby or normal), the AV MUTE button on the remote control works on the sounds of the microphone and the projector. (27)

Microphone

system

NOTE

Speakers

(with an amplier)

RGB IN

• If a loud feedback noise is produced from the speaker, move the

Monitor

microphone away from the speaker.

• This projector doesn't support plug-in power for the microphone.

(continued on next page)

Setting up

Connecting with your devices (continued)

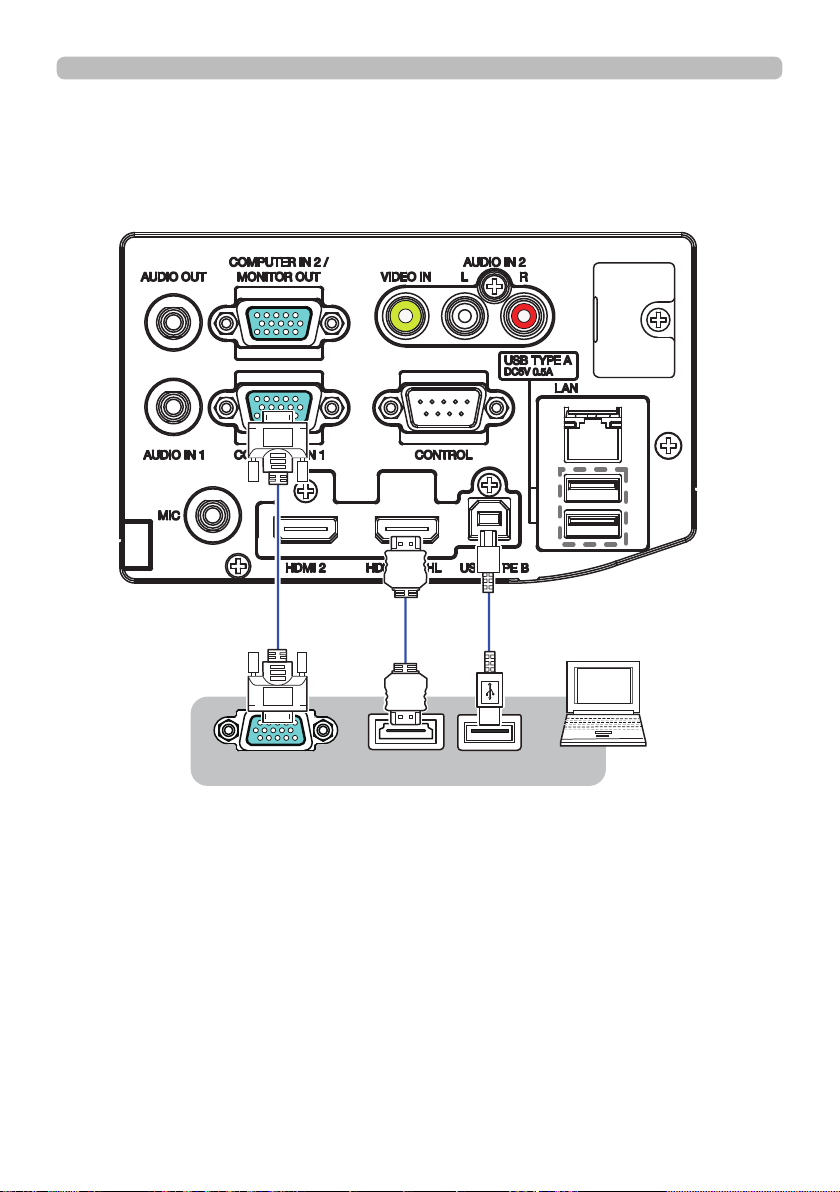

To use network functions of the projector, connect the LAN port with the computer's LAN port, or with an access point that is connected to the computer with wireless LAN, using a LAN cable. To use NETWORK BRIDGE function, also connect the CONTROL port and an RS-232C port of the external device to communicate as a network terminal. See the User's Manual - Network Guide for details of the network functions.

CAUTION

Computer

RS-232C

USB TYPE A

LAN

►Before connecting the projector to a network system be sure

Access point

USB

wireless

adapter

(optional)

USB storage

device

to obtain the consent of the administrator of the network. ►

Do not connect the LAN port to any network that might have the excessive voltage.

►The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. ►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (119). ►Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord’s plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power. ►To connect both the LAN cable and USB device to the projector, use a LAN cable that is  at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

(continued on next page)

Connecting with your devices (continued)

Setting up

NOTE

• If an oversized USB storage device blocks the LAN port, use a USB

extension cable to connect the USB storage device.

• The HDMI port of this model is compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals.

For Video signals, refer to User’s Manual (detailed) Operating Guide – Technical.

Audio signal : Format Linear PCM Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMI

connector, but with some equipment the projector may not work properly, something like no video.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certied HDMITM cable to input 1080p@50/60 signal to the projector.

- When the projector is connected with a device having DVI connector, use a DVI to HDMI

cable to connect with the HDMI input.

- The MHL supports the following signals. For Video signals, refer to User’s Manual (detailed) Operating Guide – Technical. Audio signal : Format Linear PCM Sampling frequency 48kHz / 44.1kHz / 32kHz

- Be sure to use an MHL cable that has the MHL logo.

• Up to one USB wireless adapter (optional) can be connected to a projector.

Setting up

Connecting to a power supply

Put the connector of the power cord into the

AC (AC inlet) of the projector. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated ( power supply make the projector turn on.

69), the connection of the

Power cord

WARNING

incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult

your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power

cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload

the outlet and connectors, loosen the connection, or result in re, electric shock or other accidents.

• Do not press the main body of projector on the power cord.

►Please use extra caution when connecting the power cord, as

Using the security bar and slot

A commercial anti-theft chain or wire up to 10 mm in diameter can be attached to the security bar on the projector. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

Anti-theft chain or wire

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

Security slot

Security bar

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

• The security bar and slot is not comprehensive theft prevention

Using the cable cover

Utilize the cable cover as the guard and blind for the connecting parts.

Connect the signal cables and the power cord to the projector rst.

Insert the three knobs on the cable cover into the

three holes on the projector as shown in the gure. Pass the cables through the holes on the bottom of the cable cover.

Setting up

knobs

Fix the cover's screw.

CAUTION

prevent damage to the cables. ► Use the cable cover that is supplied with the projector. Do not attempt any modications to the cable cover.

► Be careful not to pinch the cables in the cable cover, to

screw

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Remove the battery cover.

Align and insert the two AA batteries (Use the appropriate

AA carbon-zinc or alkaline batteries (nonrechargeable) in accordance with laws and regulations.) according to their plus and minus terminals as indicated in the remote control.

Put the battery cover back to the former state.

WARNING

directed. Improper use may result in battery explosion, cracking or leakage, which could result in re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specied. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.

• If you observe battery leakage, wipe out the leakage and then replace a

battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

Remote control

Remote

sensor

30º

Approx.

3 m

NOTE

• You can deactivate one of the sensors using the REMOTE RECEIV.

item in the SERVICE menu of the OPTION menu (76) .

•

The remote control signal reected in the screen or the like may be available. If it is

difcult to send the signal to the sensor directly, attempt to make the signal reect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

FOCUS

PAGE

MAGNIFY

MYBUTTON

DOWNONOFF

KEYSTONE/

FREEZE

PERFECT FIT

TEMPLATE

ESC MENU

ENTER

POSITION

HDCR

D-ZOOM

VOLUME

＋

ー

AV MUTE

RESET

(1)(2)

Please remember that the REMOTE FREQ. in the SERVICE

(



77)

item of the OPTION menu

of the projector to be controlled should be set to the same mode as the remote control.

Remote control

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected.

(1) PAGE UP key: Press the PAGE UP button. (2) PAGE DOWN key: Press the PAGE DOWN button. (3) Mouse left button: Press theENTER button. (4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (5) ESC key: Press the ESC button. (6) Mouse right button: Press the RESET button.

NOTICE

►Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer’s manuals before connecting this product to the computer.

USB TYPE B

port

(5)

(3)

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

FOCUS

PAGE

MAGNIFY

MYBUTTON

DOWNONOFF

KEYSTONE/

FREEZE

PERFECT FIT

TEMPLATE

ESC MENU

ENTER

POSITION

(1)

HDCR

D-ZOOM

VOLUME

＋

(2)

ー

AV MUTE

(4)

RESET

(6)

NOTE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

•

Windows Vista® or higher is required for this function. And also this function may not work depending on the computer’s congurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

•

This function is activated only when the projector is working properly. This function is not available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

(27)

, TEMPLATE

(67)

or MY IMAGE screen.

- When any menu is displayed on the screen.

While using the cursor buttons to operate the sound or screen functions such as adjusting the sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

Interactive pen

Installing the battery

1. Turn the battery cover of the pen to the left to open it.

As illustrated in the diagram, insert the AAA battery

into the battery cover with the - end facing the front. (Use the appropriate AAA alkaline batteries (non-rechargeable) in accordance with laws and regulations.)

3. Attach the battery cover by turning it to the right until it is completely closed.

• If you will not use the pen for long period, remove the batteries from the pen and store

them in a safe place.

• If the pen do not operate properly, change the batteries to other maker's product.

Exchanging the tip of the pen

When the tip of the pen is shortened due to wearing, exchange it according to the following procedure.

Remove the tip of the pen referring to the

illustration.

Fit a new tip into the place and push it so that it

clicks.

The tip of the pen

WARNING

►Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in  re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries speci ed.

• Do not hold a battery with tweezers or the like.

• Make sure the plus and minus terminals are correctly aligned when loading a

battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

• Do not place a battery in a  re or water. Keep batteries in a dark, cool and dry

place.

• If you observe battery leakage, wipe out the leakage and then replace a

battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

• Keep the tip of the pen away from children and pets. Exercise care to prevent

them from swallowing the tip of the pen or the pack of spare accidentally. If swallowed consult a physician immediately for emergency treatment.

CAUTION

►Do not drop the pen or mishandle it.

• Do not keep the tip of the pen directed to a bottom. It may cause damage, trouble and the consumption of the battery.

Power on/off

Turning on the power

Make sure that the power cord is rmly

and correctly connected to the projector and the outlet. Make sure that the POWER indicator is

steady orange (144). Press the STANDBY/ON button on the

projector or the remote control. The projection lamp lights up, and the POWER indicator begins to blink green. When the power is completely on, the indicator will stop blinking and light in steady green (144).

To display the picture, select an input signal according to the section Selecting an input signal (

28).

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET (

82) is executed. If you wish to change the settings, refer to the LANGUAGE

(63) and ALTITUDE (75) menu.

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language and press the ENTER button of the remote control or the button of the projector to execute.

STANDBY/ON button POWER indicator

IWB

INPUT

ASPECT

AUTO

FOCUS

PAGE

MAGNIFY

DOWNONOFF

KEYSTONE/ PERFECT FIT

TEMPLATE

ESC MENU

ENTER

POSITION

CALIBRATION

ACCENTUALIZER

HDCR

D-ZOOM

VOLUME

MYBUTTON

＋

ー

FREEZE

AV MUTE

RESET

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below 1600 m (5250 feet), otherwise select HIGH and press the ENTER button of the remote control or the button of the projector to execute.

(continued on next page)

Power on/off

WARNING ►Never look into the projection window while the projection

lamp lights, since the projection lamp ray may cause a trouble on your eyes. ►Do not place the projector vertically. It could cause malfunction or injury. Tabletop use must be setup with the designated optional accessories. ►The projection window of this machine is made of glass. It can be damaged by excessive force or an impact. Read the following important warnings carefully, and follow them for your own safety.

• Do not apply excessive force on or allow impact to the projection window.

• Keep the projector out of the reach of children.

• If the projection window is broken, the projected image will be distorted. Never touch a broken projection window, and contact your dealer.

Power on/off

Turning off the power

Press the STANDBY/ON button on the projector or the remote control.

The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears.

The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (144).

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

WARNING

during use or just after use, since it is too hot. ►Remove the power cord for complete separation. The power outlet should be close to the projector and easily accessible.

NOTE

prior to the connected devices.

•

This projector has the function that can make the projector automatically turn

on/off. Please refer to the DIRECT POWER ON (70)

• Turn the power on/off in right order. Please power on the projector

items of the OPTION menu.

►Do not touch around the lamp cover and the exhaust vents

(69)

and AUTO POWER OFF

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume.

A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after about ten seconds.

● When

is selected for current picture input port, the volume adjustment is

VOLUME +/- button

IWB

INPUT

ASPECT

AUTO

FOCUS

PAGE

MAGNIFY

DOWNONOFF

disabled. Please see AUDIO SOURCE item of AUDIO menu (61).

● Even if the projector is in the standby mode, the volume is adjustable when both of the following conditions are true:

- An option other than is selected for STANDBY in the AUDIO SOURCE

item of the AUDIO menu (61).

NORMAL is selected in the STANDBY MODE item of the SETUP menu

● In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector (15).

Temporarily muting the screen and audio output

AV MUTE button

IWB

Press the AV MUTE button on the remote control.

The BLANK screen will be displayed instead of the screen of input signals and the sound from the AUDIO OUT port will be muted. Please refer to the BLANK item in SCREEN menu about the BLANK screen (63). To exit from the AV MUTE mode and restore the screen and audio, press the AV MUTE button again.

INPUT

ASPECT

PAGE

DOWNONOFF

KEYSTONE/

PERFECT FIT

AUTO

FOCUS

MAGNIFY

TEMPLATE

CALIBRATION

ACCENTUALIZER

D-ZOOM

MYBUTTON

(60).

CALIBRATION

ACCENTUALIZER

D-ZOOM

MYBUTTON

FREEZE

VOLUME

HDCR

VOLUME

AV MUTE

＋

ー

＋

ー

NOTE

• The projector automatically exits from the AV MUTE mode when

some control buttons are pressed.

•

The audio is output from the external audio system connected to the AUDIO OUT

port.

WARNING

►If you wish to have a blank screen while the projector's lamp is on, use the AV MUTE function above . Taking any other action may cause the damage on the projector. Blocking the beam by something causes high temperature and could result in re or smoke.

Operating

Selecting an input signal

Press the button on the projector.

Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER IN1  COMPUTER IN2

INPUT button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

D-ZOOM

FOCUS

PAGE

VOLUME

MAGNIFY

MYBUTTON

HDCR

INPUT button

＋

VIDEO LAN

HDMI

2 USB TYPE A

●

While ON is selected for AUTO SEARCH item in OPTION menu (69), the projector

HDMI 1/MHL  USB TYPE B

will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

Selecting an aspect ratio

Press ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

 For a computer signal

NORMAL  4:3  16:9  16:10  NATIVE

 For HDMI

and MHL signal

NORMAL  4:3  16:9  16:10  14:9  NATIVE

 For a video signal or component video signal

4:3  16:9  16:10  14:9  NATIVE

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

16:10 (xed)

ASPECT button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

FOCUS

PAGE

MAGNIFY

DOWNONOFF

MYBUTTON

D-ZOOM

HDCR

VOLUME

＋

ー

● The ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

● The on-screen menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM, KEYSTONE,

KEYSTONE and PERFECT FIT. Changing the values of ASPECT, D-ZOOM, KEYSTONE, KEYSTONE and PERFECT FIT may x the symptom.

Selecting an Interactive Function

Operating

Press the IWB button on the remote control. Displays the IWB MODE dialog.

Use the ◄/► cursor buttons to switch IWB MODE for the currently selected input port. Use the ▲/▼ cursor buttons to switch ON/OFF of FINGER TOUCH .

See the Interactive Function

(89)

Calibration

Press the CALIBRATION button on the remote control. Displays the CALIBRATION dialog. You can execute calibration of the Interactive Function in the CALIBRATION dialog.

See the Interactive Function

(89)

IWB button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

HDCR

D-ZOOM

FOCUS

PAGE

DOWNONOFF

MAGNIFY

MYBUTTON

VOLUME

CALIBRATION button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

HDCR

D-ZOOM

FOCUS

PAGE

DOWNONOFF

MAGNIFY

MYBUTTON

VOLUME

＋

ー

＋

ー

Operating

Adjusting the projector's elevator

The projector has 2pcs Rear foot for horizontals and inclinations. Spacers on the each elevator foot are installed at the time of shipment, and projector is in a condition to be able to just project. If necessary, detach the spacer, and the elevator feet can be manually twisted to make more precise adjustments.

-1~1°

Rear foot

Spacer

Rear foot

WARNING

►Keep the spacers away from children and pets. Be careful not to let them swallow the spacers. If swallowed, consult a physician immediately for emergency treatment.

-1~1°

NOTE

• The adjustment angle can be adjusted up to plus or minus 1° each of

foot.

•

After the foot is adjusted, it is possible to return it to the state of the shipment with a spacer. If change the setting place of the projector, it will recommend keep and reuse the spacers.

Adjusting the zoom and focus

Press the D-ZOOM + or D-ZOOM - button on the remote control to display D-ZOOM dialog on screen. Use the D-ZOOM + and D-ZOOM - buttons to adjust the picture size. To nish the operation, do not touch these buttons for about ten seconds until the dialog is disappeared.

● If you want to expand a part of the image, use the magnify function (34).

(continued on next page)

D-ZOOM - button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

HDCR

D-ZOOM

FOCUS

PAGE

DOWNONOFF

MAGNIFY

MYBUTTON

VOLUME

＋

ー

D-ZOOM + button

Operating

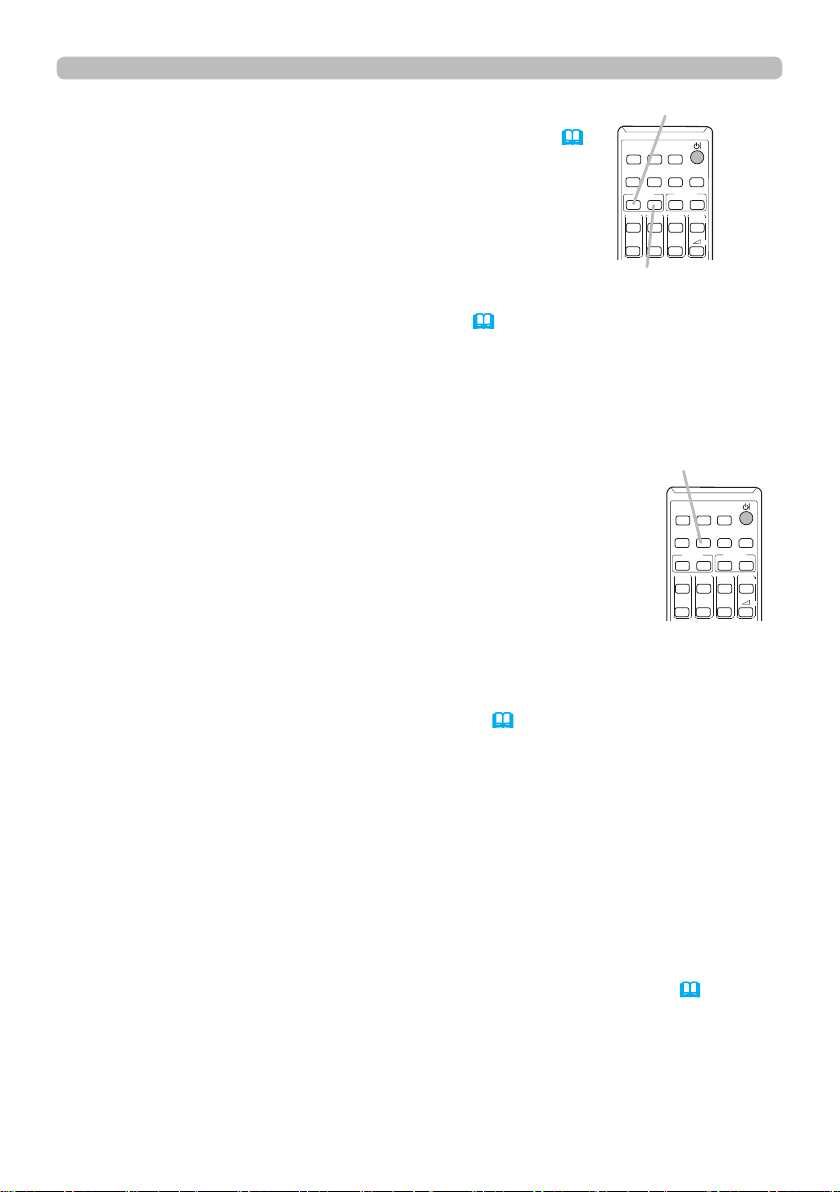

Press the FOCUS + or FOCUS - button on the remote control, or FOCUS + or FOCUS - button on the projector (5) while no menu is on screen, to display the FOCUS box on screen. Use the FOCUS + and FOCUS - buttons to adjust the screen focus. After the focus adjustment, wait for a while until the FOCUS box is disappeared, if you want to display any other menu on screen by pushing the MENU button on the projector.

FOCUS - button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

HDCR

D-ZOOM

FOCUS

PAGE

DOWNONOFF

MAGNIFY

MYBUTTON

VOLUME

＋

ー

FOCUS + button

● The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the template is displayed (63).

● The FOCUS +/- button on the projector is invalid when the USB TYPE A port is selected as the input source.

Using the automatic adjustment feature

Press the AUTO button on the remote control.

Pressing this button performs the following.

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for

48).

the VIDEO FORMAT item in the INPUT menu (

The vertical position and

horizontal position will be automatically set to the default.

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

● The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model.

The items adjusted by this function may vary when the FINE or DISABLE is selected

● for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

AUTO button

IWB

INPUT

ASPECT

AUTO

FOCUS

PAGE

MAGNIFY

DOWNONOFF

71).

CALIBRATION

ACCENTUALIZER

D-ZOOM

MYBUTTON

HDCR

VOLUME

＋

ー

Operating

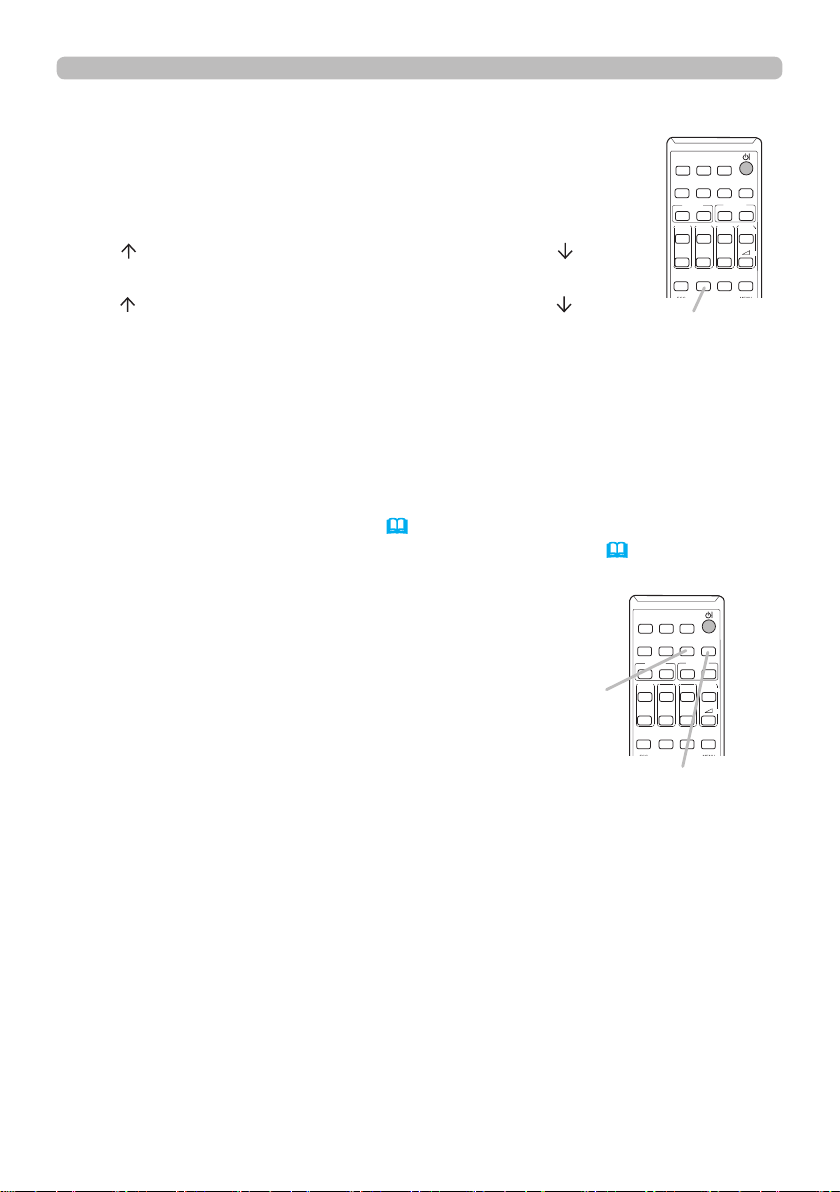

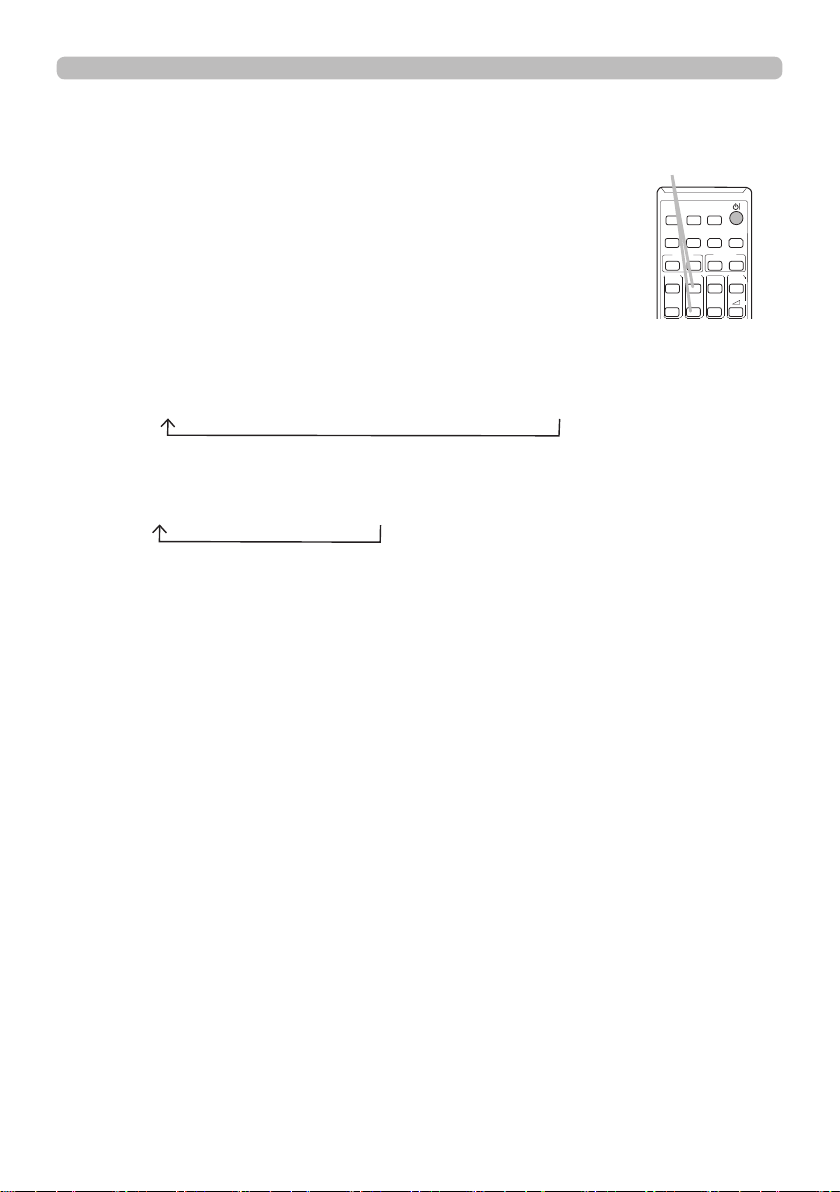

Using the TEMPLATE feature

Press the TEMPLATE button on the remote control.

Each time you press the button, the projector switches the mode for TEMPLATE in turn.

TEST PATTERN  DOT-LINE1  DOT-LINE2  DOT-LINE3

HAS-WM05 DOT-LINE4

HAS-WM03



MAP2  MAP1  CIRCLE2  CIRCLE1

INPUT

ASPECT

PAGE

DOWNONOFF

KEYSTONE/

PERFECT FIT

TEMPLATE button

● The TEMPLATE button does not work when no proper signal is inputted.

Other buttons

HDCR: Displays the HDCR menu (42). ACCENTUALIZER: Displays the ACCENTUALIZER menu (42).

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

FOCUS

PAGE

MAGNIFY

MYBUTTON

ACCENTUALIZER

button

DOWNONOFF

KEYSTONE/

PERFECT FIT

TEMPLATE

FREEZE

IWB

CALIBRATION

AUTO

ACCENTUALIZER

HDCR

D-ZOOM

FOCUS

VOLUME

MAGNIFY

MYBUTTON

＋

ー

FREEZE

AV MUTE

TEMPLATE

HDCR

D-ZOOM

VOLUME

＋

ー

AV MUTE

HDCR button

CALIBRATION

KEYSTONE/

ASPECT

ACCENTUALIZER

HDCR

AV MUTE

IWB

AUTO

PAGE

DOWNONOFF

FREEZE

FOCUS

D-ZOOM

＋

ー

VOLUME

MAGNIFY

MYBUTTON

INPUT

PERFECT FIT

TEMPLATE

Adjusting the position

Press the POSITION button on the remote control while no menu

is on screen, to display the D-SHIFT

Use the ▲, ▼, ◄ and ► buttons to adjust the picture position.

Press the POSITION button again to nish this operation.

(54)

dialog on screen.

● This is a function to shift the position of the shrunken picture by the D-ZOOM function.

● When an OSD (On Screen Display) menu is displayed, this operation moves the position of the OSD menu, but not the position of the picture

● The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 320 (full screen).

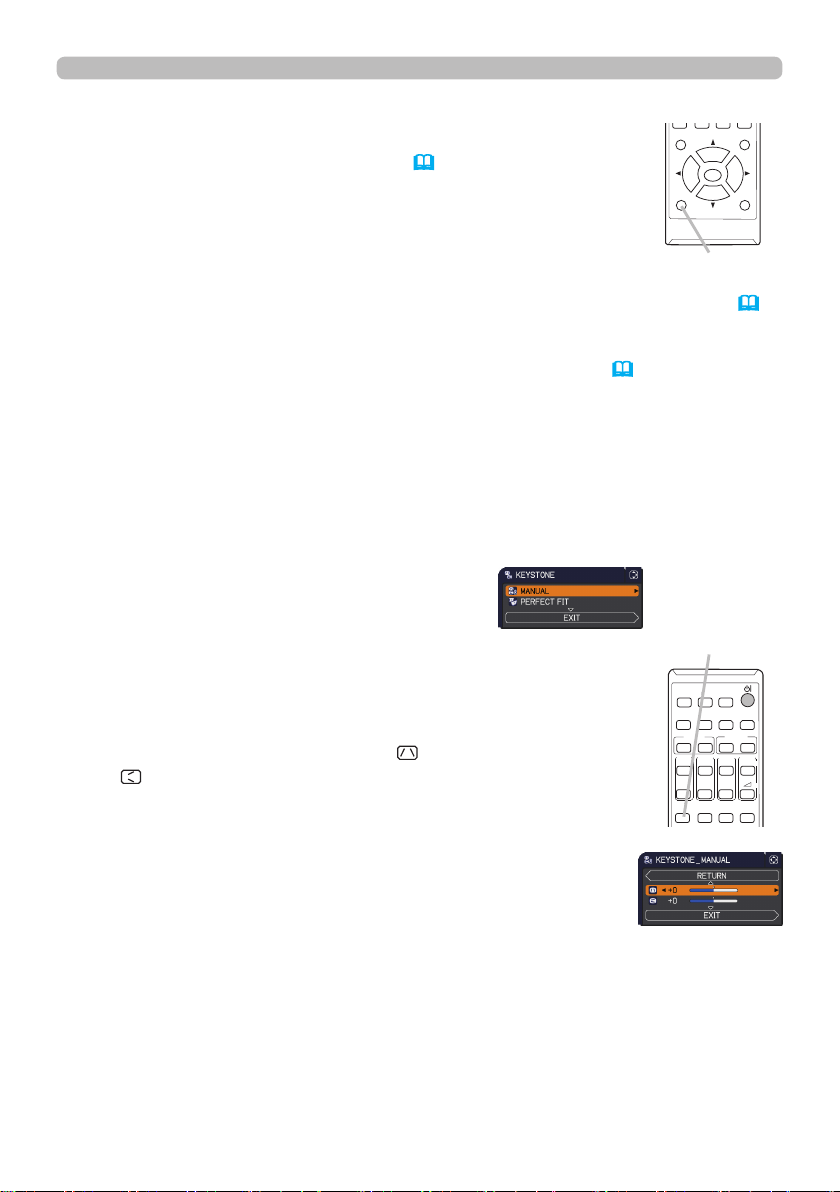

Correcting the keystone/perfect t distortions

Press the KEYSTONE/PERFECT FIT

button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion.

Use the ▲/▼ cursor buttons to select MANUAL or PERFECT

FIT operation, and press the ► button to perform the following. (1) MANUAL displays a dialog for keystone correction.

Use the ▲/▼ buttons to select KEYSTONE /

KEYSTONE, then use the ◄/► buttons for

adjustment.

(2) PERFECT FIT displays a dialog for adjusting the shape

of the projected image in each of the corners and sides.

To close the dialog and complete this operation, press the KEYSTONE/PERFECT FIT button again. Even if you do not do anything, the dialog will automatically disappear after about ten seconds.

● The adjustable range of this function will vary among inputs. For some input,

this function may not work well.

Operating

ESC MENU

POSITION

POSITION button

(37)

KEYSTONE/ PERFECT FIT

button

INPUT

ASPECT

AUTO

FOCUS

PAGE

MAGNIFY

DOWNONOFF

KEYSTONE/

PERFECT FIT

TEMPLATE

ENTER

IWB

(54)

CALIBRATION

ACCENTUALIZER

D-ZOOM

MYBUTTON

FREEZE

RESET

HDCR

VOLUME

AV MUTE

＋

ー

Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control.

The picture will be magnied, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

The display magnication of the projector switches in order

with every press of the MAGNIFY ON button.

 For computer signals, HDMI

(RGB) signals, input signals from the

MAGNIFY ON/OFF button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

D-ZOOM

FOCUS

PAGE

MAGNIFY

MYBUTTON

DOWNONOFF

LAN, USB TYPE A or USB TYPE B port

1.5 times  2 times  3 times  4 times  1 time



For video signals, component video signals, HDMITM (Component)

signals or MHL signals

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor

buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magnication.

● The MAGNIFY dialog will automatically disappear in several seconds with no

operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

● The magnication is automatically disabled when the displaying signal or its

display condition is changed.

● While the magnication is active, the keystone distortion condition may vary.

It will be restored when the magnication is disabled.

● Some horizontal stripes might be visible on the image while magnication is

active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

VOLUME

HDCR

＋

ー

Operating

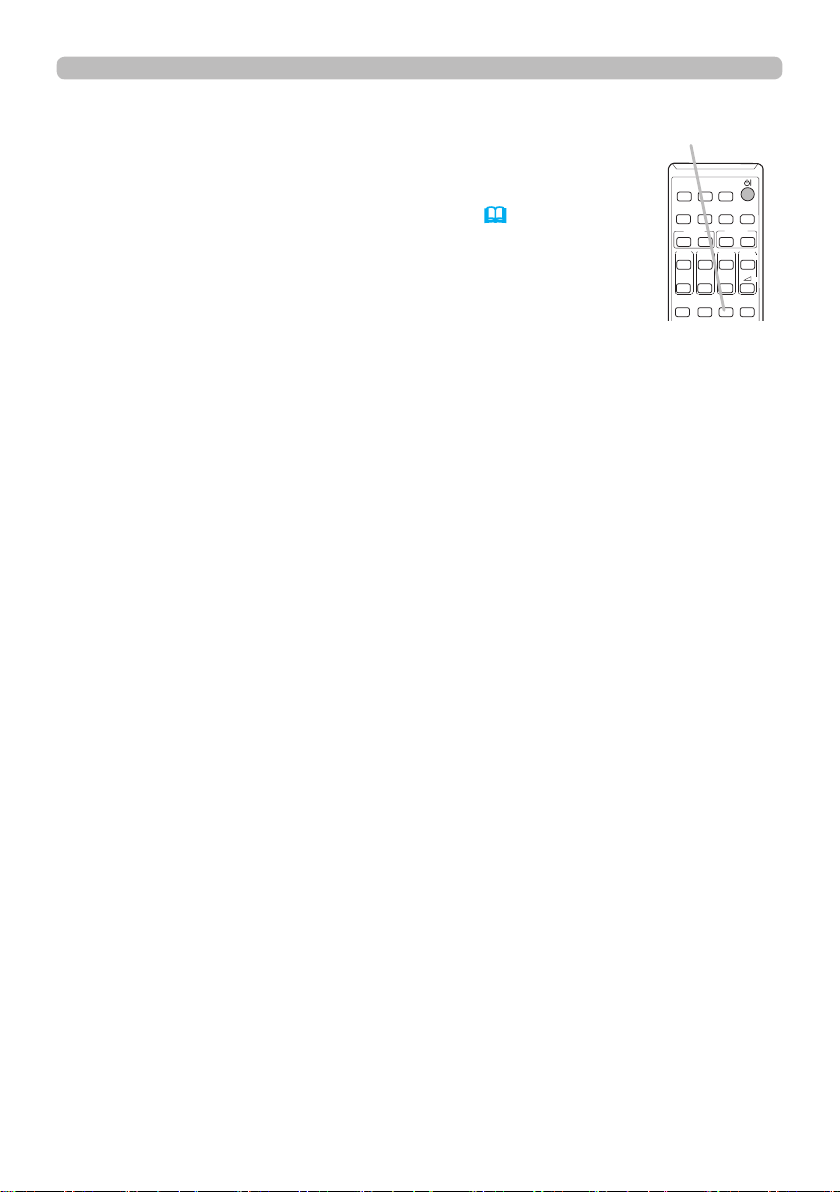

Temporarily freezing the screen

Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu (65)), and the projector will go into the FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

● The projector automatically exits from the FREEZE mode when some control

buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD

panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

● Images might appear degraded when this function is operated, but it is not a

malfunction.

FREEZE button

IWB

INPUT

CALIBRATION

ASPECT

AUTO

ACCENTUALIZER

FOCUS

PAGE

MAGNIFY

MYBUTTON

DOWNONOFF

KEYSTONE/

FREEZE

PERFECT FIT

TEMPLATE

HDCR

D-ZOOM

VOLUME

＋

ー

AV MUTE

CALIBRATION

KEYSTONE/

ASPECT

ACCENTUALIZER

HDCR

AV MUTE

IWB

AUTO

PAGE

DOWNONOFF

FREEZE

FOCUS

D-ZOOM

＋

ー

VOLUME

MAGNIFY

MYBUTTON

INPUT

PERFECT FIT

TEMPLATE

Operating

Using the menu function

This projector has the following menus: IWB, PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classied into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

ESC button

MENU button

Cursor buttons

ESC MENU

ENTER

MENU button (Cursor buttons)

ENTER button

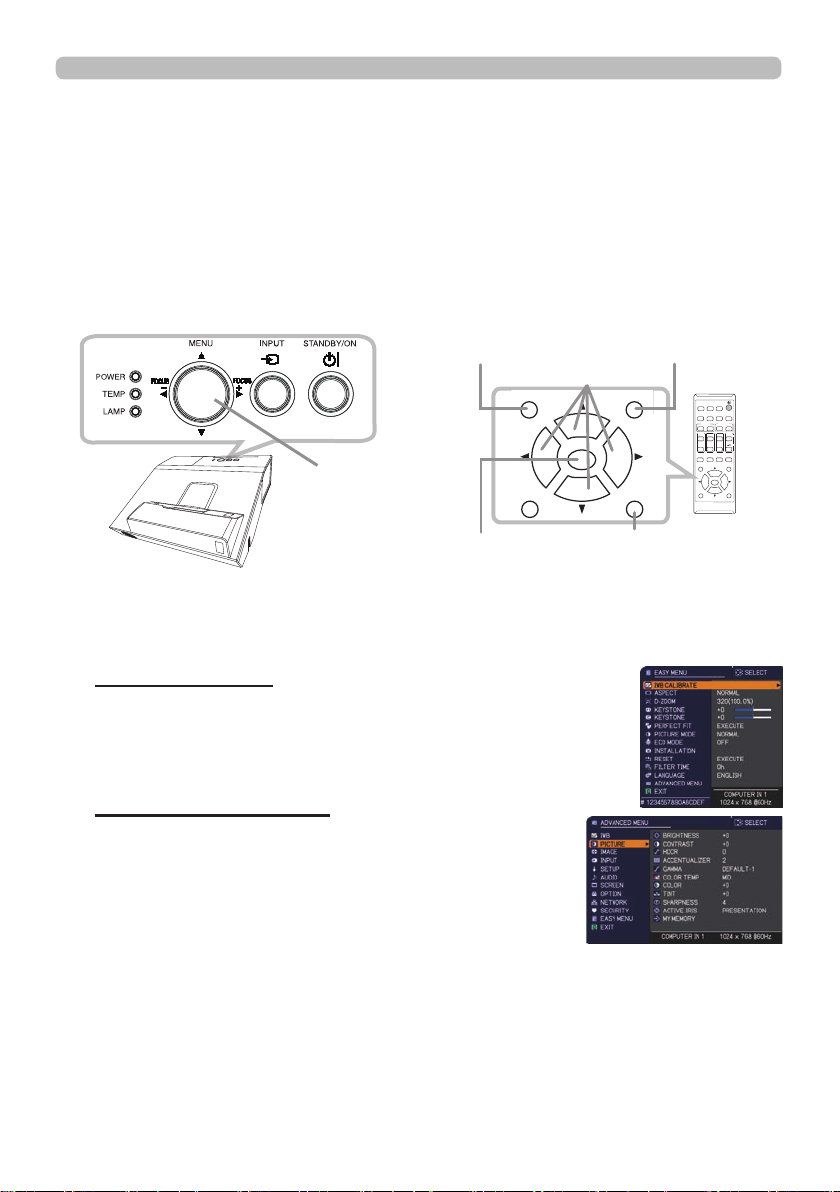

To start the MENU, press the MENU button. The MENU you last used (EASY

or ADVANCED) will appear. EASY MENU has priority to appear just after

POSITION

RESET

RESET button

powered on.

In the EASY MENU

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

In the ADVANCED MENU

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

IWB

INPUT

ASPECT

AUTO

FOCUS

PAGE

MAGNIFY

DOWNONOFF

KEYSTONE/

PERFECT FIT

TEMPLATE

ESC MENU

POSITION

CALIBRATION

ACCENTUALIZER

HDCR

D-ZOOM

VOLUME

MYBUTTON

＋

ー

FREEZE

AV MUTE

ENTER

RESET

(continued on next page)

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press

the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing the

POSITION button.

● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

● When you want to reset the operation, press the RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button or ESC button on the remote control.

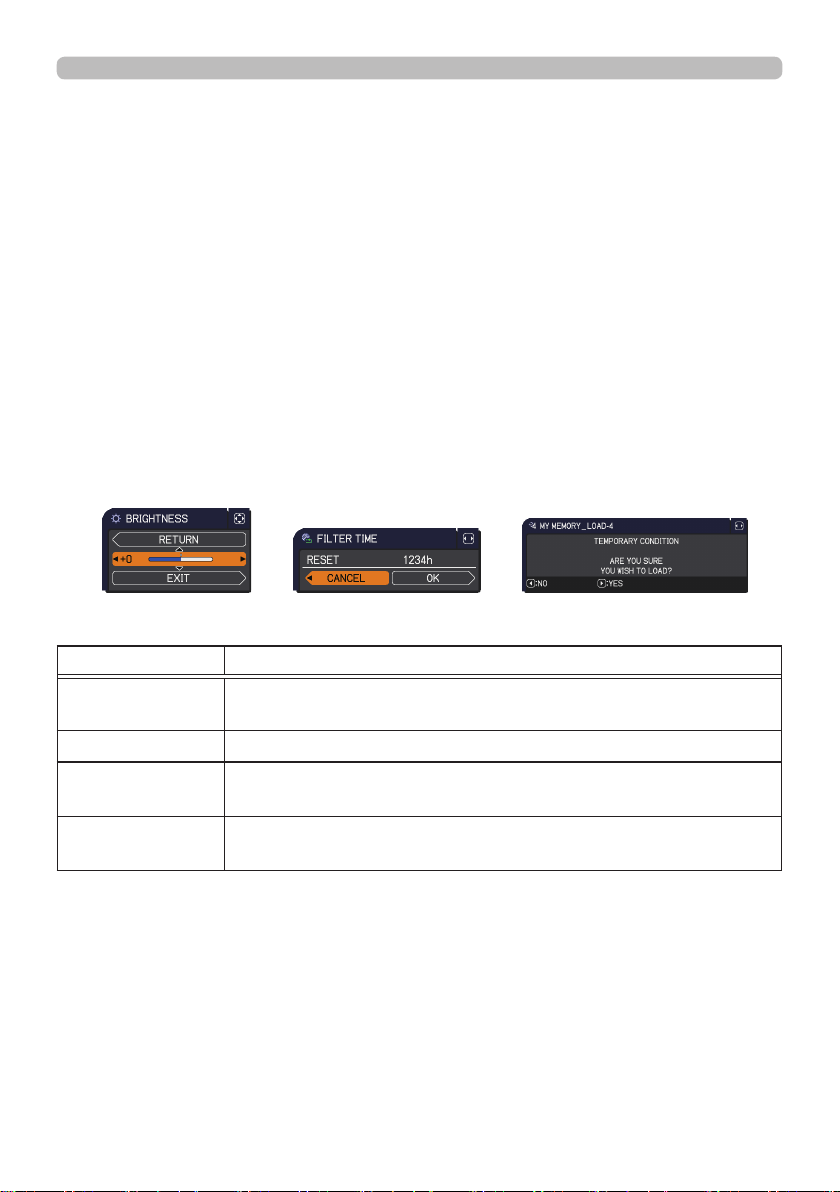

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

Selecting this word nishes the OSD menu. It's the same as pressing the MENU button.

Selecting this word cancels the operation in the present menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts the menu to the next menu.

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

Item Description

IWB CALIBRATE

ASPECT

D-ZOOM

KEYSTONE

PERFECT FIT

Pressing the ► button displays the IWB CALIBRATE dialog. See the Interactive Function (

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (

Using the ◄/► cursor buttons adjusts the magnication ratio.

Small ó Large

See the D-ZOOM item in the SETUP menu (

• The on-screen menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM, of ASPECT, D-ZOOM, the symptom.

Using the ◄/► buttons corrects the vertical keystone distortion. See the

Using the ◄/► buttons corrects the horizontal keystone distortion. See the

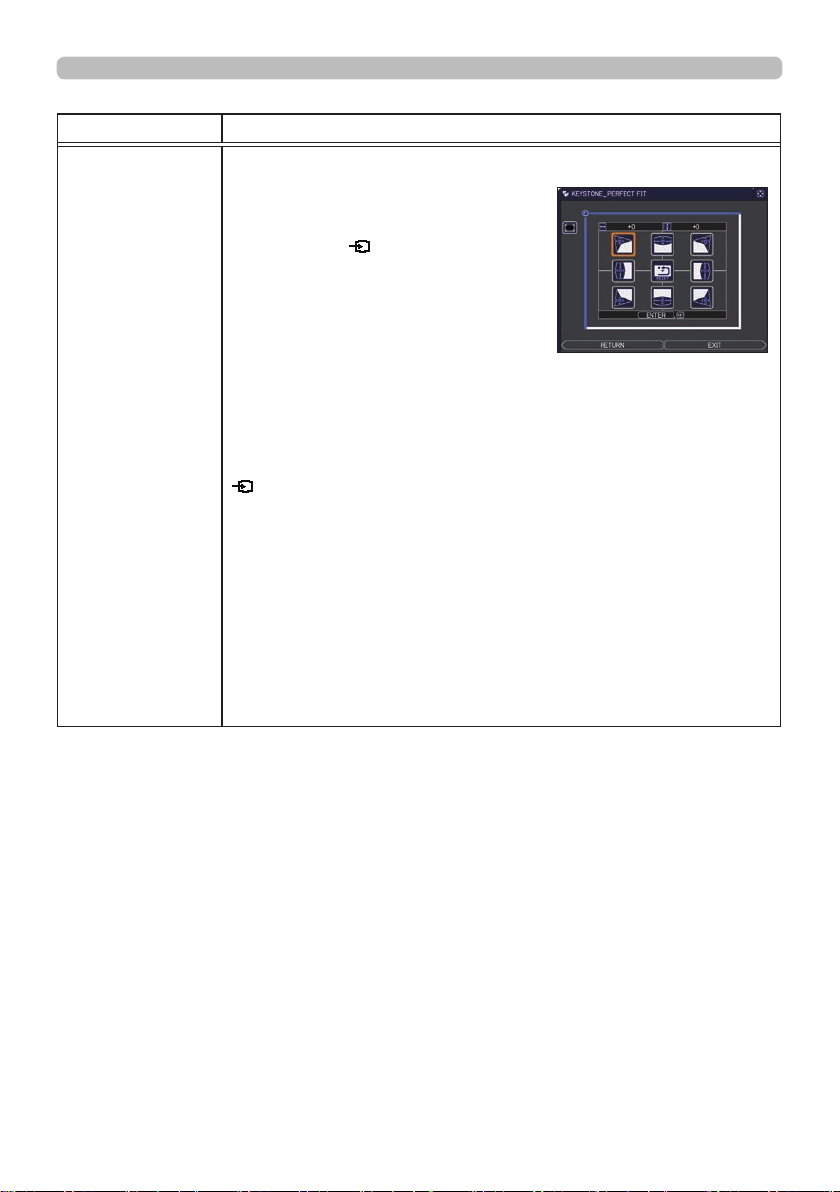

Pressing the ► button displays the dialog for adjusting the shape of the projected image in each of the corners and sides. See the PERFECT FIT item in SETUP menu (

KEYSTONE and KEYSTONE. Changing the values

KEYSTONE item in SETUP menu (

KEYSTONE item in SETUP Menu (

89).



KEYSTONE and KEYSTONE may x



56).

46).



54).



55).

(continued on next page)

Item Description

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

• When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the

PICTURE MODE

PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

• DICOM SIM. is the projector's DICOM Communication in Medicine") simulation mode. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine, and can be useful for displaying medical images, such as X-rays photos. This projector is not a medical device and is not compliant to the DICOM standard, and neither the projector nor the DICOM SIM. mode should be used for medical diagnosis.

Using the ◄/► buttons changes the eco mode setting. See the ECO MODE item of the LAMP & FILTER item in SETUP

ECO MODE

menu (

• When the ambient temperature is around 35 to 40°C, the brightness of lamp is reduced automatically.

INSTALLATION

Pressing the ► button displays the INSTALLATION dialog. See the INSTALLATION item in SETUP menu (

Performing this item resets all of the EASY MENU items except the

RESET

FILTER TIME and LANGUAGE. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting.

The usage time of the air lter is shown in the menu. Performing this item resets the lter time which counts usage time of the air lter.

FILTER TIME

A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item of the LAMP & FILTER item in SETUP menu (

(continued on next page)

EASY MENU

NORMAL ó CINEMA ó DYNAMIC ó BOARD(BLACK)

DICOM SIM.

PHOTO ó DAYTIME ó WHITEBOARD ó BOARD(GREEN)

43, 44) items in PICTURE menu.



("Digital Imaging and

58).



60).



59).



EASY MENU

Item Description

LANGUAGE

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (

Press the ► or ENTER button to use the menu of PICTURE,

ADVANCED MENU

IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

EXIT Press the ◄ or ENTER button to nish the OSD menu.



63).

IWB MENU

Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item.

89).

(

See the Interactive Function



IWB menu

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

◄/►

BRIGHTNESS

CONTRAST

HDCR

ACCENTUALIZER

Using the

Dark ó Light

Using the

Weak ó Strong

A function to show a clear picture in a bright room. Using the◄/► buttons adjusts the contrast.

• This function may not work properly when IMAGE OPTIMIZER is enabled.

ACCENTUALIZER is a function to improve the legibility. Using the ◄/► buttons adjusts the sharpness. Weak ó Strong

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

• This function may not work properly when IMAGE OPTIMIZER is enabled.

buttons adjusts the brightness.

◄/►

buttons adjusts the contrast.

(continued on next page)

Item Description

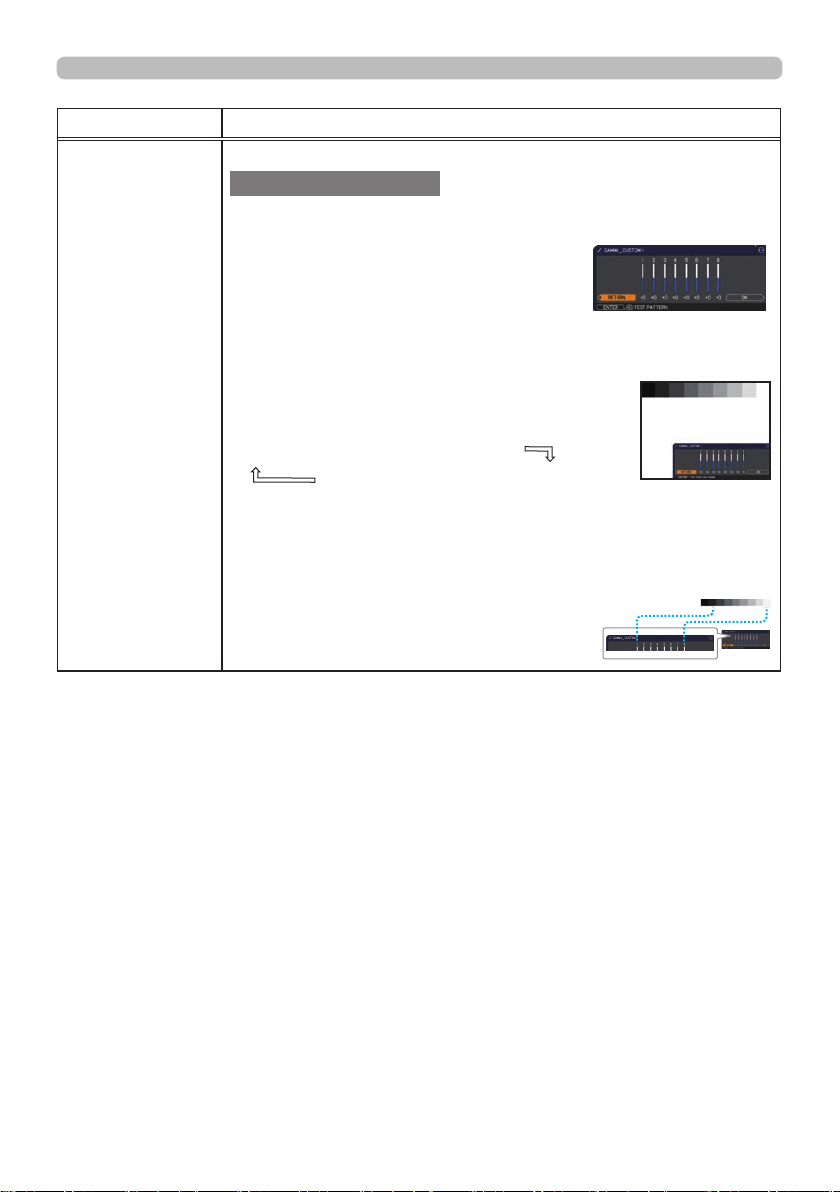

Using the ▲/▼ buttons switches the gamma mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button.

GAMMA

Each time you press the ENTER button, the pattern changes as below.

No pattern ð Gray scale of 9 steps Ramp  Gray scale of 15 steps

The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps) except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

PICTURE menu

(continued on next page)

PICTURE menu

Item Description

Using the ▲/▼ buttons switches the color temperature mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.

OFFSET adjustments change the color intensity on the whole tones of the test pattern.

GAIN adjustments mainly affect color intensity on the brighter tones

COLOR TEMP

COLOR

TINT

of the test pattern. Choose an item using the ◄/► buttons, and adjust the level using

the ▲/▼ buttons. You can display a test pattern for checking the effect of your

adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern ð Gray scale of 9 steps

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

Using the ◄/► buttons adjusts the strength of whole color.

Weak ó Strong

• This item can be selected only for a video and component video signal.

•

For HDMITM and MHL signal, this item can also be selected if either (1) or (2)

applies. (1) DIGITAL FORMAT item in the INPUT menu is set to VIDEO. (2) DIGITAL FORMAT item in the INPUT menu is set to AUTO, and

the projector recognizes that it receives video signals.

Using the ◄/► buttons adjusts the tint.

Reddish ó Greenish

• This item can be selected only for a video and component video signal.

•

For HDMITM and MHL signal, this item can also be selected if either (1) or (2) applies. (1) DIGITAL FORMAT item in the INPUT menu is set to VIDEO. (2) DIGITAL FORMAT item in the INPUT menu is set to AUTO, and

the projector recognizes that it receives video signals.

Ramp  Gray scale of 15 steps

(continued on next page)

Item Description

Using the ◄/► buttons adjusts the sharpness.

SHARPNESS

Weak ó Strong

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

Using the ▲/▼ cursor buttons changes the active iris control mode.

PRESENTATION ó THEATER ó OFF

PRESENTATION : The active iris displays the best presentation

ACTIVE IRIS

THEATER : The active iris displays the best theater image for

image for both bright and dark scenes.

both bright and dark scenes.

OFF : The active iris is always open.

• The screen may icker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.

This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

LOAD-1 ó LOAD-2 ó LOAD-3 ó LOAD-4 SAVE-4 óSAVE-3 ó SAVE-2 ó SAVE-1

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are

MY MEMORY

skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using the MY BUTTON. Please see MY BUTTON item in OPTION menu (

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

PICTURE menu

71).



IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the mode for aspect ratio. For a computer signal

NORMAL ó 4:3 ó 16:9 ó 16:10 ó NATIVE

For HDMITM and MHL signal

ASPECT

OVER SCAN

NORMAL

4:3

For a video signal or component video signal

4:3 ó 16:9 ó 16:10 ó 14:9 ó NATIVE

For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal

16:10 (xed)

• The NORMAL mode keeps the original aspect ratio of the signal.

Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magnies picture) ó Large (It reduces picture)

• This item can be selected only for a video and component video signal.

• For HDMI either (1) or (2) applies. (1) DIGITAL FORMAT item in the INPUT menu is set to VIDEO. (2) DIGITAL FORMAT item in the INPUT menu is set to AUTO, and

the projector recognizes that it receives video signals.

and MHL signal, this item can also be selected if

16:9

16:10

ó NATIVE

14:9

(continued on next page)

Item Description

Using the ◄/► buttons adjusts the vertical position.

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the

V POSITION

H POSITION

(continued on next page)

default setting. Pressing the RESET button when the V POSITION is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal, the range of this adjustment depends on OVER SCAN ( possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B, HDMI 1/MHL or HDMI 2 port. Using the ◄/► buttons adjusts the horizontal position.

• the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal, the range of this adjustment depends on OVER SCAN ( possible to adjust when OVER SCAN is set to 10.

•

USB TYPE B

IMAGE menu

Down ó Up

46) setting. It is not



Right ó Left

Over-adjusting the horizontal position may cause noise to appear on

46) setting. It is not



This function is unavailable for a signal from the LAN, USB TYPE A,

, HDMI 1/MHL or HDMI 2

por

IMAGE menu

Item Description

H PHASE

H SIZE

AUTO ADJUST

EXECUTE

Using the

Right ó Left

• This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B, HDMI 1/MHL or HDMI

2 port.

Using the ◄/► buttons adjusts the horizontal size.

Small ó Large

• This item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B,

HDMI 1/MHL or HDMI 2 port.

• When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

Selecting this item performs the automatic adjustment feature.

For a computer signal

For a video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

automatically set to the default.

For a component video signal

The vertical position and horizontal position will be automatically

◄/►

buttons adjusts the horizontal phase to eliminate icker.

50).



The vertical position and horizontal position will be

set to the default. The horizontal phase will be automatically adjusted.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



75).

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the progress mode.

TV ó FILM ó OFF

•

This function works only for a video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60), HDMI

PROGRESSIVE

VIDEO NR

or 576i@50 or 1080i@50/60) and an MHL signal (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH ó MID ó LOW

• This function works only for a video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60), HDMI (of 480i@60 or 576i@50 or 1080i@50/60) and an MHL signal (of 480i@60 or 576i@50 or 1080i@50/60).

INPUT menu

signal (of 480i@60

signal

Using the ▲/▼ buttons switches the mode for color space.

COLOR SPACE

(continued on next page)

• This item can be selected only for a computer signal, component video signal(except for signals from the LAN, USB TYPE A and USB TYPE B ports) or an HDMI™ signal.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

AUTO ó RGB ó SMPTE240 ó REC709 ó REC601

INPUT menu

Item Description

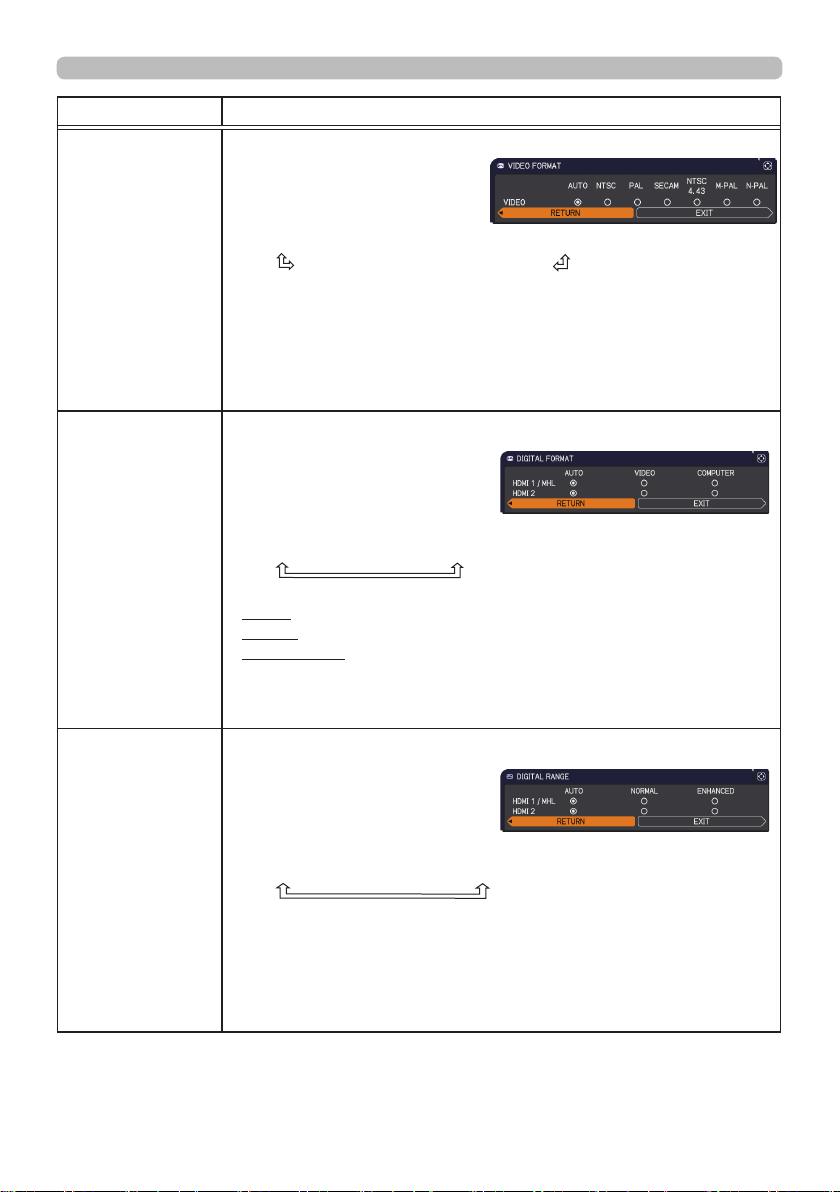

The video format for VIDEO IN port can be set. Using the ◄/► buttons switches the mode for video

format.

AUTO ó NTSC ó PAL ó SECAM

VIDEO FORMAT

N-PAL ó M-PAL ó NTSC4.43

• This item is performed only for a video signal from the VIDEO IN port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

The video format of HDMITM/MHL input signals from the HDMI 1/ MHL and HDMI 2 ports can be set. (1) Use the ▲/▼ buttons to select the port to be set. (2) Use the ◄/►buttons to select the video format.

AUTO ó VIDEO ó COMPUTER

DIGITAL FORMAT

AUTO: automatically sets the optimum mode.

VIDEO: sets the suitable mode for DVD signals.

COMPUTER: sets the suitable mode for computer signals.

• When the COMPUTER is selected, the functions COLOR (PICTURE menu), TINT (PICTURE menu) and OVER SCAN (IMAGE menu) are unavailable.

The digital range of HDMI MHL and HDMI 2 ports can be set.

(1) Use the ▲/▼ buttons to select the port to be set. (2) Use the ◄/►buttons to select the digital range.

DIGITAL RANGE

AUTO ó NORMAL ó ENHANCED

/MHL input signals from the HDMI 1/

AUTO: automatically sets the optimum mode. NORMAL: sets the suitable mode for DVD signals. (16-235) ENHANCED: sets the suitable mode for computer signals. (0-255)

• If the contrast of the screen image is too strong or too weak, try finding a more suitable mode.

(continued on next page)

Item Description

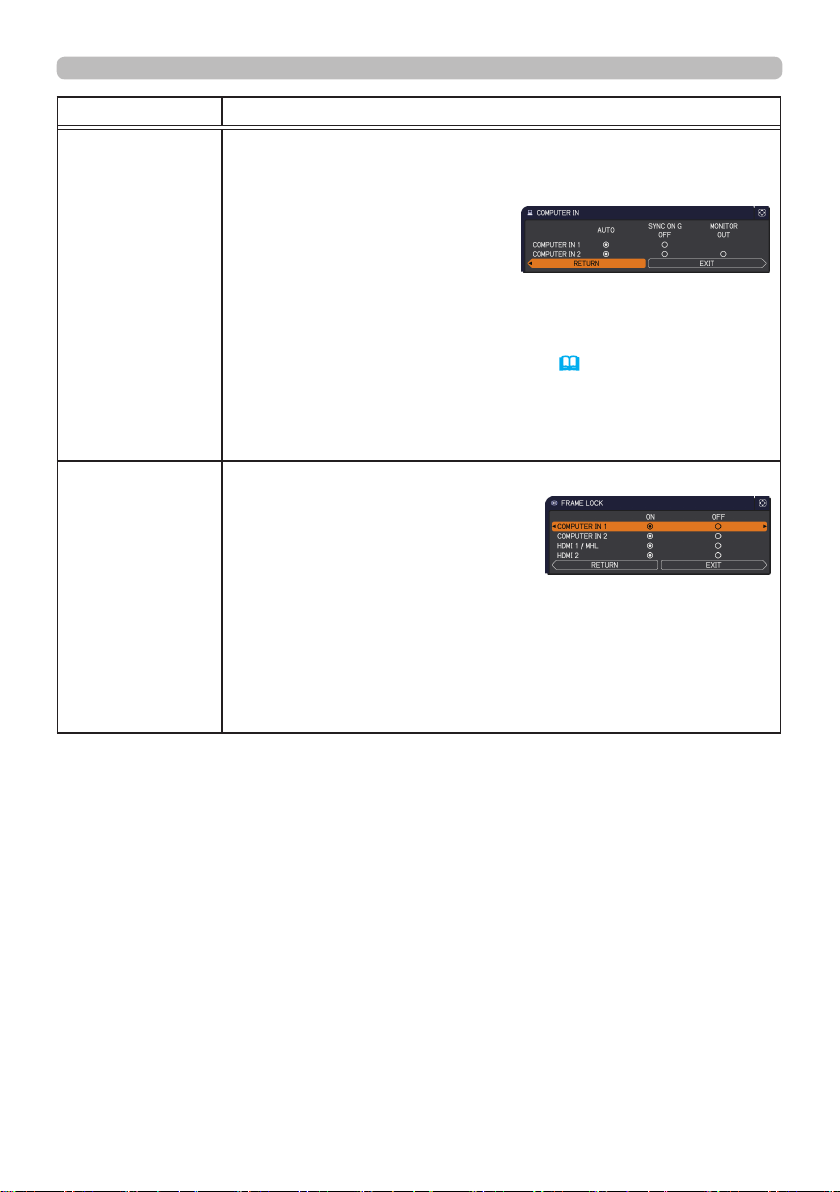

The computer input signal type for COMPUTER IN1 and IN2 ports can be set. (1) Use the ▲/▼ buttons to select the COMPUTER IN port to be set. (2) Use the ◄/► buttons to select

the computer input signal type.

(COMPUTER IN1)

COMPUTER IN

FRAME LOCK

AUTO ó SYNC ON G OFF (COMPUTER IN2) AUTO ó SYNC ON G OFF ó MONITOR OUT

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port (

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select

the input ports.

(2) Use the ◄/► buttons to turn the

frame lock function on/off .

ON ó OFF

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

• This function is unavailable for a signal from the HDMI 1/MHL and HDMI 2 (of 480i@60 or 576i@50 or 1080i@50/60) port.



INPUT menu

(continued on next page)

INPUT menu

Item Description

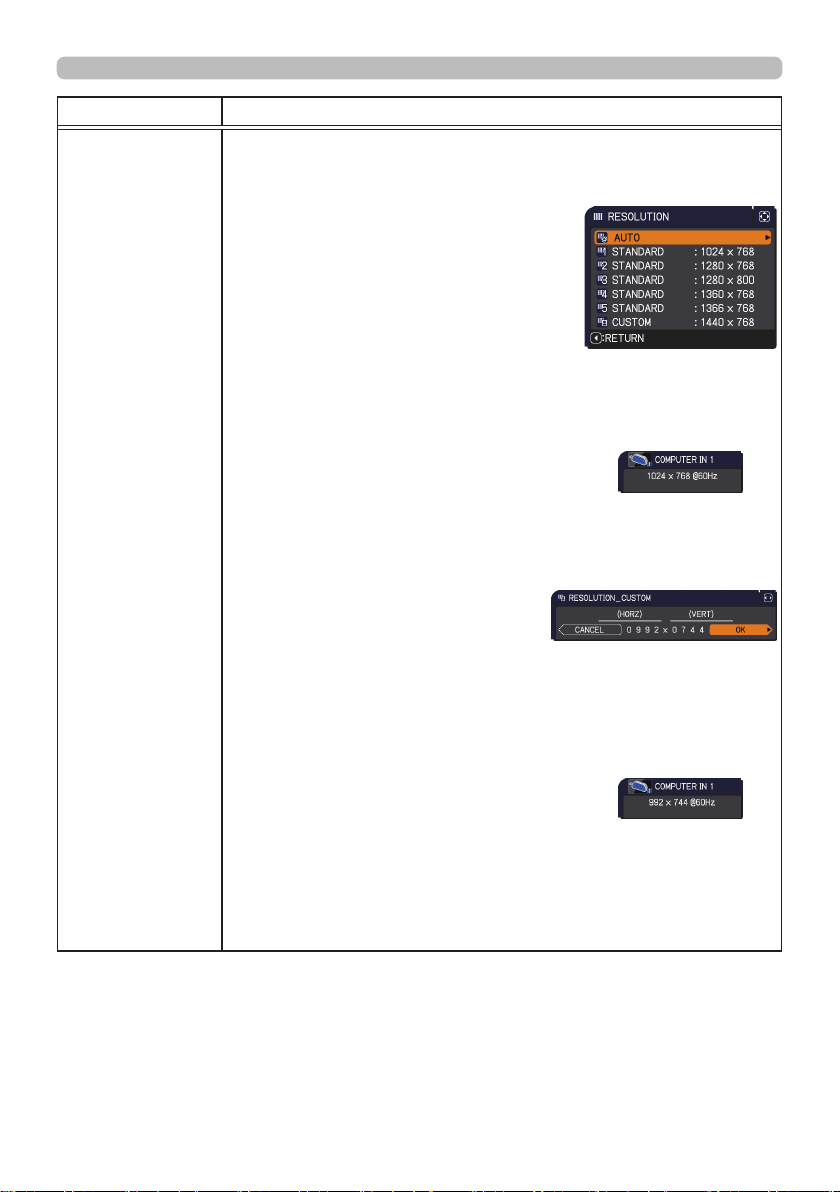

The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO will set a resolution appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size.

The INPUT_INFORMATION dialog will be displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

RESOLUTION

the CUSTOM and the RESOLUTION_CUSTOM box will be displayed.

Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼/◄/► buttons. This function may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO CHANGE RESOLUTION?" appears. To save the setting, press the ► button. The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.

The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or ENTER button. The screen will then return to the RESOLUTION menu displaying the previous resolution.

• For some pictures, this function may not work well.

STANDARD

↓

CUSTOM

↓

(continued on next page)

Item Description

Using the ▲/▼ buttons switches the MHL STANDBY PWR. ON/OFF.

ON ó OFF

When the STANDBY MODE is set to SAVING, the MHL STANDBY

MHL STANDBY

PWR.

・

PWR. menu can not be operated and MHL power feeding is unavailable with standby mode.

When the MHL STANDBY PWR. is set to ON, there may be some

・

noise with standby mode. This is not malfunction.

INPUT menu

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ◄/► cursor buttons adjusts the magnication ratio.

Small ó Large

D-ZOOM

D-SHIFT

(continued on next page)

• The on-screen menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM, of ASPECT, D-ZOOM, the symptom.

Using the ◄/►/▲/▼ cursor buttons adjusts the picture position.

• The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 320 (full screen).

KEYSTONE and KEYSTONE. Changing the values

KEYSTONE and KEYSTONE may x

Item Description

Using the ▲/▼ cursor buttons selects the horizontal picture position.

LEFT ó MID ó RIGHT The PICT. POSIT. H is not changed if any of the following cases apply.

• The ASPECT is set to 16:9 or 16:10.

• The input signal has an aspect ratio of 16:9, 16:10 or verticallly

PICT. POSIT. H

smaller than 16:10, while ASPECT is set to NORMAL.

• Horizontal size of the displayed image is full on the effective display area, while the ASPECT is set to NATIVE.

• One of the following messages is displayed on the screen: "NO INPUT IS DETECTED" "SYNC IS OUT OF RANGE" "INVALID SCAN FREQ."

• The BLANK or TEMPLATE function is selected.

Using the ◄/► buttons corrects the vertical keystone distortion.

Shrink the bottom of the image ó Shrink the top of the image

KEYSTONE

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• This function will be unavailable when the PERFECT FIT ( adjusted.

Using the ◄/► buttons corrects the horizontal keystone distortion.

Shrink the right of the image ó Shrink the left of the image

KEYSTONE

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• This function will be unavailable when the PERFECT FIT ( adjusted.

SETUP menu

56) is



56) is



(continued on next page)

SETUP menu

Item Description

This item allows you to adjust the shape of the projected image in each of the corners and sides. (1) Choose a corner or side to adjust using the ▲/▼/◄/► buttons and press the ENTER or

button. (2) Adjust the distortion as below. Use the ▲/▼/◄/► buttons to adjust the position of the corner. Use the ▲/▼ buttons to adjust the distortion of the top or bottom side, after dening the adjusting position with the ◄/► buttons. Use the ◄/► buttons to adjust the distortion of the left or right side, after dening the adjusting position with the ▲/▼ buttons.

PERFECT FIT

(3) To adjust another corner or side, follow the same procedure from (1) above. To reset the adjustment of all the corners and sides, select RESET with the ▲/▼/◄/► buttons and press the ENTER or

button.

• While the distortion is adjusted with the PERFECT FIT function, keystone adjustment feature is unavailable. To correct the keystone distortion, reset the adjustment of all the corners and sides.

• The adjustable range of this correction will vary among inputs. For some input, this function may not work well.

• One adjustment position common to the top and bottom sides can be set. Also, another adjustment position common to the left and right sides can be set.

• The distortion of the top and bottom sides can be adjusted only in the same direction, pincushion or barrel. The adjustment for the left and right sides is carried out in the same manner.

(continued on next page)

Item Description

This projector has 3 memories for adjustment data (below).

● SETUP menu

● IWB Calibration Data Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

LOAD-1, LOAD-2, LOAD-3

SETUP MEMORY

Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and changes the setting mentioned above at the once.

• The LOAD functions whose linked memory has no data are skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• You can display SETUP MEMORY menu directly, using the MY BUTTON. Please see MY BUTTON item in OPTION menu (

SAVE-1, SAVE-2, SAVE-3 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

(continued on next page)

• D-ZOOM

• D-SHIFT

• PICT. POSIT. H

•

KEYSTONE

•

KEYSTONE

• PERFECT FIT

LOAD-1 SAVE-3

LOAD-2

SAVE-2

LOAD-3 SAVE-1

SETUP menu

71).



SETUP menu

Item Description

Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.

AUTO

ECO

MODE

ON ó OFF

• When ON is selected, the projector will always be set to ECO-2 at start-up regardless of the ECO MODE ( message “AUTO ECO MODE” will be displayed for tens of seconds when the projector starts with this function activated.

Using the ▲/▼ buttons switches the ECO MODE. OFF ó ECO-1 ó ECO-2 ó INTELLIGENT ECO ó SAVER

• When the ECO-1/2 is selected, acoustic noise and screen brightness are reduced.

• When INTELLIGENT ECO is selected, the brightness of the

LAMP &

FILTER

lamp changes according to the level of the input signal. The lamp becomes brighter when the input signal level is high and darker when the level is low. If dark images are projected continuously, the

ECO

MODE

brightness of the lamp may increase to maintain its performance.

• When SAVER is selected, you can select the time within 1 to 30 min. for SAVER MODE using the ► button. If the image signal level doesn’t change more than the period set, the lamp brightness is reduced and electric power consumption decreased. If the image signal level changes or any buttons are operated, the lamp will brighten again. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When AUTO ECO MODE ( always be set to ECO-2 at start-up regardless this setting.

• When the ambient temperature is around 35 to 40°C, the brightness of lamp is reduced automatically.

58) setting. An OSD



above) is set to ON, the projector will



(continued on next page)

Item Description

The lamp time is the usage time of the lamp, counted after the last resetting. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ► button.

LAMP

TIME

CANCEL ð OK

• Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

• For the lamp replacement, see the section "Replacing the lamp" (

135).



• The IMAGE OPTIMIZER function does not work properly unless LAMP TIME is initialized when replacing a lamp.

The lter time is the usage time of the air lter, counted after the last resetting. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lter time, select the OK using the ► button.

CANCEL

• Please reset the lter time only when you have cleaned or replaced the air lter, for a suitable indication about the air lter.

LAMP &

FILTER

(Continued)

FILTER

TIME

• For the air lter cleaning, see the section “Cleaning and replacing the air lter” (



137).

Use the ▲/▼ button to set the timer for notifying by the message when to replace the lter unit

100h ó • • • ó 5000h ó OFF

After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature (

FILTER MESSAGE

When the OFF is chosen, the message will not appear. Utilize this feature to keep the air lter clean, setting the suitable time according to your environment of this projector.

• Please take care of the lter unit periodically, even if there is no message. If the air lter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the lter unit.

When this function is enabled, automatic image correction is performed to maintain visibility in accordance with lamp


OPTIMIZER

deterioration.

• This function may not work properly when HDCR/ ACCENTUALIZER is set to other than 0.

• This function does not work properly unless LAMP TIME is initialized when replacing a lamp.



SETUP menu

143).

(continued on next page)

SETUP menu

Item Description

Pressing the ►button displays the dialog for changing the INSTALLATION setting.

INSTALLATION

Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog.

Using the ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.

NORMAL ó SAVING

When SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled (

• When SAVING is selected, STANDBY setting of AUDIO SOURCE (

61) is invalid, no signal is output from AUDIO OUT port and no



STANDBY MODE

sound from a built-in speaker.

• When SAVING is selected, STANDBY setting of MONITOR OUT is invalid, and no signal is output from MONITOR OUT port in the standby mode.

• The USB connection is disabled while the projector is in standby mode if the STANDBY MODE item in the SETUP menu of the projector is set to SAVING.

• When SAVING is selected, CLONING load function is invalid while in STANDBY MODE.

• This function will be unavailable when NETWORK BRIDGE is selected for COMMUNICATION TYPE. ( SERVICE > COMMUNICATION)

• When SAVING is selected, the MHL STANDBY PWR. menu can not be operated and MHL power feeding is unavailable with standby mode.



OPTION menu >



78).

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description

VOLUME

SPEAKER

AUDIO SOURCE

Using the ◄/► buttons adjusts the volume.

Low ó High

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON ó OFF

When OFF is selected, the built-in speaker does not work. While the image signal from the input port chosen in step (1) is

projected, the audio signal from the input port selected in step (2) is output to both the AUDIO OUT port and built-in speaker of

this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.

(1) Choose a picture input port using the

▲/▼ buttons. Choose STANDBY to select the sound output in the standby mode.

(2) Select an audio input port or the mute

icon using the ◄/► buttons. The icons indicate the following;

No.1: AUDIO IN1 port No.2: AUDIO IN2 port No.3: LAN port No.4: USB TYPE A port No.5: USB TYPE B port No.6: HDMI 1/MHL port No.7: HDMI 2 port : mutes the sound

• Audio input from port No. 4 to 7 can only be selected by each of the picture input ports.

• Even if the projector is in the standby mode, cooling fans may work and make noises when the built-in speaker is in operation.

• C.C. (Closed Caption) is automatically activated when and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

AUDIO menu

is selected

68).



(continued on next page)

AUDIO menu

Item Description

Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port.

MIC LEVEL

HIGH ó LOW HIGH: for a microphone with an amplier. LOW: for a microphone without an amplier.

Using the ◄/► buttons adjusts the volume of the microphone

MIC VOLUME

connected to the MIC port.

Low ó High

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

LANGUAGE

MENU POSITION

BLANK

AUTO BLANK

ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL

(shown in the LANGUAGE dialog)

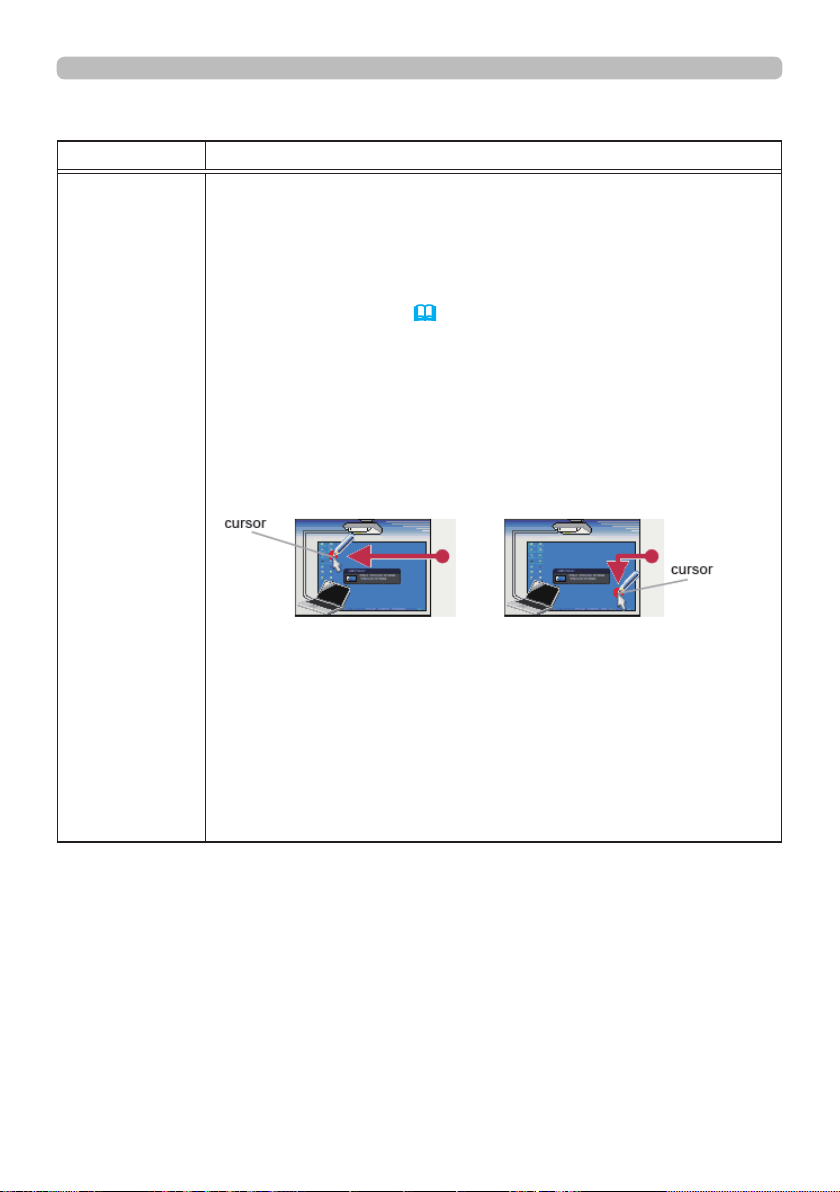

Press the ENTER or button to save the language setting. Using the ▲/▼/◄/► buttons adjusts the menu position.

To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature

27). It is displayed by pressing the AV MUTE button on the

(



remote control.

MyScreen ó ORIGINAL ó BLUE ó WHITE ó BLACK

MyScreen :

ORIGINAL : Screen preset as the standard screen.

BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the plain black screen after several minutes.

Using the ▲/▼ buttons switches the mode for the AUTO BLANK screen. BLUE ó WHITE ó BLACK

• To avoid remaining as an afterimage, displayed image will change to the designated blank color screen by AUTO BLANK after several minutes at the following conditions.

- When MyScreen or ORIGINAL is displayed as BLANK screen.

- When start-up screen is displayed.

Screen can be registered by the MyScreen item (

SCREEN menu



64).

(continued on next page)

SCREEN menu

Item Description

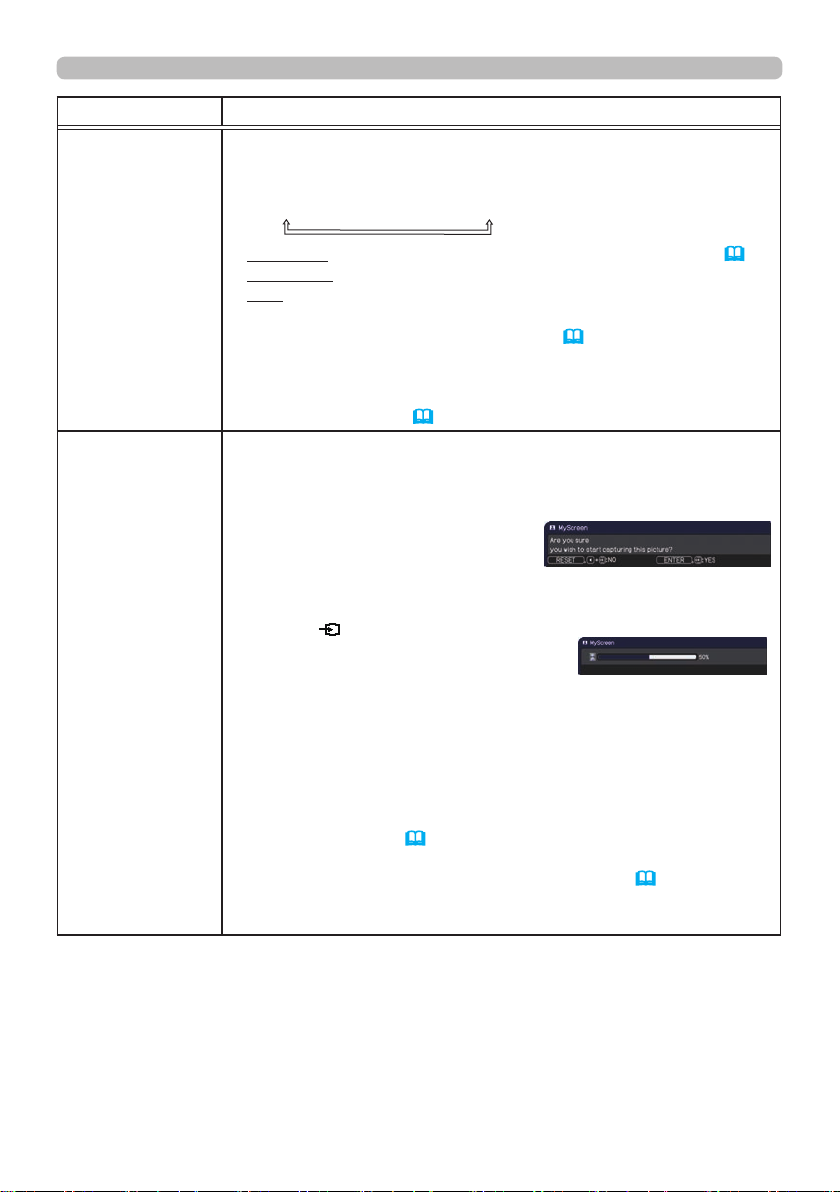

Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

START UP

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen ( minutes. If also the BLANK screen is the MyScreen or ORIGINAL, the plain black screen is instead used.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen. Please wait for the target image to be displayed, and press the ENTER or To restore the screen and return to the

MyScreen

previous dialog, press the RESET button on the remote control. Registration may take several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is nished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

• This function cannot be selected when the ON is selected to the MyScreen Lock item (

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

• USB TYPE B, HDMI 1/MHL or HDMI 2 port.

(continued on next page)

MyScreen ó ORIGINAL ó OFF

MyScreen :

Screen can be registered by the MyScreen item (



64).

ORIGINAL : Screen preset as the standard screen.

OFF : Plain black screen.

) after several



85), the START UP is fixed to MyScreen.



button to start registration.

65).



85).



This function is unavailable for a signal from the LAN, USB TYPE A,

Item Description

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON ó OFF

MyScreen Lock

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

Using the ▲/▼ buttons turns on/off the message function.

ON ó OFF When the ON is selected, the following message function works.

“AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “NOT AVAILABLE” “Searching….” while searching for the input “Detecting….” while an input signal is detected “AUTO ECO MODE” while starting up with AUTO ECO MODE

MESSAGE

The indication of the input signal displayed by changing The indication of the aspect ratio displayed by changing The indication of the PICTURE MODE displayed by changing The indication of the ACTIVE IRIS displayed by changing The indication of the MY MEMORY displayed by changing The indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button. The indication of the TEMPLATE displayed by changing. The indication of the ECO MODE displayed by changing. The indication of "+++ FOCUS +++" displayed by changing The D-ZOOM dialog displayed by changing

• When the OFF is selected, please remember if the picture is frozen. Do not mistake freezing for a malfunction (

SCREEN menu

85).



35).



(continued on next page)

SCREEN menu

Item Description

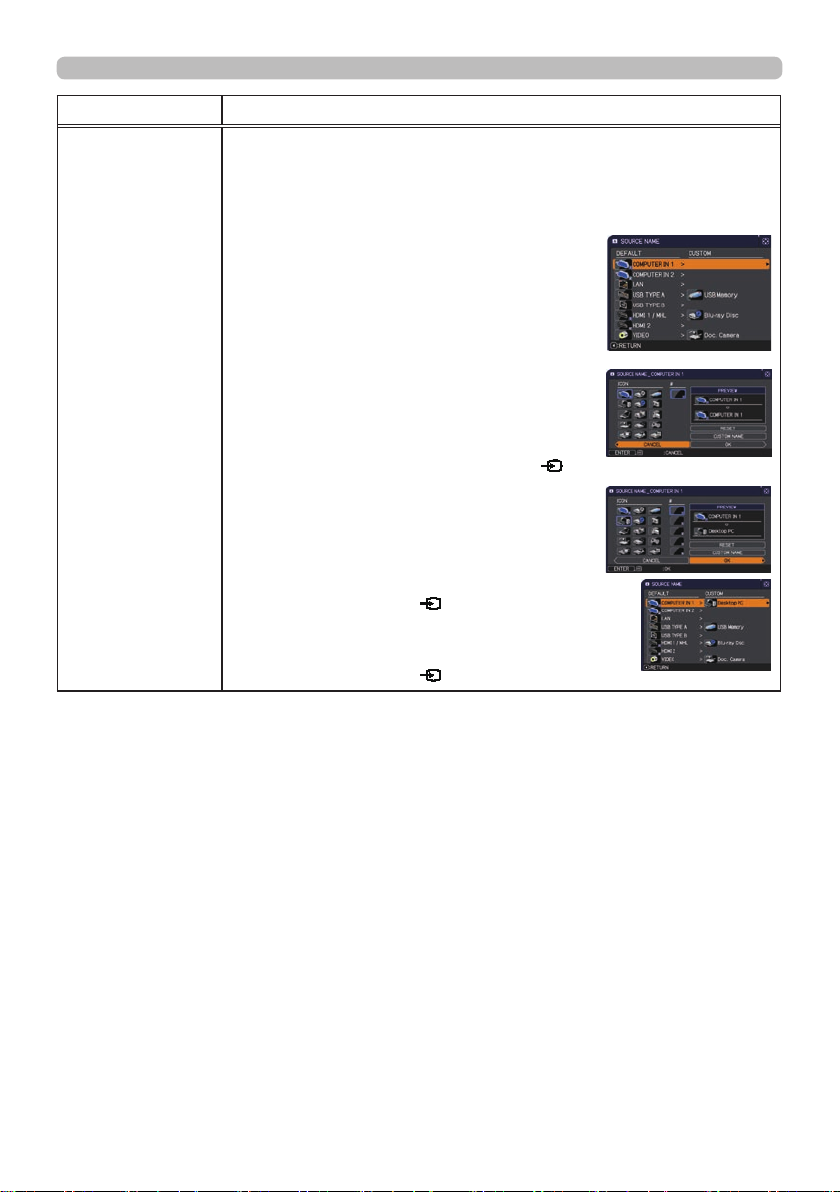

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE

NAME menu to select the port to be named and press the ► button. The SOURCE NAME dialog will be displayed.

Right side of the menu is blank until a name is specied.

(3) Select an icon you would like to assign to

SOURCE NAME

the port in the SOURCE NAME dialog. The name assigned to the port will also be automatically switched according to your icon selection. Press the ENTER or button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4. Then press the ENTER or

(5) If you would like to modify the name assigned

to the port, select CUSTOM NAME and press the ENTER or

button.

(continued on next page)

Item Description

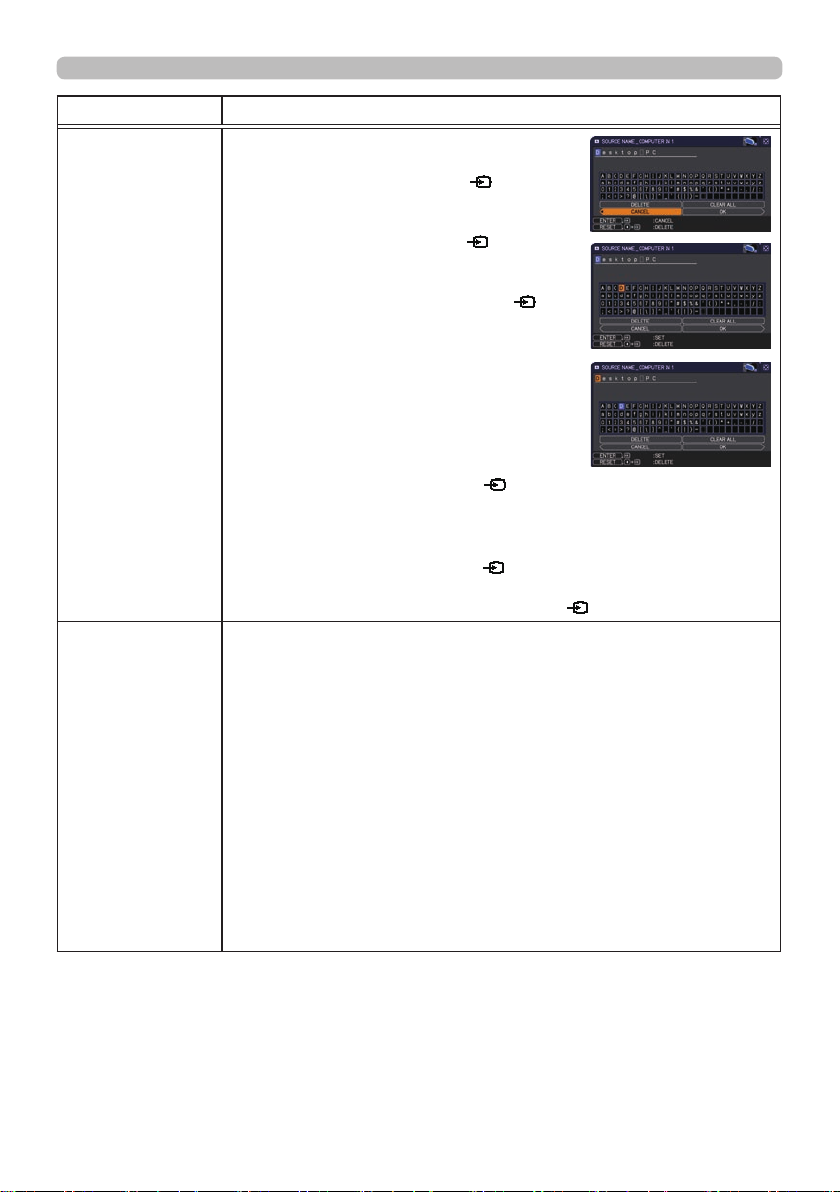

(6) The current name will be displayed

on the rst line. Use the ▲/▼/◄/► buttons and the ENTER or select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or button, 1 character or all characters will be erased. The name can be a maximum

SOURCE NAME

(Continued)

of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the rst line, and use the ◄/► buttons to move the cursor on the character to be changed.

After pressing the ENTER or Then, follow the same procedure as described at the item (6) above.

(8) To nish entering text, move the cursor to the OK on screen

and press the ►, ENTER or name without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the ENTER) button to display the selected template, and press the ◄ cursor button to close the displayed screen.

TEST PATTERN ó DOT-LINE1 ó DOT-LINE2 ó DOT-LINE3

TEMPLATE

 HAS-WM05 DOT-LINE4



HAS-WM03 ó MAP2 ó MAP1 ó CIRCLE2 ó CIRCLE1 You can turn a map upside down and scroll it horizontally when

MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.

SCREEN menu

button to

button

button, the character is selected.

button. To revert to the previous

button.



(continued on next page)

SCREEN menu

Item Description

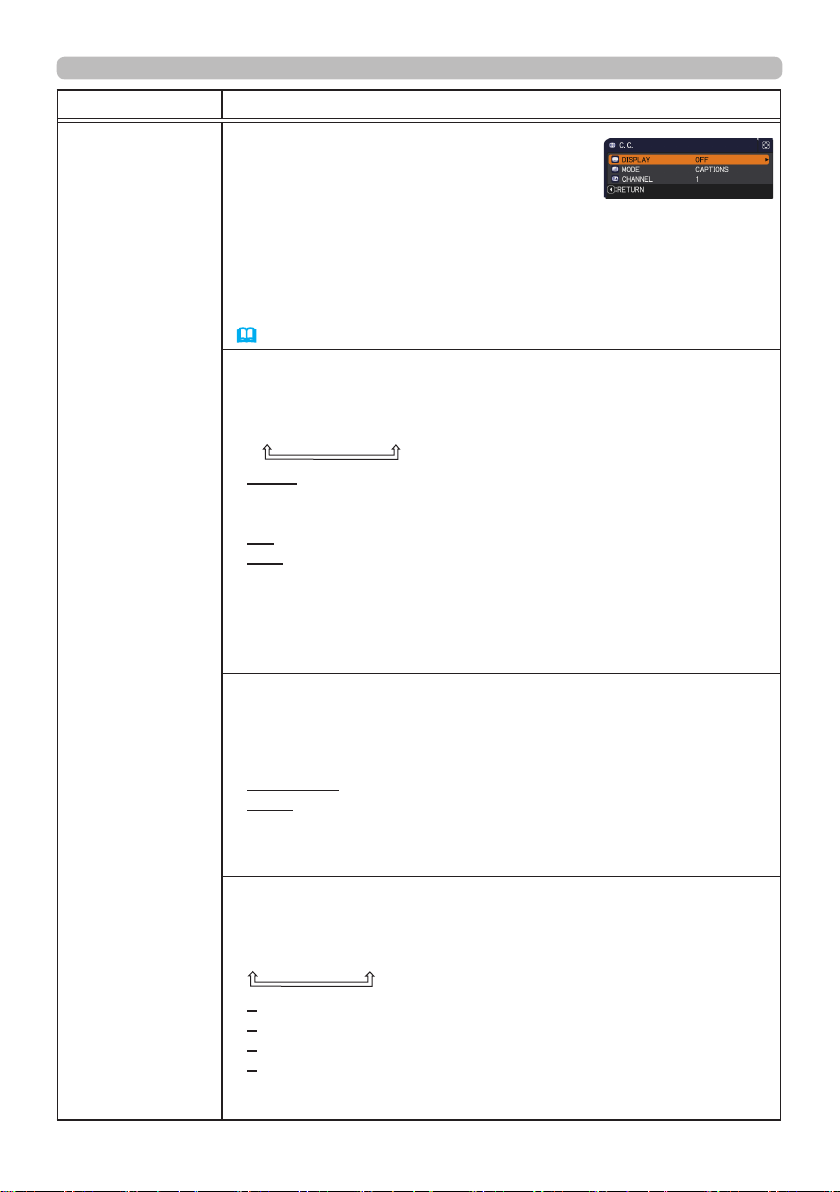

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

• This function will be unavailable when the PC-LESS Presentation

116)

(

is operating.



DISPLAY

Select Closed Caption DISPLAY setting from following options using the ▲/▼ buttons.

AUTO ó ON ó OFF

AUTO : Closed Caption automatically appears when the input

signal (C.C. compatible) from the port with the mute icon set at AUDIO SOURCE is selected.

ON : Closed Caption is on.

OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

C.C.

(Closed Caption)

• The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using the ▲/▼ buttons.

CAPTIONS ó TEXT

CAPTIONS : Display Closed Caption.

TEXT : Display Text data, which is for additional information such

as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using the ▲/▼ buttons.

1 ó 2 ó 3 ó 4

1: Channel 1, primary channel / language

2: Channel 2

3: Channel 3

4: Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons turns on/off the automatic signal search function.

ON ó OFF When the ON is selected, detecting no signal automatically cycles

AUTO SEARCH

DIRECT POWER

through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.

COMPUTER IN1 ð COMPUTER IN2 ð LAN ð USB TYPE A

VIDEO  HDMI 2  HDMI 1/MHL  USB TYPE B

• It may take several seconds to project the images from the USB TYPE B port.

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON ó OFF When set to the ON, the lamp in projector will be automatically turned

on without the usual procedure ( supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

•

After turning the lamp on by the DIRECT if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO

70) is disabled.

(



24), only when the projector is



POWER

OPTION menu

ON function,

OFF function

(continued on next page)

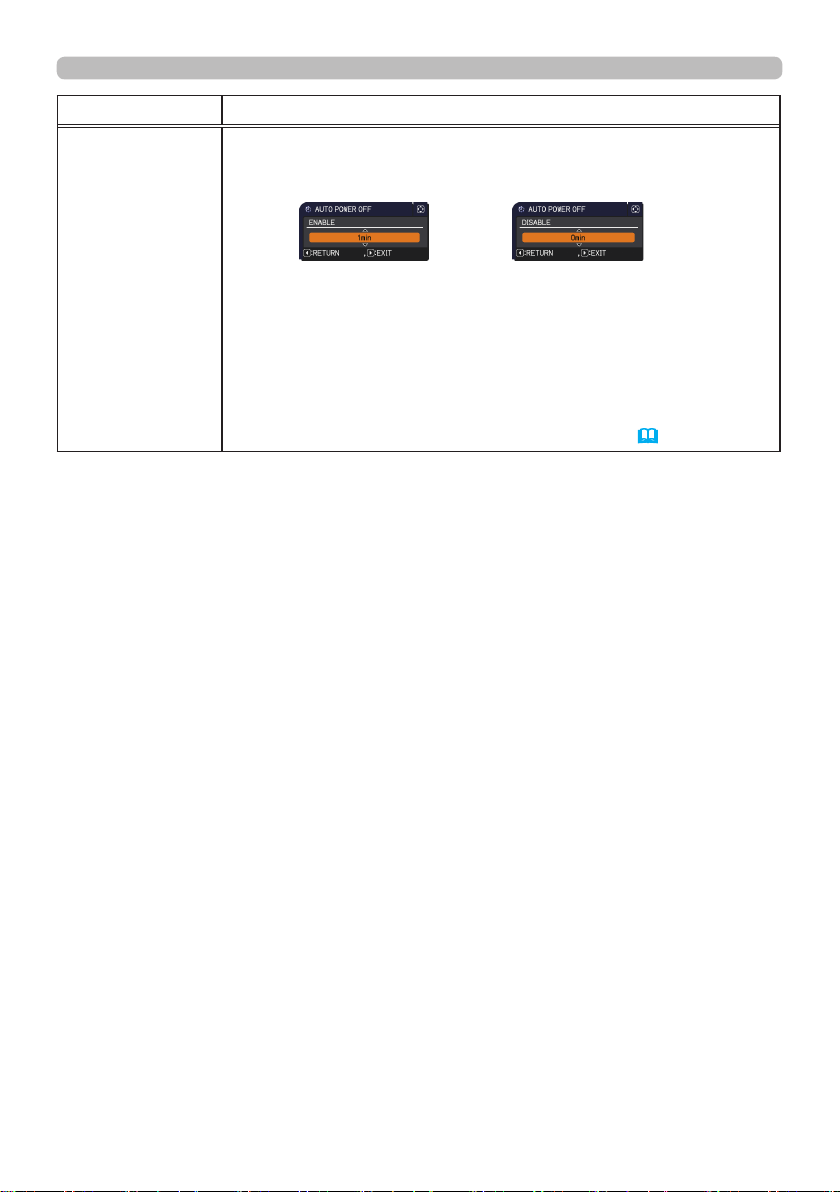

OPTION menu

Item Description

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)

AUTO POWER

OFF

(continued on next page)

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with nosignal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, projector will not be turned off. Please refer to the section “Turning off the power”

26).

(



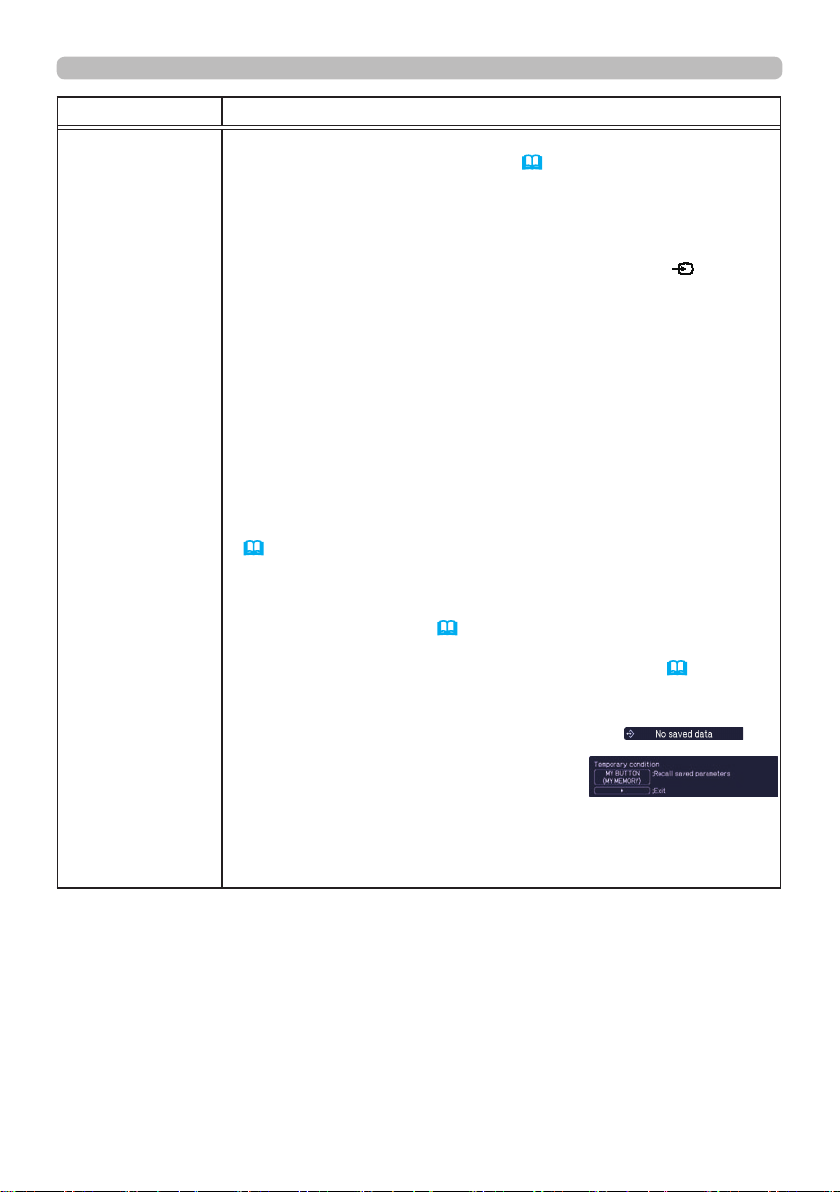

Item Description

This item is to assign one of the following functions to the MY BUTTON 1/2 on the remote control (

(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY

BUTTON - (1/2) and press the ► or ENTER button to display the MY BUTTON setup dialog.

(2) Then using the ▲/▼/◄/► buttons sets one of the following

functions to the chosen button. Press the ENTER or save the setting.

• COMPUTER IN1: Selects the input from COMPUTER IN1 port.

• COMPUTER IN2: Selects the input from COMPUTER IN2 port.

• LAN: Selects input from LAN port.

• USB TYPE A: Selects input from USB TYPE A port.

• USB TYPE B: Selects input from USB TYPE B port.

• HDMI1/MHL: Selects input from HDMI 1/MHL port.

• HDMI2: Selects input from HDMI 2 port.

• VIDEO: Selects the input from VIDEO IN port.

• SLIDESHOW: Selects the input from USB TYPE A port, and starts

a Slideshow.

MY BUTTON

• MY IMAGE: Displays the MY IMAGE menu.

• MESSENGER:

Messenger Function in the User's Manual - Network Guide

(



Turns the messenger text displayed on the screen on/off

When there is no transferred text data to display, the message ”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION,

INPUT_INFORMATION (

82), WIRELESS INFORMATION,



WIRED INFORMATION, OTHER INFORMATION or nothing.

• MY MEMORY: Loads one of adjustment data stored (

When more than one data are saved, the adjustment changes every time the MY BUTTON is pressed.

When no data is saved in memory, the

dialog "No saved data" appears.

When the current adjustment is not

saved to memory, the dialog as shown in

the right appears.

If you want to keep the current adjustment, please press

the ► button to exit. Otherwise loading a data will overwrite the

current adjusted condition.



7).

OPTION menu

button to

45).



(continued on next page)

OPTION menu

Item Description

• ACTIVE IRIS: Changes the active iris mode.

• PICTURE MODE: Changes the PICTURE MODE (

•

FILTER RESET: Displays the lter time reset conrmation dialogue

MY BUTTON

(Continued)

• RESOLUTION: Turns on/off the RESOLUTION dialog (

• MIC VOLUME: Turns on/off the MIC VOLUME dialog (

• ECO MODE: Changes the ECO MODE (

• SAVER MODE: Turns on/off the SAVER MODE (

• SETUP MEMORY: Displays the SETUP MEMORY menu (

• FINGER TOUCH: Turns on/off the FINGER TOUCH dialog (

■ How to setup the item

1. Use the ▲/▼/◄/► cursor buttons to select or adjust. 2 Select OK to nish the settings.

NOTE

• Please refer to the actual on-screen display(OSD) for appropriate operation.

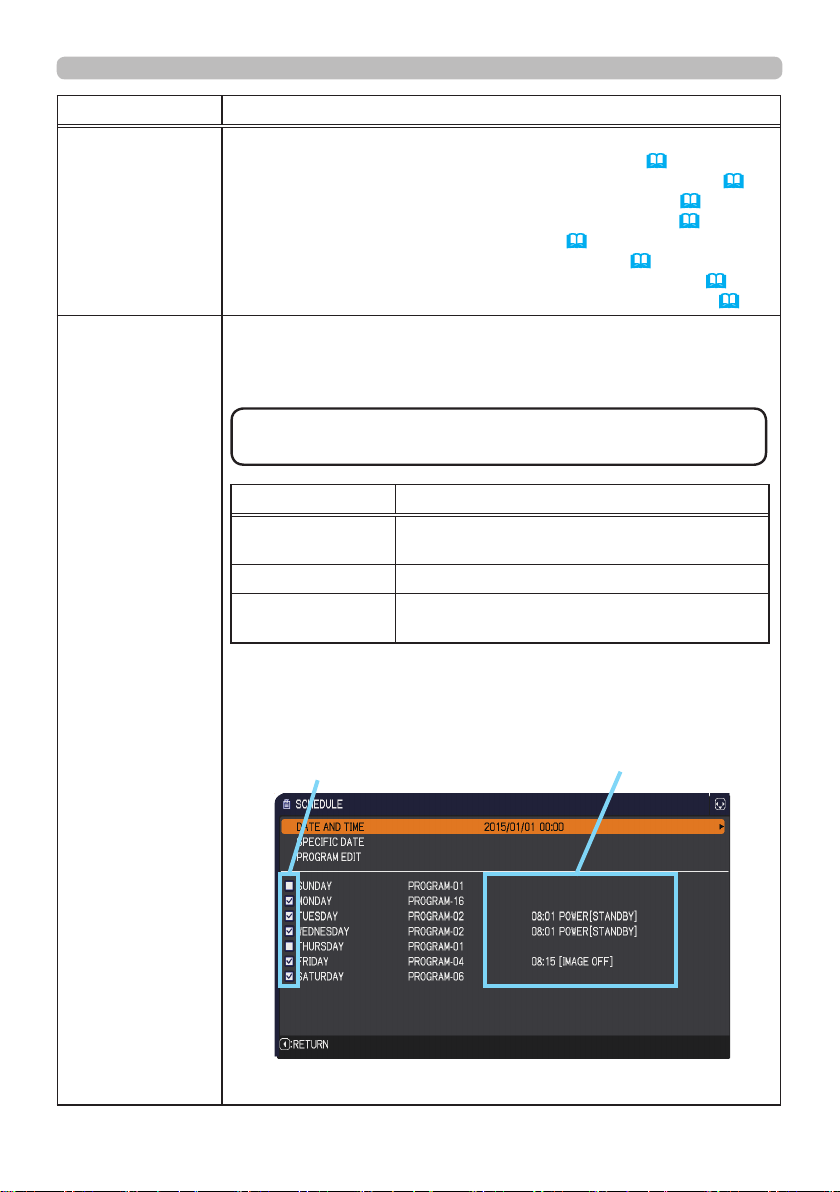

Item Description

DATE AND TIME

SPECIFIC DATE

PROGRAM EDIT

Set the DATE(Year/Month/Date) and Time(24hour scale).

Set specic date from 1 to 10. The TIME and EVENT for Program 1 to 16

can be editted.



58).



58).

39).



(

52).

62).



59).

57).

94).

■ How to activate(DA TE AND TIME /

SCHEDULE

(continued on next page)

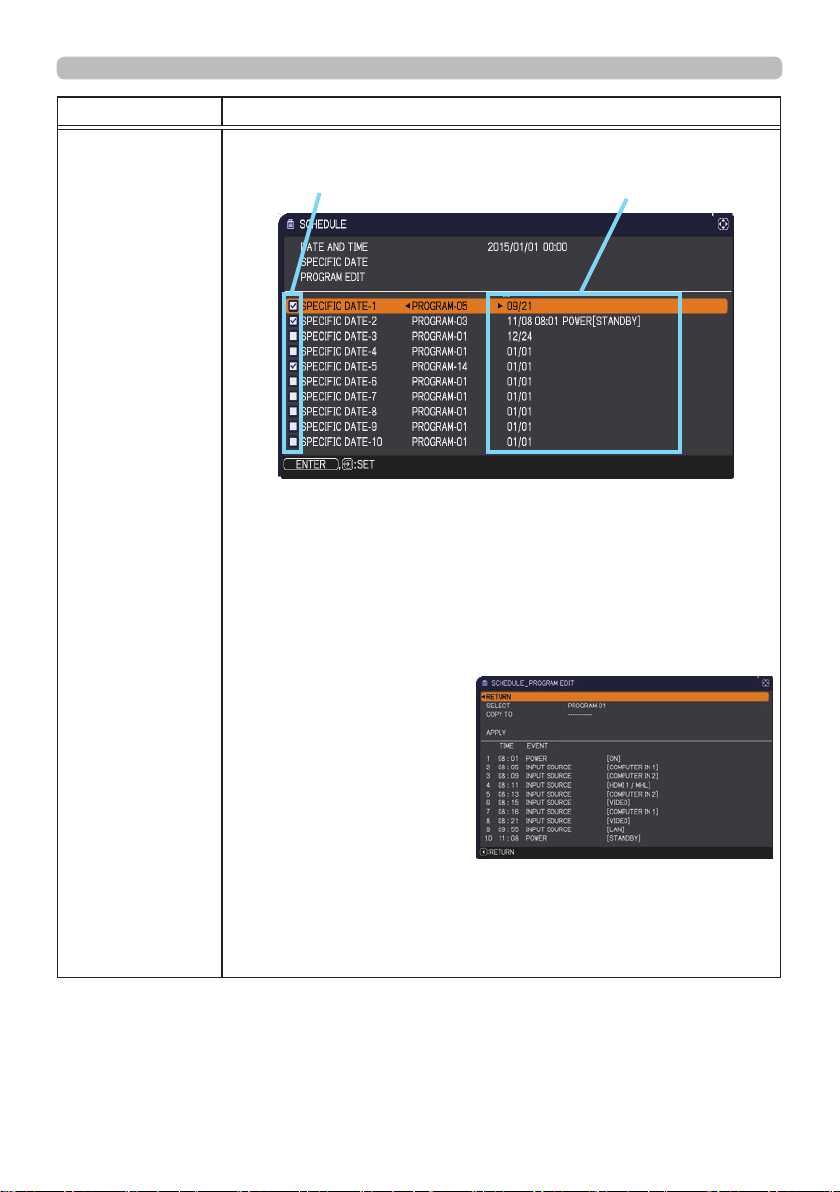

Place a check mark in the box.

1/2 page (Set the DATE(Year/Month/Date) and Time(24-hour scale).)

Check mark in the box

SPECIFIC DATE

Date and rst setup info could be seen with the check mark.

)

Item Description

OPTION menu

SCHEDULE

(Continued)

Check mark in the box

2/2 page (Set specic date from 1 to 10.)

Press the ▼ cursor button to move from 1/2 page to 2/2 page with the state of selecting "SATURDAY".

Date and rst setup info could be seen with the check mark.

■ PROGRAM EDIT

The TIME and EVENT for Program 1 to 16 can be editted.

• RETURN

Select this to go back to the top menu of the SCHEDULE.

• SELECT

Select from PROGRAM-01 to 16 to edit. Each PROGRAM can be setup up to 20 settings

• COPY TO

The selected program (with the settings of TIME and EVENT) can be copied to other program.

• APPLY

Select this to apply and save all adjustments and settings.

(continued on next page)

OPTION menu

Item Description

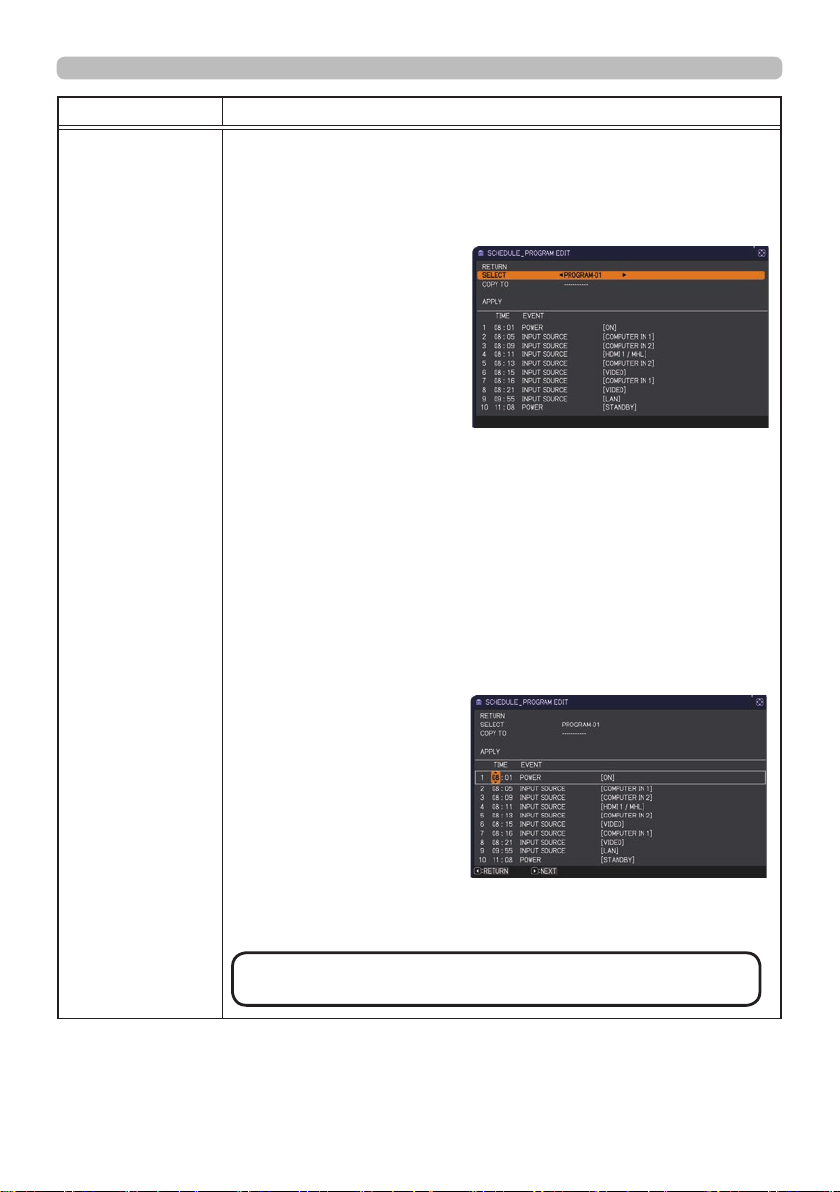

■ How to edit the selected PROGRAM

1. Select from 1 to 20 events.

Use the ▲/▼ cursor buttons to select. Press the ► cursor button to set the TIME and EVENT.

EVENT can be selected as listed below.

◦ POWER − ON, STANDBY

◦ INPUT SOURCE − "input source"channel

◦ MY IMAGE − IMAGE-1 to 4, IMAGE OFF

SCHEDULE

(Continued)

◦ MESSENGER − TEXT-1 to 12, TEXT OFF

◦ ECO MODE −

OFF, ECO-1, ECO-2, INTELLIGENT ECO, SAVER ◦ BLANK − ON, OFF ◦ SLIDESHOW − START, STOP

2. Press the ► cursor button to finish the settings.

3. Select APPLY to save the settings.

(continued on next page)

NOTE

• for appropriate operation.

Please refer to the actual on-screen display(OSD)

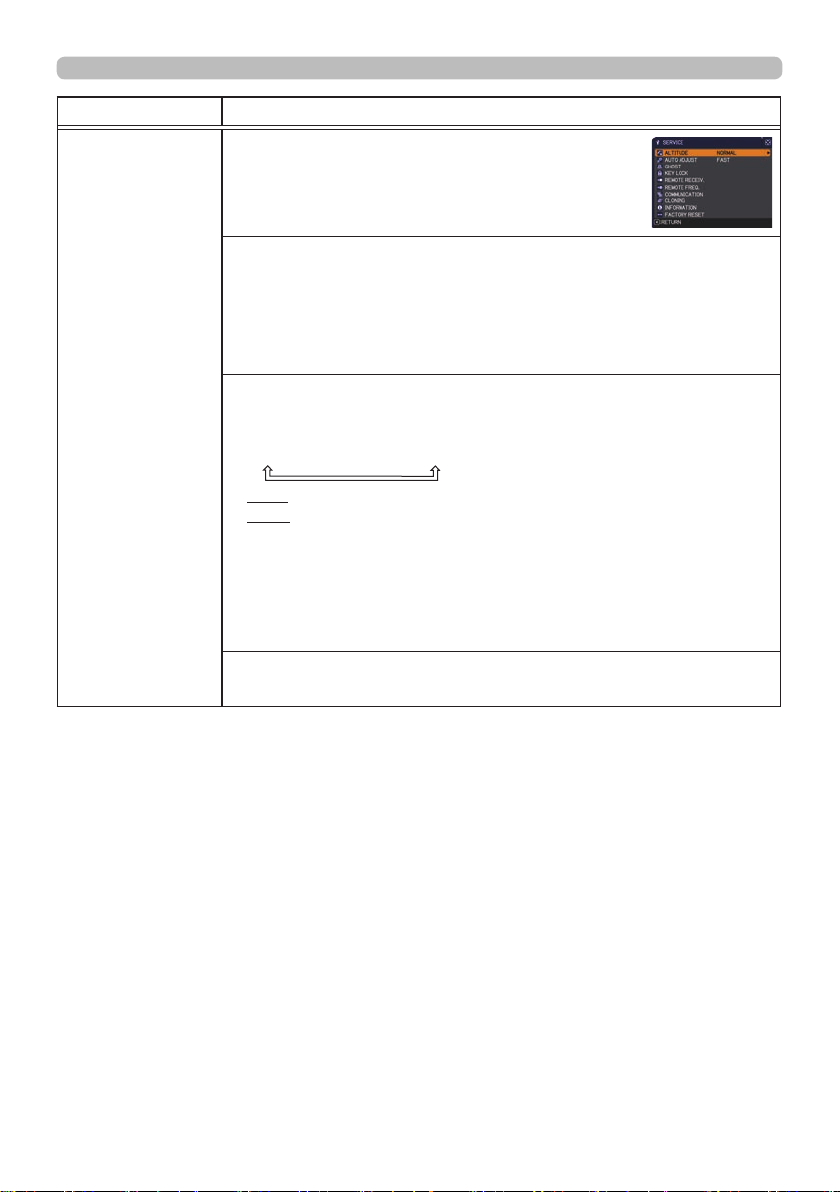

Item Description

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

ALTITUDE

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. If the projector is used at an altitude of about 1600 m or higher, select HIGH. Otherwise, select NORMAL. Note that the projector is noisier when the HIGH is selected.

HIGH ó NORMAL

AUTO ADJUST

SERVICE

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE ó FAST ó DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

• Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.

GHOST

Adjust the settings using the ▲/▼ buttons to eliminate ghosting.

OPTION menu

(continued on next page)

OPTION menu

Item Description

KEY LOCK

(1) Use the ▲/▼ buttons to select CONTROL PANEL or REMOTE

(2) Use the ◄/► buttons to turn the key lock function on/off. When ON is selected, all buttons on the projector or remote control

except the STANDBY/ON button are locked.

• Please use this function to prevent tampering or accidental

SERVICE

(continued)

operation.

• It is not possible to set both CONTROL PANEL and REMOTE CONTROL to ON.

REMOTE RECEIV.

(1) Select a remote sensor using the ▲/▼ button.

(2) Switch it using the ◄/► button.

• When one sensor is turned off, the other cannot be turned off too.

(continued on next page)

CONTROL.

FRONT ó TOP

ON ó OFF

Item Description

REMOTE FREQ.

(1) Use the ▲/▼ button to change the projector's remote sensor

frequency setting (



21).

1:NORMAL ó 2:HIGH

(2) Use the ◄/► button to change the

projector's remote sensor on or off.

ON ó OFF

If the remote control does not function correctly, disable either of them. It's not possible to disable both options at the same time.

Selecting this item displays COMMUNICATION menu. In this menu, you can congure the serial communication settings of the projector using the

SERVICE

CONTROL port.

(continued)

OPTION menu

COMMUNICATION

(continued on next page)

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE (

78) is set to



OFF, the other items in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to the User's Manual - Network Guide.

OPTION menu

Item Description

COMMUNICATION TYPE

Select the communication type for transmission via the CONTROL port. NETWORK BRIDGE:

to control an external device as a network terminal, via this projector from the computer. The CONTROL port doesn't accept RS-232C commands (

User’s Manual - Network Guide

OFF: Select this mode to receive RS-232C

commands using the CONTROL port. OFF is selected as the default setting.

•

• When you select the NETWORK BRIDGE, check the item, TRANSMISSTION METHOD (

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps ó 9600bps ó 19200bps ó 38400bps

SERVICE

(continued)

COMMUNICATION

(continued)

PARITY

NONE ó ODD ó EVEN

•

The BAUD RATE is xed to 19200bps and PARITY is xed NONE when the COMMUNICATION TYPE is set to OFF

TRANSMISSION METHOD

Select the transmission method for communication by the NETWORK BRIDGE from the CONTROL port.

HALF-DUPLEX ó FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one

direction, either transmitting or receiving data, is

allowed at a time. FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and

receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (

Select this type, if it is required

Network Bridge Function in the



)



above).

(



79).



below).

(continued on next page)

Item Description

RESPONSE LIMIT TIME

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port.

OFF ó 1s ó 2s ó 3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector

COMMUNICATION

(continued)

sends data to. In this mode, the projector can

send out data from the computer continuously. 1s /2s /3s: Select the time period to keep the

projector waiting for response from the device

that the projector sends data to. While waiting the

response, the projector does not send out any

SERVICE

(continued)

data from the CONTROL port.

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (

• OFF is selected as the default setting. The setttings of the projector can be coppied via USB

memory.

Saves each settings of the projector to USB

SAVE:

memory. Loads each settings of the projector from

LOAD:

CLONING

USB memory. Message will be displayed after loading, and power will turn off after ve min. or by pressing the ► button. (A message is displayed for a few seconds if loading fails.)

After saving / loading, you can remove the USB storage device.

OPTION menu

78).



(continued on next page)

OPTION menu

Item Description

The following items are exempted. IWB: CALIBRATE SETUP SETUP: SETUP MEMORY, LAMP TIME,

OPTION: SCHEDULE_DATE AND TIME,

NETWORK: WIRELESS SETUP

SECURITY: MY TEXT DISPLAY

• Operation is not available if SECURITY_ CLONNING LOCK is turned ON.

• The Screen_MyScreen can only be loaded.

CLONING load function on STANDBY MODE

SERVICE

(continued)

CLONING

(continued)

• While the projector is in STANDBY MODE, push the

button of control panel together with the ► button, and then press the ▲ button to start operating the CLONING load function.

• During loading process, the three indicators of control panel (POWER (orange), TEMP, LAMP) will remain on.

• After the loading process, the three indicators

(POWER (orange), TEMP, LAMP) will turn off. Then, you can remove the USB storage device.

• If the loading fails, the three indicators (POWER

(orange), TEMP, LAMP) will blink at the same time.

• CLONING is invalid with the following conditions.

- CLONING LOCK is turned ON. With this condition, the three indicators (POWER (orange), TEMP, LAMP) will blink at approximately three seconds intervals.

- If the STANDBY MODE is set to SAVING.

- If there is no USB memory inserted into USB

TYPE A port.

- If PIN LOCK is not being released.

- If a system error occurs.

FILTER TIME

SERVICE(GHOST)

(SIMPLE ACCESS POINT), WIRELESS SETUP (INFRASTRUCTURE) AND WIRED SETUP (IP ADDRESS, SUBNET MASK,

DEFAULT GATEWAY), MY IMAGE, PRESENTATION, AMX D.D.

(continued on next page)

Item Description

• Please operate one of the following after loading.

- Press the

panel at the same time.

- Wait at least ve min. after loading.

- Restart the projector after re-plugging the AC

cable.

Load MyScreen data

• Please save the image data as "pj_logo.bmp" or

"pj_logo.gif" into USB memory.

• Please note that the only compatible formats are

as follows.

-File format

Windows BMP bit/pixel: 4/8/16/24/32bit Compression format : Without compression/RLE GIF

-Image size: more than 36x36, less than 1280x800

• If two kinds of le format are saved, "pj_logo.

SERVICE

(continued)

CLONING

(continued)

bmp" will be registered into MyScreen data.

• If MyScreen LOCK or MyScreen PASSWORD

is turned ON, the data of MyScreen cannot be loaded.

Setting the data

OPTION menu

button and ◄ button of the control

(continued on next page)

• Operating the SAVE function under CLONING

will name the le as "pj_data.bin" into the USB memory. Please do not attempt to change the le name or the folder structure.

• If a le with the same name already exists, it will

be overwritten by operating the SAVE function.

Loading function

• Please note that saved data from other model

cannot be loaded.

•

Please note that, if any of the following functions: MyScreen PASSWORD, PIN LOCK, MY TEXT PASSWORD under SECURITY menu or MyScreen Lock under SCREEN menu is ON, the respective saved data cannot be loaded.

OPTION menu

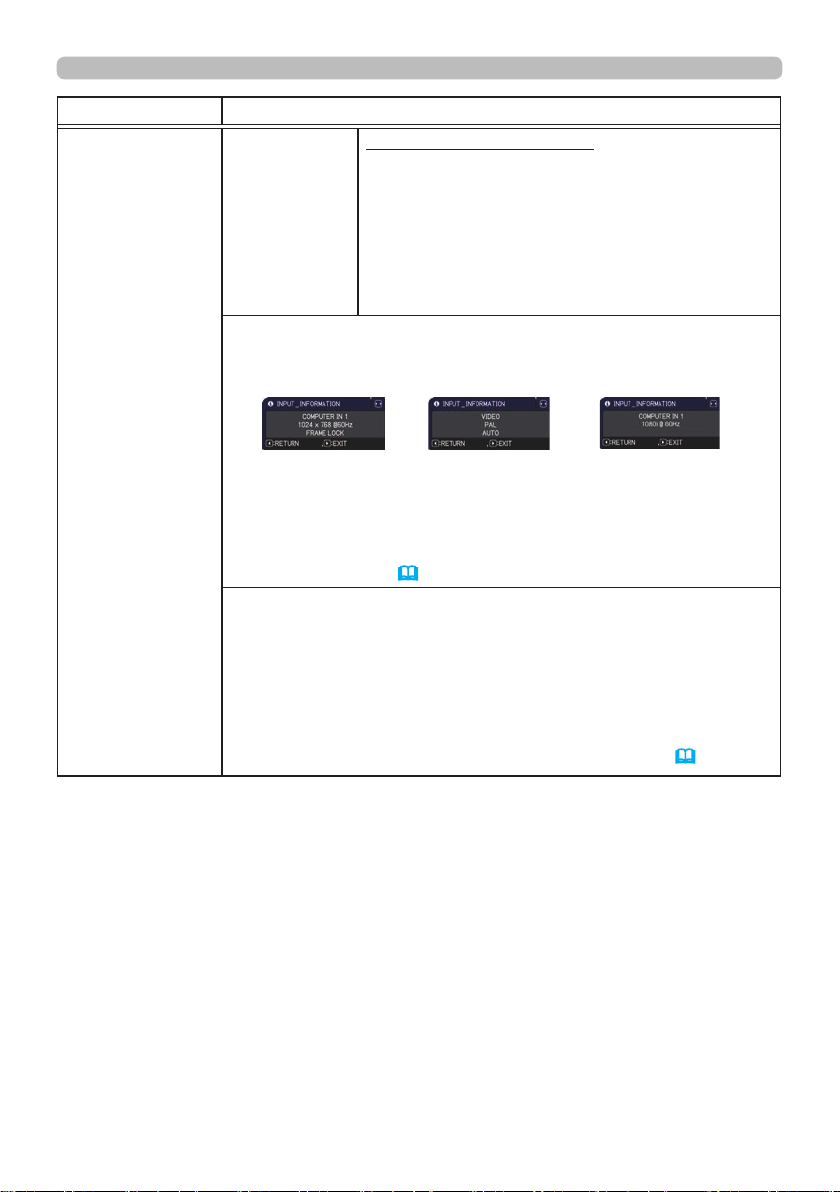

Item Description

Loading function (continued)

•

Please note that the saved data of START UP

CLONING

(continued)

and MyScreen Lock under SCREEN menu cannot be loaded if MyScreen PASSWORD under SECURITY menu is ON.

•

Please note that the saved data of MY TEXT WRITING cannot be loaded if MY TEXT PASSWORD under SECURITY menu is ON.

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

SERVICE

(continued)

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• This item can't be selected for no signal and sync out.

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_ INFORMATION box (



88).

FACTORY RESET

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items STANDBY MODE, AUTO BLANK, LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset.

CANCEL ð OK

Be sure to set ALTITUDE after resetting all the settings (



75).

NETWORK menu

See the Network Guide for details of NETWORK operation. Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network.

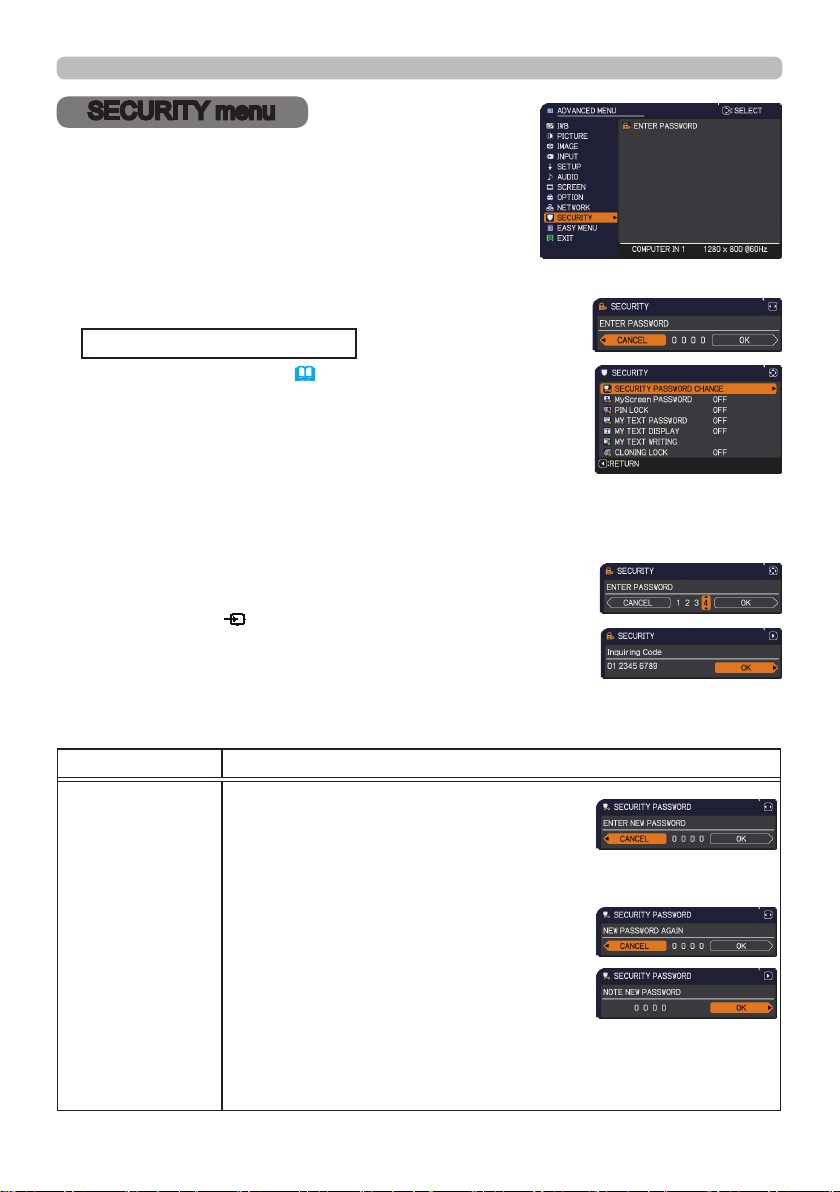

SECURITY menu

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions.

Enter to the SECURITY menu

1. Press the ► button. The ENTER PASSWORD box will be displayed.

2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows.

CP-TW2505, CP-TW3005 : 9535

This password can be changed right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

3. Items shown in the table below can be performed.

(



If you have forgotten your password

(1). While the ENTER PASSWORD box is displayed, press and hold

the RESET button on the remote control for about 3 seconds or press and hold the button on the projector.

(2). The 10 digit Inquiring Code will be displayed. Contact your dealer

with the 10 digit Inquiring Code. Your password will be sent after your user registration information is conrmed.

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

button for 3 seconds while pressing the ►

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu

to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER

NEW PASSWORD box. (2) Use the ▲/▼/◄/► buttons to enter the new password. (3) Move the cursor to the right side of the ENTER

SECURITY

PASSWORD

CHANGE

NEW PASSWORD box and press the ► button

to display the NEW PASSWORD AGAIN box,

enter the same password again.

Move the cursor to the right side of the NEW

(4)

PASSWORD AGAIN box and press the ►

button and the NOTE NEW PASSWORD box

will be displayed for about 30 seconds, please

make note of the password during this time.

Pressing the ENTER button on the remote control or the ► button on the projector will close the NOTE NEW PASSWORD box.

• Please do not forget your password.

(continued on next page)

. Move the cursor to the

below)

Item Description

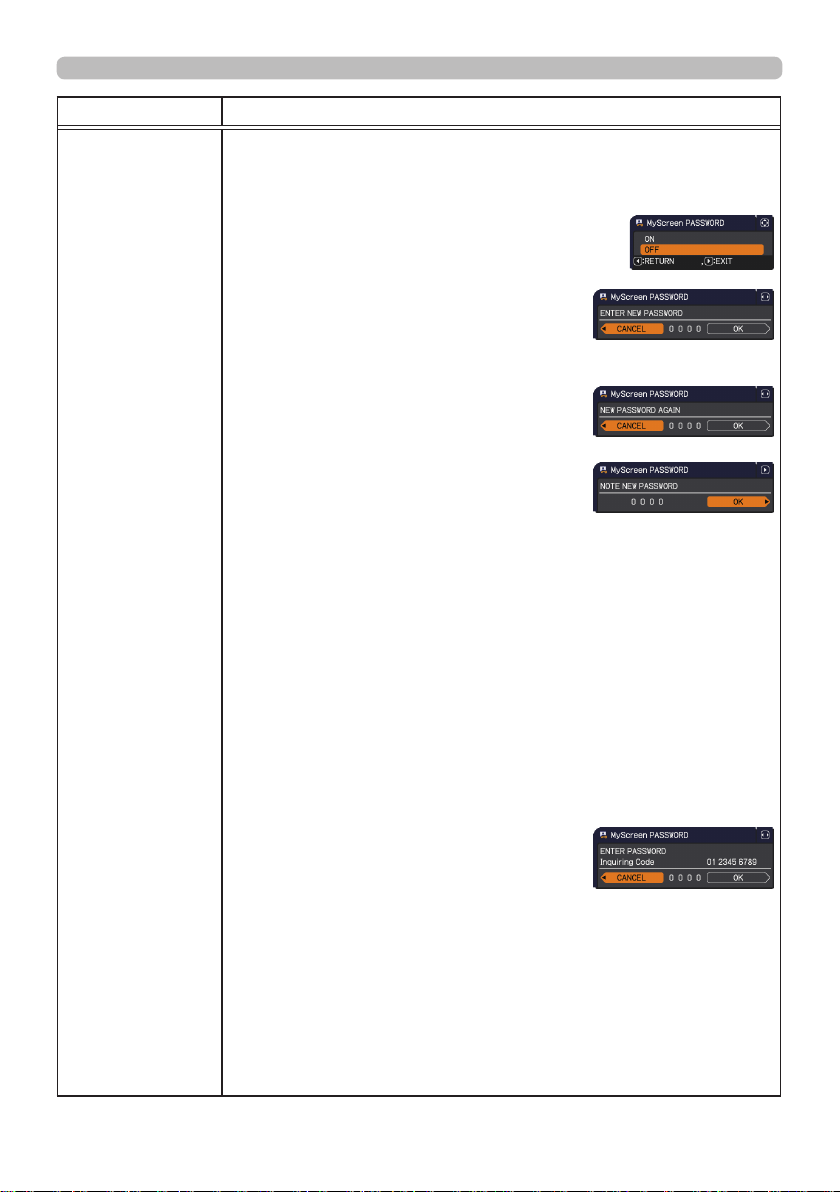

The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.

1 Turning on the MyScreen PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select MyScreen PASSWORD and press the ► button to display the MyScreen PASSWORD on/ off menu.

1-2 Use the ▲/▼ buttons on the MyScreen

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during this time.

Pressing the ENTER button on the remote control or the ► button on the

MyScreen

PASSWORD

projector will return to MyScreen PASSWORD on/off menu.

When a password is set for MyScreen:

The MyScreen registration function (and menu) will be unavailable.

•

The MyScreen Lock menu will be unavailable.

•

The START UP setting will be locked on MyScreen (and the menu will be

•

unavailable). Turning the MyScreen PASSWORD off will allow normal operation of these functions.

Please do not forget your MyScreen PASSWORD.

•

2 Turning off the MyScreen PASSWORD

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

2-2

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MyScreen PASSWORD on/off menu.

If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conrmed.

SECURITY menu

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

(continued on next page)

SECURITY menu

Item Description

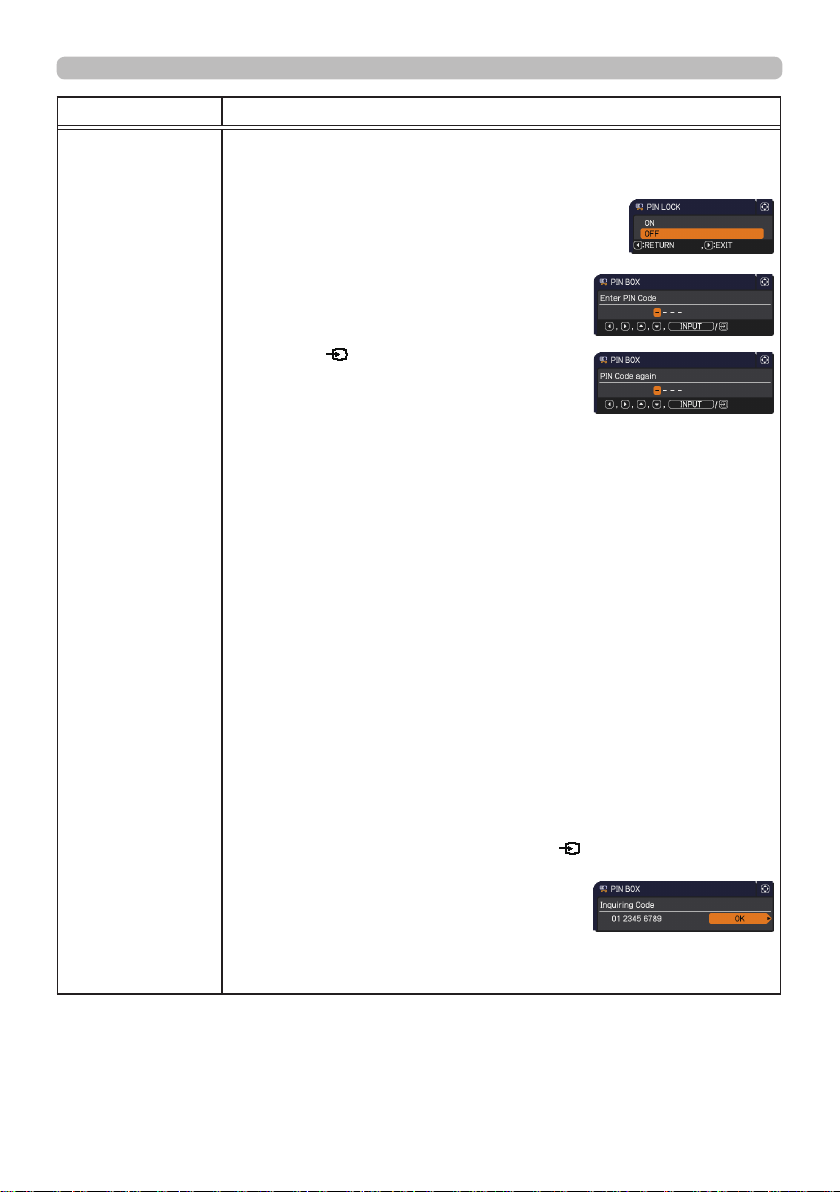

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

1 Turning on the PIN LOCK

1-1 Use the ▲/▼ buttons on the SECURITY menu

to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

off menu to select ON and the Enter PIN Code box will be displayed.

PIN LOCK

1-3 Input a 4 part PIN code using the ▲/▼/◄/►,

INPUT or The PIN Code again box will appear. Reenter the same PIN code. This will complete the PIN code registration.

If there is no key input for about 55 seconds

•

while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.

Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again. If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed. This function will activate only when the projector is started after AC power is turned off.

Please do not forget your PIN code.

•

button.

2 Turning off the PIN LOCK

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu. 2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

displayed. Enter the registered PIN code to turn the PIN LOCK function off.

If an incorrect PIN code is input 3 times, the projector will turn off.

3 If you have forgotten your PIN code

3-1 While the Enter PIN code box is displayed, press and hold the RESET

button for 3 seconds or press and hold the pressing the ► button on the projector. The 10 digit Inquiring Code will be displayed.

If there is no key input for about 5 minutes

•

while the Inquiring Code is displayed, the projector will turn off.

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

be sent after your user registration information is conrmed.

button for 3 seconds while

(continued on next page)

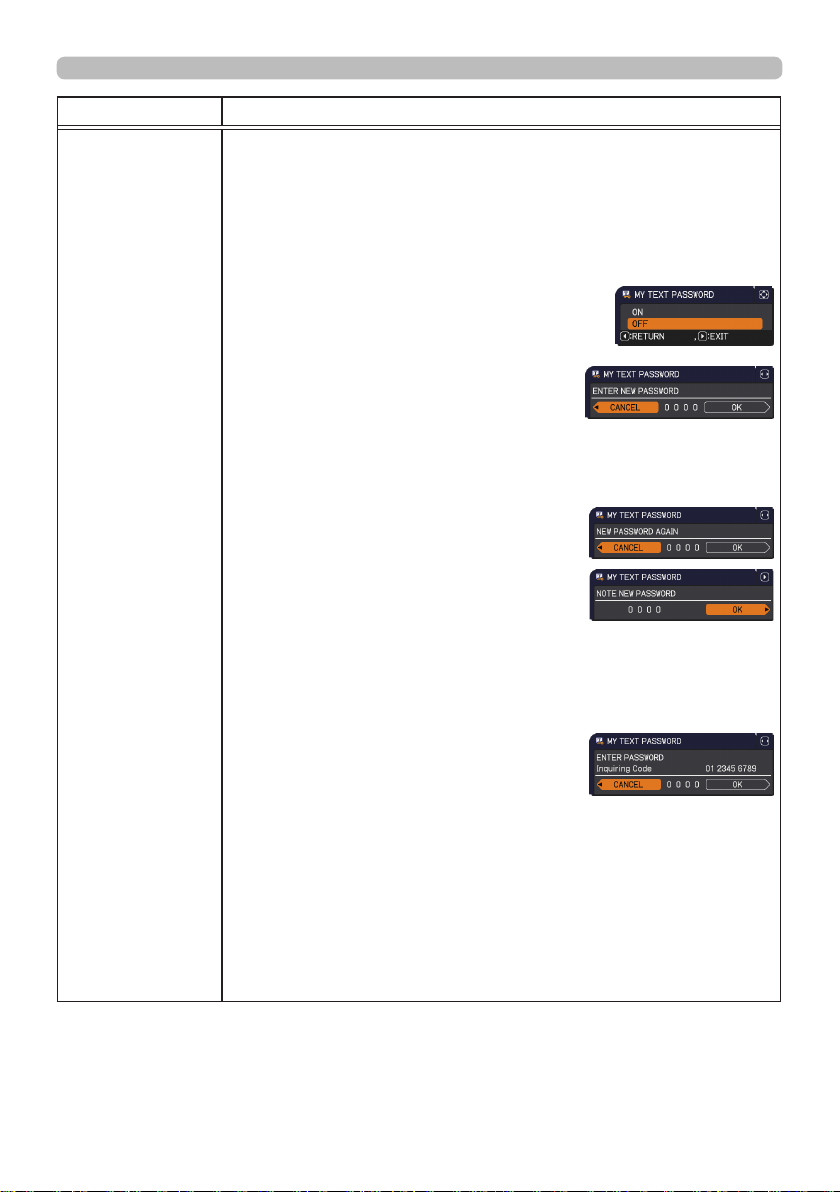

Item Description

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.

1 Turning on the MY TEXT PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT PASSWORD and press the ► button to display the MY TEXT PASSWORD on/off menu.

1-2 Use the ▲/▼ buttons on the MY TEXT

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, and then enter the same password again.

MY TEXT

PASSWORD

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, then please make note of the password during this time.

Pressing the ENTER button on the remote control or the ► button on the projector will return to the MY TEXT PASSWORD on/off menu.

2 Turning off the MY TEXT PASSWORD

2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

2-2 Select OFF to display the ENTER

PASSWORD box (large). Enter the registered password and the screen will return to the MY TEXT PASSWORD on/off menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

inquiring code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

be sent after your user registration information is conrmed.

SECURITY menu

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

(continued on next page)

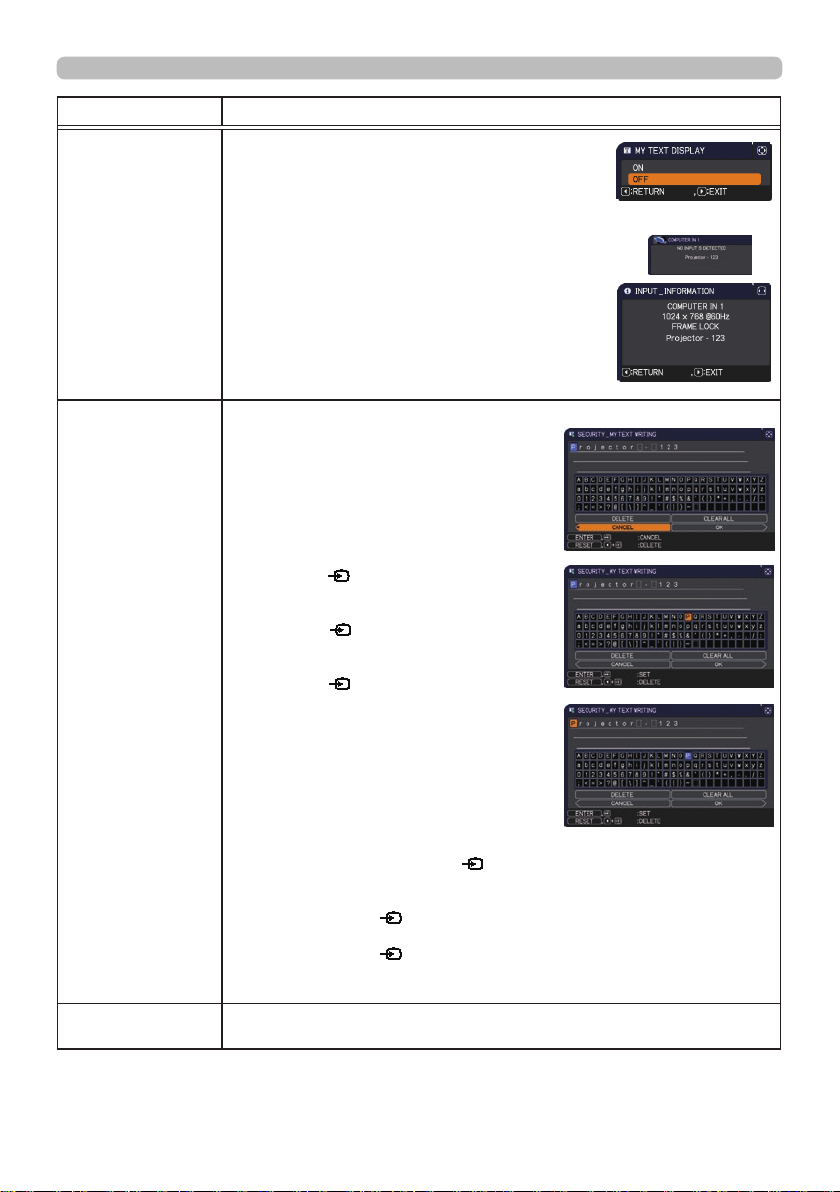

SECURITY menu

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select

on or off.

MY TEXT

DISPLAY

MY TEXT WRITING

CLONING LOCK

ON ó OFF

When it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_ INFORMATION when the INFORMATION on the SERVICE menu is chosen.

• This function is available only when the MY TEXT PASSWORD function is set to the OFF.

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY TEXT WRITING and press the ► button. The MY TEXT WRITING dialog will be displayed.

(2) The current MY TEXT will be displayed

on the rst 3 lines. If not yet written, the lines will be blank. Use the ▲/▼/◄/► buttons and the ENTER or characters. To erase 1 character at one time, press the RESET button or press the ◄ and button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the rst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed.

After pressing the ENTER or button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and press

the ►, ENTER or button. To revert to the previous MY TEXT without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or button.

The MY TEXT WRITING function is available only when the MY TEXT

•

PASSWORD function is set to OFF. The CLONING operation under OPTION_SERVICE menu is not available if

ON is selected.

button to select and enter

Presentation tools

The projector has the following convenient tools that enable on-screen presentations easily and quickly:

- Interactive Function (

below)

- PC-LESS Presentation (116)

- USB Display (126, 131)

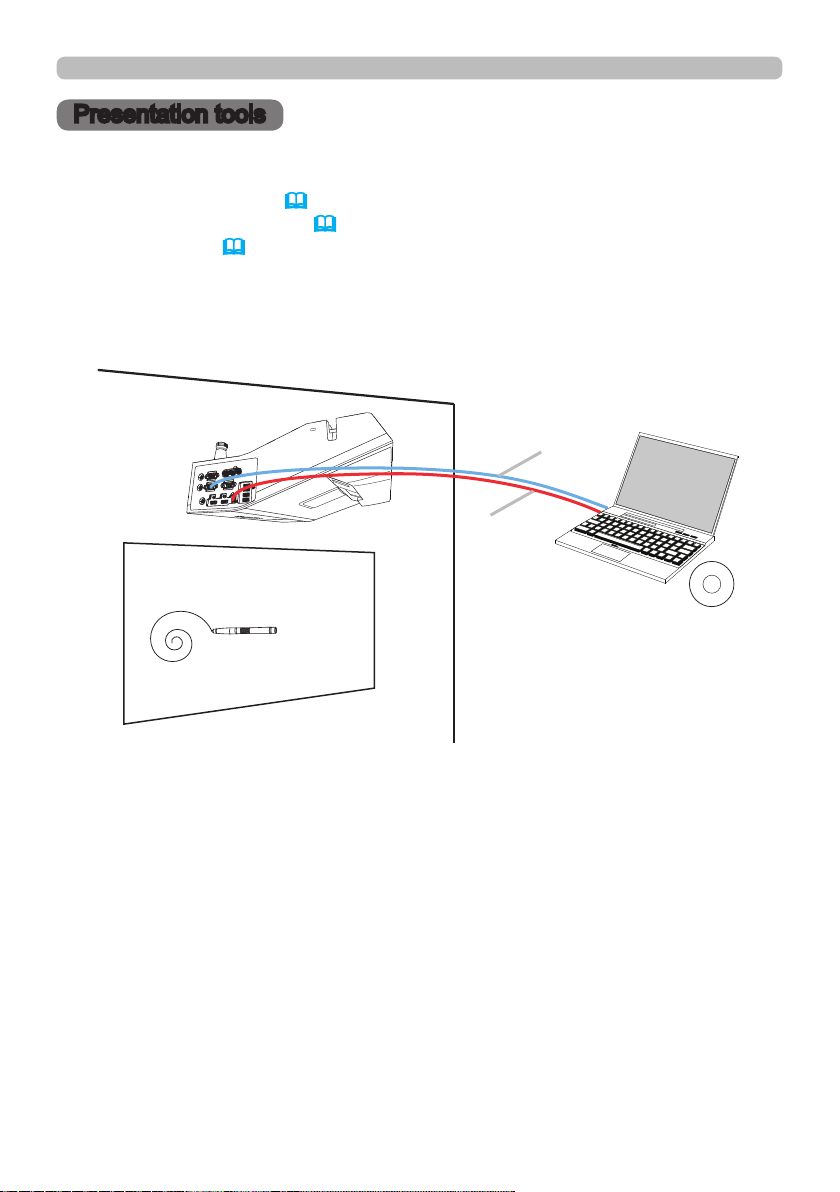

Interactive Function

Computer cable

USB cable

StarBoard Software

The Interactive Function enables interactive operation without a dedicated board such as the operation on the connected computer or writing on the display with the sensor equipped in the projector and bundled Interactive pen.

Presentation tools

Interactive Function (continued)

Connection during use

Follow the procedure below to connect the computer to the projector.

DISPLAY

(1)

Connect the computer cable to the COMPUTER IN or HDMI port of the

HDMI

USB TYPE A

projector, and fasten using the screw.

(2) Connect the opposite end of the computer cable in (1) to the DISPLAY port of

the computer, and fasten using the screw.

(3) Connect the USB TYPE B port of the projector to the USB type A port of the

computer with a USB cable.

* When an operation of the computer is not necessary, you don't need to connect

a USB TYPE B.

(4) Connect the power supply of the projector and computer.

Interactive Function (continued)

Presentation tools

NOTE

• When the Interactive Function is in use, it is recommended that you

make use of input signals from the COMPUTER IN1, COMPUTER IN2, HDMI1/ MHL and HDMI2 ports.

• Noise through the USB cable may trigger a malfunction depending on the computer and projector you are using. When this occurs, check to ensure that the power cables of the computer and projector are grounded. Malfunction may occur if the cables are not grounded.

• The pen sensor may be blocked if the projector is placed directly on the oor. It is recommended the projector be mounted on the wall or ceiling. The Interactive Function does not work during rear projection.

• Set the resolution to 1280 x 800 when connecting to a laptop computer. Otherwise, the Interactive Function may not operate properly.

• Holding out the hand in front of the camera lens causes malfunction.

• Don't make anything with magnetic force of a magnet approach in the camera unit. It'll be sometimes obstruction of the operation with the normal interactive function.

CAUTION

►Be careful of the wired cables. Tripping over the cables may

result in injury or damage the projector or computer.

Presentation tools

Interactive Function (continued)

USER SETTING

The Interactive Function can be set in IWB CALIBRATE of the EASY MENU or IWB of the ADVANCED MENU.

Item Description

Performs the initial setting of the Interactive Function automatically.

• The following pattern image is displayed while executing AUTO CALIBRATE. The pattern image disappears when AUTO CALIBRATE is completed.

• Try adjusting by MANUAL CALIBRATE if the position of pen does not coincide with the drawn line after executing AUTO CALIBRATE.

AUTO

CALIBRATE

Accuracy of AUTO CALIBRATE might decrease if you execute AUTO

NOTE

CALIBRATE just after turning on the projector. Wait more than 2 minutes after turning on the projector to execute AUTO CALIBRATE.

•

• Stay away from the projector until AUTO CALIBRATE is completed.

• AUTO CALIBRATE may fail when interfering light falls on the image of the projector. Be sure not to let the light fall directly on the screen.

• AUTO CALIBRATE may fail depending on the installation environment. In this case, try adjusting by MANUAL CALIBRATE.

• AUTO CALIBRATE may fail with the board or screen of dark color.

(continued on next page)

Interactive Function (continued)

Item Description

Using bundled pen performs the initial setting of the Interactive Function. Click on the center of the marker displayed in the image from the projector with a bundled pen. Every time you click with a bundled pen, the position of the marker changes. MANUAL CALIBRATE is completed when clicking 16 markers in total.

MANUAL

CALIBRATE

Presentation tools

NOTE

• CALIBRATE is required again when installation situation of the projector is changed or display region of the image is changed by the functions such as D-ZOOM/D-SHIFT etc.

(continued on next page)

Presentation tools

Interactive Function (continued)

Item Description

Select this item and press the ► cursor button or ENTER button to display IWB SETUP menu. Select an item.

IWB MODE

Press the ► cursor button or ENTER button to set IWB MODE. (1) Select the input port to change setting. (2) Select IWB MODE.

PC INTERACTIVE ⇔ PC LESS INTERACTIVE ⇔ OFF

PC INTERACTIVE :

PJ internal Painter mode, PJ operation mode, and PC operation mode of Interactive tool (

IWB SETUP

PC LESS INTERACTIVE :

PJ operation mode and PJ internal Painter mode of Interactive tool are available.

OFF :

Interactive tool is unavailable.

FINGER TOUCH

Select ON/OFF of FINGER TOUCH function.

ON ⇔ OFF Select ON if you use FINGER TOUCH UNIT(Optional parts

・

FT-01B) for interactive operation by nger.

Select OFF if you operate by bundled pen.

・

100) are available.

：

(continued on next page)

Interactive Function (continued)

Item Description

CAMERA VIEW

Press the ► cursor button or ENTER button to display OSD menu of CAMERA VIEW. Camera image is displayed on the menu.

This function is for the adjustment of FINGER TOUCH

・

UNIT(Optional parts：FT-01B) . For more information, refer to the manual of FINGER TOUCH UNIT.

MOUSE TYPE

IWB SETUP

(Continued)

Select MOUSE TYPE. MULTI ⇔ SINGLE

When selecting MULTI, whether multi touch is supported or

・

not by connected computer is judged automatically. When using PC operation mode of Interactive tool ( can use multi touch if your computer supports multi touch.

When selecting SINGLE, you cannot use multi touch of PC

・

operation mode.

NOTE

Select SINGLE if mouse operating of PC operation mode

・

does not work well with selecting MULTI.

Presentation tools

100), you

(continued on next page)

Presentation tools

Interactive Function (continued)

Item Description

Select this item and press the ► cursor button or ENTER button to display CALIBRATE SETUP menu. Select an item.

SCREEN TYPE

Select SCREEN TYPE. 16:10 ⇔ 4:3

The area of screen is set according to the selected SCREEN

・

TYPE(ratio of height and width).

The guide of setting area of screen is displayed.

CALIBRATE

SETUP

・

NOTE

When changing SCREEN TYPE, execute AUTO CALIBRATE

・

92) or MANUAL CALIBRATE (93).

(

After executing calibration, display calibration pattern and

・

adjust according to SCREEN TYPE.

The position of pen is followed automatically if setting of

・

resolution or aspect (46) of input signal is changed. So you don't have to execute calibration again.

When a part of image is displayed going beyond the set area,

・

the function does not work even if touching the point in the area by pen.

(continued on next page)

Interactive Function (continued)

Item Description

IWB AREA SETUP

Press the ▶ cursor button or ENTER button to set IWB AREA SETUP. Select AUTO or MANUAL.

AUTO ⇔ MANUAL

When selecting AUTO, the area of mouse cursor with PC operation

・

mode of Interactive tool

When selecting MANUAL, Adjust the area of mouse cursor with PC

・

operation mode by manual operation.

(101)

Adjusting the area of mouse cursor by manual operation

Select MANUAL and press the

・

button to move mouse cursor on the screen.

lick the position of mouse cursor by the pen at the upper left

・C

CALIBRATE

and then click at the lower right similarly.

SETUP

(Continued)

Presentation tools

is adjusted automatically .

cursor button or ENTER

▶

NOTE

Adjusting by manual operation is unavailable if there is no

・

signal.

Try again if adjusting by manual operation is failed.

・

When selecting AUTO, if following trouble happens

・

depending on computer, select MANUAL. Though the position of pen coincides with the drawn line with PJ internal Painter mode of Interactive tool, the position of pen does not coincide with the cursor of mouse operating with PC operation mode.

(continued on next page)

Presentation tools

Interactive Function (continued)

Item Description

Select ON/OFF of MULTI DISPLAY. ON ⇔ OFF

Select ON if using MULTI DISPLAY function.

MULTI

DISPLAY

・

Select OFF if not using MULTI DISPLAY function.

・

NOTE

When selecting ON, IWB MODE

・

When selecting ON, Interactive tool

・

Select MEMORY ACCESS setting. PROJECTOR ⇔ COMPUTER

Select PROJECTOR to display template data which stored

・

MEMORY

ACCESS

inside memory of projector on thumbnail of USB TYPE A.

Select COMPUTER to operate internal memory of projector

・

as USB memory by the computer connected to USB TYPE B port.

NOTE

Select PROJECTOR to use USB Display

・

(

94)

(100)

is not able to be set.

is unavailable.

126)

(

(continued on next page)

Presentation tools

Interactive Function (continued)

When selecting PC INTERACTIVE mode or PC LESS INTERACTIVE mode of the IWB MODE, you can use internal paint tool of the projector.

Main Functions

It offers effective features for making classroom and business presentations more fun and easier to understand.

Drawing on projected images

You can draw pictures or text on images projected by our projectors.

NOTE

• The authorization by the copyright owner(s) is required pursuant to applicable laws for the use of works including visual images, if such works are copyrighted works.

• Drawing with the Interactive Function is not possible with some image signals.

Saving and displaying drawn images

You can save images with pictures or text drawn on them to a USB memory device and then call out the saved images and display them again later.

NOTE

• A USB memory device is necessary to utilize this function.

• Copyright protected images cannot be saved.

Using as a simple mouse

The product can be used in place of the mouse of a computer connected to a projector.

NOTE

• To use this function, a USB cable is required to connect the computer

and the projector.

Presentation tools

Interactive Function (continued)

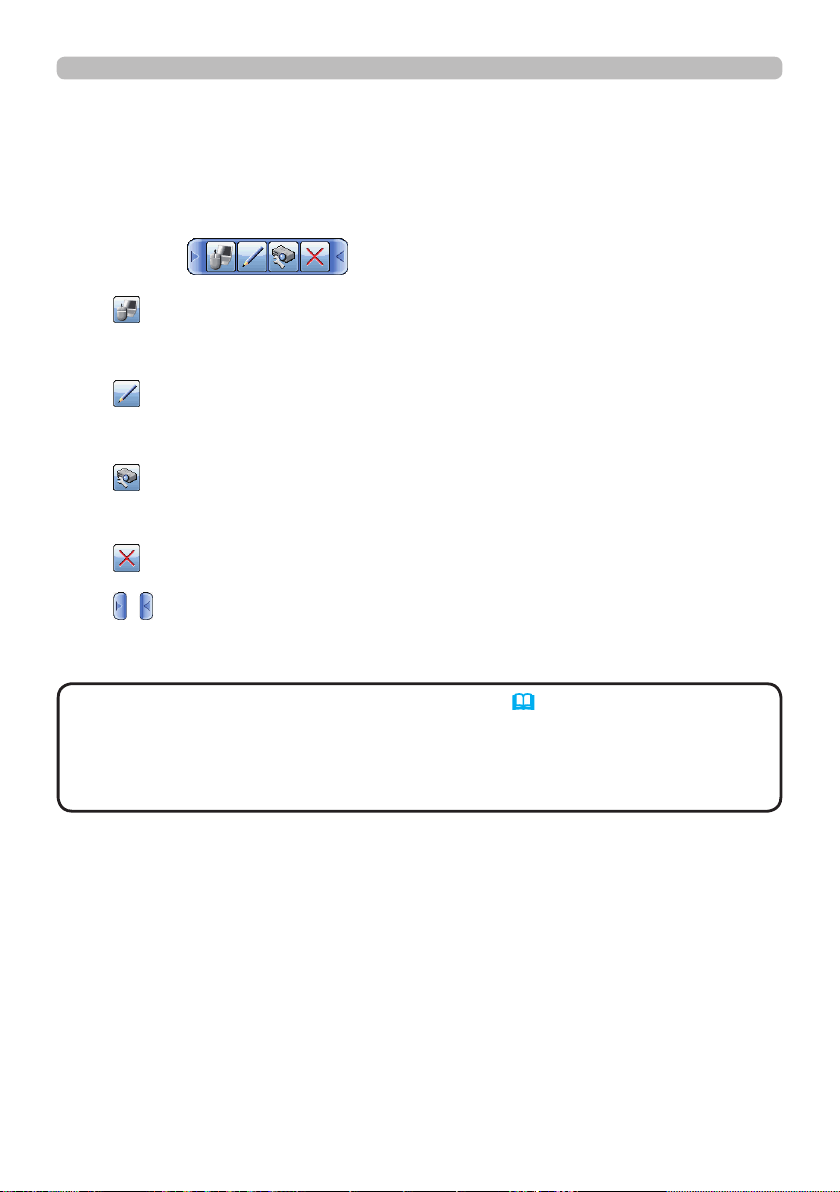

Using Interactive tool.

Touch the projected image using the bundled pen to display initial operation tool bar and use Interactive Function.

PC operation mode：

Shifts to PC operation mode.

PJ internal Painter mode：

Shifts to PJ internal Painter mode.

PJ operation mode：

Shifts to PJ operation mode.

Deletes tool bar and exits Interactive Function.

Minimizes tool bar display. Touch minimized icon to return the tool bar display.

NOTE

・When selecting ON of MULTI DISPLAY (

98), this tool is unavailable.

・Tool bar disappears automatically if there is no operation for several

seconds.

・Multi touch with PC operation mode and PJ internal Painter mode supports

to 6 pens.

100

Hitachi CP-TW2505, CP-TW3005 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
