SERVICE MANUAL MANUEL D'ENTRETIEN WARTUNGSHANDBUCH

CAUTION:

Before servicing this chassis, it is important that the service technician read the “Safety Precautions” and “Product Safety Notices” in this service manual.

ATTENTION:

Avant d’effectuer l’entretien du châassis, le technicien doit lire les «Précautions de sécurité» et les «Notices de sécurité du produit» présentés dans le présent manuel.

No. 0206

26LD6200 26LD6200IT 32LD6200

Data contained within this Service manual is subject to alteration for improvement.

Les données fournies dans le présent manuel d’entretien peuvent faire l’objet de modifications en vue de perfectionner le produit.

VORSICHT:

Vor Öffnen des Gehäuses hat der Service-Ingenieur die „Sicherheitshinweise“ und „Hinweise zur Produktsicherheit“ in diesem Wartungshandbuch zu lesen.

Die in diesem Wartungshandbuch enthaltenen Spezifikationen können sich zwecks Verbesserungen ändern.

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

Colour Television

September 2004

TABLE OF CONTENTS

INTRODUCTION ...................................................................................................................................... 1

2. TUNER......................................................................................................................................................1

3. IF PART (TDA9886) .................................................................................................................................1

4. MULTI STANDARD SOUND PROCESSOR............................................................................................ 2

5. 4.VIDEO SWITCH TEA6415 .................................................................................................................... 2

6. AUDIO AMPLIFIER STAGE WITH TPA3002D2 ...................................................................................... 2

7. MAIN POWER SUPPLY (SMPS) AND POWER INTERFACE BOARD ..................................................3

8. MICROCONTROLLER ............................................................................................................................. 3

9. SERIAL ACCESS CMOS 4K x 8 (32K bit) EEPROM 24C32A................................................................. 3

10. CLASS AB STEREO HEADPHONE DRIVER TDA1308 ......................................................................... 3

11. SAW FILTERS..........................................................................................................................................3

12. IC DESCRIPTIONS AND INTERNAL BLOCK DIAGRAM .......................................................................4

12.1. TDA9886 ...........................................................................................................................................5

12.1.1. General Description................................................................................................................. 5

12.1.2. Features .................................................................................................................................... 5

12.1.3. Pinning......................................................................................................................................5

12.2. TEA6415C ......................................................................................................................................... 6

12.2.1. General Description................................................................................................................. 6

12.2.2. Features .................................................................................................................................... 6

12.2.3. Pinning......................................................................................................................................6

12.3. 24C32A.............................................................................................................................................. 7

12.3.1. Features .................................................................................................................................... 7

12.3.2. Description................................................................................................................................7

12.3.3. Pin Function table.................................................................................................................... 7

12.3.4. Functional Descriptions.......................................................................................................... 8

12.4. SAA5264 ...........................................................................................................................................8

12.4.1. Features .................................................................................................................................... 8

12.4.2. General Description................................................................................................................. 8

12.4.3. Pin Connections and Short Descriptions.............................................................................. 8

12.5. LM317.............................................................................................................................................. 10

12.5.1. General Description............................................................................................................... 10

12.5.2. Features .................................................................................................................................. 10

12.6. ST24LC21 .......................................................................................................................................10

12.6.1. Description.............................................................................................................................. 10

12.6.2. Features .................................................................................................................................. 10

12.6.3. Pin connections...................................................................................................................... 11

12.7. TLC7733..........................................................................................................................................11

12.7.1. Description.............................................................................................................................. 11

12.8. 74LVC257A .....................................................................................................................................12

12.8.1. Features .................................................................................................................................. 12

12.8.2. Description.............................................................................................................................. 12

12.8.3. Pin Description.......................................................................................................................12

12.9. 74LVC14A .......................................................................................................................................12

12.9.1. Features .................................................................................................................................. 12

12.9.2. Applications............................................................................................................................ 12

12.9.3. Description.............................................................................................................................. 12

12.9.4. Pin Description.......................................................................................................................13

12.10. LM1117............................................................................................................................................ 13

12.10.1. General Description............................................................................................................... 13

12.10.2. Features .................................................................................................................................. 13

12.10.3. Applications............................................................................................................................ 13

12.10.4. Connection Diagrams............................................................................................................ 13

12.11. IRF7314- IRF7316........................................................................................................................... 14

12.12. MC34063A....................................................................................................................................... 15

12.13. LM2576- 52kHz Simple 3A Buck Regulator....................................................................................16

12.14. DS90C385 ....................................................................................................................................... 17

12.14.1. General Description .................................................................................................................17

12.14.2.

12.14.3. Pin Description ......................................................................................................................... 18

12.15. MSP34X1G...................................................................................................................................... 19

12.15.1. Introduction............................................................................................................................... 19

12.15.2. Features ................................................................................................................................... 20

12.15.3. Pin connections........................................................................................................................20

12.16. TPA3002D ....................................................................................................................................... 22

12.16.1. Description ...............................................................................................................................22

12.16.2. Pin Connection.........................................................................................................................22

12.17. TDA1308 .........................................................................................................................................22

12.17.1. General Description .................................................................................................................22

12.17.2. Features ................................................................................................................................... 23

12.17.3. Pinning .....................................................................................................................................23

12.18. PI5V330...........................................................................................................................................23

12.18.1. General Description .................................................................................................................23

12.19. AD9883A .........................................................................................................................................23

12.19.1. General Description .................................................................................................................23

12.19.2. Features ................................................................................................................................... 23

12.19.3. Pin Descriptions ....................................................................................................................... 24

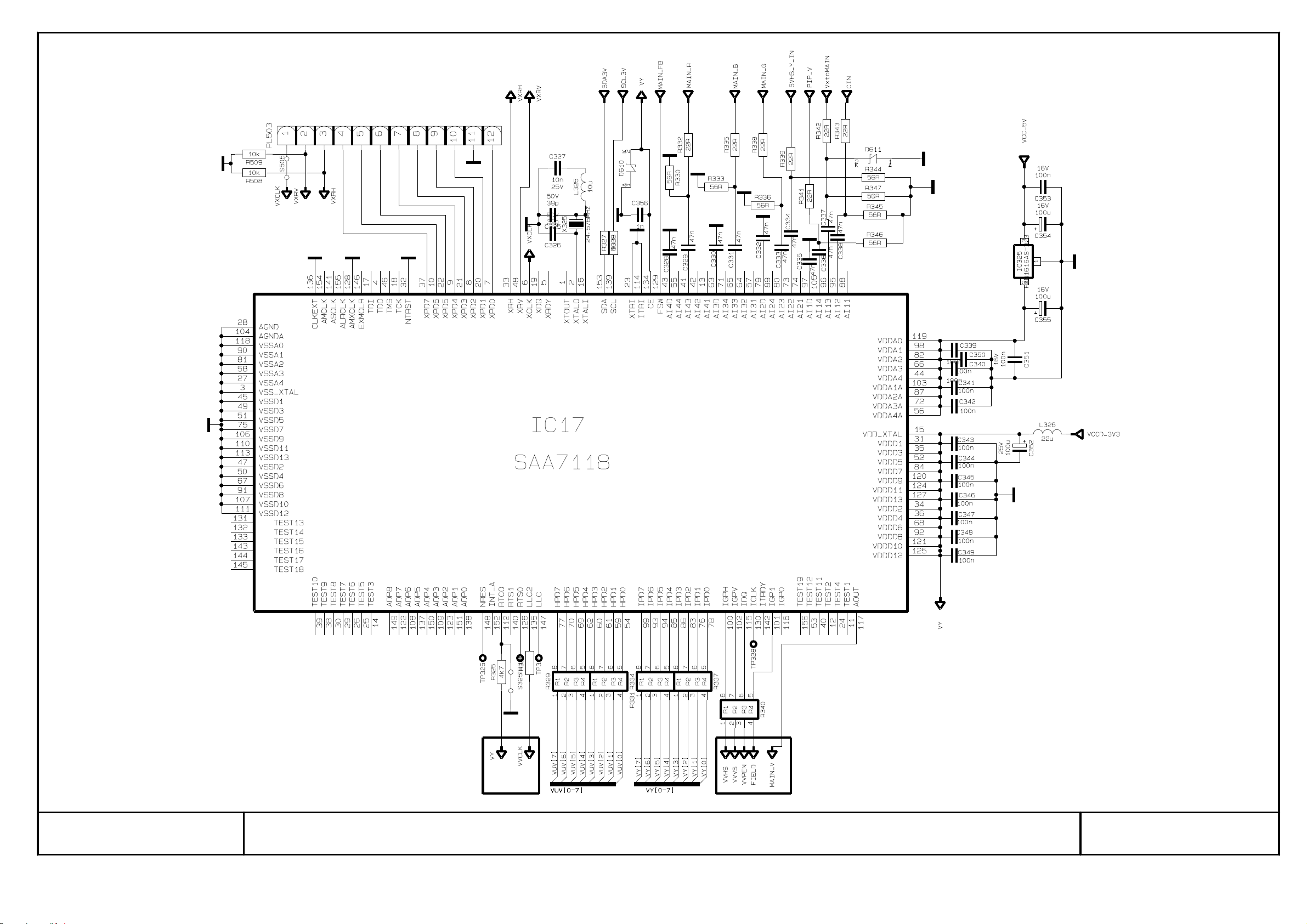

12.20. SAA7118E ....................................................................................................................................... 27

12.20.1. General Description .................................................................................................................27

12.20.2. Features ................................................................................................................................... 27

12.20.3. Pinning .....................................................................................................................................28

12.21. TPS72501........................................................................................................................................ 32

12.21.1. General Description .................................................................................................................32

12.21.2. Features ................................................................................................................................... 33

12.22. TSOP1136.......................................................................................................................................34

12.23. PCF8591 .........................................................................................................................................34

12.23.1. General Description .................................................................................................................34

12.23.2. Features ................................................................................................................................... 34

12.23.3. Pinning .....................................................................................................................................35

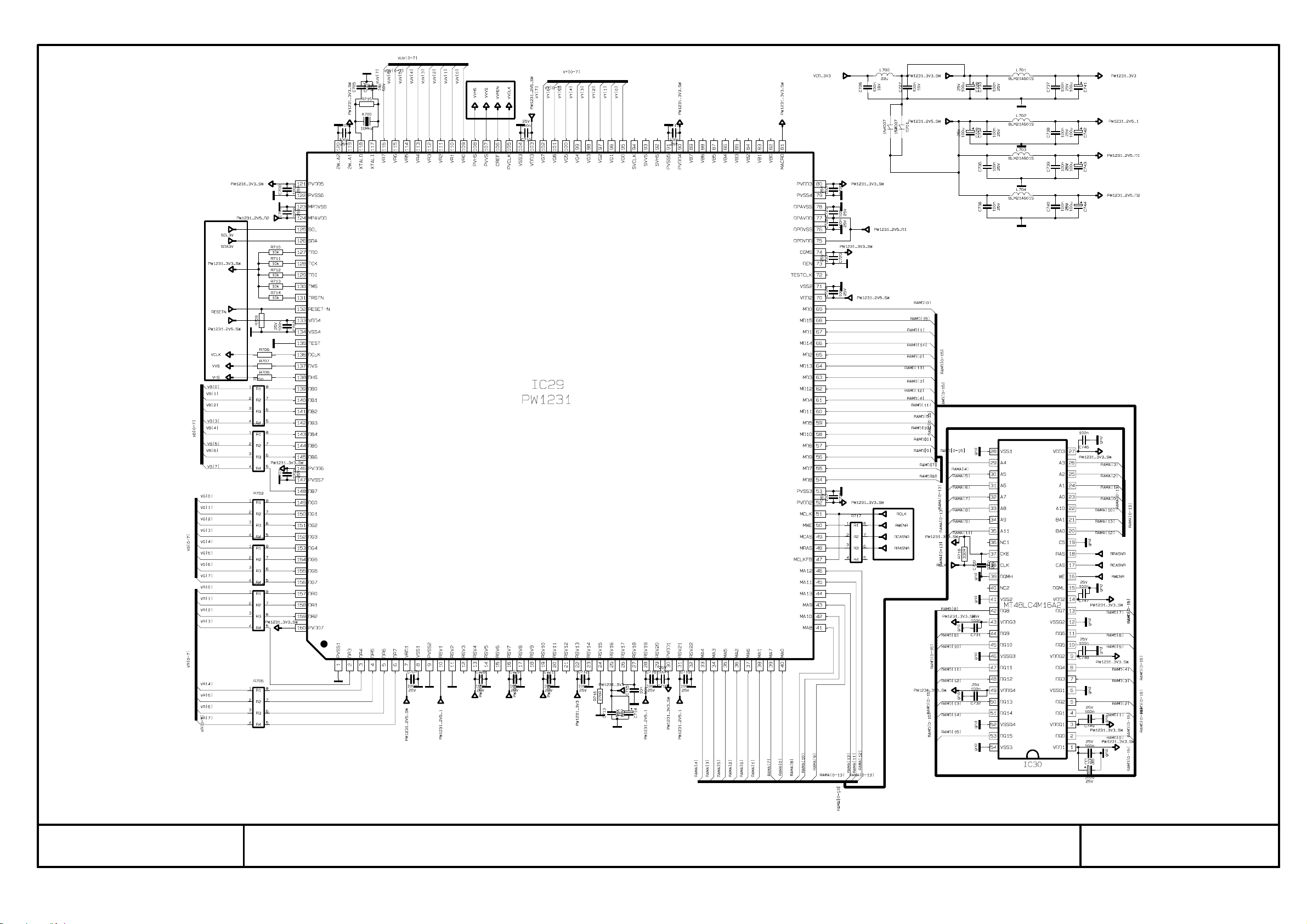

12.24. PW1231...........................................................................................................................................35

12.24.1. General Description .................................................................................................................35

12.24.2. Features ................................................................................................................................... 35

12.24.3. Applications .............................................................................................................................. 35

12.25. PW181.............................................................................................................................................36

12.25.1. General Description .................................................................................................................36

12.25.2. Features ................................................................................................................................... 36

12.25.3. Applications .............................................................................................................................. 36

12.26. SIL151B...........................................................................................................................................37

12.26.1. General Description .................................................................................................................37

12.26.2. Features ................................................................................................................................... 37

12.27. SDRAM 4M x 16 (MT48LC4M16A2TG-75)..................................................................................... 37

12.27.1. General Description .................................................................................................................37

12.27.2. Features ................................................................................................................................... 38

12.27.3. Pin Descriptions ....................................................................................................................... 38

12.28. FLASH 16MBit.................................................................................................................................40

12.28.1. Description ...............................................................................................................................40

12.28.2. FEATURES SUMMARY........................................................................................................... 40

13. SERVICE MENU SETTINGS ................................................................................................................. 41

13.1. display menu ...................................................................................................................................41

13.2. calibration menu ..............................................................................................................................43

13.3. deinterlacer menu............................................................................................................................ 45

13.4. Service menu factory reset values ..................................................................................................47

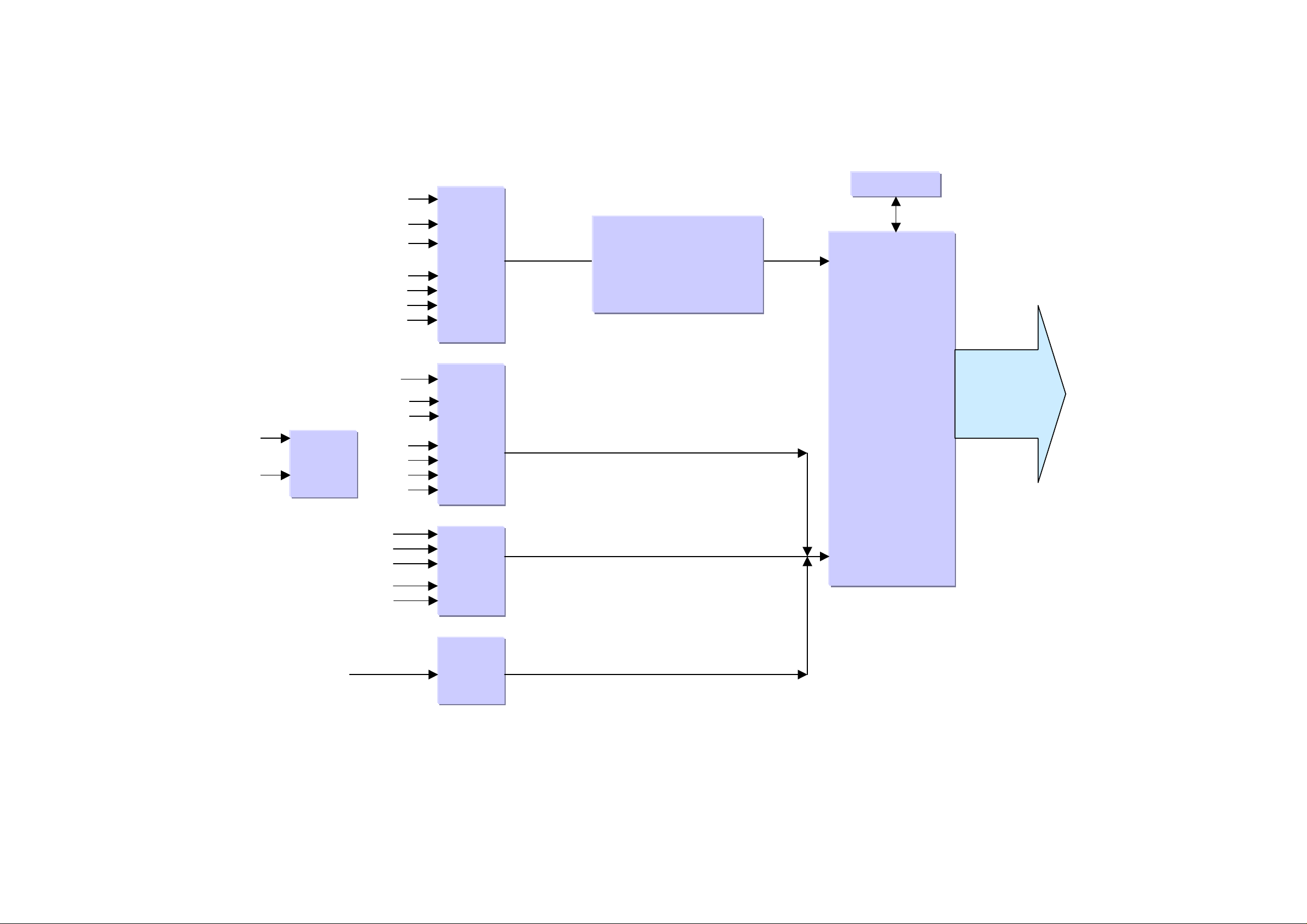

14. BLOCK DIAGRAM..................................................................................................................................48

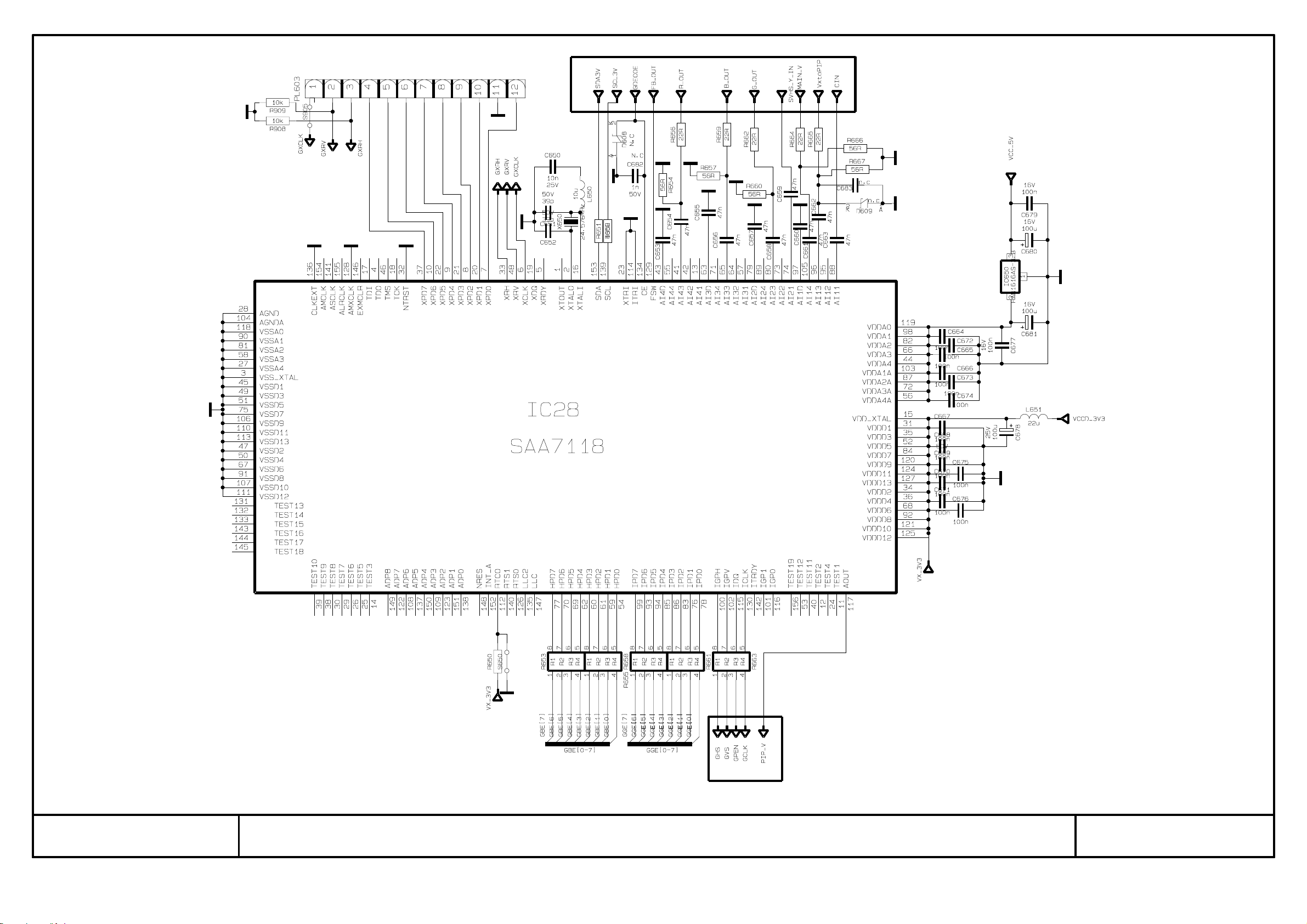

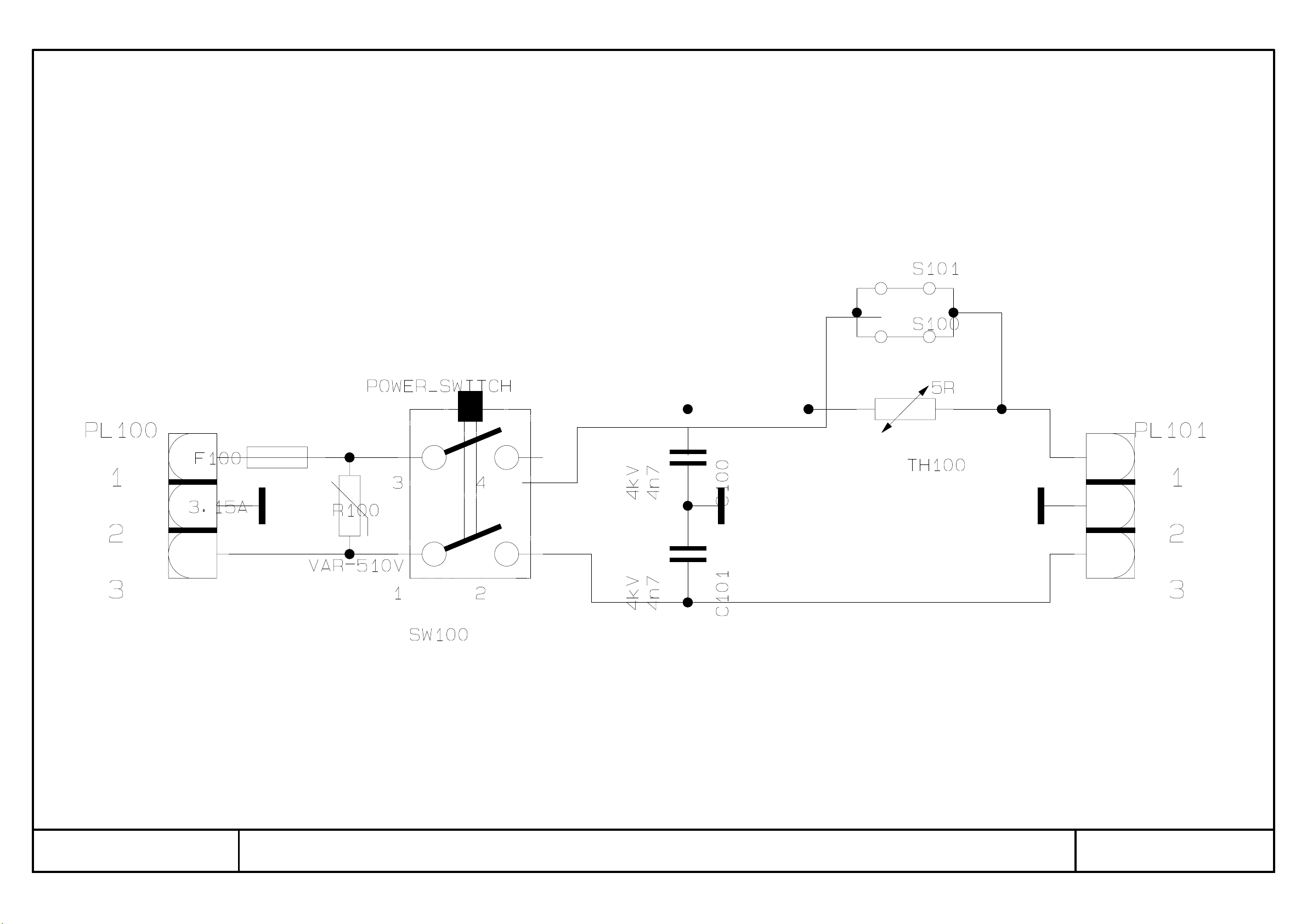

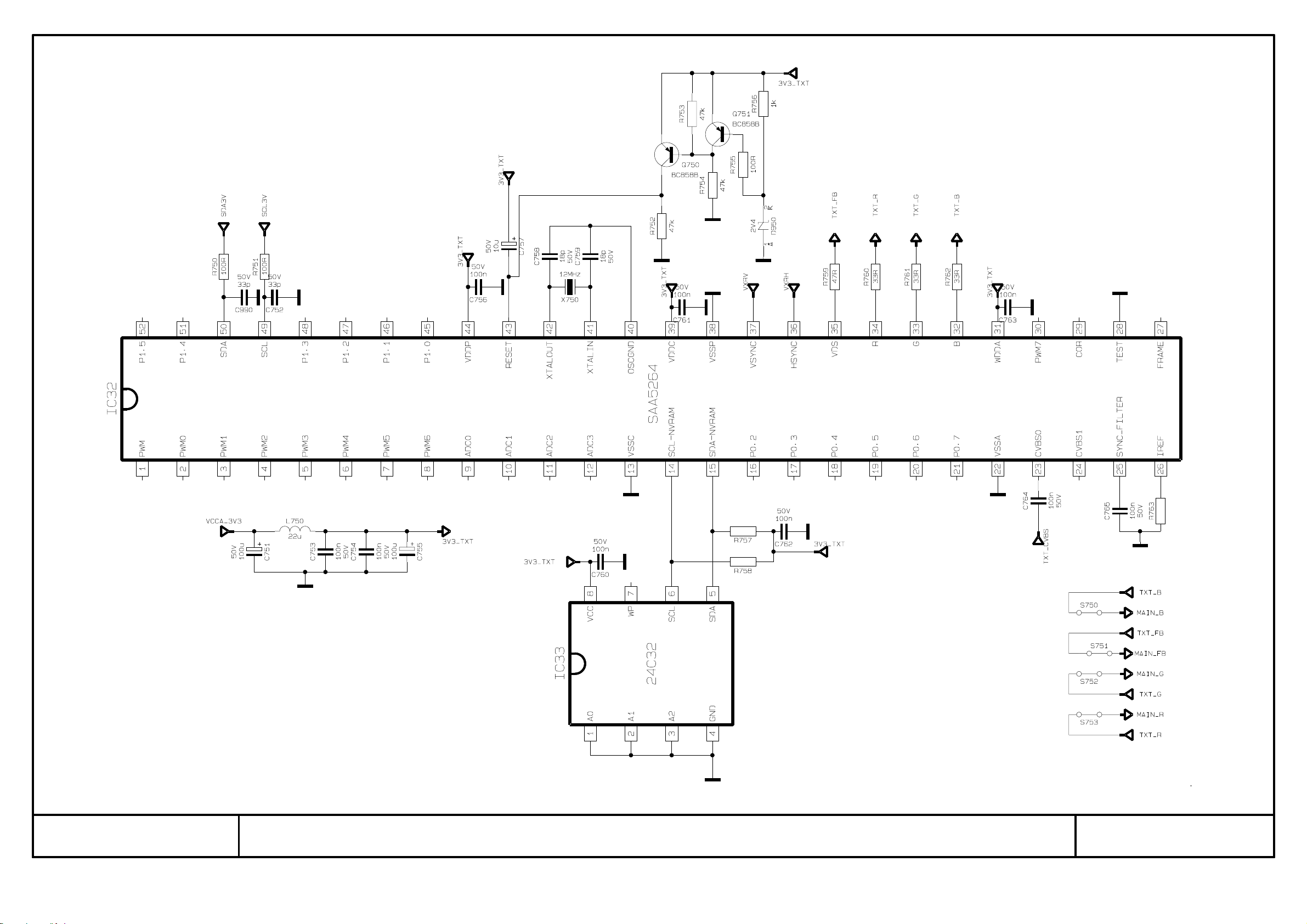

15. CIRCUIT DIAGRAMS.............................................................................................................................56

Features ...................................................................................................................................17

1. INTRODUCTION

26” TFT TV is a progressive TV control system with built-in de-interlacer and scaler. It uses a

1280*768 panel with 16:9 aspect ratio.The TV is capable of operation in PAL, SECAM, NTSC (playback) colour standards and multiple transmission standards as B/G, D/K, I/I’, and L/L´ including German and NICAM stereo. Sound system output is supplying 2x8W (10%THD) for stereo 8 speakers. The chassis is equipped with many inputs and outputs allowing it to be used as a center of a media system.

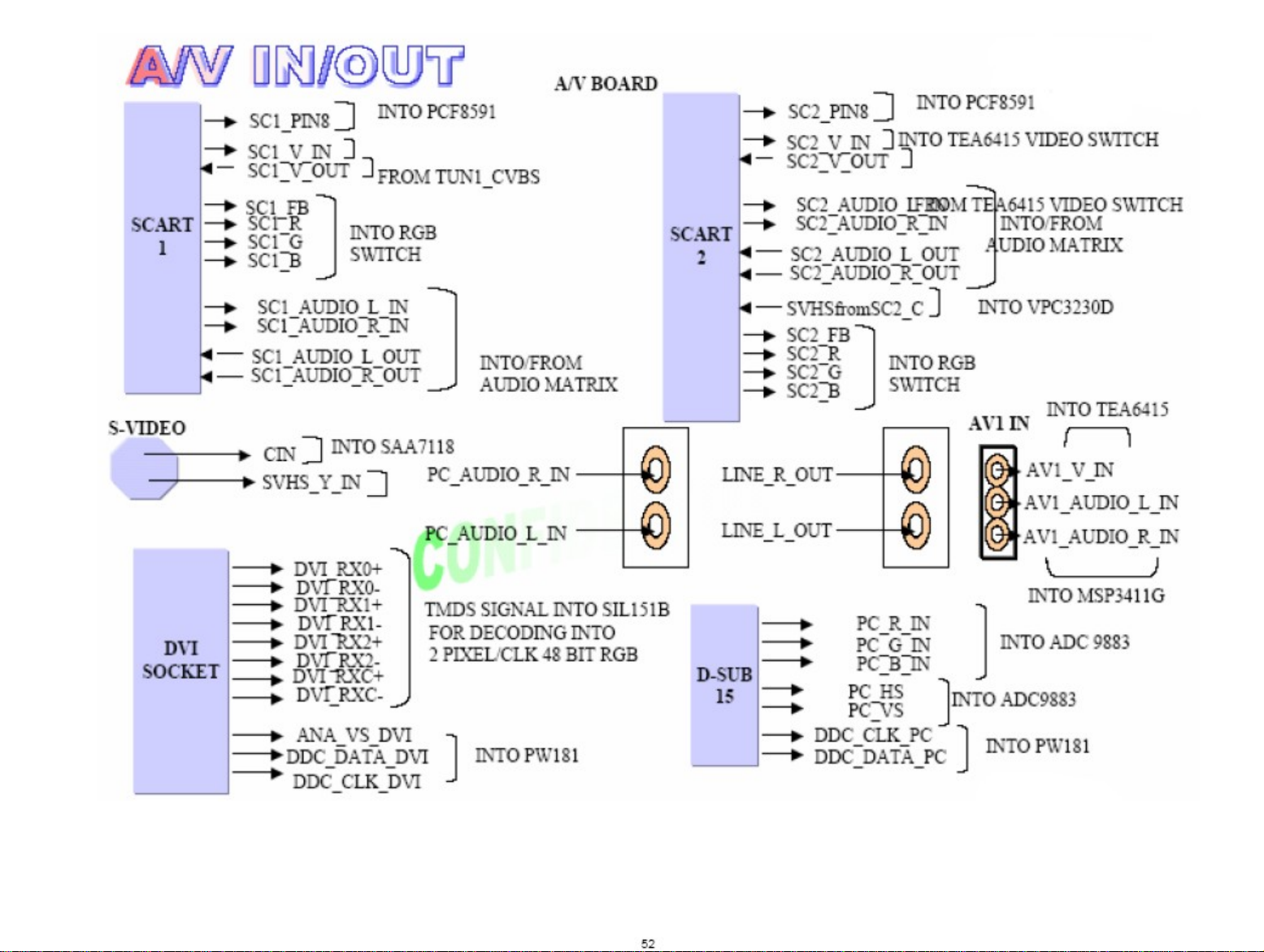

It supports following peripherals: 2 SCART’s with all of them supporting full SCART features including RGB input 1 AV input. (CVBS+ Stereo Audio) 1 SVHS iput 1 Stereo Headphone output 1 D-Sub 15 PC input 1 DVI input (Optional) 1 Audio line out 1 Stereo audio input for PC/DVI

Other features include, 10 pg Teletext, Picture-In-Picture (PIP) , Picture-And-Picture (PAP) , PictureAnd-Text (PAT) and Picture Zoom.

2. TUNER

The tuners used in the design are combined VHF, UHF tuners suitable for CCIR systems B/G, H, L, L´, I/I´, and D/K. The tuning is available through the digitally controlled I

C bus (PLL). Below you will find

info on one of the Tuners in use.

General description of UV1316:

The UV1316 tuner belongs to the UV 1300 family of tuners, which are designed to meet a wide range of applications. It is a combined VHF, UHF tuner suitable for CCIR systems B/G, H, L, L’, I and I’. The low IF output impedance has been designed for direct drive of a wide variety of SAW filters with sufficient suppression of triple transient.

Features of UV1316:

1. Member of the UV1300 family small sized UHF/VHF tuners

2. Systems CCIR: B/G, H, L, L’, I and I’; OIRT: D/K

3. Digitally controlled (PLL) tuning via I

C-bus

4. Off-air channels, S-cable channels and Hyperband

5. World standardised mechanical dimensions and world standard pinning

6. Compact size

7. Complies to “CENELEC EN55020” and “EN55013”

Pinning:

1. Gain control voltage (AGC) : 4.0V, Max: 4.5V

2. Tuning voltage

3. I²C-bus address select : Max: 5.5V

4. I²C-bus serial clock : Min:-0.3V, Max: 5.5V

5. I²C-bus serial data : Min:-0.3V, Max: 5.5V

6. Not connected

7. PLL supply voltage : 5.0V, Min: 4.75V, Max: 5.5V

8. ADC input

9. Tuner supply voltage : 33V, Min: 30V, Max: 35V

10. Symmetrical IF output 1

11. Symmetrical IF output 2

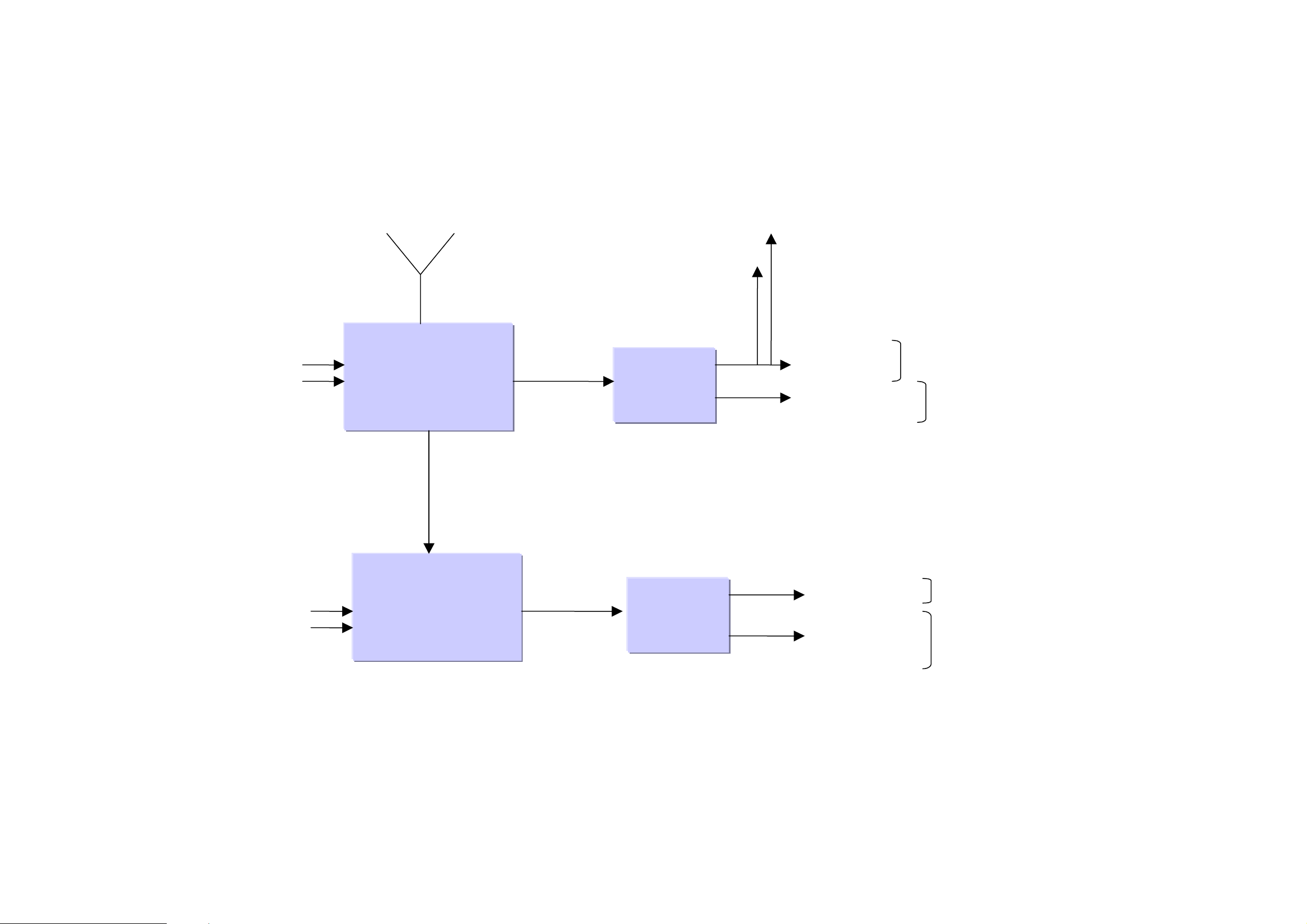

3. IF PART (TDA9886)

The TDA9886 is an alignment-free multistandard (PAL, SECAM and NTSC) vision and sound IF signal PLL Both devices can be used for TV, VTR, PC and set-top box applications. The following figure shows the simplified block diagram of the integrated circuit. The integrated circuit comprises the following functional blocks:

VIF amplifier, Tuner and VIF-AGC, VIF-AGC detector, Frequency Phase-Locked Loop (FPLL) detector, VCO and divider, Digital acquisition help and AFC, Video demodulator and amplifier, Sound carrier trap, SIF amplifier, SIF-AGC detector, Single reference QSS mixer, AM demodulator, FM demodulator and acquisition help, Audio amplifier and mute time constant, voltage stabilizer.

I²C-bus transceivers and MAD (module address), Internal

4. MULTI STANDARD SOUND PROCESSOR

The MSP34x1G family of single-chip Multistandard Sound Processors covers the sound processing of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on a single chip. These TV sound processing ICs include versions for processing the multichannel television sound (MTS) signal conforming to the standard recommended by the Broadcast Television Systems Committee (BTSC). The DBX noise reduction, or alternatively, Micronas Noise Reduction (MNR) is performed alignment free. Other processed standards are the Japanese FM-FM multiplex standard (EIA-J) and the FM Stereo Radio standard. Current ICs have to perform adjustment procedures in order to achieve good stereo separation for BTSC and EIA-J. The MSP34x1G has optimum stereo performance without any adjustments.

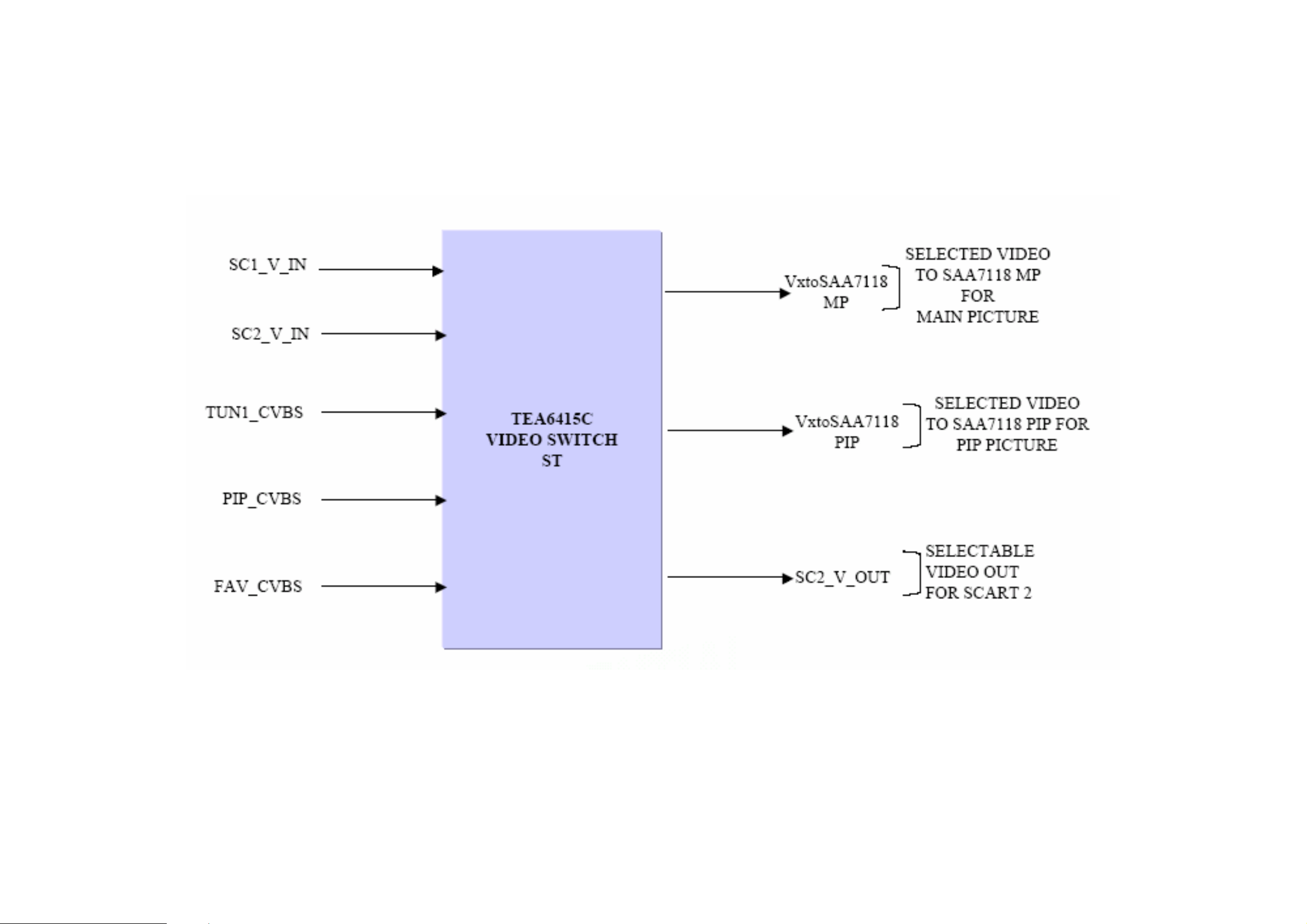

5. 4.VIDEO SWITCH TEA6415

In case of three or more external sources are used, the video switch IC TEA6415 is used. The main function of this device is to switch 8 video-input sources on the 6 outputs. Each output can be switched on only one of each input. On each input an alignment of the lowest level of the signal is made (bottom of sync. top for CVBS or black level for RGB signals). Each nominal gain between any input and output is 6.5dB.For D2MAC or Chroma signal the alignment is switched off by forcing, with an external resistor bridge, 5VDC on the input. Each input can be used as a normal input or as a MAC or Chroma input (with external Resistor Bridge). All the switching possibilities are changed through the BUS. Driving 75ohm load needs an external resistor. It is possible to have the same input connected to several outputs.

6. AUDIO AMPLIFIER STAGE WITH TPA3002D2

The TPA3002D2 is a 9-W (per channel) efficient, Class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3002D2 can drive stereo speakersas low as 8 &. The high efficiency of the TPA3002D2 eliminates the need for external heatsinks when playing music.

7. MAIN POWER SUPPLY (SMPS) AND POWER INTERFACE BOARD

The DC voltages required at various parts of the chassis and inverters are provided by an main power supply unit and power interface board. The main power supply unit is designed for 24V and 12V DC supply. Power interface board generates +12V for audio amplifier, 5V and 3.3V stand by voltage and 8V, 12V, 5V and 3V3 supplies for other different parts of the chassis. An optocoupler is used to control the regulation of line voltage and stand-by power consumption. There is a regulation circuit in secondary side. During the switch on period of the transistor, energy is stored in the transformer. During the switch off period energy is fed to the load via secondary winding. By varying switch-on time of the power transistor, it controls each portion of energy transferred to the second side such that the output voltage remains nearly independent of load variations.

8. MICROCONTROLLER

The microprocessor is embedded inside PW181 chip which also handles scaling, frame rate conversion and OSD generation. The on-chip 16-bit microprocessor is a Turbo x86-compatible processor core with on-chip peripherals (timers, interrupt controller, 2-wire serial master/slave interface, UART, I/O ports, and more). Special peripherals such as Infrared (IR) pulse decoders and a digital pulse width modulator (PWM) are also included. There are two independent 2-wire serial master/slave interface modules that can be multiplexed to control up to five 2-wire serial ports. The slave 2-wire interface is designed for HDCP use only (and requires the use of HDCP Image Processors). On-chip RAM of up to 64 Kbytes is available. A complete microprocessor system can be implemented simply by adding external ROM. The on-chip processor can be disabled to allow external processor control of all internal functions.

9. SERIAL ACCESS CMOS 4K x 8 (32K bit) EEPROM 24C32A

The Microchip Technology Inc. 24C32A is a 4K x 8 (32K bit) Serial Electrically Erasable PROM. It has been developed for advanced, low power applications such as personal communications or data acquisition. The 24C32A also has a page-write capability of up to 32 bytes of data. The 24C32A is capable of both random and sequential reads up to the 32K boundary. Functional address lines allow up to eight 24C32A devices on the same bus, for up to 256K bits address space. Advanced CMOS technology and broad voltage range make this device ideal for low-power/low-voltage, non-volatile code and data applications.

10. CLASS AB STEREO HEADPHONE DRIVER TDA1308

The TDA1308 is an integrated class AB stereo headphone driver contained in a DIP8 plastic package. The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital audio applications.

11. SAW FILTERS

K9656M: Standard:

• B/G

• D/K

• I

• L/L’

Features

• TV IF audio filter with two channels

• Channel 1 (L’) with one pass band for sound carriers at 40,40 MHz (L’) and 39,75 MHz (L’- NICAM)

• Channel 2 (B/G,D/K,L,I) with one pass band for sound carriers between 32,35 MHz and 33,40 MHz

Terminals

• Tinned CuFe alloy

Pin configuration

1 Input 2 Switching input 3 Chip carrier - ground 4 Output 5 Output

K3953M:

Standard:

• B/G

• D/K

• I

• L/L’

Features

TV IF video filter with Nyquist slopes at 33,90 MHz and 38,90 MHz Constant group delay Suitable for CENELEC EN 55020

Terminals

Tinned CuFe alloy

Pin configuration

1 Input 2 Input - ground 3 Chip carrier - ground 4 Output 5 Output

12. IC DESCRIPTIONS AND INTERNAL BLOCK DIAGRAM

TDA9886 TEA6415C 24C32 SAA5264 LM317T ST24LC21 TLC7733 74LVC257A

74LVC14A

LM1117 IRF7314 IRF7316 MC34063A LM2576 DS90C385 MSP3411G TPA3002D TDA1308 PI5V330 AD9883A SAA7118E TPS72501 TSOP1136 PCF8591 PW1231 PW181 SIL151B SDRAM 4M x 16 (MT48LC4M16A2TG-75) FLASH

12.1. TDA9886

12.1.1. General Description

The TDA9885 is an alignment-free single standard (without positive modulation) vision and sound IF signal PLL.

12.1.2. Features

•

5 V supply voltage

• Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier (AC-coupled)

• Multistandard true synchronous demodulation with active carrier regeneration (very linear demodulation,

good intermodulation figures, reduced harmonics, excellent pulse response)

• Gated phase detector for L/L accent standard

• Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free; frequencies switchable for all

negative and positive modulated standards via I

• Digital acquisition help, VIF frequencies of 33.4, 33.9, 38.0, 38.9, 45.75 and 58.75 MHz

• 4 MHz reference frequency input [signal from Phase-Locked Loop (PLL) tuning system] or operating as

crystal oscillator

• VIF Automatic Gain Control (AGC) detector for gain control, operating as peak sync detector for negative

modulated signals and as a peak white detector for positive modulated signals

• Precise fully digital Automatic Frequency Control (AFC) detector with 4-bit digital-to-analog converter; AFC

bits via I

• TakeOver Point (TOP) adjustable via I

C -bus readable

C-bus or alternatively with potentiometer

• Fully integrated sound carrier trap for 4.5, 5.5, 6.0 and 6.5 MHz, controlled by FM-PLL oscillator

• Sound IF (SIF) input for single reference Quasi Split Sound (QSS) mode (PLL controlled)

• SIF AGC for gain controlled SIF amplifier; single reference QSS mixer able to operate in high performance

single reference QSS mode and in intercarrier mode, switchable via I

• AM demodulator without extra reference circuit

• Alignment-free selective FM-PLL demodulator with high linearity and low noise

• I

C-bus control for all functions

• I

C-bus transceiver with pin programmable Module Address (MAD).

C-bus

12.1.3. Pinning

SYMBOL PIN DESCRIPTION

VIF1 1

VIF2 OP1 FMPLL DEEM AFD DGND AUD TOP SDA SCL SIOMA n.c. TAGC REF VAGC CVBS AGND VPLL

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

VP 20

AFC

VIF differential input 1 VIF differential input 2 output 1 (open-collector) FM-PLL for loop filter de-emphasis output for capacitor AF decoupling input for capacitor digital ground audio output tuner AGC TakeOver Point (TOP) I2C-bus data input/output I2C-bus clock input sound intercarrier output and MAD select not connected tuner AGC output 4 MHz crystal or reference input VIF-AGC for capacitor; note 1 video output analog ground VIF-PLL for loop filter supply voltage (+5 V) AFC output

OP2 SIF1 SIF2

22 23 24

output 2 (open-collector) SIF differential input 1 SIF differential input 2

12.2.

TEA6415C

12.2.1. General Description

The main function of the IC is to switch 8 video input sources on 6 outputs. Each output can be switched on only one of each input. On each input an alignment of the lowest level of the signal is made (bottom of synch. top for CVBS or black level for RGB signals). Each nominal gain between any input and output is 6.5dB. For D2MAC or Chroma signal the alignment is switched off by forcing, with an external resistor bridge, 5 V

DC on the input. Each input can be used as a normal input or as a MAC or

Chroma input (with external resistor bridge). All the switching possibilities are changed through the BUS. Driving 75 load needs an external transistor. It is possible to have the same input connected to several outputs. The starting configuration upon power on (power supply: 0 to 10V) is undetermined. In this case, 6 words of 16 bits are necessary to determine one configuration. In other case, 1 word of 16 bits is necessary to determine one configuration.

12.2.2. Features

• 20MHz Bandwidth

• Cascadable with another TEA6415C (Internal address can be changed by pin 7 voltage)

• 8 Inputs (CVBS, RGB, MAC, CHROMA,...)

• 6 Outputs

• Possibility of MAC or chroma signal for each input by switching-off the clamp with an external resistor bridge

• Bus controlled

• 6.5dB gain between any input and output

• 55dB crosstalk at 5mHz

• Fully ESD protected

12.2.3. Pinning

1. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

2. Data : Low level : -0.3V Max: 1.5V, High level : 3.0V Max : Vcc+0.5V

3. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

4. Clock : Low level : -0.3V Max: 1.5V, High level : 3.0V Max : Vcc+0.5V

5. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

6. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

7. Prog

8. Input : Max : 2Vpp, Input Current: 1mA, Max: 3mA

9. Vcc : 12V

10. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

11. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

12. Ground

13. Output : 5.5Vpp, Min : 4.5Vpp

14. Output : 5.5Vpp, Min : 4.5Vpp

15. Output : 5.5Vpp, Min : 4.5Vpp

16. Output : 5.5Vpp, Min : 4.5Vpp

17. Output : 5.5Vpp, Min : 4.5Vpp

18. Output : 5.5Vpp, Min : 4.5Vpp

19. Ground

20. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

12.3.

24C32A

12.3.1. Features

• Voltage operating range: 4.5V to 5.5V

- Maximum write current 3 mA at 5.5V

- Standby current 1 mA typical at 5.0V

• 2-wire serial interface bus, I

2CTM

compatible

• 100 kHz and 400 kHz compatibility

• Self-timed ERASE and WRITE cycles

• Power on/off data protection circuitry

• Hardware write protect

• 1,000,000 Erase/Write cycles guaranteed

• 32-byte page or byte write modes available

• Schmitt trigger filtered inputs for noise suppression

• Output slope control to eliminate ground bounce

• 2 ms typical write cycle time, byte or page

• Up to eight devices may be connected to the same bus for up to 256K bits total memory

• Electrostatic discharge protection > 4000V

• Data retention > 200 years

• 8-pin PDIP and SOIC packages

• Temperature ranges

- Commercial (C): 0°C to 70°C

- Industrial (I): -40°C to +85°C

- Automotive (E): -40°C to +125°C

12.3.2. Description

12.3.3. Pin Function table

Name Function

A0, A1, A2 User Configurable Chip Selects Vss Ground SDA Serial Address/Data I/O SCL Serial Clock WP Write Protect Input Vcc +4.5V to 5.5V Power Supply

12.3.4. Functional Descriptions

The 24C32A supports a Bi-directional 2-wire bus and data transmission protocol. A device that sends data onto the bus is defined as transmitter, and a device receiving data as receiver. The bus must be controlled by a master device which generates the Serial Clock (SCL), controls the bus access, and generates the START and STOP conditions, while the 24C32A works as slave. Both master and slave can operate as transmitter or receiver but the master device determines which mode is activated.

12.4.

SAA5264

12.4.1. Features

The following features apply to both SAA5264 and SAA5265:

• Complete 625 line teletext decoder in one chip reduces printed circuit board area and cost

• Automatic detection of transmitted fastext links or service information (packet 8/30)

• On-Screen Display (OSD) for user interface menus using teletext and dedicated menu icons

• Video Programming System (VPS) decoding

• Wide Screen Signalling (WSS) decoding

• Pan-European, Cyrillic, Greek/Turkish and French/Arabic character sets in each chip

• High-level command interface via I

C-bus gives easy control with a low software overhead

• High-level command interface is backward compatible to Stand-Alone Fastext And Remote Interface

(SAFARI)

• 625 and 525 line display

• RGB interface to standard colour decoder ICs, current source

• Versatile 8-bit open-drain Input/Output (I/O) expander, 5 V tolerant

• Single 12 MHz crystal oscillator

• 3.3 V supply voltage.

SAA5264 features

• Automatic detection of transmitted pages to be selected by page up and page down

• 8 Page fastext decoder

• Table Of Pages (TOP) decoder with Basic Top Table (BTT) and Additional Information Tables (AITs)

• 4 Page user-defined list mode.

12.4.2. General Description

The SAA5264 is a single-chip ten page 625-line World System Teletext decoder with a high-level command interface, and is SAFARI compatible. The device is designed to minimize the overall system cost, due to the high-level command interface offering the benefit of a low software overhead in the TV microcontroller. The SAA5264 has the following functionality:

• 10 page teletext decoder with OSD, Fastext, TOP, default and list acquisition modes

• Automatic channel installation support

• Closed caption acquisition and display

• Violence Chip (VChip) support.

12.4.3. Pin Connections and Short Descriptions

SYMBOL PIN TYPE DESCRIPTION

Port 2: 8-bit programmable bidirectional port with alternative functions

P2.0/PWM 1 I/O P2.1/PWM0 2 I/O P2.2/PWM1 3 I/O P2.3/PWM2 4 I/O P2.4/PWM3 5 I/O P2.5/PWM4 6 I/O P2.6/PWM5 7 I/O P2.7/PWM6 8 I/O

Port 3: 8-bit programmable bidirectional port with alternative functions P3.0/ADC0 P3.1/ADC1

9 I/O 10 I/O

output for 14-bit high precision Pulse Width Modulator (PWM) outputs for 6-bit PWMs 0 to 6

inputs for the software Analog-to-Digital-Converter (ADC) facility

P3.2/ADC2 P3.3/ADC3 P3.4/PWM7

SSC

11 I/O 12 I/O 30 I/O 13 I/O

output for 6-bit PWM7 core ground

Port 0: 8-bit programmable bidirectional port

SCL(NVRAM) SDA(NVRAM) P0.2 P0.3 P0.4 P0.5

14 I 15 I/O 16 I/O 17 I/O 18 I/O 19 I/O

I2C-bus Serial Clock input to Non-Volatile RAM I2C-bus Serial Data input/output (Non-Volatile RAM) input/output for general use input/output for general use input/output for general use 8 mA current sinking capability for direct drive of Light Emitting

Diodes (LEDs) P0.6 P0.7

22 -

SSA

CVBS0

20 I/O 21 I/O

23 I

input/output for general use

analog ground

Composite Video Baseband Signal (CVBS) input; a positive-going

1V CVBS1 SYNC_FILTER

24 I 25 I sync-pulse-filter input for CVBS; this pin should be connected to V

(peak-to-peak) input is required; connected via a 100 nF capacitor

via a 100 nF capacitor IREF

26 I

reference current input for analog circuits; for correct operation a 24

κΩ resistor should be connected to FRAME

27 O

Frame de-interlace output synchronized with the VSYNC pulse to

produce a non-interlaced display by adjustment of the vertical

deflection circuits TEST COR

28 I not available; connect this pin to V 29 O

contrast reduction: open-drain, active LOW output which allows

selective contrast reduction of the TV picture to enhance a mixed

mode display

31 -

DDA

VDS

HSYNC

30 I/O

32 O

33 O

34 O

35 O

36 I

P3.4/PWM7 (described above)

analog supply voltage (3.3 V)

Blue colour information pixel rate output

Green colour information pixel rate output

Red colour information pixel rate output

video/data switch push-pull output for pixel rate fast blanking

horizontal sync pulse input: Schmitt triggered for a Transistor

Transistor Level (TTL) version; the polarity of this pulse is

programmable by register bit TXT1.H POLARITY VSYNC

37 I

vertical sync pulse input; Schmitt triggered for a TTL version; the

polarity of this pulse is programmable by register bit TXT1.V

POLARITY

SSP

DDC

OSCGND

XTALIN

XTALOUT

RESET

38 -

39 -

40 -* 41 I 42 O 43 I

periphery ground

core supply voltage (+3.3 V)

crystal oscillator ground

12 MHz crystal oscillator input

12 MHz crystal oscillator output

reset input; if this pin is HIGH for at least 2 machine cycles (24

oscillator periods) while the oscillator is running, the device resets;

this pin should be connected to

DDP

44 -

periphery supply voltage (+3.3 V)

Port 1: 8-bit programmable bidirectional port P1.0

P1.1 P1.2 P1.3 SCL

45 I/O 46 I/O 47 I/O 48 I/O 49 I

input/output for general use

I2C-bus Serial Clock input from application

SSA

via a capacitor

DDP

SSA

SDA P1.4 P1.5

50 I/O 51 I/O 52 I/O

I2C-bus Serial Data input from (application)

input/output for general use

12.5.

LM317

12.5.1. General Description

The LM117/LM217/LM317 are monolithic integrated circuit in TO-220, ISOWATT220, TO-3 and D

PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5A of load current with an output voltage adjustable over a

1.2 to 37V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.

12.5.2. Features

• Output voltage range : 1.2 To 37V

• Output current In excess of 1.5A

• 0.1% Line and Load Regulation

• Floating Operation for High Voltages

• Complete Series of Protections : Current Limiting, Thermal Shutdown And Soa Control

12.6.

ST24LC21

12.6.1. Description

The ST24LC21 is a 1K bit electrically erasable programmable memory (EEPROM), organized by 8 bits. This device can operate in two modes: Transmit Only mode and I the device is in Transmit Only mode with EEPROM data clocked out from the rising edge of the signal applied on VCLK. The device will switch to the I

C bidirectional mode upon the falling edge of the signal

applied on SCL pin. The ST24LC21 can not switch from the I

C bidirectional mode. When powered,

C bidirectional mode to the Transmit Only

mode (except when the power supply is removed). The device operates with a power supply value as

low as 2.5V. Both Plastic Dual-in-Line and Plastic Small Outline packages are available.

12.6.2. Features

• 1 million Erase/Write cycles

• 40 years data retention

• 2.5V To 5.5V single supply voltage

• 400k Hz compatibility over the full range of supply voltage

• Two wire serial interface I

C bus compatible

• Page Write (Up To 8 Bytes)

• Byte, random and sequential read modes

• Self timed programming cycle

• Automatic address incrementing

• Enhanced ESD/Latch up

• Performances

12.6.3. Pin connections

DIP Pin connections CO Pin connections

NC: Not connected

Signal names

SDA Serial data Address Input/Output SCL Serial Clock (I2C mode) Vcc Supply voltage Vss Ground VCLK Clock transmit only mode

12.7.

TLC7733

12.7.1. Description

The TLC77xx family of micropower supply voltage supervisors are designed for reset control, primarily in microcomputer and microprocessor systems. During power-on, RESET is asserted when V

reaches 1 V. After minimum V

(. 2 V) is established,

the circuit monitors SENSE voltage and keeps the reset outputs active as long as SENSE voltage (V

I(SENSE)

)

remains below the threshold voltage. An internal timer delays return of the output to the inactive state to ensure proper system reset. The delay time, t t

= 2.1 x 10 4 x CT

, is determined by an external capacitor:

where C

is in farads

is in seconds

The TLC77xx has a fixed SENSE threshold voltage set by an internal voltage divider. When SENSE voltage drops below the threshold voltage, the outputs become active and stay in that state until SENSE voltage returns above threshold voltage and the delay time, t

, has expired.

In addition to the power-on-reset and undervoltage-supervisor function, the TLC77xx adds power-down control support for static RAM. When CONTROL is tied to GND, RESET will act as active high. The voltage monitor contains additional logic intended for control of static memories with battery backup during power failure. By driving the chip select (CS) of the memory circuit with the RESET output of the TLC77xx and with the CONTROL driven by the memory bank select signal (CSH1) of the microprocessor (see Figure 10), the memory circuit is automatically disabled during a power loss. (In this application the TLC77xx power has to be supplied by the battery.) The TLC77xxQ is characterized for operation over a temperature range of –40°C to 125°C, and the TLC77xxI is characterized for operation over a temperature range of –40°C to 85°C.

12.8.

74LVC257A

12.8.1. Features

Wide supply voltage range of 1.2 to 3.6 V In accordance with JEDEC standard no. 8-1A CMOS lower power consumption Direct interface with TTL levels Output drive capability 50 _ transmission lines at 85°C 5 Volt tolerant inputs/outputs, for interfacing with 5 Volt logic

12.8.2. Description

The 74LVC257A is a high-performance, low-power, low-voltage, Si-gate CMOS device and superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3V or 5.0V devices. In 3-State operation, outputs can handle 5V. This feature allows the use of these devices as translators in a mixed 3.3V/5V environment. The 74LVC257A is a quad 2-input multiplexer with 3-state outputs, which select 4 bits of data from two sources and are controlled by a common data select input (S). The data inputs from source 0 (1l 0 to 4l 0 ) are selected when input S is LOW and the data inputs from source 1 (1l 1 to 4l 1 ) are selected when S in HIGH. Data appears at the outputs (1Y to 4Y) in true (non-inverting) form from the selected inputs. The 74LVC257A is the logic implementation of a 4-pole, 2-position switch, where the position of the switch is determined by the logic levels applied to S. The outputs are forced to a high impedance OFF-state when OE is HIGH.

12.8.3. Pin Description

PIN NUMBER SYMBOL DESCRIPTION

1 S Common data select input 2, 5, 11, 14 3, 6, 10, 13

1| 1|

to 4|

Data inputs from source 0

Data outputs from source 1

4,7,9,12 1Y to 4Y 3-State multiplexer outputs 8 GND Ground (0V) 15 OE 3-State output enable input (active LOW) 16 Vcc Positive supply voltage

12.9. 74LVC14A

12.9.1. Features

• Wide supply voltage range of 1.2 to 3.6 V

• In accordance with JEDEC standard no. 8-1A

• Inputs accept voltages up to 5.5 V

• CMOS low power consumption

• Direct interface with TTL levels

12.9.2. Applications

• Wave and pulse shapers for highly noisy environments

• Astable multivibrators

• Monostable multivibrators

12.9.3. Description

The 74LVC14A is a high-performance, low power, low-voltage Si-gate CMOS device and superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V environment. The 74LVC14A provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

12.9.4. Pin Description

PIN NUMBER SYMBOL DESCRIPTION

1, 3, 5, 9, 11, 13 1A – 6A Data inputs 2, 4, 6, 8, 10, 12 1Y – 6Y Data outputs 7 GND Ground (0V) 14 Vcc Positive supply voltage

12.10. LM1117

12.10.1. General Description

The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to as-sure output voltage accuracy to within ±1%. The LM1117 series is available in SOT223, TO-220, and TO-252 D-PAK packages. A minimum of 10µF tantalum capacitor is required at the

output to improve the transient response and stability.

12.10.2. Features

• Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions

• Space Saving SOT-223 Package

• Current Limiting and Thermal Protection

• Output Current 800mA

• Line Regulation 0.2% (Max)

• Load Regulation 0.4% (Max)

• Temperature Range — LM1117 0°C to 125°C

— LM1117I -40°C to 125°C

12.10.3. Applications

• 2.85V Model for SCSI-2 Active Termination

• Post Regulator for Switching DC/DC Converter

• High Efficiency Linear Regulators

• Battery Charger

• Battery Powered Instrumentation

12.10.4. Connection Diagrams

SOT-23

Top View

10091904

TO-220

10091902

Top View

TO-252

Top View

10091938

12.11.

IRF7314- IRF7316

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

The SO-8 has been modified through a customized leadframe for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering techniques.

IRF7314 IRF7316

Absolute Maximum Ratings ( TA = 25°C Unless Otherwise Noted) (IRF7314)

Drain-Source Voltage VDS -20 Gate-Source Voltage VGS ± 12

Continuous Drain Current

Pulsed Drain Current

Continuous Source Current (Diode Conduction) IS -2.5

Maximum Power Dissipation

Single Pulse Avalanche Energy EAS 150 mJ Avalanche Current

Repetitive Avalanche Energy EAR 0.20 mJ Peak Diode Recovery dv/dt dv/dt -5.0 V/ ns

Junction and Storage Temperature Range TJ, TSTG -55 to + 150 °C

TA= 25°C -5.3

TA= 70°C

TA= 25°C

Symbol Maximum Units

�

P�

-4.3

-21

2.0

1.3

-2.9 A

Absolute Maximum Ratings ( TA = 25°C Unless Otherwise Noted) (IRF7316)

Drain-Source Voltage VDS -30 Gate-Source Voltage

Continuous Drain Current

Pulsed Drain Current

Continuous Source Current (Diode Conduction) IS -2.5

Maximum Power Dissipation

Single Pulse Avalanche Energy EAS 140 mJ Avalanche Current

Repetitive Avalanche Energy Peak Diode Recovery dv/dt dv/dt -5.0 V/ ns

TA= 25°C

TA= 70°C

TA= 25°C 2.0

TA= 70°C

Symbol Maximum Units

�

± 20

-4.9

-3.9

-30

1.3

-2.8 A

0.20 mJ

Junction and Storage Temperature Range TJ, TSTG -55 to + 150 °C

12.12.

MC34063A

1.5 A, Step-Up/Down/Inverting Switching Regulators

The MC34063A Series is a monolithic control circuit containing the primary functions required for DCtoDC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in StepDown and StepUp and VoltageInverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.

Features:

• Operation from 3.0 V to 40 V Input

• Low Standby Current

• Current Limiting

• Output Switch Current to 1.5 A

• Output Voltage Adjustable

• Frequency Operation to 100 kHz

• Precision 2% Reference

• PbFree Packages are Available

12.13.

LM2576- 52kHz Simple 3A Buck Regulator

General Description

The LM2576 series of monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, or 12V fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving a 3A load with excellent line and load regulation. These regulators are simple to use because they require a minimum number of external components and include internal frequency compensation and a fixed-frequency oscillator. The LM2576 series offers a high efficiency replacement for popular three-terminal adjustable linear regulators. It substantially reduces the size of the heat sink, and in many cases no heat sink is required. A standard series of inductors available from several different manufacturers are ideal for use with the LM2576 series. This feature greatly simplifies the design of switch-mode power supplies. The feedback voltage is guaranteed to ±2% tolerance for adjustable versions, and the output voltage is guaranteed to ±3% for fixed versions, within specified input voltages and output load conditions. The oscillator frequency is guaranteed to ±10%. External shutdown is included, featuring less than 200⎧A standby current. The output switch includes cyclebycycle current limiting and thermal shutdown for full protection under fault conditions.

Features

• 3.3V, 5V, 12V, and adjustable output versions

• Voltage over specified line and load conditions: Fixed version: ±3% max. output voltage Adjustable version: ±2% max. feedback voltage

• Guaranteed 3A output current

• Wide input voltage range: 4V to 40V

• Wide output voltage range

1.23V to 37V

• Requires only 4 external components

• 52kHz fixed frequency internal oscillator

• Low power standby mode I

• 80% efficiency (adjustable version typically > 80%)

• Uses readily available standard inductors

• Thermal shutdown and current limit protection

• 100% electrical thermal limit burn-in

Q typically < 200⎧A

Pin Configurations

12.14.

The DS90C385 transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and transmitted. At a transmit clock frequency of 85 MHz, 24 bits of RGB data and 3 bits of LCD timing and control data (FPLINE, FPFRAME, DRDY) are transmitted at a rate of 595 Mbps per LVDS data channel. Using an 85 MHz clock, the data throughput is 297.5 Mbytes/sec. Also available is the DS90C365 that converts 21 bits of LVCMOS/LVTTL data into three LVDS (Low Voltage Differential Signaling) data streams. Both transmitters can be programmed for Rising edge strobe or falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe Receiver (DS90CF386/DS90CF366) without any translation logic. The DS90C385 is also offered in a 64 ball, 0.8mm fine pitch ball grid array (FBGA) package which provides a 44 % reduction in PCB footprint compared to the TSSOP package. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces.

• 20 to 85 MHz shift clock support

• Best–in–Class Set & Hold Times on TxINPUTs

• Tx power consumption <130 mW (typ) @85MHz Grayscale

• Tx Power-down mode <200µW (max)

• Supports VGA, SVGA, XGA and Dual Pixel SXGA.

• Narrow bus reduces cable size and cost

DS90C385

12.14.1. General Description

12.14.2.

Features

• Up to 2.38 Gbps throughput

• Up to 297.5 Megabytes/sec bandwidth

• 345 mV (typ) swing LVDS devices for low EMI

• PLL requires no external components

• Compatible with TIA/EIA-644 LVDS standard

• Low profile 56-lead or 48-lead TSSOP package

• DS90C385 also available in a 64 ball, 0.8mm fine pitch ball grid array (FBGA) package

12.14.3.

Pin Description

DS90C385 MTD56 (TSSOP) Package Pin Description-FPD Link Transmitter Pin Name I/O No. Description

TxIN

TxOUT+ TxOUT- TxCLKIN R_FB TxCLK OUT+ TxCLK OUT- PWR DOWN

Vcc GND PLL Vcc PLL GND LVDS Vcc LVDS GND

I 28

O 4 O 4 I 1 I 1 O 1 O 1 I 1

I 3 I 4 I 1 I 2 I 1 I 3

TTL level input. This includes: 8 Red, 8 Green, 8 Blue, and 4 control lines —FPLINE, FPFRAME and DRDY (also referred to as HSYNC, VSYNC, Data Enable). Positive LVDS differentiaI data output.

Negative LVDS differential data output. TTL Ievel clock input. Pin name TxCLK IN.

Programmable strobe select Positive LVDS differential clock output.

Negative LVDS differential clock output. TTL level input. Assertion (low input) TRI-STATES the outputs, ensuring low current at

power down. Power supply pins for TTL inputs.

Ground pins for TTL inputs.

Power supply pin for PLL. Ground pins for PLL. Power supply pin for LVDS outputs.

Ground pins for LVDS outputs.

12.15.

MSP34X1G

MSP3411G

Multistandard Sound Processor Family

12.15.1.

Introduction

The MSP 34x1G family of single-chip Multistandard Sound Processors covers the sound processing of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on a single chip. Figure shows a simplified functional block diagram of the MSP 34x1G. The MSP 34x1G has all functions of the MSP 34x0G with the addition of a virtual surround sound feature. Surround sound can be reproduced to a certain extent with two loudspeakers. The MSP 34x1G includes the Micronas virtualizer algorithm “3D-PANORAMA” which has been approved by the Dolby

Laboratories for with the "Virtual Dolby Surround" technology. In addition, the MSP 34x1G includes the “PAN-ORAMA” algorithm. These TV sound processing ICs include versions for processing the multichannel television sound (MTS) signal conforming to the standard recommended by the Broadcast Television Systems Committee (BTSC). The DBX noise reduction, or alternatively, Micronas Noise Reduction (MNR) is performed alignment free. Other processed standards are the Japanese FM-FM multiplex standard (EIA-J) and the FM Stereo Radio standard. Current ICs have to perform adjustment procedures in order to achieve good stereo separation for BTSC and EIA-J. The MSP 34x1G has optimum stereo performance without any adjustments. The MSP 34x1G has built-in automatic functions: The IC is able to detect the actual sound standard automat-ically (Automatic Standard Detection). Furthermore, pilot levels and identification signals can be evaluated internally with subsequent switching between mono/stereo/bilingual; no I

2 C interaction is

necessary (Automatic Sound Selection).

Source Select

S bus interface consists of five pins:

1. I

S_DA_IN1, I2S_DA_IN2: For input, four channels (two channels per line, 2*16 bits) per sampling

cycle (32 kHz) are transmitted.

2. I

S _DA_OUT: For output, two channels (2*16 bits) per sampling cycle (32 kHz) are transmitted.

3. I

S _CL: Gives the timing for the transmission of I2S serial data (1.024 MHz).

4. I

S _WS: The I2S _WS word strobe line defines the left and right sample.

12.15.2.

Features

• 3D-PANORAMA virtualizer (approved by Dolby Laboratories) with noise generator

• PANORAMA virtualizer algorithm

• Standard Selection with single I

C transmission

• Automatic Sound Selection (mono/stereo/bilingual),

• Automatic Carrier Mute function

• Interrupt output programmable (indicating status change)

• Loudspeaker / Headphone channel with volume, balance, bass, treble, loudness

• AVC: Automatic Volume Correction

• Subwoofer output with programmable low-pass and complementary high-pass filter

• 5-band graphic equalizer for loudspeaker channel

• Spatial effect for loudspeaker channel, processing of all deemphasis filtering

• Two selectable sound IF (SIF) inputs

• Four Stereo SCART (line) inputs, one Mono input; two Stereo SCART outputs

• Complete SCART in/out switching matrix

• Two I

S inputs; one I2S output

• Automatic Standard Detection of terrestrial TV standards

• Demodulation of the BTSC multiplex signal and the SAP channel

• Alignment free digital DBX noise reduction

• BTSC stereo separation (MSP 3441G also EIA-J) significantly better than specification

• SAP and stereo detection for BTSC system

• Demodulation of the FM-Radio multiplex signal

12.15.3.

Pin connections

NC = not connected; leave vacant LV = if not used, leave vacant OBL = obligatory; connect as described in circuit diagram DVSS: if not used, connect to DVSS AHVSS: connect to AHVSS

Pin No. Pin Name Type

PLCC 68-pin

1 16 14 9 8 ADR_WS OUT LV ADR word strobe 2 - - - - NC LV Not connected 3 15 13 8 7 ADR_DA OUT LV ADR Data Output 4 14 12 7 6 I2S_DA_IN1 IN LV I2S1 data input 5 13 11 6 5 I2S_DA_OUT OUT LV I2S data output 6 12 10 5 4 I2S_WS IN/OUT LV I2S word strobe 7 11 9 4 3 I2S_CL IN/OUT LV I2S clock 8 10 8 3 2 I2C_DA IN/OUT OBL I2C data 9 9 7 2 1 I2C_CL IN/OUT OBL I2C clock 10 8 - 1 64 NC LV Not connected 11 7 6 80 63 STANDBYQ IN OBL Stand-by (low-active) 12 6 5 79 62 ADR_SEL IN OBL I2C bus address select 13 5 4 78 61 D_CTR_I/O_0 IN/OUT LV D_CTR_I/O_0 14 4 3 77 60 D_CTR_I/O_1 IN/OUT LV D_CTR_I/O_1 15 3 - 76 59 NC LV Not connected 16 2 - 75 58 NC LV Not connected 17 - - - - NC LV Not connected

18 1 2 74 57 AUD_CL_OUT OUT LV

19 64 1 73 56 TP LV Test pin 20 63 52 72 55 XTAL_OUT OUT OBL Crystal oscillator 21 62 51 71 54 XTAL_IN IN OBL Crystal oscillator 22 61 50 70 53 TESTEN IN OBL Test pin

23 60 49 69 52 ANA_IN2+ IN

24 59 48 68 51 ANA_IN- IN

25 58 47 67 50 ANA_IN1+ IN LV IF input 1

PSDIP 64-pin

PSDIP 52-pin

PQFP 80-pin

PLQFP 64-pin

Connection (if not used)

AVSS via 56 pF/LV

Short Description

Audio clock output (18.432 MHz)

IF Input 2 (can be left vacant, only if IF input 1 is also not in use) IF common (can be left vacant, only if IF input 1 is also not in use)

26 57 46 66 49 AVSUP OBL Analog power supply 5V

- - - 65 - AVSUP OBL Analog power supply 5V

- - - 64 - NC LV Not connected

- - - 63 - NC LV Not connected 27 56 45 62 48 AVSS OBL Analog ground

- - - 61 - AVSS OBL Analog ground 28 55 44 60 47 MONO_IN IN LV Mono input

- - - 59 - NC LV Not connected

29 54 43 58 46 VREFTOP OBL

30 53 42 57 45 SC1_IN_R IN LV SCART 1 input, right 31 52 41 56 44 SC1_IN_L IN LV SCART 1 input, left 32 51 - 55 43 ASG1 AHVSS Analog Shield Ground 1 33 50 40 54 42 SC2_IN_R IN LV SCART 2 input, right 34 49 39 53 41 SC2_IN_L IN LV SCART 2 input, left 35 48 - 52 40 ASG2 AHVSS Analog Shield Ground 2 36 47 38 51 39 SC3_IN_R IN LV SCART 3 input, right 37 46 37 50 38 SC3_IN_L IN LV SCART 3 input, left 38 45 - 49 37 ASG4 AHVSS Analog Shield Ground 4 39 44 - 48 36 SC4_IN_R IN LV SCART 4 input, right 40 43 - 47 35 SC4_IN_L IN LV SCART 4 input, left 41 - - 46 - NC LV or AHVSS Not connected 42 42 36 45 34 AGNDC OBL Analog reference voltage 43 41 35 44 33 AHVSS OBL Analog ground

- - - 43 - AHVSS OBL Analog ground

- - - 42 - NC LV Not connected

- - - 41 - NC LV Not connected 44 40 34 40 32 CAPL_M OBL Volume capacitor MAIN 45 39 33 39 31 AHVSUP OBL Analog power supply 8V 46 38 32 38 30 CAPL_A OBL Volume capacitor AUX 47 37 31 37 29 SC1_OUT_L OUT LV SCART output 1, left 48 36 30 36 28 SC1_OUT_R OUT LV SCART output 1, right 49 35 29 35 27 VREF1 OBL Reference ground 1 50 34 28 34 26 SC2_OUT_L OUT LV SCART output 2, left 51 33 27 33 25 SC2_OUT_R OUT LV SCART output 2, right 52 - - 32 - NC LV Not connected 53 32 - 31 24 NC LV Not connected 54 31 26 30 23 DACM_SUB OUT LV Subwoofer output 55 30 - 29 22 NC LV Not connected 56 29 25 28 21 DACM_L OUT LV Loudspeaker out, left 57 28 24 27 20 DACM_R OUT LV Loudspeaker out, right 58 27 23 26 19 VREF2 OBL Reference ground 2 59 26 22 25 18 DACA_L OUT LV Headphone out, left 60 25 21 24 17 DACA_R OUT LV Headphone out, right

- - - 23 - NC LV Not connected

- - - 22 - NC LV Not connected 61 24 20 21 16 RESETQ IN OBL Power-on-reset 62 23 - 20 15 NC LV Not connected 63 22 - 19 14 NC LV Not connected 64 21 19 18 13 NC LV Not connected 65 20 18 17 12 I2S_DA_IN2 IN LV I2S2-data input 66 19 17 16 11 DVSS OBL Digital ground

- - - 15 - DVSS OBL Digital ground

- - - 14 - DVSS OBL Digital ground 67 18 16 13 10 DVSUP OBL Digital power supply 5V

- - - 12 - DVSUP OBL Digital power supply 5V

- - - 11 - DVSUP OBL Digital power supply 5V 68 17 15 10 9 ADR_CL OUT LV ADR clock

Reference voltage IF A/D converter

+ 54 hidden pages
