RB385N4EW1
2
Safety and warning information_ _ _ _ _ 2
Installing your new appliance_ _ _ _ _ _

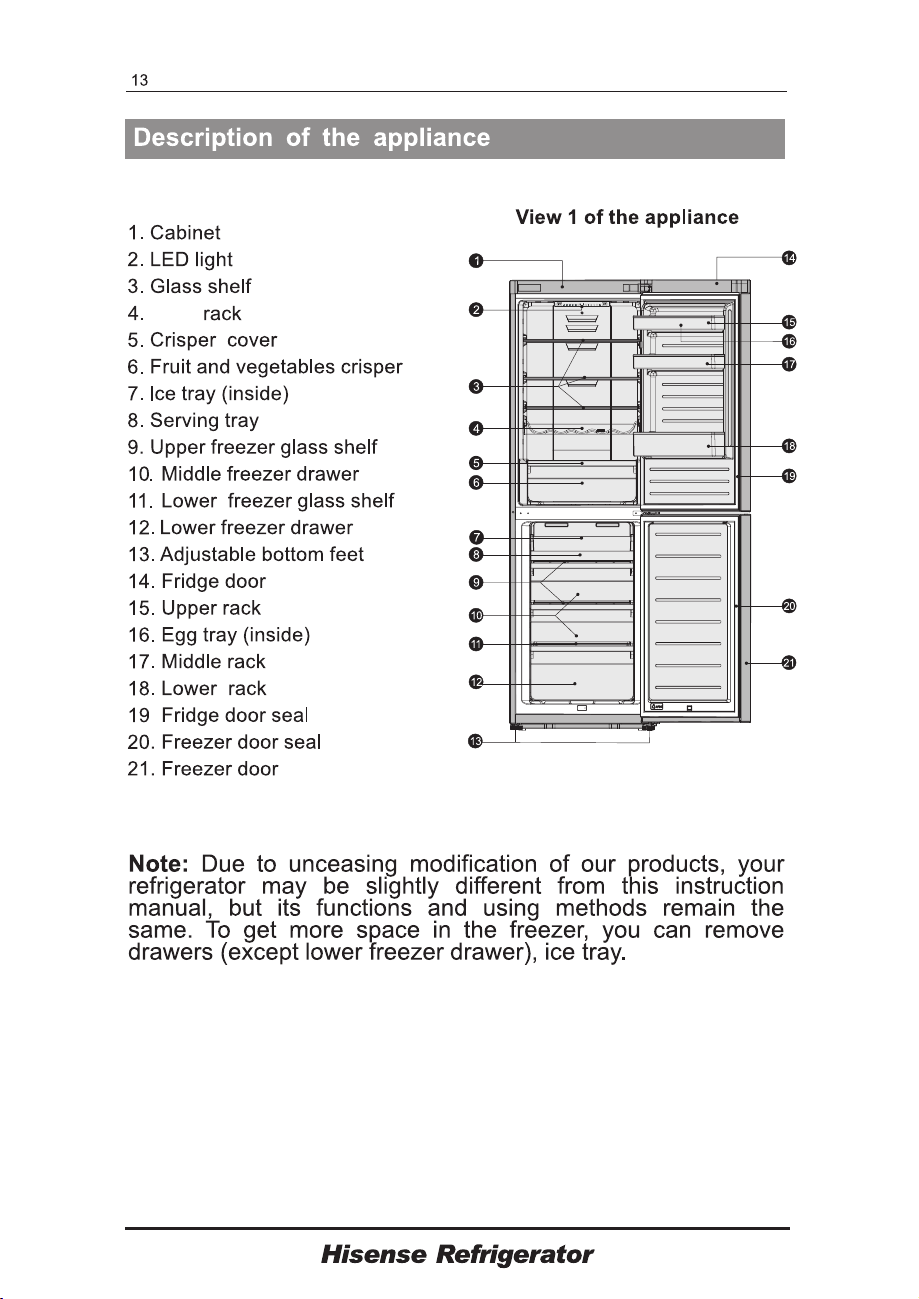

Description of the appliance _ _ _ _ _ _
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _
Using your appliance _ _ _ _ _ _ _ _ _ _
This appliance is in accordance with the following EU guidelines:
and and 2009/125/EC and EC.643/2009 and 2002/96/EC
2014/30/EU
8
13
14
16
For your safety and
correct usage, before
installing and first using
the appliance, read this
user manual carefully,
including its hints and
warnings.
To avoid unnecessary
mistakes and accidents, it
is important to make sure
that all people using the
appliance are thoroughly
familiar with its operation
and safety features.
Save these instructions
and be sure that they
remain with the appliance
if it is moved or sold, so
that anyone, using it
throughout its life, will be
properly informed on
usage and safety notices.
For the safety of life and
property, keep the
precautions of these user's
instructions as the
manufacturer is not
Helpful and hints and tips _ _ _ _ _ _ _
Cleaning and care _ _ _ _ _ _ _ _ _ _ _
Troubleshooting_ _ _ _ _ _ _ _ _ _ _ _ _
Disposal of the appliance_ _ _ _ _ _ _ _
2014/35/EU
16
18
20
22
responsible for damages
caused by omission.
Safety for children and others
who are vulnerable people
This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or
mental capabilities or lack
of experience and
knowledge if they have
been given supervision or
instruction concerning
use of the appliance in a
safe way and understand
the hazards involved.
Children shall not play
with the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
Keep all packaging away
from children as there is
risk of suffocation.
Hisense Refrigerator
3
If you are discarding the
appliance, pull the plug
out of the socket, cut the
connection cable (as
close to the appliance as
you can) and remove the
door to prevent children
playing from suffering an
electric shock or from
closing themselves inside
it.
If this appliance, featuring
a magnetic door seals, is
to replace an older
appliance having a spring
lock (latch) on the door or
lid, be sure to make the
spring lock unusable
before you discard the old
appliance. This will
prevent it from becoming
a death trap for a child.
General safety
WARNING - This
appliance is intended
to be used in household
and similar applications
such as
-staff kitchen areas in
shops, offices and other
working environments;
-farm houses and by
clients in hotels, motels
and other residential type
environments;
-bed and breakfast type
environments;
-catering and similar nonretail applications
WARNING - Do not store
explosive substances
such as aerosol cans with
a flammable propellant in
this appliance.
WARNING - If the supply
cord is damaged, it must
be replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid
a hazard.
WARNING - Keep
ventilation openings, in
the appliance enclosure
or in the built-in structure,
clear of obstruction.
WARNING - Do not use
mechanical devices or
other means to accelerate
the defrosting process,
other than those
recommended by the
manufacturer.
WARNING - Do not
damage the refrigerant
circuit.
WARNING - Do not use
electrical appliances
inside the food storage
compartments of the
appliance, unless they are
of the type recommended
by the manufacturer.
WARNING - The
refrigerant and insulation
Hisense Refrigerator
4
blowing gas are
flammable.
When disposing of the
appliance, do so only at
an authorized waste
disposal centre. Do not
expose to flame.
Refrigerant
The refrigerant isobutene
(R600a) is contained
within the refrigerant
circuit of the appliance, a
natural gas with a high
level of environmental
compatibility, which is
nevertheless flammable.
During transportation and
installation of the
appliance, ensure that
none of the components
of the refrigerant circuit
becomes damaged.
The refrigerant (R600a) is
flammable.
Caution:risk of fire
If the refrigerant circuit
should be damaged:
-Avoid opening flames
and sources of ignition.
-Thoroughly ventilate the
room in which the
appliance is situated.
It is dangerous to alter
the specifications or
modify this product in any
way.
Any damage to the cord
may cause a shortcircuit,
fire, and/or electric shock.
Electrical safety
1.The power cord must
not be lengthened.
2. Make sure that the
power plug is not crushed
or damaged. A crushed or
damaged power plug may
overheat and cause a
fire.
3. Make sure that you can
access the main plug of
the appliance.
4. Do not pull the main
cable.
5. If the power plug
socket is loose, do not
insert the power plug.
There is a risk of electric
shock or fire.
6.You must not operate
the appliance without the
interior lighting lamp
cover.
7.The fridge is only
applied with power supply
of single phase
alternating current of
220~240V/50Hz. If
fluctuation of voltage in
the district of user is so
large that the voltage
exceeds the above
scope, for safety sake, be
Hisense Refrigerator
5
sure to apply A.C.
Automatic voltage
regulator of more than
350W to the fridge. The
fridge must employ a
special power socket
instead of common one
with other electric
appliances. Its plug must
match the socket with
ground wire.
Daily use
Do not store flammable
gass or liquids in the
appliance,There is a risk of
an explosion.
Do not operate any
electrical appliances in the
appliance(e.g.electric ice
cream makers,mixers
etc.).
When unplugging always
pull the plug from the
mains socket,do not pull
on the cable.
Do not place hot items
near the plastic
components of this
appliance.
Do not place food products
directly against the air
outlet on the rear wall.
Store pre-packed frozen
food in accordance with the
frozen food manufacture’s
instructions.
The appliances
manufactures storage
recommendations
should be strictly adhered
to.Refer to relevant
instructions for storage.
Do not place carbonated
or fizzy drinks in the
freeze compartment as it
creates pressure on the
container, which may
cause it to explode,
resulting in damage to the
appliance.
Frozen food can cause
frost burns if consumed
straight from the freezer
compartment.
Do not place the
appliance in direct
sunlight.
Keep burning candles,
lamps and other items
with naked flames away
from the appliance so that
do not set the appliance
on fire.
The appliance is intended
for keeping food stuff
and/or beverages in
normal household as
explained in this
instruction booklet The
appliance is heavy.Care
should be taken when
moving it.
Do not remove or touch
items from the freezer
compartment if your
Hisense Refrigerator
6
hands are damp/wet,as
this could cause skin
abrasions or frost/freezer
burns.
Never use the base,
drawers, doors etc. to
stand on or as supports.
Frozen food must not be
refrozen once it has been
thawed out.
Do not consume ice
popsicles or ice cubes
straight from the freezer
as this can cause freezer
burn to the mouth and
lips.
To avoid items falling and
causing injury or damage
to the appliance, do not
overload the door racks
or put too much food in
the crisper drawers.
caution!
Care and cleaning
Before maintenance,
switch off the appliance
and disconnect the mains
plug from the mains
socket.
Do not clean the
appliance with metal
objects, steam cleaner,
ethereal oils, organic
solvents or abrasive
cleansers.
Do not use sharp objects
to remove frost from the
appliance. Use a plastic
scraper.
Installation Important!
For electrical connection
carefully, follow the
instructions given in this
manual.
Unpack the appliance and
check if there are
damages on it. Do not
connect the appliance if it
is damaged. Report
possible damages
immediately to the place
you bought it. In this case
retain packing.
It is advisable to wait at
least four hours before
connecting the appliance
to allow the oil to flow
back in the compressor.
Adequate air circulation
should be around the
appliance, lacking this
leads to overheating. To
achieve sufficient
ventilation, follow the
instructions relevant to
installation.
Wherever possible the
back of the product
should not be close to a
wall to avoid touching or
catching warm parts
(compressor, condenser)
to prevent the risk of a
fire, follow the instructions
Hisense Refrigerator
7
relevant to installation.
The appliance must not
be locate close to
radiators or cookers.
Make sure that the mains
plug is accessible after
the installation of the
appliance.
Service
Any electrical work
required to do the
servicing of the appliance
should be carried out by
qualified electrician or
competent person.
This product must be
serviced by an authorized
Service Center, and only
genuine spare parts must
be used.
1)If the appliance is Frost
Free.
2)If the appliance
contains freezer
compartment.
Hisense Refrigerator
8
Installing your new appliance
Before using the appliance
for the first time, you should
be informed of the following
tips.
Ventilation of appliance
Note:
●
This appliance performs
well within the climate class
from SN to T showed in the
table below.
It may not work properly if
In order to improve
efficiency of the cooling
system and save energy, it
is necessary to maintain
good ventilation around the
appliance for the dissipation
of heat. For this reason,
sufficient clear space
should be available around
the refrigerator.
Suggest :It is advisable for
there to be at least 75mm of
space from the back to the
wall, at least 100mm from its
top,at last 100mm from its
side to the wall and a clear
space in front to allow the
doors to open 130°. As
shown in following diagrams.
being left at a temperature
above or below the
indicated range for a long
period.
Climate class
SN
N
ST
T
●
Stand your appliance in a
Ambient temperature
dry place to avoid high
moisture.
●
Keep the appliance out of
direct sunlight rain or frost.
Stand the appliance away
from heat sources such as
stoves, fires or heaters.
Leveling of appliance
130
。
956
100
●
For sufficient leveling and
7
6
2
1
air circulating in the lower
rear section of the
appliance, the bottom feet
may need to be adjusted.
100
100
75
.5
2
2
7
0
10
You can adjust them
manually by hand or by
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
+16°C to +43°C
Hisense Refrigerator
① Upper cover
c
o
l
⑤ B
k C
⑥ Right upper hinge part
r
ve
o
② Corner cover
③ Right Hinge Cover
④ Hinge Cover
3. Remove the 2 screws
which are used for fixing
the right upper hinge part ⑥
(see the picture above).
Caution! Please hold the
upper door by hand during
step 3 to prevent door
dropping.
10
Place the upper door on
5.
a smooth surface with its
panel upwards. Loose
screw ④ and part ③,
then loose screw ② and
part ①. Install another
stop block (in the plastic
bag) to the left side with
screw ②, then install part
③ with screw ④. Keep
part ① into the plastic bag
with the appliance for future
reference.
① Door holder
② Self-tapping screw
③ Stop block
④ Self-tapping screw
①
②
③
④
4. Remove the upper door
from the middle hinge by
carefully lifting the door
straight up.
Hisense Refrigerator
6. Loose screws used to fix
the middle hinge and
remove middle hinge. Then
remove the lower door.
11
7. Place the lower door on a
smooth surface with its
panel upwards. Loose
screw ④ and part ③,
then loose screw ② and
part ①. Turn part ① by
°
180 and install it with screw
②, then install part ③
with screw ④.
① Door holder
② Self-tapping screw
③ Stop block
④ Self-tapping screw
①
②
③
④
8. Change screw hole
covers on middle cover
plate from left to right (as
shown in figure below).
9. Place refrigerator
flatwise, remove part③and
then loose screws④.
Remove part ②and part①.
①
②
③
④
① Low er hing e part (r ight)
② Fro nt foot f ixed bo ard
③ Adju stabl e botto m feet pa rt
④ Sel f-tap ping sc rews
was her
Note: wa sher may
stick to l ower door
10. Screw out the lower
hinge axis, change it to
the near hole site, and
then screw up it and the
mount washer (see the
picture above).
11. Just remount to the step
9, change part ① to left
and part ② to right and
then fix them with screws ④.
Finally install part ③.
Lower hinge part (left)
12. Move the lower door
and adjust its position to
align lower hole site and
upper hinge axis. Turn the
Hisense Refrigerator
12
middle hinge by 180°,
change the washer on the
axis to the upper side,
adjust the middle hinge to
the appropriate position and
then install it.
Note: washer may
stick to lower door.
was her
13. Screw out the upper
hinge axis①, turn the upper
hinge over and fix the
②
axis on it.
Caution! Fix the axis until
its top come to the
underside of the upper
hinge.
14. Move the upper door
to an appropriate position,
adjust upper hinge and
upper door, then fix the
hinge axis into the hinge
front the top down.
(Please hold upper door
by hand when installing)
15. Assemble the cover to
match the hinge.
① Upper H in ge Axis
② Upper H in ge
Under side of t he uppe r hinge
Top of th e axi s
Hisense Refrigerator
Wine
15
2. Freezer
Press the middle part of
button to set fridge
temperature between -16℃
and -24℃ as needed, and
control panel will display
corresponding figures
according to the following
sequence.
-16
-18
-24
-20
-22
3. Super Freeze
Super Freeze will
quickly lower the
temperature within
the freezer so food will
freeze vitamins and faster.
This can lock in the
nutrients of fresh food and
keep food fresh longer.
●
Press the middle part of
button for 3 seconds to
activate the super freeze
function. The light will
come on.
●
Super freeze automatically
switches off after 26 hours .
●
When super freeze function
is on, you can switch off
super freeze function by
pressing the middle part of
button and the freezer
temperature setting will
revert back to the previous
setting.
4. Holiday
If you are going to
be away for a long
period of time, you
can activate this function by
pressing the middle part of
button for 3 seconds
until the light comes on.
●
When the holiday function is
activated, the temperature
of the refrigerator is
automatically switched to
15℃ to minimize the
energy consumption.
Important! Do not store any
food in the fridge during this
time.
●
When the holiday function is
on, you can switch it off by
pressing the middle part of
button. The fridge
temperature setting will
revert back to the previous
setting.
Hisense Refrigerator
16
Using your appliance
Your appliance has the accessories as the "Description of
the appliance”showed in general, with this part instruction
you can have the right way to use them.
Door rack
●
It is suitable for the storage
of eggs, canned liquid,
bottled drinks and packed
food, etc. Do not place too
many heavy things in the
Shelf in Refrigerator
chamber
●
There are shelves in
refrigerator chamber, and
they can be taken out to be
cleaned.
racks.
Helpful hints and tips
●
Energy saving tips
We recommend that you
follow the tips below to save
energy.
●
Try to avoid keeping the
door open for long periods
in order to conserve energy.
●
Ensure the appliance is
away from any sources of
heat (Direct sunlight,
electric oven or cooker
●
etc).
Don't set the temperature
colder than necessary.
Don't store warm food or
evaporating liquid in the
appliance.
●
Place the appliance in a
well ventilated, humidity
free, room. Please refer to
Installing your new
appliance chapter.
●
If the diagram shows the
correct combination for the
drawers, crisper and
shelves, do not adjust the
combination as this is
designed to be the most
Hisense Refrigerator
17
energy efficient configuration.
Hints for fresh food
refrigeration
●
Do not place hot food
directly into the refrigerator
or freezer, the internal
temperature will increase
resulting in the compressor
having to work harder and
will consume more energy.
●
Do cover or wrap the food,
articularly if it has a strong
flavor.
●
Place food properly so that
air can circulate freely
around it.
Hints for refrigeration
●
Meat (All Types) Wrap in
polythene food: wrap and
place on the glass shelf
above the vegetable
drawer. Always follow food
storage times and use by
dates suggested by
manufacturers.
●
Cooked food, cold dishes,
etc.:
They should be covered
and may be placed on any
shelf.
●
Fruit and vegetables:
They should be stored in
the special drawer provided.
●
Butter and cheese:
Sh oul d be w rap ped i n
airtight
foil or plastic film
wrap.
●
Milk bottles:
Should have a lid and be
stored in the door racks.
Hints for freezing
●
When first starting-up or
after a period out of use, let
the appliance run at least 2
hours on the higher settings
before putting food in the
compartment.
●
Prepare food in small
portions to enable it to be
rapidly and completely
frozen and to make it
possible to subsequently
thaw only the quantity
required.
●
Wrap up the food In aluminum
foil or polyethylene food wraps
which are airtight.
●
Do not allow fresh，
unfrozen food to touch the
food which is already frozen
to avoid temperature rise of
the latter.
●
Iced products, if consumed
immediately after removal
from the freezer compartment,
will probably cause frost burns
to the skin.
Hisense Refrigerator
●
It is recommended to label
and date each frozen
package in order to keep
track of the storage time.
Hints for the storage of
frozen food
●
Ensure that frozen food has
been stored correctly by the
food retailer.
●
Once defrosted, food will
deteriorate rapidly and
should not be re-frozen. Do
not exceed the storage
period indicated by the food
manufacturer.
Cleaning and care
18
Switching off your
appliance
If the appliance needs to be
switched off for an extended
period, the following steps
should be taken prevent
mould on the appliance.
1. Remove all food.
2. Remove the power plug
from the mains socket.
3. Clean and dry the interior
thoroughly.
4. Ensure that all the doors
are wedged open slightly to
allow air to circulate.
For hygienic reasons the
appliance (including exterior
and interior accessories)
should be cleaned regularly
at least every two months.
Caution! The appliance
must not be connected to
the mains during cleaning.
Danger of electrical shock!
Before cleaning switch the
appliance off and remove
the plug from the mains
socket.
Exterior cleaning
To maintain good appearance
of your appliance, you should
clean it regularly.
Hisense Refrigerator
-Wipe the control panel with
a clean, soft cloth.
-Spray water onto the
cleaning cloth instead of
spraying directly on the
surface of the appliance.
This helps ensure an even
distribution of moisture to
the surface.
-Clean the doors, handles
and cabinet surfaces with a
mild detergent and then
wiped dry with a soft cloth.
Caution!
-Don't use sharp objects as
they are likely to scratch
the surface.
19
Don't use Thinner, Car
detergent, Clorox, ethereal
oil, abrasive cleansers or
organic solvent such as
Benzene for cleaning. They
may damage the surface of
the appliance and may
cause fire.
Interior cleaning
You should clean the
appliance interior regularly.
It will be easier to clean
when food stocks are low.
Wipe the inside of the fridge
freezer with a weak solution
of bicarbonate of soda, and
then rinse with warm water
using a wrung-out sponge
or cloth. Wipe completely
dry before replacing the
shelves and baskets.
Thoroughly dry all surfaces
and removable parts.
Although this appliance
automatically defrosts, a
layer of frost may occur on
the freezer compartment's
interior frequently or kept
open too long. If the frost is
too thick, choose a time
when the supply of food
stocks are low and proceed
as follows:
1.Remove existing food and
accessories baskets,
unplug the appliance from
the mains power and leave
the doors open. Ventilate
the room thoroughly to
accelerate the thawing
process.
2. When defrosting is
completed, clean your
freezer as described above.
Caution! Don't use sharp
objects to remove frost from
the freezer compartment.
Only after the interior is
completely dry should the
appliance be switched back
on and plugged back into
the mains socket.
Door seals cleaning
Take care to keep door
seals clean. Sticky food and
drinks can cause seals to
stick to the cabinet and tear
when you open the door.
Wash seal with a mild
detergent and warm water.
Rinse and dry it thoroughly
after cleaning.
Caution! Only after the
door seals are completely
dry should the appliance be
powered on.
Hisense Refrigerator
20
Replacing the LED light:
Warning: The LED light
must not be replaced by the
user! If the LED light is
damaged, contact the
customer helpline for
assistance. To replace the
LED light, the below steps
can be followed:
1. Unplug your appliance.
2. Remove light cover by
pushing up and out.
3. Hold the LED cover with
one hand and pull it with the
other hand while pressing
the connector latch.
4. Replace LED light and
snap it correctly in place.
Troubleshooting
If you experience a problem with your appliance or are
concerned that the appliance is not functioning correctly, you
can carry out some easy checks before calling for service,
please see below. You can carry out some easy checks
according to this section before calling for service.
Warning! Don't try to repair the appliance yourself. If the
problem persists after you have made the checks mentioned
below, contact a qualified electrician, authorized service
engineer or the shop where you purchased the product.
Problem
Appliance is
not working
correctly
Possible cause & Solution
Check whether the power cord is plugged
into the power outlet properly.
Check whether the “Power” funtion is on
by pressing the “power” button for 1
second.
Check the fuse or circuit of your power
supply, replace if necessary.
The ambient temperature is too low. Try
setting the chamber temperature to a
colder level to solve this problem.
Hisense Refrigerator
21
Appliance is
not working
correctly
Odours from the
compartments
Noise from the
appliance
It is normal that the refrigerator is not
operating during the automatic defrost
cycle, or for a short time after the
appliance is switched on to protect the
compressor.
The interior may need to be cleaned.
Some food, containers or wrapping cause
odours.
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan
motor in the fridge compartment or other
compartments.
Gurgling sound similar to water boiling.
Pop p in g n ois e d uri ng aut oma tic
defrosting.
Clicking noise before the compressor
starts.
The motor runs
continuously
Other unusual noises are due to the
reasons below and may need you to
check and take action:
●
The cabinet is not level.
●
The back of appliance touches the wall.
●
Bottles or containers fallen or rolling.
It is normal to frequently hear the sound
of the motor, it will need to run more
when in following circumstances:
●
Temperature setting is set colder than
necessary
●
Large quantity of warm food has
recently been stored within the appliance.
●
The temperature outside the appliance
is too high.
●
Doors are kept open too long or too
often.
Hisense Refrigerator
The motor runs
continuously
A layer of frost
occurs in the
compartment
Tem p er a t ur e
inside is too
warm
●
After your installing the appliance or it
has been switched off for a long time.
Check that the air outlets are not blocked
by food and ensure food is placed within
the a pp li a nc e to al low s uff ic ien t
ventilation. Ensure that door is fully
closed. To remove the frost, please refer
to cleaning and care chapter.
You may have left the doors open too
long or too frequently; or the doors are
kept open by some obstacle; or the
appliance is located with insufficient
clearance at the sides, back and top.
22
It is prohibited to dispose of this appliance as household
waste.
Packaging materials
Packaging materials with the recy c le sy m bol ar e
recyclable. Dispose of the packaging into a suitable
waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains
plug.
Warning! Refrigerators contain refrigerant and gases in
the insulation. Refrigerant and gases must be disposed
of professionally as they may cause eye injuries or
ignition. Ensure that tubing of the refrigerant circuit is
not damage prior to proper disposal.
Hisense Refrigerator
23
Correct Disposal of this product
This marking indicates that this product
should not be disposed with other household
wa s t e s t h r o u g ho ut t he E U. To pr ev en t
possible harm to the environment or human
health from uncontrolled waste disposal,
re c y c l e i t r e s p on s i b l y t o p r o m ot e th e
sustainable reuse of material resources. To
return your used device, please use the
return and collection systems or contact the
retailer where the product was purchased.
They can take this product for environmental
safe recycling.
Hisense Refrigerator
Loading...
