Hioki 9690-03, 9690-04, 9690-01, 9690-02 User Manual

4

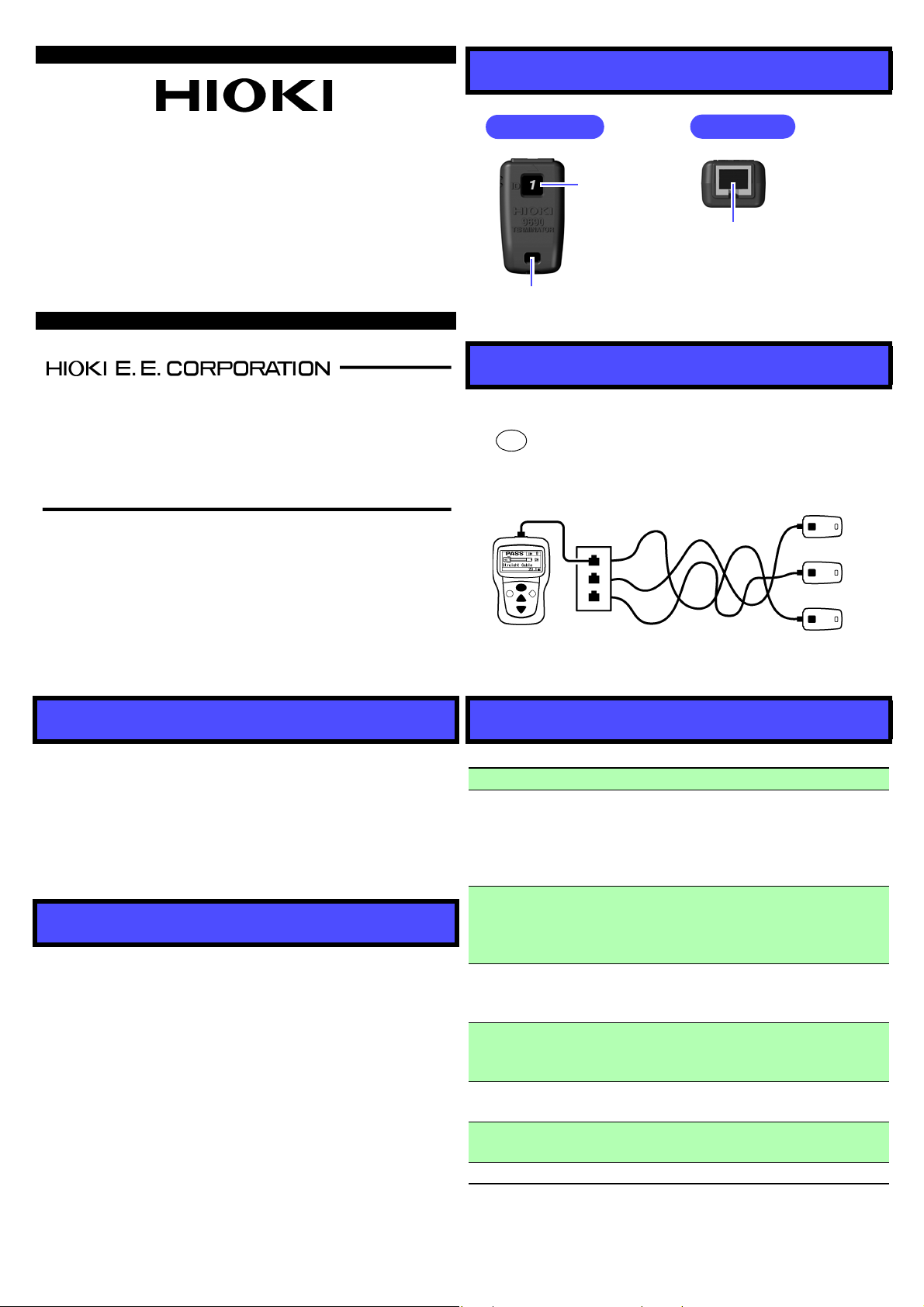

Names of Parts

Terminators

9690-01, 9690-02, 9690-03, 9690-0

TERMINATOR

INSTRUCTION MANUAL

August 2006 Edition 1 Printed in Japan

9690A980-00 06-08H

HEAD OFFICE

81 Koizumi, Ueda, Nagano 386-1192, Japan
TEL [phone] / FAX [phone]
E-mail: [e-mail] URL http://www.hioki.co.jp/

HIOKI USA CORPORATION

6 Corporate Drive, Cranbury, NJ 08512, USA
TEL [phone] / FAX [phone]

Introduction

Thank you for purchasi ng the HIOKI “Model 9690-01, 969 0­02, 9690-03, 9690-04 TERMINATOR.” To obtain maximum
performance from the instrument, please read this manual
first, and keep it handy for future reference.

Front Panel

ID
Number

(Model 9690-01)

Strap Mounting Hole

Top Panel

Cable Connection Terminal
(RJ-45 connector)

Procedure

Connect the ends to the HiTester and a terminator, and press

TEST

the key. ID number is dis played at the top right. For d e­tails, See the 3665 LAN CABLE HiTESTER Instruction manu­al.

Cables being checked

LAN CABLE HiTESTER

Overview

The 9690-01, 9690-02, 9 690-03, 9 690-04 TERMINATOR are
used for testing cables with the 3665 LAN CABLE HiTESTER
only. To conveniently identify multiple cables with the HiT ester,
you can use the te rminators to elimina te the need to change
cable connections at the far end. Up to 21 cables can be iden­tified using multiple terminators.

Inspection and Maintenance

Initial Inspection

When you receive the instrument, inspect it carefully to ensure
that no damage occurred dur ing shipping. If damage is evi­dent, or if it fai ls t o operate according to the spec ifications,
contact your dealer or Hioki representative.

Maintenance and Service

To clean the instr ument , wipe i t gently with a soft clot h mois t­ened with water or mild detergent. Never use solvents such as
benzene, alcohol, acetone, ether, ketones, thinners or g aso­line, as they can deform and discolor the case.

Specifications

Circuit type Resistance network
Measurable

cable and
connector
types

ID number 1 to 5 : Model 9690-01 (sold in 5-piece sets)

Operating
temperature
and humidity

Storage
temperature
and humidity

Operating
environment

Dimensions Approx. 26W × 46H × 19Dmm

Mass Approx. 14 g (0.5 oz.)

Twisted-pair cables:
100 Ω characteristi c imp edan ce
shielded or unshielded
CAT3, CAT4, CAT5, CAT5e, CAT6
RJ-45 connector

6 to 10 : Model 9690-02 (sold in 5-piece sets)
11 to 15: Model 9690-03 (sold in 5-piece sets)
16 to 20: Model 9690-04 (sold in 5-piece sets)

0 to 40
(non-condensating)

-10 to 50°C (14 to 122°F), 80%RH or le ss
(non-condensating)

Indoors, altitude up to 2000 m (6562-ft.)

(1.02"W

°C (32 to 104°F), 80%RH or less

× 1.81"H × 0.75"D, sans protrusions)
