Hikvision DS-9632NI-RT-20TB Specsheet

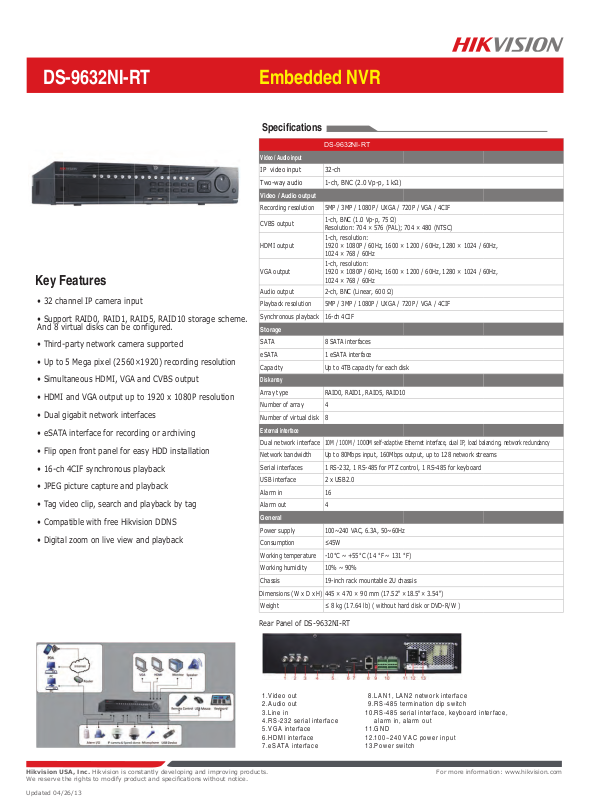

DS-9632NI-RT Embedded NVR
Specifi cations
DS-9632NI-RT
Video / Audio input
IP video input 32-ch
Two-way audio 1-ch, BNC (2.0 Vp-p, 1 kΩ)
Video / Audio output
Recording resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
1-ch, resolution:
1920 × 1080P / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz,
1024 × 768 / 60Hz
1-ch, resolution:
1920 × 1080P / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz,
1024 × 768 / 60Hz
10M / 100M / 1000M self-adaptive Ethernet interface, dual IP, load balancing, network redundancy
Up to 80Mbps input, 160Mbps output, up to 128 network streams
1 RS-232, 1 RS-485 for PTZ control, 1 RS-485 for keyboard
Key Features
• 32 channel IP camera input
• Support RAID0, RAID1, RAID5, RAID10 storage scheme.
And 8 virtual disks can be configured.
• Third-party network camera supported
• Up to 5 Mega pixel (2560×1920) recording resolution
• Simultaneous HDMI, VGA and CVBS output
• HDMI and VGA output up to 1920 x 1080P resolution
• Dual gigabit network interfaces
• eSATA interface for recording or archiving
• Flip open front panel for easy HDD installation
• 16-ch 4CIF synchronous playback
• JPEG picture capture and playback
• Tag video clip, search and playback by tag
• Compatible with free Hikvision DDNS
• Digital zoom on live view and playback
CVBS output
HDMI output
VGA output
Audio output 2-ch, BNC (Linear, 600 Ω)
Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Synchronous playback 16-ch 4CIF
Storage
SATA 8 SATA interfaces
eSATA 1 eSATA interface
Capacity Up to 4TB capacity for each disk
Disk array
Array type RAID0, RAID1, RAID5, RAID10
Number of array 4
Number of virtual disk 8
External interface
Dual network interface
Network bandwidth
Serial interfaces
USB interface 2 x USB2.0
Alarm in 16
Alarm out 4
General
Power supply 100~240 VAC, 6.3A, 50~60Hz
Consumption ≤45W
Working humidity 10% ~ 90%
Chassis 19-inch rack mountable 2U chassis
Dimensions (W x D x H) 445 × 470 × 90 mm (17.52" ×18.5"× 3.54")
Weight ≤ 8 kg (17.64 lb) ( without hard disk or DVD-R/W )
)F° 131 ~ F° 41( C°55+ ~ C°01-erutarepmet gnikroW
We reserve the rights to modify product and specifications without notice.
Updated 04/26/13
Rear Panel of DS-9632NI-RT
Video out
1.
Audio out
2.
Line in
3.
RS-232 serial interface
4.
VGA interface
5.
HDMI interface
6.
eSATA interface
7.
LAN1, LAN2 network interface
8.
RS-485 termination dip switch
9.
RS-485 serial interface, keyboard interface,
10.
alarm in, alarm out
GND
11.
100~240 VAC power input
12.
Power switch
13.
For more information: www.hikvision.comHikvision USA, Inc. Hikvision is constantly developing and improving products.
