Hikvision® Network Digital Video Recorder User Manual
This manual, as well as the software described in it, is furnished under license and may be used or copied only in
accordance with the terms of such license. The content of this manual is furnished for informational use only, is
subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology
Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may
appear in the book.
Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written
permission of Hikvision.
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
REGARDING THE HIKVISION SOFTWARE. HIKVISION DOES NOT WARRANT, GUARANTEE, OR
MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE
HIKVISION SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY,
CURRENTNESS, OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF
THE HIKVISION SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS
NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE
TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES (INCLUDING
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE HIKVISION
SOFTWARE EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
2
User Manual of DS-7600NI Series NVR
Regulatory information
FCC information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC
Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal
waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product documentation for specific battery information. The battery is
marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For
proper recycling, return the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info.
3
User Manual of DS-7600NI Series NVR
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.
4
User Manual of DS-7600NI Series NVR
Series
Model
Type
7600NI-SE
DS-7604NI-SE
DS-7608NI-SE
DS-7616NI-SE
Network Video Recorder
7600NI-SE/N
DS-7604NI-SE/N
DS-7608NI-SE/N
DS-7616NI-SE/N
Network Video Recorder
7600NI-SE/P
DS-7604NI-SE/P
DS-7608NI-SE/P
DS-7616NI-SE/P
Network Video Recorder
7600NI-V
DS-7604NI-V
DS-7608NI-V
DS-7616NI-V
Network Video Recorder
7600NI-VP
DS-7604NI-VP
DS-7608NI-VP
DS-7616NI-VP
Network Video Recorder
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
This manual is applicable to the models listed in the following table.
5
User Manual of DS-7600NI Series NVR
Product Key Features
General
Connectable to network cameras, network dome and encoders.
Connectable to the third-party network cameras like AXIS, Brickcom, Bosch, PANASONIC,
SAMSUNG and SANYO, and network cameras that adopt ONVIF or PSIA protocol.
PAL/NTSC adaptive video inputs.
Each channel supports dual-stream.
Up to 16 network cameras can be connected.

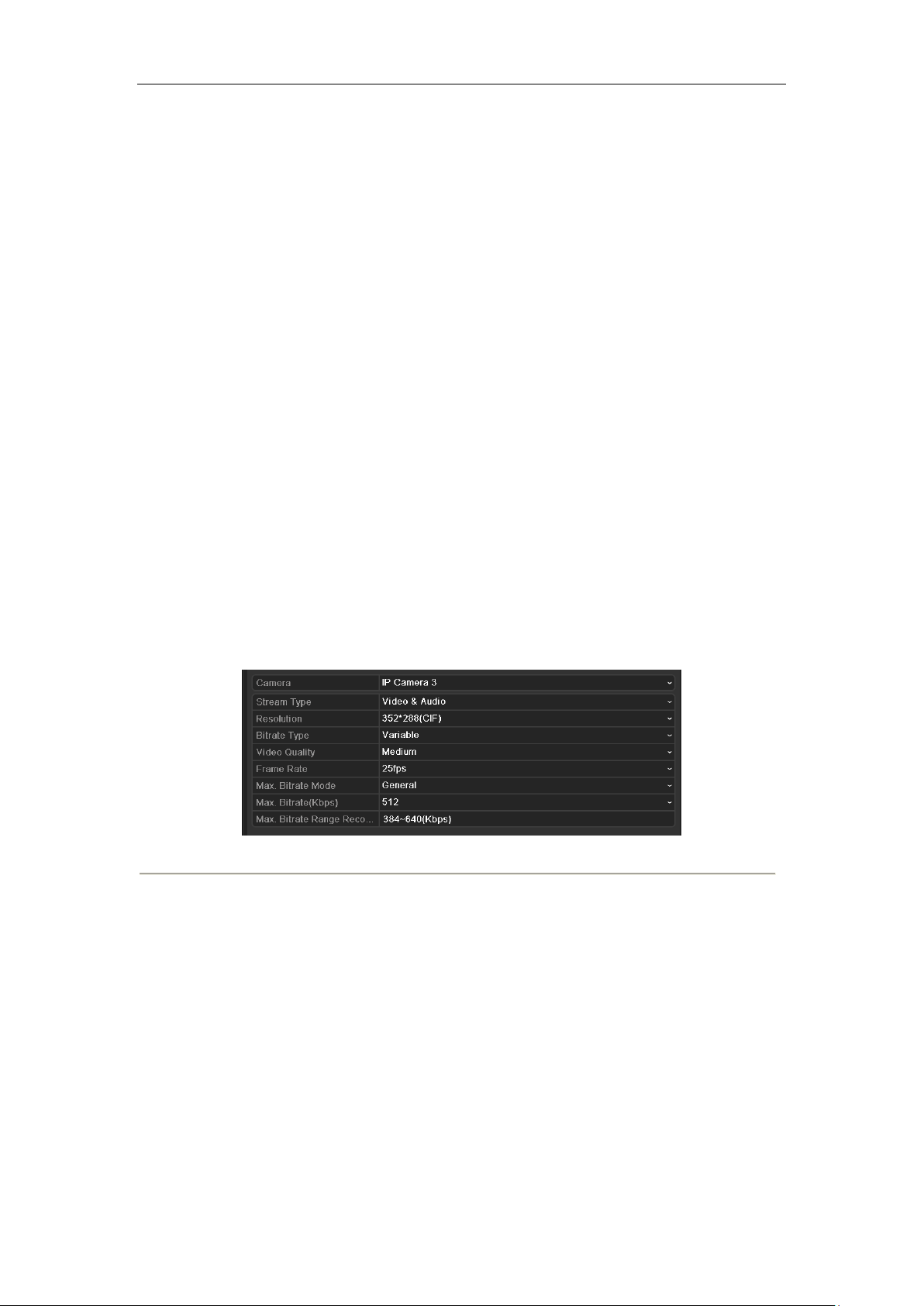

Independent configuration for each channel, including resolution, frame rate, bit rate, image quality,
etc.
The quality of the input and output record is configurable.
Local Monitoring
Simultaneous HDMI and VGA outputs.
HDMI output and VGA output at up to 1920×1080 resolution.

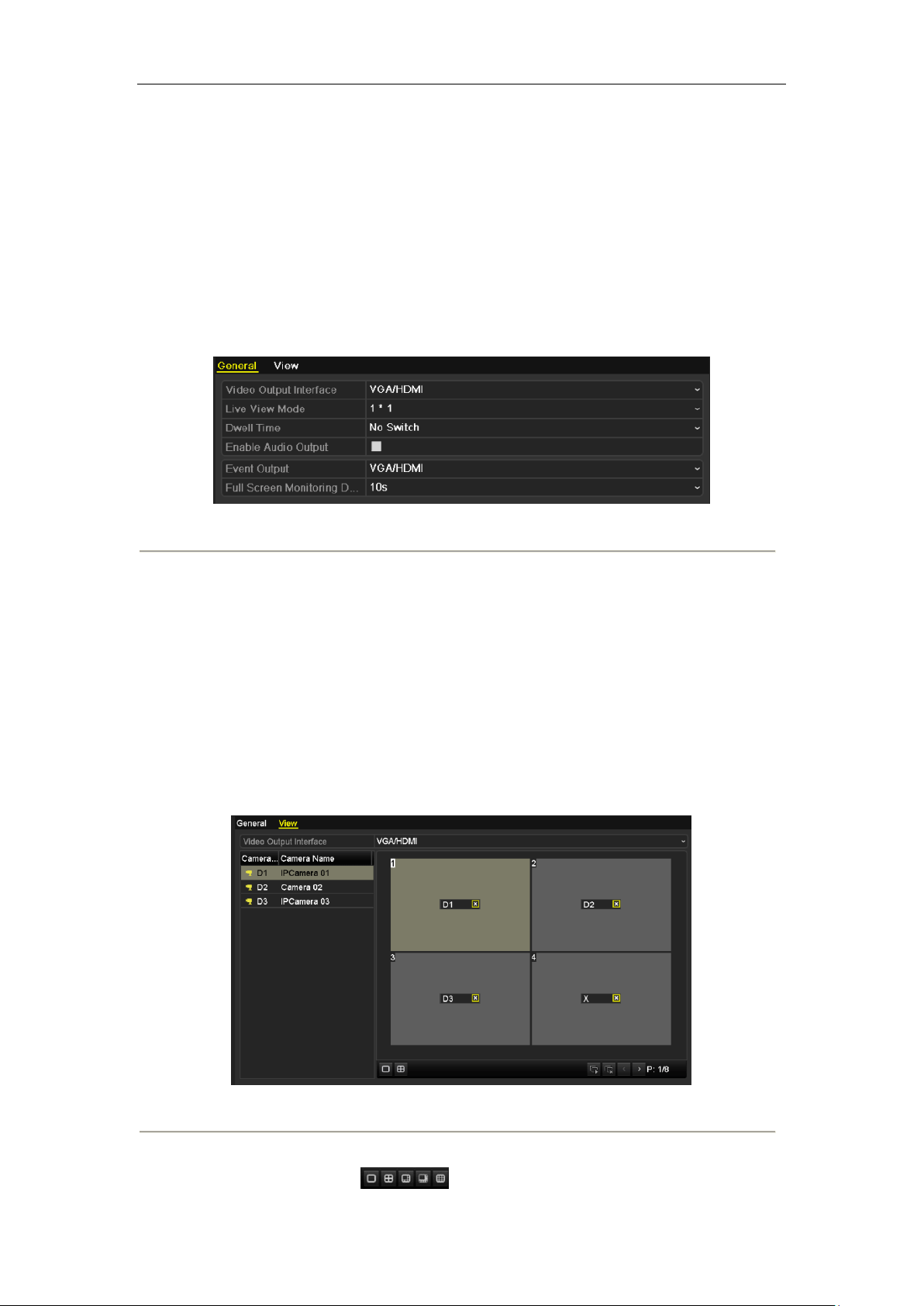

Multiple screen display in live view is supported, and the display sequence of channels is adjustable.
Live view screen can be switched in group, and manual switch and automatic cycle live view are also
provided, and the interval of automatic cycle can be adjusted.

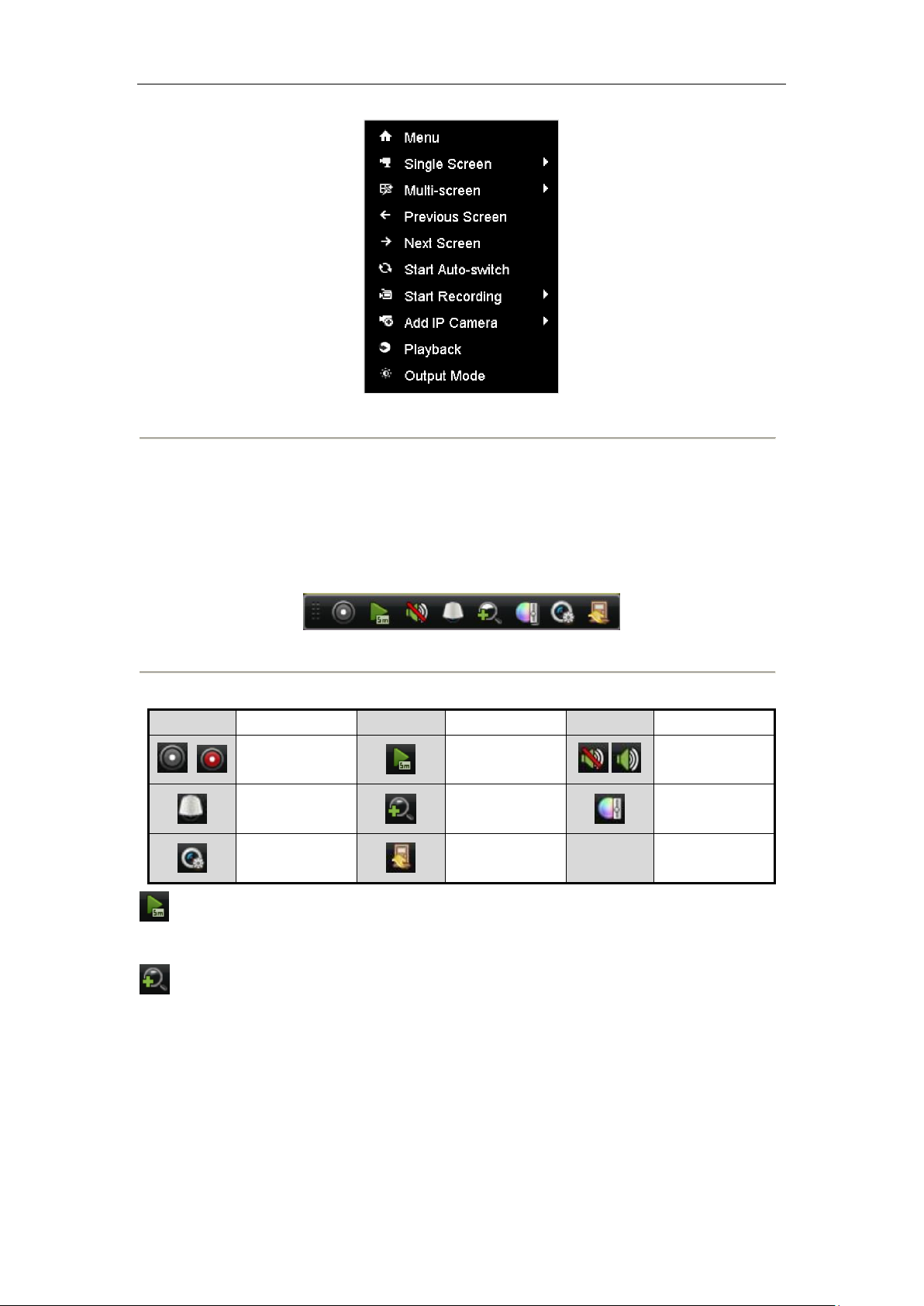

Quick setting menu is provided for live view.
Motion detection, video tampering, video exception alert and video loss alert functions.
Privacy mask.
Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
Up to 2 SATA hard disks can be connected. (Each disk with a maximum of 4TB storage capacity.)
8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
Support S.M.A.R.T. and bad sector detection.
HDD group management.
Support HDD standby function.
HDD property: redundancy, read-only, read/write (R/W).
HDD quota management; different capacity can be assigned to different channel.
Recording and Playback
Holiday recording schedule configuration.
Continuous and event video recording parameters.

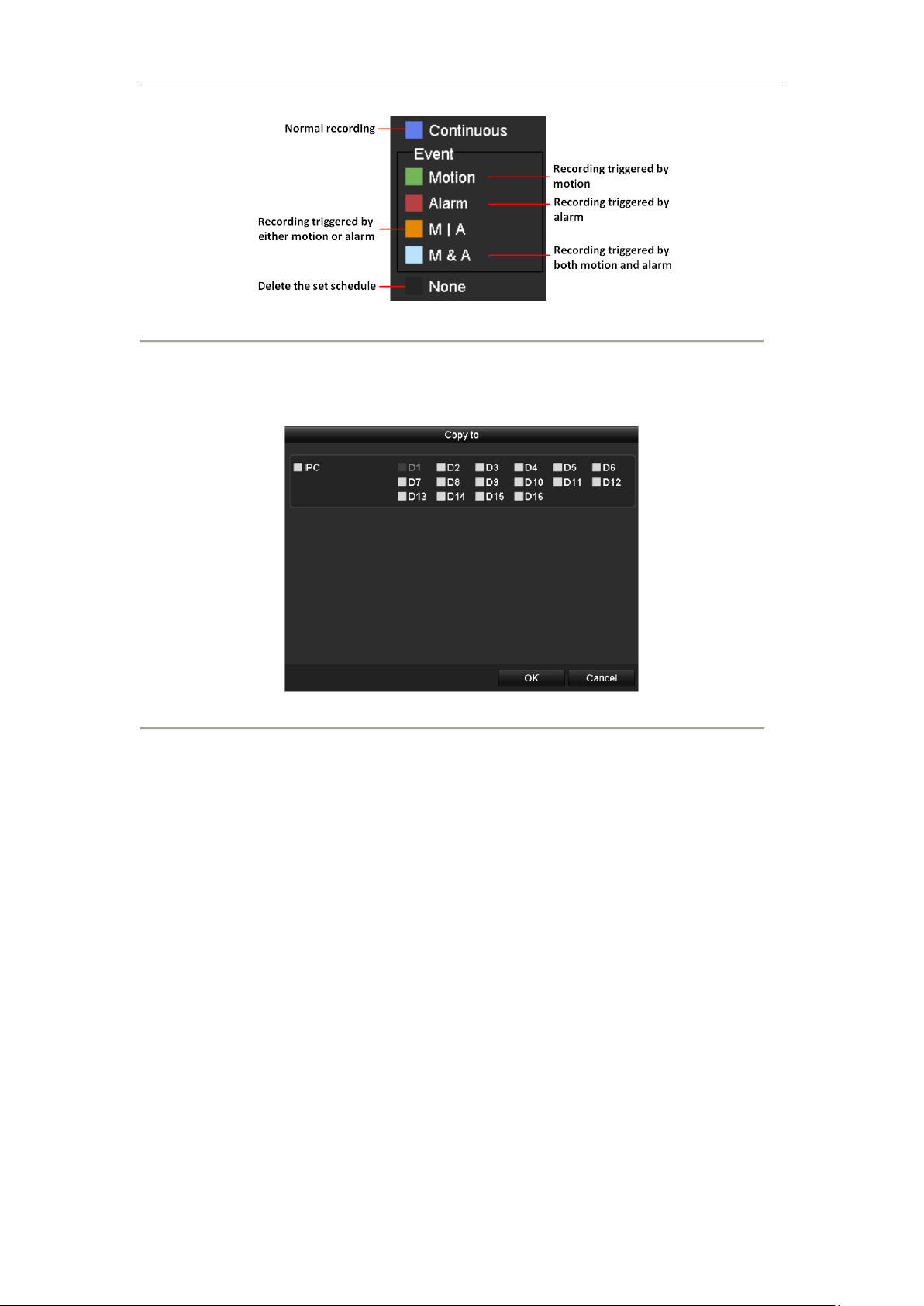

Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion & alarm.

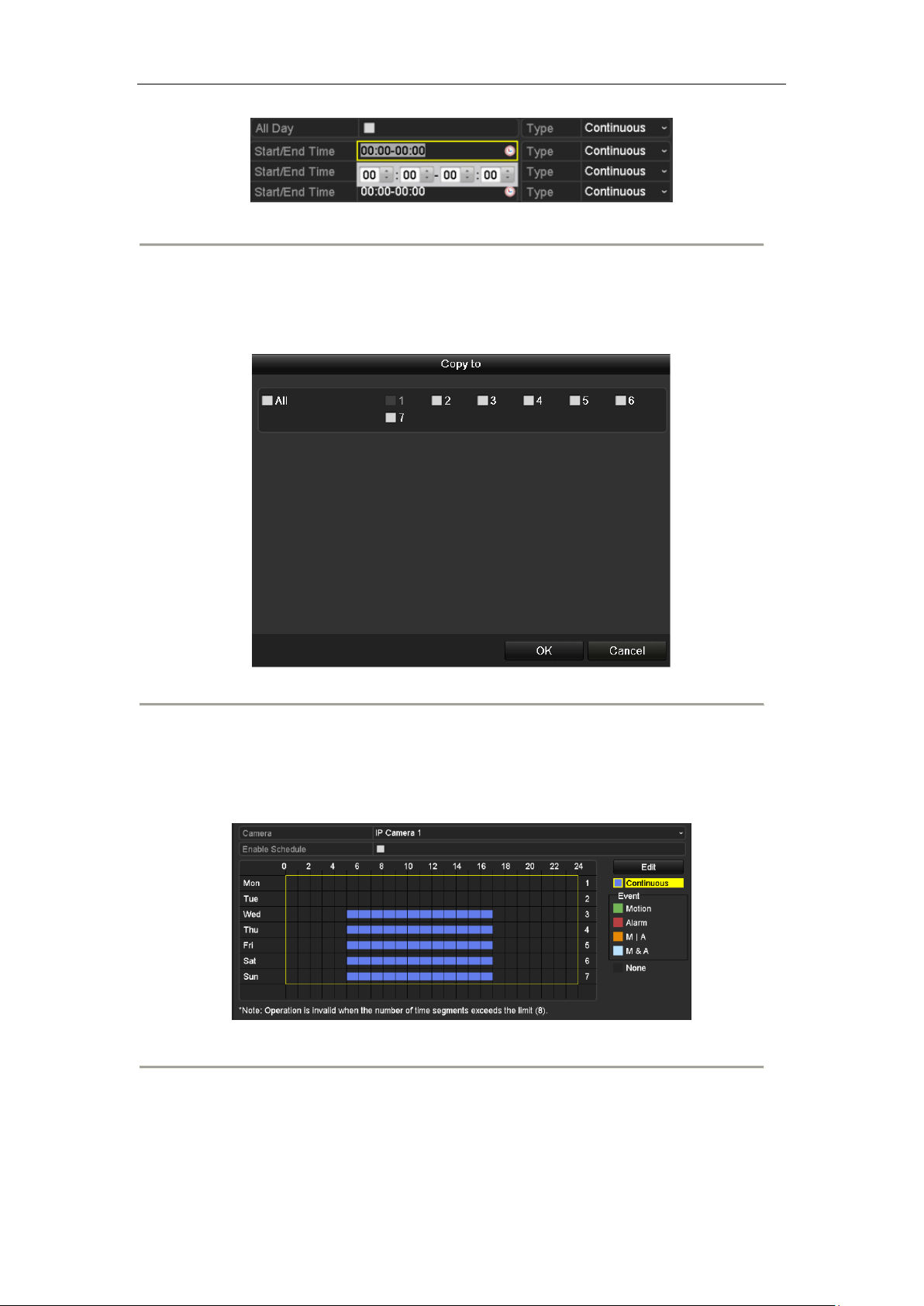

8 recording time periods with separated recording types.
Pre-record and post-record for alarm, motion detection for recording, and pre-record time for
schedule and manual recording.

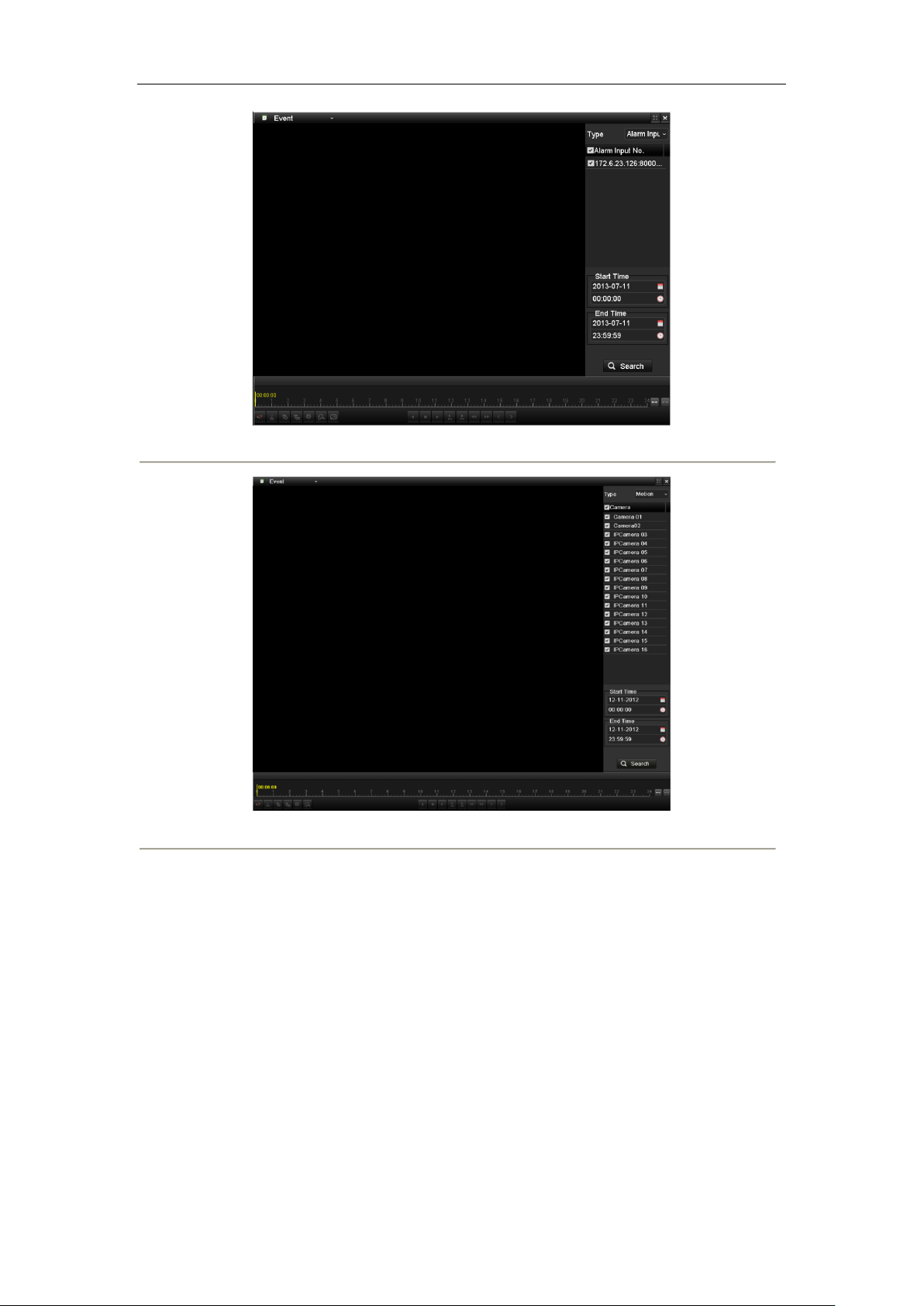

Searching record files by events (alarm input/motion detection).
Tag adding for record files, searching and playing back by tags.
Locking and unlocking record files.
Local redundant recording.

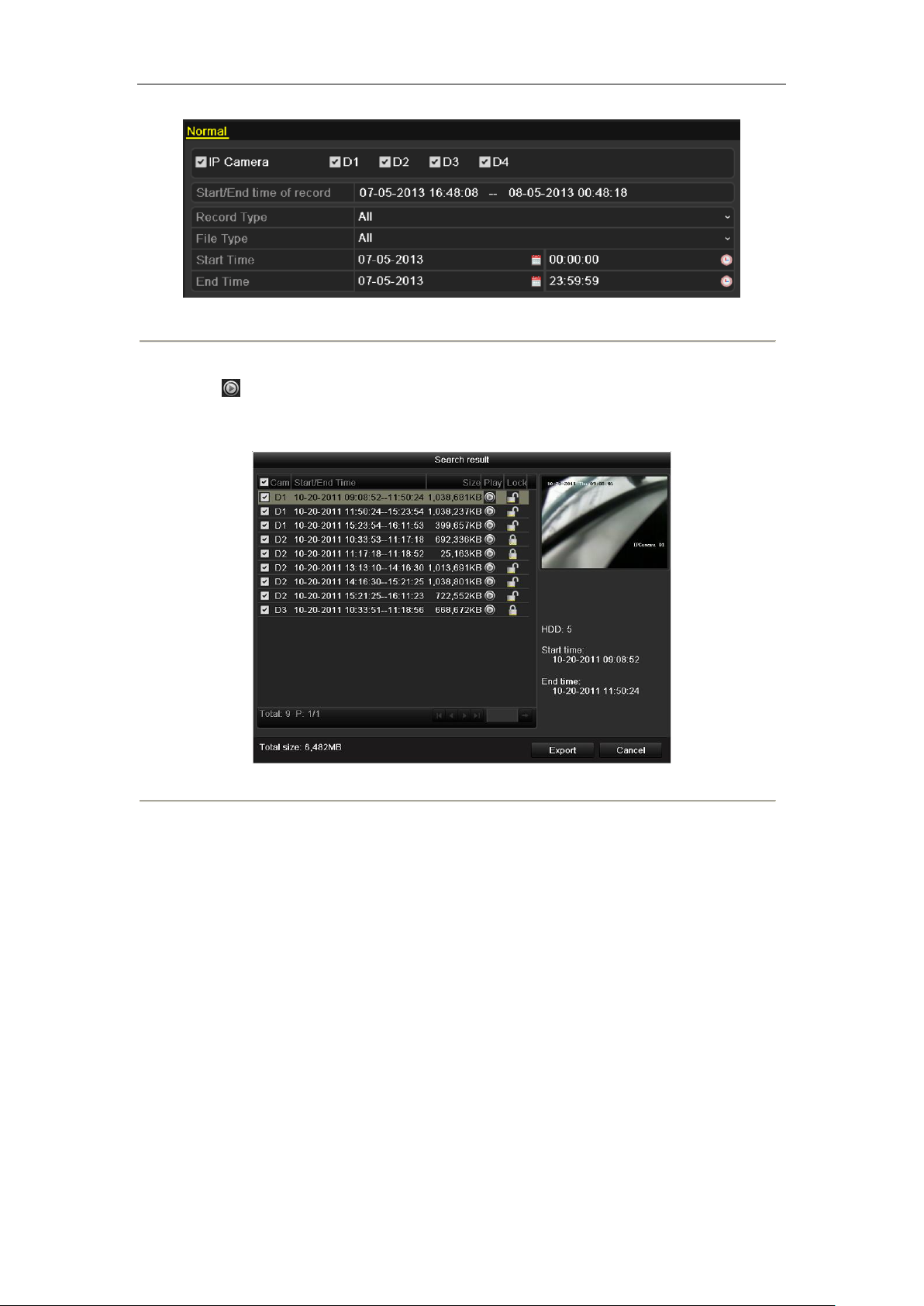

Searching and playing back record files by channel number, recording type, start time, end time, etc.
Smart search for the selected area in the video.
6
User Manual of DS-7600NI Series NVR
Zooming in when playback.
Reverse playback of multi-channel.
Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when playback,
and locating by dragging the mouse.
Up to 8-ch synchronous playback at 4CIF real time.
Backup
Export video data by USB or SATA device.
Export video clips when playback.
Management and maintenance of backup devices.
Alarm and Exception
Configurable arming time of alarm input/output.
Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard
mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and
HDD full, etc.
Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and
alarm output.
Automatic restore when system is abnormal.
Other Local Functions
Operable by mouse and remote control.
Three-level user management; admin user is allowed to create many operating accounts and define
their operating permission, which includes the limit to access any channel.
Operation, alarm, exceptions and log recording and searching.
Manually triggering and clearing alarms.
Import and export of device configuration information.
Network Functions
1 self-adaptive 10M/100M/1000M network interface.
Up to 8 independent PoE network interfaces for DS-7600NI-SE/P series, and 4 independent PoE
network interfaces for DS-7600NI-VP series.
Up to 8 independent network interfaces with built-in switch function are provided for
DS-7600NI-SE/N series.
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are
supported.
TCP, UDP and RTP for unicast.
Auto/Manual port mapping by UPnP.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback via RTSP.
Support accessing by the platform via ONVIF.
Remote search, playback, download, locking and unlocking of the record files, and support
downloading files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of mouse.
Remote HDD initializing and program upgrading.
Remote system restart and shutdown.
7
User Manual of DS-7600NI Series NVR
RS-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host.
Remotely start/stop recording.
Remotely start/stop alarm output.
Remote PTZ control.
Two-way audio and voice broadcasting.
Embedded WEB server.
Development Scalability:
SDK for Windows and Linux system.
Source code of application software for demo.
Development support and training for application system.
8
User Manual of DS-7600NI Series NVR
TABLE OF CONTENTS
Product Key Features .............................................................................................................................. 6
1.1 Front Panel .................................................................................................................................... 14
1.2 IR Remote Control Operations ...................................................................................................... 15
1.3 USB Mouse Operation .................................................................................................................. 18
Chapter 2Getting Started .............................................................................................................................. 23
2.1 Starting Up and Shutting Down the NVR ...................................................................................... 24
2.2 Using the Wizard for basic configuration ...................................................................................... 26

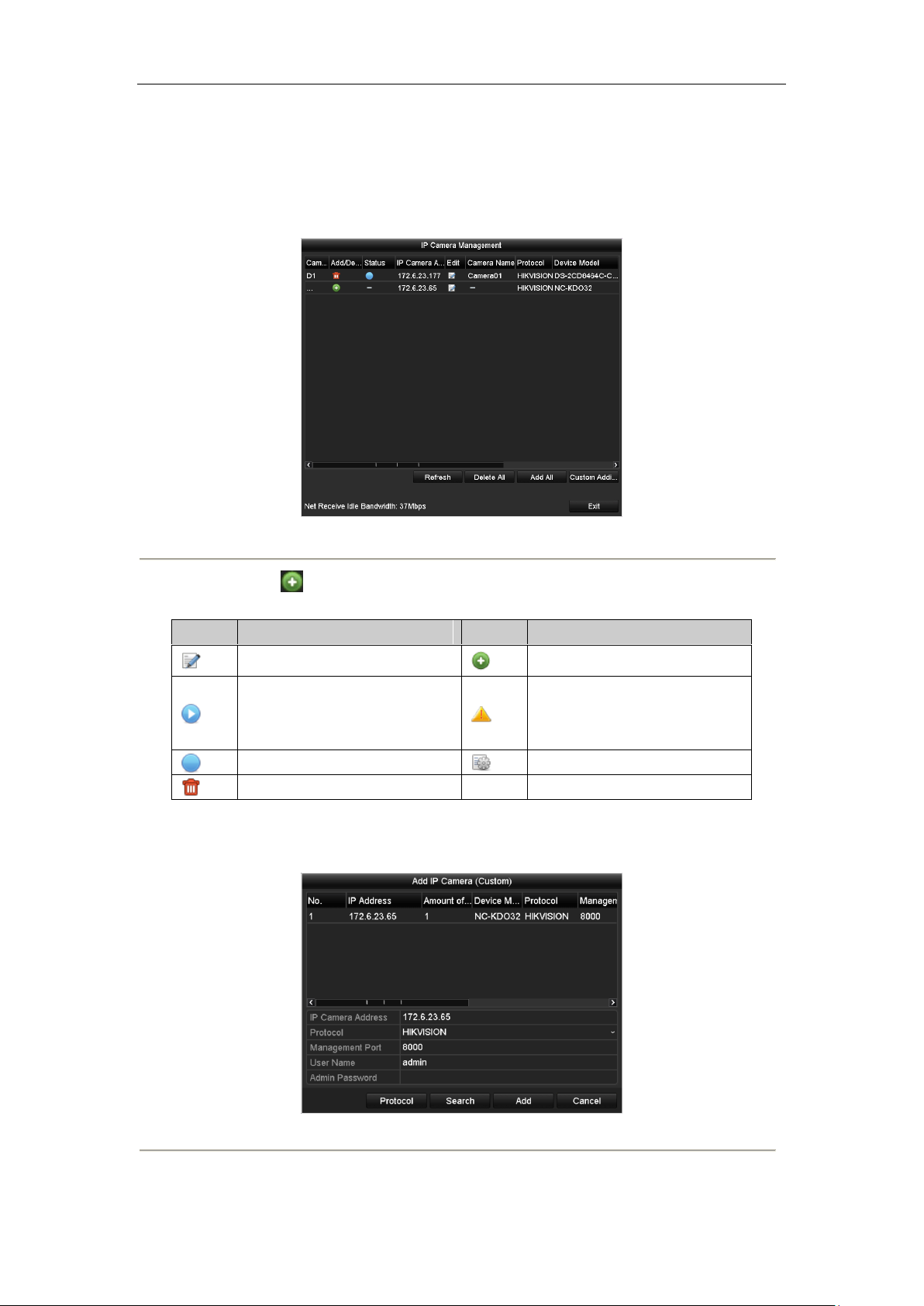

2.3 Adding and Connecting the IP Cameras ........................................................................................ 30
2.3.1 Adding the Online IP Cameras .................................................................................... 30
2.3.2 Editing the Connected IP cameras and Configuring Customized Protocols ................ 33
2.3.3 Editing IP cameras connected to the PoE interfaces (Only for DS-7600NI-SE/P and
DS-7600NI-VP series NVR) ............................................................................................................ 35
2.3.4 Editing IP cameras connected to the built-in switch network interfaces (Only for
DS-7600NI-SE/N series NVR) ........................................................................................................ 37
Summary of Changes ............................................................................................................................. 186
List of Compatible IP Cameras .............................................................................................................. 187
List of Hikvision IP Cameras ......................................................................................................... 187
List of Third-party IP Cameras ....................................................................................................... 191
12
User Manual of DS-7600NI Series NVR
Chapter 1 Introduction
13
User Manual of DS-7600NI Series NVR
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns yellow when system is running.
Status
Status indicator blinks red when data is being read from or
written to HDD.
Tx/Rx
TX/RX indictor blinks yellow when network connection is
functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Description
1
HDD Status Indicators
The corresponding indicator blinks when the HDD is being read
or written.
2
Panel Lock
You can lock or unlock the panel by the key.
3
Running Status Indicator
The indicator lights when the device is running.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
1.1 Front Panel
Figure 1. 1 DS-7600NI-SE(/N) and DS-7600NI-SE/P
Table 1. 1 Description of Front Panel
Figure 1. 2 DS-7600NI-V and DS-7600NI-VP
Table 1. 2 Description of Front Panel
14
User Manual of DS-7600NI Series NVR
No.
Name
Description
1
POWER
Power on/off the device.
2
DEV
Enables/Disables Remote Control.
3
Alphanumeric Buttons
Switch to the corresponding channel in Live view or PTZ Control mode.
Input numbers and characters in Edit mode.
Switch between different channels in All-day Playback mode.
4
EDIT Button
Edit text fields. When editing text fields, it will also function as a
Backspace button to delete the character in front of the cursor.
On checkbox fields, pressing the button will tick the checkbox.
In PTZ Control mode, the button adjusts the iris of the camera.
In Playback mode, it can be used to generate video clips for backup.
Enter/exit the folder of USB device.
5
A Button
Adjust focus in the PTZ Control menu.
It is also used to switch between input methods (upper and lowercase
1.2 IR Remote Control Operations
The NVR may also be controlled with the included IR remote control (not supported with the DS-7600NI-V and
DS-7600NI-VP series NVR), shown in Figure 1. 3.
Note: Batteries (2×AAA) must be installed before operation.
Figure 1. 3 Remote Control
Table 1. 3 Description of the Soft Keyboard Icons
15
User Manual of DS-7600NI Series NVR
alphabet, symbols and numeric input).
6
REC Button
Enter the Manual Record setting menu.
In PTZ control settings, press the button and then you can call a PTZ
preset by pressing Numeric button.
It is also used to turn audio on/off in the Playback mode.
7
PLAY Button
The button is used to enter the All-day Playback mode.
It is also used toauto scan in the PTZ Control menu.
8
INFO Button
Reserved.
9
VOIP Button
Switch between main and spot output.
In PTZ Control mode, it can be used to zoom out the image.
10
MENU Button
Press the button will help you return to the Main menu (after successful
login).
Press and hold the button for 5 seconds will turn off audible key beep.
In PTZ Control mode, the MENU/WIPER button will start wiper (if
applicable).
In Playback mode, it is used to show/hide the control interface.
11
PREV Button
Switch between single screen and multi-screen mode.
In PTZ Control mode, it is used to adjust the focus in conjunction with the
A/FOCUS+ button.
12
DIRECTION Button
Navigate between different fields and items in menus.
In the Playback mode, the Up and Down button is used to speed up and
slow down recorded video. The Left and Right button will select the next
and previous record files.
In Live View mode, these buttons can be used to cycle through channels.
In PTZ control mode, it can control the movement of the PTZ camera.
ENTER Button
Confirm selection in any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In single-frame Playback mode, pressing the button will advance the
video by a single frame.
13
PTZ Button
In Auto-switch mode, it can be used to stop /start auto switch.
14
ESC Button
Back to the previous menu.
Press for Arming/disarming the device in Live View mode.
15
RESERVED
Reserved for future usage.
16
F1 Button
Select all items on the list when used in a list field.
In PTZ Control mode, it will turn on/off PTZ light(if applicable).
In Playback mode, it is used to switch between play and reverse play.
17
PTZ Control Buttons
Buttons to adjust the iris, focus and zoom of a PTZ camera.
18
F2 Button
Cycle through tab pages.
In synchronous playback mode, it is used to switch between channels.
Troubleshooting Remote Control:
Note: Make sure you have installed batteries properly in the remote control. And you have to aim the remote
control at the IR receiver in the front panel.
If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.
Steps:
16
User Manual of DS-7600NI Series NVR
1. Go to Menu > Settings > General > More Settings by operating the front control panel or the mouse.
2. Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote controls.
3. Press the DEV button on the remote control.
4. Enter the NVR ID# you set in step 2.
5. Press the ENTER button on the remote.
If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator
does not turn blue and there is still no response from the remote, please check the following:
1. Batteries are installed correctly and the polarities of the batteries are not reversed.
2. Batteries are fresh and not out of charge.
3. IR receiver is not obstructed.
If the remote still can’t function properly, please change a remote and try again, or contact the device provider.
17
User Manual of DS-7600NI Series NVR
Name
Action
Description
Left-Click
Single-Click
Live view: Select channel and show the quick set menu.
Menu: Select and enter.
Double-Click
Live view: Switch between single-screen and multi-screen.
Click and Drag
PTZ control: pan, tilt and zoom.
Video tampering, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar.
Right-Click
Single-Click
Live view: Show menu.
Menu: Exit current menu to upper level menu.
Scroll-Wheel
Scrolling up
Live view: Previous screen.
Menu: Previous item.
Scrolling down
Live view: Next screen.
Menu: Next item.
1.3 USB Mouse Operation
A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse:
1. Plug USB mouse into one of the USB interfaces on the front panel of the NVR.
2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible
reason may be that the two devices are not compatible, please refer to the recommended the device list
from your provider.
The operation of the mouse:
Table 1. 4 Description of the Mouse Control
18
User Manual of DS-7600NI Series NVR
Icons
Description
Icons
Description
English
Capital English
Numbers
Symbols
Lowercase/Uppercase
Backspace
Space
Enter Exit
1.4 Input Method Description
Figure 1. 4 Soft Keyboard
Description of the buttons on the soft keyboard:
Table 1. 5 Description of the Soft Keyboard Icons
19
User Manual of DS-7600NI Series NVR
No.
Item
Description
1
LAN Interfaces
Connector for LAN (Local Area Network).
2
RS-485 Interface
Connector for RS-485 devices.
3
Power Supply
12VDC power supply.
4
Power Switch
Switch for turning on/off the device.
5
USB
Connects USB disks and devices.
6
Ground
Ground (needs to be connected when NVR starts up).
7
HDMI
HDMI video output connector.
8
VGA
DB9 connector for VGA output. Display local video output and
menu.
9
AUDIO IN
BNC connector for audio input. (Also for two-way audio)
10
AUDIO OUT
BNC connector for audio output.
11
Network interfaces with
built-in switch function
(for DS-7600NI-SE/N)
Independent 10 /100 Mbps PoE Ethernet interfaces.
1.5 Rear Panel
Figure 1. 5 DS-7604&7608NI-SE
Figure 1. 6 DS-7604NI-SE/N
Figure 1. 7 DS-7608&7616NI-SE/N
Table 1. 6 Description of Rear Panel Interfaces
20
User Manual of DS-7600NI Series NVR
No.
Item
Description
1
LAN Network Interface
Connector for LAN (Local Area Network).
2
RS-485 Interface
Connects to RS-485 devices.
3
Power Supply
100~240VAC power supply
4
Power Switch
Switch for turning on/off the device.
5
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
GND
Ground (needs to be connected when NVR starts up).
7
HDMI Interface
HDMI video output connector.
8
VGA Output
DB9 connector for VGA output. Display local video output and menu.
9
Audio In
RCA connector for voice talk input
10
Audio Out
RCA connector for audio output
11
Network interfaces with
PoE function
(for DS-7600NI-SE/P)
Network interface for the cameras and to provide power over Ethernet.
No.
Item
Description
1
Power Switch
Switch for turning on/off the device.
Figure 1. 8 DS-7604&7608NI-SE/P
Figure 1. 9 DS-7616NI-SE/P
Figure 1.8 DS-7600NI-V Figure 1.9 DS-7600NI-VP
21
User Manual of DS-7600NI Series NVR
2
LAN Network Interface
Connector for LAN (Local Area Network).
3
Audio In
RCA connector for voice talk input
4
GND
Ground (needs to be connected when NVR starts up).
5
Audio Out
RCA connector for audio output
6
HDMI Interface
HDMI video output connector.
7
VGA Output
DB9 connector for VGA output. Display local video output and menu.
8
Power Supply
100~240VAC power supply
9
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
10
Network Interfaces with
PoE function
(for DS-7600NI-VP)
Network interface for the cameras and to provide power over Ethernet.
22
User Manual of DS-7600NI Series NVR
Chapter 2 Getting Started
23
User Manual of DS-7600NI Series NVR
2.1 Starting Up and Shutting Down the NVR
Purpose:
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
Before you start:
Check that the voltage of the extra power supply is the same with the NVR’s requirement, and the ground
connection is working properly.
Starting up the NVR:
Steps:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device.
2. Turn on the power switch on the rear panel.
3. After startup, the Power LED indicator turns on (supported by DS-7600NI-SE series NVR only). A splash
screen with the status of the HDD appears on the monitor. The row of icons at the bottom of the screen
shows the HDD status. ‘X’ means that the HDD is not installed or cannot be detected.
Shutting down the NVR
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown
Figure 2. 1 Shutdown Menu
2. Click the Shutdown button.
3. Click the Yes button.
4. Turn off the power switch on the rear panel when the attention pops up.
Figure 2. 2 Shutdown Attention
24
User Manual of DS-7600NI Series NVR
Rebooting the NVR
In the Shutdown menu, you can also reboot the NVR.
Steps:
1. Enter the Shutdown menu by clicking Menu > Shutdown.
2. Click the Logout button to lock the NVR or the Reboot button to reboot the NVR.
25
User Manual of DS-7600NI Series NVR
2.2 Using the Wizard for basic configuration
By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure below.
Figure 2. 3 Start Wizard Interface
Operating the Setup Wizard:
1. The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the
Setup Wizard at that moment, click the Exit button. You can also choose to use the Setup Wizard next
time by leaving the “Start wizard when the device starts?” checkbox checked.
2. Click Next button on the Wizard window to enter the Login window, as shown in Figure 2. 4.
Figure 2. 4 Login Window
3. Enter the admin password. By default, the password is 12345.
4. To change the admin password, check the New Admin Password checkbox. Enter the new password and
confirm the password in the given fields.
5. Click the Next button to enter the date and time settings window, as shown in Figure 2. 5.
26
User Manual of DS-7600NI Series NVR
Figure 2. 5 Date and Time Settings
6. After the time settings, click Next button which takes you back to the Network Setup Wizard window, as
shown in Figure 2. 6.
DS-7604&7608&7616NI-SE and DS-7600NI-V
DS-7600NI-SE/N, DS-7600NI-SE/P and DS-7600NI-VP
Figure 2. 6 Network Configuration
27
User Manual of DS-7600NI Series NVR
Note: For DS-7600NI-SE/N, DS-7600NI-SE/P and DS-7600NI-VP series NVR, the internal NIC IPv4 address
should be configured for the cameras connecting to the PoE network interfaces of the NVR.
7. Click Next button after you configured the network parameters, which takes you to the HDD Management
window, shown in Figure 2. 7.
Figure 2. 7 HDD Management
8. To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.
9. Click Next button to enter the Adding IP Camera interface.
10. Click Search to find online IP Camera. Select the IP camera to be added, and click the Add button.
Figure 2. 8 Search for IP Cameras
11. Click Next button. Configure the recording for the searched IP Cameras.
28
User Manual of DS-7600NI Series NVR
Figure 2. 9 Record Settings
12. Click Copy to copy the settings to other channels, as shown in Figure 2. 10.
Figure 2. 10 Copy Record Settings
13. Click OK to complete the startup Setup Wizard.
29
User Manual of DS-7600NI Series NVR
2.3 Adding and Connecting the IP Cameras
2.3.1 Adding the Online IP Cameras
Purpose:
The main function of the NVR is to connect the network cameras and record the video got from it. So before you
can get a live view or record of the video, you should add the network cameras to the connection list of the device.
Before you start:
Ensure the network connection is valid and correct. For detailed checking and configuring of the network, please
see Chapter Checking Network Traffic and Chapter Configuring Network Detection.
• OPTION 1:
Steps:
1. Right-click the mouse when you in the live view mode to show the right-click menu.
2. Select Add IP Camera in the pop-up menu and select Auto or Manual on your demand.
Figure 2. 11 Right-click Menu of Adding IP Camera
• Auto
The device will add the detected IP cameras or encoders automatically by the default user name and password
of administrator.
Figure 2. 12 Auto Adding IP Camera Interface
Note: If the user name and password is changed, the auto adding of IP camera will be failed, you may add it
30
User Manual of DS-7600NI Series NVR
Icon
Explanation
Icon
Explanation
Edit basic parameters of the camera
Add the detected IP camera.
The camera is connected; you can
click the icon to get the live view of
the camera.
The camera is disconnected; you can
click the icon to get the exception
information of camera.
The camera is connected.
Advanced settings of the camera.
Delete the IP camera
manually.
• Manual
Steps:
1. To add the online cameras with same network segment:
1) The detected online camera will be listed in the camera list, as shown in the figure below.
Figure 2. 13 Manual Adding IP Camera Interface
2) Click the button to add the camera.
Explanation of the icons:
2. To add other IP cameras:
1) Click the Custom Add button to pop up the Add IP Camera (Custom) interface.
2) You can edit the IP address, protocol, management port, and other information of the IP camera to
Figure 2. 14 Custom Adding IP Camera Interface
31
User Manual of DS-7600NI Series NVR
be added.
3) Click Add to add the camera.
• OPTION 2:
Steps:
1. Enter the Camera Management interface.
Menu> Camera> Camera
Figure 2. 15 Main Menu
2. Repeat the step 1 and 2 of adding IP cameras manually to add the camera.
Figure 2. 16 IP Camera Management Interface
3. (For the encoders with multiple channels only) check the checkbox of Channel No. in the pop-up window, as
shown in the following figure, and click OK to finish adding.
32
User Manual of DS-7600NI Series NVR
Figure 2. 17 Selecting Multiple Channels
2.3.2 Editing the Connected IP cameras and Configuring
Customized Protocols
After the adding of the IP cameras, the basic information of the camera lists in the page, you can configure the
basic setting of the IP cameras.
Steps:
1. Click the icon to edit the parameters; you can edit the IP address, protocol and other parameters.
Figure 2. 18 Edit the Parameters
2. Click OK to save the settings and exit the editing interface.
To edit advanced parameters:
1. Drag the horizontal scroll bar to the right side and click the icon.
33
User Manual of DS-7600NI Series NVR
Figure 2. 19 Network Configuration of the Camera
2. You can edit the network information and the password of the camera.
Figure 2. 20 Password Configuration of the Camera
3.Click Apply to save the settings and click OK to exit the interface.
Configuring the customized protocols
Purpose:
To connect the network cameras which are not configured with the standard protocols, you can configure the
customized protocols for them.
Steps:
1. Click the Protocol button in the Add IP Camera (Custom) interface to enter the protocol management
interface.
34
User Manual of DS-7600NI Series NVR
Figure 2. 21 Protocol Management Interface
There are 16 customized protocols provided in the system, you can edit the protocol name; and choose whether to
enable the sub-stream.
2. Choose the protocol type of transmission and choose the transfer protocols.
Note: The protocol type and the transfer protocols must be supported by the connected network camera.
After adding the customized protocols, you can see the protocol name is listed in the dropdown list, please refer to
Figure 2. 22.
Figure 2. 22 Protocol Setting
3. Choose the protocols you just added to validate the connection of the network camera.
2.3.3 Editing IP cameras connected to the PoE interfaces
(Only for DS-7600NI-SE/P and DS-7600NI-VP series
NVR)
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
The DS-7600NI-SE/P and DS-7600NI-VP series NVR provides up to 8 PoE interfaces which can connect to 8
35
User Manual of DS-7600NI Series NVR
network cameras directly; and if you disable the PoE interface, you can also connect to the online network cameras.
And the PoE interface supports the Plug-and-Play function.
Example:
As for 7604NI-SE/P NVR, when you want to connect 1 online camera and connect 3 network cameras via PoE
interfaces, you must disable 1 PoE interface in the Edit IP camera panel.
To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Steps:
1. Enter the Camera Management interface.
Main menu> Camera> Camera
You can see the connected cameras are listed.
Figure 2. 23 Camera List
Note: The cameras connecting to the PoE interface cannot be deleted in this menu.
2. Click the button, and select the Adding Method in the drop-down list.
•Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case, the
parameters of the camera can’t be edited. The IP address of the camera can only be edited in the
Network Configuration interface, see Chapter 9.1 Configuring General Settings for detailed
information.
Figure 2. 24 Edit IP Camera Interface - Plug-and-Play
•Manual: You can disable the PoE interface by selecting the manual while the current channel can be
used as a normal channel and the parameters can also be edited.
36
User Manual of DS-7600NI Series NVR
Figure 2. 25 Edit IP Camera Interface - Manual
3.Click the Apply button to finish adding.
2.3.4 Editing IP cameras connected to the built-in switch
network interfaces (Only for DS-7600NI-SE/N series
NVR)
For DS-7600NI-SE/N series NVR, the extra network interfaces provide a built-in switch with plug-and-play
function.
Example:
As for DS-7608NI-SE/N NVR, when you want to connect 2 online cameras and connect 6 network cameras via
built-in switch interfaces, you must disable 2 built-in switch interfaces in the Edit IP camera panel.
To add Cameras for NVR via built-in switch interfaces:
Before you start:
Connect the network cameras via the built-in switch interfaces.
Steps:
1. Enter the Camera Management interface.
Main menu> Camera> Camera
You can see the connected cameras are listed.
Figure 2. 26 Camera List
Note: The cameras connecting to the built-in switch interface cannot be deleted in this menu.
37
User Manual of DS-7600NI Series NVR
2. Click the button, and select the Adding Method in the drop-down list.
•Plug-and-Play: It means that the camera is connected to the built-in switch interface, so in this case,
the parameters of the camera can’t be edited. The IP address of the camera can only be edited in the
Network Configuration interface, see Chapter 9.1 Configuring General Settings for detailed
information.
Figure 2. 27 Edit IP Camera Interface - Plug-and-Play
•Manual: You can disable the built-in switch interface by selecting the manual while the current
channel can be used as a normal channel and the parameters can also be edited.
Figure 2. 28 Edit IP Camera Interface - Manual
3. Click the Apply button to finish adding.
38
User Manual of DS-7600NI Series NVR
Chapter 3 Live View
39
User Manual of DS-7600NI Series NVR
Icons
Description
Alarm (video loss, tampering, motion detection or sensor alarm)
Record (manual record, schedule record, motion detection or alarm triggered record)
Alarm & Record
3.1 Introduction of Live View
Live view shows you the video image getting from each camera in real time. The NVR automatically enters Live
View mode when powered on.
Live View Icons
In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the
record and alarm in the channel, so that you can know whether the channel is recorded, or whether there are alarms
occur as soon as possible.
Table 3. 1 Description of Live View Icons
40
User Manual of DS-7600NI Series NVR
Name
Description
Menu
Enter the main menu of the system by right clicking the mouse.
Single Screen
Switch to the single full screen by choosing channel number from the
dropdown list.
Multi-screen
Adjust the screen layout by choosing from the dropdown list.
Previous Screen
Switch to the previous screen.
Next Screen
Switch to the next screen.
Start/Stop Auto-switch
Enable/disable the auto-switch of the screens.
Start Recording
Start continuous recording or motion detection recording of all
channels.
Add IP Camera
Add IP camera automatically or manually.
Playback
Enter the playback interface and start playing back the video of the
selected channel immediately.
Output Mode
Four modes of output supported, including Standard, Bright, Gentle
and Vivid.
3.2 Operations in Live View Mode
In live view mode, there are many functions provided. The functions are listed below.
• Single Screen: showing only one screen on the monitor.
• Multi-screen: showing multiple screens on the monitor simultaneously.
• Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for each screen on
the configuration menu before enabling the auto-switch.
Menu>Configuration>Live View>General.
• Start Recording: continuous record and motion detection record are supported.
• Output Mode: select the output mode to Standard, Bright, Gentle or Vivid.
• Playback: playback the recorded videos for current day.
• Add IP Camera: The shortcut to add IP camera automatically or manually.
3.2.1 Using the Mouse in Live View
Table 3. 2 Mouse Operation in Live View
Note: The dwell time of the live view configuration must be set before using Start Auto-switch.
Note: If the corresponding camera supports intelligent function, the Reboot Intelligence option is included when
right-clicking mouse on this camera.
41
User Manual of DS-7600NI Series NVR
Icons
Description
Icons
Description
Icons
Description
/
Enable/Disable
Manual Record
Instant Playback
/
Mute/Audio on
PTZ Control
Digital Zoom
Image Settings
Live View
Strategy
Close
Figure 3. 1 Right-click Menu
3.2.2 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you single click the mouse in the
corresponding screen.
Figure 3. 2 Quick Setting Toolbar
Table 3. 3 Description of Quick Setting Toolbar Icons
Instant Playback only shows the record in last five minutes. If no record is found, it means there is no record
during the last five minutes.
Digital Zoom can zoom in the selected area to the full screen. You can click and draw to select the area to
zoom in, as shown in Figure 3. 3.
42
User Manual of DS-7600NI Series NVR
Figure 3. 3 Digital Zoom
Image Settings icon can be selected to enter the Image Settings menu.
You can set the image parameters like brightness, contrast, saturation and hue.
Figure 3. 4 Image Settings- Customize
Live View Strategy can be selected to set strategy, including Real-time, Balanced, Fluency.
Figure 3. 5 Live View Strategy
43
User Manual of DS-7600NI Series NVR
3.3 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output interface, dwell
time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.
Steps:
1. Enter the Live View Settings interface.
Menu> Configuration> Live View
Figure 3. 6 Live View-General
The settings available in this menu include:
•Video Output Interface: Designates the output to configure the settings for. Only VGA/HDMI is selectable
by default.
• Live View Mode: Designates the display mode to be used for Live View.
• Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch in Live
View.
• Enable Audio Output: Enables/disables audio output for the selected video output.
• Event Output: Designates the output to show event video.
• Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
2. Setting Cameras Order
To set the camera order:
1) Select a View mode in .
Figure 3. 7 Live View- Camera Order
44
User Manual of DS-7600NI Series NVR
2) Select the small window, and double-click on the channel number to display the channel on the
window.
You can click button to start live view for all the channels and click to stop all the live
view.
3) Click the Apply button to save the setting.
45
User Manual of DS-7600NI Series NVR
3.4 User Logout
Purpose:
After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter
user name and password tog in again.
Steps:
1. Enter the Shutdown menu.
Menu>Shutdown
Figure 3. 8 Shutdown
2. Click Logout.
Note: After you have logged out the system, menu operation on the screen is invalid. It is required to input a
user name and password to unlock the system.
46
User Manual of DS-7600NI Series NVR
Chapter 4 PTZ Controls
47
User Manual of DS-7600NI Series NVR
4.1 Configuring PTZ Settings
Purpose:
Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before
you control the PTZ camera.
Steps:
1. Enter the PTZ Settings interface.
Menu >Camera> PTZ
Figure 4. 1 PTZ- General
2. Choose the camera for PTZ setting in the Camera dropdown list.
3. Enter the parameters of the PTZ camera.
Note: All the parameters should be exactly the same as the PTZ camera parameters.
Example: If the PTZ camera uses the protocol of DRAGON, you should select DRAGON in the PTZ Protocol field.
4. Click Apply button to save the settings.
48
User Manual of DS-7600NI Series NVR
4.2 Setting PTZ Presets, Patrols & Patterns
Before you start:
Please make sure that the presets, patrols and patterns should be supported by PTZ protocols.
4.2.1 Customizing Presets
Purpose:
Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes place.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
Figure 4. 2 PTZ- More Settings
2. Use the directional button to wheel the camera to the location where you want to set preset.
3. Click the round icon before Save Preset.
4. Click the preset number to save the preset.
Repeat the steps2-4 to save more presets. If the number of the presets you want to save is more than 17, you can
click […] and choose the available numbers.
Figure 4. 3 More Presets
49
User Manual of DS-7600NI Series NVR
4.2.2 Calling Presets
Purpose:
This feature enables the camera to point to a specified position such as a window when an event
takes place.
Call preset in the PTZ setting interface:
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Check the round icon of Call Preset.
Figure 4. 4 PTZ- Call Preset
3. Choose the preset number.
Call preset in live view mode:
Steps:
1. Press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar to enter
the PTZ setting menu in live view mode.
Figure 4. 5 PTZ Toolbar
50
User Manual of DS-7600NI Series NVR
2. Choose Camera in the list on the menu.
3. Double click the preset in the Preset list to call it.
4.2.3 Customizing Patrols
Purpose:
Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving
on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps
above in Customizing Presets.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Select patrol number in the drop-down list of patrol.
3. Select the under Patrol option box to add key points for the patrol.
Figure 4. 6 PTZ- Add Key Point
4. Configure key point parameters, such as the key point No., duration of staying for one key point and speed of
patrol. The key point is corresponding to the preset. The Key Point No. determines the order at which the
PTZ will follow while cycling through the patrol. The Duration refers to the time span to stay at the
corresponding key point. The Speed defines the speed at which the PTZ will move from one key point to
the next.
Figure 4. 7 Key Point Configuration
5. Click OK to save the key point to the patrol.
51
User Manual of DS-7600NI Series NVR
Repeat the above steps to add more key points.
Click the icon to delete the corresponding key point, and click the trash icon to.delete all the key
points.
Select a key point, then click or button to adjust the order of the key points.
Figure 4. 8 Key Points Deletion
4.2.4 Calling Patrols
Purpose:
Calling a patrol makes the PTZ to move according the predefined patrol path.
Calling patrol in the PTZ setting interface:
Steps:
1. In the PTZ setting interface.
Menu> Camera> PTZ> More Settings
2. Select the patrol number, and then click to call the patrol.
3. Click to stop it.
Calling patrol in live view mode:
Steps:
1. Press PTZ control on the front panel or on the remote, or click PTZ Control icon on the quick setting
toolbar, to show the PTZ control toolbar.
2. Choose Patrol on the control bar.
3. Double click the patrol or select the patrol and click to call it.
52
User Manual of DS-7600NI Series NVR
Figure 4. 9 PTZ Toolbar- Patrol
4.2.5 Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement
according to the predefined path.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Choose pattern number in the option box.
Figure 4. 10 PTZ- Pattern
3. Click and use your mouse to drag the image or click the eight directional buttons in the control box
under the image to move the PTZ camera.
The movement of the PTZ is recorded as the pattern.
53
User Manual of DS-7600NI Series NVR
4. Click to save the pattern.
4.2.6 Calling Patterns
Purpose:
Follow the procedure to move the PTZ camera according to the predefined patterns.
Calling pattern in the PTZ setting interface
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Select the pattern number.
3. Click , then the PTZ moves according to the pattern. Click to stop it.
Call pattern in live view mode
Steps:
1. In the live view mode, press PTZ control on the front panel or on the remote control, or click PTZ Control
icon on the quick setting toolbar.
2. And then choose Pattern on the control bar.
3. Double click the pattern or select the pattern and click to call it.
Figure 4. 11 PTZ Toolbar- Pattern
54
User Manual of DS-7600NI Series NVR
Icon
Description
Icon
Description
Icon
Description
Direction button and
the auto-cycle button
Zoom+, Focus+,
Iris+
Zoom-, Focus-, Iris-
The speed of the
PTZ movement
Light on/off
Wiper on/off
3D-Zoom
Centralization
Preset
Patrol
Pattern
Menu
Previous item
Next item
Start pattern/patrol
Stop the patrol or
pattern movement
Minimize
windows
Exit
4.3 PTZ Control Toolbar
In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or
choose the PTZ Control icon to enter the PTZ toolbar.
Figure 4. 12 PTZ Toolbar
Table 4. 1 Description of the PTZ toolbar icons
55
User Manual of DS-7600NI Series NVR
Chapter 5 Record Settings
56
User Manual of DS-7600NI Series NVR
5.1 Configuring Recording Parameters
Purpose:
By configuring the recording parameters you can define the parameters which affect the image quality, such as the
transmission stream type, the resolution and so on.
Before you start:
1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it.
(Menu>HDD>General)
Figure 5. 1 HDD- General
2. Check the storage mode of the HDD
1) Click Advanced to check the storage mode of the HDD.
2) If the HDD mode is Quota, please set the maximum record capacity. For detailed information,
see Chapter Configuring Quota Mode.
3) If the HDD mode is Group, you should set the HDD group. For detailed information, see Chapter Configuring HDD Group for Recording.
Figure 5. 2 HDD- Advanced
Steps:
1. Enter the Record settings interface to configure the recording parameters:
Menu>Record> Parameters
Figure 5. 3 Recording Parameters
57
User Manual of DS-7600NI Series NVR
2. Parameters Setting for Recording
1) Select Record tab page to configure. You can configure the stream type, the resolution, and other
parameters on your demand.
•Pre-record: The time you set to record before the scheduled time or event. For example, when an
alarm triggered the recording at 10:00, if you set the pre-record time as 5 seconds, the camera
records it at 9:59:55.
•Post-record: The time you set to record after the event or the scheduled time. For example, when
an alarm triggered the recording ends at 11:00, if you set the post-record time as 5 seconds, it
records till 11:00:05.
•Expired Time: The expired time is the longest time for a record file to be kept in the HDD, if the
deadline is reached, the file will be deleted. You can set the expired time to 0, and then the file will
not be deleted. The actual keeping time for the file should be determined by the capacity of the
HDD.
•Redundant Record: Enabling redundant record means you save the record in the redundant HDD.
See Chapter Configuring Redundant Recording.
•Record Audio: Check the checkbox to enable or disable audio recording.
2) Click Apply to save the settings.
Note: The redundant record is to decide whether you want the camera to save the record files in the
redundant HDD. You must configure the redundant HDD in HDD settings. For detailed information, see
Chapter 10.3.2 Setting HDD Property.
Note: The parameters of Main Stream (Event) are read-only.
3. Parameters Settings for Sub-stream
1) Enter the Sub-stream tab page.
Figure 5. 4 Sub-stream Parameters
2) Configure the parameters of the camera.
3) Click Apply to save the settings.
58
User Manual of DS-7600NI Series NVR
5.2 Configuring Record Schedule
Purpose:
Set the record schedule, and then the camera automatically starts/stops recording according to the configured
schedule.
Steps:
1. Enter the Record Schedule interface.
Menu>Record>Schedule
2. Configure Record Schedule
1) Select Record Schedule.
Figure 5. 5 Record Schedule
2) Choose the camera you want to configure.
3) Select the check box after the Enable Schedule item.
4) Click Edit button or click on the color icon under the edit button and draw the schedule line on the
panel.
Edit the schedule:
I. In the message box, you can choose the day to which you want to set schedule.
Figure 5. 6 Recording Schedule Interface
You can click the button to set the accurate time of the schedule.
II. To schedule an all-day recording, check the checkbox after the All Day item.
59
User Manual of DS-7600NI Series NVR
Figure 5. 7 Edit Schedule
III. To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Note: Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each other.
Repeat the above edit schedule steps to schedule recording for other days in the week. If the schedule can also be
applied to other days, click Copy.
Figure 5. 8 Copy Schedule to Other Days
IV. Click OK to save setting and back to upper level menu.
V. Click Apply in the Record Schedule interface to save the settings.
Draw the schedule:
Click on the color icons, you can choose the schedule type as continuous or event.
Figure 5. 9 Draw the Schedule
Descriptions of the color icons are shown in the figure below.
60
User Manual of DS-7600NI Series NVR
Figure 5. 10 Descriptions of the color icons
Click the Apply button to validate the settings.
If the settings can also be used to other channels, click Copy, and then choose the channel to which you want to
copy.
Figure 5. 11 Copy Schedule to Other Channels
61
User Manual of DS-7600NI Series NVR
5.3 Configuring Motion Detection Record
Purpose:
Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes
place, the NVR can analyze it and do many actions to handle it. Enabling motion detection function can trigger
certain channels to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center
and so on. In this chapter, you can follow the steps to schedule a record which triggered by the detected motion.
Steps:
1.Enter the Motion Detection interface.
Menu>Camera>Motion
Figure 5. 12 Motion Detection
2.Configure Motion Detection:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion detection
for all the area shot by the camera, click Full Screen. To clear the motion detection area, click
Clear.
Figure 5. 13 Motion Detection- Mask
4) Click Setting, and the message box for channel information pop up.
62
User Manual of DS-7600NI Series NVR
Figure 5. 14 Motion Detection Setting
5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.
3.Edit the Motion Detection Record Schedule. For the detailed information of schedule configuration, see
Chapter Configuring Record Schedule.
63
User Manual of DS-7600NI Series NVR
5.4 Configuring Alarm Triggered Record
Purpose:
Follow the procedure to configure alarm triggered recording.
Steps:
1.Enter the Alarm setting interface.
Menu> Configuration> Alarm
2.Click the Alarm Input tab.
Figure 5. 16 Alarm Settings- Alarm Input
1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox of Enable.
4) Click Settings.
Figure 5. 15 Alarm Settings
64
User Manual of DS-7600NI Series NVR
Figure 5. 17 Alarm Settings
5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.
Repeat the above steps to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input number.
Figure 5. 18 Copy Alarm Input
3.Edit the Alarm triggered record in the Record Schedule setting interface. For the detailed information of
schedule configuration, see Chapter Configuring Record Schedule.
65
User Manual of DS-7600NI Series NVR
5.5 Manual Record
Purpose:
Follow the steps to set parameters for the manual record. The manual recording is prior to the scheduled recording.
Steps:
1.Enter the Manual settings interface.
Menu> Manual
Or press the REC button on the remote control.
Figure 5. 19 Manual Record
2.Enabling Manual Record
1) Select Record on the left bar.
2) Click the status button before camera number to change to .
3.Disable manual record.
Click the status button to change to.
Note: Green icon means that the channel is configured the record schedule. After rebooting all the
manual records enabled are canceled.
66
User Manual of DS-7600NI Series NVR
5.6 Configuring Holiday Record
Purpose:
Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for
recording on holiday.
Steps:
1.Enter the Record setting interface.
Menu>Record> Holiday
Figure 5. 20 Holiday Settings
2.Enable Edit Holiday schedule.
1) Click to enter the Edit interface.
Figure 5. 21 Edit Holiday Settings
2) Check the checkbox after Enable Holiday.
67
User Manual of DS-7600NI Series NVR
3) Select Mode from the dropdown list.
There are three different modes for the date format to configure holiday schedule.
4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.
3.Enter Record Schedule settings interface to edit the holiday recording schedule. See Chapter 6.2
Configuring Record Schedule.
68
User Manual of DS-7600NI Series NVR
5.7 Configuring Redundant Recording
Purpose:
Enabling redundant recording, which means saving the record files not only in the R/W HDD but also in the
redundant HDD, will effectively enhance the data safety and reliability. .
Steps:
1. Enter HDD Information interface.
Menu> HDD
Figure 5. 22 HDD General
2. Select the HDD and click to enter the Local HDD Settings interface.
1) Set the HDD property to Redundancy.
Figure 5. 23 HDD General-Editing
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
Note: You must set the Storage mode in the HDD advanced settings to Group before you set the HDD property to
Redundant. For detailed information, please refer to Chapter 10.3 Managing HDD Group. There should be at least
another HDD which is in Read/Write status.
3. Enter the Record setting interface.
Menu> Record> Parameters
1) Select Record tab.
69
User Manual of DS-7600NI Series NVR
Figure 5. 24 Record Parameters
2) Select Camera you want to configure in the drop-down list.
3) Check the checkbox of Redundant Record.
4) Click Apply to save settings and back to the upper level menu.
Repeat the above steps for configuring other channels.
70
User Manual of DS-7600NI Series NVR
5.8 Configuring HDD Group for Recording
Purpose:
You can group the HDDs and save the record files in certain HDD group.
Steps:
1.Enter HDD setting interface.
Menu>HDD
Figure 5. 25 HDD General
2. Select Advanced on the left bar.
Figure 5. 26 Storage Mode
Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed information,
please refer to Chapter 12.4 Managing HDD Group.
3.Select General in the left bar.
Click to enter editing interface.
4.Configuring HDD group.
1) Choose a group number for the HDD group.
2) Click Apply and then in the pop-up message box, click Yes to save your settings.
3) Click OK to back to the upper level menu.
Repeat the above steps to configure more HDD groups.
5.Choose the Channels which you want to save the record files in the HDD group.
1) Select Advanced on the left bar.
2) Choose Group number in the dropdown list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save settings.
Note: After having configured the HDD groups, you can configure the recording settings following
the procedure provided in Chapter 5.2-5.7.
71
User Manual of DS-7600NI Series NVR
5.9 Files Protection
Purpose:
You can lock the recorded files or set the HDD property to Read-only to protect the record files from being
overwritten.
Protect file by locking the record files:
Steps:
1.Enter Playback setting interface.
Menu> Playback
Figure 5. 27 Playback
2. Select the channels you want to investigate by checking the checkbox to .
3. Configure the record type, file type start/end time.
4. Click Search to show the results.
5. Protect the record files.
1) Find the record files you want to protect, and then click the icon which will turn to,
indicating that the file is locked.
Note: The record files of which the recording is still not completed can’t be locked.
2) Click to change it to to unlock the file and the file is not protected.
Figure 5. 28 Playback- Search Result
72
User Manual of DS-7600NI Series NVR
Figure 5. 29 Unlocking Attention
Protect file by setting HDD property to Read-only
Steps:
1.Enter HDD setting interface.
Menu> HDD
Figure 5. 30 HDD General
2. Click to edit the HDD you want to protect.
Figure 5. 31 HDD General- Editing
Note: To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter Managing
HDD Group.
3. Set the HDD property to Read-only.
4. Click OK to save settings and back to the upper level menu.
Notes:
1. You can’t save any files in a Read-only HDD. If you want to save files in the HDD, change the property to
R/W.
2. If there is only one HDD and is set to Read-only, the NVR can’t record any files. Only live view mode is
available.
3. If you set the HDD to Read-only when the NVR is saving files in it, then the file will be saved in next R/W
HDD. If there is only one HDD, the recording will be stopped.
73
User Manual of DS-7600NI Series NVR
Chapter 6 Playback
74
User Manual of DS-7600NI Series NVR
6.1 Playing Back Record Files
6.1.1 Playing Back by Channel
Purpose:
Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported.
OPTION 1:
Choose a channel in live view mode using the mouse and click the button in the quick setting toolbar.
Note: In the instant playback mode, only record files recorded during the last five minutes on this channel will be
played back.
Figure 6. 1 Instant Playback Interface
OPTION 2:
1. Enter the Playback interface.
Mouse: right click a channel in live view mode and select Playback from the menu, as shown in Figure 6. 2.
Figure 6. 2 Right-click Menu under Live View
Under multi-screen live view mode, the recorded files of the top-left channel will be played back.
Note: Pressing numerical buttons will switch playback to the corresponding channels during playback process.
2. Playback management.
75
User Manual of DS-7600NI Series NVR
Button
Operation
Button
Operation
Button
Operation
Button
Operation
/
Audio on/
Mute
/
Start/Stop
clipping
30s forward
30s reverse
Add default
tag
Add
customized tag
Tag
management
Speed down
/
Pause reverse
play/
Reverse play/
Single-frame
reverse play
/
Pause play/
Play/
Single-frame
play
/
Scaling
up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit
Stop
Digital Zoom
Smart Search
Video type
Process bar
The toolbar in the bottom part of Playback interface can be used to control playing progress, as shown in
Figure 6. 3.
Figure 6. 3 Playback Interface
Click the channel(s) to execute simultaneous playback of multiple channels.
Figure 6. 4 Toolbar of Playback
Note: The indicates the start/end time of the record.
Table 6. 1 Detailed Explanation of Playback Toolbar
Note: Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate
special frames.
76
User Manual of DS-7600NI Series NVR
6.1.2 Playing Back by Time
Purpose:
Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch
are supported.
Steps:
1. Enter playback interface.
Menu>Playback
2. Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.
Figure 6. 5 Playback Calendar
Note:If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as .
Otherwise it is displayed as
In the Playback interface:
The toolbar in the bottom part of Playback interface can be used to control playing process, as shown in Figure 6.
6.
Figure 6. 6 Interface of Playback by Time
Figure 6. 7 Toolbar of Playback by Time
77
User Manual of DS-7600NI Series NVR
Button
Operation
Button
Operation
Button
Operation
Button
Operation
/
Audio on/
Mute
/
Start/Stop
clipping
30s forward
30s reverse
Add default
tag
Add
customized tag
Tag
management
Speed down
/
Pause reverse
play/
Reverse play/
Single-frame
reverse play
/
Pause play/
Play/
Single-frame
play
/
Scaling
up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit Stop
Digital Zoom
Smart Search
Video type
Process bar
Note: The indicates the start/end time of the record.
Table 6. 2 Detailed Explanation of Playback-by-time Interface
Note: Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate
special frames.
6.1.3 Playing Back by Event Search
Purpose:
Play back record files on one or several channels searched out by restricting event type (e.g. alarm input and
motion detection).
Steps:
1. Enter the Playback interface.
Menu>Playback
2. Select the Event in the drop-down list on the top-left side.
3. Select Alarm Input or Motion as the event type, edit the Start time and End time.
78
User Manual of DS-7600NI Series NVR
Figure 6. 8 Alarm Input Search Interface
Figure 6. 9 Motion Search Interface
4. Click Search button to get the search result information. You may refer to the right-side bar for the result.
79
User Manual of DS-7600NI Series NVR
Figure 6. 10 Search Result Bar(Alarm In and Motion)
5. Click button to play back the file.
Notes:
1. Pre-play and post-play can be configured.
2. If the event is set to trigger the recording of multiple channels, clicking the will pop up the Synch
Playback interface. You can select the channels to play back synchronously.
You can click the Back button to back to the search interface.
6. Playback interface.
The toolbar in the bottom part of Playback interface can be used to control playing process.
Figure 6. 11 Interface of Playback by Event
80
User Manual of DS-7600NI Series NVR
Button
Operation
Button
Operation
Button
Operation
Button
Operation
/
Audio on/
Mute
/
Start/Stop
clipping
30s forward
30s reverse
Add default
tag
Add
customized tag
Tag
management
Speed down
/
Pause reverse
play/
Reverse play/
Single-frame
reverse play
/
Pause play/
Play/
Single-frame
play
/
Scaling
up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit Stop
Digital Zoom
Smart Search
Video type
Process bar
Figure 6. 12 Toolbar of Playback by Event
Table 6. 3 Detailed Explanation of Playback-by-event Toolbar
Note: Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate
special frames.
6.1.4 Playing Back by Tag
Purpose:
Video tag allows you to record related information like people and location of a certain time point during playback.
You are also allowed to use video tag(s) to search for record files and position time point.
Before playing back by tag:
1. Enter Playback interface.
Menu>Playback
2. Search and play back the record file(s). Refer to Chapter 6.1.1 for the detailed information about searching
and playback of the record files.
81
User Manual of DS-7600NI Series NVR
Figure 6. 13 Interface of Playback by Time
Click button to add default tag.
Click button to add customized tag and input tag name.
Note: Max. 64 tags can be added to a single video file.
3. Tag management.
Click button to check, edit and delete tag(s).
Figure 6. 14 Tag Management Interface
Steps:
1. Select the Tag from the drop-down list in the Playback interface.
2. Choose channels, edit start time and end time, and then click Search to enter Search Result interface.
Note: You can enter keyword in the textbox to search the tag on your command.
82
User Manual of DS-7600NI Series NVR
Figure 6. 15 Video Search by Tag
3. Click button to play back the file.
You can click the Back button to back to the search interface.
Note: Pre-play and post-play can be configured.
Figure 6. 16 Interface of Playback by Tag
Figure 6. 17 Toolbar of Playback by Tag
83
User Manual of DS-7600NI Series NVR
Button
Operation
Button
Operation
Button
Operation
Button
Operation
/
Audio on/
Mute
/
Start/Stop
clipping
30s forward
30s reverse
Add default
tag
Add
customized tag
Tag
management
Speed down
/
Pause reverse
play/
Reverse play/
Single-frame
reverse play
/
Pause play/
Play/
Single-frame
play
/
Scaling
up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit Stop
Digital Zoom
Smart Search
Video type
Process bar
Table 6. 4 Detailed Explanation of Playback-by-tag Toolbar
Note: Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate
special frames.
6.1.5 Playing Back by System Logs
Purpose:
Play back record file(s) associated with channels after searching system logs.
Steps:
1. Enter Log Information interface.
Menu>Maintenance>Log Information
2. Click Log Search tab to enter Playback by System Logs.
Set search time and type and click Search button.
Figure 6. 18 System Log Search Interface
3. Choose a log with record file and click button to enter Playback interface.
Note: If there is no record file at the time point of the log, the message box “No result found” will pop up.
84
User Manual of DS-7600NI Series NVR
Figure 6. 19 Result of System Log Search
4. Playback interface.
The toolbar in the bottom part of Playback interface can be used to control playing process.
Figure 6. 20 Interface of Playback by Log
6.1.6 Playing Back External File
Purpose:
Perform the following steps to look up and play back files in the external devices.
Steps:
1. Enter Tag Search interface.
Menu>Playback
2. Select the External File in the drop-down list on the top-left side.
The files are listed in the right-side list.
You can click the button to refresh the file list.
3. Select and click the button to play back it.
85
User Manual of DS-7600NI Series NVR
Figure 6. 21 Interface of External File Playback
86
User Manual of DS-7600NI Series NVR
6.2 Auxiliary Functions of Playback
6.2.1 Playing Back Frame by Frame
Purpose:
Play video files frame by frame, in case of checking image details of the video when abnormal events happen.
Steps:
Go to Playback interface.
If you choose playback of the record file: click button until the speed changes to Single frame and one click
on the playback screen represents playback of one frame.
If you choose adverse playback of the record file: click button until the speed changes to Single frame and
one click on the playback screen represents adverse playback of one frame. It is also feasible to use button in
toolbar.
6.2.2 Smart Search
Purpose:
In order to locate motion detection event easily and accurately in the playback progress bar, you are allowed to
analyze a certain area (scene) dynamically, and to get all of the related motion detection events that occurred in
this area.
Note: The smart search function varies according to the camera connected to the NVR.
Before you start:
1. Log in the network camera by the web browser, and enable the Dynamic Analysis for Motion by checking
the checkbox of it. You may enter the motion detection configuration interface by Configuration>
Advanced Configuration> Events> Motion Detection.
2. Enable the motion detection function and set the arming area to the full screen in the NVR local menu.
Please refer to chapter 5.3 for details.
Steps:
1. Enter the Playback interface and play a record file. Refer to Chapter 6.1.1 for the detailed information about
searching and playback of the record files.
87
User Manual of DS-7600NI Series NVR
Figure 6. 22 Interface of Playback by Time
2. Click the on the playback control toolbar to enter Smart Search mode.
3. Click and drag the mouse to draw area(s). You can click button to set the full screen as target searching
area. After drawing area(s), click button to execute smart search in this area.
Note: Multi-area and full-screen searching modes are supported.
Figure 6. 23 Draw Area of Smart Search
The results of smart search will be marked as in the progress bar.
The hidden list of record files display when moving the mouse to the right of the playback interface.
88
User Manual of DS-7600NI Series NVR
Button
Operation
Button
Operation
Button
Operation
Button
Operation
/
Audio on/
Mute
/
Start/Stop
clipping
30s forward
30s reverse
Add default
tag
Add
customized tag
Tag
management
Speed down
/
Pause reverse
play/
Reverse play/
Single-frame
reverse play
/
Pause play/
Play/
Single-frame
play
/
Scaling
up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit Stop
Digital Zoom
Smart Search
Video type
Process bar
Smart search
result
Figure 6. 24 Smart Search Result
Figure 6. 25 Toolbar of Smart Search Playback
Note: The indicates the start/end time of the record.
Table 6. 5 Detailed Explanation of Smart-search-playback Toolbar
Note: Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate
special frames.
89
User Manual of DS-7600NI Series NVR
6.2.3 Digital Zoom
Steps:
1. Click the button on the playback control bar to enter Digital Zoom interface.
2. Use the mouse to draw a red rectangle and the image within it will be enlarged up to 16 times.
Figure 6. 26 Draw Area for Digital Zoom
3. Right-click the image to exit the digital zoom interface.
6.2.4 Reverse Playback of Multi-channel
Purpose:
You can play back record files of multi-channel reversely. Up to 8-ch (with 4CIF resolution) simultaneous adverse
playback is supported; up to 4-ch (with 720P resolution) simultaneous adverse playback is supported, up to 2-ch
(with 1080P resolution) and up to 1-ch (with 5MP resolution) reverse playback is supported.
Steps:
1. Enter Playback interface.
Menu>Playback
2. Check more than one checkboxes to select multiple channels and click to select a date on the calendar.
90
User Manual of DS-7600NI Series NVR
Figure 6. 27 4-ch Synchronous Playback Interface
3. Click to play back the record files reversely.
91
User Manual of DS-7600NI Series NVR
Chapter 7 Backup
92
User Manual of DS-7600NI Series NVR
7.1 Backing up Record Files
7.1.1 Quick Export
Purpose:
Export record files to backup device(s) quickly.
Steps:
1. Enter Video Export interface.
Menu>Export>Normal
Choose the channel(s) you want to back up and click Quick Export button.
Note:
1) The time duration of record files on a specified channel cannot exceed one day. Otherwise, the
message box “Max. 24 hours are allowed for quick export.” will pop up.
2) The number of channels for synchronous export cannot exceed 4. Otherwise, the message box “Max. 4
channels are allowed for synchronous quick export.” will pop up.
Figure 7. 1 Quick Export Interface
2. Click the Export button to start exporting.
Note: Here we use USB Flash Drive and please refer to the next section Normal Backup for more backup
devices supported by the device.
Figure 7. 2 Quick Export using USB1-1
93
User Manual of DS-7600NI Series NVR
Stay in the Exporting interface until all record files are exported.
Figure 7. 3 Export Finished
3. Check backup result.
Choose the record file in Export interface and click button to check it.
Note: The Player player.exe will be exported automatically during record file export.
Figure 7. 4 Checkup of Quick Export Result Using USB1-1
7.1.2 Backing up by Normal Video Search
Purpose:
The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs, USB
writer), and SATA writer.
Backup using USB flash drives and USB HDDs
Steps:
1. Enter Export interface.
Menu>Export>Normal
2. Set search condition and click Search button to enter the search result interface.
94
User Manual of DS-7600NI Series NVR
Figure 7. 5 Normal Video Search for Backup
3. Select record files you want to back up.
Click to play the record file if you want to check it.
Check the checkbox before the record files you want to back up.
Note: The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7. 6 Result of Normal Video Search for Backup
4. Export.
Click Export button and start backup.
Note: If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.
95
User Manual of DS-7600NI Series NVR
Figure 7. 7 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box “Export
finished”.
Figure 7. 8 Export Finished
5. Check backup result.
Choose the record file in Export interface and click button to check it.
Note: The Player player.exe will be exported automatically during record file export.
Figure 7. 9 Checkup of Export Result using USB Flash Drive
96
User Manual of DS-7600NI Series NVR
Backup using USB writer and SATA writer
Steps:
1. Enter Export interface.
Menu>Export>Normal
2. Set search condition and click Search button to enter the search result interface.
Figure 7. 10 Normal Video Search for Backup
3. Select record files you want to back up.
Click button to play the record file if you want to check it.
Check the checkbox before the record files you want to back up.
Note: The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7. 11 Result of Normal Video Search for Backup
4. Export.
Click Export button and start backup.
Note: If the inserted USB writer or SATA writer is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
97
User Manual of DS-7600NI Series NVR
Figure 7. 12 Export by Normal Video Search using USB Writer
Stay in the Exporting interface until all record files are exported with pop-up message box “Export
finished”.
Figure 7. 13 Export Finished
5. Check backup result.
Choose the record file in Export interface and click button to check it.
Note:The Player player.exe will be exported automatically during record file export.
Figure 7. 14 Checkup of Export Result using USB Writer
98
User Manual of DS-7600NI Series NVR
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), or SATA
writer. Quick Backup and Normal Backup are supported.
Steps:
1. Enter Export interface.
Menu>Export>Event
1) Select “Alarm Input” from the dropdown list of Event Type.
Note: Event types contain Alarm Input and Motion, here we take the backing up by alarm input as an
example.
2) Select the alarm input No. and time.
Figure 7. 15 Event Search for Backup
2. Click Search button to enter the Search Result interface.
Figure 7. 16 Result of Event Search
3. Select record files to export.
1) Clicking Quick Export button will export record files of all channels triggered by the selected alarm
input.
2) Clicking Details button will take you to the interface with detailed information of all channels
triggered by the selected alarm input.
99
User Manual of DS-7600NI Series NVR
Figure 7. 17 Event Details Interface
4. Export.
Click the Export button and start back up.
Note: If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drive or USB HDDs via the device.
Figure 7. 18 Export by Event Using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.
100
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
